KLG Architects completes heritage center with undulating roof that acts as a small shelter

South Africa Architecture News - Jan 17, 2020 - 15:38   11283 views

KLG Architects completes heritage center with undulating roof that acts as a small shelter

Cape Town-based architecture practice KLG Architects has built a rounded heritage center on a desert of Yzerfontein, South Africa

Named !KHWA TTU San Heritage Centre, the 265-square-metre building has been designed as a low-rise structure that is adapted to a desert context where it is suited in.

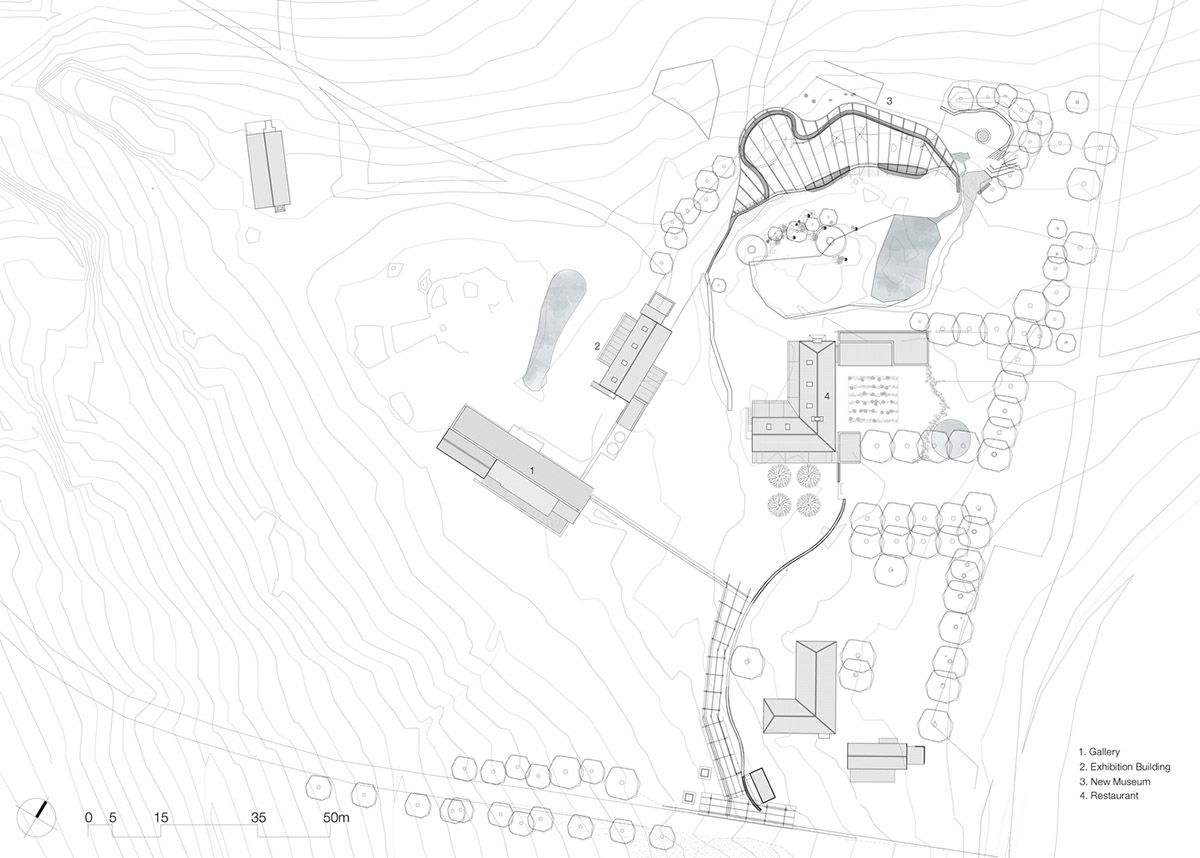

The museum is the last phase of the rural !Khwa ttu precinct dedicated to the San culture and heritage. It displays the San ‘way of life’, not like a traditional Museum, but with the building conceived as an organic landscape with an emphasis on sustainable and ethical design.

KLG Architects completes heritage center with undulating roof that acts as a small shelter

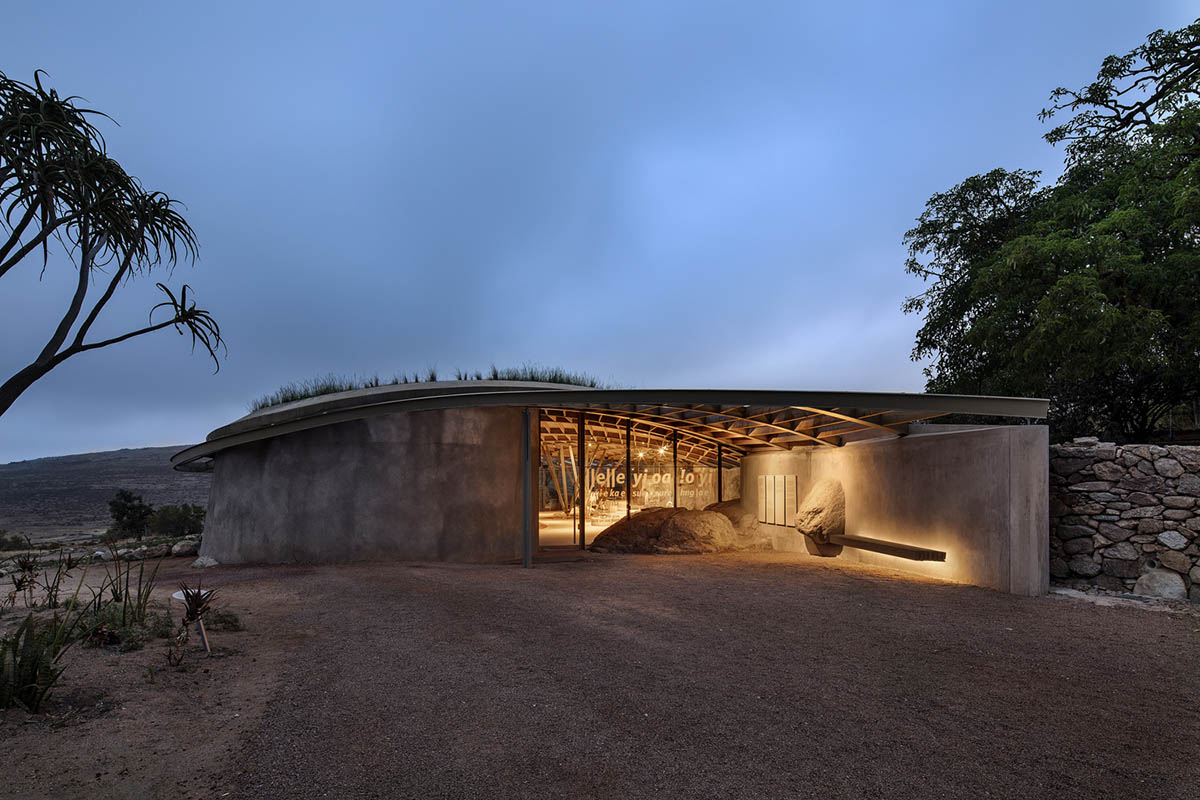

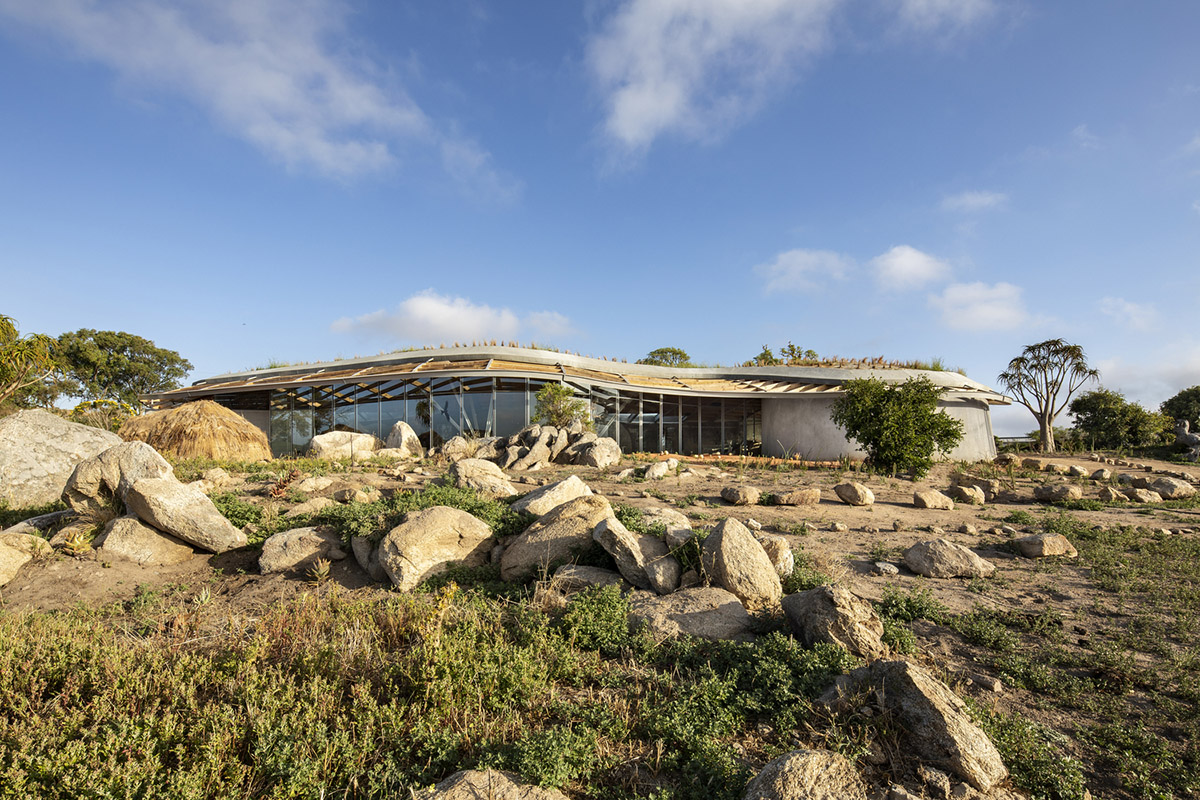

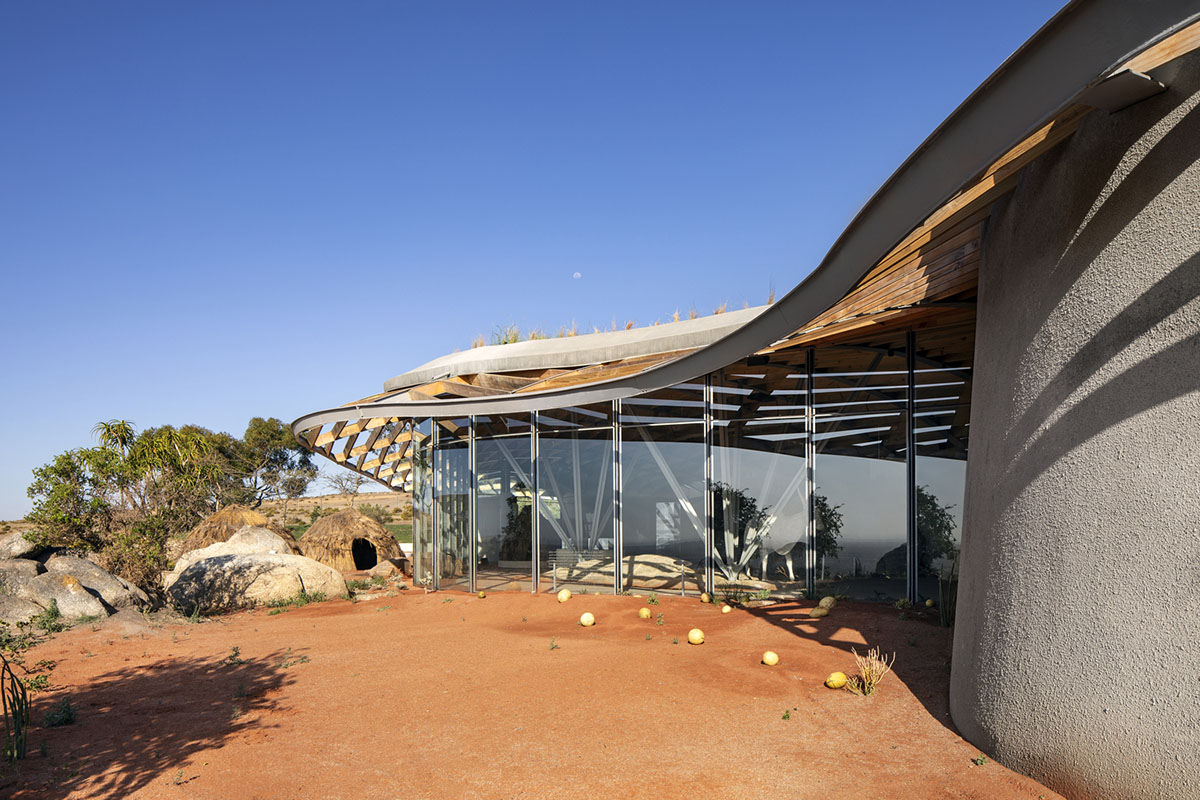

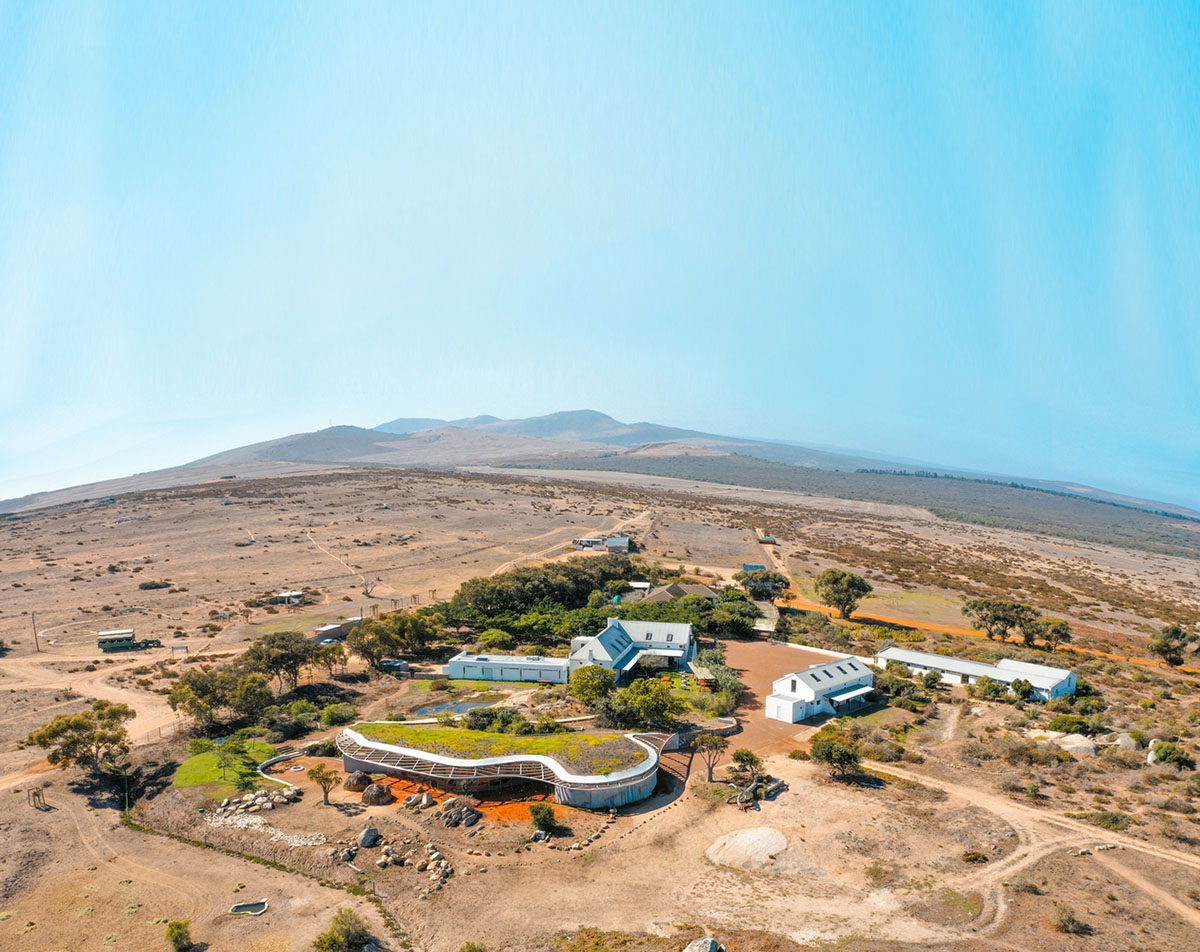

The undulating structure is embedded within the landscape along a granite ridge overlooking vistas towards the Atlantic Ocean, close to Yzerfontein on the West Coast.

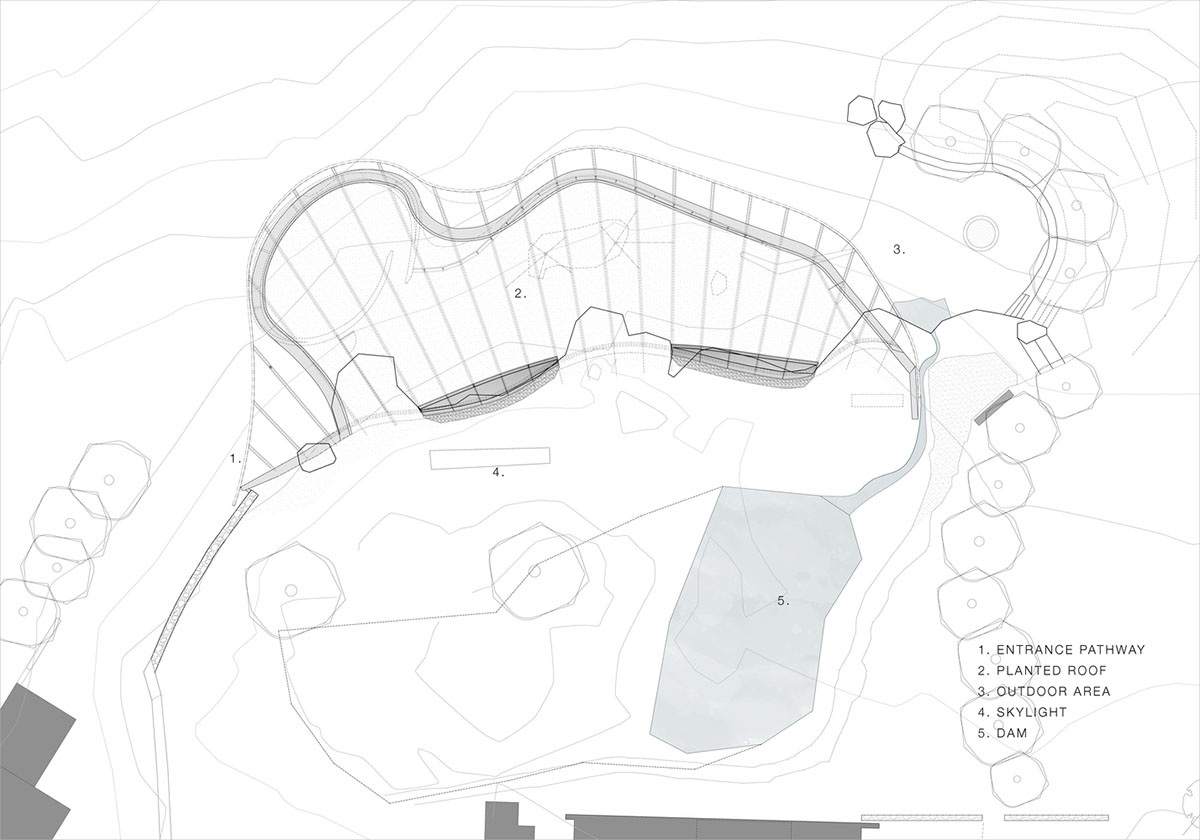

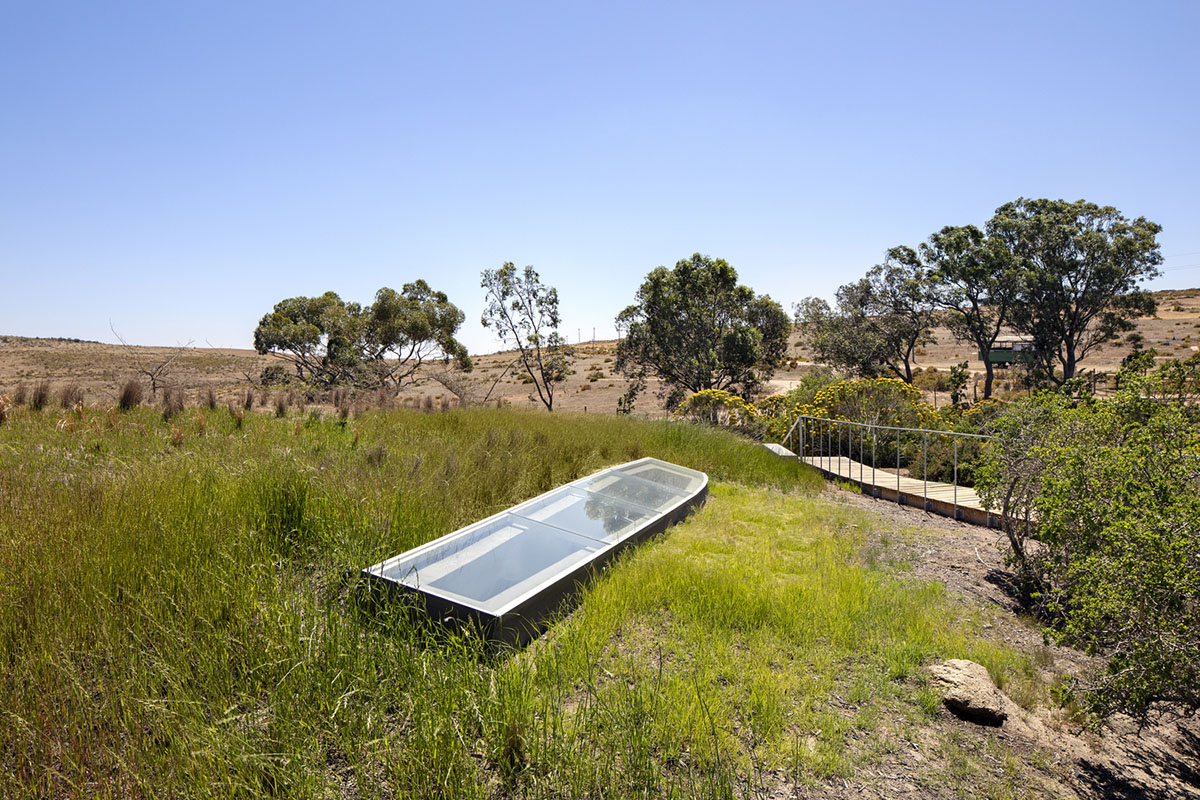

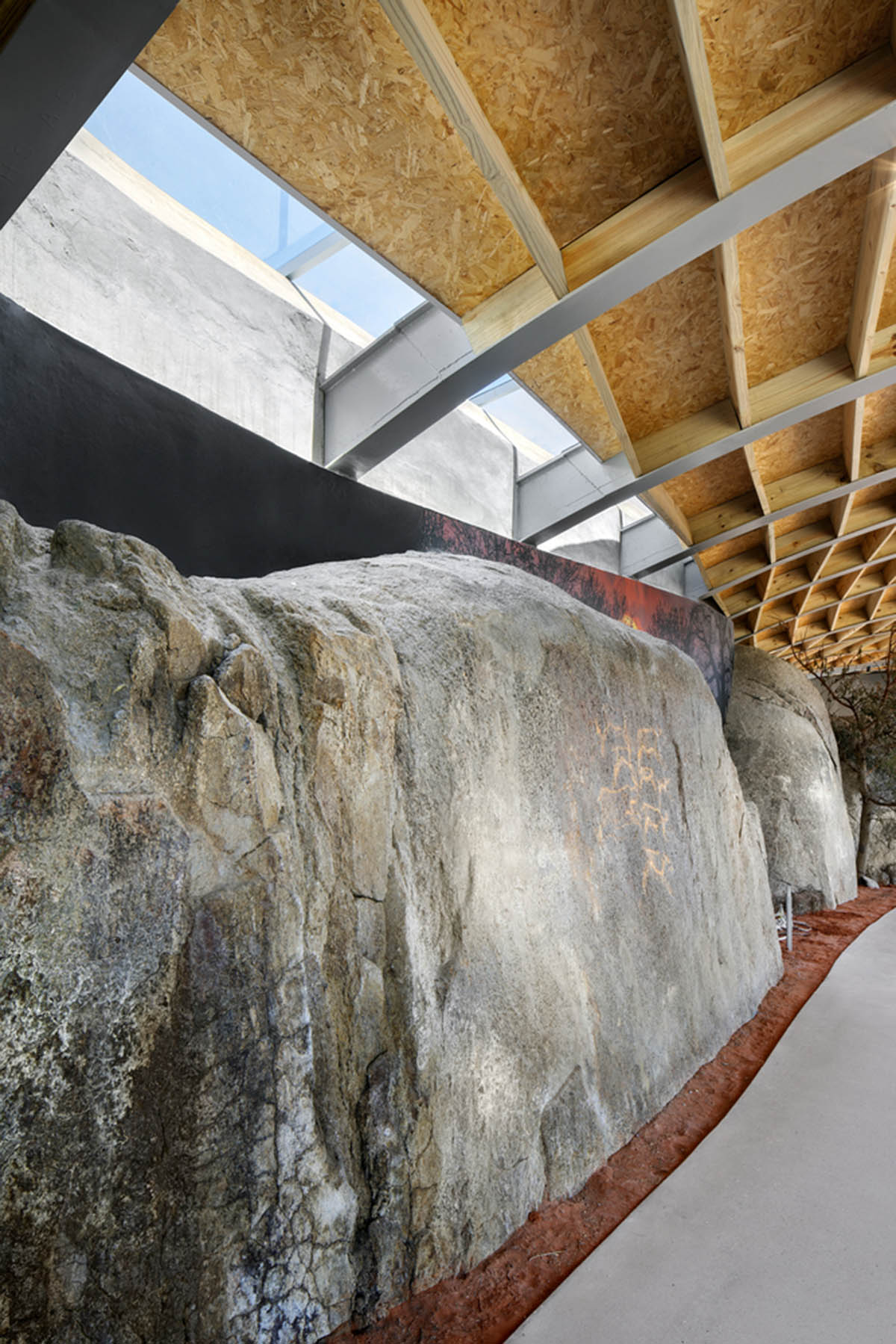

The architects used an indigenous planted concrete roof which sinuously integrates the building into the setting. Internally, the exposed granite rocks become an integral part of an exhibition wall.

KLG Architects completes heritage center with undulating roof that acts as a small shelter

The studio chose concrete as material due to its versatility, structural plasticity and austere aesthetic qualities. These qualities are displayed in the undulations and curves of the roof, which required a very specific consistency and firmness of material.

The roof parapets are carefully moulded to specific curvatures which support the growing medium on top of multi-layered drainage insulation boards.

KLG Architects completes heritage center with undulating roof that acts as a small shelter

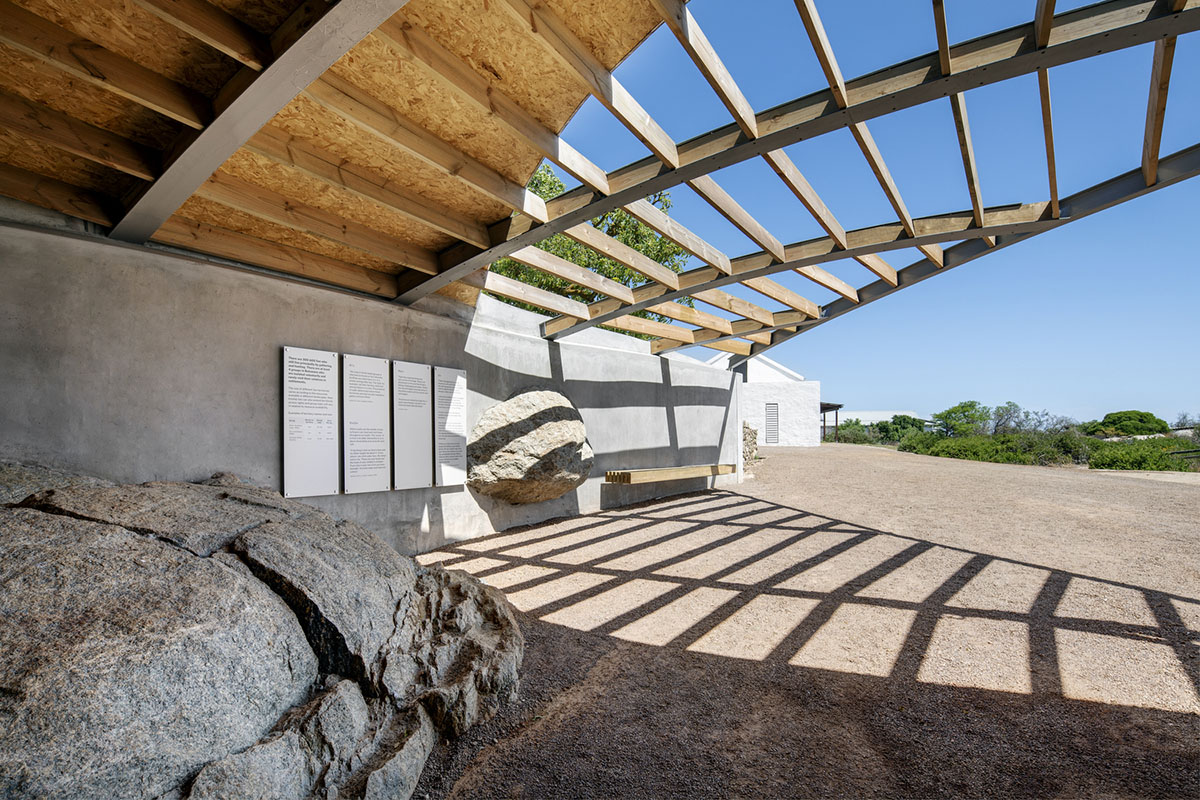

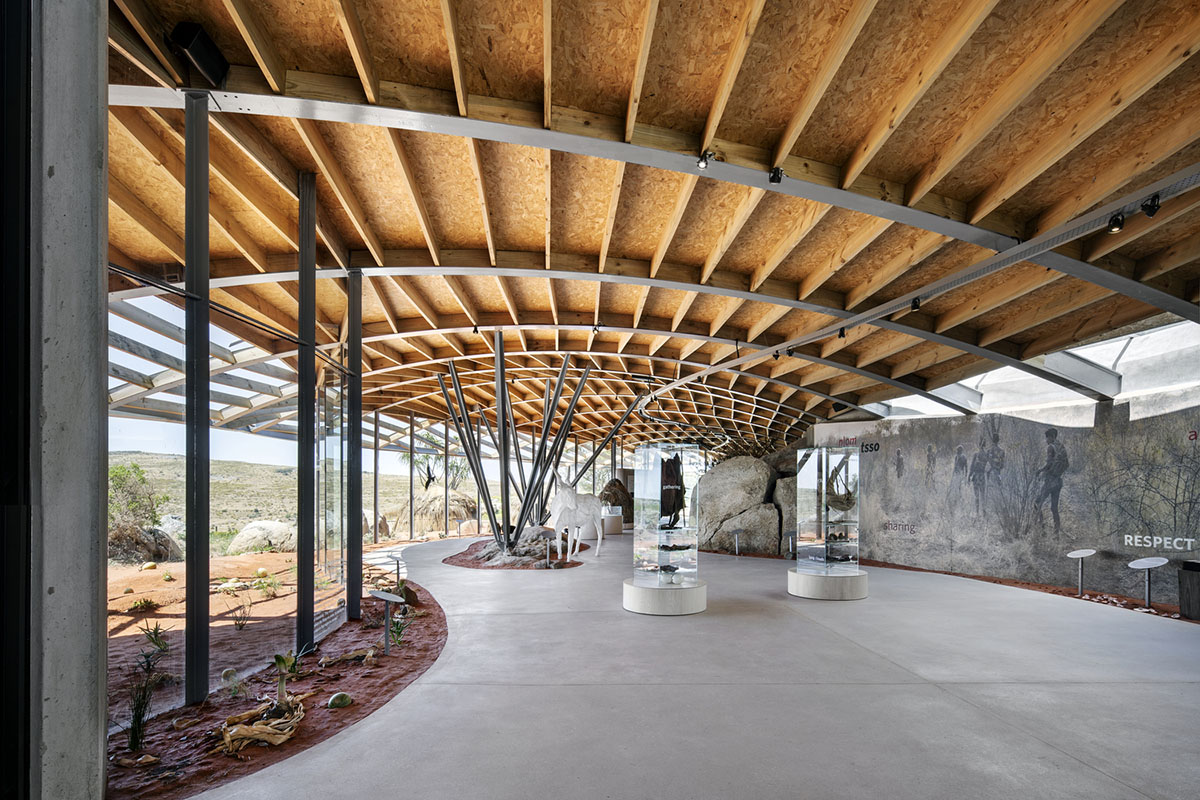

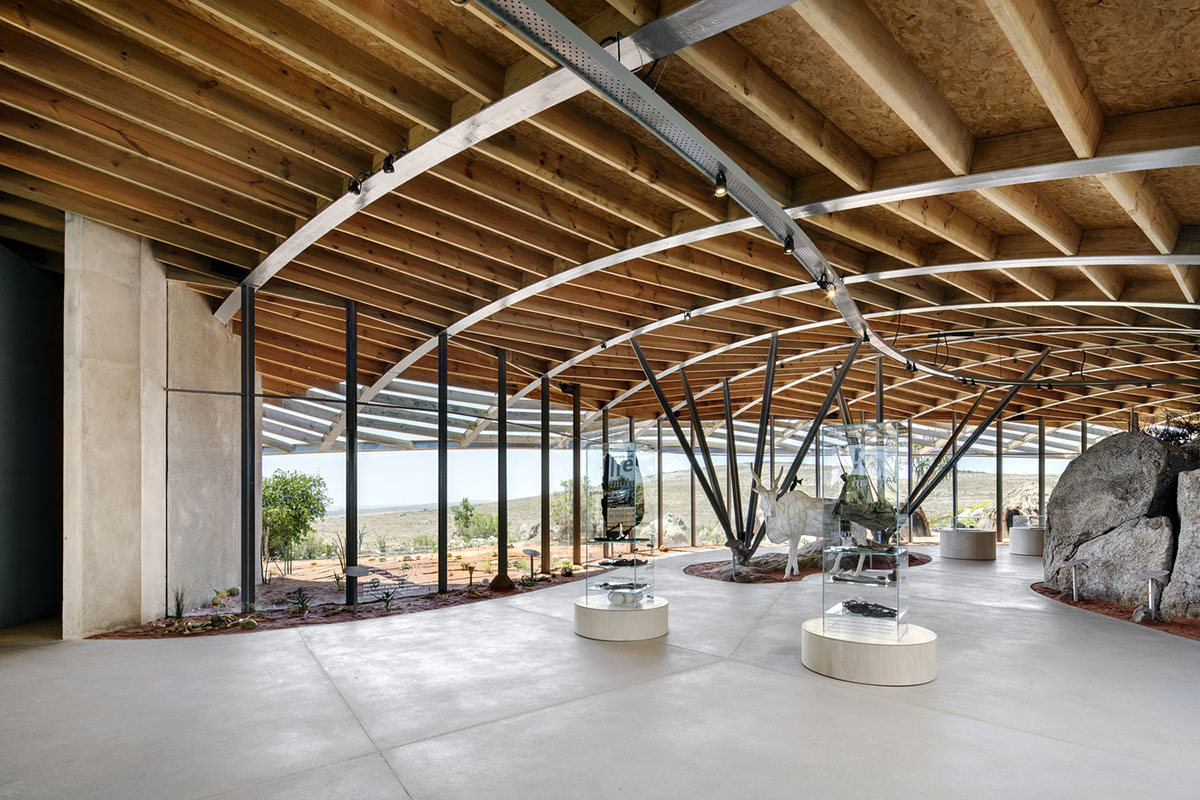

Concrete spans between steel beams, but also works in composite action with the steel, allowing considerable savings in cost and material. On the floor a special concrete mix was used to emulate the colours of the Kalahari San environment.

The uniquely cast floor is shaped around the natural site features and celebrates rocky outcrops within the floor. This method of building displays a sensitivity and respect towards the context.

KLG Architects completes heritage center with undulating roof that acts as a small shelter

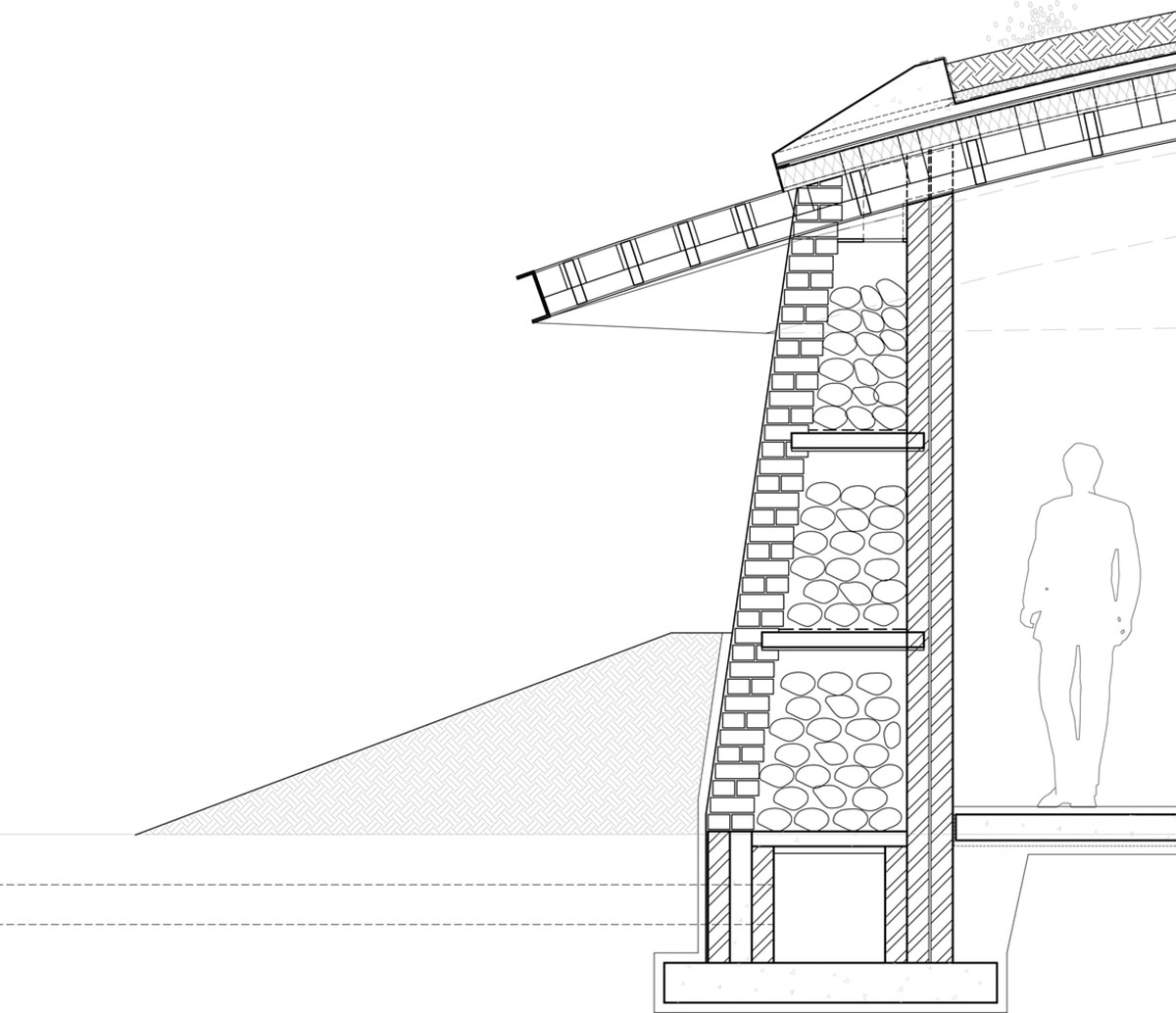

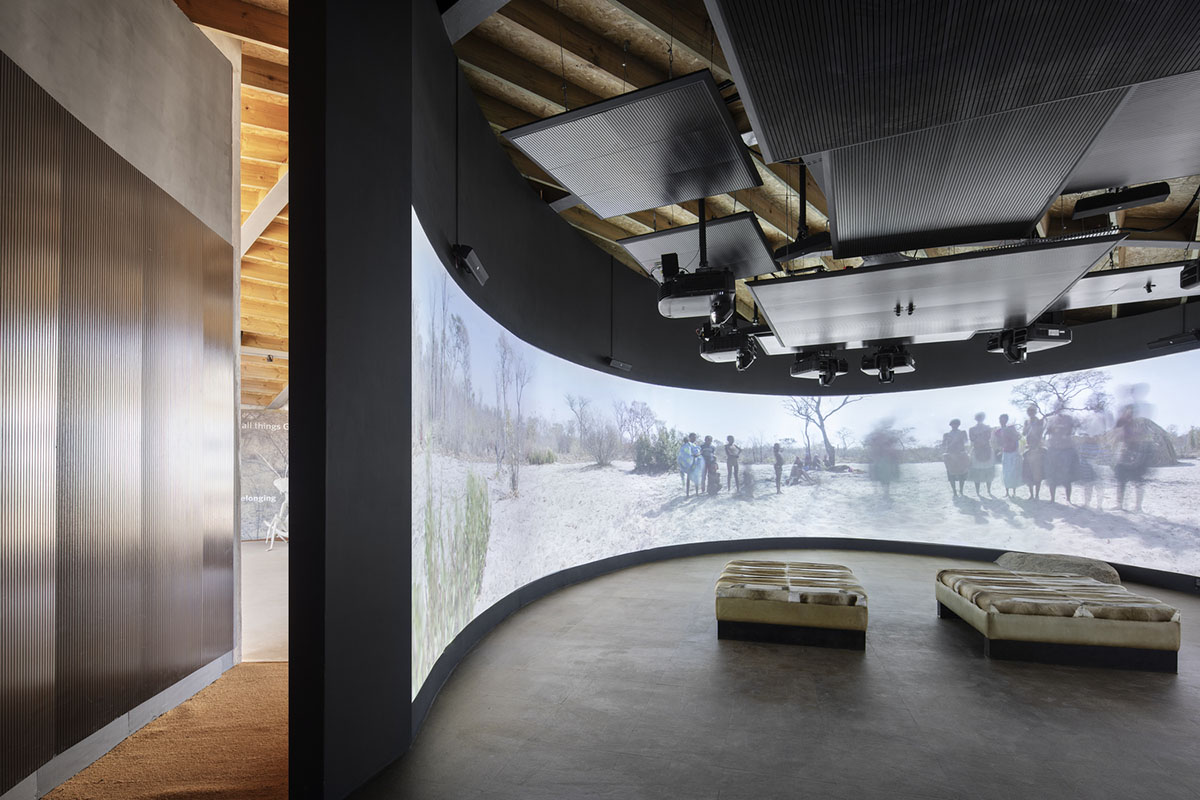

Provision is made for a hydronic underfloor heating system on top of a rigid insulation layer which forms part of an ‘active’ thermal mass design strategy for heat radiation during cooler winter months. The Media Centre is shaped as a non-symmetrical eclipse and has a rock store built within the tapering mass of its walls. Air is funnelled through the walls to cool it down and then discharged into the space at roof level.

KLG Architects completes heritage center with undulating roof that acts as a small shelter

"These sustainable approaches allow for a climatically stabilised internal environment while also reducing the need for conventional heating and cooling services," said the architects.

"The structure consciously demonstrates a balance between context, material and design methodology through a combination of environmental strategies with contemporary technologies."

KLG Architects completes heritage center with undulating roof that acts as a small shelter

KLG Architects completes heritage center with undulating roof that acts as a small shelter

KLG Architects completes heritage center with undulating roof that acts as a small shelter

KLG Architects completes heritage center with undulating roof that acts as a small shelter

KLG Architects completes heritage center with undulating roof that acts as a small shelter

KLG Architects completes heritage center with undulating roof that acts as a small shelter

KLG Architects completes heritage center with undulating roof that acts as a small shelter

KLG Architects completes heritage center with undulating roof that acts as a small shelter

KLG Architects completes heritage center with undulating roof that acts as a small shelter

KLG Architects completes heritage center with undulating roof that acts as a small shelter

KLG Architects completes heritage center with undulating roof that acts as a small shelter

KLG Architects completes heritage center with undulating roof that acts as a small shelter

KLG Architects completes heritage center with undulating roof that acts as a small shelter

KLG Architects completes heritage center with undulating roof that acts as a small shelter

KLG Architects completes heritage center with undulating roof that acts as a small shelter

KLG Architects completes heritage center with undulating roof that acts as a small shelter

KLG Architects completes heritage center with undulating roof that acts as a small shelter

KLG Architects completes heritage center with undulating roof that acts as a small shelter

All images © Adam Letch

All drawings © KLG Architects
