Gisele Borges Arquitetura built earthy reddish residential block on a narrow plot in Brazil

Brazil Architecture News - Jul 29, 2022 - 14:22   801 views

Gisele Borges Arquitetura built earthy reddish residential block on a narrow plot in Brazil

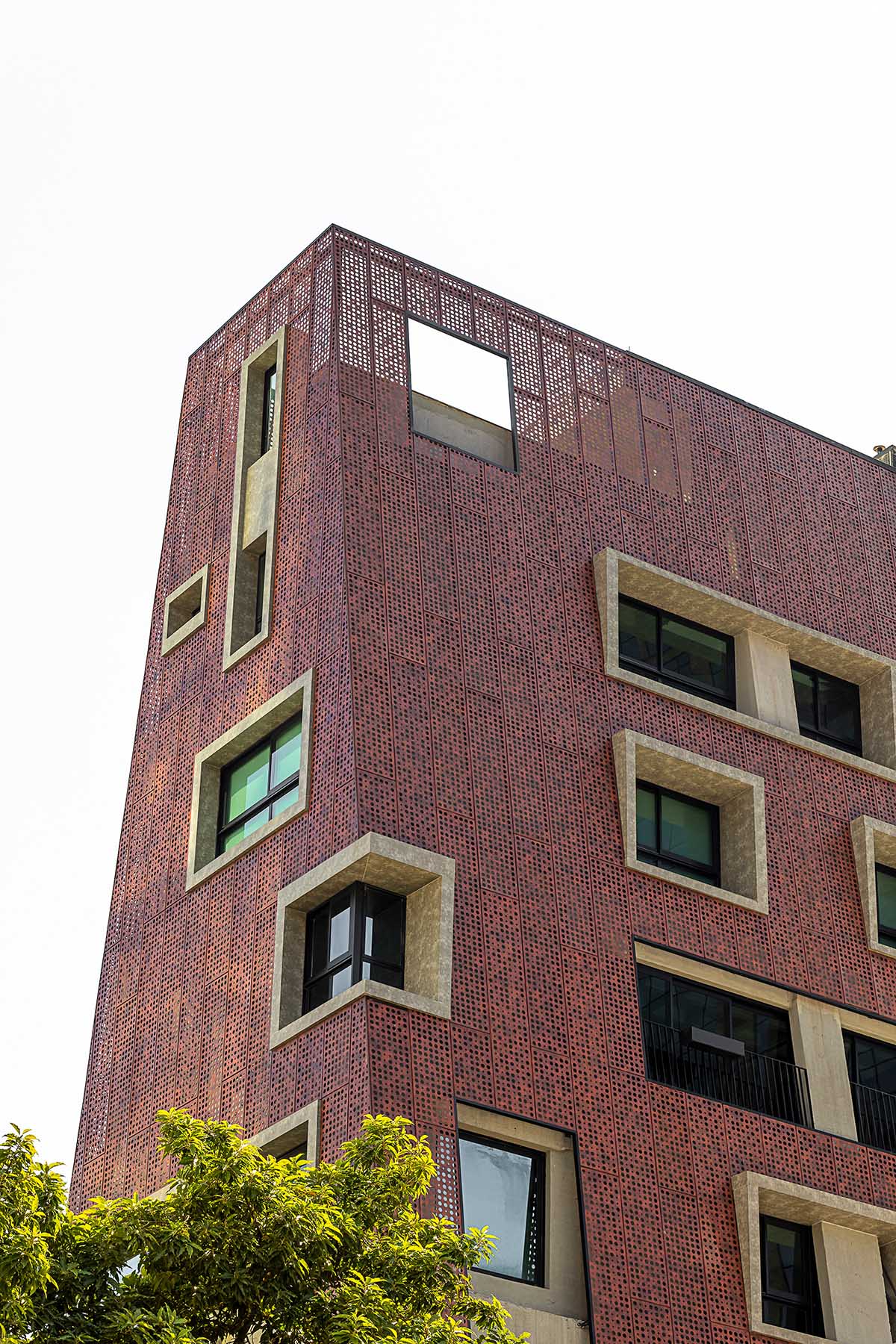

Brazilian architecture practice Gisele Borges Arquitetura has built a residential block wrapped by aluminum painted in an earthy reddish sepia tone that alludes to the abundance in Minas Gerais of raw ore.

Named CASAMIRADOR Savassi, the triangular residential block is located in Belo Horizonte, Minas Gerais, Brazil, and features boldly designed architecture that stands out in the local landscape.

Offering 14 lofts and 24 studios, and the units are spread over nine floors in a construction located on a narrow lot, with a width of 12.7 meters.

Gisele Borges Arquitetura built earthy reddish residential block on a narrow plot in Brazil

As the studio explained, the challenge of its volumetric mathematics was derived from respecting distances within its surrounding neighbors, which resulted in architecture created with its own identity.

The interdependence between the building’s structure and the architectural project enabled great creative freedom, culminating in the most prominent element: a second skin that "wears" the building like a garment, giving it unique characteristics.

Gisele Borges Arquitetura built earthy reddish residential block on a narrow plot in Brazil

Image © Juliana Berzoini

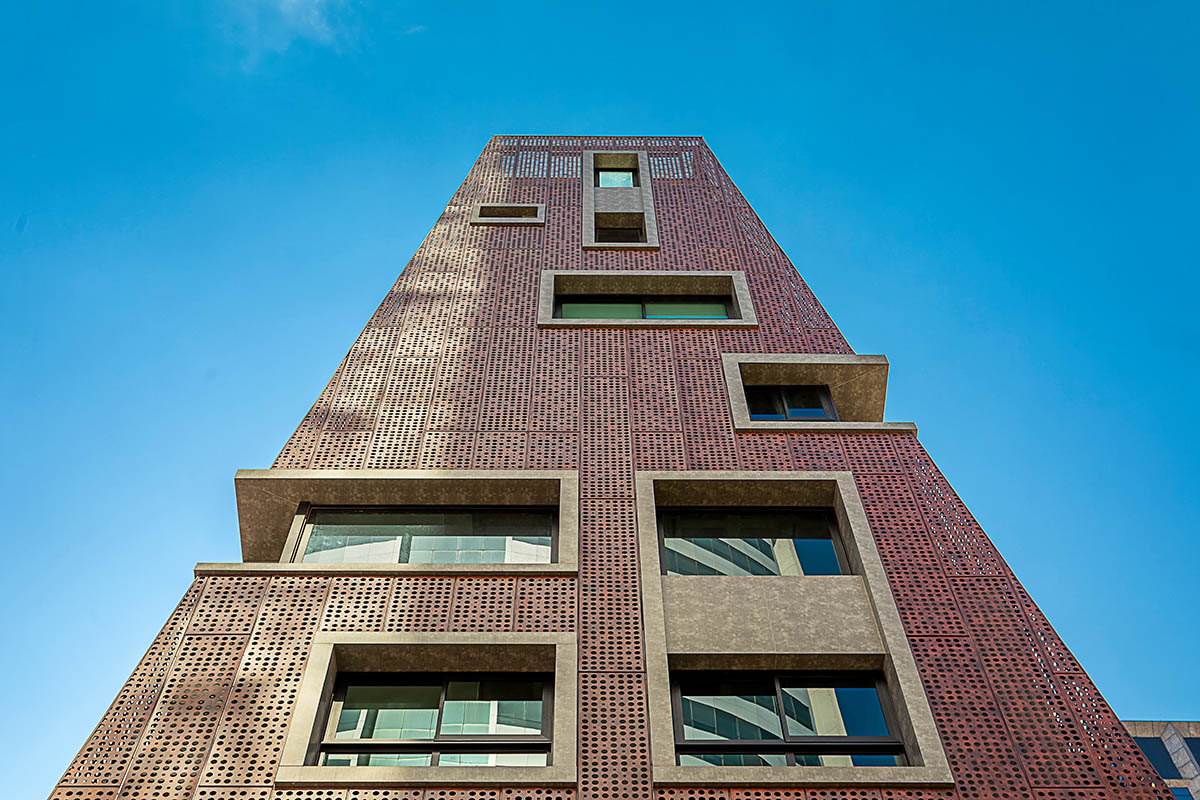

Aluminum was the main material that wraps the whole building, while it was painted in an earthy reddish sepia tone that alludes to the abundance in Minas Gerais of raw ore.

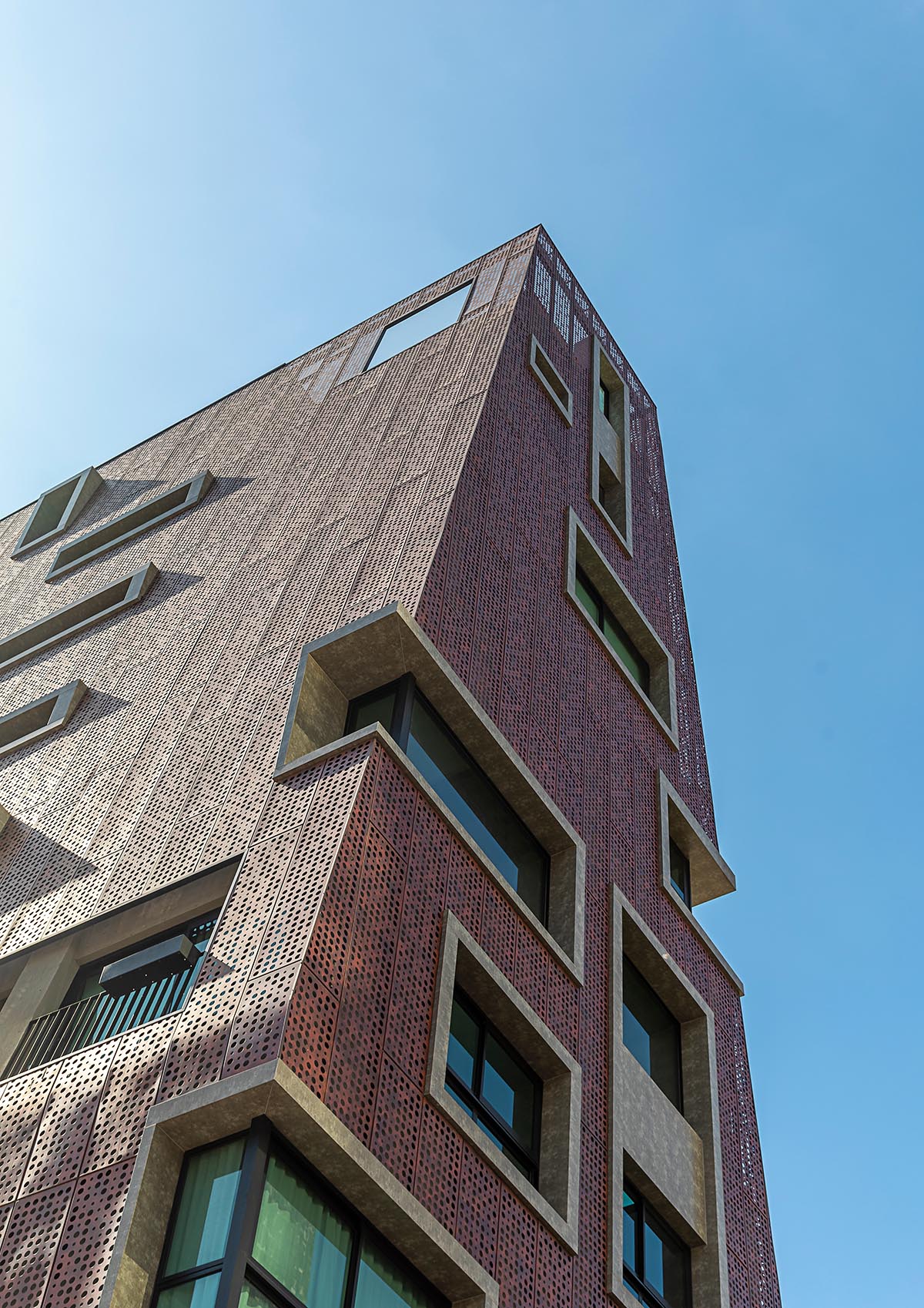

In order to obtain lightness and transparency, the aluminum sheets received perforations in different sizes, and were made in an asymmetrical, yet harmonic way. That process makes it possible to see through them from the inside out, where city views are exposed through the skin.

Gisele Borges Arquitetura built earthy reddish residential block on a narrow plot in Brazil

Image © Juliana Berzoini

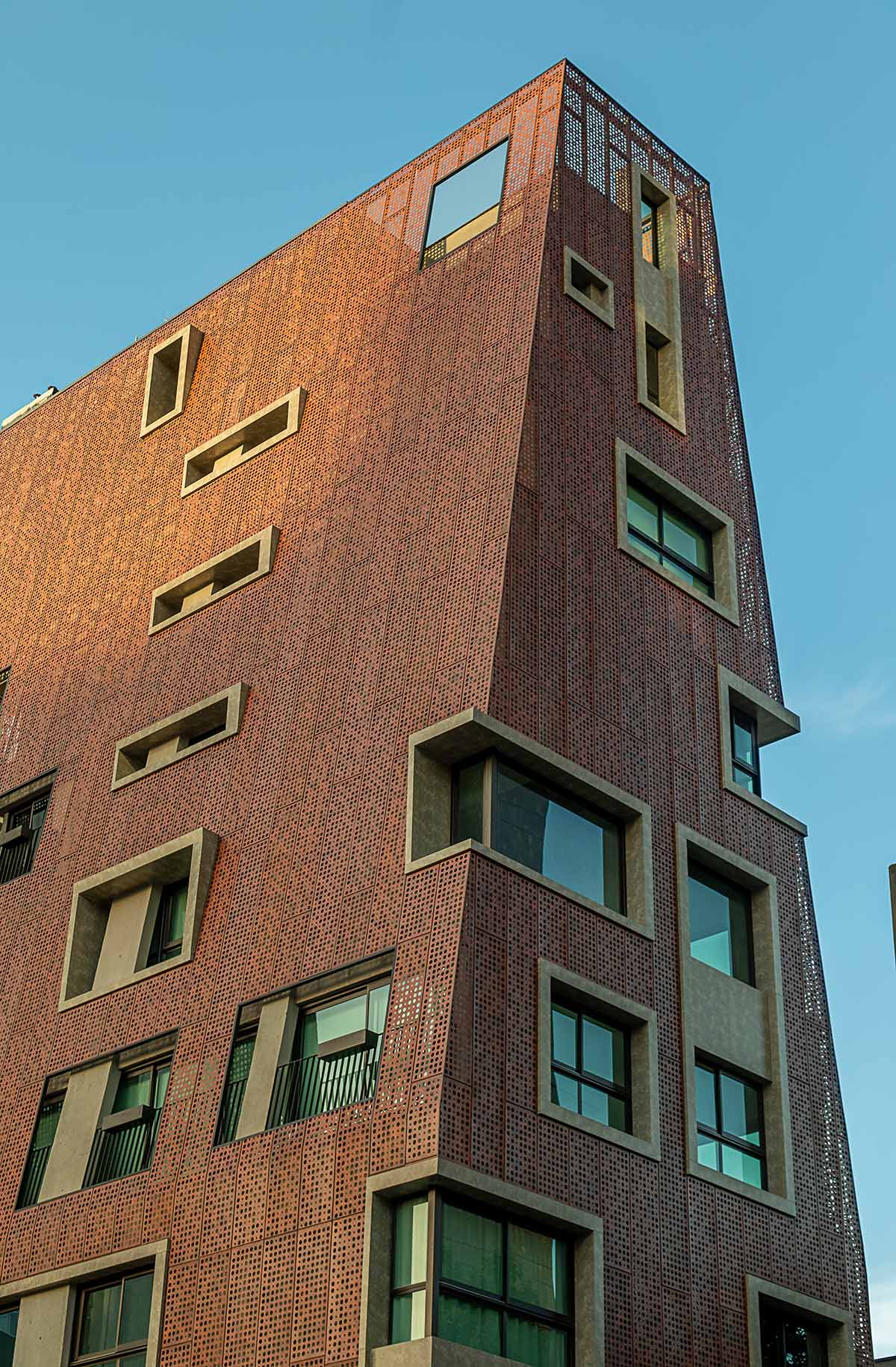

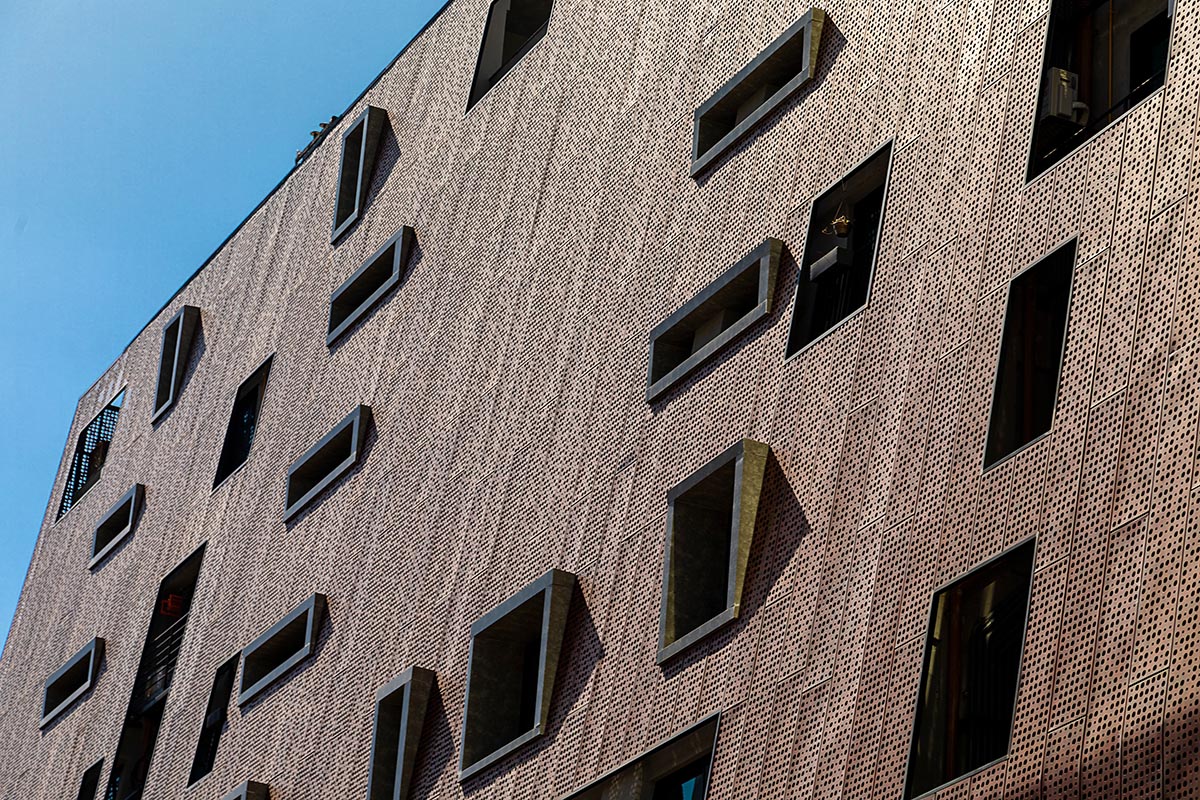

However, from the outside looking in, it isn't possible to see the interior, guaranteeing privacy to the resident. This element also made it possible to explore a rich range of effects, from hiding smaller, functional windows, to tearing the skin to expose the large spans. Conceived as generous openings, these windows allow the city to become an extension of the house, with abundant light and ventilation. The concrete frames of the openings contrast with the predominant oxidized color.

The skin covering the building also provides thermal comfort to the units. Away from the masonry, it provides shading of the fences and good ventilation through a mattress of renewable air.

Gisele Borges Arquitetura built earthy reddish residential block on a narrow plot in Brazil

From that perspective, sustainability guided a large part of the project’s choices. Due to the reduced dimensions of the land, and minimal rooftop space for installing equipment or photovoltaic panels, it was necessary to find a solution that would avoid the entry of heat, to the detriment of an air conditioning project.

The building’s pyramidal shape, which is the result of staggering, also made it possible to allocate technical areas on the external face of the masonry, as well as on the internal face of the skin, ensuring a clean and unadorned plastic.

Gisele Borges Arquitetura built earthy reddish residential block on a narrow plot in Brazil

Another highlight of the project concerns the challenge of placing the pyramid on the ground, touching the land lightly at a single point. Under the influence of Brazilian architect, Oscar Niemeyer, a "V"-shaped pillar was created, which is widely used in his works.

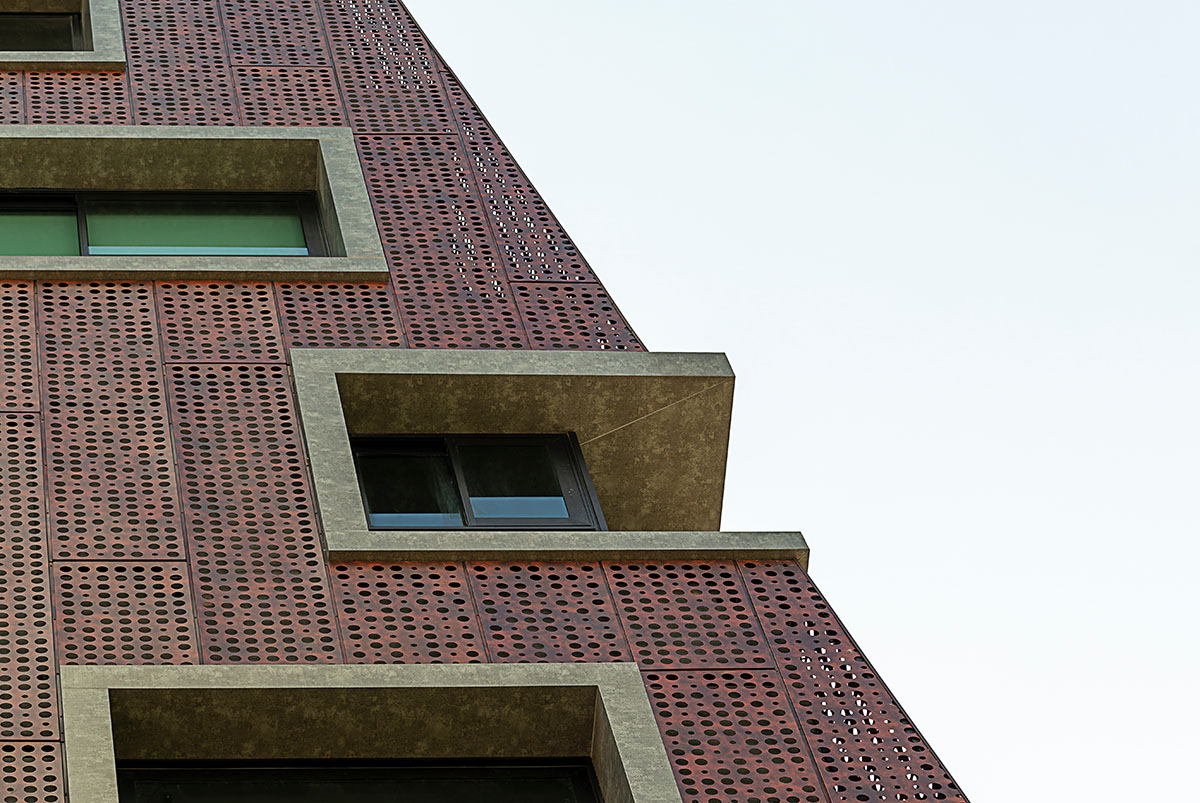

Finally, to ensure flatness on the facades, the sheets were bent on all four sides, thus increasing their rigidity. Although the sheets were randomly perforated, the joints were aligned and the volume was harmonious, several studies were carried out until the final fixing model produced an alignment of the slabs and the midpoint of each floor.

Gisele Borges Arquitetura built earthy reddish residential block on a narrow plot in Brazil

The study ensured optimization in the secondary structure for fixing the plates: there are only three horizontal profiles per floor, and the upper and lower profiles were also combined to fix the plates of the adjacent floors.

The final plastic is the result of a marriage between covering sheets, frames, and structure. There are three elements that alternate on the facades with greater or lesser relevance of the skin, ensuring a clean and unadorned plastic.

Gisele Borges Arquitetura built earthy reddish residential block on a narrow plot in Brazil

Gisele Borges Arquitetura built earthy reddish residential block on a narrow plot in Brazil

Gisele Borges Arquitetura built earthy reddish residential block on a narrow plot in Brazil

Gisele Borges Arquitetura built earthy reddish residential block on a narrow plot in Brazil

Gisele Borges Arquitetura built earthy reddish residential block on a narrow plot in Brazil

Gisele Borges Arquitetura built earthy reddish residential block on a narrow plot in Brazil

Gisele Borges Arquitetura built earthy reddish residential block on a narrow plot in Brazil

Gisele Borges Arquitetura built earthy reddish residential block on a narrow plot in Brazil

Gisele Borges Arquitetura built earthy reddish residential block on a narrow plot in Brazil

Garage floor plan

Gisele Borges Arquitetura built earthy reddish residential block on a narrow plot in Brazil

Gisele Borges Arquitetura built earthy reddish residential block on a narrow plot in Brazil

Section

Gisele Borges Arquitetura built earthy reddish residential block on a narrow plot in Brazil

Section

Gisele Borges Arquitetura built earthy reddish residential block on a narrow plot in Brazil

Front façade

Gisele Borges Arquitetura built earthy reddish residential block on a narrow plot in Brazil

Axonometric drawing

Project facts

Official project name: Casamirador Savassi

Location: Belo Horizonte, Brasil

Client: Casamirador Incorporações

Architect/design: Gisele Borges

Project Manager: Ulisses Mikhail Itokawa

Collaborators: Helena Hostalácio, Iara Pimenta, Mariana Correa, Manuela Fratezzi, Luiza Menicucci, Gabriela Jacobina e Victor Lamounier.

Project Team: Acoustics: Opus,

HVAC: Protherm,

Structure: Bedê Consultoria e Projetos

Glazing and metal facade: Aludesign Contencions: Geomec Engenheiros Consultores, Installations: Projelet Projetos e Sistemas Prediais Ltda

Construction completion date: 2021

Top image © Juliana Berzoini.

All images © Pablo Gomide unless otherwise stated.

All drawings © Casamirador Savassi.
