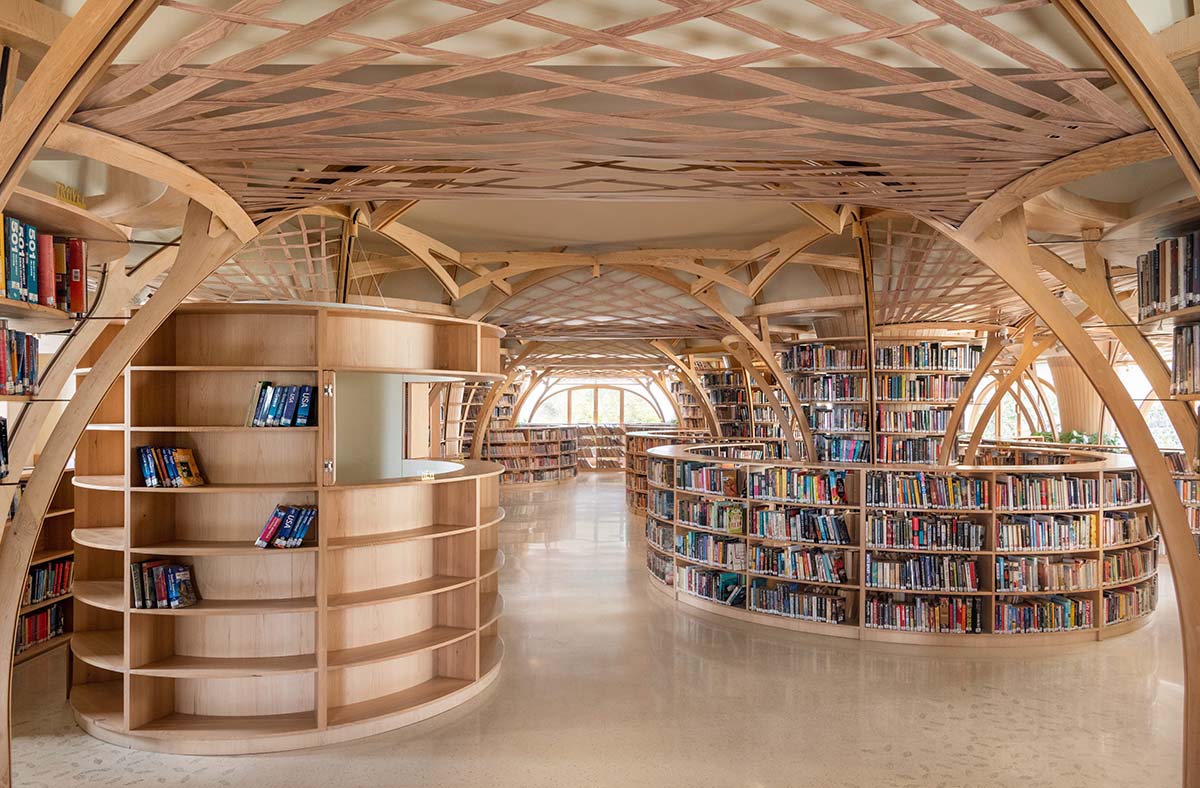

studio Hinge embeds a library under the wooden tree-like canopies in Mumbai

Mumbai-based architecture and interior design firm studio Hinge has designed a library hidden under a series of wooden tree-like canopies in Mumbai, India.

Named Forest of Knowledge, the 420-square-metre space was completed for the exclusive members-only Cricket Club of India, Mumbai, a gathering place for Bombay's former colonial elite. Its main pavilion, a subdued Art Deco structure from 1938, has a view of a historic cricket stadium.

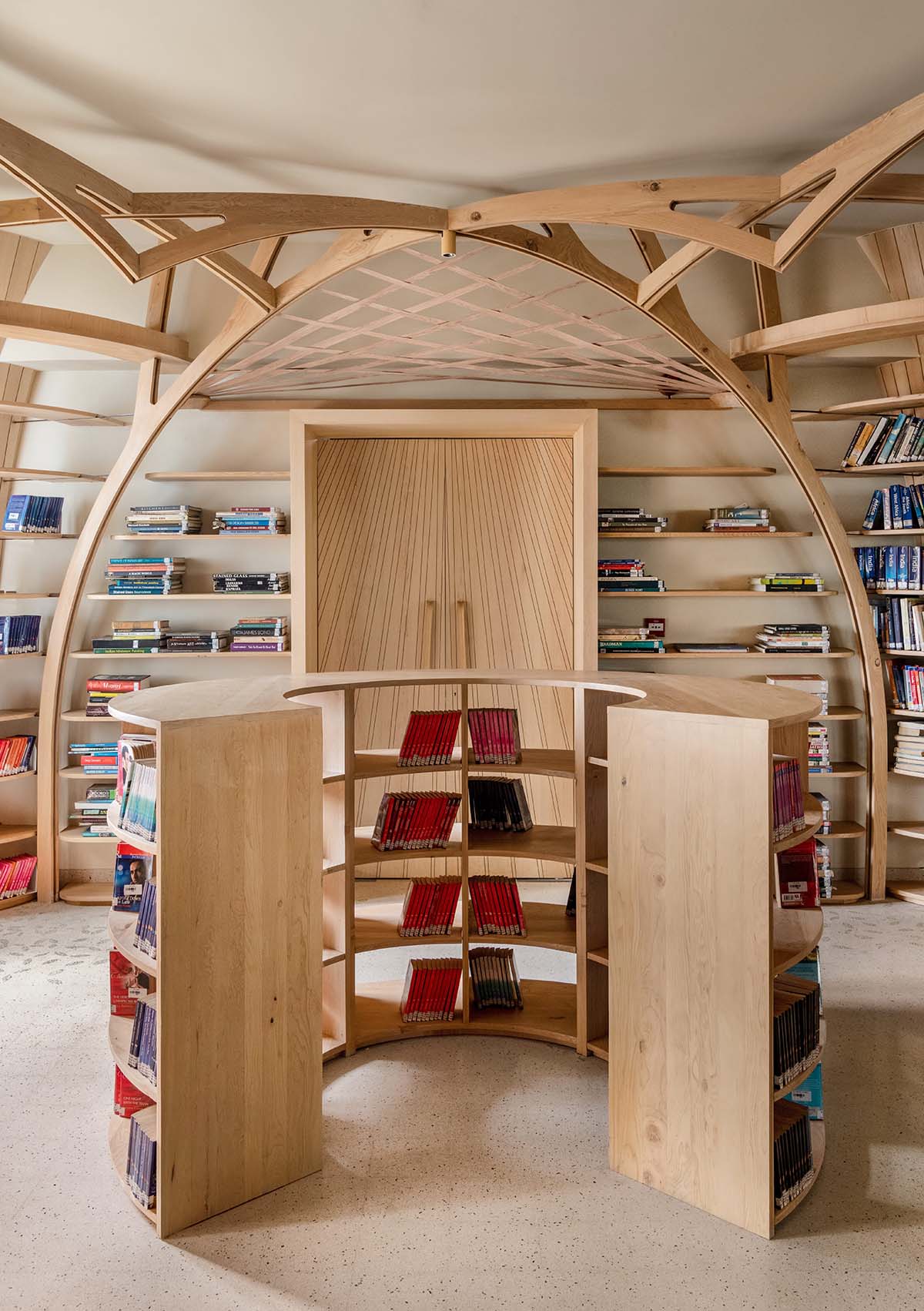

studio Hinge embeds a library under the wooden tree-like canopies in Mumbai

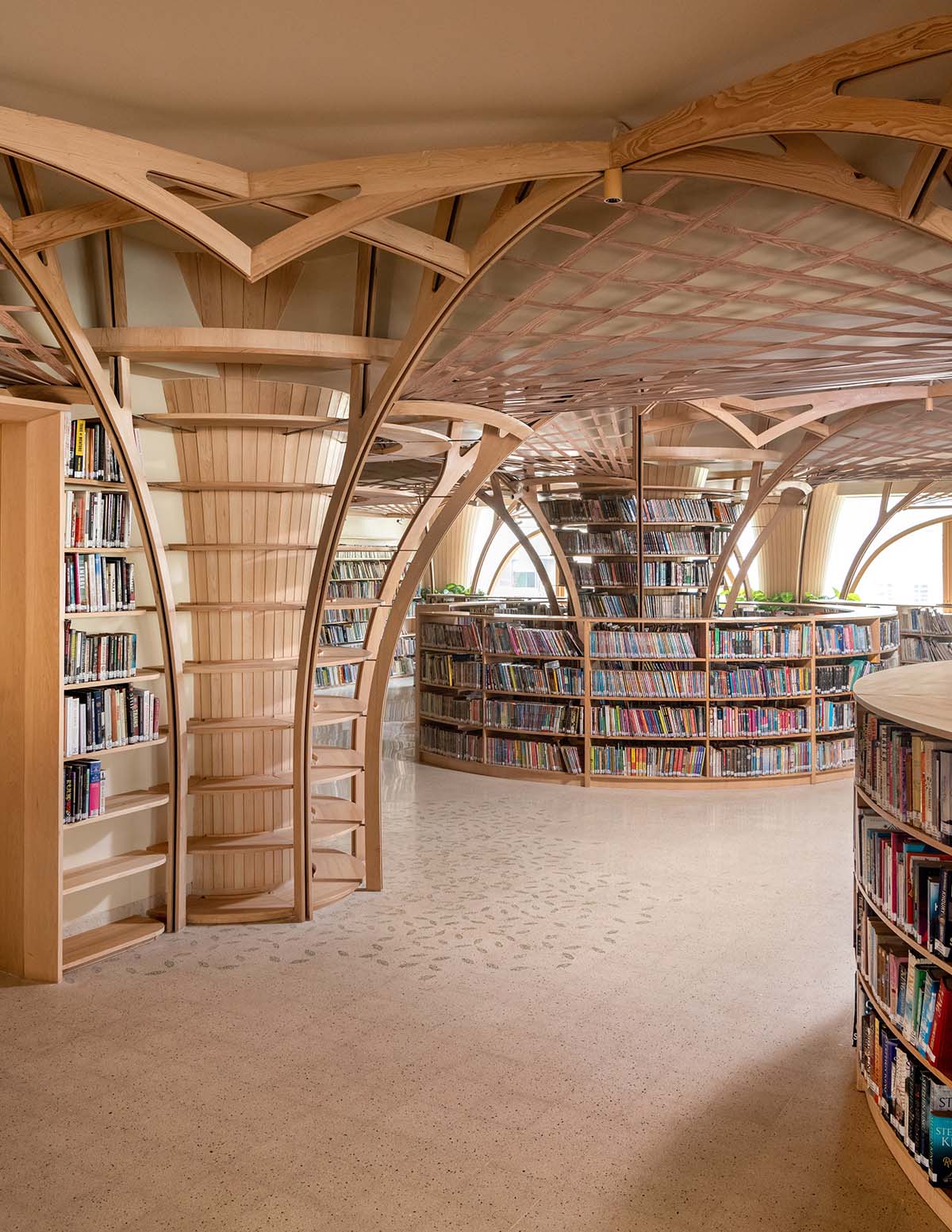

Entry into the browsing hedge

Designed during the Covid lockdown and made available to members in January 2023, the library is envisioned as a house of knowledge that invites people to gather and share knowledge, going beyond just books.

A research on what a library can be in these digital times has influenced the design. The design is inspired by nature, specifically the idea of reading a book while sitting beneath a tree, as well as by the lovely tree canopy that spans the nearby street, according to studio Hinge.

studio Hinge embeds a library under the wooden tree-like canopies in Mumbai

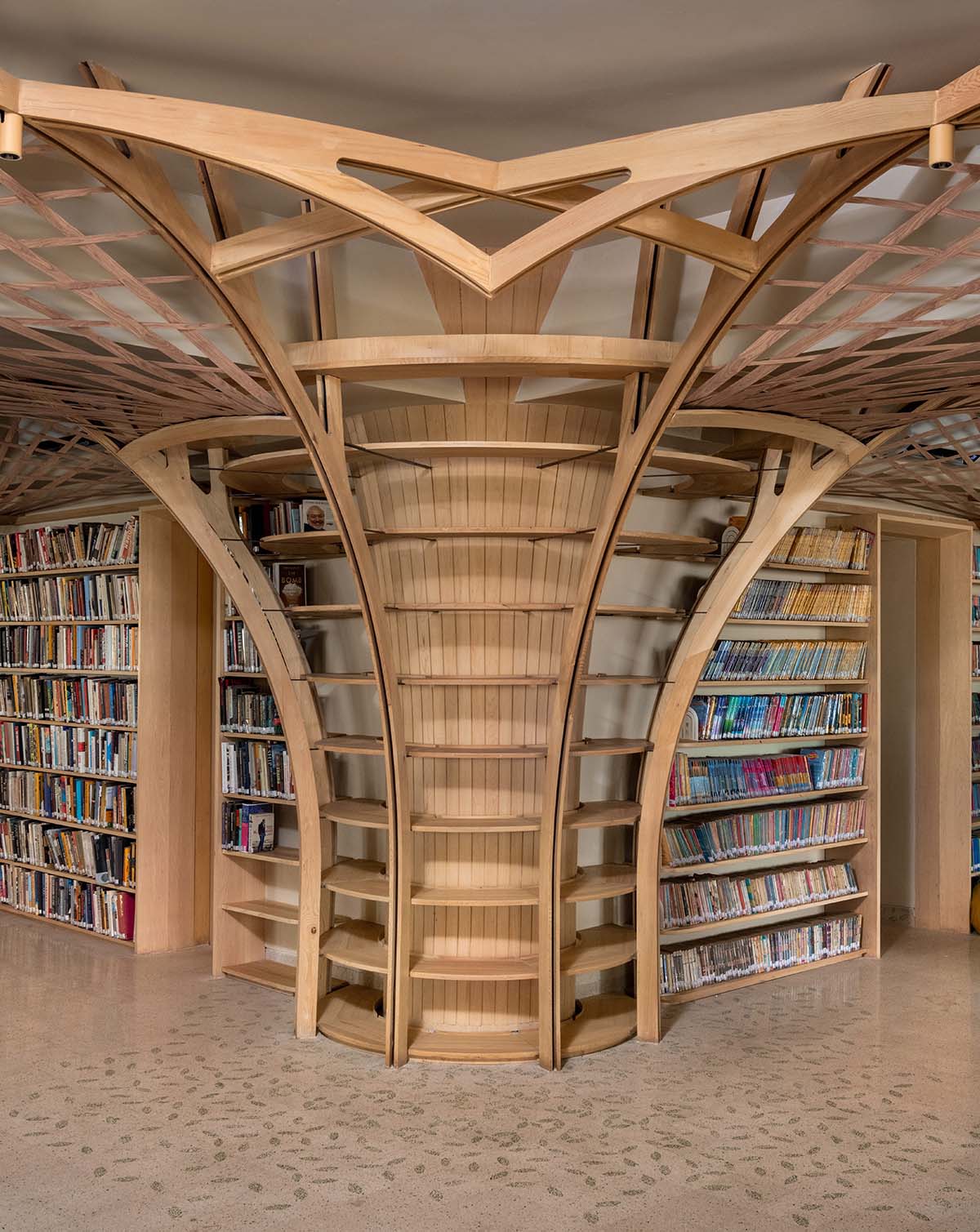

Corner tree, showing branches intersecting overhead

Originally, studio Hinge was commissioned to develop the library in a separate building fronted by a storage yard at a different location within the club.

The previous plan called for turning the yard into landscaped gardens with partially covered reading areas, and it included a permeable façade made of books housed in glass revolving doors.

The library was moved to the fourth floor of the administrative building, but this design was never completed. The new design aims to keep some of the original concepts in spite of this difficult location.

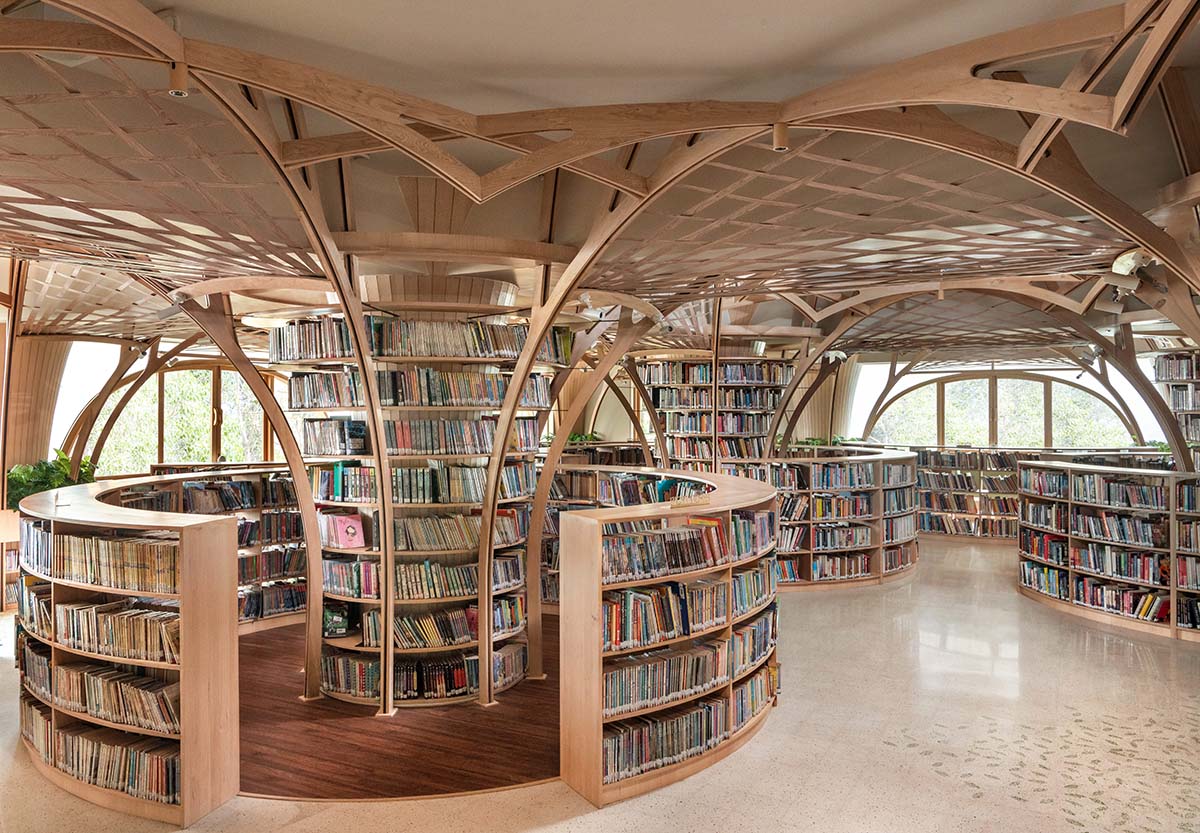

studio Hinge embeds a library under the wooden tree-like canopies in Mumbai

Looking down the boulevard below the tree canopies

"India experienced one of the harshest and most sudden Covid lockdowns in the world. A lot of the design of the library was developed during this time, when people were yearning to meet and share ideas in person again more than ever," the studio said.

"The temporary library had no washroom facilities or separate admin area. It had long lightless corridors and bookshelves stacked high in front of windows, creating claustrophobic spaces with natural light blocked out."

"This, coupled with shrinking attention spans and the fact that people increasingly read on digital devices rather than books, meant that fewer people than ever visited the space. Those that did came to collect or return books and rarely stayed to read," the studio added.

studio Hinge embeds a library under the wooden tree-like canopies in Mumbai

View from the main entrance

How to connect to the idea of reading outdoors

The library's layout is designed to resemble a formal garden, with a focus on natural light and a structural grid. A "boulevard" alludes to the street outside that is covered in foliage.

Existing concrete columns are reimagined as trees, with circular bookshelves in Western Hemlock, supported on arching branches which reference the geometry of the pavilion's colonnade along the cricket ground.

The branches consist of 16mm thick wood covered in steel sections that are 20mm square and hollow; these sections also function as conduits, eliminating the need for a suspended ceiling.

studio Hinge embeds a library under the wooden tree-like canopies in Mumbai

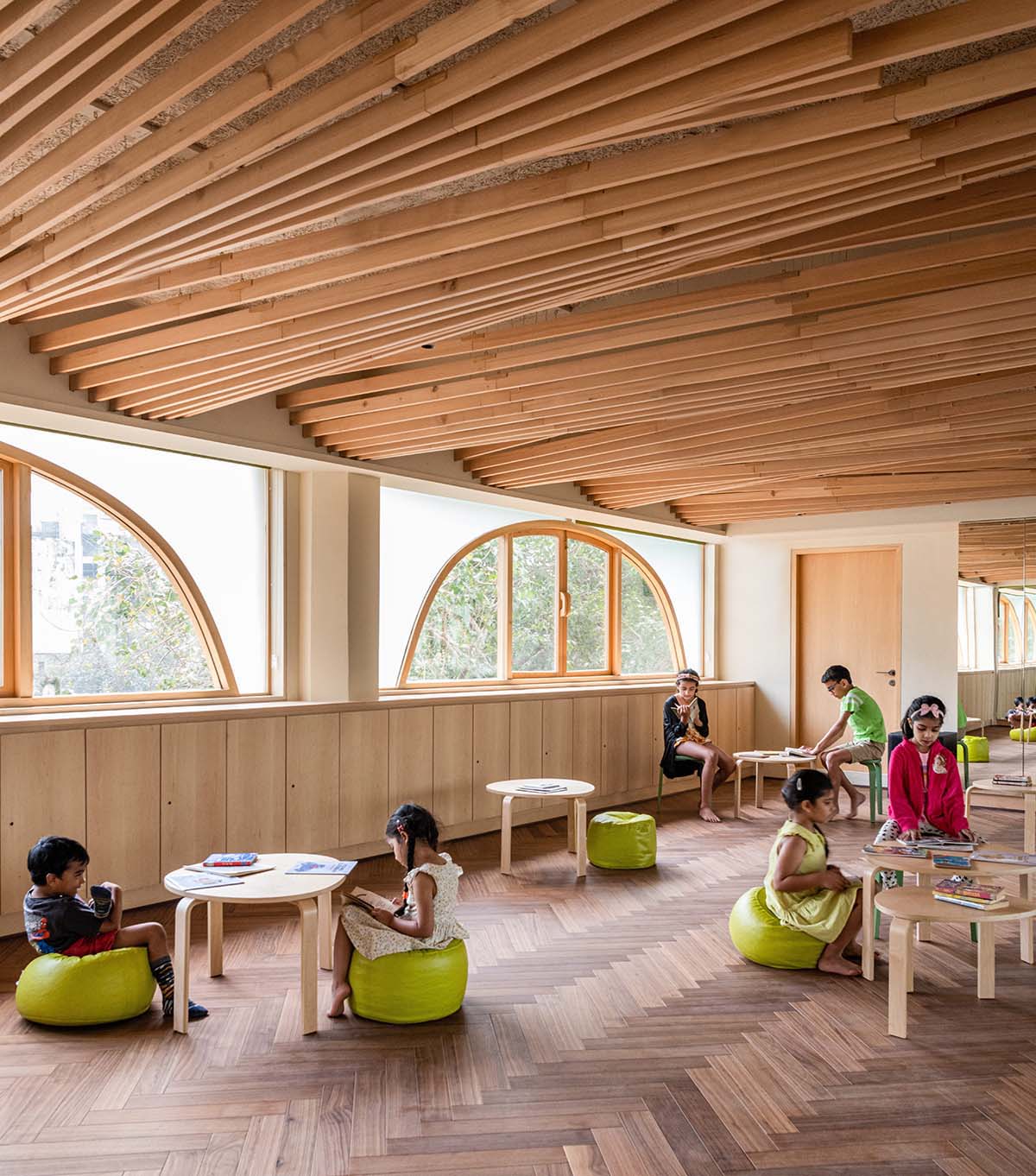

Workshop room-children's activities

The branches entwine above, creating finely woven meshes beneath the beams that replicate the sensation of being beneath trees while canopies above allow soft light to filter through. Personalized terrazzo floor tiles with marble and green glass chips produce asymmetrical leaf patterns.

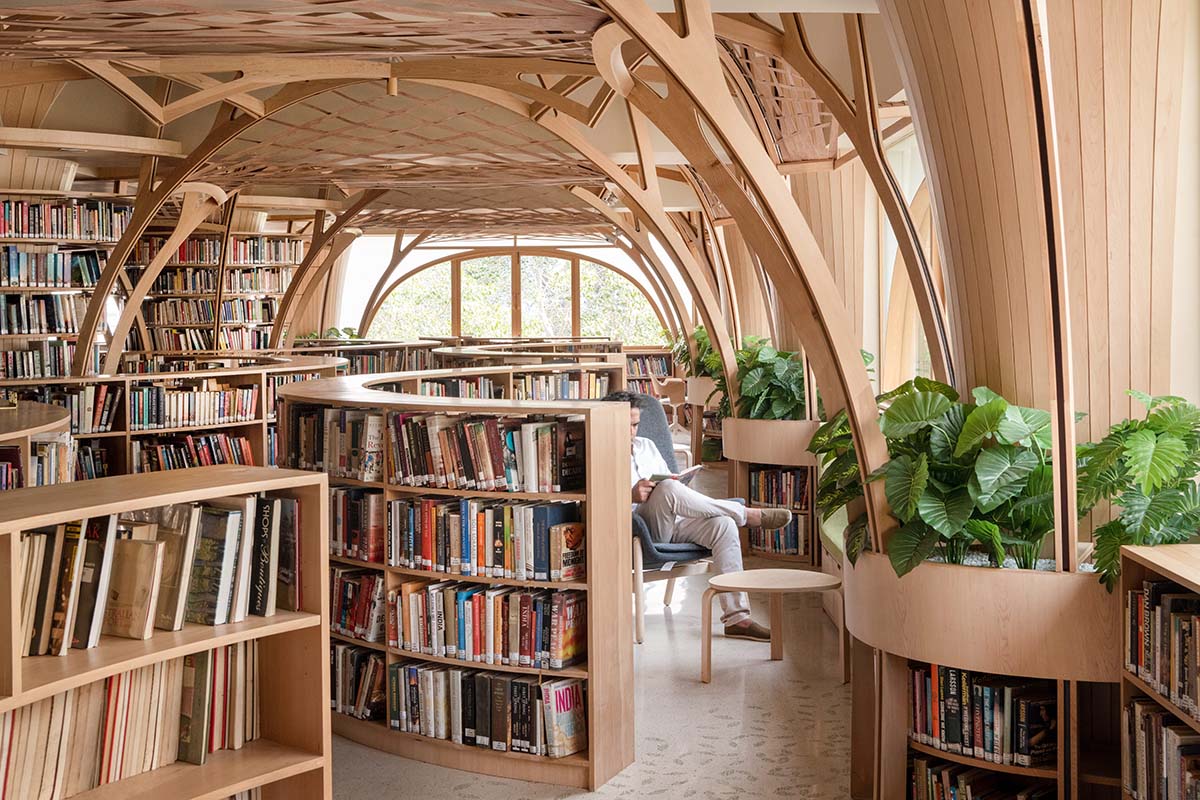

Freestanding bookshelves are arranged in a circle, resembling a hedge, around the central trees. Bookworms peruse among the hedges before moving to the sofa benches and lounge chairs near the windows for extended reading sessions.

studio Hinge embeds a library under the wooden tree-like canopies in Mumbai

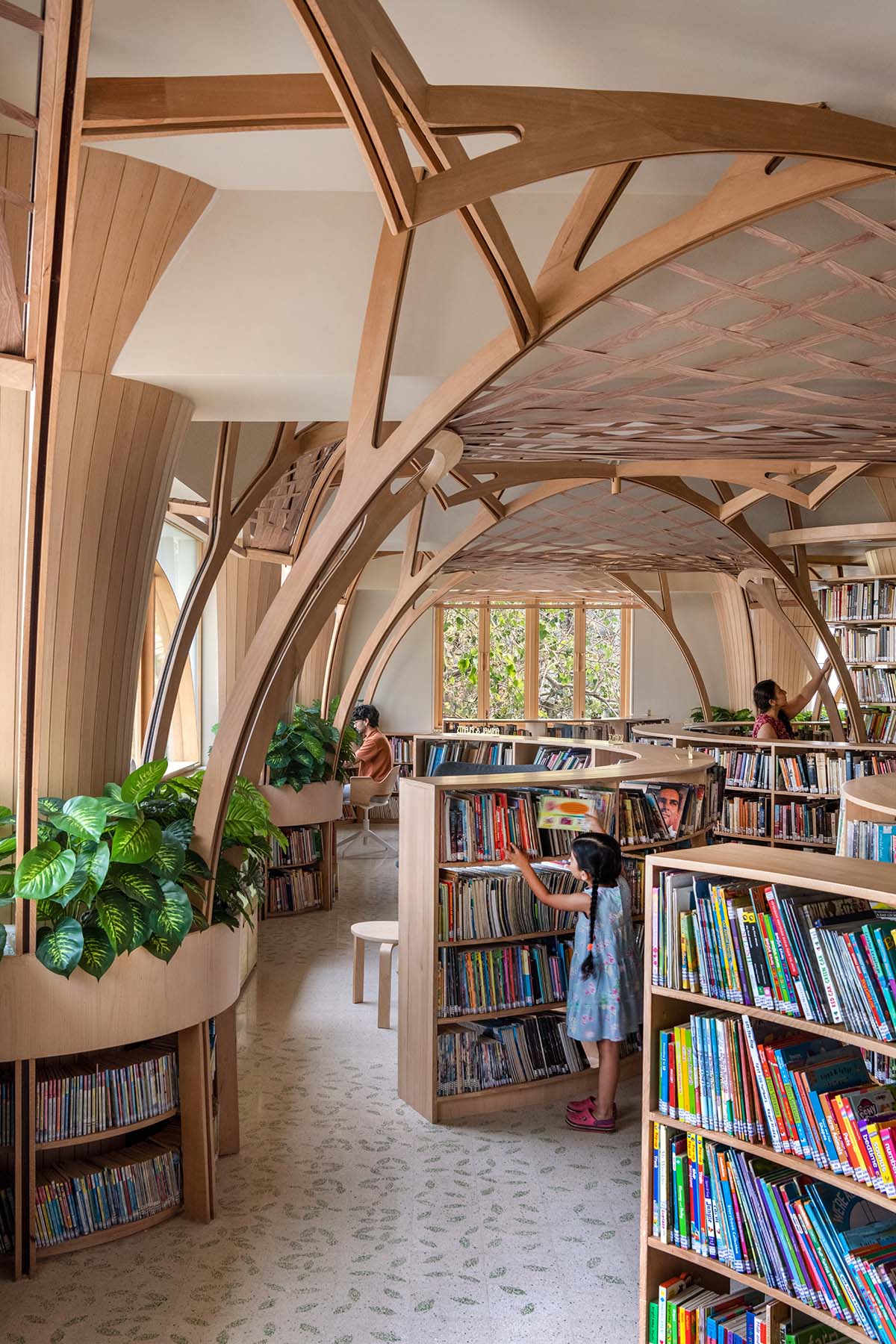

Looking down the boulevard toward the children's area

How to make a physical library relevant in a digital age

The architects suggested adding a multipurpose area by remodeling a nearby, unused Zumba studio to host educational and literacy-related programs. This covers movie screenings, book clubs, novel book releases, author readings, and kid- and adult-focused workshops.

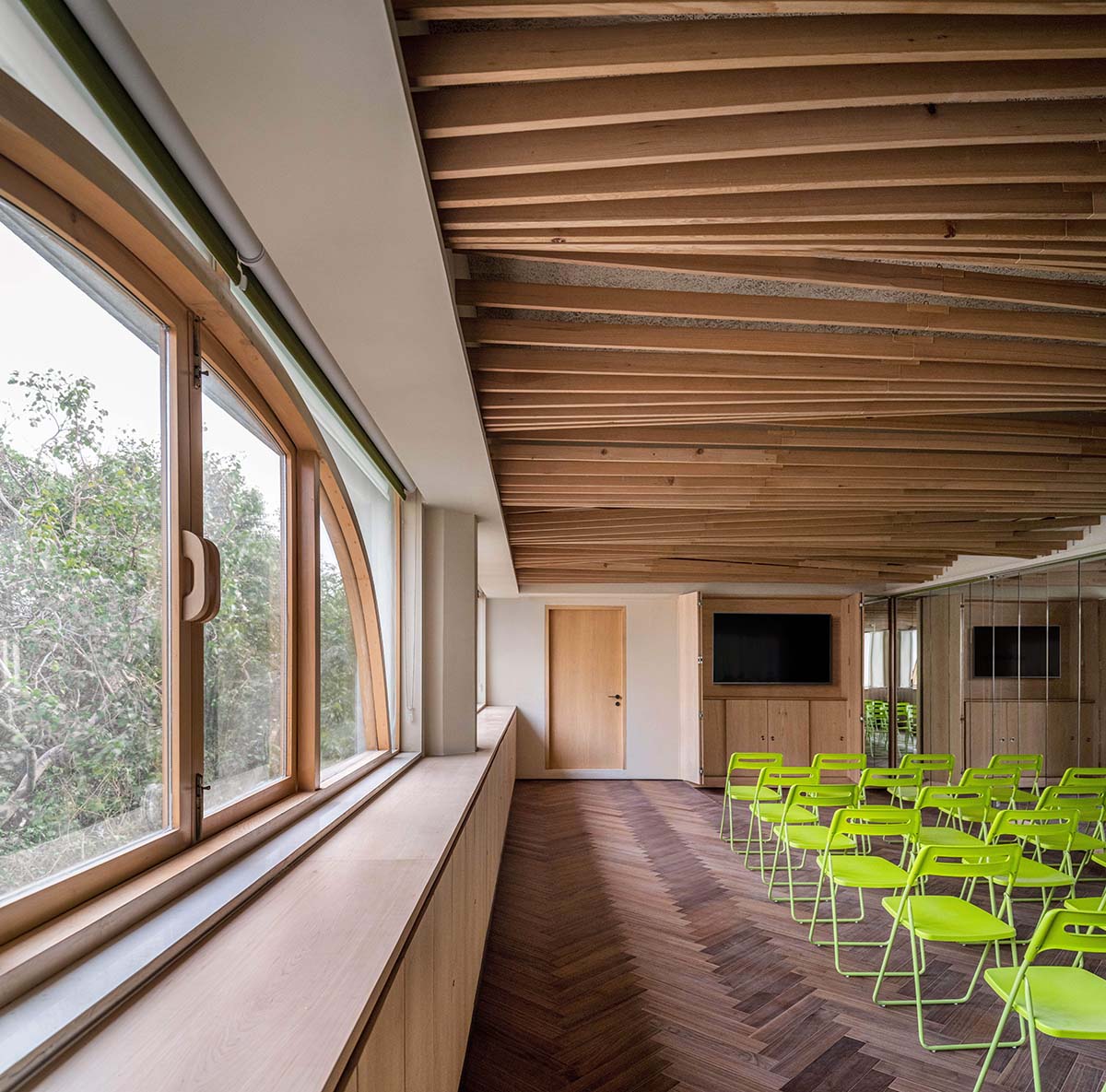

When necessary, the space can be used as a dance studio again thanks to the redesign. The space can be used flexibly between different functions thanks to features like engineered oak flooring, mirrored storage cabinets for non-display books and stacking furniture, and a large screen concealed behind folding doors. While hiding MEP overhead, a ceiling of swaying timber slats speaks of dance and movement.

studio Hinge embeds a library under the wooden tree-like canopies in Mumbai

Browsing in hedges, with the corner workspace in background

This extra room has shown to be crucial to reviving and energizing the library by offering a venue for community events that unite people. Post-occupancy surveys have revealed a notable rise in foot traffic, especially from kids.

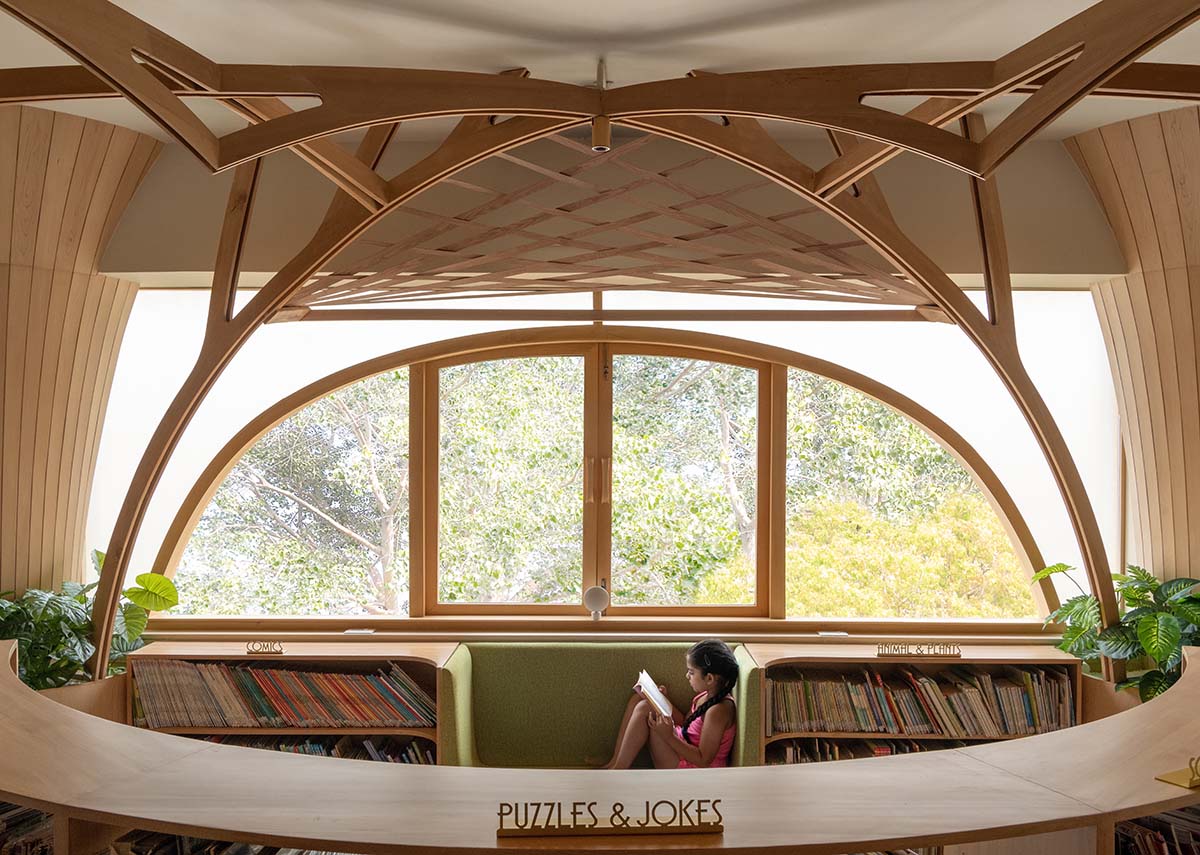

studio Hinge embeds a library under the wooden tree-like canopies in Mumbai

Browsing hedges - children section

Sustainable & inclusive design

Every bookcase that isn't against a wall is less than 1.2 meters high. This creates semi-private nooks for adults to sit and read in while maximizing natural light penetration and providing an unhindered view when standing.

Children see the design very differently because, to them, the area between the circular bookcases seems whimsical and almost maze-like. The entire area is step-free and has elevator access.

studio Hinge embeds a library under the wooden tree-like canopies in Mumbai

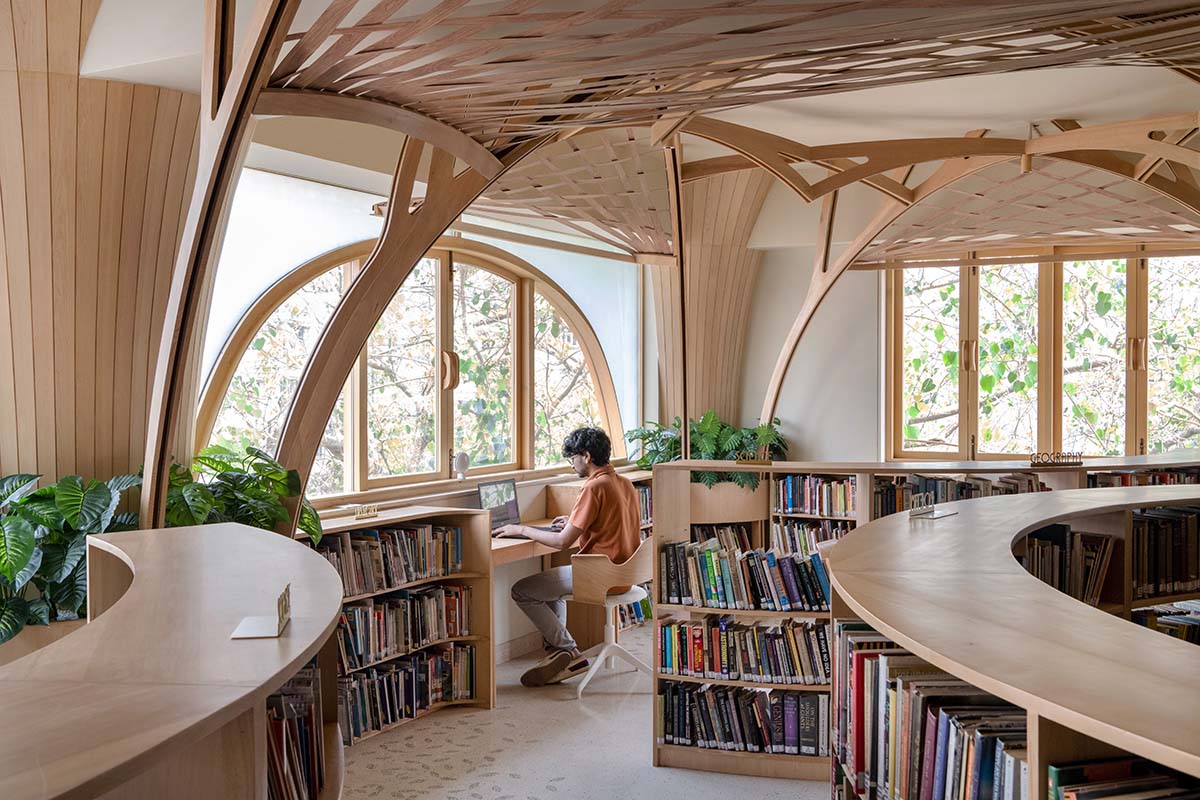

The corner bay is used as a quiet work space with desks

The library's primary material is wood, with western hemlock used for the furniture and yellow cedar used for the windows. Since it is very difficult to find native species in India that are harvested sustainably, FSC-certified Canadian lumber was used.

In addition to keeping most of the windows open, studio Hinge expanded the windows and cleared the area in front of them.

This lessens the library's dependency on artificial light and mechanical ventilation by increasing natural light and ventilation across two facades. The larger windows avoid the harsh glare of the south-west by facing east and north.

studio Hinge embeds a library under the wooden tree-like canopies in Mumbai

Detail of the branches and canopy at the peripheral trees

The new library at the Cricket Club of India is a modern, welcoming, and ecologically conscious area.

The library transcends its traditional role by combining sustainable practices, people-centric programming, and nature-inspired design to create a vibrant hub for learning, interaction, and community engagement.

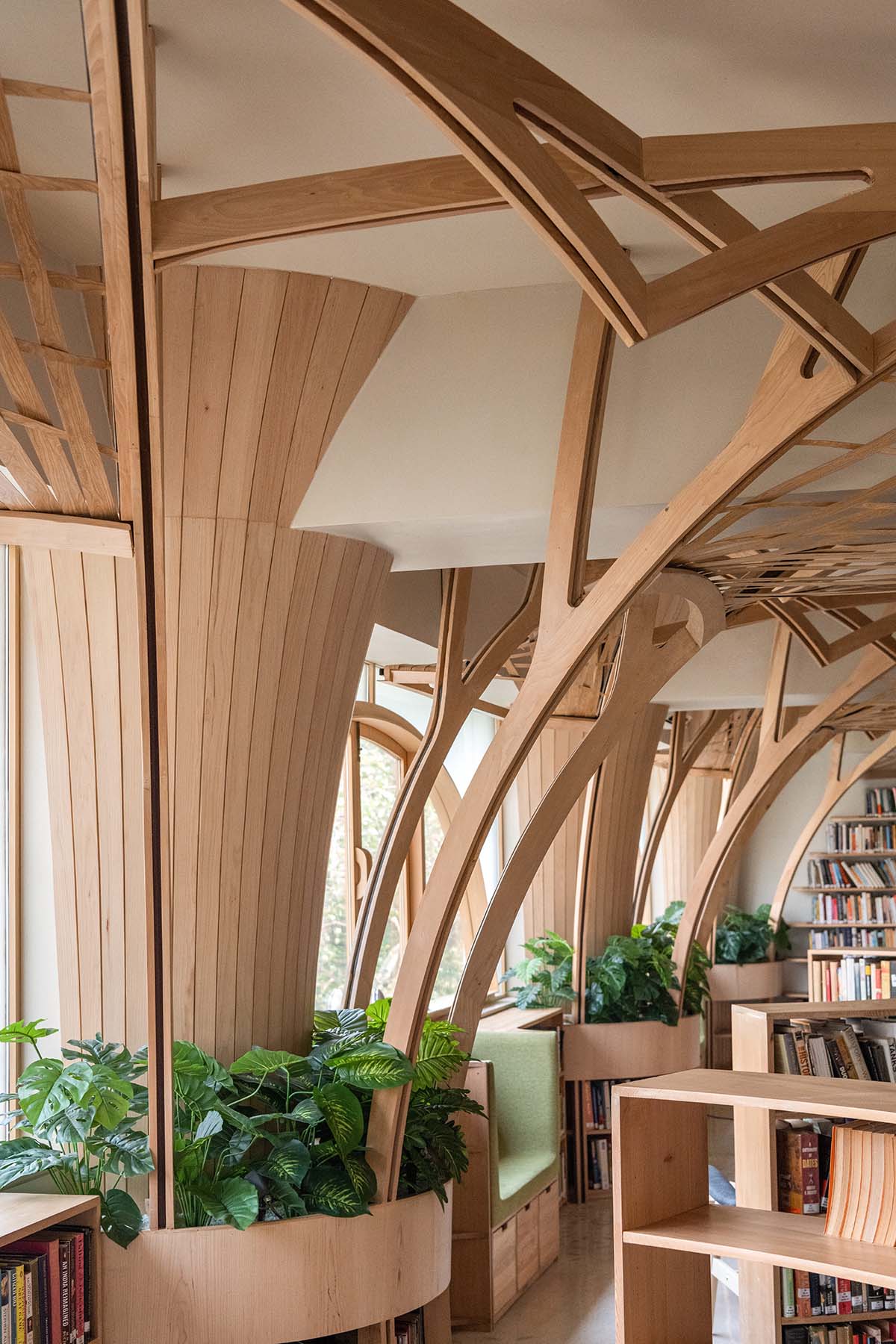

studio Hinge embeds a library under the wooden tree-like canopies in Mumbai

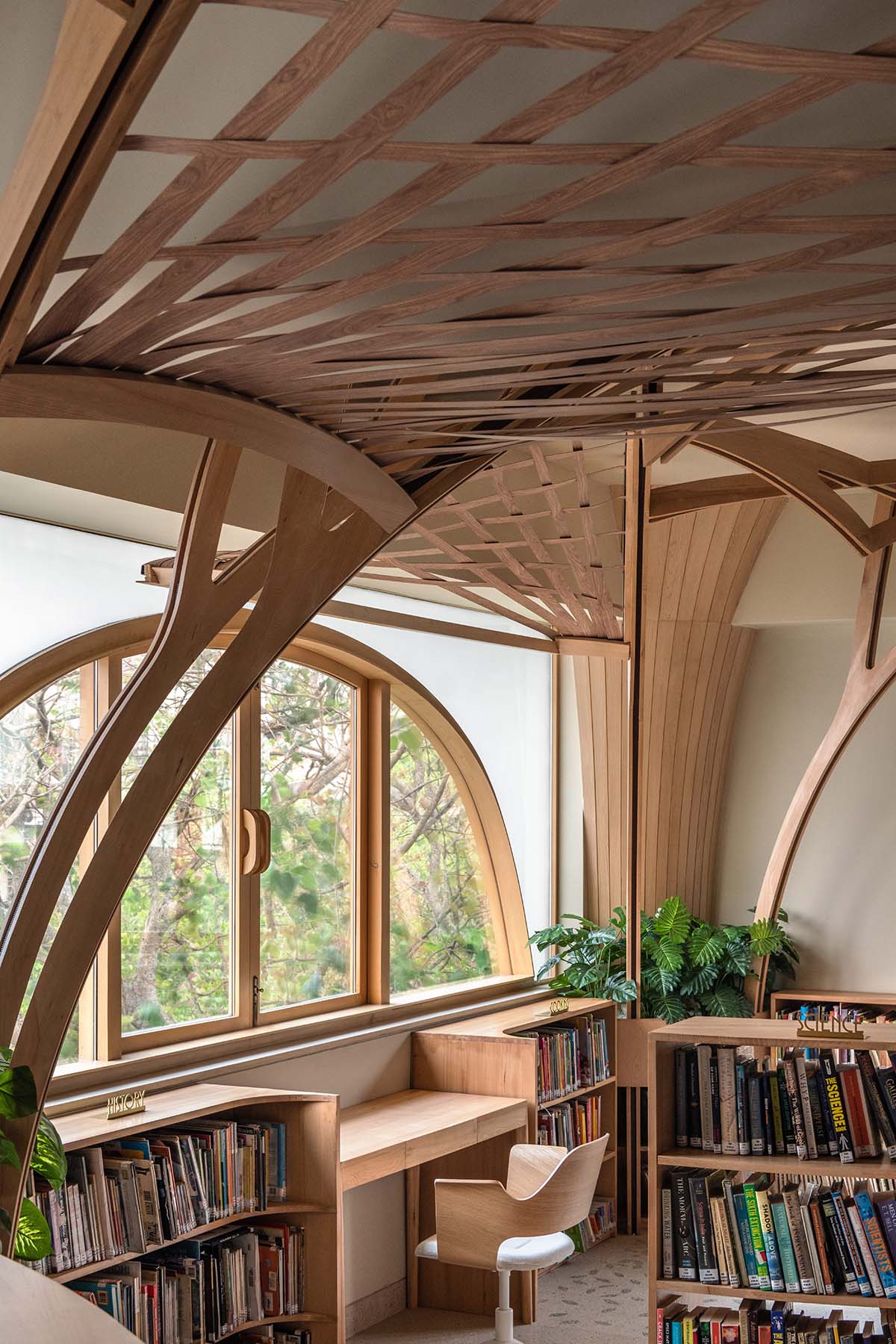

Looking through the branches along the windows

studio Hinge embeds a library under the wooden tree-like canopies in Mumbai

The corner bay provides a zone for quiet working

studio Hinge embeds a library under the wooden tree-like canopies in Mumbai

Built-in benches below windows offer informal seating

studio Hinge embeds a library under the wooden tree-like canopies in Mumbai

The workshop room in cinema mode

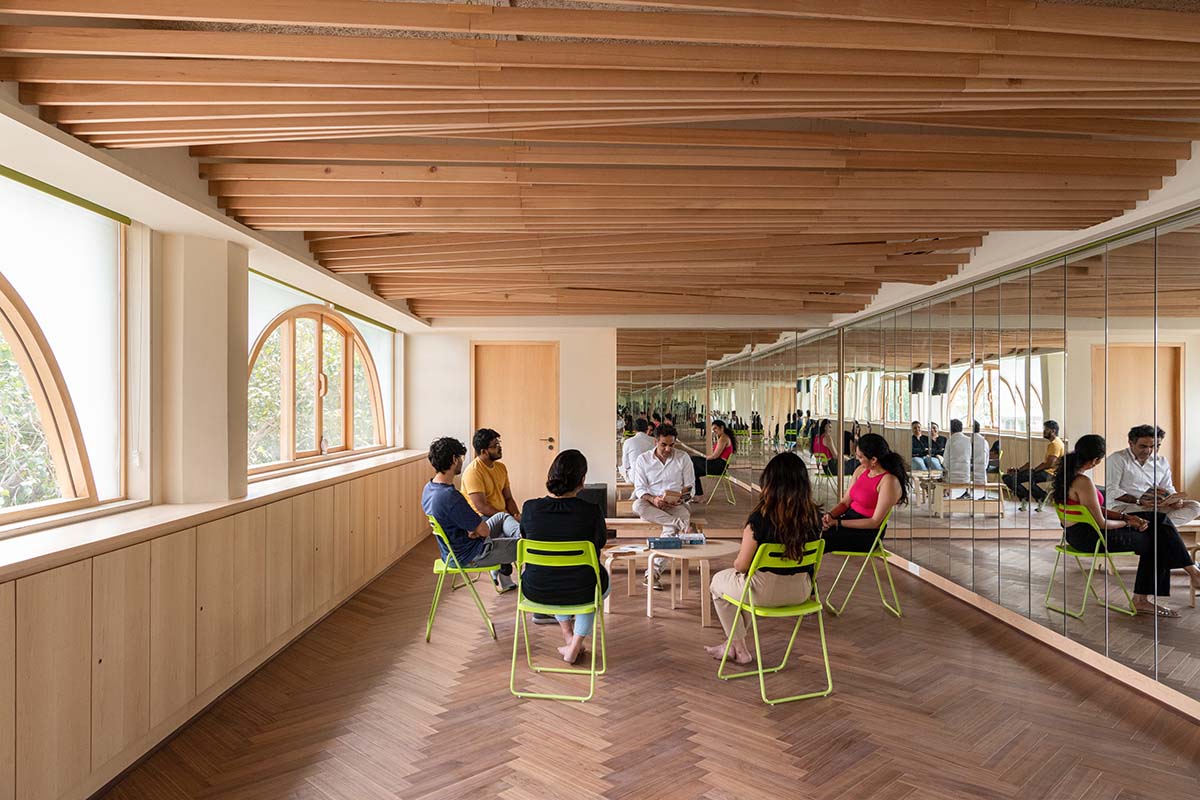

studio Hinge embeds a library under the wooden tree-like canopies in Mumbai

Workshop room - book readings

studio Hinge embeds a library under the wooden tree-like canopies in Mumbai

The window bays provide space to read privately, with abundant daylight

studio Hinge embeds a library under the wooden tree-like canopies in Mumbai

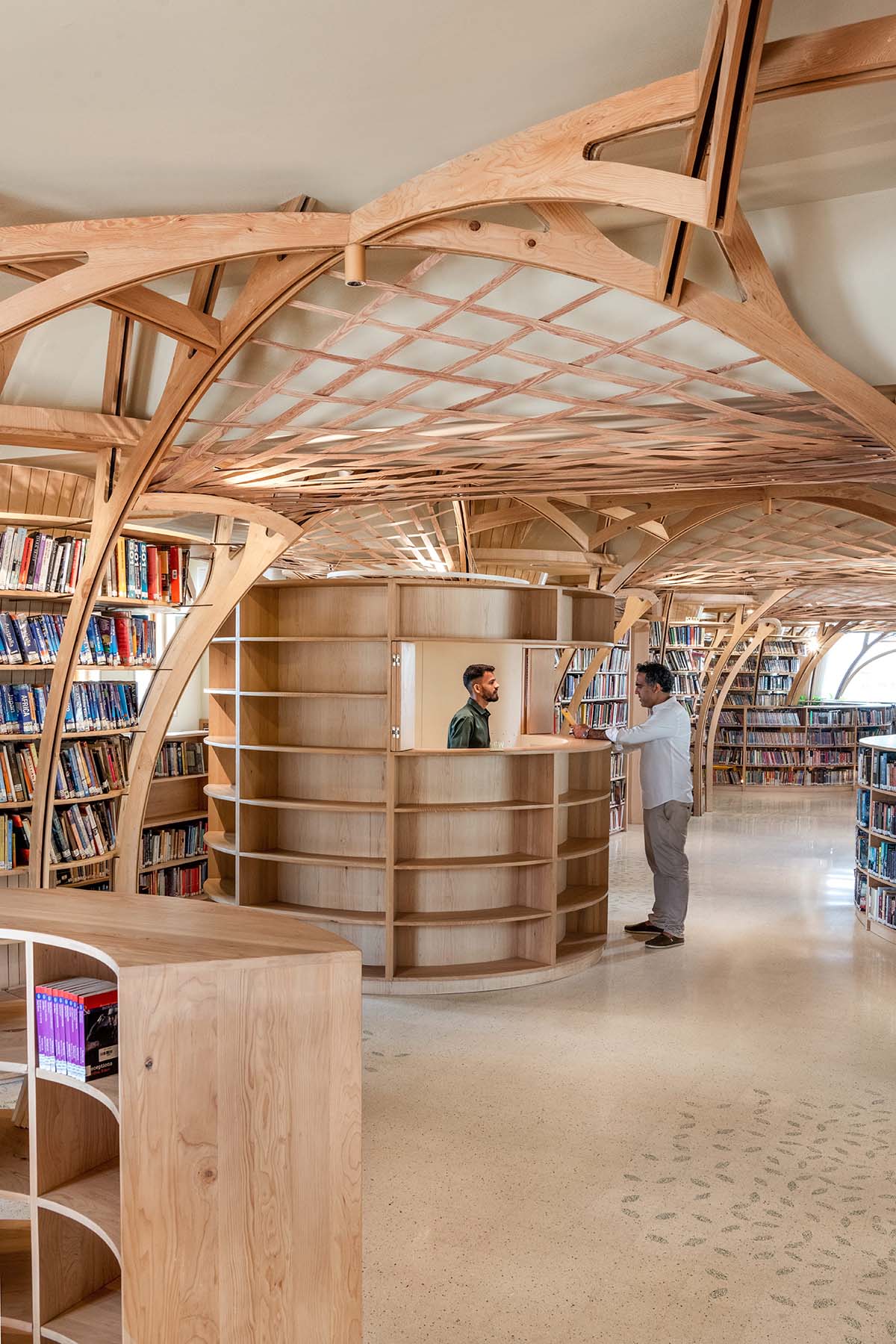

The reception pod

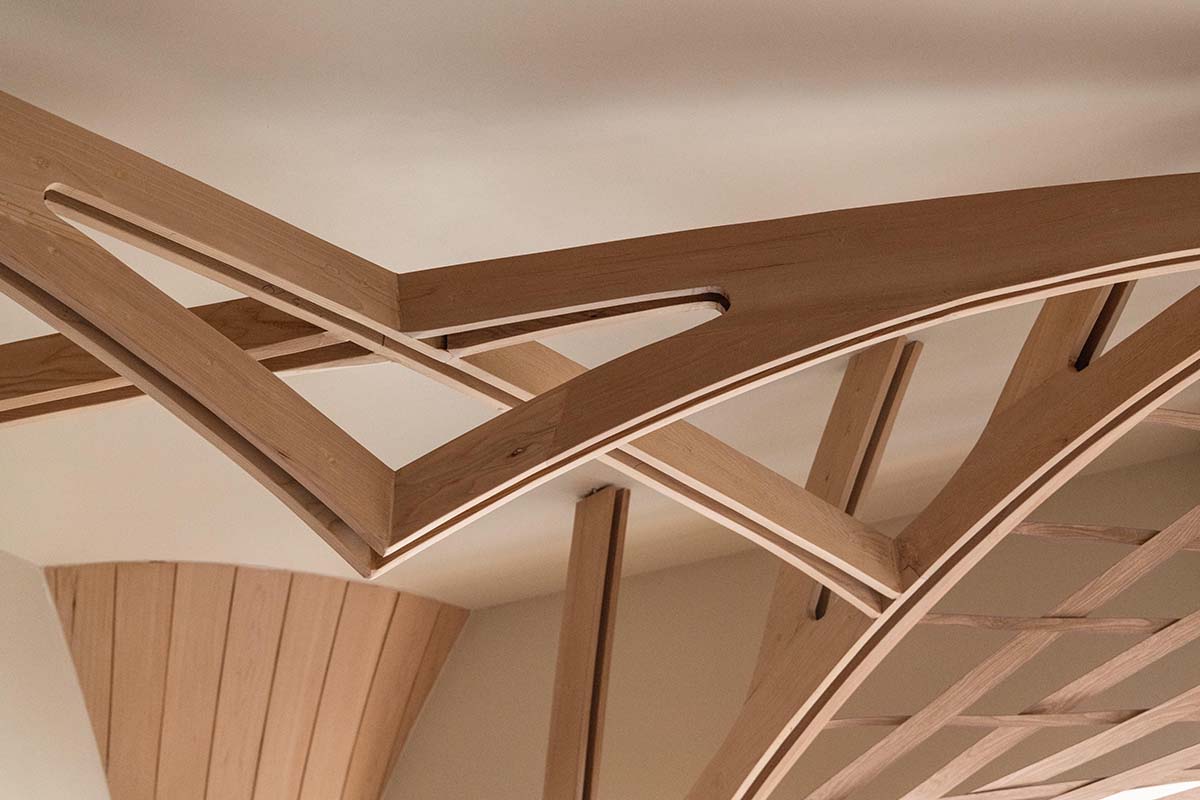

studio Hinge embeds a library under the wooden tree-like canopies in Mumbai

Detail at the intersection of the branches

studio Hinge embeds a library under the wooden tree-like canopies in Mumbai

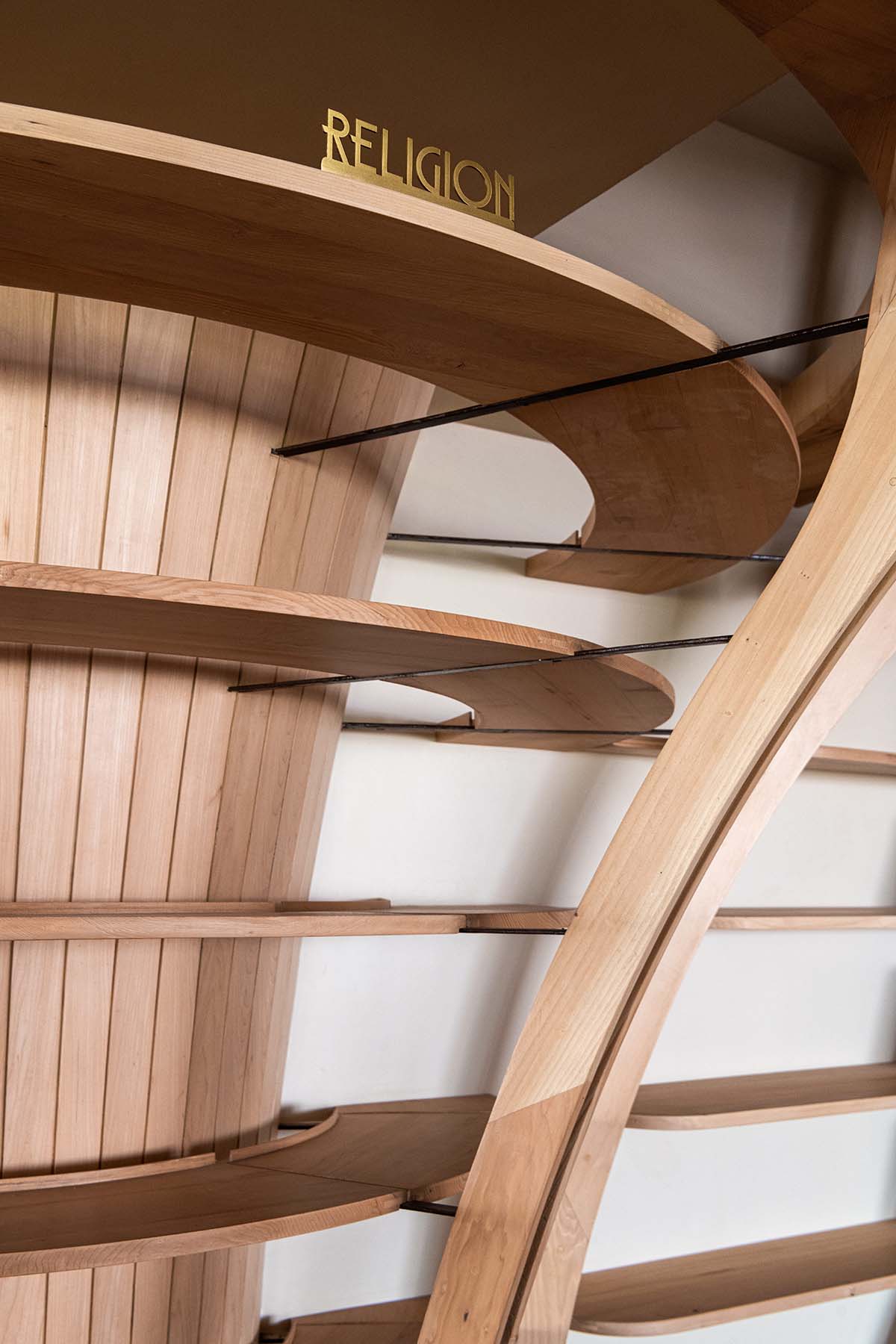

Detail of circular tree shelves

studio Hinge embeds a library under the wooden tree-like canopies in Mumbai

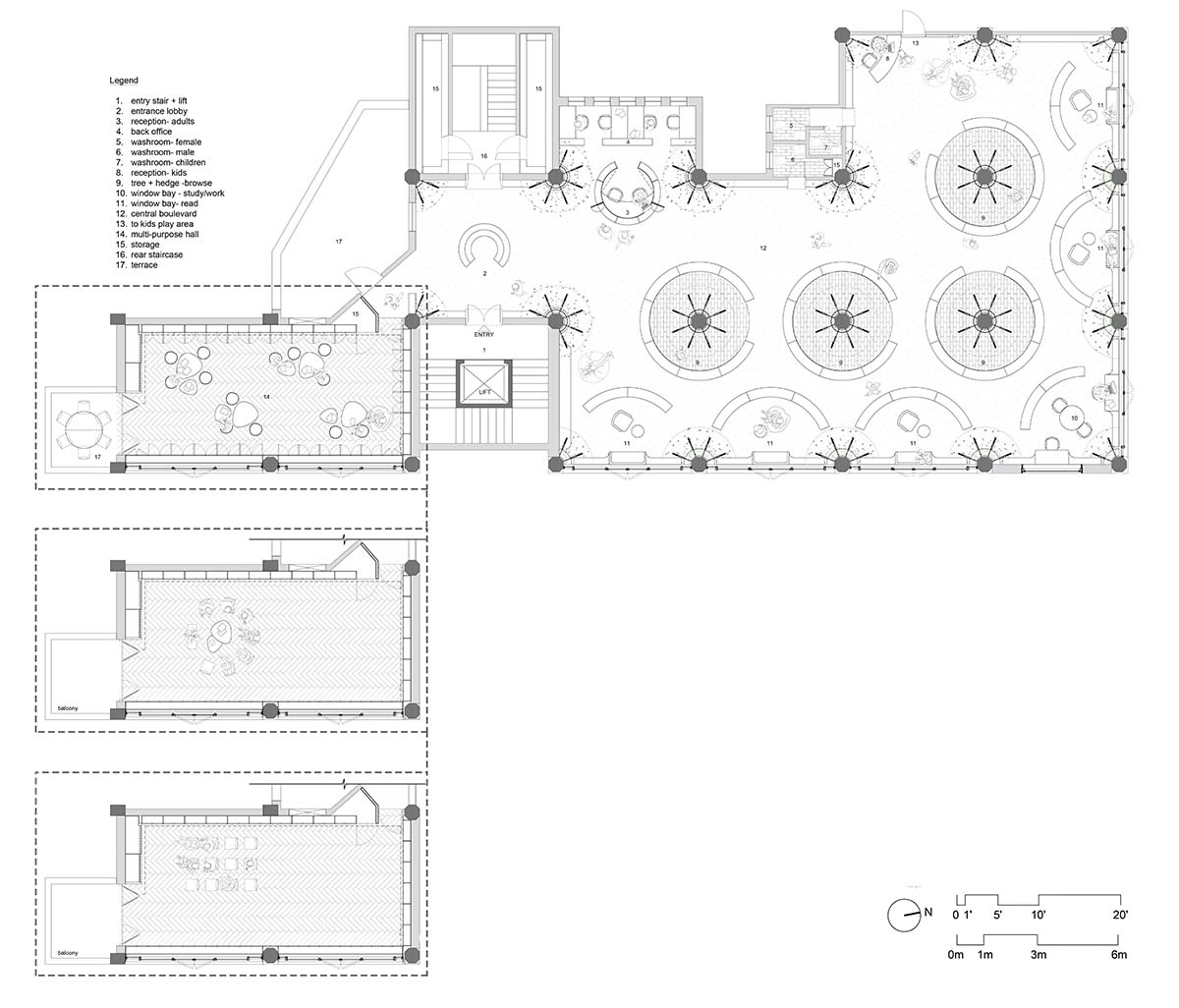

Floor plan

studio Hinge embeds a library under the wooden tree-like canopies in Mumbai

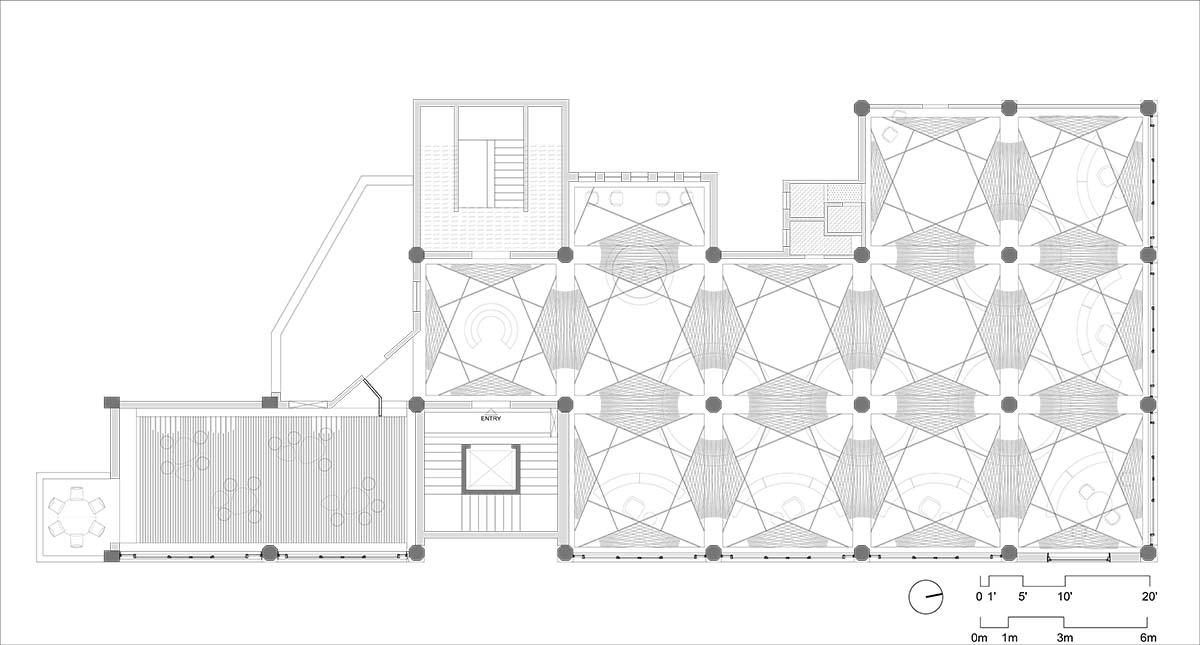

Floor plan

studio Hinge embeds a library under the wooden tree-like canopies in Mumbai

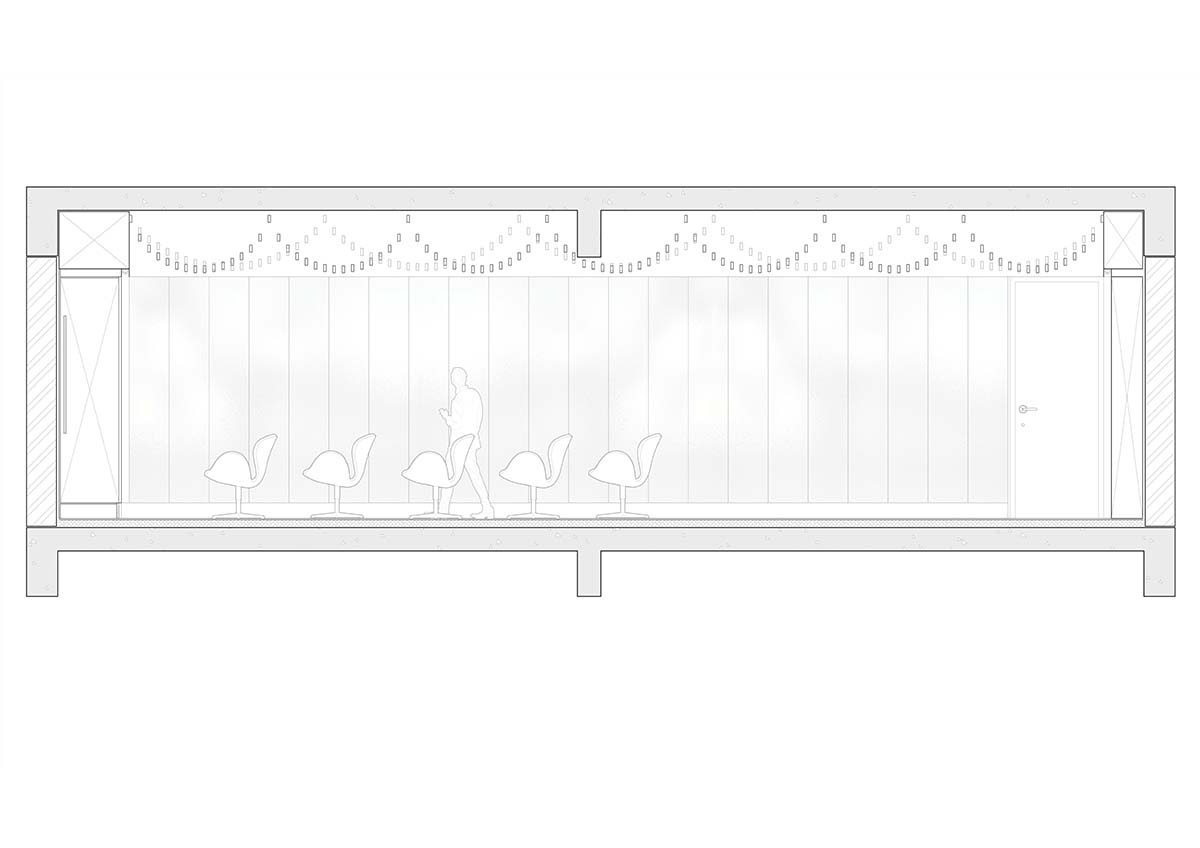

Section

studio Hinge embeds a library under the wooden tree-like canopies in Mumbai

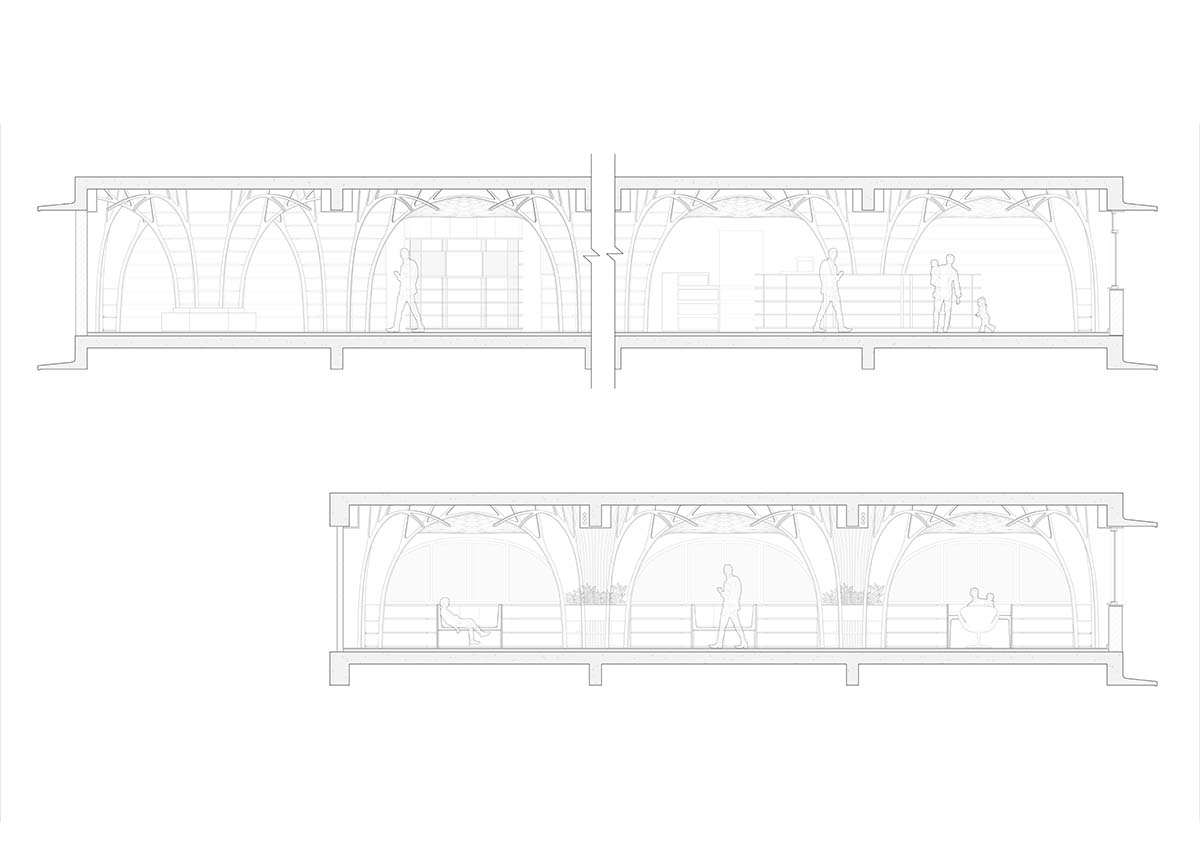

Sections

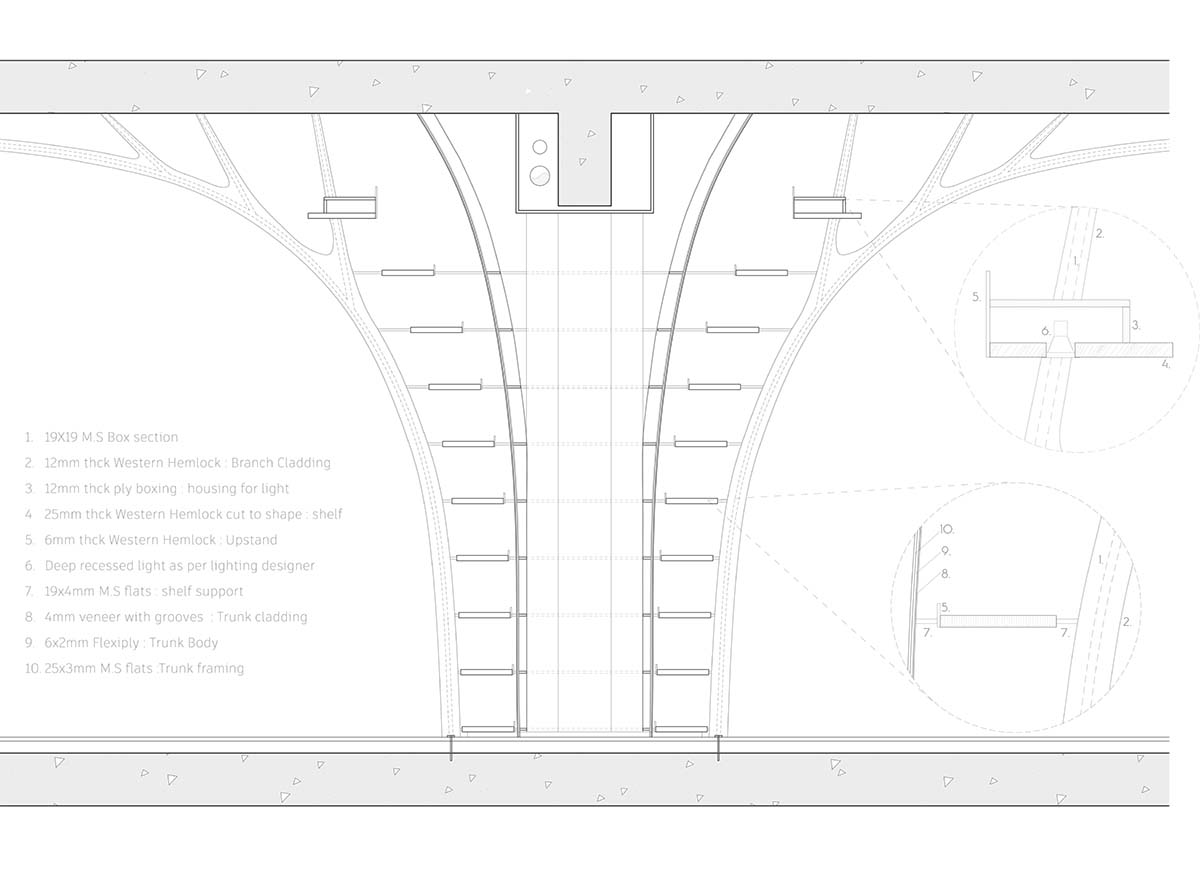

studio Hinge embeds a library under the wooden tree-like canopies in Mumbai

Structure

studio Hinge embeds a library under the wooden tree-like canopies in Mumbai

Section

studio Hinge embeds a library under the wooden tree-like canopies in Mumbai

Diagrams

studio Hinge embeds a library under the wooden tree-like canopies in Mumbai

Diagram

studio Hinge embeds a library under the wooden tree-like canopies in Mumbai

Concept

Project facts

Project name: Forest of Knowledge

Architect: studio Hinge

Location: Mumbai, India

Client: The Cricket Club of India

Completion Year: 2023

Built area: 420m2

Design Team: Pravir Sethi + Chintan Zalavadiya

Lighting Design: studio TRACE/ Tripti Sahni

Project Management: CCI Projects Team

MEP: ARKK Consultants

Main Contractor: Timeless Interiors

All images © Suryan + Dang

All drawings © studio Hinge.
