KAAN Architecten and PDAA built monolithic glazed CMA headquarters in Lille

France Architecture News - Sep 02, 2019 - 05:14   14722 views

KAAN Architecten and PDAA built monolithic glazed CMA headquarters in Lille

Dutch architecture firm KAAN Architecten and French office PRANLAS-DESCOURS architect & associates (PDAA) have completed a new mixed-use building in Lille, France

Completed as the winning entry of an international competition for Eurartisanat campus, the building works as a new gateway of the city and is part of its urban development initiated in the Eighties with Euralille district, Euratechnologies and Eurasanté.

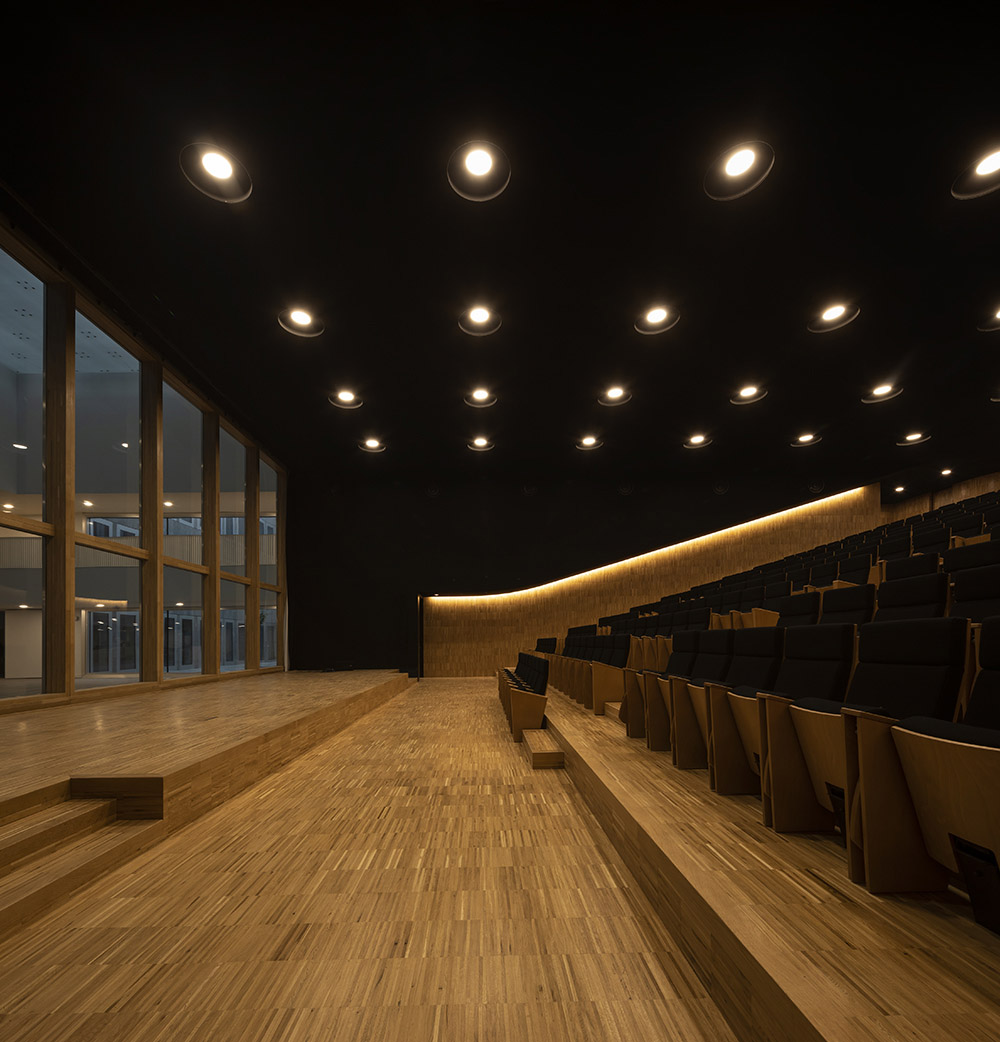

The 14,800-square-metre building comprises offices, auditorium, laboratories, classrooms, exhibition spaces, culinary school, hairdressing school, restaurant, public squares and park.

KAAN Architecten and PDAA built monolithic glazed CMA headquarters in Lille

Named Chambre de Métiers et de l'Artisanat (CMA) Hauts-De-France, the CMA Headquarters is set along the edge of the former 17th Century Vauban fortification, now replaced by a high-speed ring road. The northern border of the site is defined by a railway line and the botanical garden — Jardin des Plantes de Lille.

To the south, Rue Abélard defines the perimeter of a wider masterplan area designed by KAAN Architecten and PDAA, and comprising of CMA headquarters, a future complex of five buildings and a lush park spanning the site as an extension of the nearby garden.

KAAN Architecten and PDAA built monolithic glazed CMA headquarters in Lille

With its minimalist esthetics and elegant transparency, the monolithic building gives an embracing and protective gesture towards the surrounding nature, reinforcing the dialogue between the diverse elements of the area.

KAAN Architecten and PDAA built monolithic glazed CMA headquarters in Lille

In broad horizontal strokes, the CMA spreads over three floors rising from a square shaped footprint of 80 by 80 meters, providing both educational functions and spaces dedicated to supporting craft business.

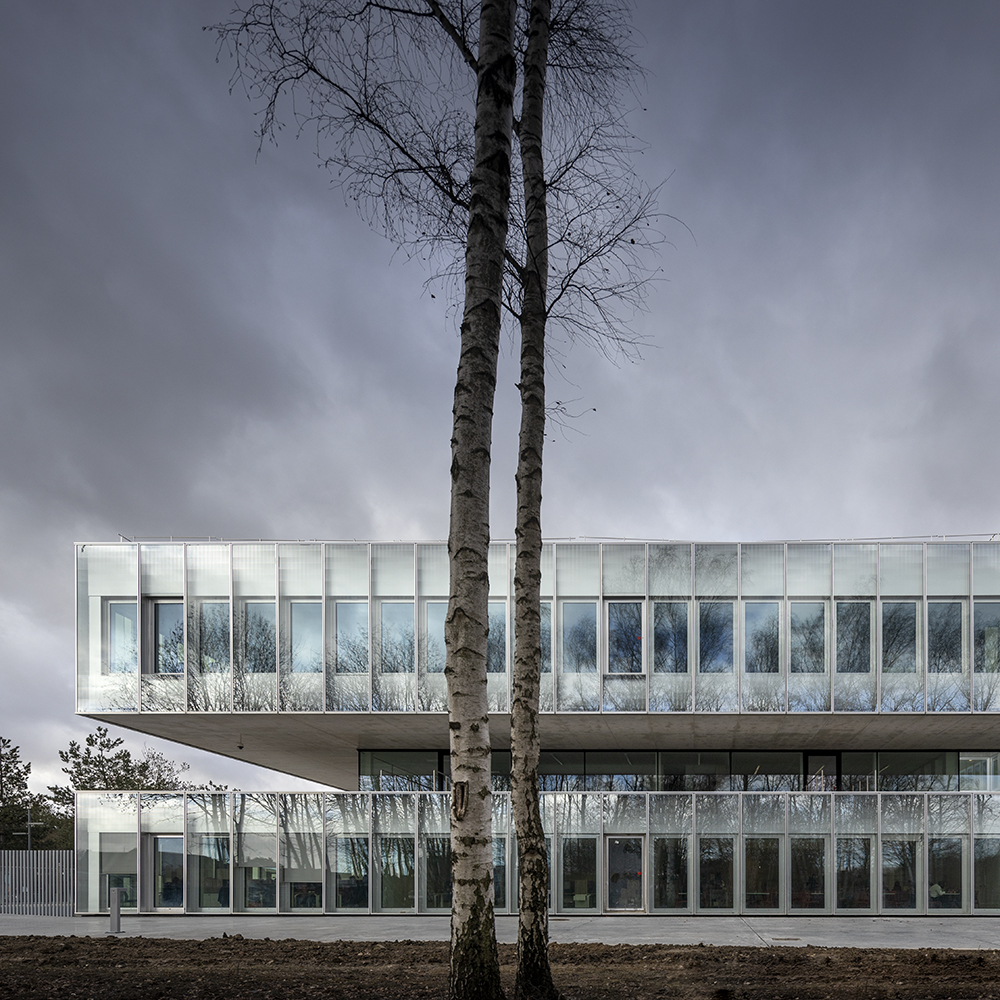

Each floor holds a strong connection to the green landscape: on the first floor, KAAN Architecten and PDAA have designed a prominent cantilever that frames a scenic view of Lille and the gardens.

KAAN Architecten and PDAA built monolithic glazed CMA headquarters in Lille

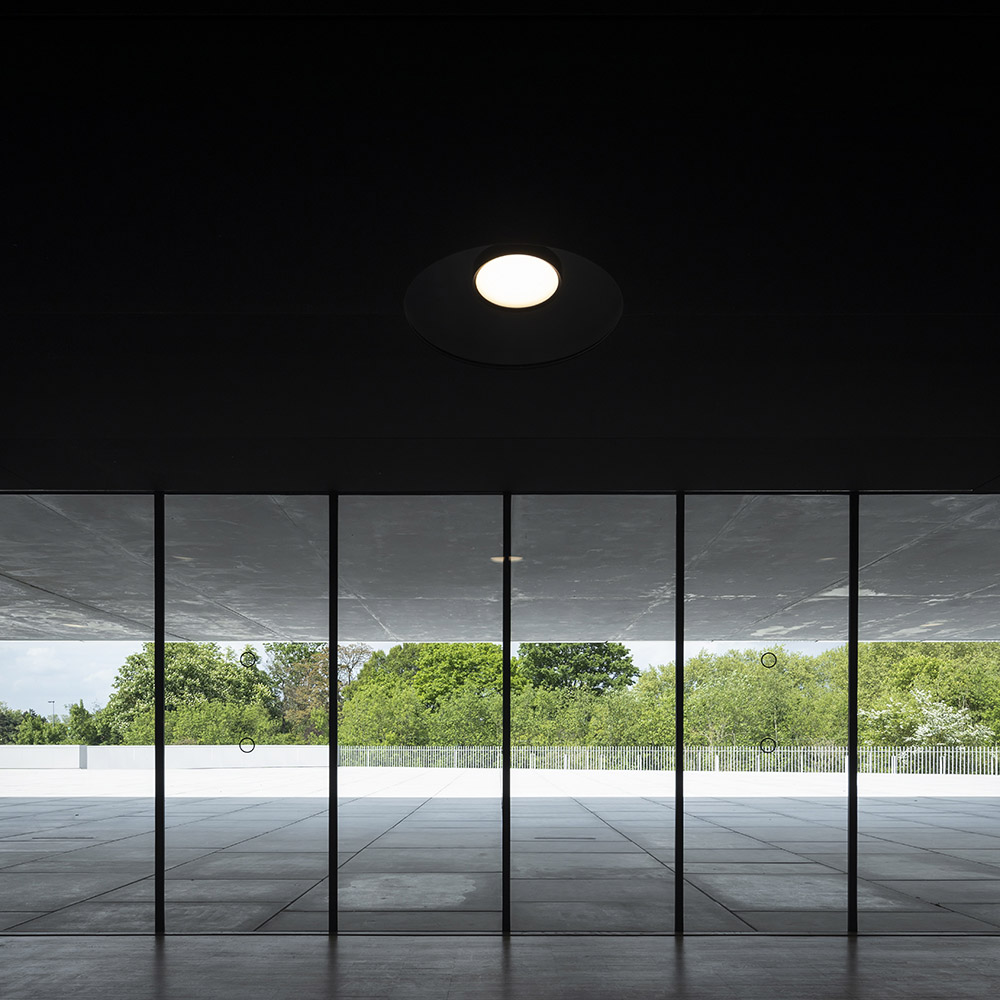

The building features two public squares on different levels. On the ground floor is the new Place des Artisans (south), while a large terrace to the north of the first floor aligns the project with Rue du Faubourg d’Arras and connects to it with a bridge.

Both public entrances are linked by an enfilade of representative spaces: southern square, entrance hall, the auditorium and its foyer, as well as a wide opening overlooking the north terrace. Moreover, each entrance serves the two main architectural realms: the apprentice training centre and offices devoted to supporting craft business procedures.

KAAN Architecten and PDAA built monolithic glazed CMA headquarters in Lille

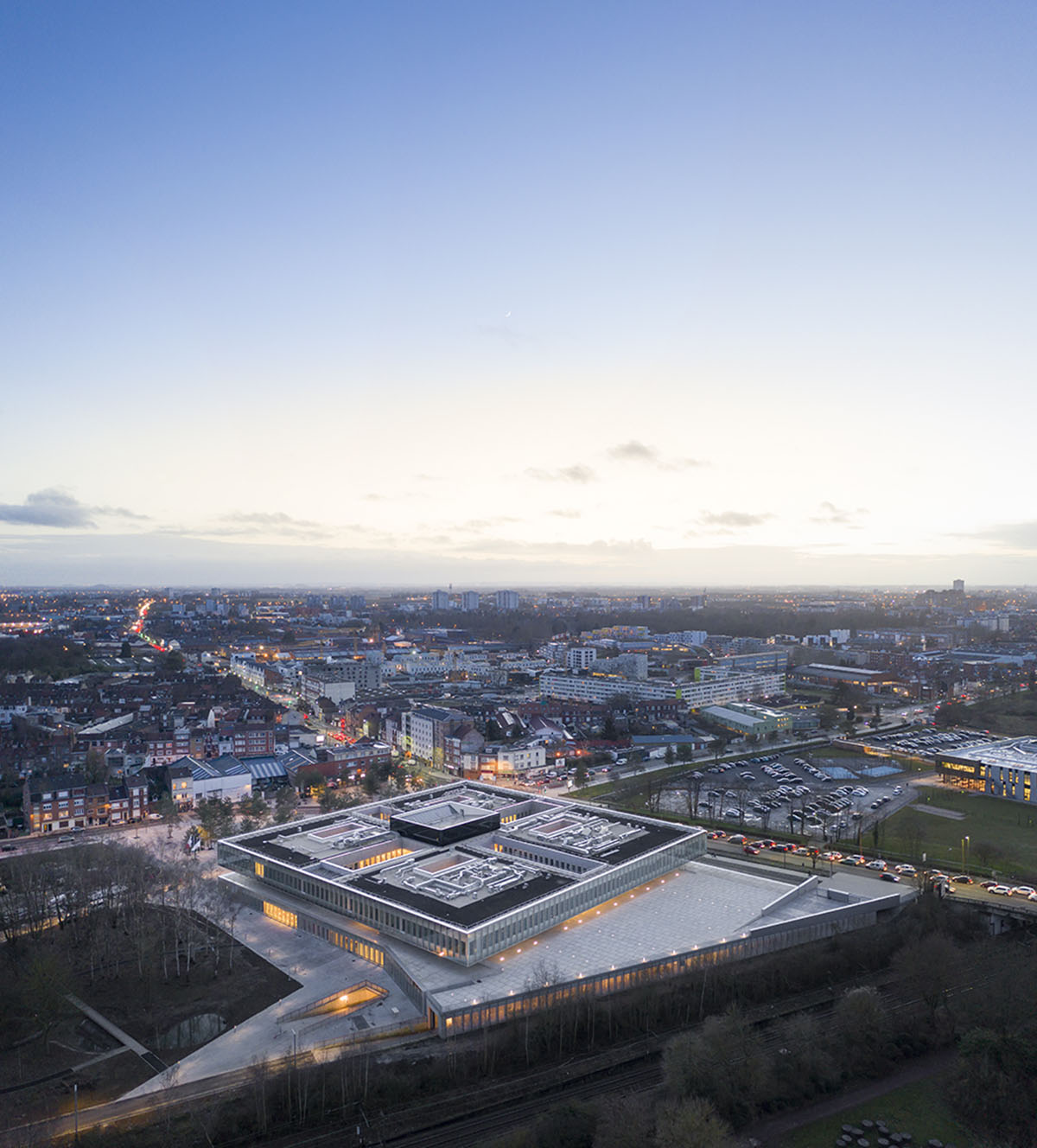

The CMA is symmetrically organized around six patios that provide natural light for most circulation spaces and divide the building into four clusters housing different realms and spanning through the whole three levels.

KAAN Architecten and PDAA built monolithic glazed CMA headquarters in Lille

Functions vary from local and regional administration to research and educational facilities (hairdressing school, cooking school, laboratories, classrooms). The new building acts as a hub for both the Chambre and the associated training schools, which had been previously scattered throughout the historic city centre of Lille.

KAAN Architecten and PDAA built monolithic glazed CMA headquarters in Lille

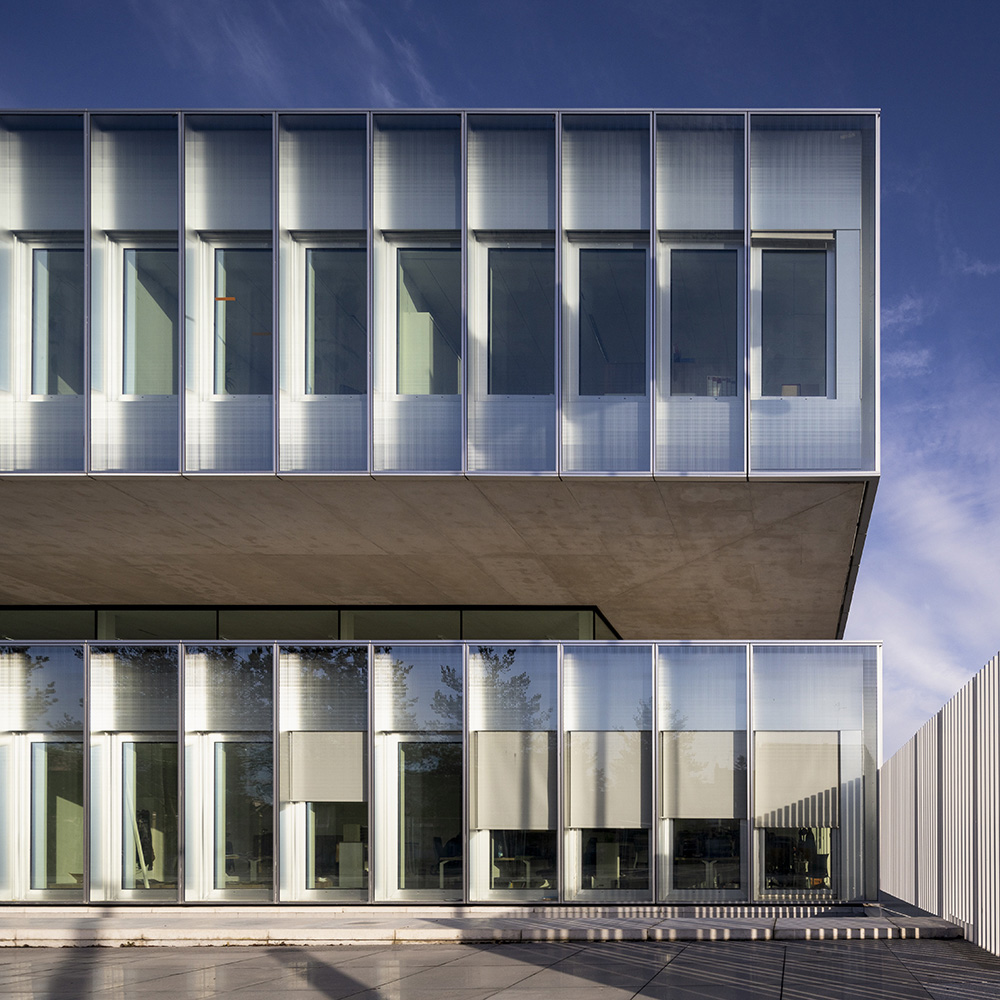

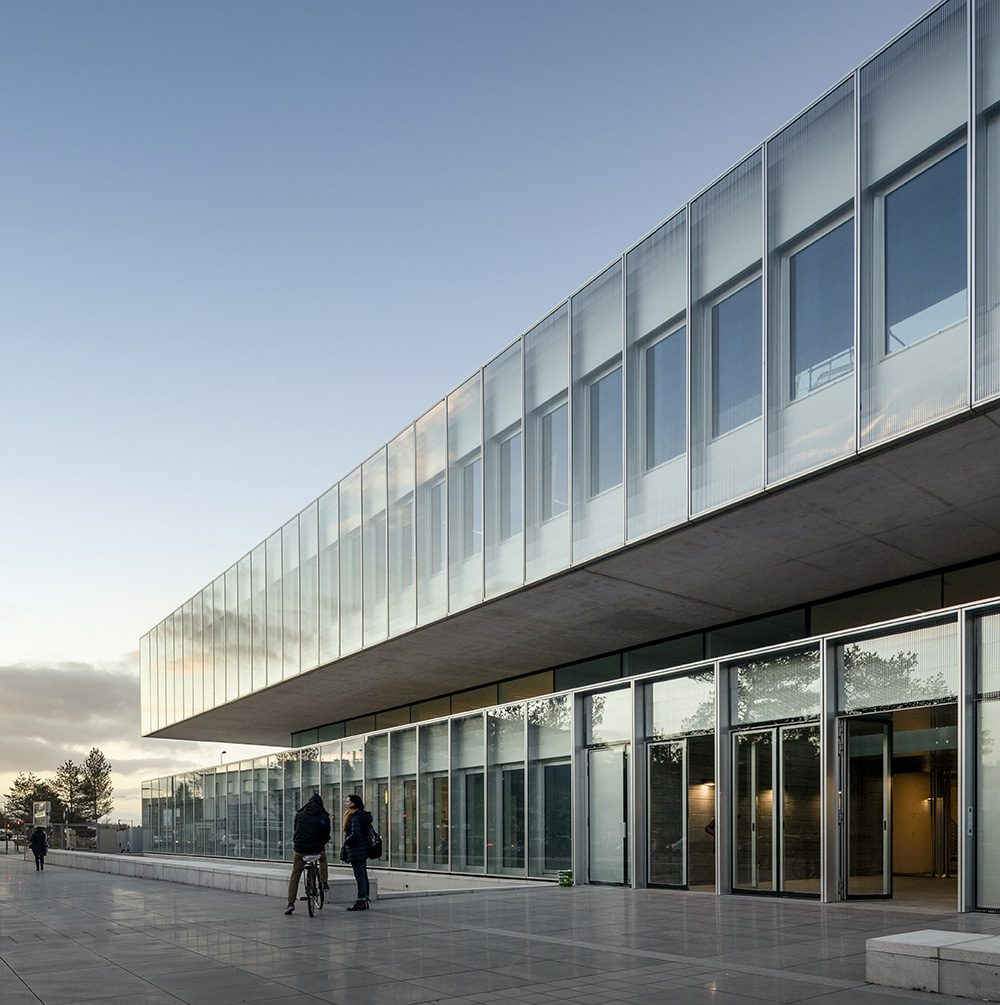

In order to interact with the urban fabric and the surrounding landscape, the architects have paid great attention to the use of natural materials: glass and stone. The ground and second floors are wrapped by a modular double glass facade that ensure climate control and quality acoustics.

Spanning the full floor height, each module features an inner polished aluminum window which can be opened and a fixed outer glass panel with a reflective print that gradually fuses to create a fully transparent zone at eye level while blending the building into nature.

KAAN Architecten and PDAA built monolithic glazed CMA headquarters in Lille

Moreover, the patio façades which feature large polished aluminum window frames are clad in Vals Quartzite, a very solid, compact and frost-resistant stone from Switzerland. The same stone has been used on the patio floors as well as in the entrance hall to enliven the link between exterior and interior.

KAAN Architecten and PDAA built monolithic glazed CMA headquarters in Lille

Through its solid materiality, CMA aims to both articulate, absorb and reflect the surrounding landscape while at the same time standing out as a new iconic element, an inhabited landscape dedicated to the public sphere.

KAAN Architecten and PDAA built monolithic glazed CMA headquarters in Lille

KAAN Architecten and PDAA built monolithic glazed CMA headquarters in Lille

KAAN Architecten and PDAA built monolithic glazed CMA headquarters in Lille

KAAN Architecten and PDAA built monolithic glazed CMA headquarters in Lille

KAAN Architecten and PDAA built monolithic glazed CMA headquarters in Lille

KAAN Architecten and PDAA built monolithic glazed CMA headquarters in Lille

KAAN Architecten and PDAA built monolithic glazed CMA headquarters in Lille

Site plan

KAAN Architecten and PDAA built monolithic glazed CMA headquarters in Lille

Ground floor plan

KAAN Architecten and PDAA built monolithic glazed CMA headquarters in Lille

2nd floor plan

KAAN Architecten and PDAA built monolithic glazed CMA headquarters in Lille

Section

KAAN Architecten and PDAA built monolithic glazed CMA headquarters in Lille

Elevation

The Chambre de Métiers et de l'Artisanat, together with ISMO – Institute des Sciences Moléculaires in Orsay, represent two of the recent projects designed by KAAN Architecten in France.

Two large mixed-use complexes are also in the final phase of construction: one close to EuraTechnologies area in Lille, the other in the ZAC Bottière-Chénaie in Nantes. Meanwhile, an office complex in Aubervilliers, Paris, is currently at design stage and is set to revitalize the former logistics area at the borders of the city.

Alongside the CMA, PDAA has recently delivered the Black Diamond project consisting of a parking lot, offices and sports facilities, that received the ADC architecture prize for the mixed-use building of the year. PDAA is currently developing several projects on both architectural and urban scales, such as the Satory development in Versailles, one of the main projects in the Greater Paris area (550.000 sqm of urban project, 12 hectares of park and test tracks).

Project facts

Location: Place des Artisans, CS 12010, 59000 Lille (France)
Architect: KAAN Architecten - PRANLAS-DESCOURS architect & associates
Project team: Christophe Banderier, Delphine Bresson, Louise de Chatellus, Sebastian van Damme, Gustav Ducloz, Paolo Faleschini, Raluca Firicel, Marylene Gallon, Michael Geensen, Renata Gilio, Julie Heathcote-Smith, Kees Kaan, Maud Minault, Hannes Ochmann, Vincent Panhuysen, Fabien Pinault, Ismael Planelles, Jean Pierre Pranlas-Descours, Ana Rivero Esteban, Anne Roullet, Dikkie Scipio, Marianne Seyhan
Client: Chambre de Métiers et de l'Artisanat Hauts-De-France, Lille
Competition: February 2007 – July 2007
Design phase: July 2009 – January 2013
Construction phase: October 2014 – January 2019
Total floor area: 14.800 sqm
Park area: 2 hectars
Building costs: 36.500.000 €
Program: Offices, auditorium, laboratories, classrooms, exhibition spaces, culinary school, hairdressing school, restaurant, public squares and park
Structural advisor: EVP Ingénierie, Paris
Financial advisor: Martin & Guiheneuf, Paris
Installation and Sustainability advisor: Martin & Guiheneuf, Paris
Façade advisor: T/E/S/S atelier d'ingénierie, Paris
Kitchen installation advisor: Creacept restauration, Lezennes
Site work: URBATEC, Bussy-Saint-Georges
Landscape: TN+, Paris
Control office: DEKRA Construction, Lesquin
Contractors:
Structure: Demathieu et Bard, Marcq en Baroeul
Façade: PMN, Lesquin
Interior fixtures, doors, windows: SDI, Haubourdin
Baswaphon ceilings: Entreprise Michel, Saint Brévin-les-Pins
Technical floors: Comey SAS, Villeneuve-sur-Yonne
Painting: Cabre, Courrières
Stone floors: Surface carrelage, Wattrelos
Wood floors: Parqueterie de la Lys, La Chapelle-d'Armentières
Electricity: Cegelec Nord Tertiaire, Wasquehal
Plumbing, ventilation and heating: MGC, Templemars
Elevators: Schindler, Wambrechies
Fixed furniture: Atelier 41, Saint-Calais
Kitchen equipment: Cofrino, Lambersart
Site work: COLAS, Nancy

Top image © Sebastian van Damme

All images © Fernando Guerra/FG+SG unless otherwise stated.
