Rafael Berges proposes collective living unit redefining our public and domestic realms

United States Architecture News - Aug 23, 2016 - 12:39   16277 views

Rafael Berges proposes collective living unit redefining our public and domestic realms

Residual Living is a new collective living unit, rejecting the individual units, developed by New York-based architect Rafael Berges as his MArch thesis at California College of the Arts. Residual Living is an urban housing proposal that rejects the individual unit as the basis for collective living and instead proposes the shared interstitial space between housing units as the generator of public life. The cracks formed between units redefine the threshold between the public and domestic realm.

Rafael Berges's design consists of a multipartite bearing walls that allow users to share daily habits, working spaces, flexible area in a common area. Through this collective huge spaces, the resident's personal belongings are embedded into bearing walls as fixed elements and they turn into a showcase with exotic appearance through brutalist demeanour.

Rafael Berges proposes collective living unit redefining our public and domestic realms

Neigborhood scale

Housing is the threshold that defines our public and domestic lives and it is therefore the point where the public realm begins. If the aggregation of housing is re-shifted to provide ‘in-between’, or interstitial spaces between units then new types of public realms can be created. If one’s conception of public is smaller, then one has more agency over that public space and it therefore becomes domesticated.

Rafael Berges proposes collective living unit redefining our public and domestic realms

Site plan

New York City is the quintessential embodiment of modern conceptions of collectivity and densification. Over the course of the 19th and 20th centuries the evolution of New York City Housing emphasized the aggregation of housing units to maximize lot coverage, access to light & air, and proper egress.

This approach resulted in highly individualized housing units existing as separate entities that do not relate to one another except through shared corridors and party walls.

Rafael Berges proposes collective living unit redefining our public and domestic realms

volume varieties in the section

The site is a Manhattan city block that sits between old law tenements and towers in the park typologies, naturally evoking an in-between condition. Each lot is filled with the same sized unit and is arranged to cover the same lot area.

This aggregation method creates a variety of spaces between the units in plan and in section the character of the interior is juxtaposed with that of the in-between spaces. The interiors are rectilinear and modular while the in-between spaces are curved to envelop volumes of space—these spaces become the focal point of the design.

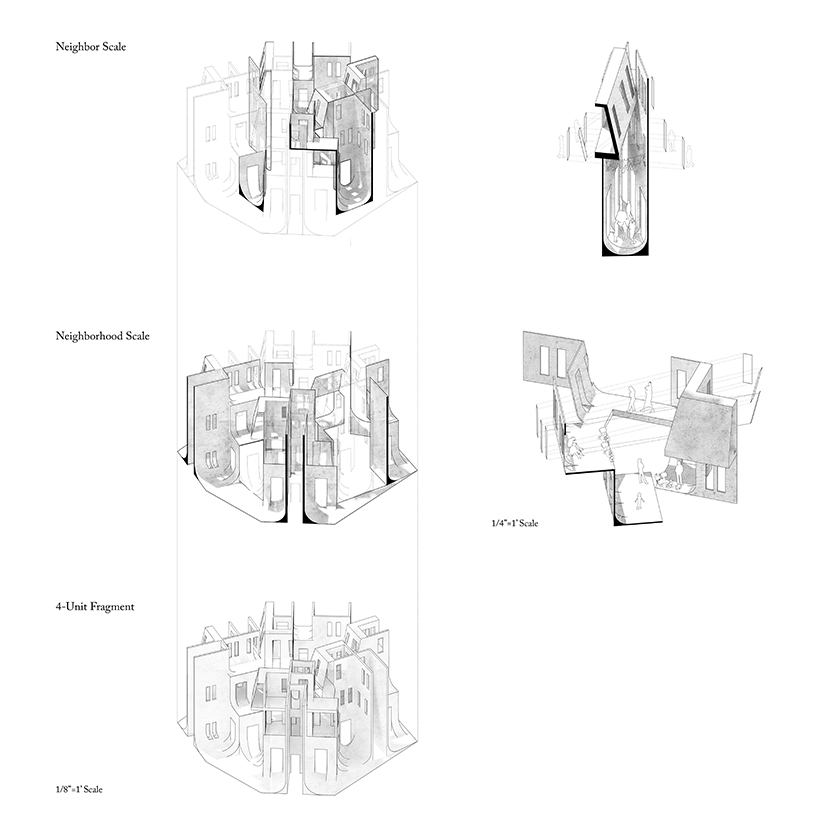

Rafael Berges proposes collective living unit redefining our public and domestic realmsExploded axonometric drawings of 4-partial units

These volumes of space fall into two main categories: the neighborhood scale and the neighbor scale. The neighbor scale is where the units are most densely packed to create close proximities between units where more intimate interactions can occur between two units.

The neighborhood scale is where 3 or more units are loosely packed to create larger volumes of space with visual continuity across them. Balconies become an extension of the domestic space held within each unit and walkways connect units across larger spaces.

Rafael Berges proposes collective living unit redefining our public and domestic realms

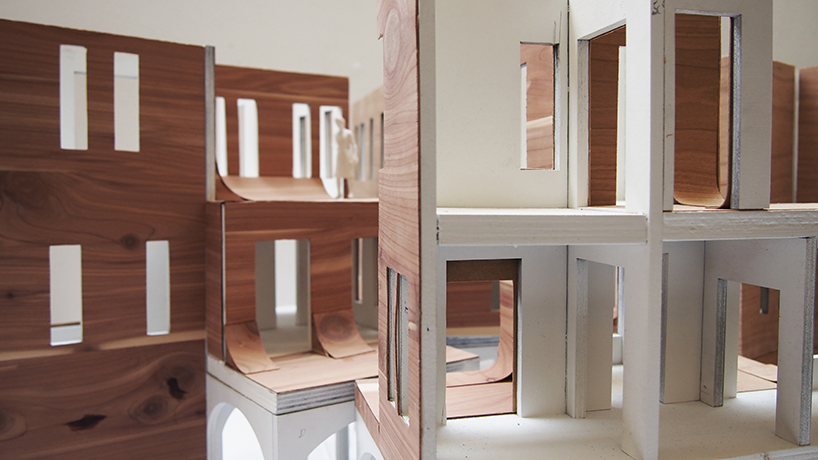

Cloder view to model, showing living spaces

The result is urban multi-family housing that enriches human plurality by blurring the boundaries between public and domestic space in order to allow the human condition to flow more seamlessly between the two realms.

Rafael Berges proposes collective living unit redefining our public and domestic realms

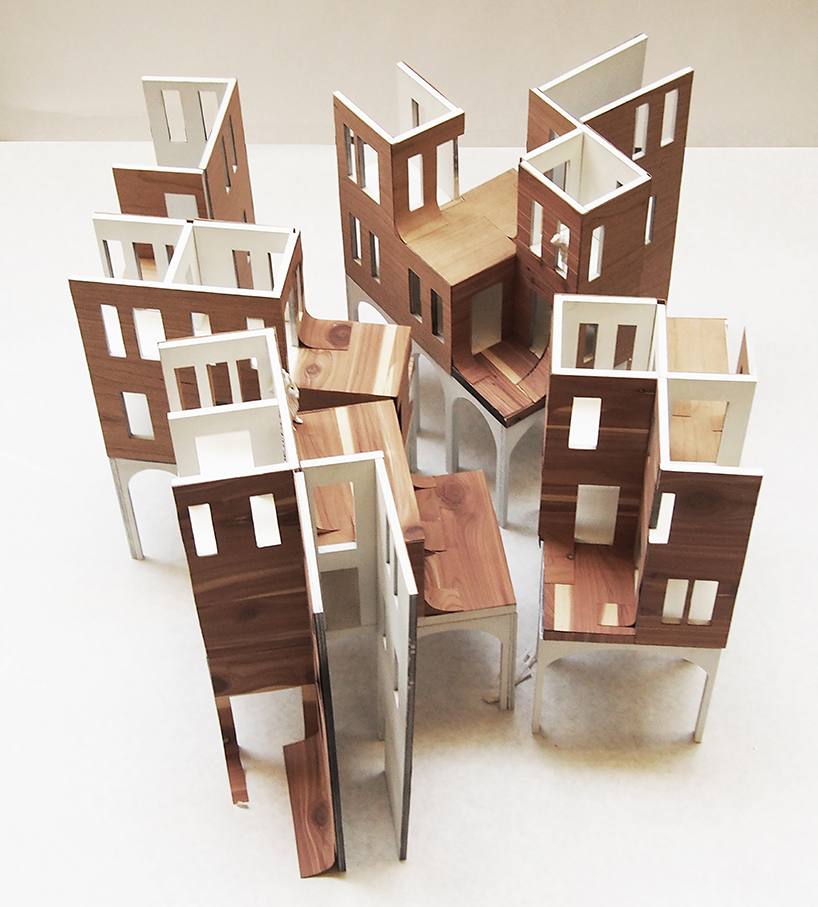

Model view

Rafael Berges proposes collective living unit redefining our public and domestic realms

Model view-2

Rafael Berges proposes collective living unit redefining our public and domestic realms

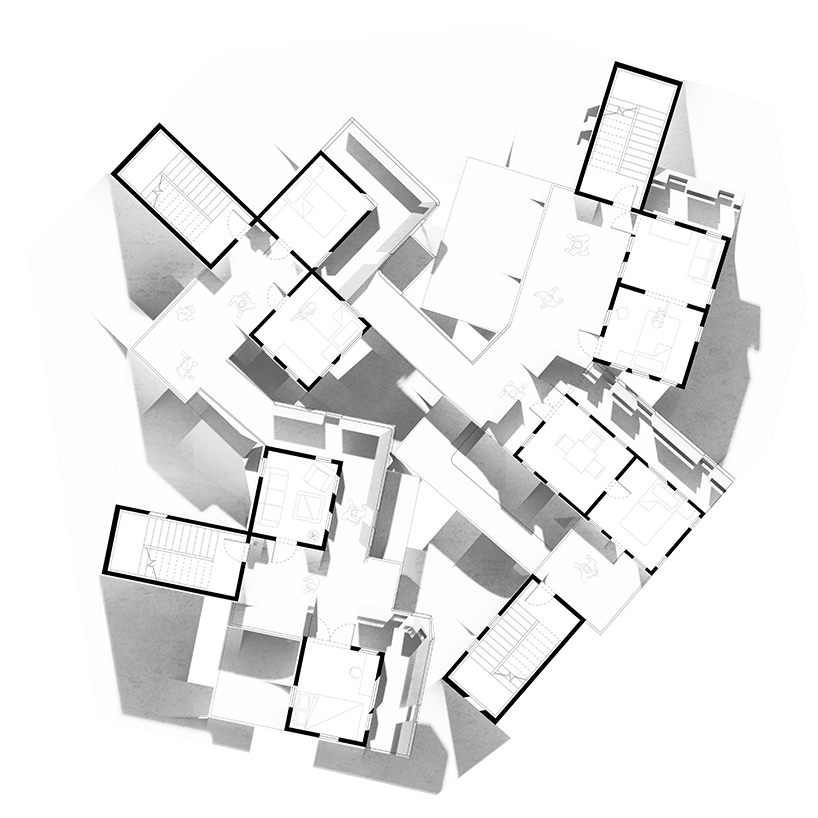

3-D plan

Rafael Berges proposes collective living unit redefining our public and domestic realms

Housing units typologies

Rafael Berges proposes collective living unit redefining our public and domestic realms

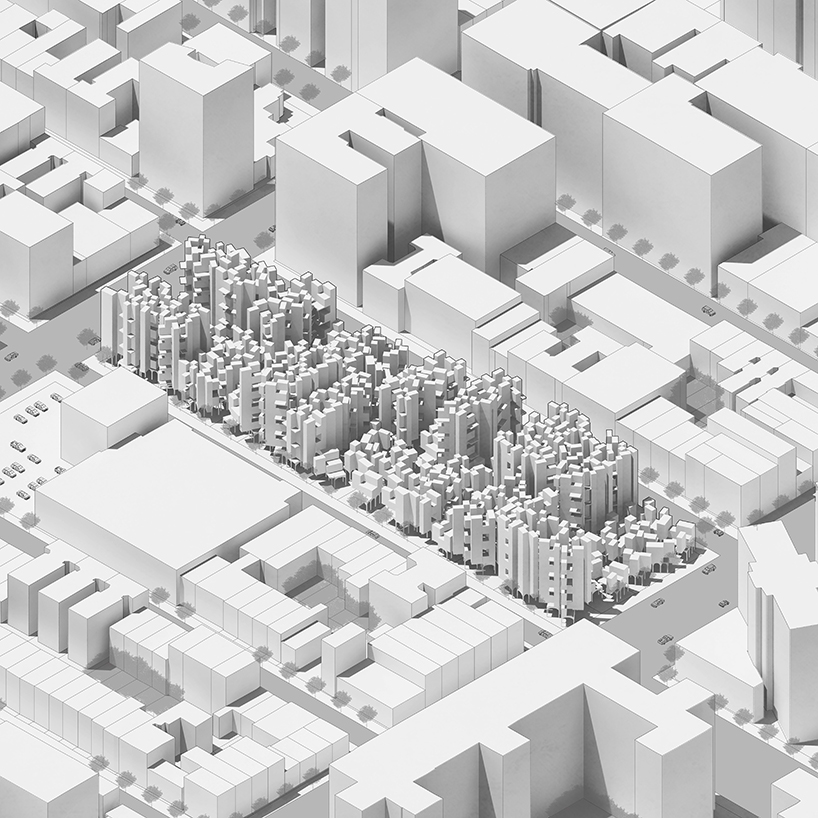

Residual Living as a whole in Manhattan's urban setting

All images © Rafael Berges
