OFIS Architects and CBD structural engineers have completed the narrowest winter cabin on Slovenia’s rocky mountains, which was conceived as a research project. Developed with PZS,  PD Bovec, JZS, Permiz d.o.o. and Ortar in Jerman d.o.o., the team designed a self-contained wooden shell, which resist extreme conditions on top of the mountain.

The challenge is to install real objects, shelters in 1:1 on remote sites and study their response to extreme weather, radical temperature shifts, snow and rugged terrain. The harsh conditions of wind, snow, landslides, terrain, and weather require a response of specific architectural forms, structures and concept.

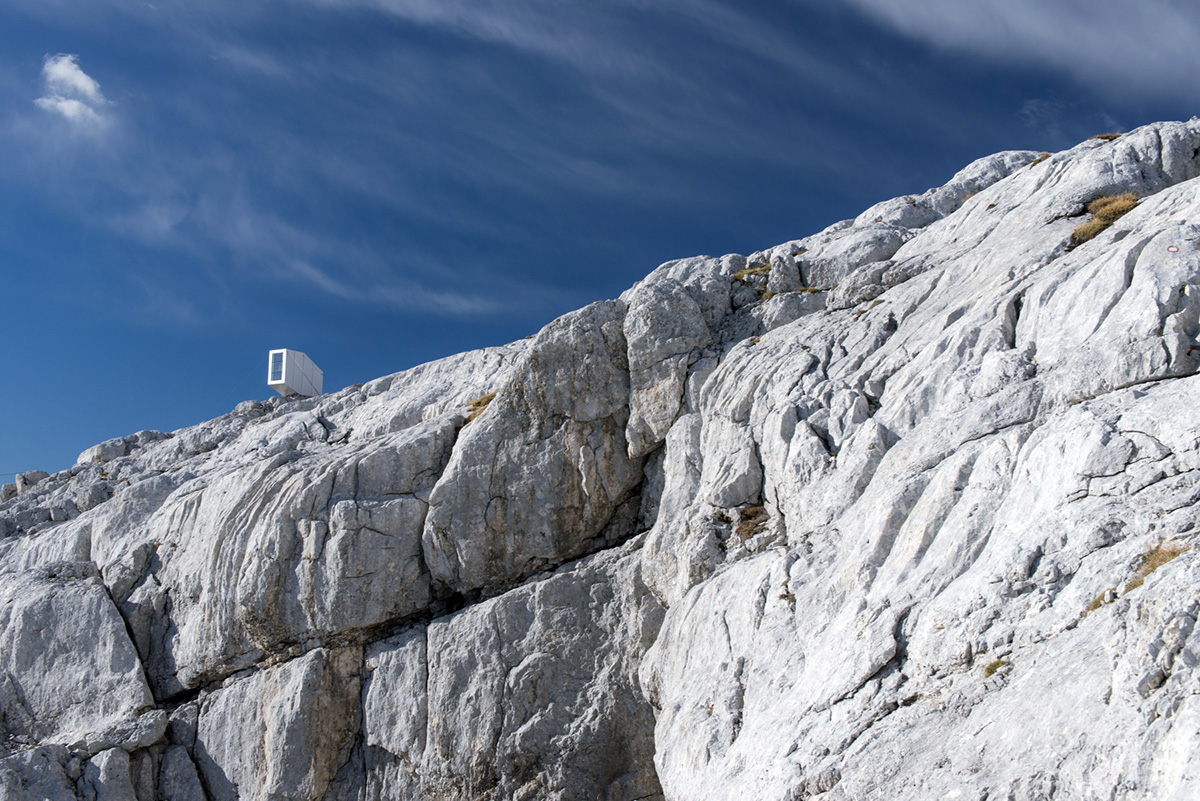

The site is accessible only by climbing or helicopter – the modules and loads are prepared according to the maximum weight and equilibrium limits. Its position within the wilderness requires respect of natural resources ensuring the shelter stability while having a minimal impact on the ground.

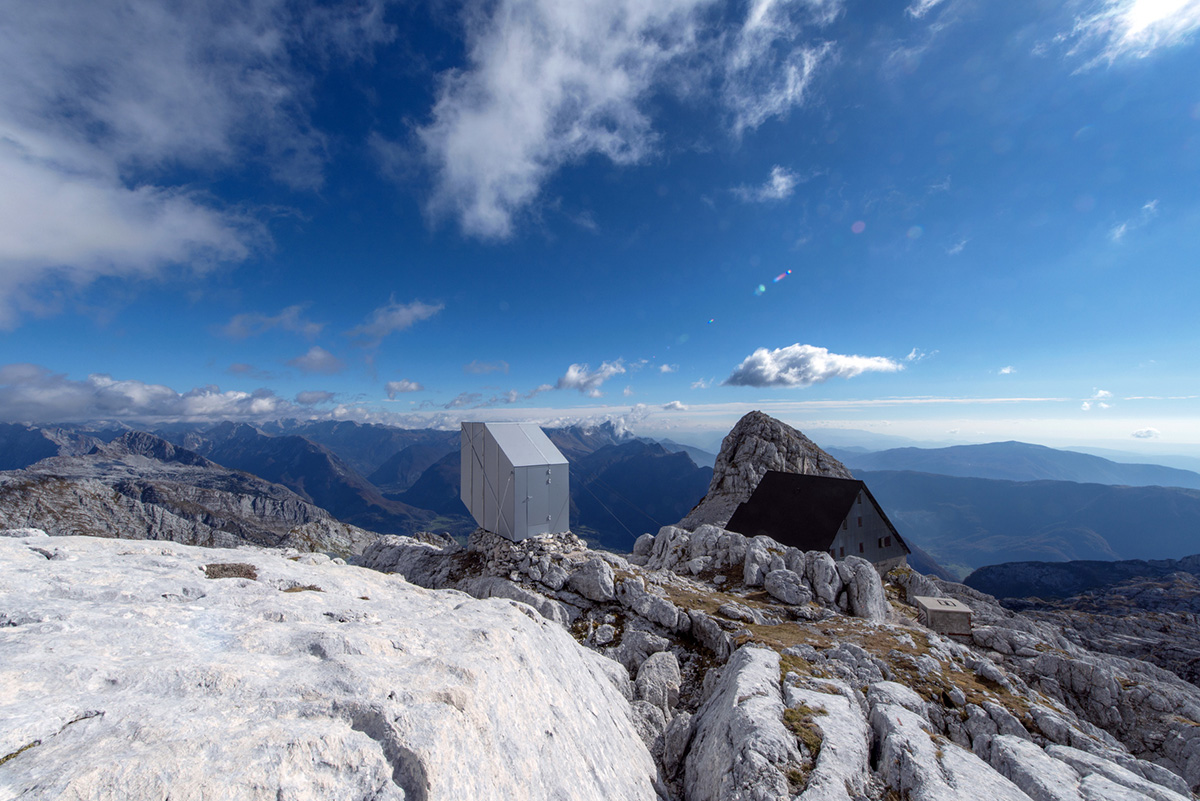

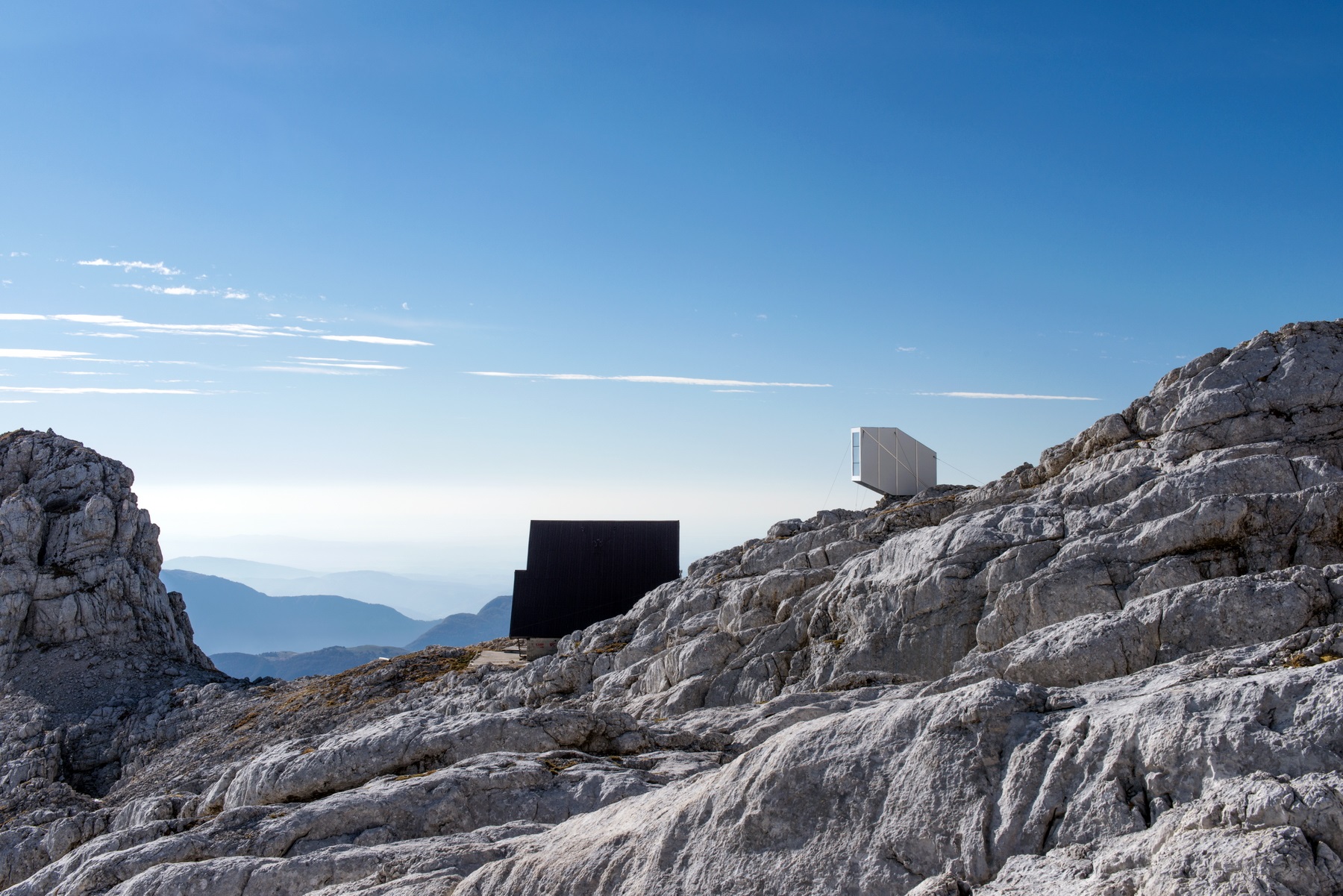

Kanin is a mountain above a small town, Bovec, with beautiful resorts around the valley. The area is also important due to battles that took place during the World War I. Soldiers were fighting along the Isonzo front and many remains of the battle can still be found in the area. In collaboration with Slovenian mountaineer association and PD Bovec, this particular site was chosen because of its 360-degree views over Slovenia and Italy, and spectacular views to Triglav, Soca Valley and Adriatic sea.

It will become a destination for hikers, climbers, cavers, mountaineers, nature lovers and romantics.  Weather conditions are very harsh, especially during the winter. Snow cover lasts more than half of year. The area of Kanin is known for rainfall and extreme snow records.

During the winter more than 10 meters of snow can fall. Strong rainstorms and winds can hit this place – rainfall record in Bovec for one day is 363 litres/m2. Mountain area is full of caves and abysses, earthquakes occasionally occur.

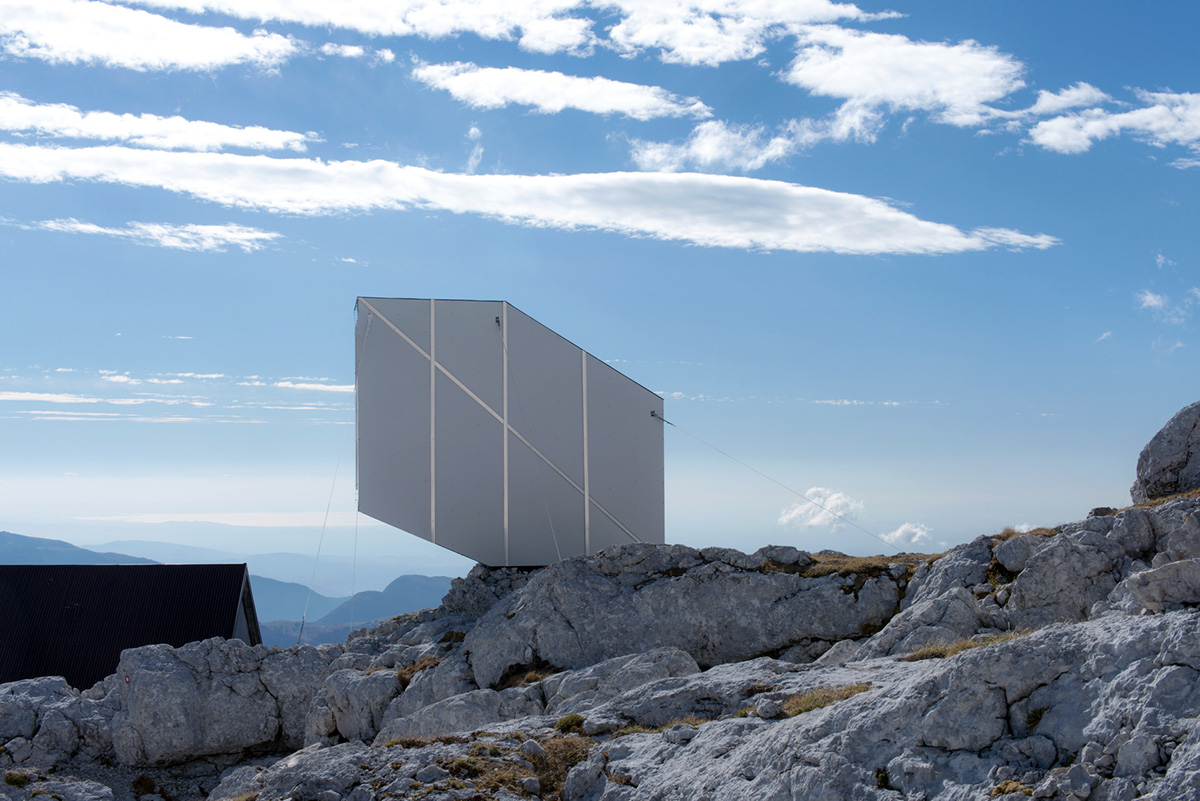

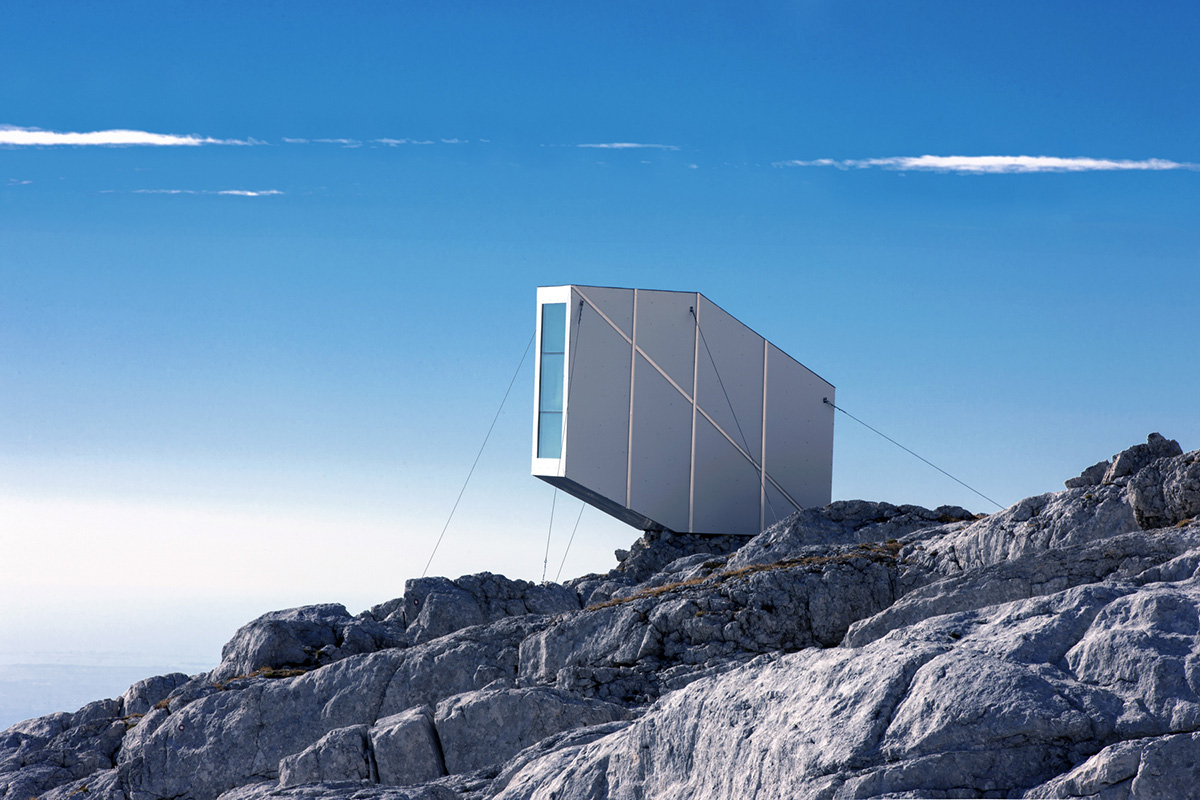

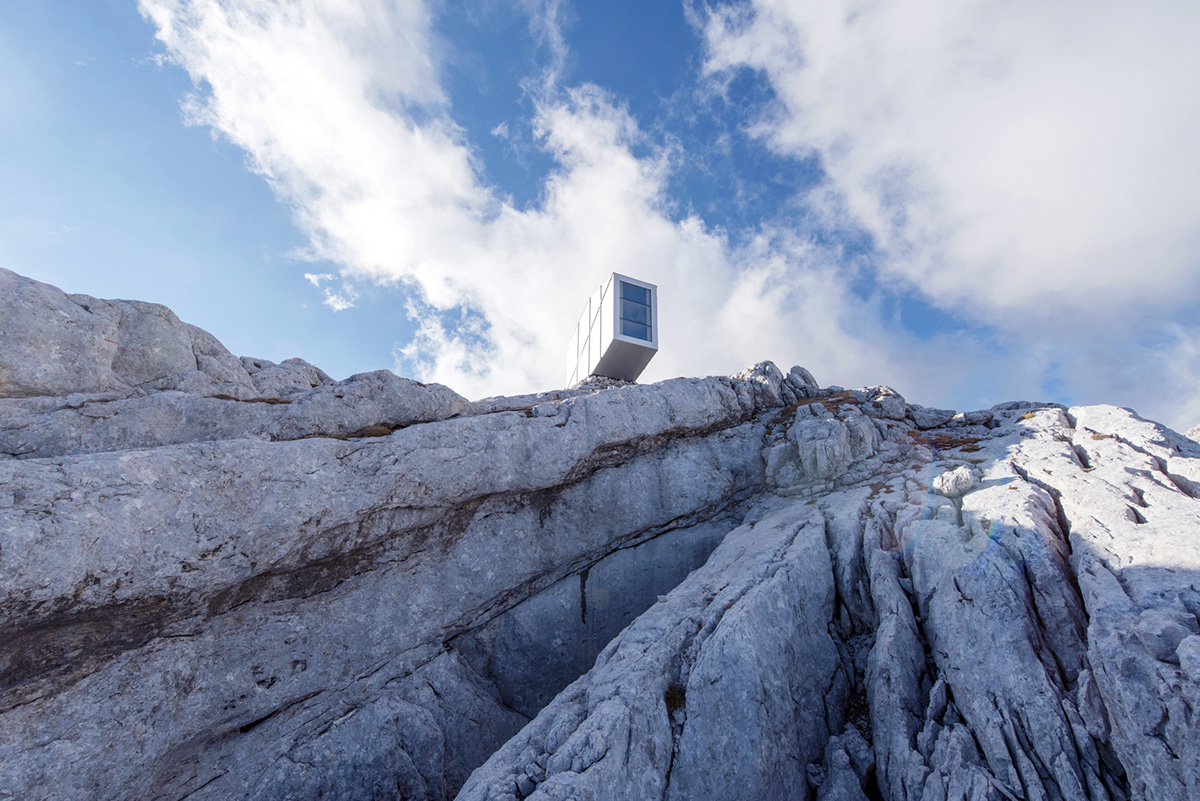

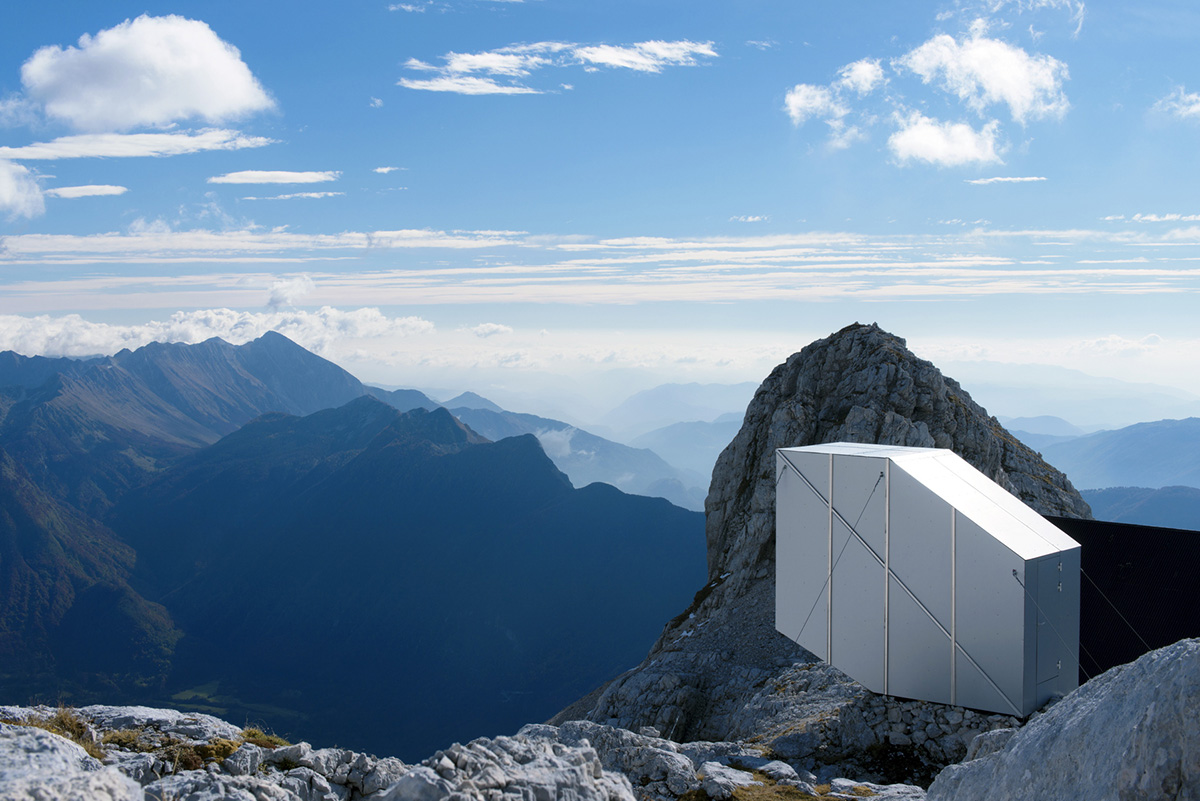

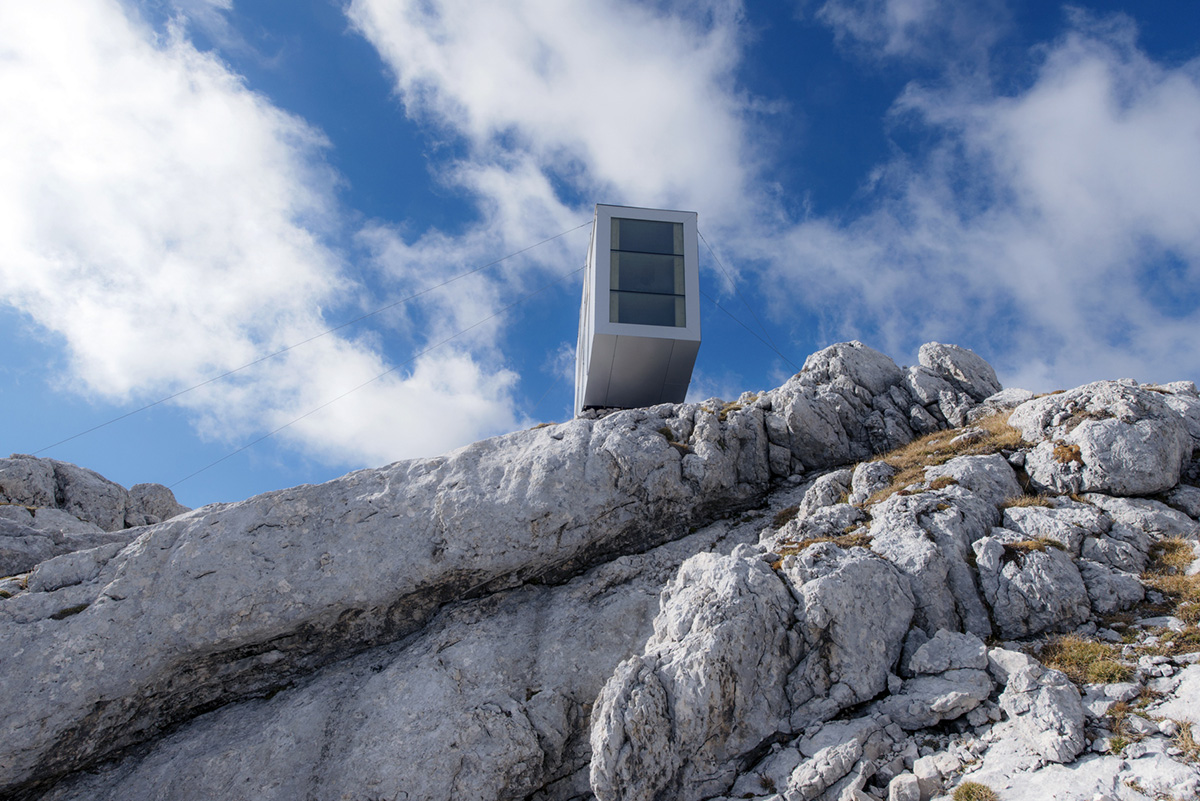

Kanin Winter Cabin forms a compact wooden volume organized with three floor resting platforms. These platforms are hanging towards the valley and a large glazed panoramic window offers astonishing views. A cantilevered overhang, resting part of the cabin, reaches the smallest footprint on the rock.

The interior design  dictates modesty, subordinate to the function, providing accommodation for up to nine mountaineers. The cabin settlement and transportation was an extremely difficult task. It was realized by the Slovene Armed Forces helicopter crew.

Bad weather and unexpected turbulences lead to the cabin being placed and fixed on site at the third attempt. However, the challenge of the project is to gain new knowledge through unexpected weather conditions. Winter cabin has been fully implemented with donations, also the setup resulted a lot of hard working volunteer hours.

Site plan

Plan

Cross section

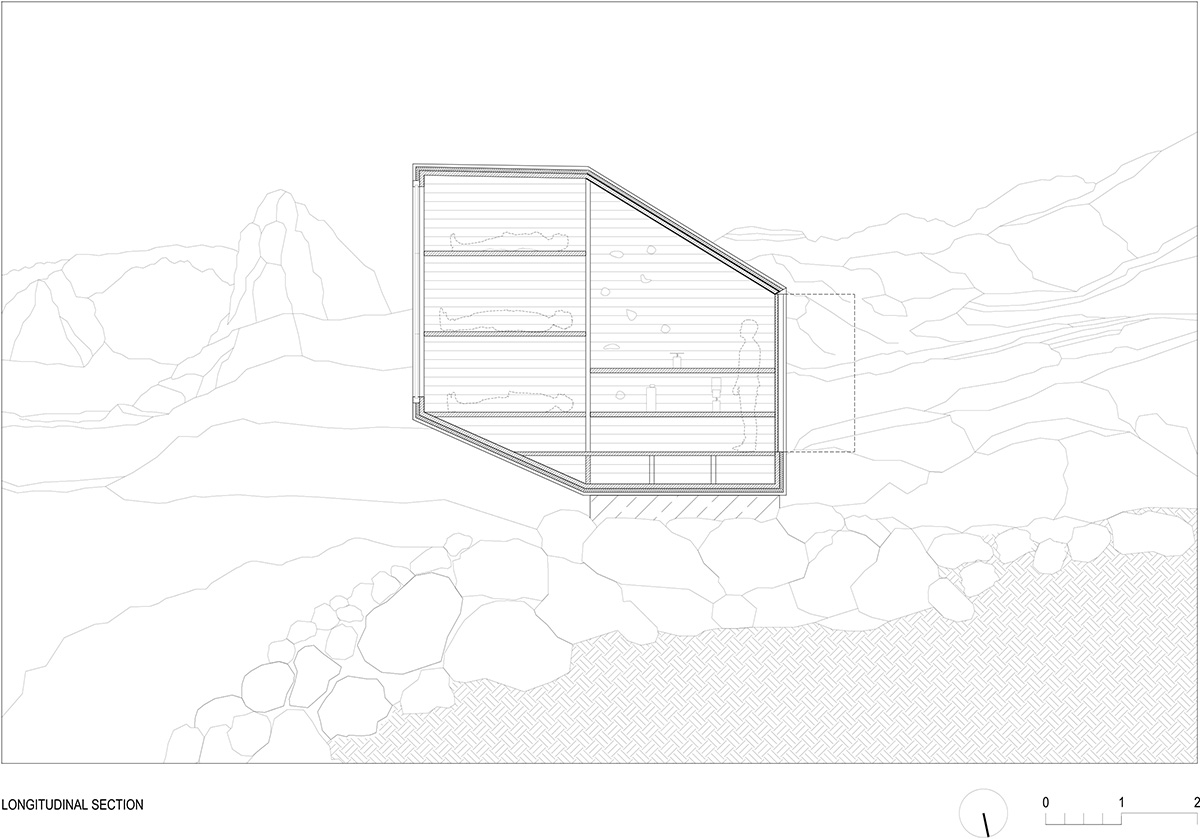

Longitudinal section

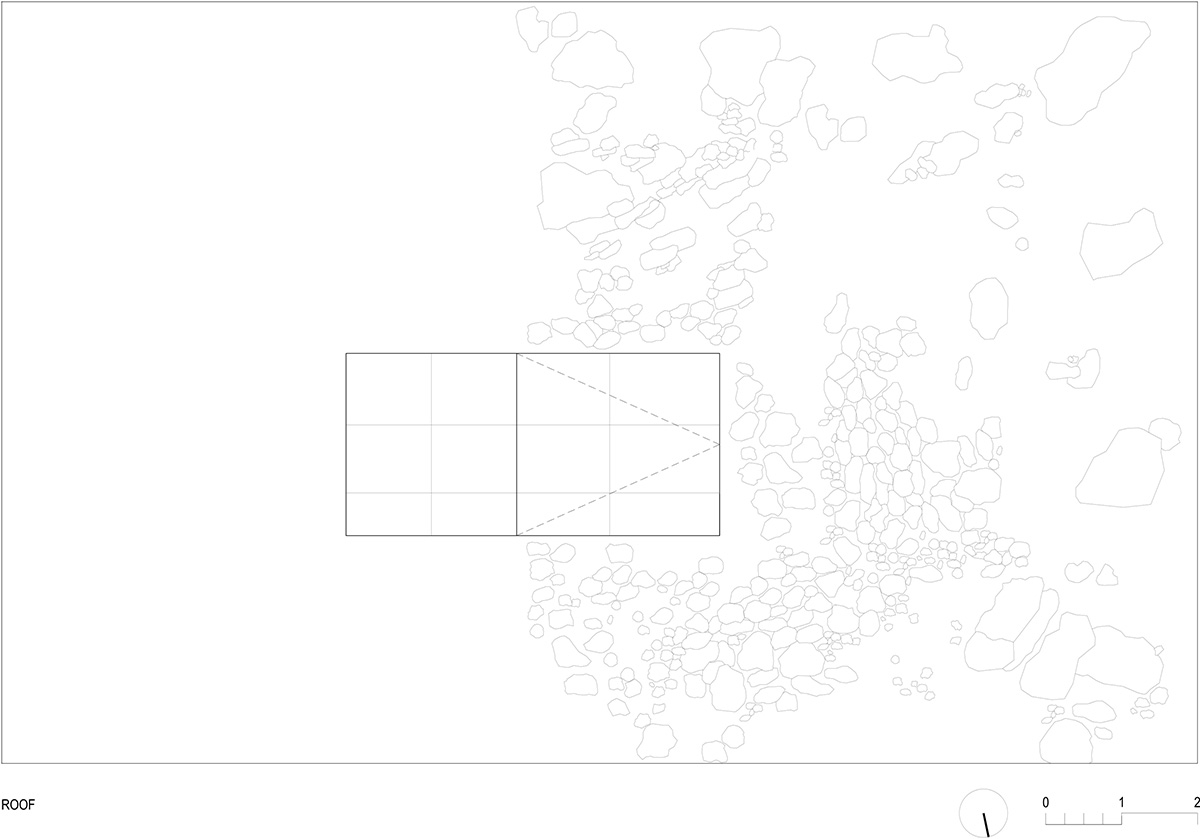

Roof plan

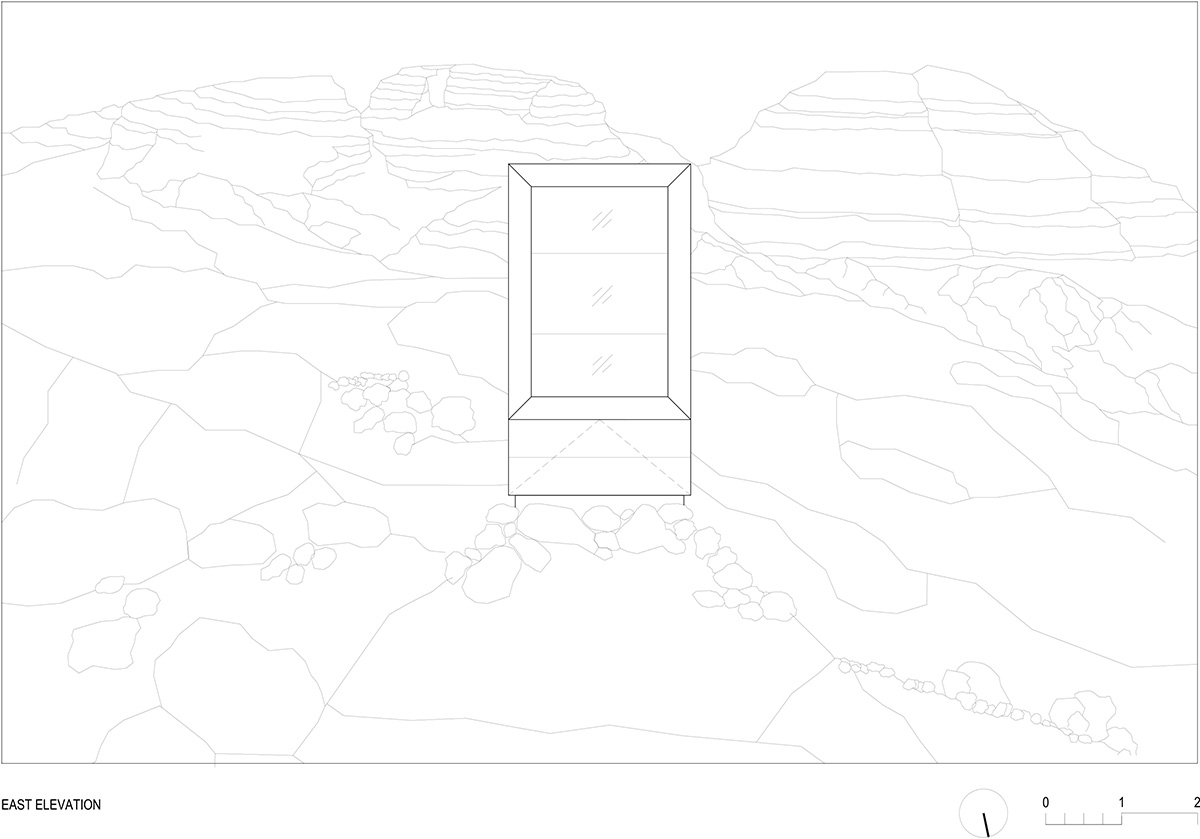

East elevation

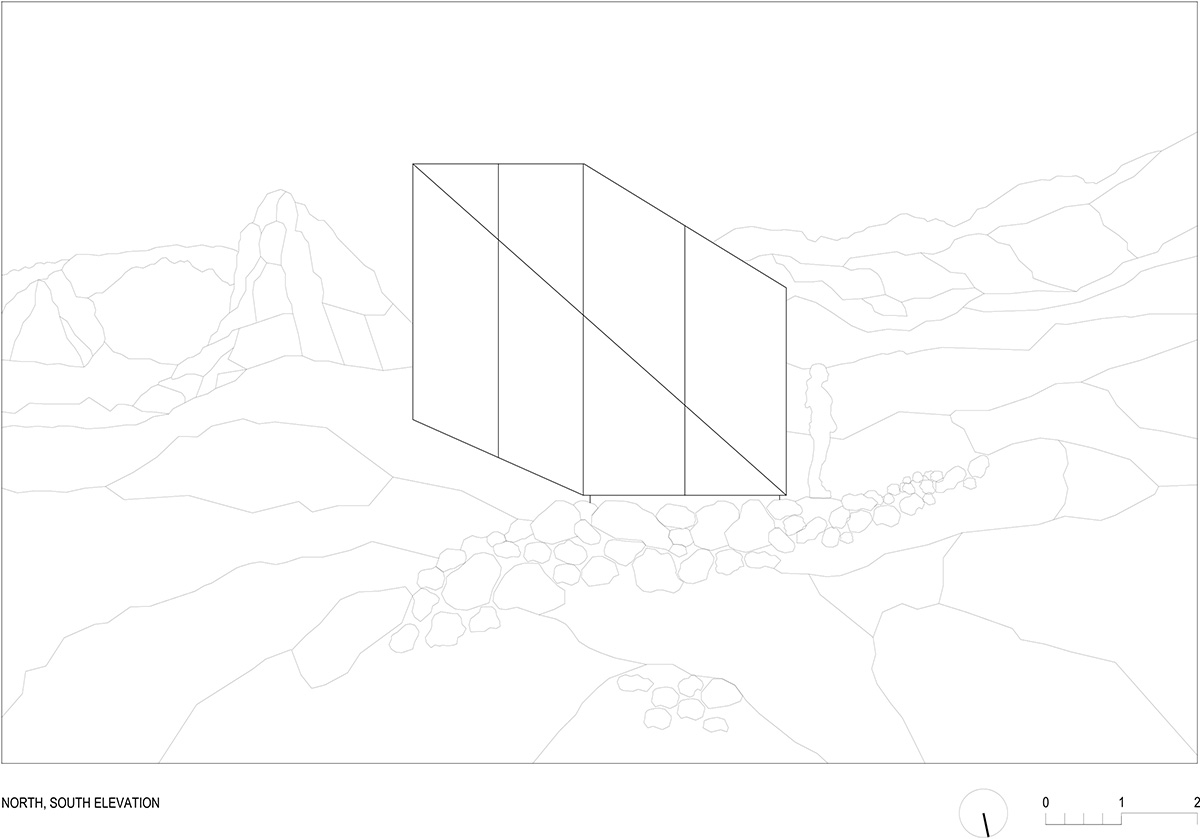

North, South elevation

West elevation

Inside-outside diagram

Program function

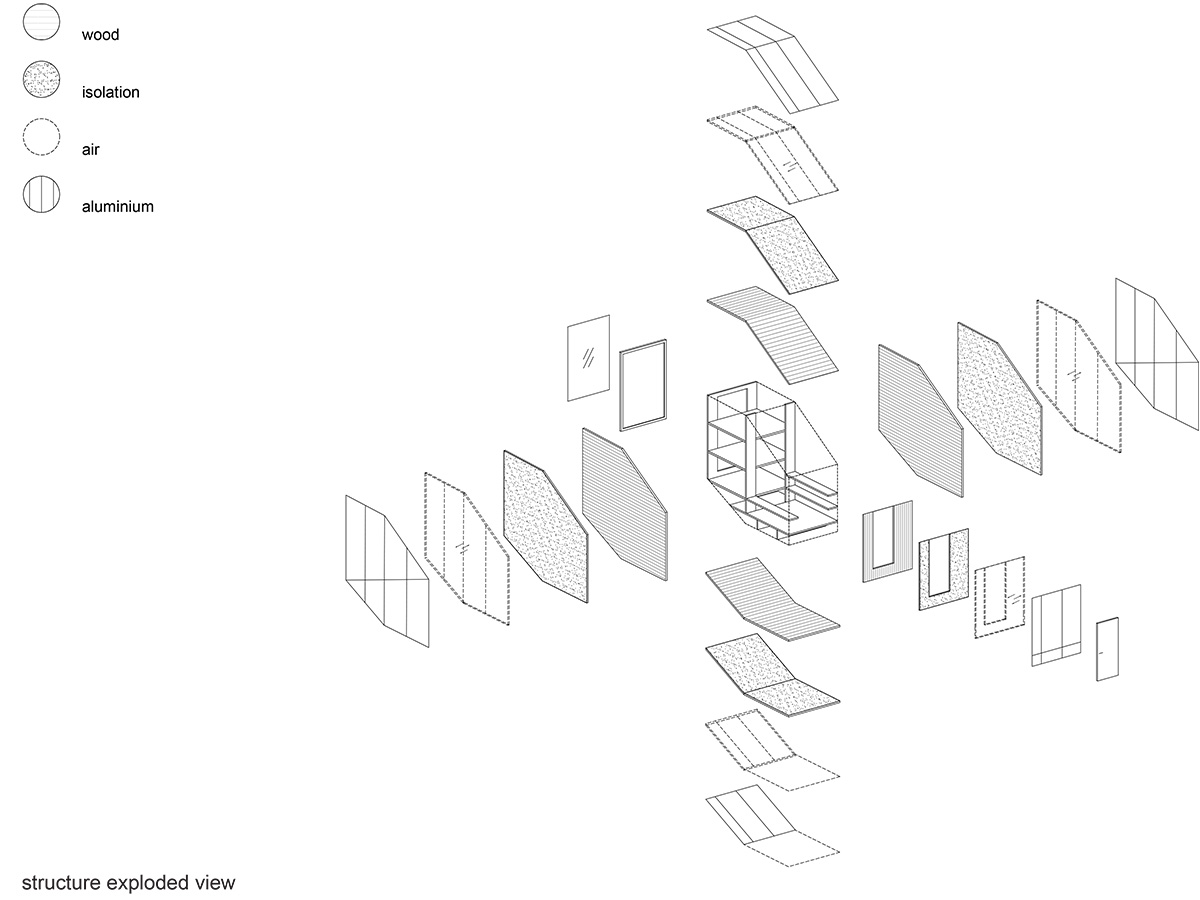

Structure exploded diagram

Transportation diagram

Project Facts

Project name: Winter Cabin on Mount Kanin

Architects: OFIS Arhitects

Project Team: Rok Oman, Spela Videcnik, Janez Martincic, Andrej Gregoric, Sara Carciotti, Jamie Lee, Maria Della Mea, Vincenzo Roma, Andrea Capretti, Jade Manbodh, Sam Eadington, Roberta Costa, Soo Woo

Structural Engineering and Principal Contractor: CBD Contemporary Building Design

Project Team: Bruno Dujic, Jure Jancar

Execution Team: Jure Jancar, Ziga Stepisnik, Martin Gradisnik

Contractor:

Permiz / Bostjan Perme
Matevz Jerman, Ortar in Jerman d.o.o.

Organization support

PZS Planinska zveza Slovenije / Matej Planko, Dusan Prasnikar

PD Bovec / Robert Rot

Turisticno društvo Bovec / Janko Humar

Winter Cabin maintainance: PD Bovec

PD Bovec / Rober Rot

PD Bovec / Milivoj Sulin

Helicopter Flights:

Slovene Armed Forces helicopter crew
Chief pilot, Davorin Draginc

Co-pilot, Peter Paskulin

Pilot technican, Grega Ponikvar

Pilot rescuer, Dusan Hrncic

On Site Construction team: Janez Martincic, Andrej Gregoric, Isa Plibersek, Matevz Jerman, Davor Rozman, Nikolaj Gregoric, Robert Rehar, Claudio Bratos, Andrej Fratnik, Matej in Jernej Naglost, Marko Plevelj, Gregor Plevelj, Miha Luzar, Aljaz Hribar, Marjan Kogovsek, Kristina Seljak, Tjasa Rutar, Gregor Basiaco, Luka Zalokar, Zdenka Zitko, Blaz Ortar, Jernej Ortar, Uros Grilj, Erik Cudr, Marina Pintar, Gregor Pintar, Matej Blatnik , Marjan Baricic, Andrej Drevensek, Jerry Ruditser, Robert Rot

Sponsors and Donators

Lidl Slovenija, Komenda, Slovenia

Zavarovalnica Triglav, Slovenia

Timber CLT Construction: CBD d.o.o., Celje, Slovenia

Glass: Reflex, Slovenia and Guardian Europe, Luxemburg

Thermal and fire safe Insulations: ROCKWOOL Adriatic, Croatia

Façade Cladding: Alucubond and Ravago, Store,  Slovenia

Anchors: Hilti, Trzin, Slovenia

Steele cabels fixation:  Marmet d.o.o. , Ajdovscina, Slovenia

Abyss fall protection: Geobrugg AG, Switzerland

Façade cladding fixation screews, Epro d.o.o.

Power Equipment: AS Domzale Moto center d.o.o. ,Trzin

Area: 9.7m2

Dimensions: 2.4m x  4.9m

Materials: Timber (CLT), Glass, stone wool, alu panels

All images © Janez Martincic
