Atelier FCJZ transforms former pedestrian bridge into a bridged art museum in China

China Architecture News - May 20, 2019 - 04:43   3928 views

Atelier FCJZ transforms former pedestrian bridge into a bridged art museum in China

Beijing-based architecture firm Atelier FCJZ has converted former pedestrian bridge into a new art museum in the city of Jishou, the regional capital of Xiangxi (western Hunan), a minority autonomous zone.

Nanmed Jishou Art Museum, the new bridged art museum runs the Wanrong river through the middle of Jishou, which makes the most central location for the art museum over the water course and doubles as a pedestrian bridge naturally.

Atelier FCJZ transforms former pedestrian bridge into a bridged art museum in China

The architects' aim for the project to make the art as much as accessible to the public as the art museums are generally designed as isolated from its users.

"Initially, the municipal government considered parcels of lands in the development zone outside the city; however, we proposed to build the art museum in the center of the old town because we believed that a cultural facility should be easily accessible," said Atelier FCJZ.

"We hope that people in Jishou would not only make a special trip to see art but will also encounter art on their way to work, to school, or to shop."

Atelier FCJZ transforms former pedestrian bridge into a bridged art museum in China

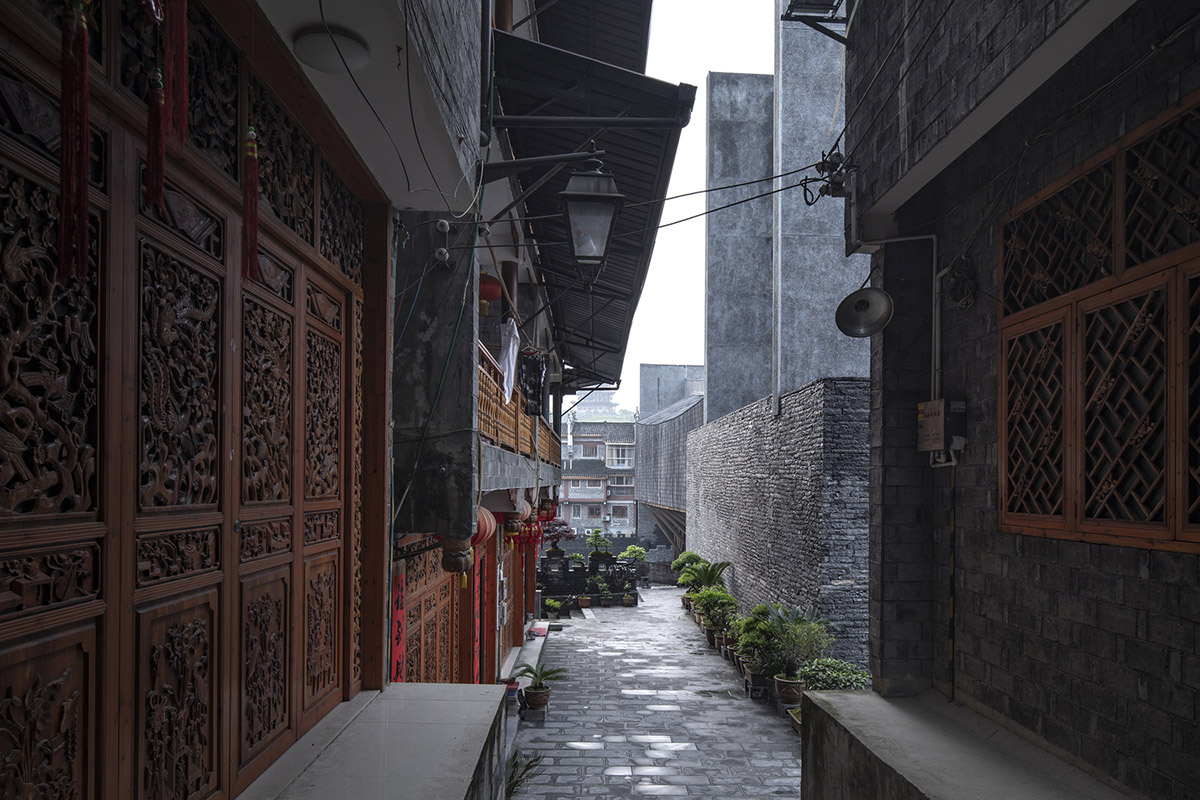

The 3,535-square-metre museum is designed as a new urban intervention that is inserted into the existing urban fabric. The art museum was built up with row buildings along the Wanrong River that house shops, restaurants, bed-&-breakfasts, often with owners living upstairs.

Atelier FCJZ transforms former pedestrian bridge into a bridged art museum in China

"Typical contemporary cultural institutions in China, such as museums and theaters, are treated as freestanding monuments, from away from the communities. In Jishou, since we think an art museum should not be isolated from its users," added the architects.

Atelier FCJZ transforms former pedestrian bridge into a bridged art museum in China

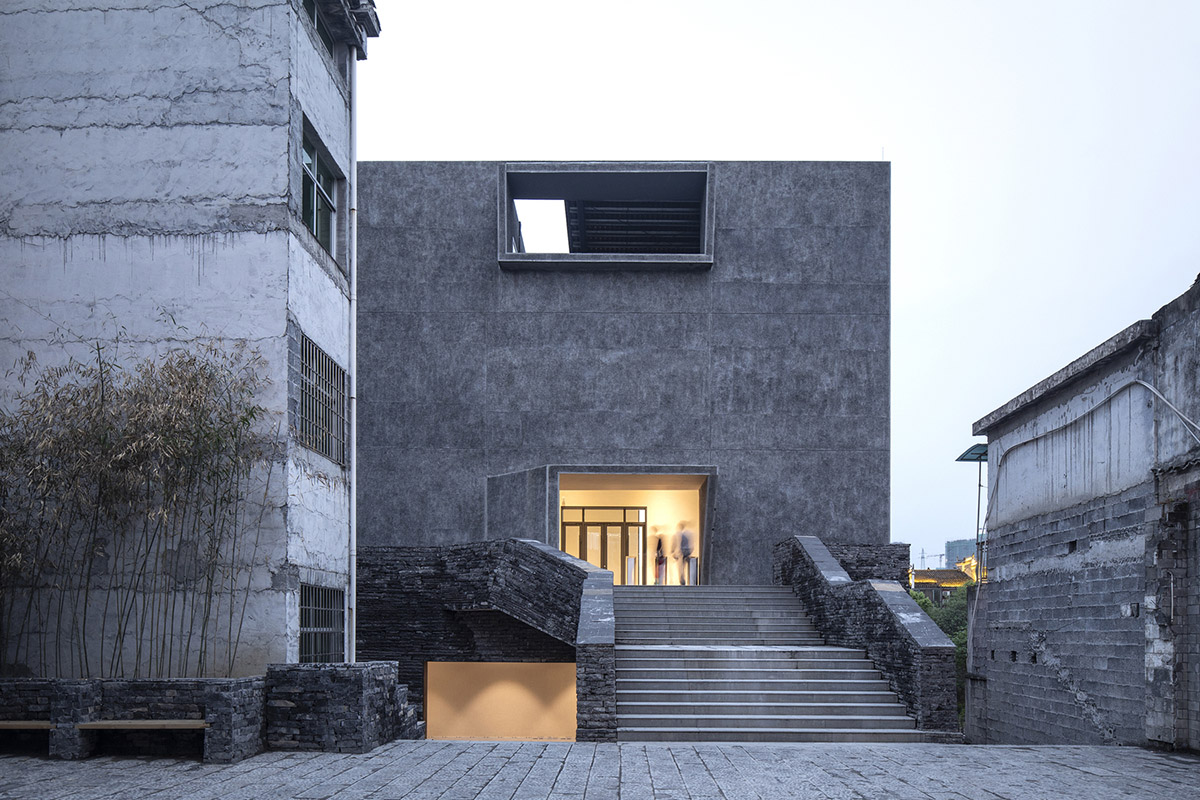

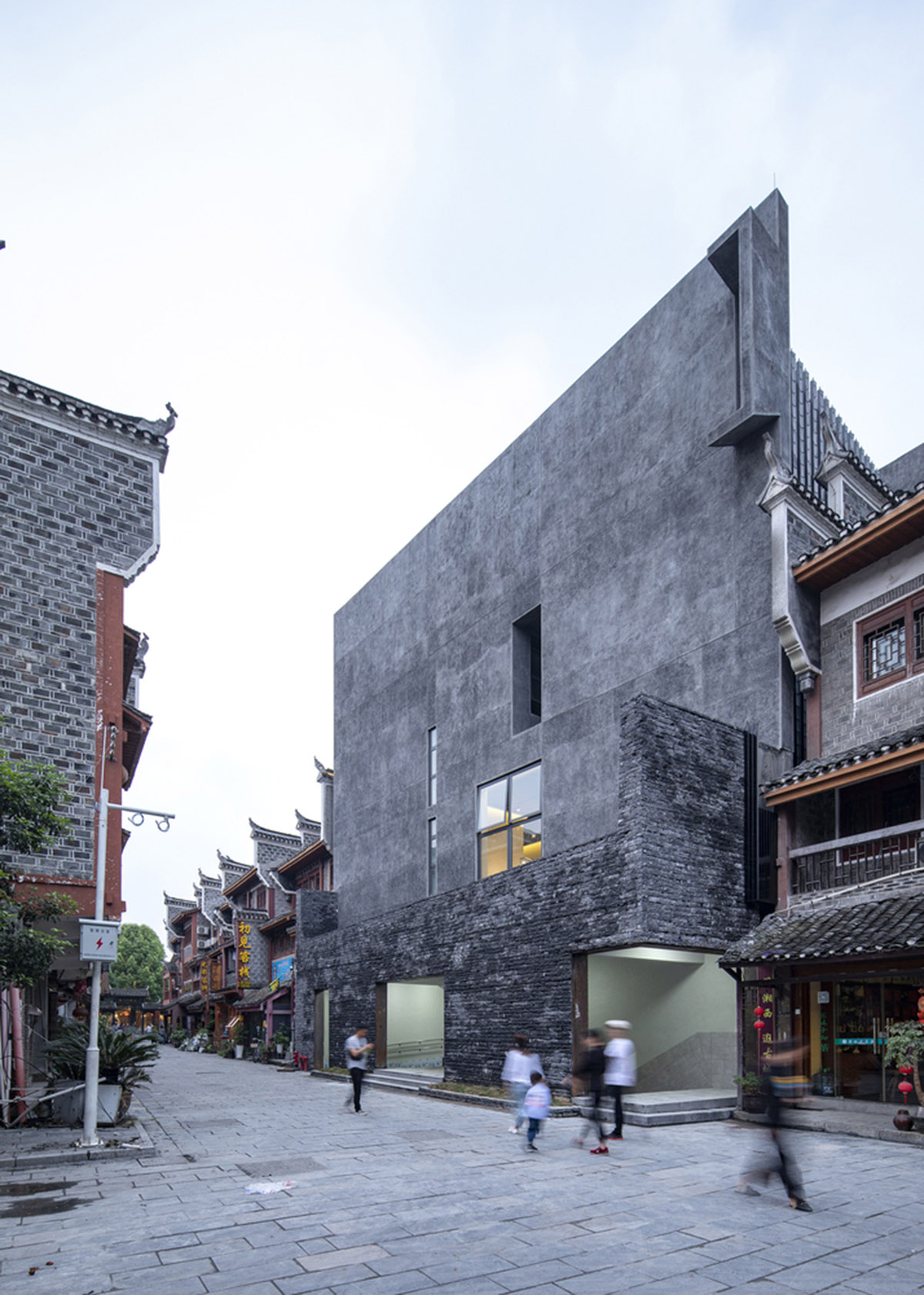

The front entrances of the Jishou Art Museum on both riverbanks are part of the mixed-use street walls and integrated into the everyday life. Covered bridge has a long tradition in this mountainous region of China and named Fengyu Qiao, meaning wind-and-rain bridge, which is not only used for crossing river or valley but a public space where travellers take a rest and vendors set up stands.

Atelier FCJZ transforms former pedestrian bridge into a bridged art museum in China

Atelier FCJZ's design creates a contemporary interpretation of the age-honored building type. The architects introduced art as a new program on a covered bridge while maintaining pedestrian traffic and stop meanwhile translating the formal language of the Fengyu Qiao into a modern one.

Atelier FCJZ transforms former pedestrian bridge into a bridged art museum in China

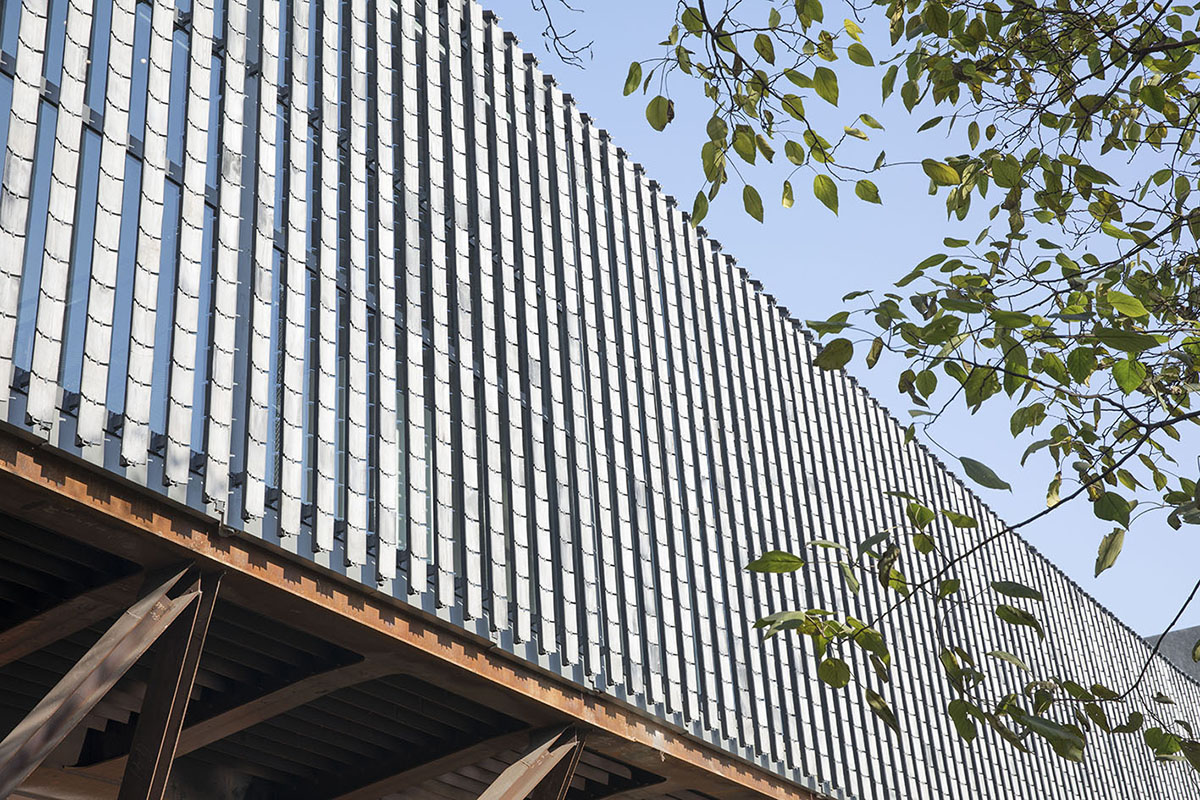

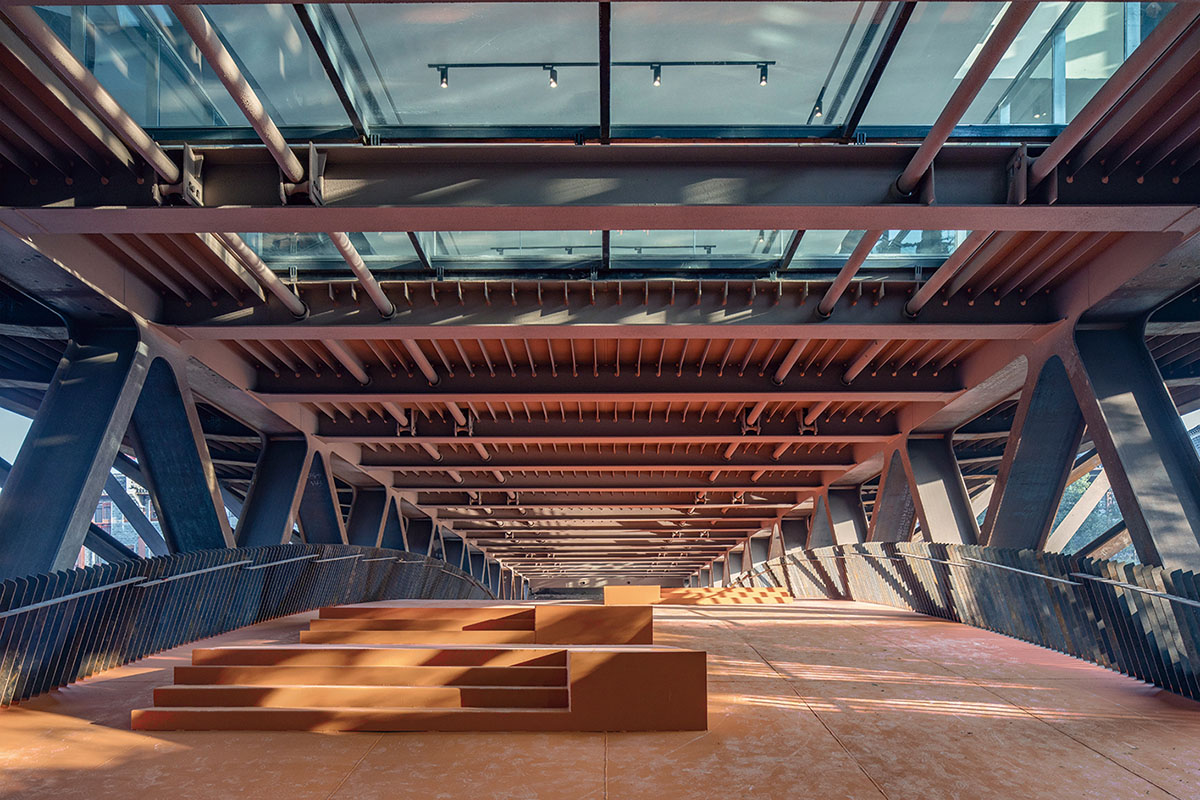

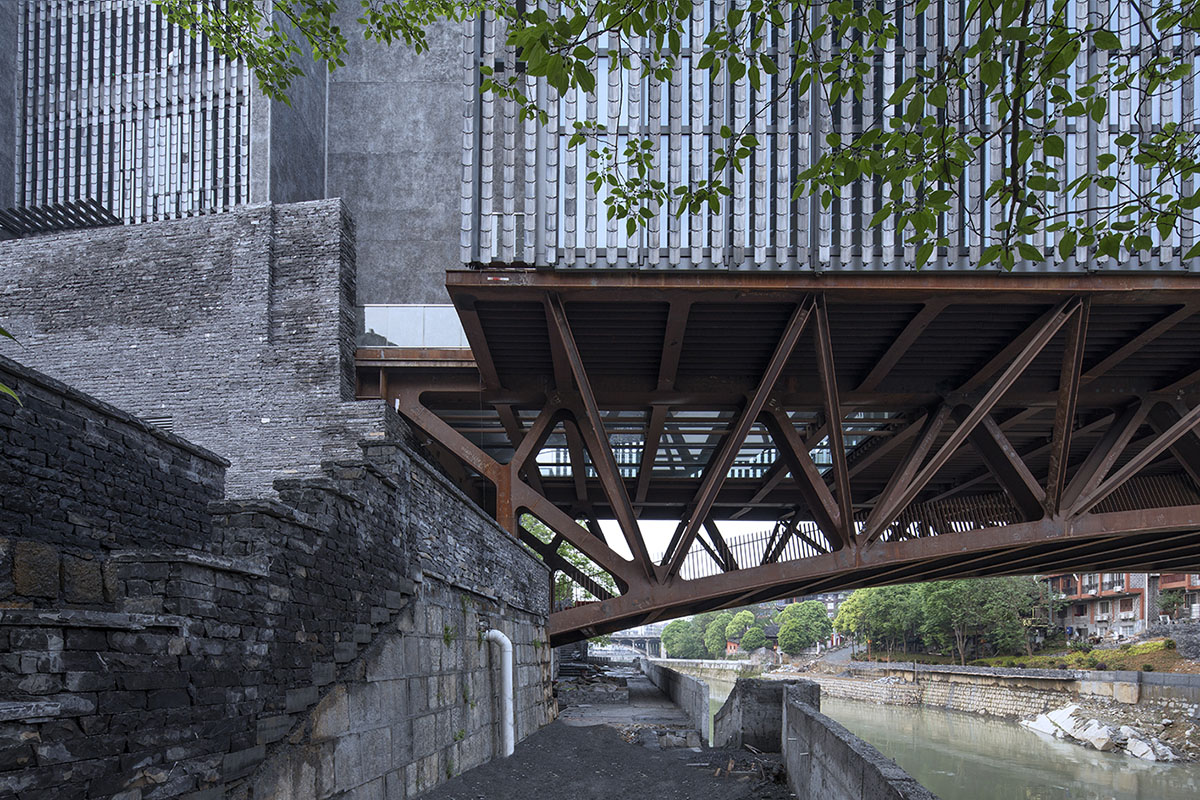

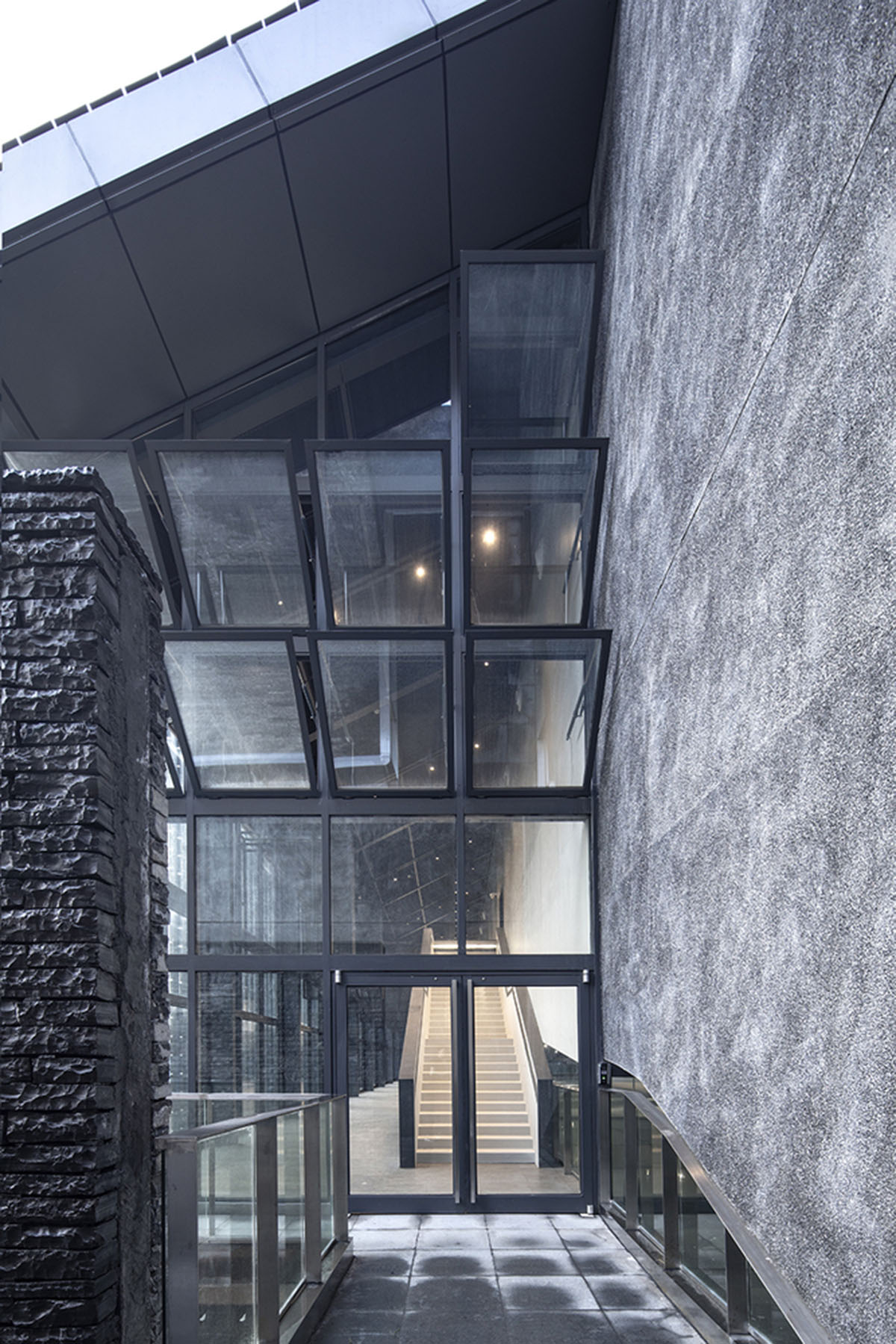

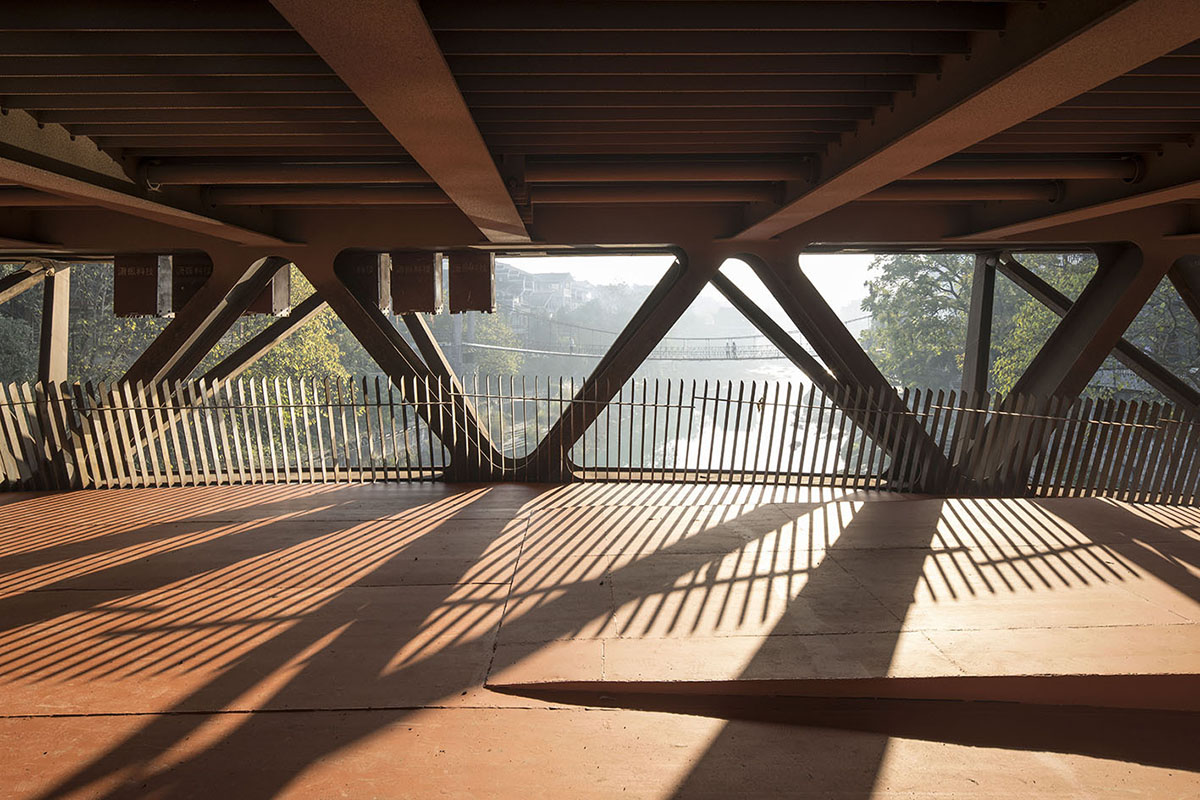

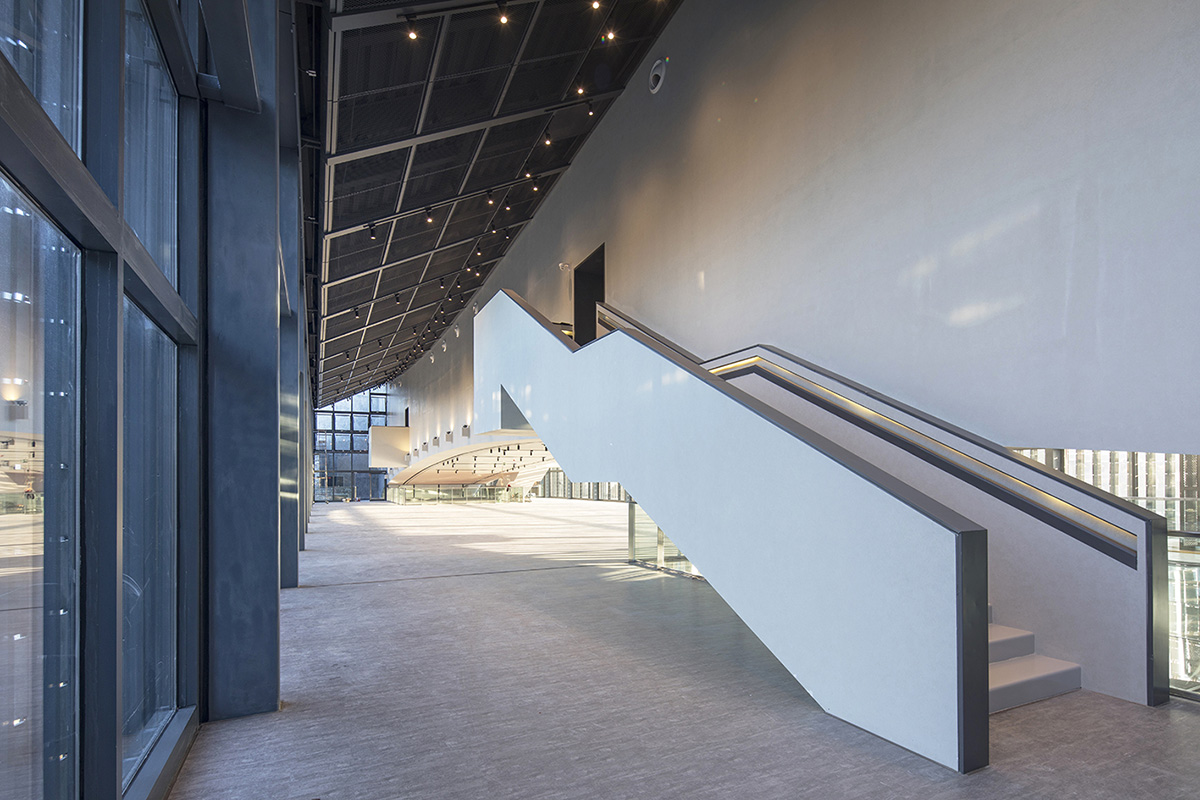

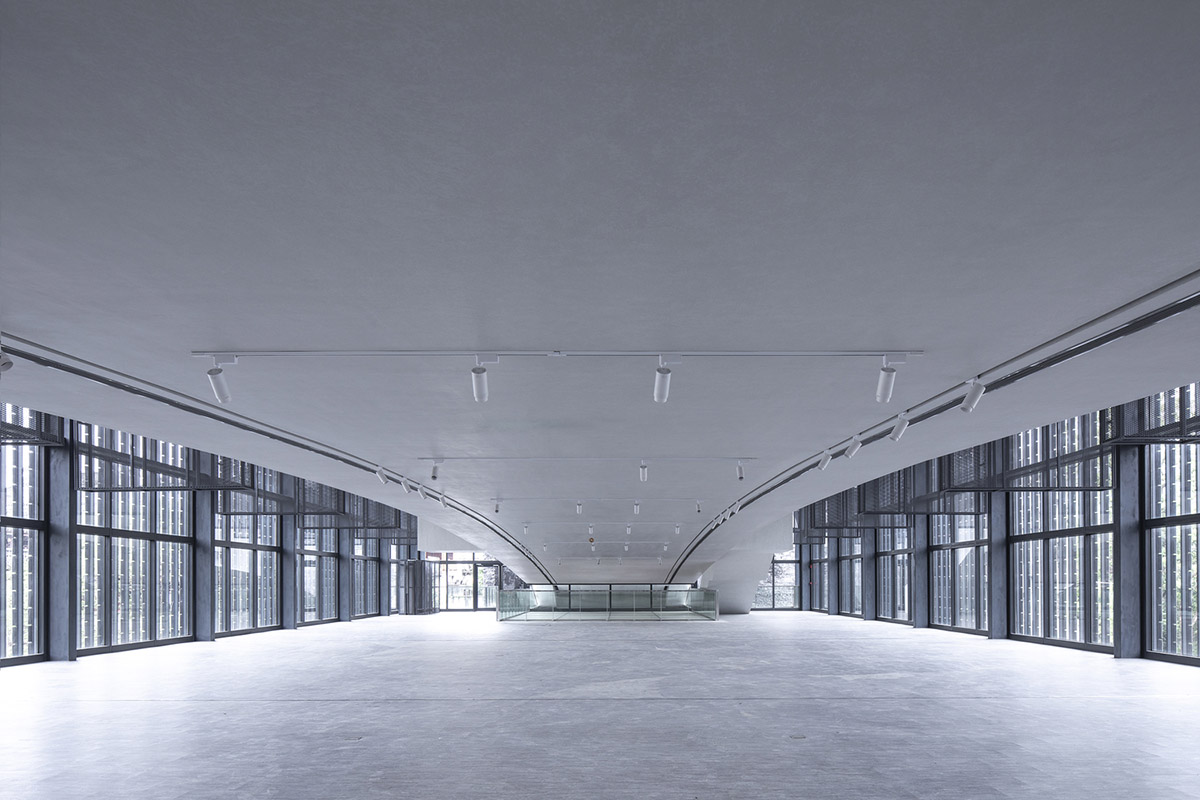

The art museum is composed of two bridges, one on the top of the other. The lower level is an open steel truss structure that resembles a roofed street for pedestrians and allows the flow of floods; the upper level is a concrete arch cast in-situ with a painting gallery inside. In between the two bridges, glazed walls and tiled shading system enclose the art museum's main hall for temporary exhibitions.

Atelier FCJZ transforms former pedestrian bridge into a bridged art museum in China

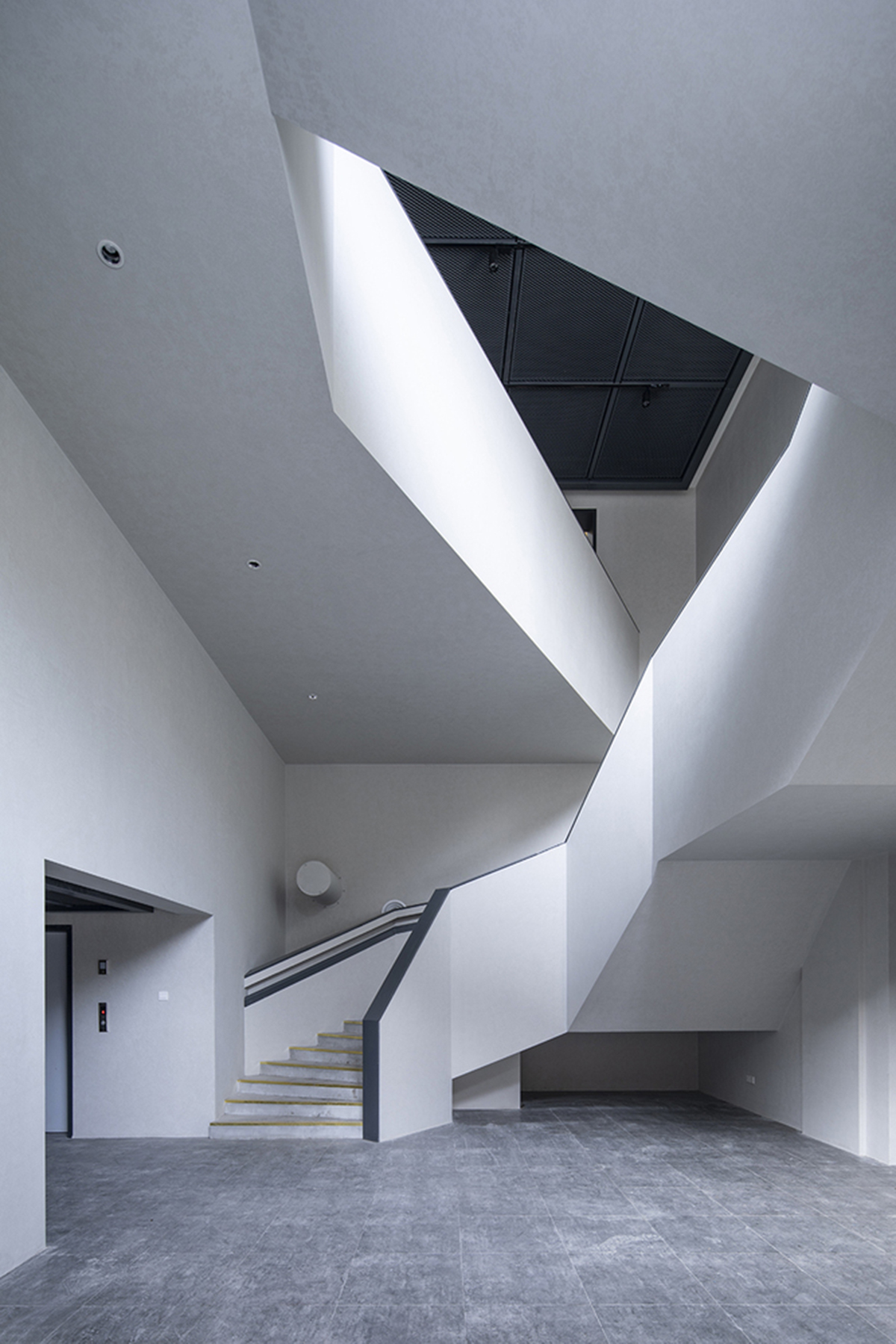

Supplementary spaces to the art museum, such as the entrance hall, administrative office, shop, and tearoom, are situated in the two bridgeheads at either end. People can enter the museum from either side of the river.

Jishou Art Museum is the outcome of artist Mr. Huang Yongyu’s initiation and donation, completed in April 2019 and will have its opening exhibition in the summer.

Atelier FCJZ transforms former pedestrian bridge into a bridged art museum in China

Atelier FCJZ transforms former pedestrian bridge into a bridged art museum in China

Atelier FCJZ transforms former pedestrian bridge into a bridged art museum in China

Atelier FCJZ transforms former pedestrian bridge into a bridged art museum in China

Atelier FCJZ transforms former pedestrian bridge into a bridged art museum in China

Atelier FCJZ transforms former pedestrian bridge into a bridged art museum in China

Atelier FCJZ transforms former pedestrian bridge into a bridged art museum in China

Atelier FCJZ transforms former pedestrian bridge into a bridged art museum in China

Atelier FCJZ transforms former pedestrian bridge into a bridged art museum in China

Atelier FCJZ transforms former pedestrian bridge into a bridged art museum in China

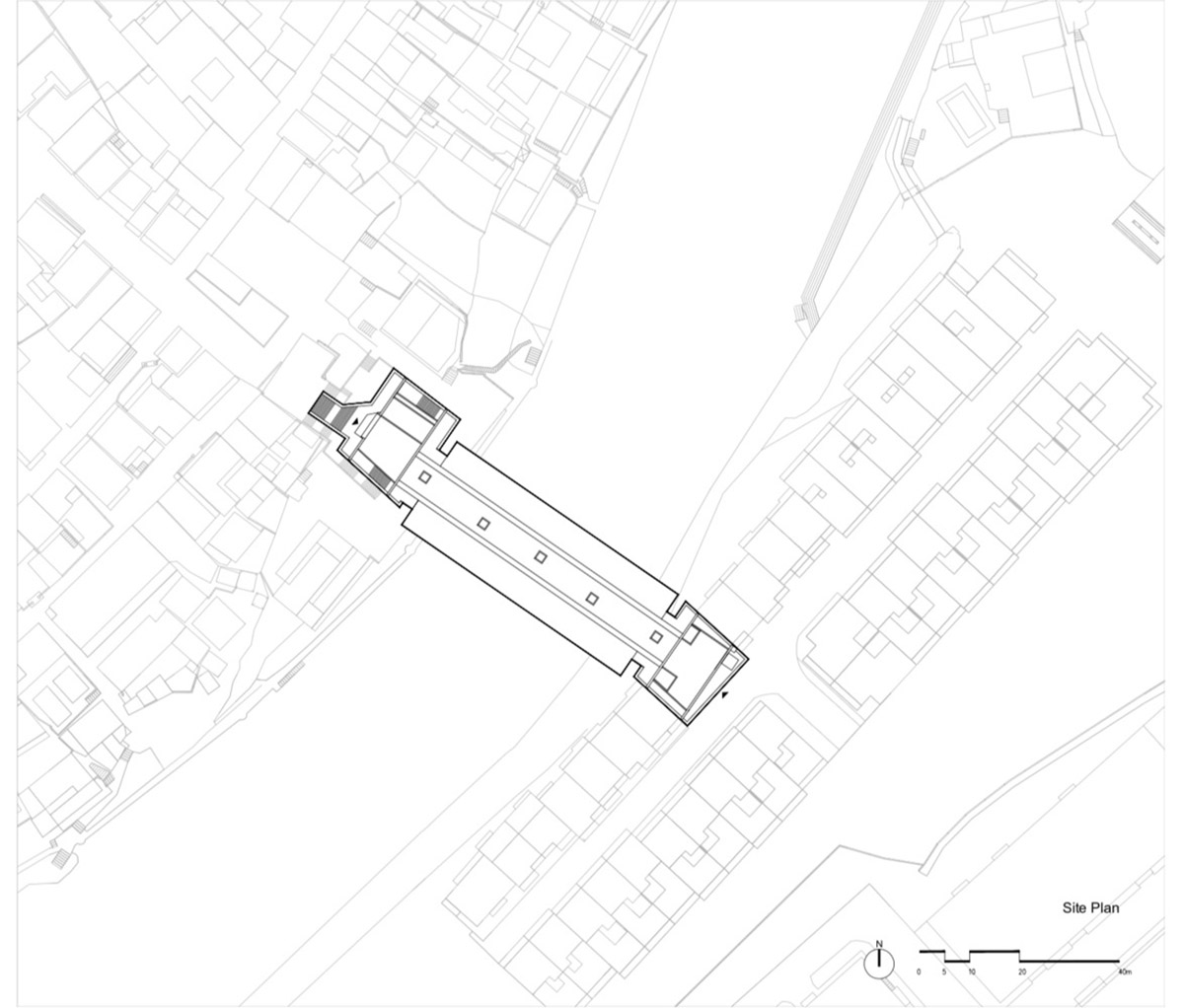

Site plan

Atelier FCJZ transforms former pedestrian bridge into a bridged art museum in China

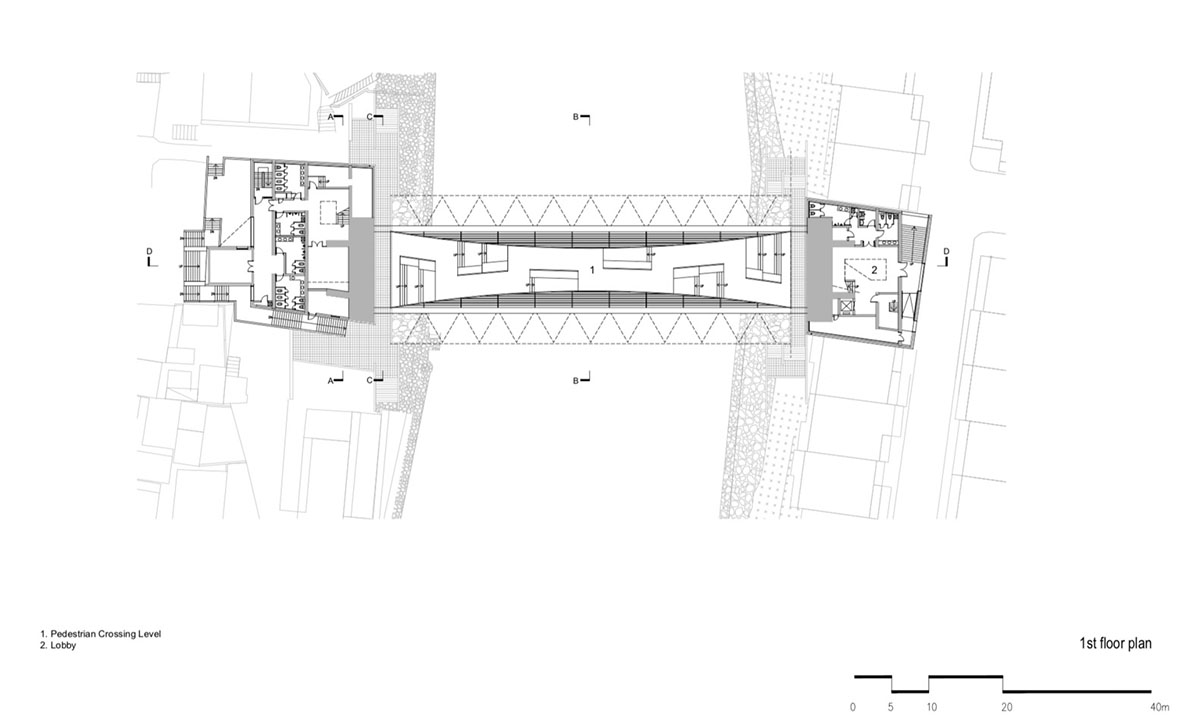

1st floor plan

Atelier FCJZ transforms former pedestrian bridge into a bridged art museum in China

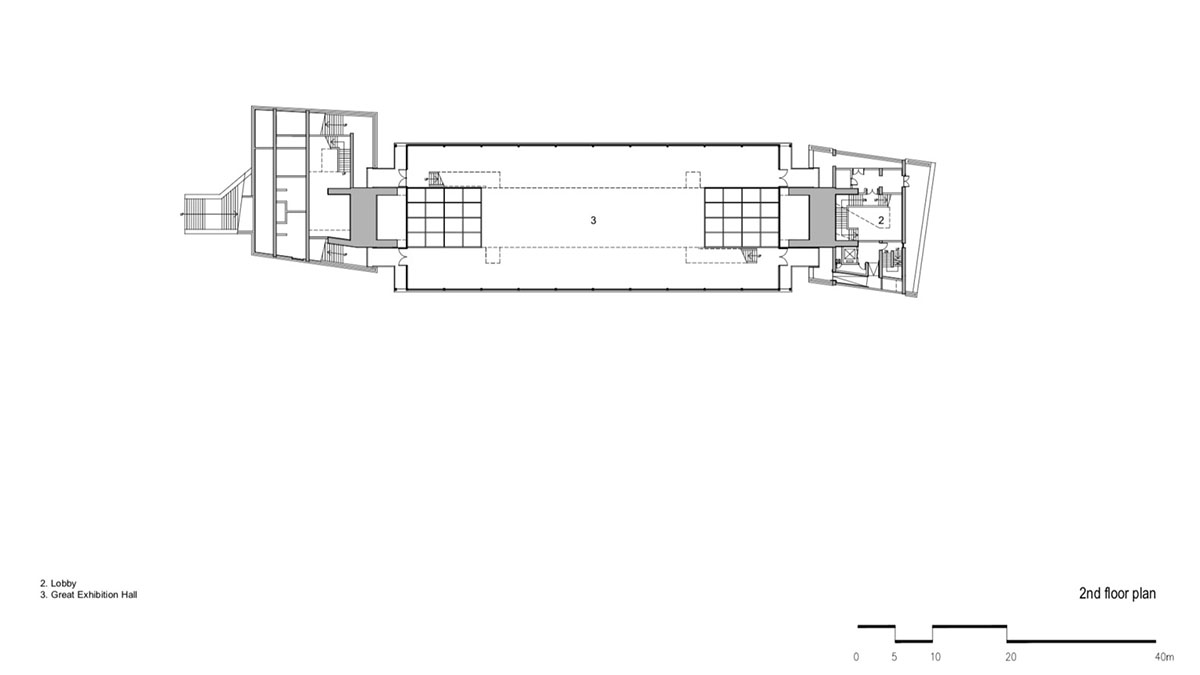

2nd floor plan

Atelier FCJZ transforms former pedestrian bridge into a bridged art museum in China

3rd floor plan

Atelier FCJZ transforms former pedestrian bridge into a bridged art museum in China

Conceptual diagrams

Atelier FCJZ transforms former pedestrian bridge into a bridged art museum in China

Sections

Atelier FCJZ transforms former pedestrian bridge into a bridged art museum in China

Elevations

Project facts

Project name: Jishou Art Museum

Architect: Atelier FCJZ

Principal architects: Yung Ho Chang, Lijia Lu

Design team: Xiaoning Liang, Pu Yang, Kunpeng Liu, Siqi Su, Gang Rao

Location: Qiangzhou Historic Town, Jishou, Hunan, China

Structure and material: steel truss and reinforced concrete arch

Area: 3535.4 m2

Year: 2019

All images © FangFang Tian
