B.L.U.E. imagines Seed Plaza like a mountainous terrain in Jiaxing

China Architecture News - Mar 11, 2024 - 12:31   1741 views

B.L.U.E. imagines Seed Plaza like a mountainous terrain in Jiaxing

B.L.U.E. Architecture Studio has imagined a neighborhood center with terraced platforms and green infills on the roofs to blur boundaries between inside and outside.

Named Seed Plaza, the 7,000-square-metre building is located in Nanhu District, Jiaxing, ten kilometer east of the downtown area. It sits at the boundary between urban and natural environment.

B.L.U.E. imagines Seed Plaza like a mountainous terrain in Jiaxing

Half of the surroundings are farms and parks, and the other half are residential and commercial streets. Different orientations offer different landscapes and atmospheres, forming a diverse and vibrant sense of place. Roads around the plaza intersect, drawing people together and making it the most dynamic core location in the entire neighborhood.

The project is defined as a real estate supporting facility, and is currently used as an exhibition center and retail space for nearby communities. The plaza will serve as a community center shared by the surrounding neighborhood in the future.

B.L.U.E. imagines Seed Plaza like a mountainous terrain in Jiaxing

Design concept

“Half indoors half outdoors”

The studio observed that after the pandemic, people have began to seek more interaction with nature and enjoy outdoor life. This change in social environment has inspired us to rethink the value and state of architecture in the new era.

Under the site conditions where the urban environment and natural ecology are intertwined, the studio hopes to introduce a regulator that helps people leave the city and enter nature, and creates as much comfortable and rich outdoor activity spaces as possible in the plaza.

B.L.U.E. imagines Seed Plaza like a mountainous terrain in Jiaxing

The inclusion of up to 3,500-square-metre of outdoor space within the 7,000-square-metre of architectural space is a key element of the project.

In conventional real estate projects, the design methods involving huge amounts of non-indoor spaces contradict the logic of the real estate revenue, leading to a considerable contradiction. However, in this project, the client strongly agrees with the concept of integrating nature and architectural space, resulting in a completely open architectural form.

B.L.U.E. imagines Seed Plaza like a mountainous terrain in Jiaxing

“Half city half nature”

As a public function of the community, the neighborhood center is an important hub for people to relate and communicate.

"We try to create a miniature three-dimensional neighborhood within an architecture and use the logic of “streets and alleys” to connect the spaces to bring interesting and diverse spatial experience," the studio explained.

"As a significant medium, plants are inadvertently interspersed in the architectural space that people walk through. The plants easily come into sights of the citizens and allow direct contact with the bodies. Through the design, greenery naturally flows into life."

B.L.U.E. imagines Seed Plaza like a mountainous terrain in Jiaxing

The entire building is composed of 20 stacked boxes of different shapes, representing a diverse and growing personality. Combined with the floor slabs, large amounts of grey spaces are created between boxes for people to walk and explore freely.

Thirteen stairs that go up and down break the concept of normal multi-storey architecture and are as endless as urban streets.

The endless circulation make people to forget the existence of the elevators and immerse themselves in the building, roaming and walking aimlessly, looking for randomness and uniqueness in daily life. The mutually independent architectural form of the boxes can flexibly responds to future functional changes in the building. As time goes by, the demand for real estate’s display function gradually transforms into the functional needs of a community center. During the process of partial adjustment of individual boxes, the normal use of other boxes will not be affected.

B.L.U.E. imagines Seed Plaza like a mountainous terrain in Jiaxing

Nodes of Space

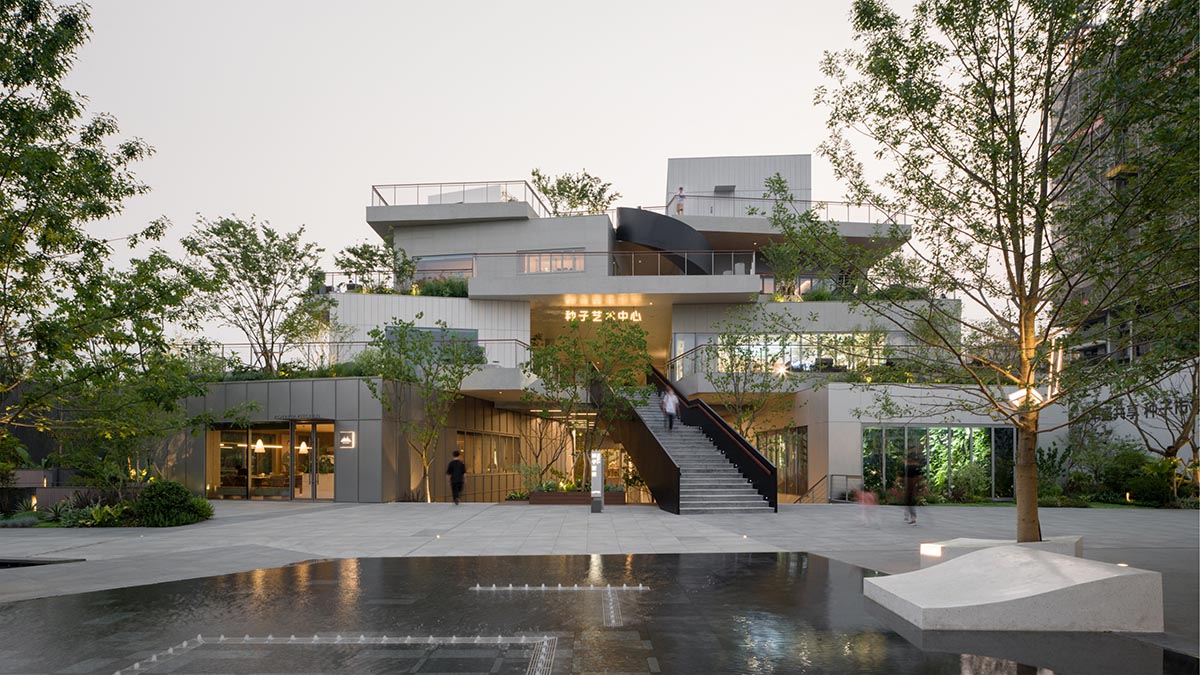

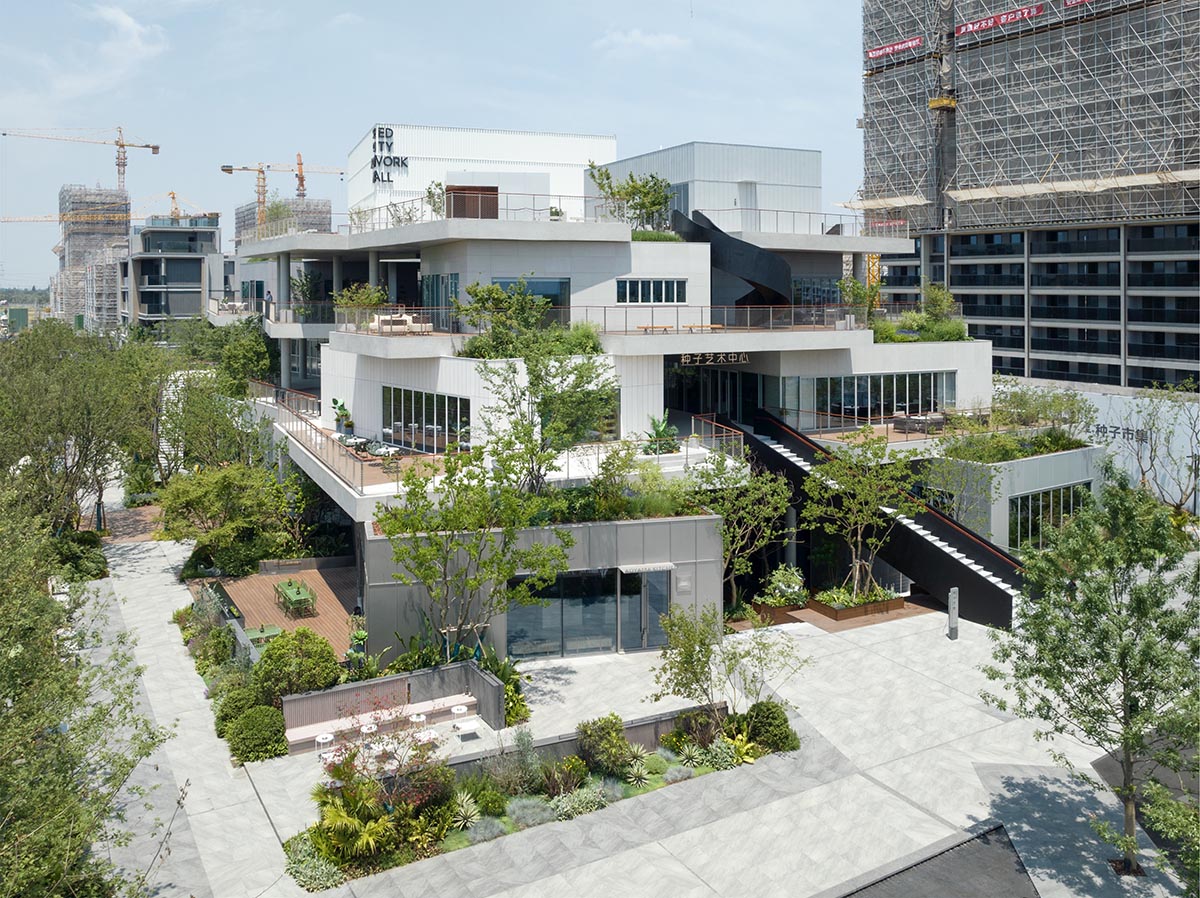

Based on the project’s site area and the functional requirements of the client the architects set up four floors as the platforms for spatial organization. The platform relationship moves back step by step, showing an intention of mountainous terrain on the facade.

The floor slabs avoids the rigidity of straight lines and responds to spatial changes through spatial bending, reflecting a lively and dynamic visual effect.

B.L.U.E. imagines Seed Plaza like a mountainous terrain in Jiaxing

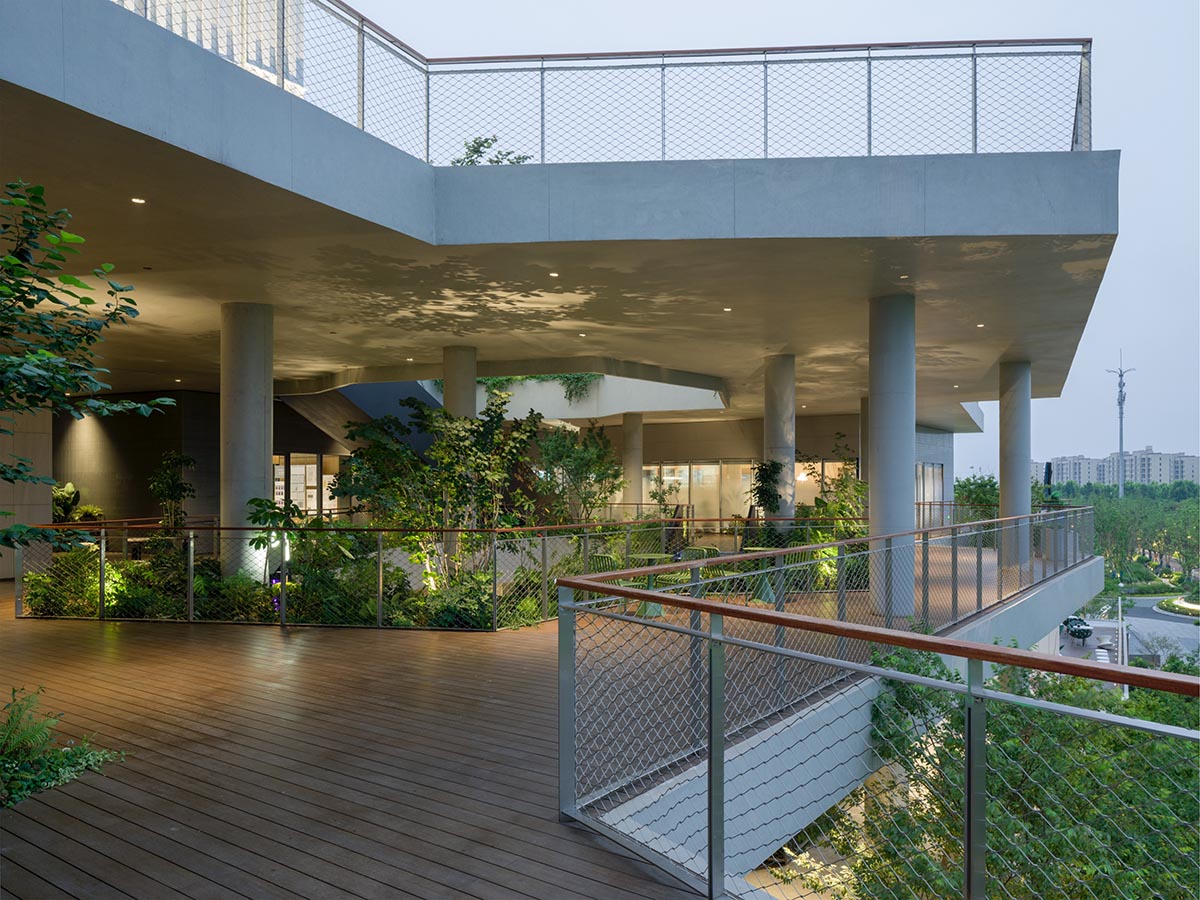

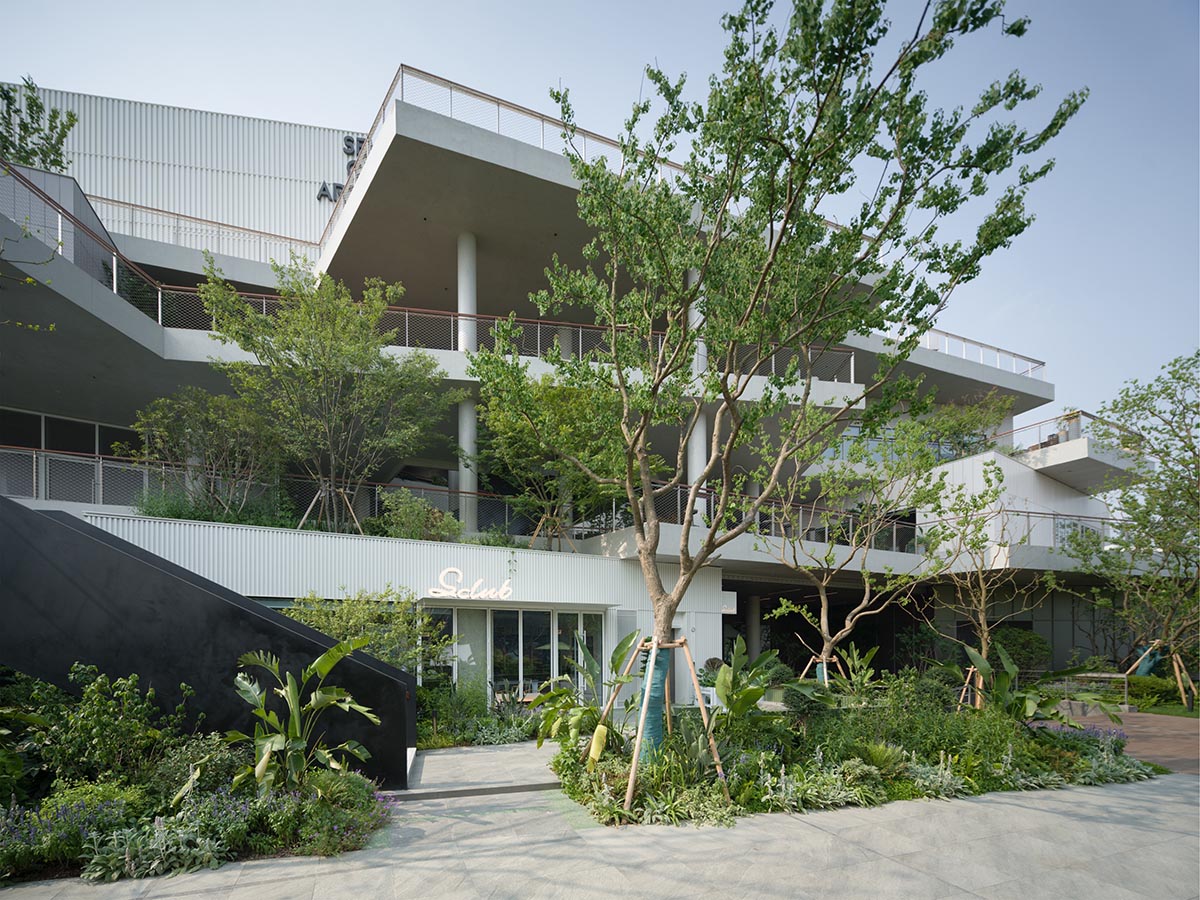

Each box moves with different angles to form semi-outdoor spaces with different scales and views. These spaces are connected to each other, connecting movement and stillness, thus creating a continuous and vibrant spatial state.

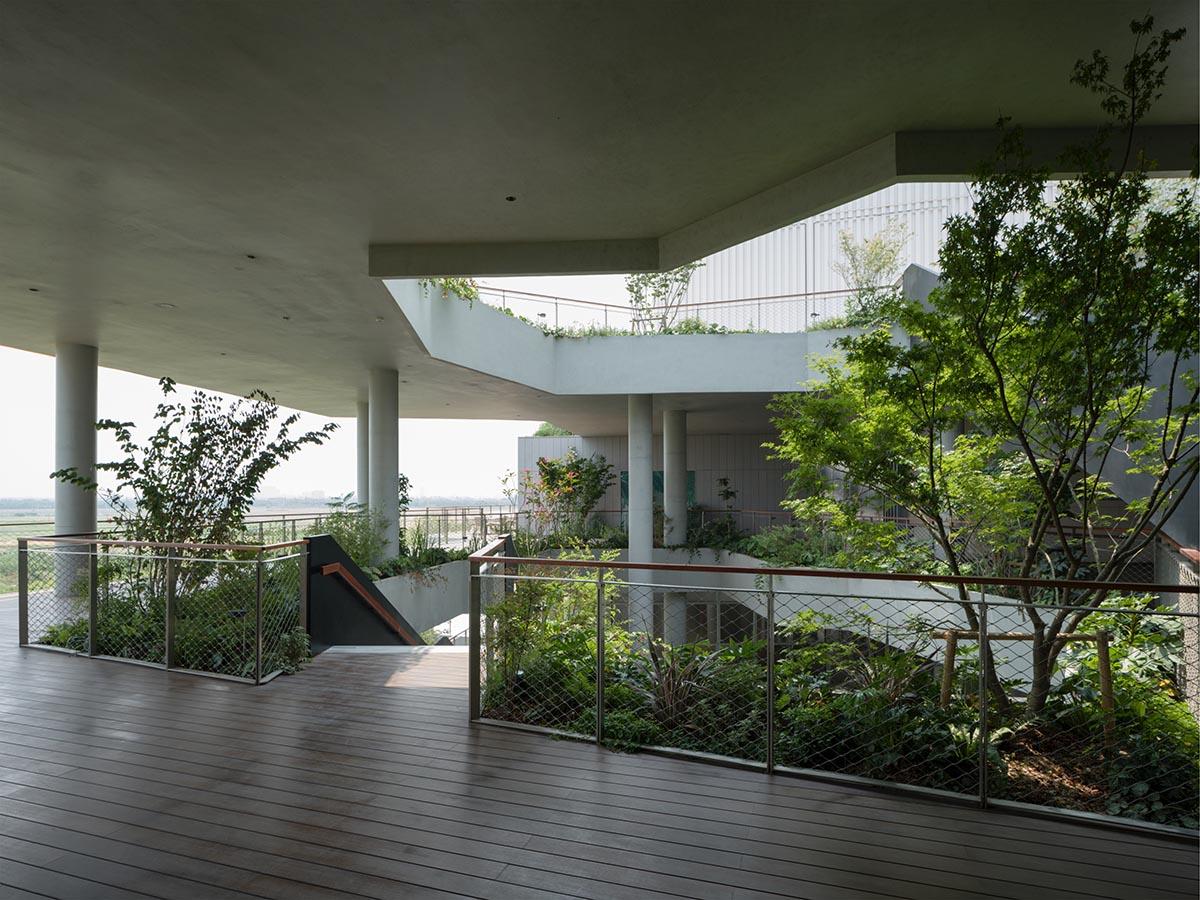

The area which connects the boxes and the grey spaces is surrounded by local greenery. By placing furniture and seating, the area becomes a communal resting space as if in urban streets.

B.L.U.E. imagines Seed Plaza like a mountainous terrain in Jiaxing

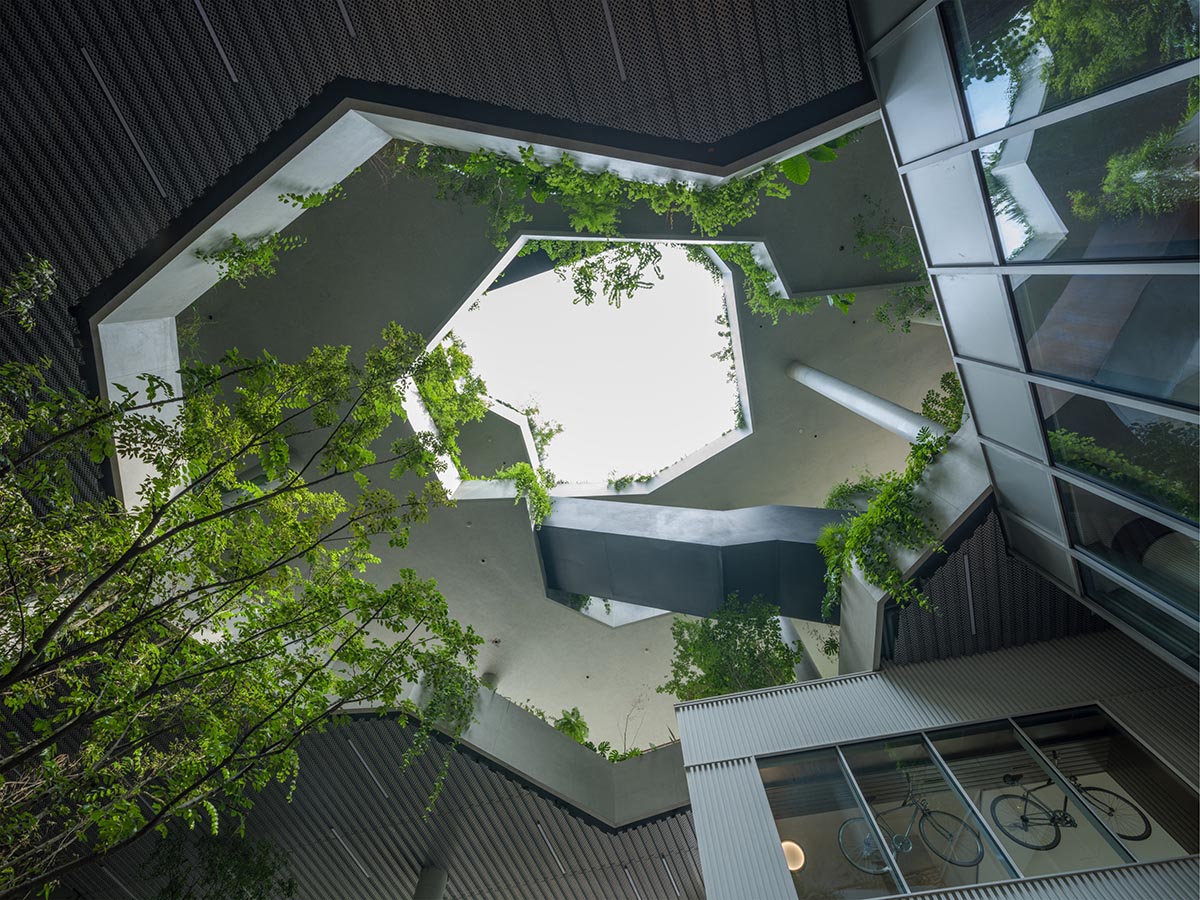

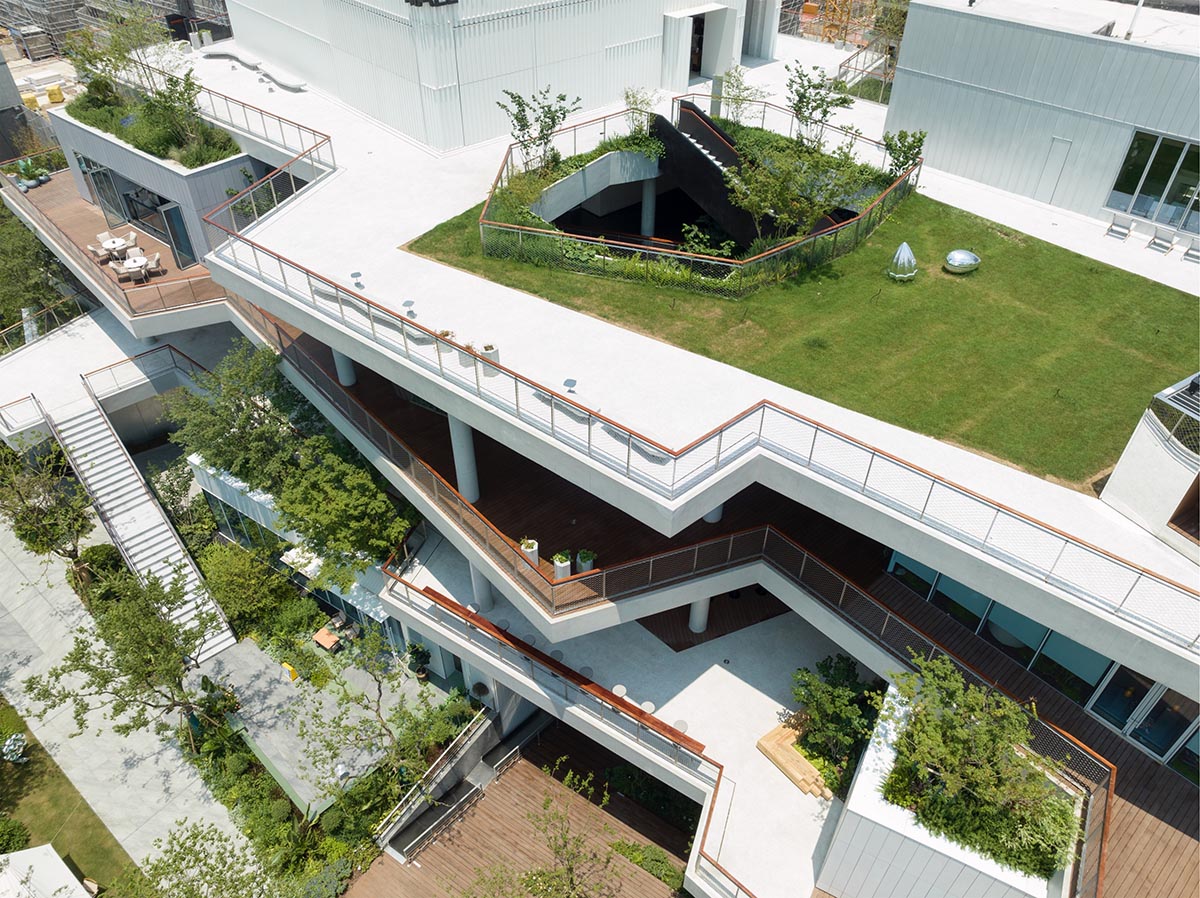

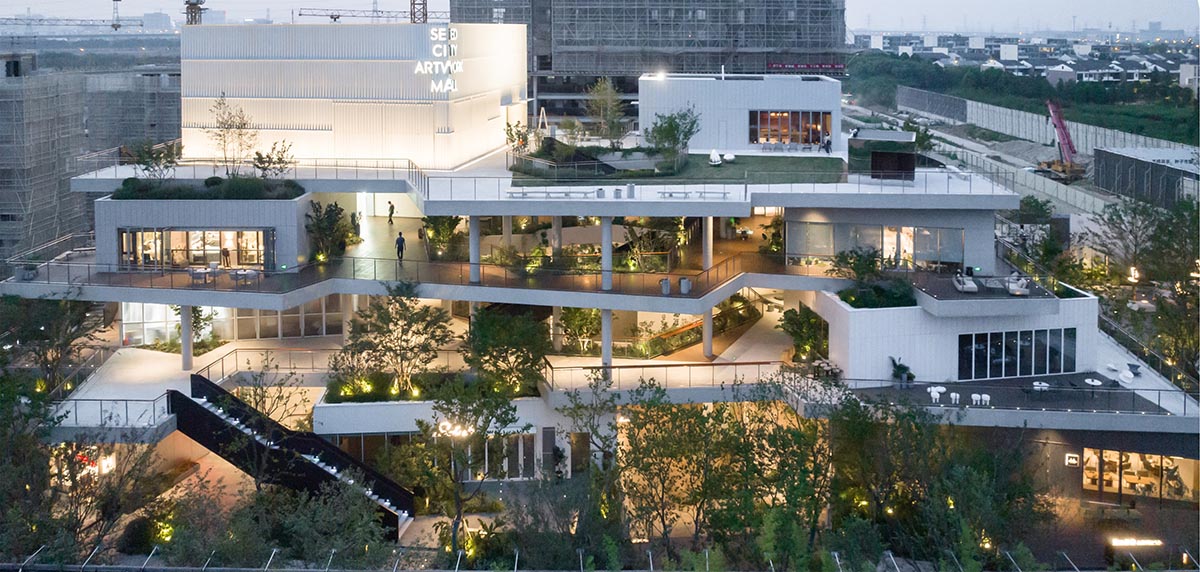

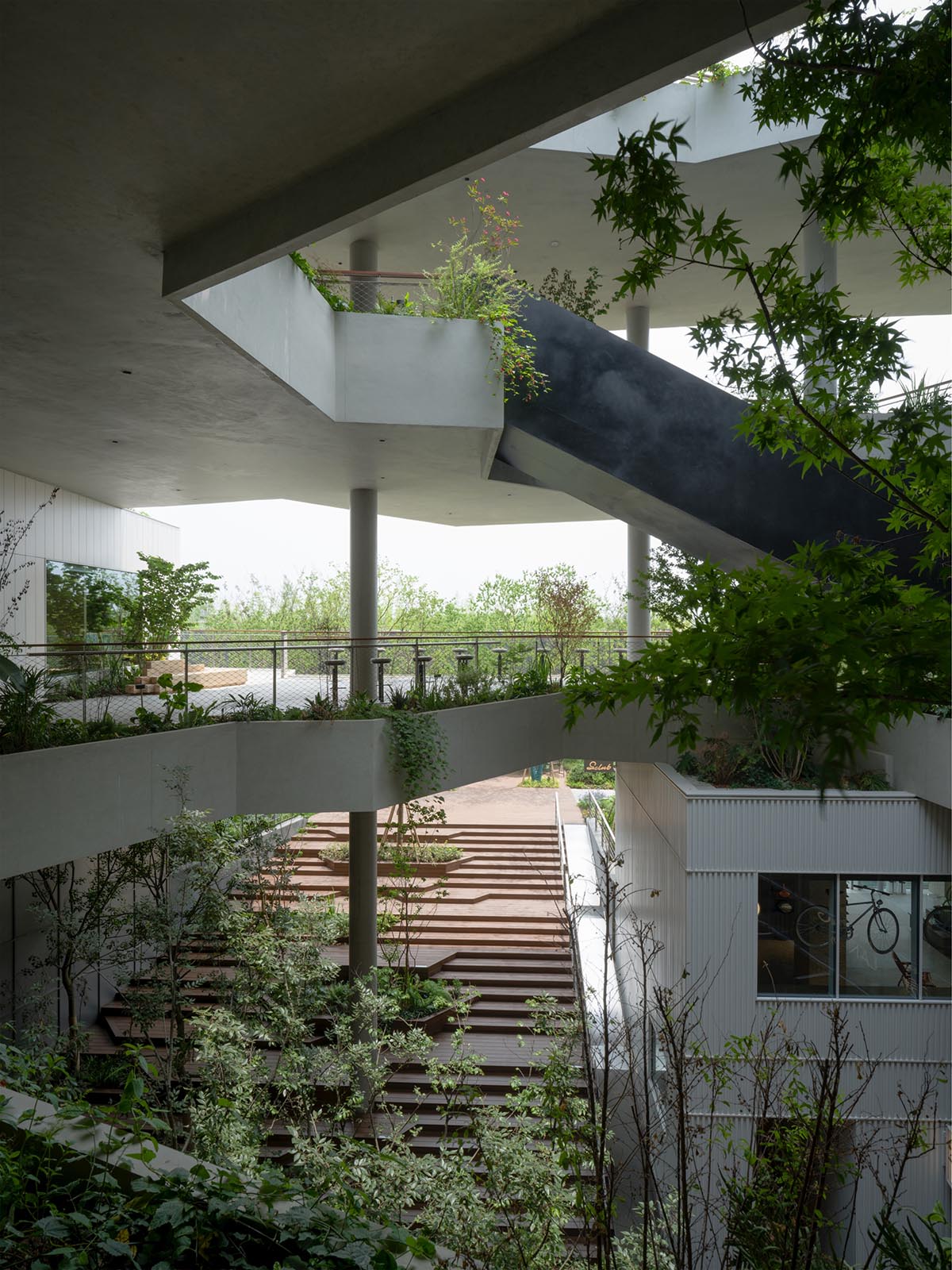

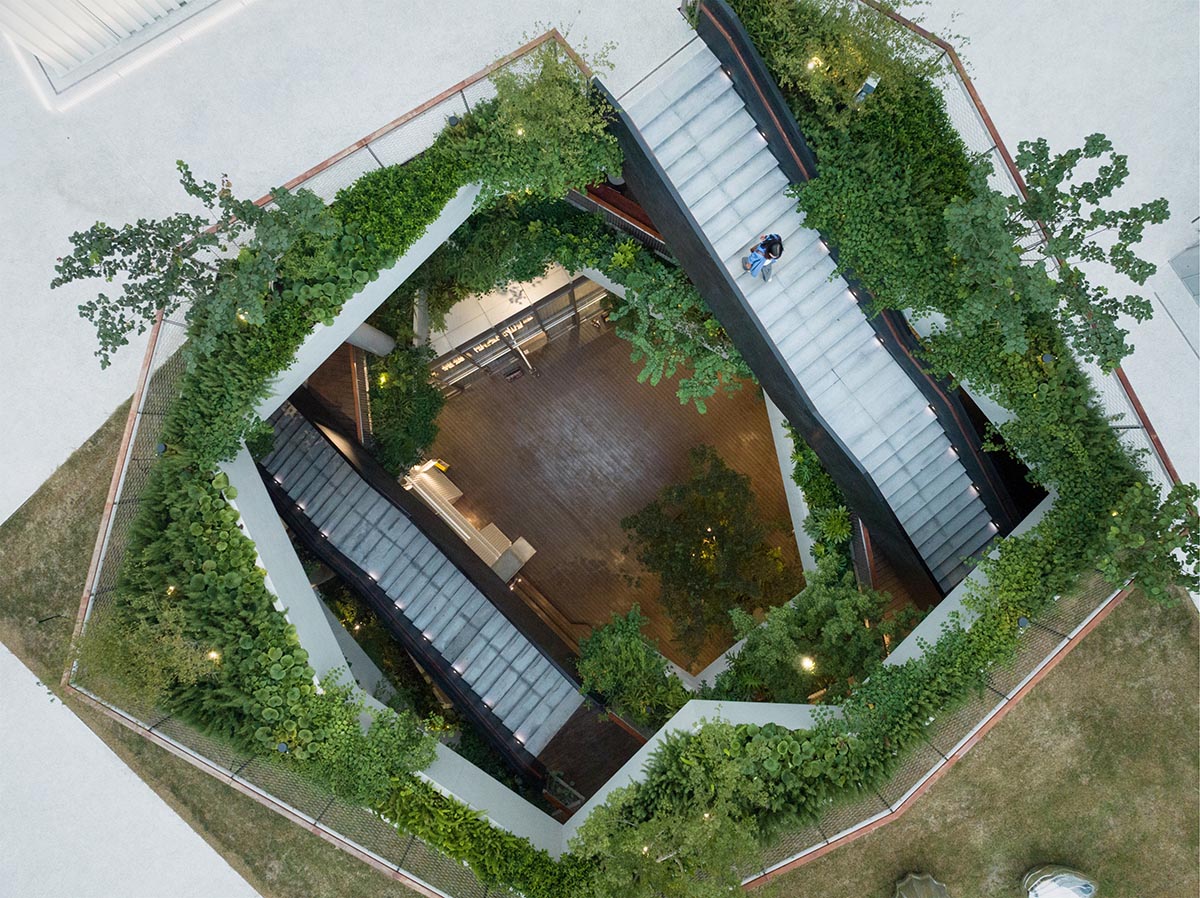

Trees are planted on the roof space which is created by stacked floor slabs and staggered boxes, forming a rooftop forest scattered on the building. Irregular-shaped holes are cut around the atrium, running from the ground floor to the roof, establishing intersecting lines of sight. The studio chooses to leave some gaps around the atrium to grow bushes and ground cover plants.

When standing in the semi-underground space and the grey spaces on each floor, people can see the layered greenery. When the breeze comes and sunlights pours in, the sense of nature flows in the space.

B.L.U.E. imagines Seed Plaza like a mountainous terrain in Jiaxing

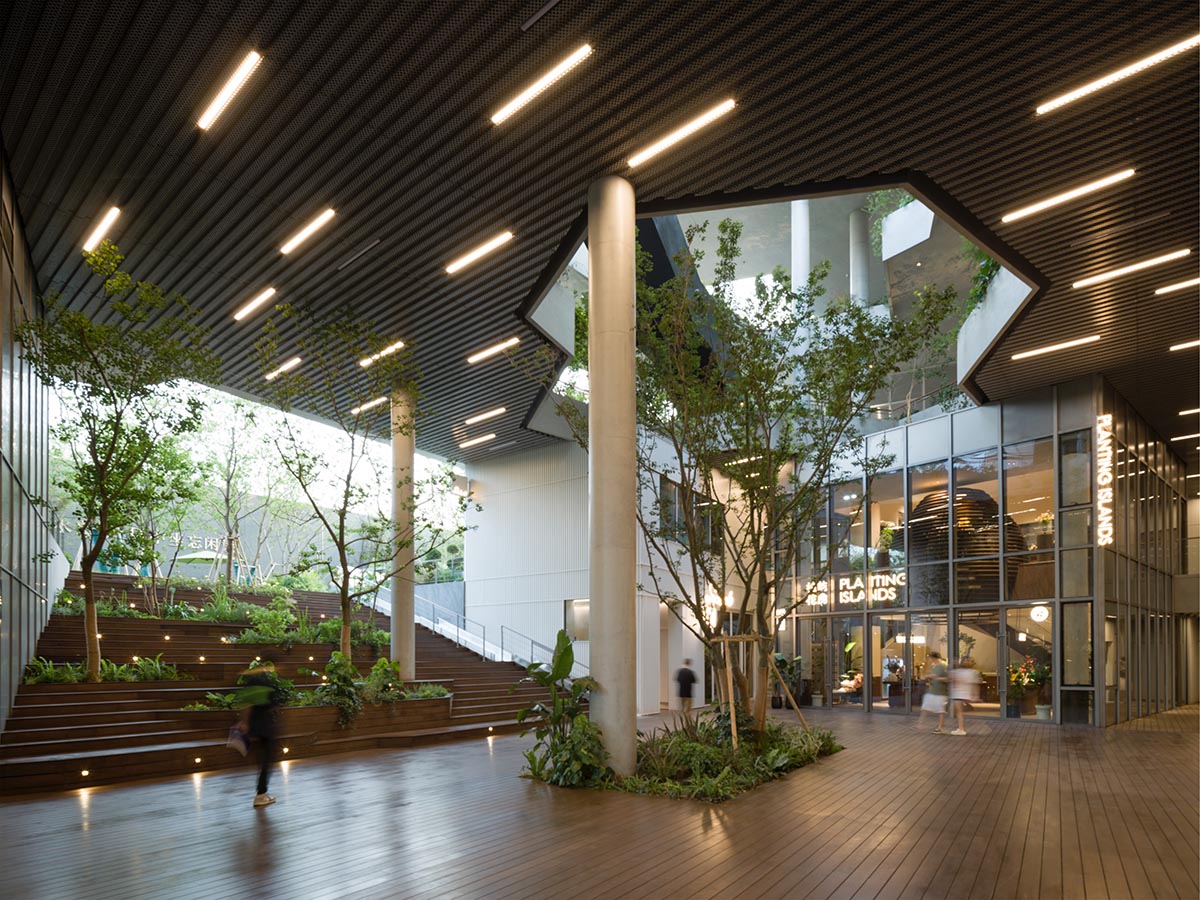

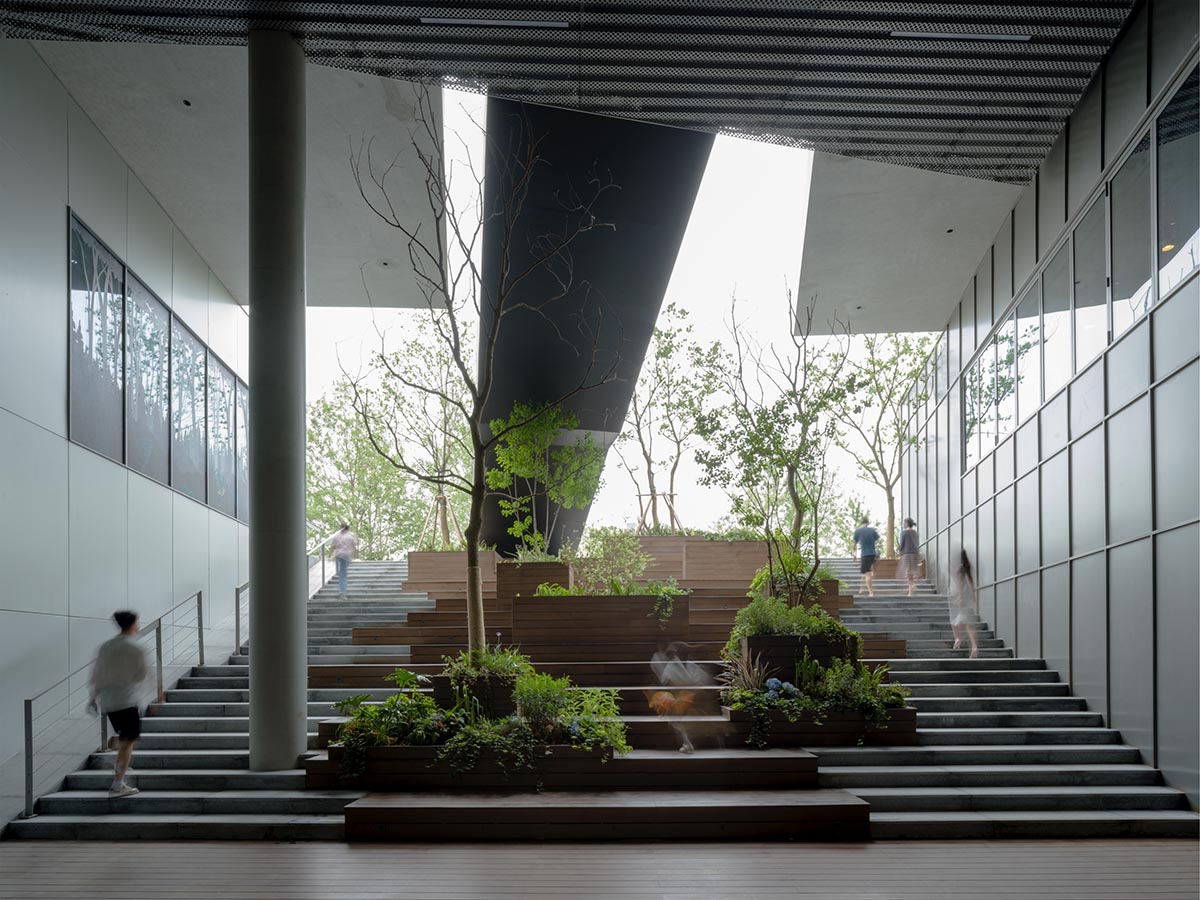

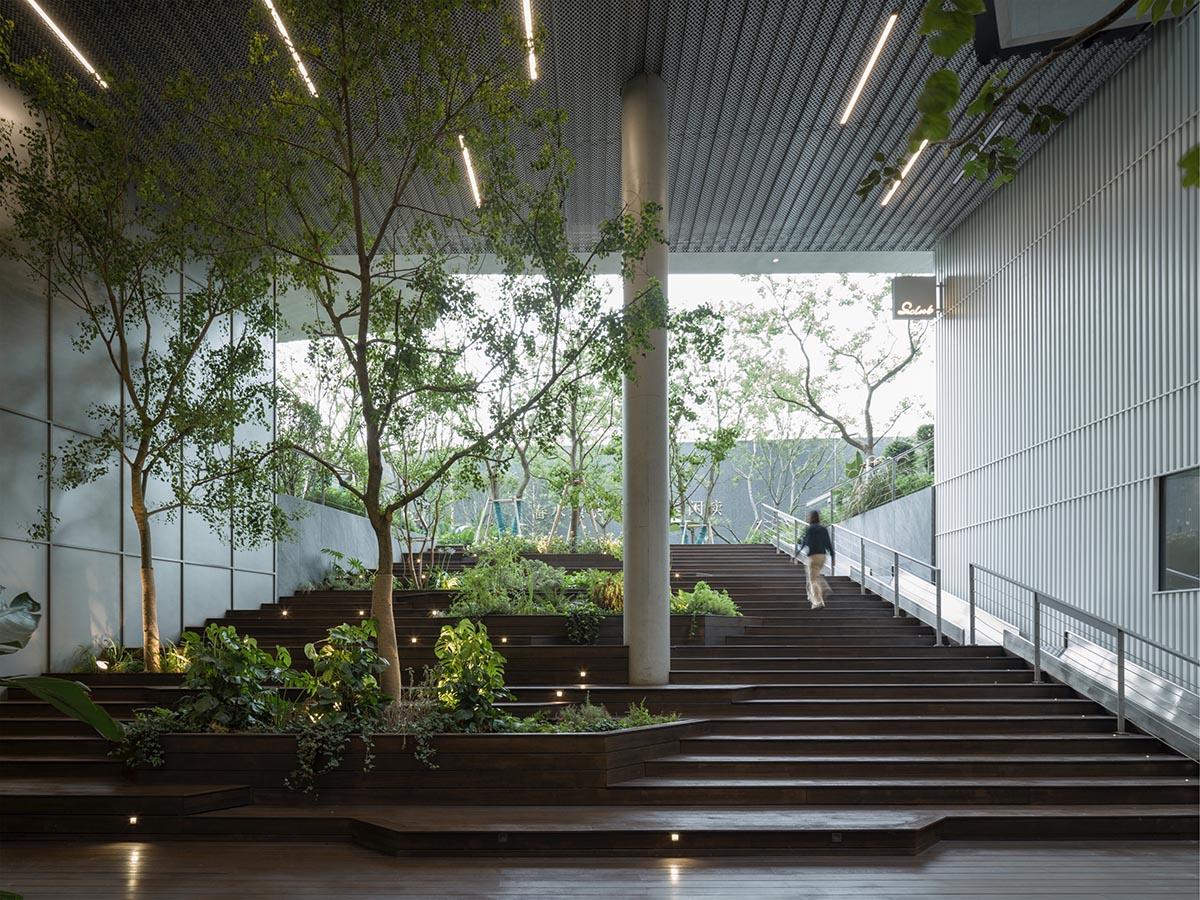

Meanwhile, the tall and open holes become the major visual focus inside the architecture. The steps going down from the first floor connects the semi-underground space and the square, eliminating the height difference and transforming it into an area for seating, seeing and activity. In this way, the space has various possibilities for use.

The top wall of the fourth-floor large box is designed to be high to lead people’s sight inward and upward. People can stay in a ceremonial theater feeling the sky and the earth. Facing the sky at the highest point of the architecture, people get to experience the end of the wandering.

B.L.U.E. imagines Seed Plaza like a mountainous terrain in Jiaxing

Material details

The colors of the building facade materials are designed as the tone of gray and white to ensure a sense of art and integrity. The pure and clean state helps reflect our design philosophy of architecture as the background and container of daily life. In order to further achieve a rich, neighborhood-like status in the space, each of the 20 boxes adopts different facade effects.

The boxes on the first and fourth floors use metal panels with different brightness and specifications according to their different commercial and artistic properties. Serving as the core area of the center, the second and third floors choose wood panels and stone as facade materials which are warmer and more friendly.

B.L.U.E. imagines Seed Plaza like a mountainous terrain in Jiaxing

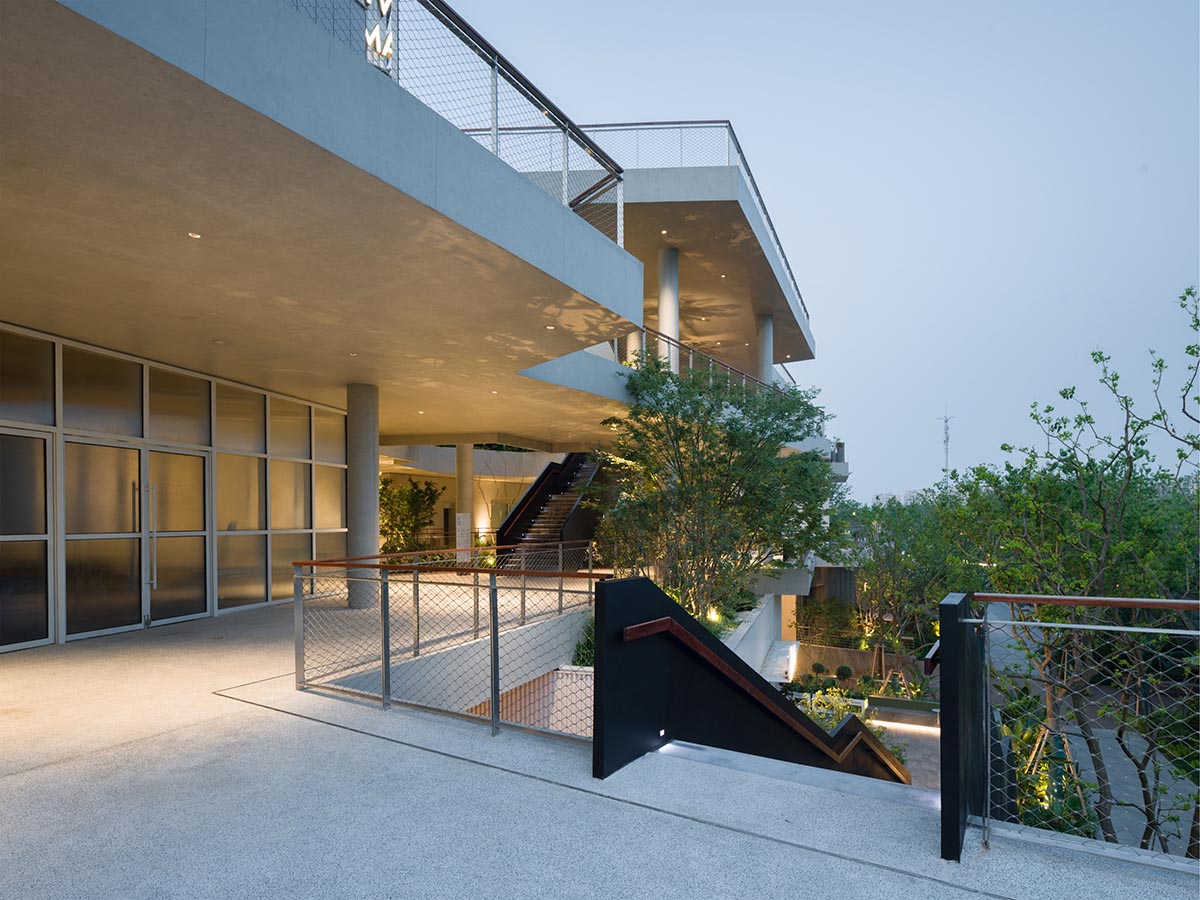

The materials of the ground is also vary based on the nature and characteristics of the space. The ground floor features stone flooring which connects the landscape of the square.

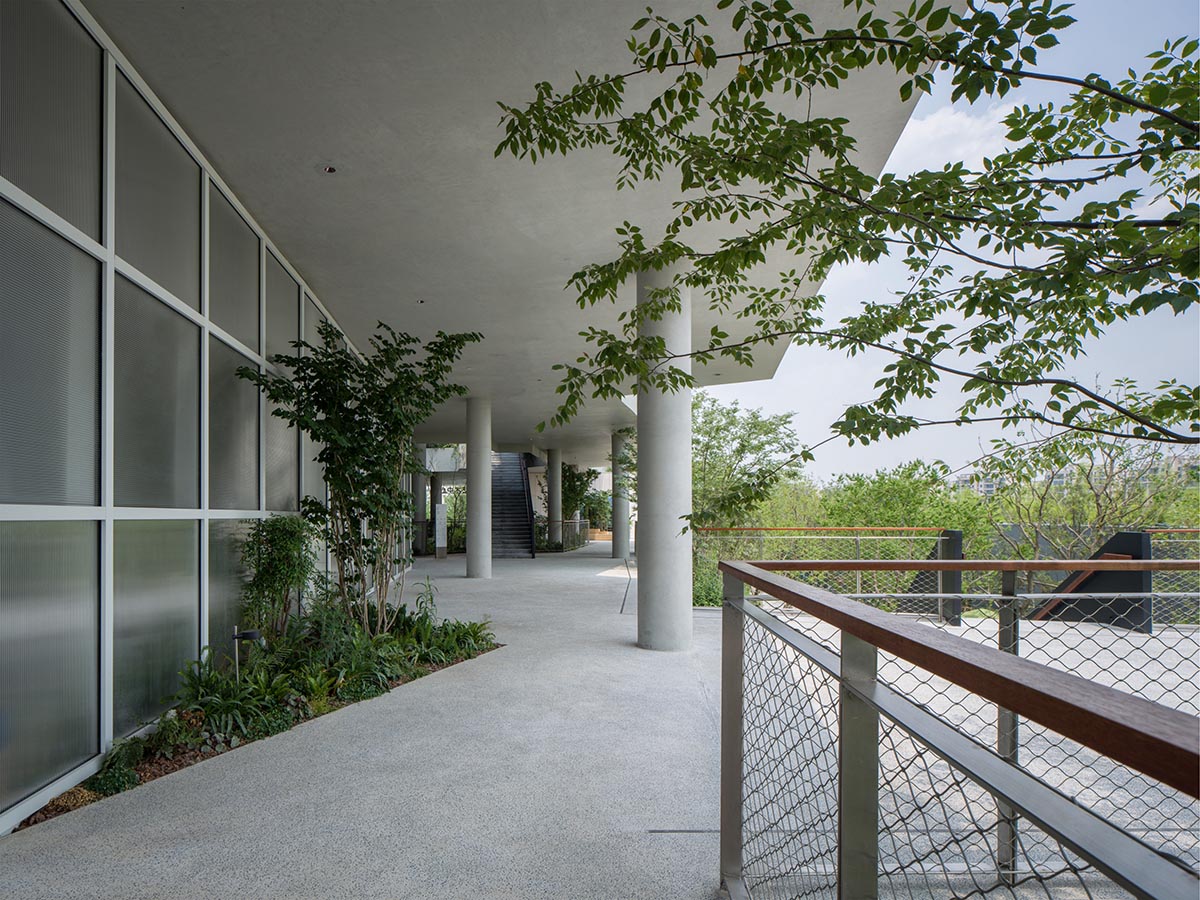

The second and fourth floors employ exposed aggregate concrete, while the semi-underground square and the third floor are made of outdoor laminated bamboo flooring. In addition, the outdoor rest areas of each box are made of different materials and textures. This allows people to experience the rich appearance of the neighborhood center as they move between floors.

B.L.U.E. imagines Seed Plaza like a mountainous terrain in Jiaxing

Summary

In the past era of rapid urban development, society pursued saturated interior usable areas. However, in the change from the incremental era to the stock era, outdoor spaces once considered extremely wasteful may gradually become more important.

As an architecture with a 1:1 ratio of indoor and outdoor spaces, Seed Plaza provides people with a space that allows them to take a break and connects with nature. Through people’s walking and roaming, the plaza inspires their self- exploration and establishes intimate neighborhood relationship, and expands the boundaries of life. The studio hopes that this model may become a new choice for neighborhood center and commercial architecture in the new era.

B.L.U.E. imagines Seed Plaza like a mountainous terrain in Jiaxing

B.L.U.E. imagines Seed Plaza like a mountainous terrain in Jiaxing

B.L.U.E. imagines Seed Plaza like a mountainous terrain in Jiaxing

B.L.U.E. imagines Seed Plaza like a mountainous terrain in Jiaxing

B.L.U.E. imagines Seed Plaza like a mountainous terrain in Jiaxing

B.L.U.E. imagines Seed Plaza like a mountainous terrain in Jiaxing

B.L.U.E. imagines Seed Plaza like a mountainous terrain in Jiaxing

B.L.U.E. imagines Seed Plaza like a mountainous terrain in Jiaxing

B.L.U.E. imagines Seed Plaza like a mountainous terrain in Jiaxing

B.L.U.E. imagines Seed Plaza like a mountainous terrain in Jiaxing

B.L.U.E. imagines Seed Plaza like a mountainous terrain in Jiaxing

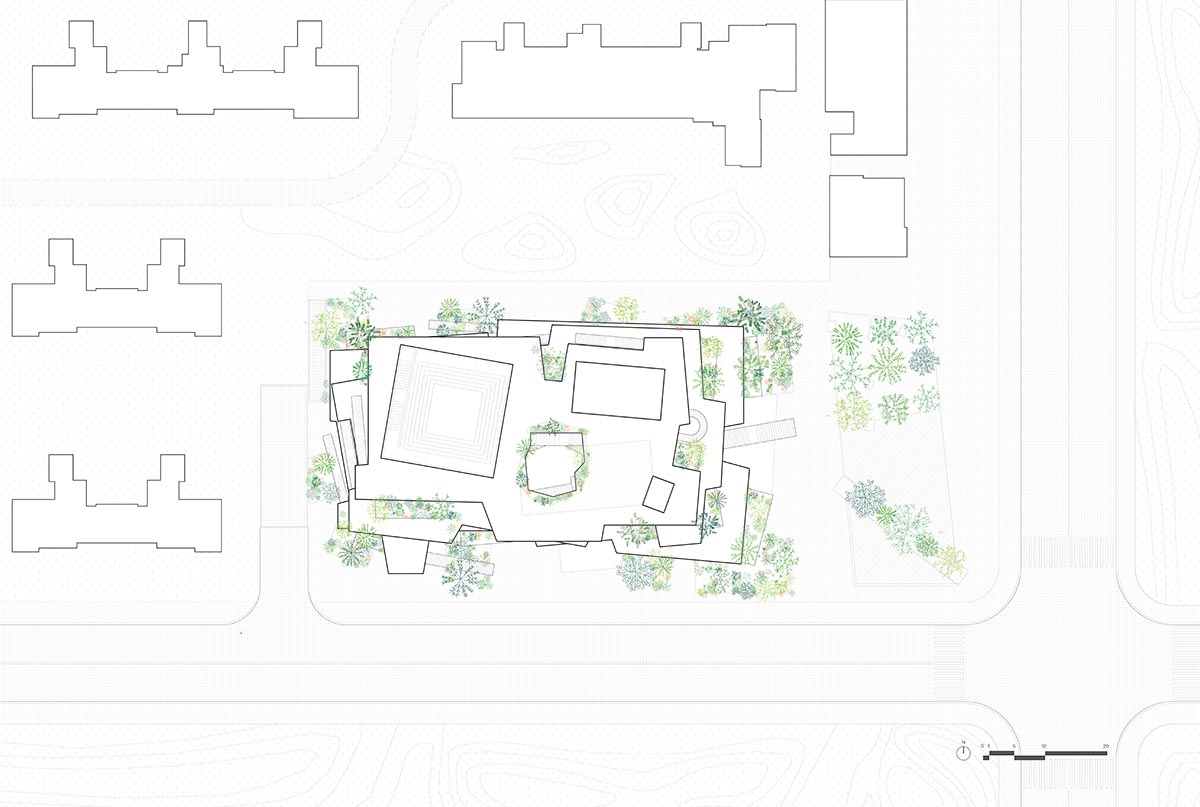

Site plan

B.L.U.E. imagines Seed Plaza like a mountainous terrain in Jiaxing

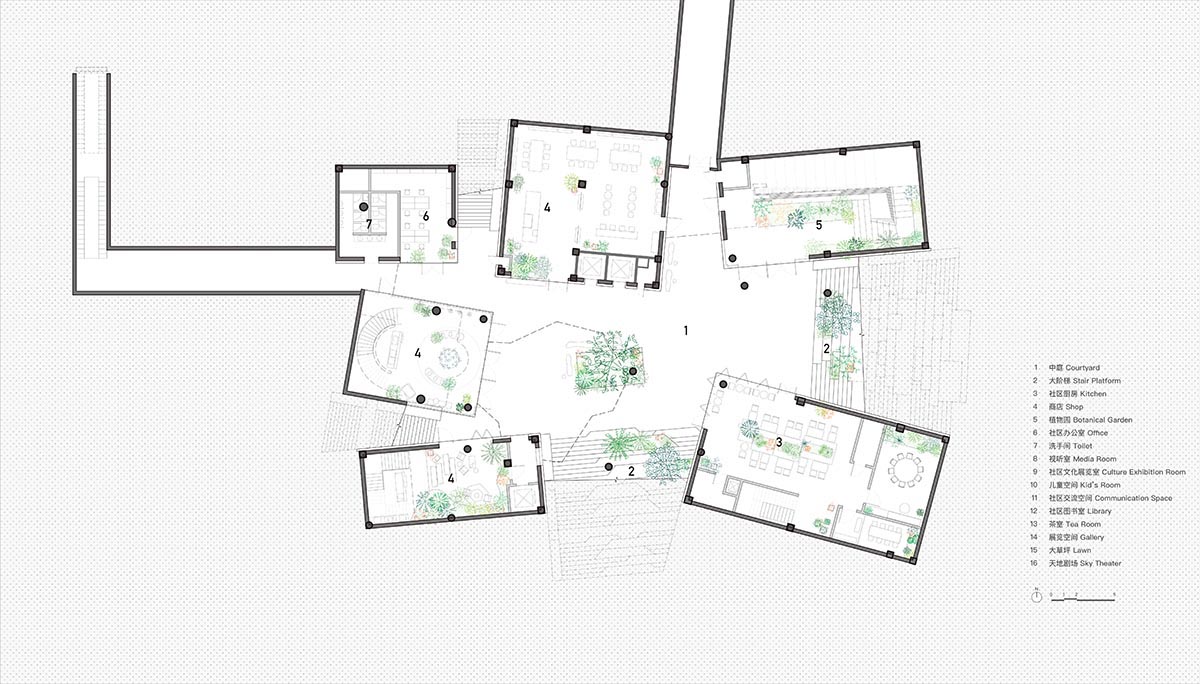

Basement floor 1

B.L.U.E. imagines Seed Plaza like a mountainous terrain in Jiaxing

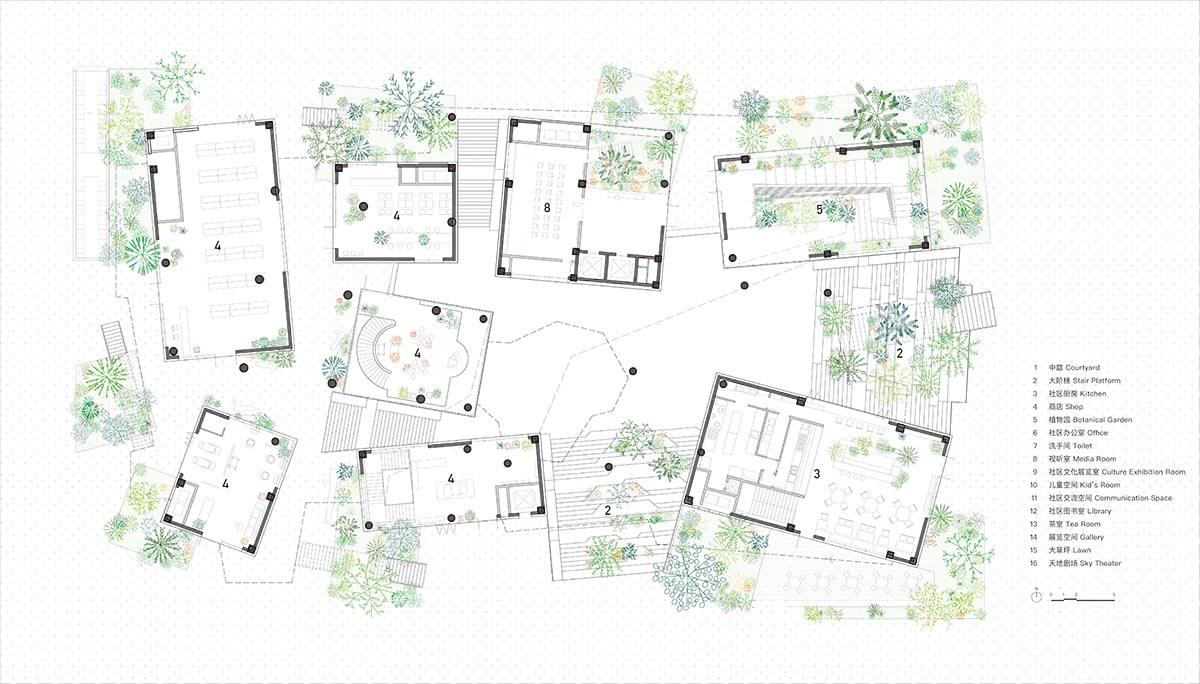

Plan floor 1

B.L.U.E. imagines Seed Plaza like a mountainous terrain in Jiaxing

Plan floor 2

B.L.U.E. imagines Seed Plaza like a mountainous terrain in Jiaxing

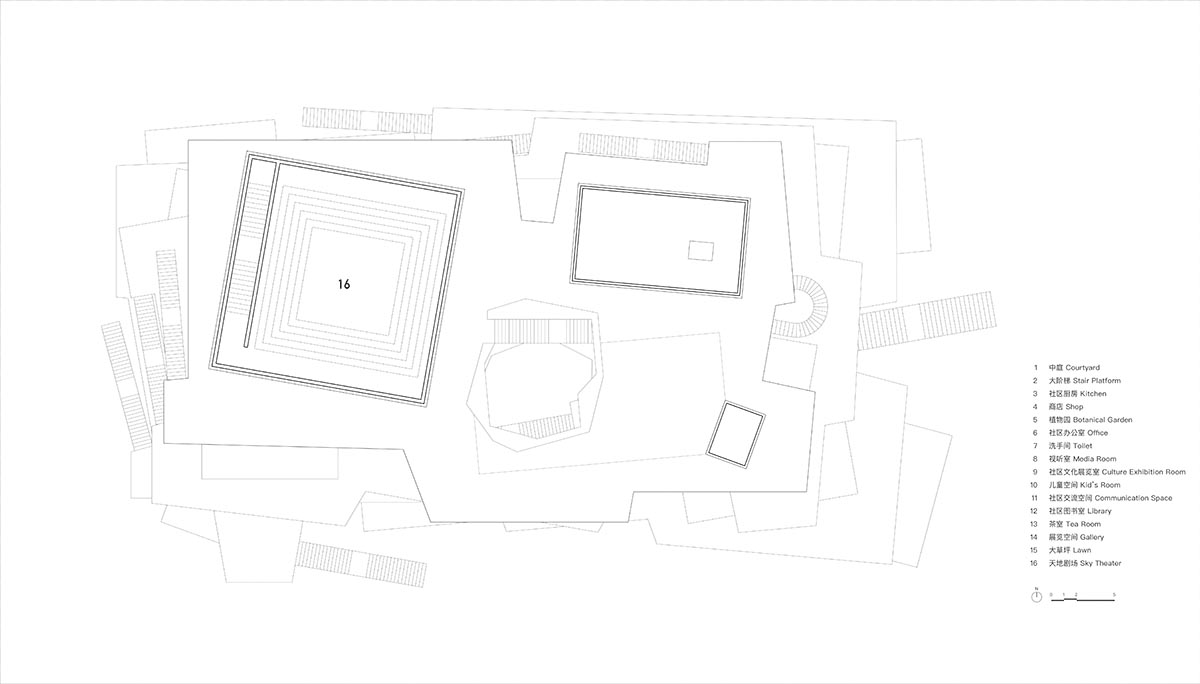

Roof floor plan

B.L.U.E. imagines Seed Plaza like a mountainous terrain in Jiaxing

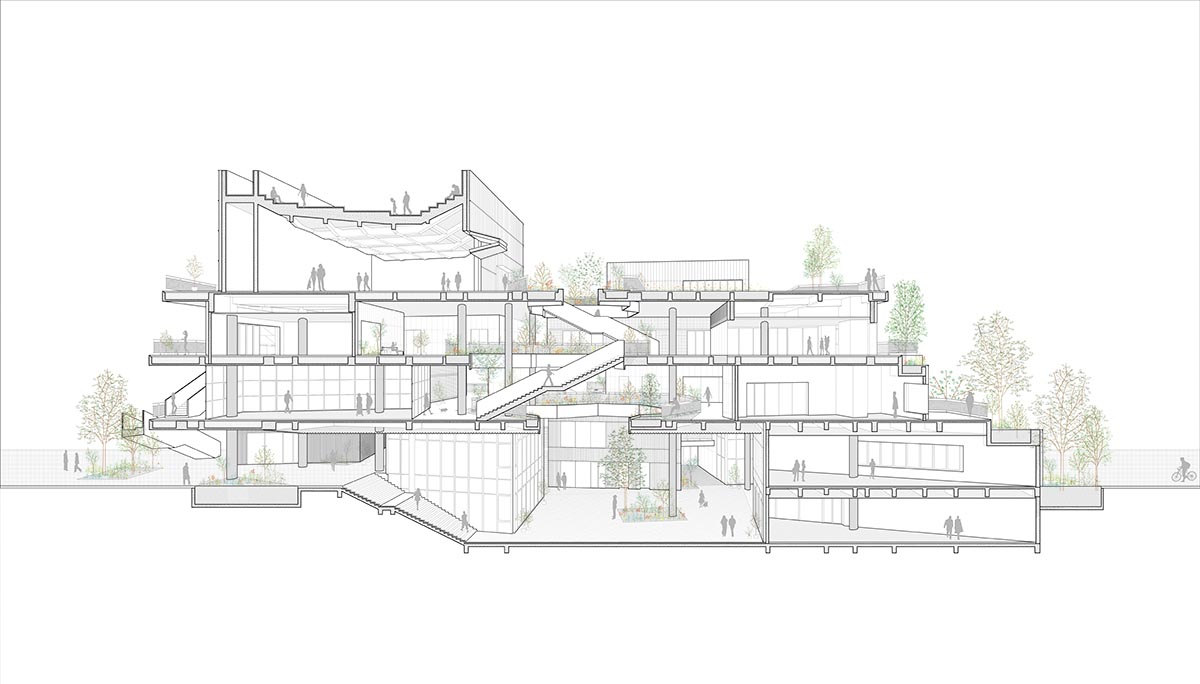

Section perspective

B.L.U.E. imagines Seed Plaza like a mountainous terrain in Jiaxing

South elevation

B.L.U.E. Architecture Studio has created a symbiotic urban furniture by using laminated bamboo attached to the urban fabric in Shenzhen, China. The firm completed Zolaism Café in Qinhuangdao City, Hebei Province, China.

Project facts

Project name: Seed Plaza

Architectural design: Shuhei Aoyama, Yoko Fujii, Haoxiang Rong, Nailun Chen, Jingyuan Li, Yuting Wang, Xinyi Zhang, Yu Nagasaki / B.L.U.E. Architecture Studio

Location: Jiaxing, Zhejiang Province

Gross area: 7,000m2

Construction period: 07, 2022 - 05, 2023

Client: Jiaxing Shihe New Rural Development Co.,Ltd. & Jiaxing Vanke Real Estate Development Co., Ltd.

Landscape design: WTD Group

Facade (Curtain Wall) Design: Hangzhou Jiawei Curtain Wall Decoration Co., Ltd.

Sign Design: Boxi Sign

Lighting Design: ZOE Lighting Design

All images © Eiichi Kano

All drawings © B.L.U.E. Architecture Studio.
