Zaha Hadid Architects' Al Janoub Stadium opens for World Cup in Qatar

Qatar Architecture News - May 20, 2019 - 00:16   3599 views

Zaha Hadid Architects' Al Janoub Stadium opens for World Cup in Qatar

Zaha Hadid Architects' new stadium, referencing to the traditional boat of the region - the dhow, has been opened for the 2022 FIFA World Cup in Qatar.

The 40,000-seat football stadium was officially opened with the Amir Cup Final of the Qatar Stars national football league on May 16, 2019 in the city of Al Wakrah which is 23km south of Doha and connected to the capital via the Red Line of new Doha Metro system.

Named Al Janoub Stadium, ZHA translated the city's cultural references into simple but a representative design. The client asked from the studio that the design should reflect the maritime traditions and history of the location, in particular, the traditional boat of the region - which is known as "the dhow".

Zaha Hadid Architects' Al Janoub Stadium opens for World Cup in Qatar

Zaha Hadid Architects together with Aecom began designing the stadium along with its new precinct for the city in March 2013. When the studio released its design, the scheme received harsh criticism since the form of the stadium resembles a female genitalia.

The stadium was designed as one of the venues of the 2022 World Cup, the stadium will host the group and quarter-final matches of the tournament.

Zaha Hadid Architects' Al Janoub Stadium opens for World Cup in Qatar

"The client’s brief was for a 40,000-seat football stadium for the 2022 World Cup which could be reduced to a 20,000-seat capacity in its legacy mode following the tournament", said ZHA.

"20,000 seats is the optimum capacity for legacy use as the home ground to Al Wakrah Sport Club professional football team of the Qatar Stars national league."

Zaha Hadid Architects' Al Janoub Stadium opens for World Cup in Qatar

These temporary seats have been designed to be demountable and transportable to a developing country in need of sporting infrastructure for post-tournament usage.

Further temporary accommodation such as concessions are required for the additional capacity of FIFA World Cup tournament mode. This has been built as a temporary overlay outside the permanent footprint and enclosure of the stadium in its legacy mode.

Zaha Hadid Architects' Al Janoub Stadium opens for World Cup in Qatar

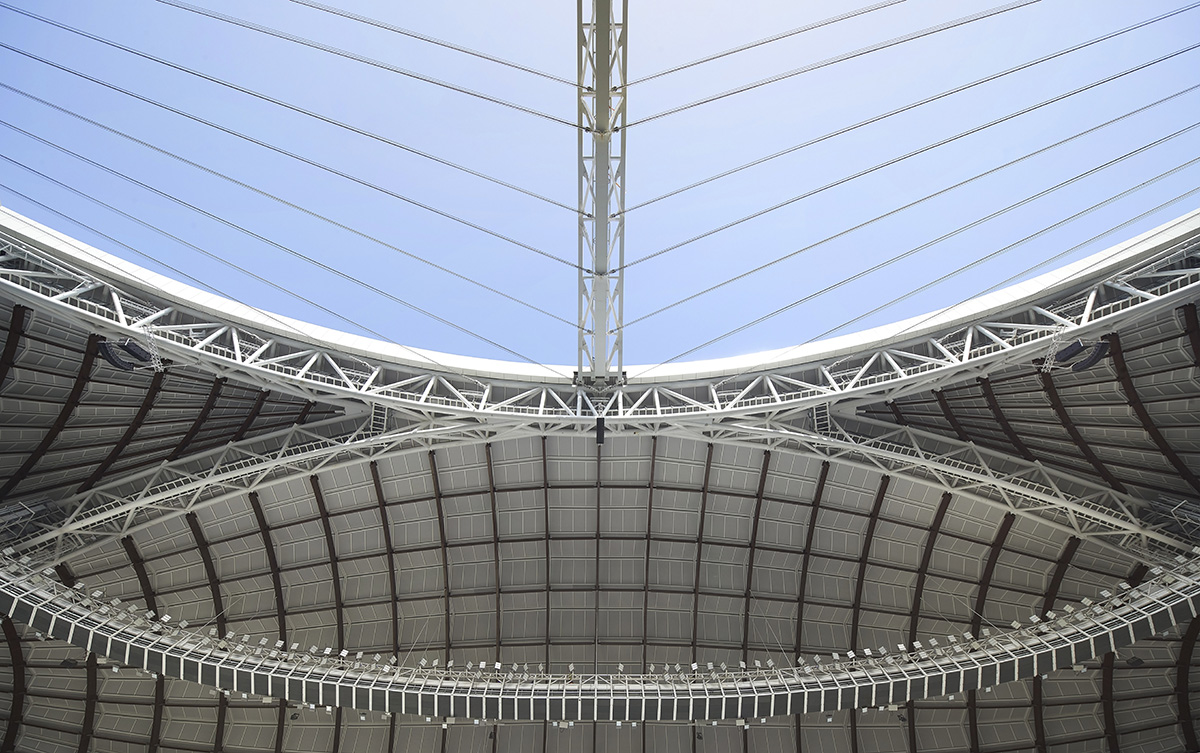

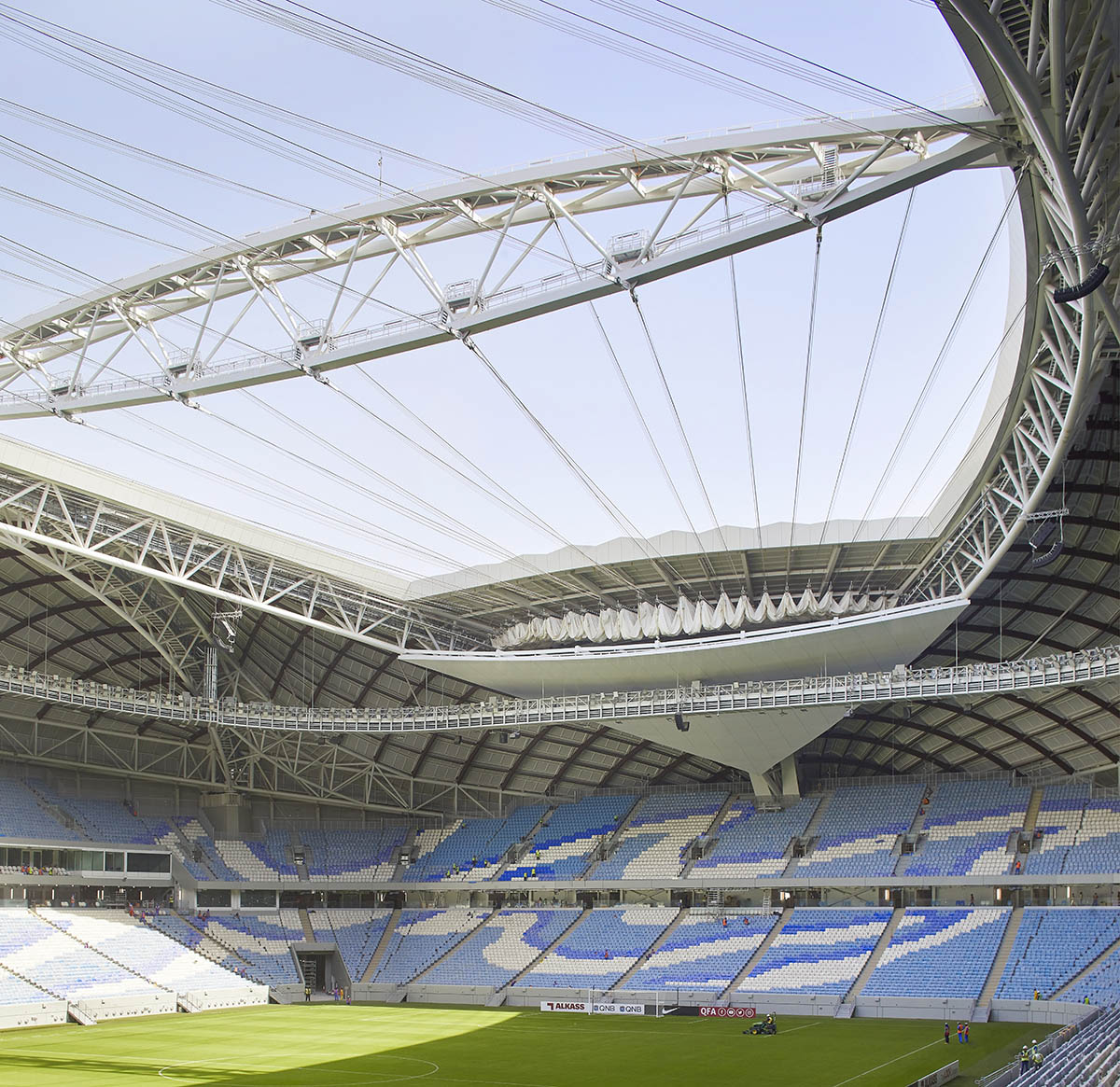

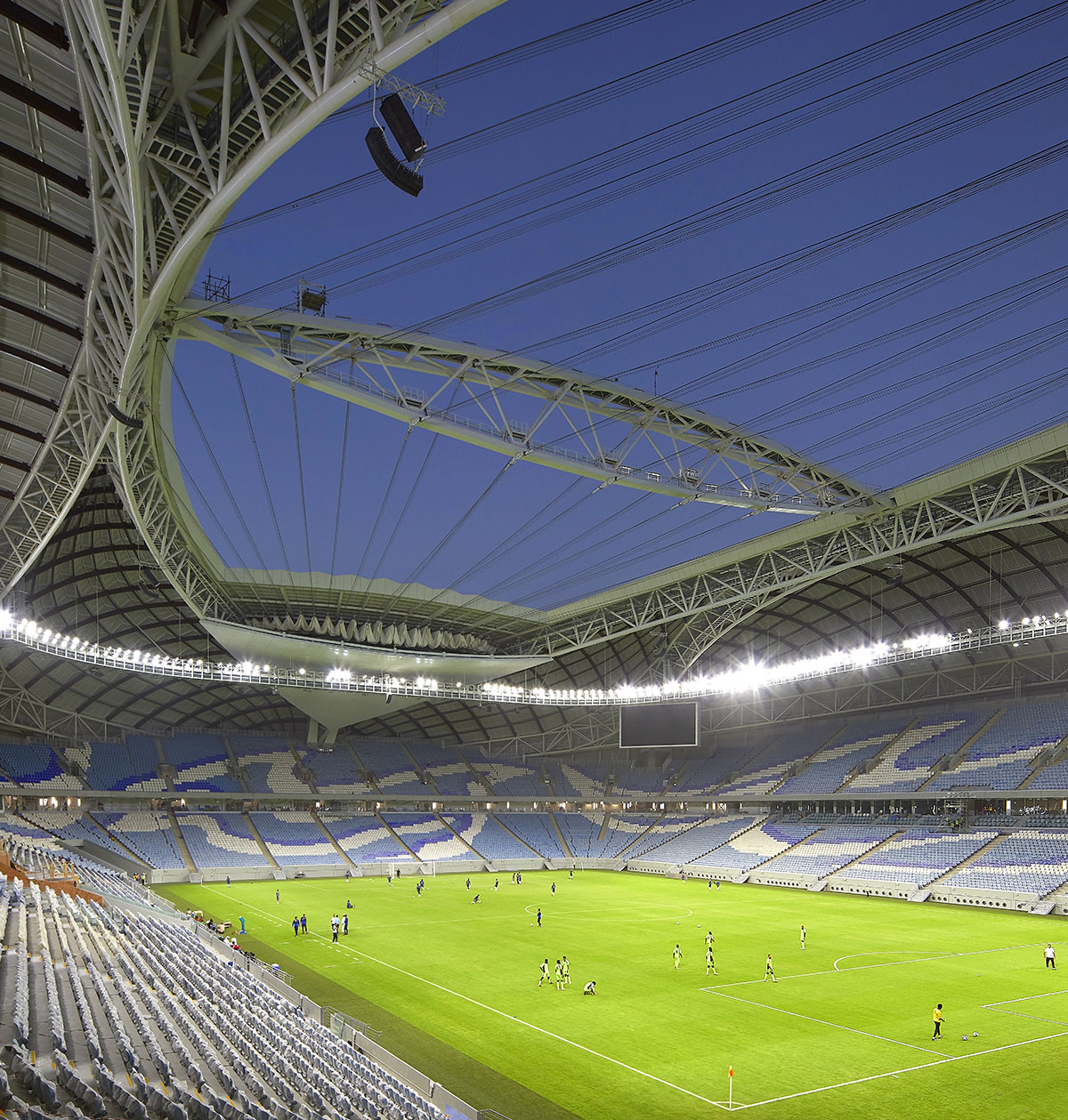

The stadium features an operable roof designed by Schlaich Bergermann Partner and a seating bowl cooling system that ensures the stadium is can be used during Qatar’s summer months. The operable roof has been designed in sympathy with the cladding using pleated PTFE fabric and cables.

Zaha Hadid Architects' Al Janoub Stadium opens for World Cup in Qatar

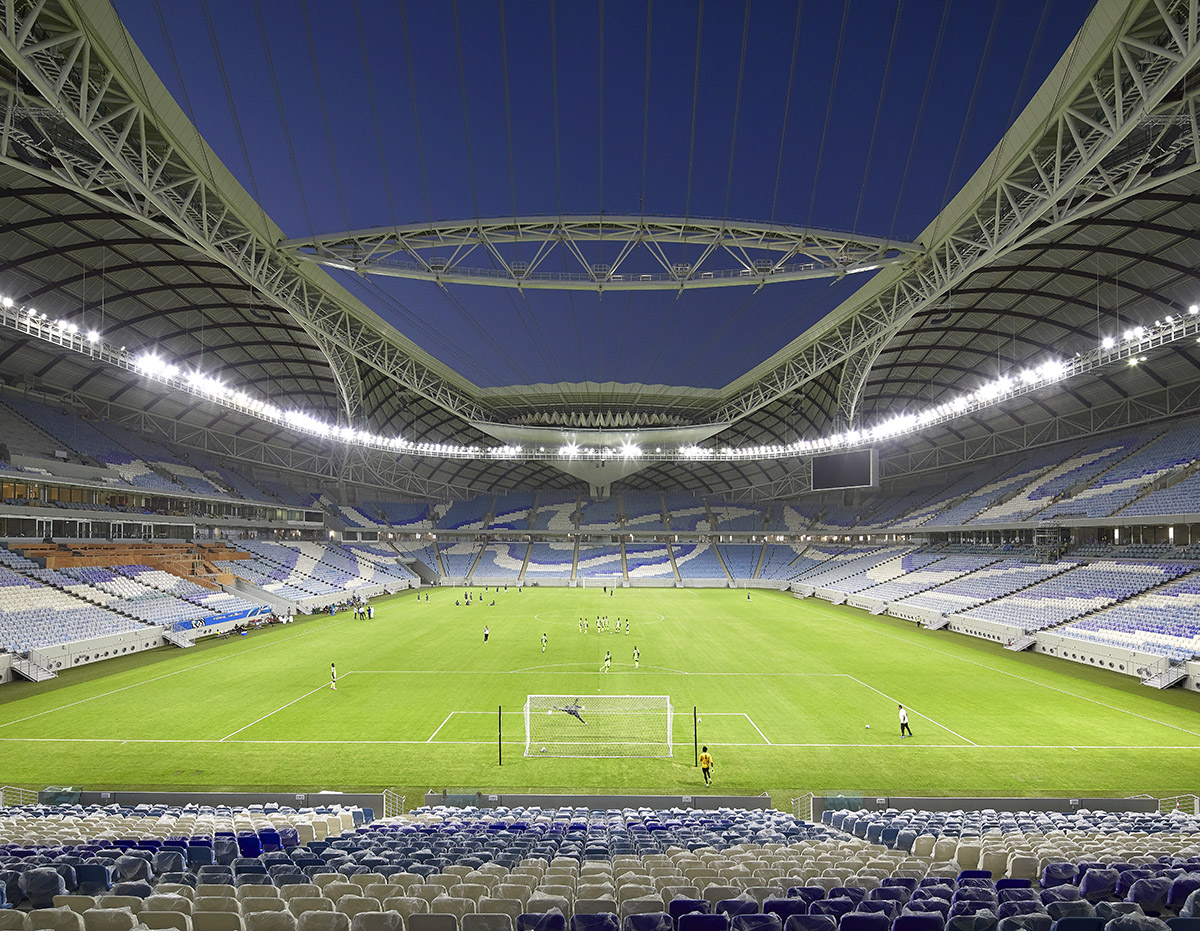

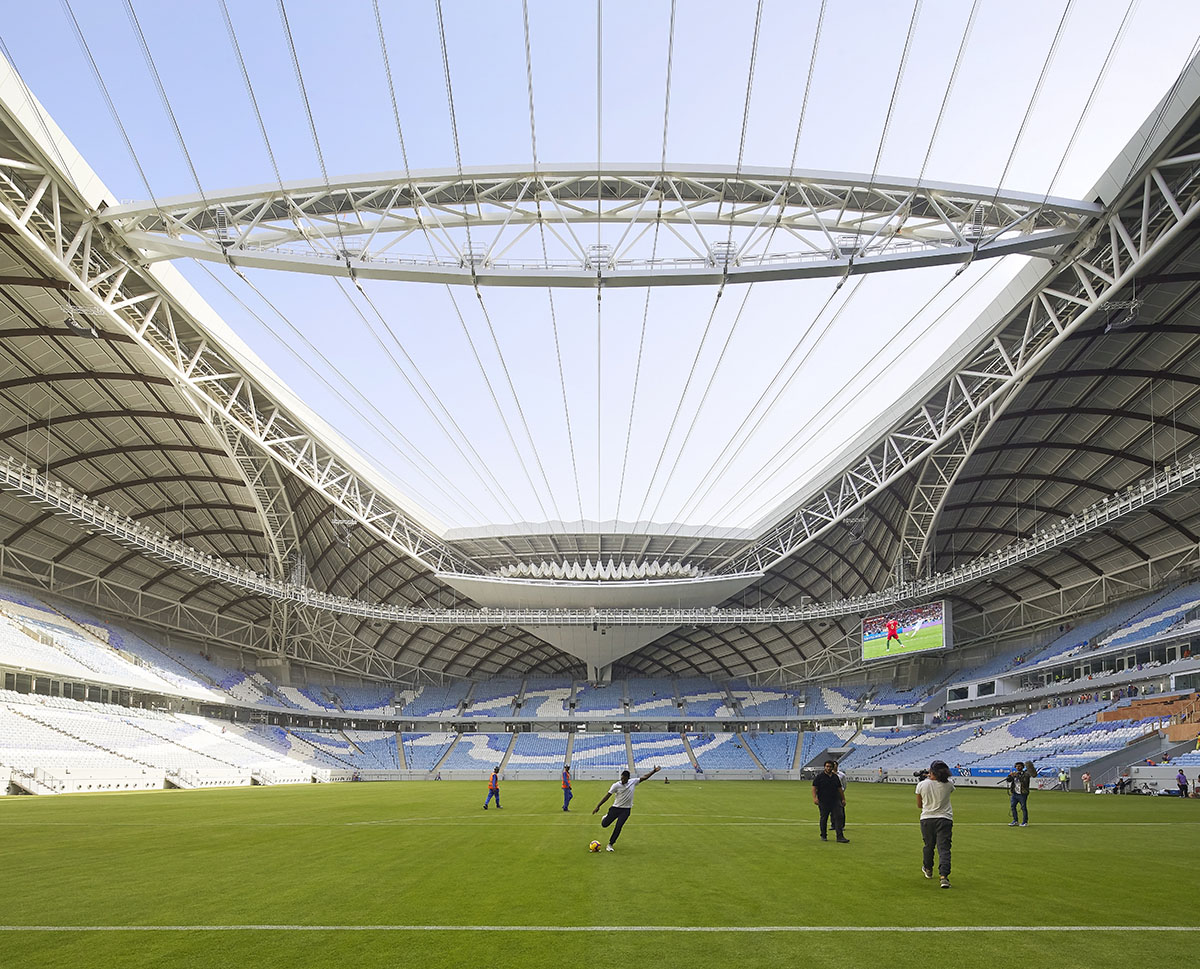

When its deployed, the roof operates like a sail to cover the oculus above the field of play and create a sheltered environment for football during the summer.

Passive design principles along with computer modelling and wind tunnel tests were used to maximise the effectiveness of the physical enclosure to ensure player and spectator comfort.

Zaha Hadid Architects' Al Janoub Stadium opens for World Cup in Qatar

"Given the stadium’s context within the coastal city of Al Wakrah, the client asked that its design reflect the maritime traditions and history of the location, in particular, the traditional boat of the region, the dhow," added the studio in its project description.

"ZHA responded with a design that incorporates these cultural references in an abstracted manner and combines them with practical responses to the climate, context and the functional requirements of a football stadium."

Zaha Hadid Architects' Al Janoub Stadium opens for World Cup in Qatar

The abstraction transforms the literal into something new and appropriate for a football stadium; allowing multiple interpretations of these cultural references both in terms of how they are applied and how they are read.

Zaha Hadid Architects' Al Janoub Stadium opens for World Cup in Qatar

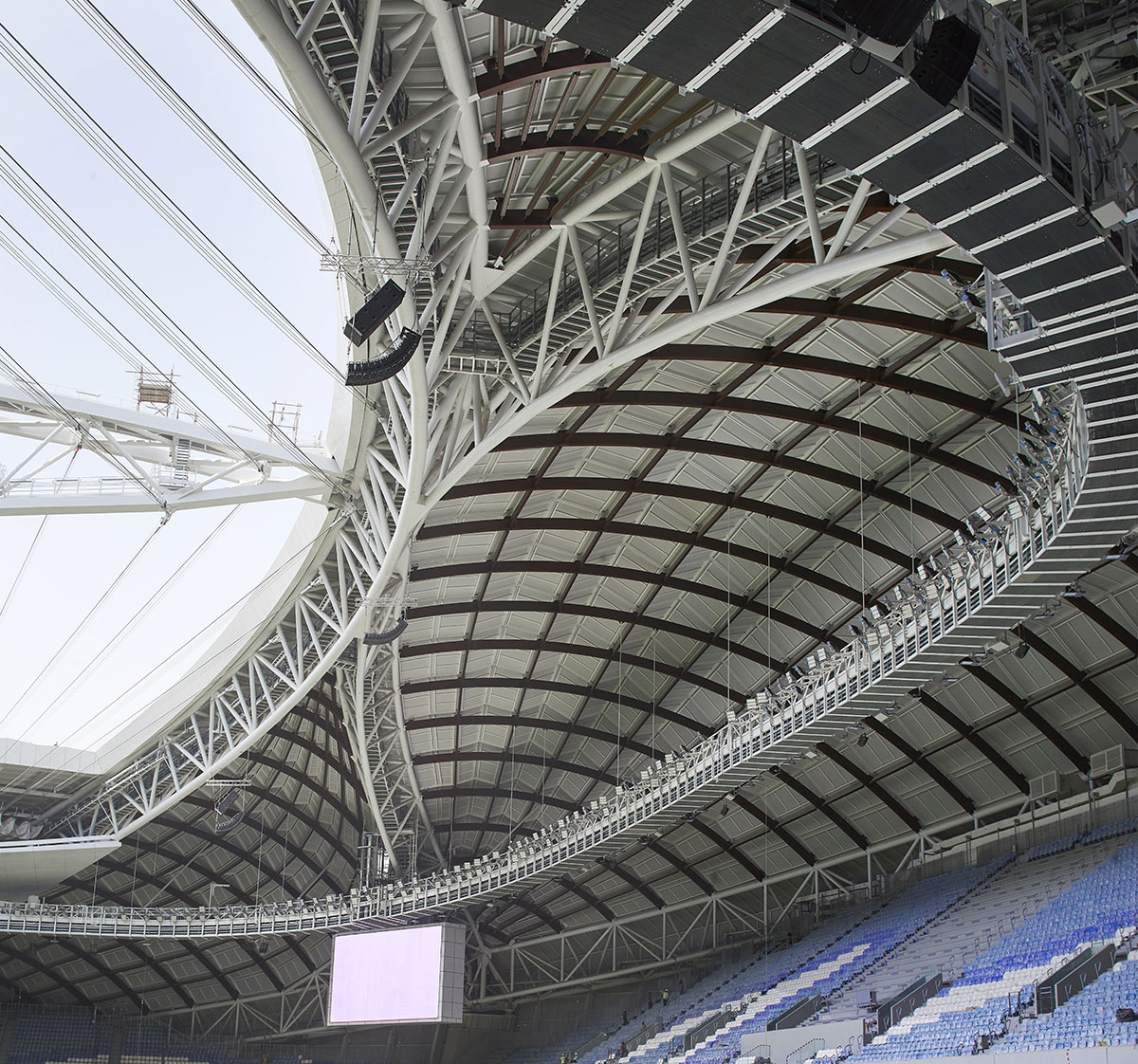

The stadium’s roof is designed as an abstraction of the hulls of dhows turned upside-down and huddled together to provide shade and shelter. This is expressed in the stadium’s envelope geometry, details and selected materiality, including the roof’s beam structure that echoes the interior structure of a d’how’s hull.

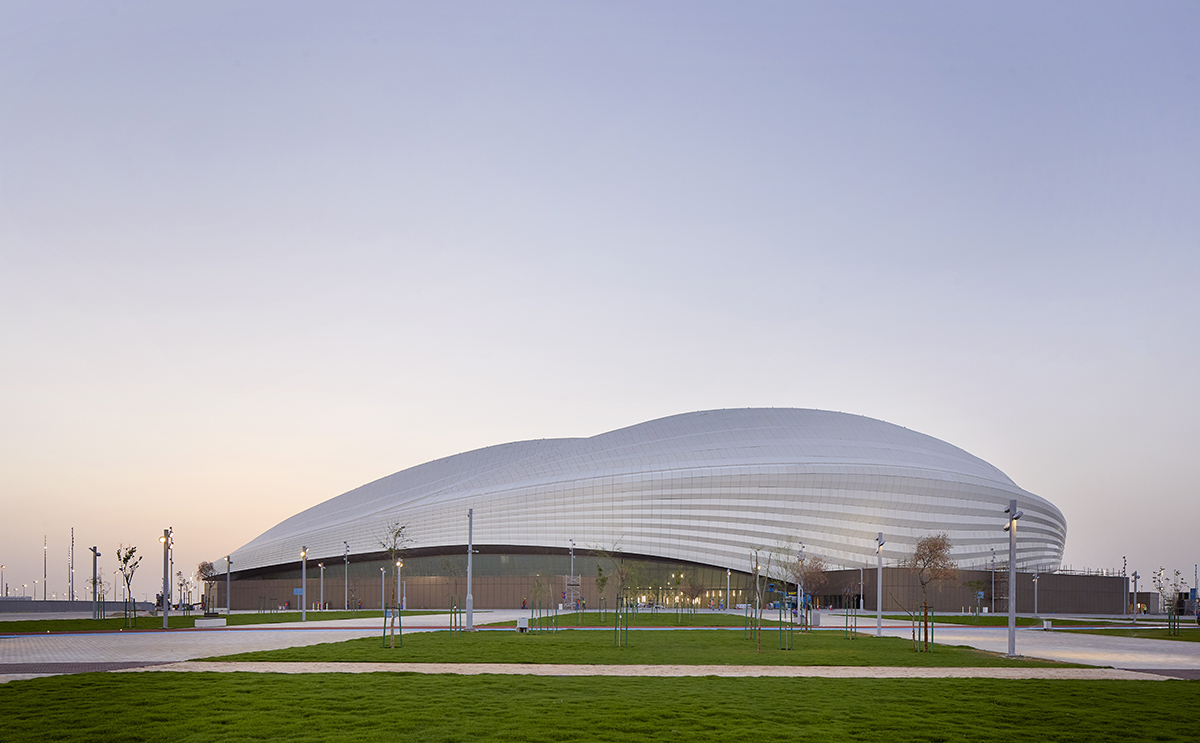

The facades of the stadium are slanted outwards, tapered in elevation and reminiscent of the pleating of a dhow’s sails.  The image of the dhow is further emphasized through the large overhang of the stadium’s eaves that incorporates strips of metal cladding reminiscent of the timber structures used in a dhow.

Zaha Hadid Architects' Al Janoub Stadium opens for World Cup in Qatar

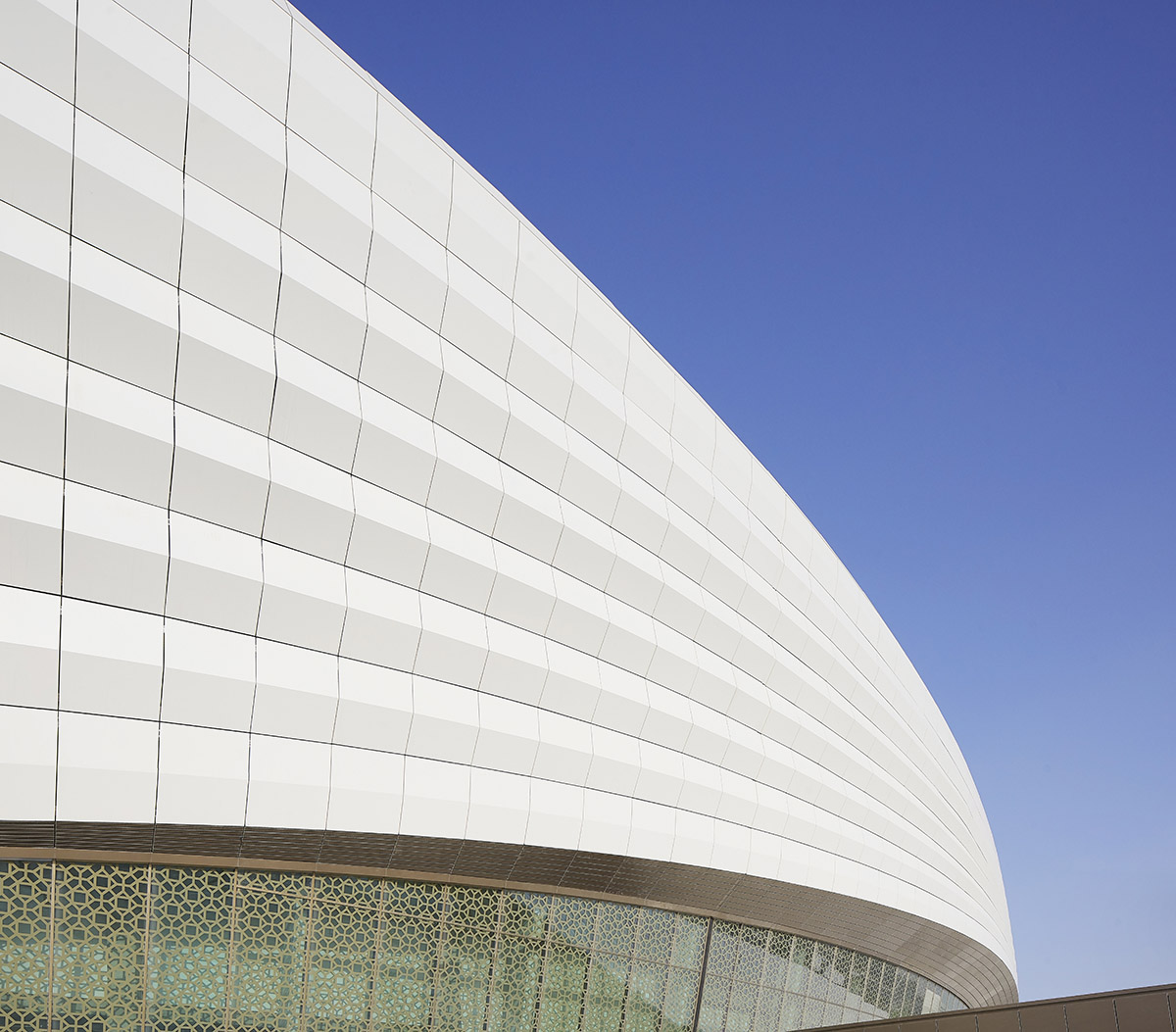

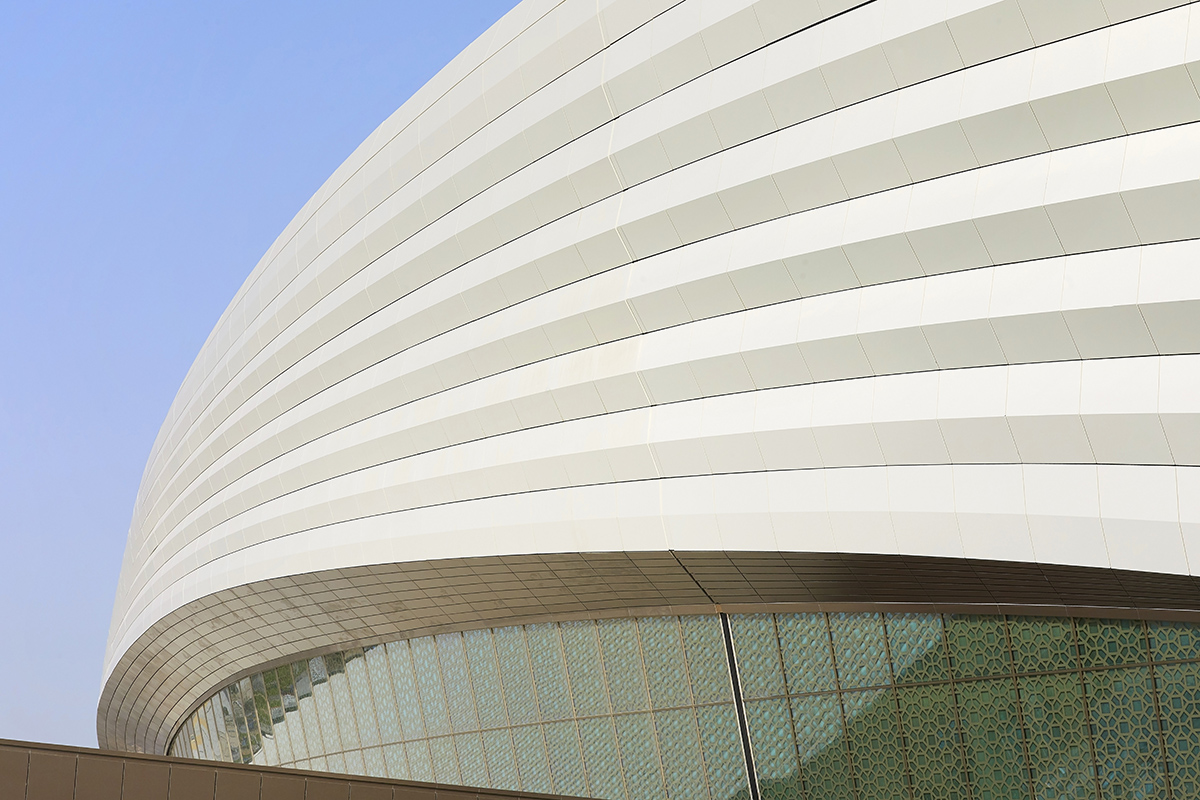

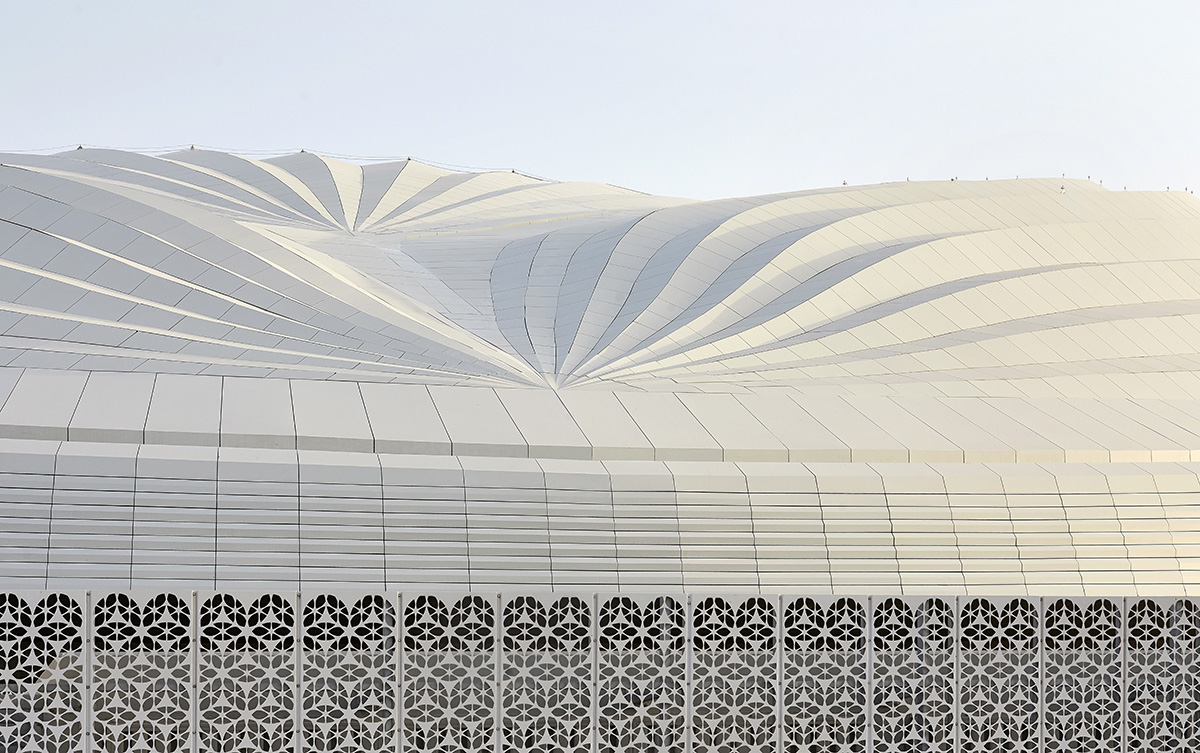

The stadium’s opaque roof and wall areas are expressed as pleated cross sections. This feature, which has its origins in Arabic motifs and calligraphy, adds texture to the outer shell and also emphasizes the stadium’s unique geometry.

The external cladding materials are deliberately selected from a limited palette of materials and choice of colours; namely white for the roof and wall cladding, and darker colours for the areas below the eaves, including the lower level curtain walling with its ornamental lattice screen print that provide shading.

Zaha Hadid Architects' Al Janoub Stadium opens for World Cup in Qatar

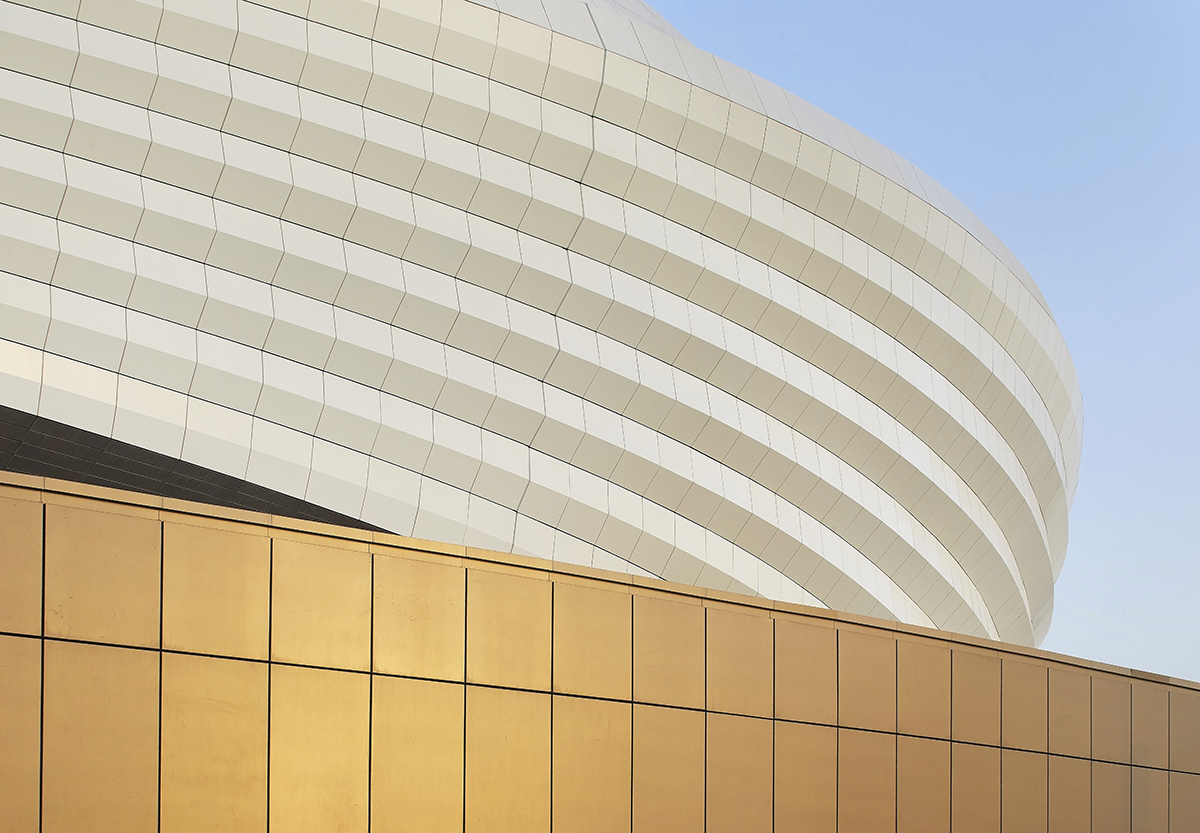

The colour scheme for the external building envelope dovetails with its geometric forms and reinforces the articulation of the outer skin.  The roof cladding and opaque surface areas above the eaves are white or off-white in colour with a gloss surface finish that is reminiscent of sea shells and emphasizes the pleats which add texture to the building envelope.

Zaha Hadid Architects' Al Janoub Stadium opens for World Cup in Qatar

The embossed eaves and the lattice screen print of the glazed lower-level facades are metallic bronze in colour, adding a sense of richness and depth to the design. The choice of a bronze metallic finish of these worked surfaces pays homage to the traditions and artistry of Islamic craftsmanship.

Zaha Hadid Architects' Al Janoub Stadium opens for World Cup in Qatar

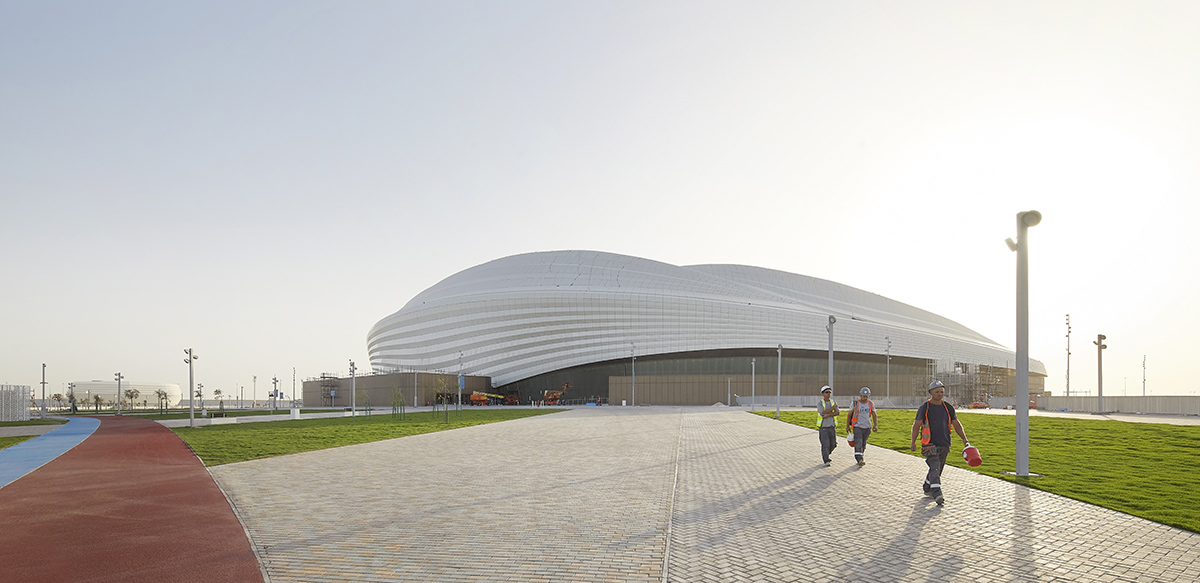

The stadium sits on a large landscaped podium that takes visitors from grade to the entry level main entry concourse located at the middle of the seating bowl’s tiers. This podium connects the stadium into the adjacent landscape and reduces its scale. Large parabolic voids within the podium signify different activity zones.

Zaha Hadid Architects' Al Janoub Stadium opens for World Cup in Qatar

On the eastern side, voids allow for the majority of spectators to arrive and depart from the stadium. The north eastern void will include a community market whilst the south eastern void hosts an activity park. To the west, the parabolic void within the podium allows for vehicle access and drop off at grade for the players, officials and dignitaries.

Zaha Hadid Architects' Al Janoub Stadium opens for World Cup in Qatar

Zaha Hadid Architects' Al Janoub Stadium opens for World Cup in Qatar

Zaha Hadid Architects' Al Janoub Stadium opens for World Cup in Qatar

Zaha Hadid Architects' Al Janoub Stadium opens for World Cup in Qatar

The stadium was designed in conjunction with its new precinct to sit at the heart of an urban extension of the city, creating community based activities in and around the stadium on non-event days.

Al Janoub stadium will be a memorable venue and destination during the Qatar 2022 FIFA World Cup and afterwards, at the centre of its Al Wakrah community.

Zaha Hadid Architects' Al Janoub Stadium opens for World Cup in Qatar

Site plan

Zaha Hadid Architects' Al Janoub Stadium opens for World Cup in Qatar

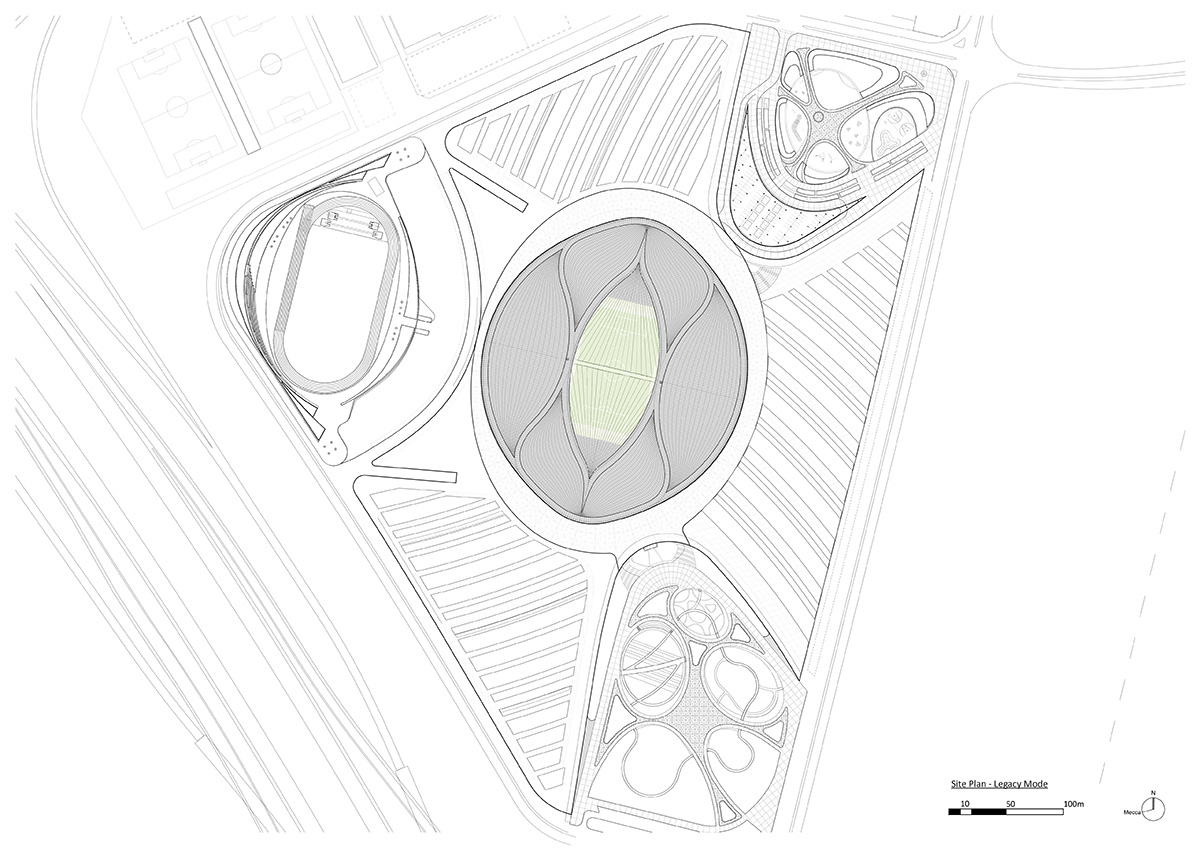

Site plan legacy mode

Zaha Hadid Architects' Al Janoub Stadium opens for World Cup in Qatar

Upper Concourse Level - Legacy Mode

Zaha Hadid Architects' Al Janoub Stadium opens for World Cup in Qatar

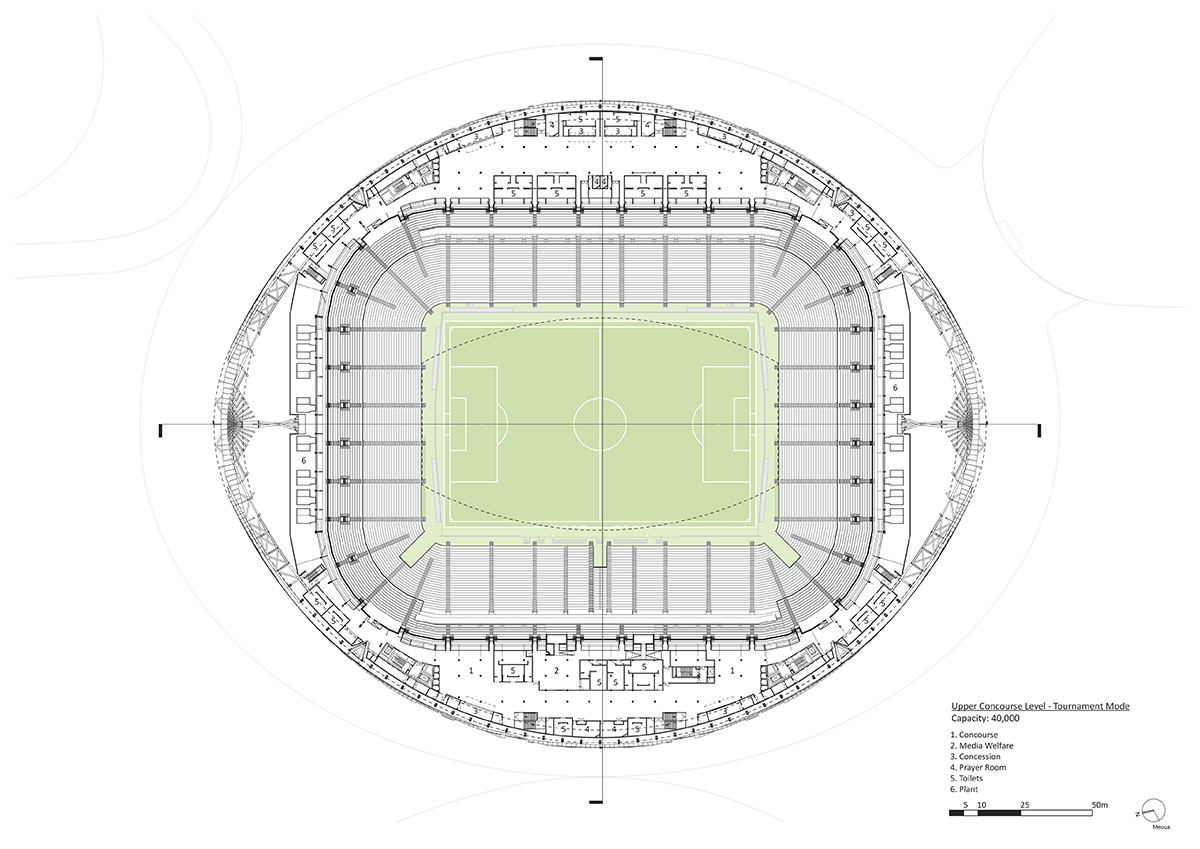

Upper Concourse Level - Tournament Mode

Zaha Hadid Architects' Al Janoub Stadium opens for World Cup in Qatar

Main Concourse Level - Legacy Mode

Zaha Hadid Architects' Al Janoub Stadium opens for World Cup in Qatar

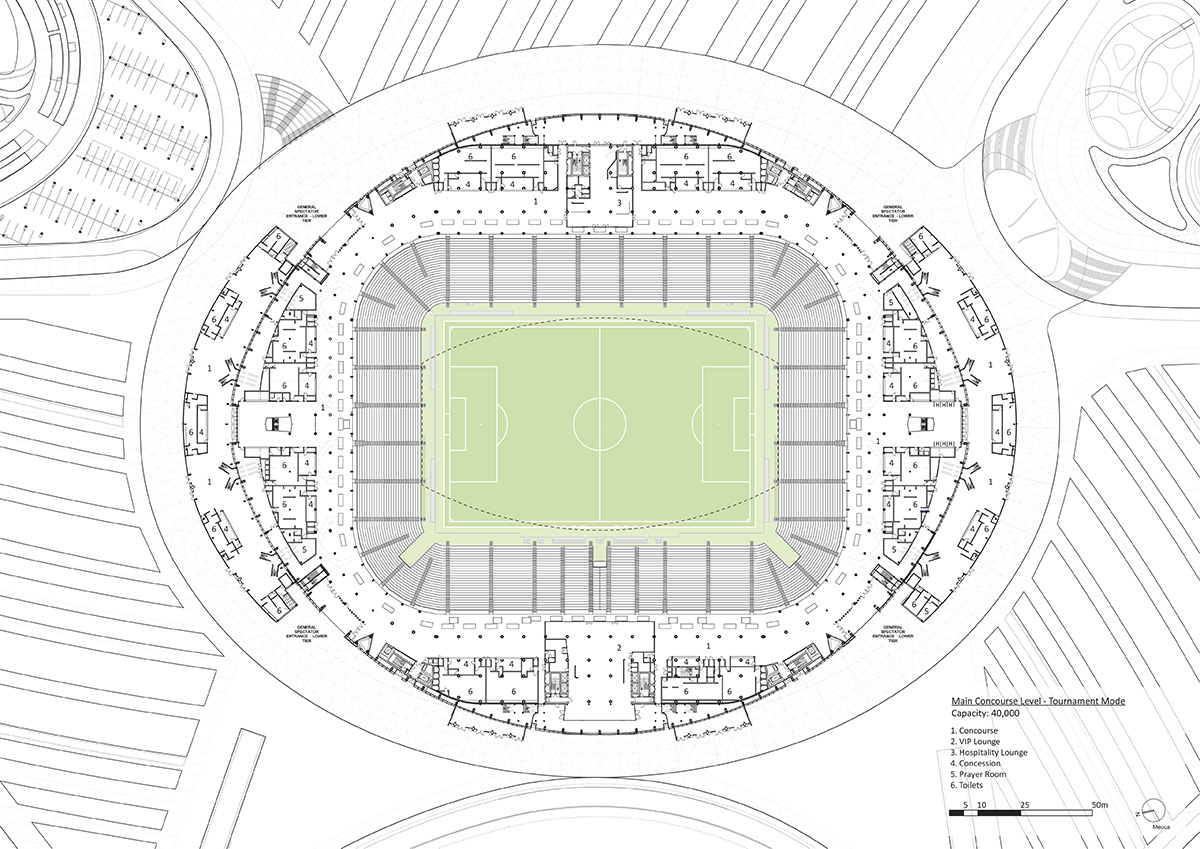

Main Concourse Level - Tournament Mode

Zaha Hadid Architects' Al Janoub Stadium opens for World Cup in Qatar

East-West Section - Legacy Mode

Zaha Hadid Architects' Al Janoub Stadium opens for World Cup in Qatar

East-West Section - Tournament Mode

Zaha Hadid Architects' Al Janoub Stadium opens for World Cup in Qatar

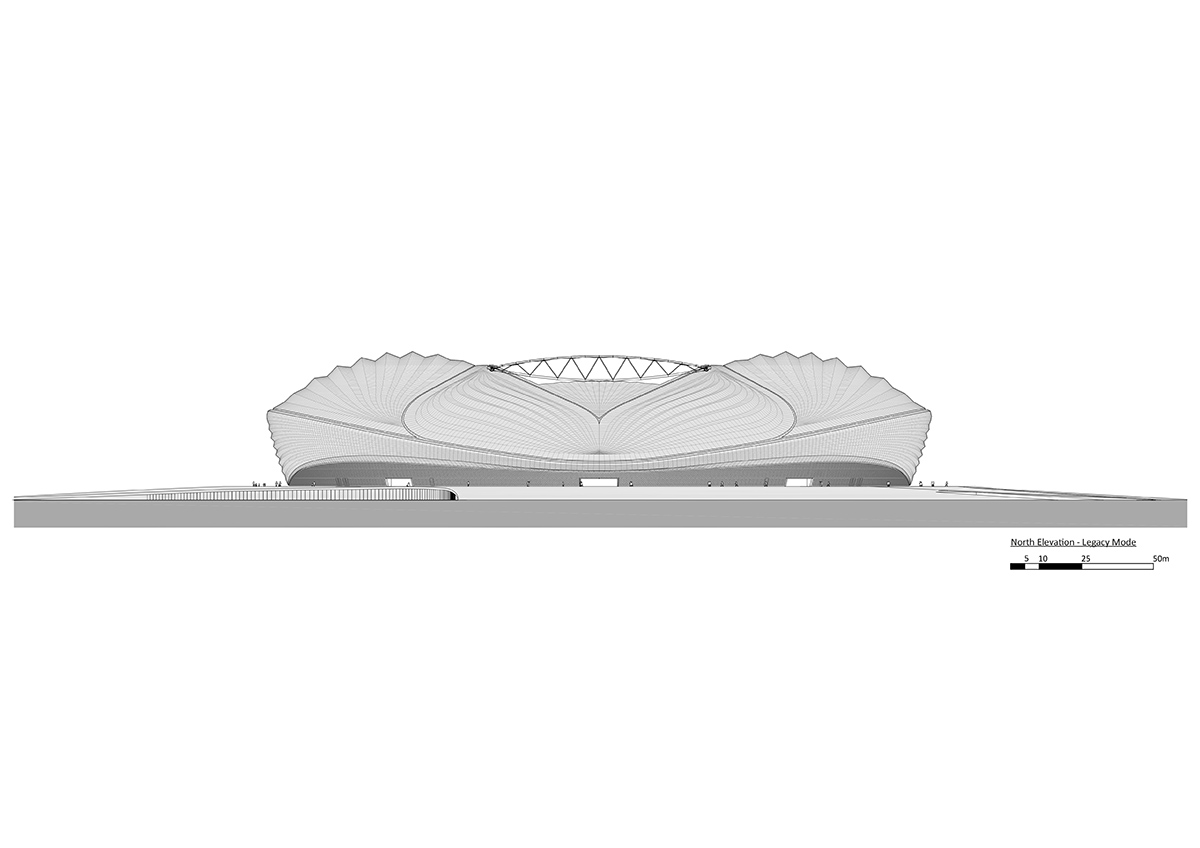

North Elevation - Legacy Mode

Zaha Hadid Architects' Al Janoub Stadium opens for World Cup in Qatar

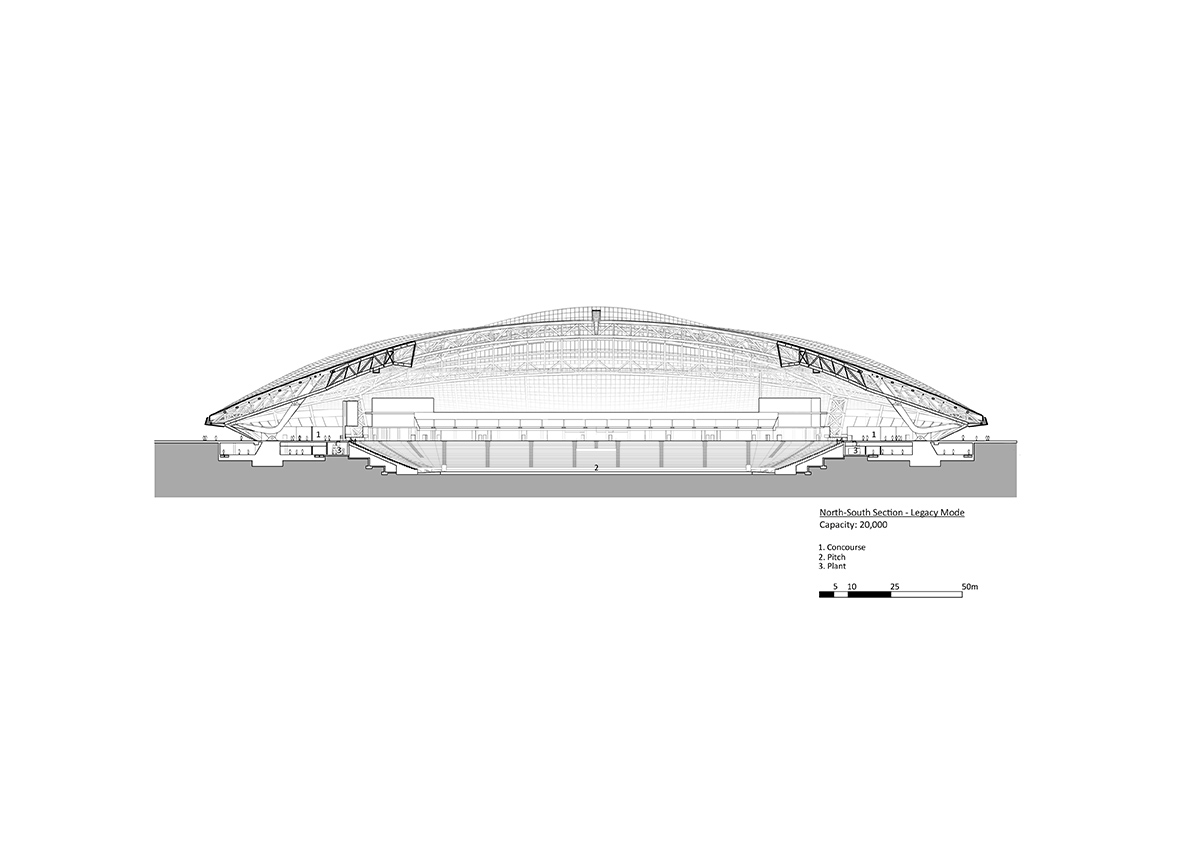

North-South Section - Legacy Mode

Zaha Hadid Architects' Al Janoub Stadium opens for World Cup in Qatar

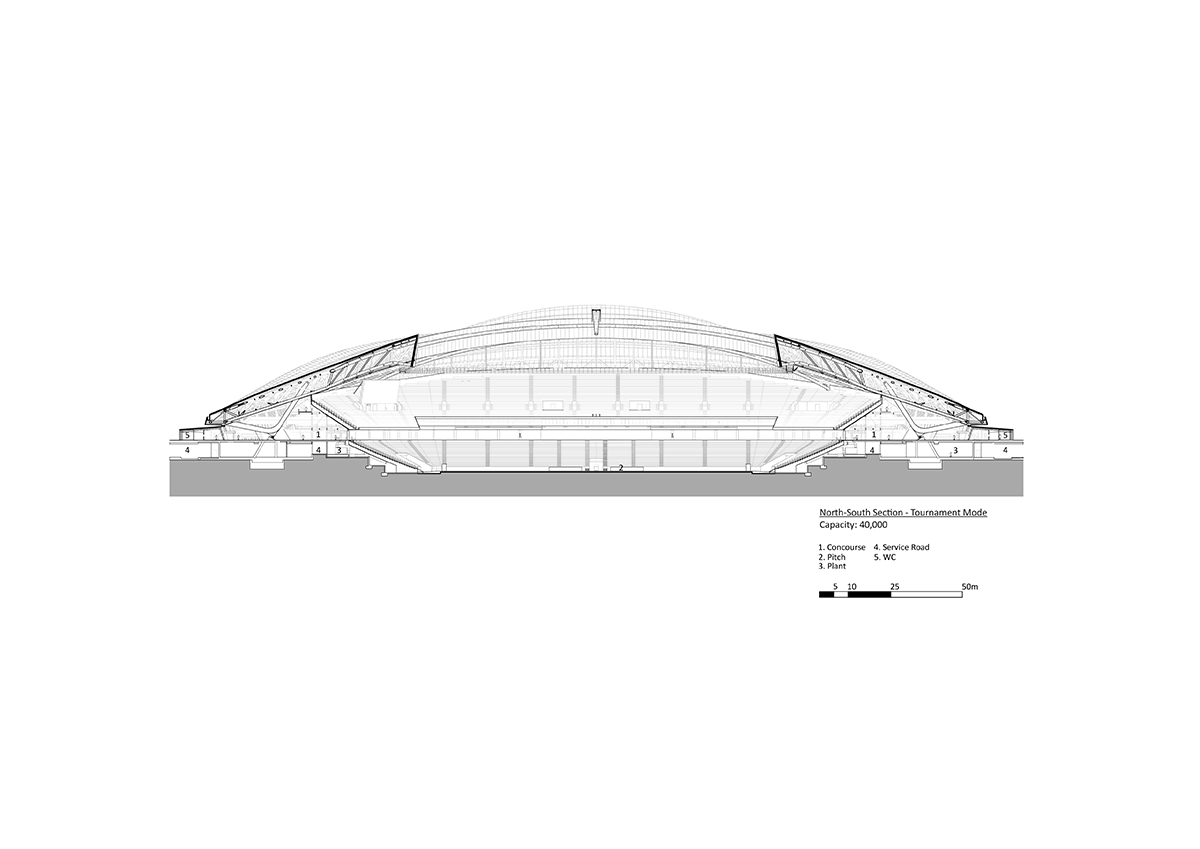

North-South Section -Tournament Mode

Zaha Hadid Architects' Al Janoub Stadium opens for World Cup in Qatar

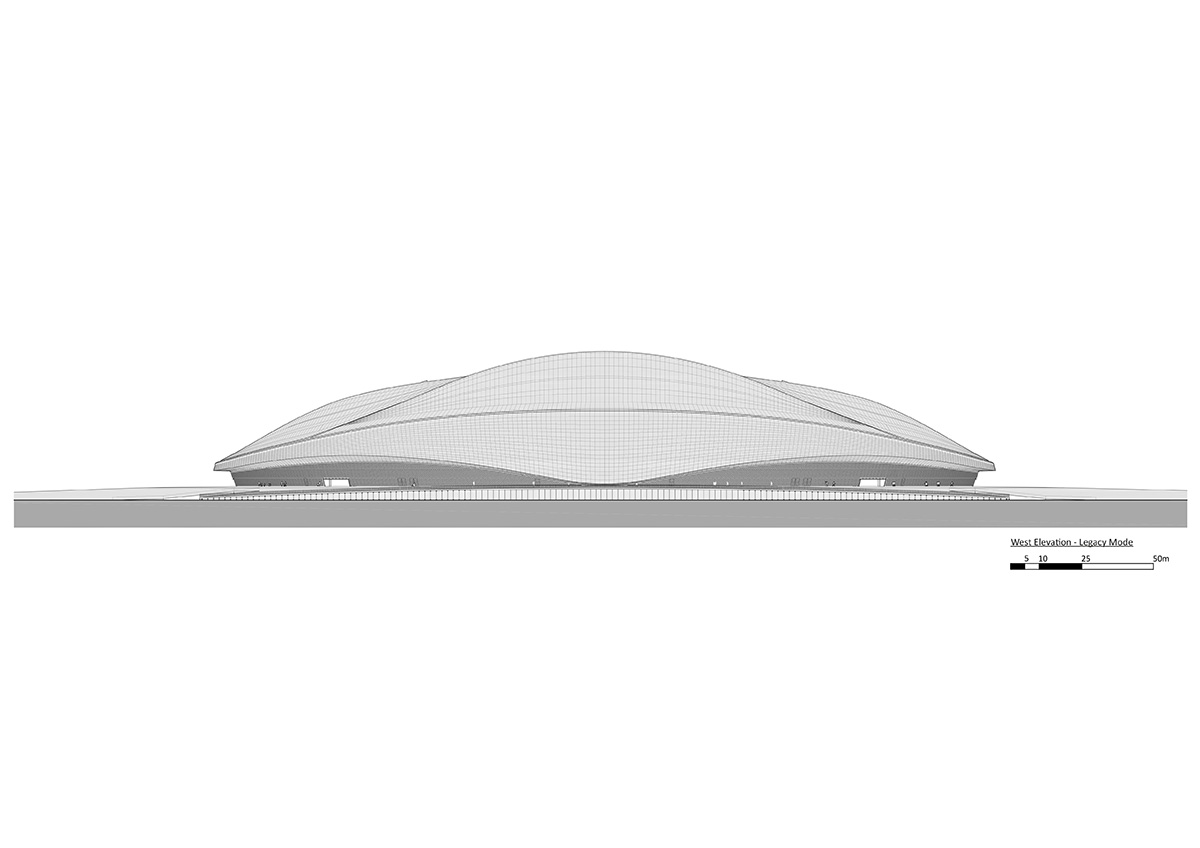

West Elevation - Legacy Mode

Project facts

Client: Supreme Committee for Delivery and Legacy of the 2022 FIFA World Cup Qatar™

ZHA Project Team

Architect and Lead Designer: Zaha Hadid Architects
Design: Zaha Hadid, Patrik Schumacher
Project Director: Jim Heverin
Project Associate / Project Architect: Johannes Hoffmann
Project Team: Annarita Papeschi, Andreas Urff, Antonio Monserrat, Cynthia Du, Edgar Payan, Ermis Chavaltzi, Fernando Poucell, Ganesh Nimmala, George King, Ho-Ping Hsia, Irene Guerra, Jan Klaska, Junyi Wang, Karim Muallem, Karoly Markos, Ming Cheong, Moa Carlsson, Mohamed Al-Jubori, Nastassia Linau, Paulo Flores, Peter Irmscher, Rafael Portillo, Stephane Vallotton, Thomas Soo, Vincent Konate, Yeena Yun, Wen-Kai Li (Kevin).

Consultants
Lead Consultant: Aecom

Operable Roof Design: Schlaich Bergermann Partner

Top image courtesy of the Supreme Committee for Delivery & Legacy

All images © Hufton + Crow except top image.

All drawings © ZHA
