Submitted by Chaolee Kuo
A Vibrant City Hub: Taipei MRT Daan Park Station by SCFC
Taiwan Architecture News - Aug 05, 2019 - 00:44 10891 views
It has been 20 years since the metro system was first established in Taiwan’s capital city, Taipei. As an underground system, a station’s interactions with the city would often be limited to simple "matchbox" entrances protruding from the sidewalk—typical of many urban stations worldwide. When an expansion plan was revealed by the Bureau of Transportation in the form of a brand new metro line connecting the city’s most popular districts, the station site set next to the city’s largest green space (Daan Forest Park) presented a rare opportunity to explore a metro station’s potential for urban interaction through design.
Aerial view to the North. Image courtesy of SCFC
Master Plan. Image © SCFC

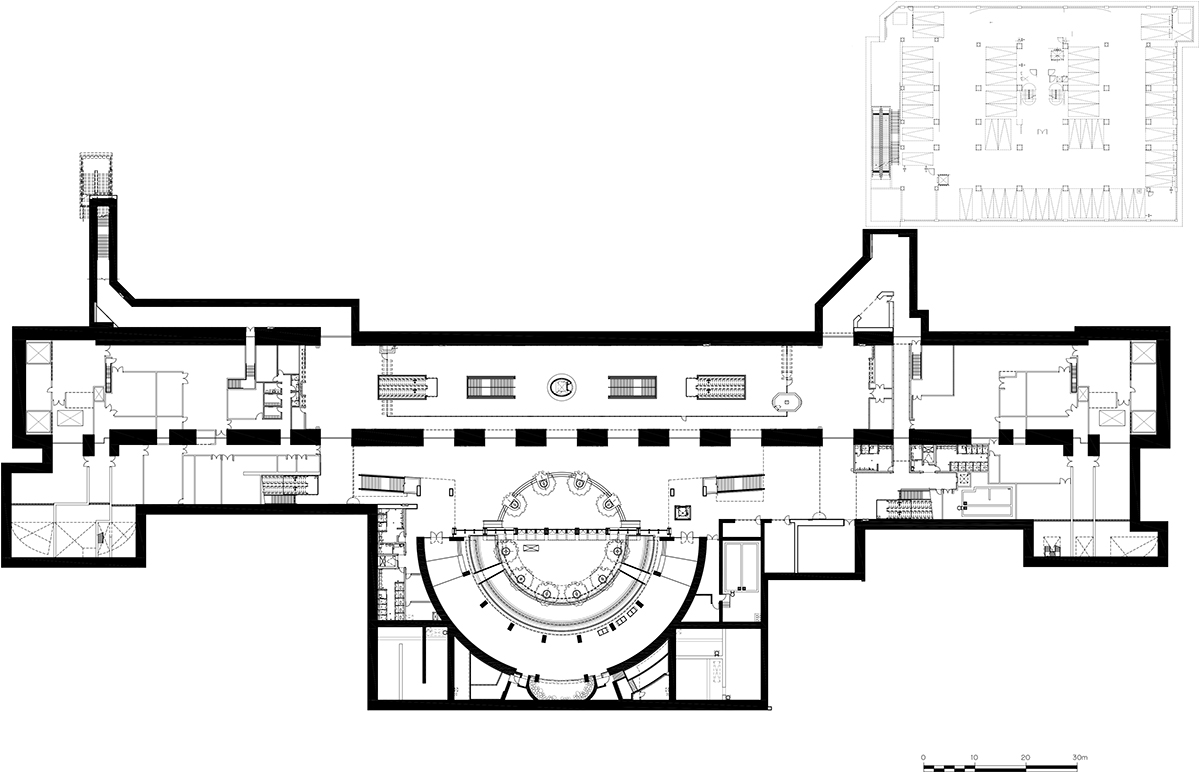

Concourse Floor Plan. Image © SCFC

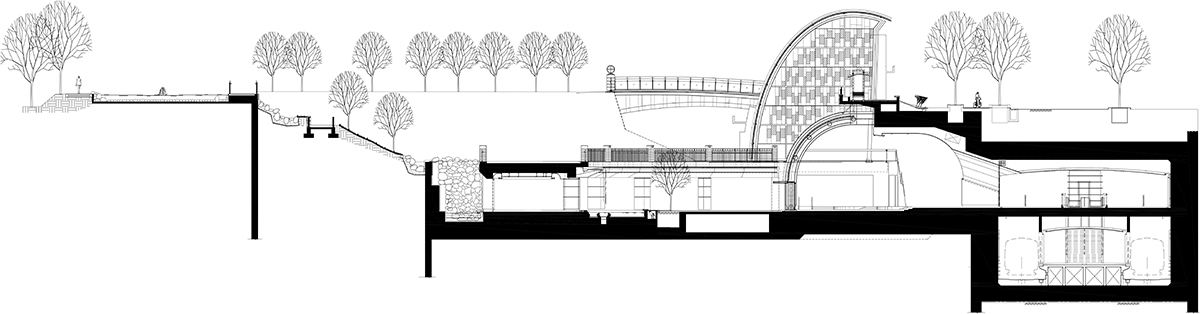

South-North Section. Image © SCFC
For the jurors, the scheme proposed by the design team of Che Fu Chang Architects during the competition was completely unexpected. Taking advantage of the site’s context, the team proposed to fuse the station with the park, breaking down the boundaries between Daan Forest Park and the public transit system. Enormous debates across government departments ensued, but ultimately, a decision was made by the city mayor to allow the proposal to pass.
The proposal aims to transform the metro station from a passive transportation service facility into a vibrant city hub, where generous porosity between the station and the park connects visitors and commuters to the surrounding urban park environment. Fusing the station with the park also provides opportunities for new access points, stimulating activity in otherwise inactive areas. The park is consequently more accessible, and the station more lively, providing convenient passage to multiple destinations.
Aerial View to the East. Image courtesy of SCFC
The Daan Forest Park Station is imbedded into the park itself, merging with its landform. A semi-circular area of the park was excavated to create a half-bowl-shaped, multi-tiered sunken plaza, exposing about 100m of the underground station’s southern side and opening up the concourse levels to sunlight and open air, while also providing functional indoor and outdoor spaces for the park’s visitors to enjoy.
To enable wheelchair and stroller accessibility, a long, arc-shaped inclined path along the sloping sides of the excavated area connects the station and sunken plaza to the park above. A wooden platform beside the path provides space for a brief rest on the half-bowl slope, which is itself a composition of ponds and plants, shaded by trees.

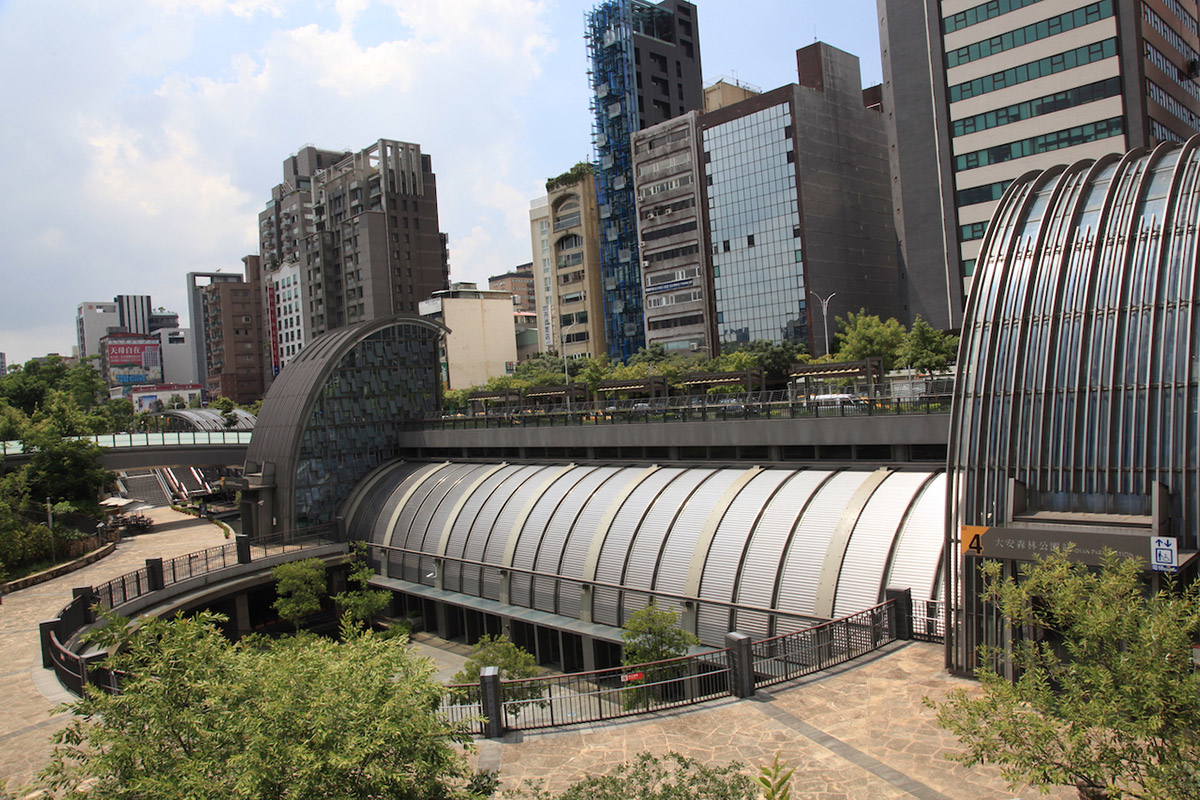

Sunken Plaza towards the Park. Image © Chaoleek Kuo
Due to open spaces and natural elements being so scarce in urban environments, the proposed design aims to minimize the impact of the station and its construction on Daan Forest Park. Visually, the station and its plaza (with the exception of two light-tower entrances at street-level) remain below ground-level, out of sight from most of the park’s pedestrians. The noise of people passing through the station or gathering at the plaza is also contained below ground-level, deflected by the plaza’s slopes and absorbed by its trees. While the station prompts increased local activity, the serenity of the park is preserved.

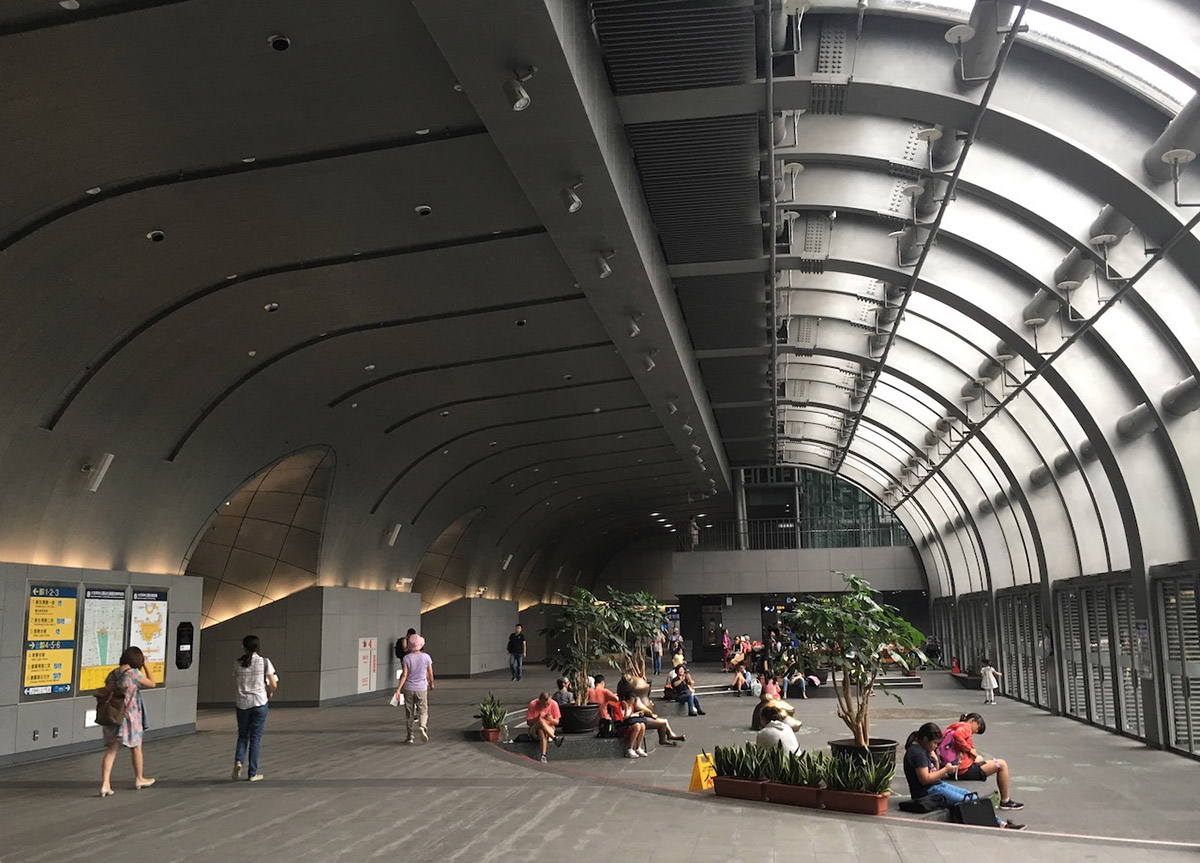

Station Concourse Opens to Sky. Image © Chaoleek Kuo
Station Concourse. Image courtesy of SCFC
Arriving at the station, people are naturally drawn towards the open sky and fresh air of the park above. From the platform and concourse levels through the plaza and to the Daan Forest Park, the transition between indoors and outdoors facilitates the enjoyment of the surrounding nature, transforming a tedious daily commute into a more refreshing one. Perhaps the invigorated commuter may bring a piece of the park’s tranquility with them on their journey, and in some small way share it at their destination.
Sunken Plaza towards the Concourse. Image courtesy of SCFC
Bring the Park's Tranquility into Station. Image courtesy of SCFC
Project name: Taipei MRT Daan Park Station
Location: Taipei City, Taiwan
Design Team: Che Fu Chang Architects + Sinotech Engineering Consultant Inc.
Designed Year: 2002
Completed Year: 2013
Project Team: Yi He Hong, Heng Song Tong, Sin Sing Lin, Jackson Huang, Pei Chen Yang, Chung Yin Wang, Ju Ting Cheng, Ren Yu Fang
Structural Engineer: Sinotech Engineering Consultant Inc.
M&E Consultant: Sinotech Engineering Consultant Inc.
Landscape Architect: SWA Group+ Sinotech Engineering Consultant Inc.
Lighting: CMA Lighting Design
Photographs: Yueh-Lun Tsai, Che Fu Chang Architects
All images courtesy of SCFC except noted.
> via SCFC
