HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

China Architecture News - Feb 28, 2018 - 03:33   29735 views

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

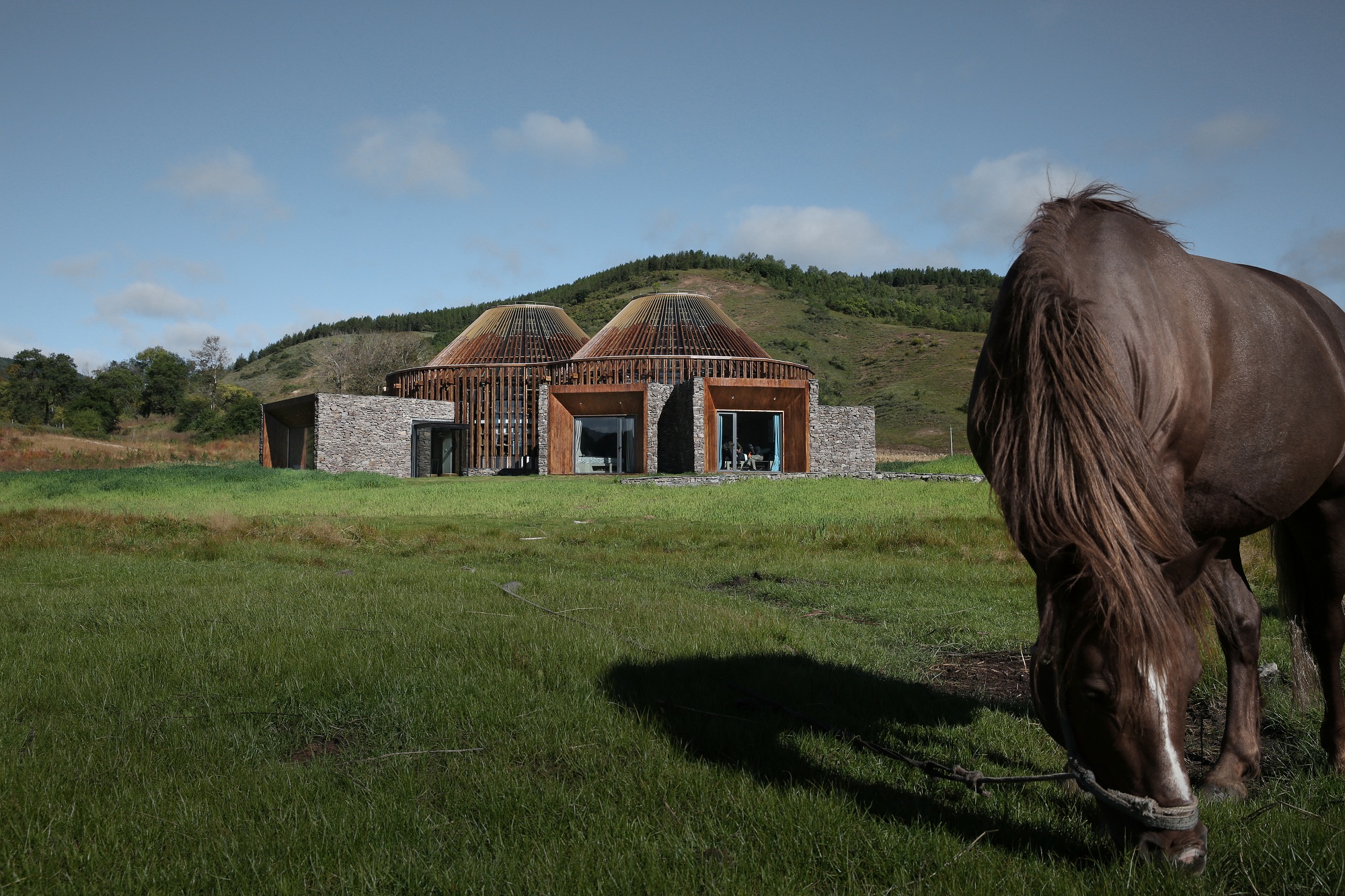

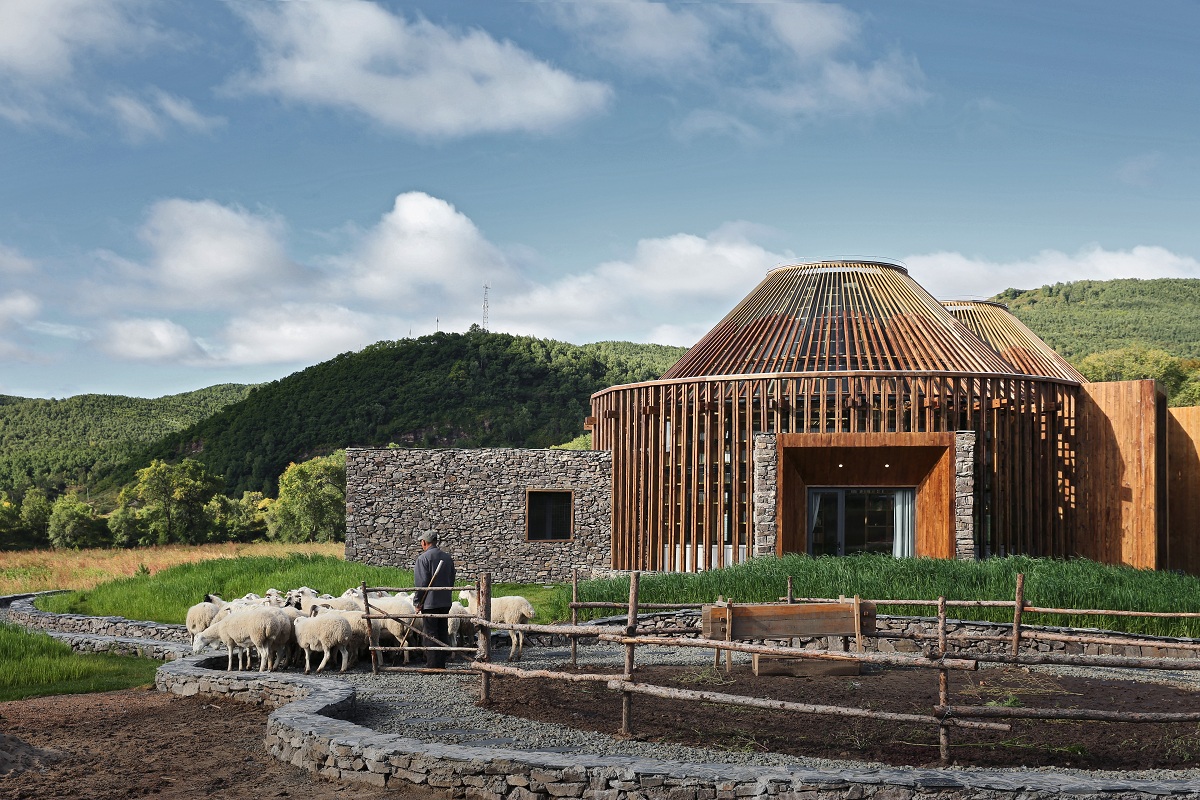

Chinese design group HDD has created a Mongolian yurt-shaped architecture in Mulan Weichang, a grassland located in the north east of Hebei, China. The group took inspiration from traditional yurt building, used local materials such as old stone, wooden beam and rattan to achieve a public architecture which fits into the vast nature seamlessly. This building is a center for community activities as well as a public “living room” for families in the land, and it will also be a central library for the region.

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

"The yurt is the one of the earliest architecture prototype in the human history. The round shape of yurt creates incredible harmony relationship between nature and people. Meanwhile, the double circle stands for luckiness," said HDD in its project brief.

"The combination of different cultures creates such a unique architecture. Meanwhile, the shape of the roof has the same design language with traditional Chinese architecture. The mixture of culture also represents the mixture situation in Weichang—the only Man-Meng self-governing town in China," added the firm.

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

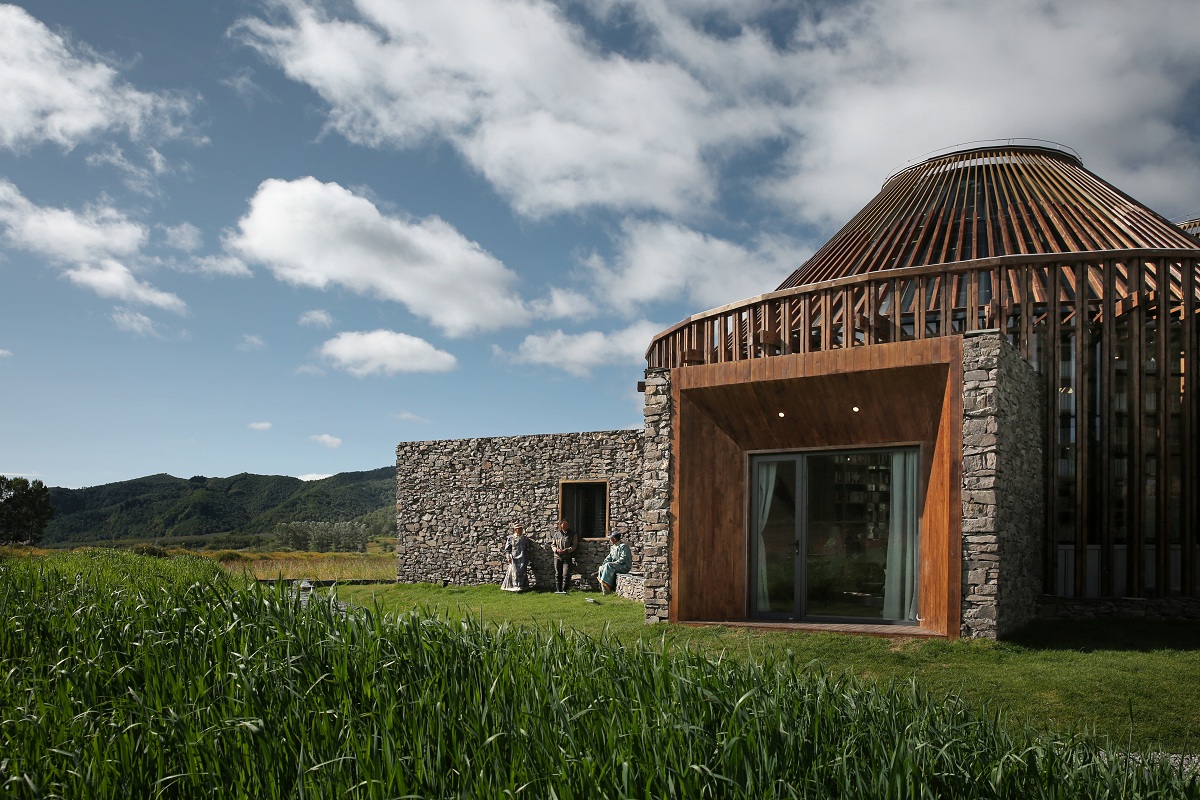

According to HDD, the most difficult part of the project is to create eternal relationship between grassland and the building. 3 different ways are created in order to achieve the goal. The first is to be inspired by local architecture. The second is to use local material including old stone, used wooden beam and rattan. Together with surrounding micro landscape, the building could fit into the vast nature.

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

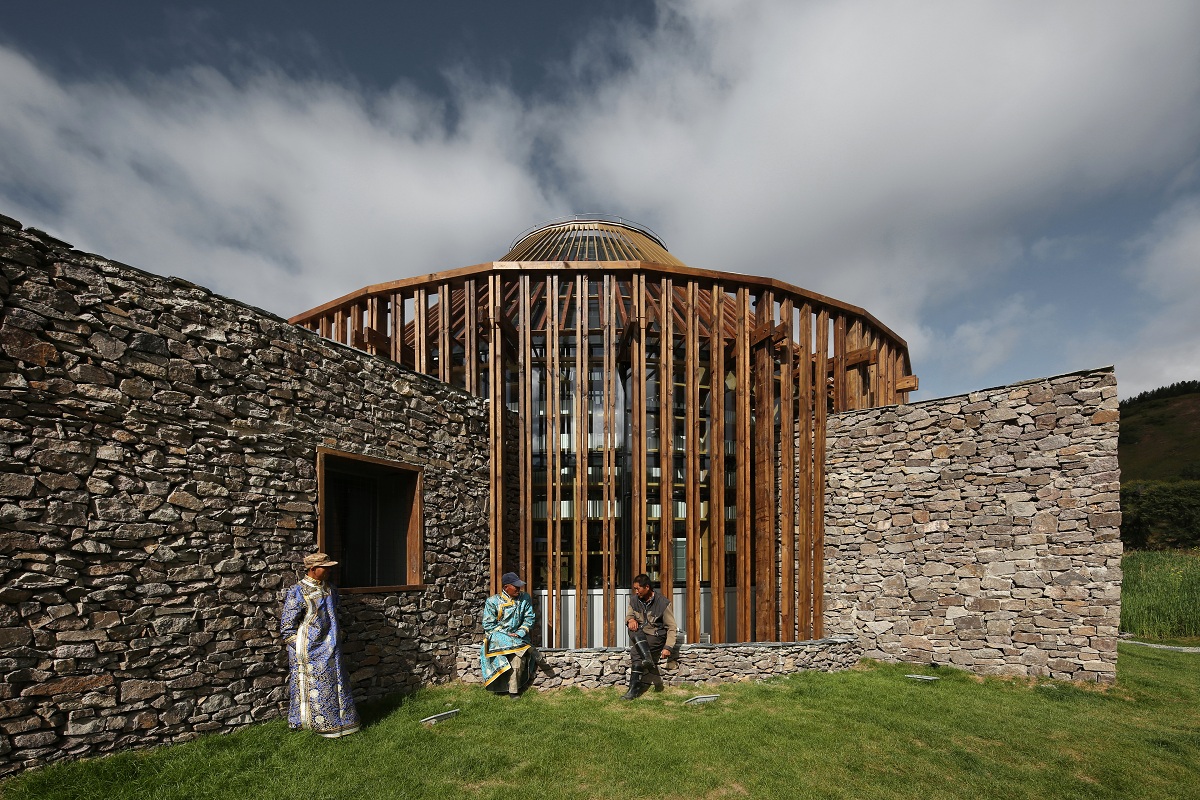

The main structure of the building is comprised of steel framing, combining with triple layered low-e glass panel. "The outside wooden frames become the shading system for the building. The connection of the wooden frame follow the tectonic principle," explained the studio.

"All the stone and wood come from the local area for the sustainable development. The construction method with prefabricated pieces could make sustainable development on the grassland."

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

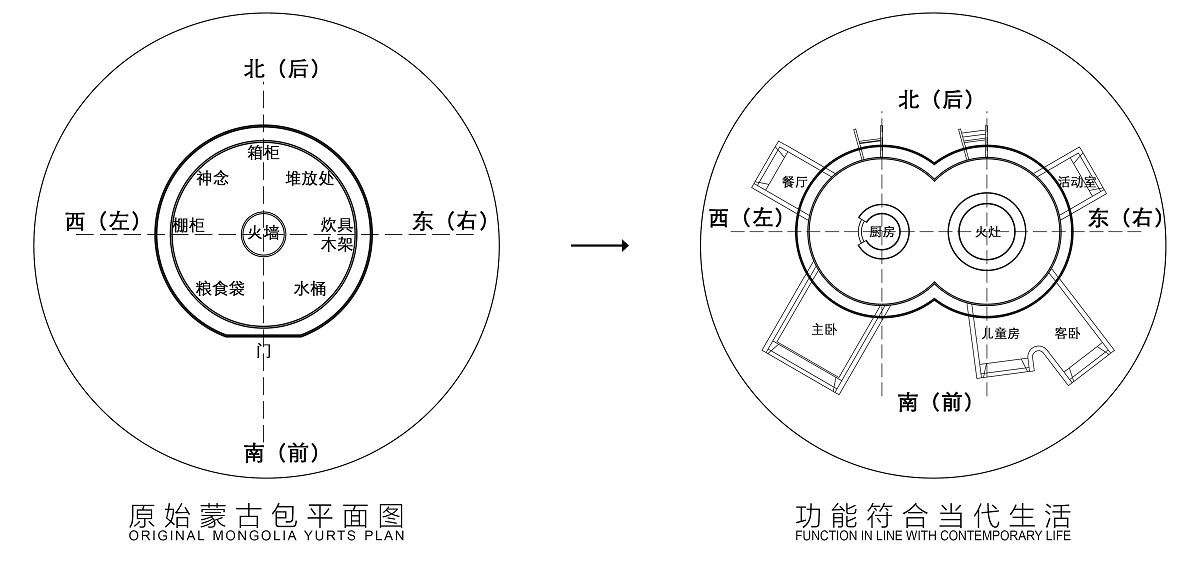

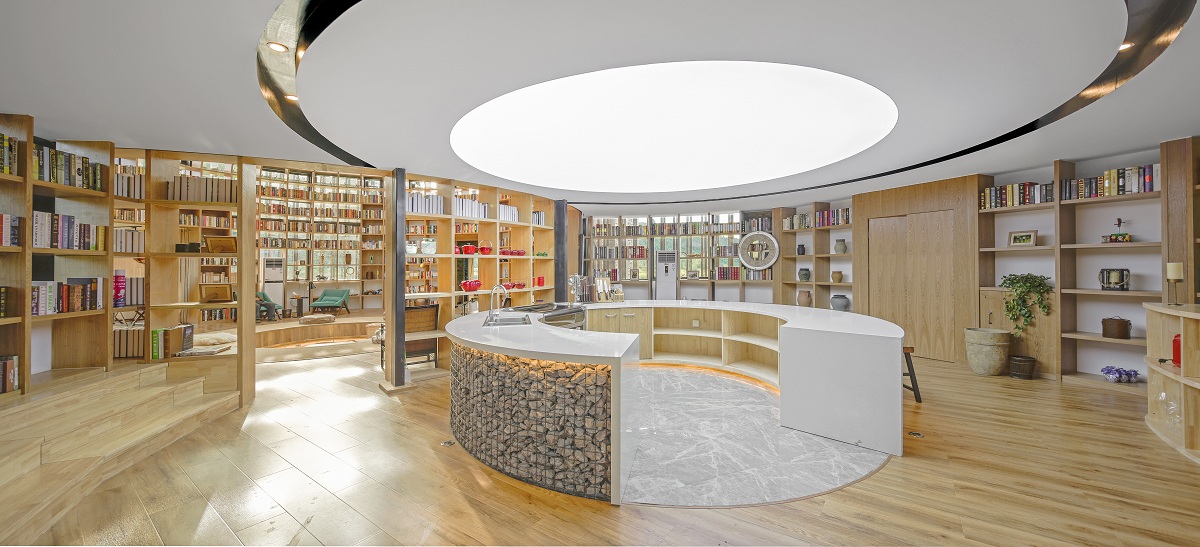

"The main core of the building is the double circled lobby, also served as a local library. The design concept of the main lobby is based on the yurt interior. Two big circles create the main living room, extending the traditional yurt layout."

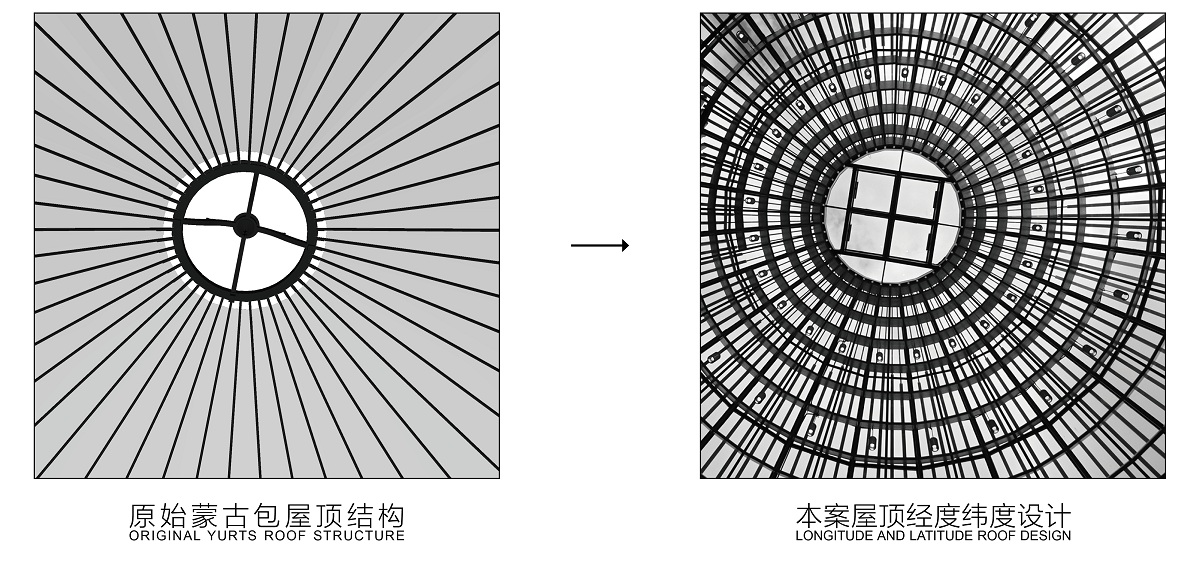

"By creating wooden frames in different thickness, the flower shaped roof could be made. While the extended boxes become the semi-public space. This kind of layout makes the yurt fit the modern lifestyle."

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

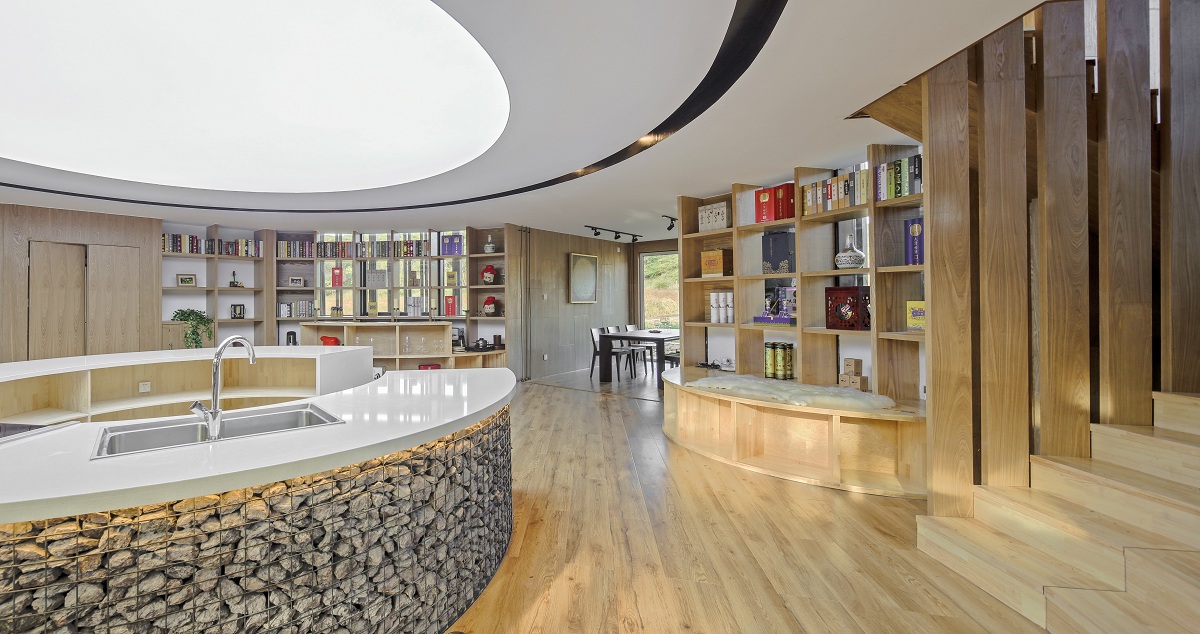

The open kitchen area creates a shared space for inviting all guests to cook together, the circled shape is echoing with the lobby.

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

The dining space is in one of the square spaces, where the wood materials create a pure, simple and cozy dining environment.

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

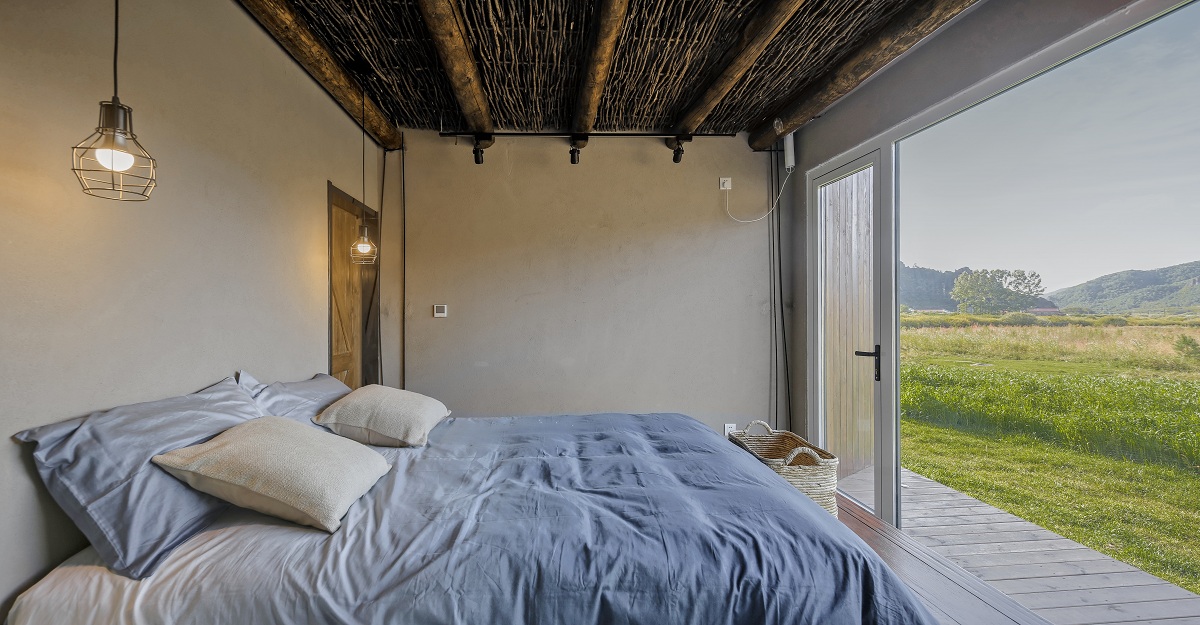

A bedroom was also designed for people to rest, the rattans on the ceiling were made by local residents, and you can enjoy great views through the large glasses.

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

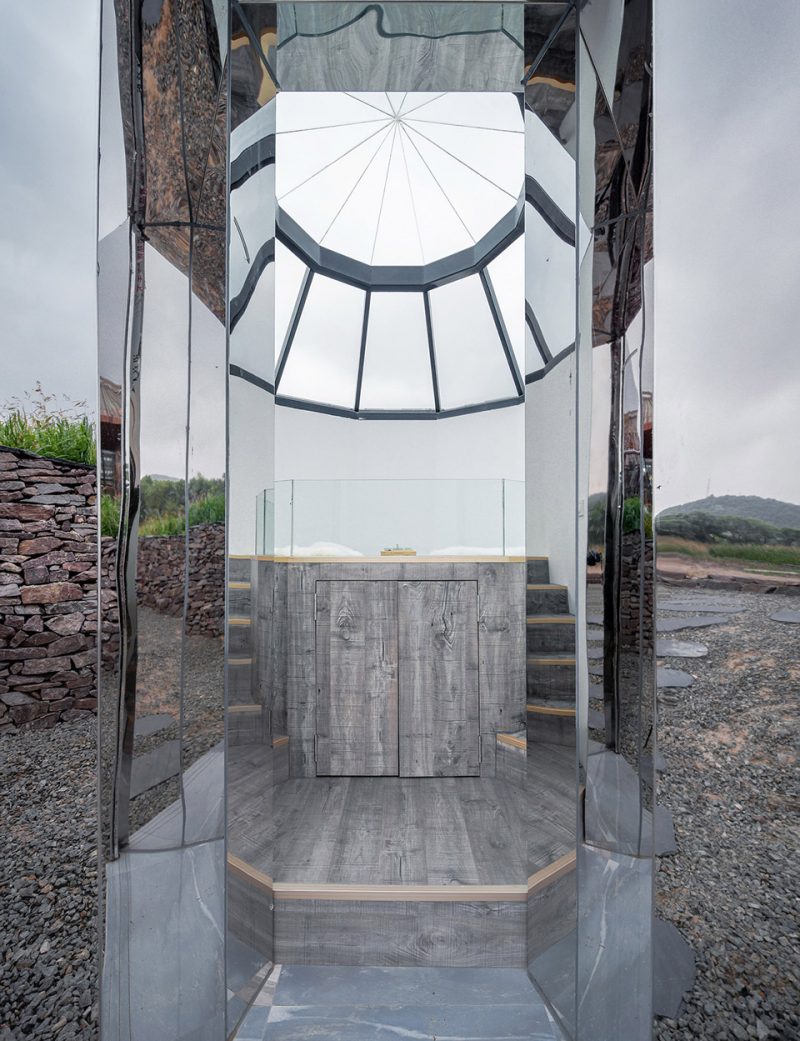

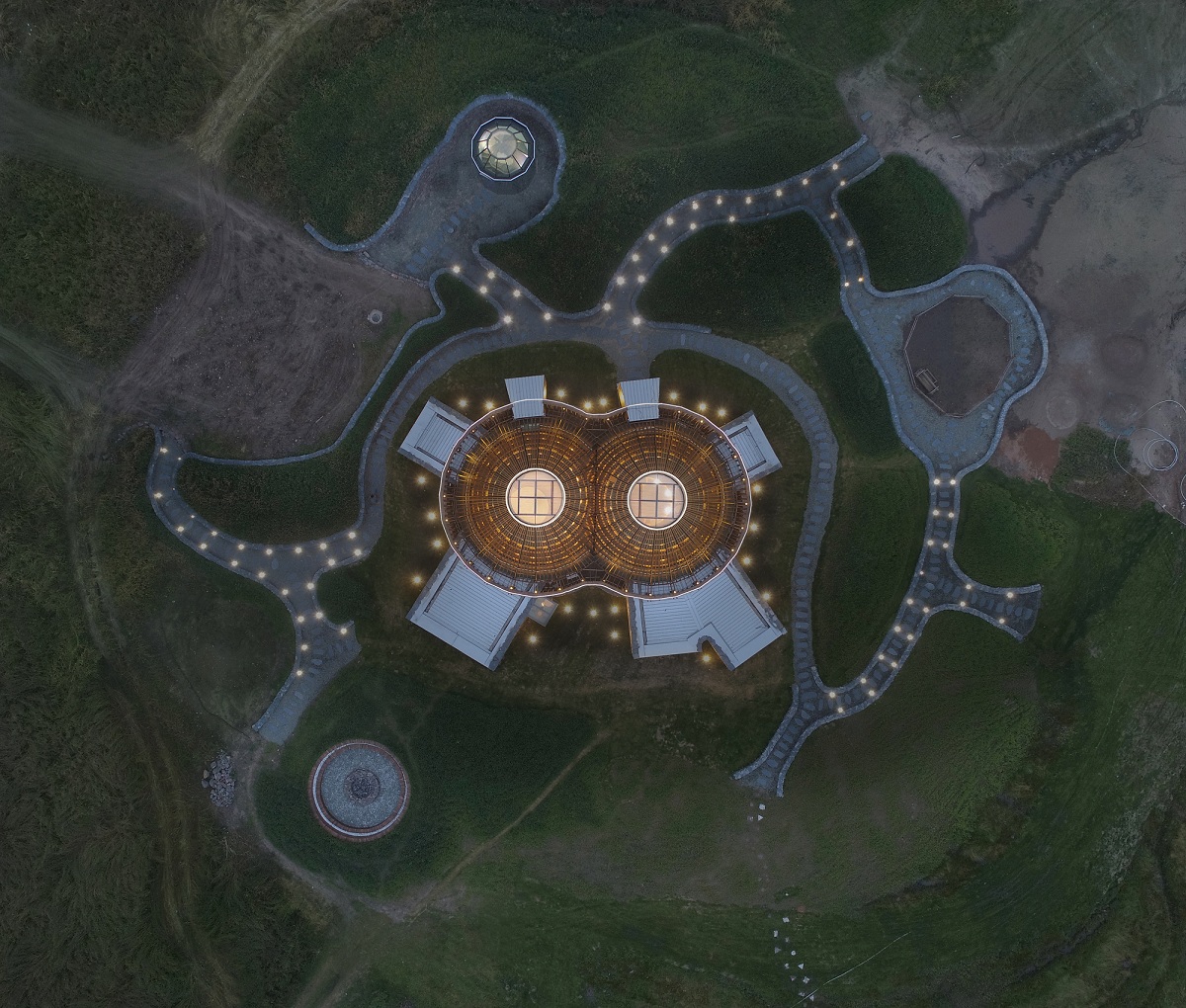

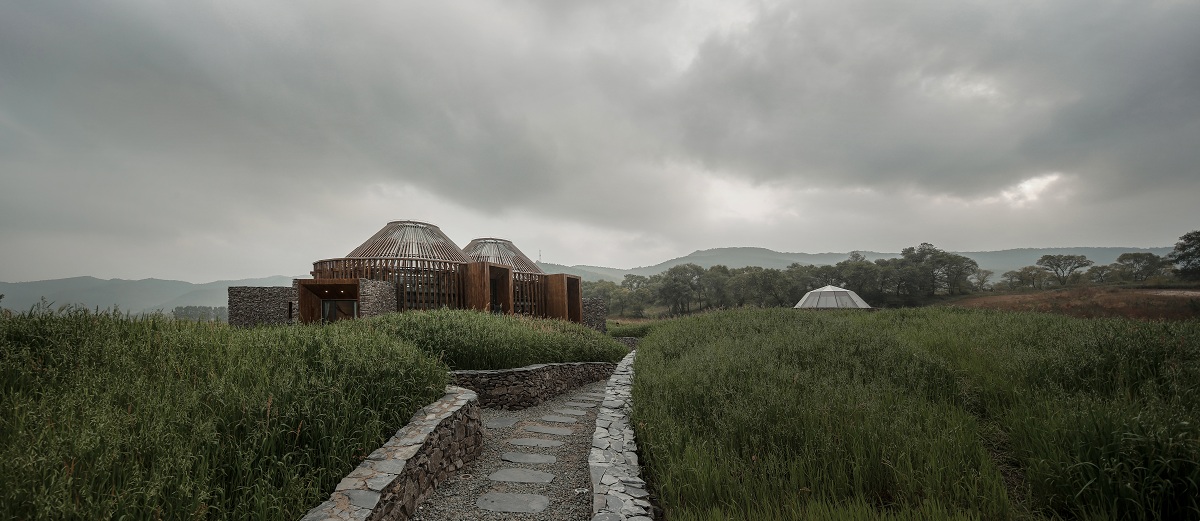

Surround the building is the area of micro landscape, creating dynamic experience for visitors. The glass roof of Stargazing hut floats on the top of the grass. This particular small pavilion provides great experience for astronomy enthusiast.

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

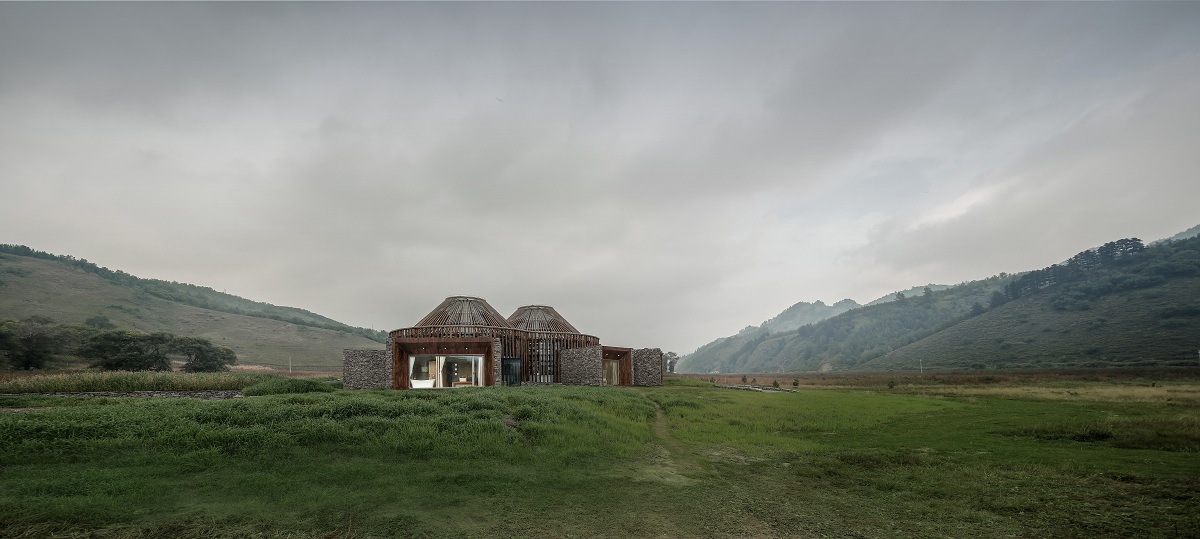

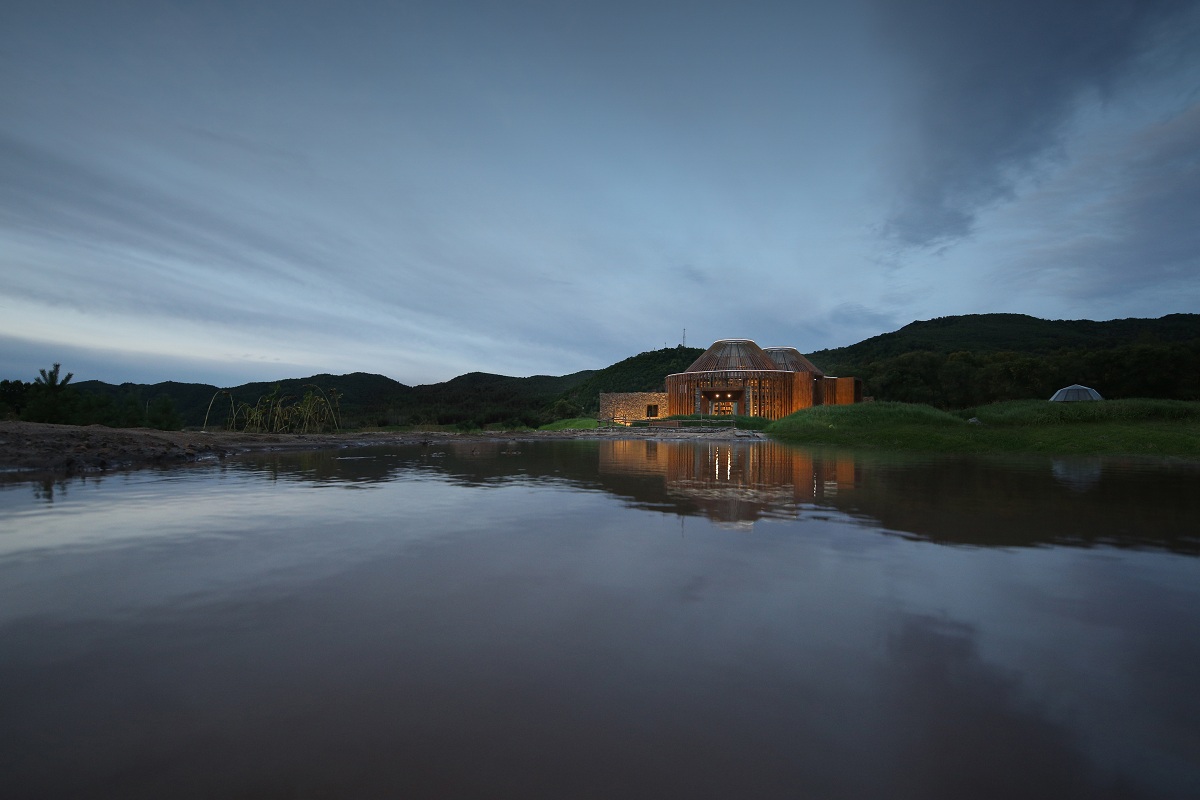

The architecture is blended into the local environment very well. Every day and night, you are surrounded by nature in this quiet and peaceful land. HDD described this building as “The Catcher in the Rye for this region”. They hoped different people with different faiths could come here to play together and share different ideas to forge into a strong group.

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

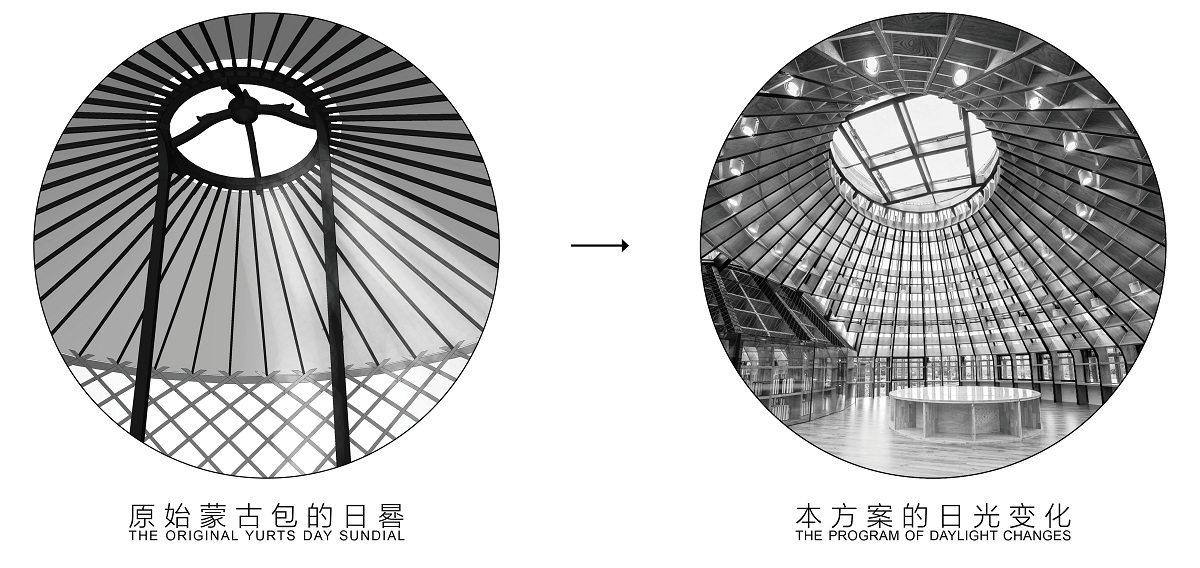

The transition from traditional Mongolian bag to current architecture

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

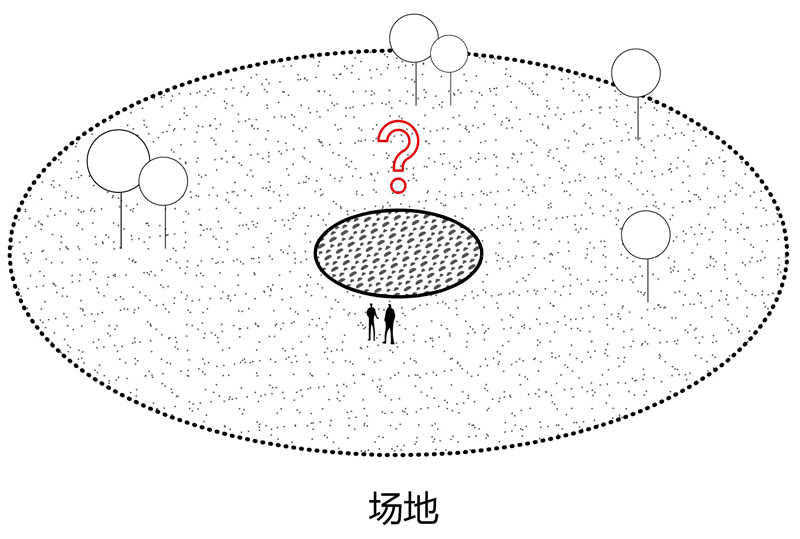

Design concept diagrams

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

Functions and spaces

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

Structural diagram

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

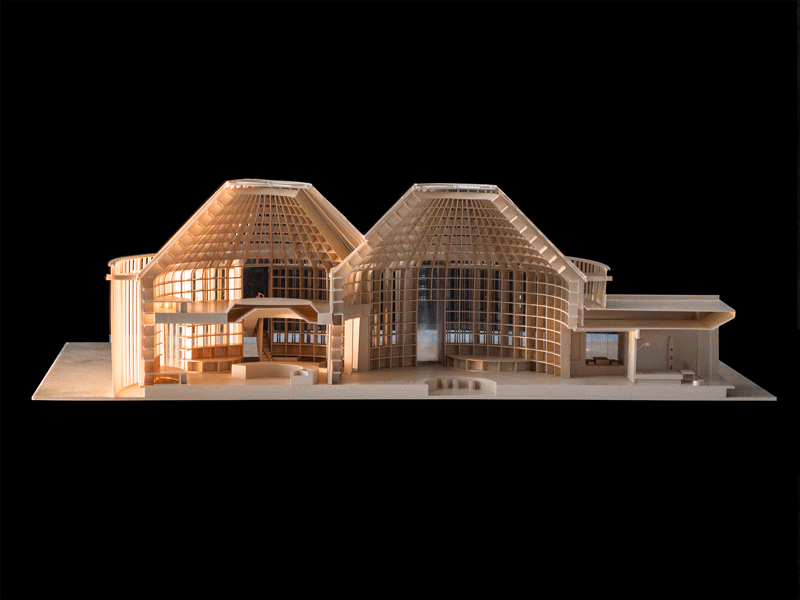

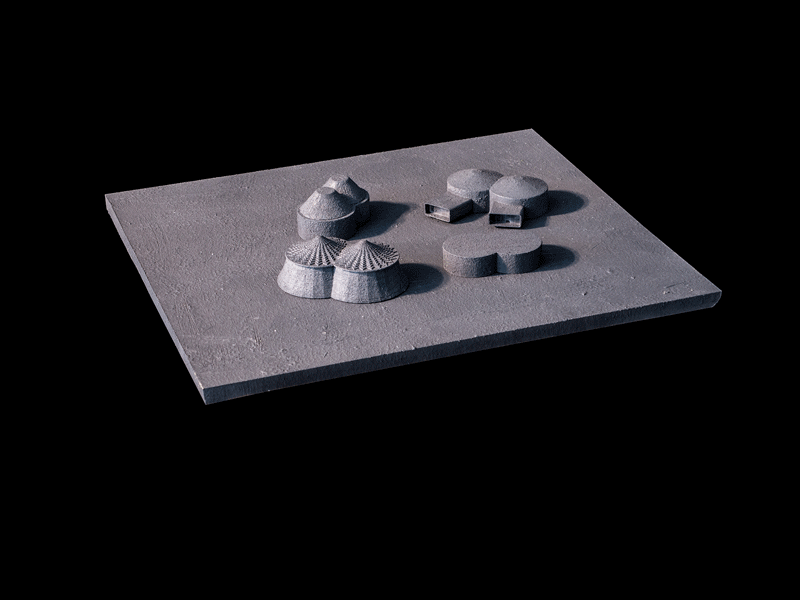

Models

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

General floor plan

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

First floor plan

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

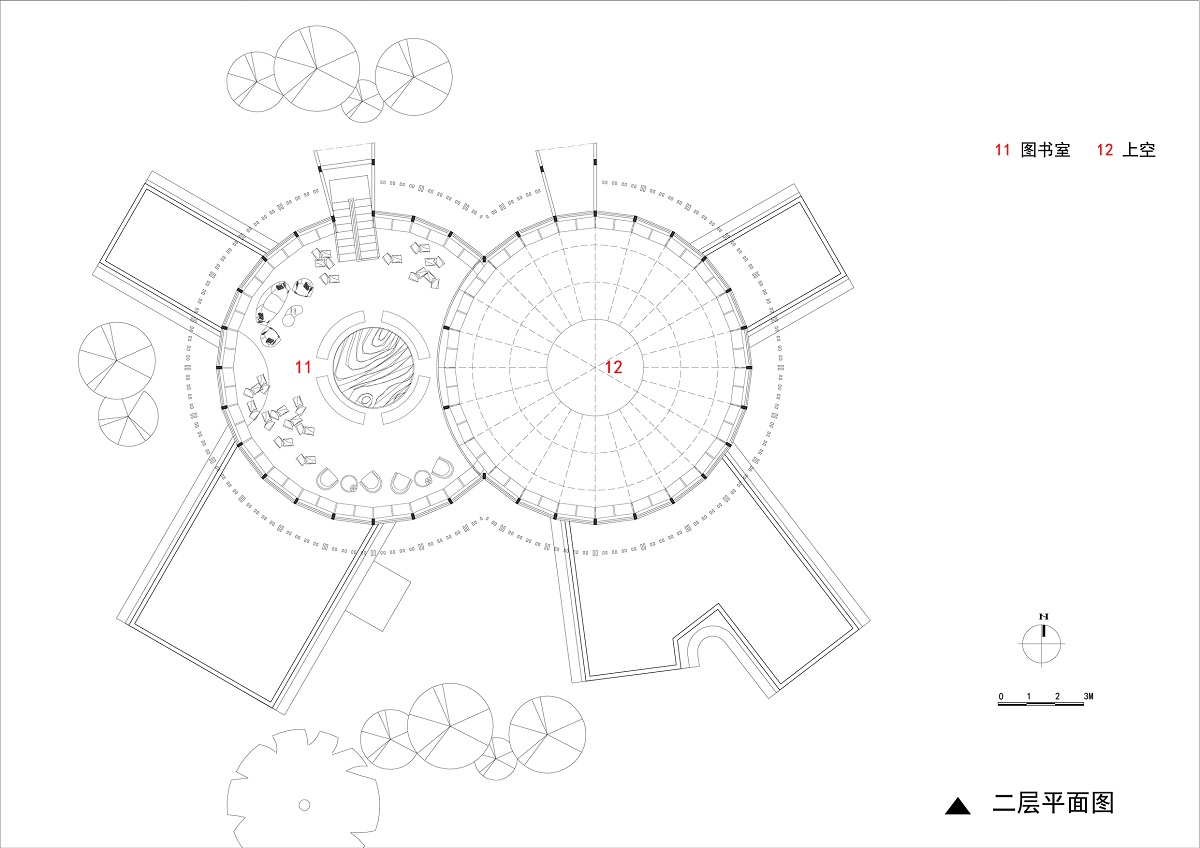

2nd floor plan

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

HDD Designed a Mongolian Yurt-Shaped Architecture in a Grassland in China

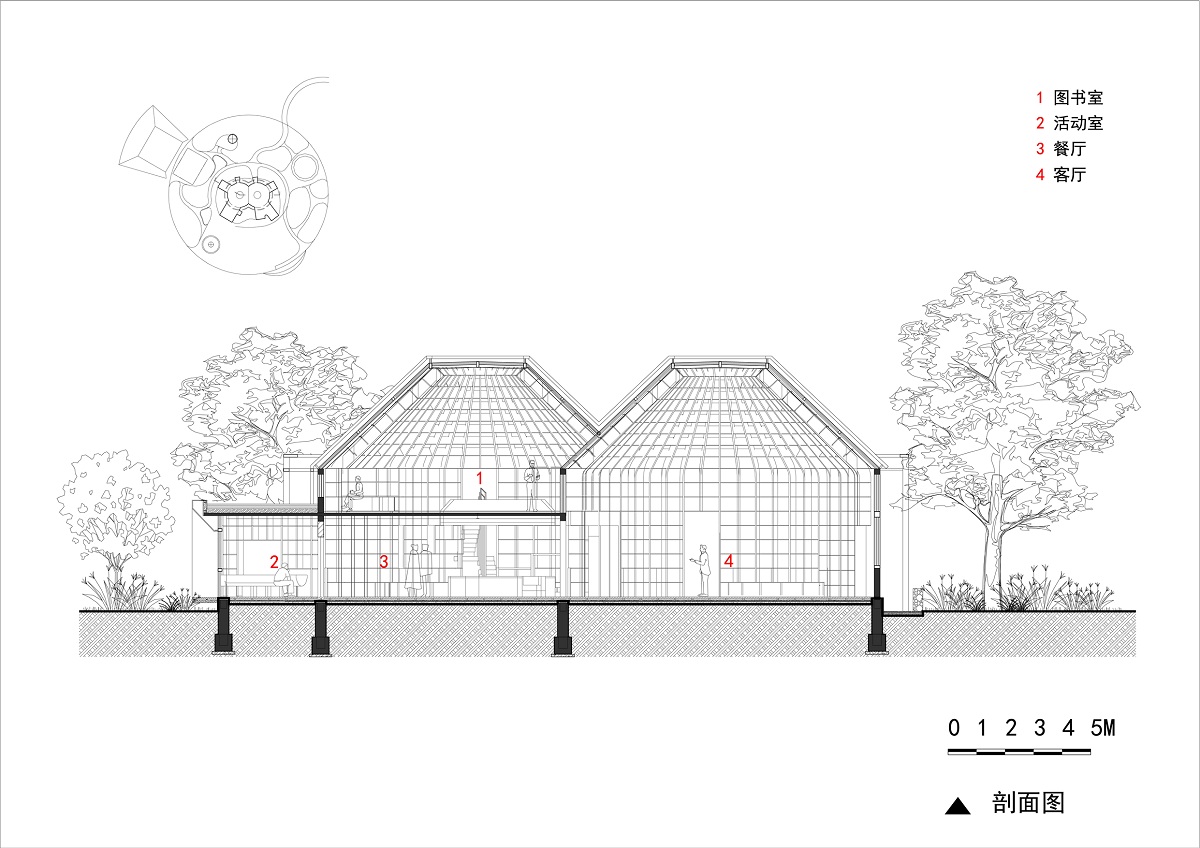

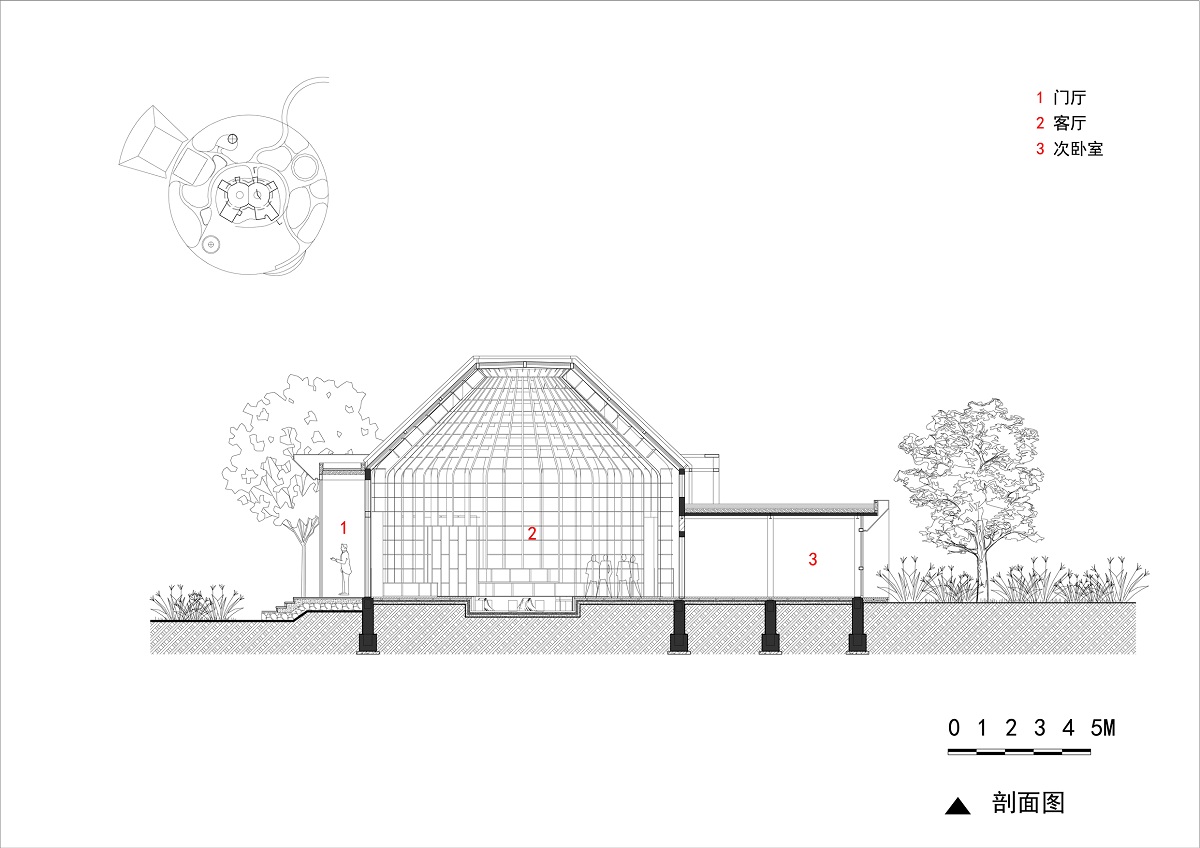

Sections

Project facts:

Client: Brain Media

Client: Weichang Kangyang Tourism development co., ltd.

Location: Mulan Weichang, Hebei, China

Design Team: Huadu (Shanghai) Architecture & Urban Design Group (HDD)

Leading Architect: Zhang Hai'ao

Design Team: Yao Qiwei, Hang Xu, Wu Hao, Li Di, Li Hongxi, Wang Tingting, Zhao Shuang

Structure Team: Wang Guoxun, Zhang Yi, Pu Yiweng

Construction: Chengde Jiacheng construction co., ltd.

Management: Ying Hongwei

Special Thanks: Li Qing, Li Guang, Wang Xianfeng, Wang Xiaojun, Bai Long

Area: 275 sqm

Structure: Steel

Photo: Su Shengliang

All images courtesy of HDD
