Aidia Studio designs wavy and open latticed roof for Tulum Train Station

London and Mexico-based architecture firm Aidia Studio has designed a curvaceous latticed roof for Tulum Train Station in Mexico. The new structure is set to be built in a beach resort of Tulum, in the Mexican Caribbean, along the Riviera Maya.

Aidia Studio, led by Rolando Rodriguez-Leal and Natalia Wrzask, aimed to respond the geographic features of pre-Hispanic Mayan architecture by using key design elements from the geography such as light, shadows, patterns, materials and vegetation.

The new train station, covering a total of 14,400-square-metre area, will be built from a steel gridshell cladded with Glass Fibre Reinforced Concrete (GRC) panels on the top and laminated wood panels below.

Aidia Studio designs wavy and open latticed roof for Tulum Train Station

While the sustainability efforts are at the core of design, the aerodynamic geometry of the roof creates distinct motives on both outer and inner sides, which are reminiscent of Mayan traditional geometrical patterns.

Aidia Studio designs wavy and open latticed roof for Tulum Train Station

"The new Tulum Train Station is part of the Tren Maya project, a 1,525-kilometre intercity railway across the Yucatan Peninsula. As the project is to be built in a beautiful, natural location embedded within a dense jungle the first and foremost emphasis of the design was sustainability," said Natalia Wrzask, co-founder of Aidia Studio.

"The footprint of the building itself has been reduced greatly by moving a big portion of the program above the train tracks."

Aidia Studio designs wavy and open latticed roof for Tulum Train Station

"Semi-open circulation spaces have been proposed, self-shaded by the gridshell roof and cooled down passively by the sea breeze coming from the coast."

"Another important point for us was making the user experience as easy as possible by providing open spaces flooded with natural light, enabling a smooth and uninterrupted people flow which is so crucial for transportation typologies," Wrzask added.

Aidia Studio designs wavy and open latticed roof for Tulum Train Station

The footprint of the station is largely reduced on site

According to Aidia Studio, minimizing the footprint of the station was a key factor in design, creating "an eye shaped footprint", widest at the centre. With this approach, the structure touches the ground at the four corner points of the building and its other wavy facades are left open.

Different spatial configurations are arranged under the roof where the main functions converge, seemed the most efficient use of space.

Inside, the architects placed the public programme of the station above the platforms with a more compact scheme, connected across levels. While vertical circulation connects these platforms, the station contains a grand hall that is flooded with light and natural ventilation.

Aidia Studio designs wavy and open latticed roof for Tulum Train Station

User experience and ease of mobility become priority in the project

In the project, the studio gave an importance to user experience and ease of mobility with orientation and light conditions. All these parameters are intertwined and solved harmoniously.

The station has a linear configuration and symmetry naturally help to ease movement thanks to the roof geometry. The geometry of the roof "intuitively navigates users towards the centre of the station," as the studio emphasizes.

Aidia Studio designs wavy and open latticed roof for Tulum Train Station

"In laying out the commercial component, we aimed to design spaces which constantly celebrate the experience of rail transportation this was achieved by framing views of inbound and outbound trains, and by laying out these retail spaces on a direct visual connection with the platforms," the studio continued.

The architectural language of the project is derived from the climatic conditions of the Yucatan peninsula which has a tropical climate with rain and high humidity in the summer.

Aidia Studio designs wavy and open latticed roof for Tulum Train Station

To deal with this extreme weather, the architects envisioned a large open lattice roof, but partly glazed in strategic locations, enabling public semi-open spaces that function without mechanical ventilation.

The sun light is filtered through the roof and creates complex geometric patterns on the walls and floors of the station. Visitors will enjoy a play of lights and shadows while moving inside, they will evoke different sensations on the users.

Aidia Studio designs wavy and open latticed roof for Tulum Train Station

"The openings on the gridshell respond to the radiation exposure throughout the day, smaller openings on the zenith reduce heat gains at the hottest hours and larger openings on the sides let air and light in when the temperature descends," said the studio.

"This passive strategy negotiates the amount of radiation exposure and the amount of natural light let into the station."

Aidia Studio designs wavy and open latticed roof for Tulum Train Station

"The aerodynamic geometry of the roof promotes the suctioning of the ocean breeze and funnels it through the station. This is key to create a comfortable atmosphere for users without the need of mechanical ventilation," the studio continued.

In the project, Aidia Studio wanted to create a continuous journey while reflecting some of the best-known features of Mayan architecture inside through symmetry, monumentality, geometrical alignment, and the use of limestone - which are all constant treats in Mayan architecture.

Aidia Studio designs wavy and open latticed roof for Tulum Train Station

"As such we have attempted to honour this heritage by rescuing that same spatial quality just reinterpreted it in a contemporary way," the studio added.

Aidia Studio designs wavy and open latticed roof for Tulum Train Station

Aidia Studio designs wavy and open latticed roof for Tulum Train Station

Aidia Studio designs wavy and open latticed roof for Tulum Train Station

Aidia Studio designs wavy and open latticed roof for Tulum Train Station

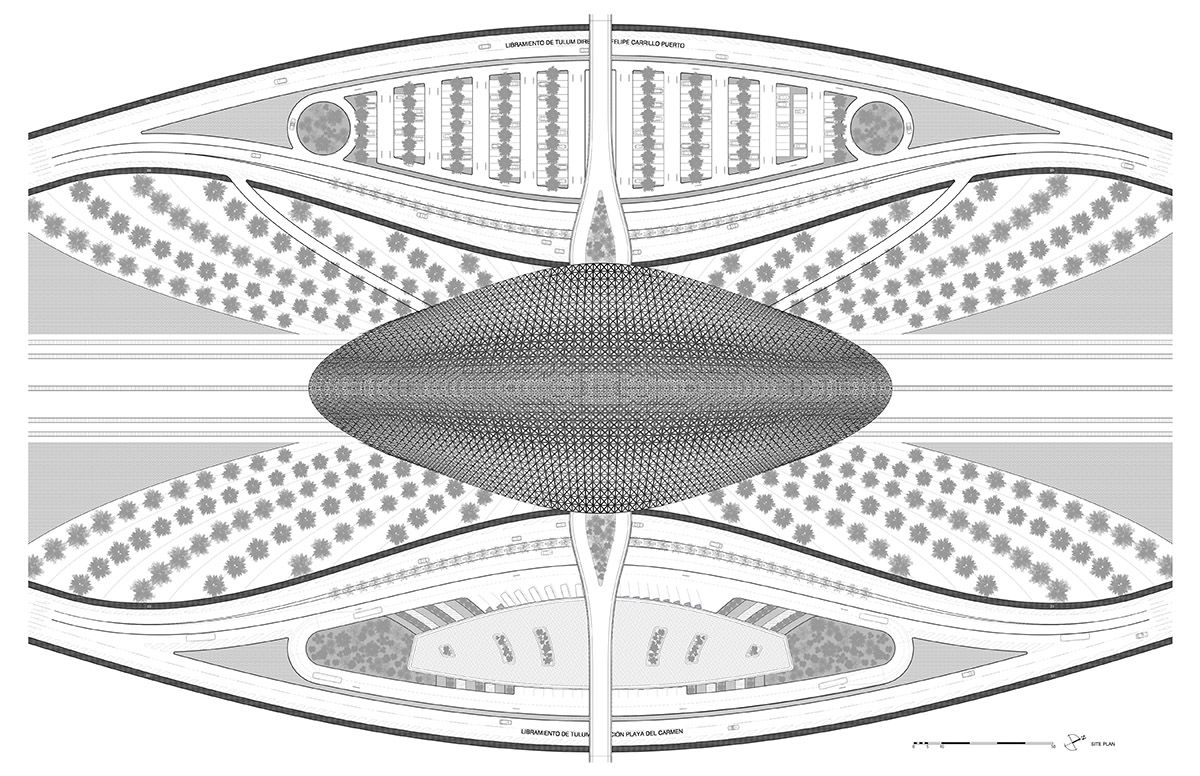

Site plan

Aidia Studio designs wavy and open latticed roof for Tulum Train Station

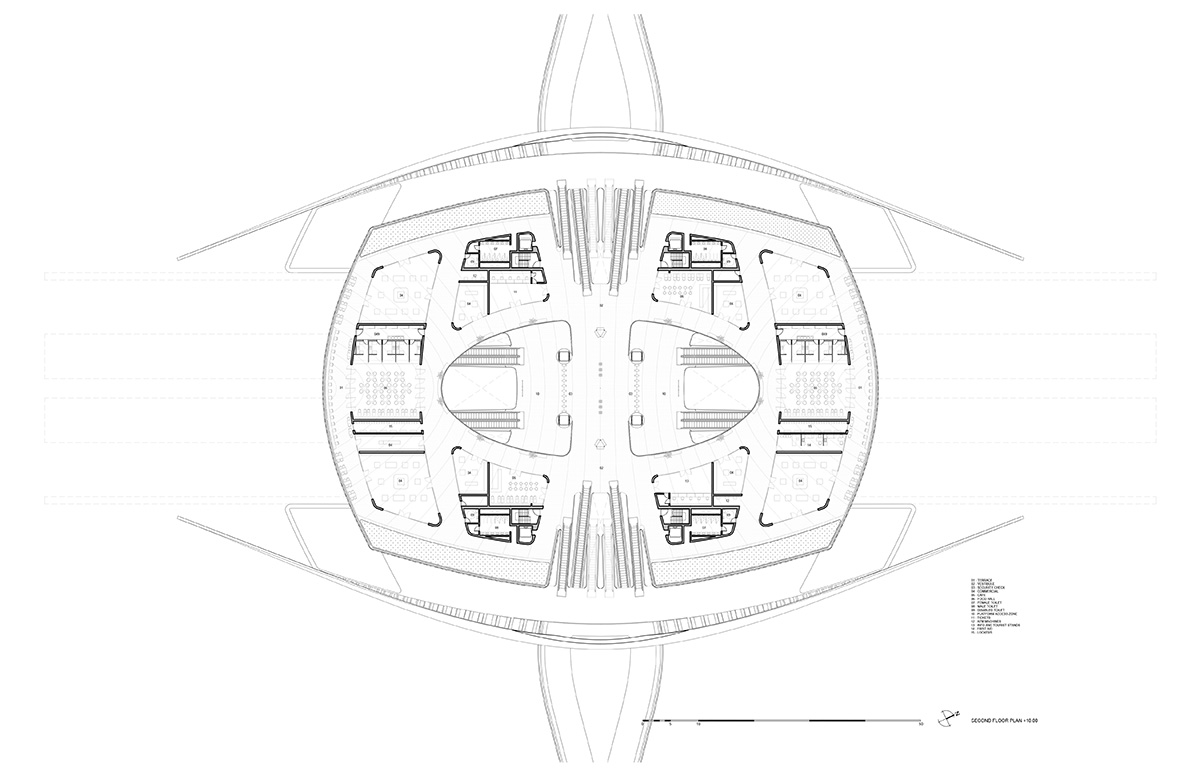

Floor plan

Aidia Studio designs wavy and open latticed roof for Tulum Train Station

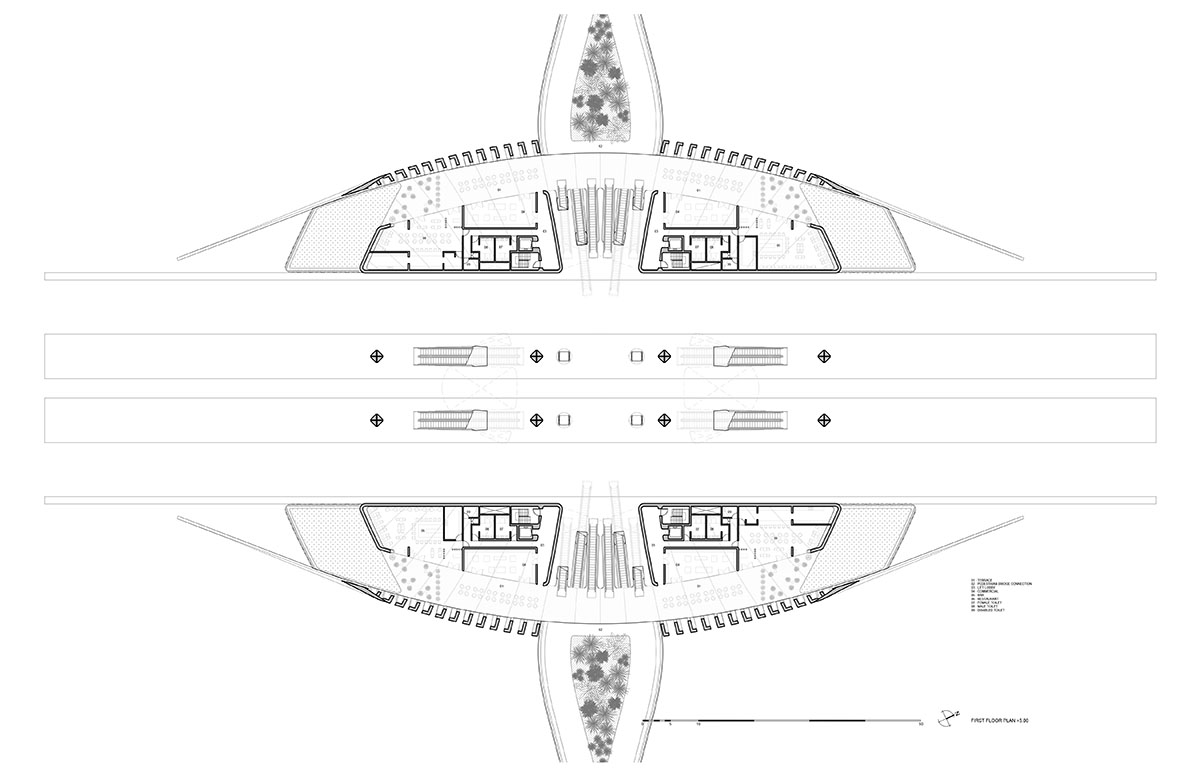

First level floor plan

Aidia Studio designs wavy and open latticed roof for Tulum Train Station

Mezzanine floor plan

Aidia Studio designs wavy and open latticed roof for Tulum Train Station

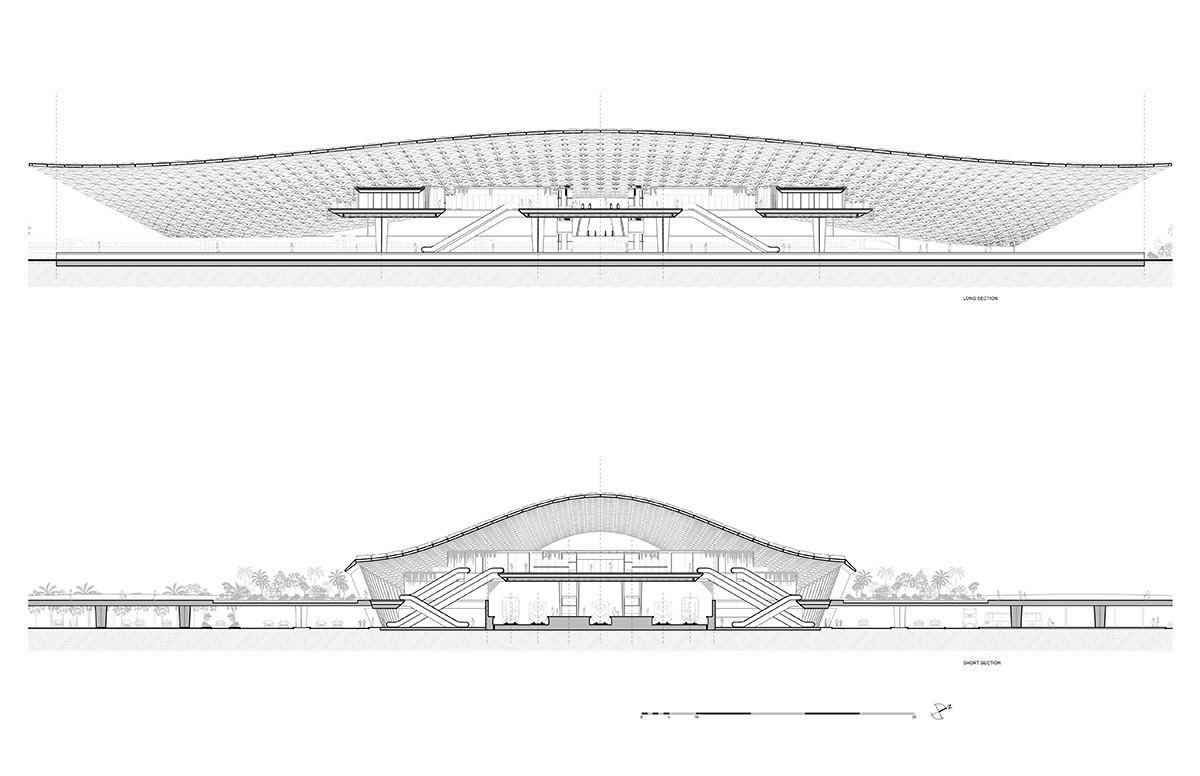

Sections

Aidia Studio designs wavy and open latticed roof for Tulum Train Station

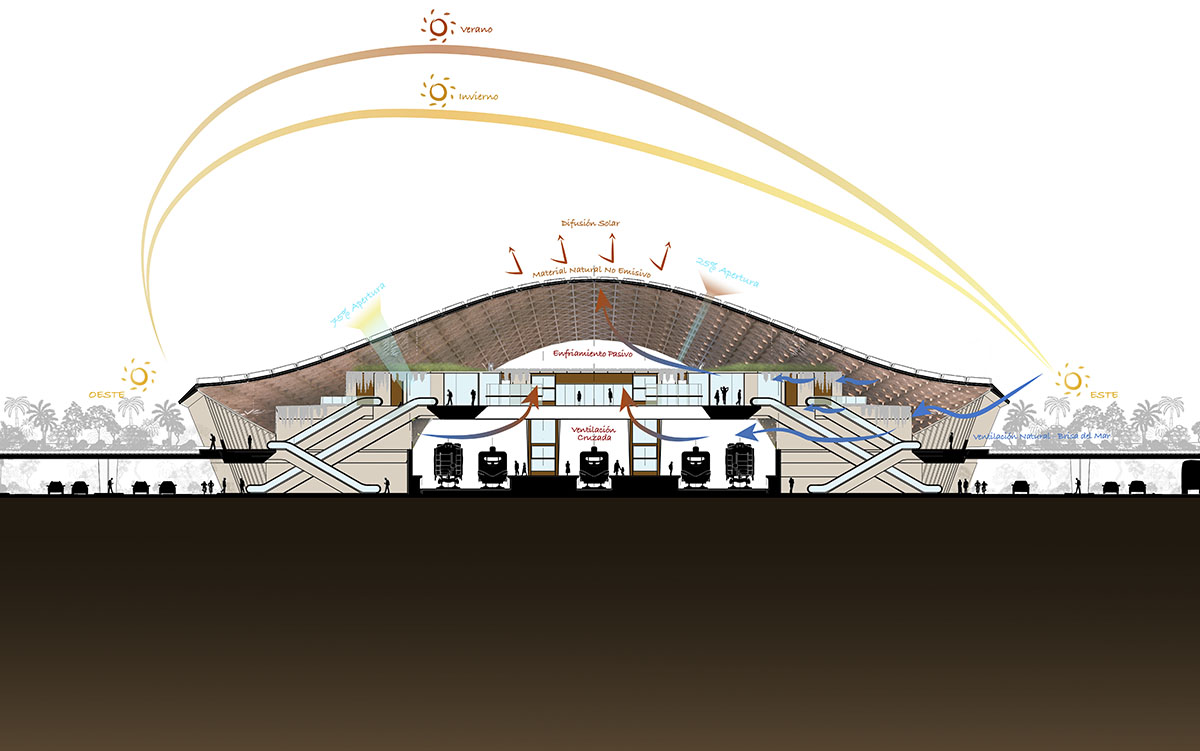

Sustainable diagram

Aidia Studio designs wavy and open latticed roof for Tulum Train Station

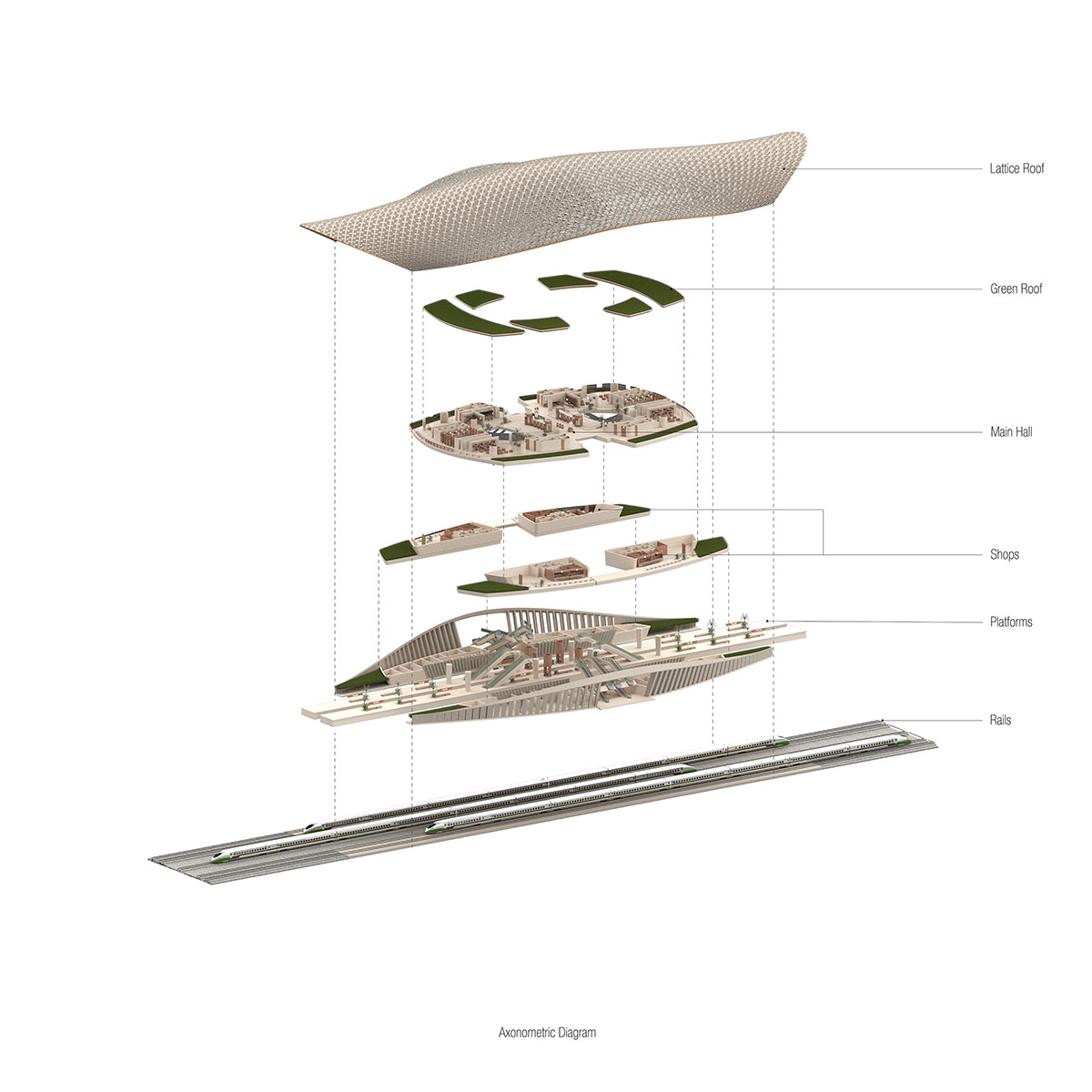

Program diagram

Aidia Studio designs wavy and open latticed roof for Tulum Train Station

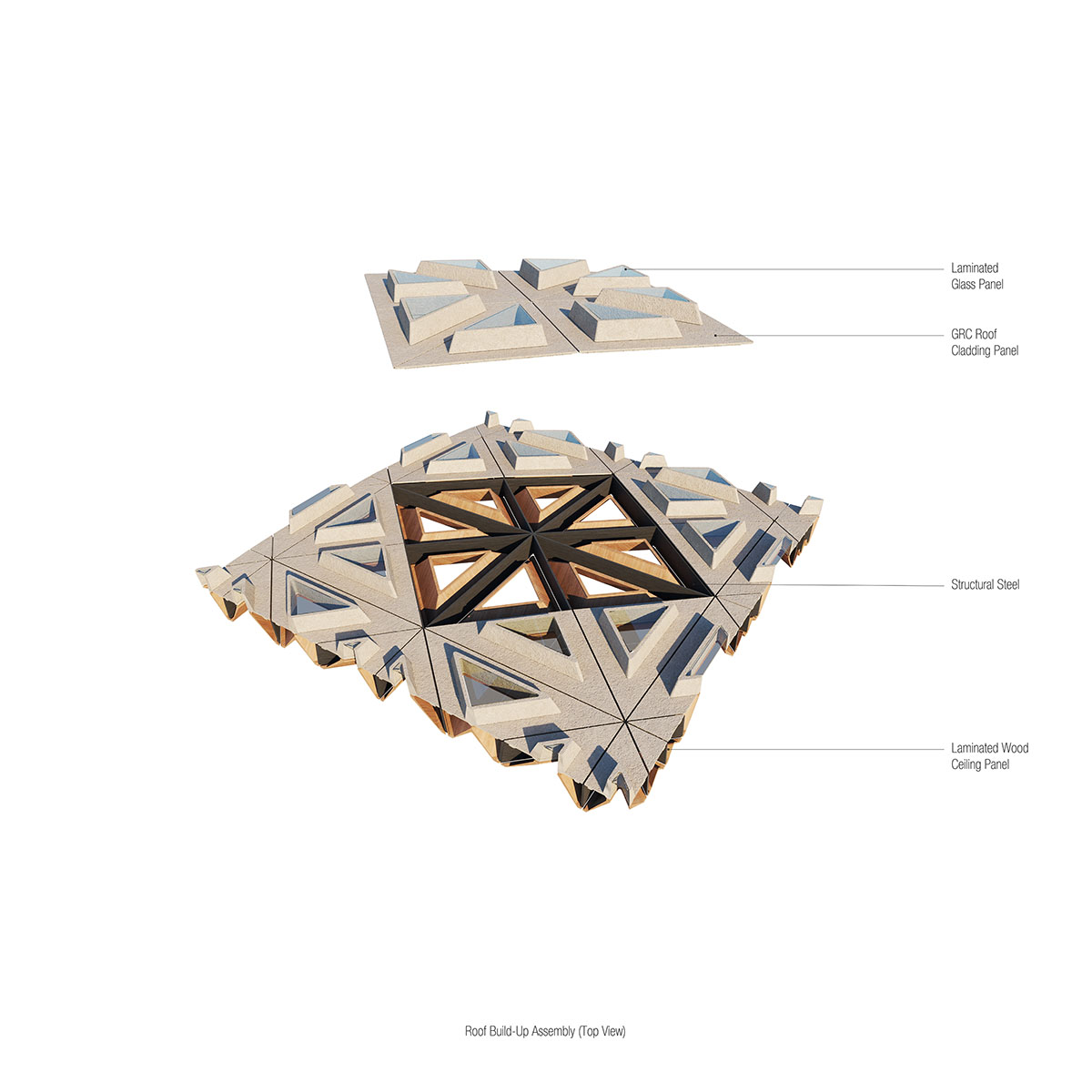

Roof diagram

Aidia Studio designs wavy and open latticed roof for Tulum Train Station

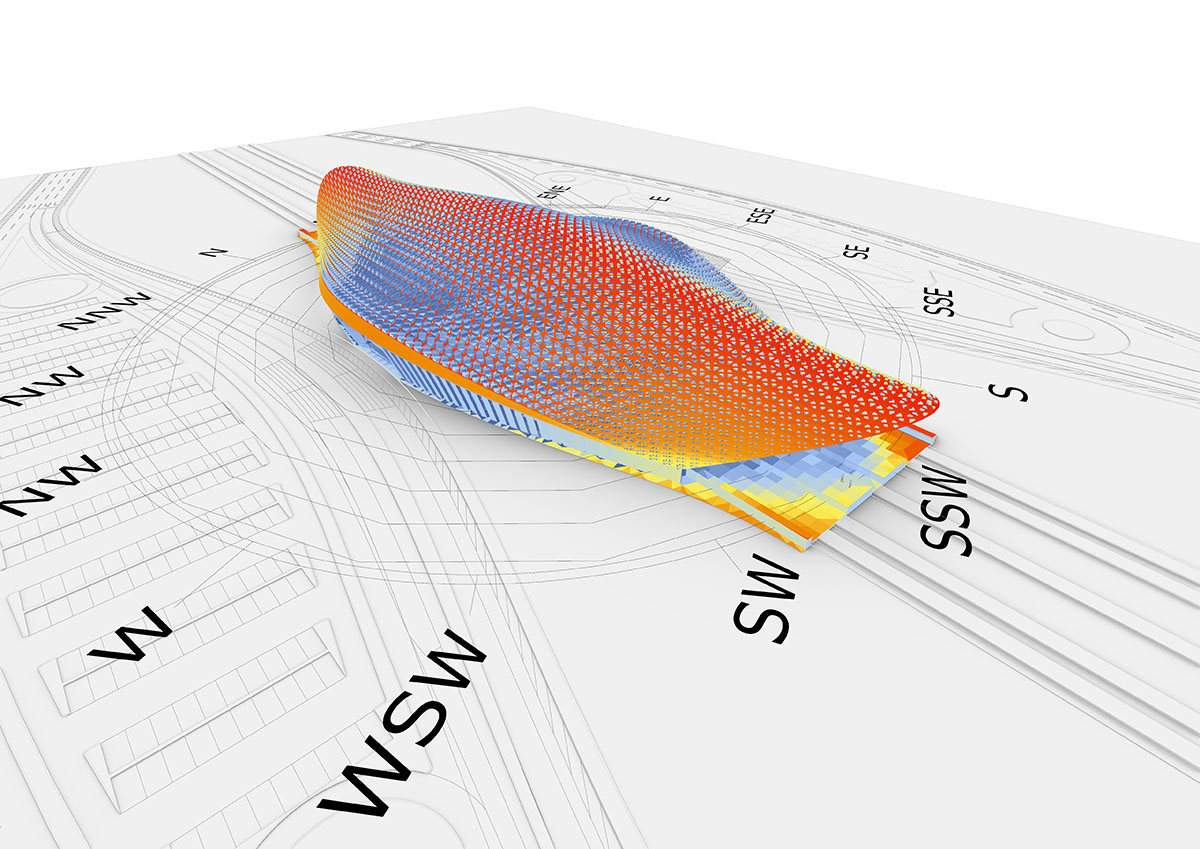

Sustainability radiation diagram

Construction for the new Tulum Train Station is expected to begin between January 2022 - June 2023.
