LUO studio Created a Universally-used Sales Center that can be Completely Dismantled and Reused

China Architecture News - Dec 5, 2018 - 06:09   4892 views

LUO studio Created a Universally-used Sales Center that can be Completely Dismantled and Reused

Longfu Life Experience Center is a real estate sales center located in Henan Province, China. In most cases, such space can only last several months or few years, and usually will be dismantled after houses are sold out. Even if it can be preserved, its functions are completely transformed.

However, the client is an estanciero who pursues high quality of real estate development instead of instant commercial profits, and he wants to convey a green lifestyle to target consumers through the sales center. Therefore, LUO studio, a firm based in Beijing, created a universally-used space that can be completely dismantled and reused.

LUO studio Created a Universally-used Sales Center that can be Completely Dismantled and Reused

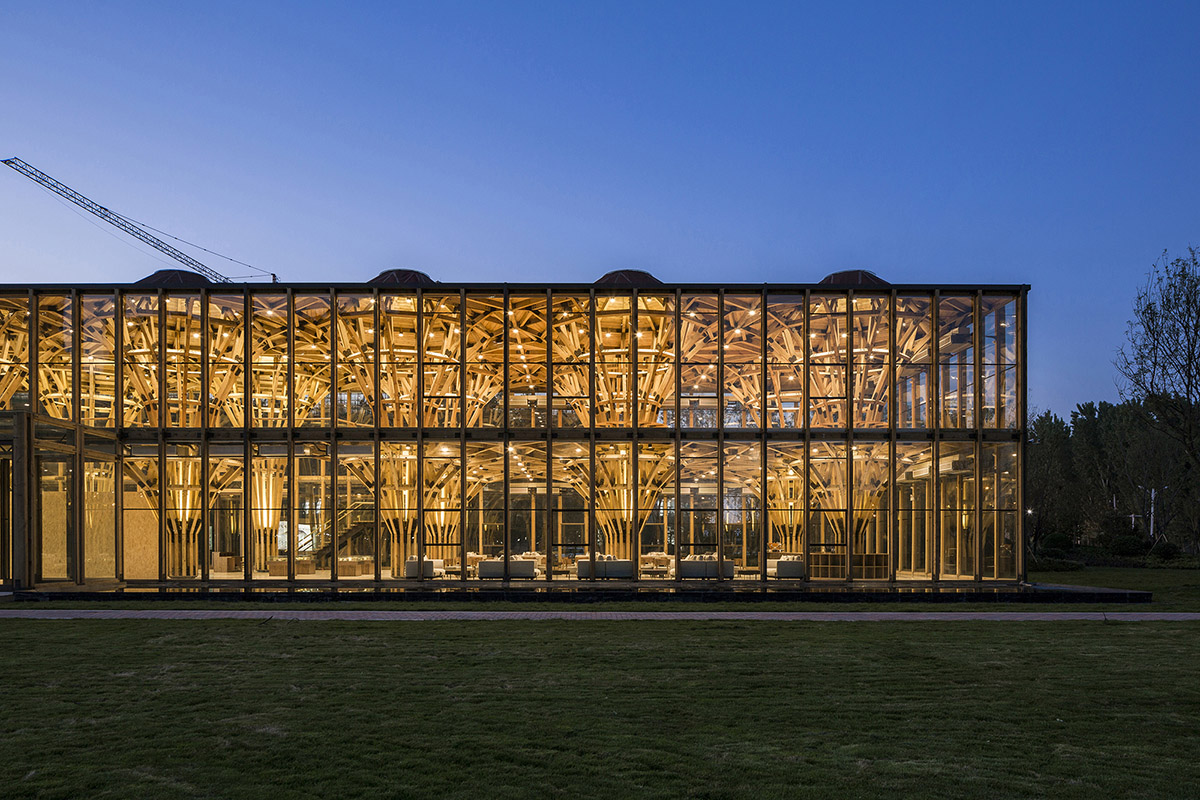

East wing of the south facade. Image © Jin Weiqi

LUO studio Created a Universally-used Sales Center that can be Completely Dismantled and Reused,

Garden on the north side. Image © Jin Weiqi

LUO studio Created a Universally-used Sales Center that can be Completely Dismantled and Reused

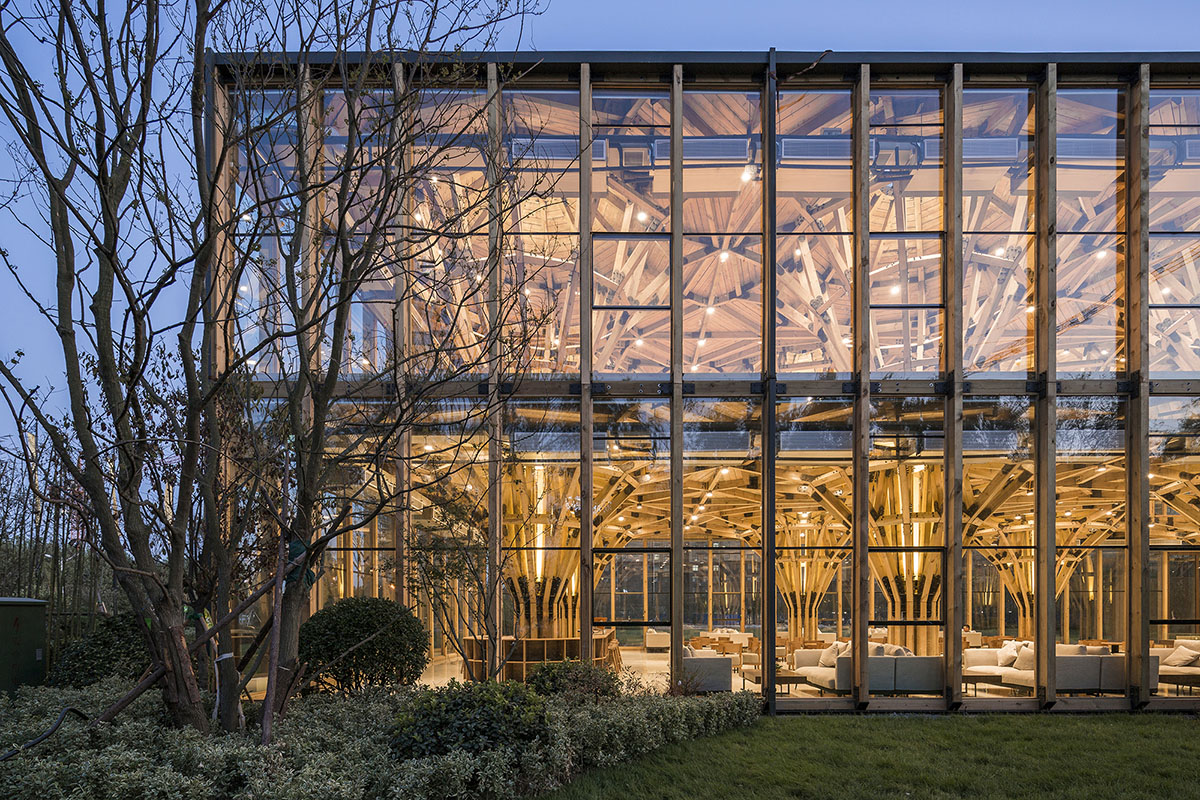

East wing of the front facade. Image © Jin Weiqi

Based on Mies van der Rohe's philosophy of "universal space", LUO studio chose to use standard timbers in China and utilized common processing and construction techniques, with a view to create a "universal space" that boasts infinite possible usages rather than be limited to a certain specific function.

The building is a "universal" space, but more importantly it is a "universally-used space". The whole building or any part of it can be enlarged, cut, replaced or moved based on different needs. What’s more, it can also be completely dismounted and repurposed, and its materials can be reused for other constructions, hence achieving the objective that both the space and materials can be most universally used.

LUO studio Created a Universally-used Sales Center that can be Completely Dismantled and Reused

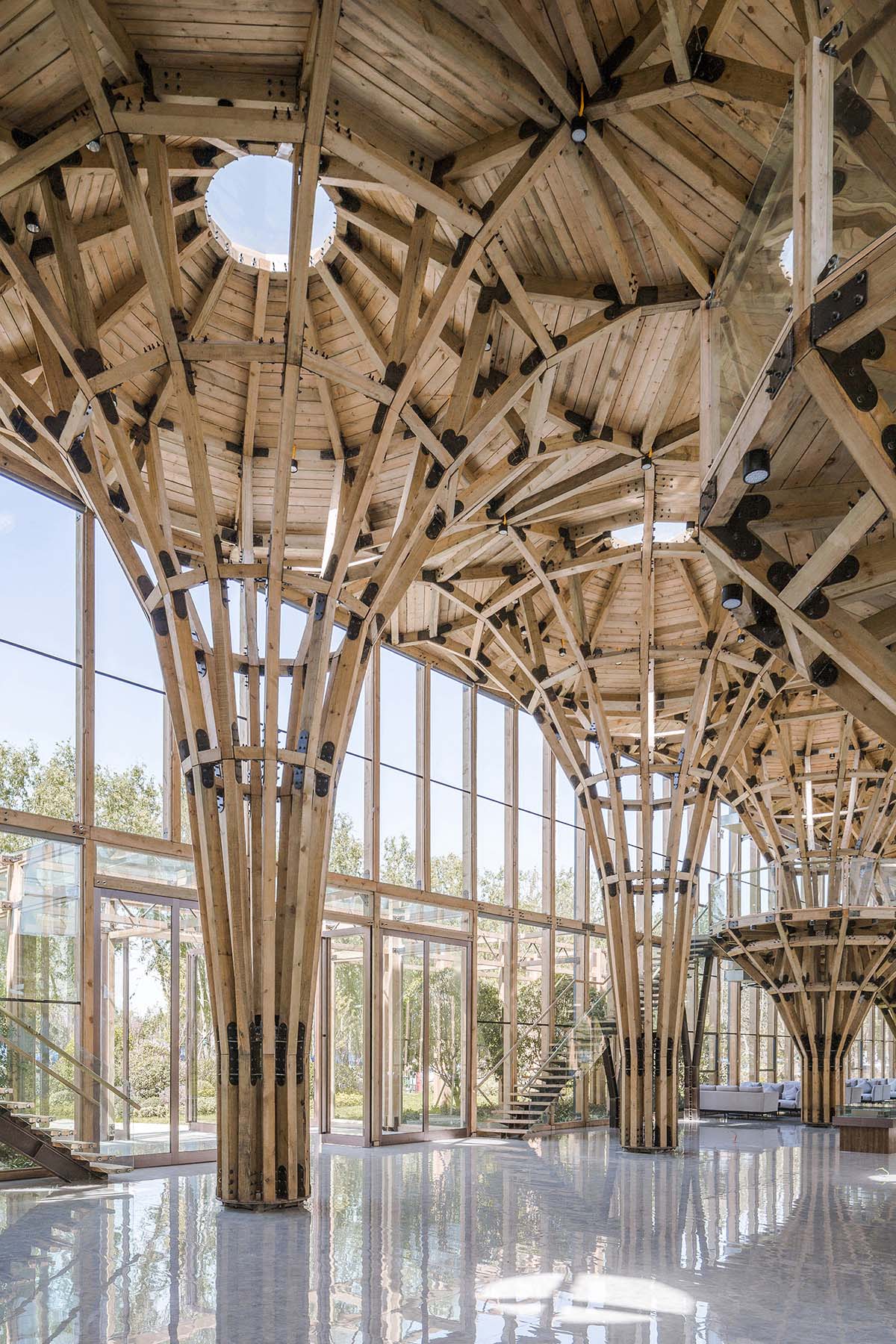

Atrium. Image © Jin Weiqi

LUO studio Created a Universally-used Sales Center that can be Completely Dismantled and Reused

Seats in kids' area. Image © Jin Weiqi

LUO studio Created a Universally-used Sales Center that can be Completely Dismantled and Reused

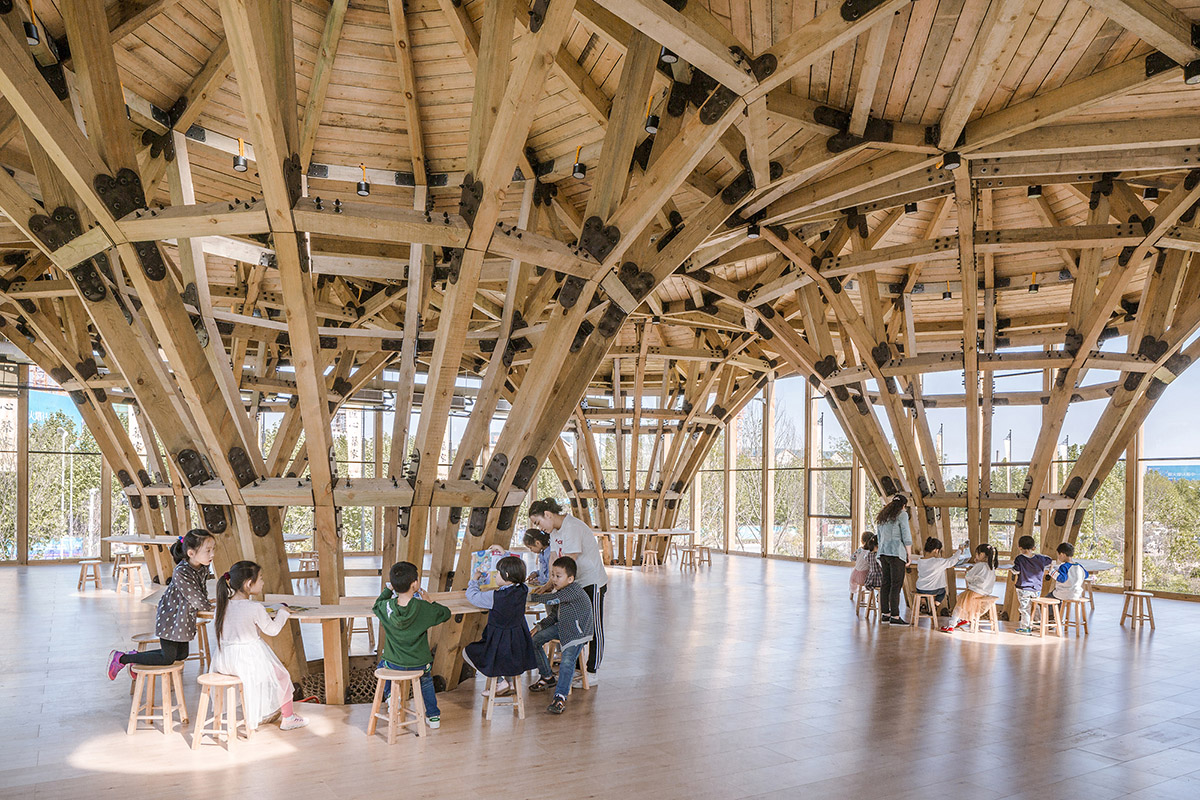

Kids' area on 2F. Image © Jin Weiqi

LUO studio Created a Universally-used Sales Center that can be Completely Dismantled and Reused

Kids' area on 2F. Image © Jin Weiqi

LUO studio thinks that if the building is a person, all the equipment, electromechanics, pipelines of it are the respiratory systems, collaterals and blood vessels of the body. They explained that "other parts of the building were also designed in a way similar to the structure of body."

Taking furniture as example, all the furniture "grows" on the structural column, with each table surrounding a single "clustered column". All the furniture and guardrails stretch out of the core structure, and even weave a surface by extending outward. These necessary parts are concomitants of the main structure, providing support against it and making it more stable."

LUO studio Created a Universally-used Sales Center that can be Completely Dismantled and Reused

Atrium. Image © Jin Weiqi

LUO studio Created a Universally-used Sales Center that can be Completely Dismantled and Reused

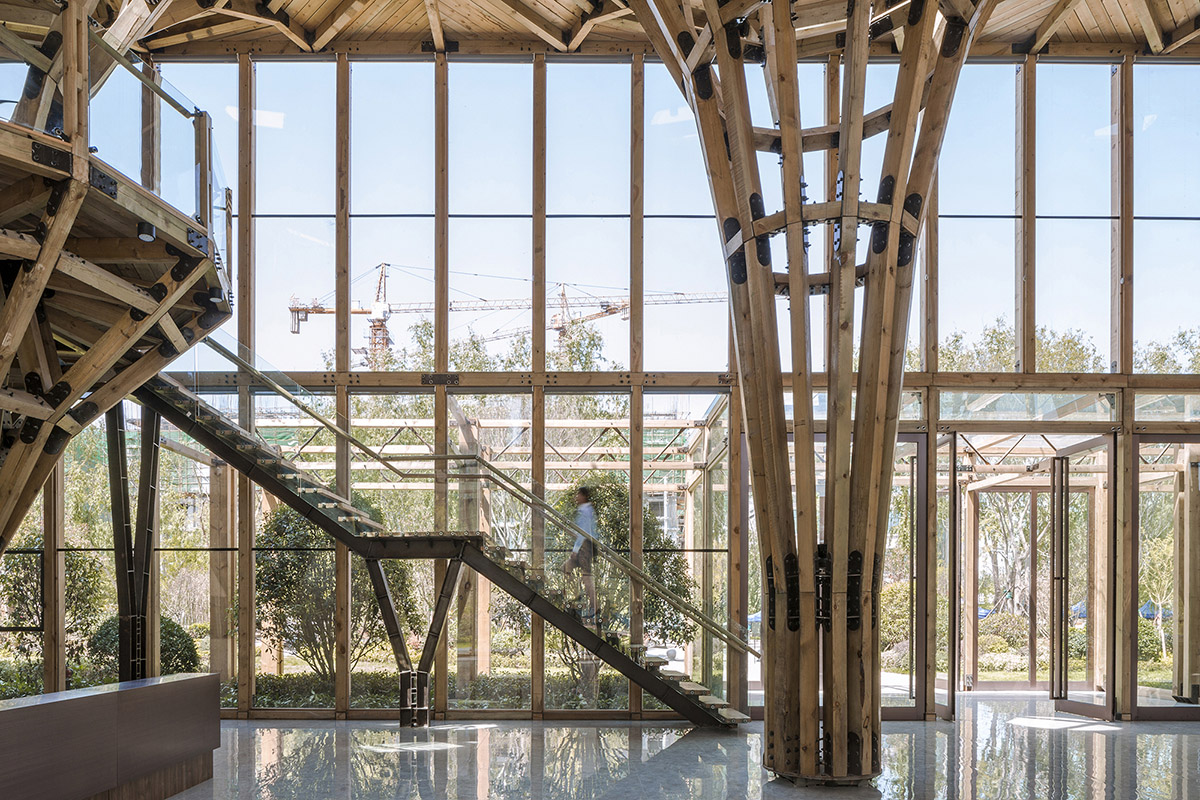

Stairs next to the entrance. Image © Jin Weiqi

LUO studio Created a Universally-used Sales Center that can be Completely Dismantled and Reused

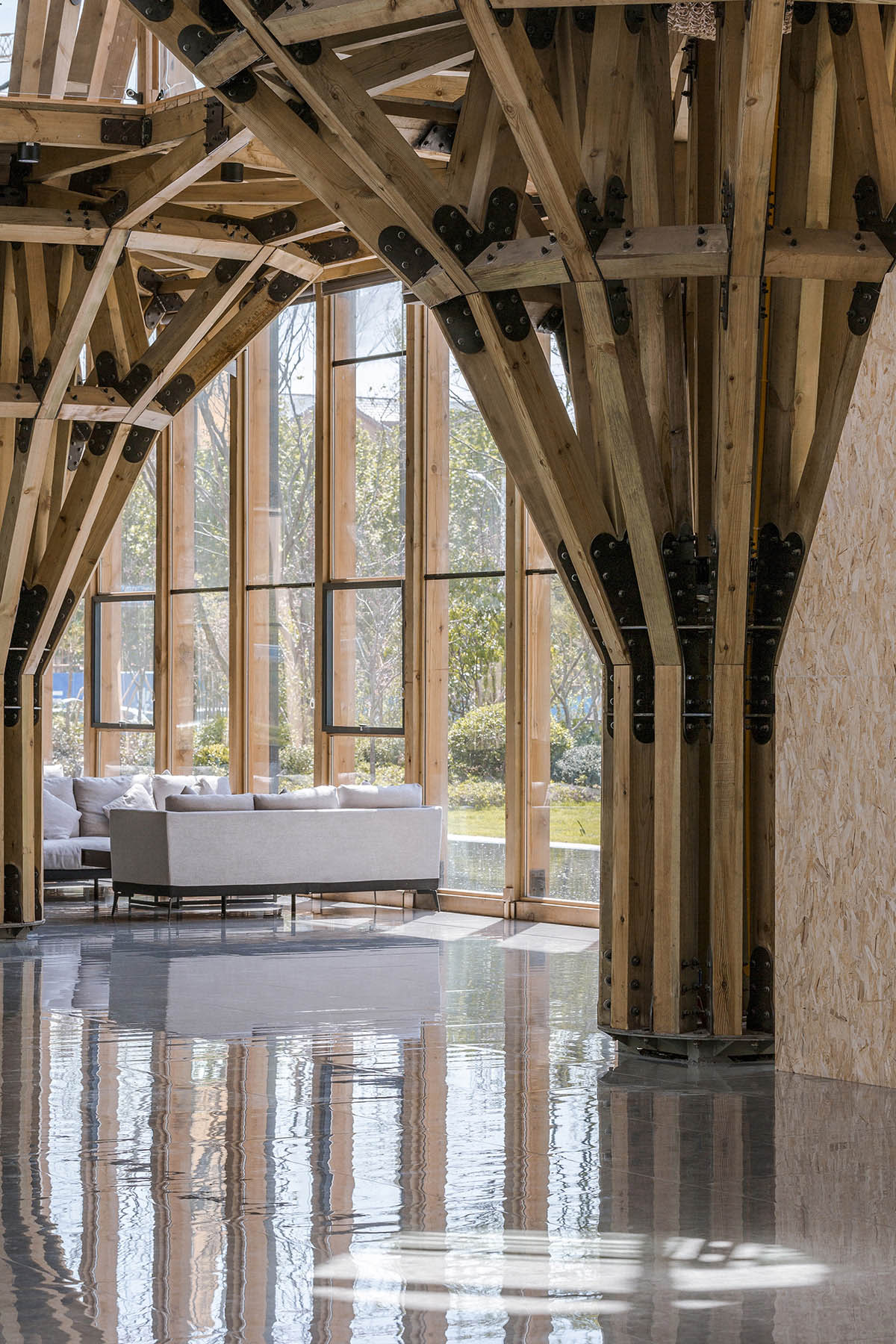

East side of the setting wall. Image © Jin Weiqi

"To build a large solid space and maximize its possible functions, several square timber pillars were combined together to form a “clustered column” instead of using a single wooden pillar as the supporting unit. As forces acting on circle plane are even in different directions, horizontal units of the clustered column were designed in the shape of regular dodecagon, which are nearly round, with a diameter of 1m. The section size of timber pillars of the clustered column is 120mm*180mm."

"As for vertical units design, we applied the shape of trees. The clustered column was divided into five segments, each with the length of about 2m. These segments extend outward and upward to the ceiling, forming a cubic edge space with a height of 4.5m and a side length of 8m. With such clustered columns, we not only maximized the lower space but also the structural strength," the firm added.

LUO studio Created a Universally-used Sales Center that can be Completely Dismantled and Reused

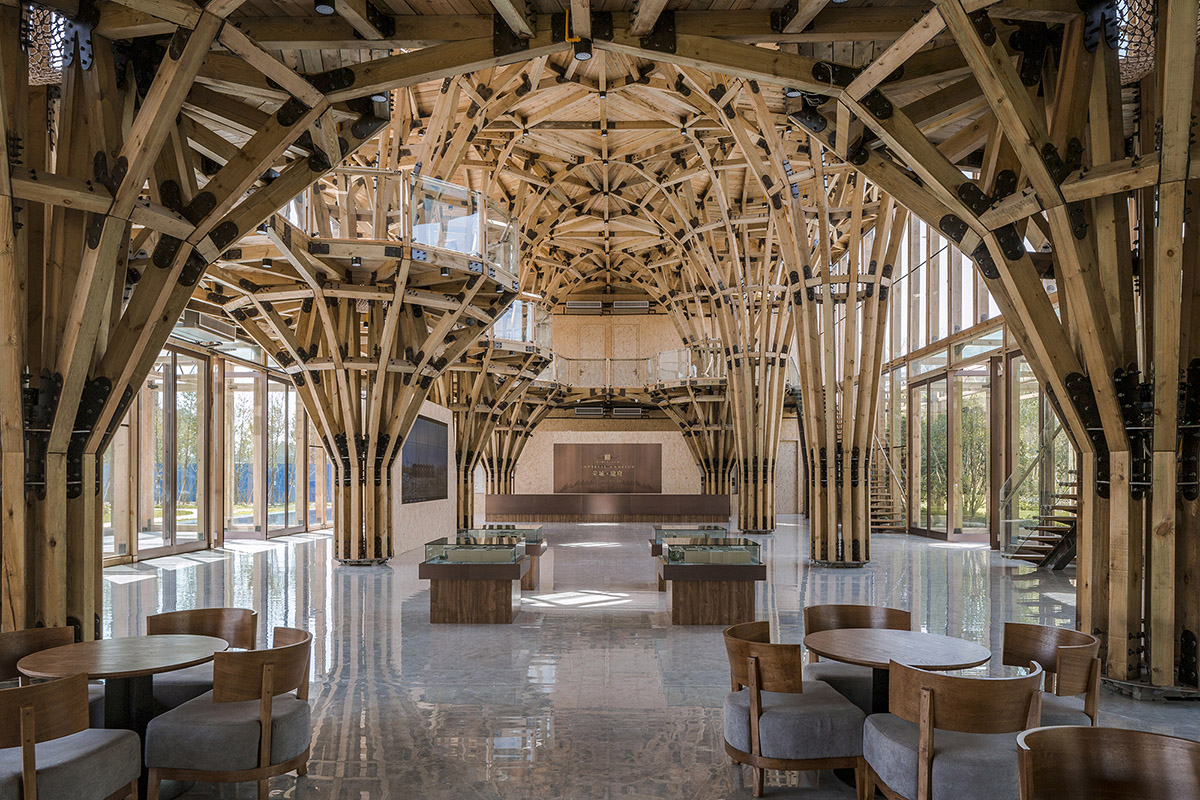

Resting area. Image © Jin Weiqi

LUO studio Created a Universally-used Sales Center that can be Completely Dismantled and Reused

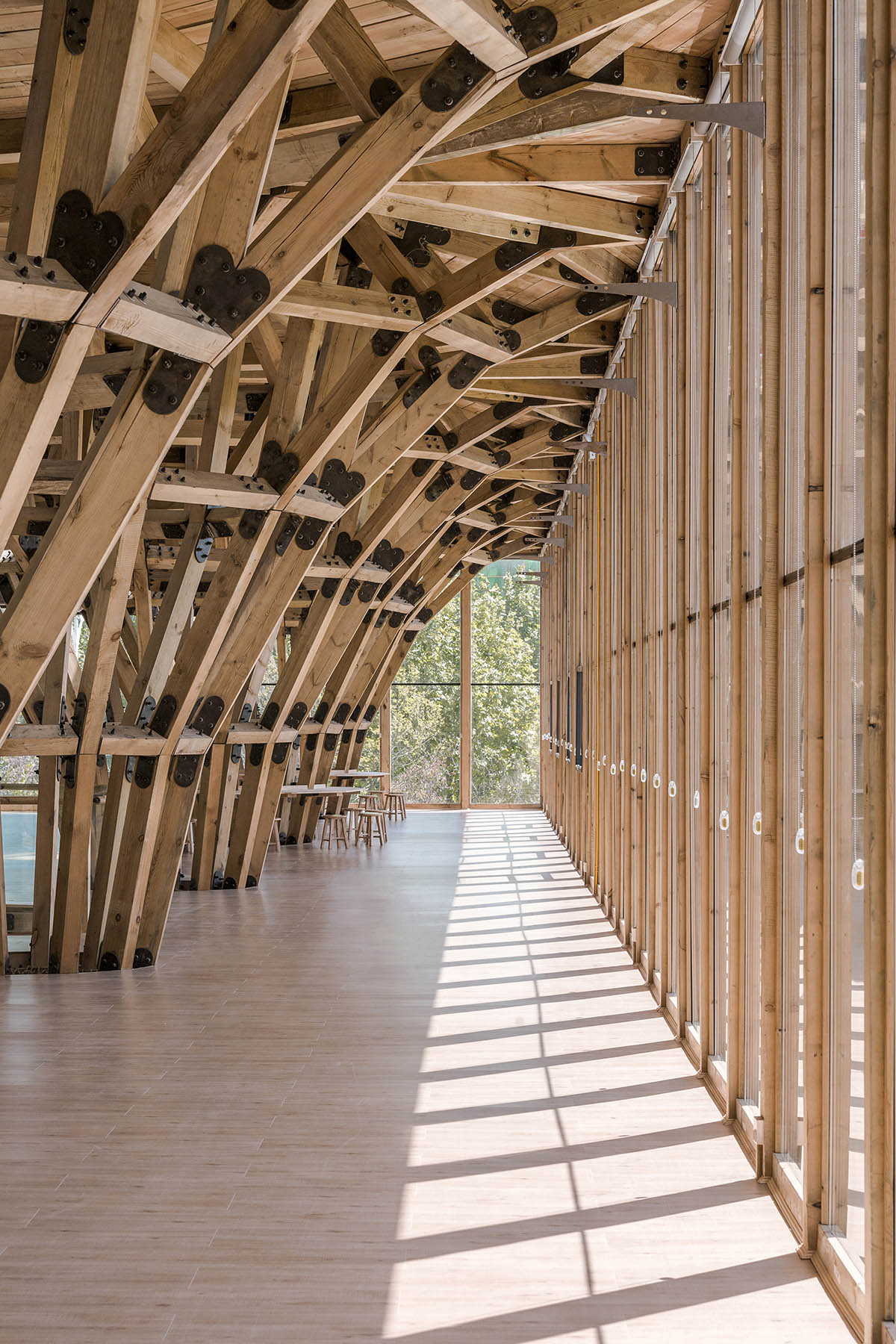

2F corridor. Image © Jin Weiqi

"The bottom part of each 'clustered column' is in the shape of regular polygon. These 'clustered columns' extend upward from the bottom and form a "square" outside edge. Each unit along the edge was horizontally and longitudinally interlined. Just like Lego bricks, each unit is independent or combined with others to create the desired space. The space is extensible. With 'continuous arch' between each unit, the overall structure is very stable. And the more it stretches, the more stable the structure is."

LUO studio Created a Universally-used Sales Center that can be Completely Dismantled and Reused

Lawn on the south side. Image © Jin Weiqi

LUO studio Created a Universally-used Sales Center that can be Completely Dismantled and Reused

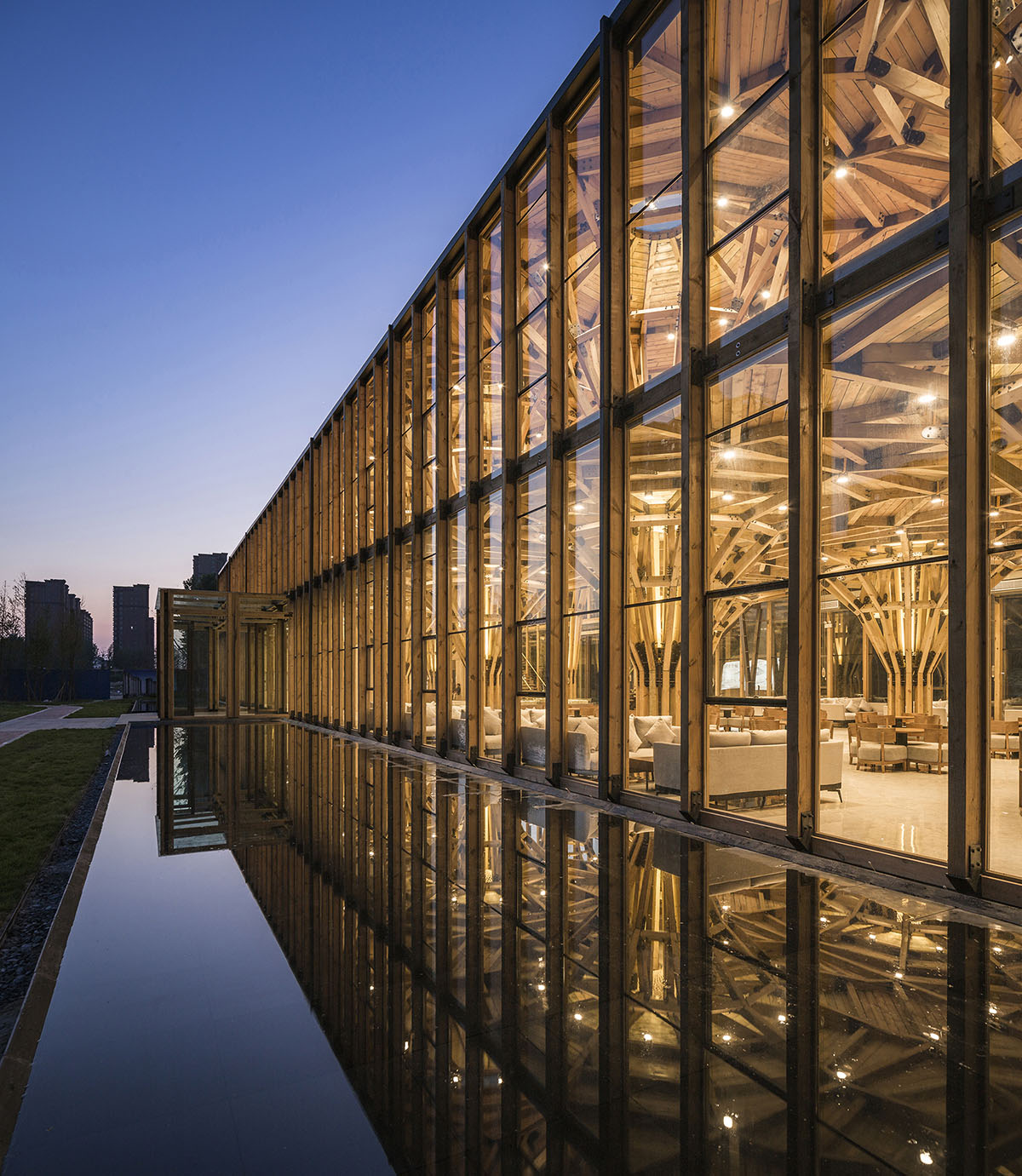

Water surface night view. Image © Jin Weiqi

All wooden column units were interlinked through bolting steel connection components. And all relevant work such as installation of indoor furniture, air conditioning and wiring systems was carried out in a coordinated way. Eventually, they completed construction and decoration of the building ahead of schedule.

Considering various practical factors, they laid tiles on the ground floor by using cement mortar. However, all other parts in the space were connected by bolts. All components can be completely dismounted, installed, moved and reused for other constructions, making the building thoroughly reversible.

LUO studio Created a Universally-used Sales Center that can be Completely Dismantled and Reused

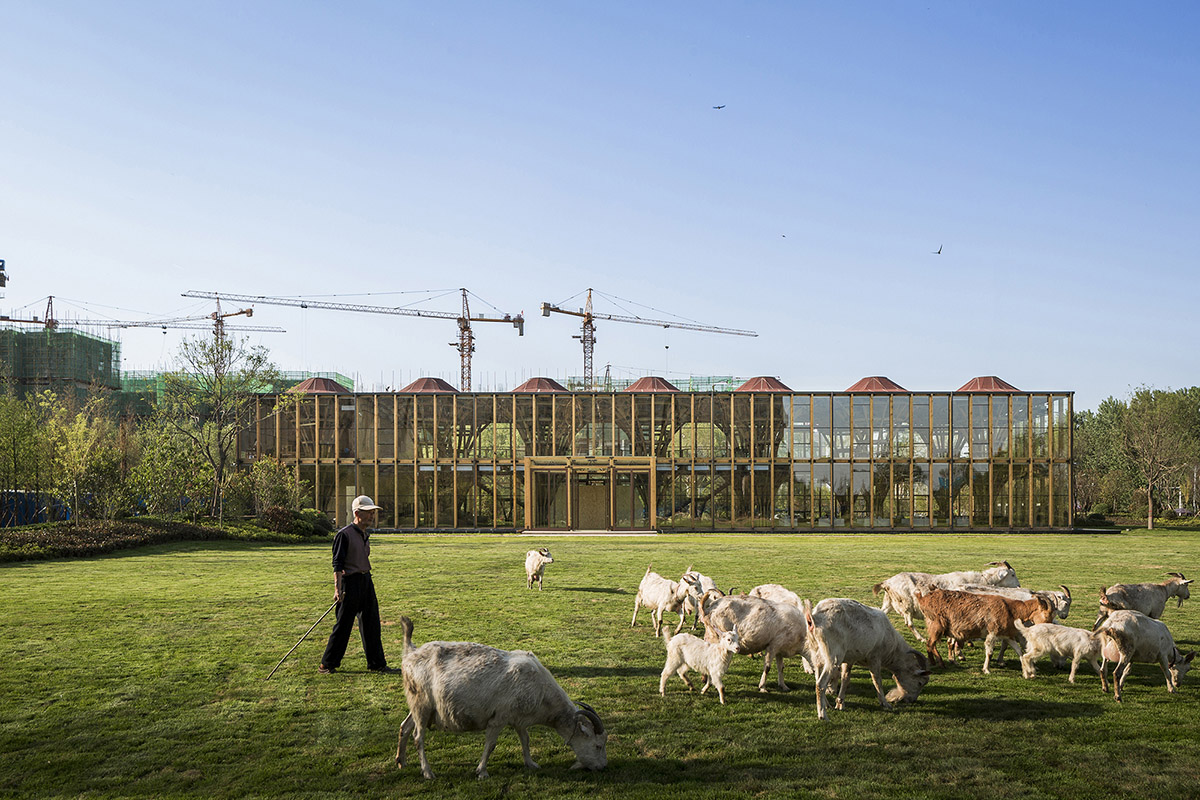

South side view. Image © Jin Weiqi

LUO studio Created a Universally-used Sales Center that can be Completely Dismantled and Reused

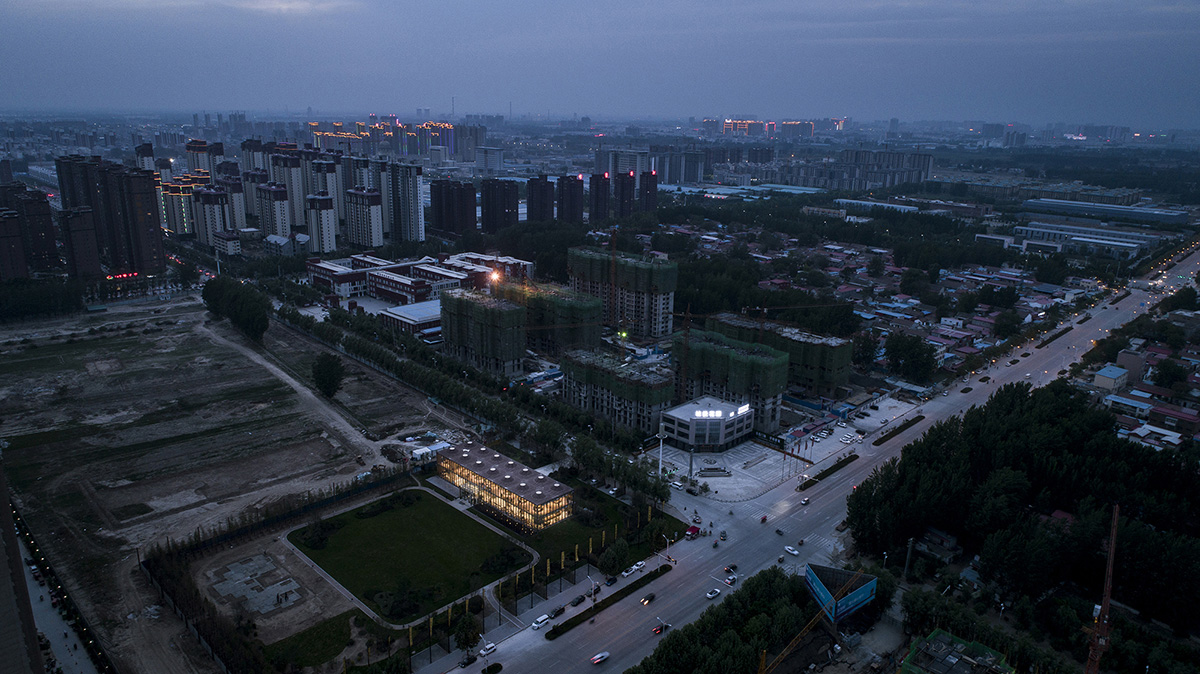

Aerial view. Image © Jin Weiqi

LUO studio Created a Universally-used Sales Center that can be Completely Dismantled and Reused

Image © Jin Weiqi

LUO studio Created a Universally-used Sales Center that can be Completely Dismantled and Reused

1 unit can be used for Tree House. Image © LUO studio

LUO studio Created a Universally-used Sales Center that can be Completely Dismantled and Reused

2 units can be used for Small Bookstore. Image © LUO studio

LUO studio Created a Universally-used Sales Center that can be Completely Dismantled and Reused

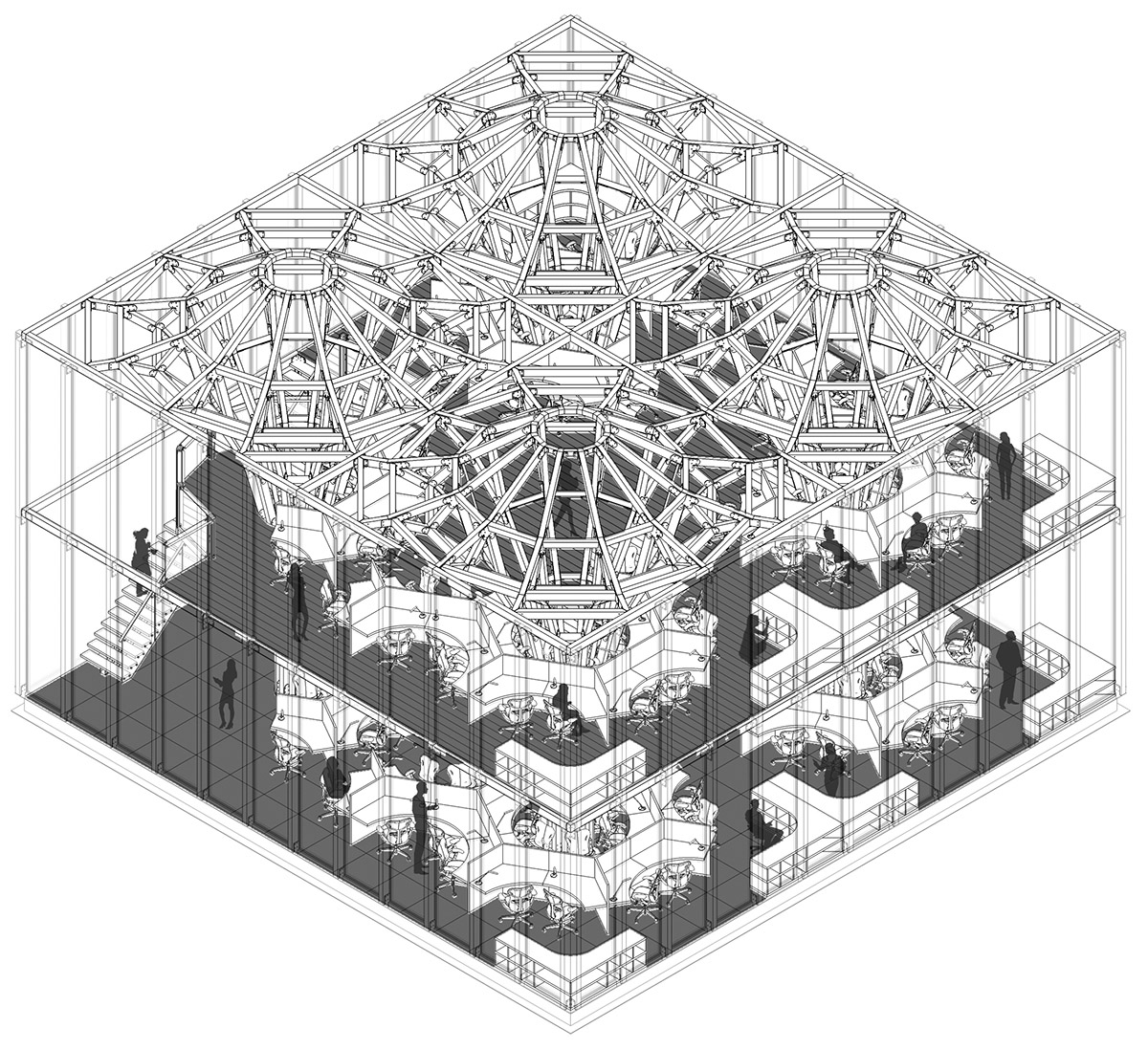

4 units can be used for Workroom. Image © LUO studio

LUO studio Created a Universally-used Sales Center that can be Completely Dismantled and Reused

8 units can be used for Children’s Active Space. Image © LUO studio

LUO studio Created a Universally-used Sales Center that can be Completely Dismantled and Reused

16 units = Longfu Life Experience Center. Image © LUO studio

LUO studio Created a Universally-used Sales Center that can be Completely Dismantled and Reused

64 units can be used for Rail Transit Hub. Image © LUO studio

LUO studio Created a Universally-used Sales Center that can be Completely Dismantled and Reused

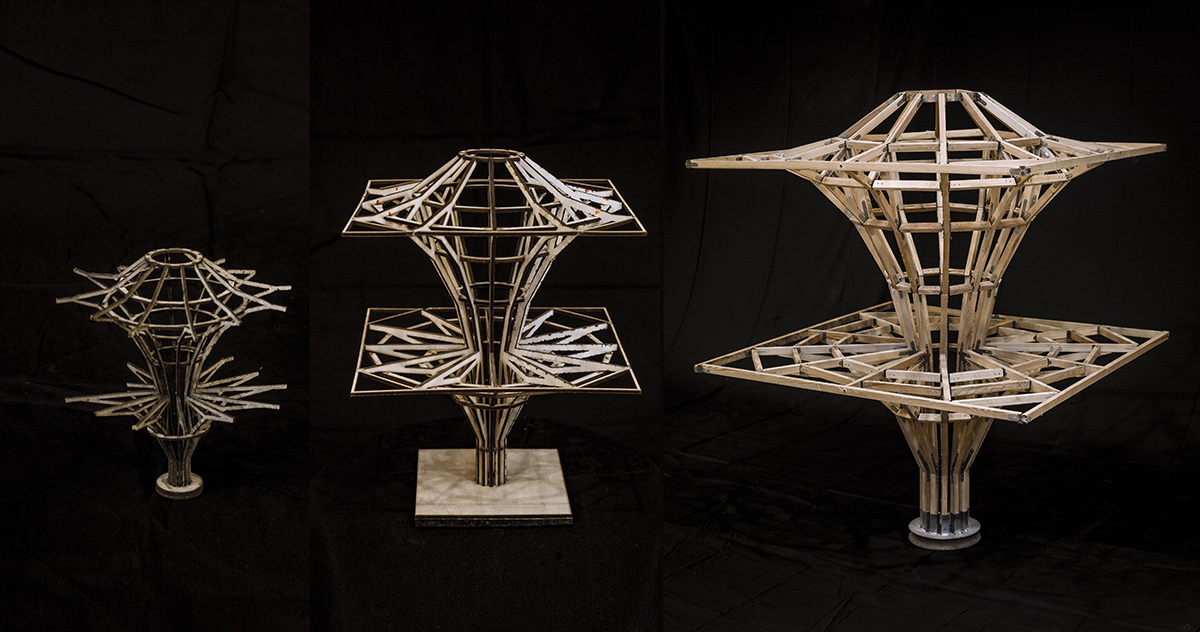

Development process of structure model. Image © LUO studio

LUO studio Created a Universally-used Sales Center that can be Completely Dismantled and Reused

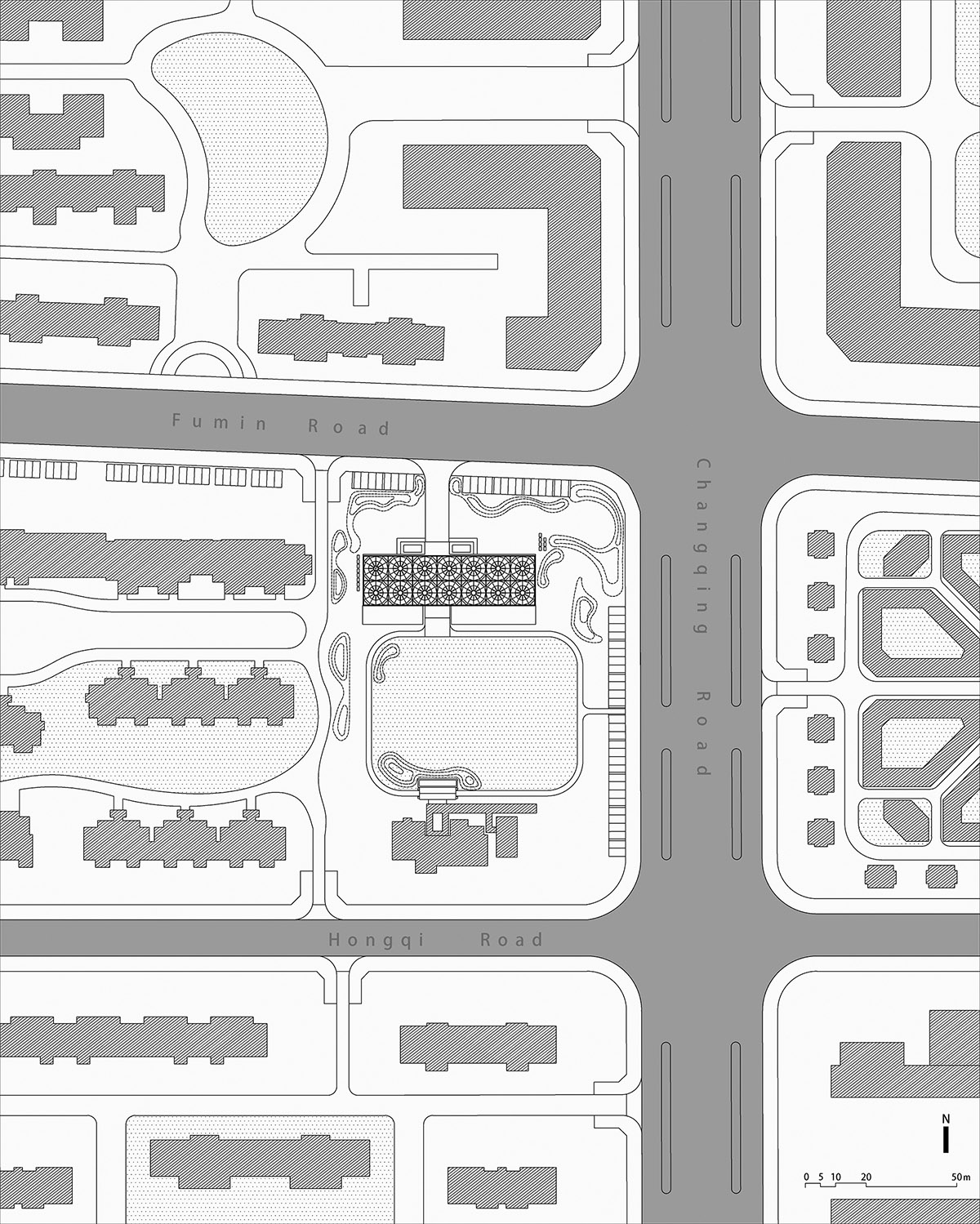

Site plan. Image © LUO studio

LUO studio Created a Universally-used Sales Center that can be Completely Dismantled and Reused

1F floor plan. Image © LUO studio

LUO studio Created a Universally-used Sales Center that can be Completely Dismantled and Reused

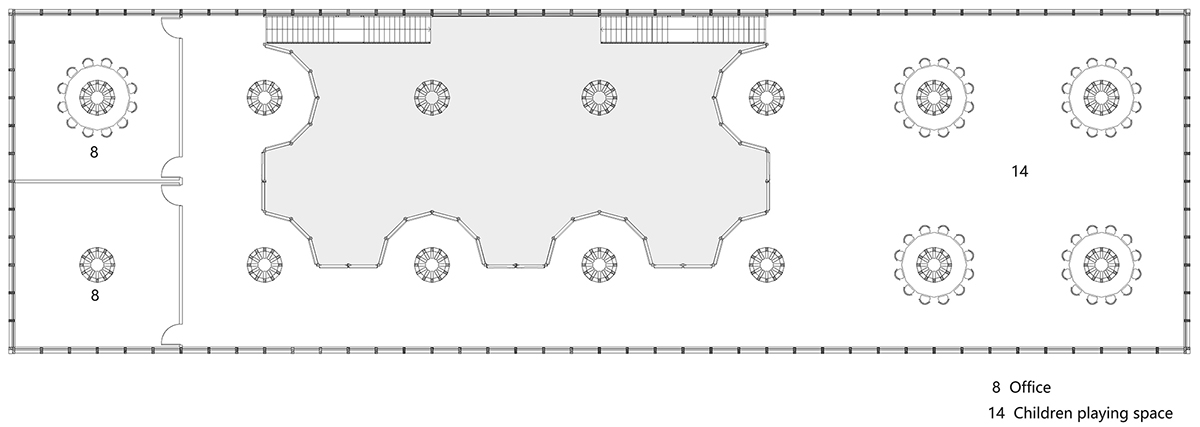

2F floor plan. Image © LUO studio

LUO studio Created a Universally-used Sales Center that can be Completely Dismantled and Reused

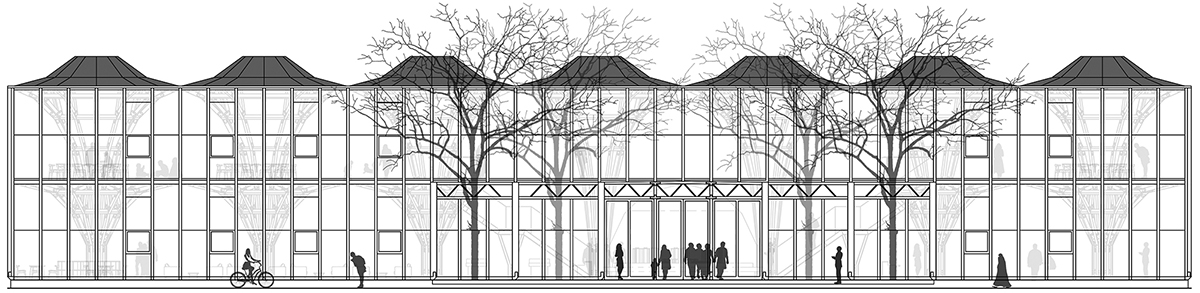

Elevation. Image © LUO studio

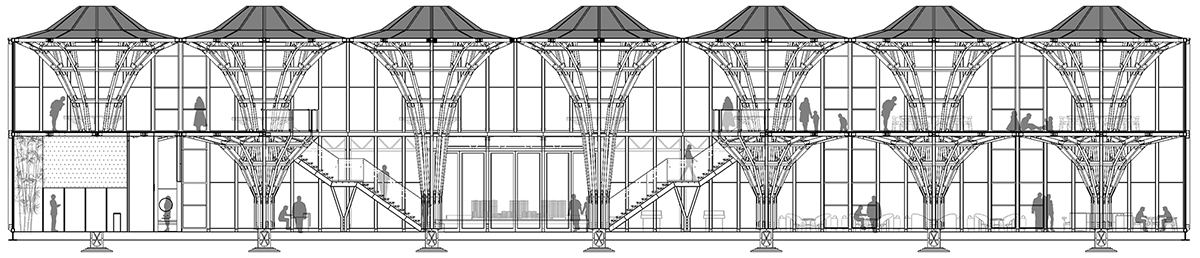

Section. Image © LUO studio

LUO studio Created a Universally-used Sales Center that can be Completely Dismantled and Reused

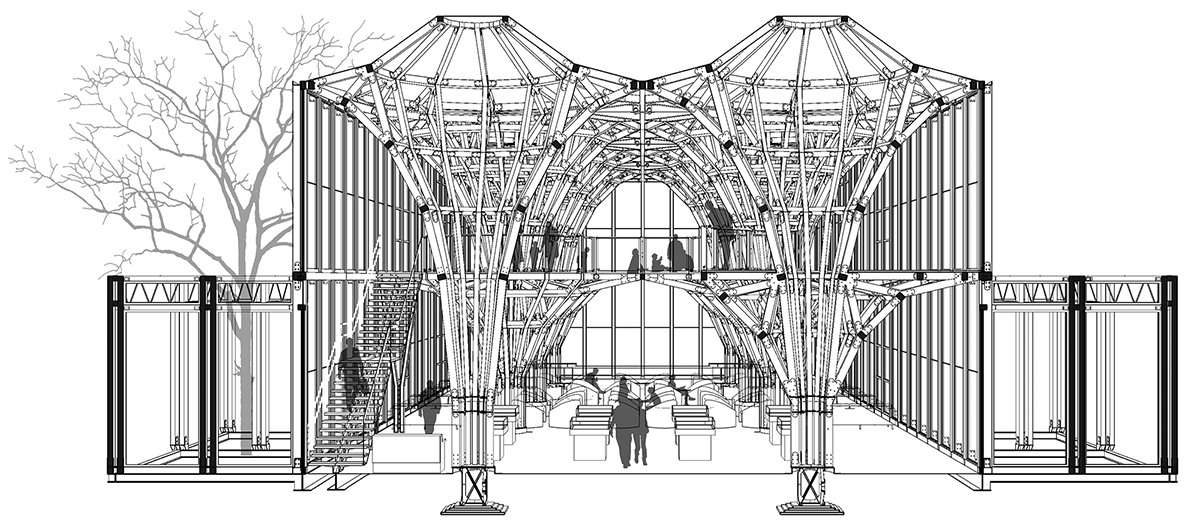

Section perspective. Image © LUO studio

LUO studio Created a Universally-used Sales Center that can be Completely Dismantled and Reused

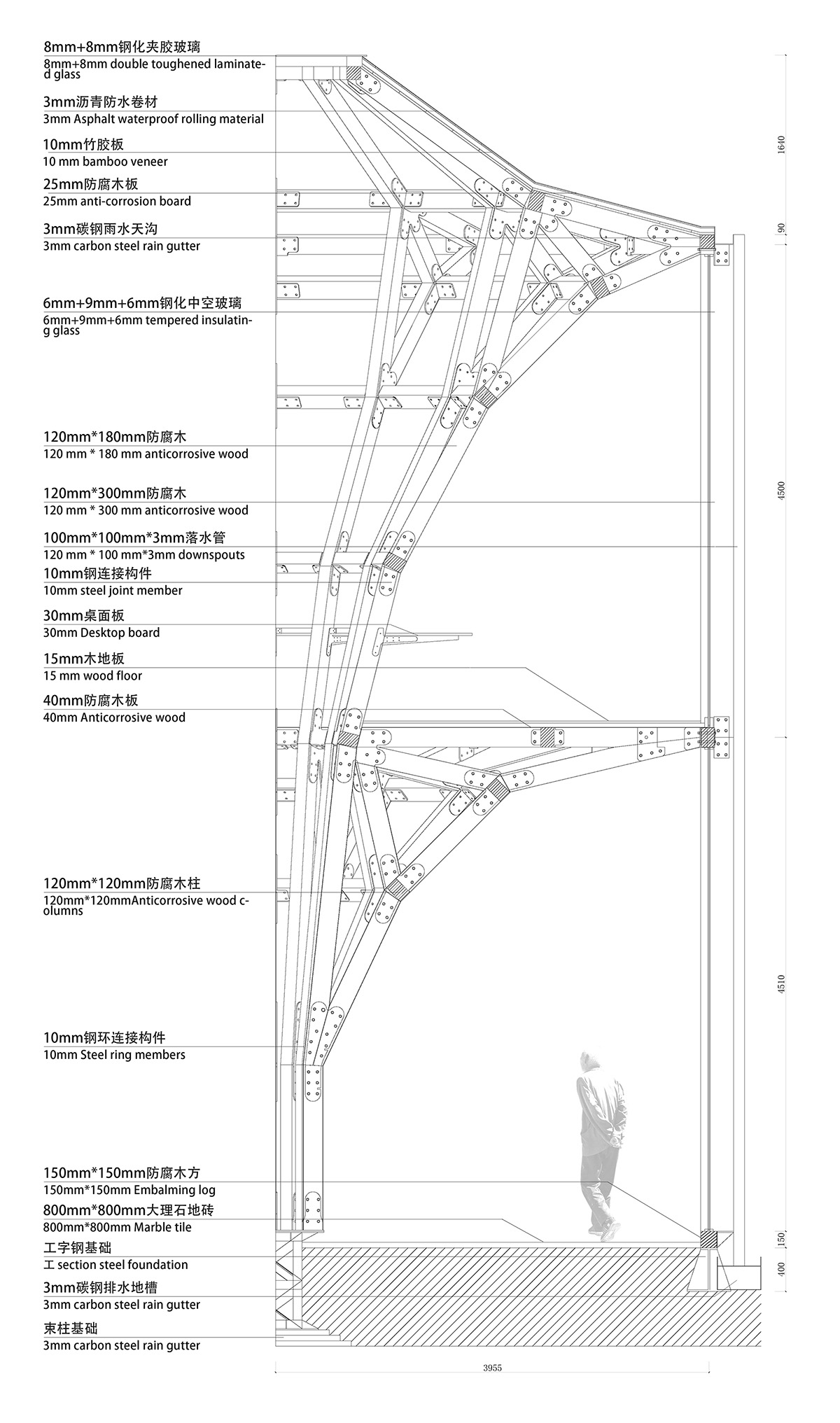

Details. Image © LUO studio

Project facts

Project name: Longfu Life Experience Center — A Universally-used Space Created by General Timbers and Techniques

Design studio: LUO studio

Chief designer: Luo Yujie

Participating designers: Wang Xiaotao, Wei Wenjing

Client (Design consultant): Lai Lijun

Construction company: Puyang JINGYI Architectural Decoration, Design and Engineering Co., Ltd.

Project Location: Southwest of the intersection of Changqing Road and Fumin Road, Puyang County, Henan Province, China

Construction area: 1588 m2

Photographer: Jin Weiqi

Design date: January 15, 2018

Completion date: April 10, 2018 (49 workdays in total for material processing and on-site construction)
