MAD reveals Sanxingdui Museum that is enlivened like "torch-like eyes" in Guanghan City

China Architecture News - Feb 18, 2022 - 11:54   979 views

MAD reveals Sanxingdui Museum that is enlivened like

MAD Architects has revealed design for a new museum that is enlivened like "torch-like eyes" in Guanghan City, Sichuan Province, China

Named The Eyes of Sanxingdui for the Sanxingdui Ancient Shu Cultural Heritage Museum, the 30,000-square-metre museum is comprised of a group of scattered wooden structures placed above the dense greens and clear waters of the ancient landscape.

Led by MAD founder and principal Ma Yansong, the new buildings are blended into the existing landscape to form a new environment.

MAD reveals Sanxingdui Museum that is enlivened like

MAD's project will simultaneously embrace the ancient mysteries of the Sanxingdui civilization and connect with the area’s timeless natural environment through a restrained, humble volume.

The project also integrates a large park, covering a total area of 90,000 square meters, which acts as an urban and cultural public space where humanity and nature, the past and the future, can converge.

MAD reveals Sanxingdui Museum that is enlivened like

A cluster of six wooden buildings, scattered in an east-west direction, will be made of timber, allowing for more open, rich column-free interior spaces inside, while yielding maximum flexibility for exhibition layouts.

The program of the complex includes a 5,830-square-metre visitor center, five museum buildings varying in scales, visitor reception service center, and an overall landscape design.

MAD reveals Sanxingdui Museum that is enlivened like

Located in the western area of Guanghan City, Sichuan Province, the site is filled with unearthed cultural relics dating from approximately 4500-2800 years ago, the site’s archaeology is rooted in the echoes of ancient cities, ancient states, and the ancient Shu culture of southwest China.

The Sanxingdui site has jointly applied with the nearby Jinsha site to be recognized as a world cultural heritage site by UNESCO.

MAD reveals Sanxingdui Museum that is enlivened like

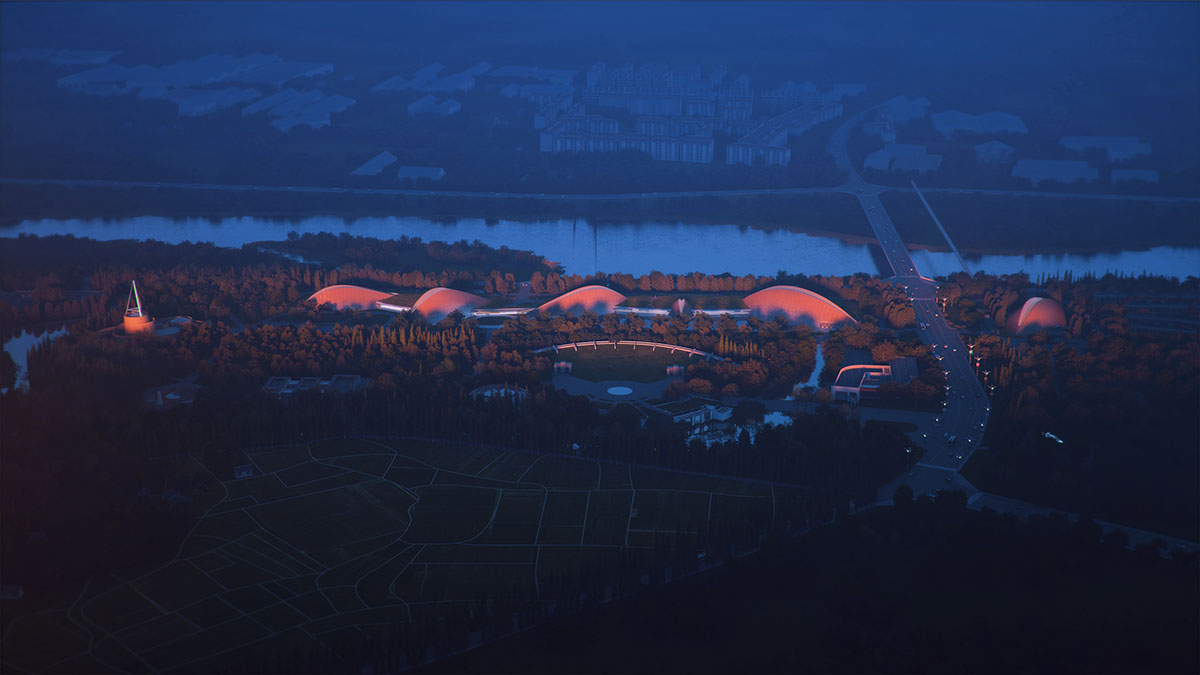

The Sanxingdui Museum Park is located at the northeast corner of the site’s core protected region, covering a total area of 90,000 square meters.

MAD's design scheme includes urban planning, a new museum and visitor reception service center, and an overall landscape strategy.

Upon its completion, this world-class thematic museum will accommodate activities like collection, display, protection and research for the excavated cultural relics from the Sanxingdui site.

MAD reveals Sanxingdui Museum that is enlivened like

The Eyes of Earth, The Eyes of Ancient Civilizations, The Eyes of Nature

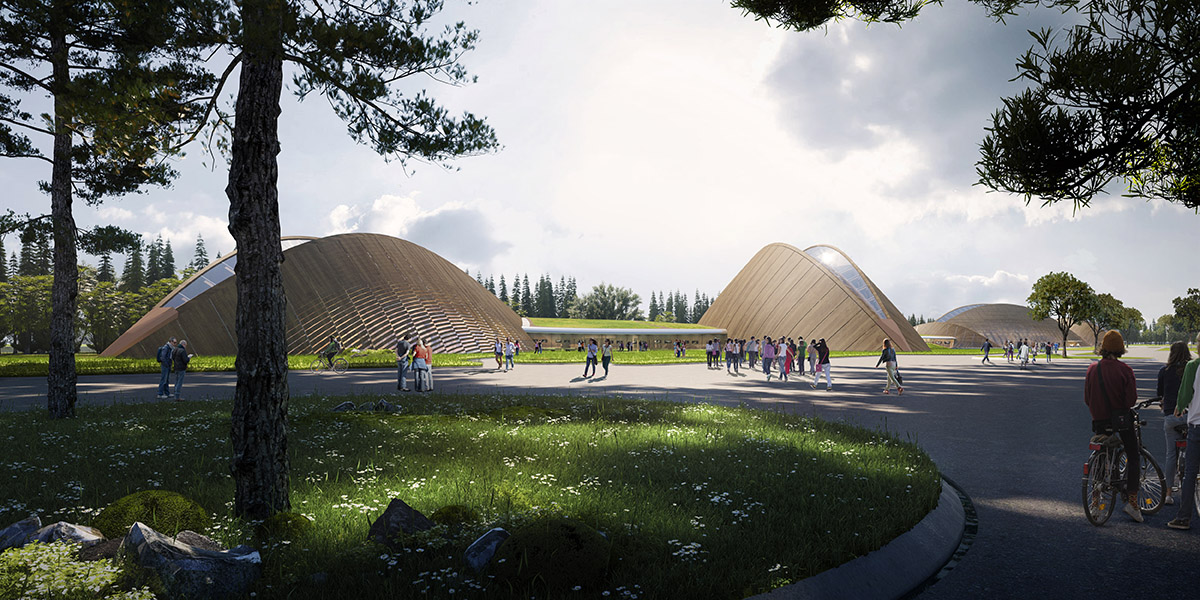

In East of Xiangxin Road, visitors will encounter the first building: a Visitor Center. Extending westwards, they will see the five buildings of various scales forming the new museum.

In total, the new museum covers an area of about 30,000 square meters, with a construction area of 28,650 square meters.

MAD reveals Sanxingdui Museum that is enlivened like

"The Sanxingdui site laid host to a number of cultural relics, including longitudinal bronze eye masks and large bronze standing figures, many of which adopt exaggerated, strange, ornate shapes," said MAD in its project description.

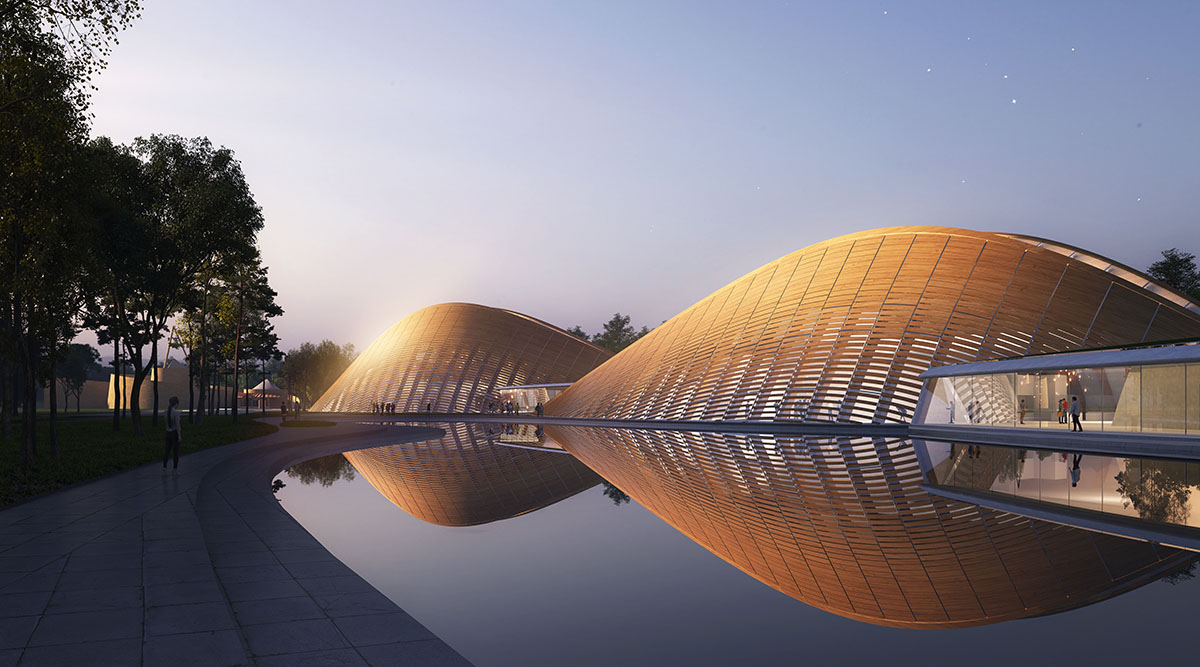

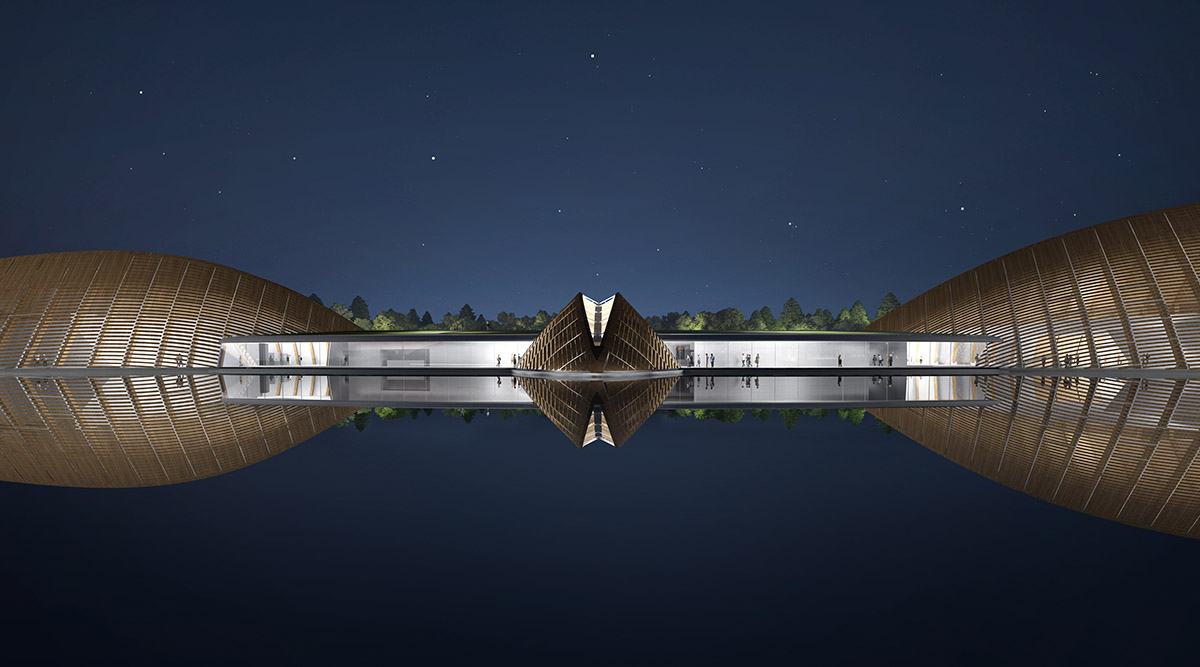

"After sunset, the six buildings are enlivened as torch-like eyes behind the bronzeware and golden masks of Sanxingdui, uniting the spirits and forms, allowing people in the museum to wander between history and the future," the firm added.

MAD reveals Sanxingdui Museum that is enlivened like

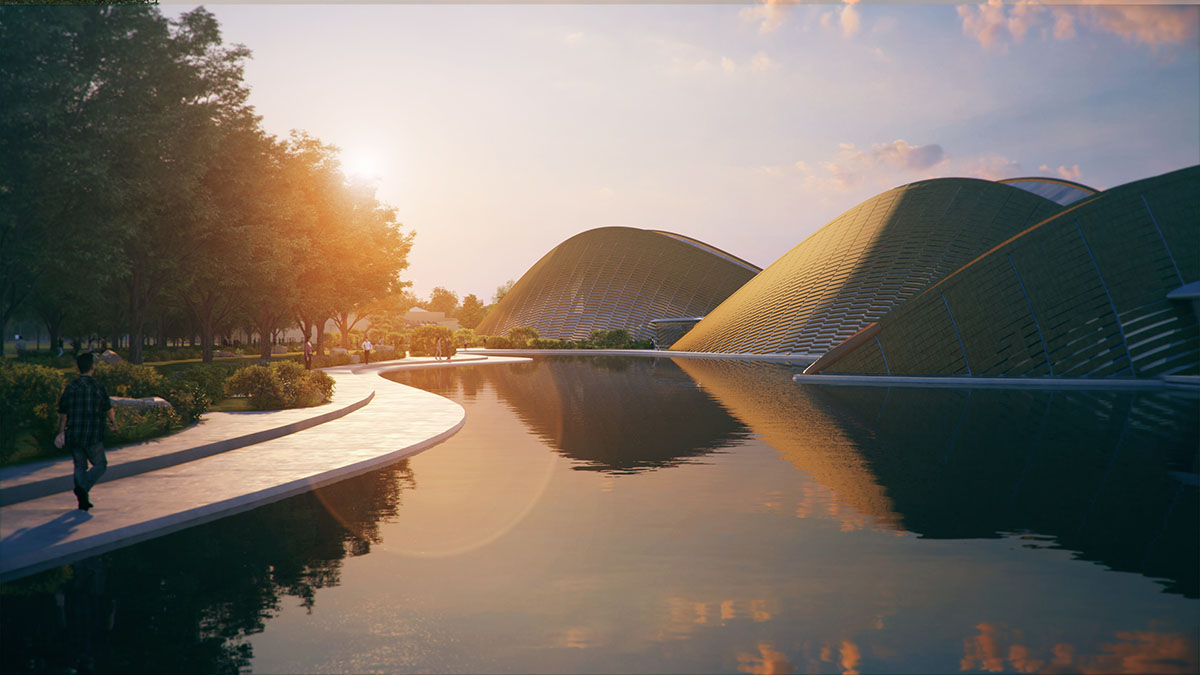

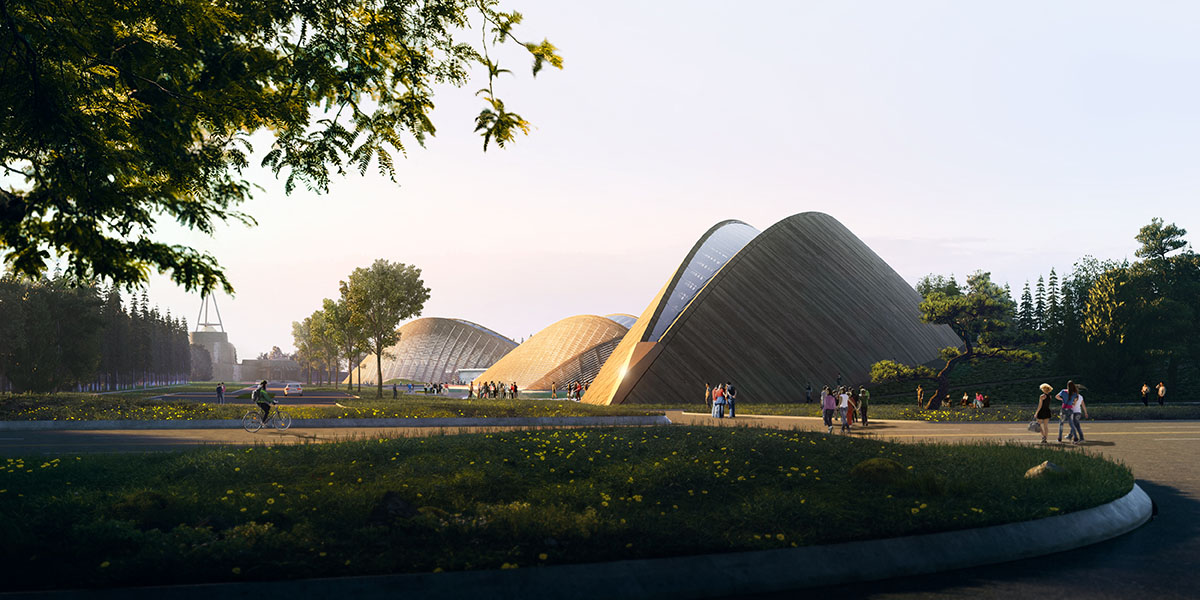

During the day, the building's wooden facade echoes the park’s natural landscape.

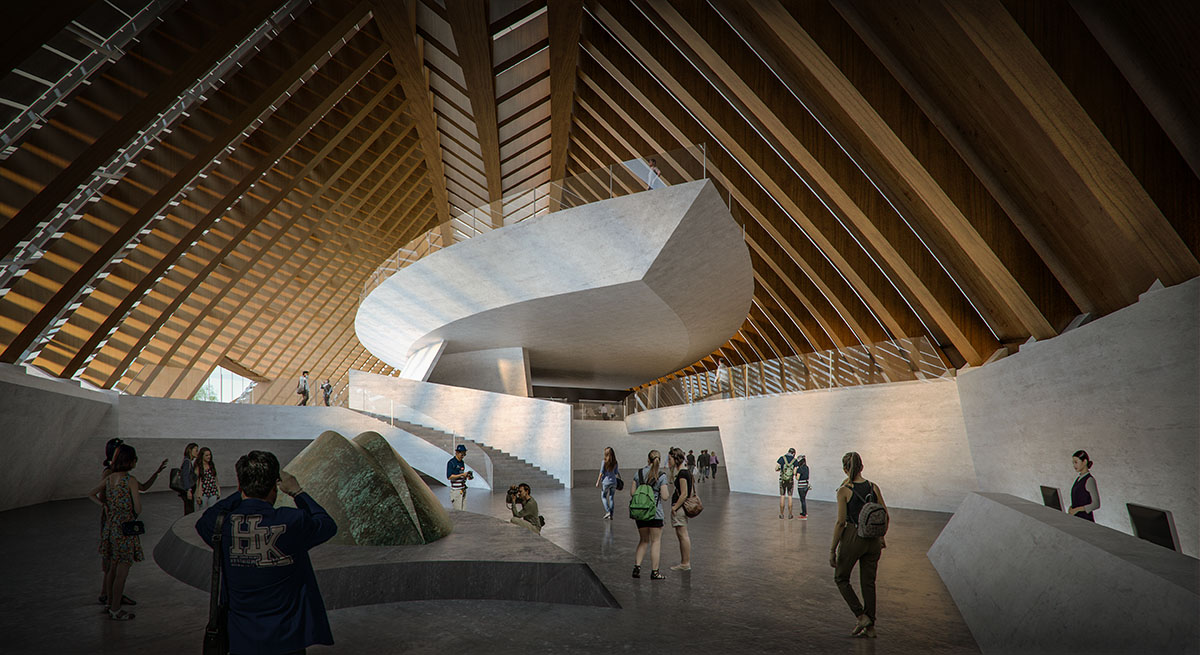

Inside, the perception of timber structure continues for visitors, while a sculptural staircase leads visitors to upper levels. Meanwhile, the rooftop skylight provides natural light for the museum.

MAD reveals Sanxingdui Museum that is enlivened like

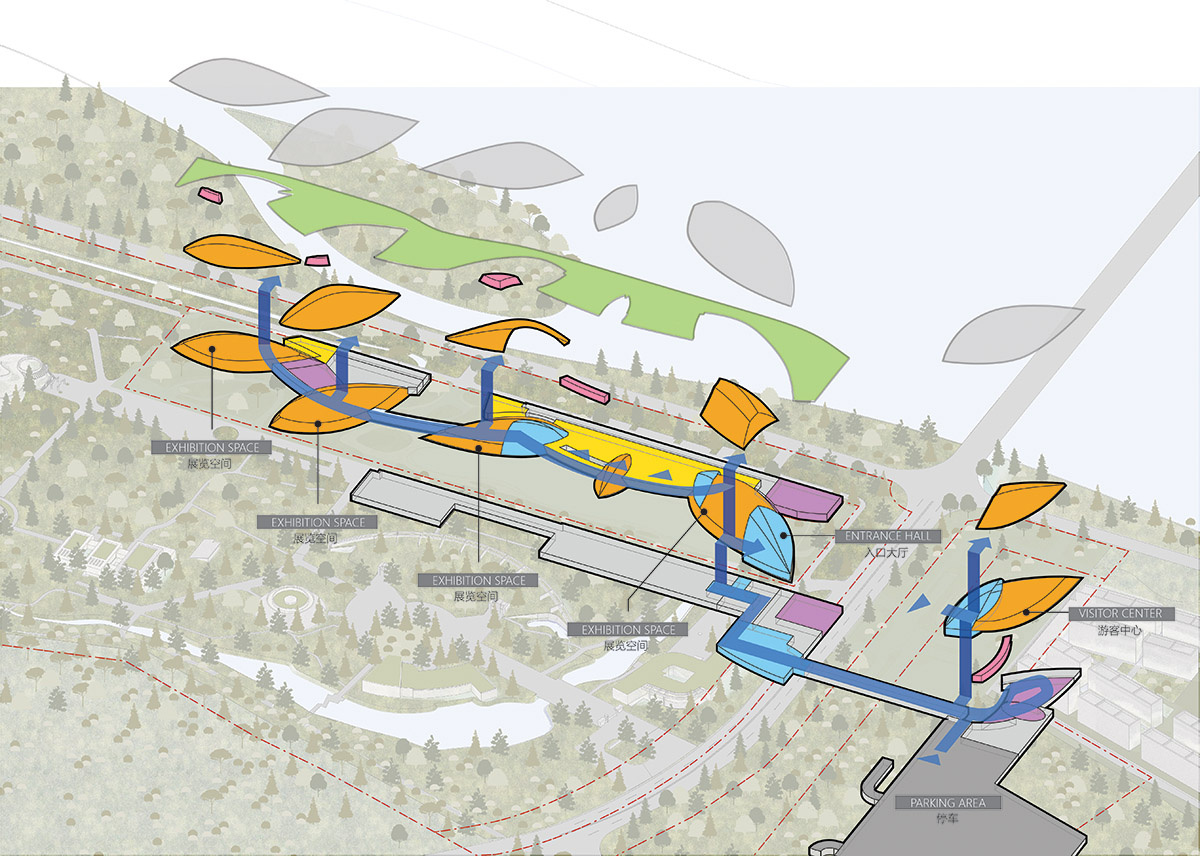

A journey through the museum begins at the main entrance of the visitors’ center, before proceeding to a viewing hall which offers an introduction into the culture of Sanxingdui. Visitors then progress towards an underground corridor to the museum’s first floor entrance hall.

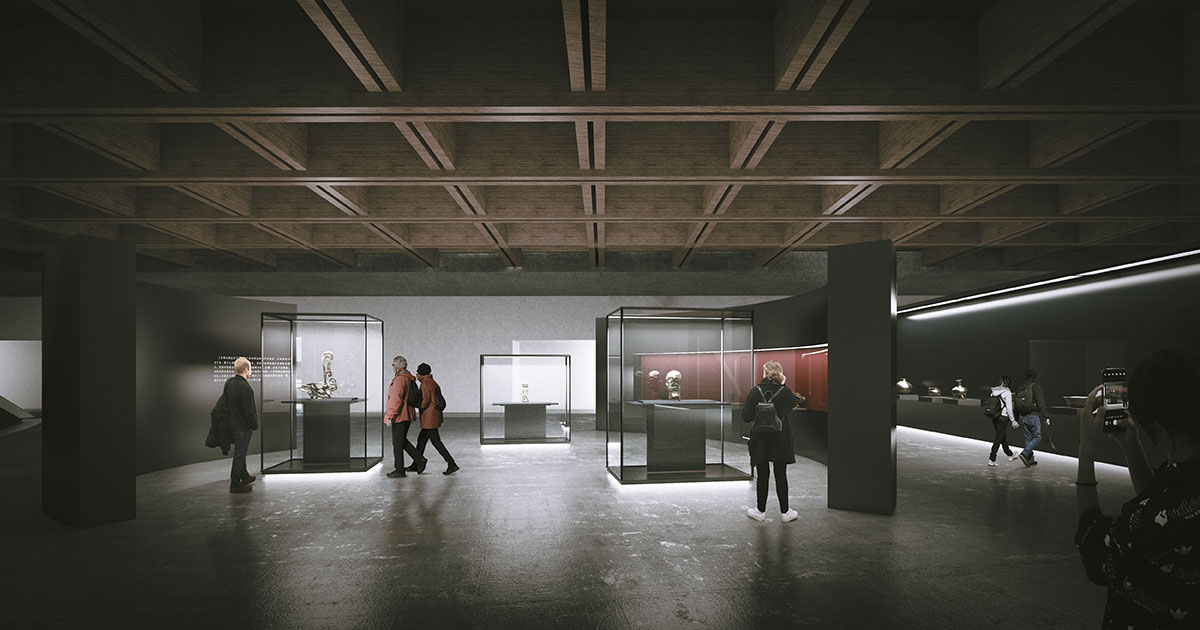

From here, the exhibition halls are connected to each other through a south-facing glass corridor, through which visitors can enjoy the ever-changing landscape as they move through the complex.

MAD reveals Sanxingdui Museum that is enlivened like

When Humanity Meets Nature

MAD describes the project as "a place where humanity meets nature".

Although the project is designed as a single large structure, but it is envisioned as a distinguished scheme that weaves through and interacts with its surrounding landscape.

MAD reveals Sanxingdui Museum that is enlivened like

"The scheme respects and preserves the site’s natural trees and water features where possible, weaving these natural features into a landscape strategy that remains in harmony with the new pavilion building," MAD added.

"The result is an atmosphere of unity between the buildings and the landscape."

MAD reveals Sanxingdui Museum that is enlivened like

The north-facing exhibition hall and other programmatic blocks connect to form an undulating landscape under a green roof.

Visitors can walk slowly from the north side of the Duck River to the green roof on the second floor and enjoy a 360-degree view of the rich scenic park and river.

MAD reveals Sanxingdui Museum that is enlivened like

After stepping out of the new museum, visitors can journey on further, visiting the Digital Experience Hall (currently referred to as the Bronze Pavilion), the Cultural Relics Conservation and Restoration Exhibition Center, and the Study Hall (currently referred to as the Comprehensive Pavilion).

This journey, along a preserved boulevard, allows visitors to experience the culture of Sanxingdui from varying angles and perspectives.

MAD reveals Sanxingdui Museum that is enlivened like

General porgramme scheme

The new Sanxingdui Museum should be more than just a building which exhibits cultural relics; it should create and render an atmosphere where people's minds and spirits can be released and soar.

The intersection of artifacts, atmosphere, and nature will encourage people to experience the Sanxingdui civilization’s inscribed influence on contemporary civilization and the human spirit.

MAD reveals Sanxingdui Museum that is enlivened like

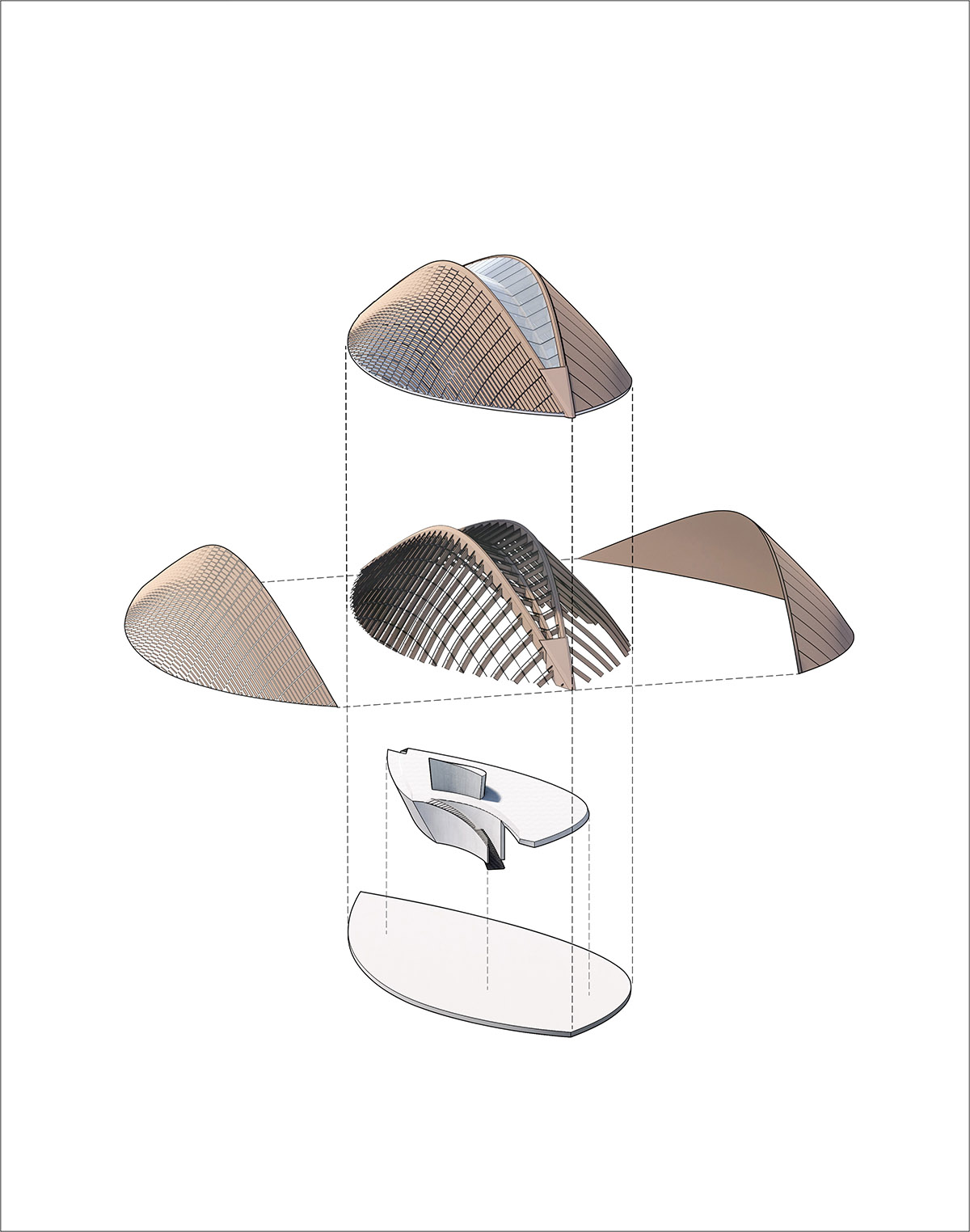

Exploded wood structure diagram for the museum

MAD reveals Sanxingdui Museum that is enlivened like

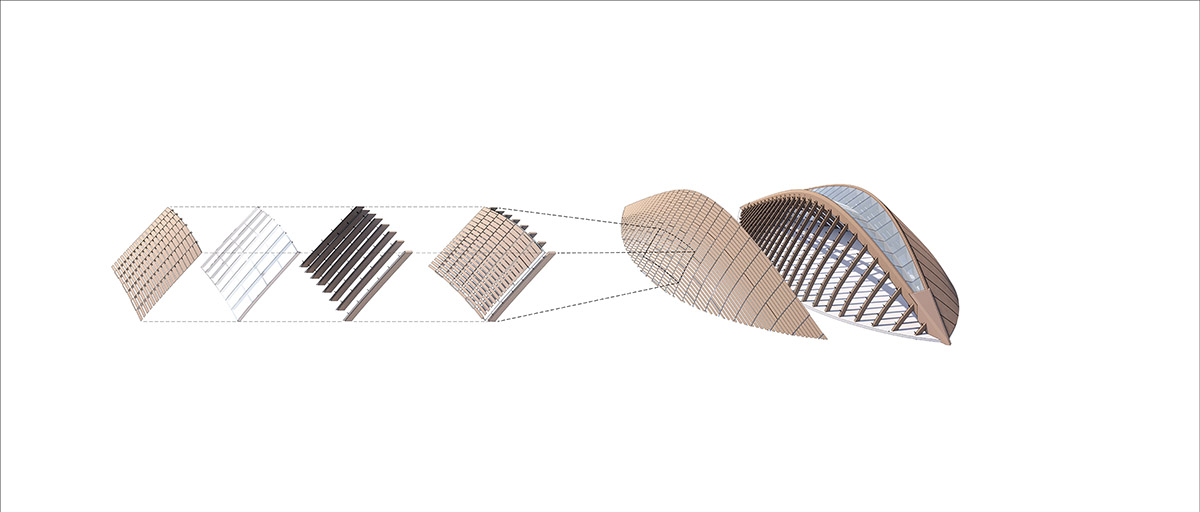

Wood facade diagram

MAD reveals Sanxingdui Museum that is enlivened like

3D section

Project facts

Project: Sanxingdui Ancient Shu Cultural Heritage Museum and Ancillary Facilities project

Architects: MAD

Location: Guanghan, Sichuan, China

Date: 2020 - 2021

Typology: Museum
Land area: 90,000 square meters
Building area: Museum 28,650 sqm, Visitor Reception Center 5,830m

Principal Architects: Ma Yansong, Dang Qun, Yosuke Hayano
Competition Design Team: Tiffany Dahlen, Liu Zifan, Pittayapa Suriyapee, Ma Yiran, Cievanard Nattabowonphal, Luo Man, Chen Hao, Chen Shijie, Wang Shuang, Xiao Yuhan.
