Gomir

Go happens to be the Sirname of the client... mir in Korean means a dragon...so Gomir means Go's dragon...

The site

Jeju is an Island south of Korean peninsular, famous as a vacation spot. The landscape is dominated by halla mountain in the center and basalt rocks by the sea. The weather is more balmy than mainland which allows for more exotic vegetation growth. The site is located just five minute walk from a famous tourist site called Yongdoam(dragon's head), which is a basalt formation that looks like a dragon's head.

The story and appearance generated by basalt Yongduam became a point of departure for the new design. The site itself has nothing spectacular, having a two way road in front, surrounded by common buildings. but, going up vertically meant that sights of the sea and Halla mountain could be secured.

The client

Go is a sir name that is very common among Jeju Islanders. The client is a Jeju born Islander who worked as an imported car dealer in Seoul.He decided to return to his island of birth to start his own business, a guesthouse, and a coffeeshop with a home for his family.

The budget was very tight from the start, so many things were taken as given conditions. The three different functions merged to make one building, instead of two or three, even though site is large enough to accommodate at least two buildings with a decent courtyard in the middle.The exterior finish was decided early on, a eurofoam finish with paint reminiscent of basalt rocks.

The design

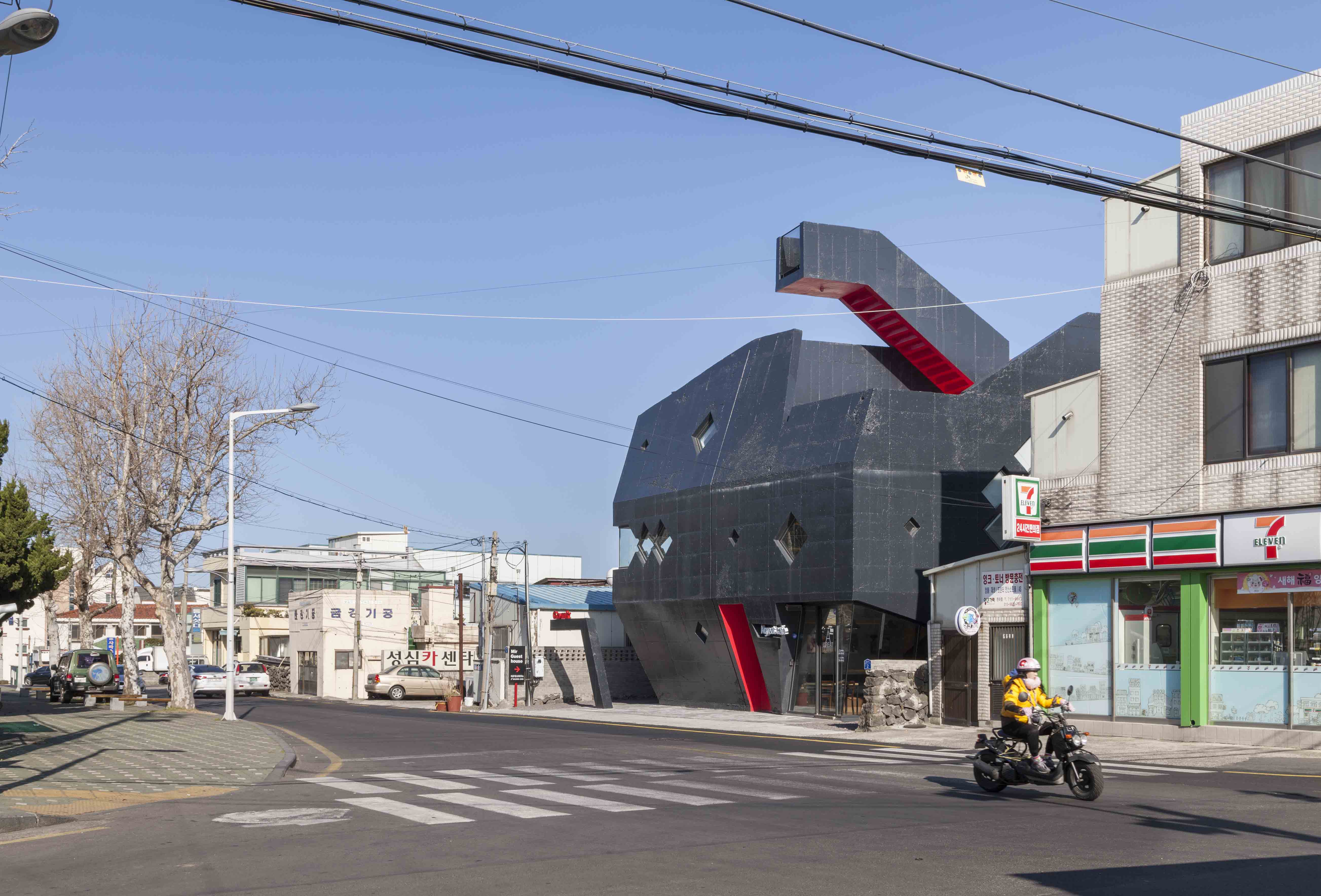

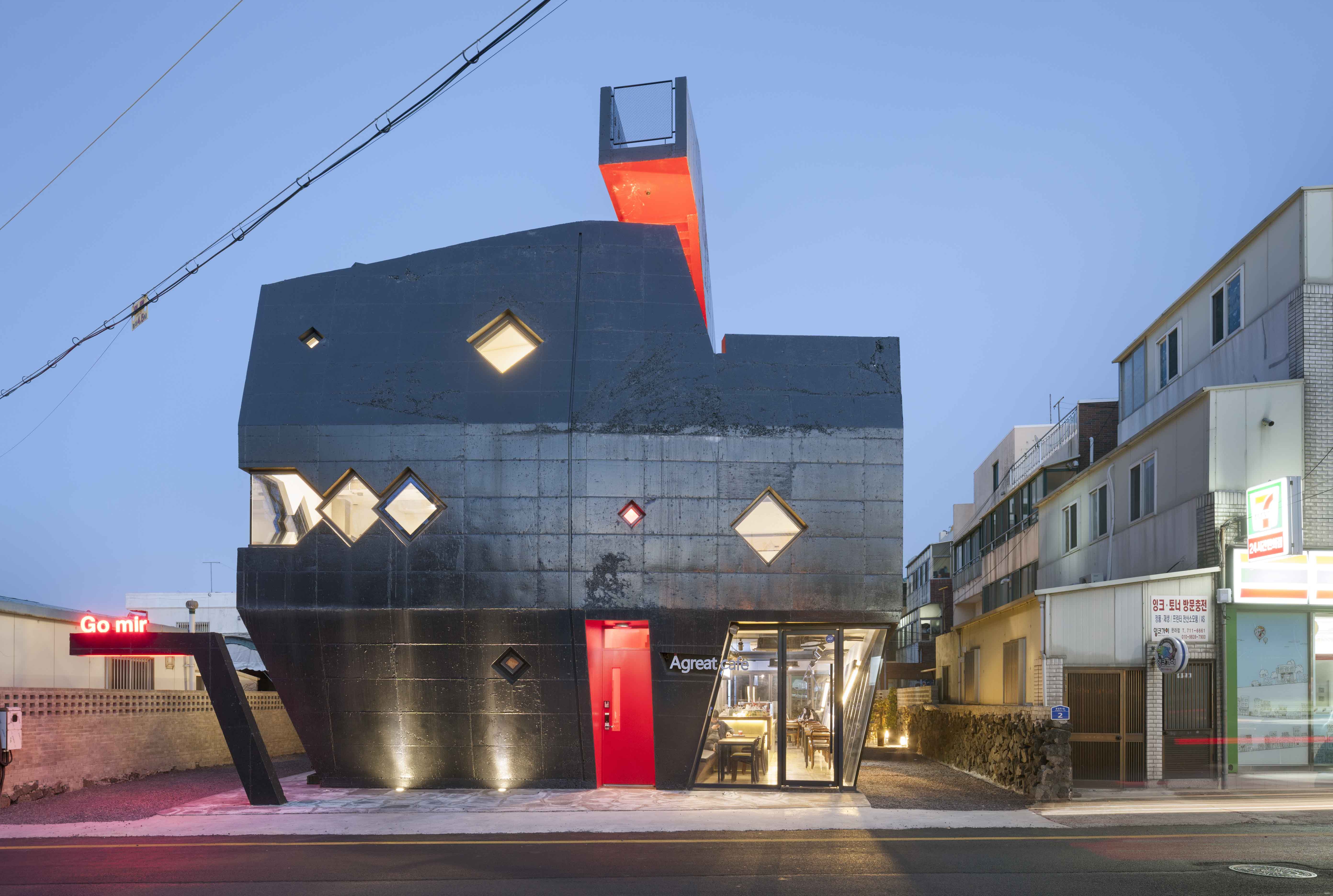

The program requested by the client and the budget sculpted a simple and dense block of function with a small atrium in the middle carrying on the porosity concept for ventilation and light purpose for guest house design. Looking from the road, left is the guest house and the right is the coffee shop and the house. The south east was given to the house for better everyday living conditions.

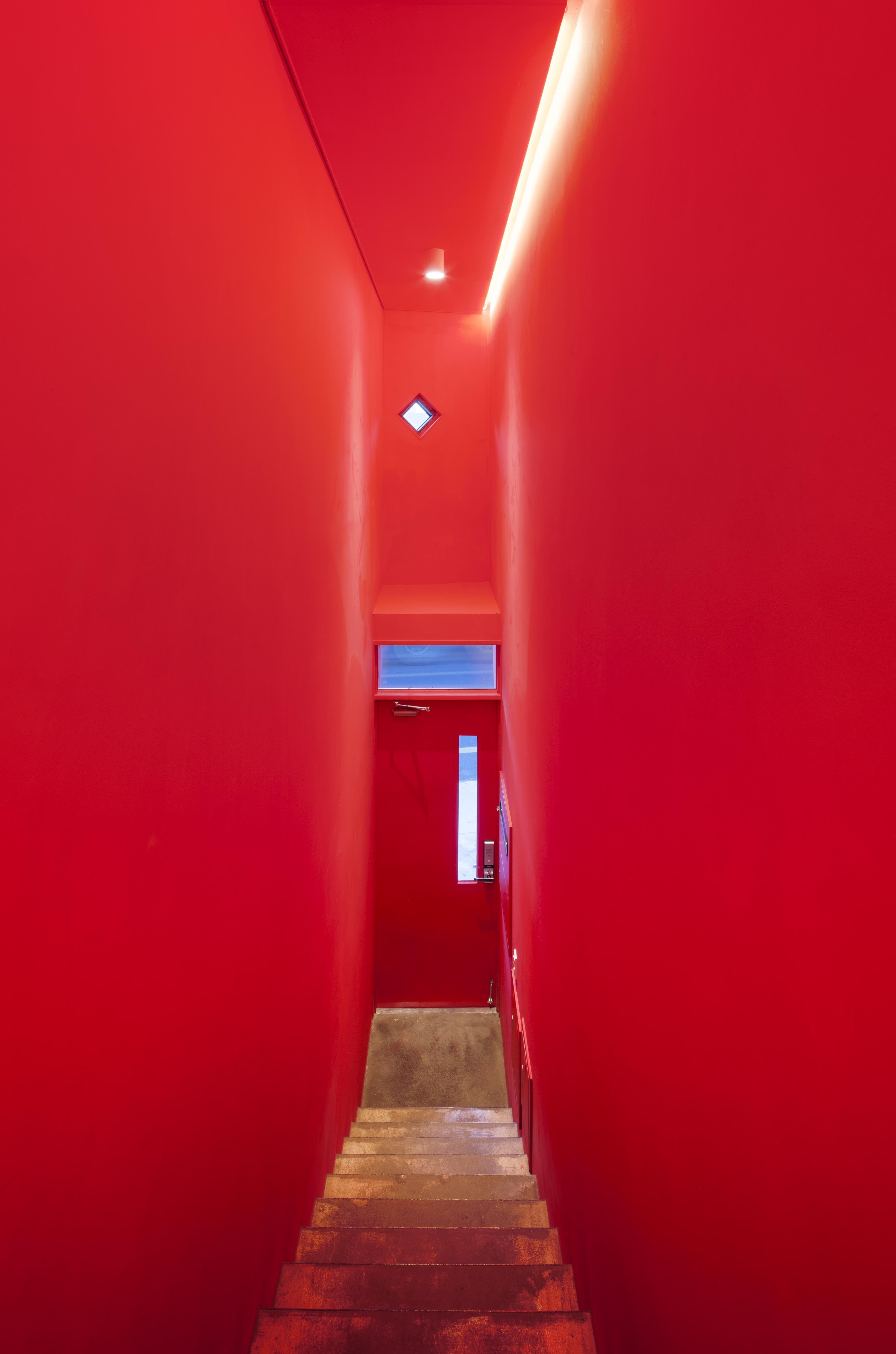

red color dominates the space and creates a contrast with a bold epoxy finish

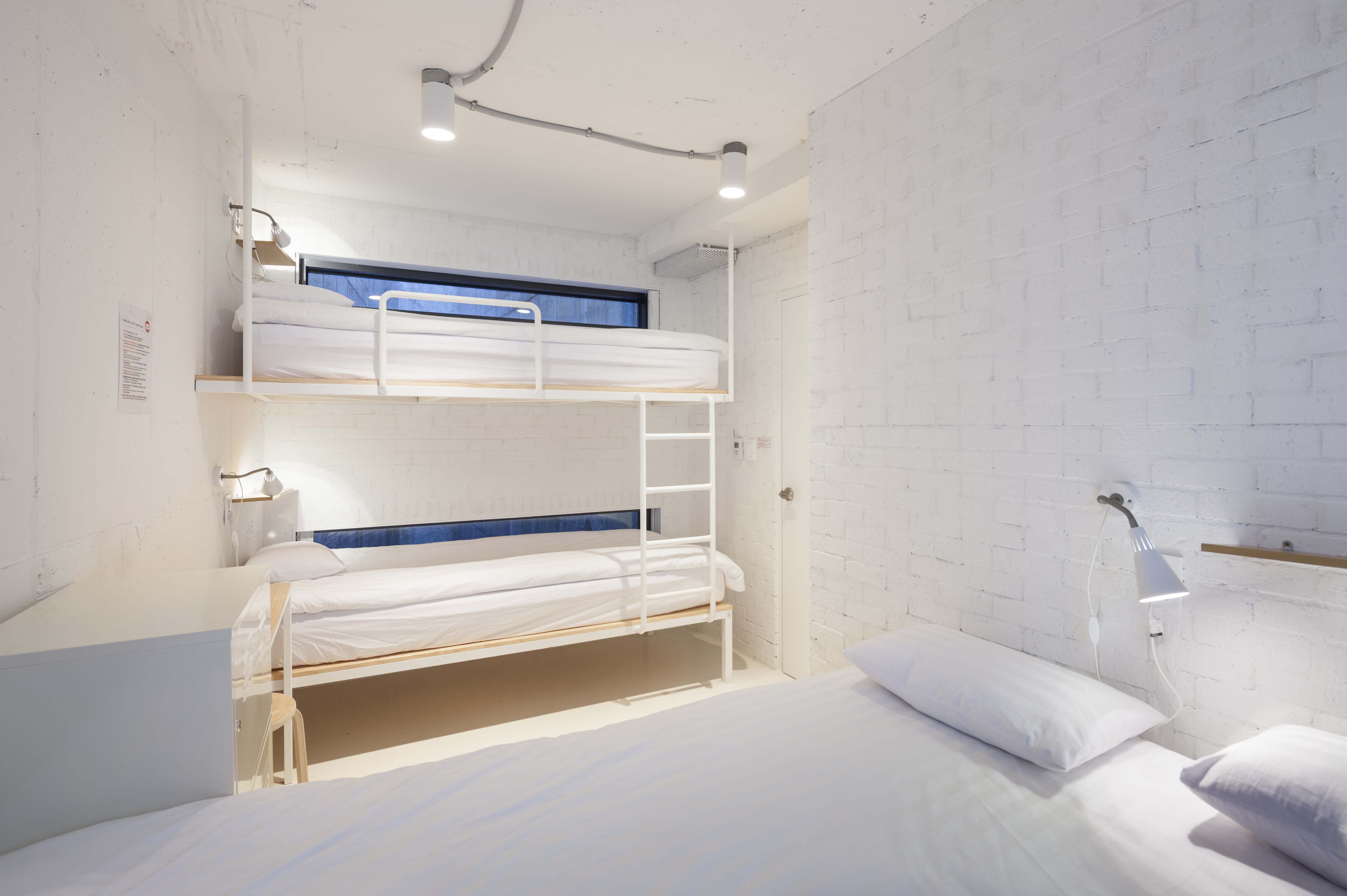

The south east was given to the house for better everyday living conditions. The 1st floors are angled because even though the footprint is small the volumetric experience is of spatial expansion. It is built to the maximum, so the angle and the extra volume is a bonus. The entrance to the guest house is at the rear, providing a walking experience and buffering from the busy traffic. The small lobby is greeted by an atrium of 3 floor depth. It provides a calm well of light gives some space of breath in otherwise a tight space compositions. The rooms in the 1st floor is small but have private bathrooms. Rooms in the 2nd and 3rd floors have communal bathrooms with a one 5 person family rooms in each. The communal Kitchen and breakfast room has double height space, visually connected to the library on the third floor. The library leads to an open red painted terrace above the house. The Outdoor stairs can function as cinema and music hall.

detail of starcase from bottom

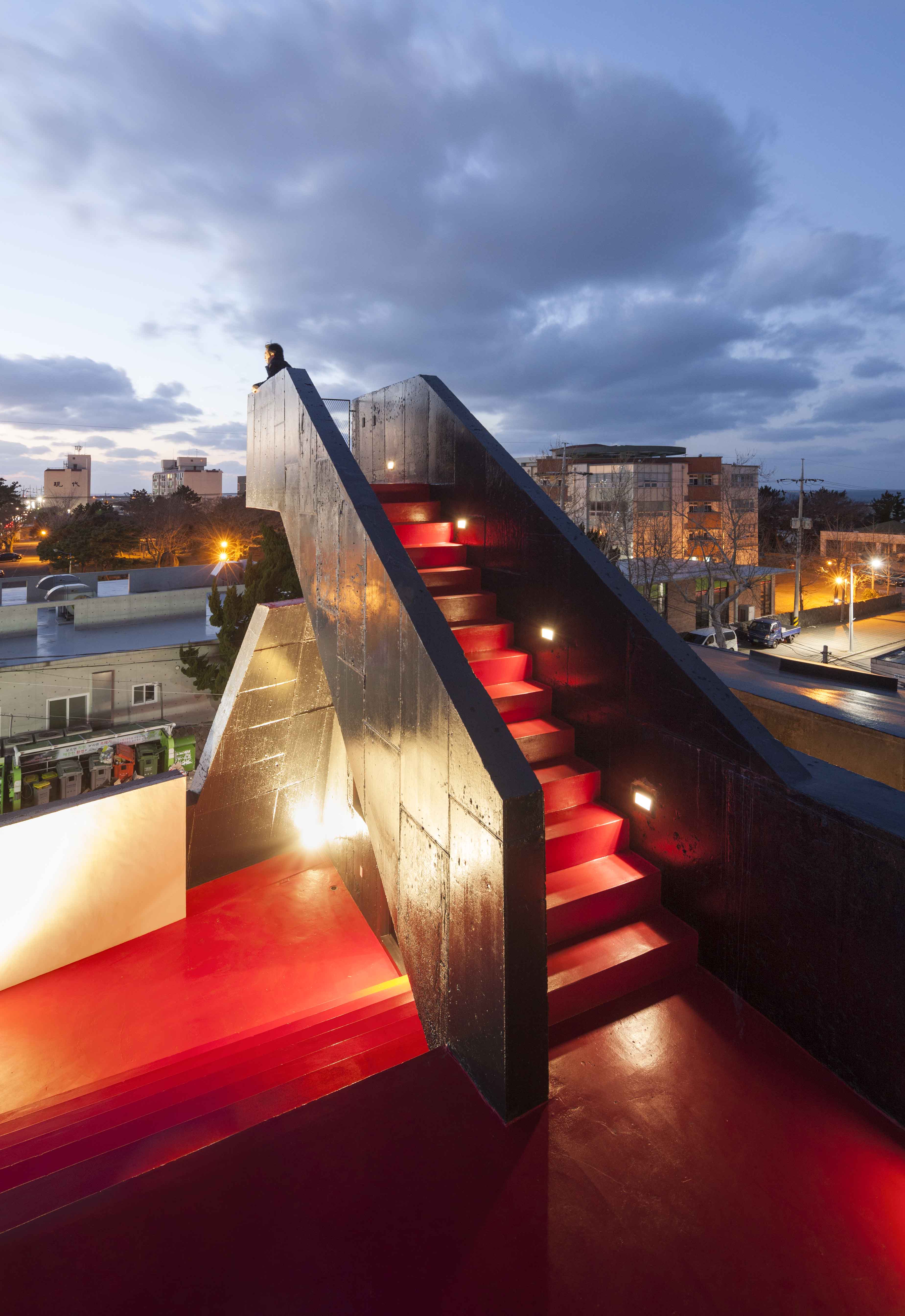

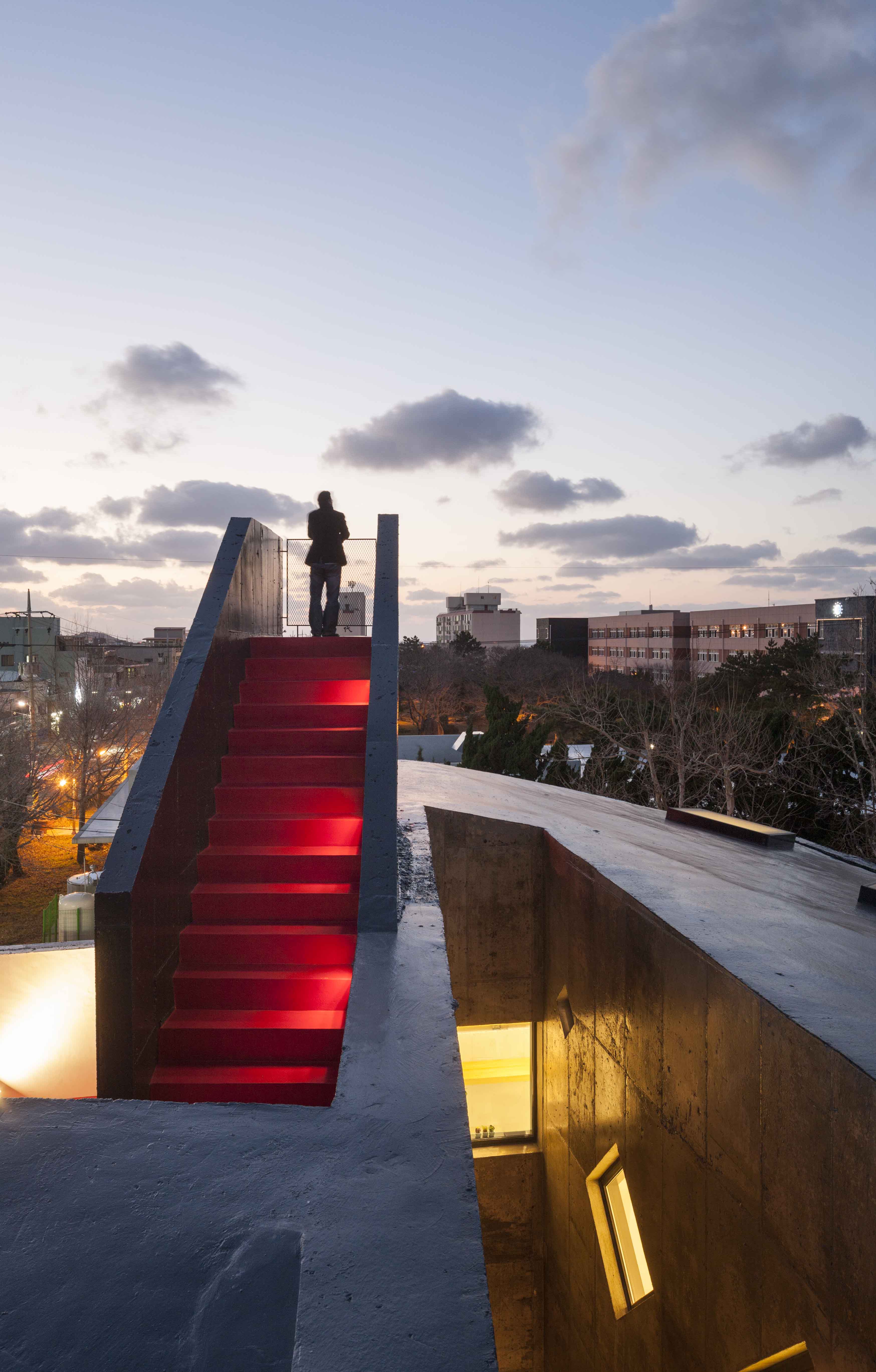

The Dragon head viewing platform is raised one floor up from the outdoor terrace to provide a good view of the sea and the mountain. The leading narrow stair can bring about an experience of ascending and anticipation. From the viewing platform, you can also checkout the planes coming in to land at jeju international airport which is only five minutes away...

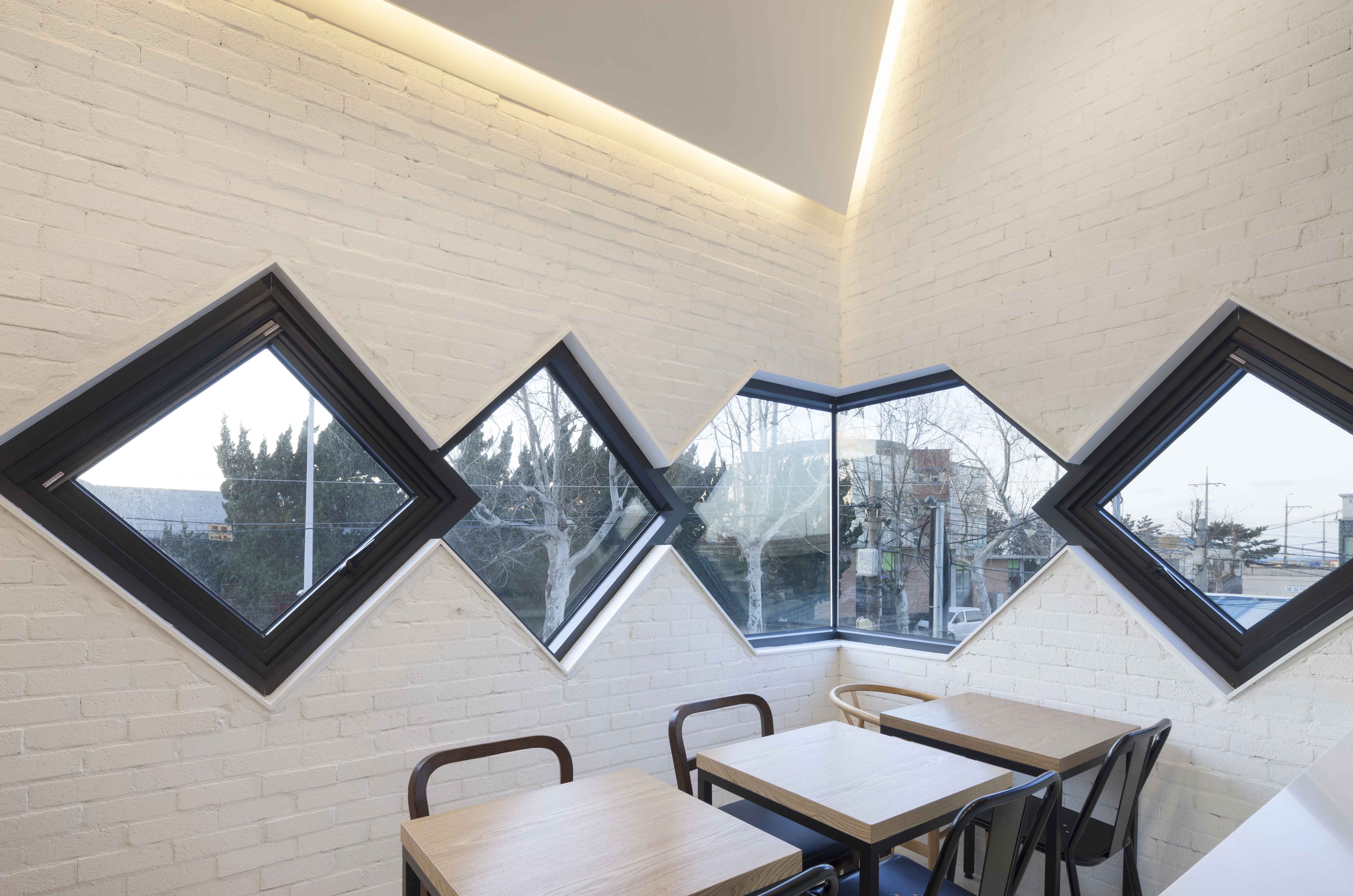

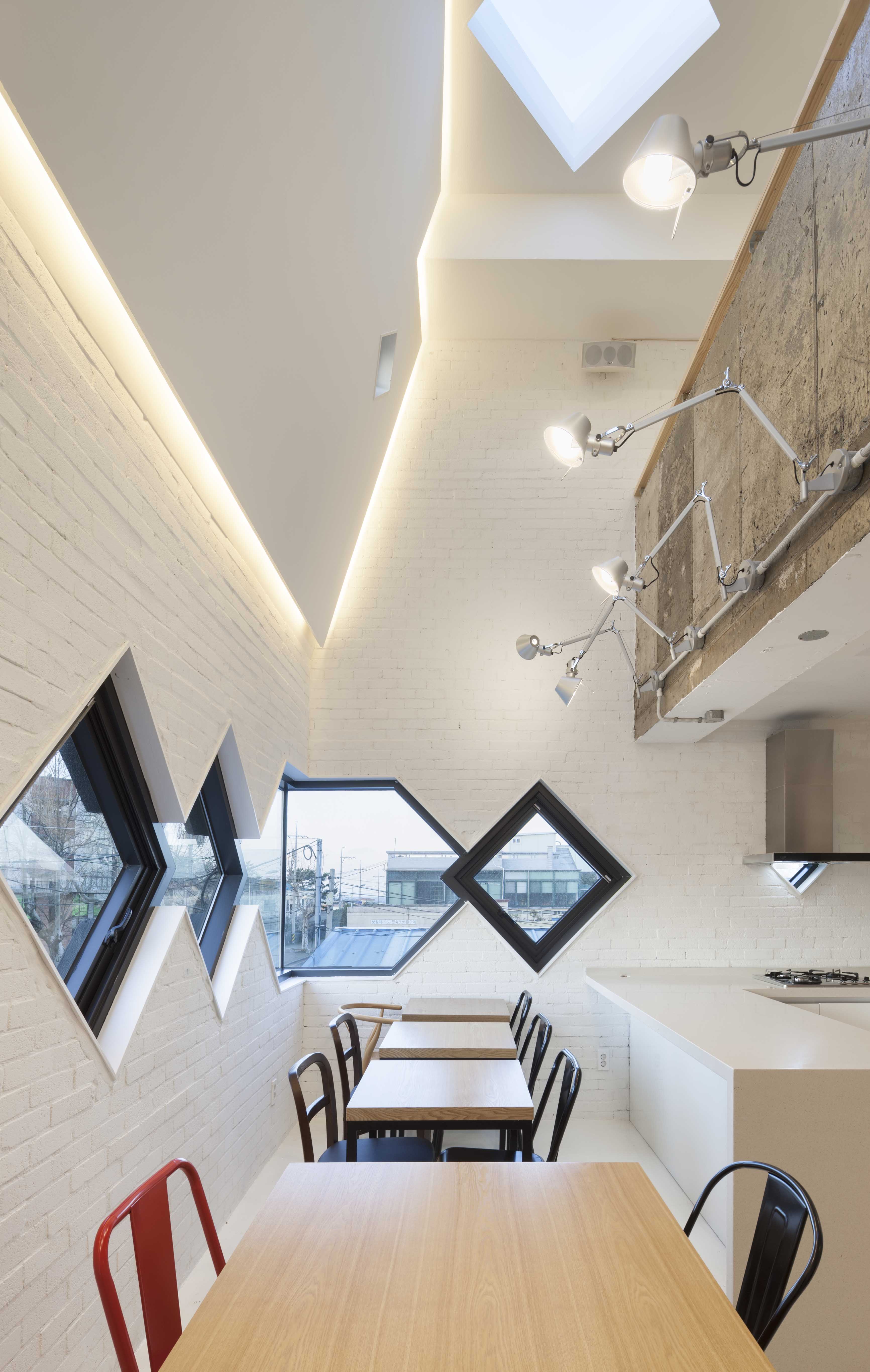

the diagonal openings of interior create a vivid space for the kitchen

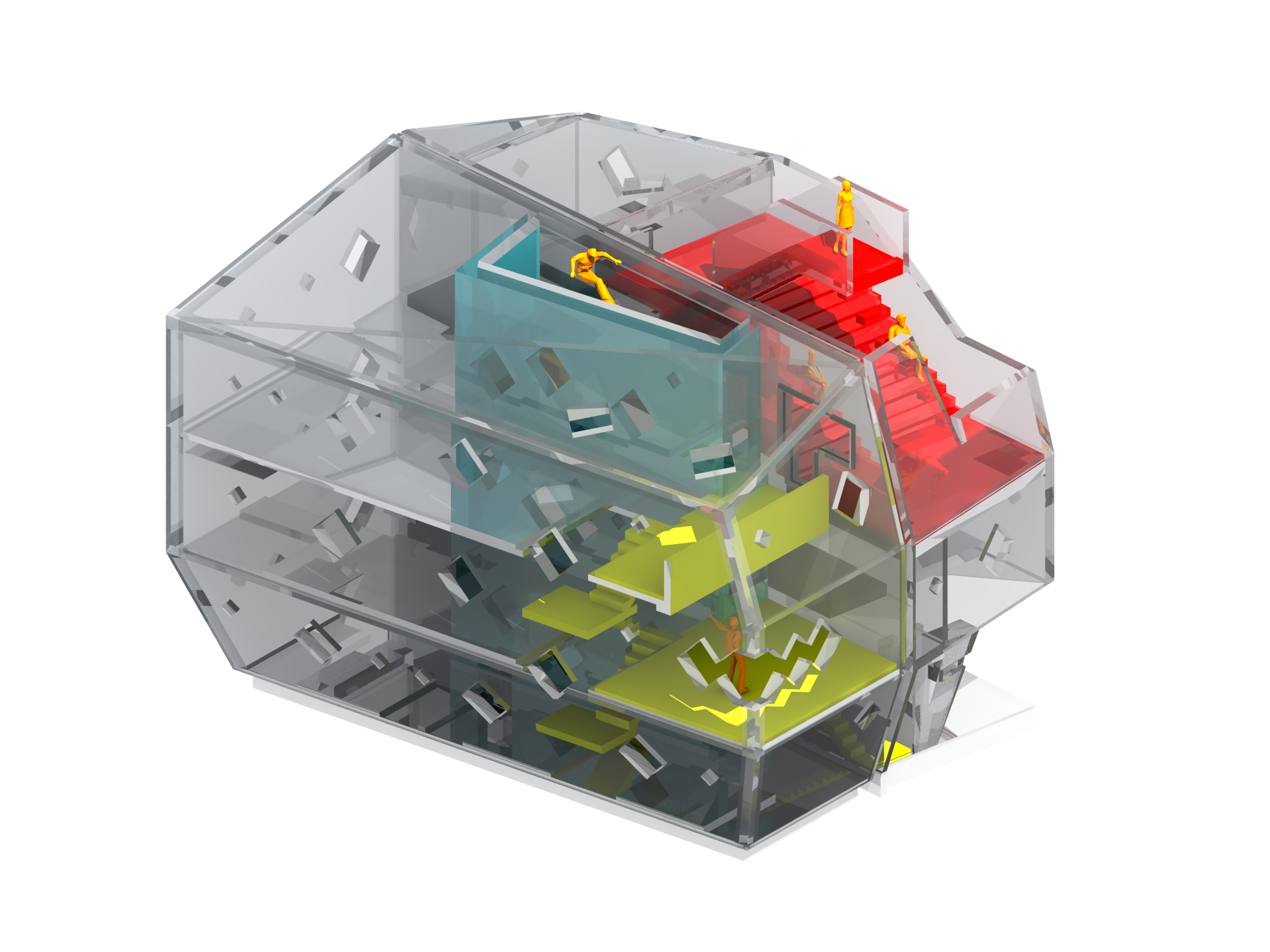

a representation of axonometric concept

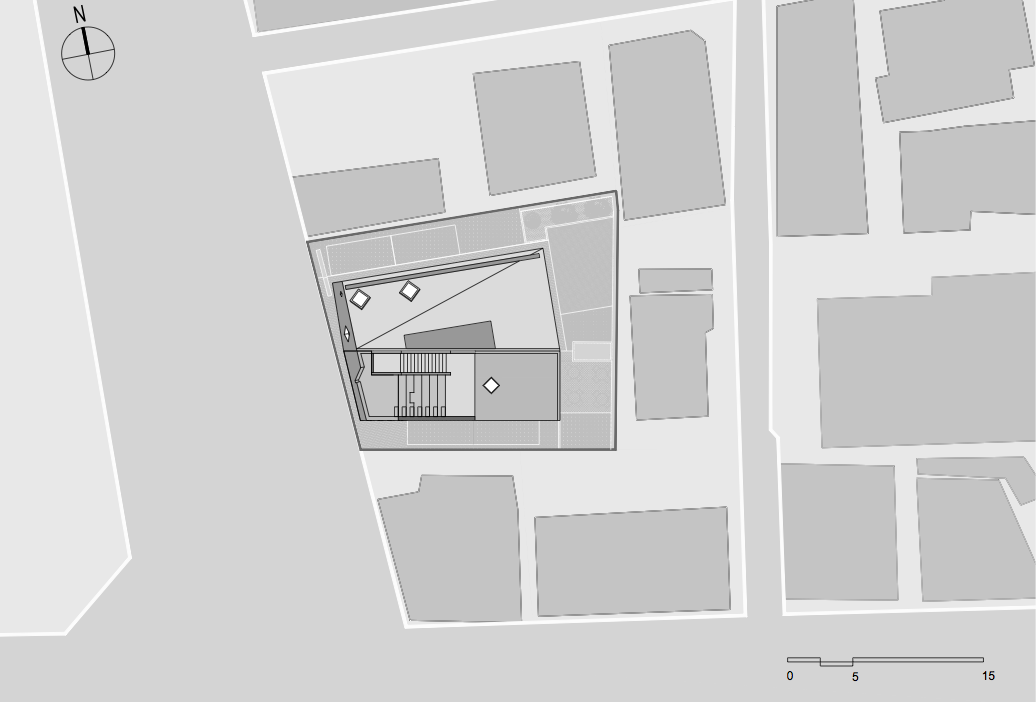

site plan

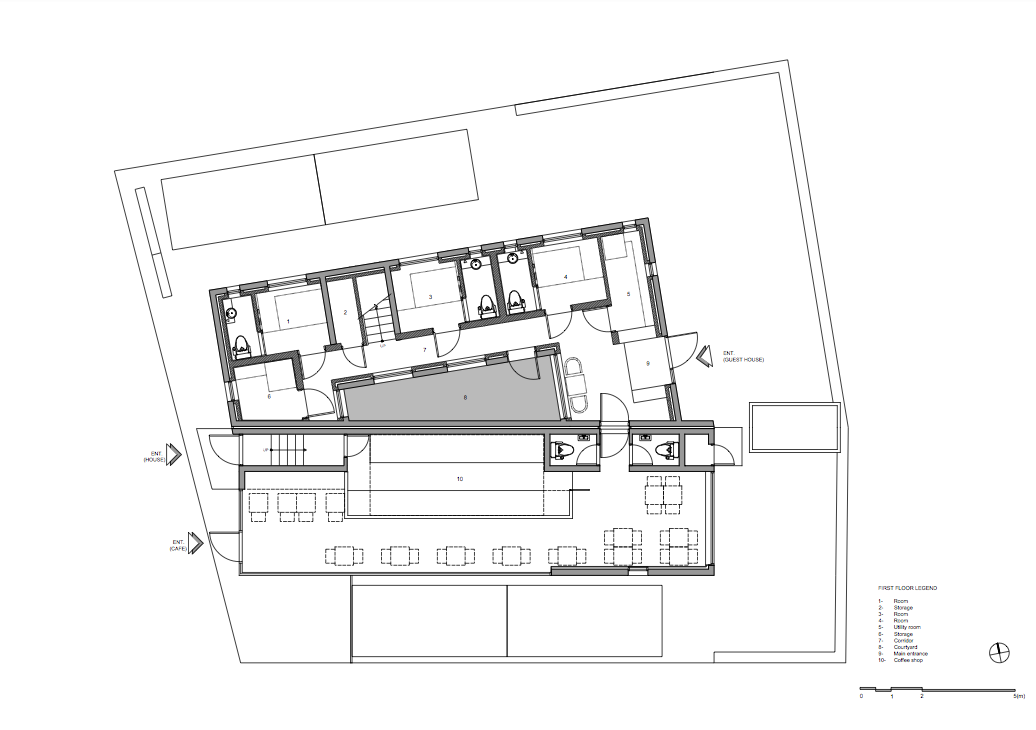

1st floor plan

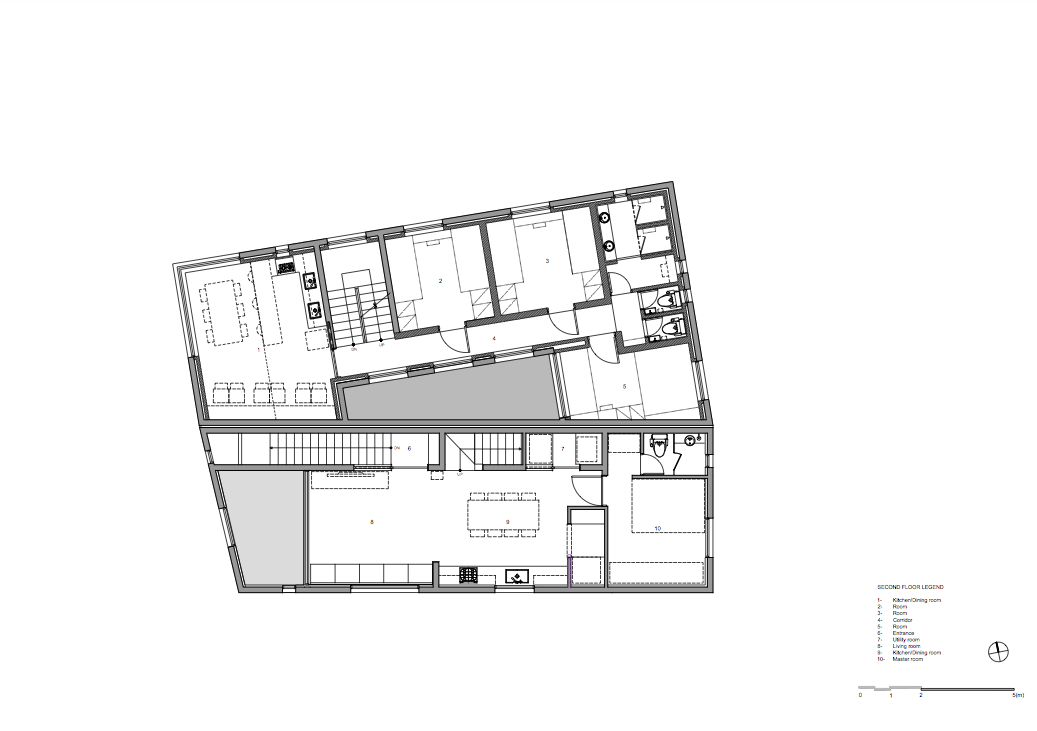

2nd floor plan

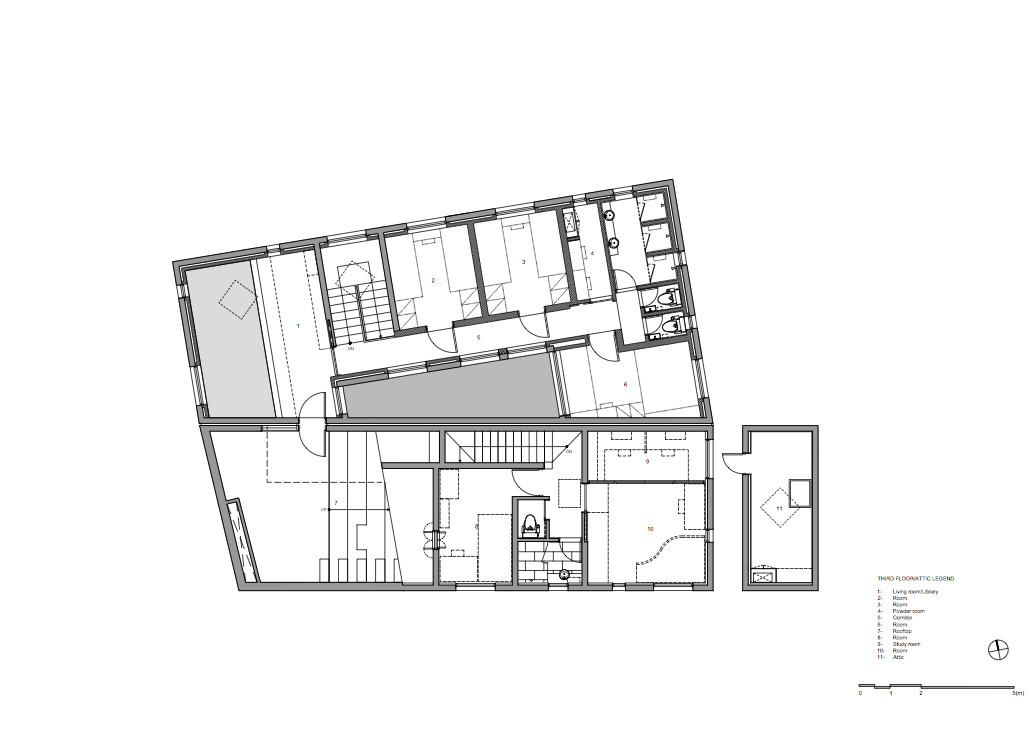

3rd floor plan

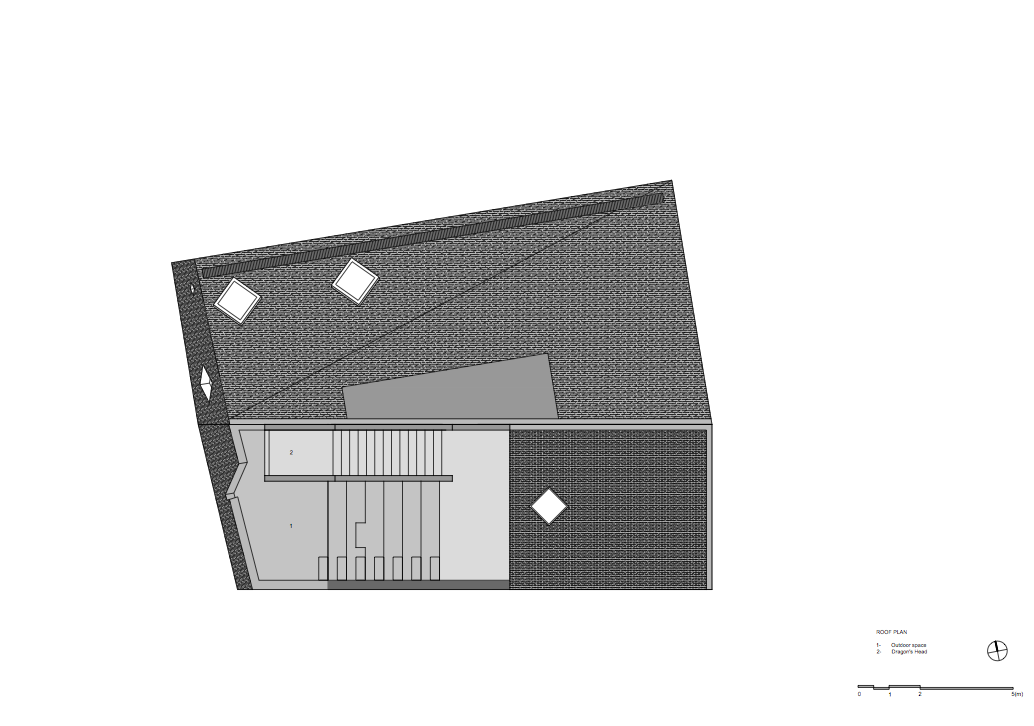

roof plan

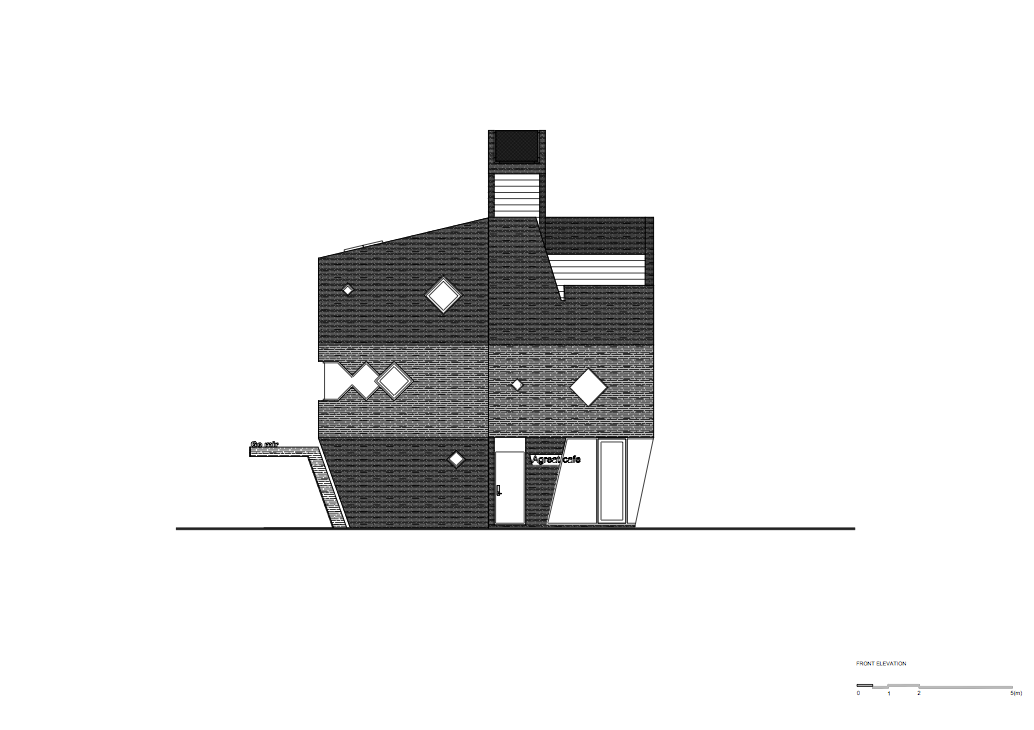

front elevation

back elevation

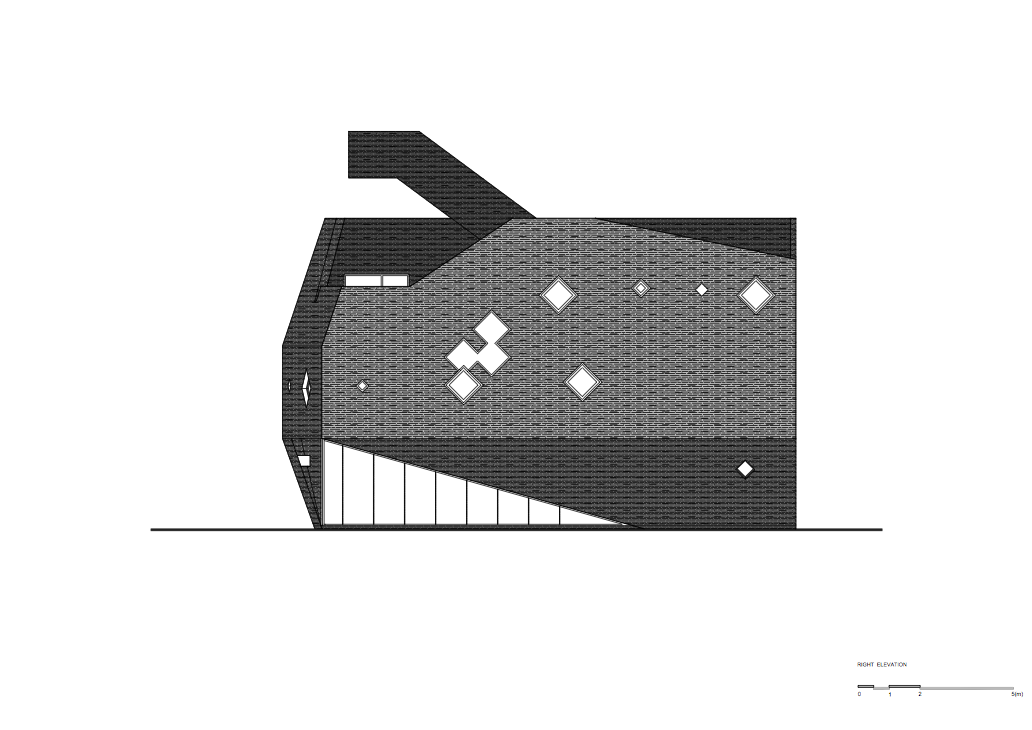

right elevation

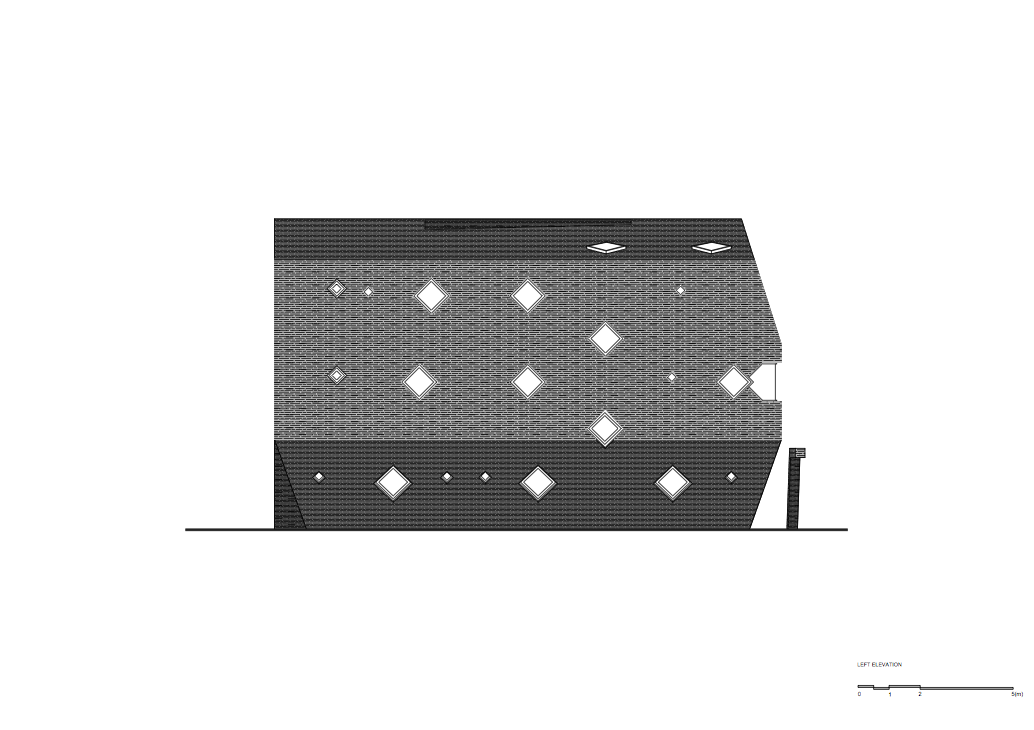

left elevation

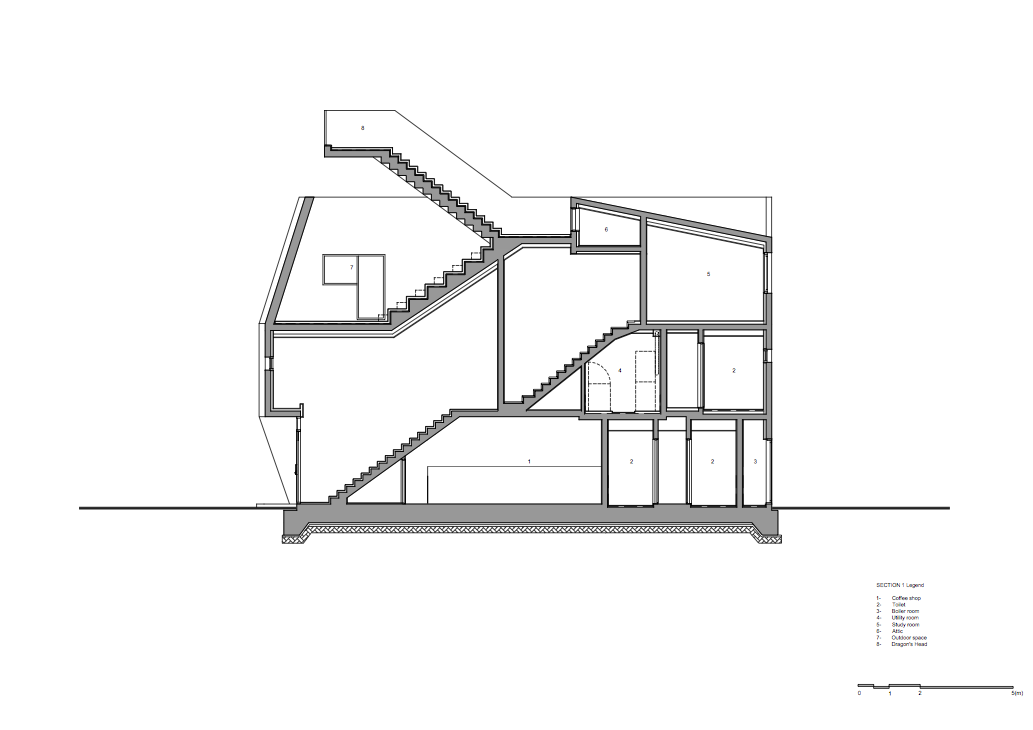

section-1

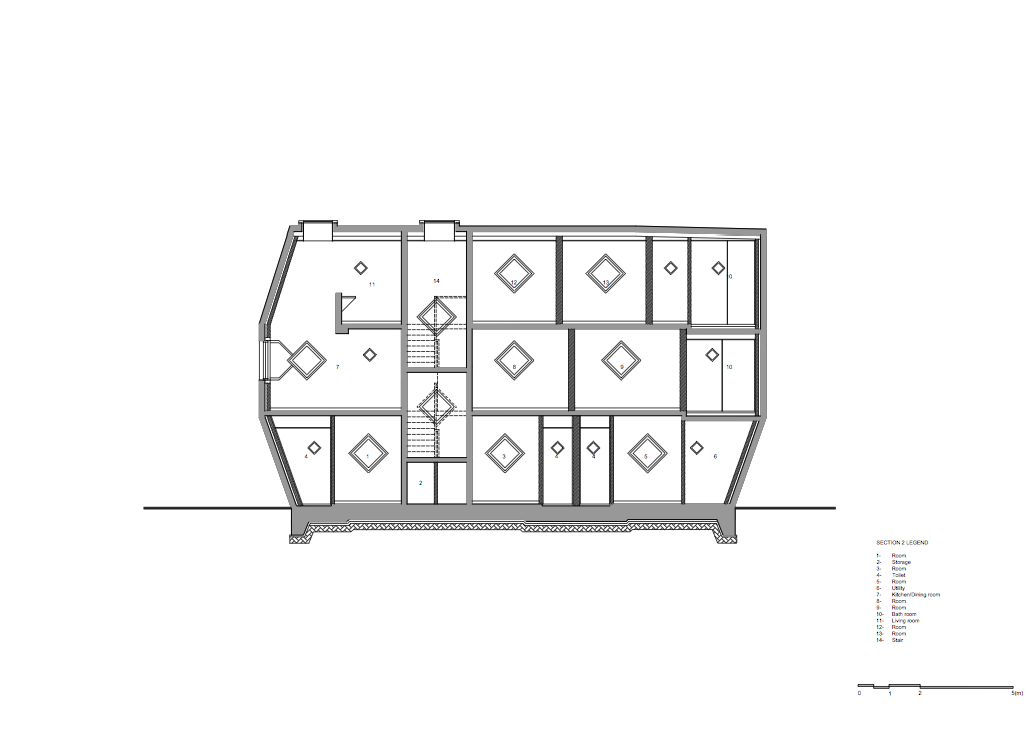

section-2

section-3

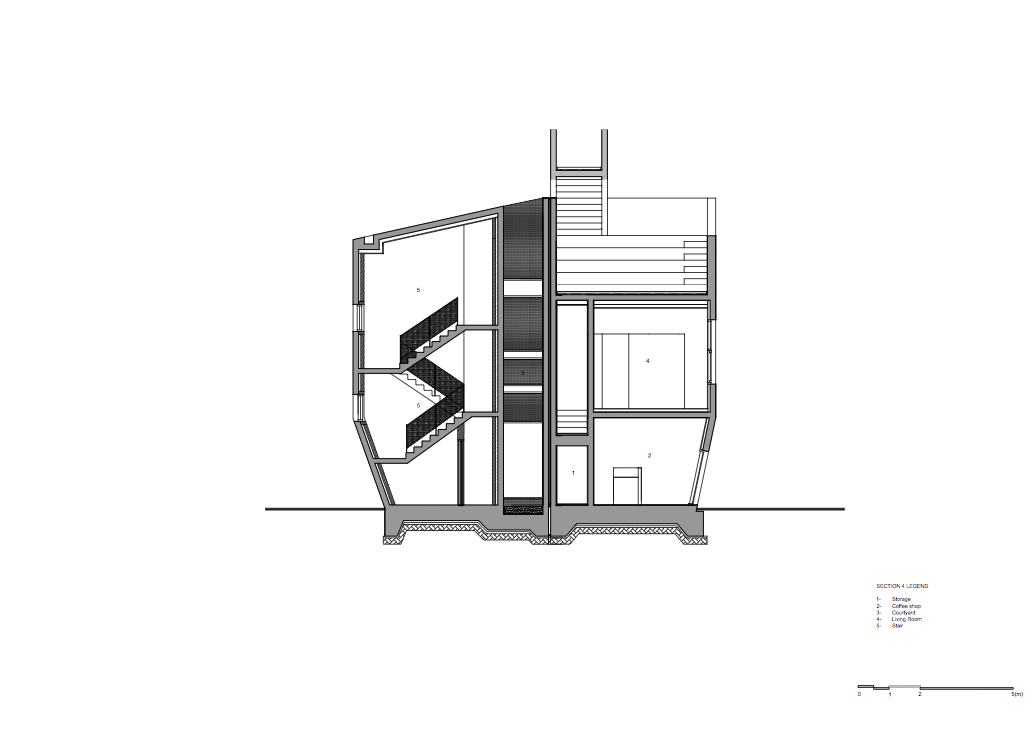

section-4

photography © Nam Goong Sun

Project Facts

Architect:MoonHoon Architects (Moon Hoon)

Project team:Kim suk hee, Park jeong uk, Song jun eui

Location:4, Yongdam-ro 7-gil, Jeju-si, Jeju-do, Korea

Programme:Café + House + Guest house

Site area:391m²

Building area:168.67m²

Gross floor area:408 m²

Building scope:3F

Height:10m

Parking:4

Building to land ratio:43.14%

Floor area ratio:104.35%

Structure:RC

Exterior finish:epoxy finish

Interior finish:paint on brick, epoxy finish

Structure engineering:SDM Structure, Hanuri Structure

Construction:GAU Architecture & Construction

Mechanical/Electric engineer:Chunghyo engineering

Design period:Sep. 2013-Feb. 2014

Construction period:Feb. 2014 - Oct. 2014

Budget:600 million KRW

Client:Go young suk
