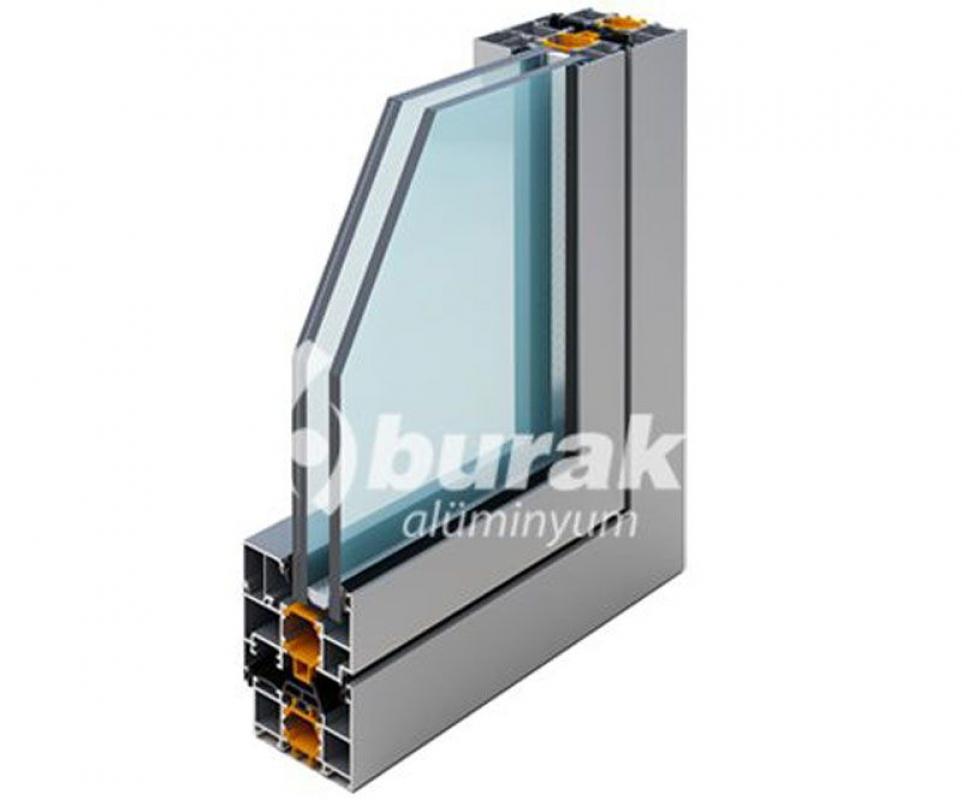

BM-72 CHARACTERISTIC FEATURES

• High insulated hinged system.
• Frame Depth: 72 mm
• Sash Depth: 80 mm
• Profile Wall Thickness: 1,6 mm - 2 mm
• Maximum Glass Thickness: 56 mm
• Insulation Bars: 28 mm
• Thermal Insulation Value(Uf): 1,99 W/m²K
• Application Alternatives: Inside&outside opening step hinge and flush window-door, hidden vent, tilt&turn, tilt&slide, folding door.
