BINH HOUSE - VTN ARCHITECTS

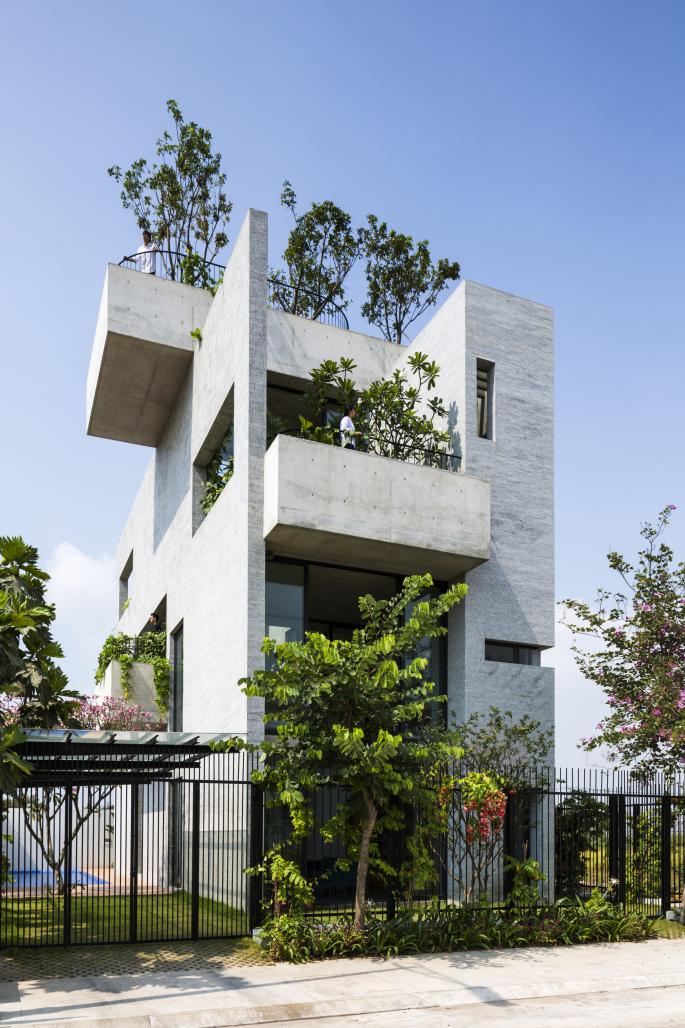

Under the rapid urbanization, cities in Vietnam have diverged far from their origins as low density tropical green space. Newly developed urban areas are losing their connection with nature. Binh house is one project in the "House for Trees" series, a prototypical housing design, providing green space within high density neighborhood.

The Inhabitants is a family of three generations. Therefore, the challenge is to create spaces which allow its residents interact and communicate despite their differences.

Gardens located on top of the vertically stacking spaces; bounded by sliding glass doors. This strategy not only improves the microclimate by using natural ventilation and daylight in every room, but the alternately stacking openings also increase visibility and interaction between the family members.
Living, dining, bedrooms, study room are continuously opened. From one room, people's sightlines can reach beyond to the other rooms via the gardens.
Service areas such as the kitchen, bathrooms, stairs and corridors are located in the west to limit heat radiation exposure towards frequently occupied areas. The vertical variation of spaces creates a lopsided pressure difference. Thus, when the surrounding houses are built, natural ventilation is maintained. Thanks to these passive strategies, the house always stays cool in the tropical climate. Air conditioning system is rarely used.
The roof gardens host large trees for shading, therefore reducing indoor temperature. Vegetables can also be planted to serve its resident's daily needs. This vertical farming solution is suitable for high-density housing whilst also contributing to Vietnamese way of life.
Using sustainable materials such as natural stone, wood, exposed concrete combined with the microclimate, this house reduces greatly operational and maintenance cost. Up to date, residents have never used furnished AC. The architecture is not only to meet the functional and aesthetic concerns, but also as a means to connect people to people and people to nature.

Name of project : Binh House
Office Credit: VTN architects (Vo Trong Nghia Architects)
Office URL: https://vtnarchitects.net
Contractor: Wind And Water House JSC
Status: Built in 03.2016
Program: Private house
Location: District 2, Ho Chi Minh City
Site Area: 322 sqm
Footprint: 136 sqm
GFA: 233 sqm
Photographs: Hiroyuki Oki, Quang Dam

Principal Architect: Vo Trong Nghia
Design Team: Masaaki Iwamoto, Chiang Hsing-O, Nguyen Tat Dat, Nguyen Duy Phuoc, Takahito Yamada

Binh House by VTN Architects (Vo Trong Nghia Architects) in Vietnam won the WA Award Cycle 40. Please find below the WA Award poster for this project.
