ma48 - wien

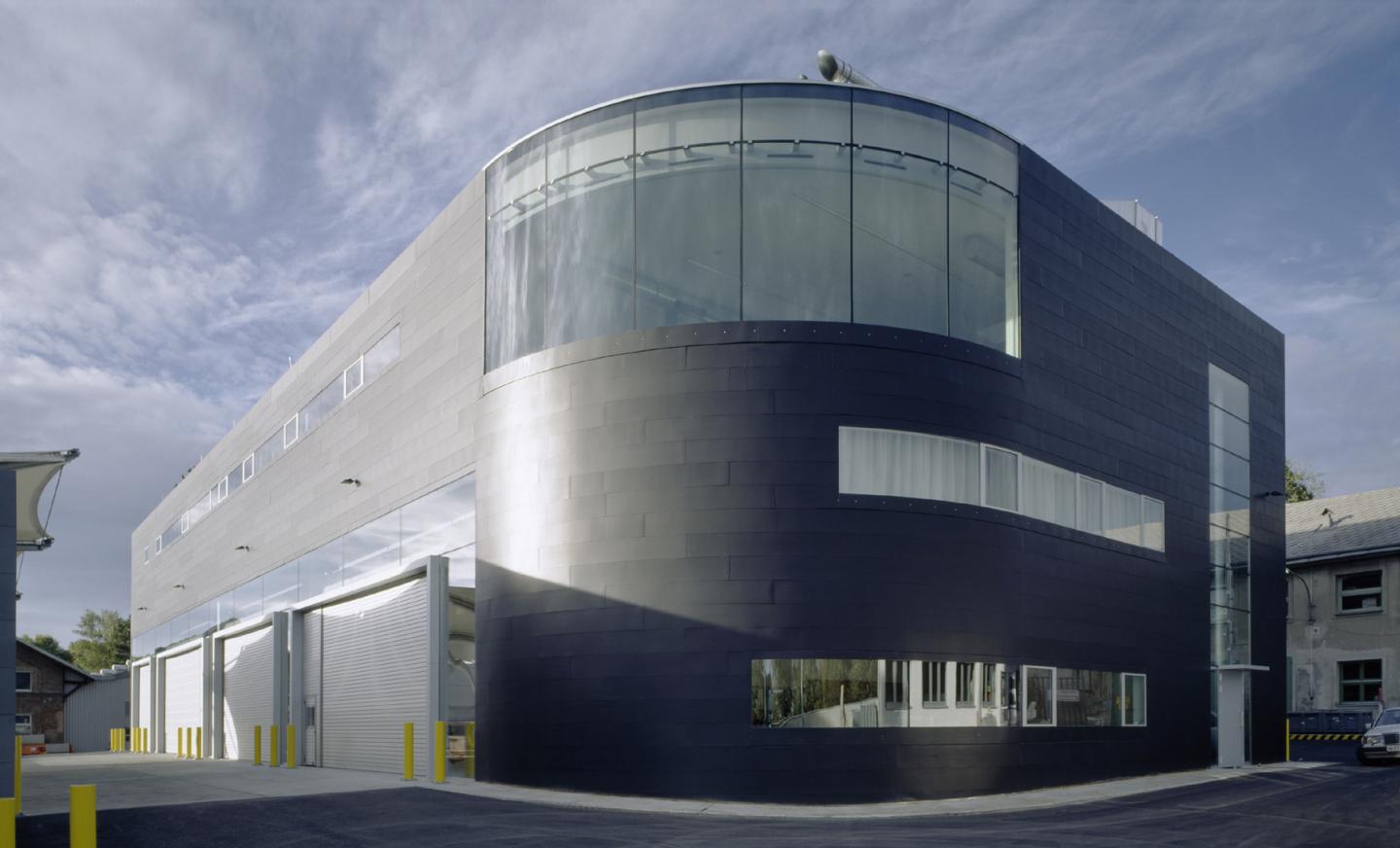

Not just service buildings, but structures that create a sense of identity. The stark lines of the compact cubic structures are enhanced by flush windows and anthracite-coloured cladding made of copper-titanium-zinc alloy. The very dark colour of the velvety metal sheets gives solid presence to the building, and slight surface irregularities add an element of liveliness. An important contrasting design feature is the large floor-to-ceiling window on the top floor. The clear run of glass up to the top line of the building creates a cut-out effect. The inset rollup doors on the ground floor provide visual tension, as they are the only planes that are not flush with the exterior building wall.
Central workshop/ office and employee facilities

Dimensions: Length: app. 50.7m
Width: app. 20.7m
Height: app. 12.0m

Building parts:

• Underground floor with entry/exit ramp: garage and storage area.
• Ground floor: repair workshop for a maximum of 18 vehicles, with vehicle washing plant and head mechanics offices
two craneways
• Intermediate floor: office space
• Top floor: locker rooms and sanitary facilities for about 150 employees;
dining room, offices.

Structural engineering system:

The underground floor will be built in concrete, based on drill-foundation piles. To provide vehicle access during the construction stage, the excavation will be secured with drill-foundation piles.
The garage section is designed as a fire lobby, with adequate fire-rated wall and door construction between the garage and the adjacent storage area for snow clearing equipment. Smoke outlets are placed along the longitudinal walls, opening to the exterior.

The workshop floor (ground floor) is designed as a column-free space, providing maximum flexibility. To support this structure, floor-to-ceiling reinforced concrete partition walls on the upper floor take up vertical loads and transfer them to the exterior walls, and 2x2 composite columns are placed at the entry side of the workshop hall. Concrete cores at the transverse sides ensure adequate transverse stiffening.

Construction:

Steel/reinforced concrete construction with concrete cores and rear-ventilated metal-cladded façade. To ensure adequate lighting, flush-joint, putty-free, impact-resistant sun protection glazing is used for the hall area. A curved floor-to-ceiling window with multi-layer insulation glazing, length about 11.5m, serves as the dominant design element for the top floor dining room. The building has a flat, non-insulated roof resting on a steel/reinforced concrete base.
