LQS Architects built boutique hotel featuring three-dimensional cut in Zhejiang Province

China Architecture News - Sep 14, 2022 - 13:01   1641 views

LQS Architects built boutique hotel featuring three-dimensional cut in Zhejiang Province

LQS Architects has built a boutique hotel featuring three-dimensional cut and sculptured effects in Maoyang Town on the coast of Ningbo City, Zhejiang Province, China.

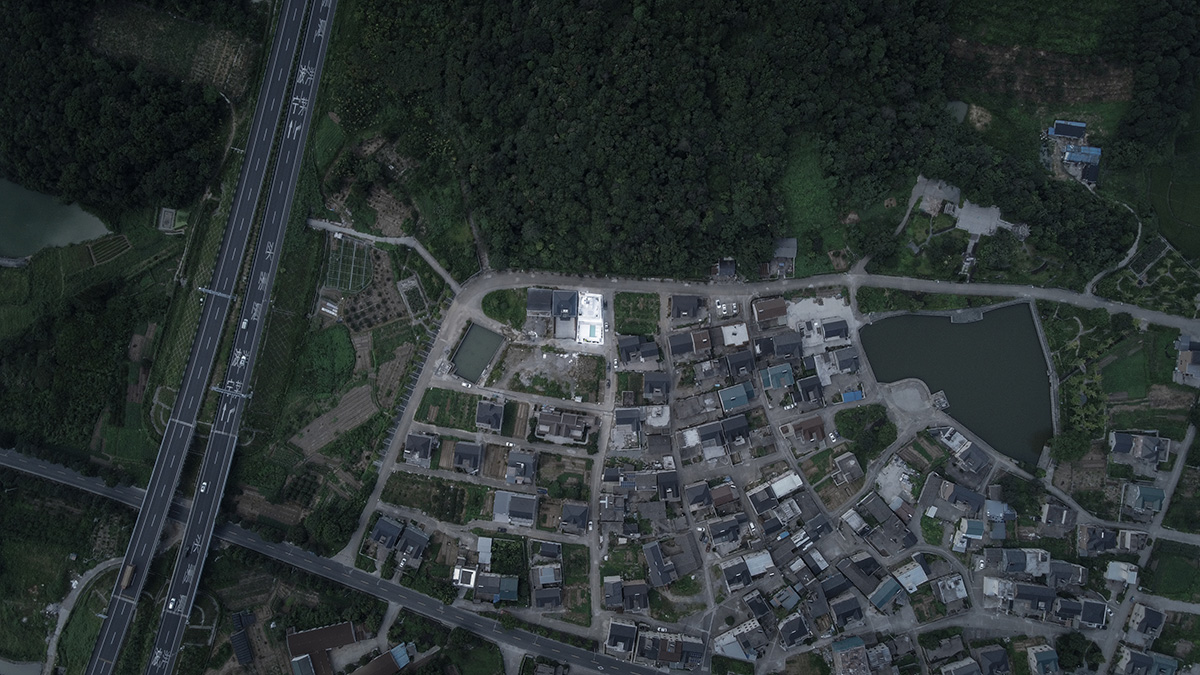

Called 10³ Boutique Hotel, the project plot is a typical homestead with its three sides surrounded by mountains and one side faced with the sea.

LQS Architects built boutique hotel featuring three-dimensional cut in Zhejiang Province

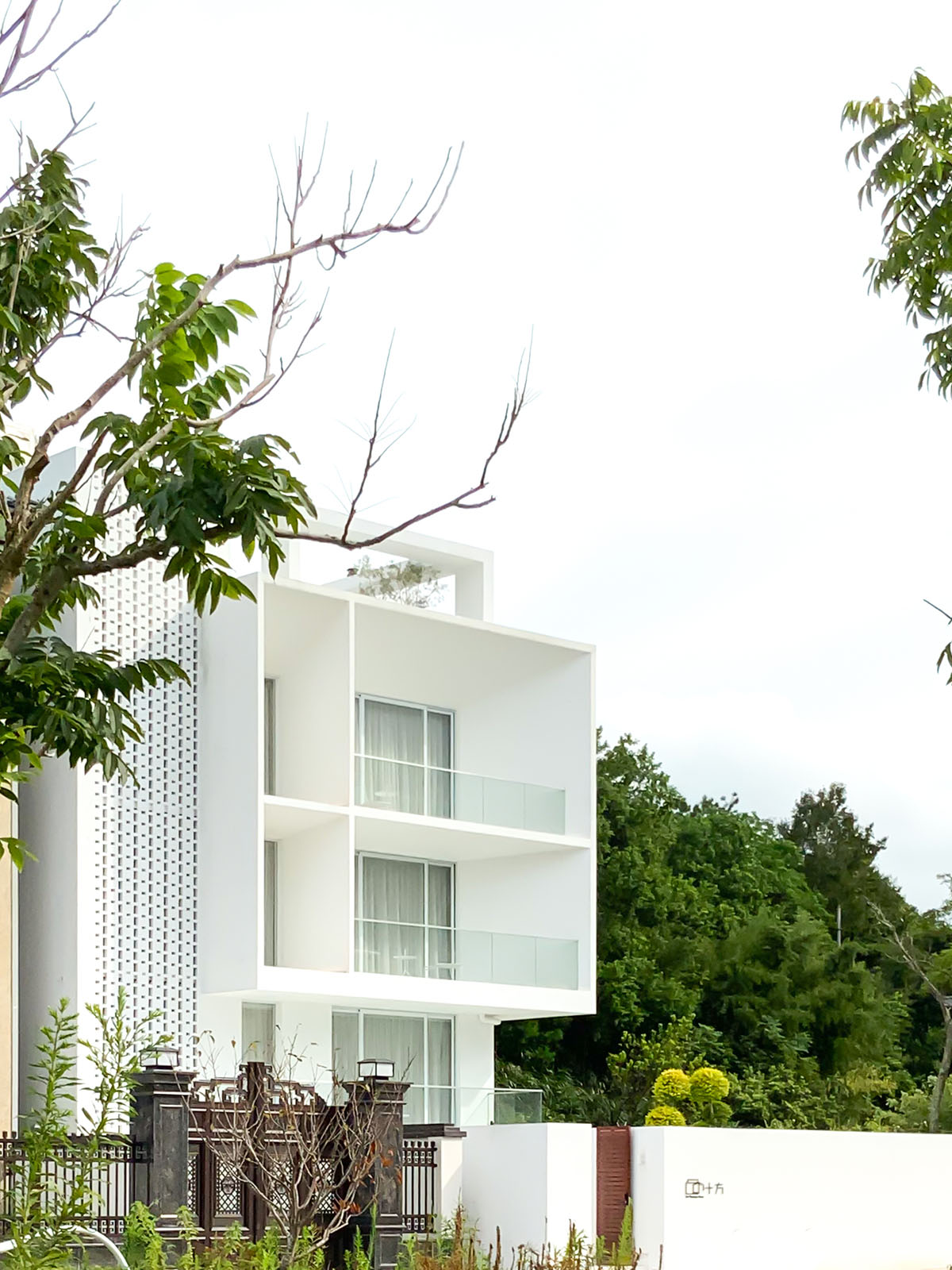

The site is very close to a scenic spot, so the client wished to build it into a hotel and expected to receive high profits. With modern design methods, LQS Architects made this white cubic building stand out uniquely among its surroundings. It has become a landmark in that area and has gain popularity among young people.

LQS Architects built boutique hotel featuring three-dimensional cut in Zhejiang Province

10³ Boutique Hotel takes its name from the size of common rural homestead in China, which is usually a volume of 10*10*10m, 10³. For this project, the design team intended to break the stereotype of common homesteads by adopting a geometric shape, and thus promoting diversity of house design.

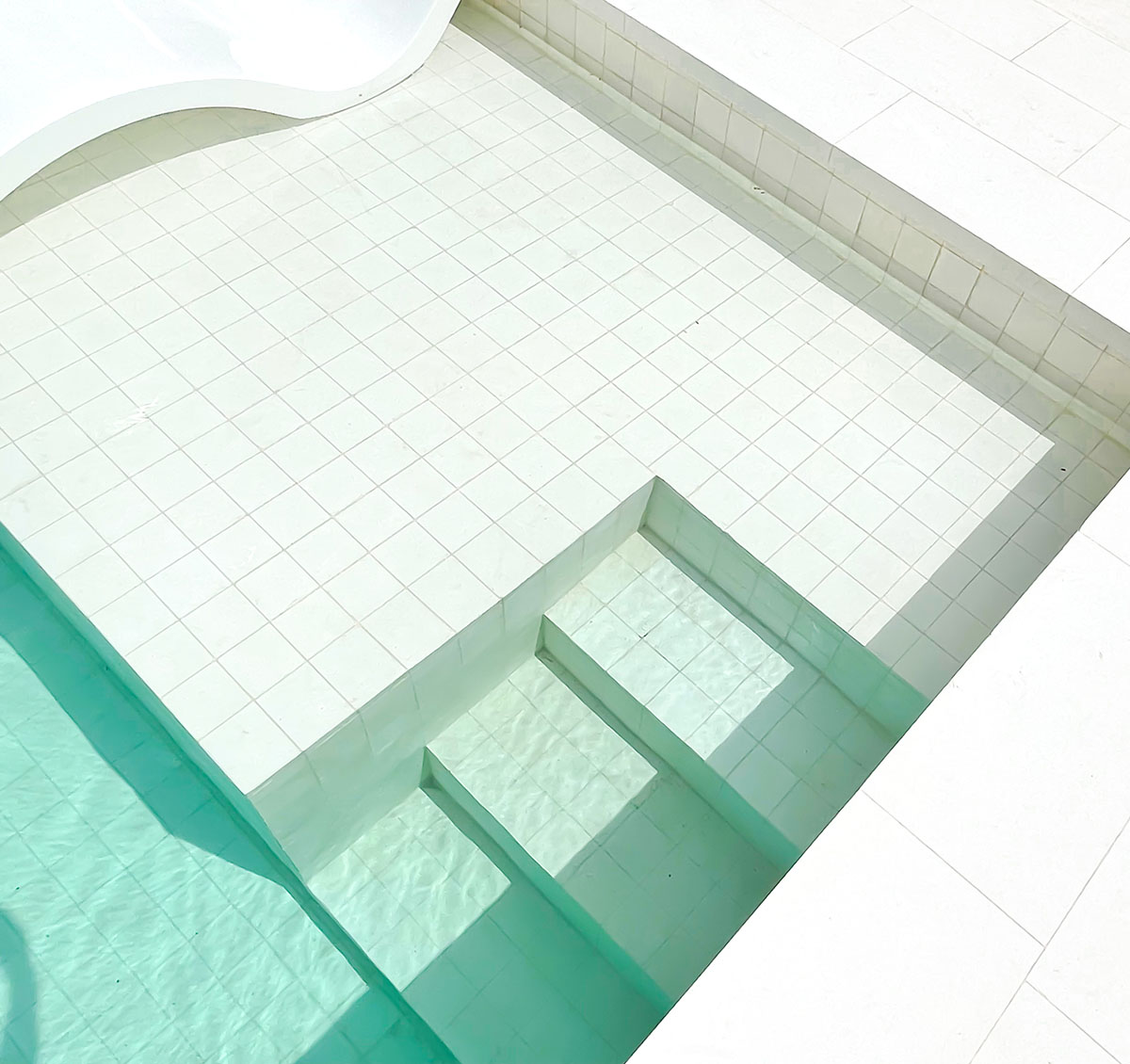

The design team creatively turned an originally dull sunken semi-underground space into a swimming pool with the use of plexiglass, making it a highlight of the project.

LQS Architects built boutique hotel featuring three-dimensional cut in Zhejiang Province

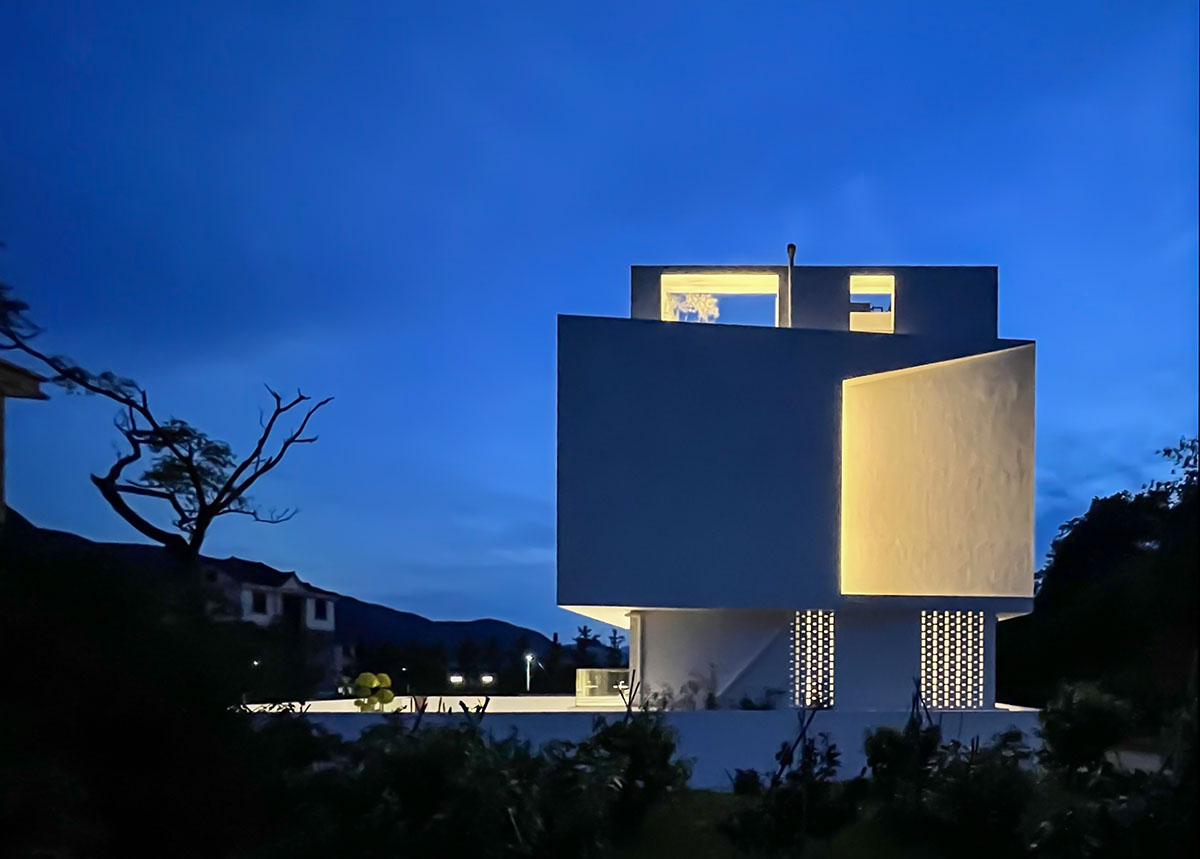

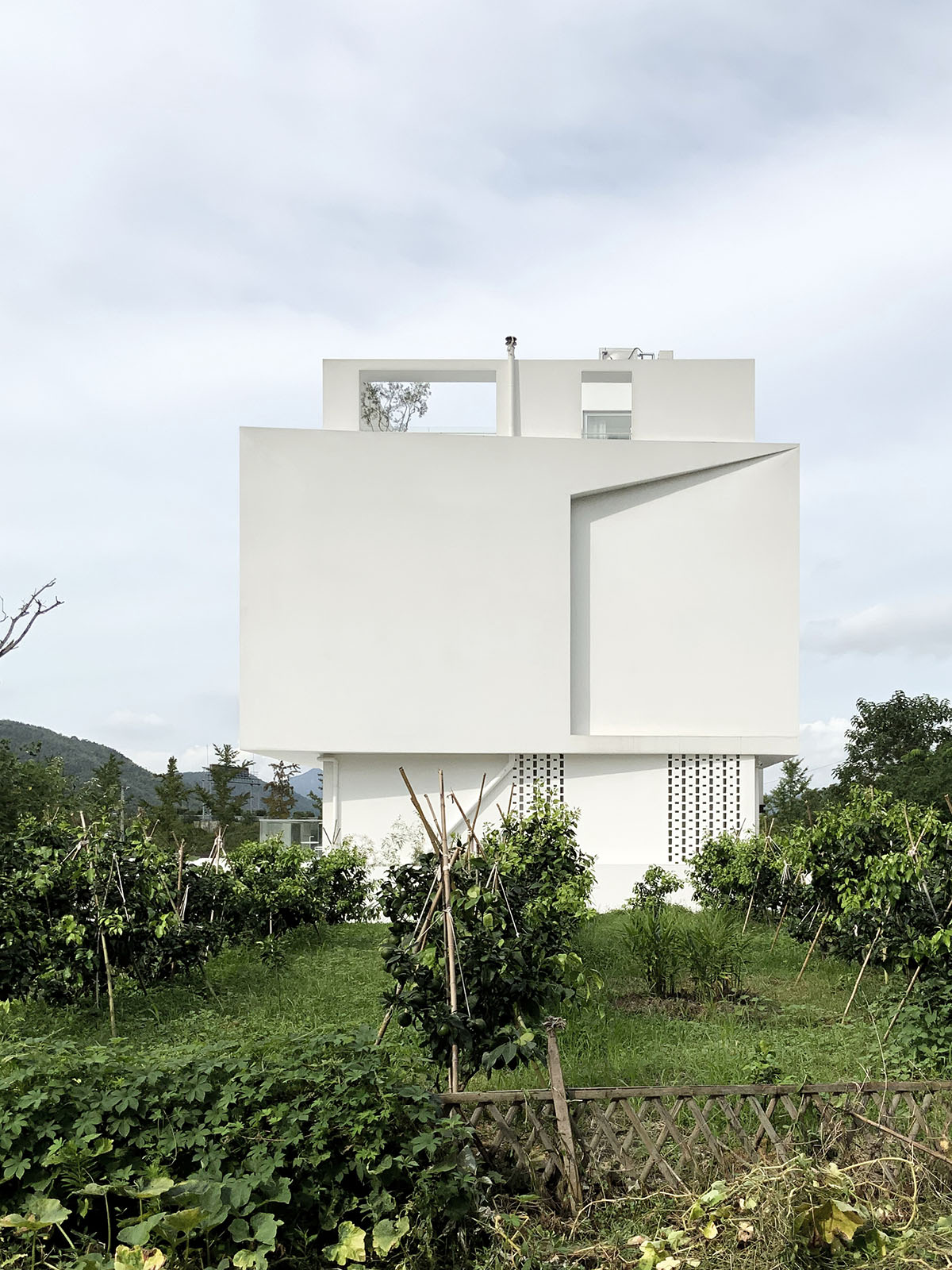

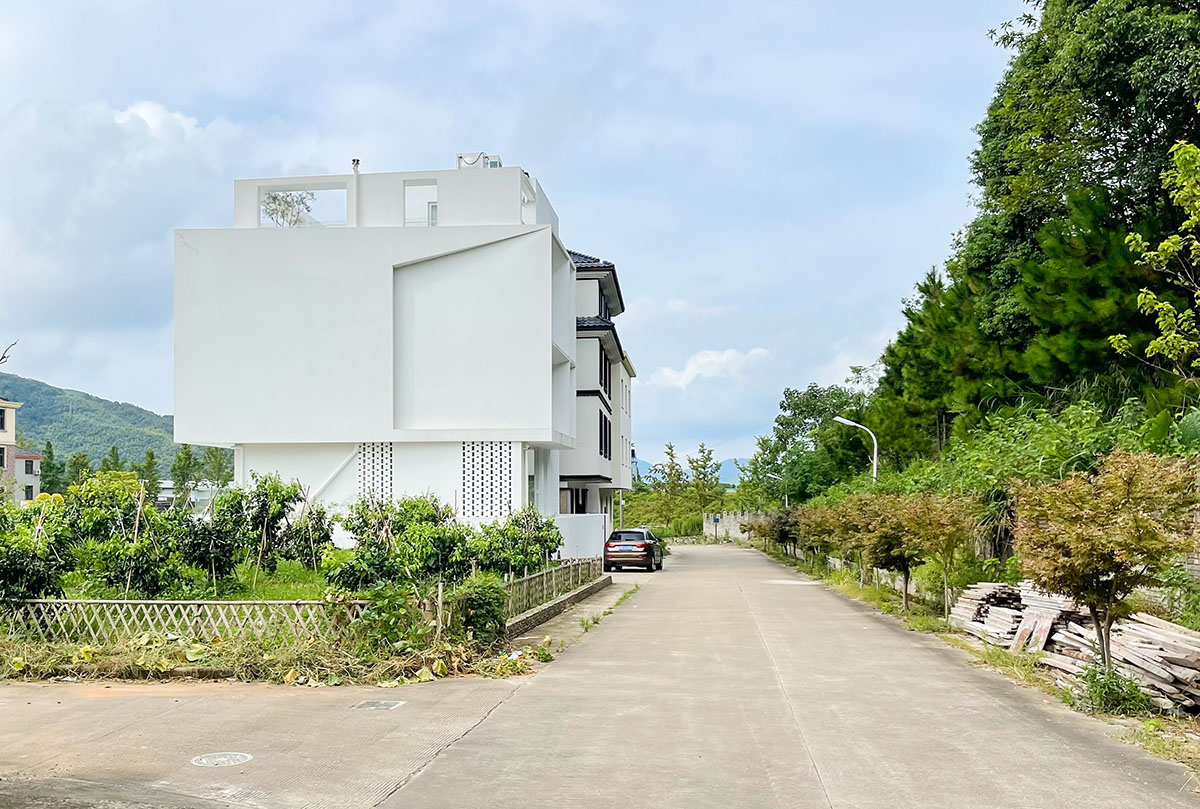

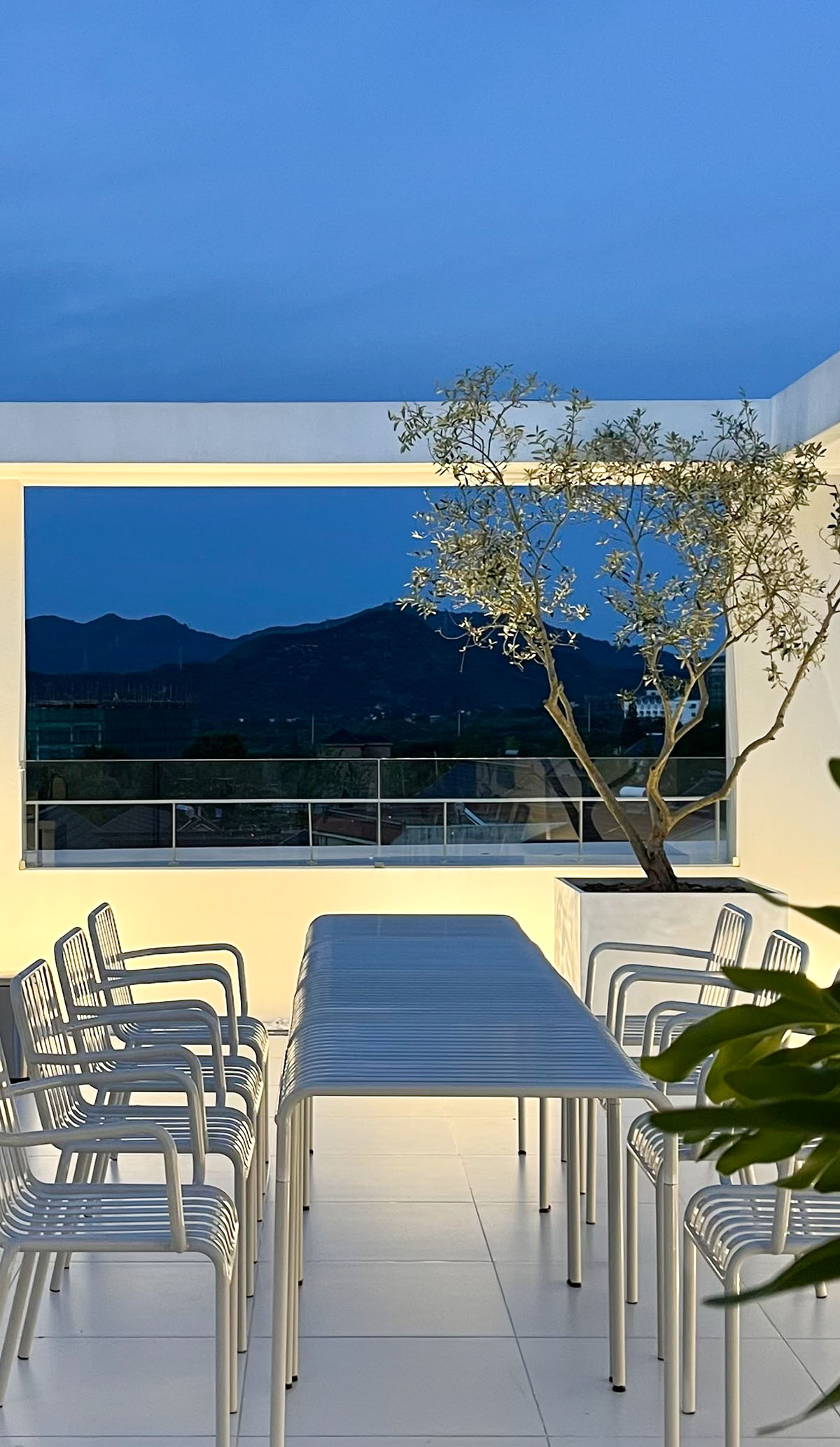

The rooftop platform is fully utilized to increase the space for the hotel. The facades feature strong three-dimensional cut and sculptured effects, which enhance the identity of the building.

LQS Architects built boutique hotel featuring three-dimensional cut in Zhejiang Province

In China, land supply is strictly controlled. The plot of the project is about one hundred square meters (10*10m). One challenge was how to improve the utilization rate of the plot and design more comfortable living spaces within a limited site area.

Other challenges lay in the limited budget, and how to realize a minimalistic architectural style and the tilted structures on one facade. In addition, working with the unprofessional construction team composed of local villagers was also one of the obstacles in this project.

LQS Architects built boutique hotel featuring three-dimensional cut in Zhejiang Province

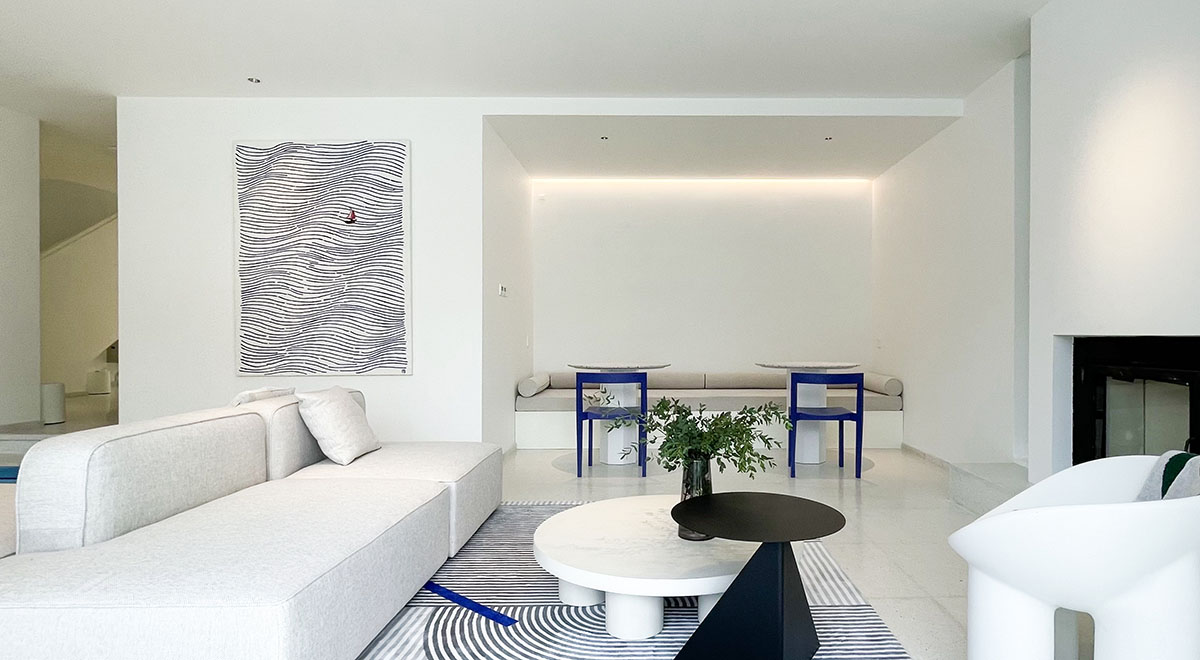

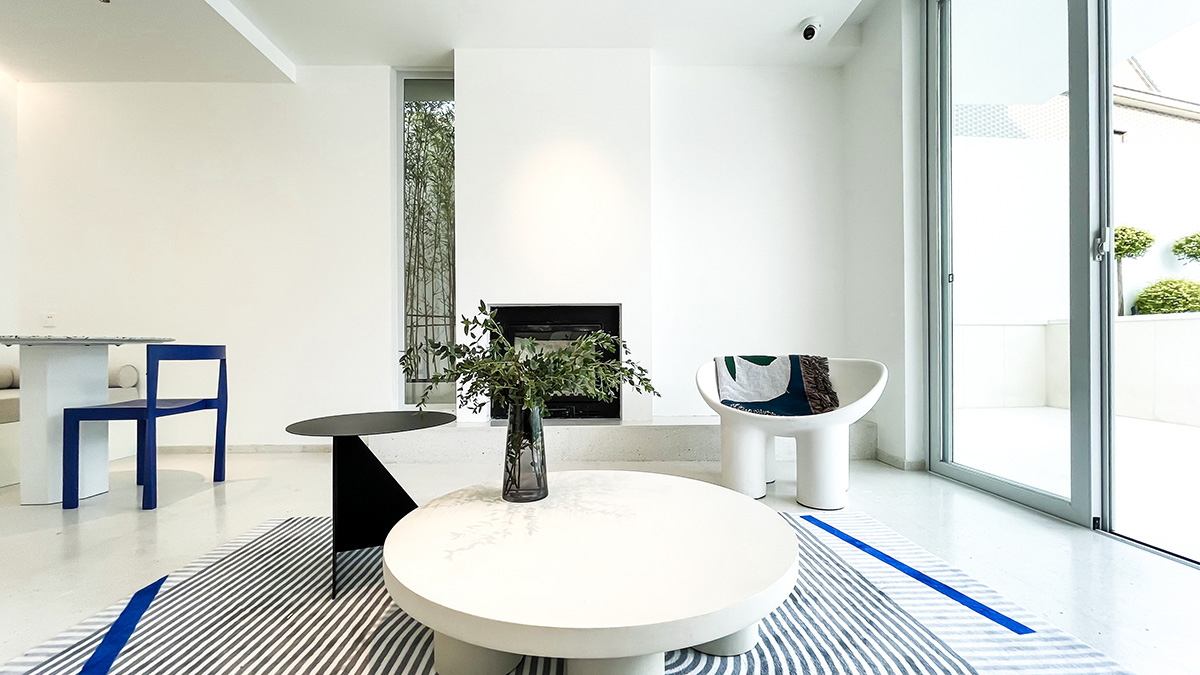

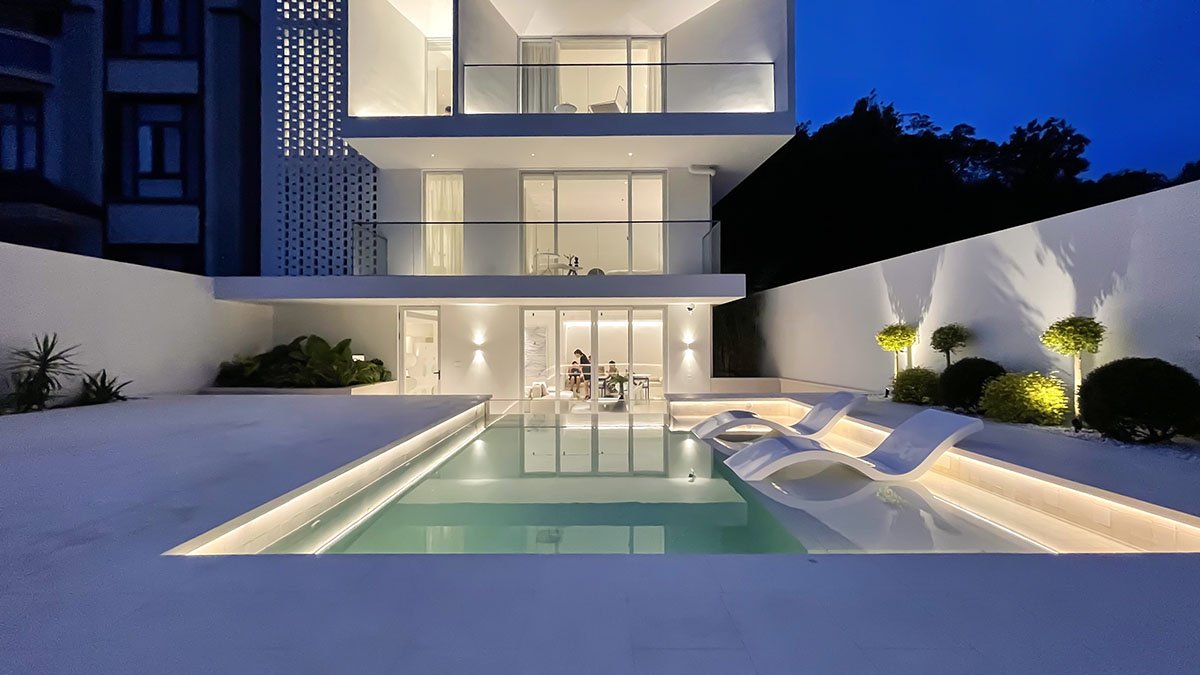

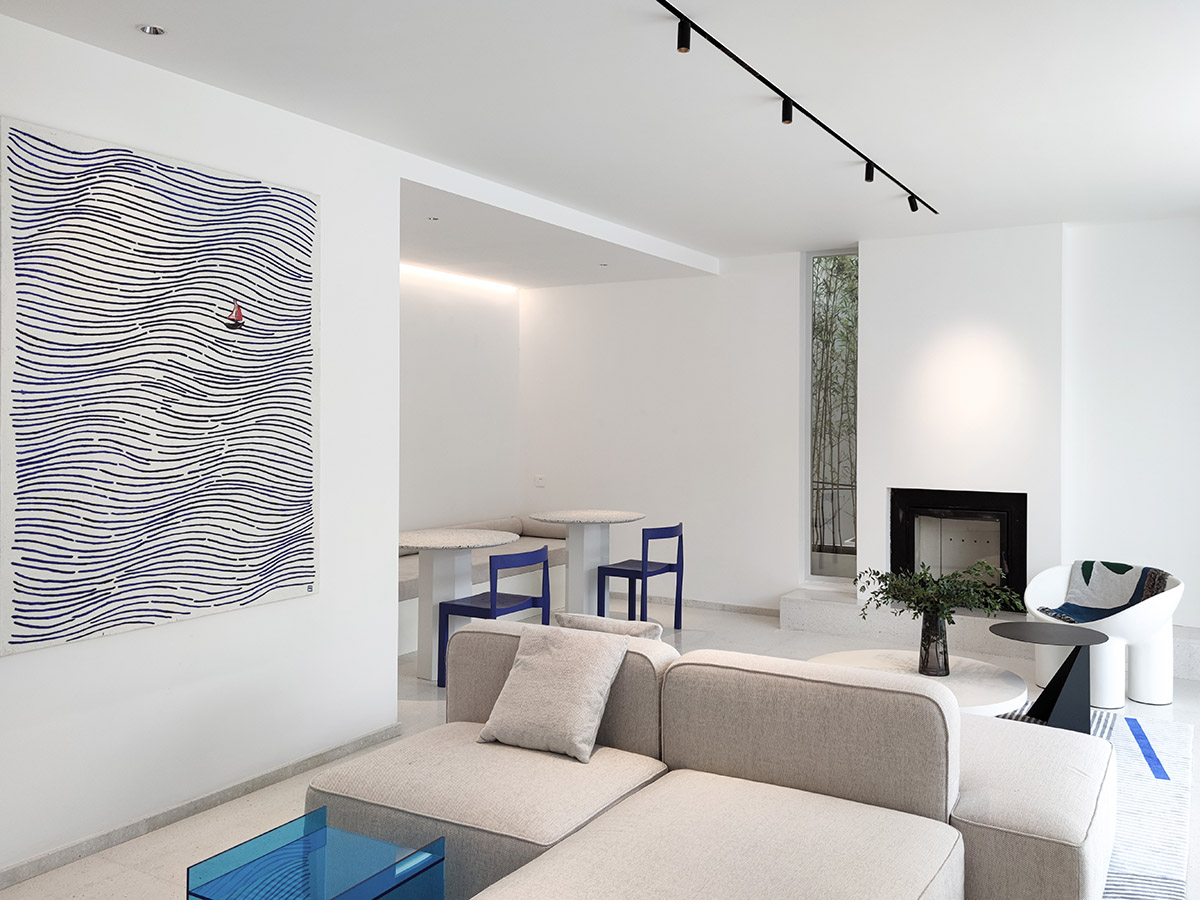

To enhance the utilization rate of the land, LQS Architects excavated the plot to a depth of 0.9 meters, which increased the ceiling height to 3.1 meters, and created a semi-underground space to accommodate the living room and the dining room. Meanwhile, a plexiglass swimming pool was set at the courtyard, which brings a visual focus to the living room.

LQS Architects built boutique hotel featuring three-dimensional cut in Zhejiang Province

During the construction process of the project, the design team closely communicated with construction workers about the drawings, models and renderings, hence obtained the desired effect eventually.

LQS Architects built boutique hotel featuring three-dimensional cut in Zhejiang Province

As the global population increases continuously, saving land and improving land utilization has become an important goal.

Within a relatively limited plot area, the design team created a building that combines currently prevailing aesthetics and excellent functions. After completion, the project has produced prominent social and economic benefits.

Currently the hotel is always fully booked. It has become a successful model of rural private house construction in China.

LQS Architects built boutique hotel featuring three-dimensional cut in Zhejiang Province

LQS Architects built boutique hotel featuring three-dimensional cut in Zhejiang Province

LQS Architects built boutique hotel featuring three-dimensional cut in Zhejiang Province

LQS Architects built boutique hotel featuring three-dimensional cut in Zhejiang Province

LQS Architects built boutique hotel featuring three-dimensional cut in Zhejiang Province

LQS Architects built boutique hotel featuring three-dimensional cut in Zhejiang Province

LQS Architects built boutique hotel featuring three-dimensional cut in Zhejiang Province

LQS Architects built boutique hotel featuring three-dimensional cut in Zhejiang Province

LQS Architects built boutique hotel featuring three-dimensional cut in Zhejiang Province

LQS Architects built boutique hotel featuring three-dimensional cut in Zhejiang Province

LQS Architects built boutique hotel featuring three-dimensional cut in Zhejiang Province

LQS Architects built boutique hotel featuring three-dimensional cut in Zhejiang Province

LQS Architects built boutique hotel featuring three-dimensional cut in Zhejiang Province

First floor plan

LQS Architects built boutique hotel featuring three-dimensional cut in Zhejiang Province

Second floor plan

LQS Architects built boutique hotel featuring three-dimensional cut in Zhejiang Province

Third floor plan

LQS Architects built boutique hotel featuring three-dimensional cut in Zhejiang Province

Rooftop floor plan

LQS Architects built boutique hotel featuring three-dimensional cut in Zhejiang Province

Section

LQS Architects built boutique hotel featuring three-dimensional cut in Zhejiang Province

Diagram

LQS Architects built boutique hotel featuring three-dimensional cut in Zhejiang Province

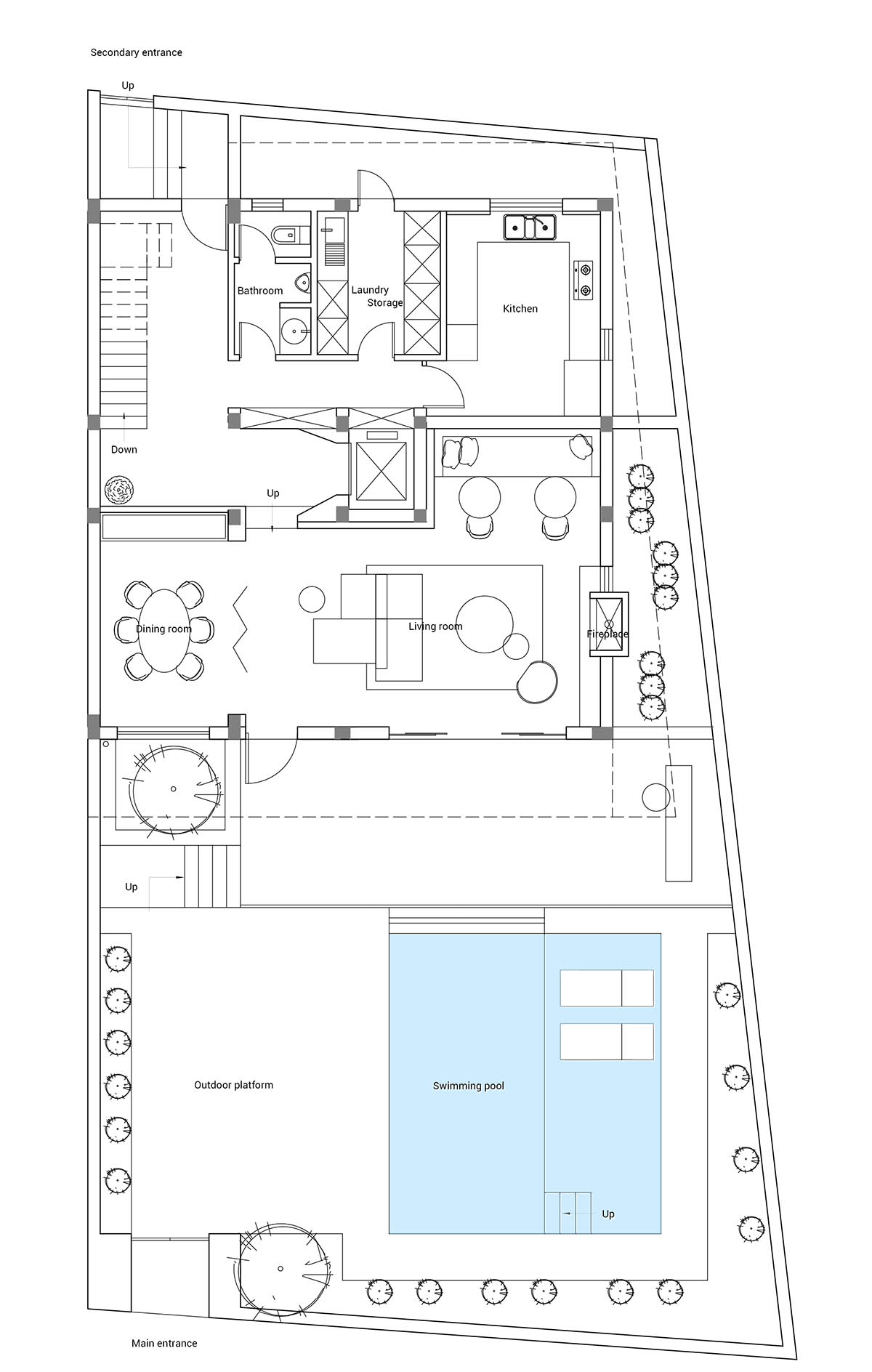

Plan of semi-underground level

LQS Architects built boutique hotel featuring three-dimensional cut in Zhejiang Province

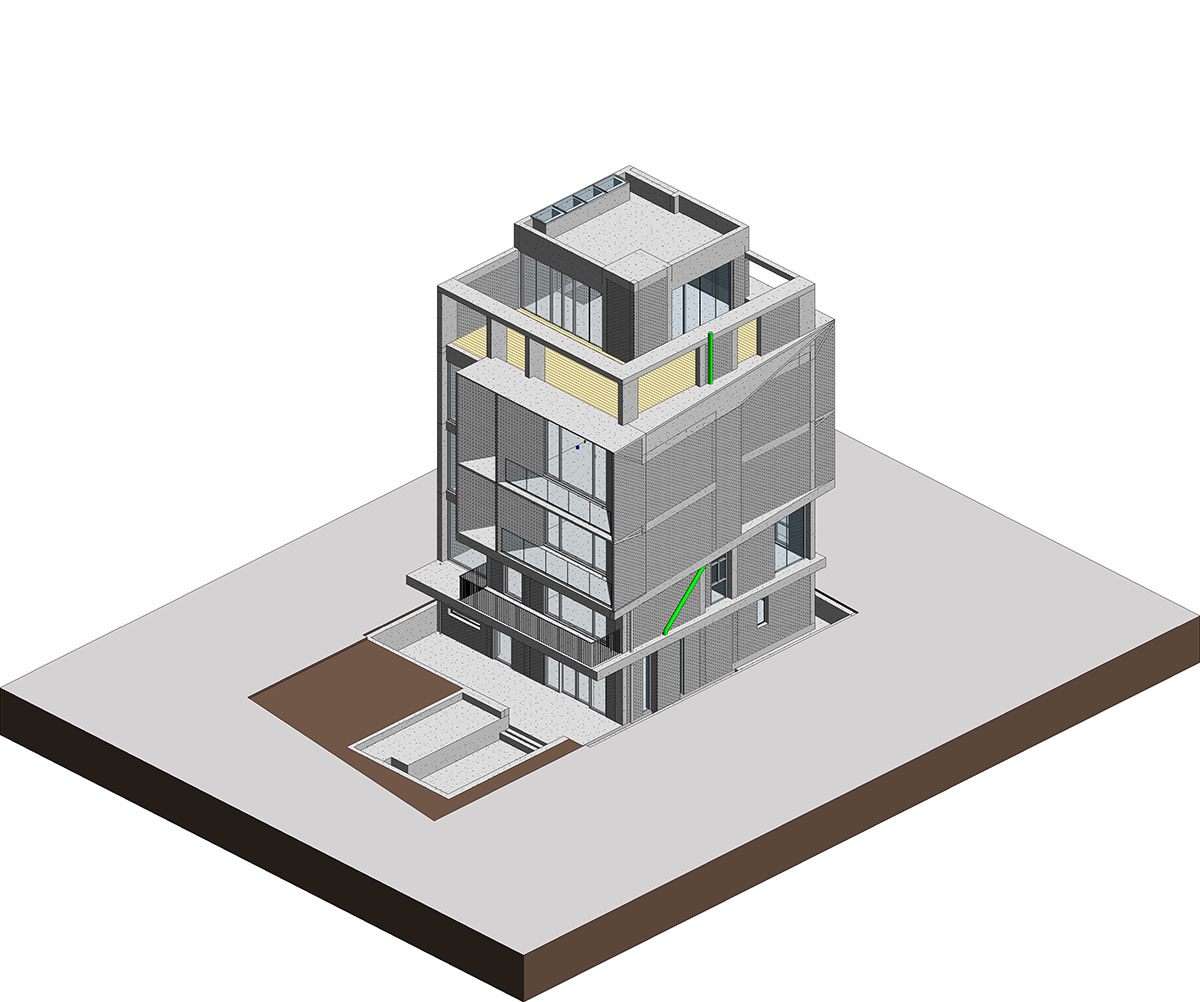

BIM model

Project facts

Project name: 10³ Boutique Hotel

Project location: Maoyang Town, Xiangshan County, Ningbo City, Zhejiang Province

Project area: 550 square meters

Completion time: 2021

Design firm: LQS Architects

Chief designers: Lu Qishui, Ma Qing, Li Guobin

Design team: Zhang Shijie, Rao Lixiao

All images © Lu Qishui, Ma Qing.

All drawings © LQS Architects.
