Japanese architect Toshiko Mori's firm Toshiko Mori Architect has built a rural school and a residence for teachers in remote Senegal.

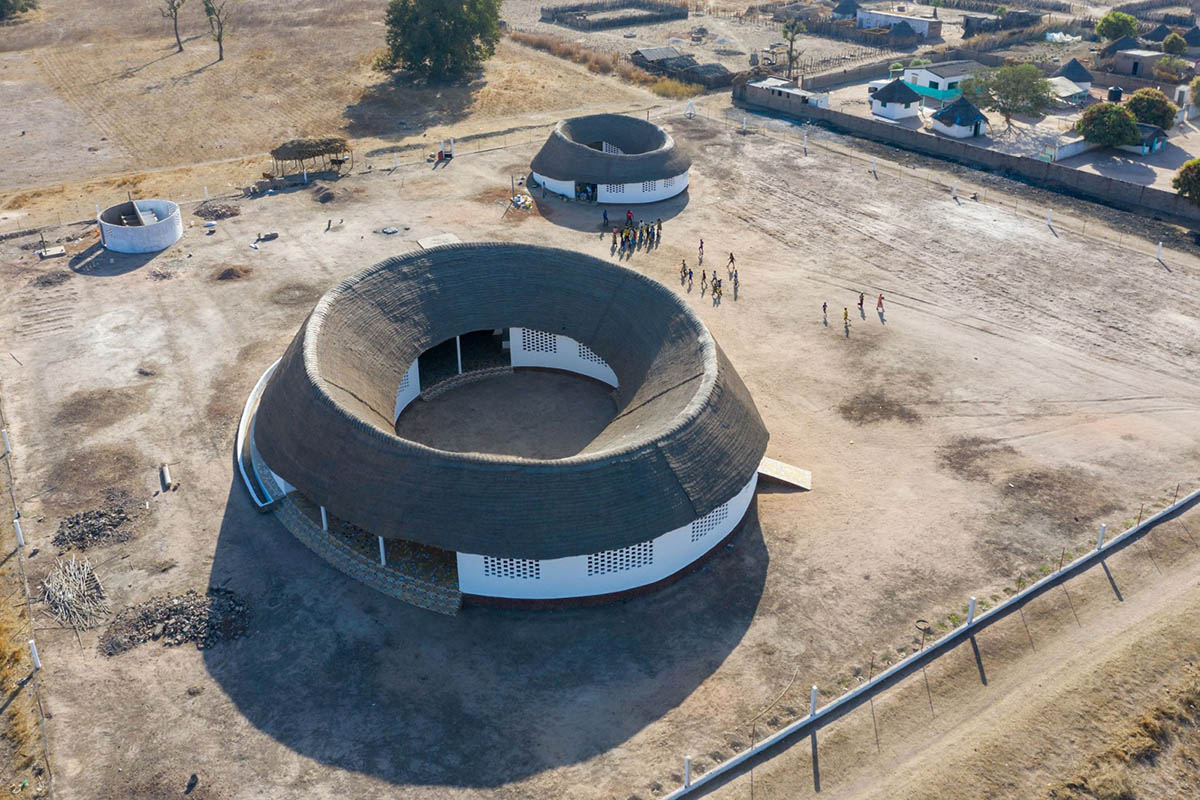

The new school has an oval-shaped form and accommodates up to 300 students from ages five through ten.

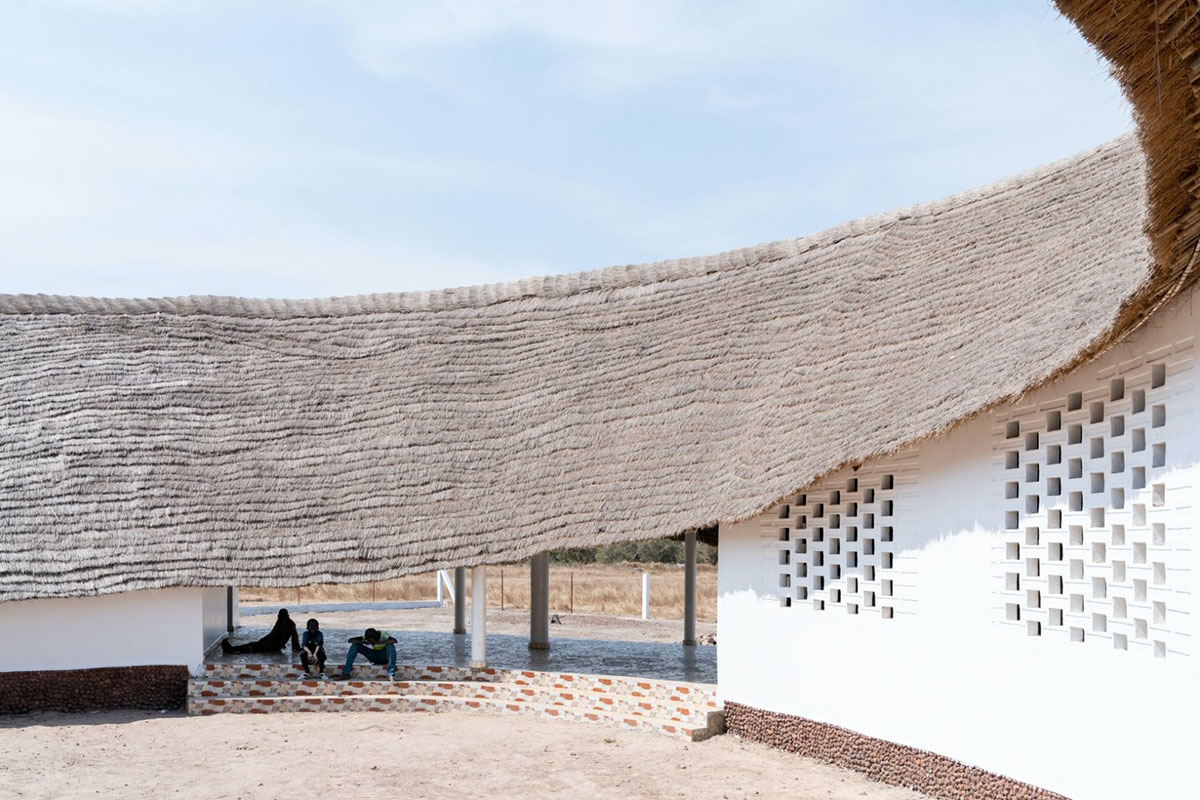

The complex, composed of three buildings, are distinguished with wavy thatched roof that resembles Mori's previous Thread Artists’ Residences & Cultural Center in Sinthian, Senegal completed in 2015.

Named Fass School and Teachers’ Residence, the new complex is the first school in a region of over 110 villages to provide secular education alongside traditional Quranic teaching.

Image © Iwan Baan

Developed in collaboration with the Josef and Anni Albers Foundation and American Friends of Le Korsa, the design of the school is inspired by the "One Room School House" in rural America where Josef Albers once taught, the school’s design can accommodate students of different age groups and at diverse stages of development, according to the studio.

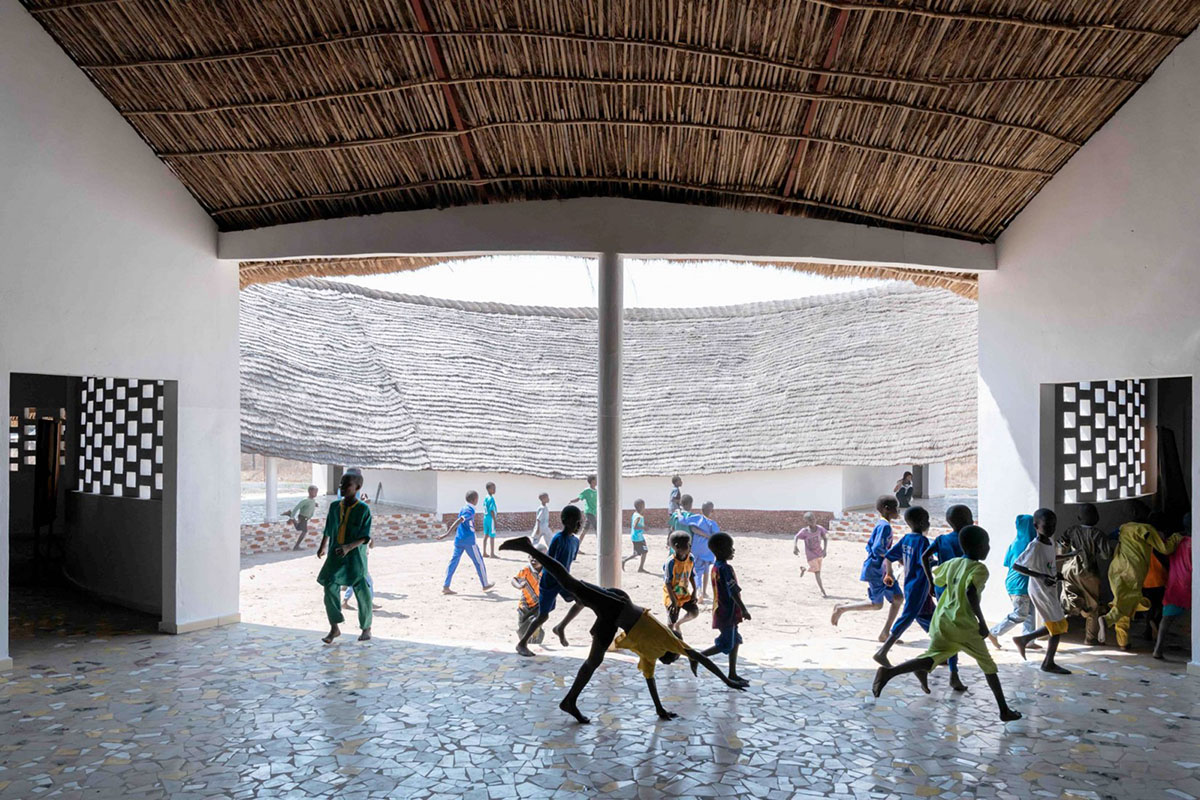

The inside-outside relationship is highly considered in the overall design, while the courtyard strengthens interaction and circulation around the school.

Image © Sofia Verzbolovskis

In the school complex, there are three main buildings; the larger volume houses classrooms - which is the main volume - the second volume serves for teachers' residence with study/living area, and the smallest volume functions for wc.

Being simple in the design layout, the building contains four classrooms and two flexible spaces that are arranged around an interior courtyard.

Image © Sofia Verzbolovskis

"The oval shape allows for easy circulation between classrooms, allowing the school’s few teachers to move quickly between classes," said Toshiko Mori Architect.

"The variation of the perimeter walls in terms of height and proximity to one another creates a wide variety of sections and experiences through the building."

The key element of design lies in its materiality and craftsmanship, Mori was inspired by vernacular precedents, while its construction utilized local, traditional skills and materials.

"The local construction team was provided with instructional diagrams to assist with the sequencing of the structure’s precise geometry— community involvement throughout every phase allows for easy maintenance over time," added the firm.

"Small steel members and bamboo support mud-brick walls, which are painted white to deflect heat, and perforated to allow for ventilation and airflow throughout the building."

Image © Iwan Baan

By using an inversion of the traditional pitched roof, the studio created a thick thatch roof that reinforces climactic comfort by providing an effective insulation against extreme heat. The local climatic factors were important design inputs for the studio.

"A stack effect allows hot air to rise into the peak of the roof while inviting cool air into the spaces," explained Toshiko Mori Architect.

"With a roof pitch consistently 45 degrees or greater, the unique form also maximizes rainwater runoff, diverting water into a channel that encircles the building and empties toward an existing aquifer."

Image © Iwan Baan

On the roof, the studio layered the two elements, including bamboo structure and thatched roof which is placed on masonry walls. This type of roof structure allowed students to be educated under higher ceiling. The facade of the school is marked with spaced brick opening.

Image © Sofia Verzbolovskis

"The school in Fass, which officially opened on February 2, 2019, is the first in its region to provide education other than the traditional Quranic instruction," said Le Korsa's website.

"Now, alongside the teaching of a Quranic master, there are classes for boys and girls in the French language and in all the traditional subjects of an elementary school curriculum, along with practical skills including carpentry, sewing, fishing, and cooking."

"Previously, none of the villagers has been able to read and write, either in the local language of Pulaar or in French; the new literacy will be life-changing."

"The region’s religious leaders have determined the program according to their desires with a full appreciation of the need of the local people to expand their horizons at the same time that they maintain the vital traditions of Islam," the website added.

Image © Iwan Baan

Le Korsa is a dynamic non-profit organization that works directly with dedicated doctors, teachers, and students in Senegal to improve human lives.

Le Korsa operates programs at carefully selected sites, responding quickly and immediately to emergencies, we are astonishingly effective.

Image © Iwan Baan

Image © Iwan Baan

Image © Iwan Baan

Image © Sofia Verzbolovskis

Image © Sofia Verzbolovskis

Image © Sofia Verzbolovskis

Plans

Exploded axonometric drawing

Roof diagram detail

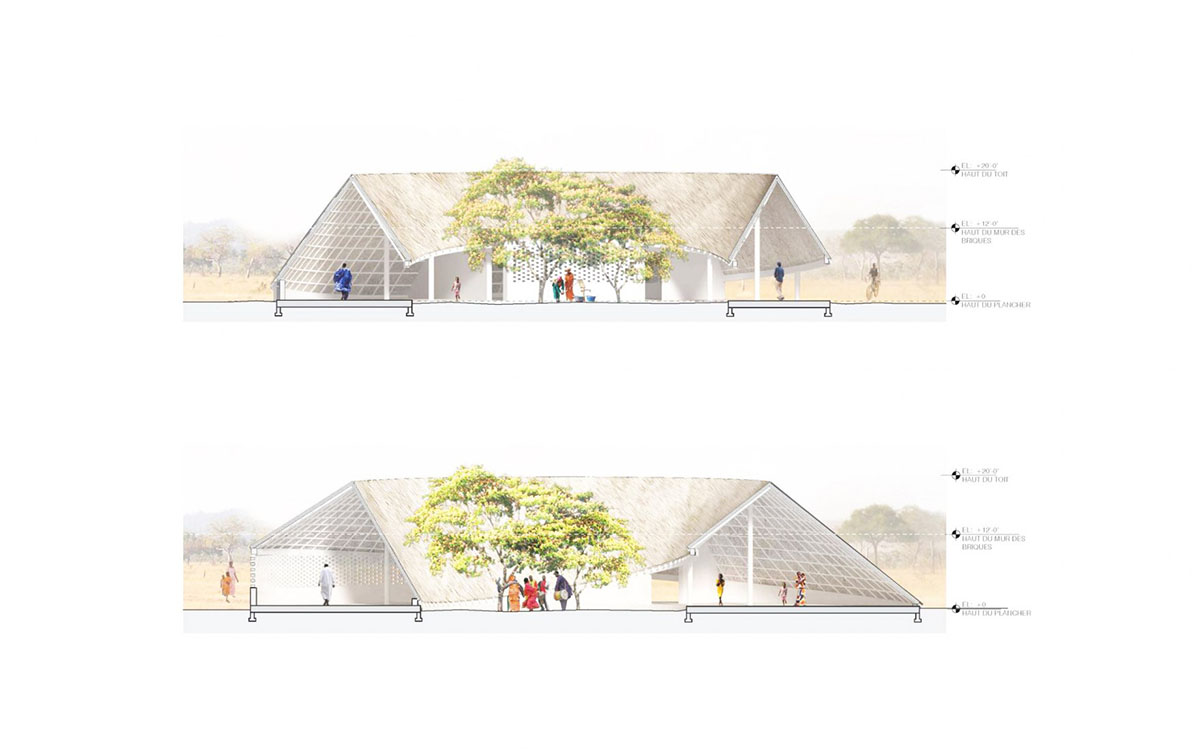

Section-elevation

New York-based practice Toshiko Mori Architect was founded by Japanese architect Toshiko Mori,  FAIA in 1981. The studio produces cultural, institutional, residential and commercial projects across the world.

Mori's intelligent approach is described with "ecologically sensitive siting strategies, historical context, and innovative use of materials", which reflects a creative integration of design and technology.

Toshiko Mori was named as the recipient of the 2019 AIA/ACSA Topaz Medallion for Excellence in Architectural Education by the American Institute of Architects (AIA).

Project facts

Project name: Fass School and Teachers’ Residence

Architects: Toshiko Mori Architect

Design Team: Toshiko Mori, Jordan MacTavish

General Contractor: Dr. Magueye Ba

Structural: Schlaich Bergermann and Partners

Photographs © Iwan Baan, Sofia Verzbolovskis

Top image © Iwan Baan

All drawings © Toshiko Mori Architect

> via Toshiko Mori Architect
