Studio Hertweck designs Röhrig House with continuous terrace towards the valley in Germany

Germany Architecture News - Oct 19, 2020 - 15:56   3696 views

Studio Hertweck designs Röhrig House with continuous terrace towards the valley in Germany

Luxembourg-based architecture practice Studio Hertweck has completed a family house on a steep slope on the edge of the buildable land of Sinzig-Westum, a German municipality between Bonn and Koblenz.

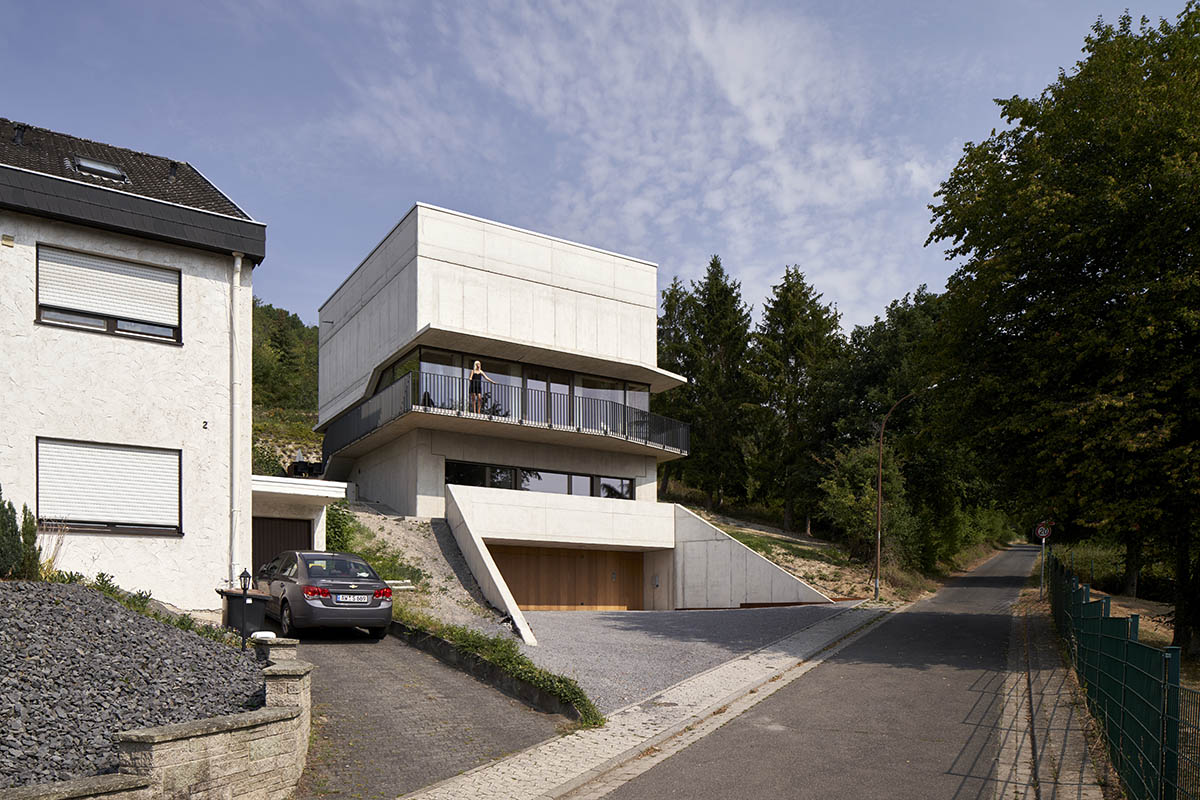

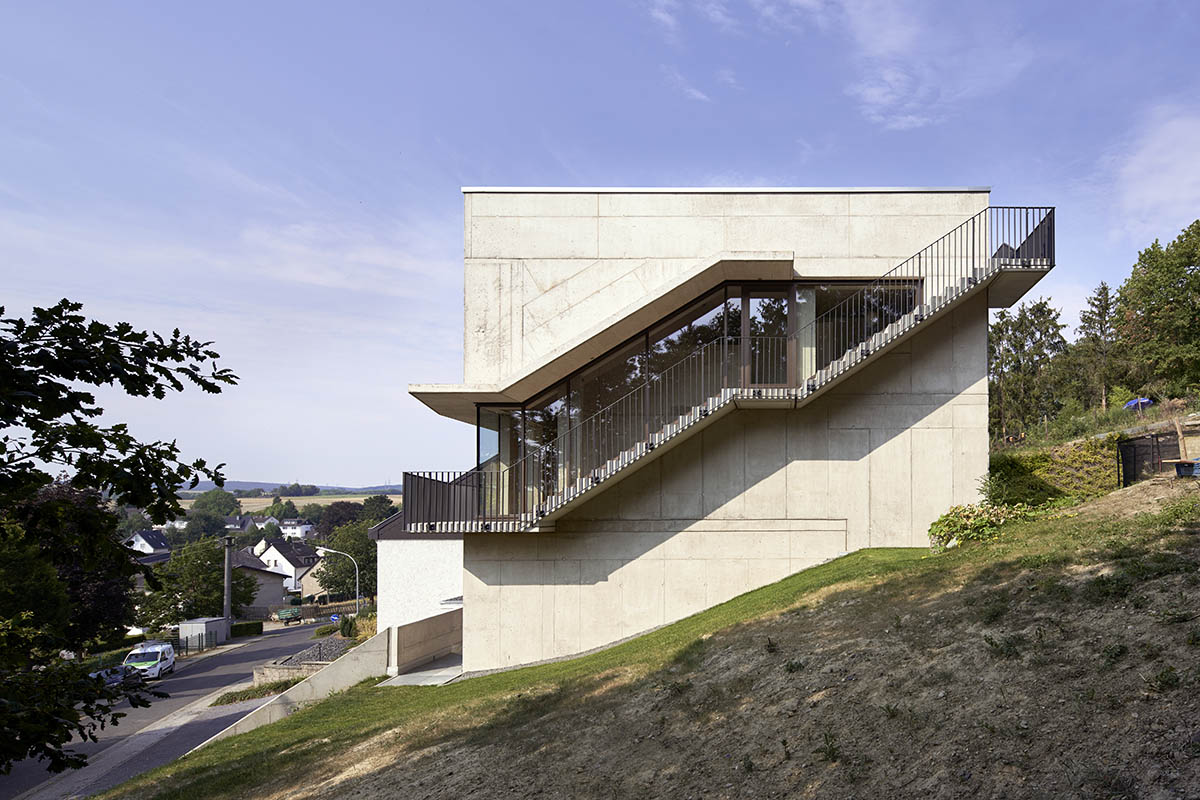

Called Röhrig House, the 182-square-metre house features a continuous terrace that climbs the building towards the valley, it helps to cut the geometry in a horizontal way.

Studio Hertweck designs Röhrig House with continuous terrace towards the valley in Germany

The Röhrig House was realized as part of a series of hillside houses designed by Studio Hertweck in the German Rhine Valley.

The client, a young family with one child, wanted to have generous interior and exterior shared areas, in combination with a rather classical program: two children's bedrooms, a home office, a parents' bedroom, and two bathrooms.

Studio Hertweck designs Röhrig House with continuous terrace towards the valley in Germany

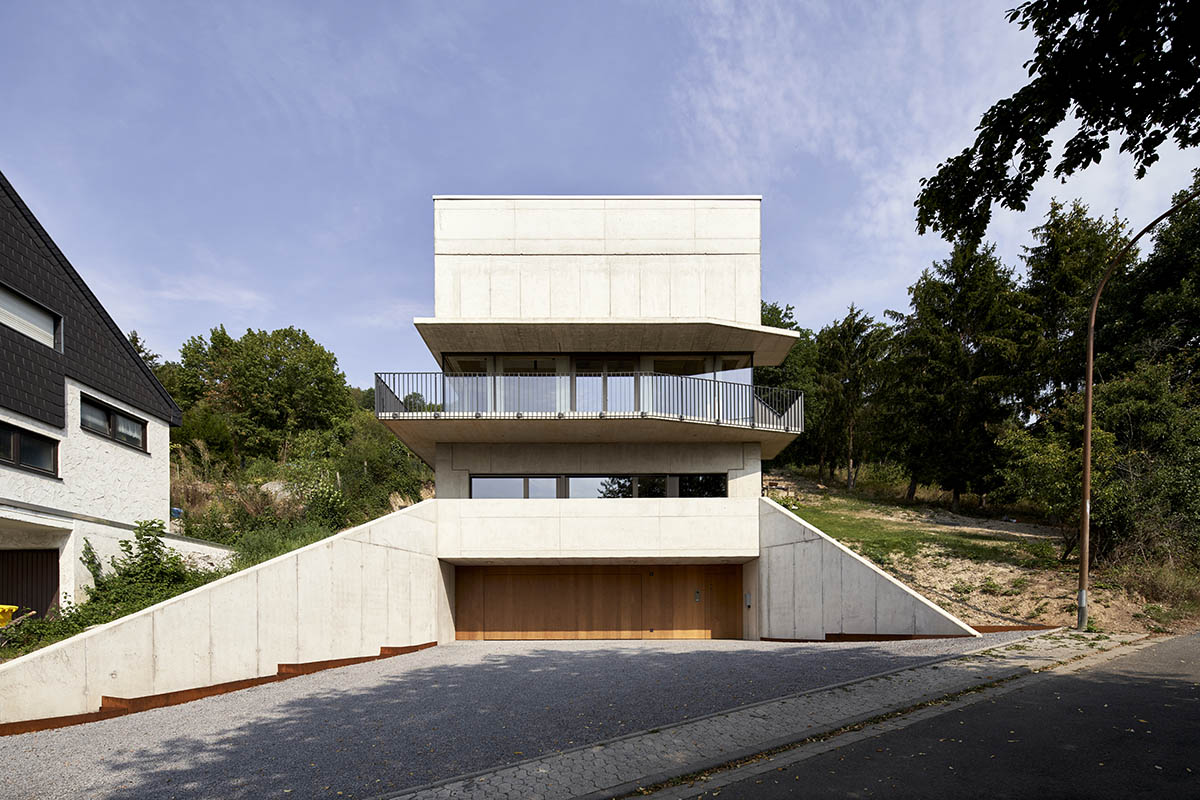

In order to translate this program in an economic way, Studio Hertweck has inscribed a very simple cube into the slope. Garage and storage rooms were accommodated on the ground floor, the children's bedrooms with a bathroom on the first floor.

Studio Hertweck designs Röhrig House with continuous terrace towards the valley in Germany

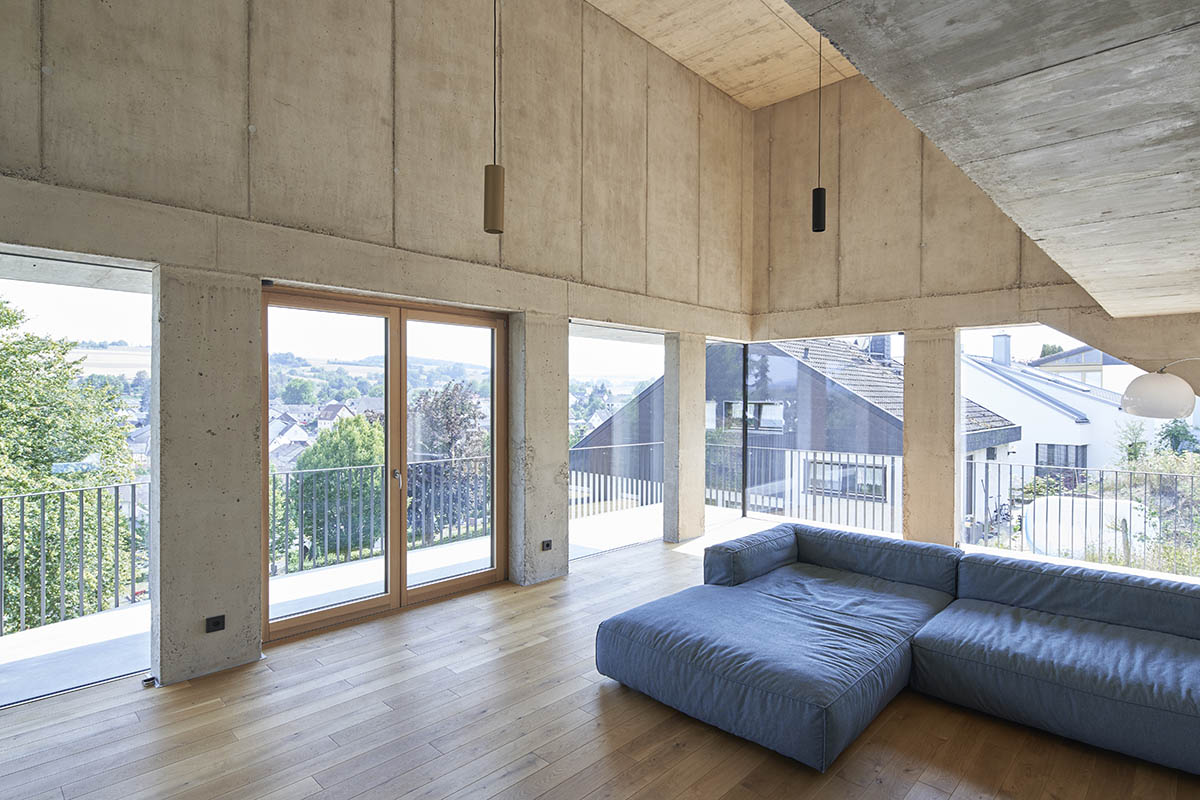

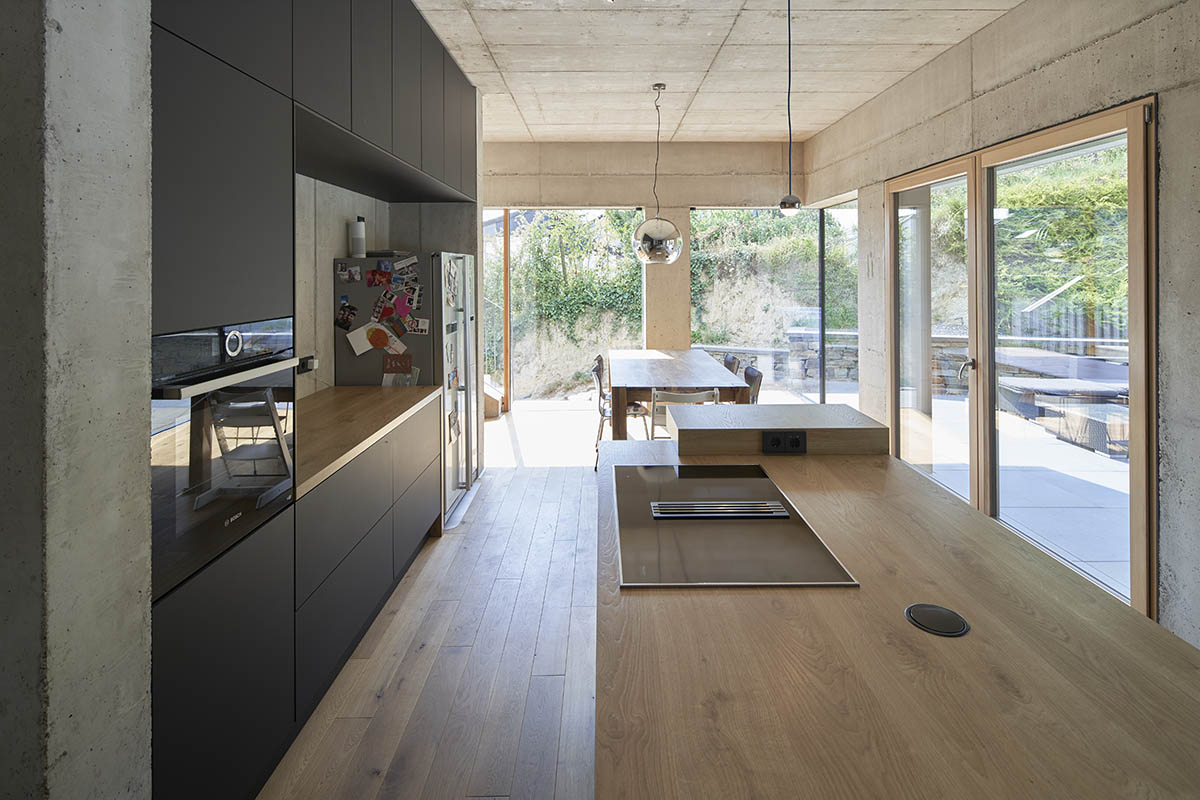

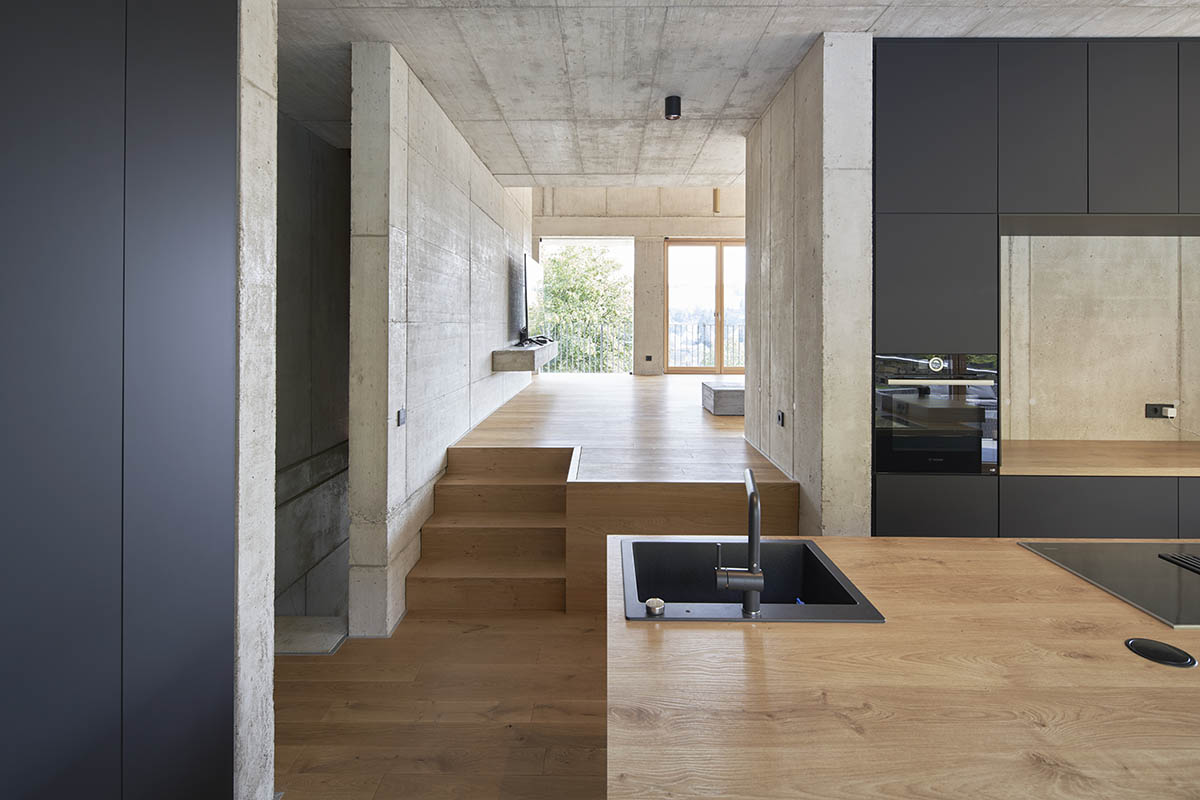

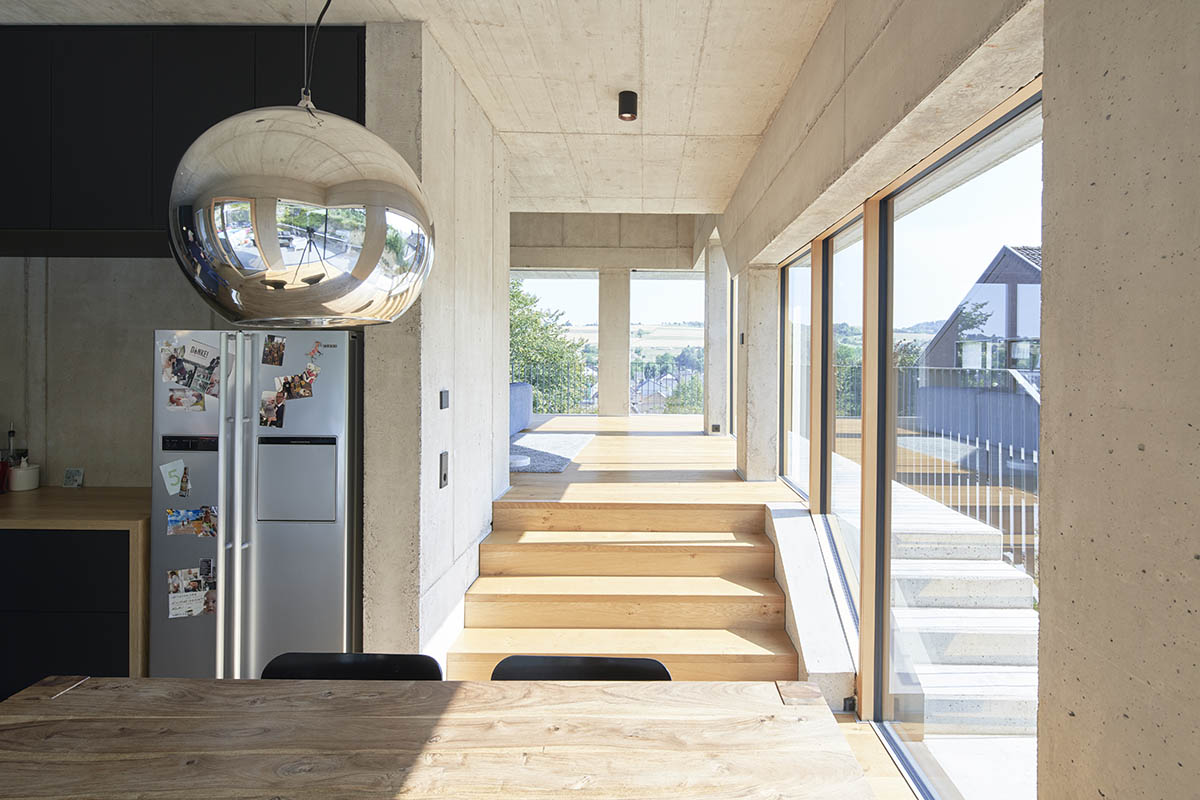

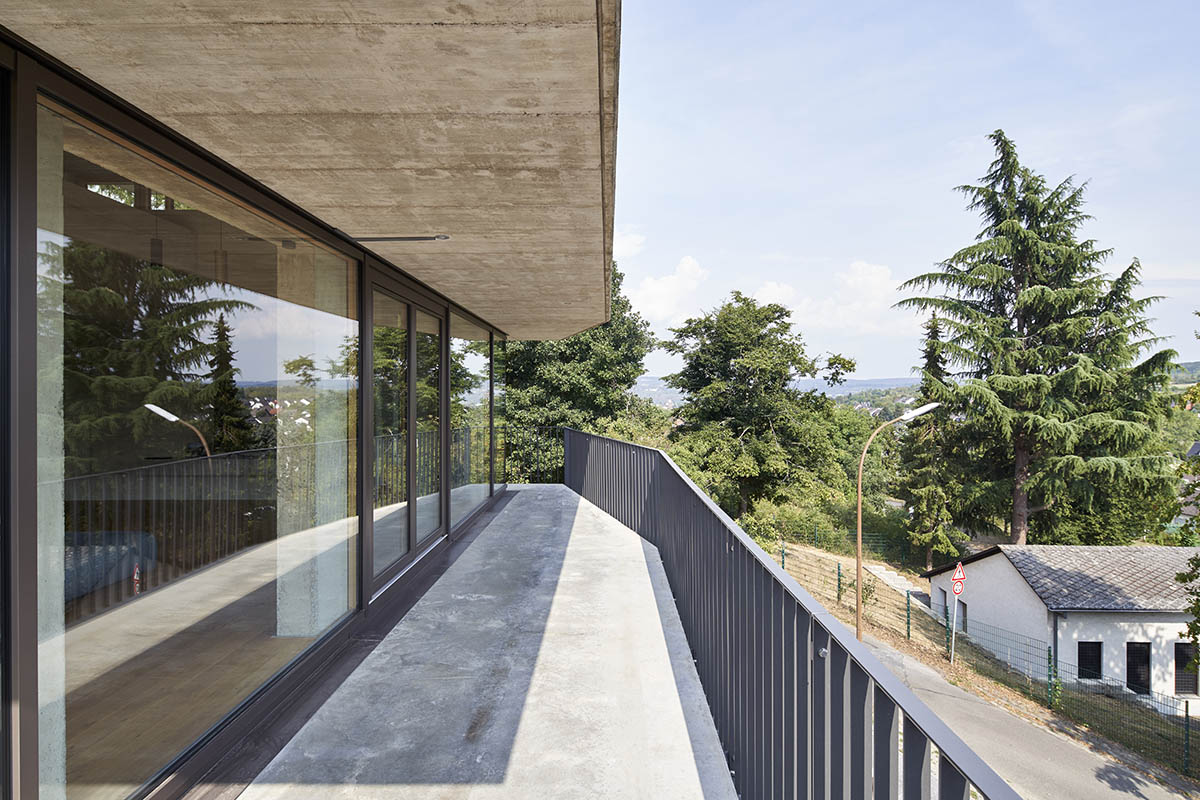

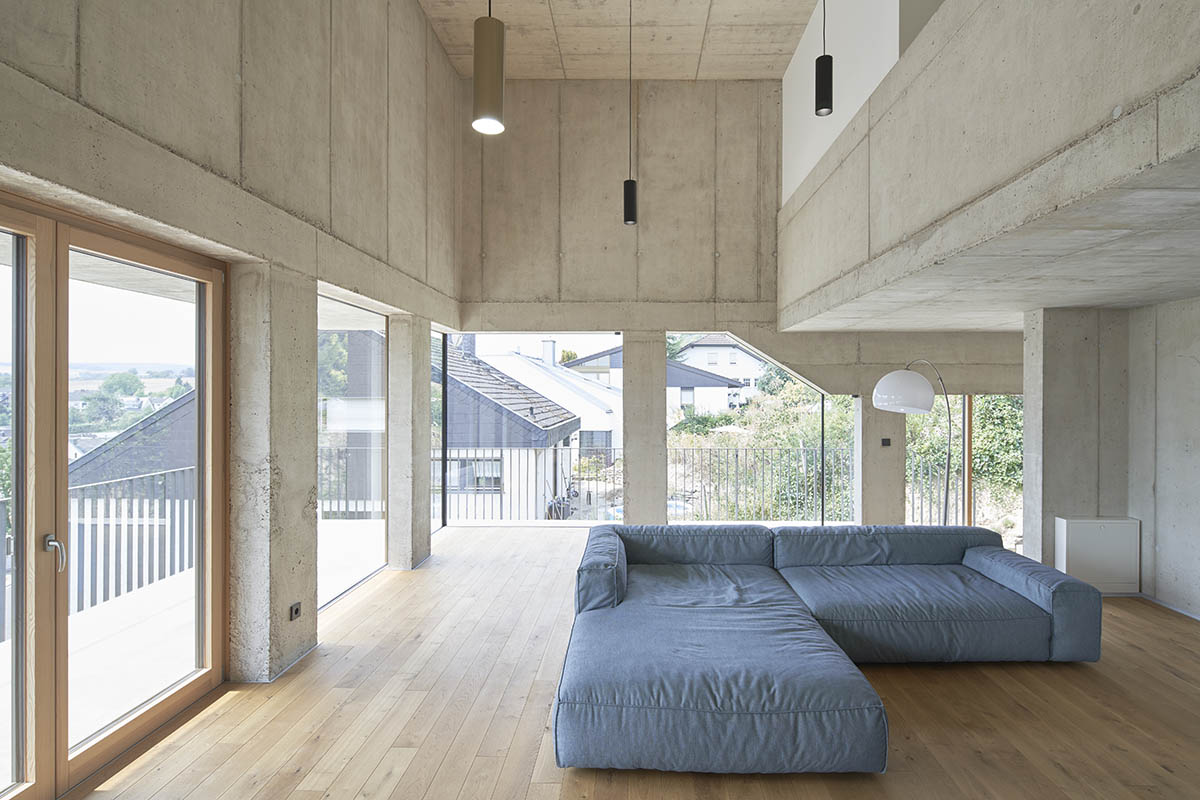

On the second floor, an open living area was created, which opens onto a terrace towards the valley and at the back onto a garden. On the third floor, the architect located the parents' area with their bedroom, bathroom, and home office.

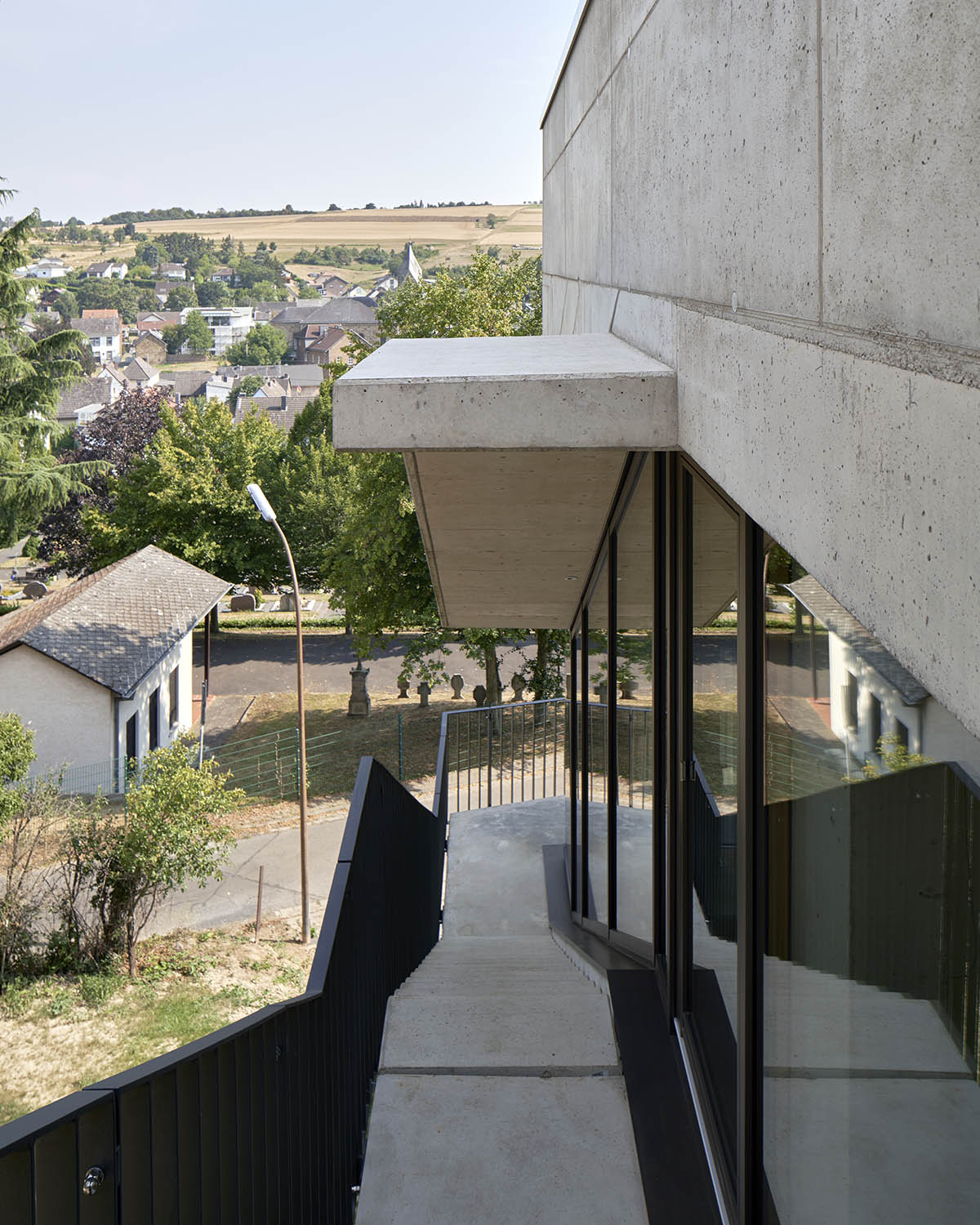

The garden has been connected to the roof terrace by a set of terraces and outside stairs so that people can walk around the house while opening up beautiful views of the landscape.

Studio Hertweck designs Röhrig House with continuous terrace towards the valley in Germany

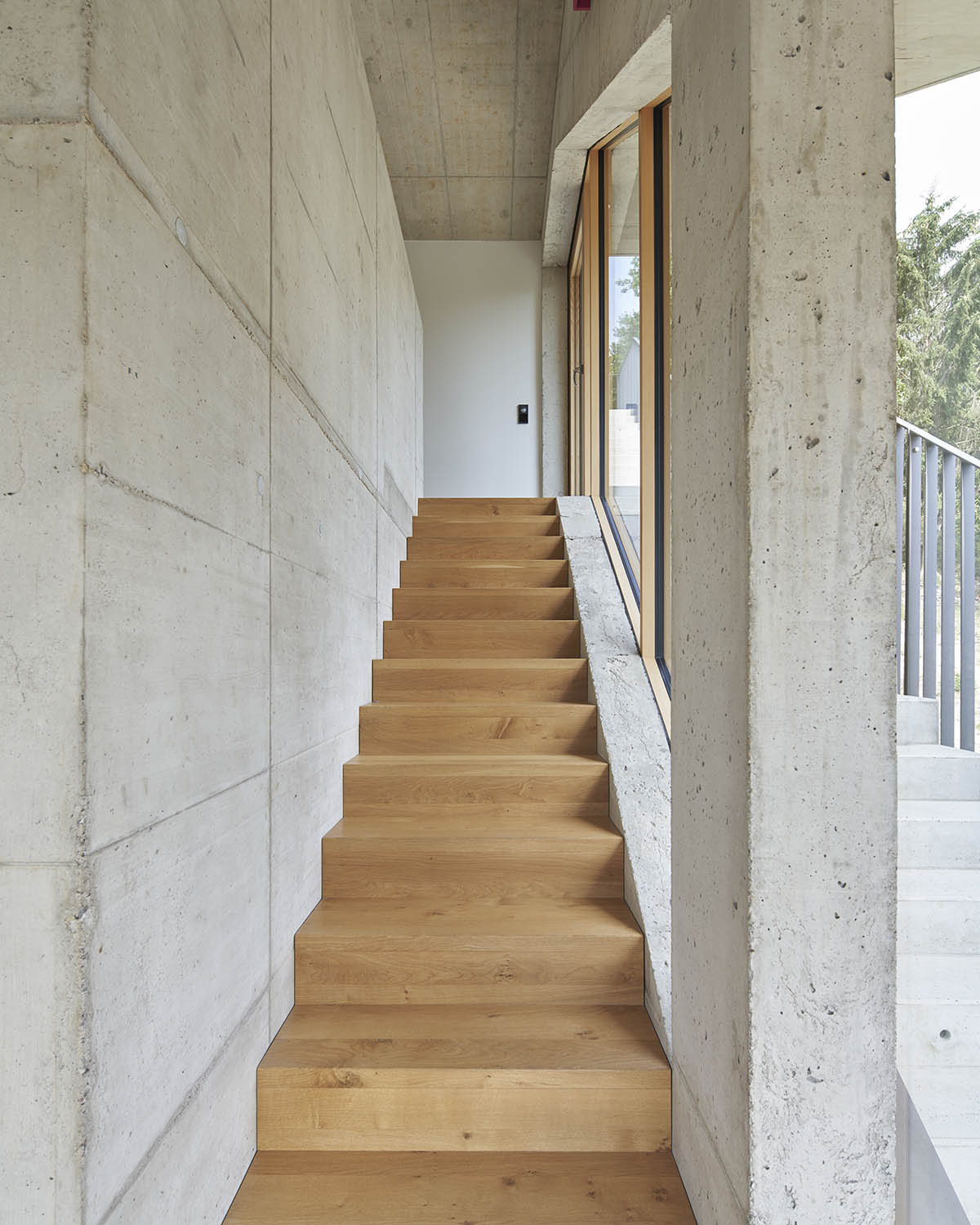

The reduction in terms of materials and the use of unfinished double-shell in-situ concrete walls not only has aesthetic value but also enabled the architect to dispense with some trades such as plastering or scaffolding.

Studio Hertweck designs Röhrig House with continuous terrace towards the valley in Germany

To push the economy of the project even further, Studio Hertweck designed a single shaft in the center of the cube which contains all the networks of the house: from electric cables to water pipes, from the chimney flue to the laundry chute.

All the technical appliances and sanitary equipment are arranged around this shaft so that they can be connected exclusively to it. The house is designed so that there are no thermal bridges and is heated by an air-water heat pump.

Studio Hertweck designs Röhrig House with continuous terrace towards the valley in Germany

Studio Hertweck designs Röhrig House with continuous terrace towards the valley in Germany

Studio Hertweck designs Röhrig House with continuous terrace towards the valley in Germany

Studio Hertweck designs Röhrig House with continuous terrace towards the valley in Germany

Studio Hertweck designs Röhrig House with continuous terrace towards the valley in Germany

Studio Hertweck designs Röhrig House with continuous terrace towards the valley in Germany

Studio Hertweck designs Röhrig House with continuous terrace towards the valley in Germany

Studio Hertweck designs Röhrig House with continuous terrace towards the valley in Germany

Studio Hertweck designs Röhrig House with continuous terrace towards the valley in Germany

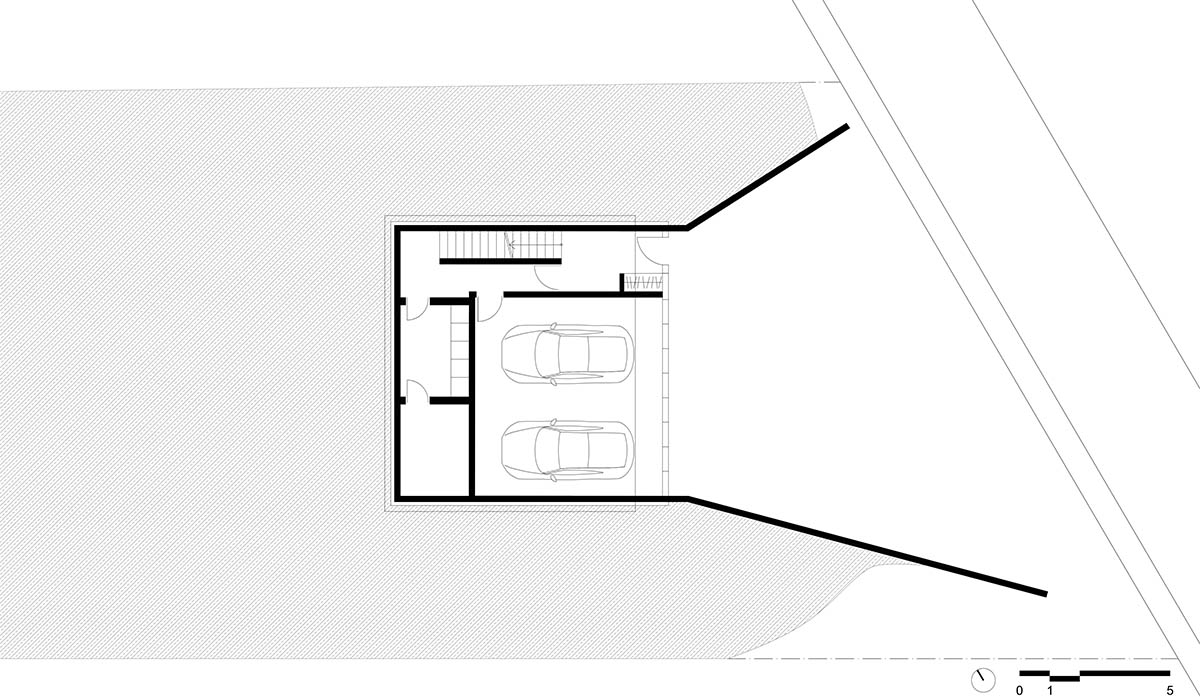

Ground floor plan

Studio Hertweck designs Röhrig House with continuous terrace towards the valley in Germany

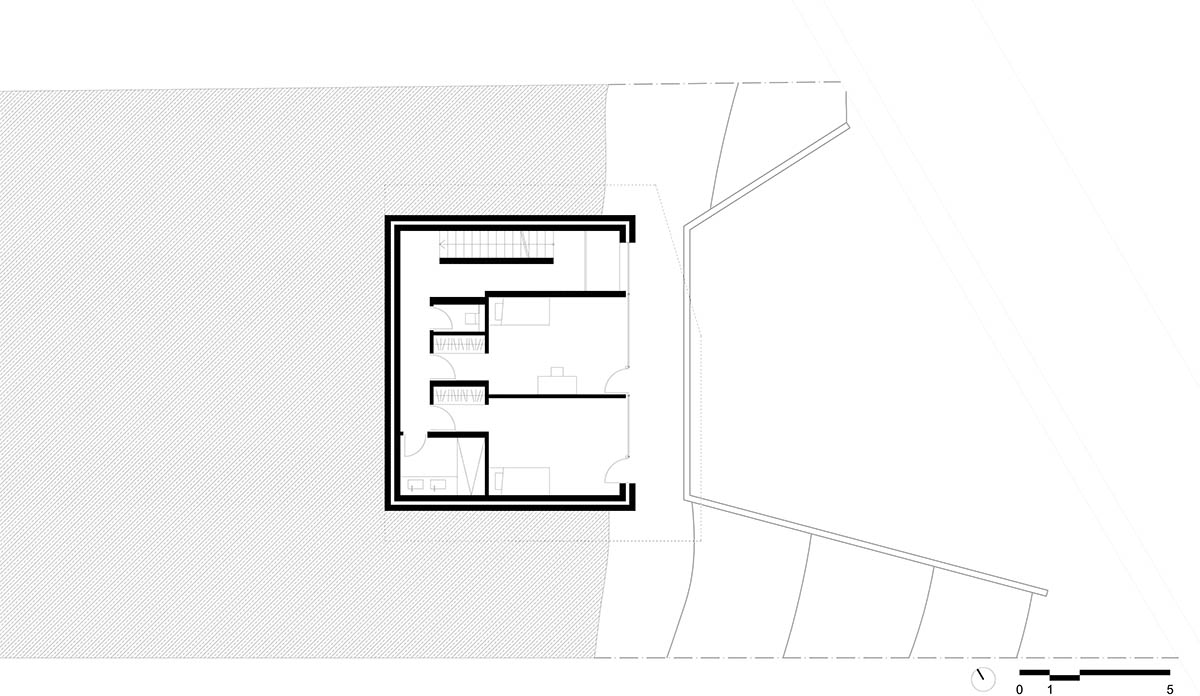

First floor plan

Studio Hertweck designs Röhrig House with continuous terrace towards the valley in Germany

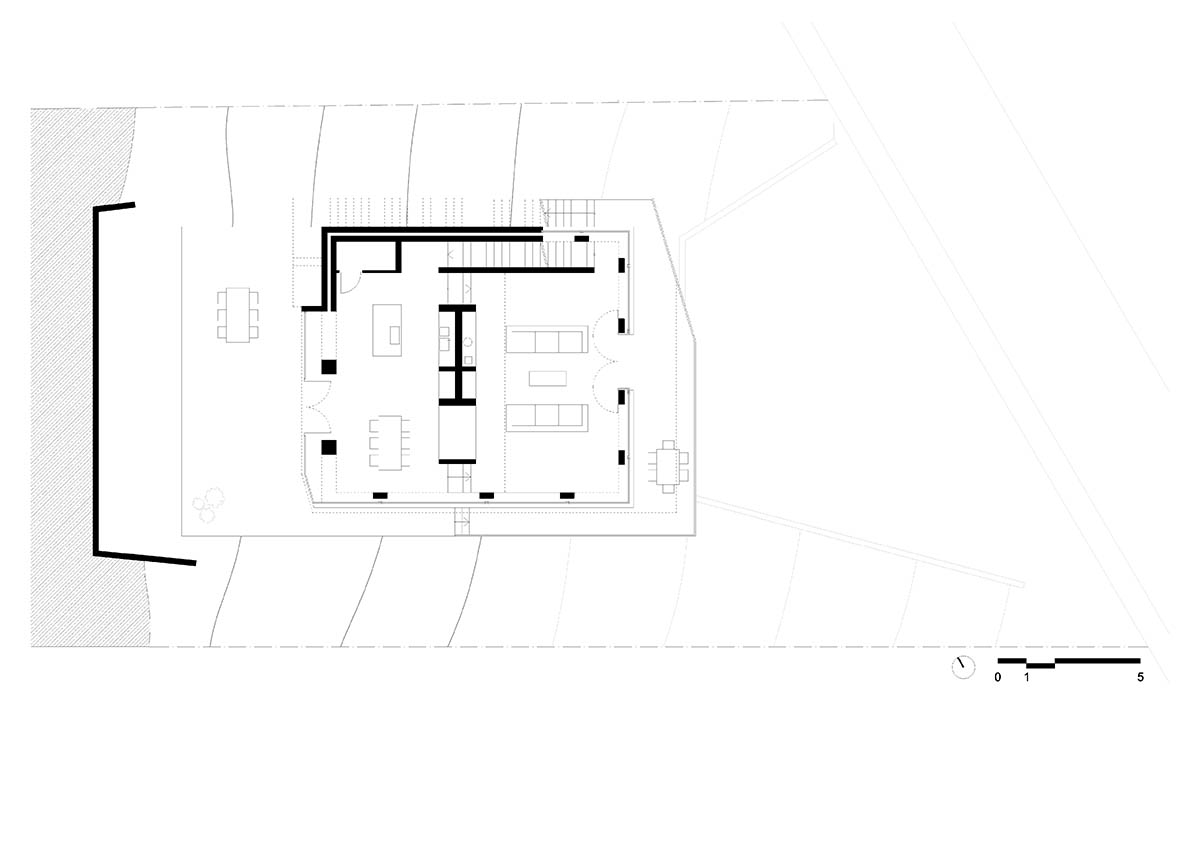

Second floor plan

Studio Hertweck designs Röhrig House with continuous terrace towards the valley in Germany

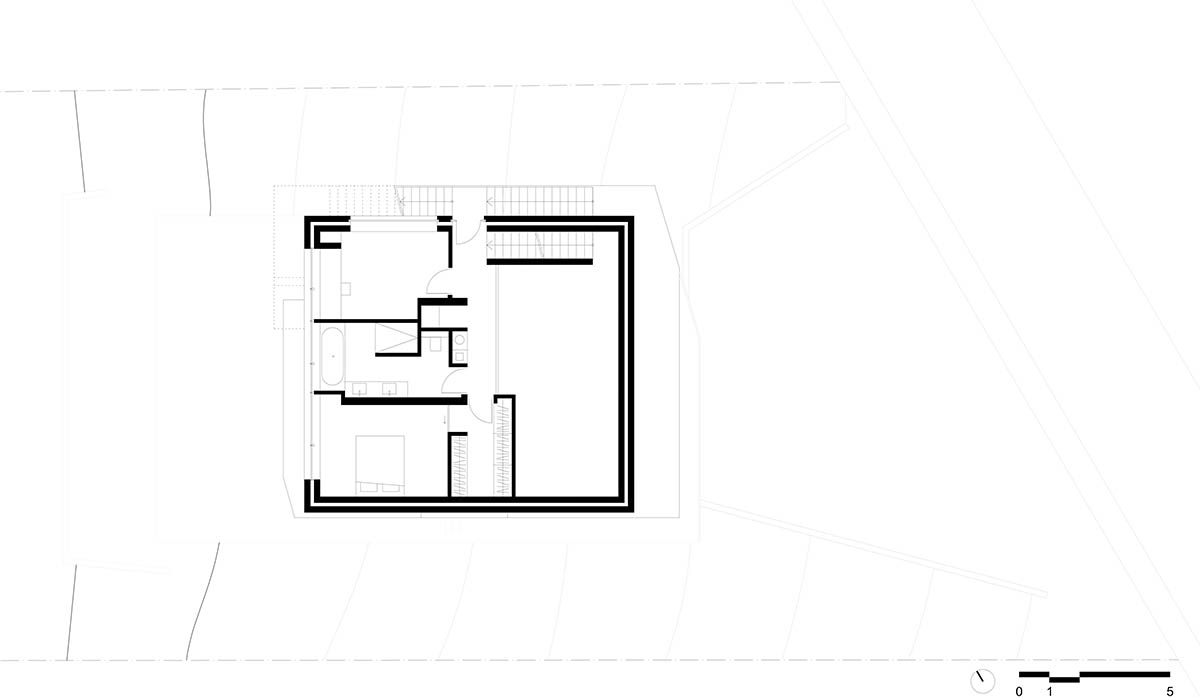

Third floor plan

Project facts

Client: private

Conception and artistic supervision: Prof. Florian Hertweck, Architect, Luxembourg

Structural Engineer: Stelio Berikaki, Sinzig

Technical Supervision of the construction: Ira Matheis, Architect, Remagen

Planning Phase: 2014-2015

Construction Phase: 2016-2020

Housing surface net: 182 m2

Construction Type: Sandwich Concrete Walls 16/14/20, Concrete slabs, Timber/aluminum windows

All images © Bildpark / Veit Landwehr, Cologne
