Sinuous red roof combines technology museum and reception center in Chengdu by Powerhouse Company

China Architecture News - Oct 19, 2020 - 13:50   3858 views

Sinuous red roof combines technology museum and reception center in Chengdu by Powerhouse Company

Rotterdam-based architecture studio Powerhouse Company has completed a technology museum and reception center that is topped with a sinuous red rooftop walkway in Chengdu, China

Named Loop of Wisdom, the design was conceived as a timeless architectural concept and a landmark that takes visitors through its fluid structure incorporating a spectacular public space, an undulating rooftop trail.

Sinuous red roof combines technology museum and reception center in Chengdu by Powerhouse Company

In addition to its obvious aesthetic appeal and cultural program, this addition makes the Loop of Wisdom an accessible icon, rather than a remote beacon.

"It invites people to explore it and make it part of their regular walking or jogging routine," according to the architects.

Designed as a continuous ring, the loop’s form is archetypal and universal; organic and geometric; enigmatic yet instantly recognizable. While the client initially wanted a temporary building, they were so impressed by the quality of the design, its delicate relationship with the landscape and its elegant lines, that they decided it must become a permanent fixture.

Sinuous red roof combines technology museum and reception center in Chengdu by Powerhouse Company

The Loop of Wisdom’s design transformed the idea for an ephemeral structure into a vision of a long-lived and inherently sustainable one.

"While spectacular museums and reception centers are quite common in China, we wanted to create an icon that people can actually explore and use," said Nanne de Ru, Founder at Powerhouse Company.

Sinuous red roof combines technology museum and reception center in Chengdu by Powerhouse Company

The client, chip manufacturer and real estate specialist Uni-Hiku, asked Powerhouse Company to design the museum and reception center as part of its new development, Unis Chip City, in the vibrant metropolis of Chengdu.

The new buildings would also function as a technology education center as well as an information center for the new city development.

Sinuous red roof combines technology museum and reception center in Chengdu by Powerhouse Company

"During the site visit, the architects noticed the natural undulation in the terrain, a very subtle and soft hill. Normally in Chinese development these natural hills are leveled," said the firm.

"Powerhouse Company decided instead to use the topography as the basis for a unique design that would bring an organic softness to the urban environment."

Sinuous red roof combines technology museum and reception center in Chengdu by Powerhouse Company

By shaping a circular path that follows the topography, the two separate programmatic entities are combined in one single structure. As the path rises up to make space for the program, it becomes a roof offering stunning views over the new development.

The new building becomes a path and architecture at the same time, while allowing nature to continue around, under and within the form of the structure.

Sinuous red roof combines technology museum and reception center in Chengdu by Powerhouse Company

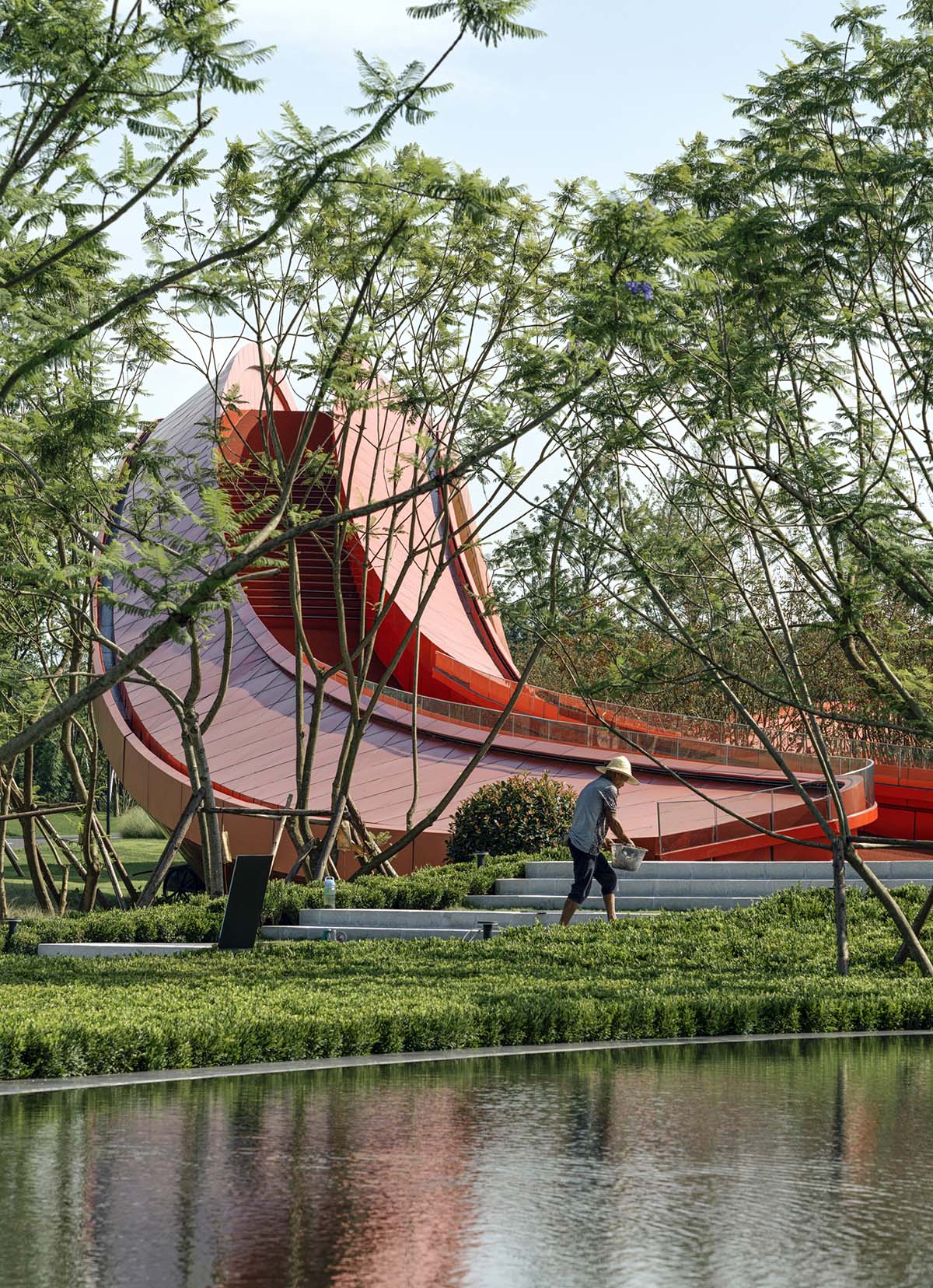

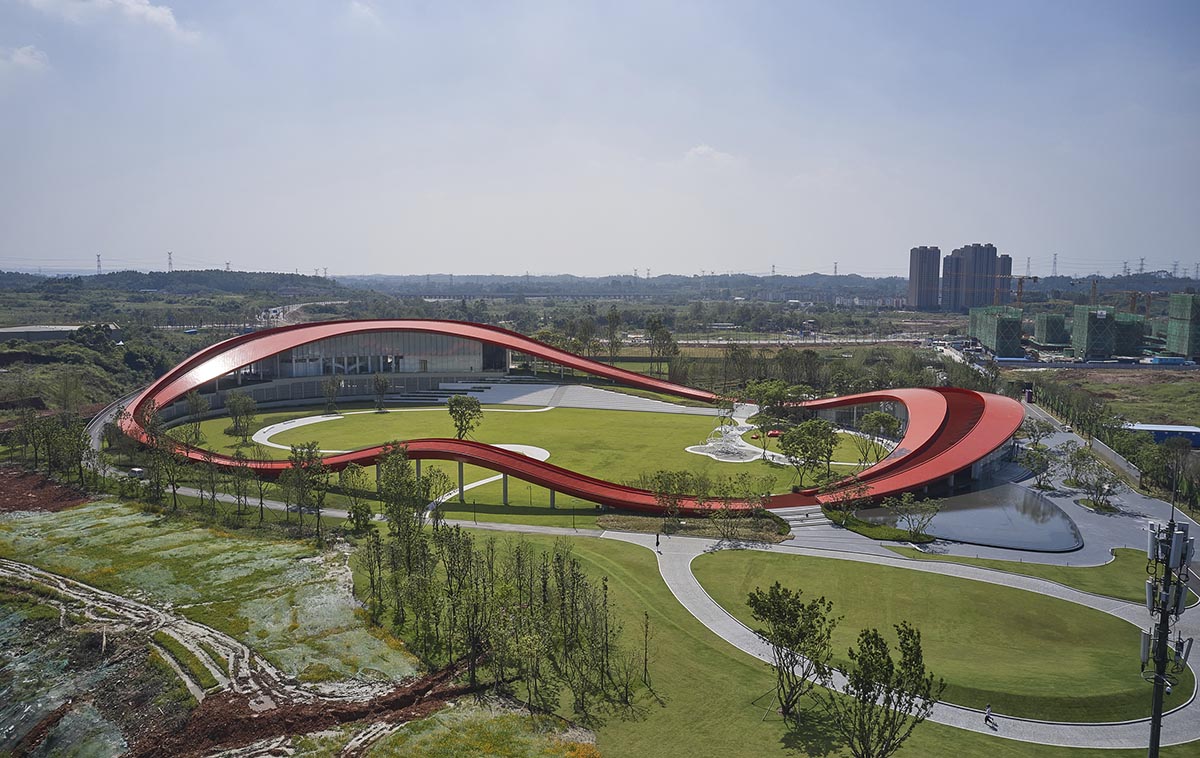

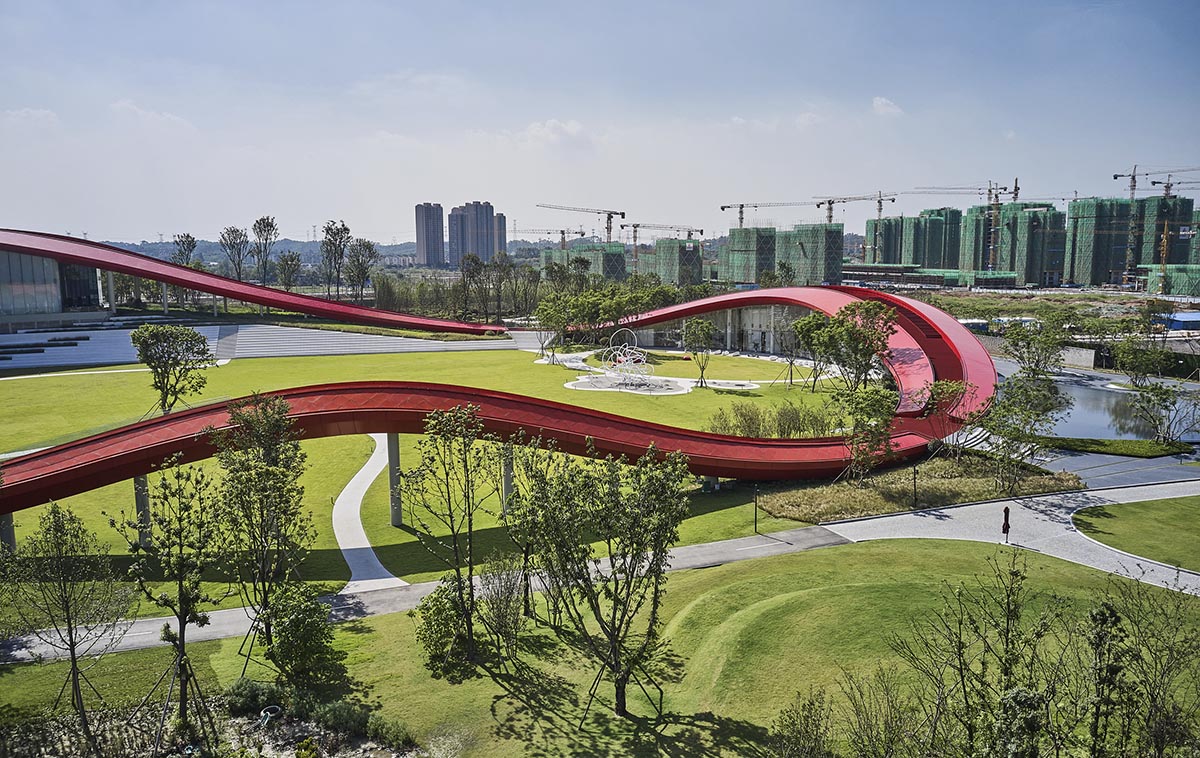

The Loop of Wisdom’s flowing, organic form echoes the mountain ring circling its location on the Chengdu Plain. Embedded into the landscape, the building is accessible and public, a place for people to walk, run or simply admire the views.

The Möbius-like form alludes to human ingenuity and the high-tech credentials of the Unis Group, as does the high quality of the building and the cutting-edge technology used to design and build it.

Sinuous red roof combines technology museum and reception center in Chengdu by Powerhouse Company

"We wanted to work with the landscape rather than ignore it, so we used it to create an elegant, soft form. The building is extremely contextual, even though it is the first building to emerge in this new neighborhood of Chengdu," said Stijn Kemper Partner at Powerhouse Company.

"Its design is complementary to the surrounding natural landscape and its gentle form invites people to come and explore the context and the surroundings."

Sinuous red roof combines technology museum and reception center in Chengdu by Powerhouse Company

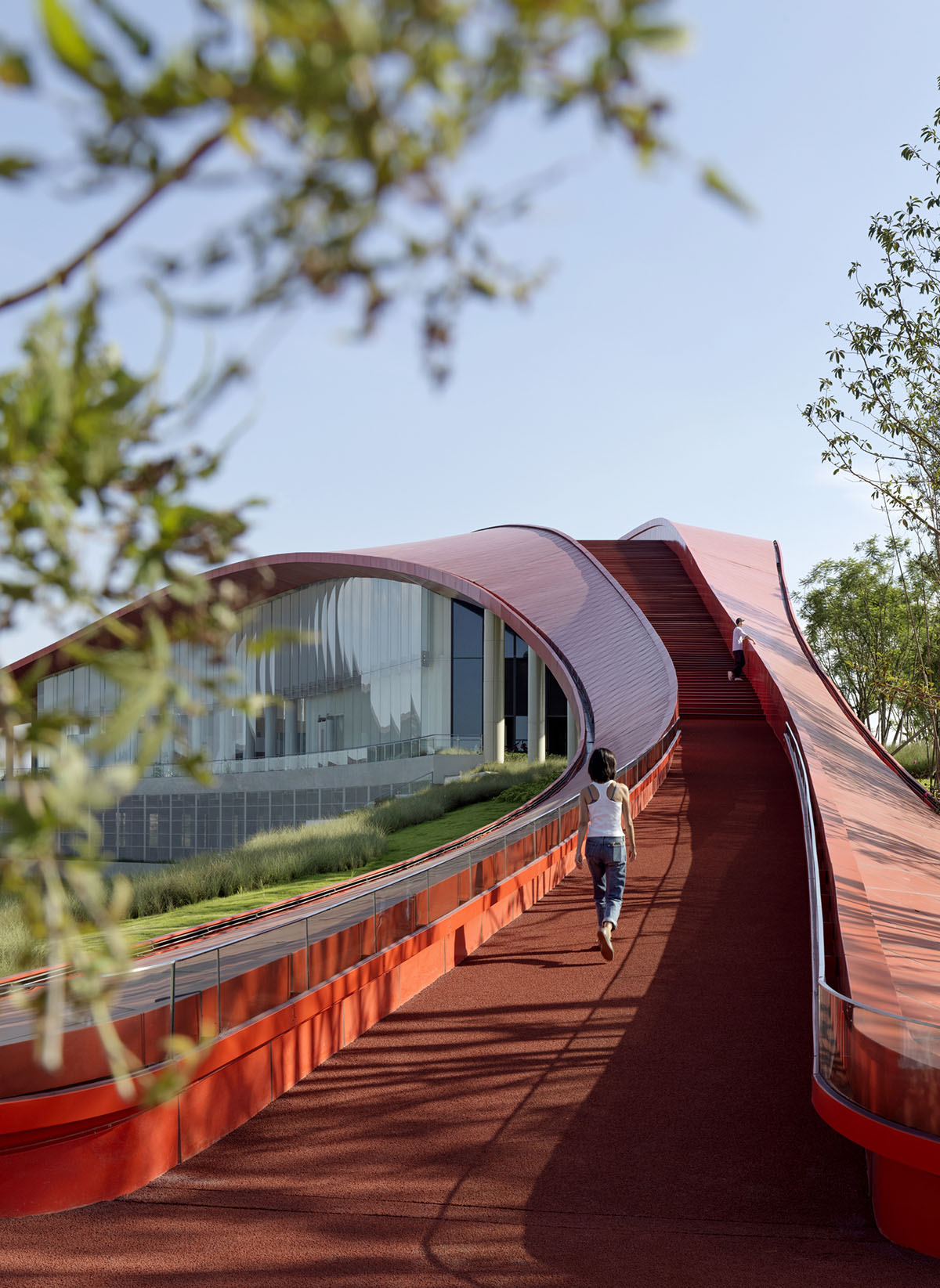

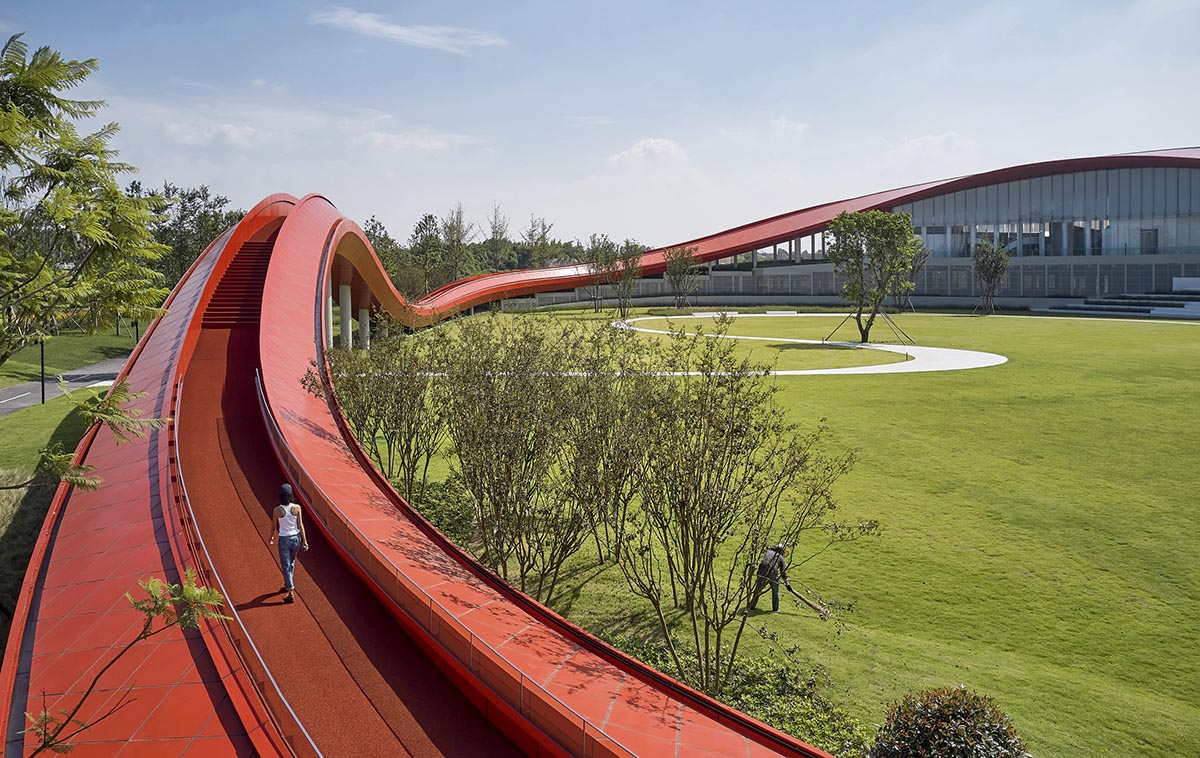

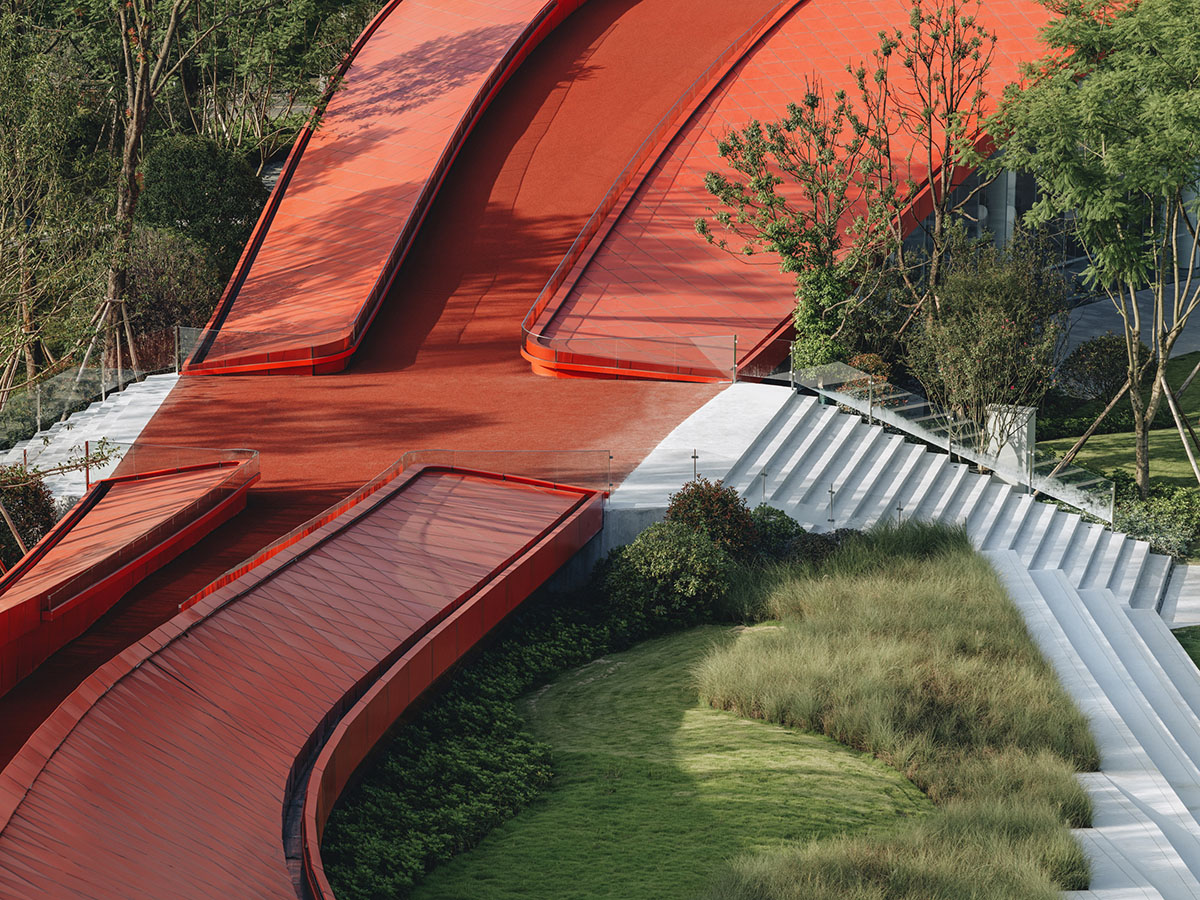

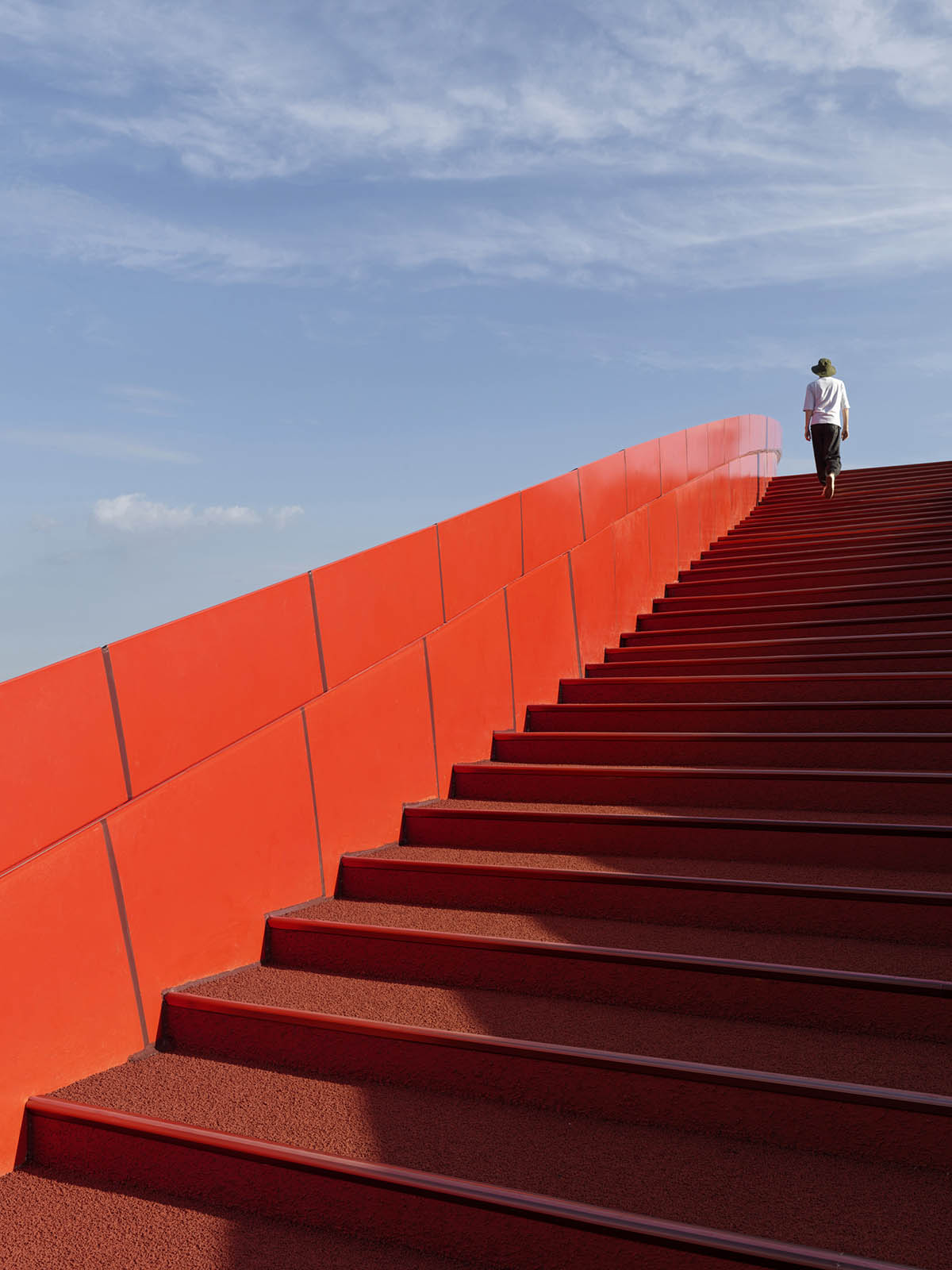

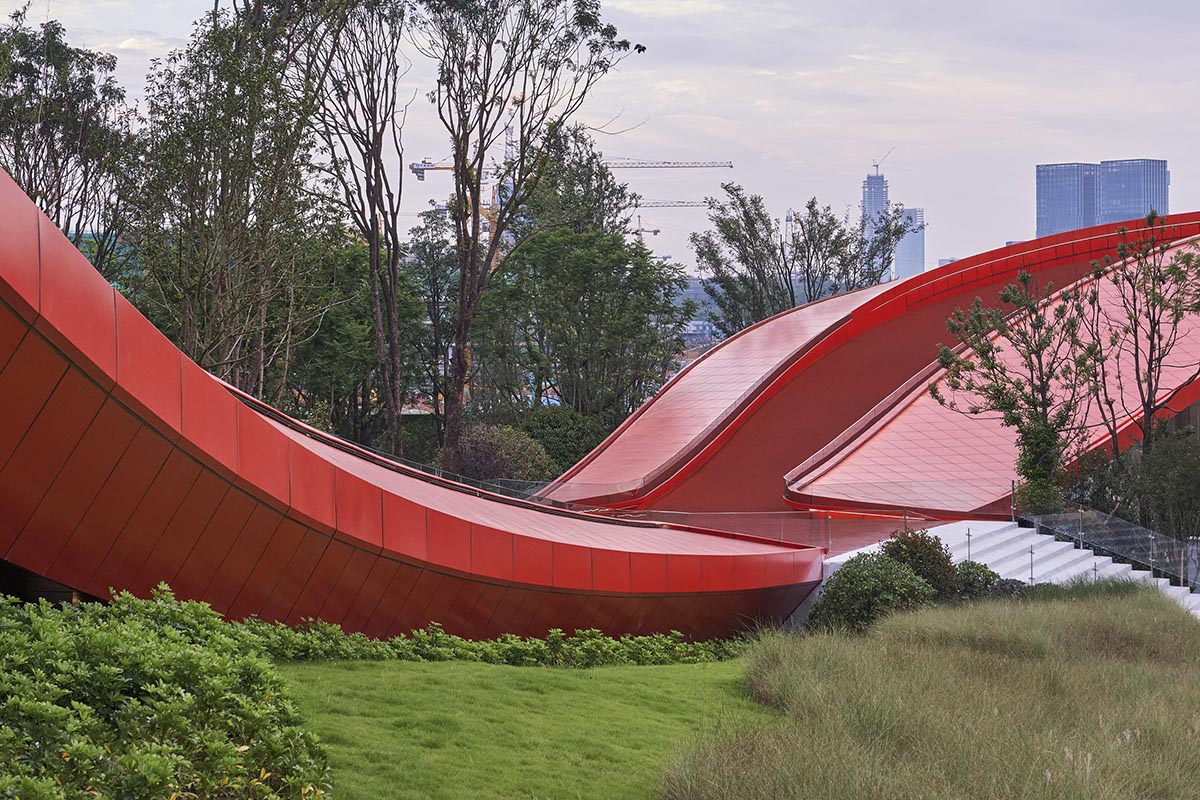

The rooftop walkway measures 698 meters around, rising 25 meters from its ground level access to offer spectacular views of the surrounding greenery and distant mountains. Its surface is rubber asphalt – the material used for athletics tracks – making the path suitable for runners as well as walkers.

The studio choose the red color for the roof because of the striking contrast it makes with the lush green of the landscape.

Sinuous red roof combines technology museum and reception center in Chengdu by Powerhouse Company

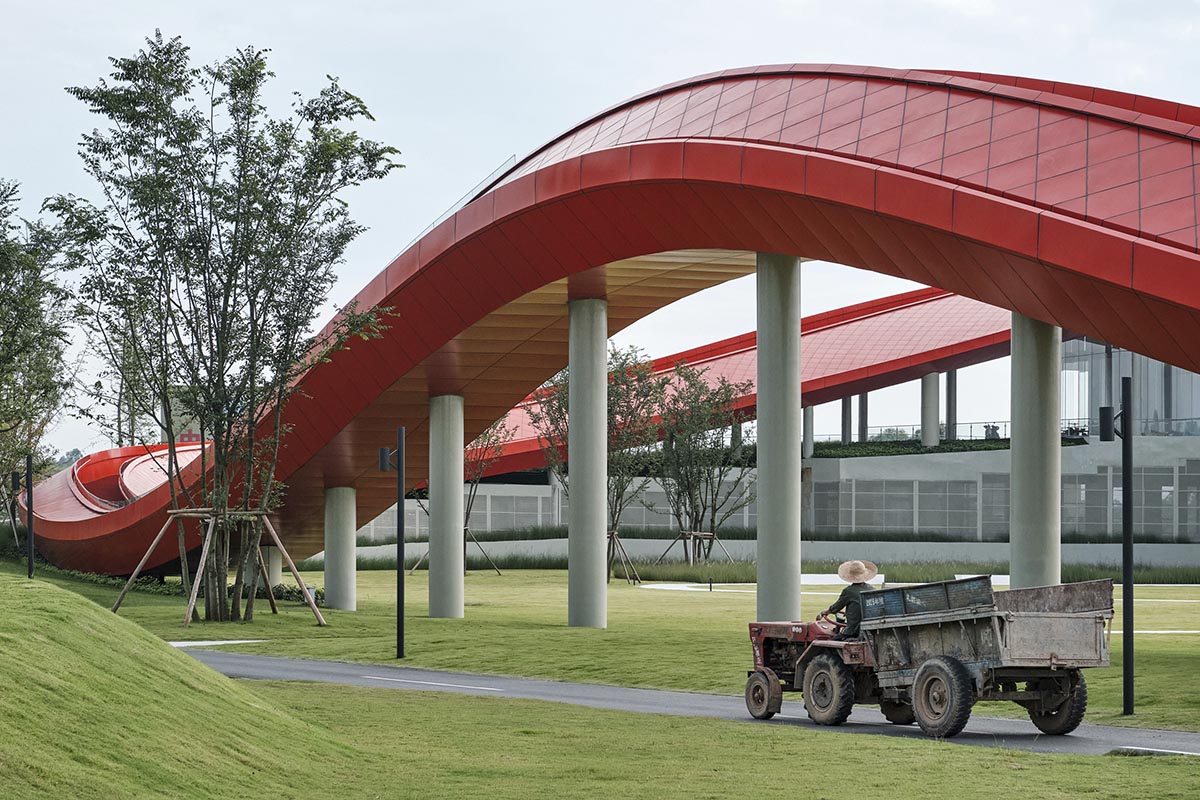

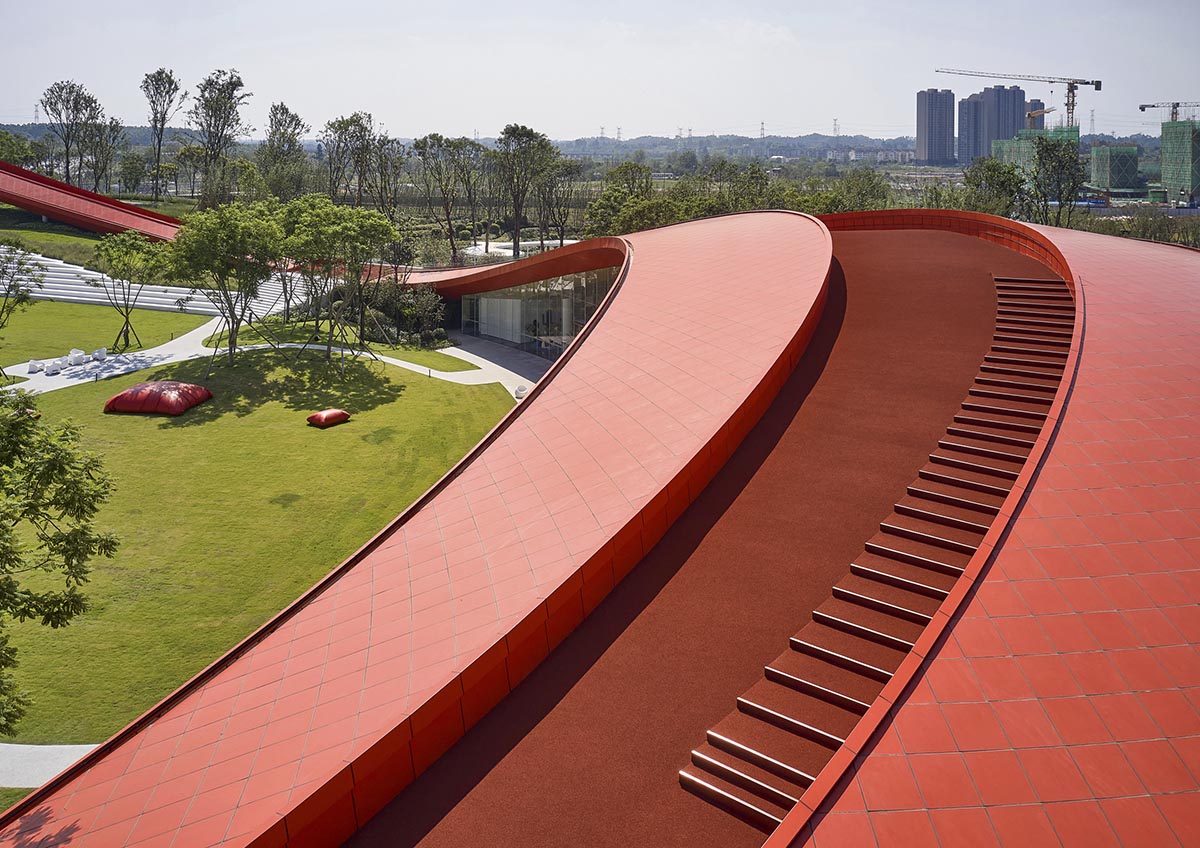

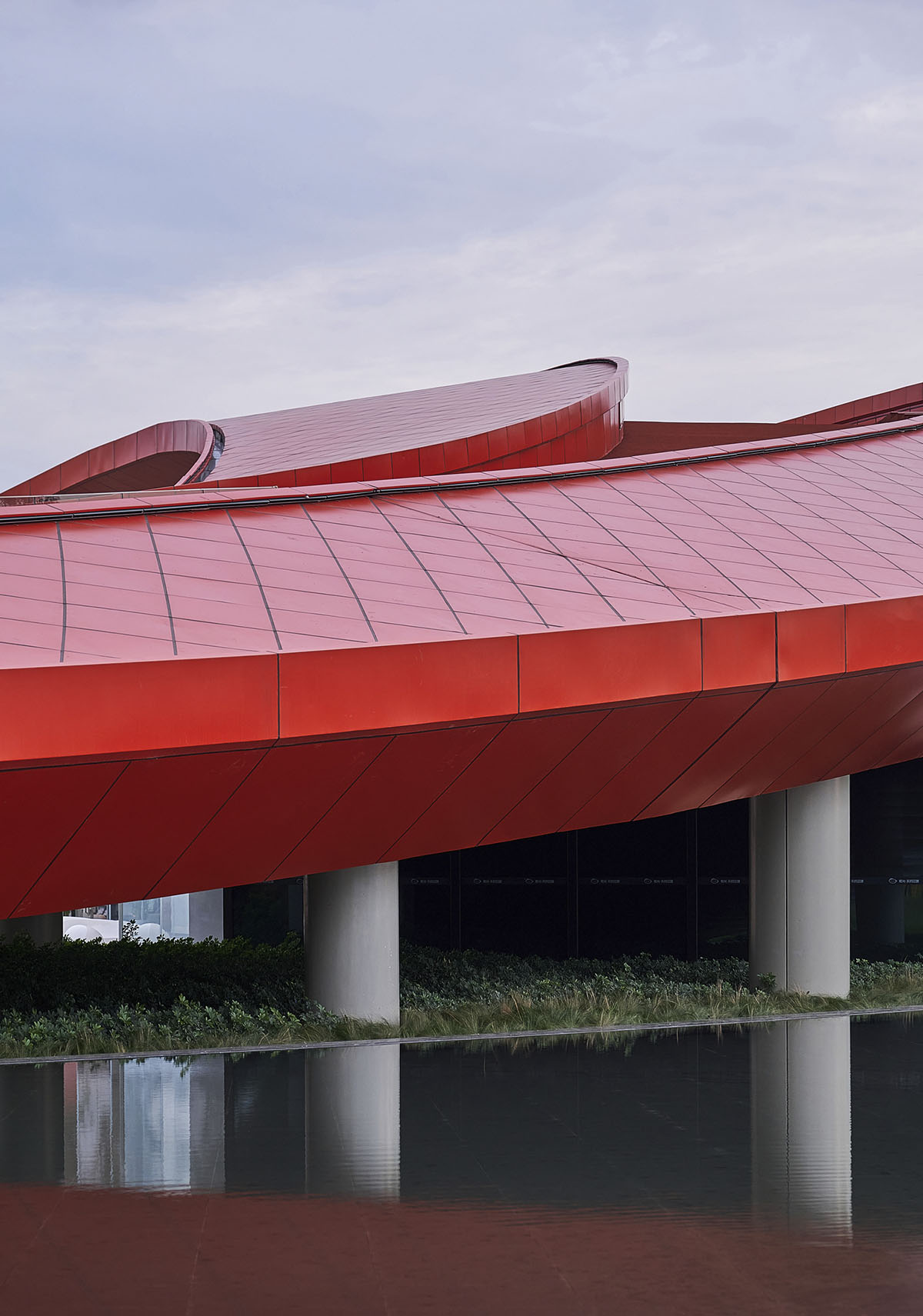

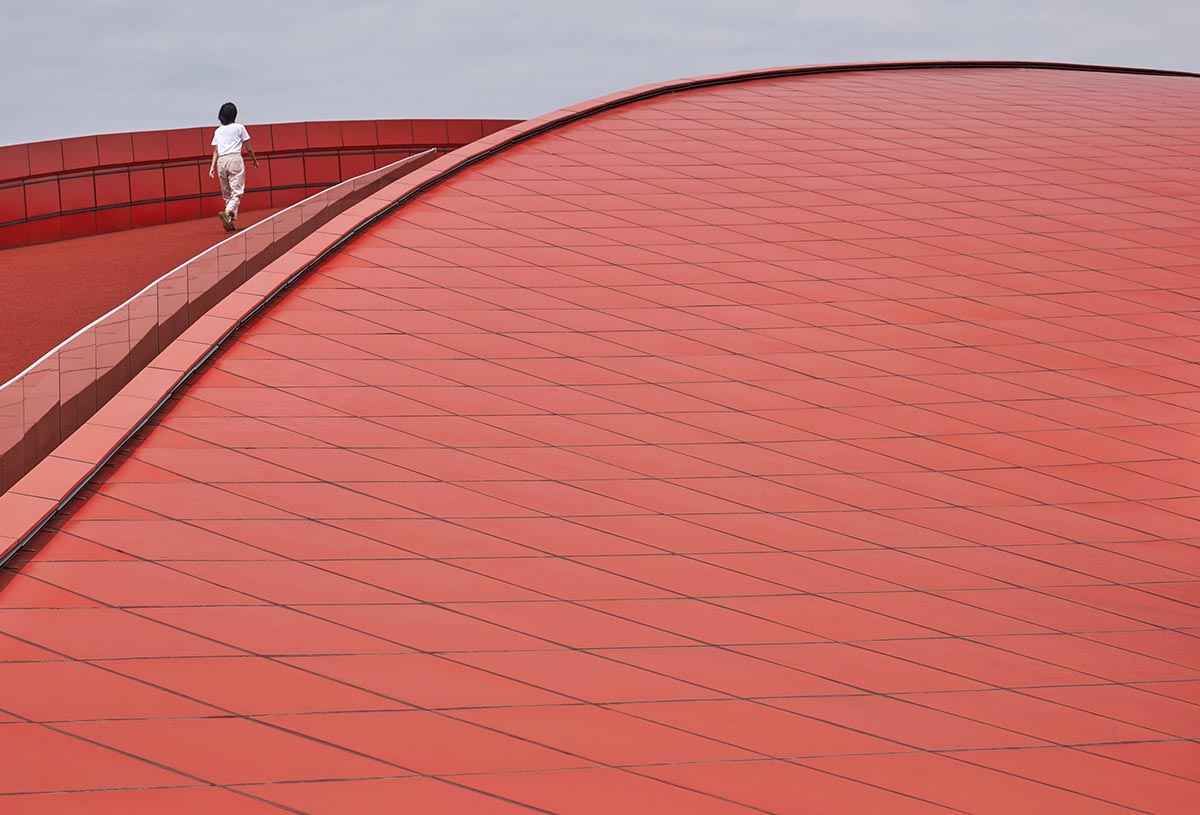

Above the track, the rooftop surface is composed of custom aluminium tiles. 15,218 of these, each with its own unique profile and numeric code, form a seamless skin for the serpentine shape.

Sinuous red roof combines technology museum and reception center in Chengdu by Powerhouse Company

The LED lights that illuminate the building at night and functional elements including gutters and handrails are all carefully concealed from sight, resulting in the streamlined profile that enhances the loop’s elegant simplicity and flowing lines.

Sinuous red roof combines technology museum and reception center in Chengdu by Powerhouse Company

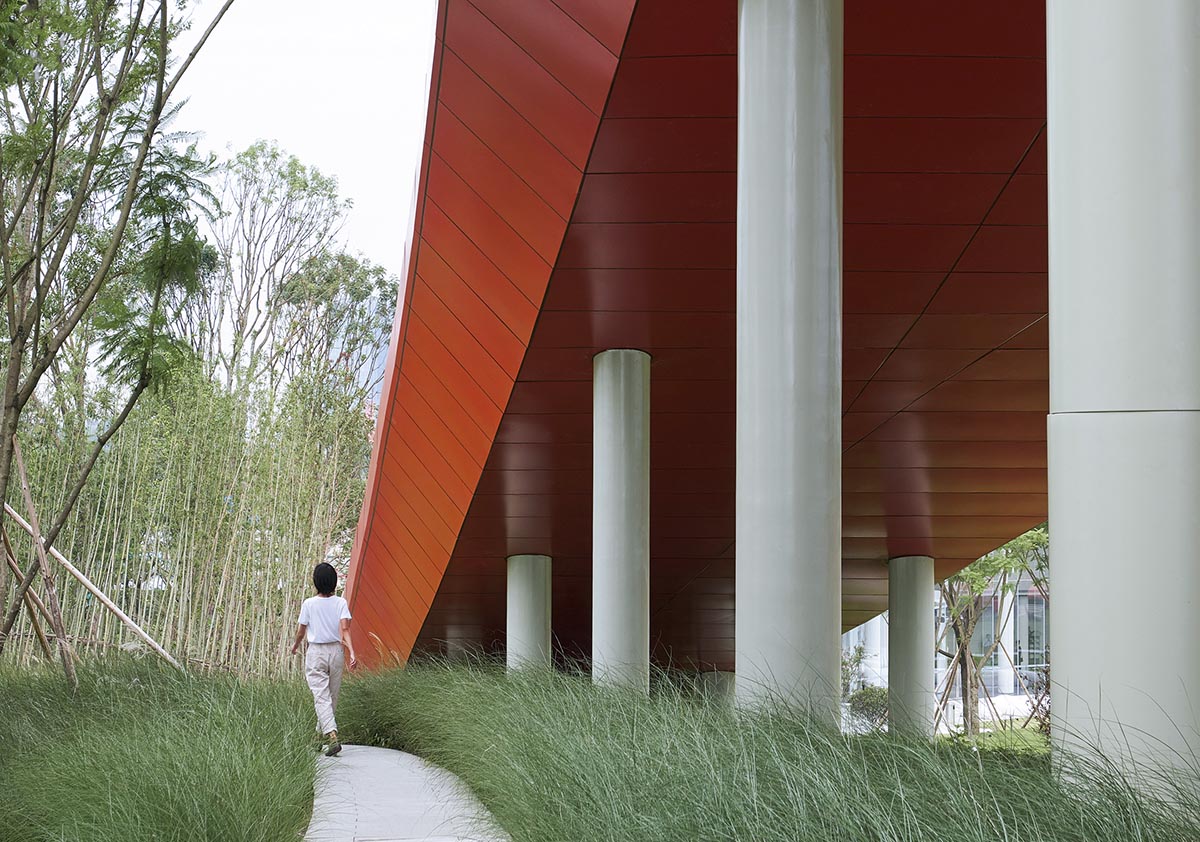

Beneath the red roof, the exhibition spaces have a warm, natural atmosphere, created by wooden ceilings and open views of the surrounding landscape.

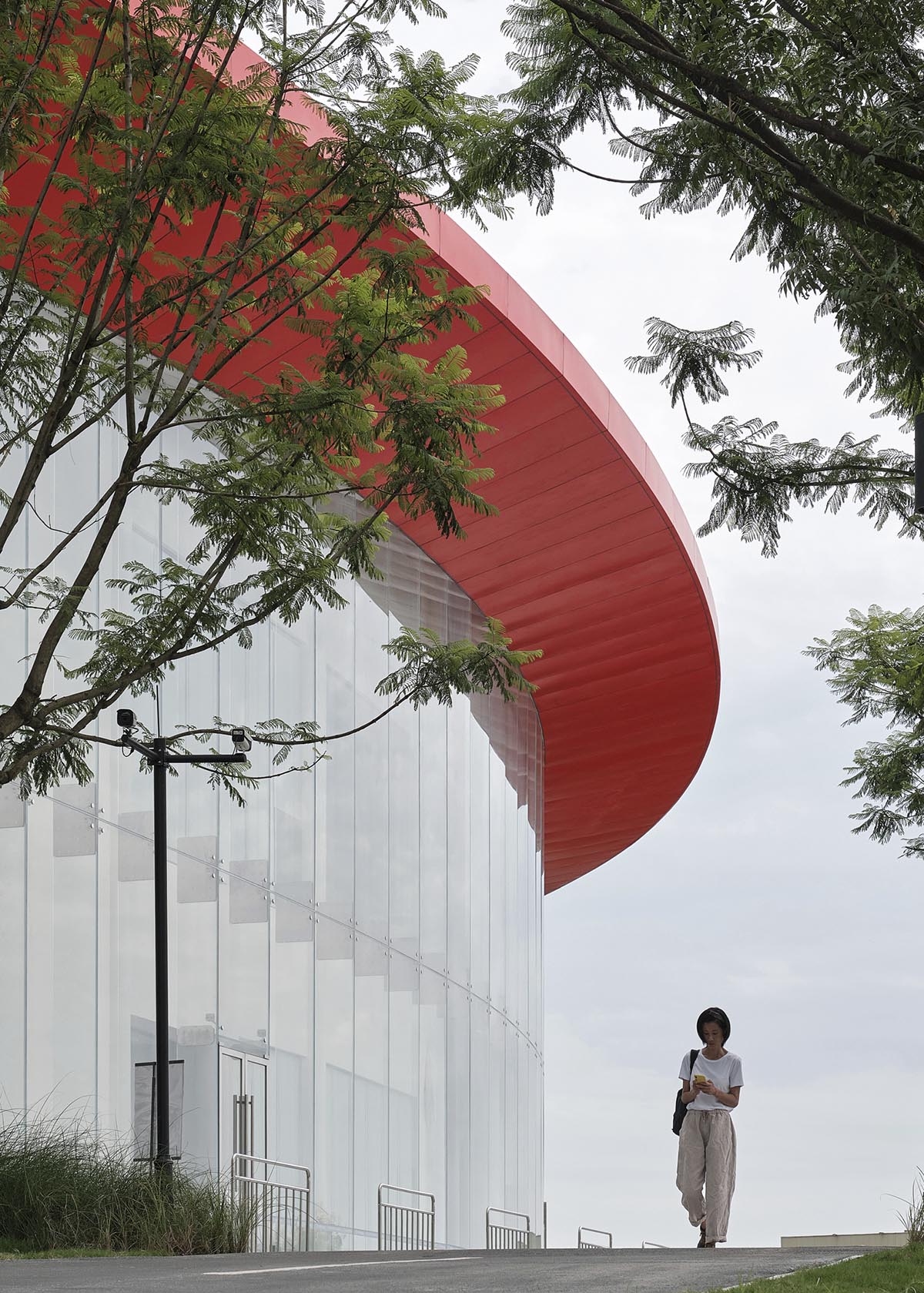

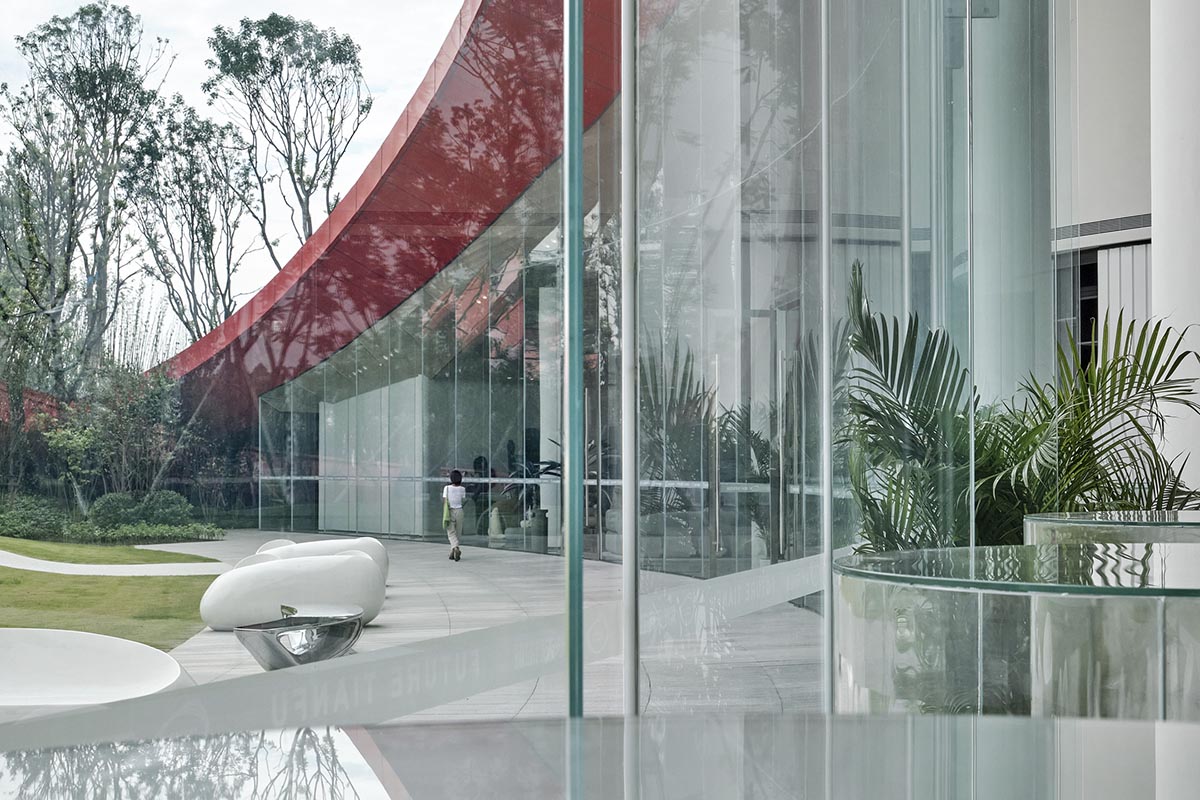

The facades are structurally glazed to a height of 13 meters with glass reinforcement fins. This transparency blurs the boundary between indoors and outdoors, again enhancing the connection with nature.

Sinuous red roof combines technology museum and reception center in Chengdu by Powerhouse Company

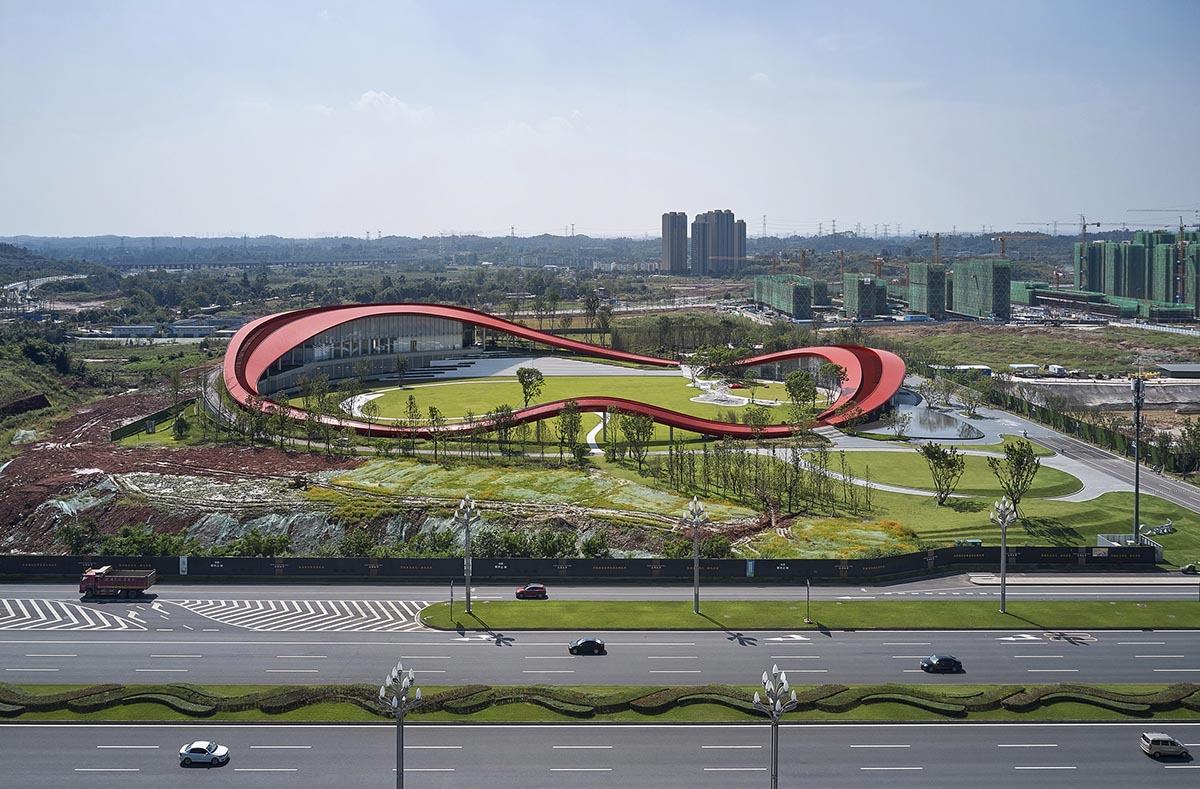

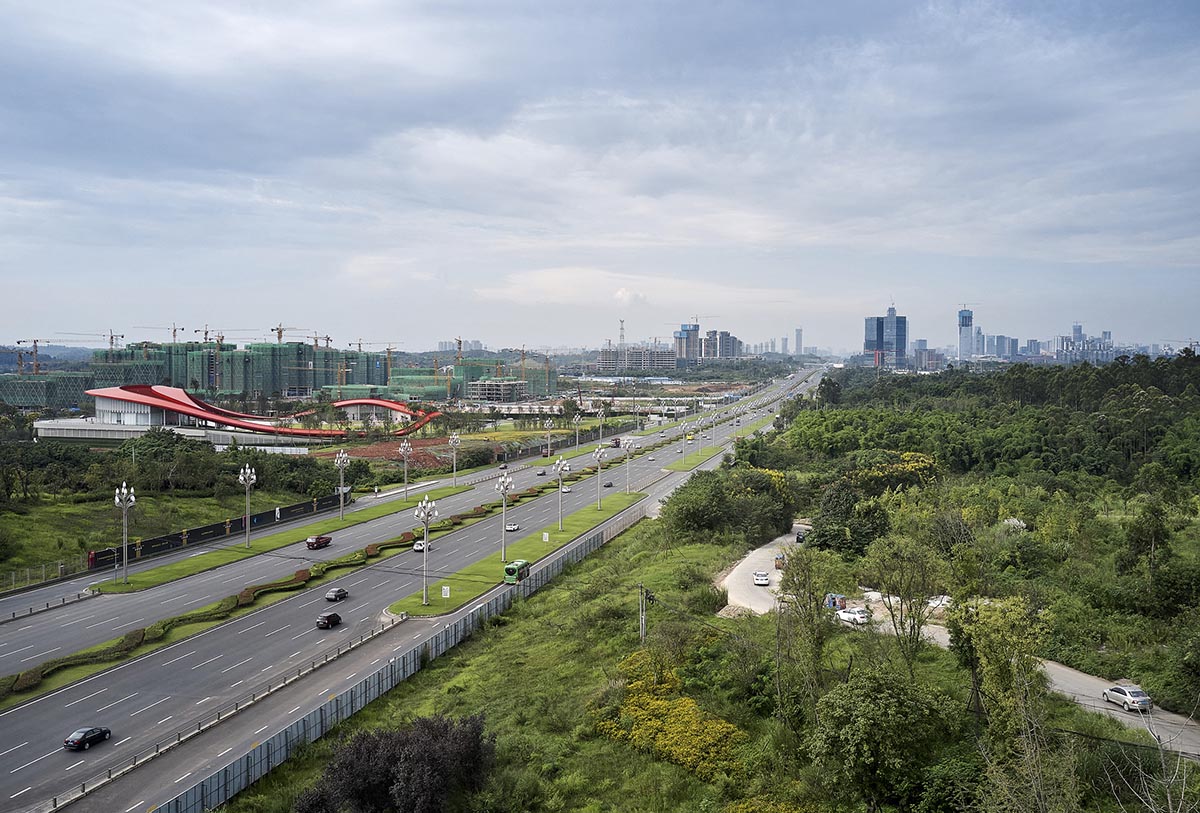

Located in the Tianfu New District of Chengdu in Sichuan, Unis Chip City is one of several developments springing up along the Tianfu Avenue. Situated next to this major artery, the Loop of Wisdom commands attention with its flowing form and vibrant red color.

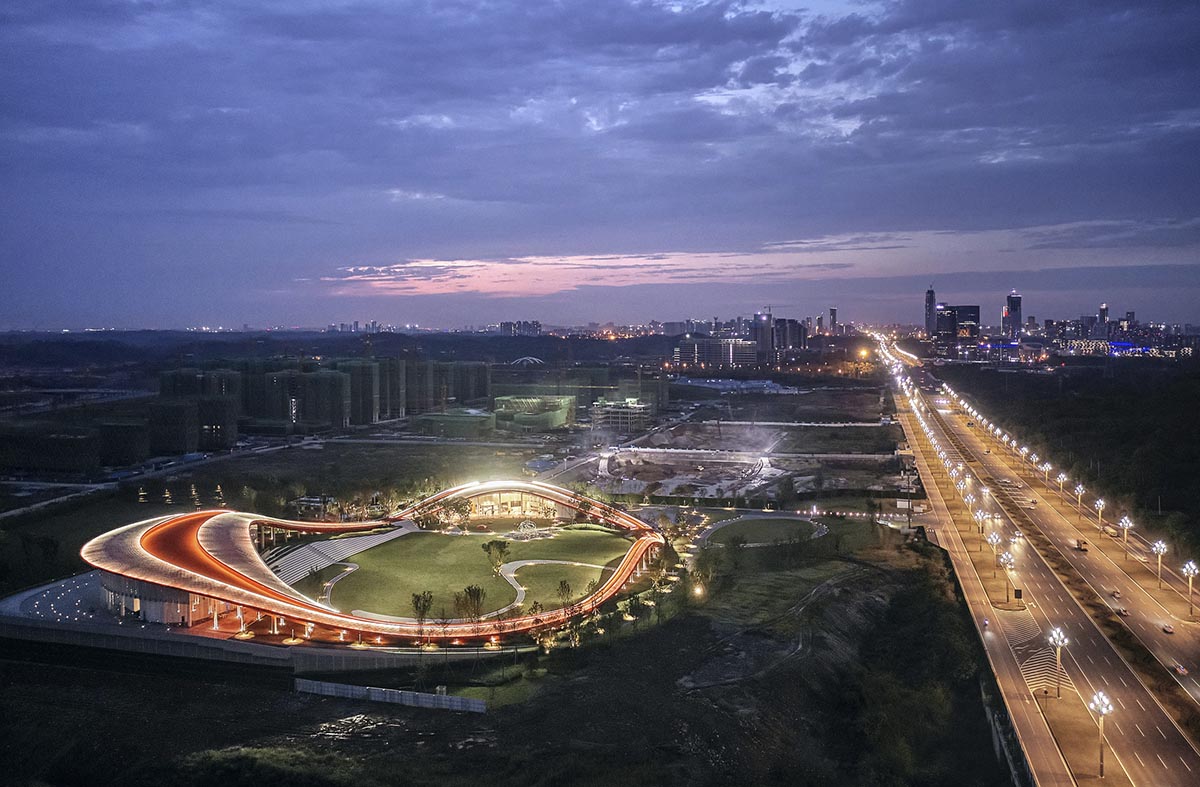

At night, LED lighting transforms it into a glowing sculpture. As the first completed building in the new development, it acts as a symbolic landmark for the future community and as a magnet for attracting future residents.

Sinuous red roof combines technology museum and reception center in Chengdu by Powerhouse Company

In addition to designing the Loop of Wisdom, Powerhouse Company acted as a consultant for the development, which includes residential buildings, offices, shopping malls and schools.

The architects also designed other elements of the plan, including mixed-use offices that are currently under construction.

Sinuous red roof combines technology museum and reception center in Chengdu by Powerhouse Company

The entire Loop of Wisdom building, including the interior design and landscape design, was built with true Chinese rapidity: It took under a year to complete from design to construction.

The design itself went from sketch to blueprint in a matter of days, thanks to the use of advanced parametric drafting software that was linked to the architects’ BIM model.

The six-hour time difference between Powerhouse Company’s head office in Rotterdam and the site in China allowed for efficient communication, with both parties touching base at the start and end of their respective days.

Sinuous red roof combines technology museum and reception center in Chengdu by Powerhouse Company

Eventually, a new school will be built next to the site of the Loop of Wisdom. The building will enter its second phase of life as a library and sports center, complete with an Olympic-sized running track, maintaining its focal role in the community.

This built-in longevity makes the building inherently sustainable.

Sinuous red roof combines technology museum and reception center in Chengdu by Powerhouse Company

Sinuous red roof combines technology museum and reception center in Chengdu by Powerhouse Company

Sinuous red roof combines technology museum and reception center in Chengdu by Powerhouse Company

Sinuous red roof combines technology museum and reception center in Chengdu by Powerhouse Company

Sinuous red roof combines technology museum and reception center in Chengdu by Powerhouse Company

Sinuous red roof combines technology museum and reception center in Chengdu by Powerhouse Company

Sinuous red roof combines technology museum and reception center in Chengdu by Powerhouse Company

Sinuous red roof combines technology museum and reception center in Chengdu by Powerhouse Company

Sinuous red roof combines technology museum and reception center in Chengdu by Powerhouse Company

Sinuous red roof combines technology museum and reception center in Chengdu by Powerhouse Company

Sinuous red roof combines technology museum and reception center in Chengdu by Powerhouse Company

Sinuous red roof combines technology museum and reception center in Chengdu by Powerhouse Company

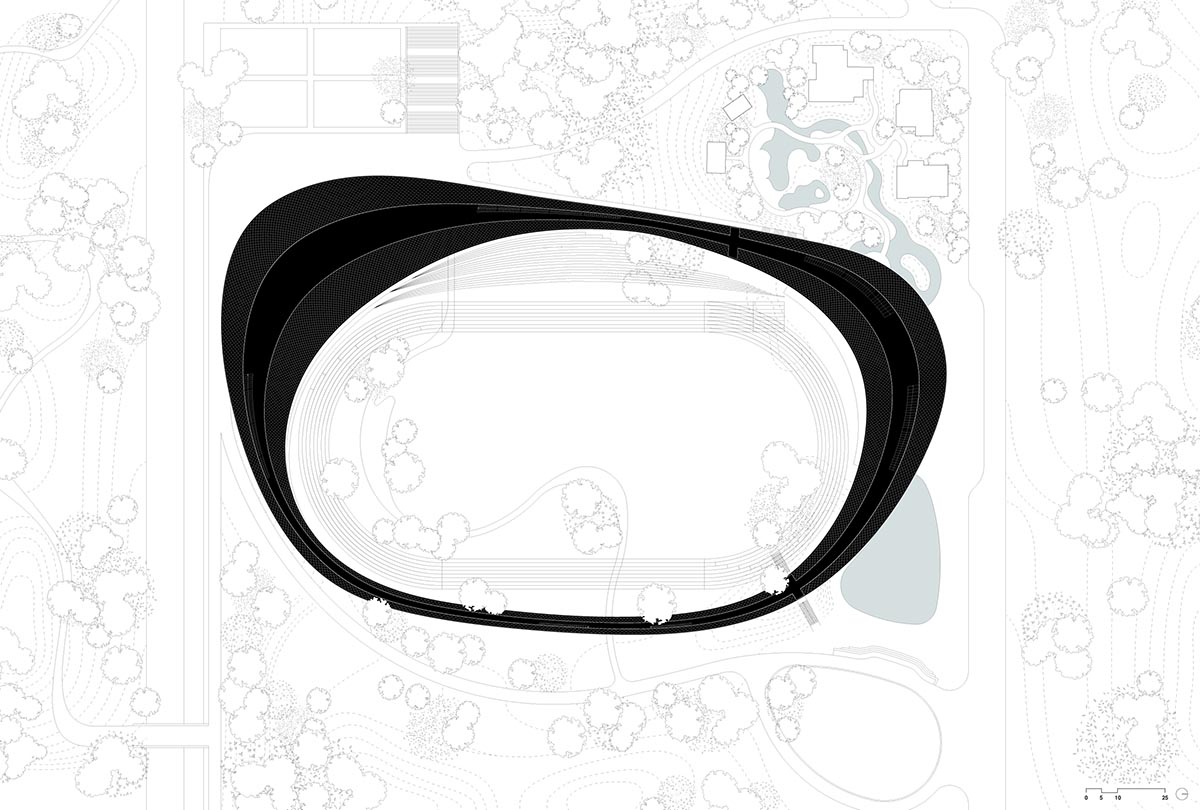

Loop of Wisdom Roof plan

Sinuous red roof combines technology museum and reception center in Chengdu by Powerhouse Company

Floor plan

Sinuous red roof combines technology museum and reception center in Chengdu by Powerhouse Company

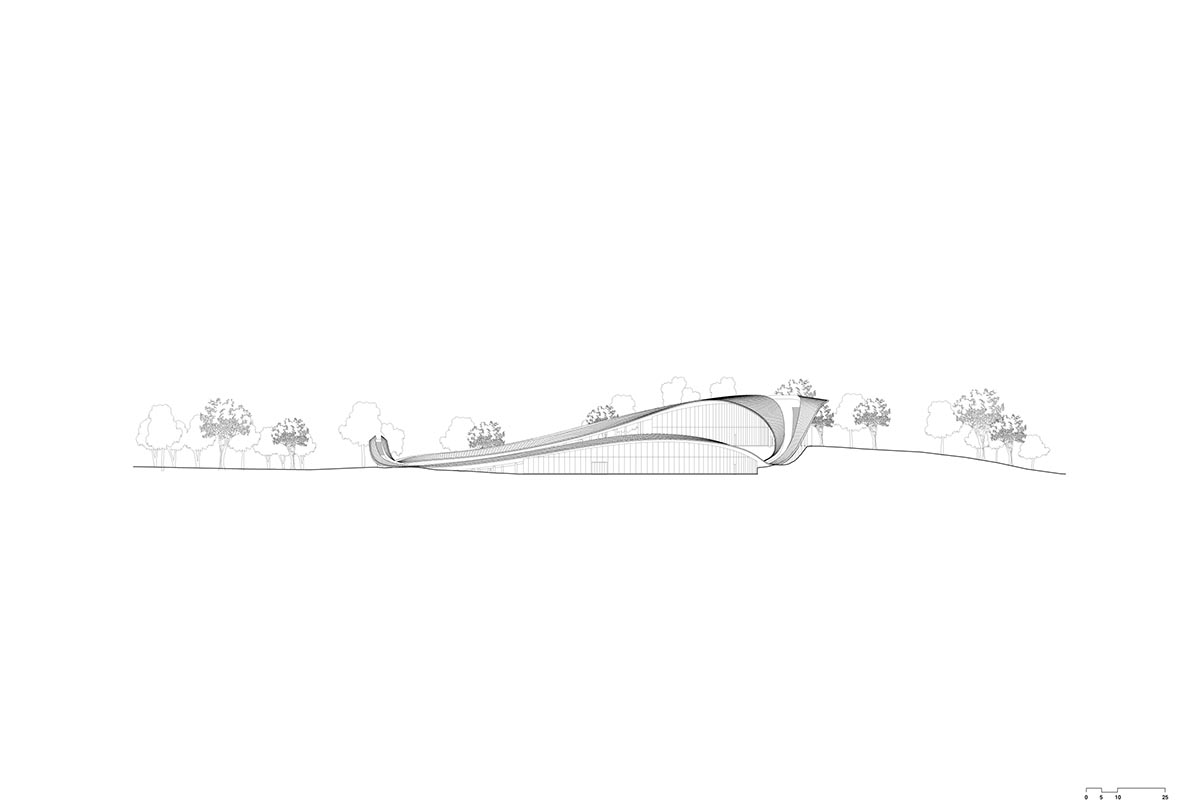

East Elevation

Sinuous red roof combines technology museum and reception center in Chengdu by Powerhouse Company

North Elevation

Sinuous red roof combines technology museum and reception center in Chengdu by Powerhouse Company

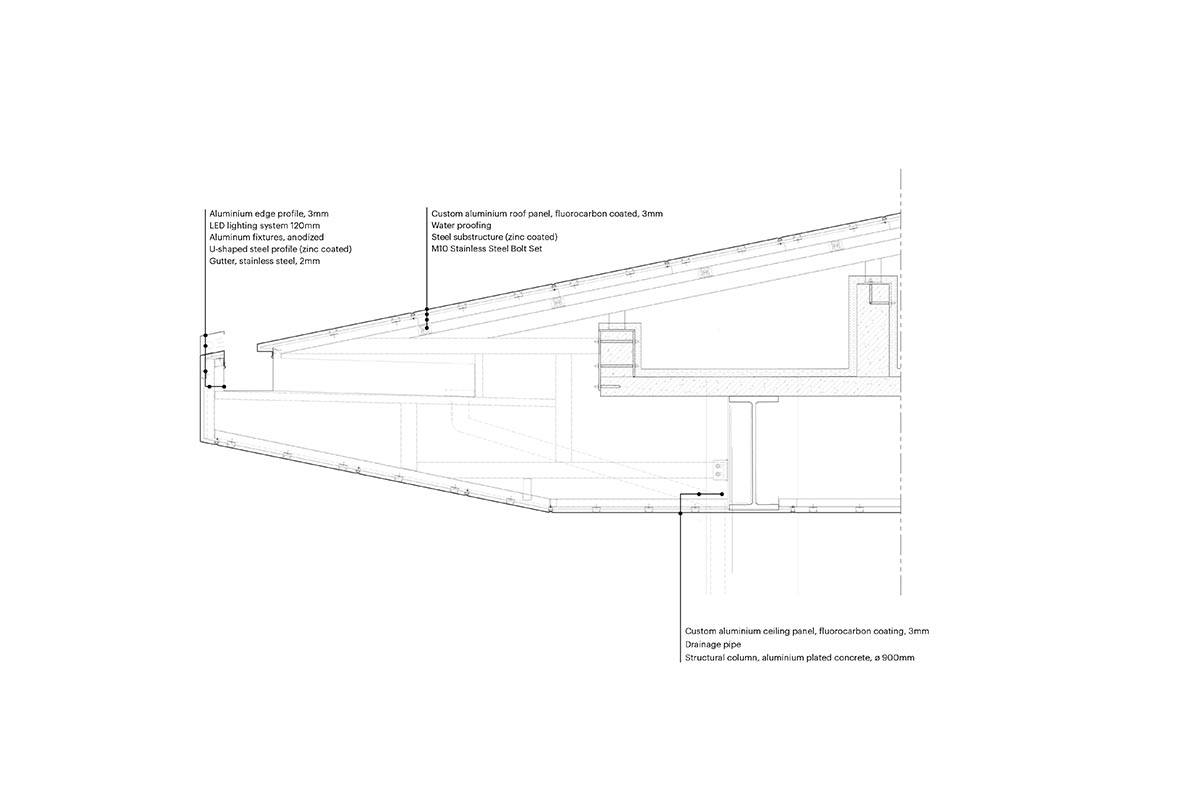

Detail Roof Edge

Powerhouse Company is an award-winning architecture office based in Rotterdam, the Netherlands. Founded in 2005, it has grown into a multidisciplinary office of around 100 professionals, with international studios in Beijing, Oslo and Munich.

The studio won prizes such as the Dutch Design Award, the Maaskant Prize and the AM/NAI Award.

Project facts

Client: Uni-Hiku
Architect: Powerhouse Company
Co-architect: Chengdu JZFZ Architectural Design Co.Ltd.
Landscape architect: AECOM, Wisto
Interior architect: CCD, Xenario
Urban planner: Woods Bagot
MEP consultant: Chengdu JZFZ Architectural Design Co.Ltd.
Structural engineer: Chengdu JZFZ Architectural Design Co.Ltd.
Facade engineer: Chengdu JZFZ Architectural Design Co.Ltd.
Lighting advisor: Minka
Contractor: CSCEC, Kelida

All images © Jonathan Leijonhufvud Architectural Photography

All drawings © Powerhouse Company
