Zaha Hadid Architects designs Xi’an's new stadium that features garden terraces and open facades

China Architecture News - Aug 20, 2020 - 14:10   11268 views

Zaha Hadid Architects designs Xi’an's new stadium that features garden terraces and open facades

Zaha Hadid Architects has unveiled design for a new stadium for national and international matches as well as domestic league games, youth training academies, entertainment performances and cultural events in Xi’an, China

Called Xi’an International Football Centre, the new stadium will have 60,000-seat capacity and feature open facades and garden terraces with undulating roof structure that will create a minimum load and material footprint on the stadium's structure.

Video by ZHA

The new stadium will be located in Xi’an's Fengdong New District with its stations on the city’s expanding metro network.

"With a population of nine million people and two professional football clubs, Xi’an will be a host city of the 2023 Asian Football Confederation (AFC) Asian Cup in China," said Zaha Hadid Architects in its project description.

"Taking its legacy mode of operations as the starting point of the design, the stadium has been designed to provide optimum conditions for football and maximize its use by generations after the 2023 tournament."

Zaha Hadid Architects designs Xi’an's new stadium that features garden terraces and open facades

Image courtesy of ZHA

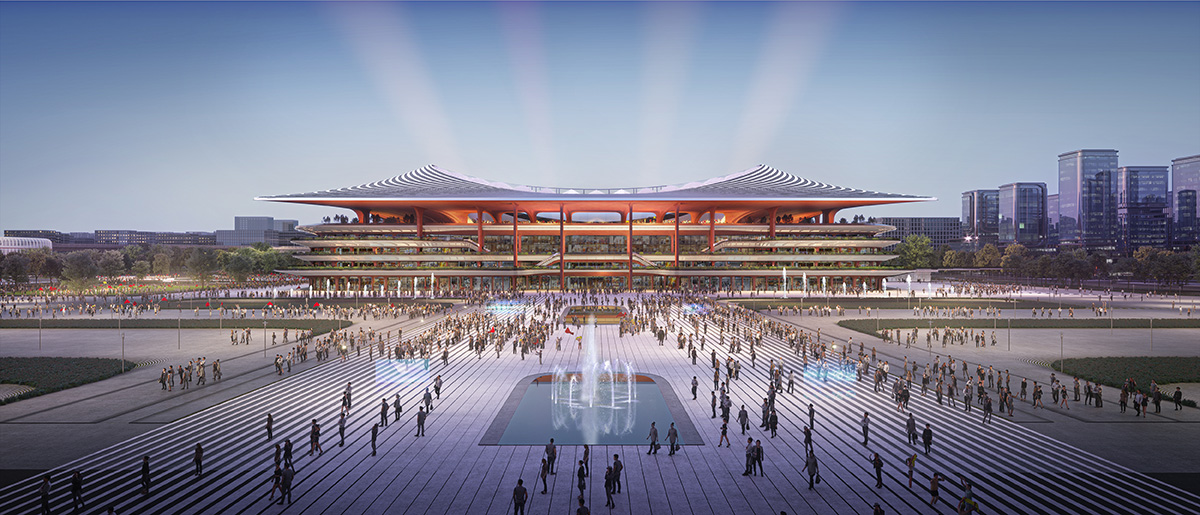

ZHA conceived the design of the stadium by integrating within the orthogonal urban grid of Fengdong’s business district. Thanks to its open façades, the stadium, apart from its solely function, will invite the city into the heart of the building to enjoy its public spaces, recreation and dining facilities throughout the day.

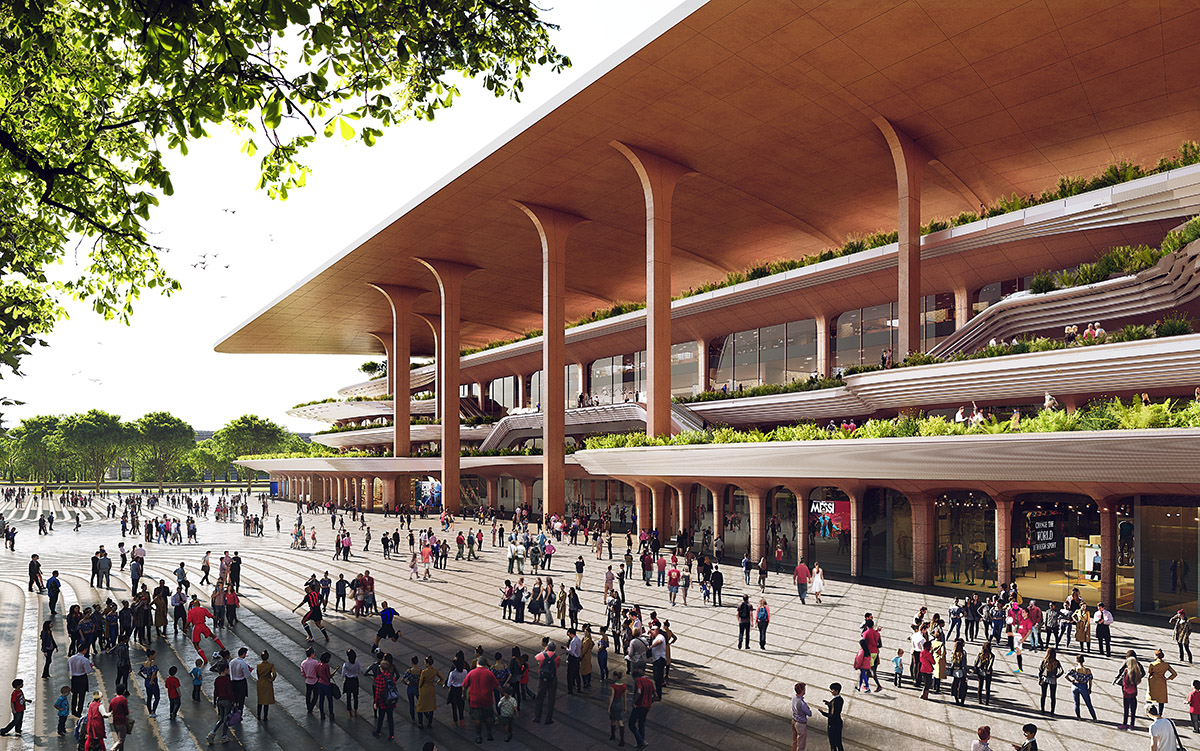

"Located in a series of shaded south-facing garden terraces with views over the city to Qing Mountain, these amenities will also serve spectators visiting the stadium during football matches, cultural events and performances," the studio explained.

Zaha Hadid Architects designs Xi’an's new stadium that features garden terraces and open facades

Image © Atchain

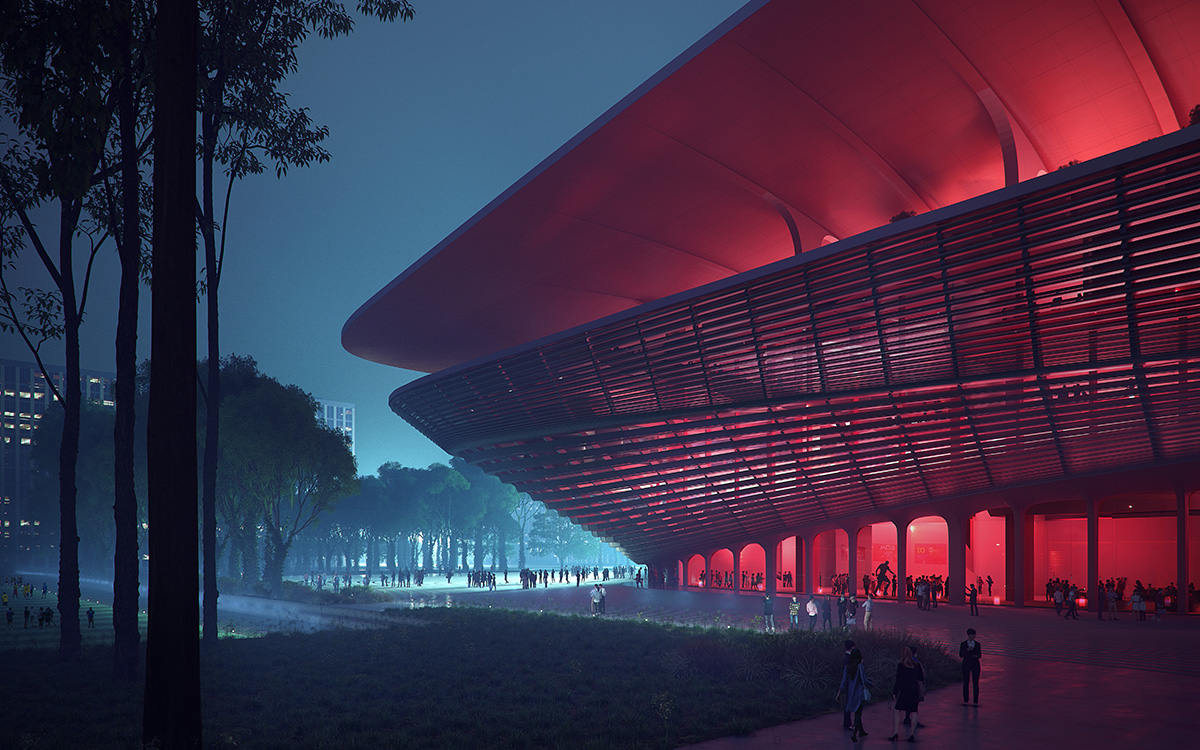

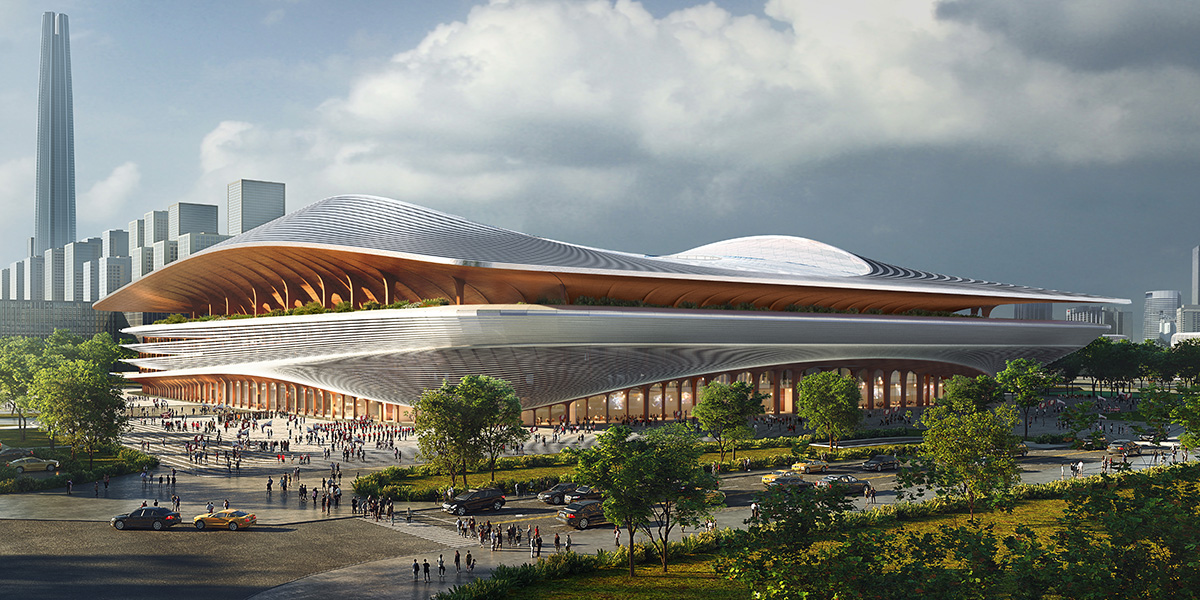

ZHA created sweeping lines for the façade to protect the stadium from northerly winds and convey the fluid forms of the roof that shelters the saddle-shaped seating bowl which maximizes the spectator seating provided at midfield.

The stadium employs an ultra-lightweight long span cable-net roof structure, resulting in a minimum load and material footprint that in turn reduces the stadium’s primary structure.

The structure is wrapped by wide perimeter roof overhangs to shelter facilities within the building's envelope while the large, shaded, open-air terraces and public concourses incorporates extensive planting on all levels, providing comfortable conditions in Xi’an’s hot continental summer climate.

Zaha Hadid Architects designs Xi’an's new stadium that features garden terraces and open facades

Image © Atchain

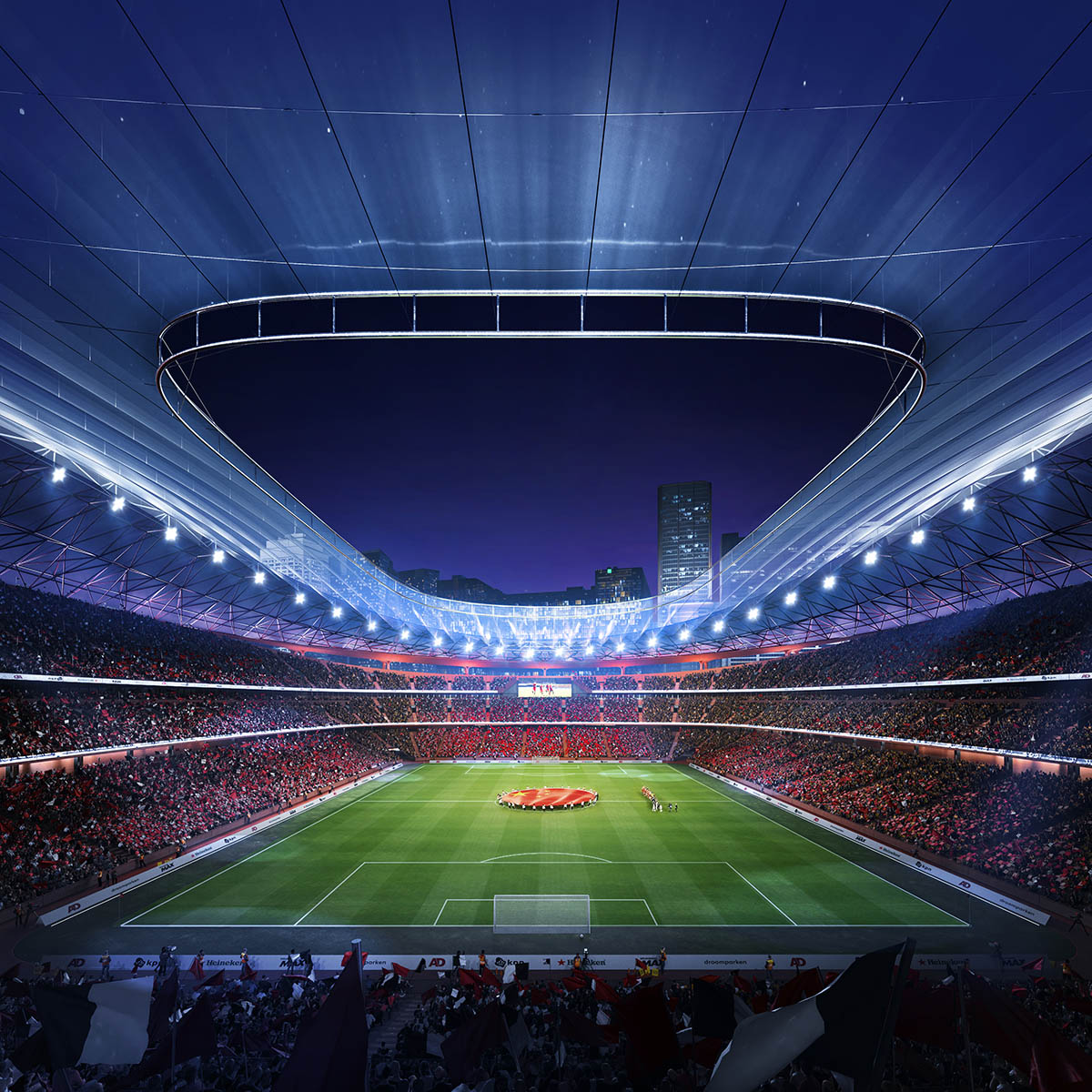

"Supported by the tensioned cable-net structure, a translucent membrane over the seating protects spectators from inclement weather and direct sunlight while also allowing the most amount of natural light to reach the playing surface, promoting the growth of grass on the pitch to provide playing conditions of the highest standard," explained ZHA.

Zaha Hadid Architects designs Xi’an's new stadium that features garden terraces and open facades

Image © Atchain

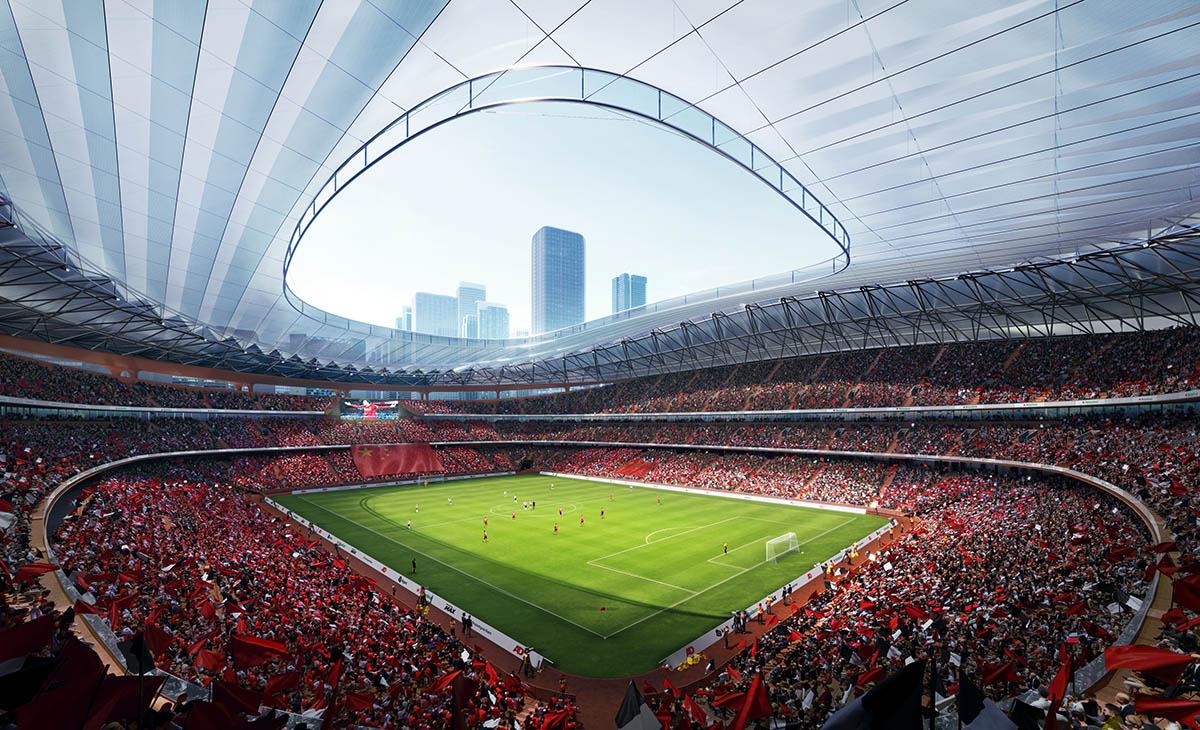

The studio designed the saddle-shaped seating bowl by using digital modelling to define the geometry of the spectators’ seating bowl to get optimum proximity and views to the field of play from all 60,000 seats.

Thanks to its special geometry, the stadium is aimed to generate the most exciting atmosphere for football and ensuring an outstanding match experience for all players and spectators.

Zaha Hadid Architects designs Xi’an's new stadium that features garden terraces and open facades

Image © Negativ

China’s ancient capital and core of the Silk Road, Xi’an has a long history of welcoming visitors from around the world. In the global arena of football, the Xi’an International Football Centre continues this tradition and builds a lasting legacy of new civic spaces, sports and recreational facilities for the city.

Zaha Hadid Architects designs Xi’an's new stadium that features garden terraces and open facades

Image © Negativ

Zaha Hadid Architects recently unveiled design for new residences made of modular system with sustainable timber in Honduras. The studio is currently working on the "greenest" building for CECEP's new Shanghai Headquarters.

Project facts

Architect: Zaha Hadid Architects (ZHA)
Design: Patrik Schumacher
ZHA Project Directors: Charles Walker, Nils Fischer
ZHA Project Associate: Jakub Klaska, Lei Zheng
ZHA Project Team: Shajay Bhooshan, Vishu Bhooshan, Jianfei Chu, Chun-Yen Chen, Hung-Da Chien, Marina Dimopoulou, Cesar Fragachan, Michael Forward, Matthew Gabe, Stratis Georgiou, Charles Harris, Yen-fen Huang, Han Hsun Hsieh, Yihoon Kim, Henry Louth, Martha Masli, Mauro Sabiu, Xin Swift, Adeliia Papulzan, Pablo Agustin Vivas

Partner Architect: Intelligent Design for Emerging Architecture (iDEA)
iDEA Project Director: Yan Gao
iDEA Project Team: Jianyou Yang, Bin Wu, Fiona Huang, Jingshan Zhong, Shishang Deng, Qiongli Lu, Ting Liu, Xinyu Kou, Daria Morkovkina, Haixia Zhang
Structural Engineering: Qiang Chang

Consultants:
Local Design Institute: Arcplus Institute of Shanghai Architectural Design & Research
Sports Consultant: Clive John Lewis
Lighting: Lichtvision Design
