Tenon Architecture creates cave-like wooden interior for a resort in Greece

Greece Architecture News - Jun 09, 2020 - 13:45   5414 views

Tenon Architecture creates cave-like wooden interior for a resort in Greece

Greek architecture firm Tenon Architecture has created a cave-like wooden interior for the Hyades Mountain Resort in Trikala Korinthias, Greece

Named Wooden Cave, the 55-square-metre interior space is distinguished with rounded edges and smooth surfaces.

Designed by the architects Apostolos Mitropoulos and Thanos Zervos - co-founders of Tenon Architecture, the project was completed as part of the renovation process of an existing space of the resort, intended for commercial use, with the construction of a curved wooden structure within it.

Tenon Architecture creates cave-like wooden interior for a resort in Greece

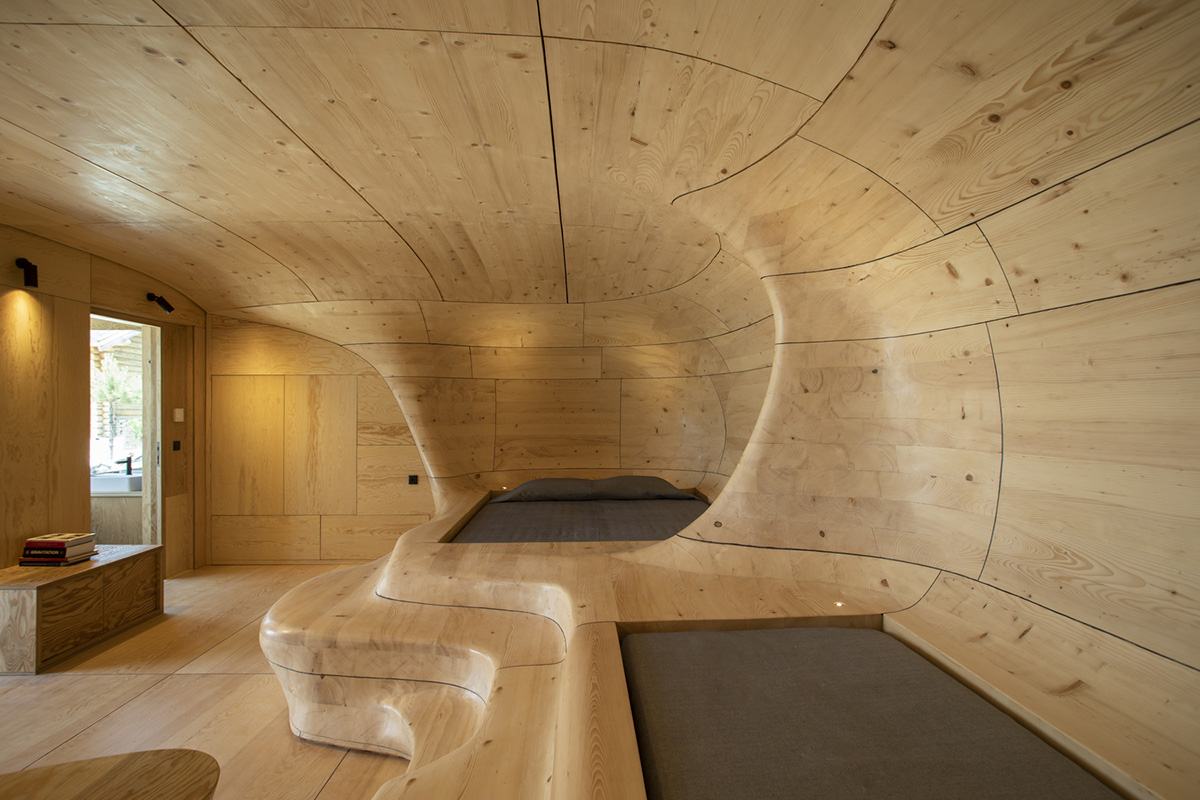

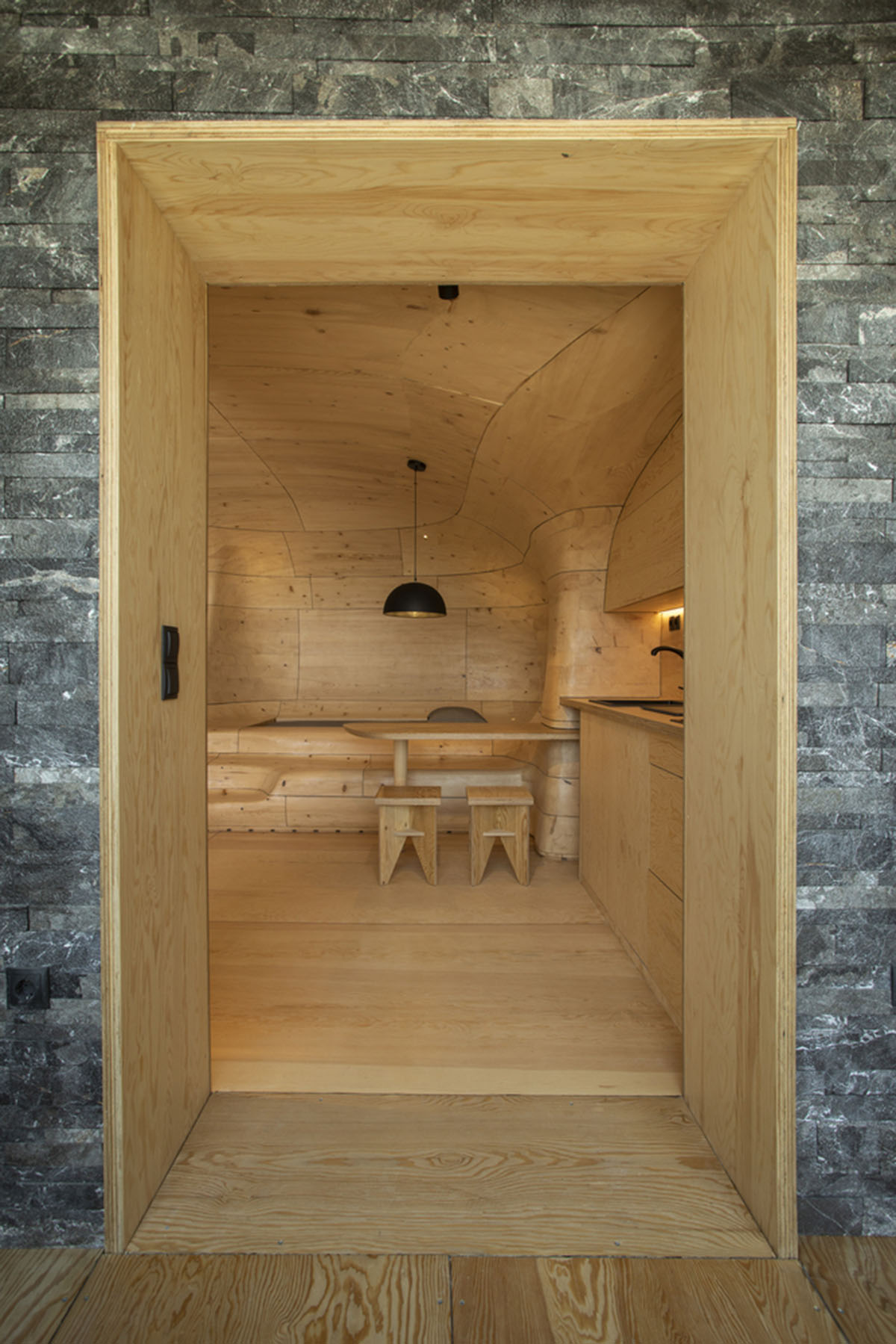

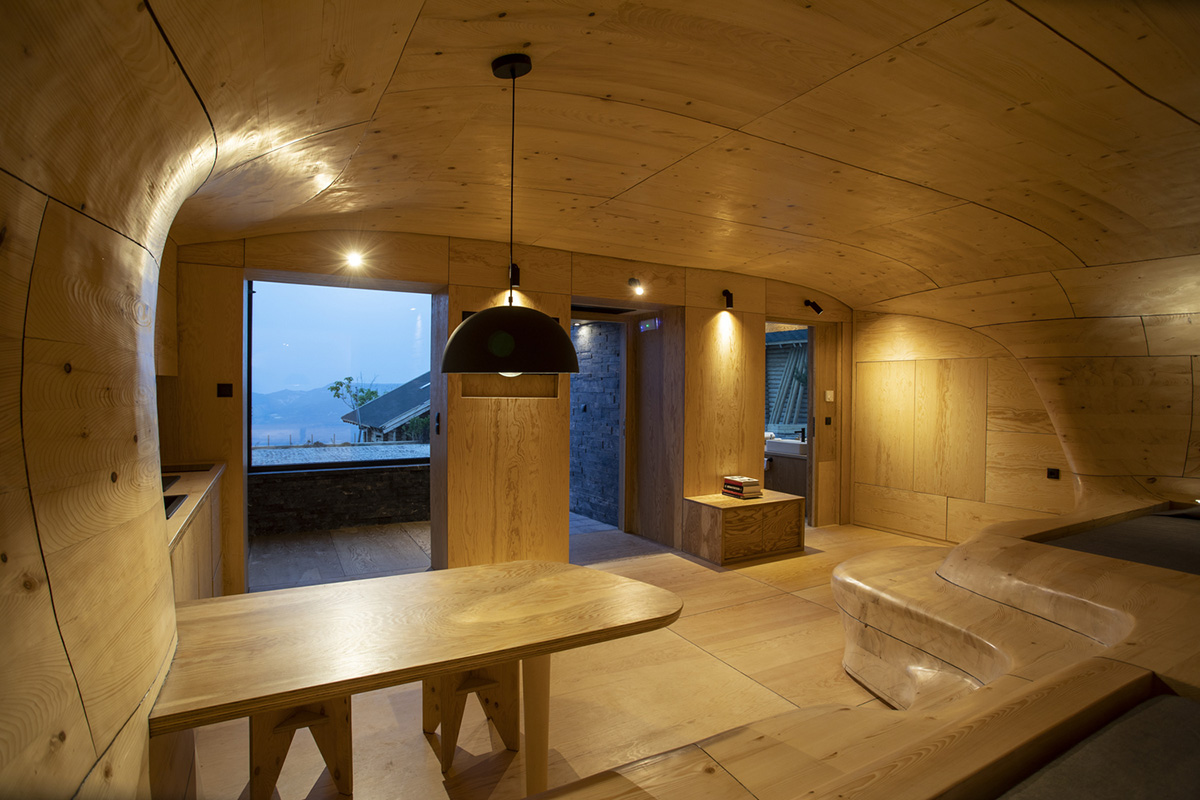

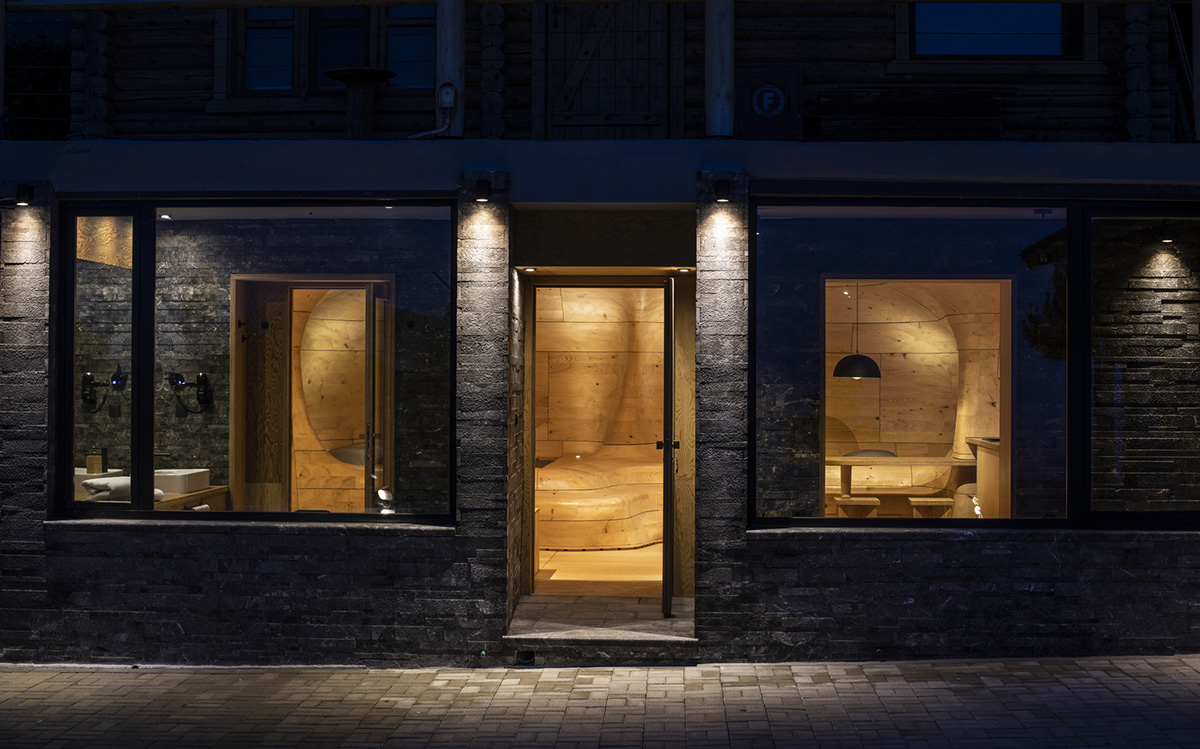

The architects divided the interior into two main zones: the main room, which is made up of a continuous curved wooden structure, and the secondary spaces, which are oriented towards the view and covered in dark stone.

Tenon Architecture creates cave-like wooden interior for a resort in Greece

"This division intends to create a clear distinction between the hard, “protective” shell and the curved, “inviting” interior, reminiscent of the form of a cave that has been used as a refuge and a haven throughout human existence," said Tenon Architecture.

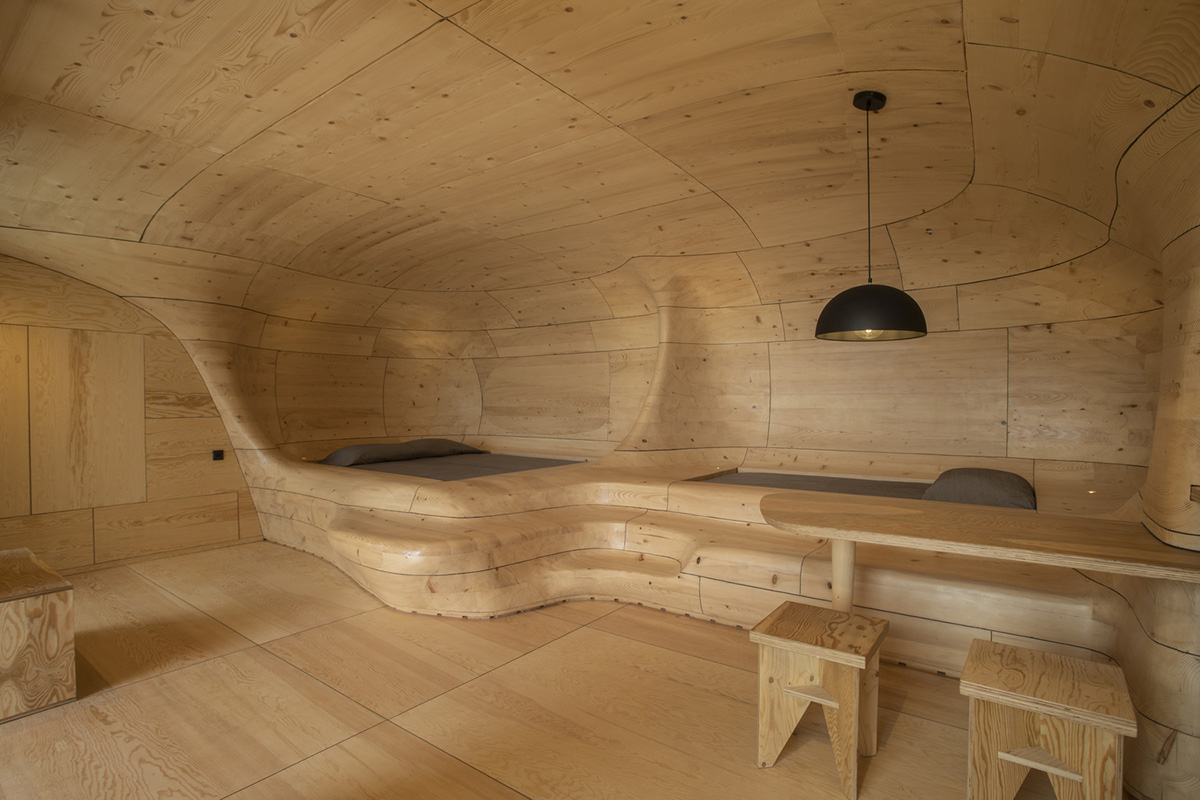

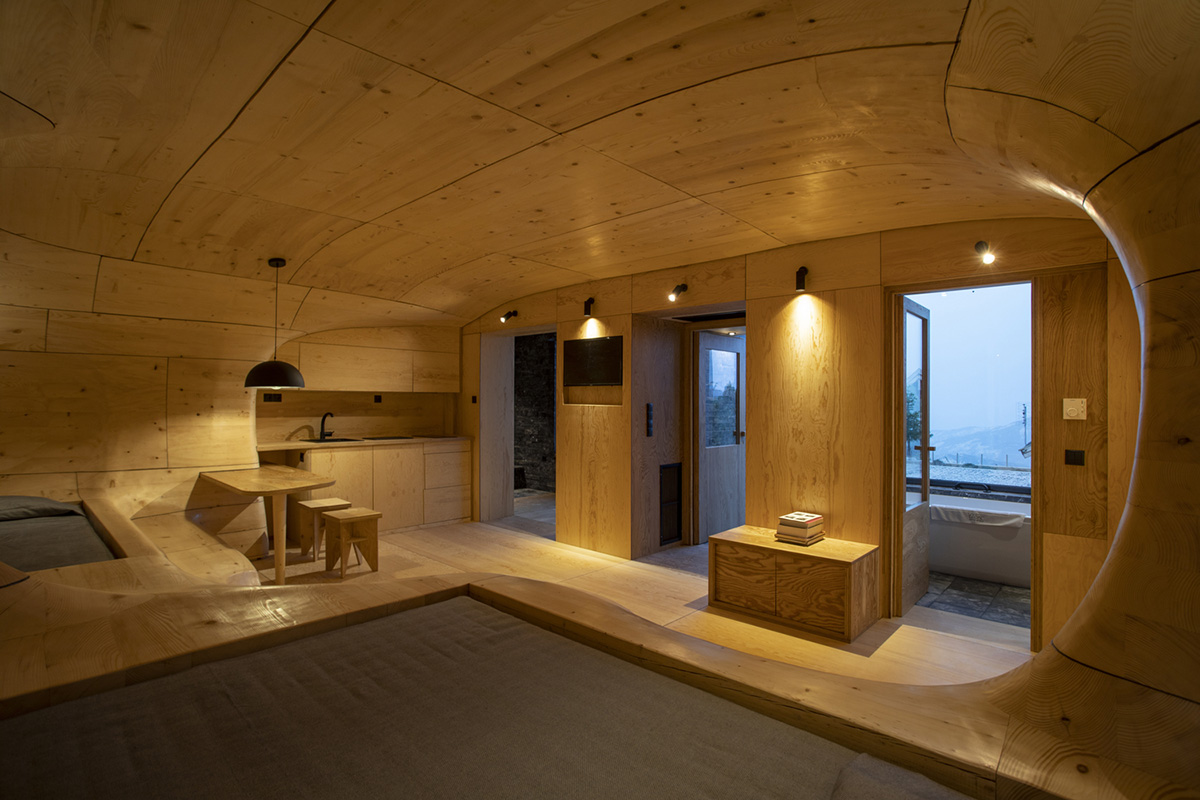

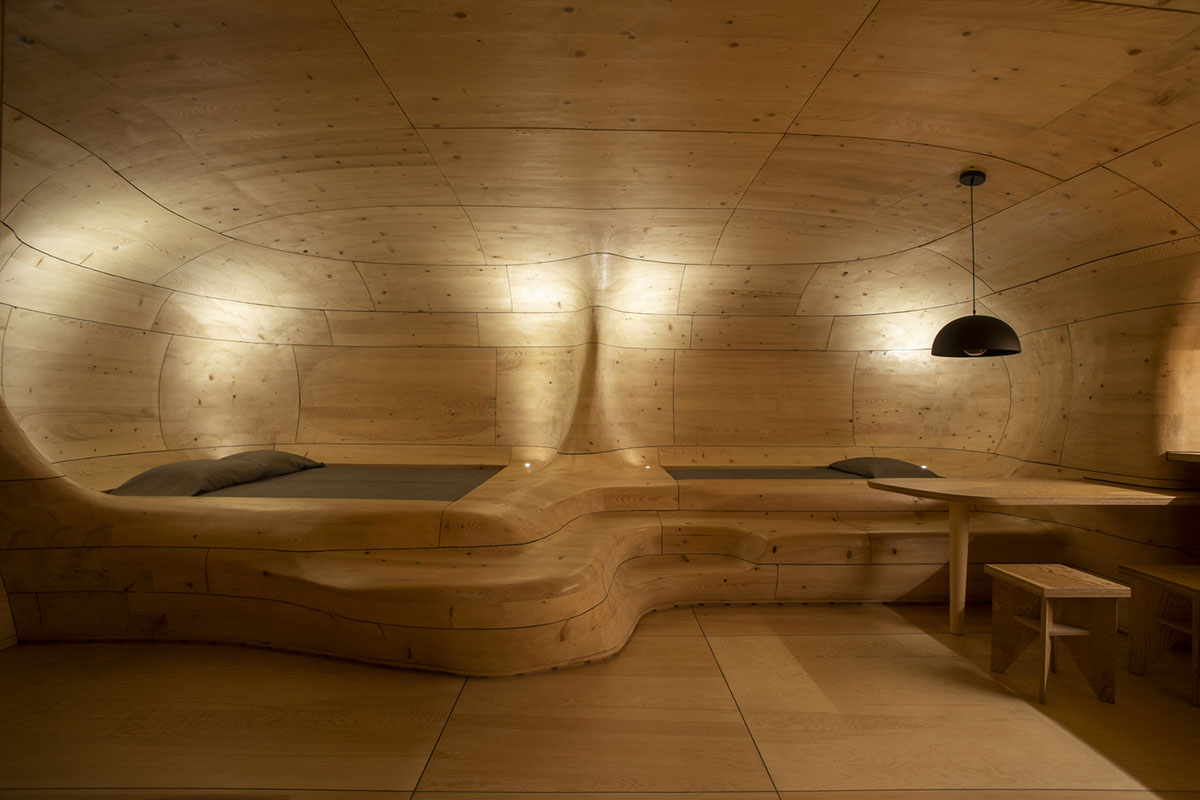

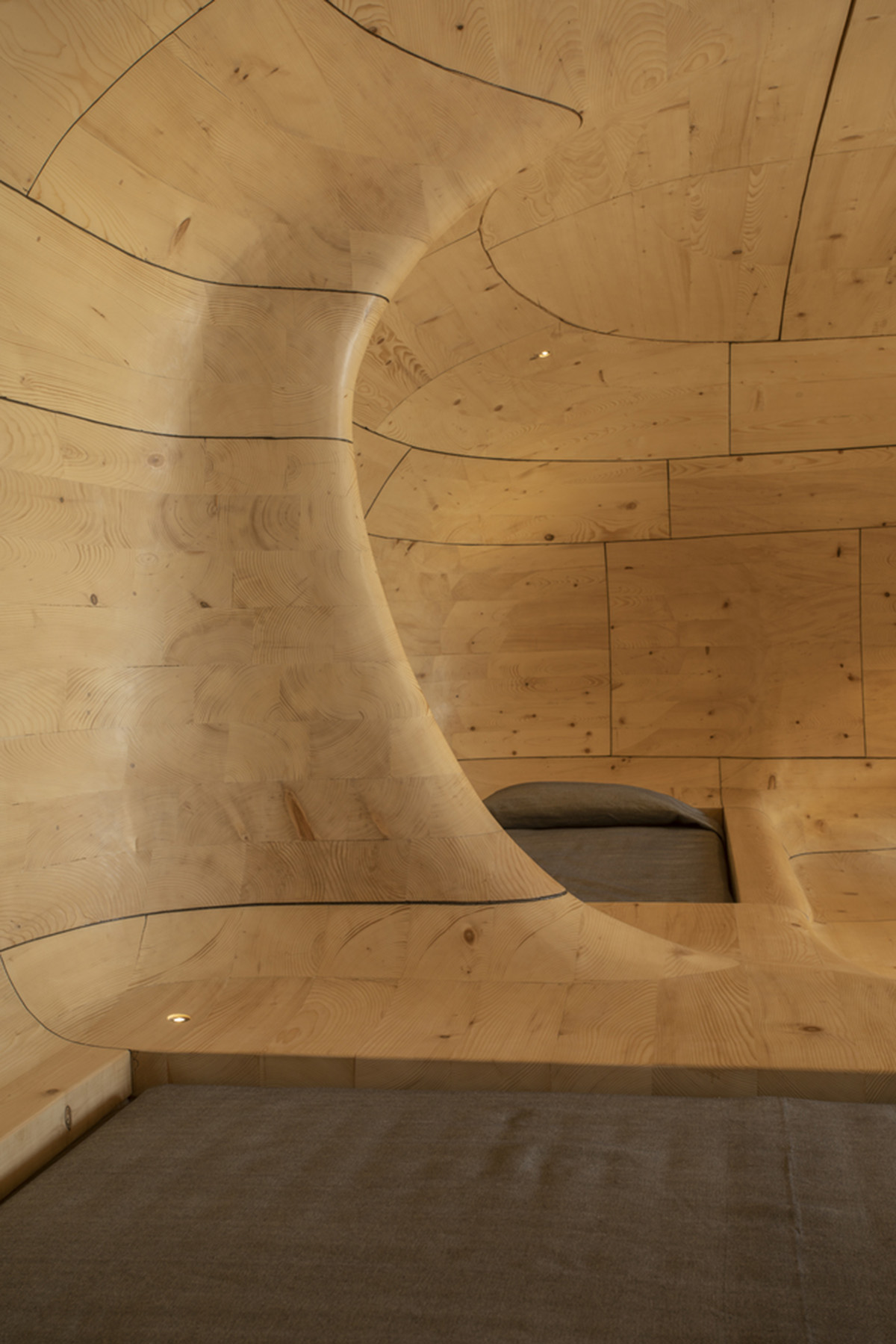

"The guestroom of the inner zone includes two sleeping areas integrated within the curved structure as well as an open-plan kitchen. The outer zone includes two secondary rooms: a sitting area with a fireplace and the bathroom of the main guestroom."

Tenon Architecture creates cave-like wooden interior for a resort in Greece

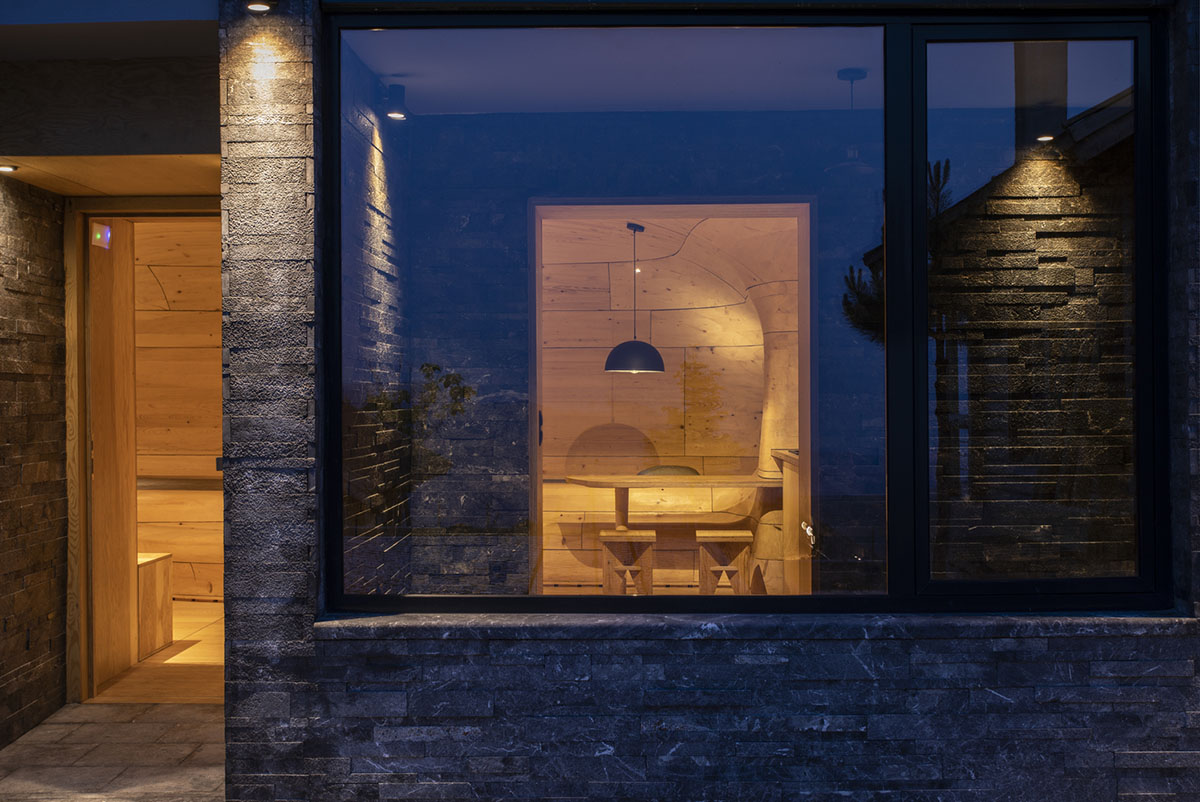

Materiality was of paramount importance in the spatial expression of this project, with most of its elements being wooden and the outer spaces made from stone sourced from the local area.

The curved structure is made of spruce raw timber, while the rest of the features (kitchen, cupboards, floor) are of knotless pine plywood. All the wooden structures were constructed at an offset from the concrete shell, which allows for airflow behind the wood.

Tenon Architecture creates cave-like wooden interior for a resort in Greece

Circulating air between the wooden elements and the concrete aims to protect the structure and passively regulate the room’s humidity and temperature, utilizing wood’s natural buffering abilities.

Tenon Architecture creates cave-like wooden interior for a resort in Greece

"The design, with its curvilinear surfaces, and the choice of wood as the basic construction material contributed to the creation of a welcoming and warm environment that retains the feeling of natural shelter," added the studio.

"At the same time, the form of the construction provokes the imagination of the visitor and allows him to explore it with all his senses."

Tenon Architecture creates cave-like wooden interior for a resort in Greece

The studio used the passive system of controlling the environmental conditions, which was of vital importance for the project, as the area, being on a high altitude, is characterized by significant temperature fluctuations throughout the year.

The construction of the project was carried out by Tenon’s team on-site. The curved structure consists of 1.112 different curved wooden pieces. The drawings of each piece were produced algorithmically and transferred on-site, where the pieces were processed manually and converted into 55 larger modules.

Tenon Architecture creates cave-like wooden interior for a resort in Greece

Each of the modules was then hand-carved and shaped before the final assembly of the structure. The absence of any digital fabrication methods in the construction resulted in the adoption of a more sculptural approach towards the final form.

This kind of highly customized sculptural process also meant that no carpenters, workers, or other technicians were employed, and every part of the structure was constructed and assembled by the two members of the team.

Tenon Architecture creates cave-like wooden interior for a resort in Greece

Finally, one of the most challenging parts of this work, was the translation of the algorithmic drawings into practical instructions for hand-working and sculpting the wood on-site. The final structure is, therefore, a unique amalgamation of algorithmic logic and hands-on craftsmanship.

Tenon Architecture creates cave-like wooden interior for a resort in Greece

Tenon Architecture creates cave-like wooden interior for a resort in Greece

Tenon Architecture creates cave-like wooden interior for a resort in Greece

Tenon Architecture creates cave-like wooden interior for a resort in Greece

Tenon Architecture creates cave-like wooden interior for a resort in Greece

Tenon Architecture creates cave-like wooden interior for a resort in Greece

Tenon Architecture creates cave-like wooden interior for a resort in Greece

Plan

Tenon Architecture creates cave-like wooden interior for a resort in Greece

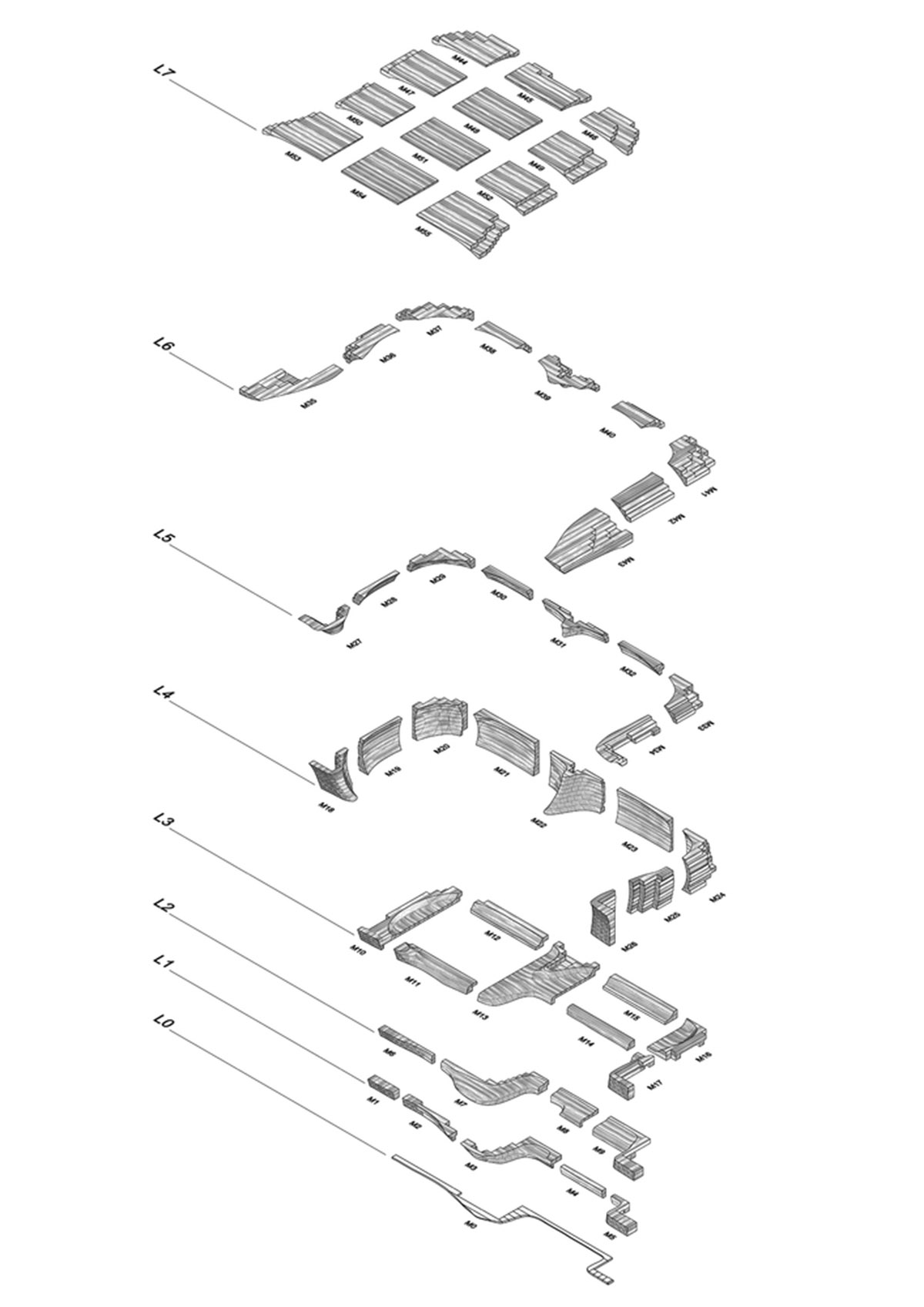

Exploded axonometric drawing

Tenon Architecture creates cave-like wooden interior for a resort in Greece

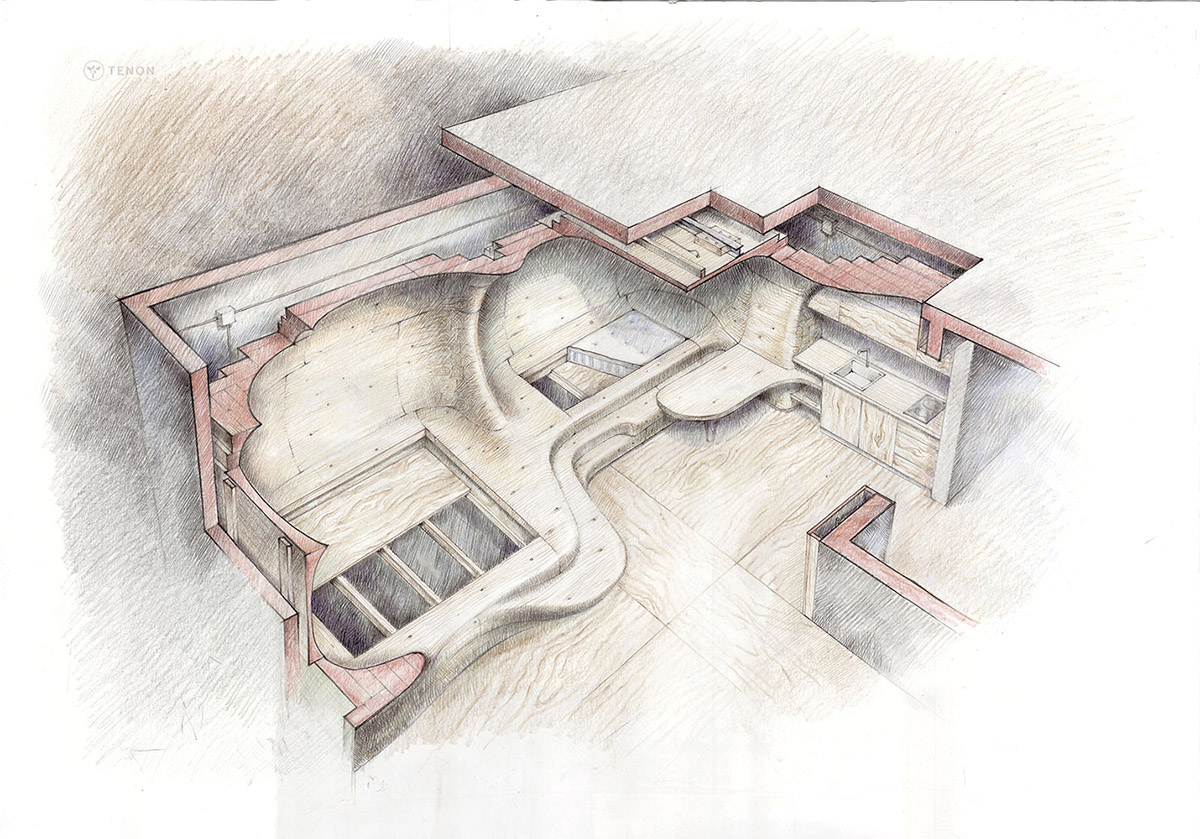

Hand drawing

Tenon Architecture creates cave-like wooden interior for a resort in Greece

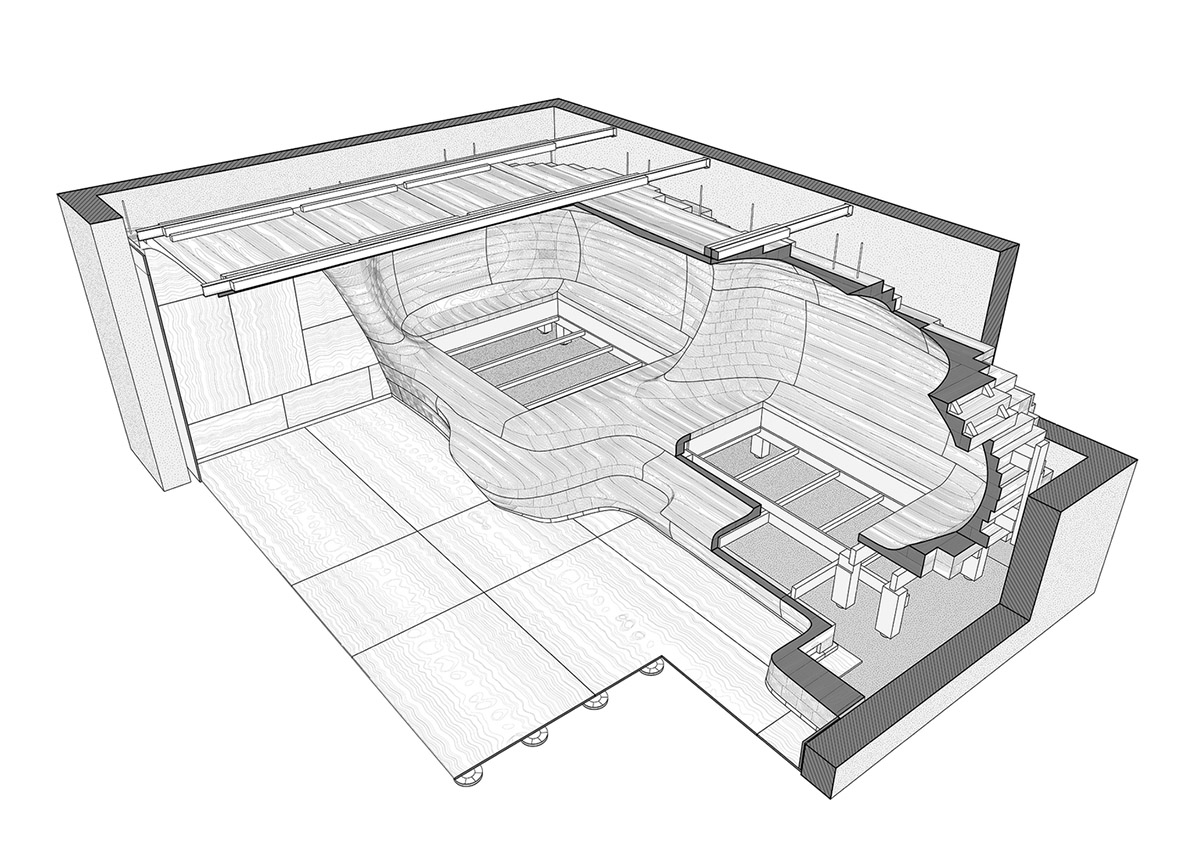

Perspective section

All images © Spyros Hound Photography

All drawings © Tenon Architecture
