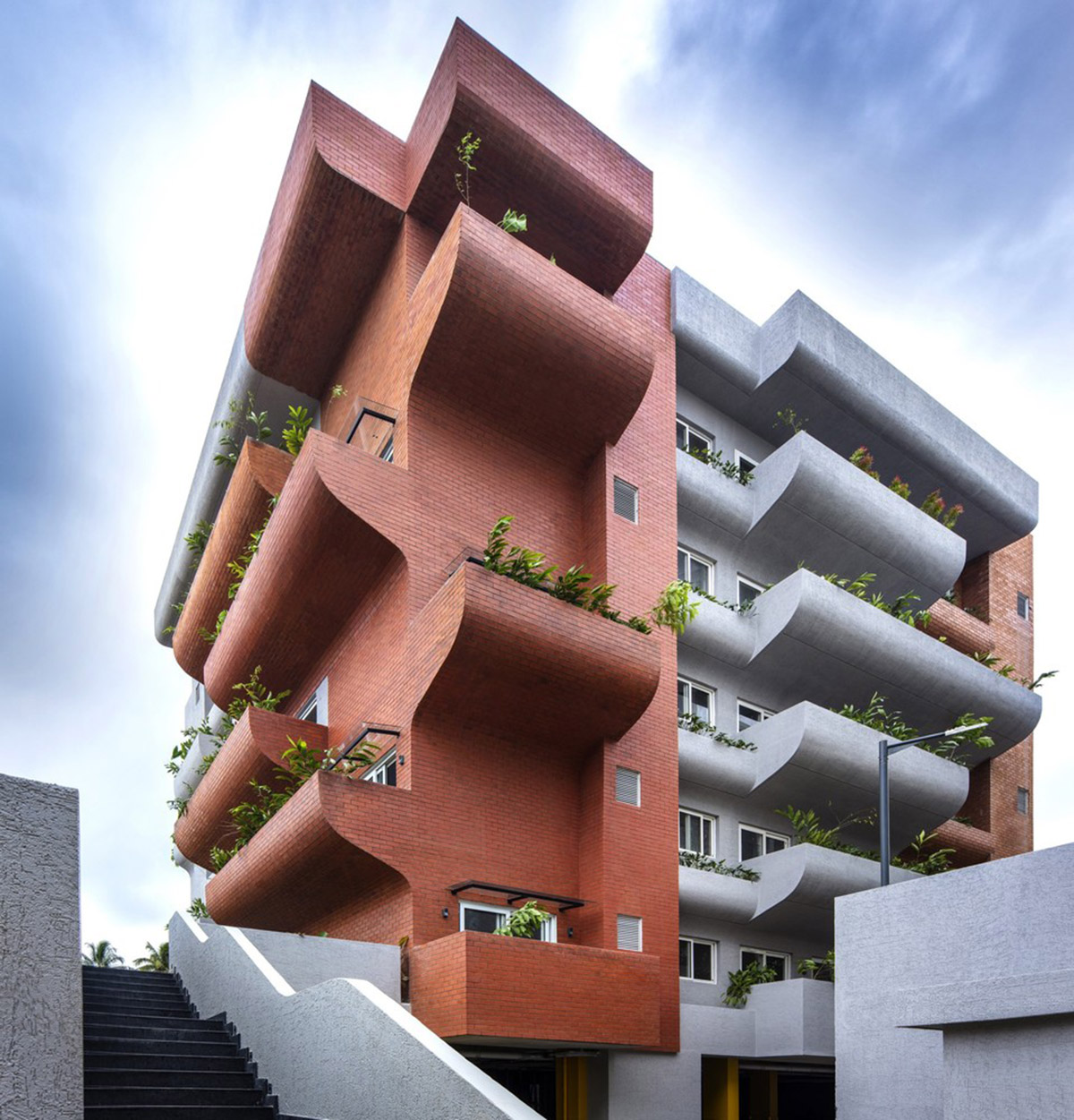

Indian architecture firm The Purple Ink Studio has completed a housing in Bangalore, India, featuring fluid "garden decks" to help plants grow more comfortably and in a proper soil.

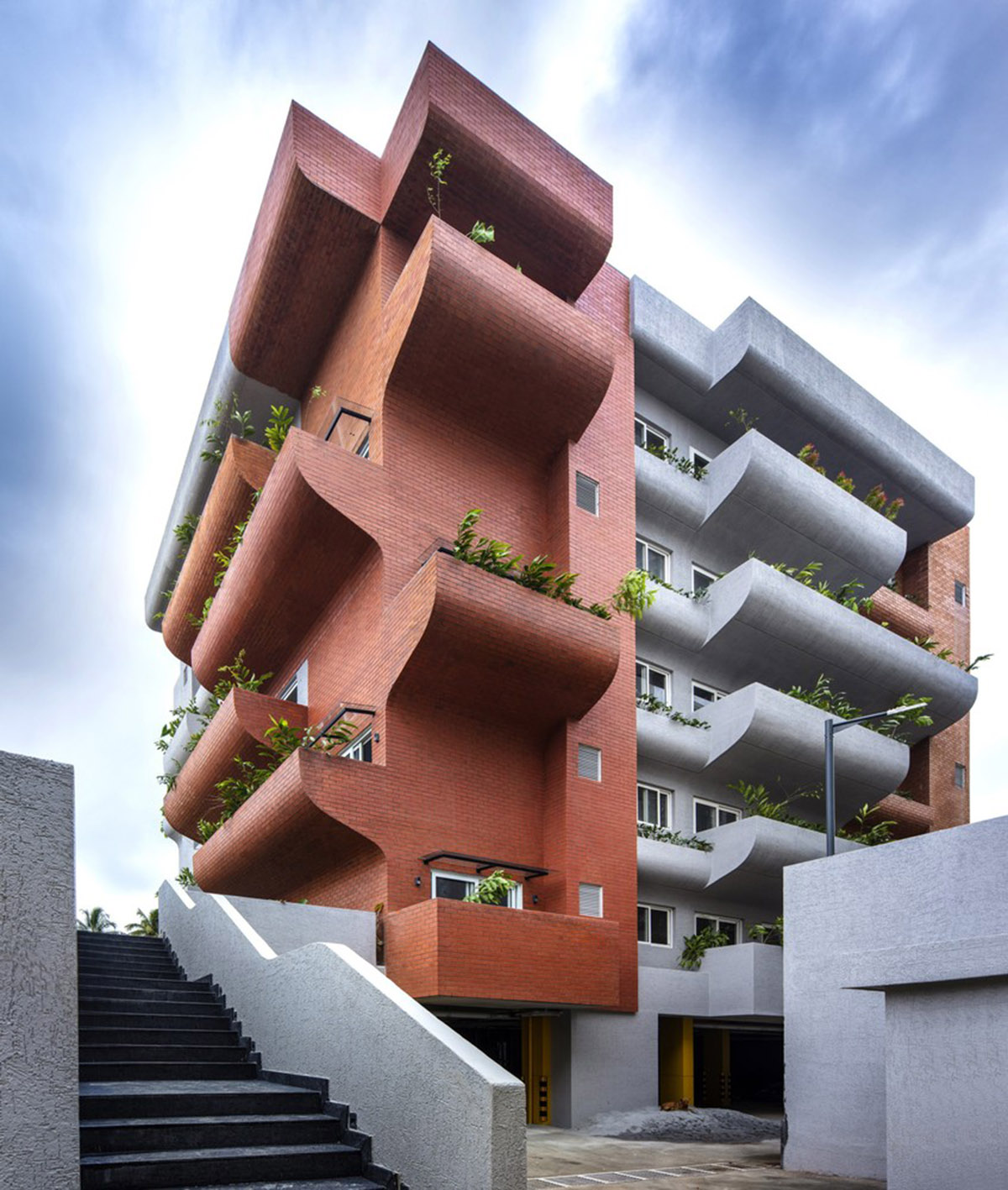

Named Axis Vanam, the 22,000-square-metre building is marked with protruding balconies and different-colored materials and palette. As the architects explain, Axis Vanam (Vanam meaning ‘Forest’ in Sanskrit) was designed as a project that aims to be a green oasis within the chaos of its surroundings. The project was aimed with the idea of condensing the gap between the built and greens.

"With a little research of the neighborhood, we identified the diminishing greens and dying lakes in the vicinity," said The Purple Ink Studio.

"Vanam is a reaction to this increasing breach in the urban fabric. It is designed as a stimulus to restore the balance in the built and green spaces blurring the boundaries between the two."

Fluid balconies for this housing help plants to grow comfortably designed by The Purple Ink Studio

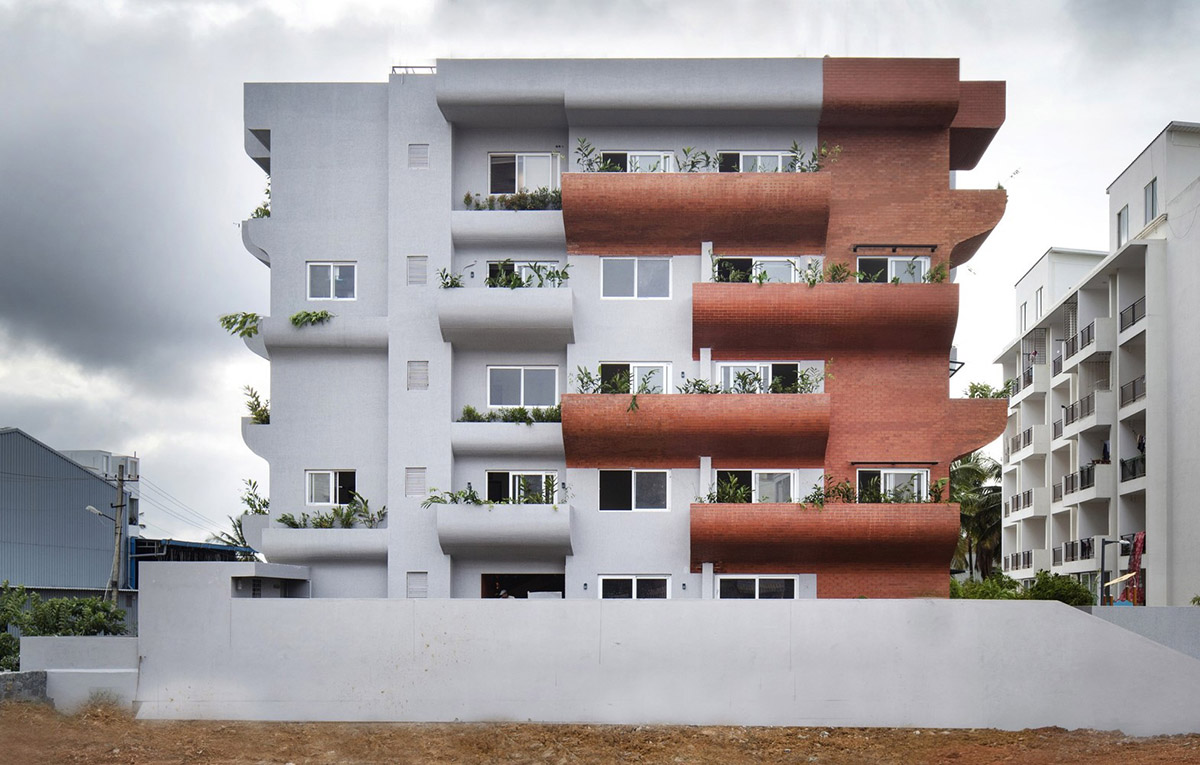

The building is located in the heart of one of the busiest neighborhoods in Bangalore, Vanam. Axis Vanam is a mid-size housing project including 20 living units stacked across 5 levels.

Fluid balconies for this housing help plants to grow comfortably designed by The Purple Ink Studio

Every unit is outward-facing, with openings planned to integrate ample light and cross- ventilation. The central core is well lit with skylights and louvers at the terrace level assisting in stack ventilation and making all the extents comfortable and less dependent on mechanical ventilation.

Fluid balconies for this housing help plants to grow comfortably designed by The Purple Ink Studio

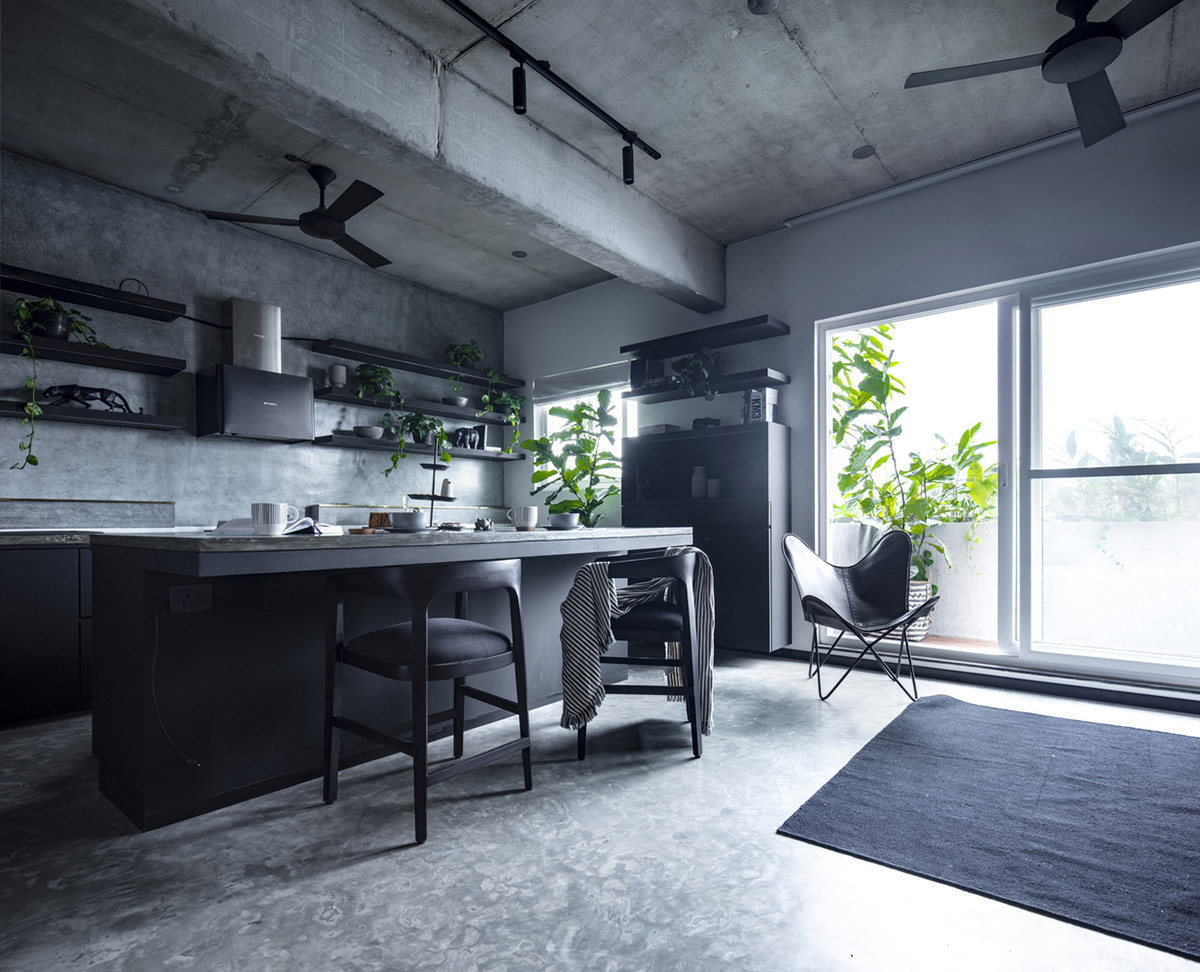

Each unit is compact and planned as a 2-bedroom apartment with an additional flexible area, planned to be an extension to the deck. This space can be actively used by the residents for their various activities of the day. The structure also gives the flexibility to convert this area into a green pocket; hence no two units are alike.

Fluid balconies for this housing help plants to grow comfortably designed by The Purple Ink Studio

The multi-functional space changes in accordance with time and is adaptive to the lifestyle of the users. The openings in the apartment are planned in the wind direction to induce ample natural ventilation. The balconies/decks are staggered to offer double-height volumes that are attached to either the Living or the Master Bedroom, also opening itself for taller trees in the balconies.

Fluid balconies for this housing help plants to grow comfortably designed by The Purple Ink Studio

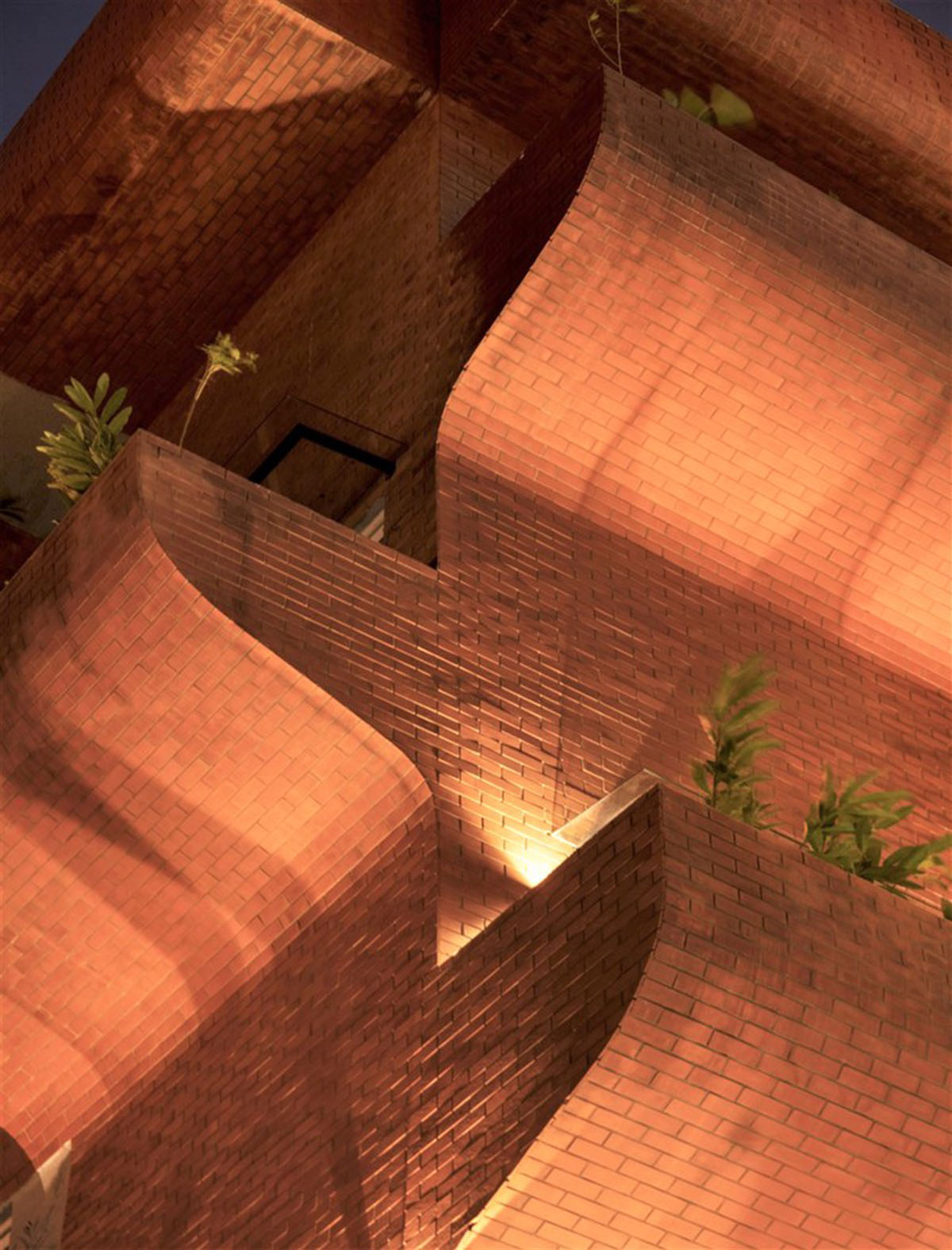

The balcony is re-defined as a "garden deck" to hold soil and paving, providing each home with its private garden at all levels. Moving away from the conventional box for the deck, the form of the balcony takes a cue from the soil repose angle and facilitates a sunk for soil filling.

Fluid balconies for this housing help plants to grow comfortably designed by The Purple Ink Studio

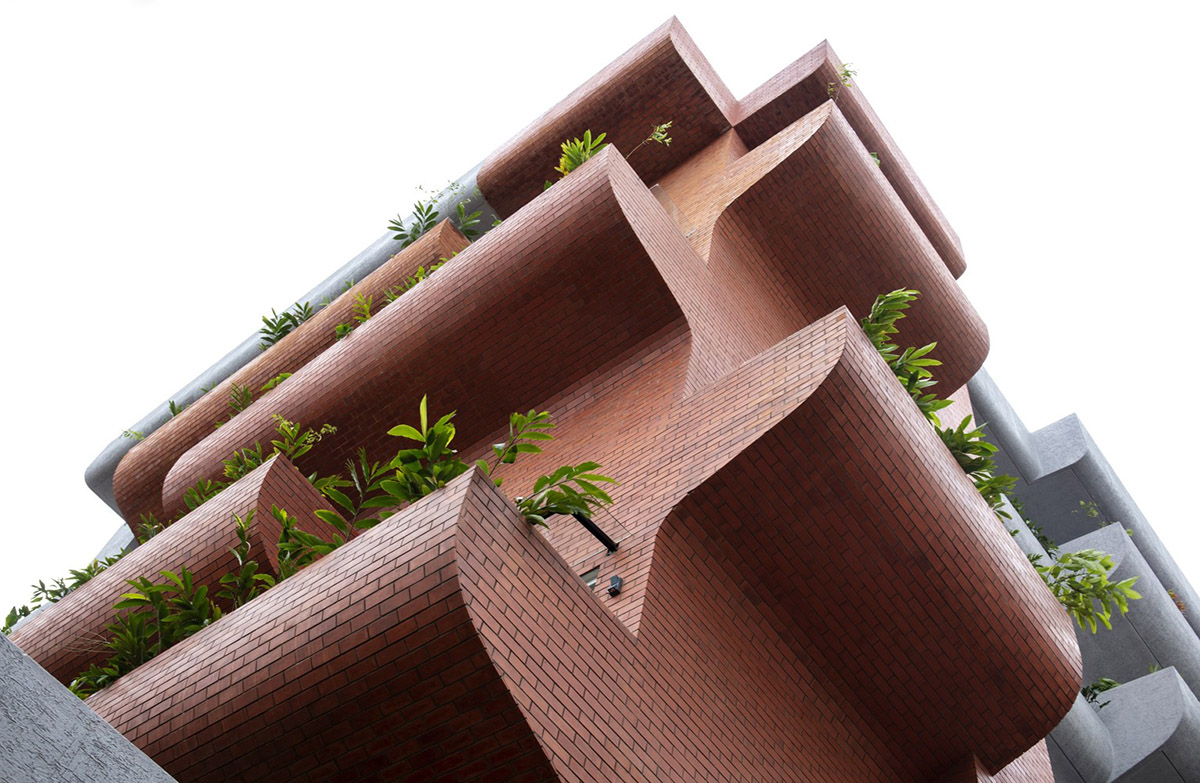

The fragmented, yet fluid configuration of the balcony enhances the overall building geometry. The structure for the balcony is planned by adding deeper beams to undertake the soil load which in course also opened the way for taller windows touching the beam bottom for the lower unit.

Fluid balconies for this housing help plants to grow comfortably designed by The Purple Ink Studio

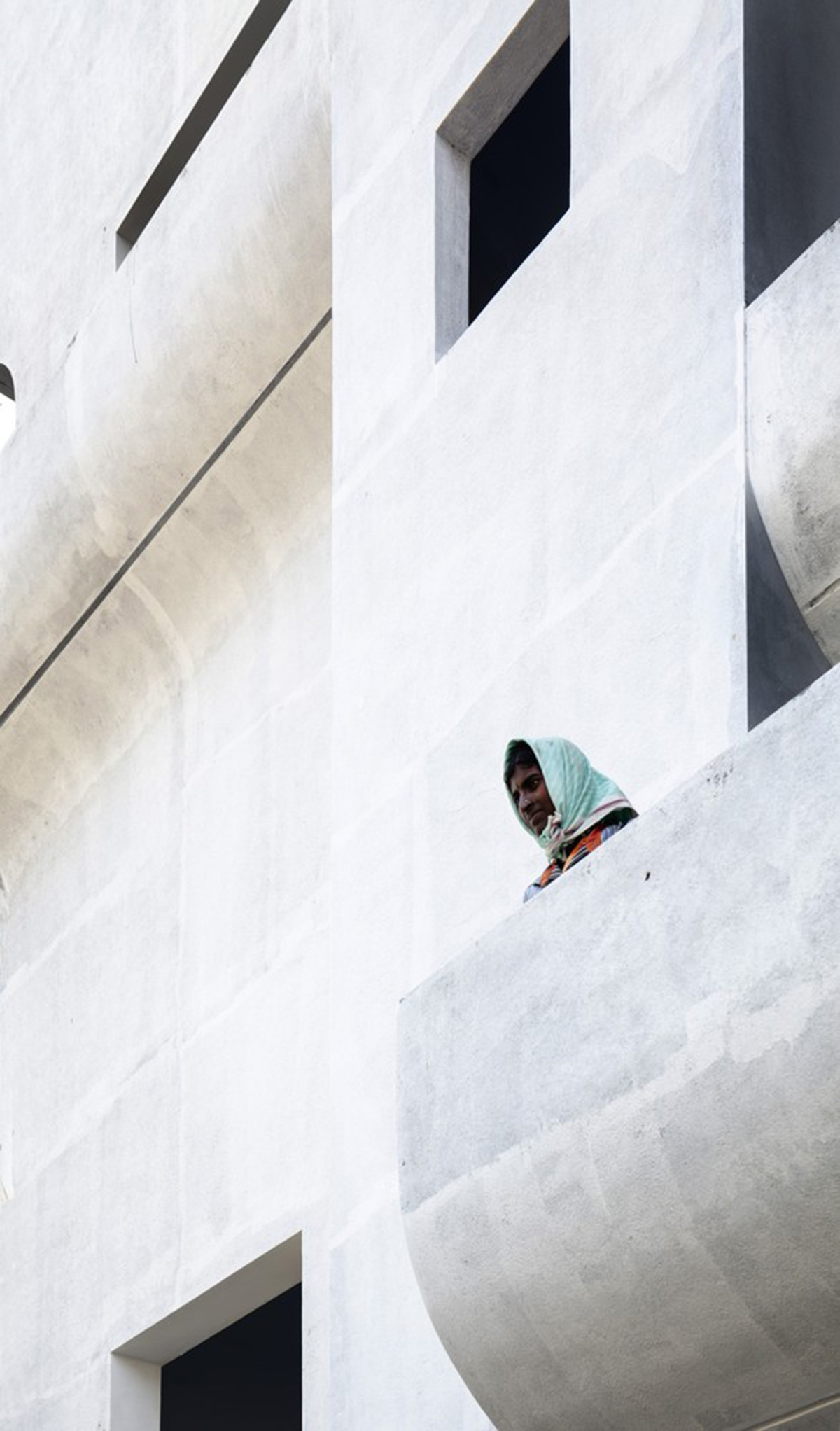

The form-work for the balconies was planned in a prototype of 4 feet width, 6 feet height. With several mock-ups done in GI to test the form, the final shuttering modules were done in MS. While the ideal methodology would have been to pre-cast the balconies, due to limited financial resources manual labor was involved and all the balconies were individually casted with the available number of modules and time frame. The planter boxes also followed the form and function of the balcony with integrated sunk to add more horizontal green spaces at each level.

Fluid balconies for this housing help plants to grow comfortably designed by The Purple Ink Studio

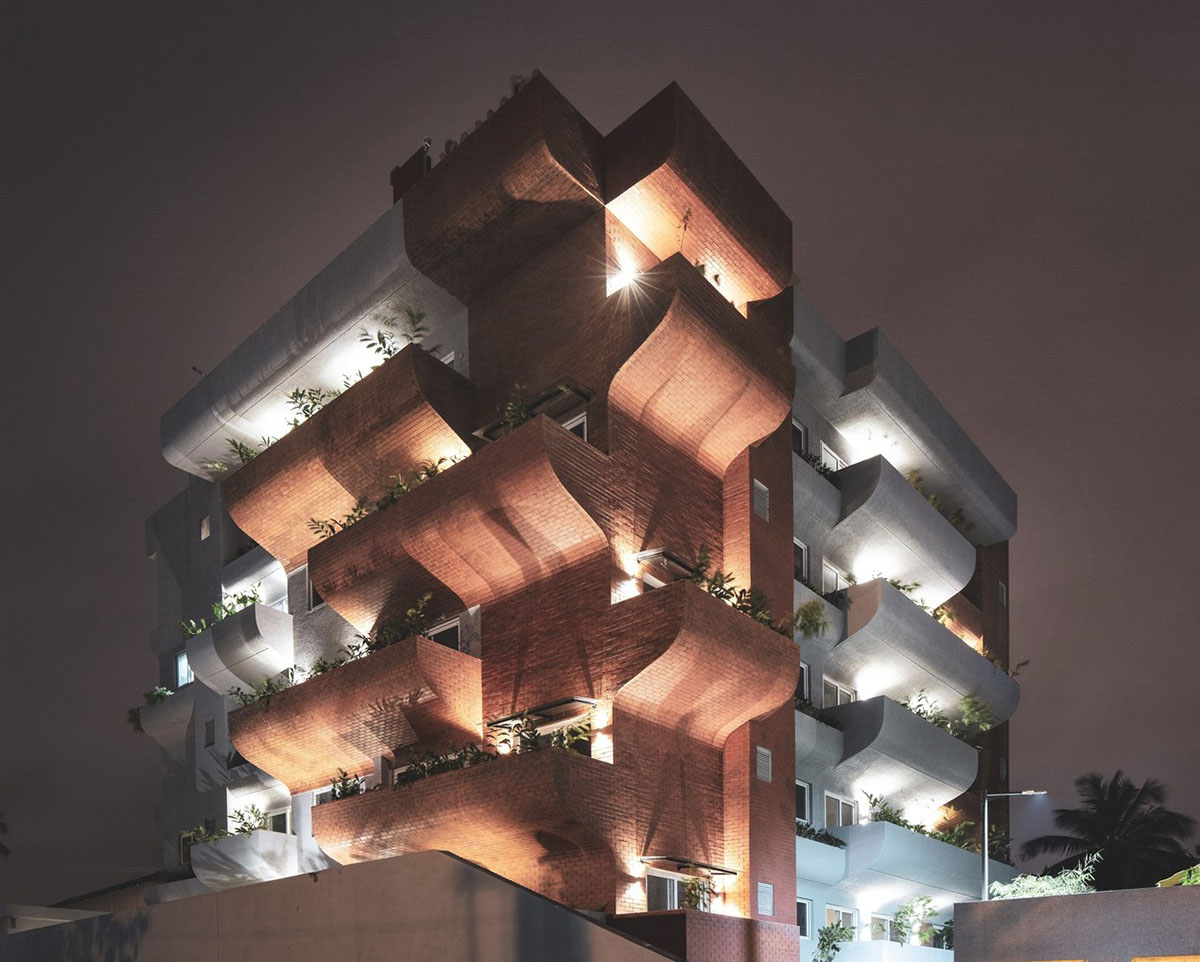

The overall material palette interweaves with the greens from the balconies and planters. It is planned to highlight the double-height corner volumes and scale down the visual vocabulary. 12mm thick brick cladding along with exposed grey textures formed the prime façade materials. The alternate deck projections and materiality of the façade is also enhanced by the sun movement and the quality of light and shadow.

Fluid balconies for this housing help plants to grow comfortably designed by The Purple Ink Studio

The common areas are further held together by natural stone flooring and terracotta jaalis for the skylight areas. The planting pattern is tropical and native to the local region. Each balcony is provided with a tree engaging the users with their greens.

The extended cantilevered spaces in the form of balconies and planter box give the user the opportunity to grow greens along the entire length.

Fluid balconies for this housing help plants to grow comfortably designed by The Purple Ink Studio

"Expectantly, in the years to come, one would find more greens from the building than one would expect from an otherwise concrete surface," added the firm.

"The building is an attempt, to function as an environmental filter by introducing “intermediate landscapes” that connect the residents with their green spaces."

Fluid balconies for this housing help plants to grow comfortably designed by The Purple Ink Studio

Fluid balconies for this housing help plants to grow comfortably designed by The Purple Ink Studio

Fluid balconies for this housing help plants to grow comfortably designed by The Purple Ink Studio

Fluid balconies for this housing help plants to grow comfortably designed by The Purple Ink Studio

Fluid balconies for this housing help plants to grow comfortably designed by The Purple Ink Studio

Fluid balconies for this housing help plants to grow comfortably designed by The Purple Ink Studio

Fluid balconies for this housing help plants to grow comfortably designed by The Purple Ink Studio

Fluid balconies for this housing help plants to grow comfortably designed by The Purple Ink Studio

Fluid balconies for this housing help plants to grow comfortably designed by The Purple Ink Studio

Fluid balconies for this housing help plants to grow comfortably designed by The Purple Ink Studio

Fluid balconies for this housing help plants to grow comfortably designed by The Purple Ink Studio

Fluid balconies for this housing help plants to grow comfortably designed by The Purple Ink Studio

Fluid balconies for this housing help plants to grow comfortably designed by The Purple Ink Studio

Fluid balconies for this housing help plants to grow comfortably designed by The Purple Ink Studio

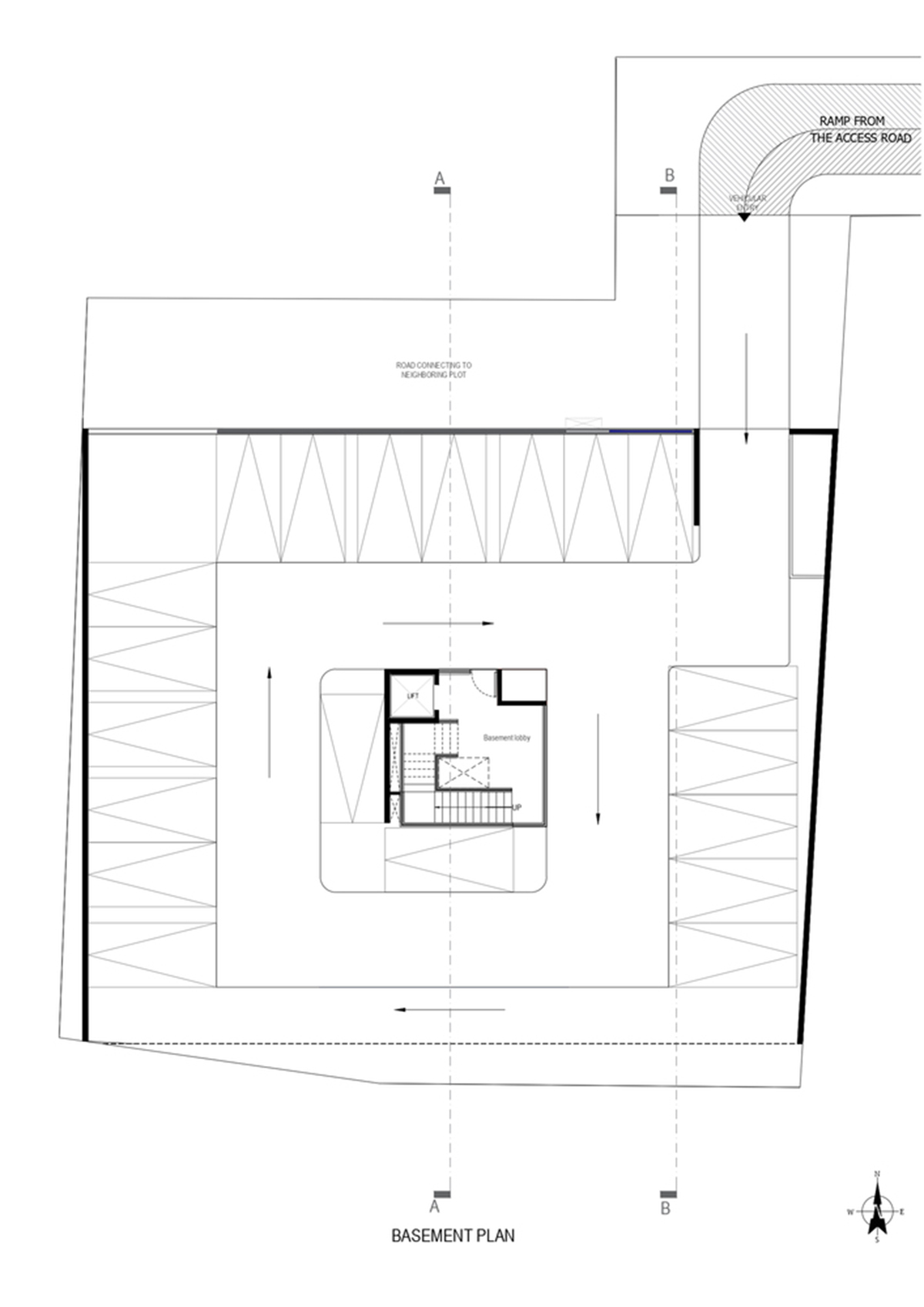

Basement plan

Fluid balconies for this housing help plants to grow comfortably designed by The Purple Ink Studio

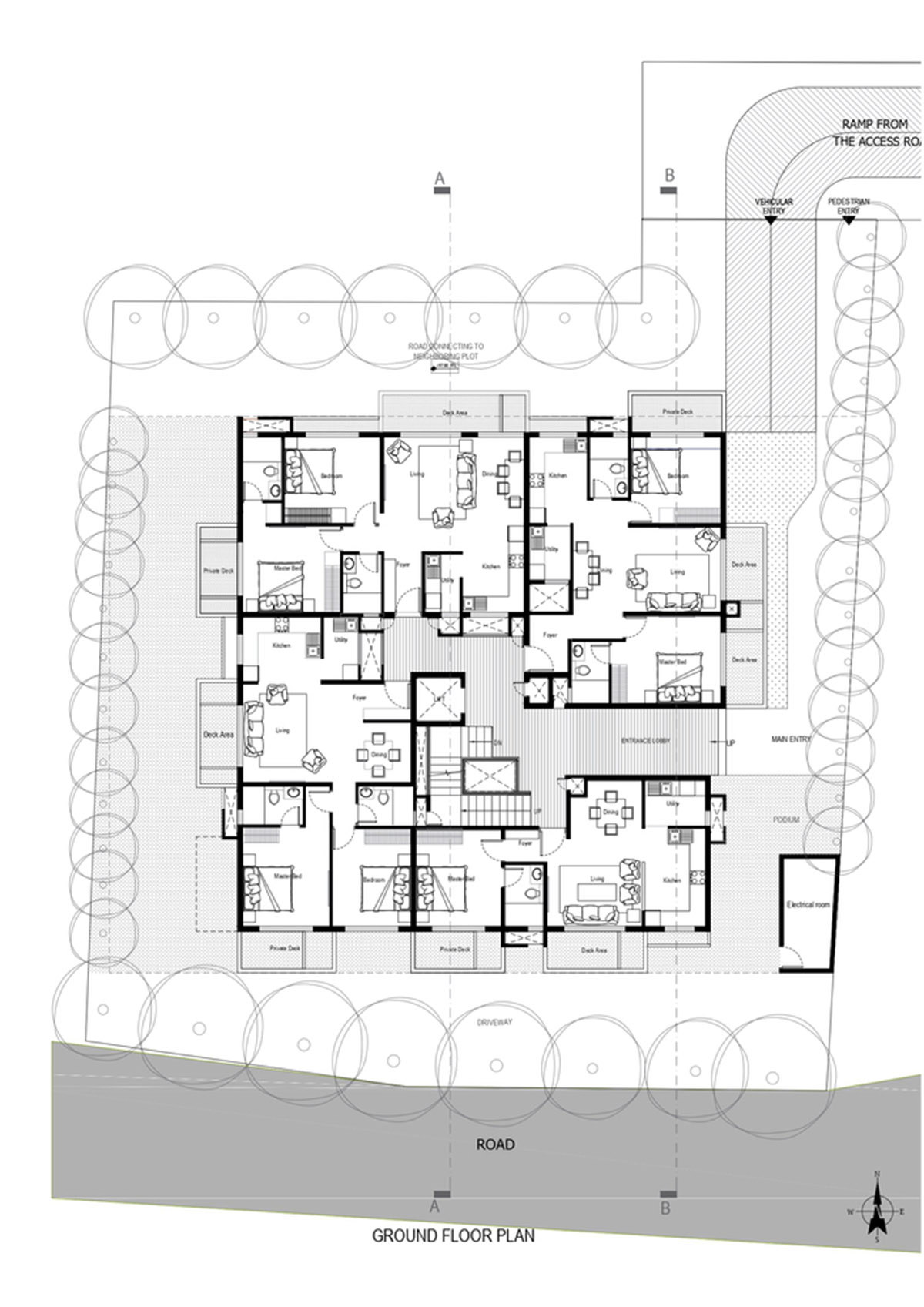

Ground floor plan

Fluid balconies for this housing help plants to grow comfortably designed by The Purple Ink Studio

First and third floor plan

Fluid balconies for this housing help plants to grow comfortably designed by The Purple Ink Studio

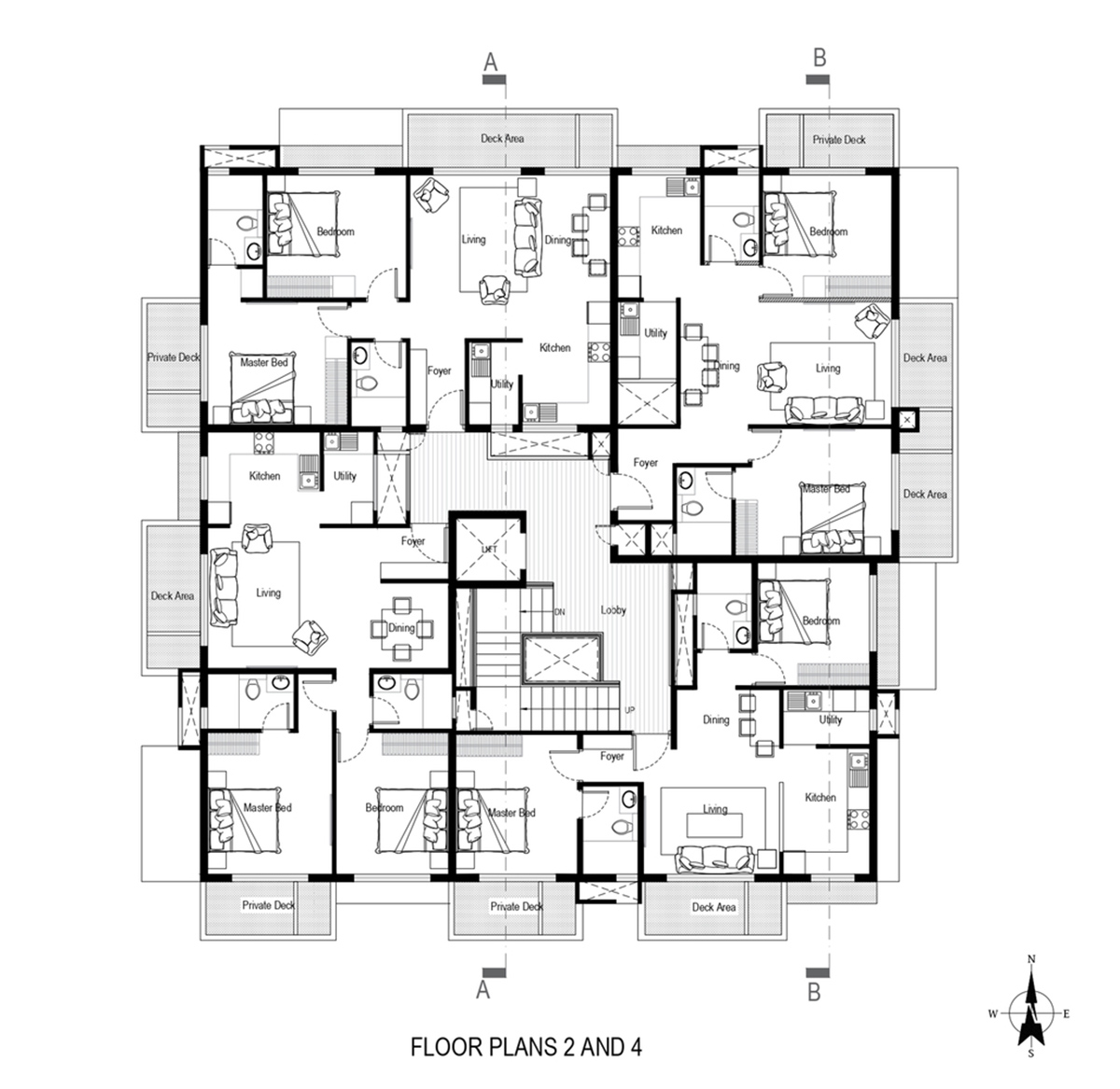

Second and fourth floor plan

Fluid balconies for this housing help plants to grow comfortably designed by The Purple Ink Studio

Section A-A

Fluid balconies for this housing help plants to grow comfortably designed by The Purple Ink Studio

Section B-B

Fluid balconies for this housing help plants to grow comfortably designed by The Purple Ink Studio

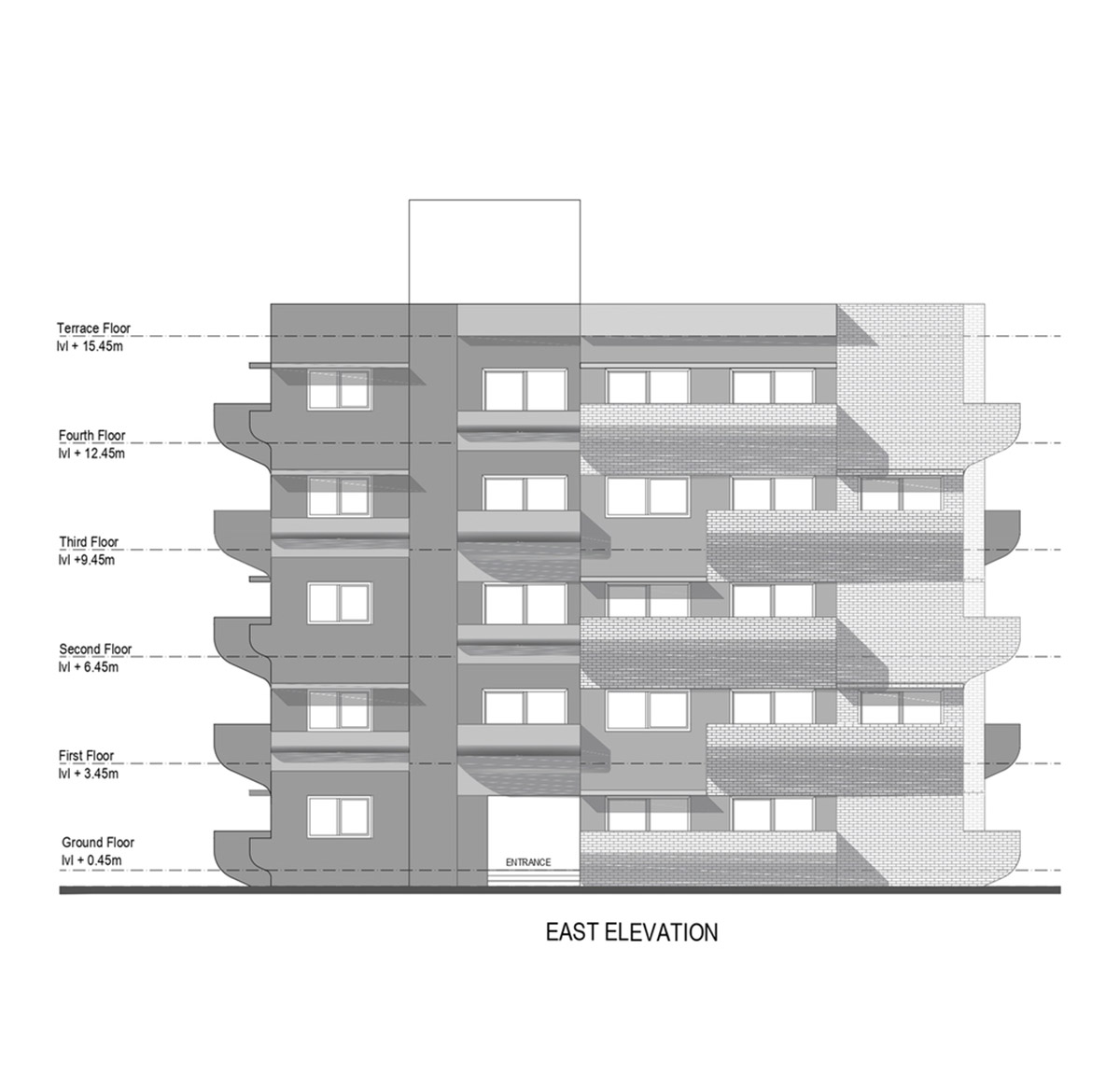

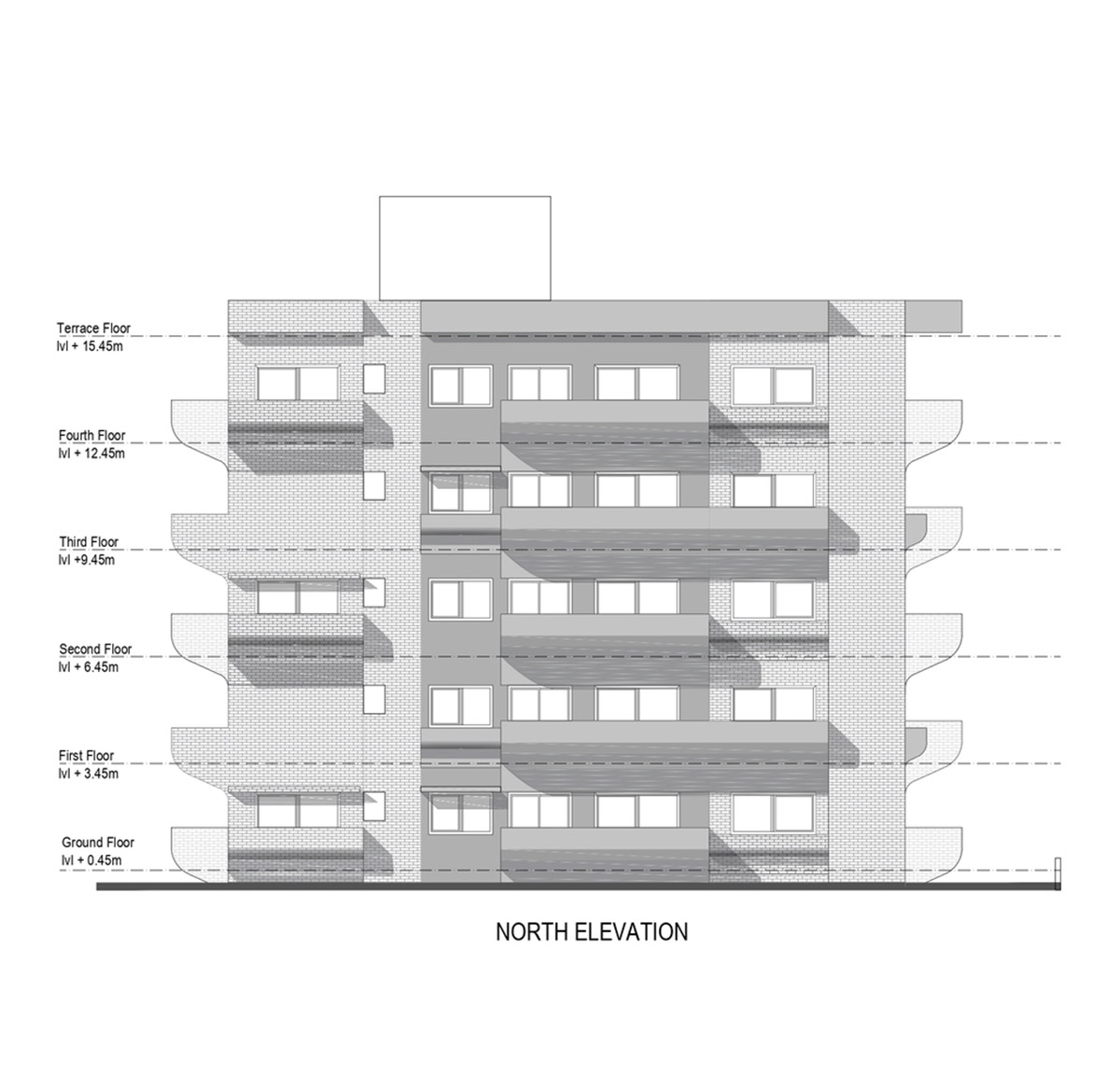

Elevation 1
