o&o studio has completed the MOONCRAFT bar in Shanghai, China. The Shiliupu Dock of Shanghai was a place enriched fully with the Shanghai Bund history.

It features numbers of longtangs and traditional Shanghainese Shikumen buildings where one can track down all the historical stories happened in this once prosperous era.

Main Elevation. Image © Tian Fang Fang

Located on No.505 Zhongshan South Road, the Cool Docks was originally a grease factory in the old days. Once a top ten creative hubs in Shanghai, it was renovated in 2018 and is now attracting new restaurants, coffee shops and bars to settle in. MOONCRAFT, among one of them, is launched at this celebrated spot on the South Bund.

The Cool Docks Central Square and MOONCRAFT'S Main Entrance. Image © Tian Fang Fang

Choosing the Cool Docks as the first boutique bar's location, clearly the Client has high expectation and requirement. From the design perspective, o&o studio set out two key directions in creating MOONCRAFT. First of all, MOONCRAFT occupies three connecting ground level units right next to the Cool Docks Wai Ma Lu entrance, with dual aspects facing the Cool Docks central plaza and water feature, and the South Bund on the opposite side.

Main Entrance. Image © Eric Chan

Although the total area is a merely 130sqm, the Client requested a variety of functions to take place within it. This includes hand-crafted beer bar, whiskey bar, restaurant, and a rarely seen robotic bartender. In regards to the spatial arrangement, this is something important for o&o studio to look at, especially on how to absorb and make good use of the existing structure and give the units a new lease of life.

Secondly, the site is packed with references such as the river, the docks and the warehouses which also became the first "ingredients" of the project's design, while the Shiliupu era should also be remembered. With these inspirations, o&o studio is determined to craft a booze place that is filled with "moments".

Crafted Beer Bar with operable windows. Image © Tian Fang Fang

Branding

The branding of MOONCRAFT integrates all the design elements as one identity. From the bar's name to its logo, as well as the architectural and interior design, they share the same concept throughout, all by o&o studio.

Imagine the full moon hanging above the Huangpu River, together with the river's geometry that forms a glass that hold some of the richest history of the city with the yellow lunar gradually dipping into the glass, form the logo of MOONCRAFT. The name "MOONCRAFT" stands for a place that holds moment of dialogue, enjoying the best craft beet in town under the moon and starry sky adjacent to the Souths Bund.

Crafted Beer Bar. Image © Tian Fang Fang

Crafting

MOONCRAFT is zoned according to three key functions and features - hand-crafted beer bar, whiskey bar, and the robotic bartender. Considering the existing structural columns and sheer walls, o&o studio designed a U-shaped bar counter to associate the spatial relationship between the two bars. The U-shaped counter also "absorb" the existing sheer wall and by the making use of it, a hidden air-conditioned beer storage is formed. In-between the two bar counters found the robotic bartender which falls under most eye sights of the customers from both bar areas.

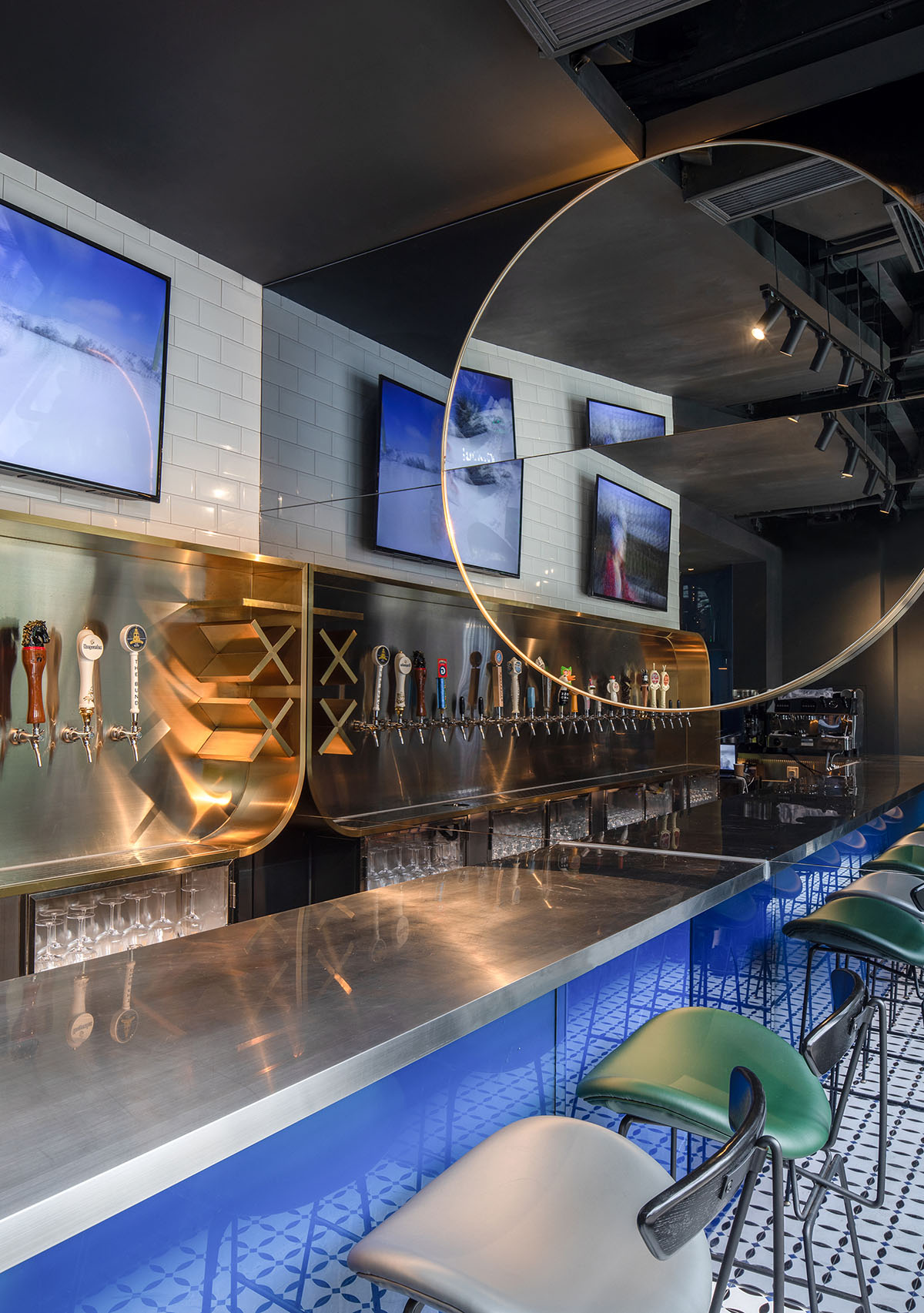

Crafted Beer Bar. Image © Tian Fang Fang

The beer and whiskey bars face the Cool Docks central plaza and the South Bund respectively. With restrictions on customizing the façade that faces the South Bund, o&o studio focuses on the side facing the central plaza, which is also MOONCRAFT's main entrance. The concept of the façade is a dockside warehouse inspired weathering steel portals that plugged into the two façade openings which offer much needed depth to the slim brick wall.

This gives MOONCRAFT a unique outfit among the other F&B units, and at the same time creating better use of space at the beer bar. The portals come as an inverted U-shape that form the main entrance, and an upstand U-shape with operable window and balcony that connects the inside and outside space.

Whiskey Bar. Image © Eric Chan

Through the main entrance is the hand-crafted beer bar, with a smaller floor area than the whiskey bar. o&o studio makes use of a black mirror wall to enlarge the space. As the name MOONCRAFT suggests, whereas the design concept is "Moments", a circular mirror with a slender valley fold hangs on the mirror wall that creates a "mirror within mirror" effect imitating the floating moon on the Shanghai Bund's sky. The circular mirror certainly talks to everyone and every little context, generating ever-changing and unexpected reflections.

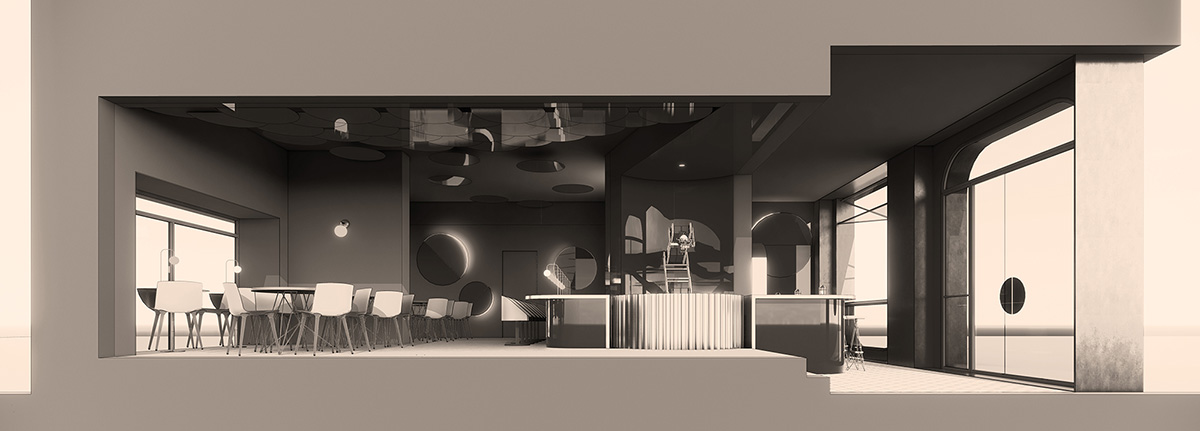

Sectional Perspective. Image © o&o studio

At the backside of the bar counter, a champagne gold s.s. steel portal framed an orderly line of beer taps. Towards the end at the mirror wall, o&o studio also incorporated a half of the Chinese word "Cool", making use of the mirror to complete its entirety, escalating the joy at MOONCRAFT.

Robotic Bar Tender and Whiskey Bar. Image © Tian Fang Fang

The rarely seen robotic bartender sits at the centre that allows interaction with customers from both bars as well as more directly at this interchanging point. Extending from the beer bar, the whiskey bar occupies the entire raised platform area. The level change perfectly allows a typical sitting height for this bar and restaurant area. The whiskey bar endures the "Moments of Moon" concept, where o&o designed a circular bar shelf that acts as a rising moon.

Restaurant Area and Couple Seating. Image © Tian Fang Fang

Around the restaurant area in front of the whiskey bar, there are a couple of feature seats for couples that face the windows overlooking the South Bund. On the other two sides of the restaurant are the kitchen and wc, and a solid wall on the opposite side. Originally this wall has two door openings that lead to the Cool Dock entrance.

After the renovation, the landlord decided to fill up the openings. o&o take this as an advantage to provide sofa seats for casual drinking. Up above them is a feature ceiling with mirror finish s.s. plates to amplify the "Moments of Moon" idea, almost forging an inverted reflection of a rainy day.

Whiskey Bar. Image © Tian Fang Fang

One might feel that MOONCRAFT is a little monochromatic. It is indeed not the case. o&o has made use of blue back painted glass at several designated planes which generate unexpected reflections, thus absorbed by the collective internal surfaces diffusing an essence of blue in MOONCRAFT.

Mirror and the Couple Seating. Image © Tian Fang Fang

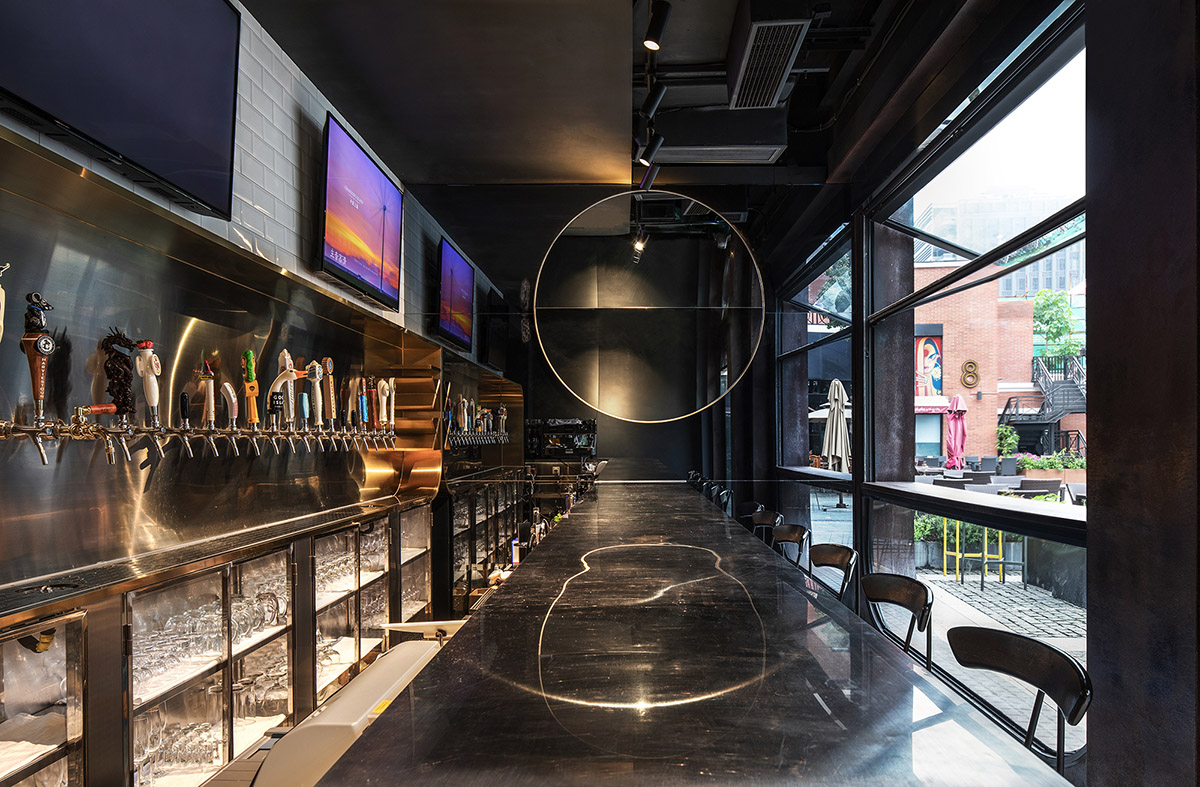

Crafted Beer Bar. Image © Tian Fang Fang

"Coolest" Crafted Beer Bar © Eric Chan

Whiskey Bar and Robotic Bartender. Image © Eric Chan

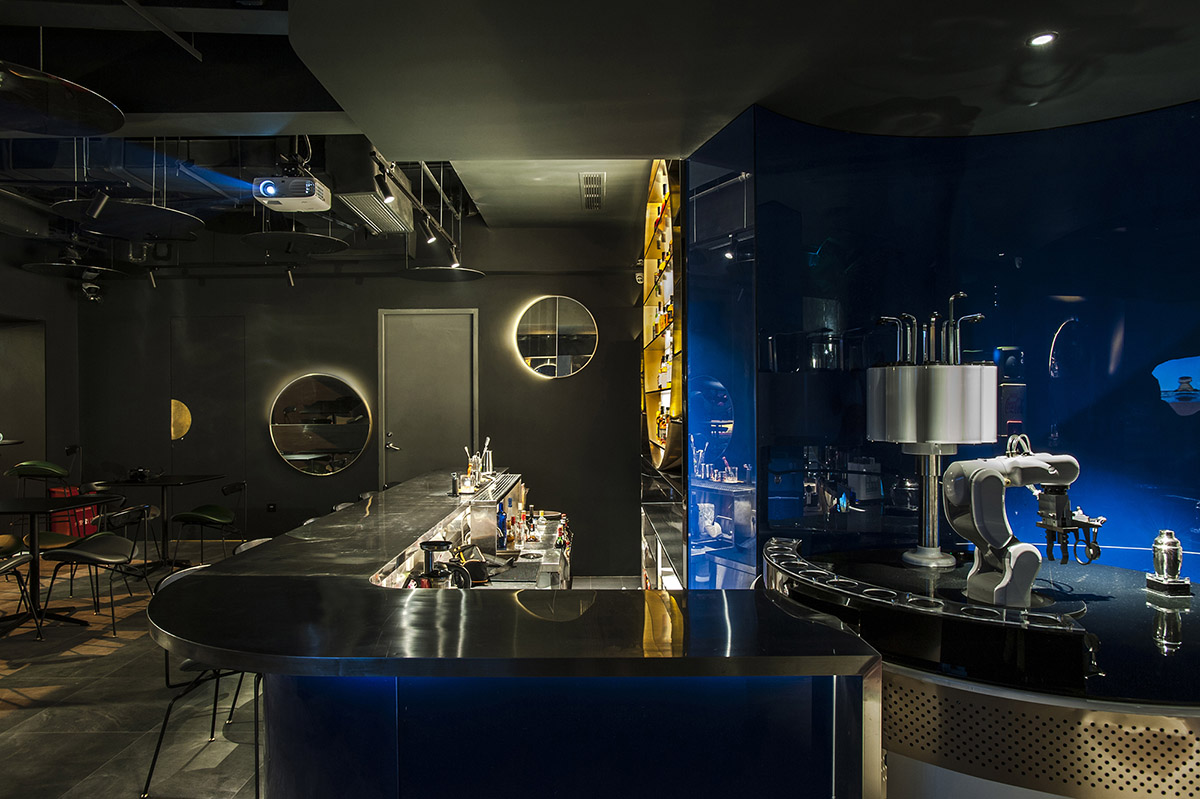

Whiskey Bar and Robotic Bartender. Image © Eric Chan

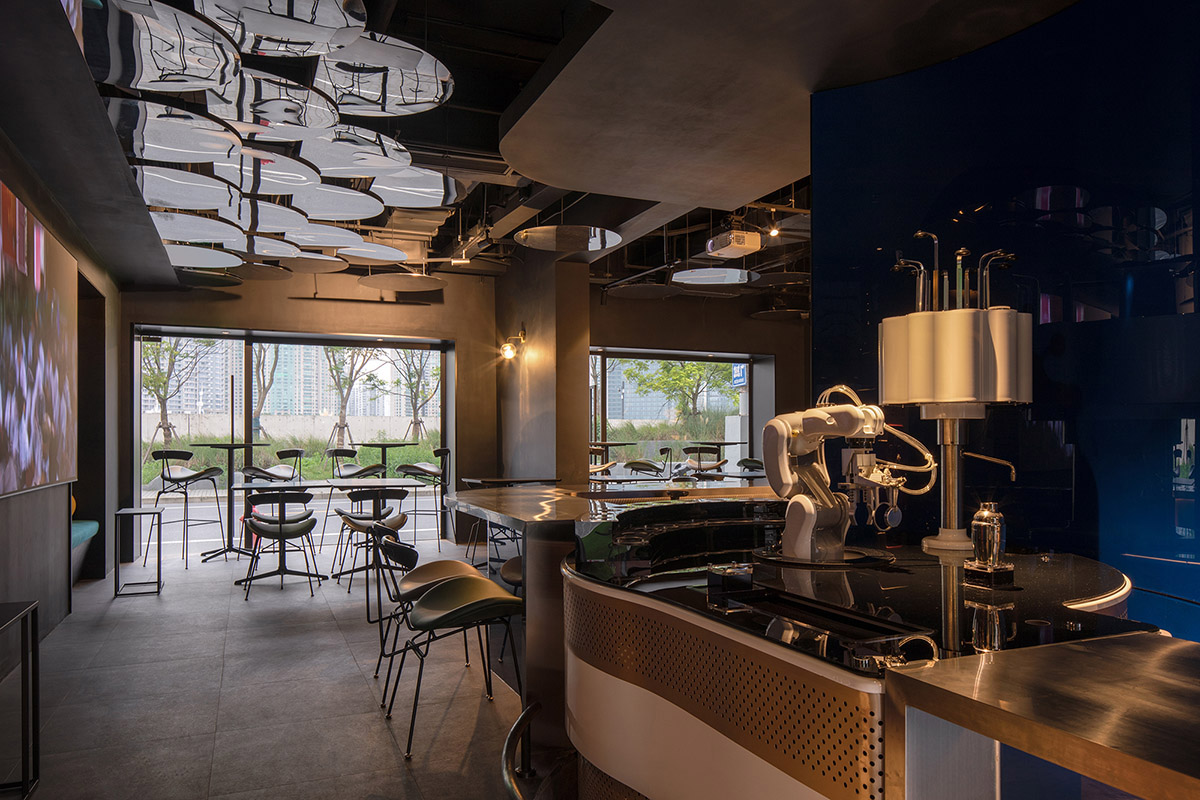

Robotic Bartender and Whiskey Bar. Image © Eric Chan

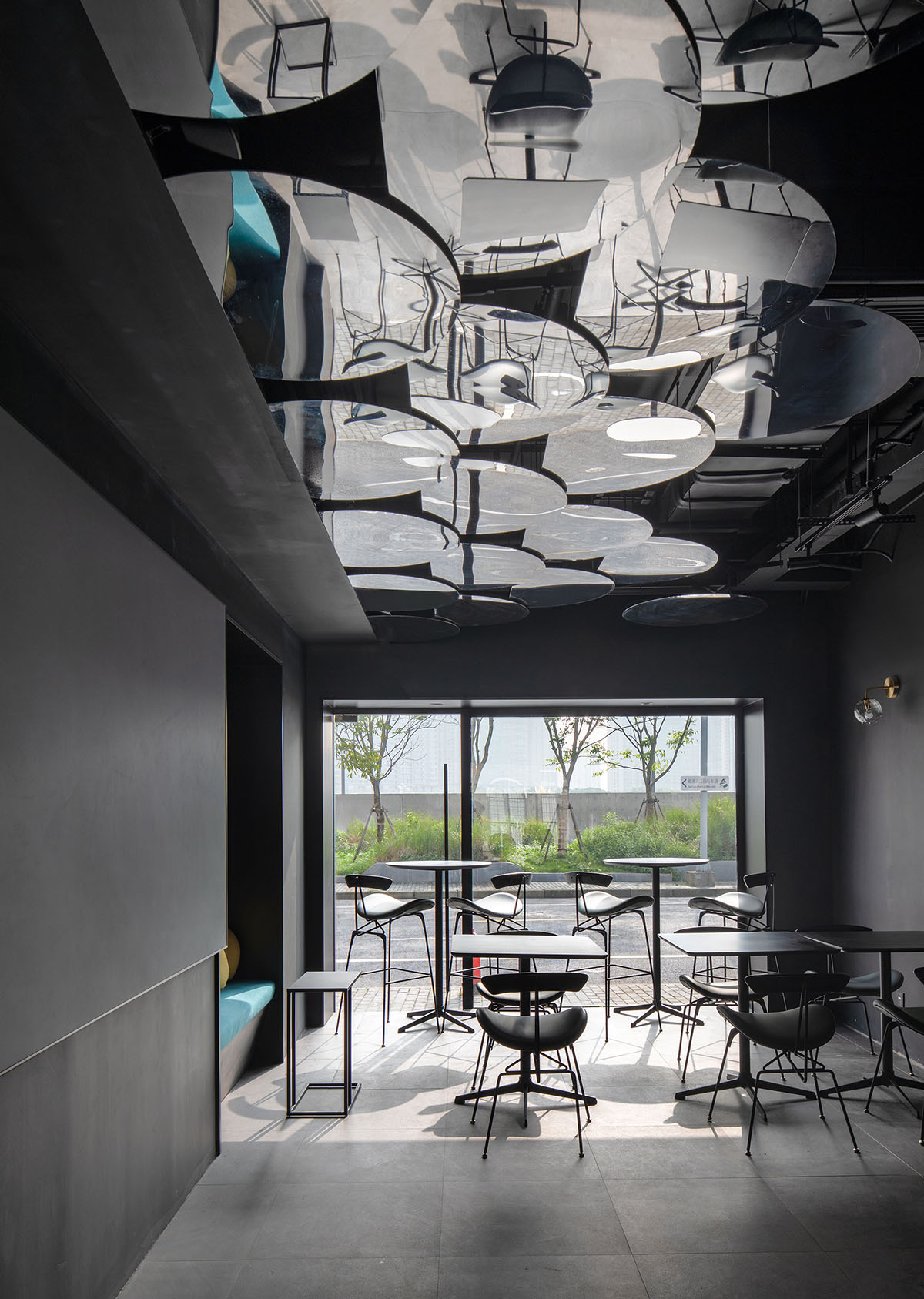

Ceiling Design. Image © Tian Fang Fang

Restaurant Zone and Sofa Seats. Image © Tian Fang Fang

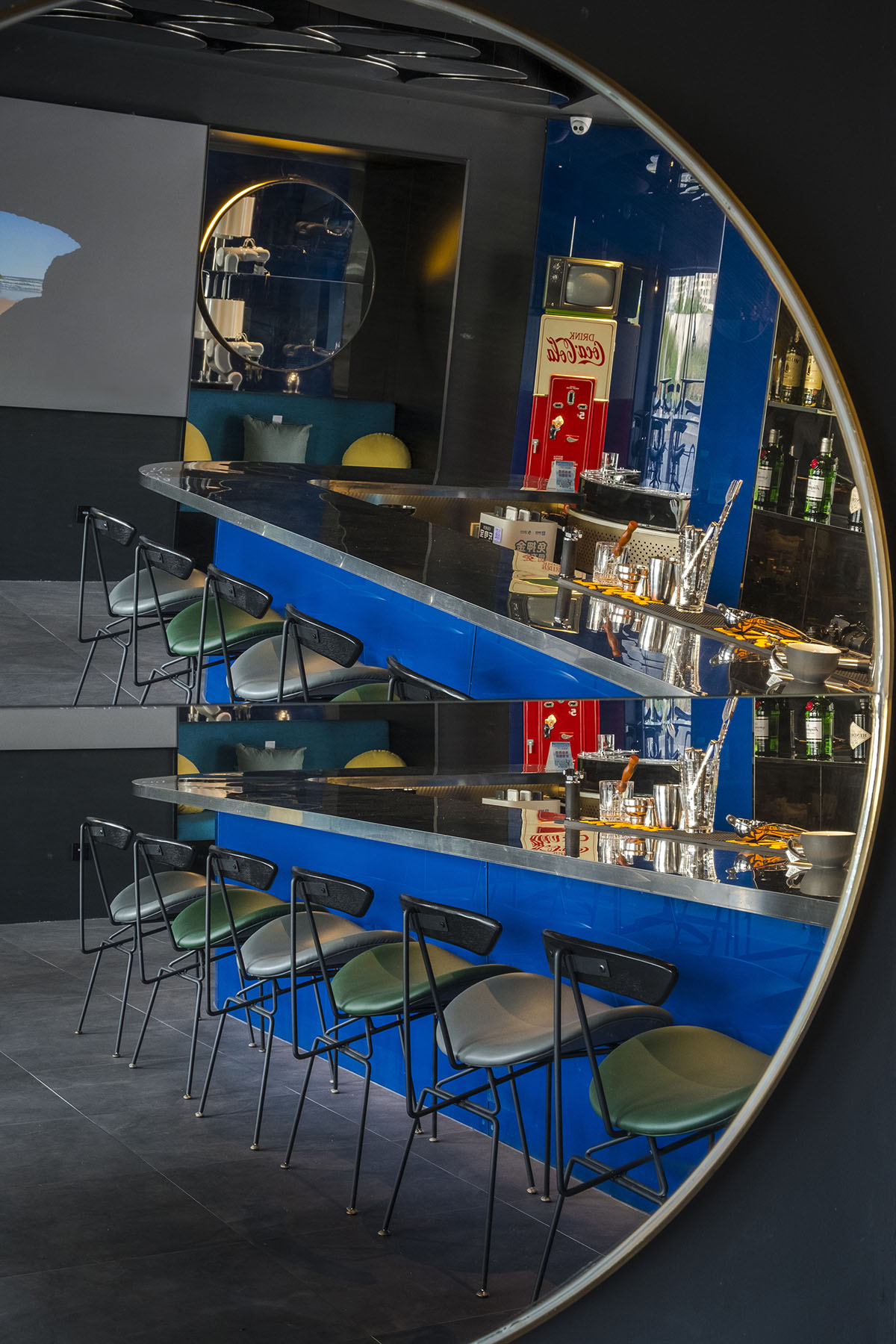

Folding Mirror. Image © Eric Chan

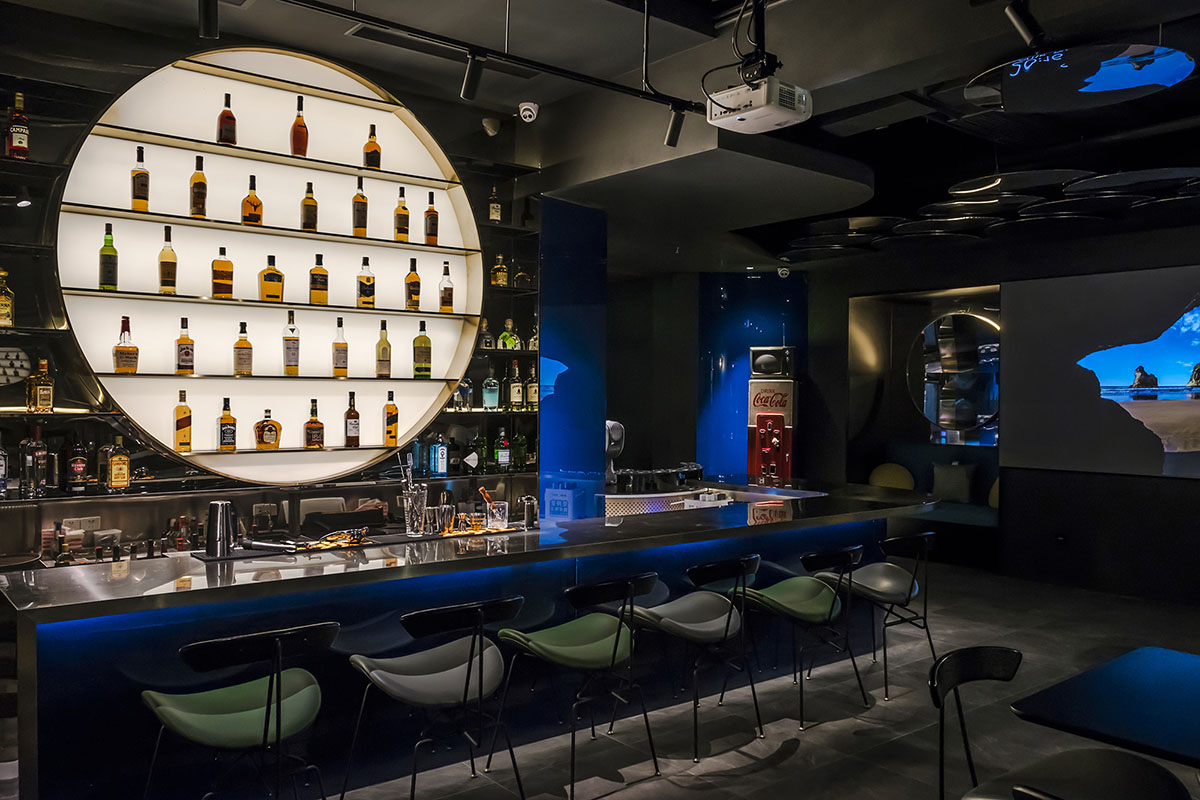

Whiskey Bar - The Moon and The Folding Mirror. Image © Eric Chan

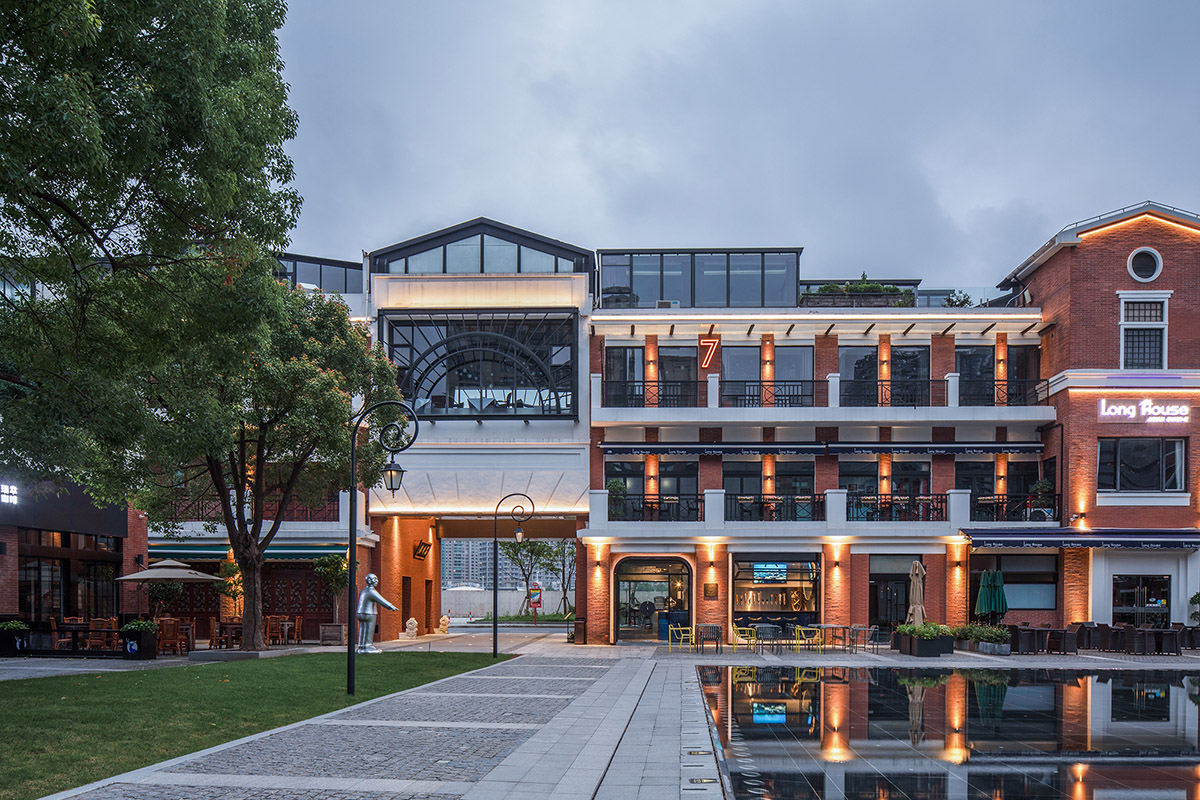

The Cool Docks and MOONCRAFT elevation facing the South Bund. Image © Tian Fang Fang

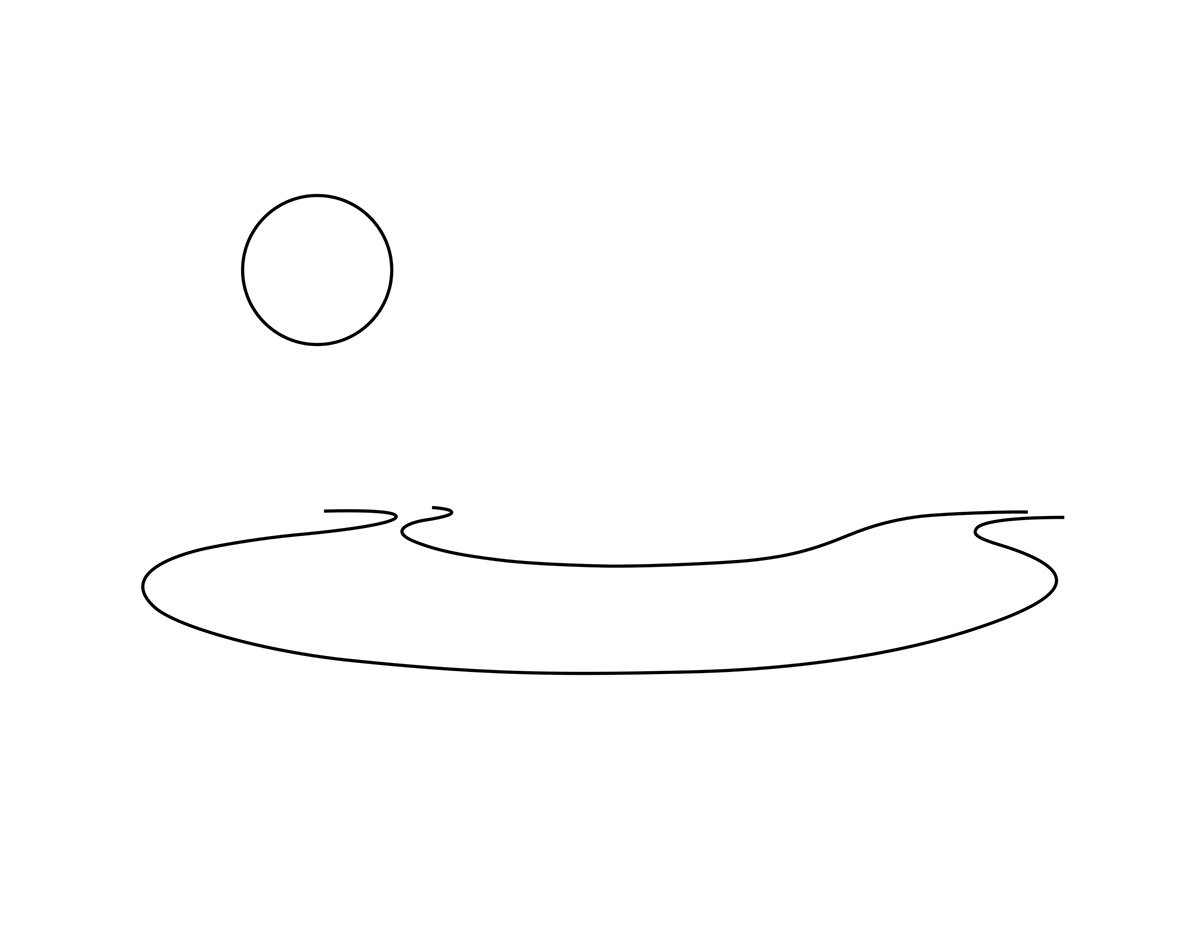

Concept of MOONCRAFT’s branding - Moon hanging above the Huangpu River at The Bund. Image © o&o studio

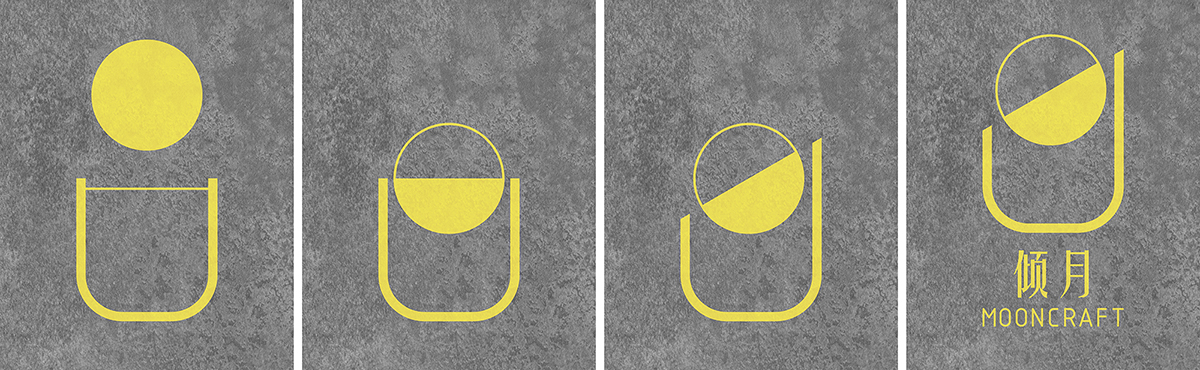

Design Concept of MOONCRAFT's Logo. Image © o&o studio

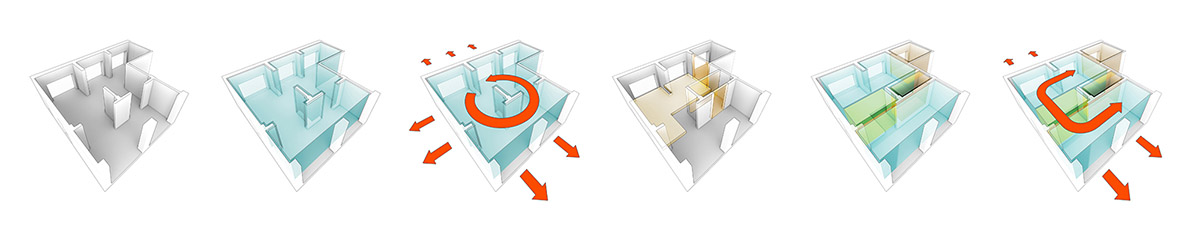

Spatial Analysis. Image © o&o studio

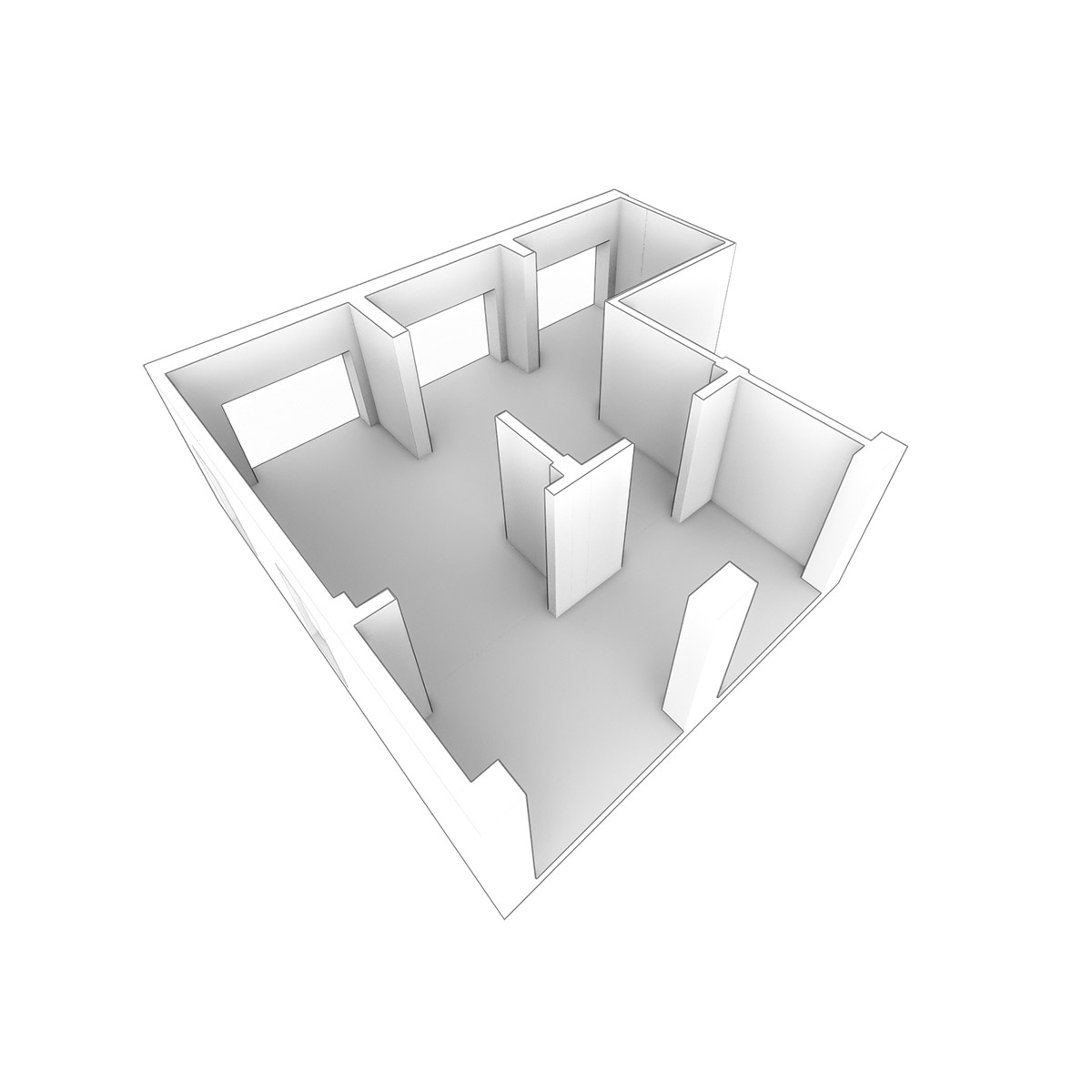

Existing Structure. Image © o&o studio

Connecting three units as one single space. Image © o&o studio

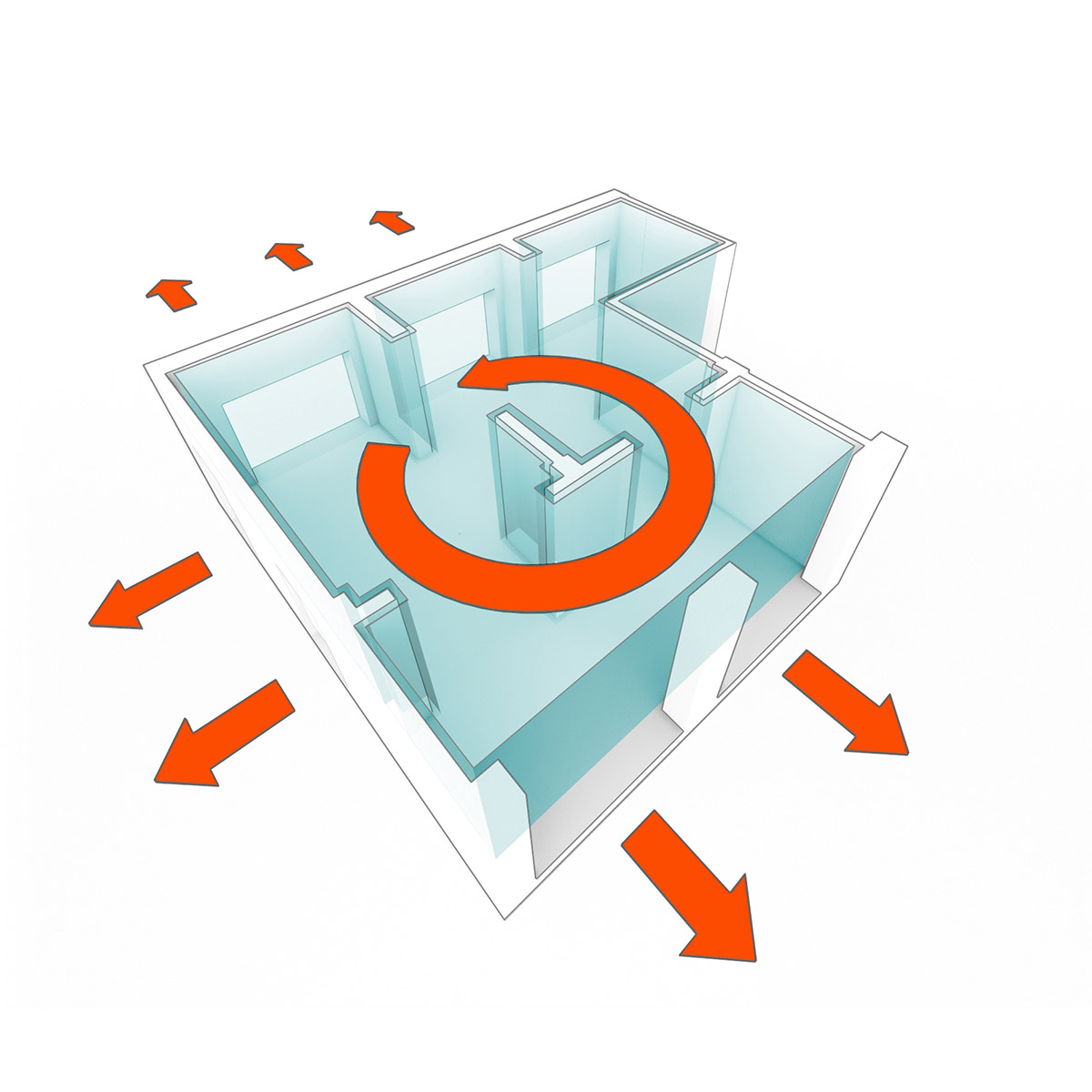

Lack of sense of space and overloaded with three shop fronts. Image © o&o studio

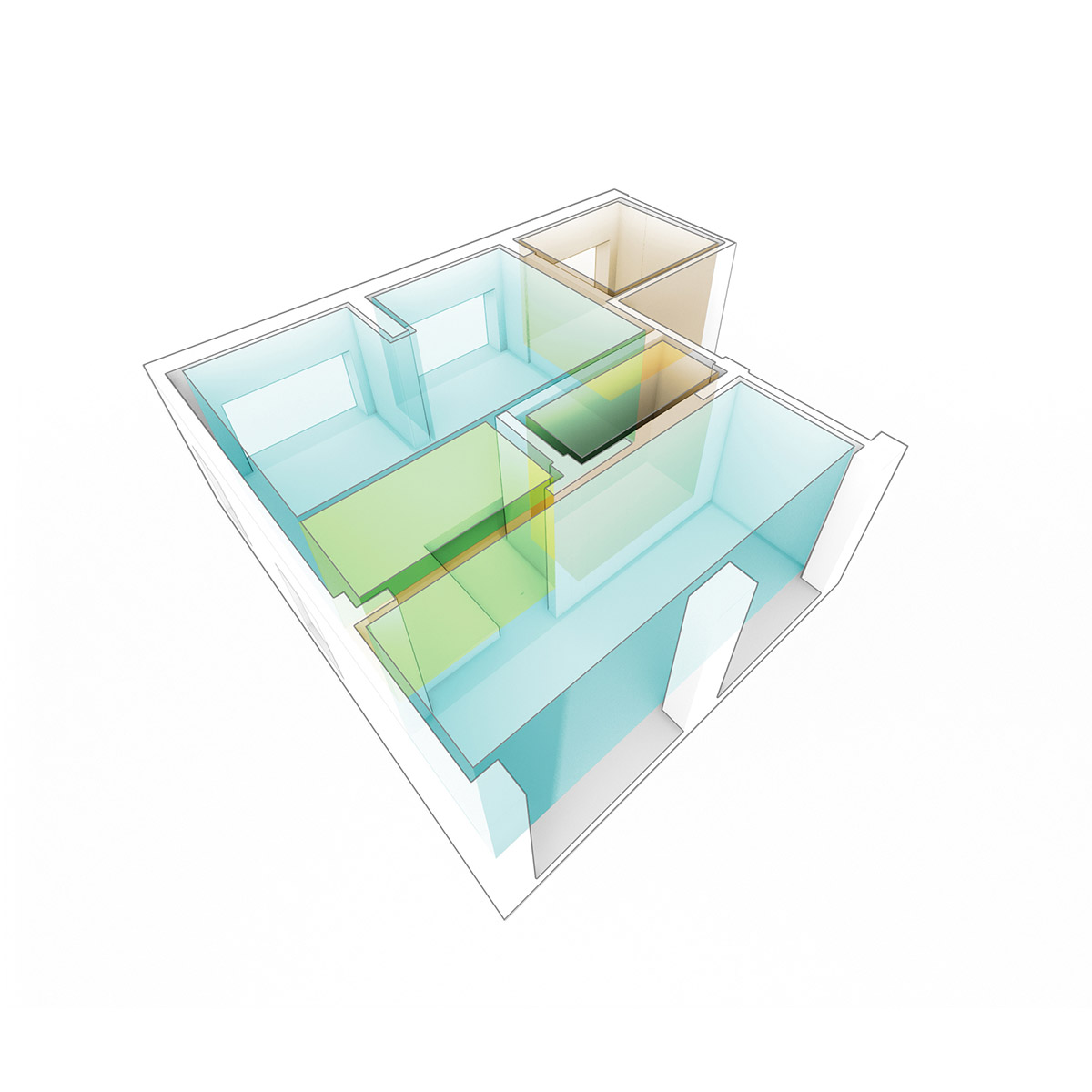

Making use of partitions to break down the spaces into private, interface and BOH. Image © o&o studio

Create a sense of space with advantage of reduced number of frontages. Image © o&o studio

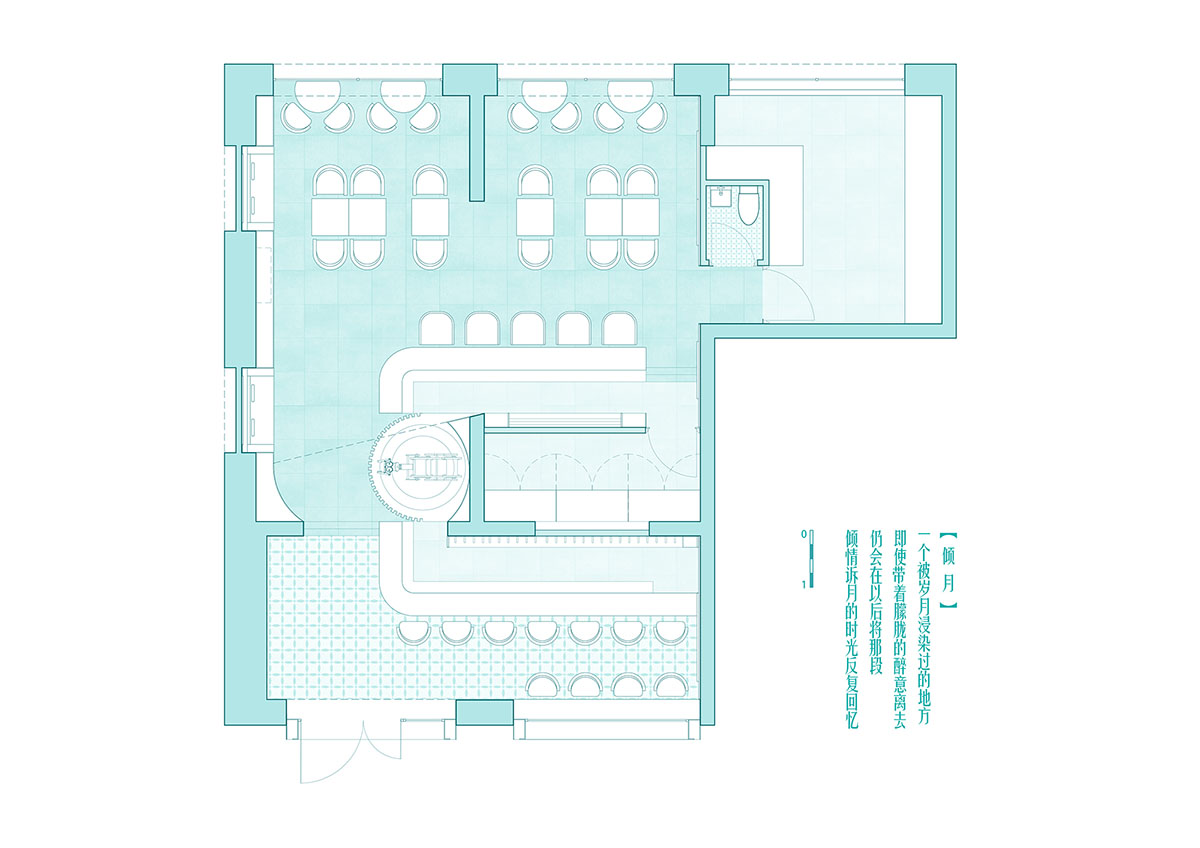

Floor plan. Image © o&o studio

Project facts

Project: MOONCRAFT

Address: Unit 101/102/103, Cool Docks, Shanghai, PRC

Architect: o&o studio

Typology: F&B, Bar Design, Interior Design, Shopfront, Renovation

Chief Designers: Eric Chan, Suzanne Li

Client: Private

GFA: 130 sqm

Completion: 2019

Text: Eric Chan, Suzanne Li, Zhong Xue

Top image: Whiskey Bar © Tian Fang Fang

All images © Eric Chan, Tian Fang Fang
