gmp releases first images of Suzhou No.2 Library featuring first intelligent storage system in China
China Architecture News - Dec 2, 2019 - 17:31 4771 views
At the end of 2019, the Suzhou No. 2 Library is set to be opened to the north of the historic Suzhou city center. "This means that this traditional cultural city will have more than “just” a new library," according to gmp.
The 45,300-square-metre library was embedded in a new park landscape, the new library building with its integrated specialist libraries, collections, and exhibition rooms also fulfills the functions of a culture center. The library will contain 7 millions books in total.
The key feature of the library was designed with "an intelligent storage system" housing a capacity of seven million books, which will be the first in the country. The architects von Gerkan, Marg and Partners (gmp) had won the competition and received the commission in 2014.

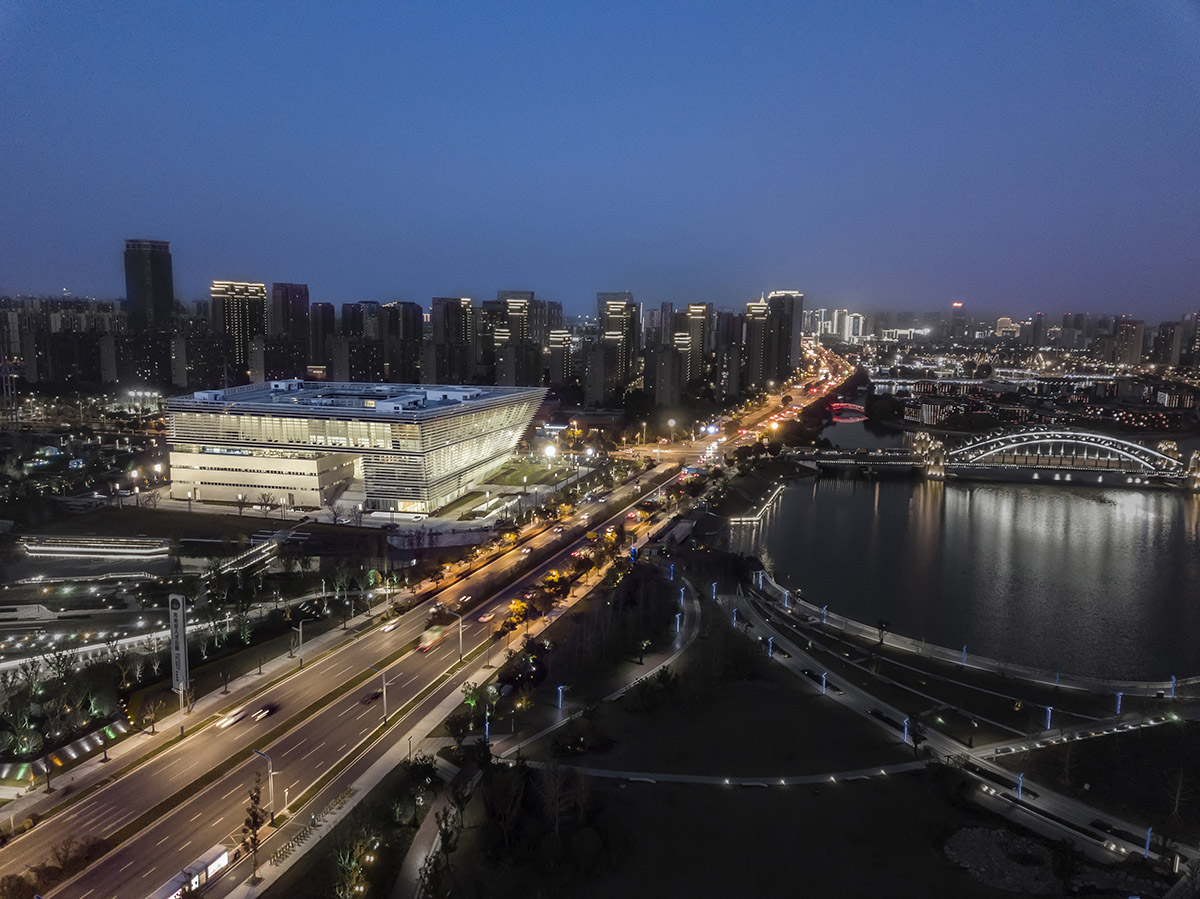

Suzhou No. 2 Library will be opened at the end of 2019. The design for the new library building was produced by gmp in cooperation with the Southeast University Architectural Design Institute. The library is located in the Xiangcheng District to the north of Suzhou’s historic city center.
With the Suzhou No. 2 Library, the city has built the first library in China that, in addition to the traditional library functions, features a fully automated intelligent storage system above ground with a capacity of seven million books.

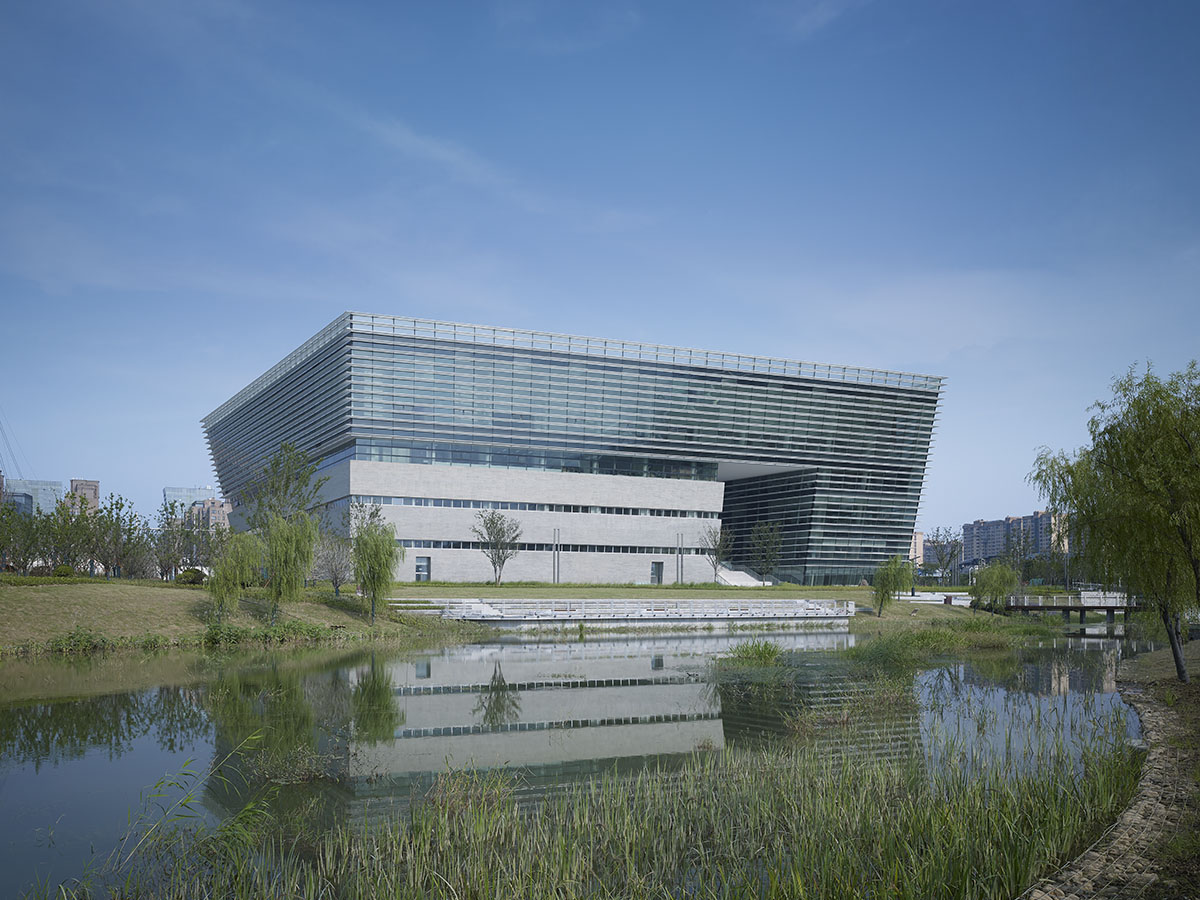

Embedded in a newly created park landscape, the 36.8-meter-high new library building furthermore fulfills additional public functions as a culture center with seminar and exhibition rooms, as well as integrated specialist libraries covering selected specialist subjects: literature from Suzhou, design, digital science, music, and children’s literature.

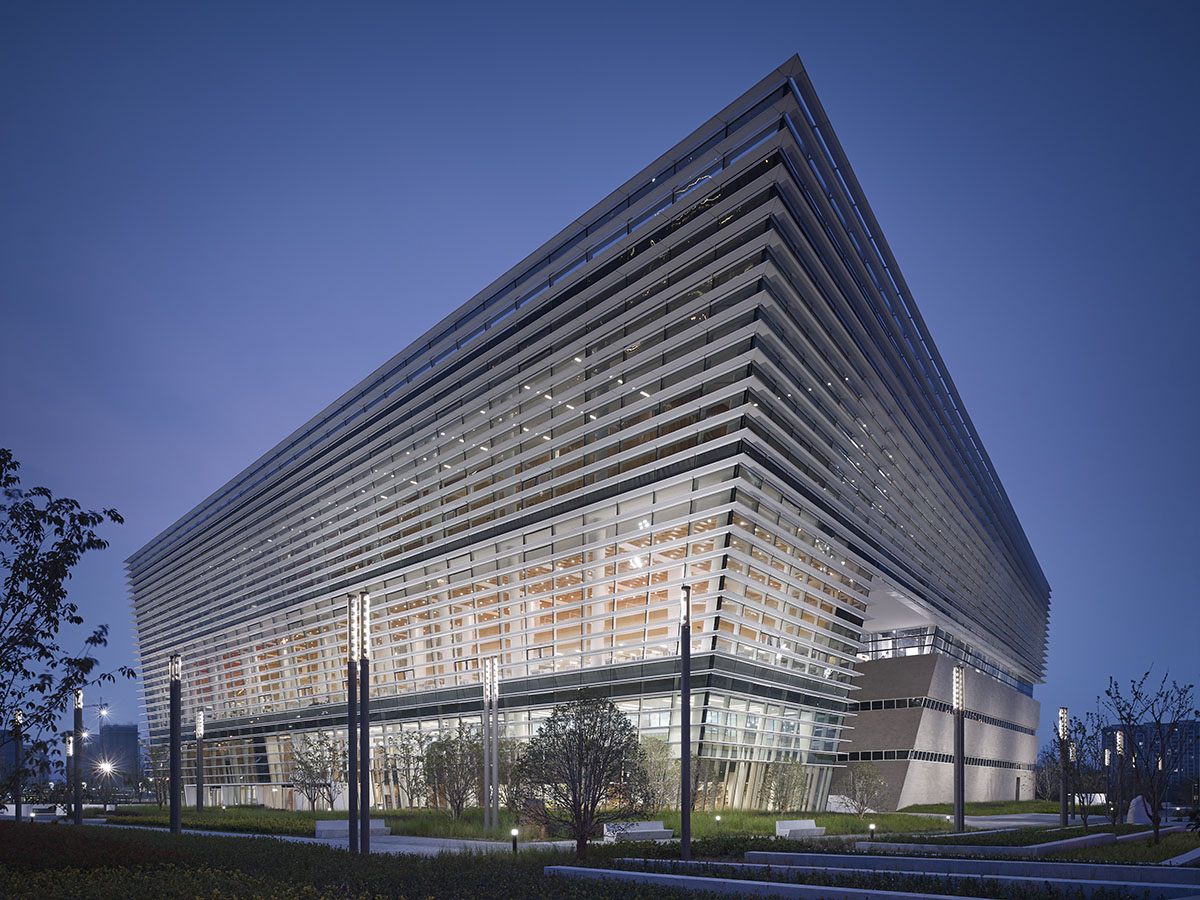

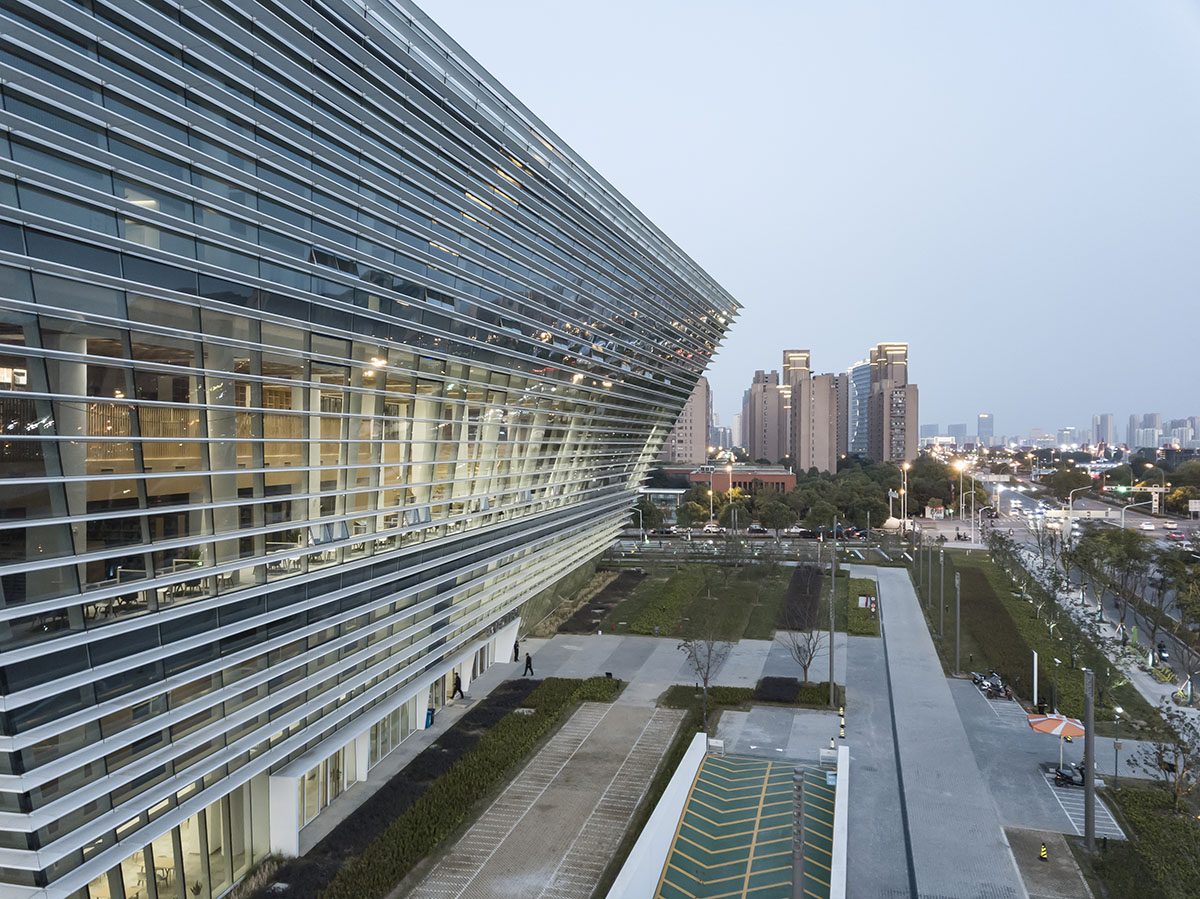

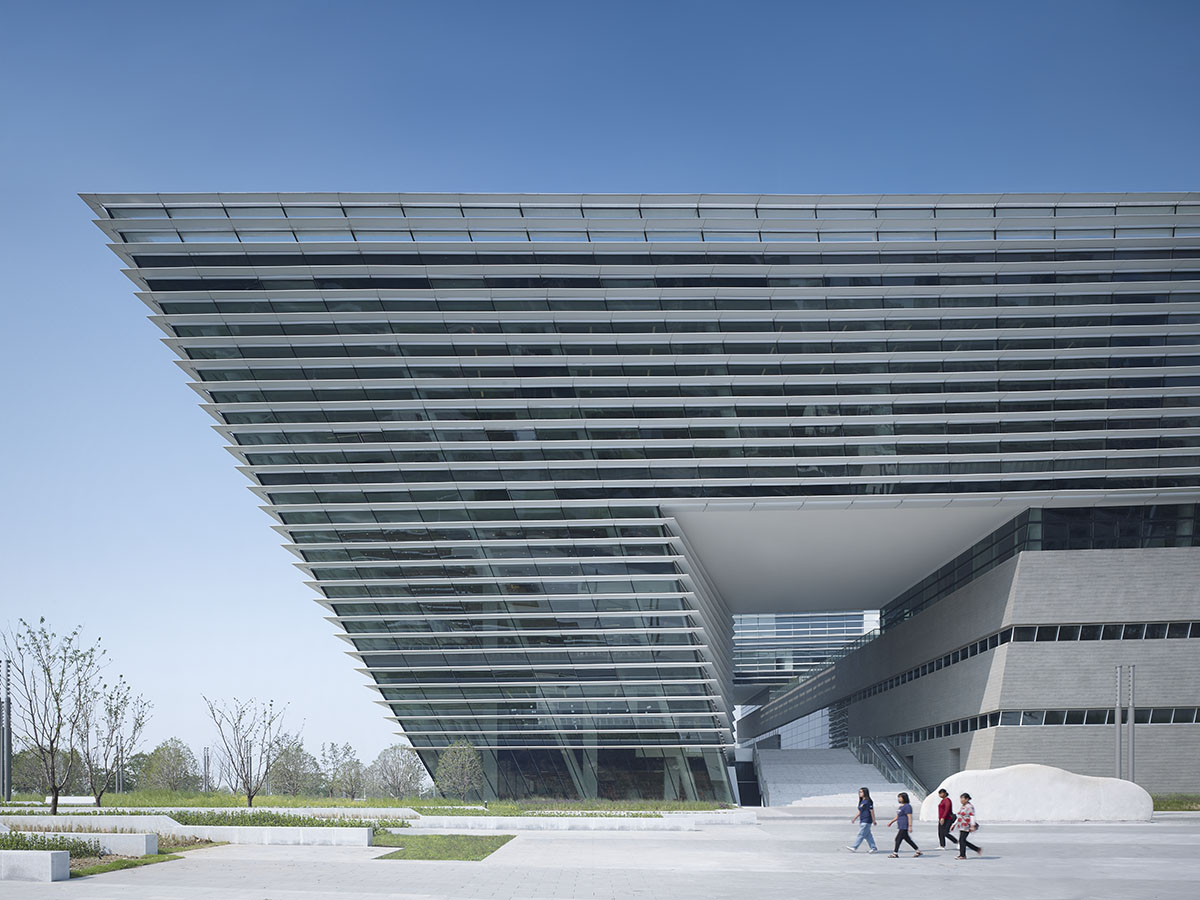

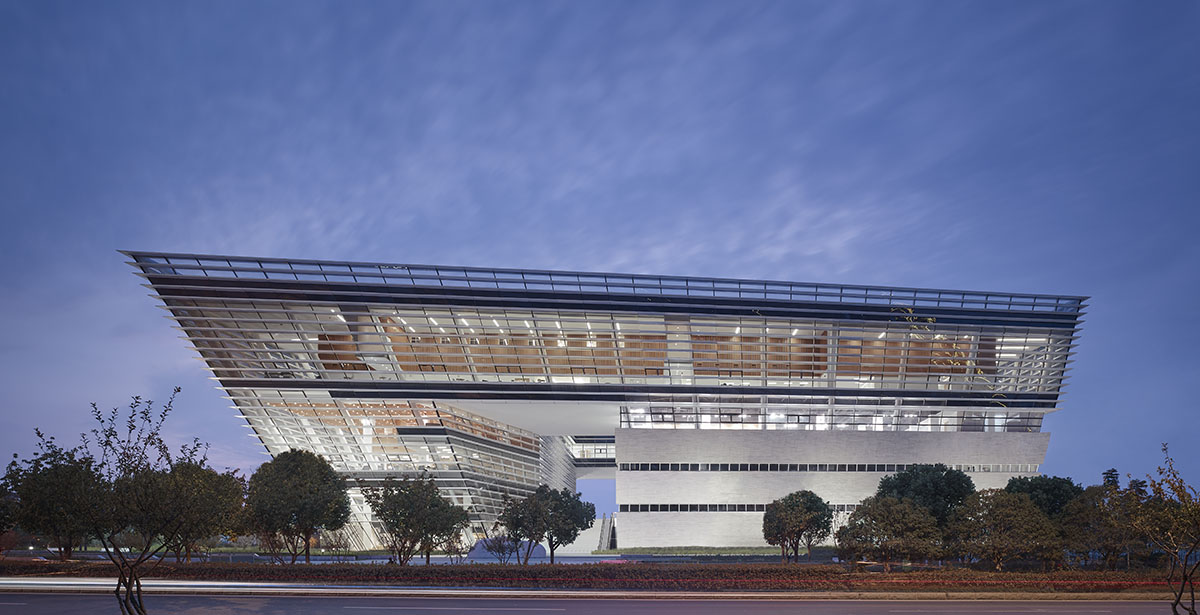

The library derives its unique appearance from the unusual shape of the building and the facade of elegant aluminum louvers. Whereas the floor area at ground level has been kept to a minimum and has been arranged parallel to the street, the upper stories cantilever outwards with a slight twist, thus providing more reading areas with good views of the surrounding landscape.
"This design has created an external shape that is clearly reminiscent of a slightly offset stack of books or reams of paper. To reflect the different functional requirements of the publicly accessible area and the book depository, the new library building consists of two connected parts—the upper floors and the podium," said gmp.
"The closed facade of the book depository has been constructed in fairfaced concrete, the surface of which shows the horizontal pattern of the timber shuttering; above is the part of the building that serves the public featuring airy, transparent glass facades."
"The intelligent high-bay storage facility with closed facade is located in the northern part of the site, whereas the reading hall with its transparent facade lies to the south, opening out to the city. It contains six main levels above ground with a story height of 5.7 meters," the firm added.
The two parts of the building are separated by a central axis running from east to west that forms a plaza accessible to the public. The main entrances to the library are also located on both sides of the raised plaza, which can be reached via steps. From here visitors can enter both tracts of the library, that to the north and that to the south; in addition, the plaza provides access to the park.
By providing public access across the site and inviting open entrances to both parts of the building, the plaza creates a functional link between the interior and the exterior and integrates the library with its diverse cultural functions into the urban fabric.
Image courtesy of gmp
Image courtesy of gmp
Image courtesy of gmp

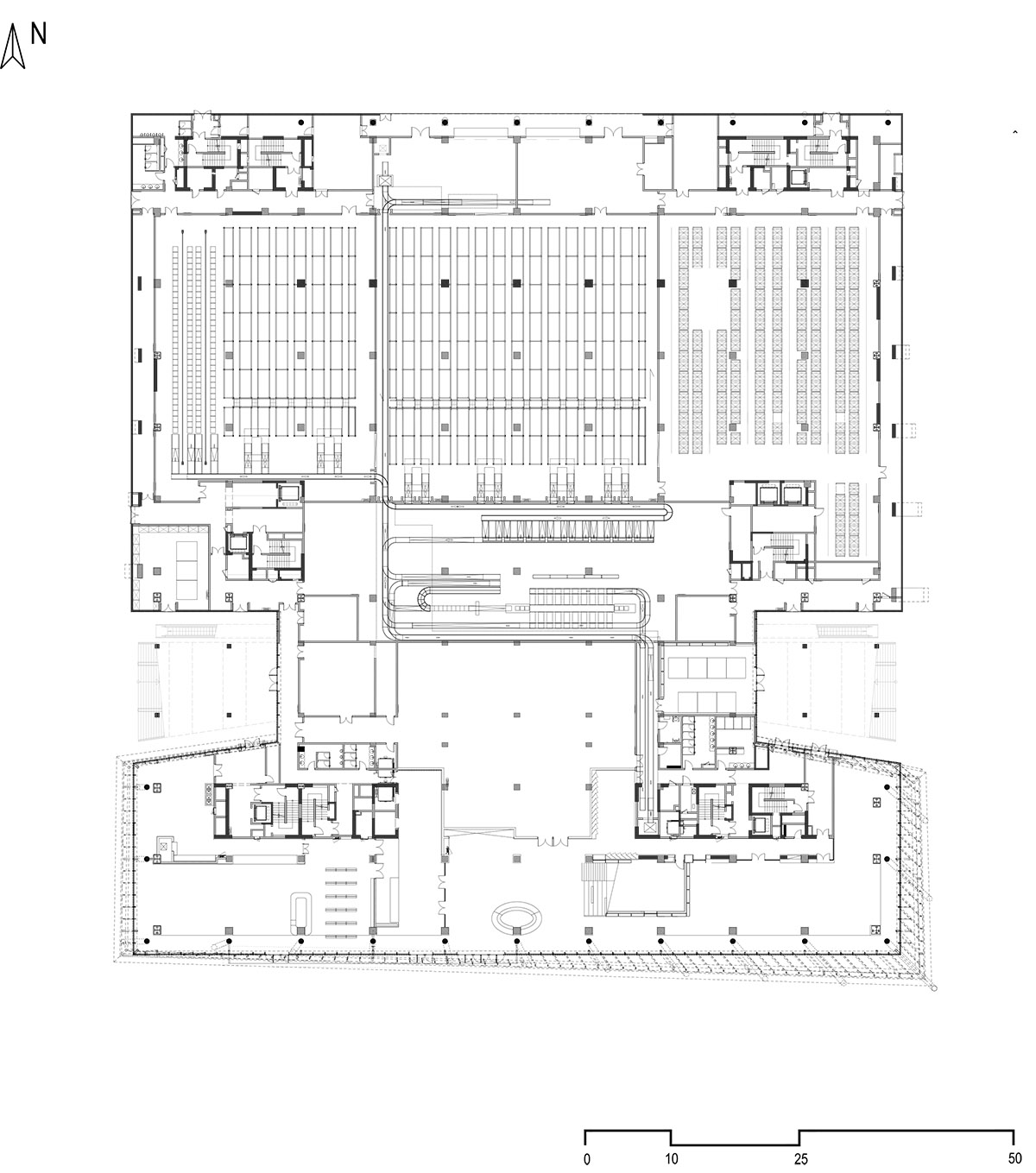

1st floor plan
2nd floor plan

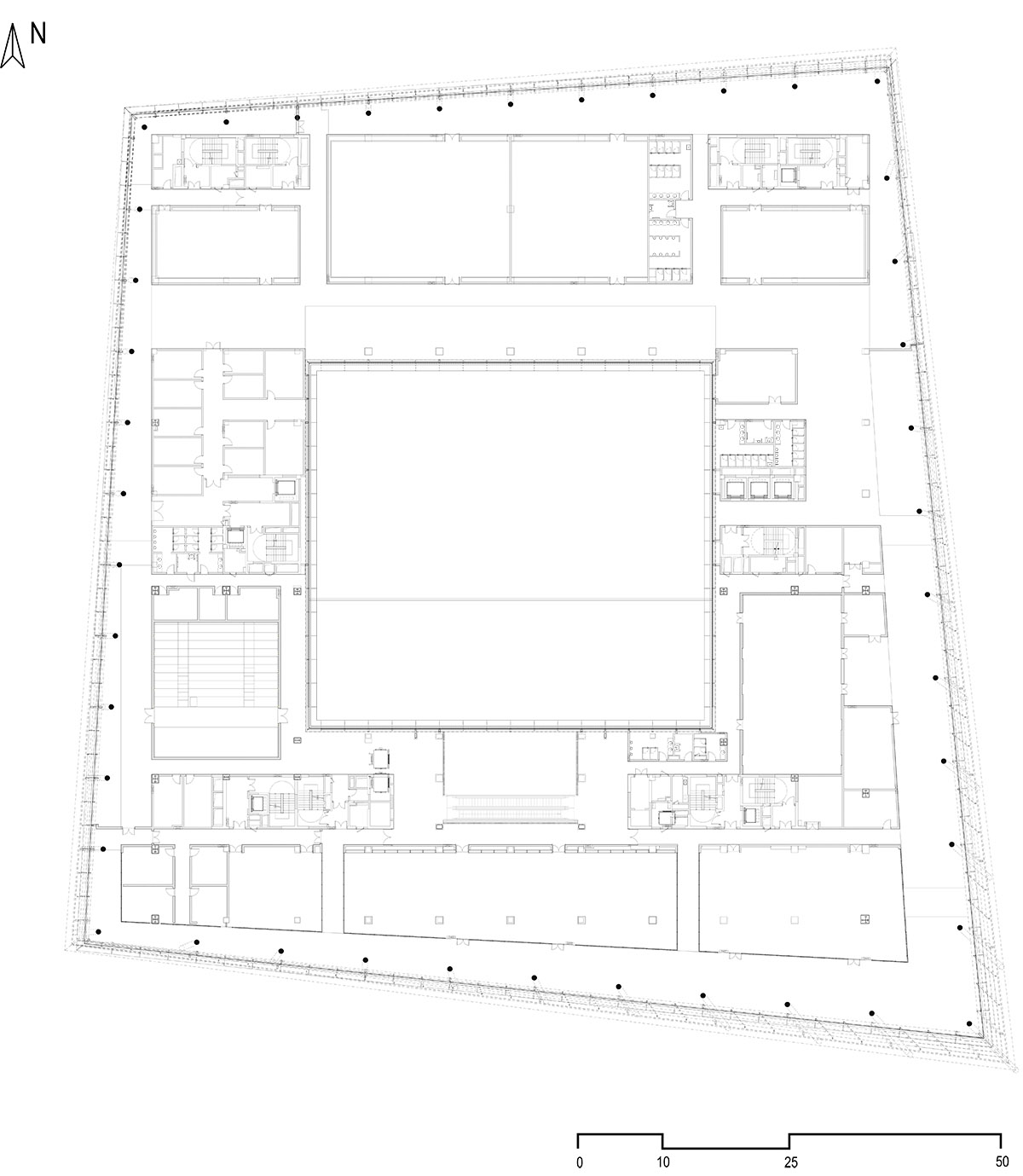

5th floor plan

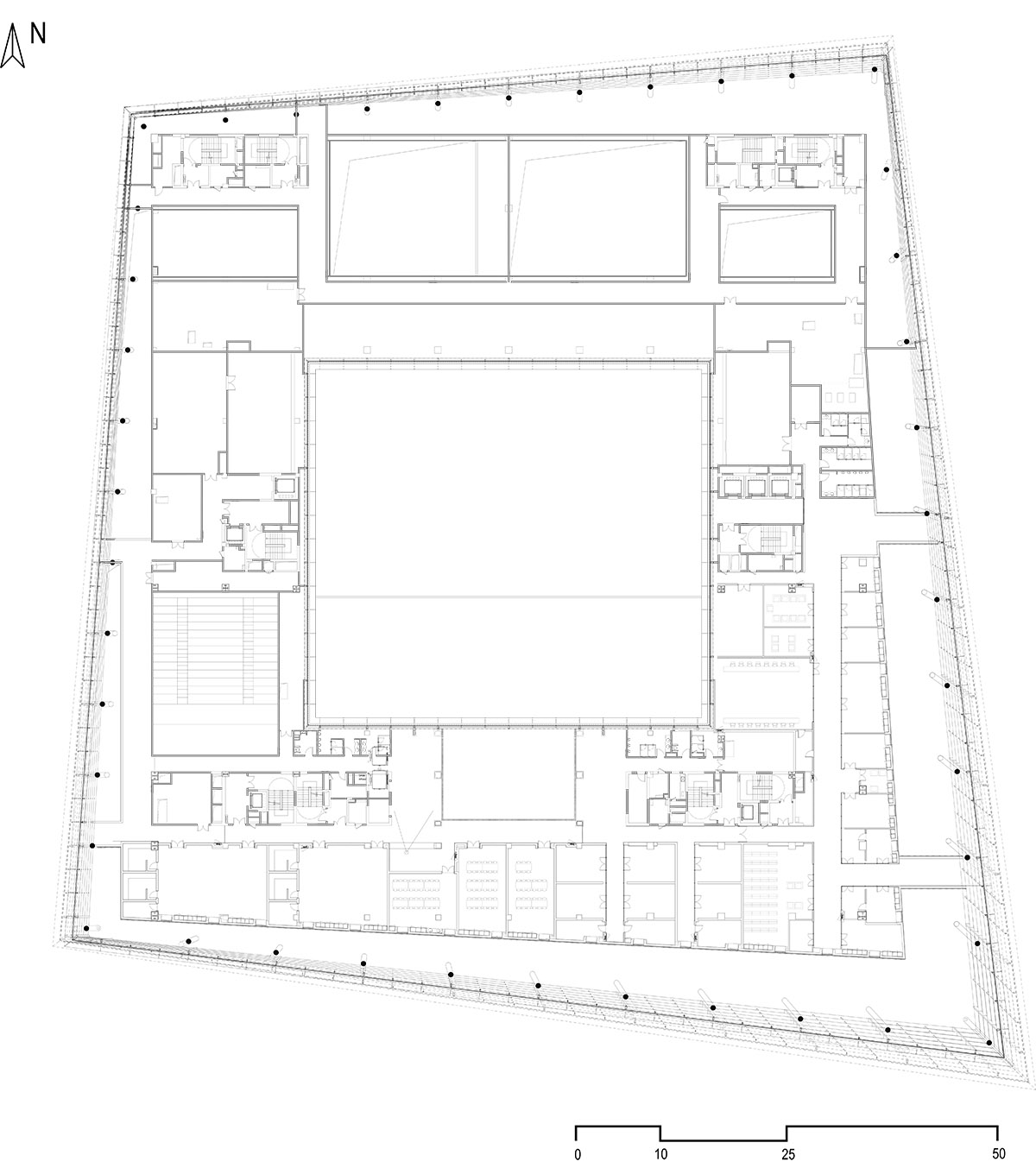

6th floor plan
Competition: 2014 - 1st prize
Design: Meinhard von Gerkan and Nikolaus Goetze with Magdalene Weiss
Competition: Lead Kong Buhong, Martin Friedrich
Competition Design Team: Ren Peiying, Fabian Schlitt, Kan Lijing, Mustafa Obaid, Wang Yiqun, Zhang Bowei
Detailed Design Lead: Yan Lyuji
Detailed Design Team: Bai Yunjie, Martin Friedrich,Kong Buhong, Li Chen, Qian Lie, Ren Peiying, Sun Yu, Xu Xufeng, Yao Yao, Shi Xiaohui
Project Management: Pan Mei
Structural Engineering: schlaich bergermann partner
Facade Consulting: SuP Ingenieure GmbH
Landscape Architecture: WES GmbH LandschaftsArchitektur
Partner firm in China: Architects & Engineers, Co., Ltd. of Southeast University
Client: Suzhou Library
GFA: 45,300 m²
Capacity: 7 Mio. books
All images © Christian Gahl
All drawings © gmp
