The Architectural Design and Research Institute of Zhejiang University (UAD) has completed the headquarters of Cyrus Tang Foundation (CTF) in mainland China. The project integrates multiple functional spaces, including the foundation's offices, a museum for displaying various gifts that the foundation has received, and spaces for holding exchange activities with its college members, including exhibitions, conferences, and training.

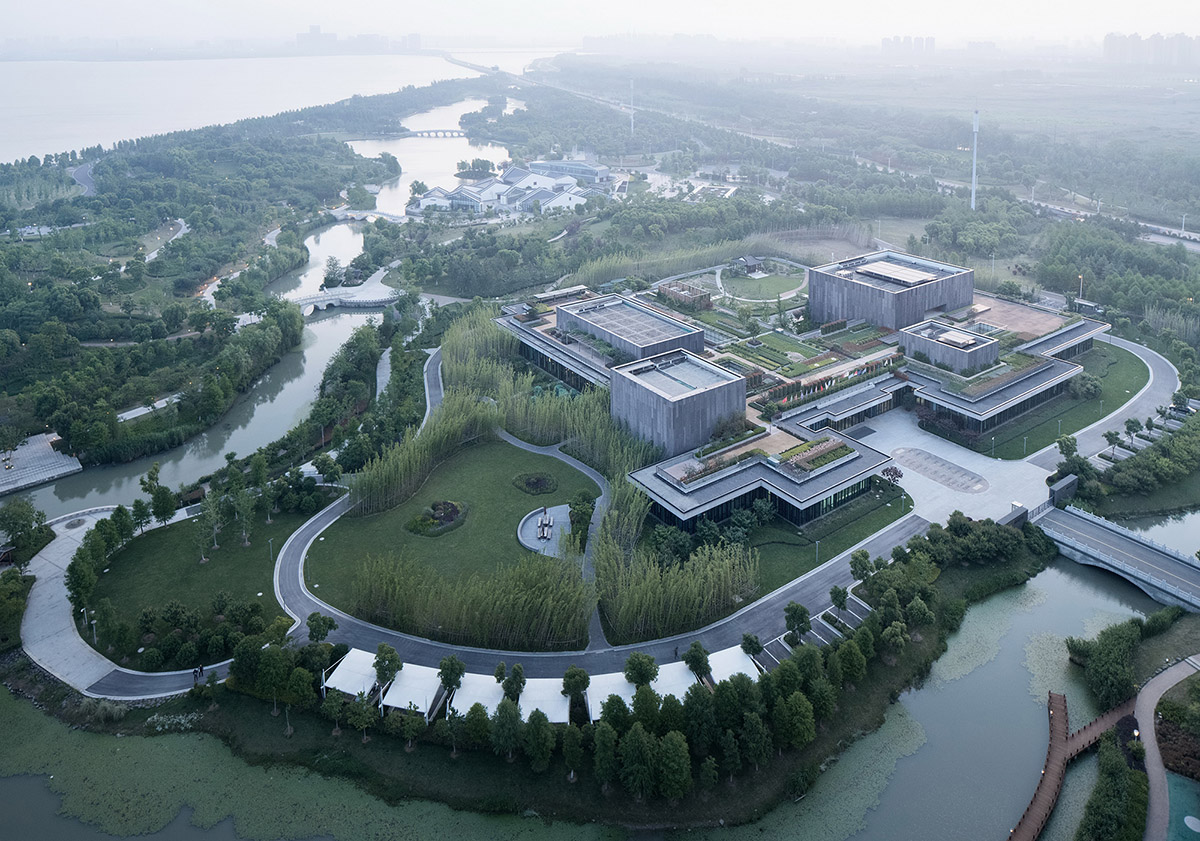

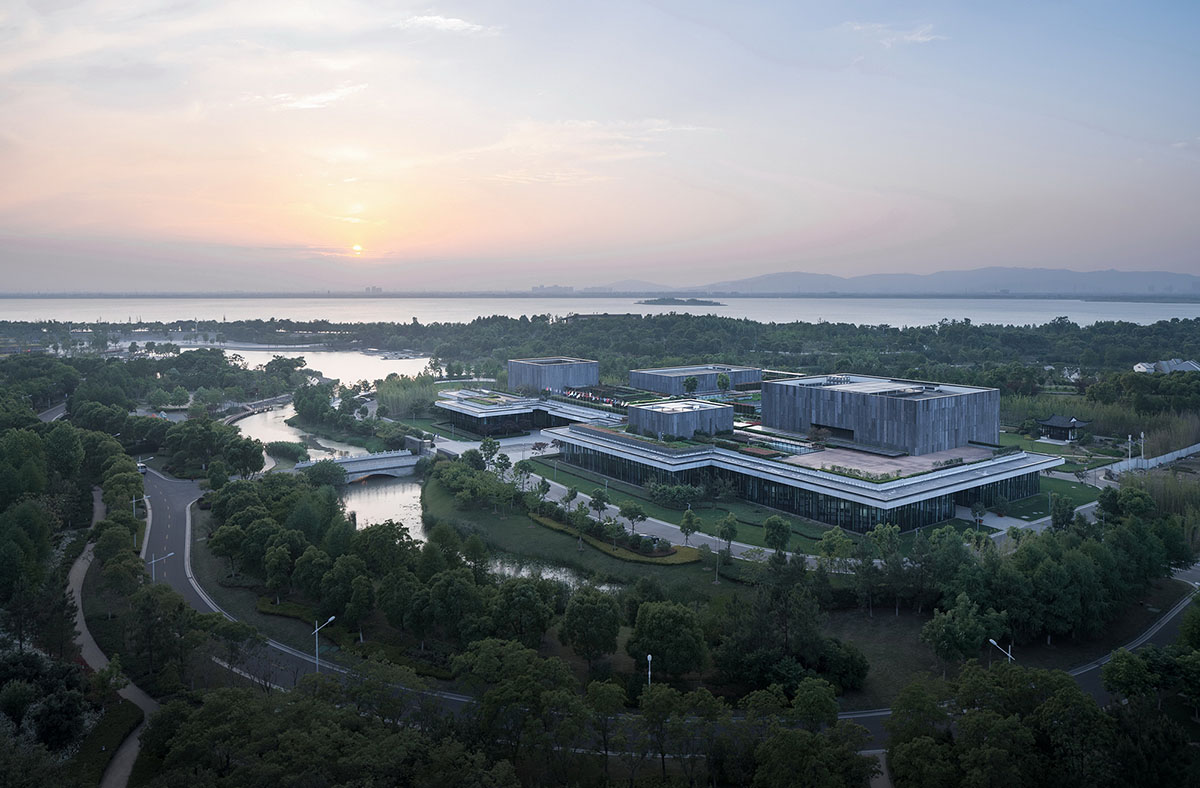

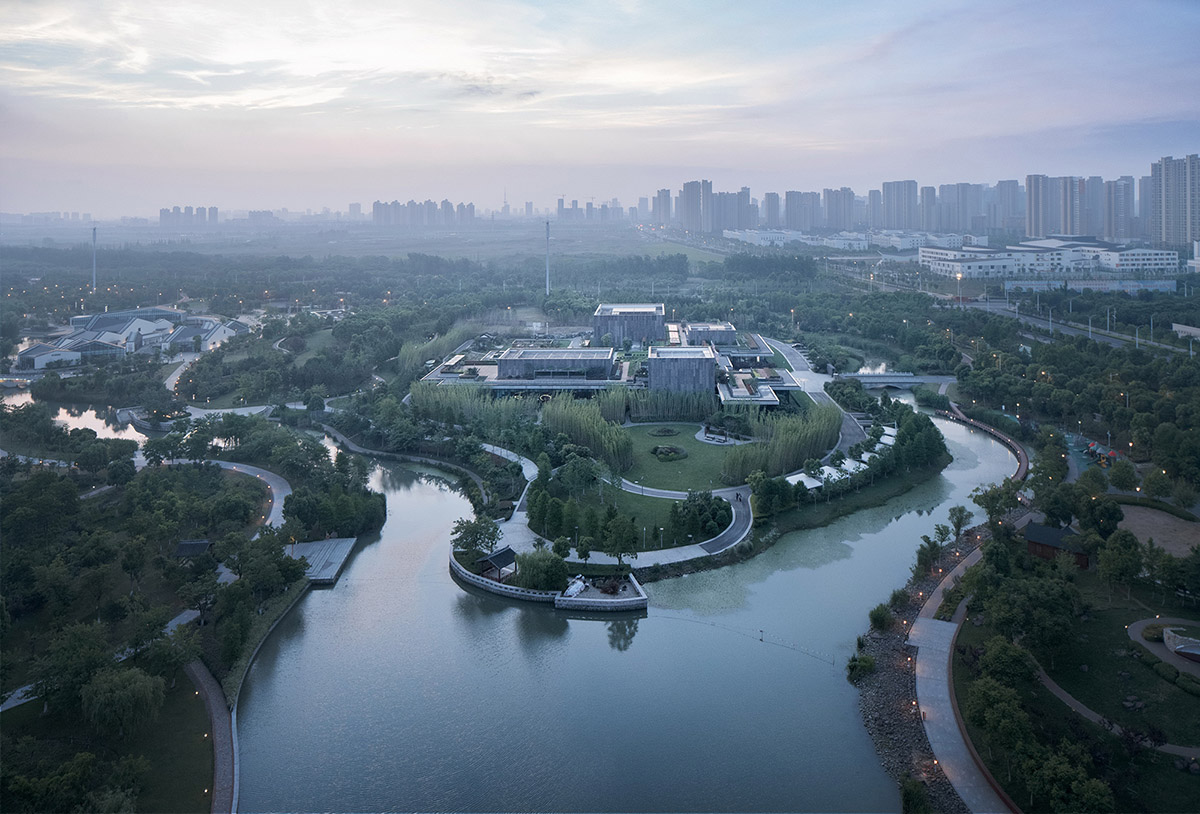

Named Cyrus Tang Foundation Center, the project covers a 15,000-square-metre area and is situated at the central area of East Tai Lake Ecological Park in Wujiang District, Suzhou, China, it enjoys favorable site conditions and beautiful landscape.

The design focuses on the integration with the surrounding environment, inherits CTF's mission of serving disadvantaged communities with love and passing on the spirit of giving, and produces a "dissolved" and green building.

Following an "organic layout", the architects created a continuous development for the foundation, by responding the demands of the foundation to be able to increase its functional spaces in the future.

"The design fully considers the necessity of leaving space for future development and therefore applies an organic layout on the irregular site, to allow flexible expansion and adjustment of the building's outline," said the UAD.

"Future extensions can be constructed naturally alongside the existing layout, without destroying the overall unification and harmony. Additionally, the curvilinear contours break through the building’s monotonous interfaces, and the layout strategy of interpenetration enables the architecture to coexist with the natural landscape in the most environmentally friendly manner."

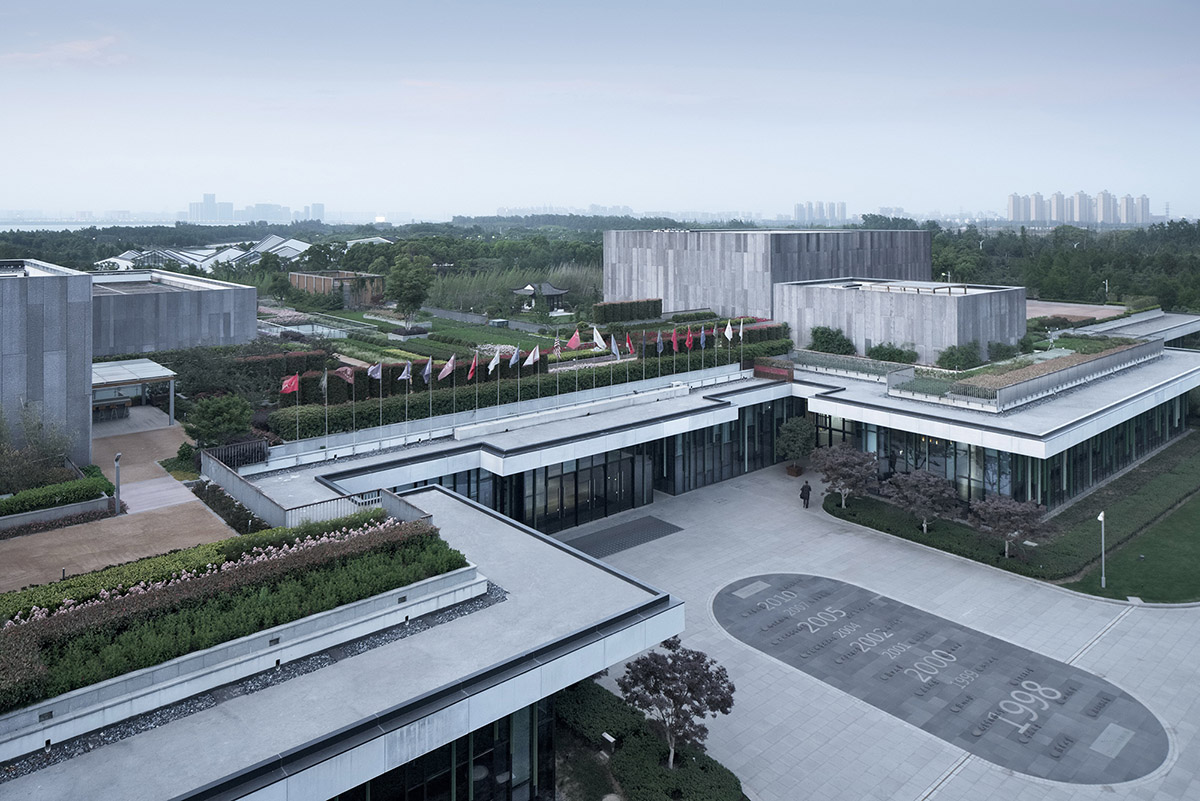

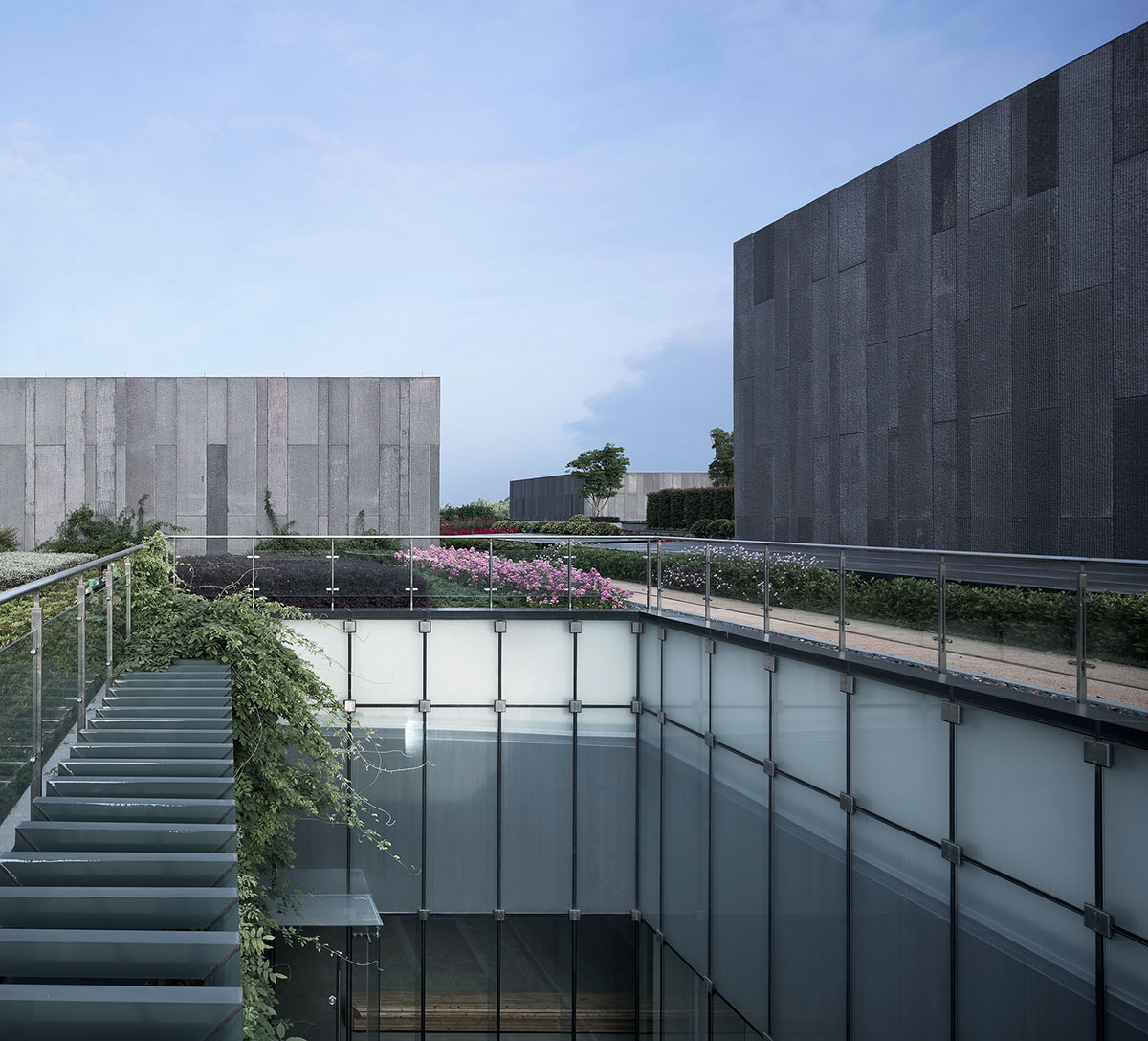

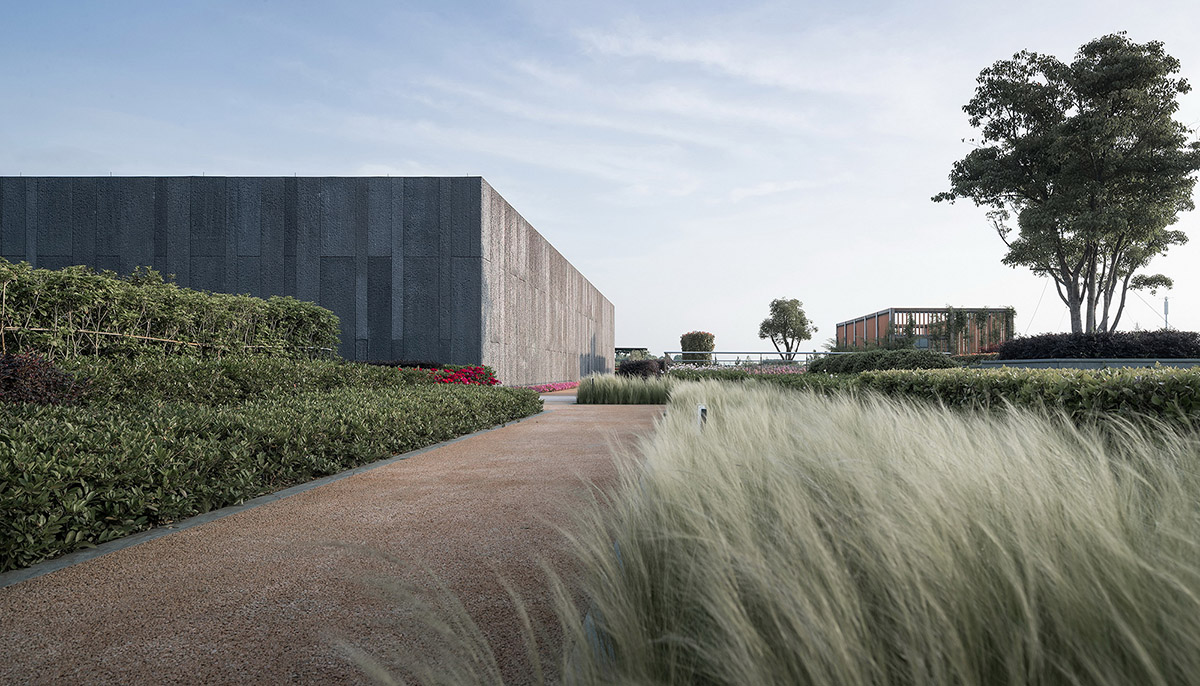

Main functions are designed on the first floor - reaching 7 meters - in order to minimize the architecture’s intrusion to the park where it is located. Meanwhile, the rooftop garden functions as elevated vegetation, which not only increases the park's green area, but also provides a beautiful open viewing platform and activity venue for visitors.

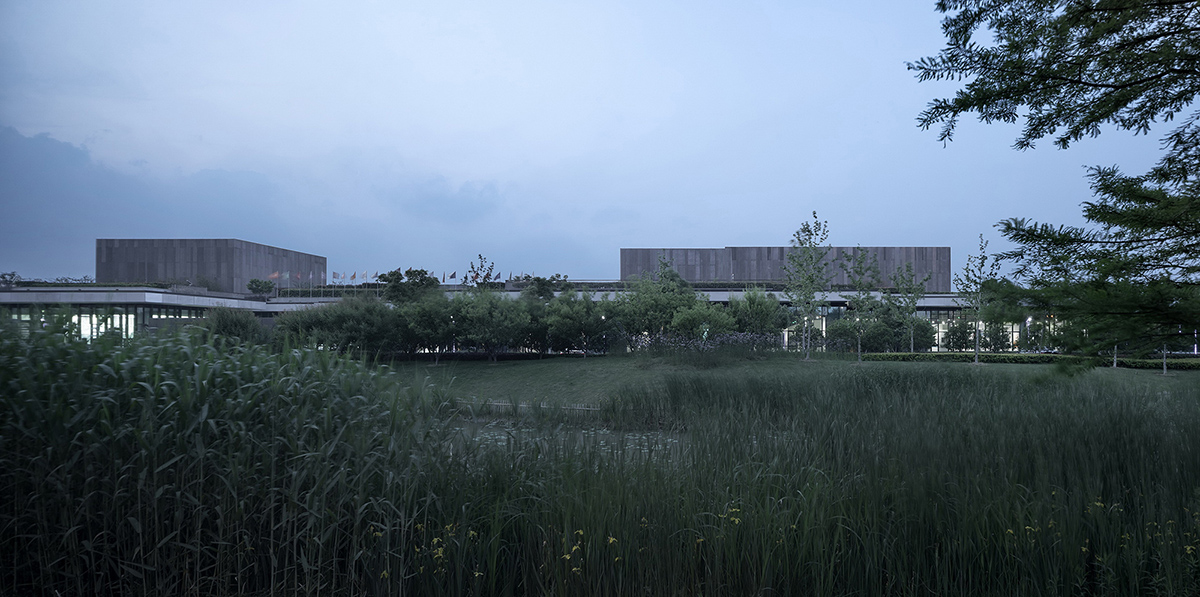

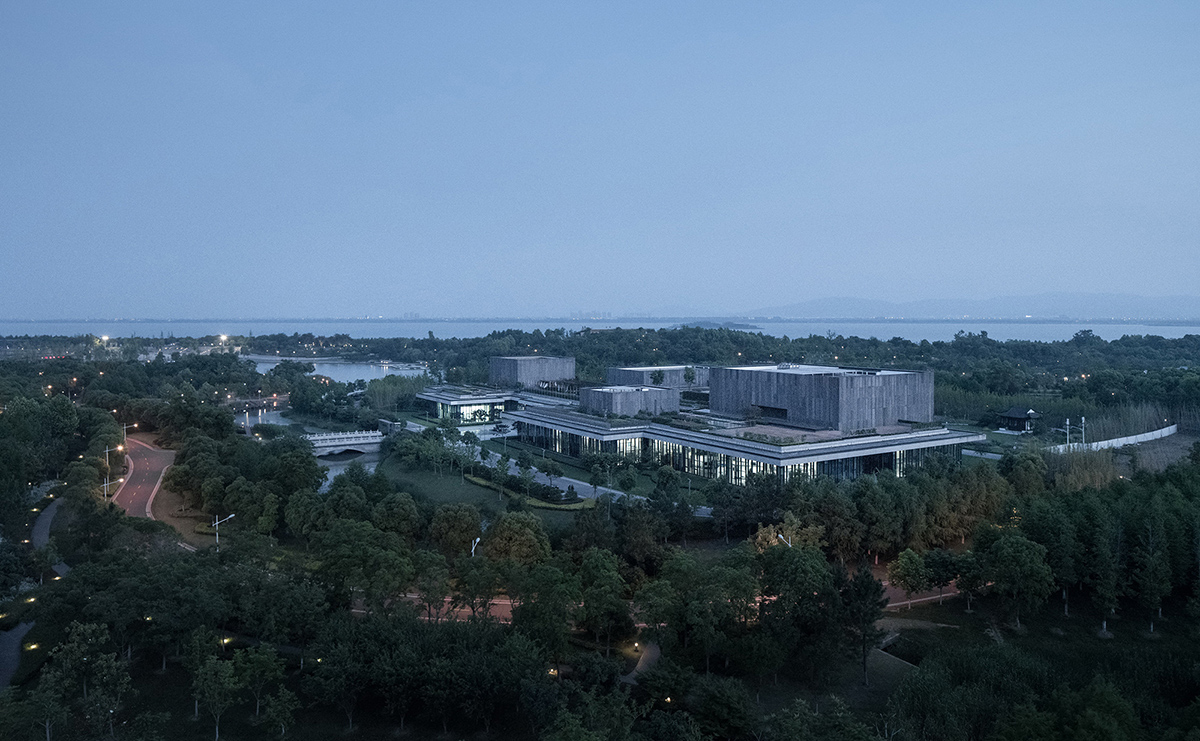

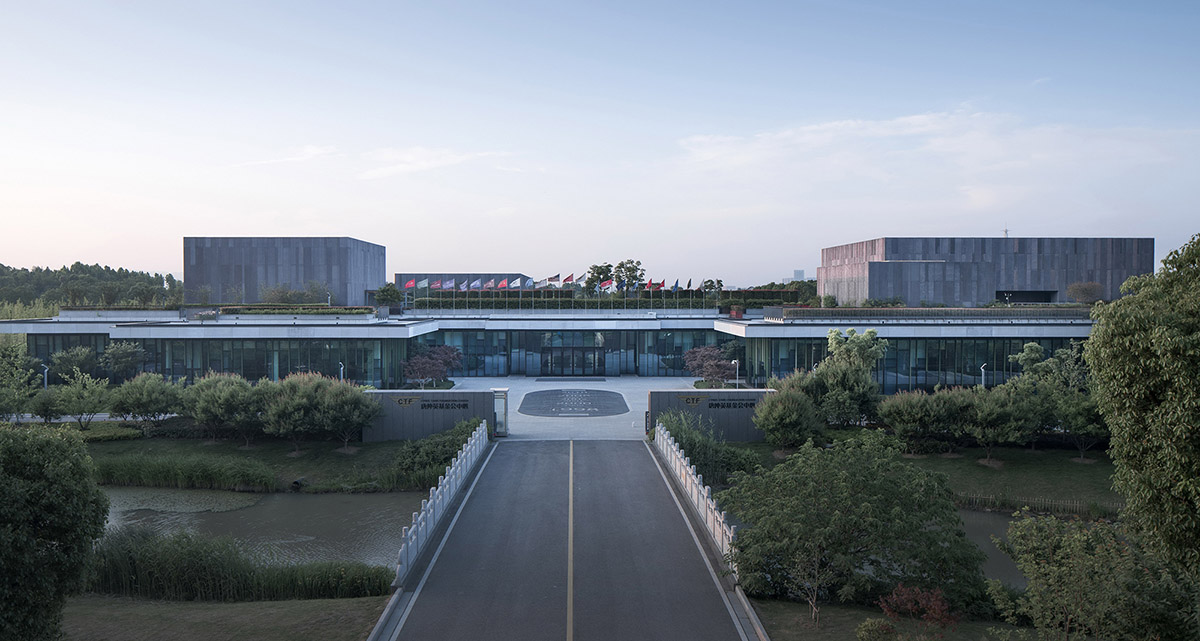

The protruding building volumes, including museum, exhibition area, and multi-function hall, hide behind the rooftop garden, like a few sculptures, highlighting the "solidness" of the architecture while also strengthening the hierarchy of spaces.

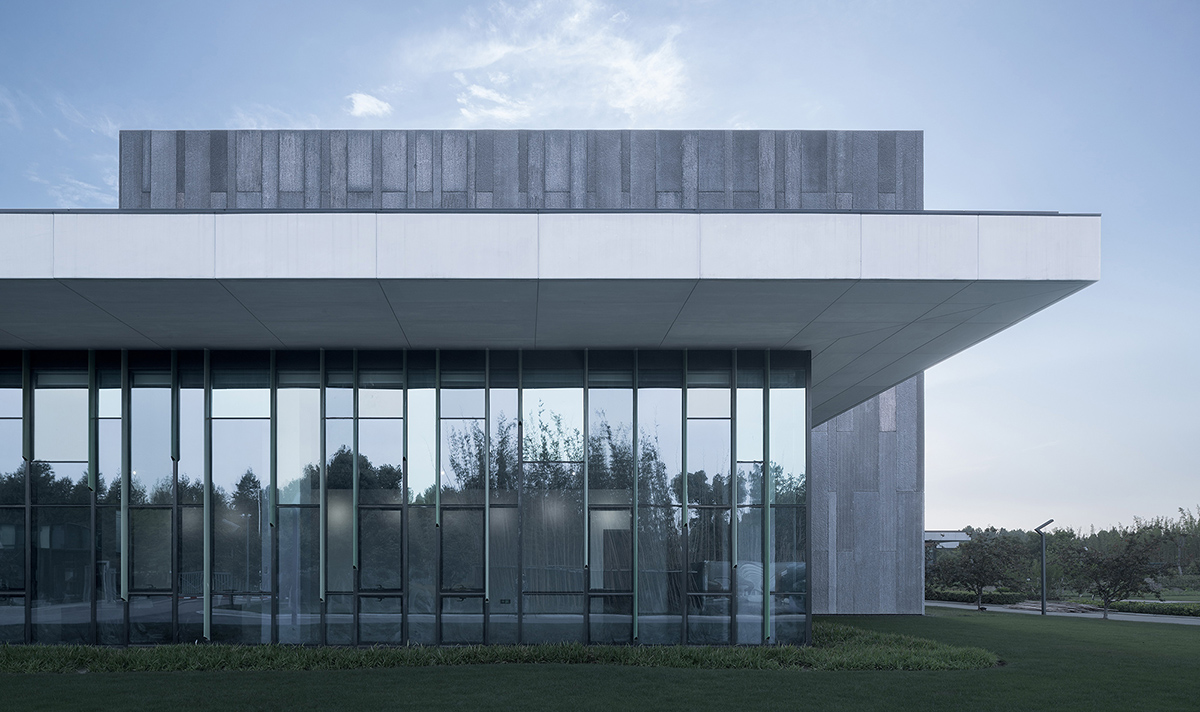

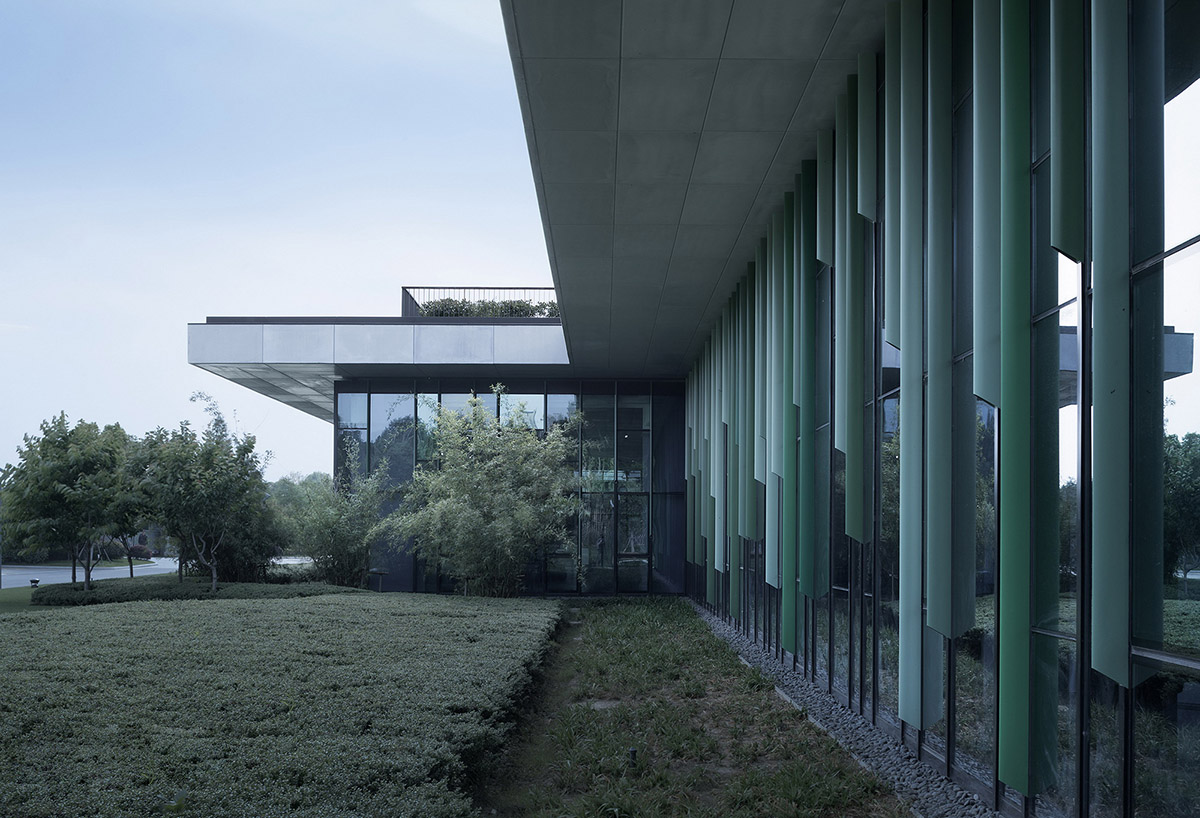

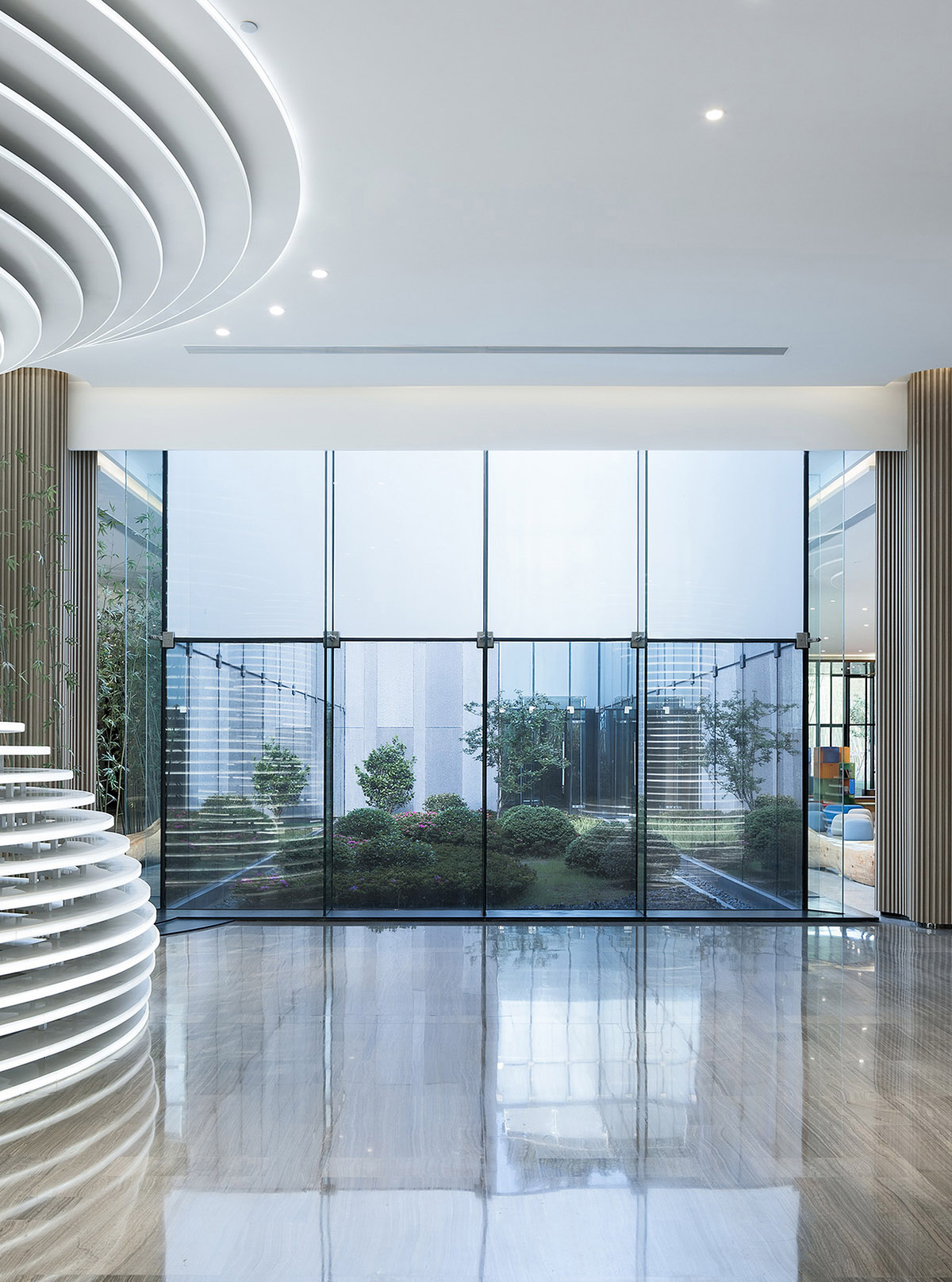

The first floor is mainly enclosed by glazed curtain walls. Featuring a rhythmic arrangement of green glass with different transparency, its erected facade echoes the nearby bamboo and dissolves into the surroundings.

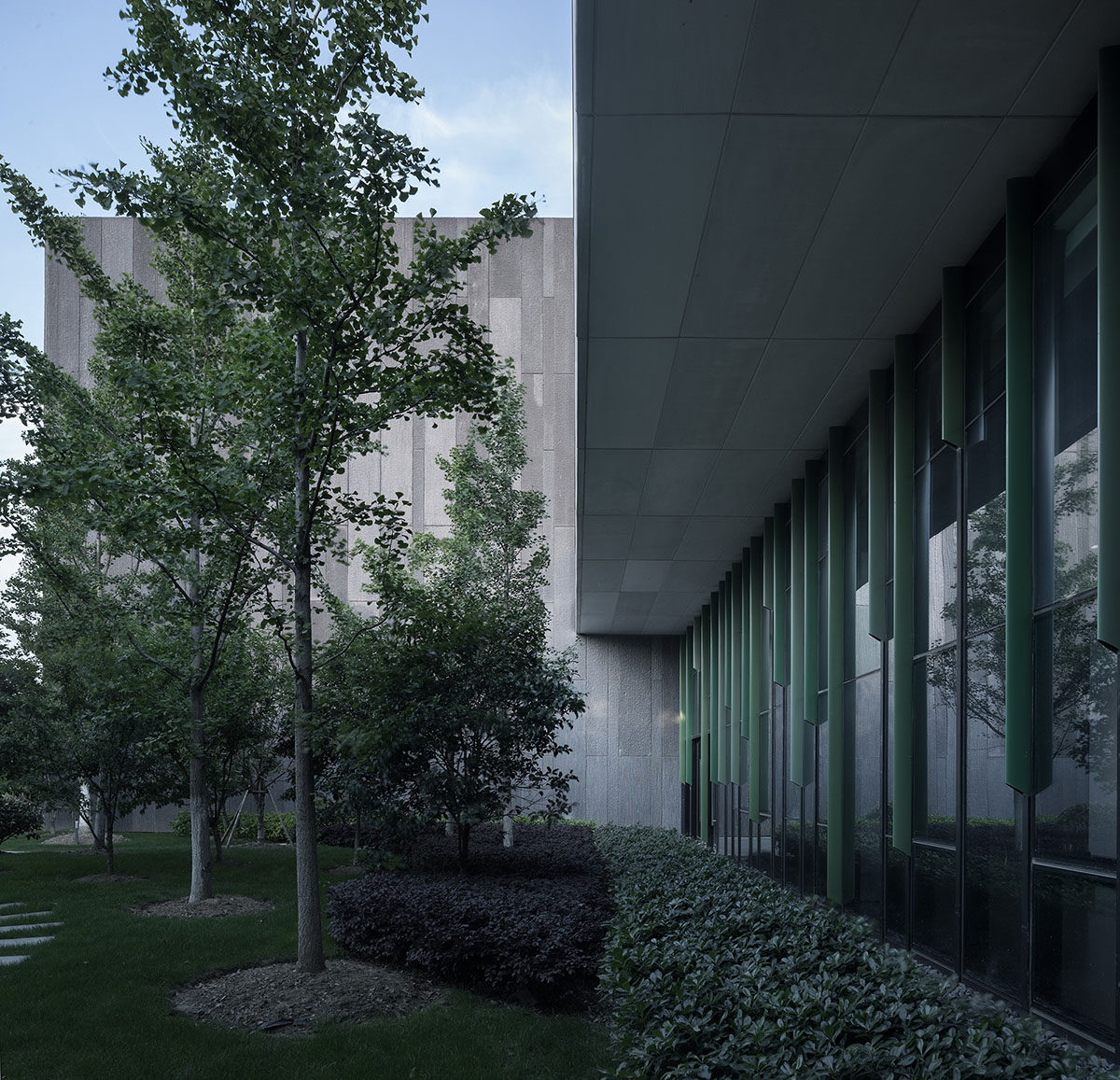

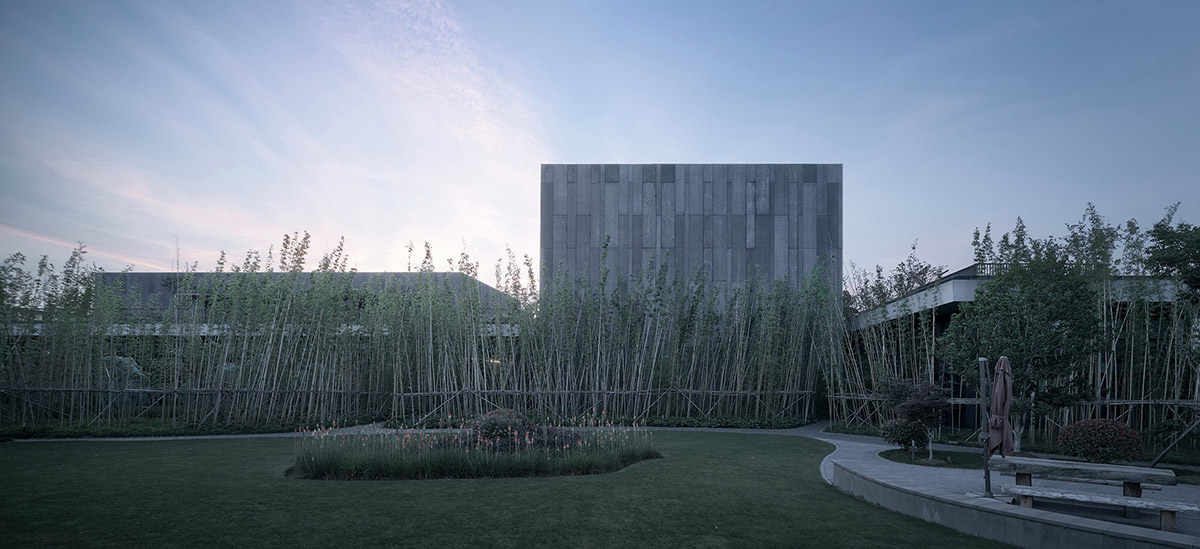

Besides, facades of the protruding volumes also present bamboo-like vertical patterns, which blend together as an integrated whole. Those refined facades partly result from the elaborate arrangement of the building's equipment: all the tube wells and outlets are all integrated orderly in the roof design.

Since only the office area is used perennially while the exhibition area and the multi-function conference hall are utilized occasionally, the design employs a centralized layout, where the office area, exhibition area, multi-function hall and museum are incorporated in one complex.

Each functional space can be utilized independently, and at the same time enables efficient integrated operation with others. When utilized independently, each area is set up with its own entrance and exit.

Based on site conditions, the office area and the museum are respectively located on the west and the southwest side, resulting in a tranquil ambience on the west part of the site.

To connect with the northern outdoor activity venue, the multi-function conference hall is arranged on the north of the site. And the exhibition area is on the east side, next to the secondary entrance. All of those functional spaces are joined by the central hall, which ensures the proper distance among each section as well as the unity of the building.

The architects applied green technologies throughout the plans. This project won the Chinese Certificate of Green Building Design Label (Two Star) in 2014, for its application of many fully developed green technologies in China, such as geothermal heat pumps, building-integrated photovoltaics, tubular daylight devices, green roof, automated shading system, green lighting and intelligence operation management that saves land, energy, water and building materials.

During the initial design process, simulation software was used for the optimized analysis of the building’s natural ventilation and lighting. On the other hand, this is not only an efficient and eco-friendly architecture, but also an exemplary platform for display and exchanges of green technologies, which gathers high-tech resources that universities have brought in.

"The architecture is the outcome of effective multi-disciplinary integration and collaboration," added the architects.

"Green designs, functional optimization and fusion with the site were fully considered throughout the design process, thereby an architecture that blends and coexists with the ambient natural environment was created."

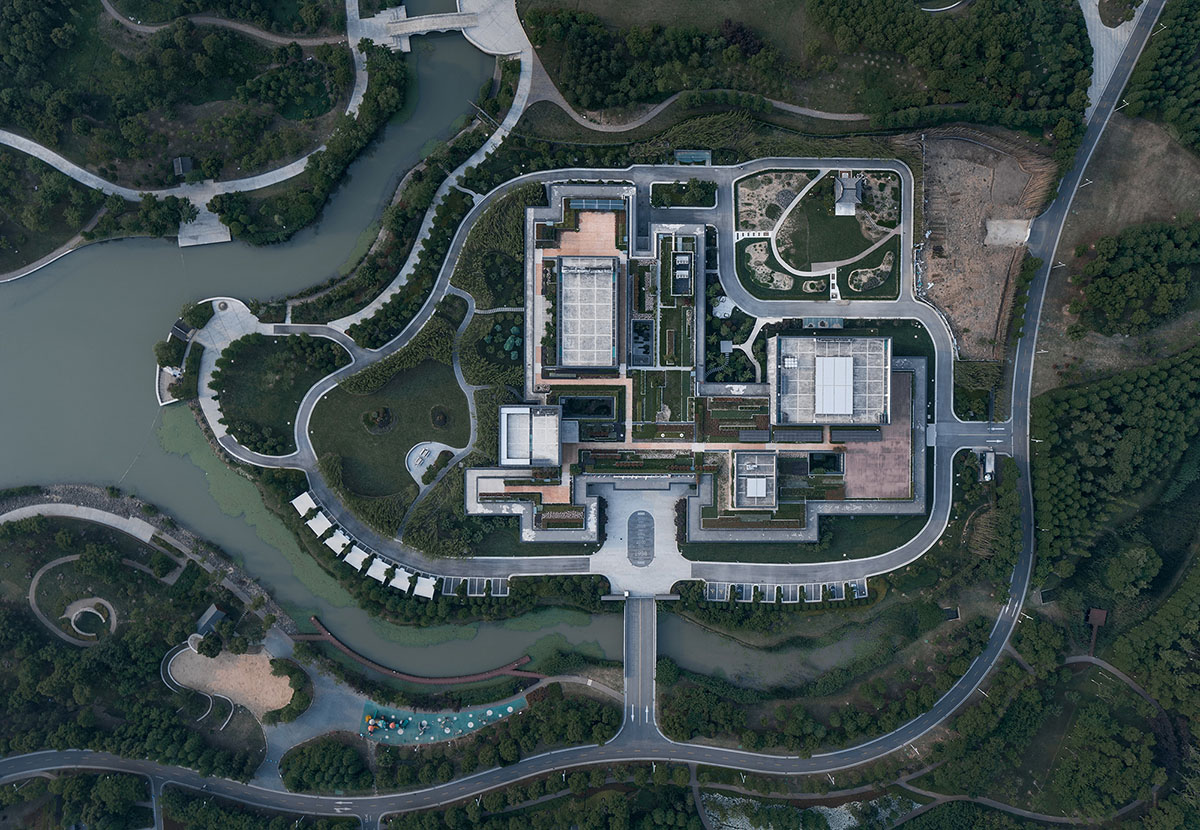

Site location

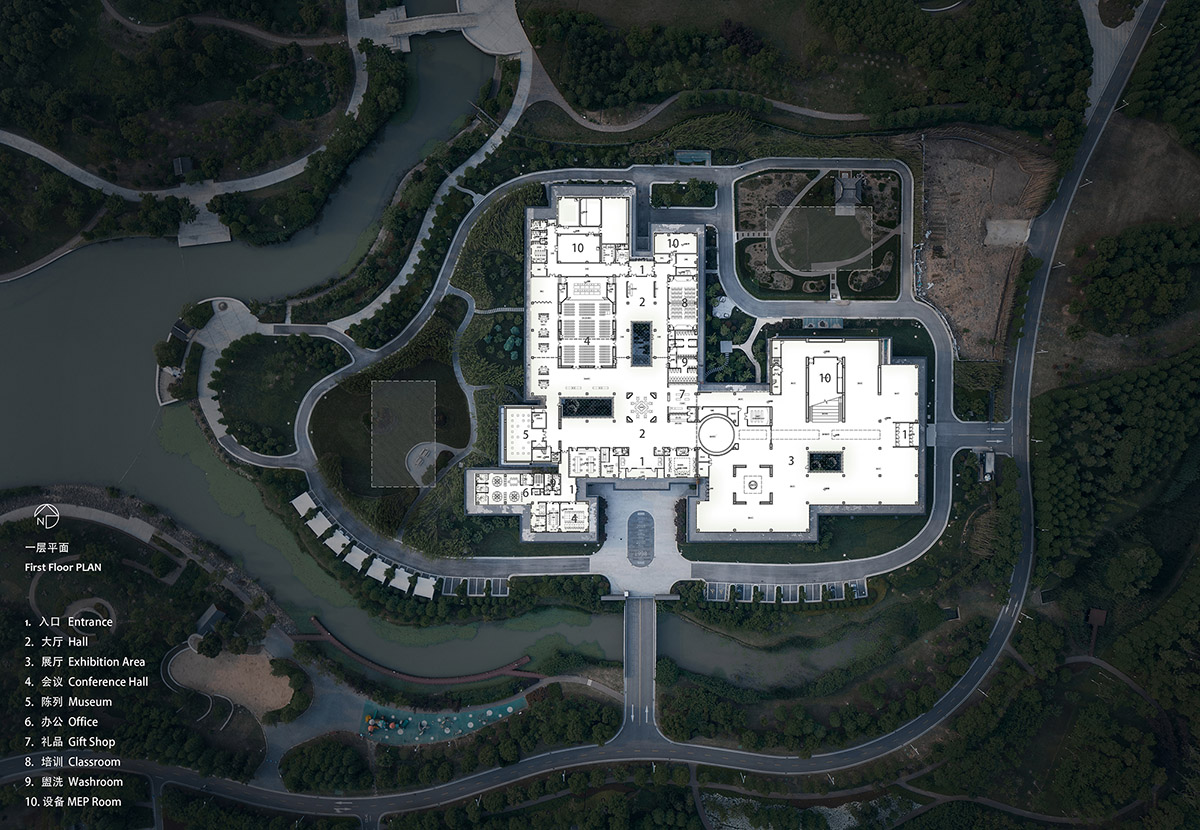

First floor plan

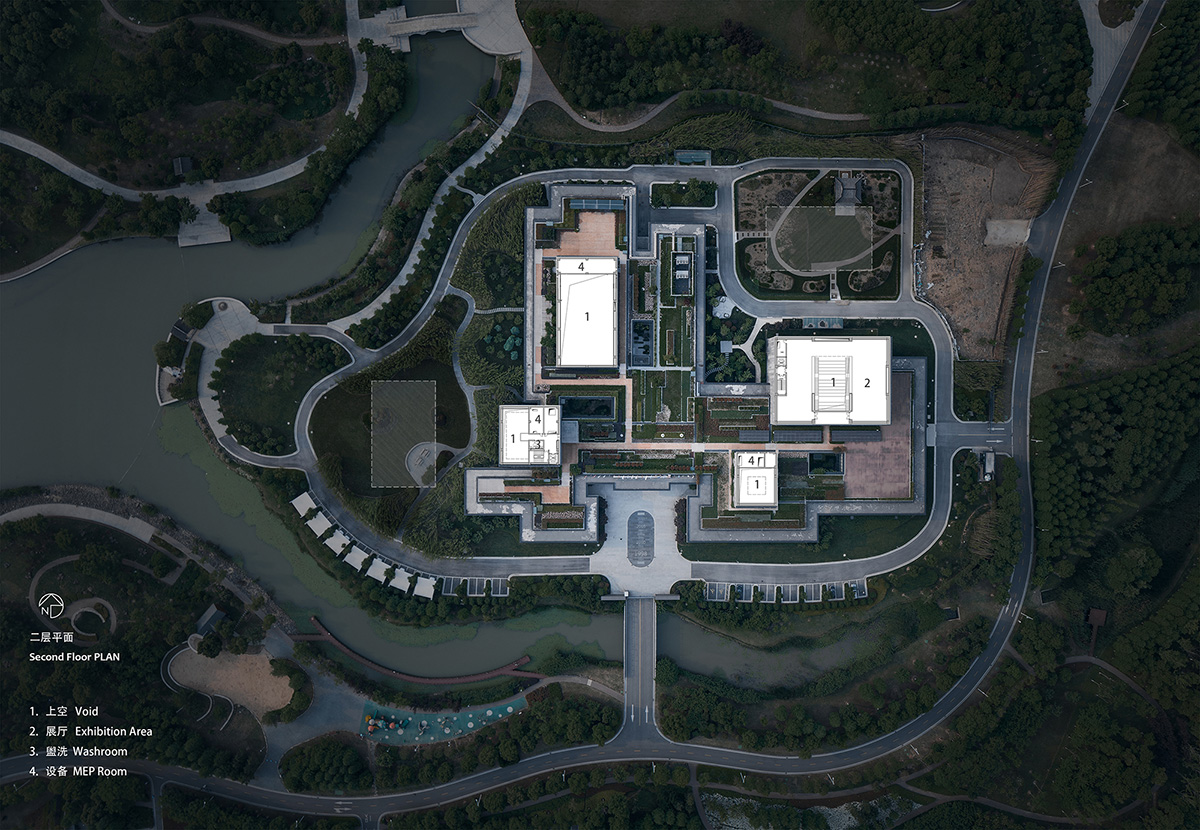

Second floor plan

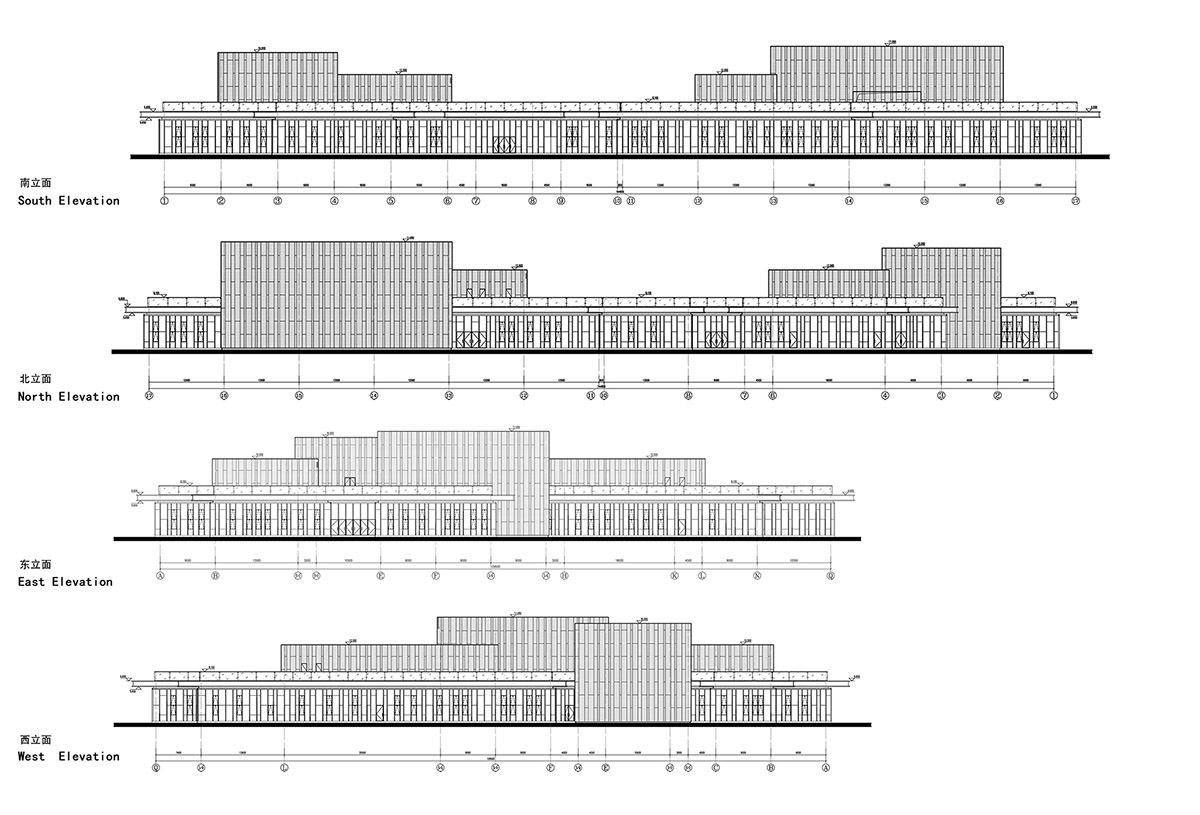

Elevation

Sketch

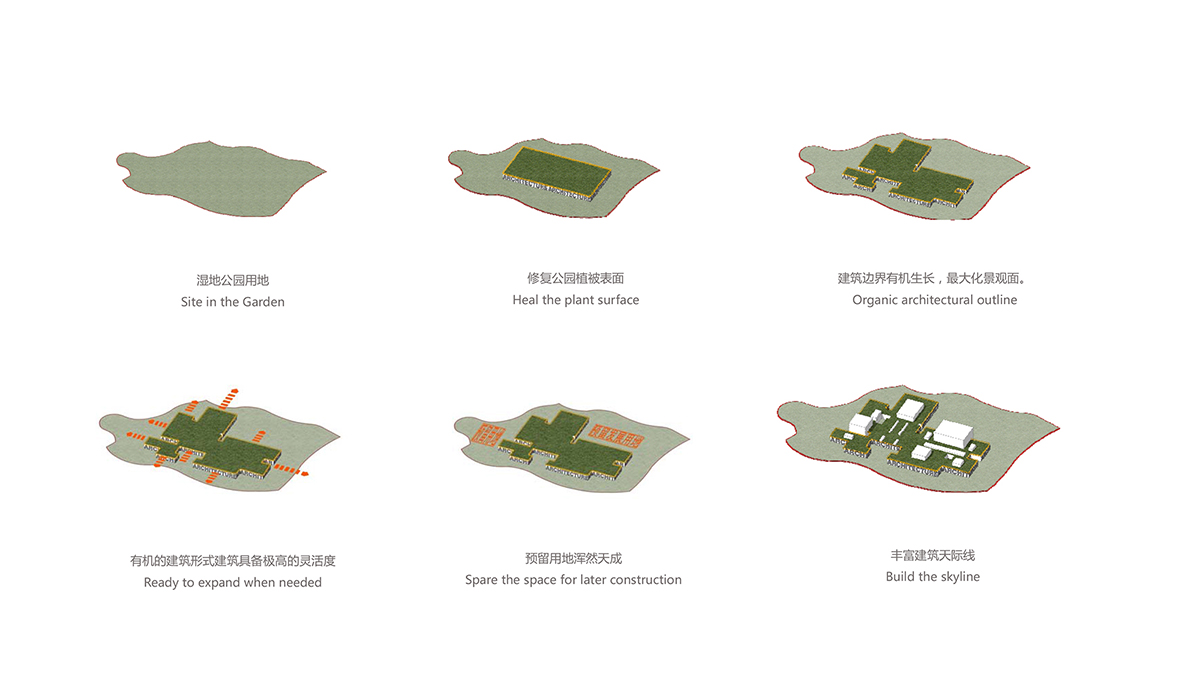

Mass study diagrams

Project facts

Project name: Cyrus Tang Foundation Center

Location: East Tai Lake EcologicalPark, Wujiang District, Suzhou, China

Area: 15,000 m2

Main materials: SRC, roofing plant, glass curtain wall

Architects: Dong Danshen, Yang Yidong, Teng Meifang, Lin Zaiguo

Architectural design firm: The Architectural Design and Research Institute of Zhejiang University Co., Ltd. (UAD)

Interior design: Woods Bagot, Hangzhou Dianshang Building Decoration Design

Landscape design: The Design Institute of Landscape & Architecture China Academy of Art (Zheng Jie Studio)

Structural engineers: Zhang Mingshan, Xu Chen, Li Benyue

MEP engineers: Li Haojun, Gong Zengrong, Dong Shaobing, Huang Zhengjie, Liu Haifeng，
