The young London-Moscow-Tbilisi based practice Architects of Invention alongside with Chilean architects Archiplan has entered competition for a design of a public plaza in front of iconic Tajamar Towers as a tribute to the architect of towers – Fernando Castillo Velasco.

The Site

The northern end of the Balmaceda park is obstructed by a traffic route, Huelen street, connecting Avenida Providencia and Avenida Andre Bello. Due to its short length and the heavy traffic of Huelen street, there is little possibility of submerging the road underground or having it pass overhead as a bridge. These length and weight considerations are the main obstacle to directly connecting the park and the territory in front of Tajamar Towers.

The other important restriction here is the ground-level car park in close proximity to the Mapocho River, a river which includes underground waters running close to the site. The presence of these waters will make excavation difficult and expensive. Moreover one level of underground car park will only have capacity for the current number of cars, which arguably makes the underground idea redundant. So, the car park will remain at the same level but will be recombined into the new landscape design.

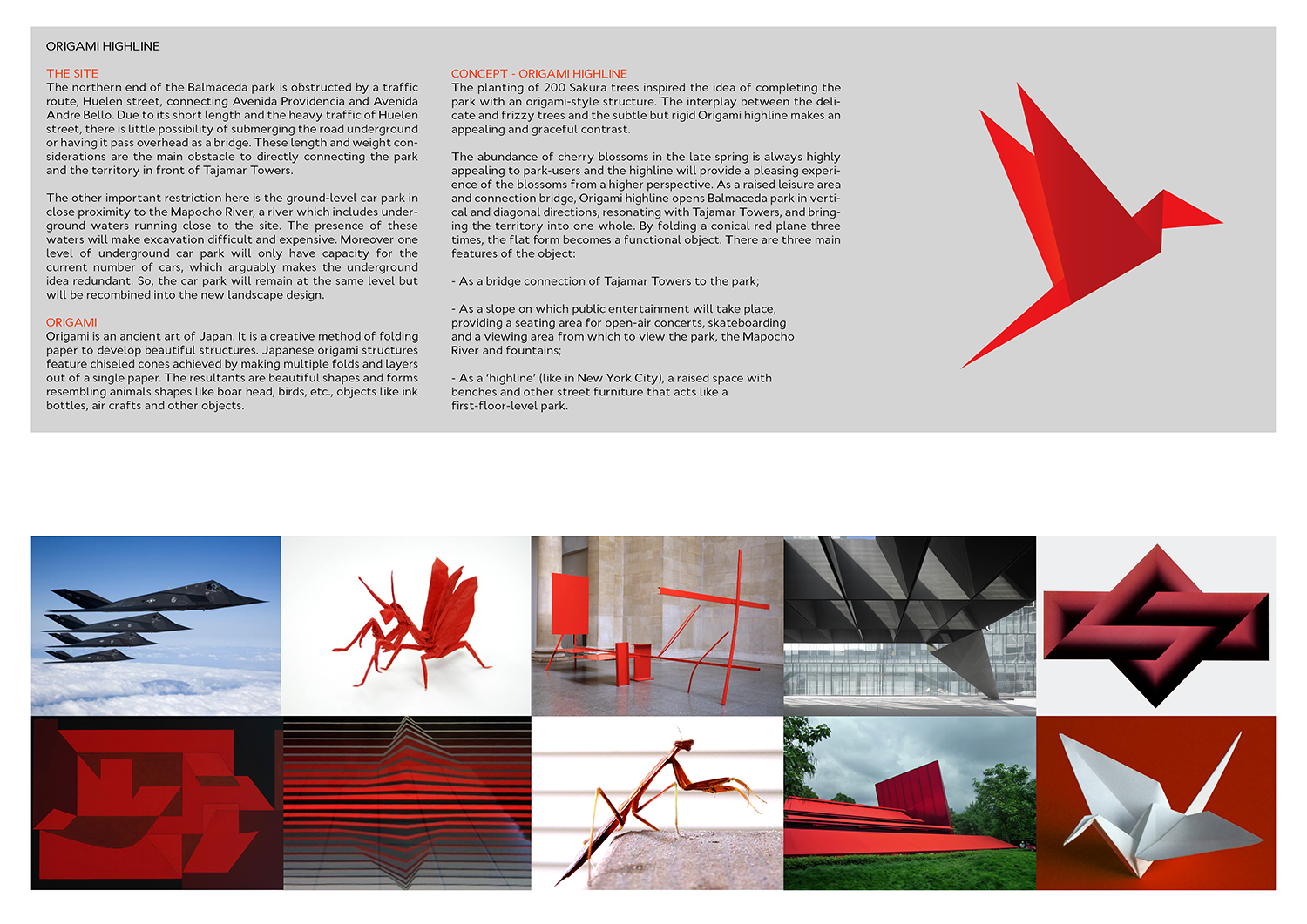

Origami

Origami is an ancient art of Japan. It is a creative method of folding paper to develop beautiful structures. Japanese origami structures feature chiseled cones achieved by making multiple folds and layers out of a single paper. The resultants are beautiful shapes and forms resembling animals shapes like boar head, birds, etc., objects like ink bottles, air crafts and other objects.

Concept – Origami Highline

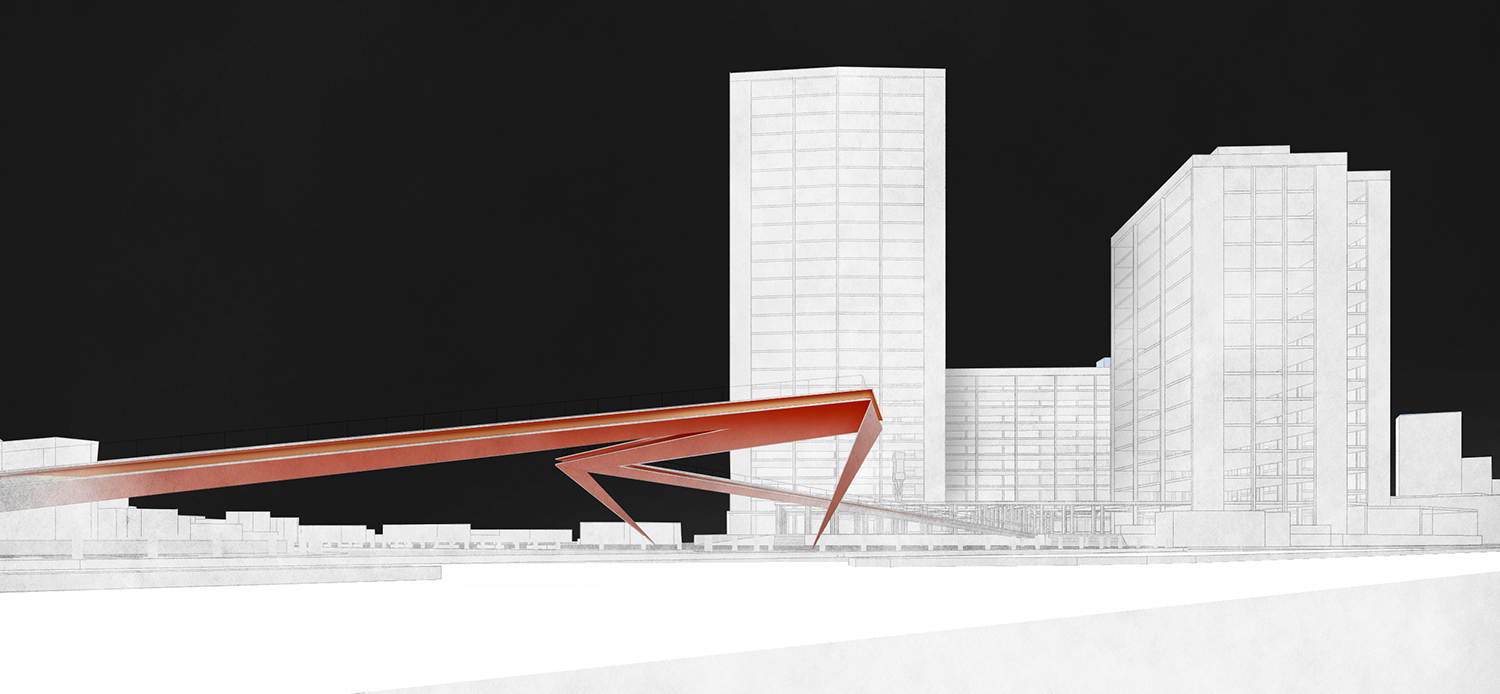

The planting of 200 Sakura trees inspired the idea of completing the park with an origami-style structure. The interplay between the delicate and frizzy trees and the subtle but rigid Origami highline makes an appealing and graceful contrast. The abundance of cherry blossoms in the late spring is always highly appealing to park-users and the highline will provide a pleasing experience of the blossoms from a higher perspective. As a raised leisure area and connection bridge, Origami highline opens Balmaceda park in vertical and diagonal directions, resonating with Tajamar Towers, and bringing the territory into one whole. By folding a conical red plane three times, the flat form becomes a functional object.

There are three main features of the object:

-As a bridge connection of Tajamar Towers to the park;

-As a slope on which public entertainment will take place, providing a seating area for open-air concerts, skateboarding and a viewing area from which to view the park, the Mapocho River and fountains;

-As a ‘highline’ (like in New York City), a raised space with benches and other street furniture that acts like a first-floor-level park.

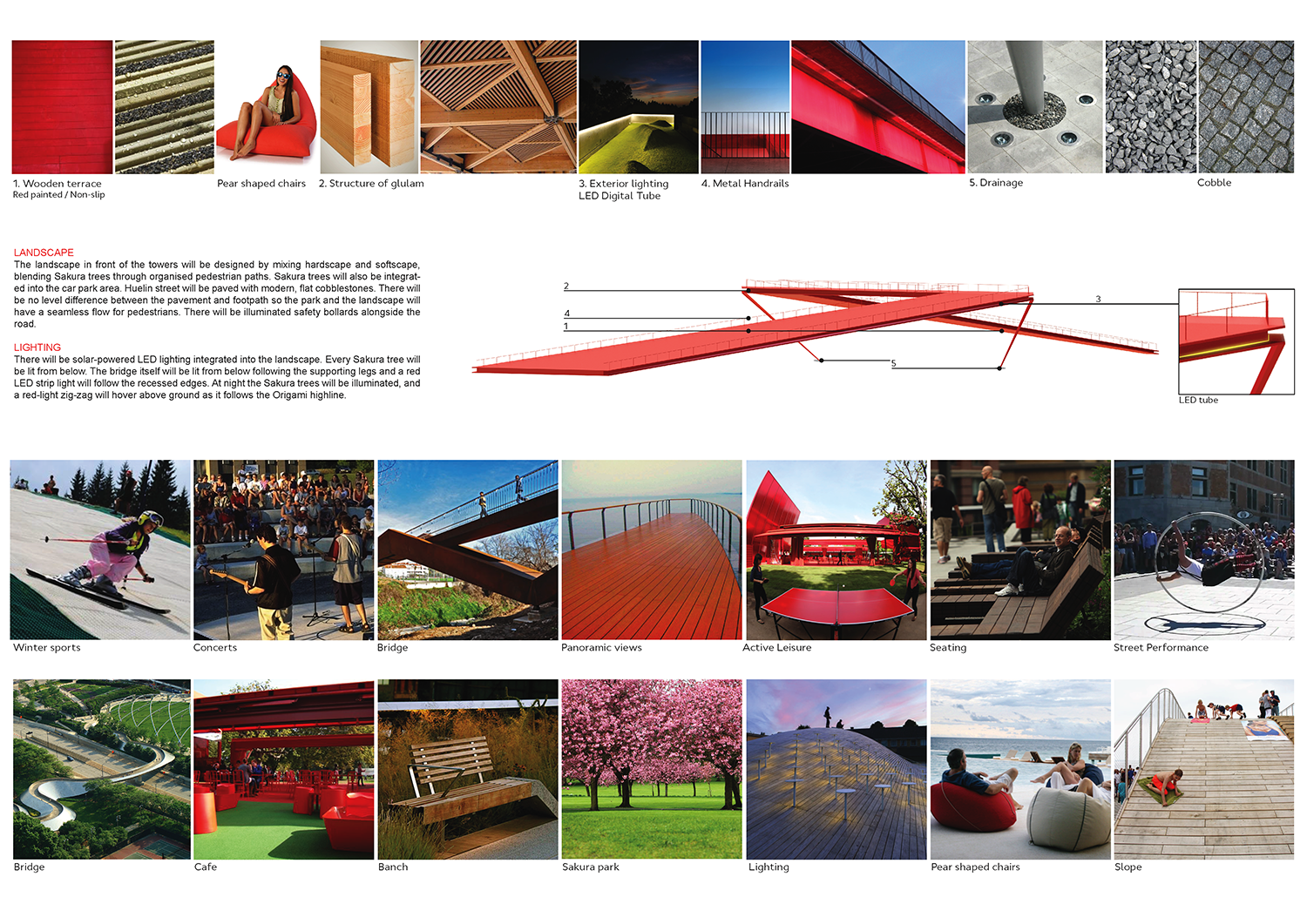

sample board

Landscape

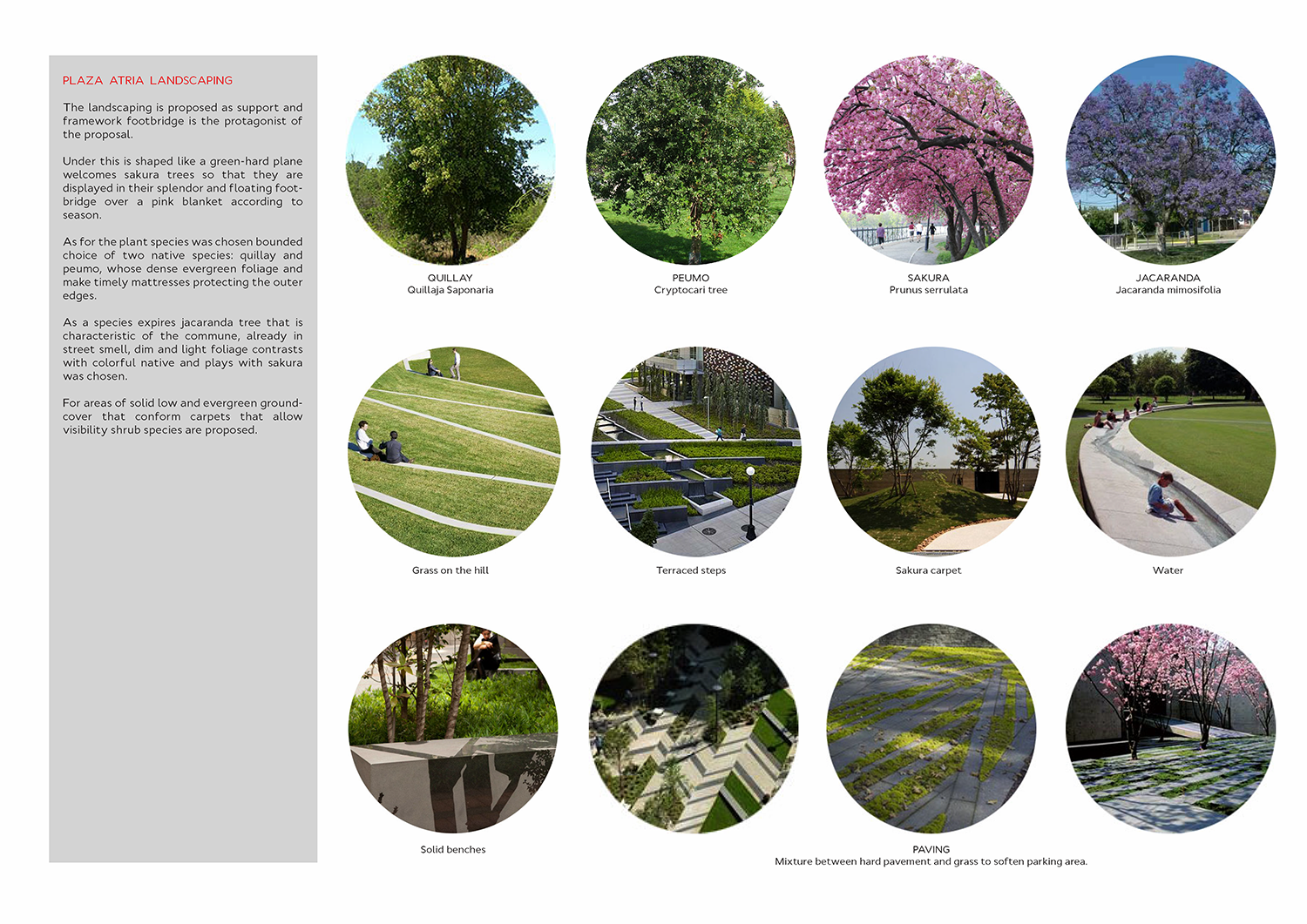

The landscape in front of the towers will be designed by mixing hardscape and softscape, blending Sakura trees through organised pedestrian paths. Sakura trees will also be integrated into the car park area. Huelin street will be paved with modern, flat cobblestones. There will be no level difference between the pavement and footpath so the park and the landscape will have a seamless flow for pedestrians. There will be illuminated safety bollards alongside the road.

Lighting

There will be solar-powered LED lighting integrated into the landscape. Every Sakura tree will be lit from below. The bridge itself will be lit from below following the supporting legs and a red LED strip light will follow the recessed edges. At night the Sakura trees will be illuminated, and a red-light zig-zag will hover above ground as it follows the Origami highline.

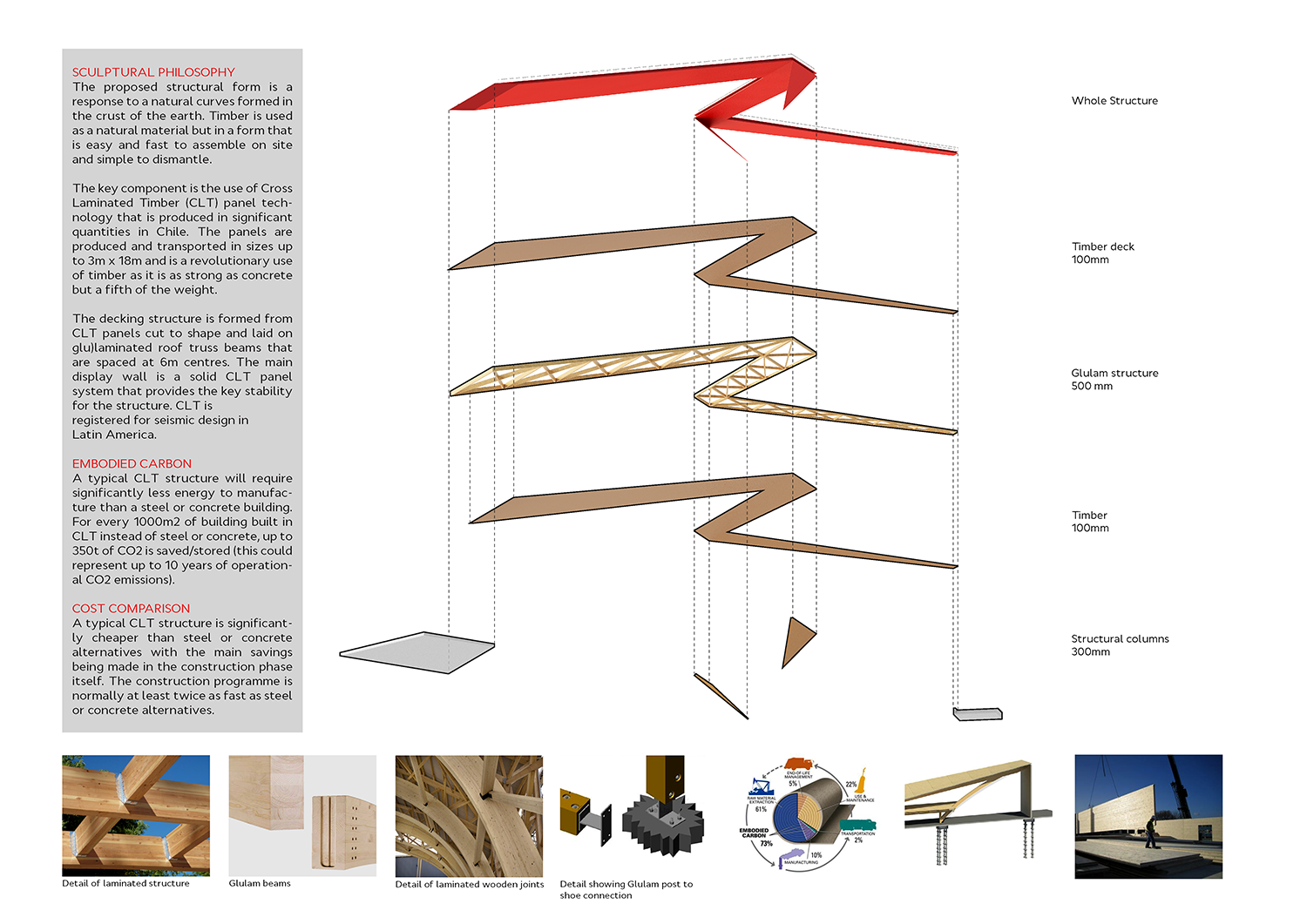

Structural Philosophy

The proposed structural form is a response to a natural curves formed in the crust of the earth. Timber is used as a natural material but in a form that is easy and fast to assemble on site and simple to dismantle.

The key component is the use of Cross Laminated Timber (CLT) panel technology that is produced in significant quantities in Chile. The panels are produced and transported in sizes up to 3m x 18m and is a revolutionary use of timber as it is as strong as concrete but a fifth of the weight.

The decking structure is formed from CLT panels cut to shape and laid on glu)laminated roof truss beams that are spaced at 6m centres. The main display wall is a solid CLT panel system that provides the key stability for the structure. CLT is registered for seismic design in Latin America.

Embodied Carbon - A typical CLT structure will require significantly less energy to manufacture than a steel or concrete building. For every 1000m2 of building built in CLT instead of steel or concrete, up to 350t of CO2 is saved/stored (this could represent up to 10 years of operational CO2 emissions).

Cost Comparison- A typical CLT structure is significantly cheaper than steel or concrete alternatives with the main savings being made in the construction phase itself. The construction programme is normally at least twice as fast as steel or concrete alternatives.

Sculpture

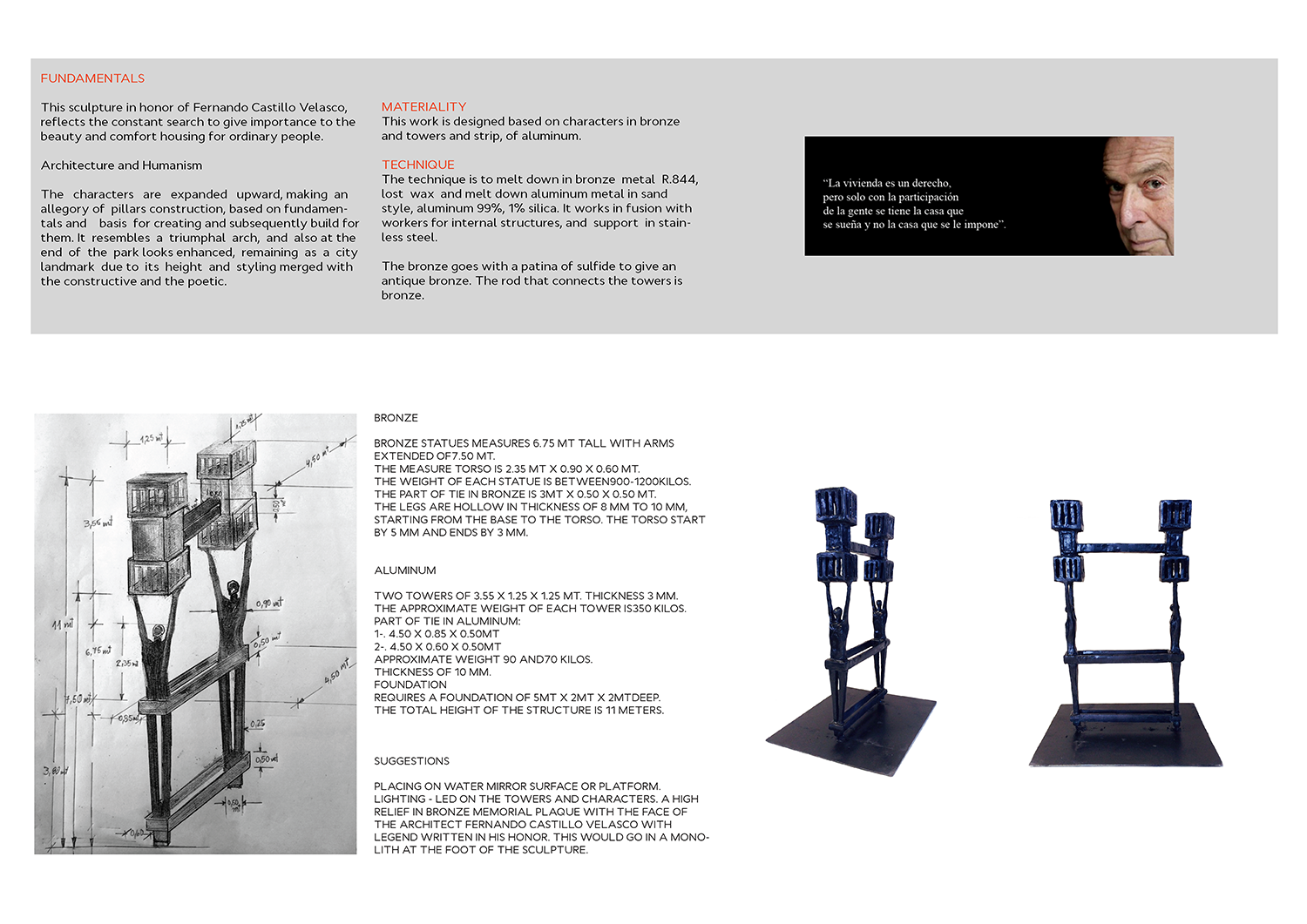

Fundamentals - This sculpture in honor of Fernando Castillo Velasco, reflects the constant search to give importance to the beauty and comfort housing for ordinary people. Architecture and Humanism - The   characters   are   expanded   upward,   making   an   allegory   of   pillars construction, based    on    fundamentals and    basis    for    creating    and subsequently build for them. It  resembles  a  triumphal  arch,  and  also at the  end  of  the  park looks enhanced,  remaining  as  a  city landmark  due to  its  height  and  styling merged with the constructive and the poetic. Materiality - This work is designed based on characters in bronze and towers and strip, of aluminum.

Technique - The  technique is to melt  down in bronze  metal  R.844,  lost  wax  and melt down aluminum metal in sand style, aluminum 99%, 1% silica. It  works  in  fusion  with workers for  internal  structures,  and  support  in stainless steel. The bronze goes with a patina of sulfide to give an antique bronze. The rod that connects the towers is bronze.

Bronze

Bronze statues measures 6.75 MT tall with arms extended of7.50 MT.The measure torso is 2.35 MT x 0.90 x 0.60 MT.The weight of each statue is between900-1200KILOS.The part of tie in bronze is 3MT x 0.50 x 0.50 MT.The legs are hollow in thickness of 8 mm to 10 mm, starting from the base to the torso. The torso start by 5 mm and ends by 3 mm.

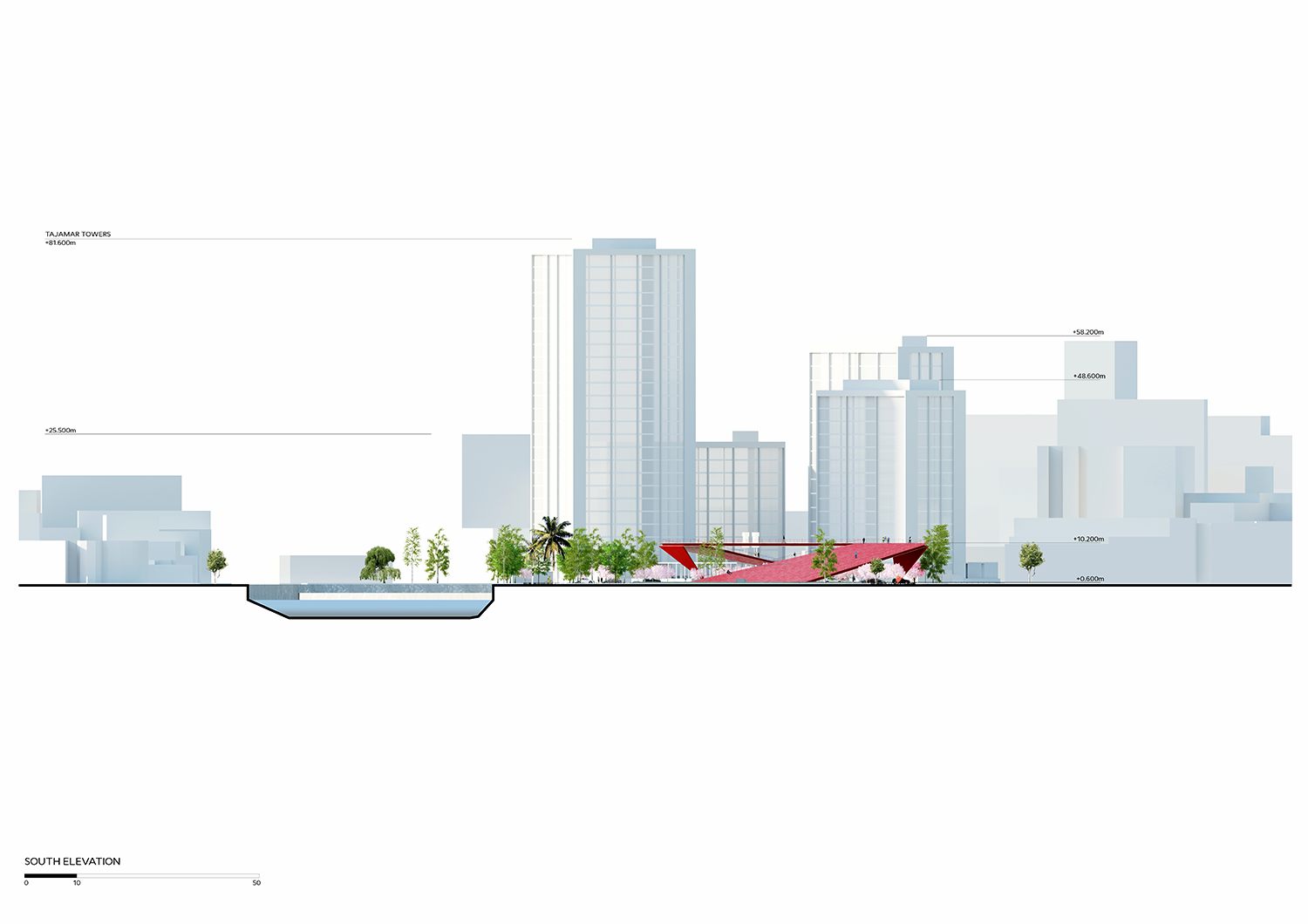

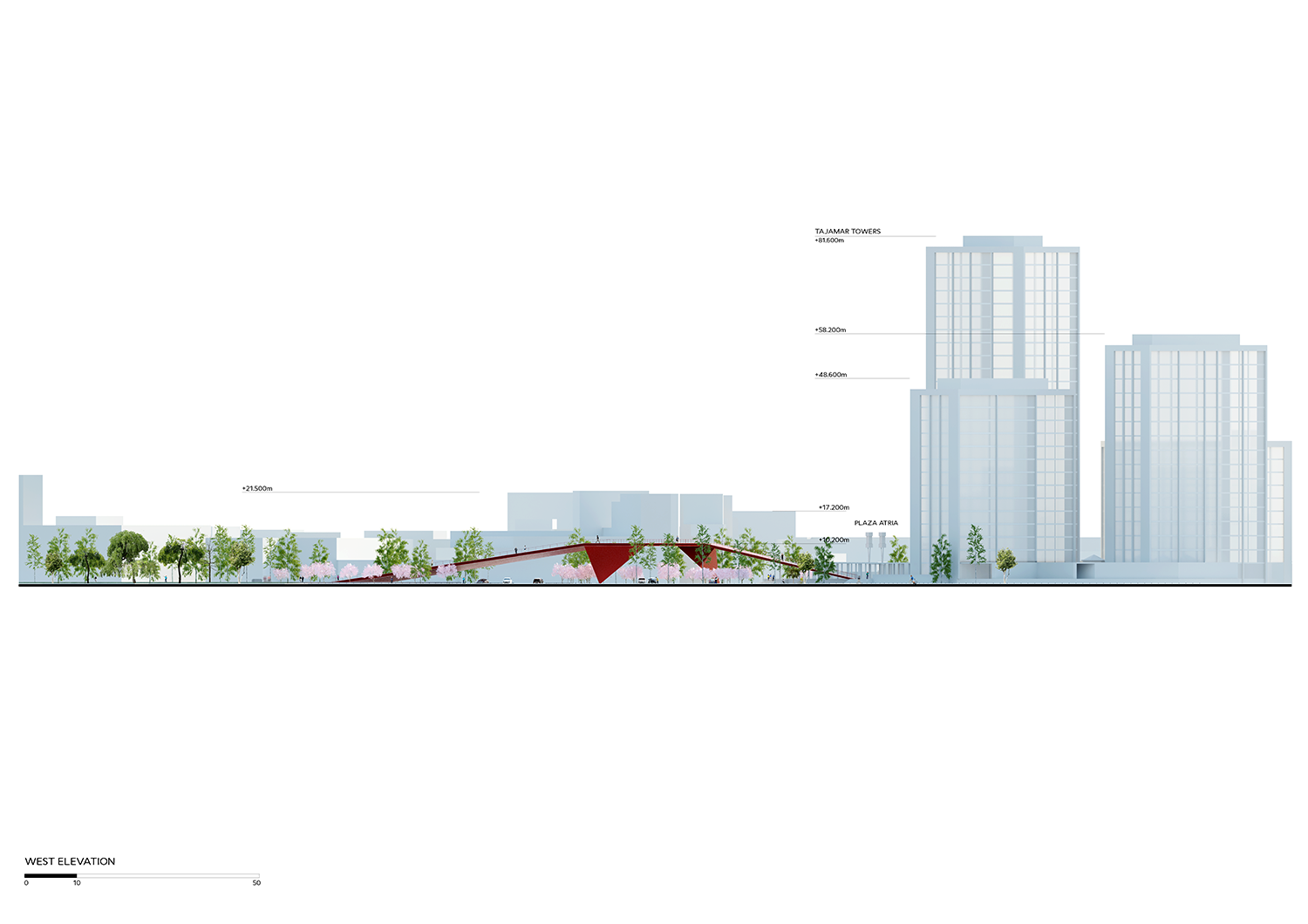

elevation1

elevation2

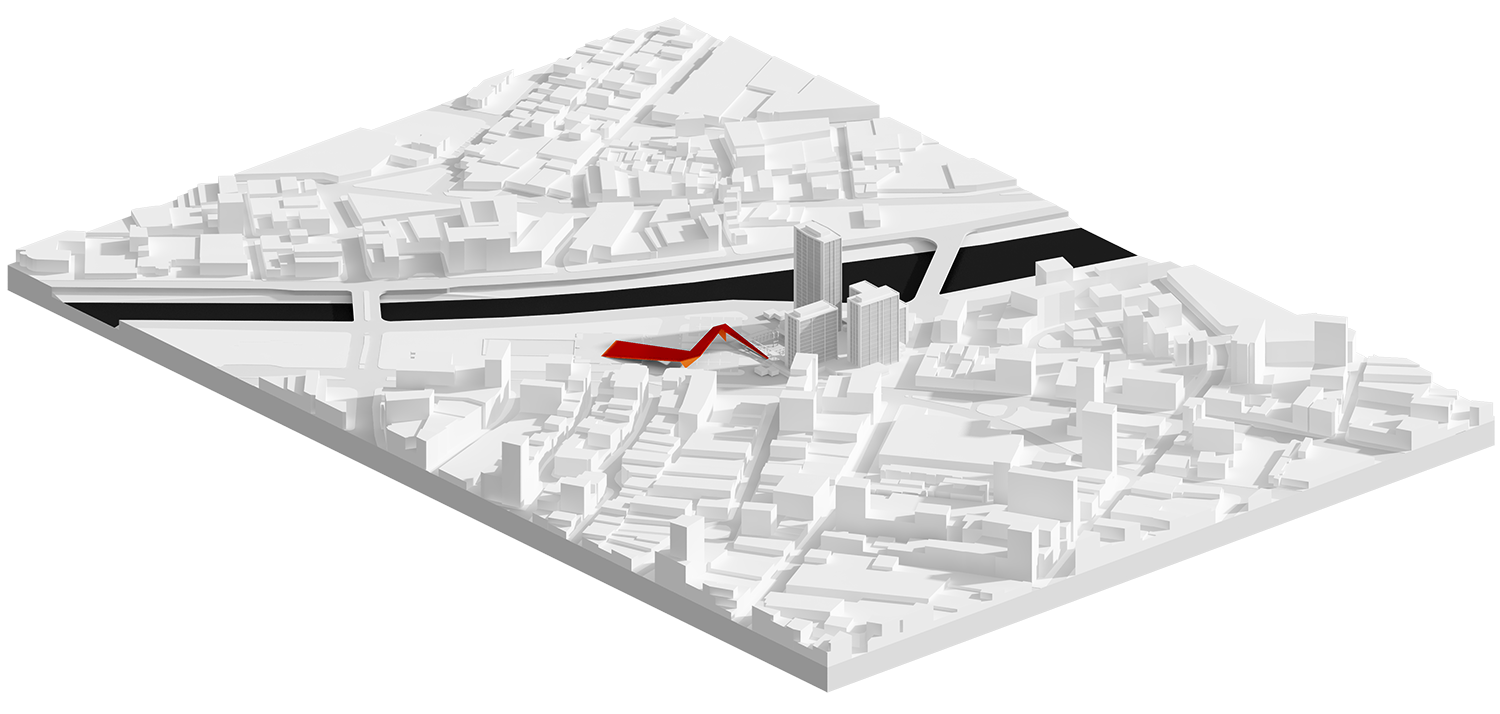

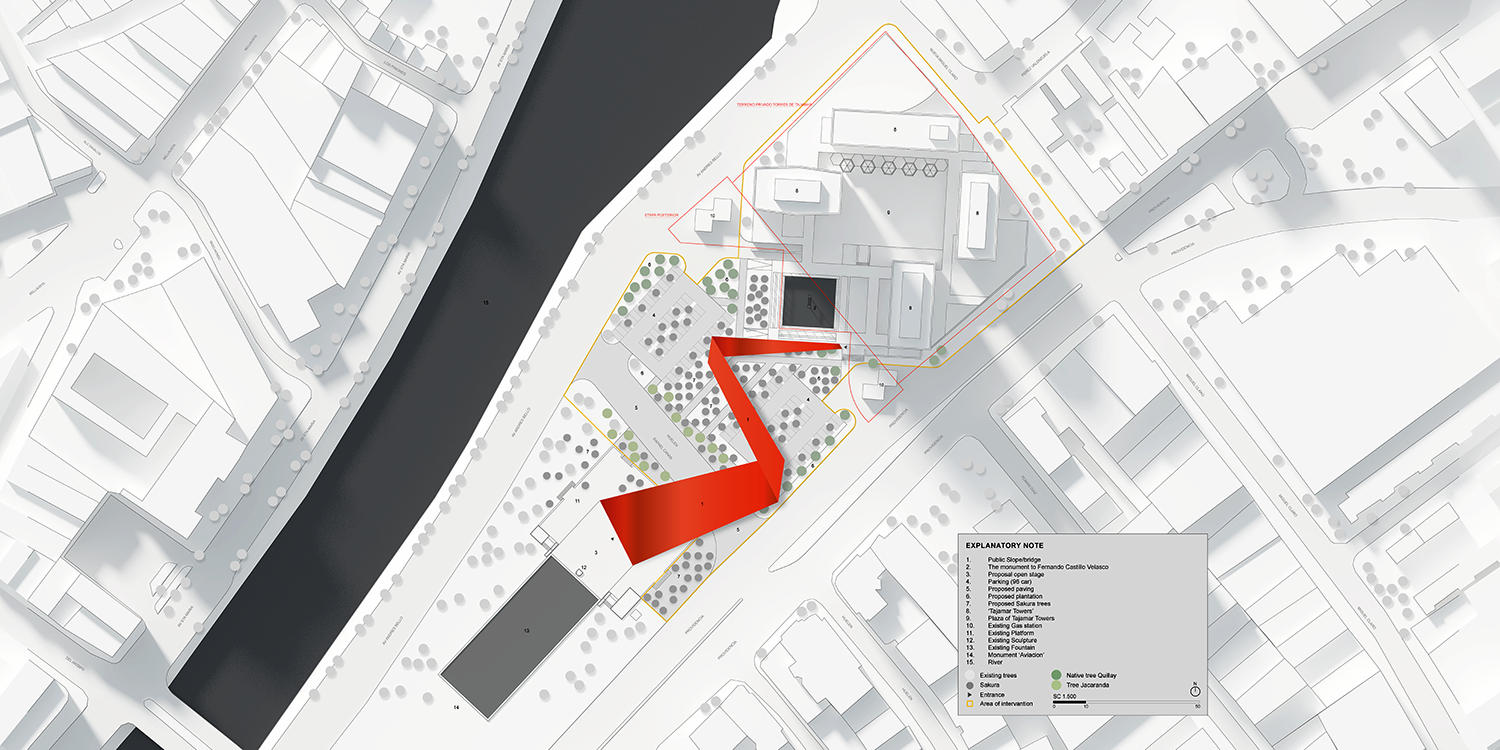

site plan

Aluminum:Two towers of 3.55 X 1.25 X 1.25 MT. Thickness 3 mm.The approximate weight of each tower is350 KILOS. Part of tie in aluminum:1-. 4.50 X 0.85 X 0.50MT2-. 4.50 X 0.60 X 0.50MTApproximate weight 90 and70 KILOS.Thickness of 10 MM.

structure

Foundation:Requires a foundation of 5MT x 2MT X 2MTdeep.The total height of the structure is 11 meters.

concept

Suggestions:Placing on water mirror surface or platform.Lighting - LED on the towers and characters. A high relief in bronze memorial plaque with the face of the architect Fernando Castillo Velasco with legend written in his honor. This would go in a monolith at the foot of the sculpture.

origami

landscape

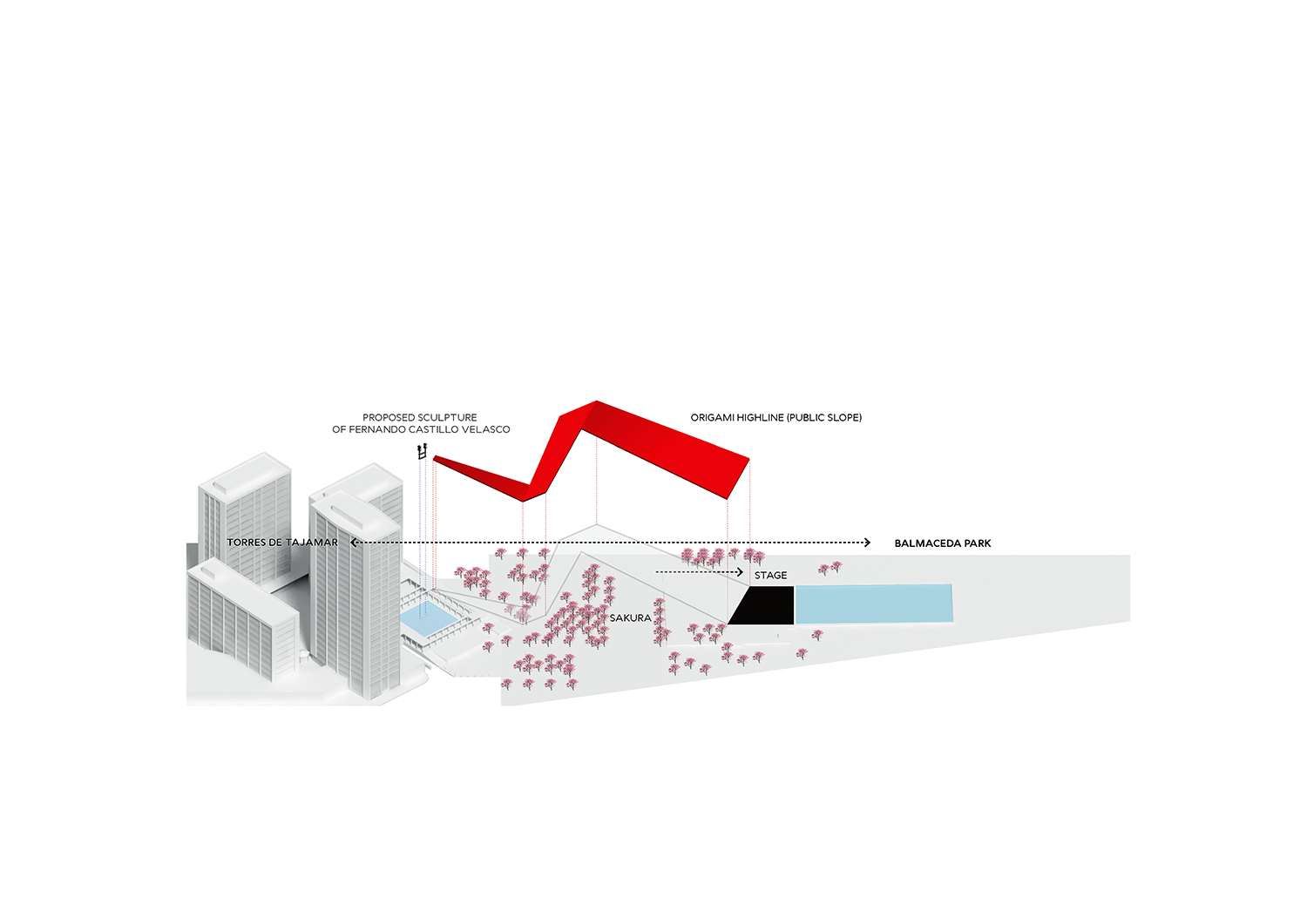

concept scheme

All Images © Architects of Invention

Project Facts

AI Team:Davit Canava, Dominykas Daunis, Nikoloz Japaridze, Anton Khmelnitskiy, Ivane Ksnelashvili

Archiplan Team:Mauricio Mandler

Landscape Design:Paulina Marquez

Location:Santiago,Chile

Client:Municipality of Providencia, Santiago,Chile

Consultants:Archiplan (Chile)

Sculpture:Pamela Galleguilos

Status:Competition
