New York's first micro-unit apartment 'Carmel Place' (formerly known as My Micro NY) upgrades living standards in the minimum unit size, designed by nArchitects, led by Mimi Hoang and Eric Bunge, and developed with Monadnock Development. The Carmel Place is a new modular housing prototype composed of modular construction, presenting generous shared amenities with the maximum density in the context. The recently completed Carmel Place provides 55 loft-like rental apartments, ranging in area from 260-360sf net.

The building is the winning proposal in the adAPT NYC an initiative launched as part of former Mayor Bloomberg’s administration’s New Housing Marketplace Plan to accommodate the city’s growing small household population.

nArchitects designed the exterior and interior spaces of Carmel Place as a repeatable and systemic new paradigm for housing in NYC and other cities with similar housing challenges.  Conceived as a microcosm of the city skyline, the building’s exterior resembles four slender ''mini towers'', connecting the concept of micro-living to the form and identity of the building.

By incorporating setbacks in the design of the stepping ''micro-towers'', Carmel Place’s urban form could in principle be adapted to different sites, at a range of heights and floor area ratios, and at nearly any location in a block.

The architects’ basic design approach was to provide a new social framework for small households that emphasizes nested scales of community rather than individual residents.

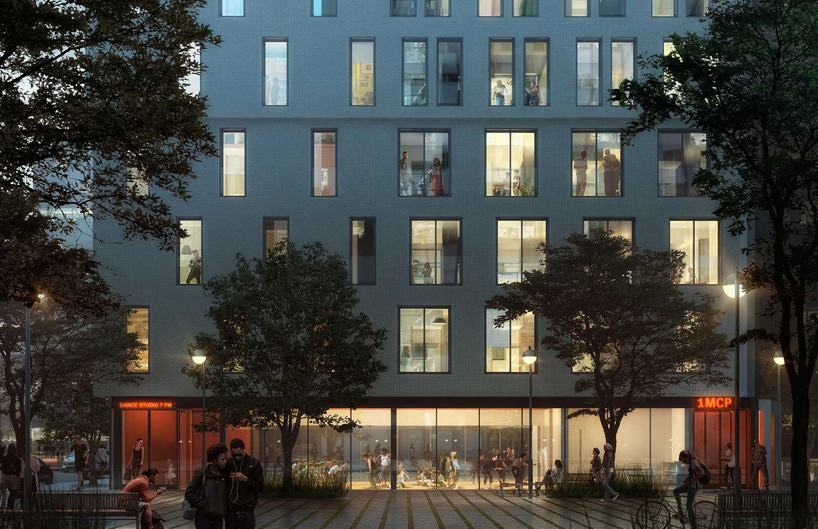

The 11 foot wide ''towers'' reflect this goal by celebrating the beauty of small dimensions, while not highlighting individual micro units on the exterior.  The use of four shades of grey brick make connections to the project’s local context, while also placing Carmel Place within New York’s long legacy of brick used in housing.

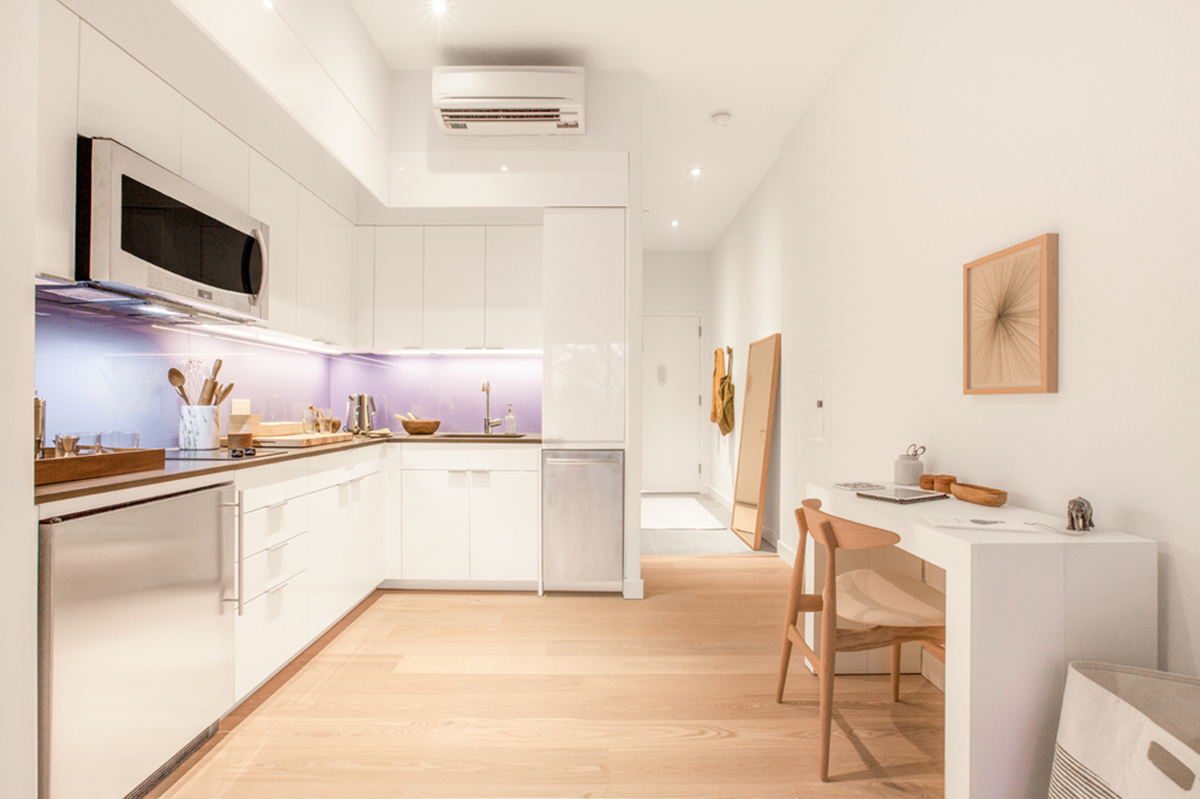

The building’s 8’ tall windows, placed in apartments, corridors and stairs, recall proportions used in New York’s 19th century brownstones, one of the architect’s references for the building’s interior proportions. nArchitects’ design goals for the unit interiors was to achieve a sense of spaciousness, comfort and efficiency, even while shrinking their footprint.

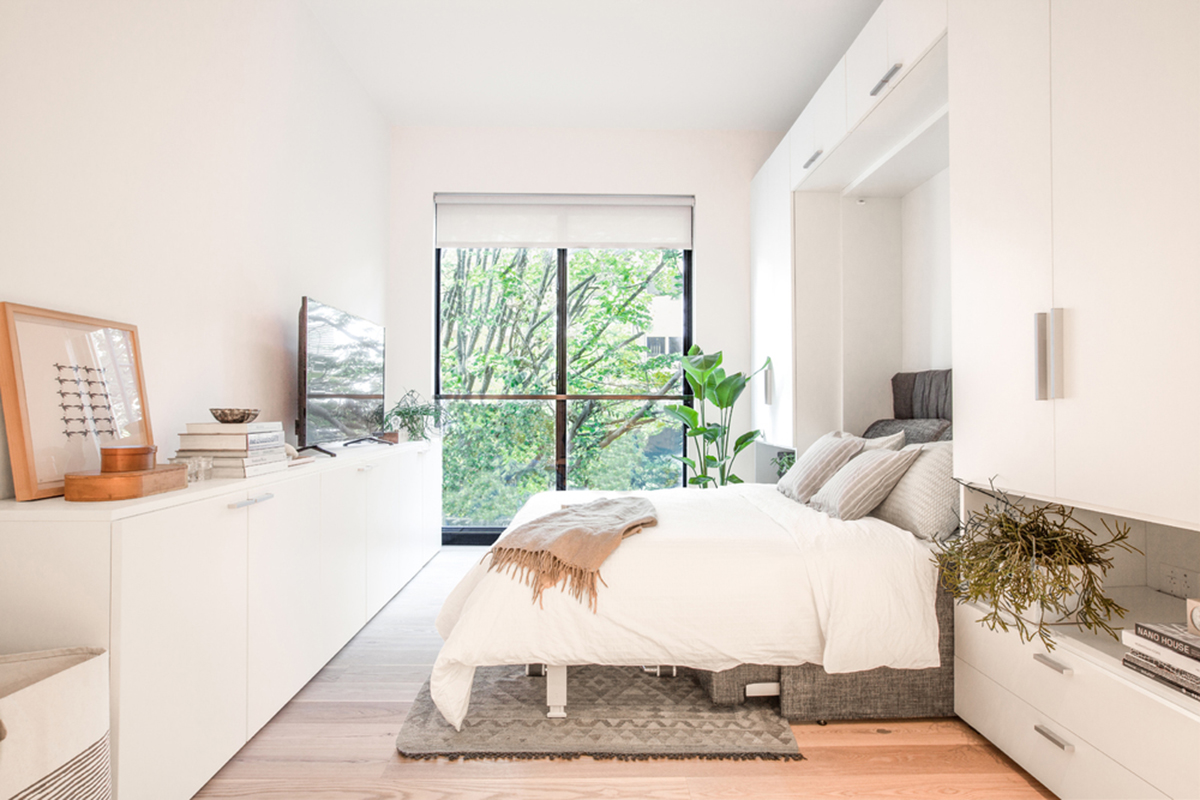

To achieve this goal, the architect-developer team increased the size of everything except the floor area: 9'-8'' ceilings result in a volume that is close to or exceeds that of a regulation 400sf apartment, which coupled with the abundant daylight made possible by 8’ tall sliding windows and Juliet balconies, maximize the perceived volume of space.  Extra storage space is located in the added height above the bathrooms.

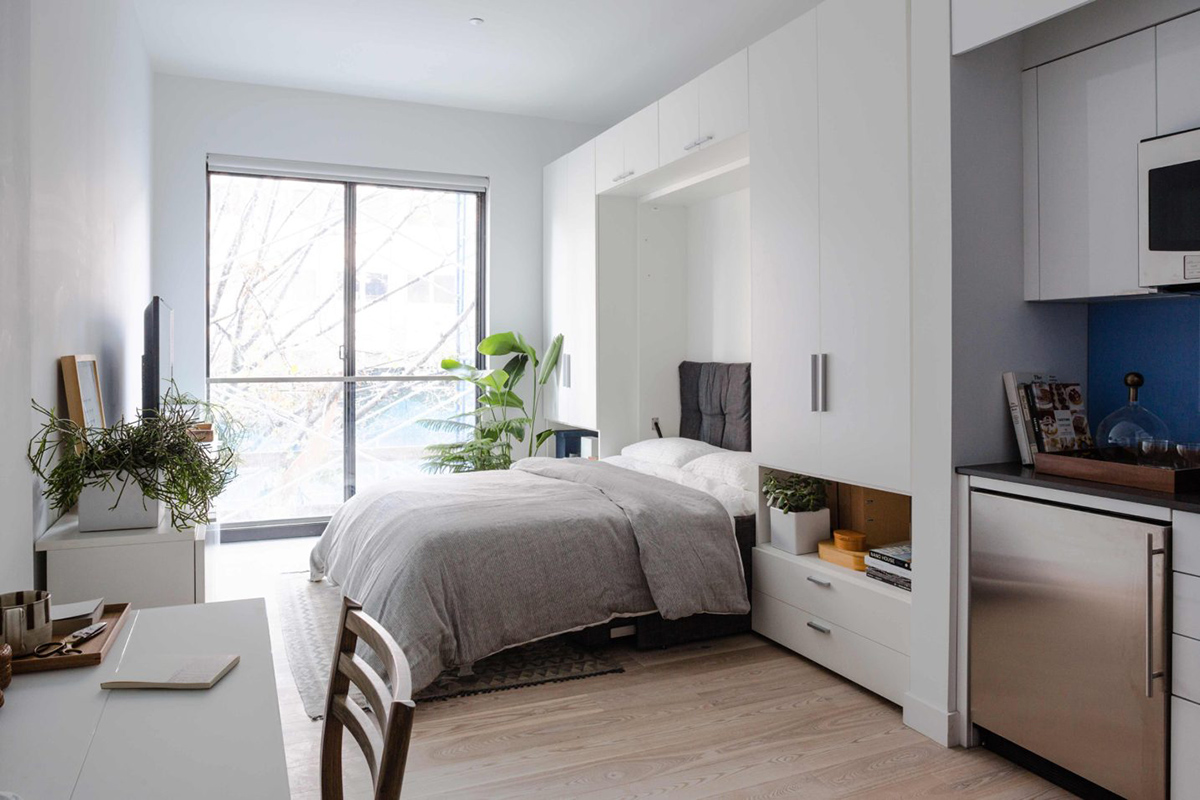

nArchitects also worked with Resource Furniture to source flexible built-in furnishings that integrate storage, couch and bed into the layout of almost half of the units (including those dedicated to veteran’s housing).

Additional furnishings were provided by Stage 3 Properties through Ollie, an all-inclusive living solution that provides residents with furnishings and amenities. The building’s five basic micro-unit types vary in size and configuration, thereby broadening the spectrum of choice for small family households.

Carmel Place’s communal amenities are accessible to all residents.  Designed for multiple functions, they are located in the building’s best places, enhancing the tenants’ active connection to the community.  A sun-filled and over-sized lobby connects Mt Carmel Place’s sidewalk on the west to an exterior porch for residents’ use on the east.

Conceived of as an interior street, this flexible space could in principle be used to host a dinner party for all the residents of the building.

In addition to containing lounge spaces with built-in seating, the lobby opens to a large street-level and fully glazed gym that fronts the pedestrian 27th street and adjacent park.  In the cellar residents have access to a den, storage, bike storage and laundry, while at the 8th floor, a community room with a pantry leads onto a public roof terrace with sweeping city views.

Spaces typical of a home are thereby dispersed throughout the building, encouraging residents to interact with their neighbors throughout their daily routine.

In addition to being the first micro-unit apartment building in New York City, Carmel Place is – at the time of writing – the tallest modular building in Manhattan, and one of the first multi-unit Manhattan buildings using modular construction.

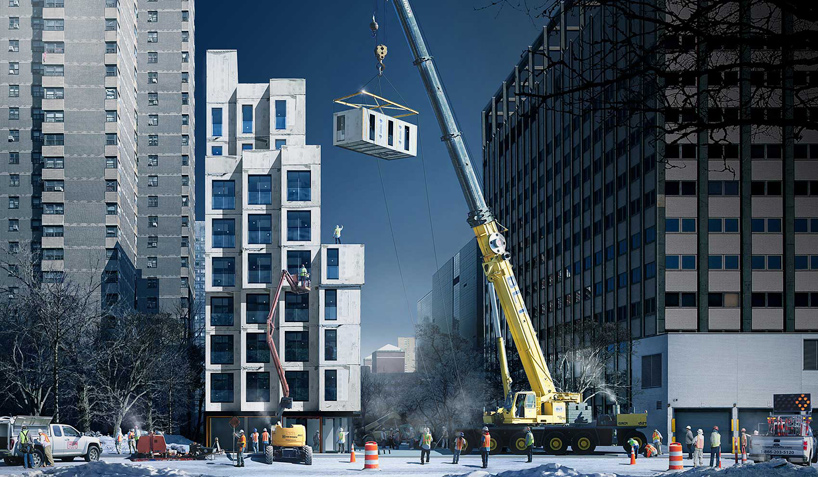

Construction of Carmel Place consisted of fabrication, transportation and stacking of 65 individual self-supporting steel framed modules; 55 of which serve as residential micro-units, while the remaining 10 serve as the building’s core.

The modules were pre-fabricated locally in the Brooklyn Navy Yard at the Capsys factory, while the foundation and ground floor were built on site.  The completed modules were then transported over the Brooklyn Bridge and stacked on site ready for installation of appliances and interior finishes.

Image © Mir

Dividing the construction process reduced on-site construction noise and neighborhood disruption, while the controlled environment of the factory allowed the team to control quality and maintain critical interior dimensions.

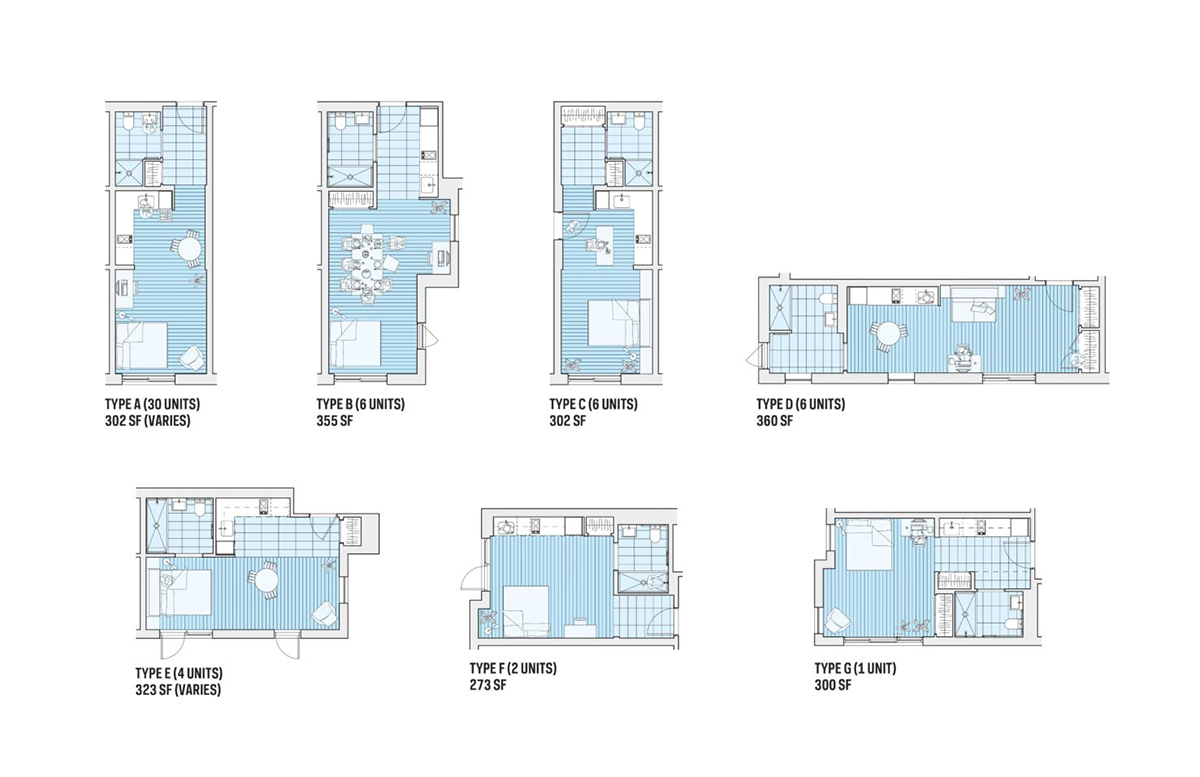

Unit types

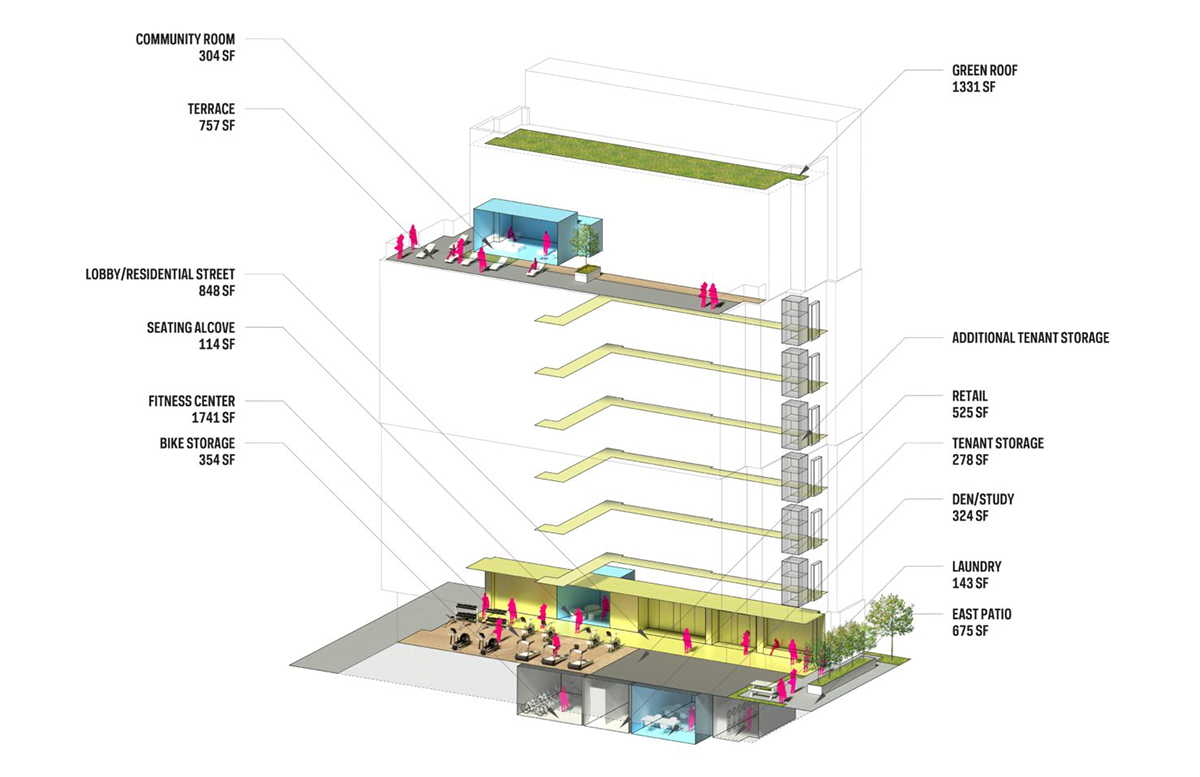

Building amenities

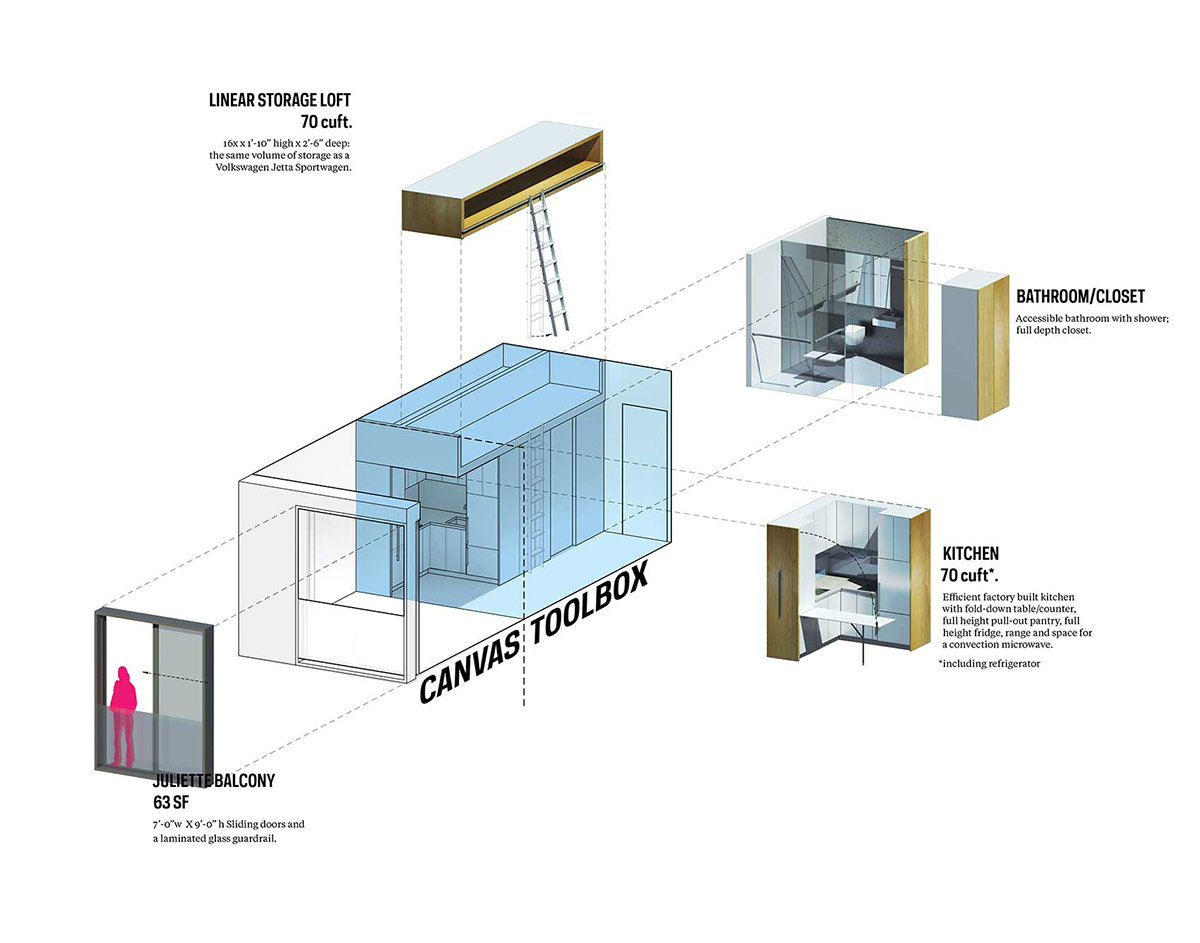

Unit amenities

Nested scales of Carmel Place

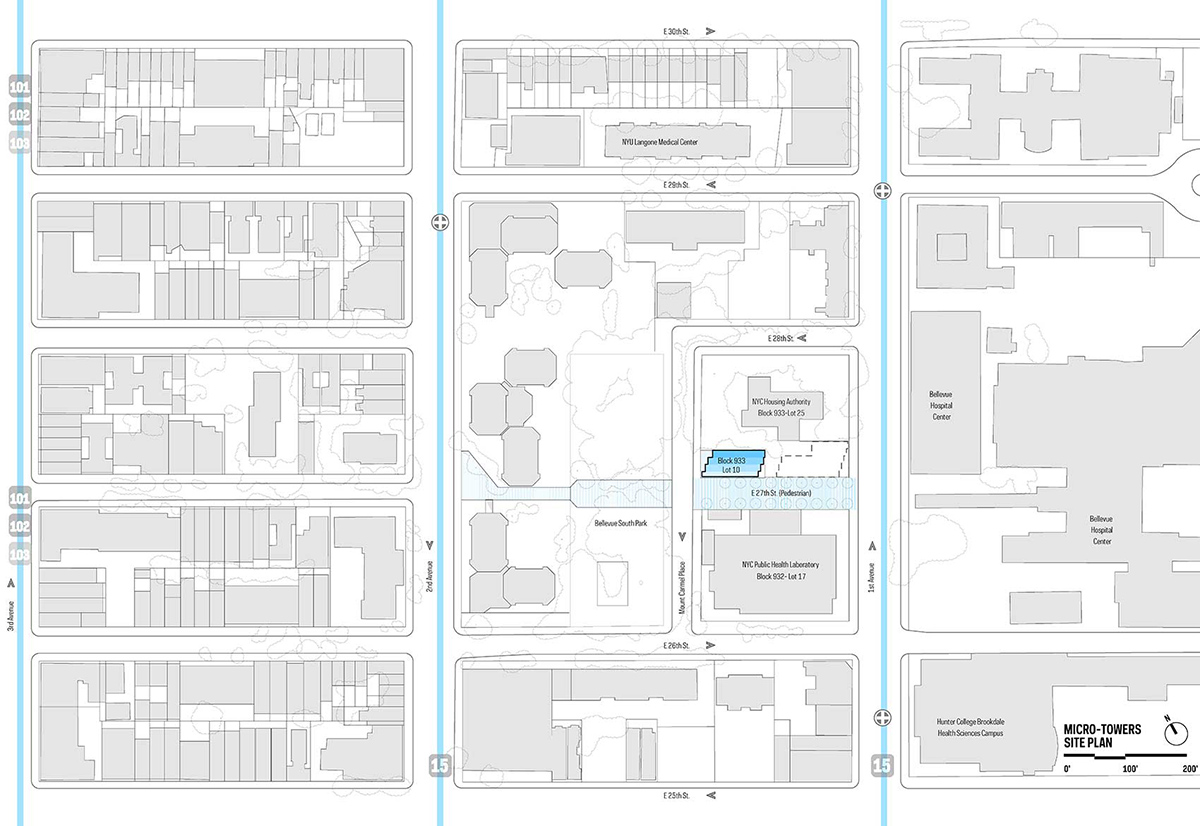

Site plan

The project completed construction Spring 2016 and residents began moving in June 1st, 2016.

Project Facts

Project Name: Carmel Place/My Micro NY
Client: Monadnock Development / NYC Department of Housing Preservation and Development
Project Location: 335 E 27th Street, Kips Bay, Manhattan
Status: 2013 – 2016
Area: 35,000sf
Program: 55 micro-unit apartments + retail
Sustainability: LEED Silver target
Awards: 1st Prize, adAPT NYC Competition, Architizer A+ Awards Mention, AIA Design Honor Award
nArchitects Team: Eric Bunge, Mimi Hoang (Principals), Ammr Vandal (Associate, Project Manager), Tony-Saba Shiber, Daniel Katebini-Stengel, Cheryl Baxter, Albert Figueras, Prathyusha Viddam, Gabrielle Marcoux, Amanda Morgan, Zach Cohen, Matthew Scarlett, Matthew Wilson, Alexis Payen; Competition Phase: Eric Bunge, Mimi Hoang (Principals); Ammr Vandal (Associate, Project Architect), Daniel-Katebini Stengel, Christopher Grabow, Alex Tseng, Nancy Putnam
Collaborators: Structural Engineer: DeNardis Engineering LLC; MEP engineer: A. Joselow, P.C.; Civil Engineer and Landscape: Langan Engineering; LEED Consultant: Taitem Engineering, PC; Code Consulting: JM Zoning; Consulting Architect (competition phase): Willis DeLaCour; Marketing Consultant: Corcoran Sunshine; Graphic Design: Project Projects; Builders: Monadnock Construction, Capsys Corp (modular units)
Image Credits: Mir, Pablo Enriquez, Field Condition, Iwan Baan, Monadnock Development, nArchitects
