Product Description

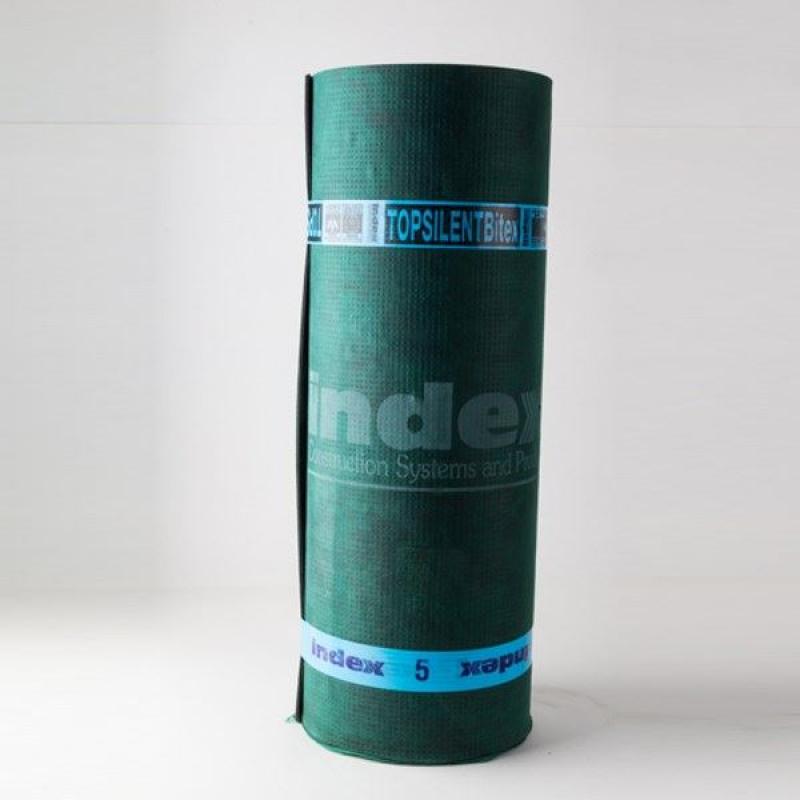

Airborne noises spread out in the air until meeting an obstacle such as a wall or floor. When they hit the obstacle they cause a vibration. A part of such noise hitting the obstacle will reflect, another part will be absorbed and the remaining part will pass over to the back surface. The purpose of sound insulation is to prevent such sound transition between the walls and floors. TOPSILENTBitex; is used to improve the sound transition loss values for regions such as partition walls, ceilings, floors, doors, etc. . It is a bitumen based, flexible sound insulation barrier coated with polypropylene fabric on both sides. 3 and 4mm as different thickness and 4-5kg/m² different weight options are available. TOPSILENTBitex is the ideal solution to increase unit weight, create continuous details and make active noise insulation on critical frequencies.

Field of Use

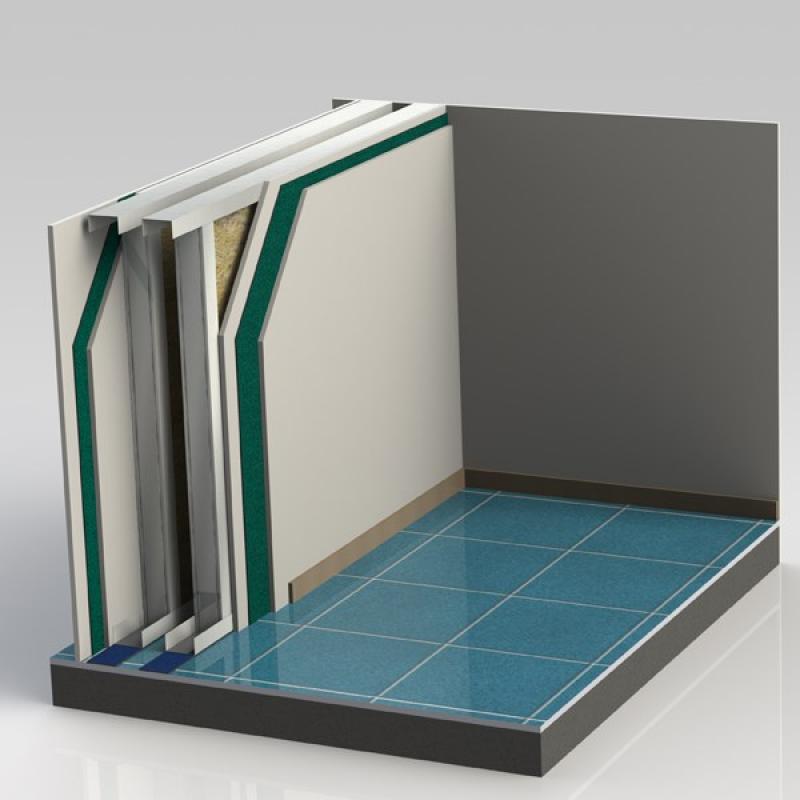

All building types (partition walls and suspended ceilings)

Technical Information / Product Data

Material: Bitumen

Specifications:

• Thickness (mm): 3, 4
• Width (cm): 60, 120
• Sound insulation
• Fire resistance -120 min.
• Flexibility
• Low Thickness - Fine details

References:

Koç University Health Sciences Hospital İstanbul
42 Maslak Istanbul
Emaar Square Camlica
Metropol Istanbul
Zorlu Center Istanbul
Akol Hotel Canakkale
Hilton Garden inn Hotel
Kayseri Radisson Blu
Macka Hotels
Swissotel Resort Beach Bodrum
AND Kozyatağı Anadolu Plaza
Antasya Residence
Antteras Project
Batışehir Project
Nurolpark Gunesli
One Ortaköy
Polat Renaissance Renovation İstanbul
Calling Book
Theme Istanbul
Tomtom Gardens
Vadistanbul
Yenitepe Kadıköy
İçdaş Management Building
Azerbaijan Baku Dynamo Hotels
Sabratha Tatweer Resort Reviews, Libya
Nevzat Ayaz Anatolian High School
Mecidiyekoy Boursier Hotels
Abraham Pasha Mansion
Erzurum Atatürk University Faculty of Fine Arts
Çorum Ahlatçı Showroom
Bilim Pharmaceuticals Maslak Building
Istanbul Şehir University Dragos Campus
Yemeksepeti
Yassiada Hotel Sivriada Convention Center
Jolly Joker
Peninsula Hotel
