Ruf Architects' exhibition gallery features water drop-shaped roof overlooking the Yongding River

Chinese architecture practice Ruf Architects has completed an exhibition gallery that features a water drop-shaped roof overlooking the Yongding River in Tianjin, China

Named Tianjing Zarsion Exhibition Center, a curvy roof hides a glass gallery volume underneath while complementing the existing landscape.

Ruf Architects' exhibition gallery features water drop-shaped roof overlooking the Yongding River

"The project is located on the side of the winding tributary of Yongding River. In an endless meadow without a clear definition of the external place, the relationship between the building and the place is the floating feeling that arises naturally," said Ruf Architects.

The architects started their design started with roof, the studio tried to use symbolic architectural language to establish a connection with the historical environment.

Ruf Architects' exhibition gallery features water drop-shaped roof overlooking the Yongding River

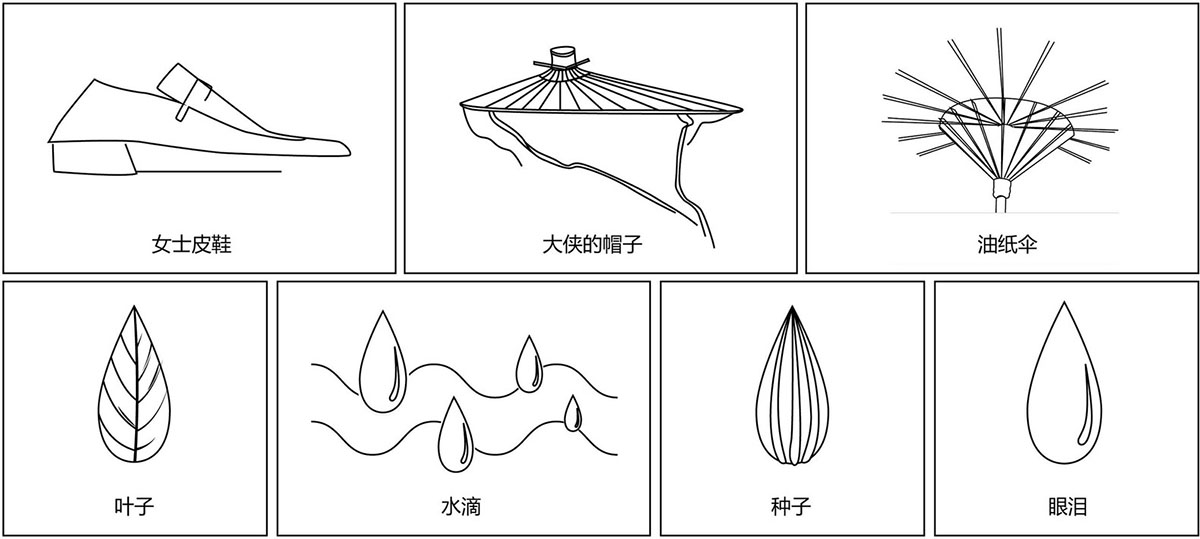

They imagined a crystal clear water drop that would quietly dissolve into the endless and winding river. "However, with the gradual development of the narrative, metaphorical polysemy emerges," they added.

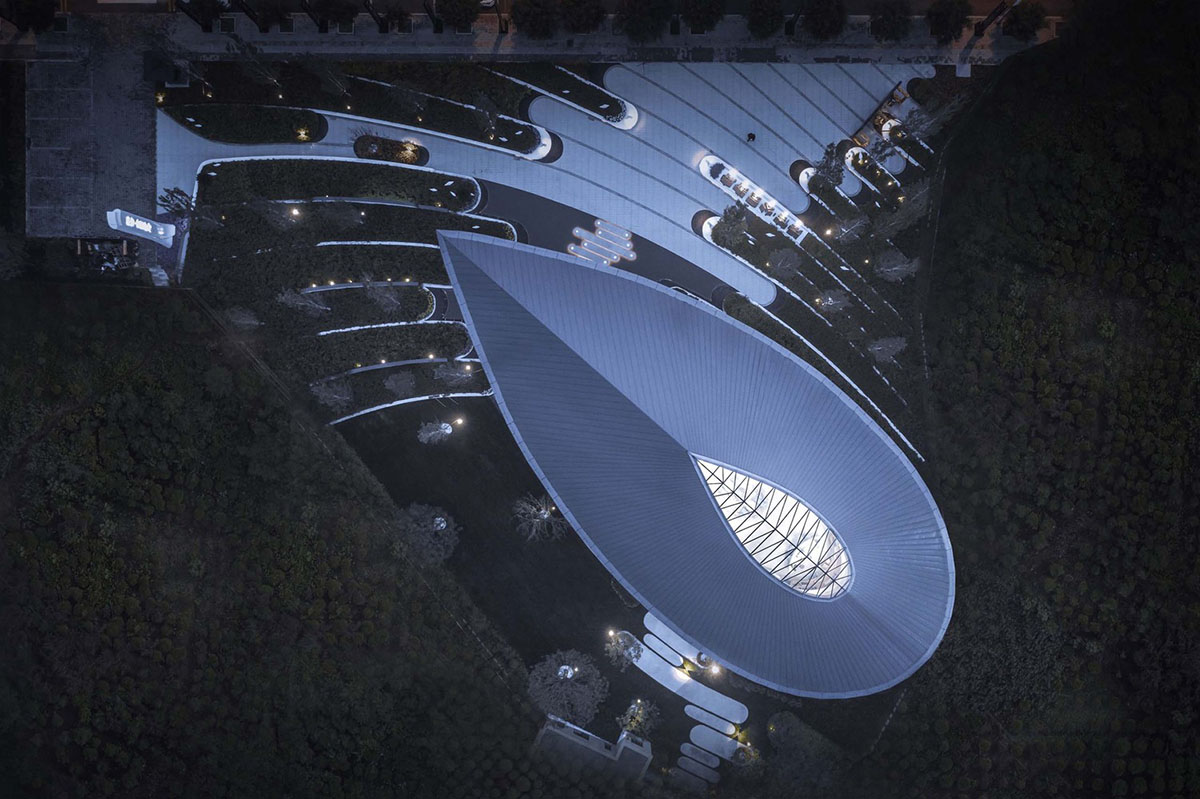

In the layout, the water drop shape is placed into the site diagonally, which not only elongates the moving line from the city interface to the entrance, but also makes the water drop shape more intuitive.

Ruf Architects' exhibition gallery features water drop-shaped roof overlooking the Yongding River

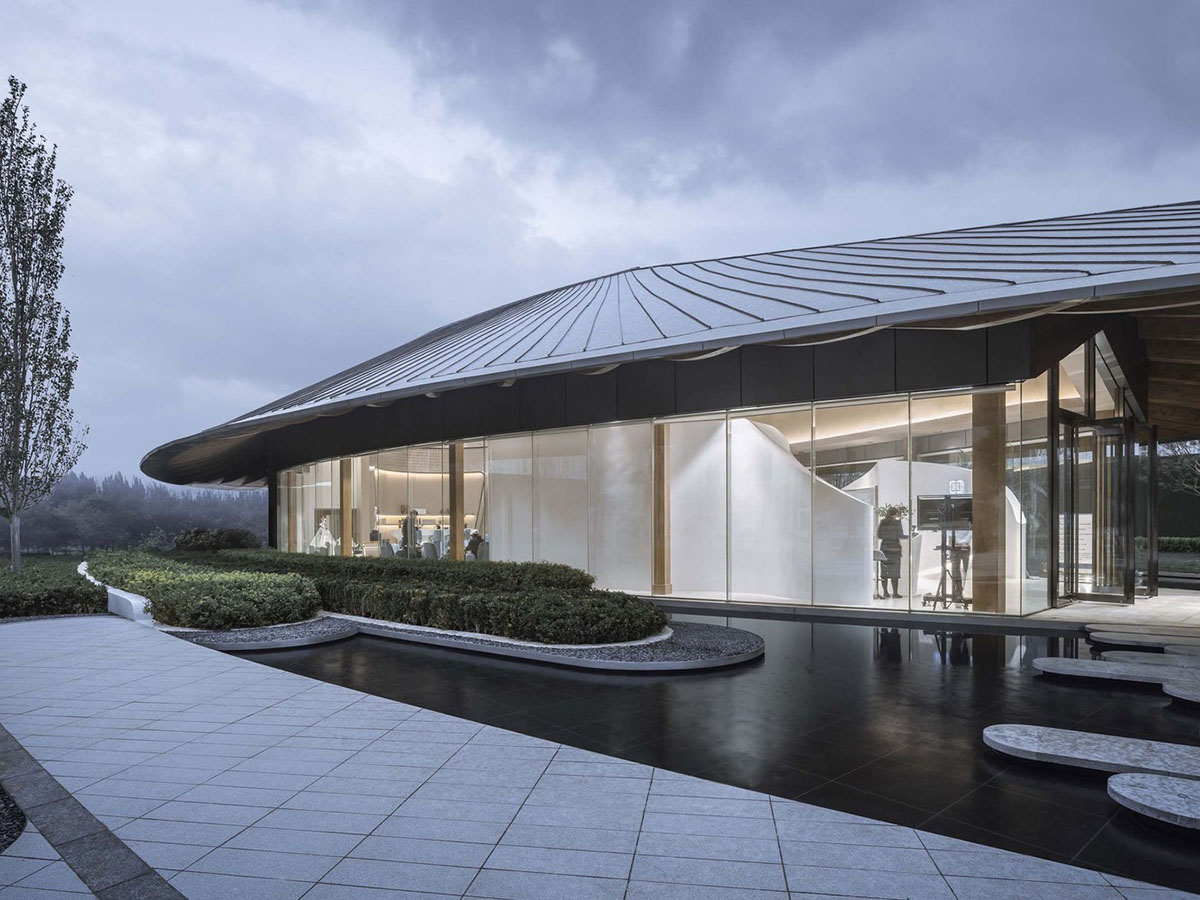

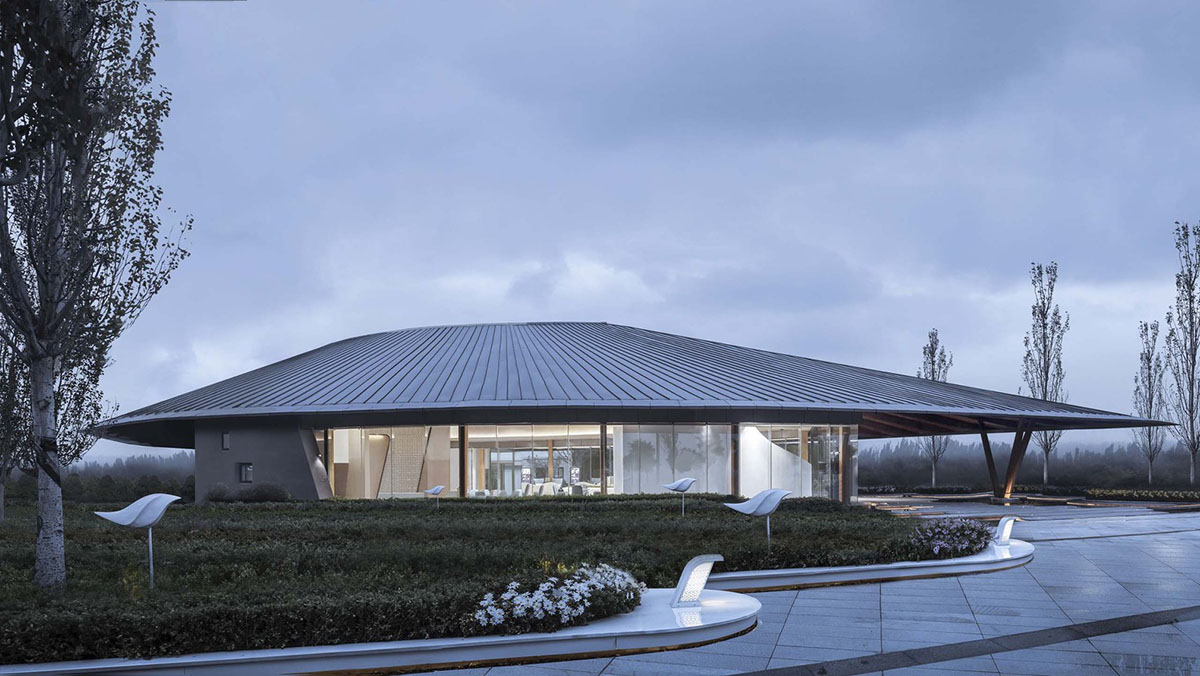

The far-reaching cornice overhang and extensive glazing applications present a directionless floating roof. Accompanied by the swaying shadow of the trees, providing a charming tranquility.

Ruf Architects' exhibition gallery features water drop-shaped roof overlooking the Yongding River

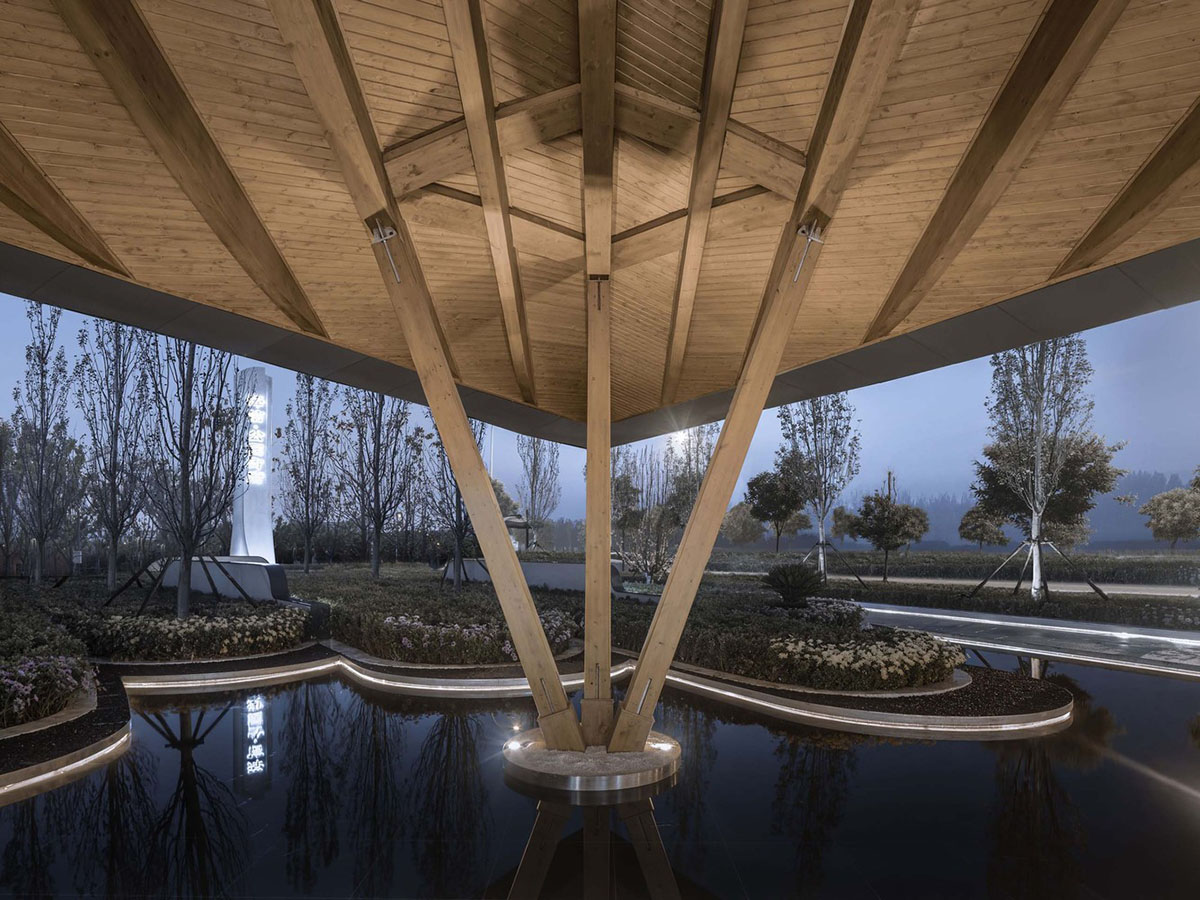

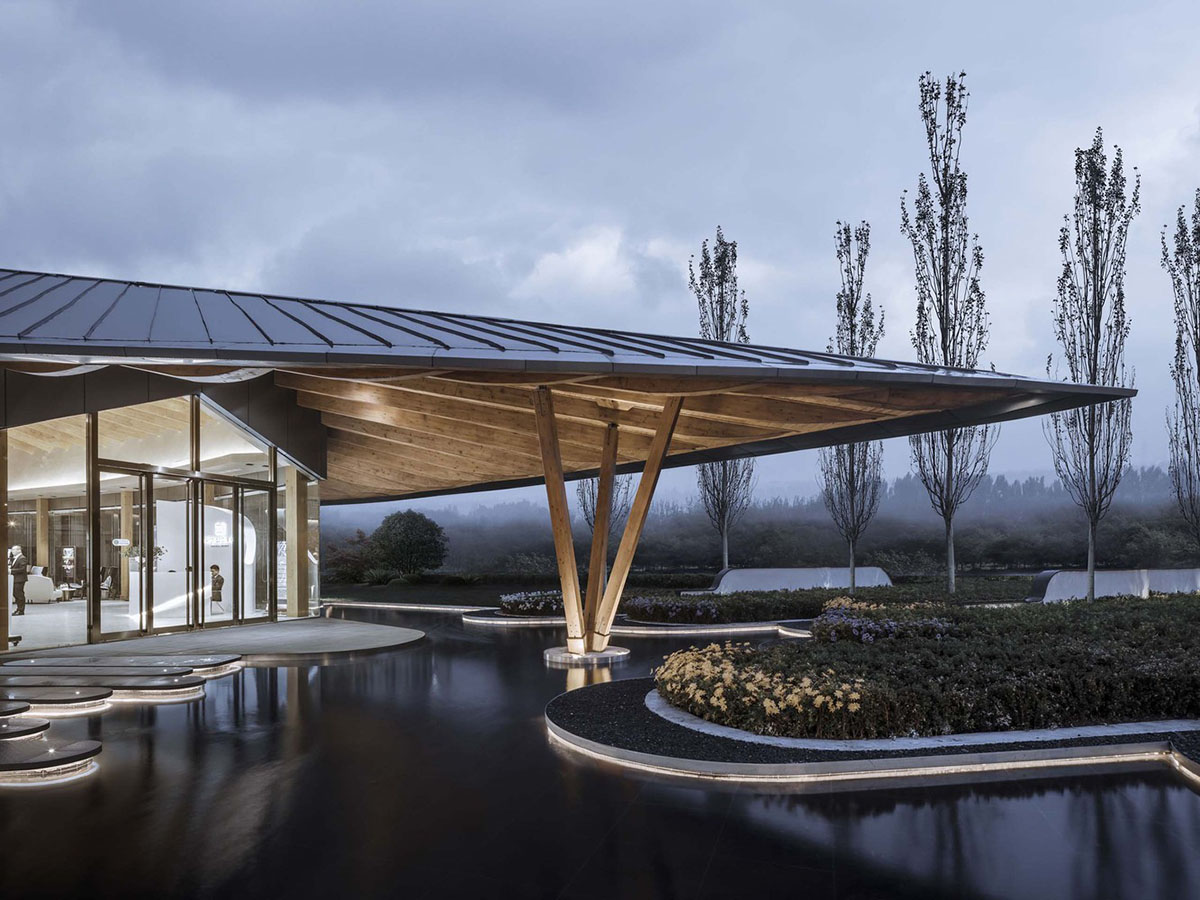

As the architects highlight, the building does not have a clear main entrance. They used only three exposed diagonal wooden posts at the front to define the entrance space.

"The cross section size of the wooden posts is similar to that of the surrounding tree trunks, making it easier to blend into the environment visually," the architects added.

"The floating sense of the roof is further enhanced."

Ruf Architects' exhibition gallery features water drop-shaped roof overlooking the Yongding River

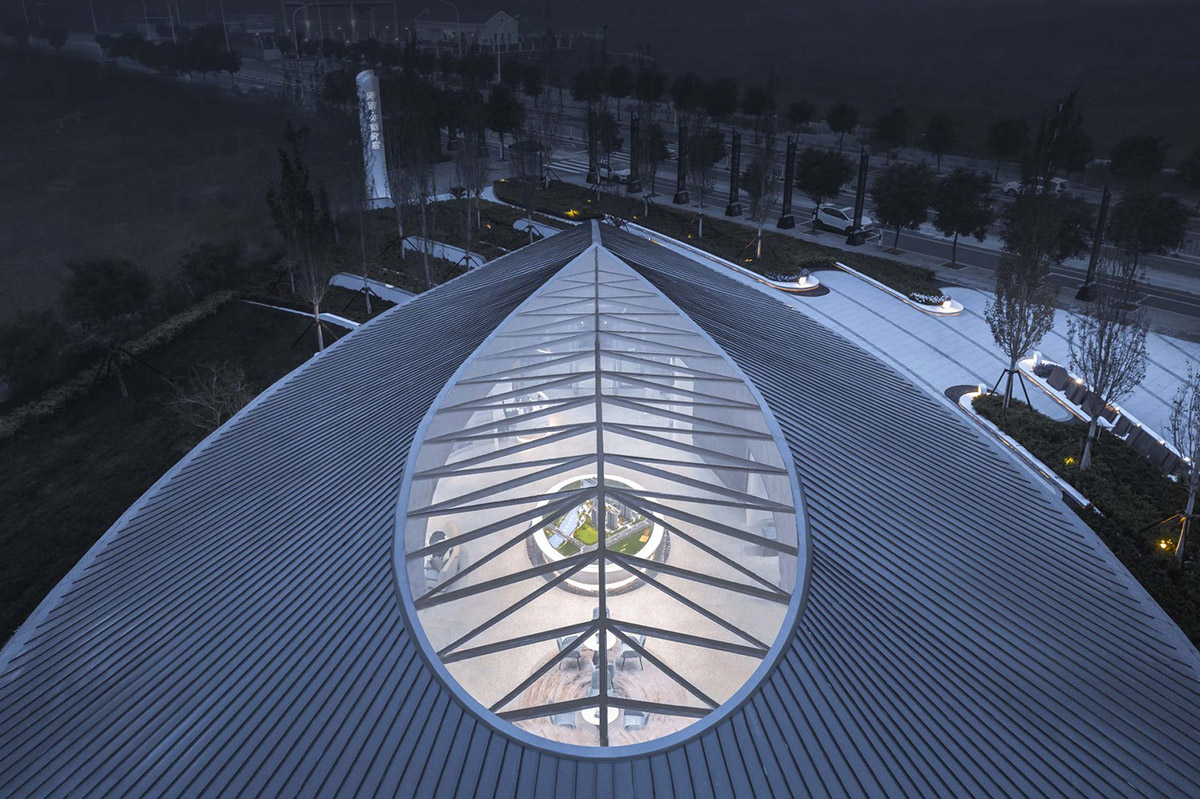

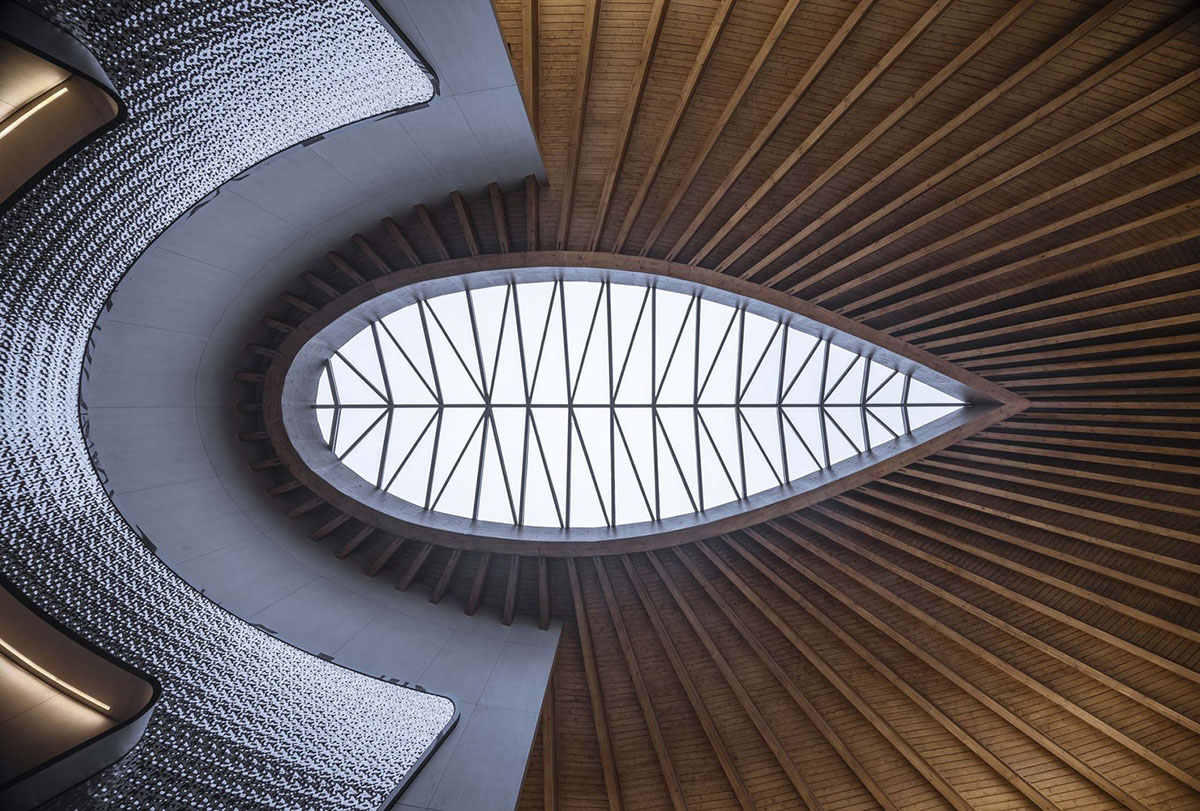

Before entering the exhibition space from the front field, one enters a transitional space under the eaves, which is lowered. And then gradually steps under the leaf-shaped skylight.

"We consciously controlled the interference of excessive direct light through the size of the skylight, so as to ensure the soft and quiet space atmosphere inside."

Ruf Architects' exhibition gallery features water drop-shaped roof overlooking the Yongding River

In the project landing, the biggest challenge is the large span and overhang in the structure.

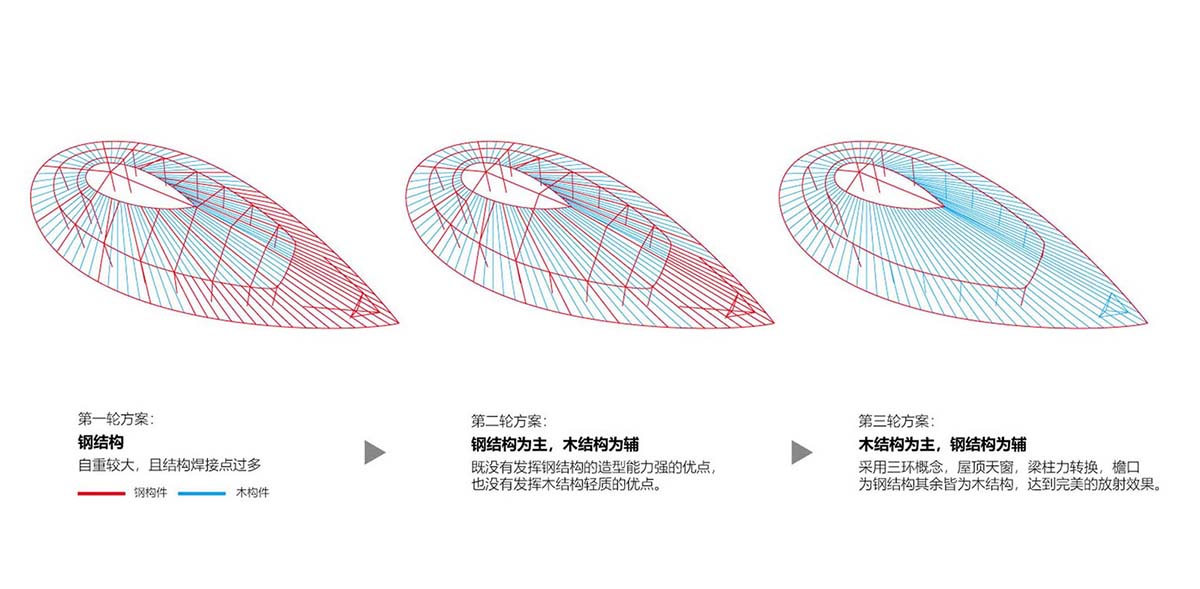

After several rounds of structural tests, the final shape is this umbrellar-shaped, inside, middle and outside three circular steel beams and 68 radial red pine beams formed the spoke arch architecture scheme.

Ruf Architects' exhibition gallery features water drop-shaped roof overlooking the Yongding River

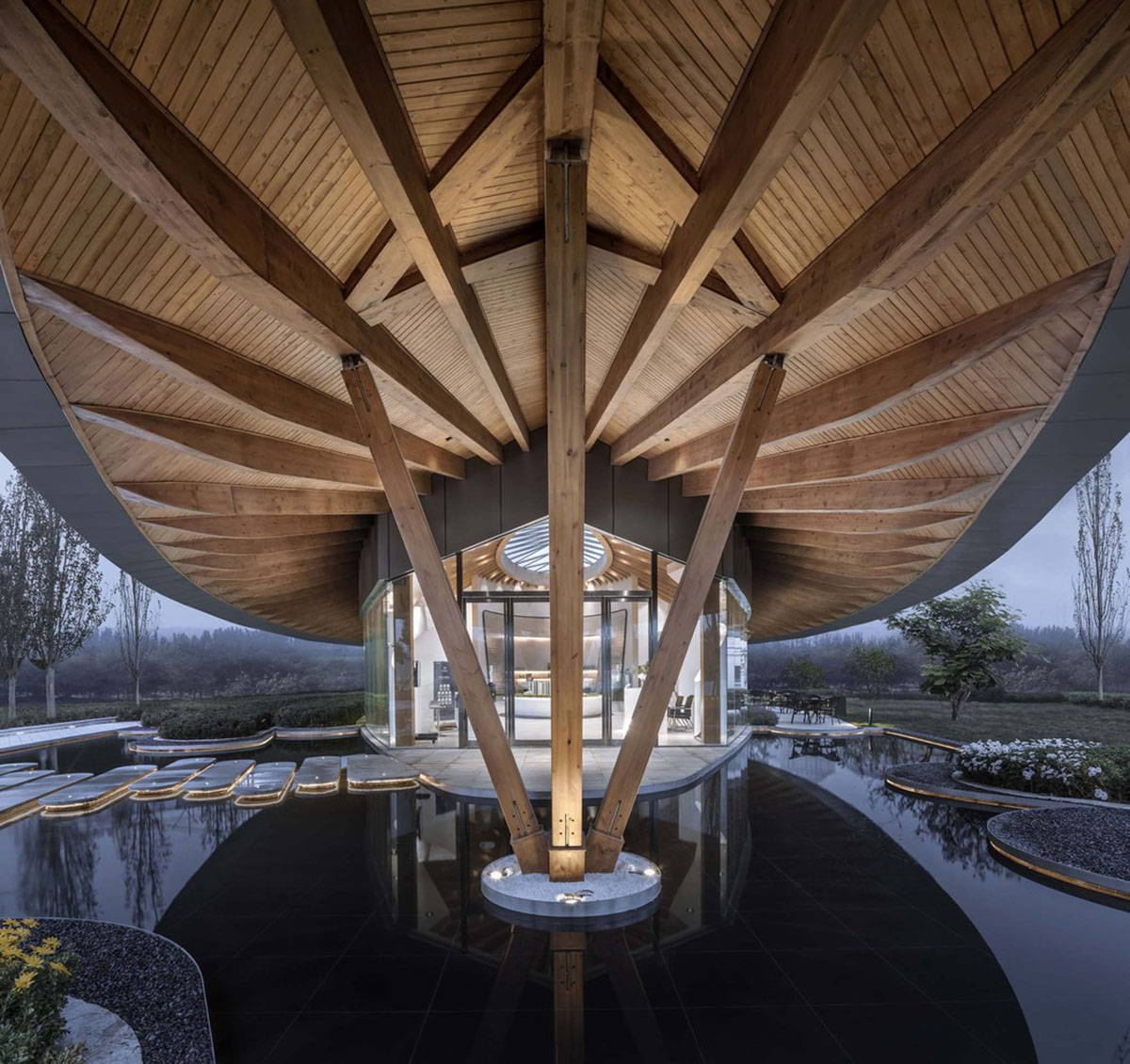

The interior has 8 wooden posts and 3 diagonal wooden posts at the front end. Structurally, the indoor column-free space of 34.0mx14.5m and the outdoor cantilever of 3.7m are realized.

Ruf Architects' exhibition gallery features water drop-shaped roof overlooking the Yongding River

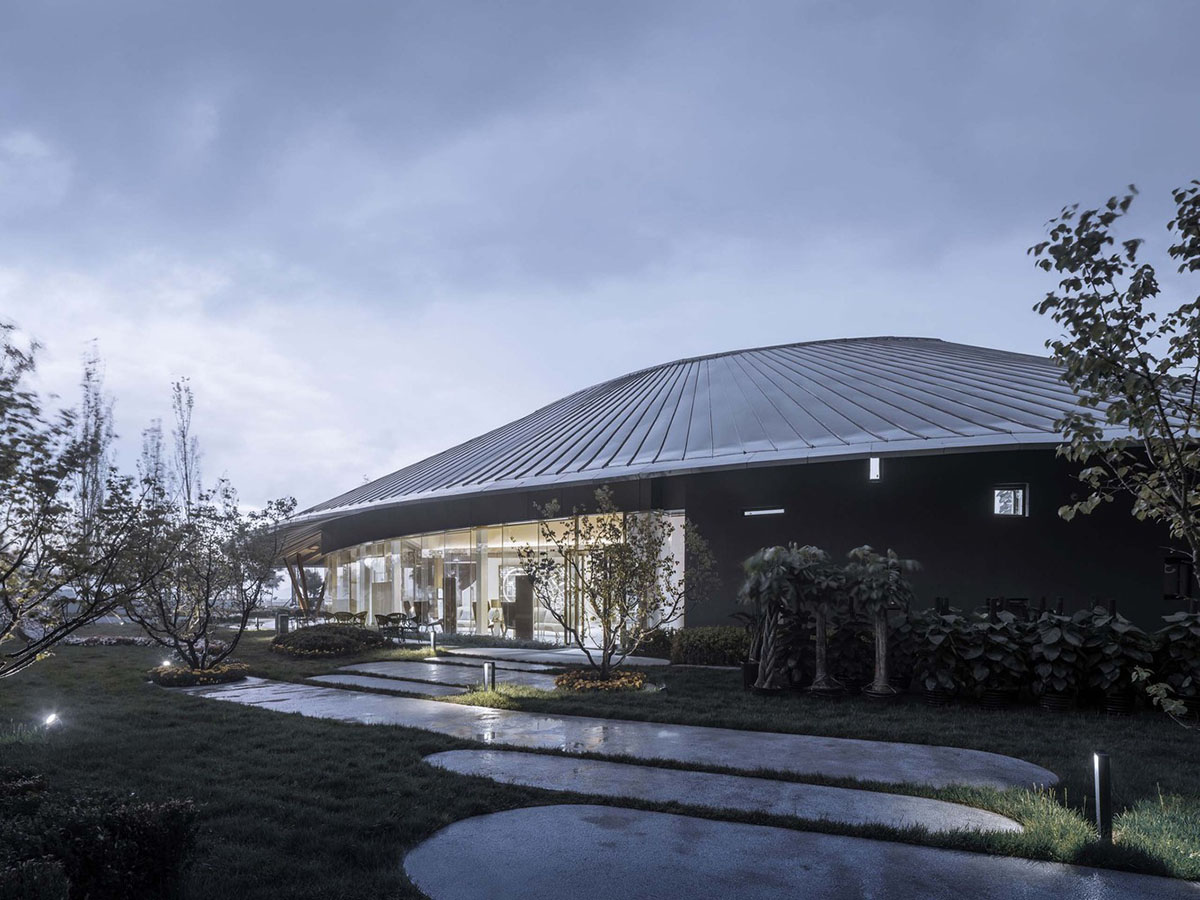

Smoke-gray aluminum-magnesium-manganese shingles, ultra-white tempered glass, and the spruce ceiling with a small surface, the leaf-shaped exterior contour completes the true expression of the microscopic force.

Ruf Architects' exhibition gallery features water drop-shaped roof overlooking the Yongding River

According to the integrated functions and forms of the entrance platform, sales display and logistics office. The exhibition center has set up a space under the eve with a length of 11 meters, a single large-scale display space, a finance room, a storage room, a toilet for men and women, and several sales offices for logistics.

In the detailed design, the cavity of roof board and inclined beam, as well as the cavity of main ring beam are used to hide all pipelines including water, electricity and air conditioning.

Ruf Architects' exhibition gallery features water drop-shaped roof overlooking the Yongding River

Ruf Architects' exhibition gallery features water drop-shaped roof overlooking the Yongding River

Ruf Architects' exhibition gallery features water drop-shaped roof overlooking the Yongding River

Ruf Architects' exhibition gallery features water drop-shaped roof overlooking the Yongding River

Ruf Architects' exhibition gallery features water drop-shaped roof overlooking the Yongding River

Ruf Architects' exhibition gallery features water drop-shaped roof overlooking the Yongding River

Ruf Architects' exhibition gallery features water drop-shaped roof overlooking the Yongding River

Ruf Architects' exhibition gallery features water drop-shaped roof overlooking the Yongding River

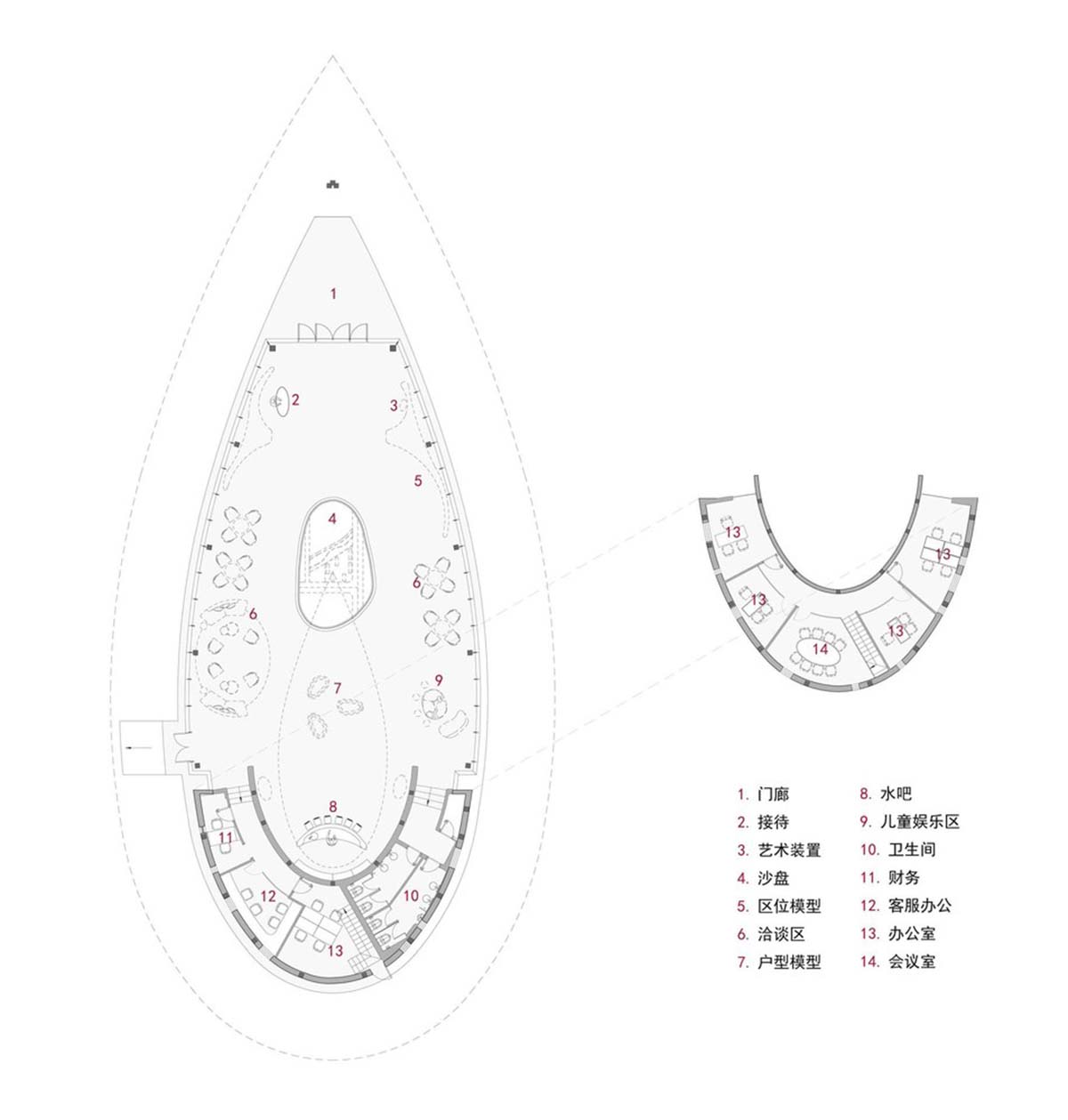

Plan

Ruf Architects' exhibition gallery features water drop-shaped roof overlooking the Yongding River

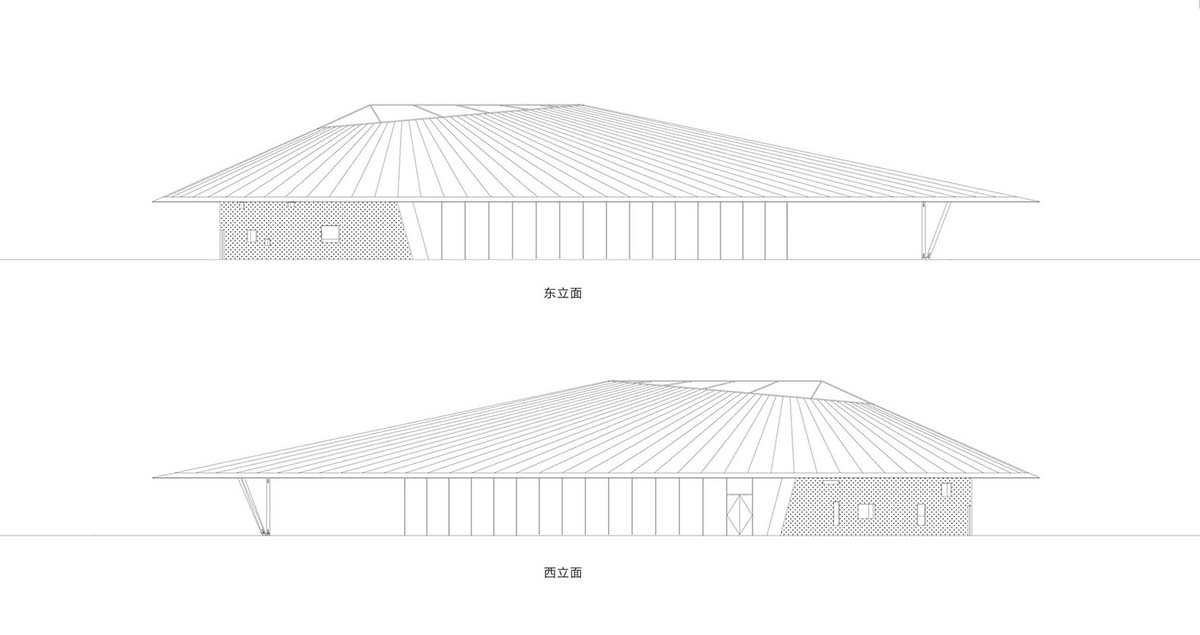

Elevations

Ruf Architects' exhibition gallery features water drop-shaped roof overlooking the Yongding River

Ruf Architects' exhibition gallery features water drop-shaped roof overlooking the Yongding River

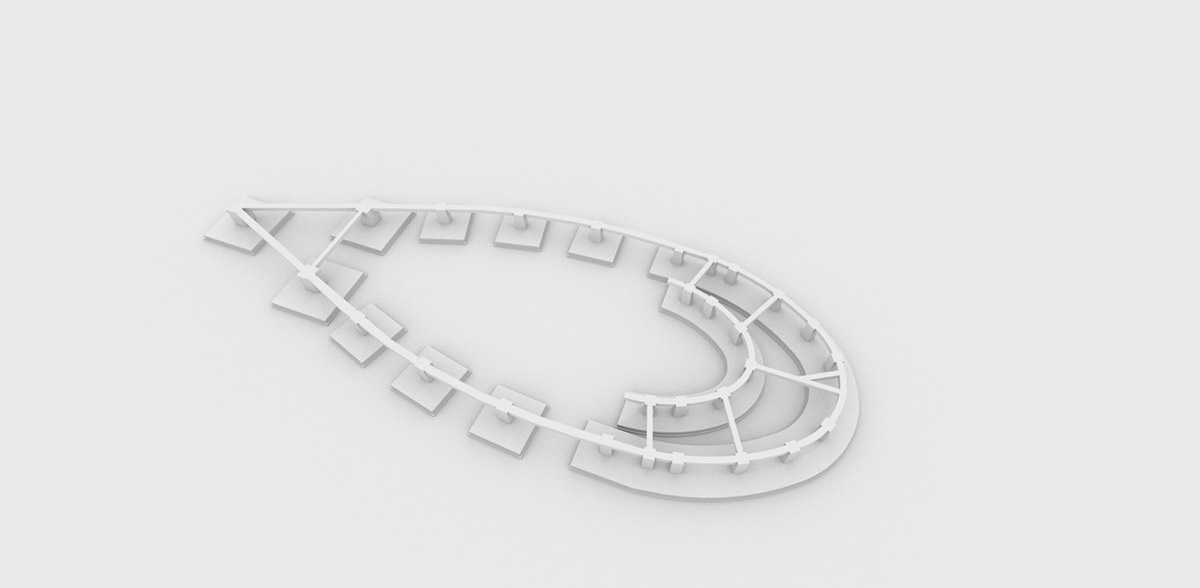

Roof diagrams

Project facts

Project name: Tianjing Zarsion Exhibition Center

Architects: Ruf Architects

Location: Tianjin, China

Size: 450m2

Date: 2020

All images © Yijie Hu

All drawings © Ruf Architects

> via Ruf Architects
