Vanke Art Center XuHui District

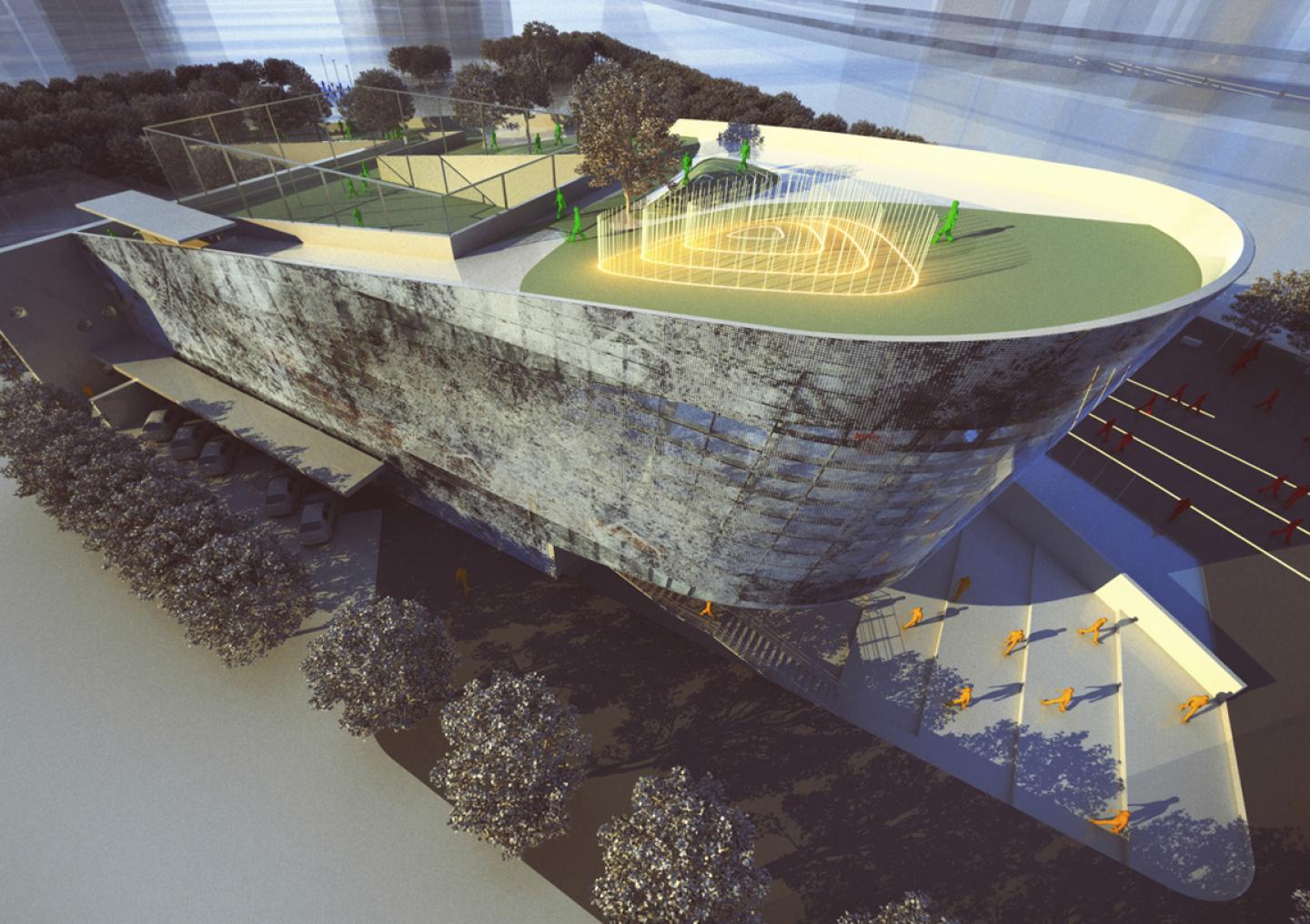

The project is located in Xuhui District, Shanghai South Railway Station North, at the junction of 3 major traffic and subway axes and also in the immediate vicinity of a gas station. This led to some special constraints regarding the landscape treatment, circulations and access points. The soft lines of the building are the response to the tension created by this major infrastructure axes enclosing the site and shows the way public architecture can develop within this limits. A new cohesive public space is gained by creating a diverse activities platform, the usage of new technologies and interactive facades, extending the green areas as much as possible and innovative landscape design.
Both north and west of the site there are large residential areas and to the south there is a business and mixed use developing area.
The design purpose is to create a local landmark with a feeling of high tech and at the same time a center for diverse public activities and happenings. The site should be the green lung of the area, surrounded by high elevated roads and high rise buildings. Looking down from the air, the architecture is totally hidden in the park, becoming one with the land. The contrast will be provided by the pavement and landscape elements.

Status: unbuilt
Title: Art Centre, XuHui District
Location: Shanghai, China
Year: 2013
Total Ground Area: 22,672 m²
Built Area: 2661 m²
Floor Area: 1587 m²
Playground Area: 1861 m² outdoor
Max Height: 19,25 m
Estimated design life: 50 years
Structure: steel, planted roof allowing pedestrian access.

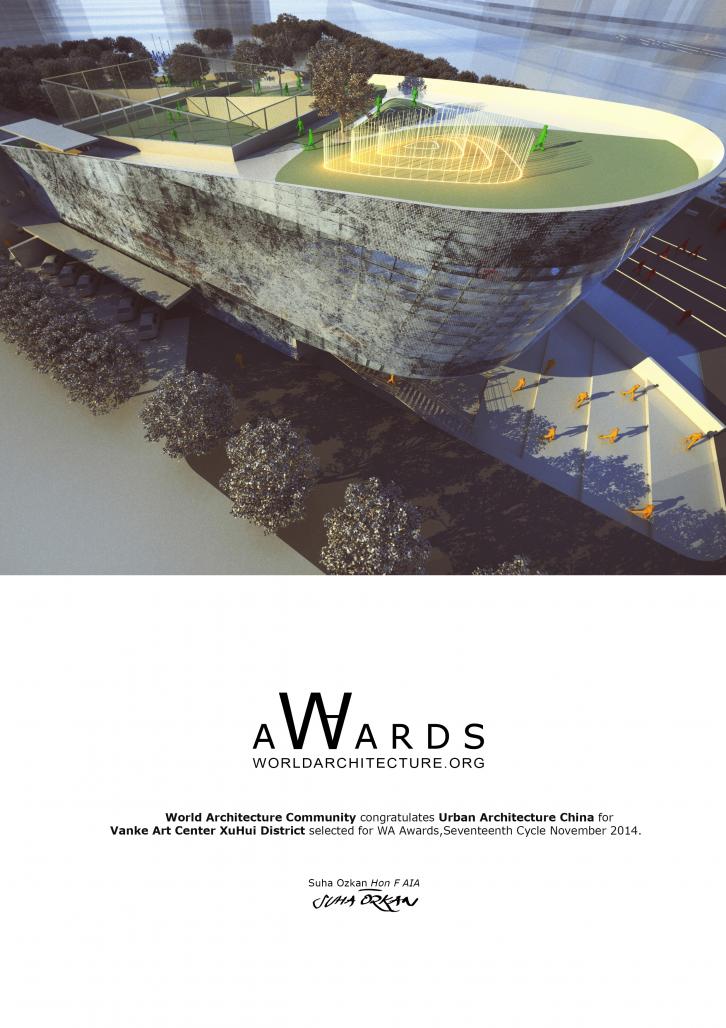

Vanke Art Center XuHui District by Urban Architecture China in China won the WA Award Cycle 17. Please find below the WA Award poster for this project.
