constructing the diagram: Athens` central train station

THIS DIPLOMATIC WORK RECOMMENDS AN EFFORT TO CONSTITUTE ONE CONCRETE AND UNDER DETERMINED CONVENTIONS, ANALYTIC AND SYNTHETIC PROCESS. MORE SPECIFICALLY, IT IS APPROACHED VIA THE MANUFACTURE OF DIAGRAM, THE MOVING FROM THE TWO DIMENSIONAL SURFACE INTO THE THREE DIMENSIONAL SPACE WITH CONSISTENCY. THIS CONSISTENCY IS CONSIDERED INNATE IN THE MANUFACTURE OF THE DIAGRAM, THEREFORE THE PERMANENT FEED-IN BY THIS DIAGRAM TO THE ANALYTIC AND SYNTHETIC PROCESS IN EVERY STAGE. TO PROOF IS PLACED THE ALLEGED, BY THE SYNTHETIC TEAM, 1-1 RELATION OF A 3D OBJECT AND IT`S 2D DEPICTION, UNDER THE CONVENTIONS FIXED BY THE WRITER-COMPOSER. THE CONVENTIONS ON THE PROCESS OF TRANSLATION ARE MAINLY CONCERNING THE ESSENSE OF SENSATION AS IS APPROACHED QUALITATIVELY.

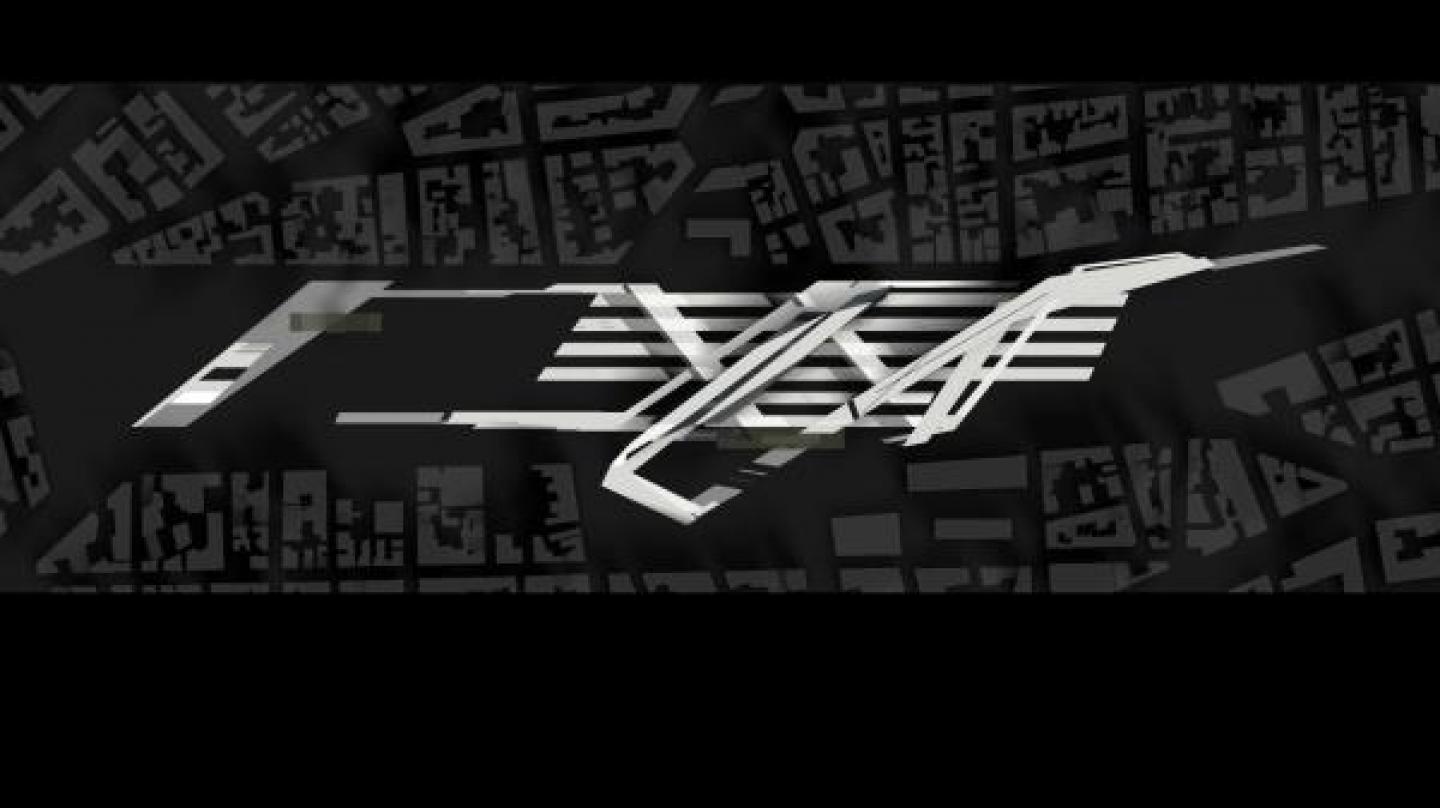

THE PARADIGM TO VERIFY THE THEORY IN QUESTION IS THE NEW RAILWAY STATION OF ATHENS. AS FAR AS THE SENSATION THAT WAS MENTIONED BEFORE IS CONCERNED, THIS IS RECORDED AT FIRST WITHIN THE COMPLEXITY OF THE URBAN WEB AND UPON THE SYSTEM OF RELATIONS DEVELOPED AMONG THE FORCES OF SPACE {1: 5.000}. THIS RESULTING IN REALIZING THE NEED OF LIFTING OFF THE BARRIER OF THE EXISTING STATION, WHILE DEPICTING DIAGRAMMATICALLY THE ESSENSE OF CONNECTING THE SEPARATED URBAN WEB {1: 10.000}. THE FORCES OF SPACE PRODUCE THE GEOMETRICAL PLACES OF POINTS UPON WHICH THE CONJUNCTION STRATEGY IS PROPOSED VIA CERTAIN SYNTHETIC HANDLINGS {1: 2.000}.THE QUALITY THAT IS IMPRESSED IN THE RELATION OF BUILDING VOLUMES, IN THEIR ARTICULATIONS, IN THOSE VOLUMES AS SELF-EXISTENT UNITS, RESULTS FROM THIS VERY FIRST DIAGRAMM AND FROM IT`S INFORMATIVE MATERIAL AS THIS IS REVEALED BY IT , POSSIBLY AS A RESULT OF THE INTERCONNECTION OF TRACES OF IT`S BEARING LAYERS {1: 1.000}. THE PROCESS OF FINDING THE `EXACT` ANALOGY OF THE 2D PICTURE, INTO THE THREE DIMENSIONAL SPHERE, FOLLOWS. THIS PARTICULARLY IMPORTANT PROCESS IS STRUCTURED UPON THE DIAGRAM - BUILDING RELATION. FINALLY, THE PROCESS IS INTERRUPTED BY THE COMPOSER AND IS IMPRESSED {1: 500, 1:200}. THIS 3D IMPRINTING WE CLAIM TO ACTUALLY DEPICT, AND WITH REGARDS TO THE ABOVE MENTIONED,THE 2D DIAGRAM CONSISTENTLY.
