THEVERYMANY adds two-sided sculptural canopy to the entrance of Westside Natatorium in El Paso

United States Architecture News - Jul 17, 2018 - 04:33   18033 views

THEVERYMANY adds two-sided sculptural canopy to the entrance of Westside Natatorium in El Paso

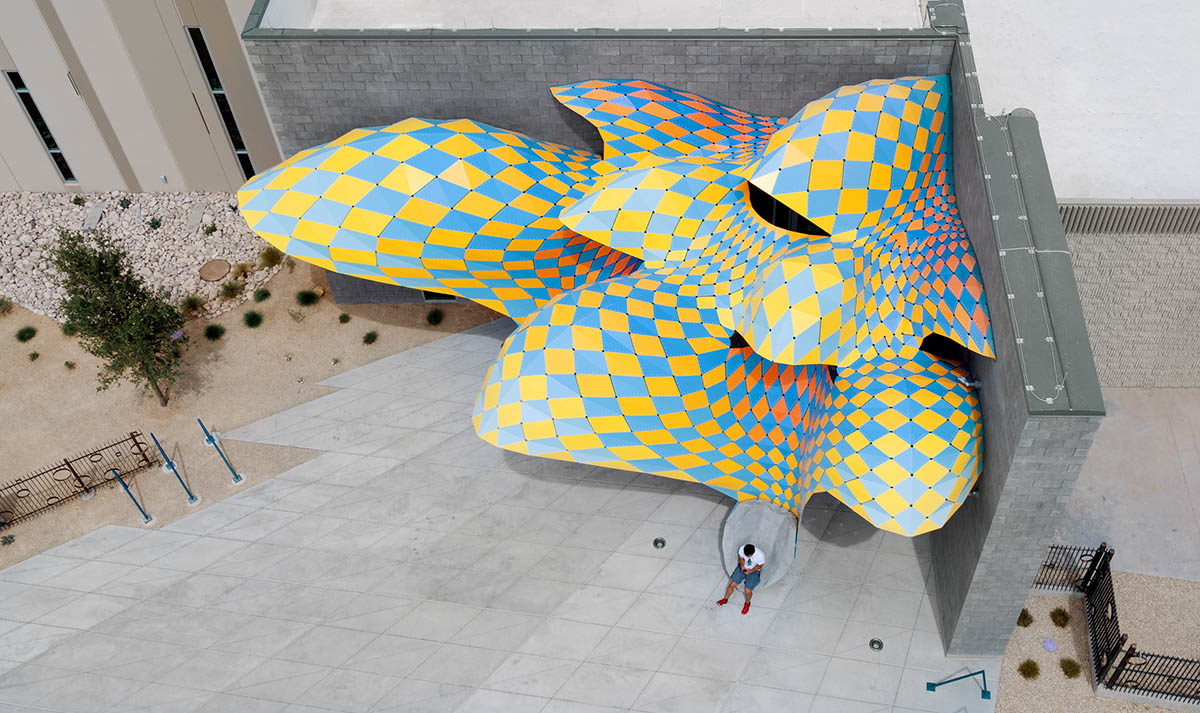

Marc Fornes' art and architecture studio THEVERYMANY has added a new sculptural canopy to the entrance of the new Westside Natatorium in El Paso, Texas.

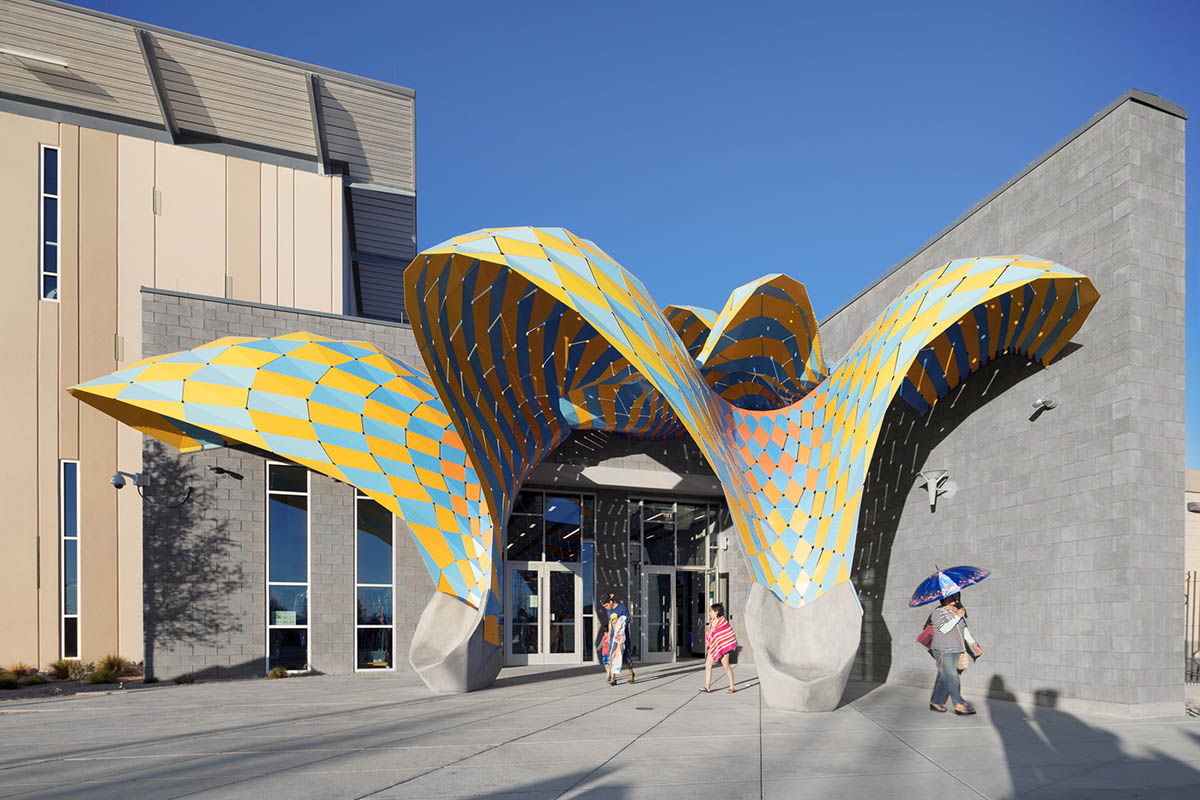

Named Marquise, the structure is a spatial entry structure for El Paso’s Westside Natatorium. It acts as a visual icon and architectural threshold, the lightweight aluminum structure transforms the approach and experience of this new public building.

THEVERYMANY adds two-sided sculptural canopy to the entrance of Westside Natatorium in El Paso

Made of gridded curvilinear panels, it comprises the brightly-colored canopy and as well its self-supporting structural system. A two-way Cheshire gradient in deep blues and warm yellows alternate graphically to emphasize the sweeping surfaces.

THEVERYMANY adds two-sided sculptural canopy to the entrance of Westside Natatorium in El Paso

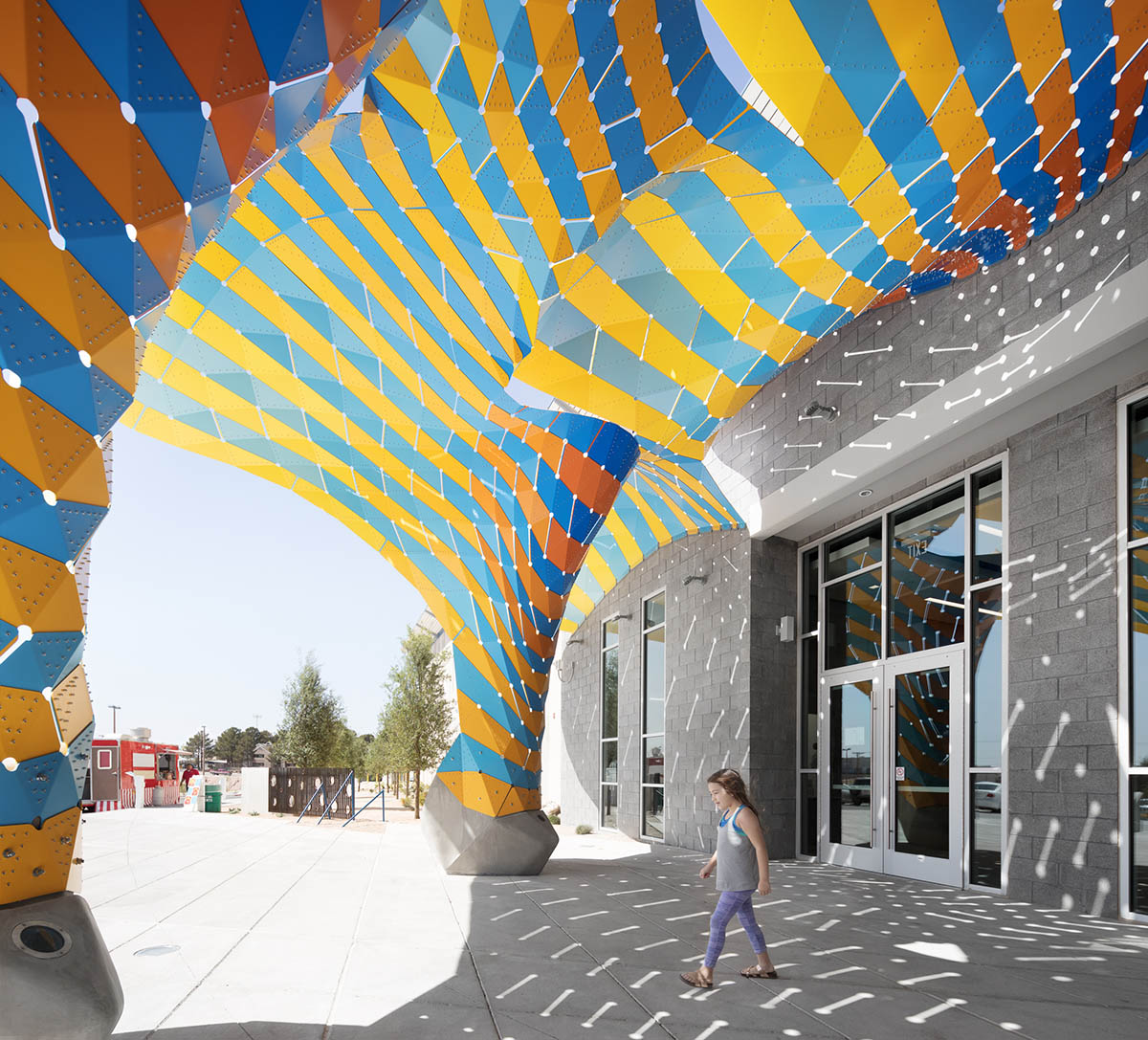

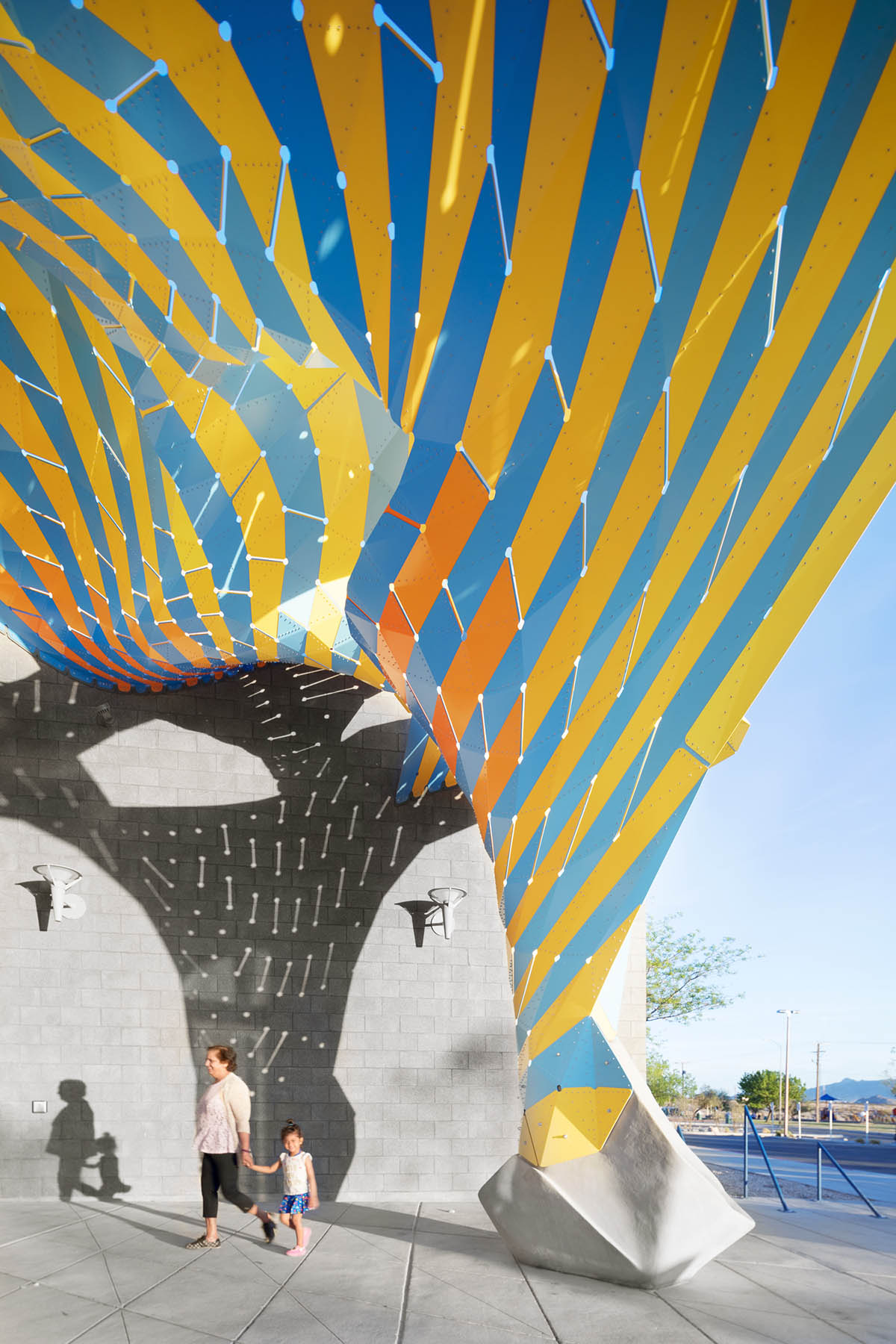

Seemingly inflated by the wind, as a tent or sail, the ultra-thin surface billows up from the ground, where it forms two contiguous seats: cast in place concrete elements that inherit the compound curvature of the faceted but flowing surface.

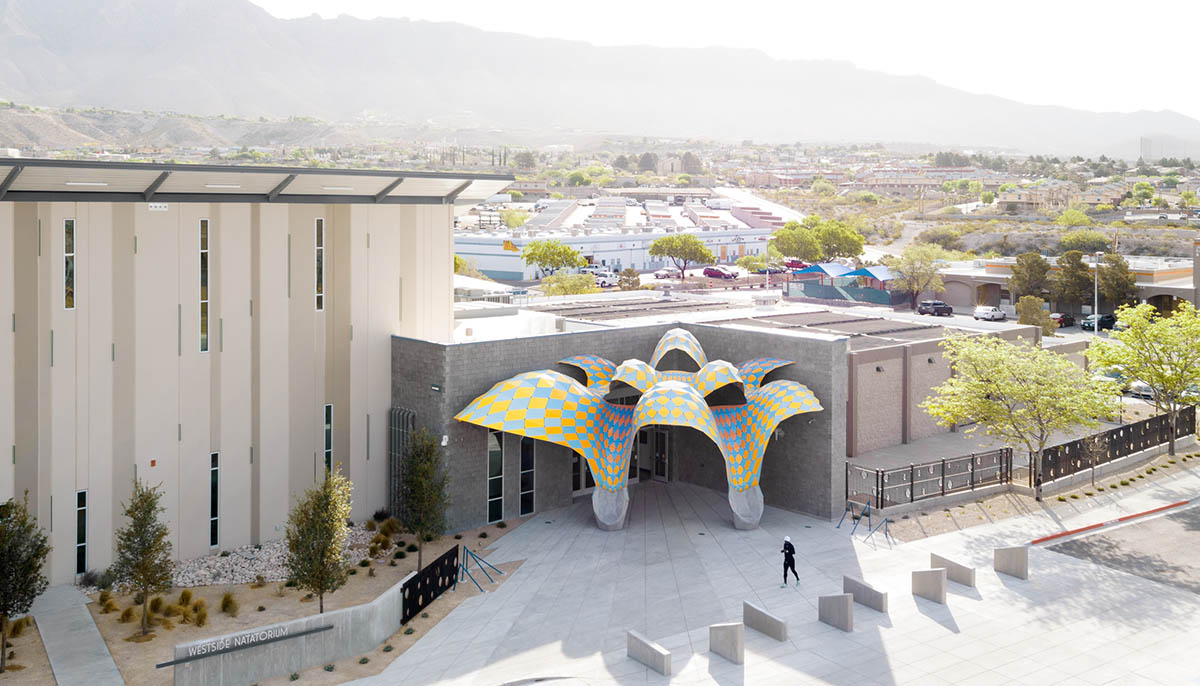

"A parasol planted in the sand, a tropical fish on land, a tent at the foot of Franklin Mountains: this exuberant surface assumes multiple guises," stated the firm in a project description.

THEVERYMANY adds two-sided sculptural canopy to the entrance of Westside Natatorium in El Paso

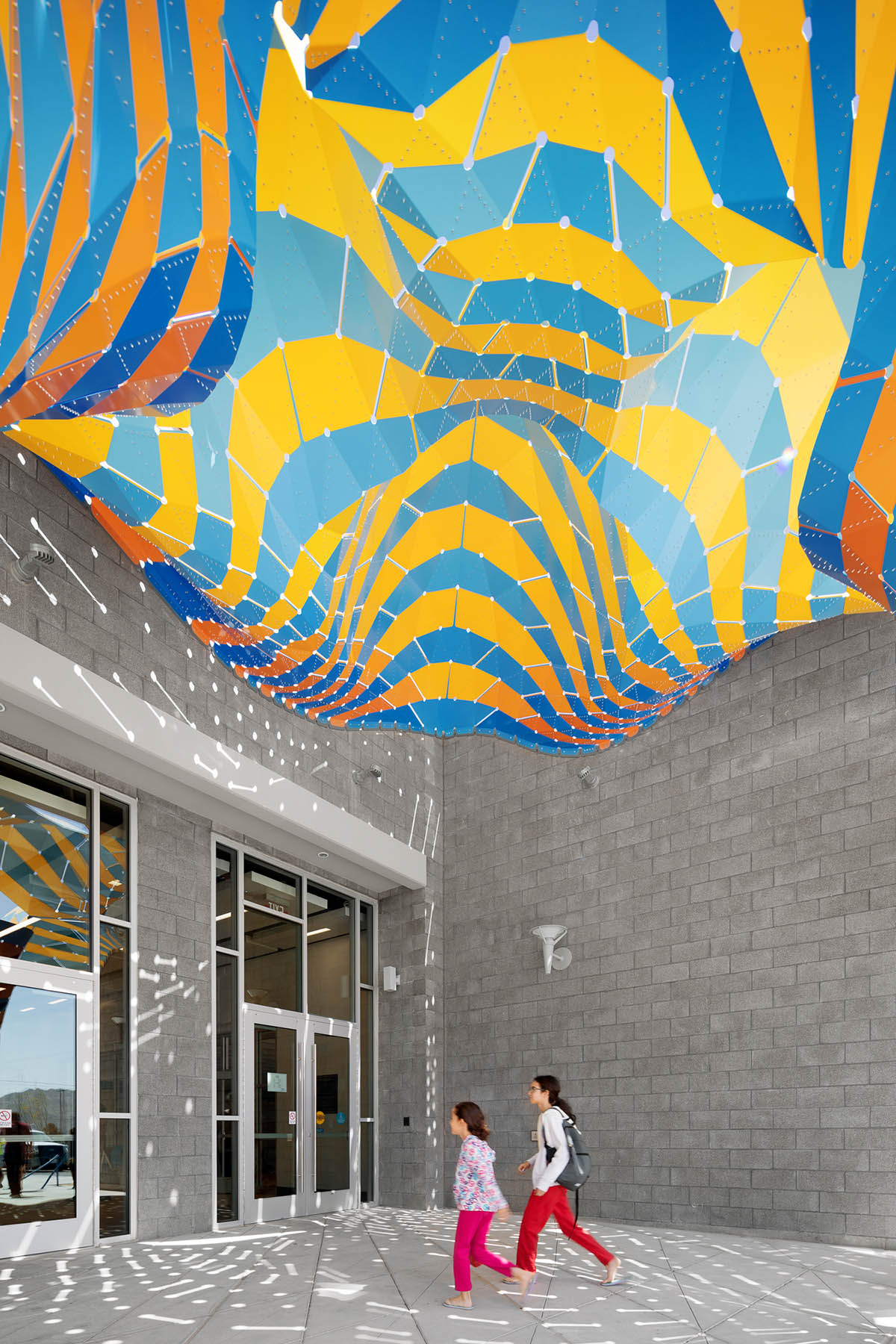

Marquise catches its visitors' attention differently: for small guests lining up for swimming lessons, the surface overhead appears to be some kind of circus tent, or a parachute frozen in midair.

THEVERYMANY adds two-sided sculptural canopy to the entrance of Westside Natatorium in El Paso

"A bit of excitement before it’s time to suit up. Older patrons might find a welcome moment of pause at this shady entrance, before water aerobics or heading back into the heat of the parking lot," said the architect.

"Under dappled light, we've carved out a place that isn't just for coming or going, but for lingering. At all hours, the space under and around Marquise welcomes moments that stretch into longer durations."

"When you're waiting for your ride or meeting the swim team, outside the Natatorium is a place to chill out before dipping in. Before 6am laps to after dusk, Marquise alternately shades and radiates for pool-goers and all others. The structure almost insists upon loitering - why wouldn’t you want to hang out there?."

THEVERYMANY adds two-sided sculptural canopy to the entrance of Westside Natatorium in El Paso

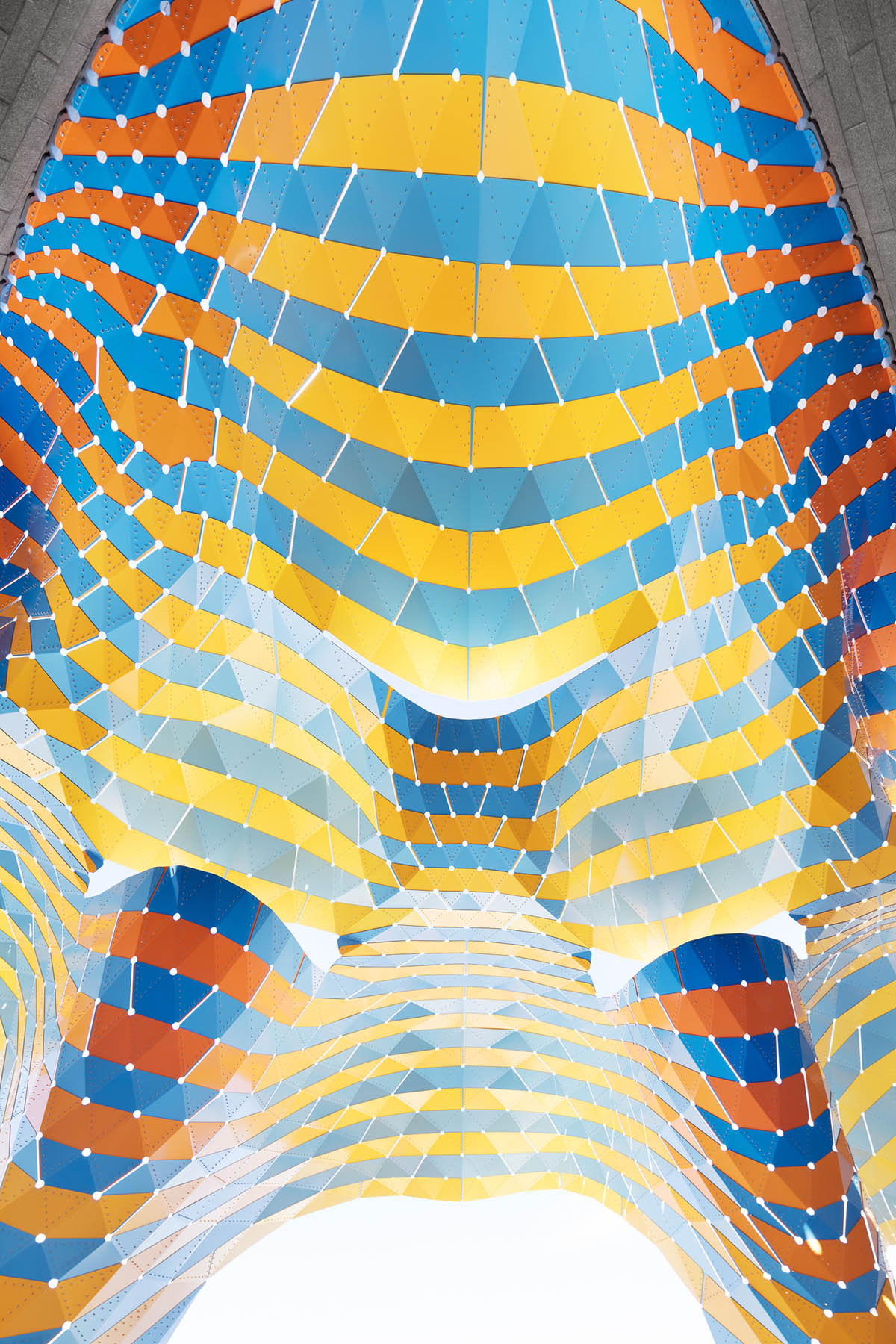

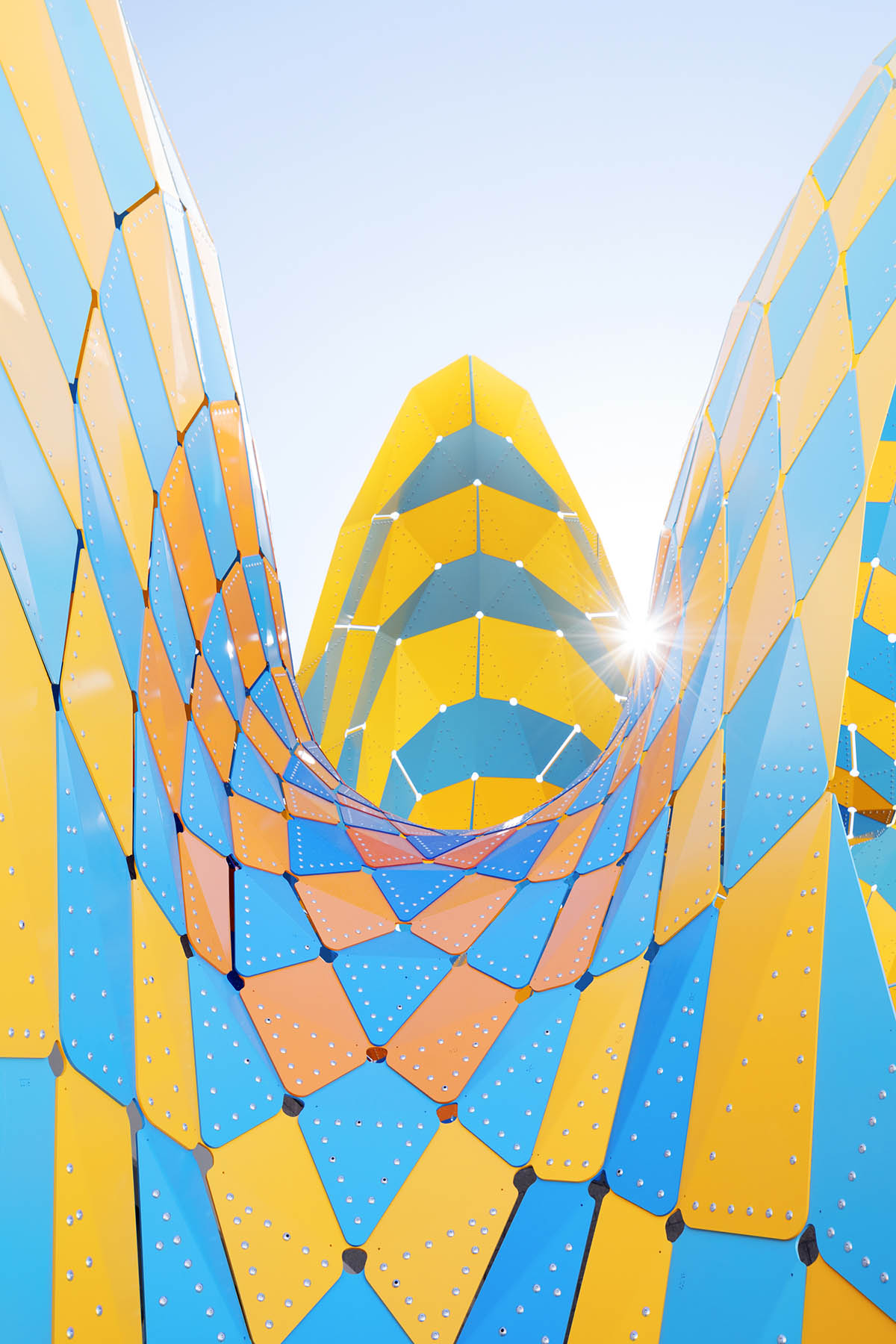

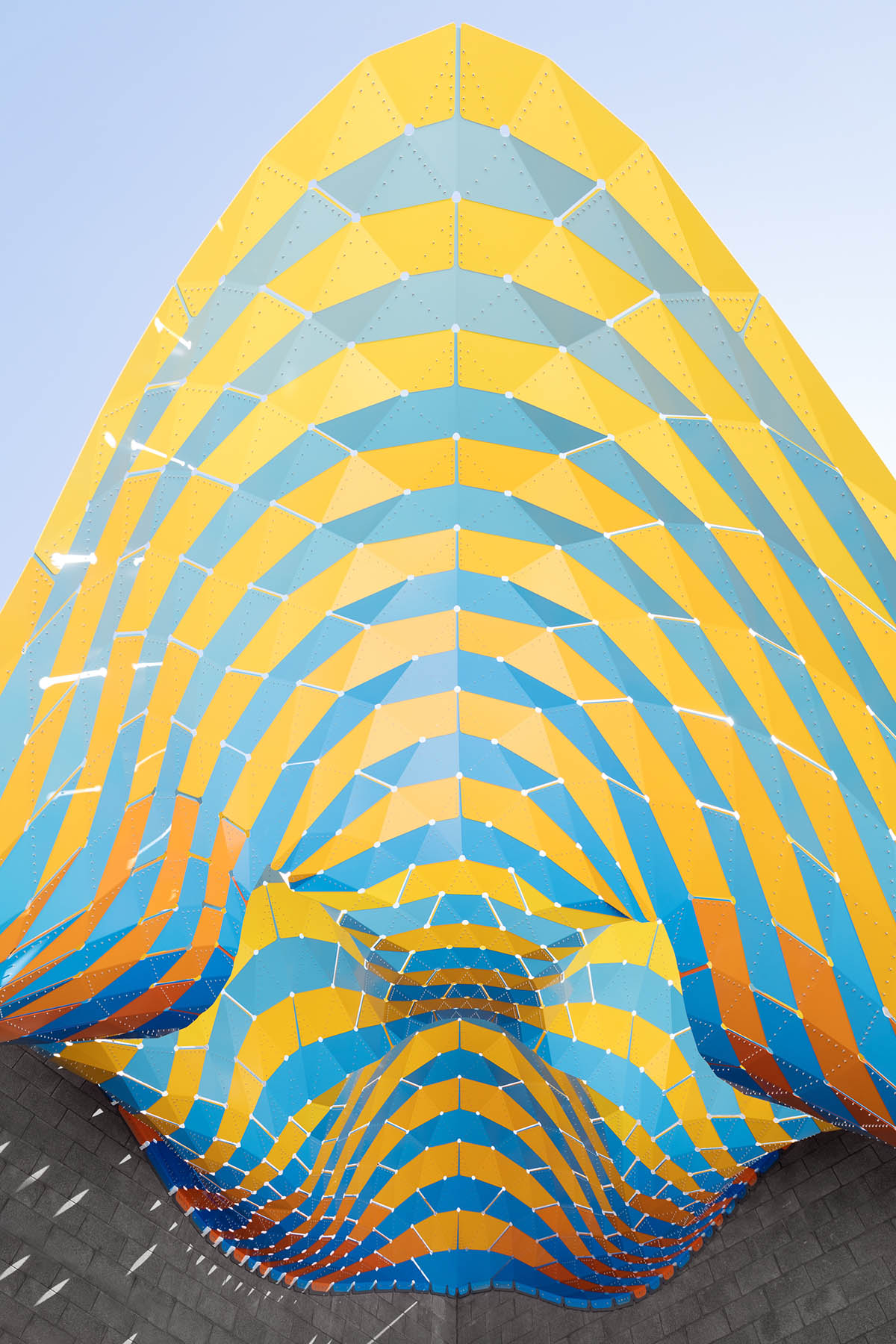

Marquise is composed of two-faced stripes and shingles. In a surface that is as thin as 1⁄8” in places, overlaps between parts produce a diamond-like pattern on top and what appear to be continuous stripes below. At the edge of the surface, the curvilinear play between the two is revealed.

THEVERYMANY adds two-sided sculptural canopy to the entrance of Westside Natatorium in El Paso

Offering two-way gradient with Cheshire coloration, gradients in a set of rich yellows and deep blues follow the A/B patterning of dual-faced surface. Two complementary strategies unite to create a third condition-something richer.

THEVERYMANY adds two-sided sculptural canopy to the entrance of Westside Natatorium in El Paso

THEVERYMANY adds two-sided sculptural canopy to the entrance of Westside Natatorium in El Paso

THEVERYMANY adds two-sided sculptural canopy to the entrance of Westside Natatorium in El Paso

Playing off the fluctuations between warm and cool in the desert setting, the coloration saturates the palette of the surrounding landscape.n240 unique parts are painted in six shades of blues, from a bright midday sky to a deep, clear dusk. Another 280 shingles are painted in five shades of golden yellow to earthen orange.

THEVERYMANY adds two-sided sculptural canopy to the entrance of Westside Natatorium in El Paso

"Marquise represents the studio’s interest in maintaining the thinnest possible surface that can self-support. This is achieved through compound curvature, but also the description of that curvature into integral parts: structural shingles in two different thicknesses - 1⁄8 inch aluminum with local moments of reinforcement at 3/16 inch assume the doubly-curved canopy in subtle facets. Overlaps allow for partial double thickness along continuous running bonds, which provide better resistance to point loads," added the studio.

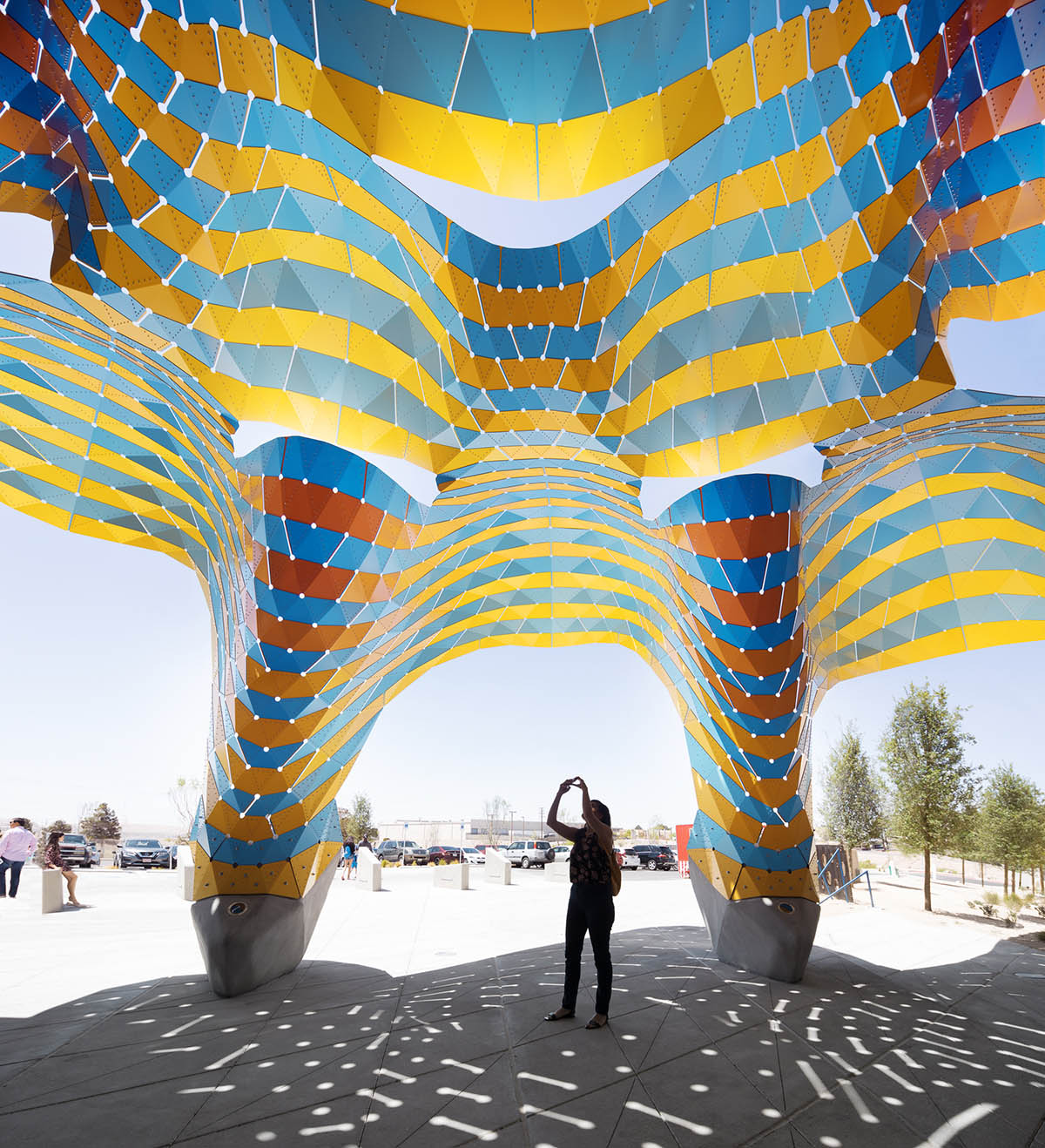

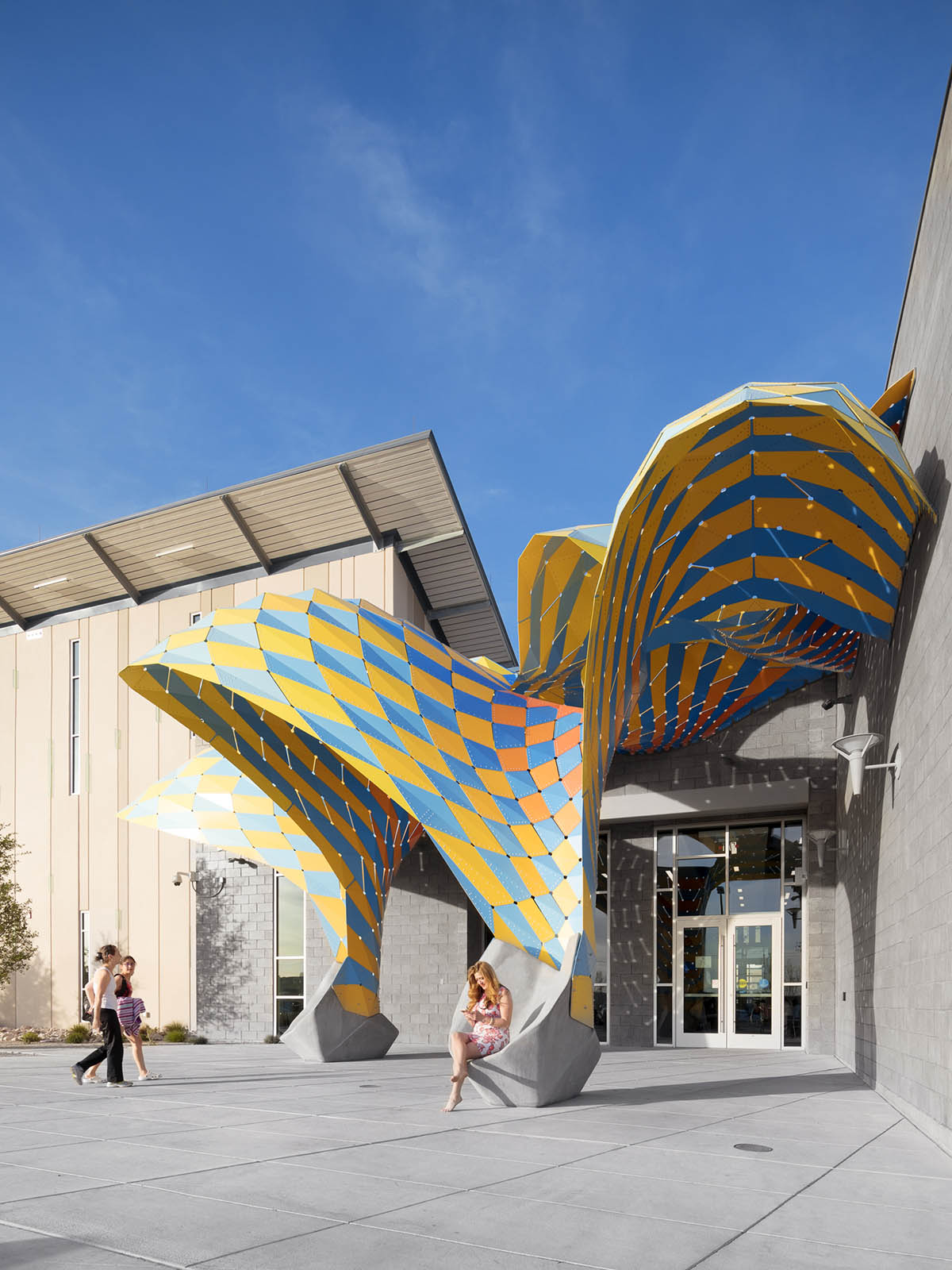

"Individual parts come together to form larger macro-shingles that drop down into columns or peel up into expressive light scoops. These openings project over the surface below to capture light but not direct light - maintaining shade, but not darkness under the South Texas sun."

THEVERYMANY adds two-sided sculptural canopy to the entrance of Westside Natatorium in El Paso

For the studio, structure is always conjoined to other expressive and experiential capacities of the articulated surface. In this case, we present a 21st century take on the Art Nouveau entrances of the past century-borrowing the name but shifting its definition.

A marquise is historically classified as a curvilinear steel and glass awning, attached to buildings or freestanding as those made famous by Hector Guimard for the Paris Metro at Porte Dauphine and Abbesses.

THEVERYMANY adds two-sided sculptural canopy to the entrance of Westside Natatorium in El Paso

"Our Texan Marquise plays on an inversion of the characteristic tectonics of the Parisian original: rather than sculptural wrought iron framing delicate glass panels, ultra-thin aluminum takes the place of glass and the frame as one unified structure. Light enters not through the panels, but between them, where they connect, casting spritely patterns across the interior of the canopy."

"Beyond momentarily shielding you from rain or the sun, the marquise celebrates the moment where the building meets its public," concluded the firm.

THEVERYMANY adds two-sided sculptural canopy to the entrance of Westside Natatorium in El Paso

THEVERYMANY adds two-sided sculptural canopy to the entrance of Westside Natatorium in El Paso

Project credits

Marquise is an original Artwork owned and commissioned by the City of El Paso.

Location: 650 Wallenberg Dr, El Paso, TX 79912

Design + Build: Marc Fornes / THEVERYMANY

Architect: (Westside Natatorium): In*Situ Architecture

Engineering: LaufsED

All images © NAARO

All drawings © THEVERYMANY
