DC Alliance completes Ningbo Hanvos School in China

China Architecture News - Jun 16, 2020 - 11:23   1398 views

DC Alliance completes Ningbo Hanvos School in China

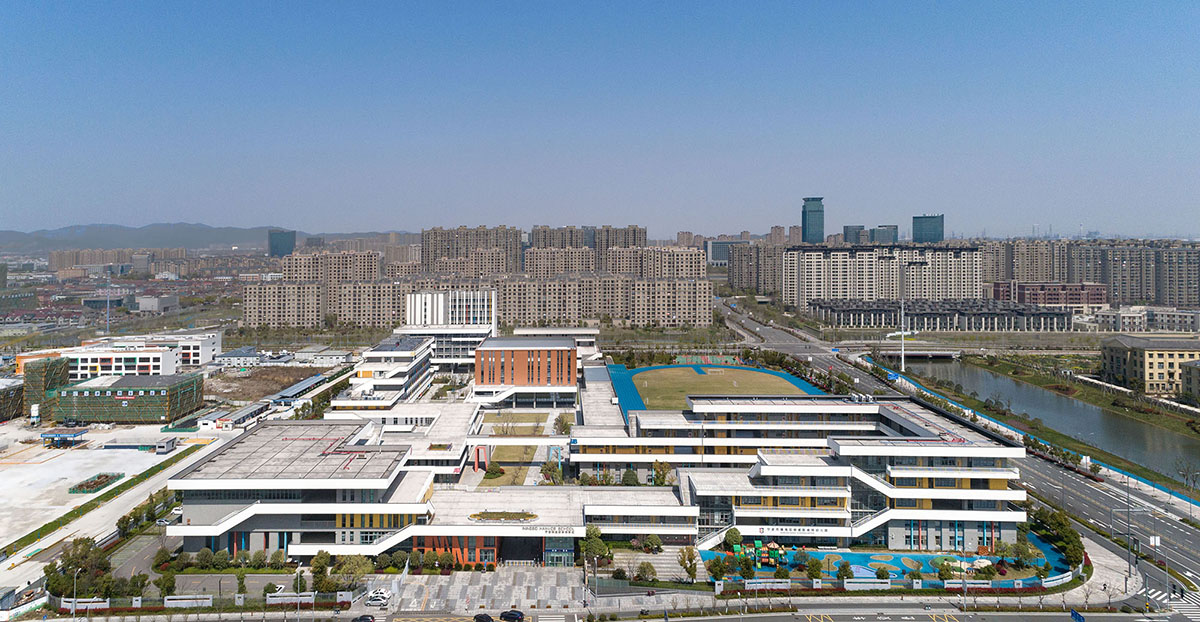

DC Alliance has completed the Ningbo Hanvos School in Zhenhai District, Ningbo. According to the general requirements of "internationalization, high quality and characteristic", it is built as a new international boarding school with typical characteristic of internationalized education.

The construction area is around 54,000 square meters, which covers all learning stages from primary school to high school. Due to the uncertain enrollment, this project adopts strategy of overall planning and phased implementation: the school is designed to accommodate 1200 students.

DC Alliance completes Ningbo Hanvos School in China

Image © Xing Zhi Ying Xiang

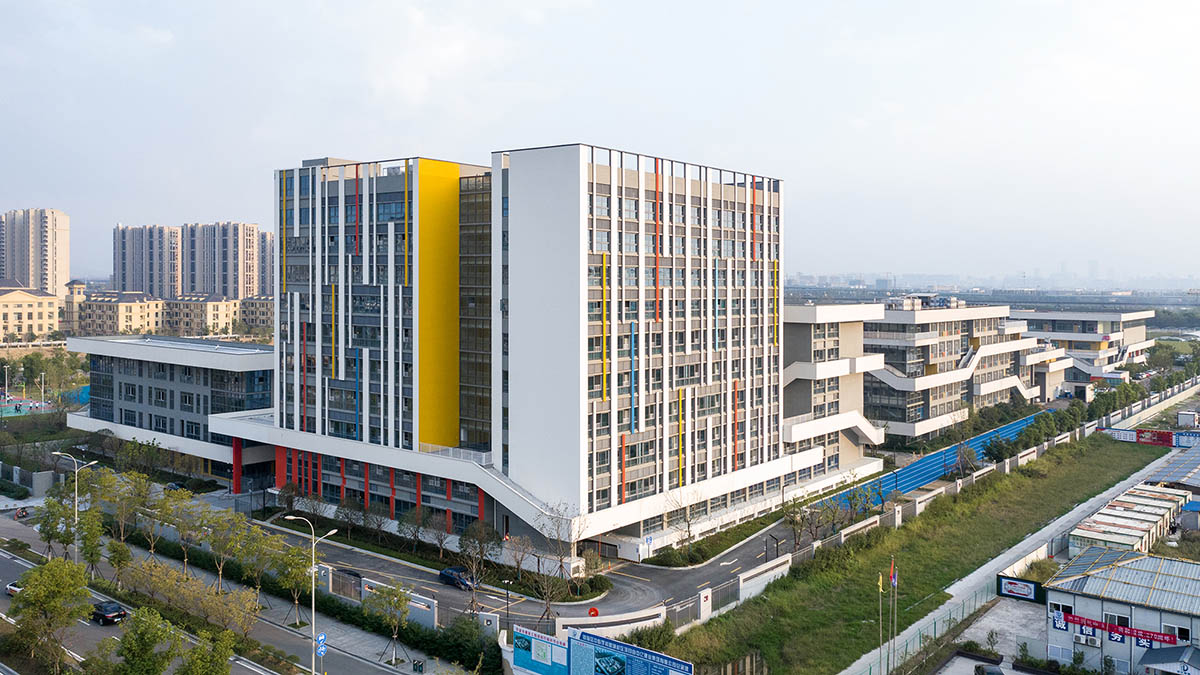

The first phase is designed to hold 600 students with a construction area about 37,000 square meters; In terms of education architecture, the first phase contains international school teaching building, complex building, administrative office, school restaurant, international student dormitory and stadium, etc. The second phase includes gymnasium, international education center and additional dormitories.

DC Alliance completes Ningbo Hanvos School in China

Image © Xing Zhi Ying Xiang

Concept Introduction

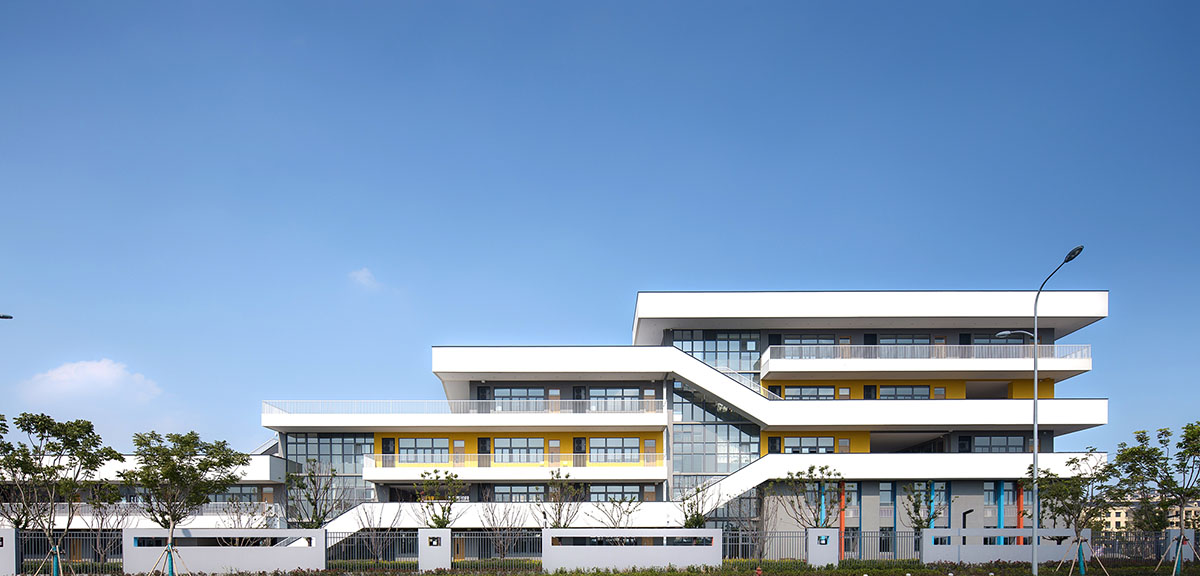

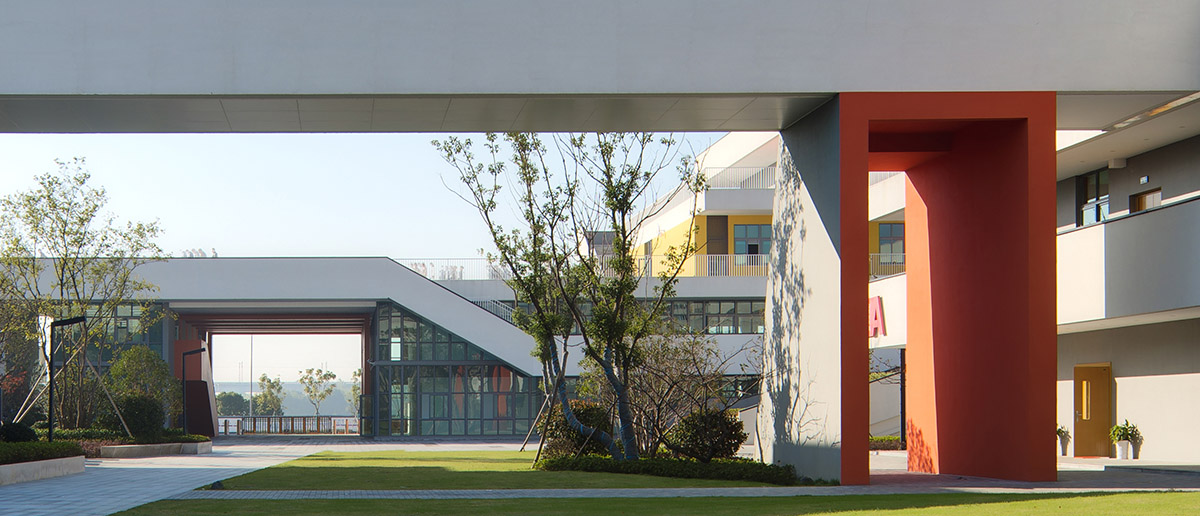

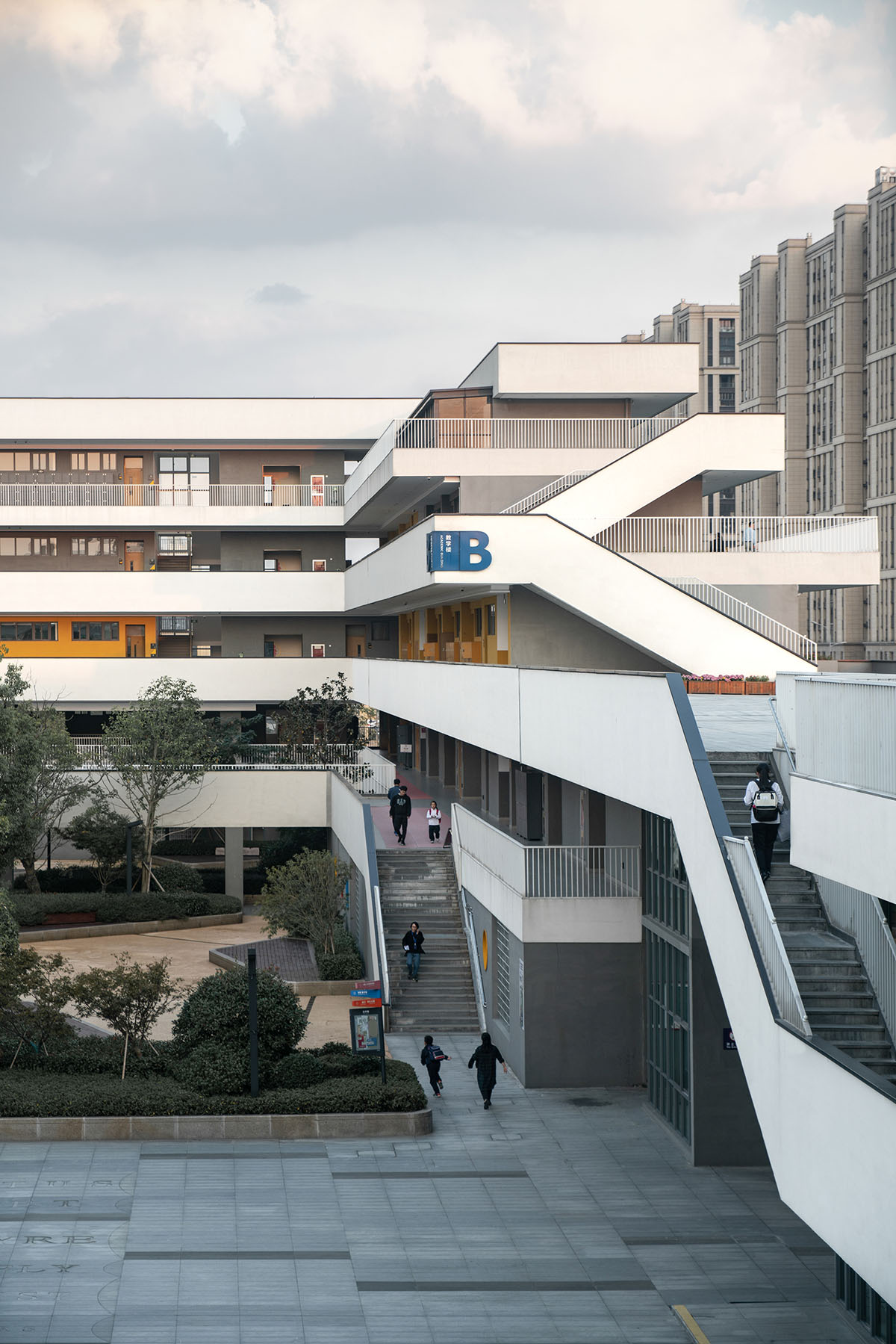

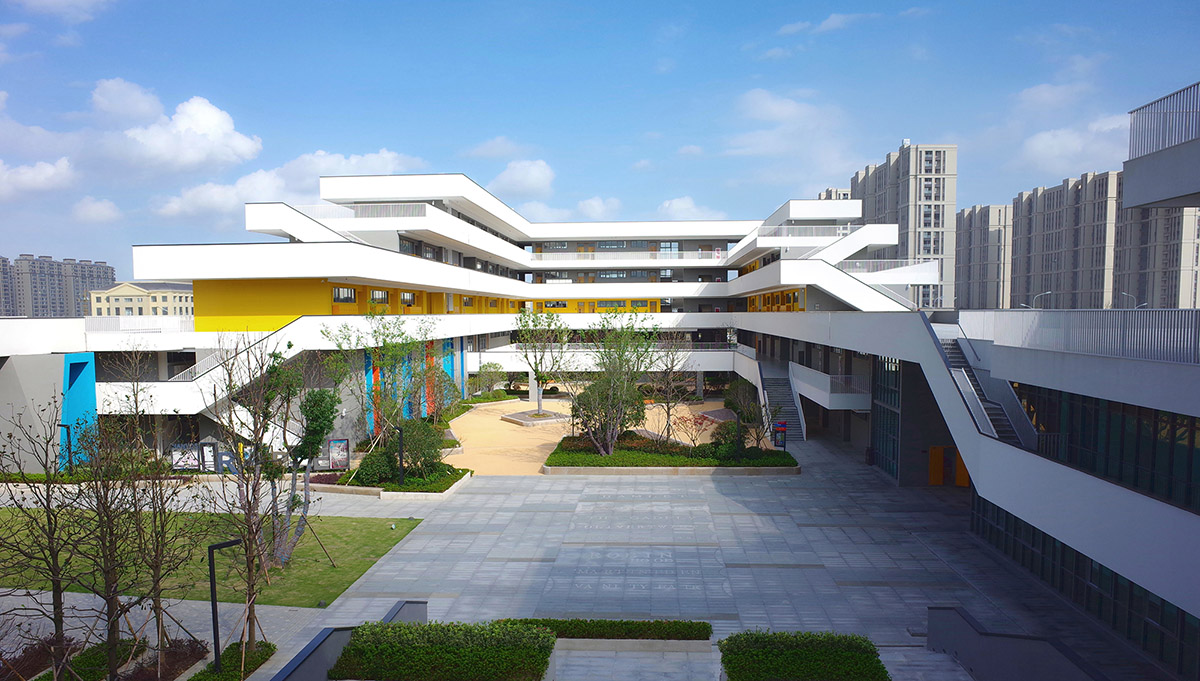

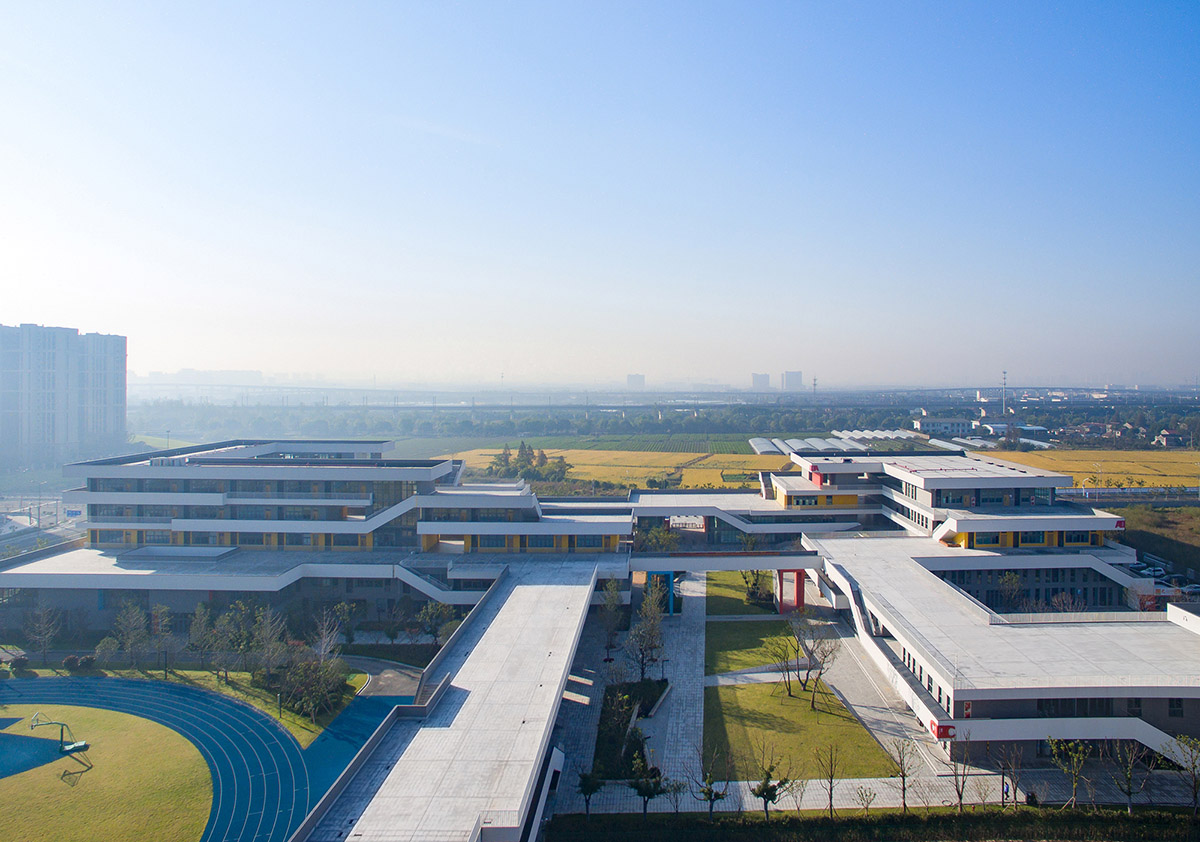

"Folded Courtyard" is the core design concept of this school. The stereoscopic organization of school space unfolds in both horizontal and vertical directions. By being bended horizontally, the site is subdivided into different courtyards corresponding to different functional requirements: teaching, activities, livelihood, administration, recreation and etiquette, etc.

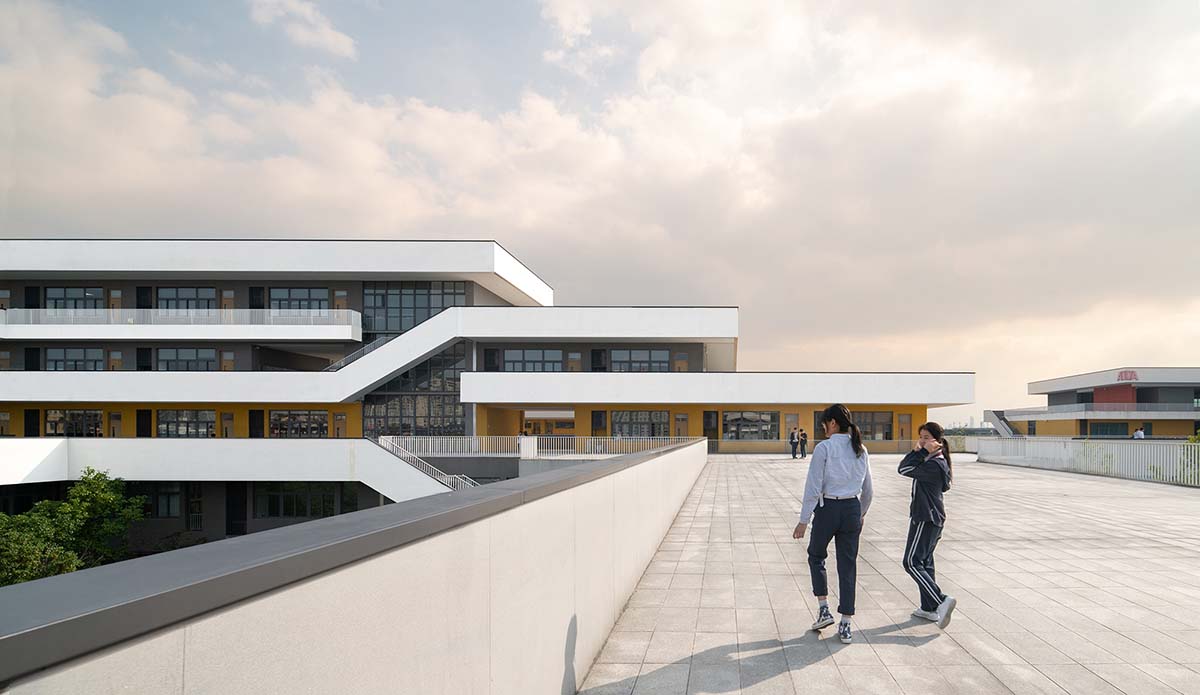

Each is placed in its proper place; at the same time, in the vertical direction, the platforms for different teaching space become activity space which is overlapped, open and active. There are vertical connections among different floors. Thus the air settlement is established under the premise of large partition of “folded courtyard”. Meanwhile, due to the existence of "folded courtyard", the pressure on ground activity area is reduced obviously. That makes it possible to plant lots of trees in ground yard.

DC Alliance completes Ningbo Hanvos School in China

Image © Liu Yang

Project Innovation

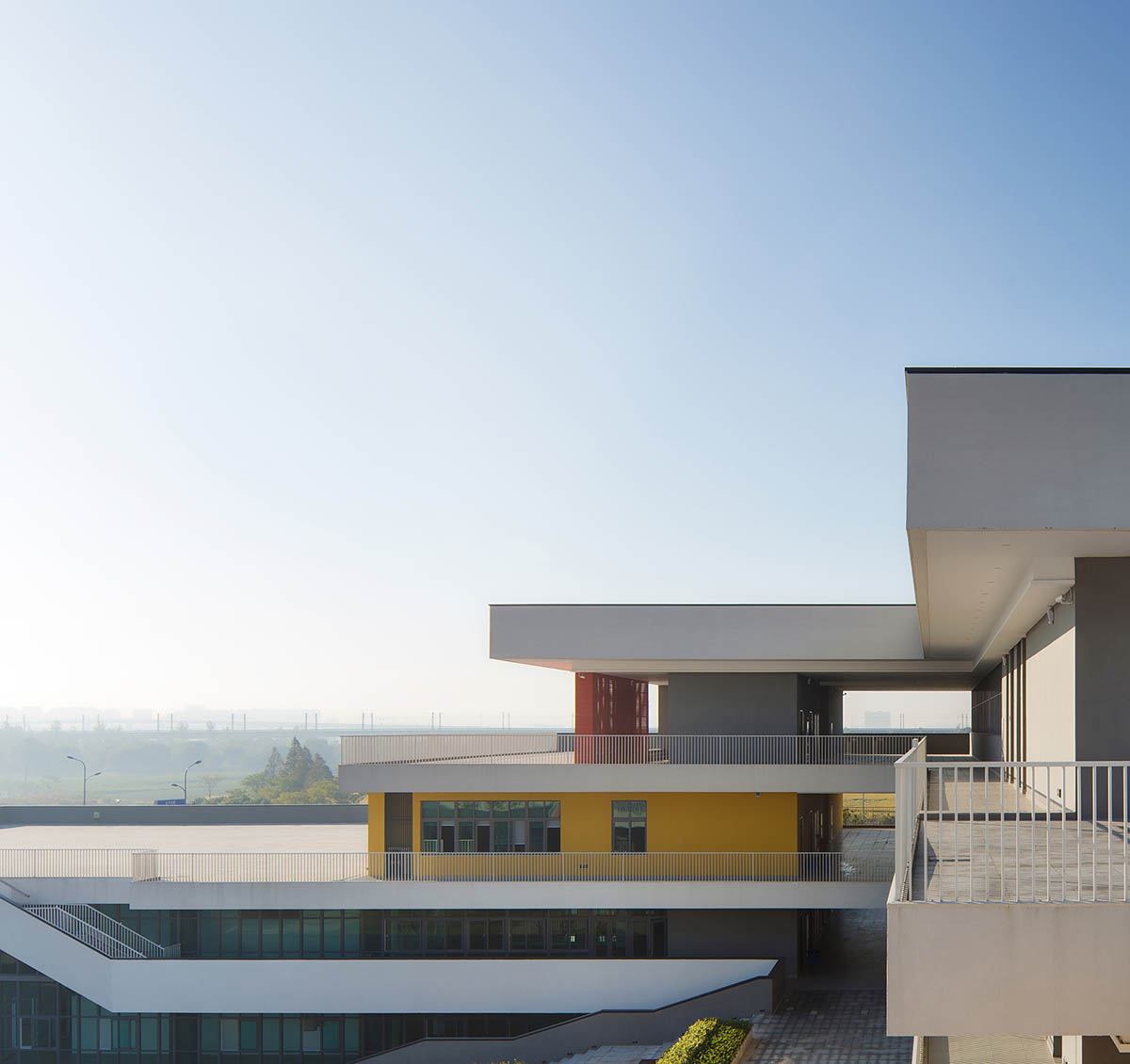

"Zero Distance" space conversion: on the one hand, the internal space is wrapped by platforms in layers. When room’s door is opened, users will enter continuous public space, and the space conversion in horizontal becomes the shortest; on the other hand, vertical connection becomes the most important element in the space system.

The vertical space element is no longer defined as stairs and steps. Vertical height space and terrace are designed in purpose to strengthen communication among different layers. That makes the process of vertical traffic become a process of public activities. Thus a conceptual "Zero Distance" organization mode is created between the internal space and the external space. This organization mode also creates a new space carrier for the new teaching mode.

DC Alliance completes Ningbo Hanvos School in China

Image © Xing Zhi Ying Xiang

Design Challenges

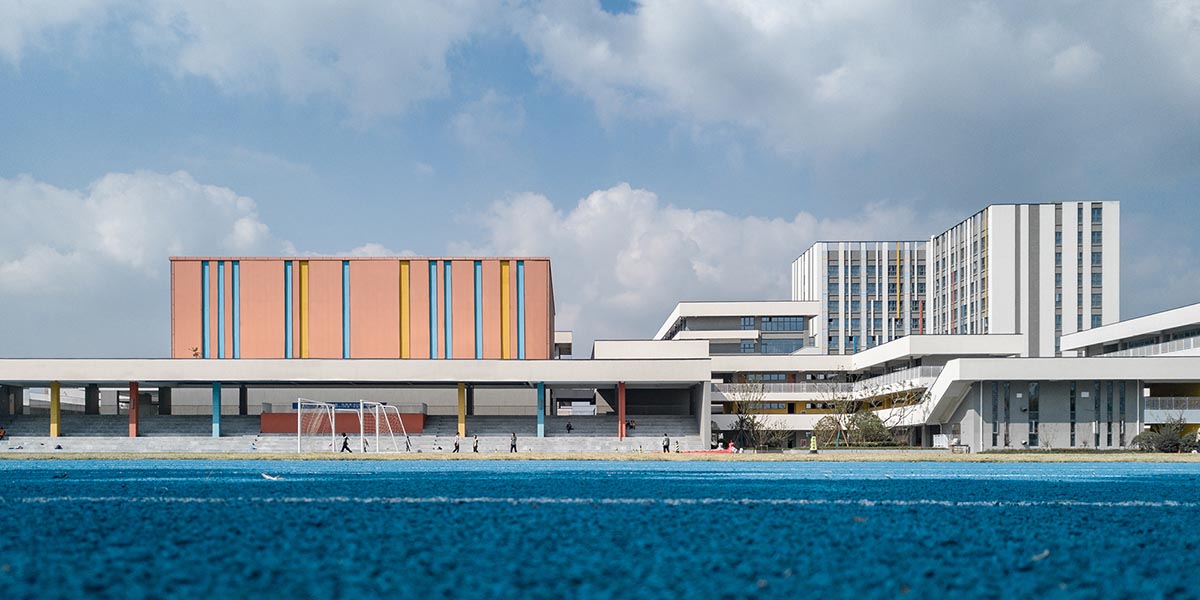

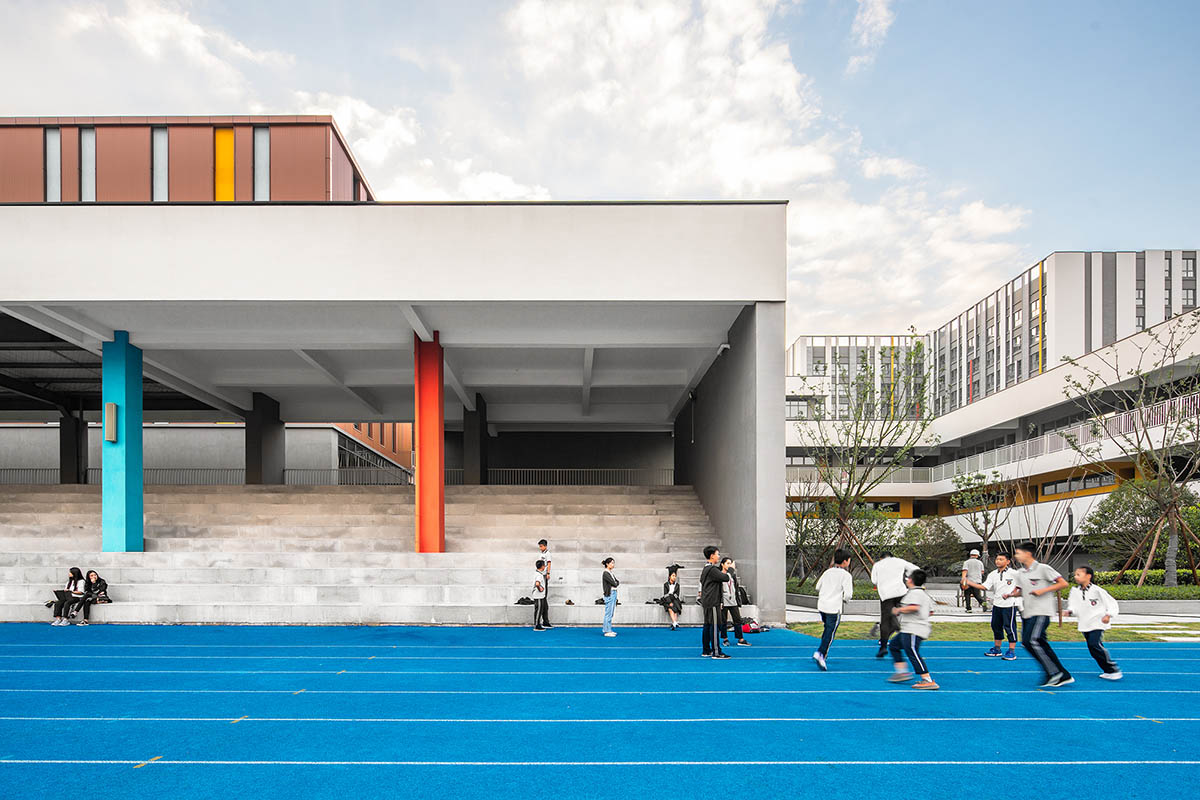

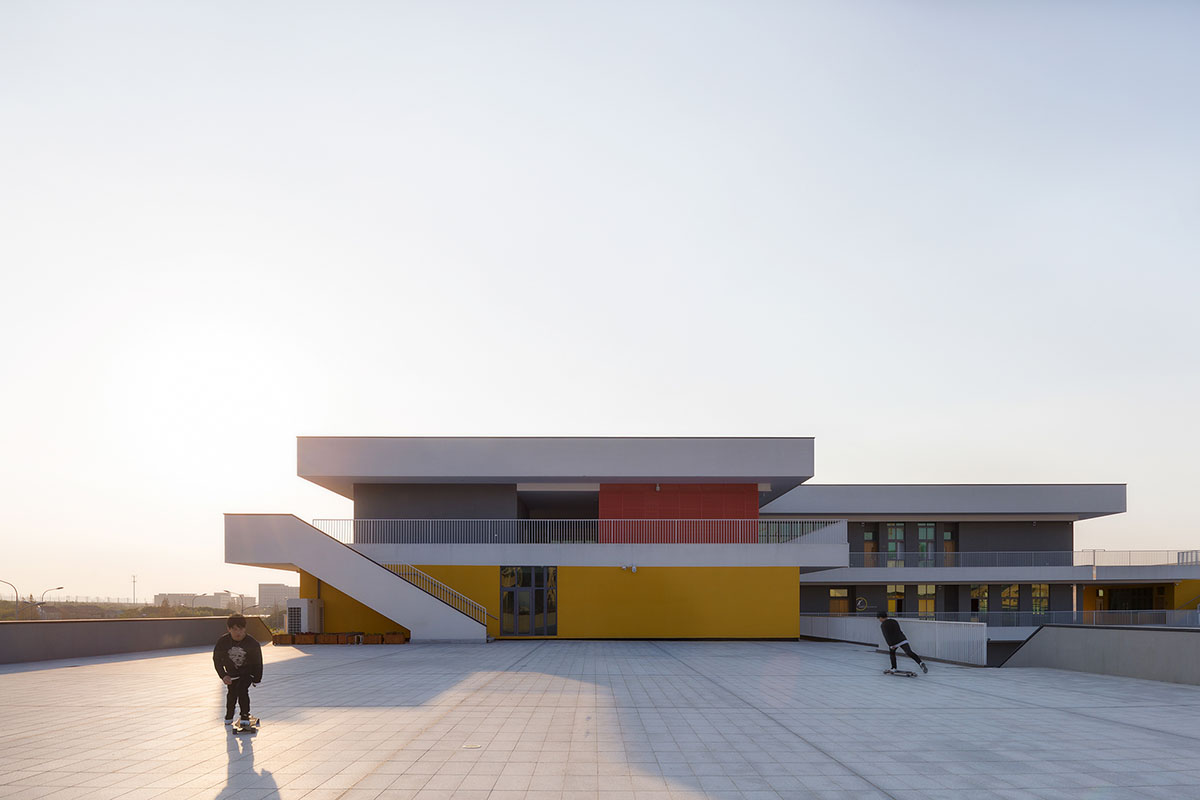

The contradiction between limited project land use and the high demand of international teaching mode for the site is the biggest challenge in this design. Under the pressure of maximize the playground, Hanvos School takes the approach of “asking for space from the sky”: the school core public space is located at the top of building terrace, and basic teaching unit rooms are at the bottom of terrace.

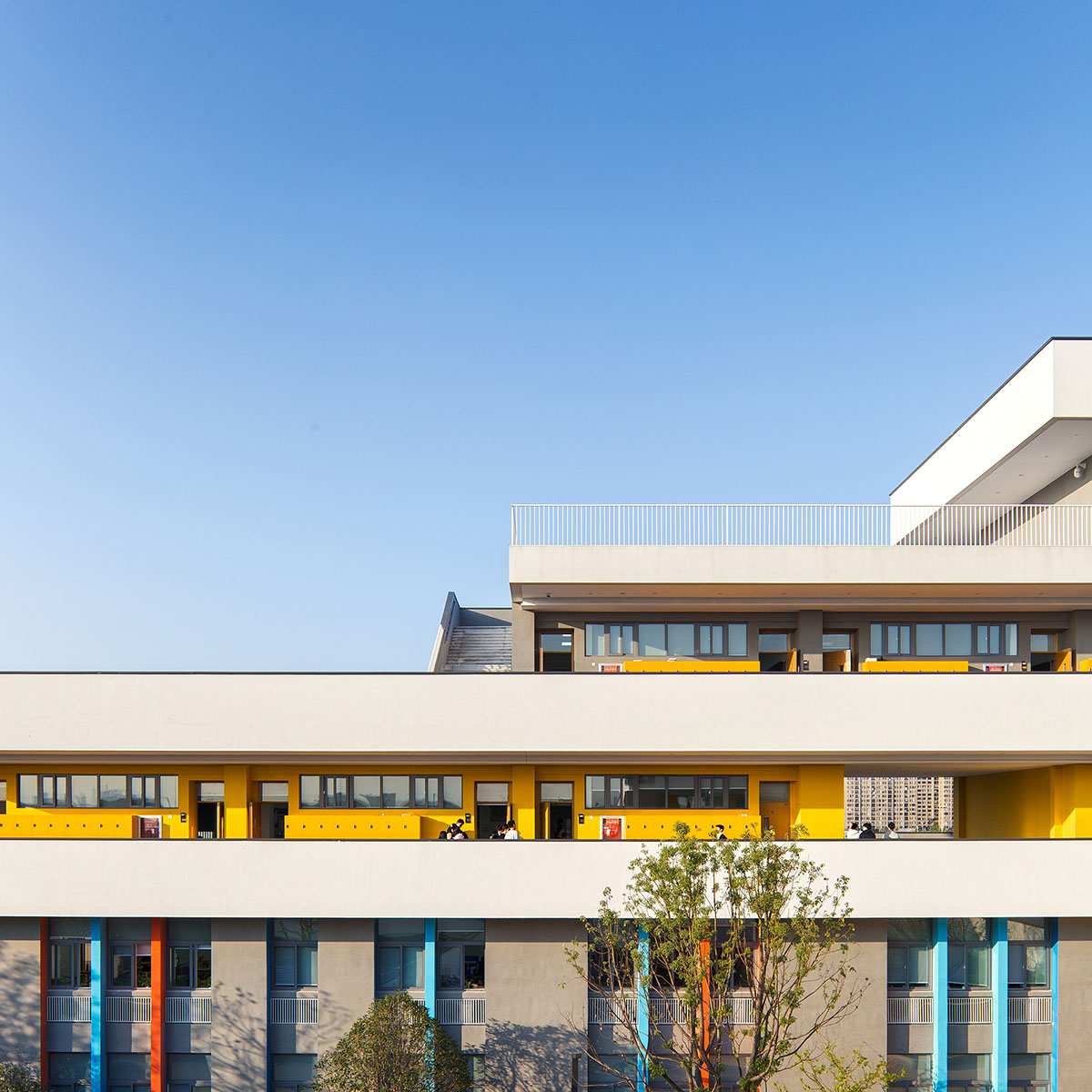

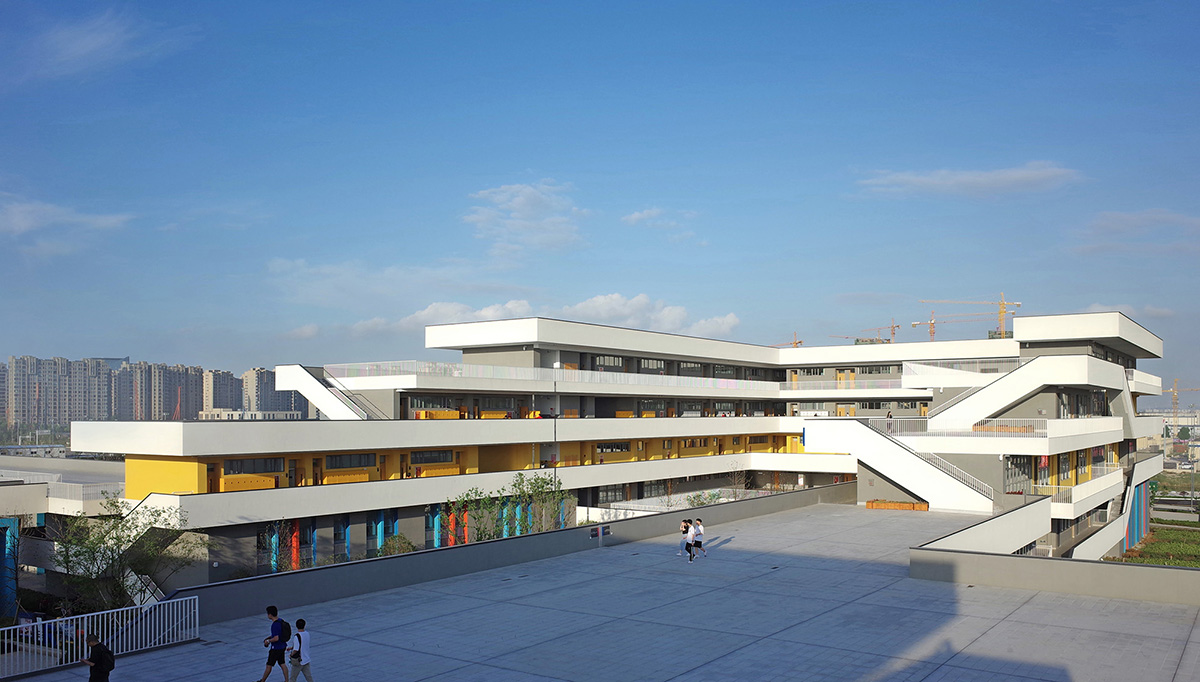

The way of access is from the bottom up, and public space is not only permeated to the whole campus through different vertical traffic, but also connects different layers of public space as a whole. This maximizes the connection between the entire public space and the outside. All playground faces to the sky and gets the best light and views. In fact, the final addition of more than 10,000 square meters aerial platform is a small record for school design.

DC Alliance completes Ningbo Hanvos School in China

Image © Xing Zhi Ying Xiang

DC Alliance completes Ningbo Hanvos School in China

Image © Liu Yang

DC Alliance completes Ningbo Hanvos School in China

Image © Xing Zhi Ying Xiang

DC Alliance completes Ningbo Hanvos School in China

Image © Liu Yang

DC Alliance completes Ningbo Hanvos School in China

Image © Liu Yang

DC Alliance completes Ningbo Hanvos School in China

Image © Liu Yang

DC Alliance completes Ningbo Hanvos School in China

Image © Xing Zhi Ying Xiang

DC Alliance completes Ningbo Hanvos School in China

Image © Liu Yang

DC Alliance completes Ningbo Hanvos School in China

Image © Xing Zhi Ying Xiang

DC Alliance completes Ningbo Hanvos School in China

Image © Liu Yang

DC Alliance completes Ningbo Hanvos School in China

Image © Liu Yang

DC Alliance completes Ningbo Hanvos School in China

Image © Liu Yang

DC Alliance completes Ningbo Hanvos School in China

Image © Liu Yang

DC Alliance completes Ningbo Hanvos School in China

Image © Xing Zhi Ying Xiang

DC Alliance completes Ningbo Hanvos School in China

Image © Xing Zhi Ying Xiang

DC Alliance completes Ningbo Hanvos School in China

Image © Xing Zhi Ying Xiang

DC Alliance completes Ningbo Hanvos School in China

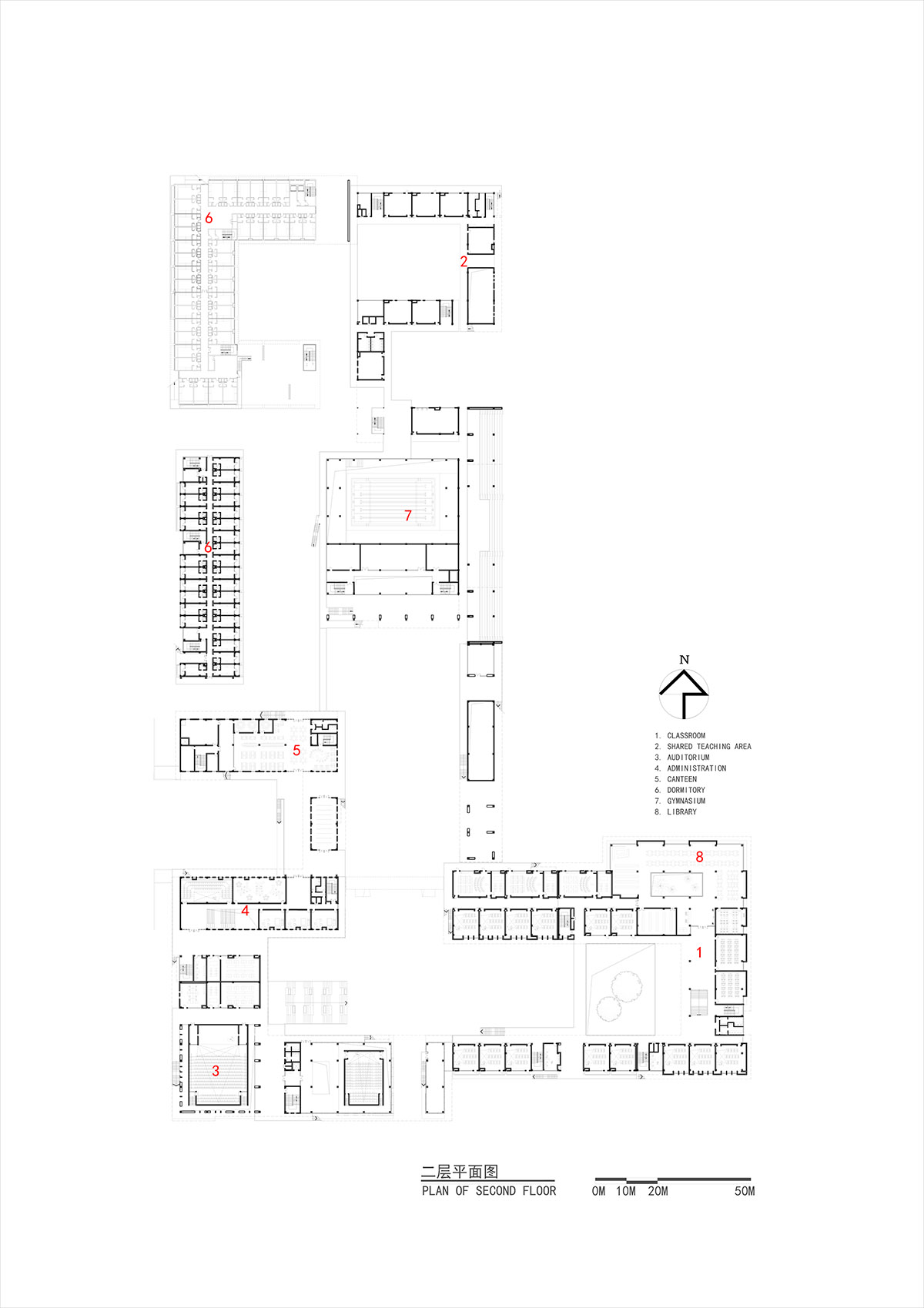

2nd floor plan

DC Alliance completes Ningbo Hanvos School in China

4th floor plan

DC Alliance completes Ningbo Hanvos School in China

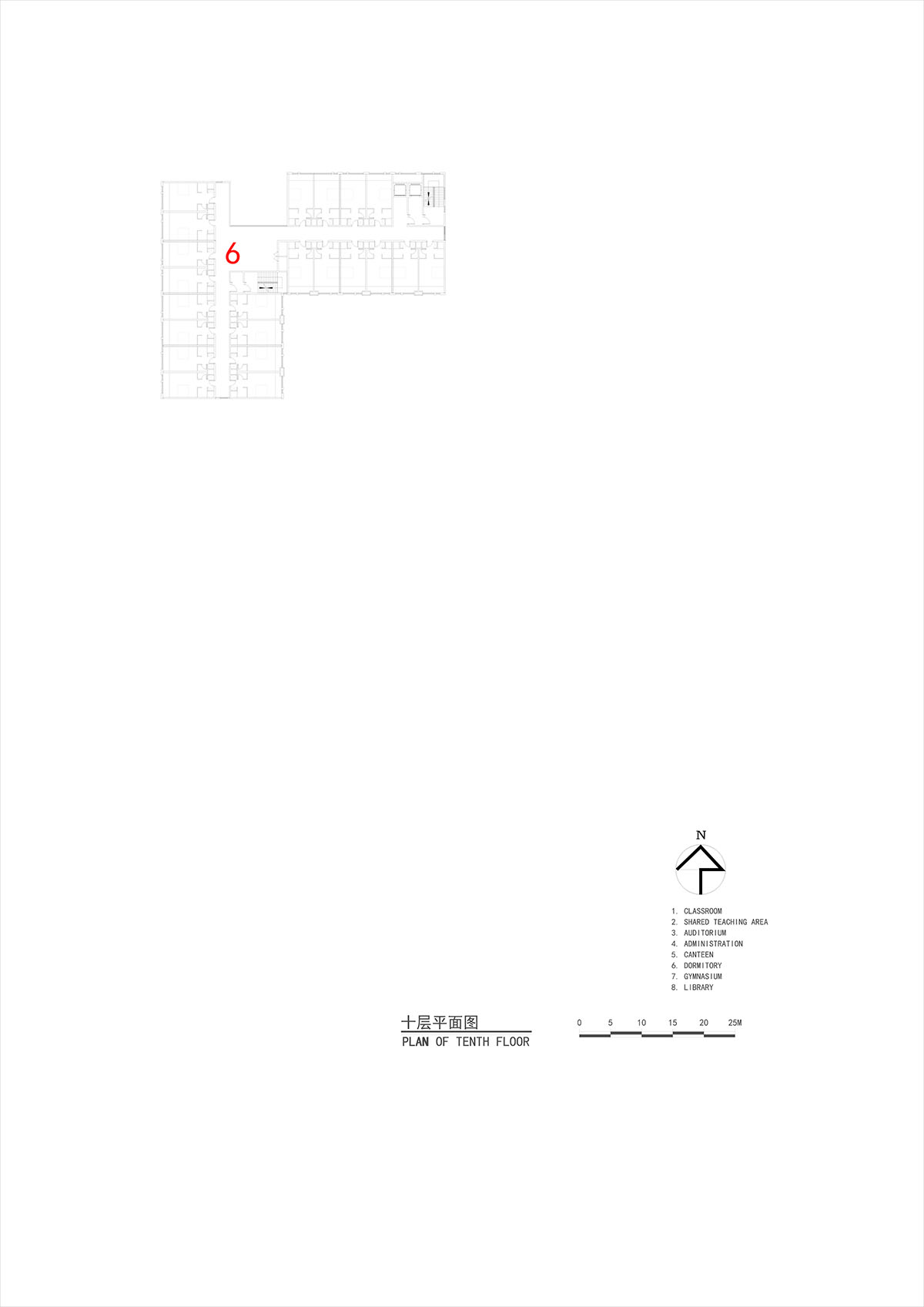

10th floor plan

Sustainability

Materials for wall: Barotropic aerated concrete bloc B6

Thermal insulation material: XPS, Mineral (rock) wool felt, Inorganic lightweight aggregate insulation mortar type C

Energy measures: Rooftop solar energy storage

Project facts

Name of Project: Ningbo Hanvos School

Architecture: DC Alliance

Design Team: Dong Yi, Wang Han, Chen Cheng, Hu Zhuolin, Huang Zhigang, Zhou Yuandan, Long Bin, Liu Lili, Zhou Yang

Project Site: No. 619, West Yonghe Road, Luotuo Street, Zhenhai District, Ningbo, China

Project Type: Public Building

Site Area: 53,330 sqm

Building Area: 67045.38 sqm

Completion Time: 2019.12

Main Materials: Exterior Wall Coating (Nippon Paint), Pavement (GOLDME), Door & Window System (Shide)

Top image © Liu Yang

All drawings © DC Alliance
