Nha Dan Architects built this house with porous facade to provide maximum thermal comfort in Vietnam

Vietnam Architecture News - Oct 03, 2019 - 10:49   13591 views

Nha Dan Architects built this house with porous facade to provide maximum thermal comfort in Vietnam

Vietnamese architecture firm Nha Dan Architects has designed this checkered residence to provide maximum daylight and natural ventilation as much as possible in Ho Chi Minh city, Vietnam.

The house, named Cascading House, is located on a site which has the typical challenges of many urban lots in Ho Chi Minh city - abutted by tall neighboring houses.

Nha Dan Architects built this house with porous facade to provide maximum thermal comfort in Vietnam

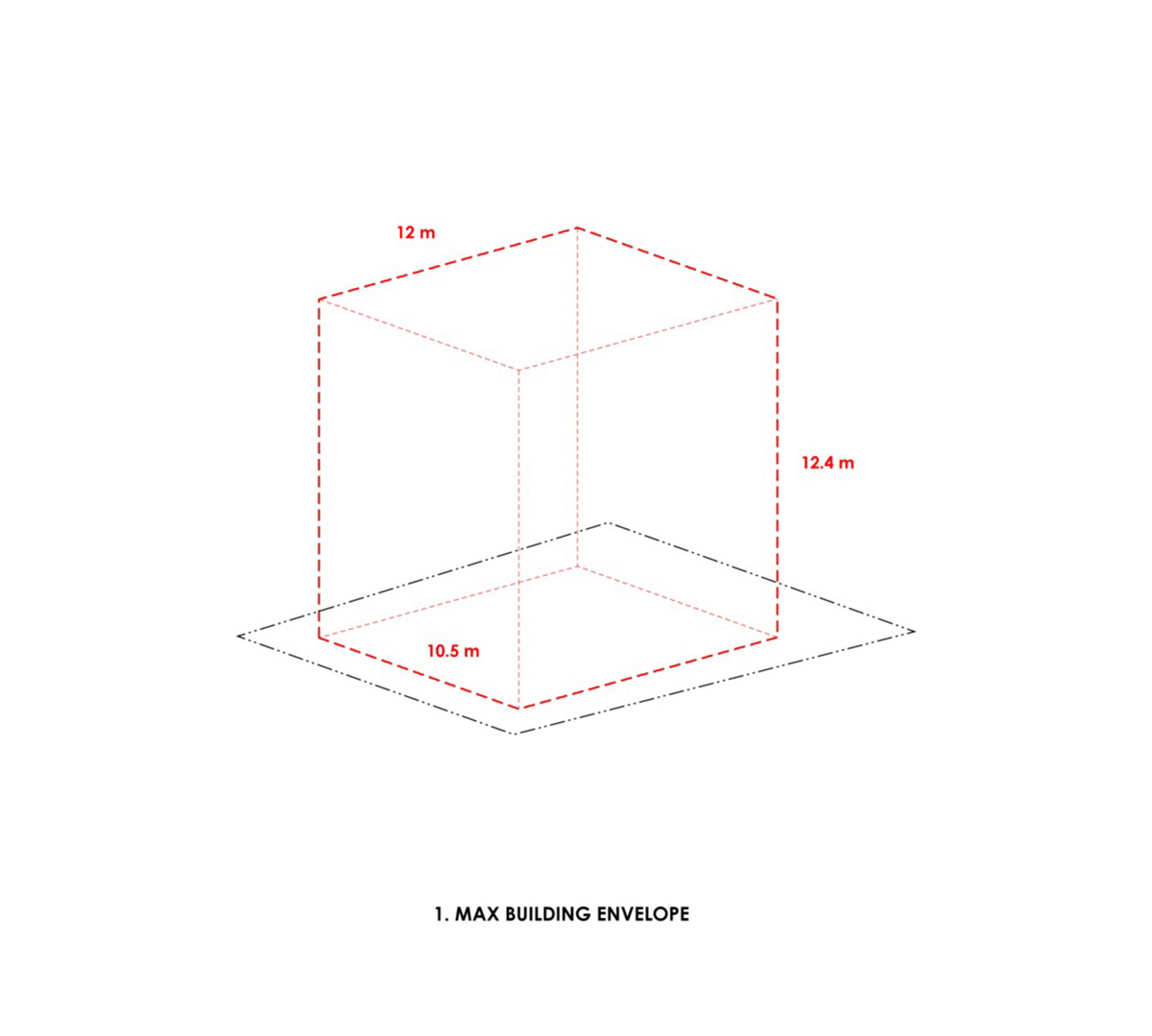

The client's brief included to access to daylighting and natural ventilation throughout the building. Due to the height restriction, the architects pushed the first level of the house below the ground to accommodate the large program.

In an effort to solve as many issues as possible, the architects proposed a concrete column system hidden inside the north and south concrete walls that faces the neighbors, acting as the primary structure for the house and freeing up the space in-between.

Nha Dan Architects built this house with porous facade to provide maximum thermal comfort in Vietnam

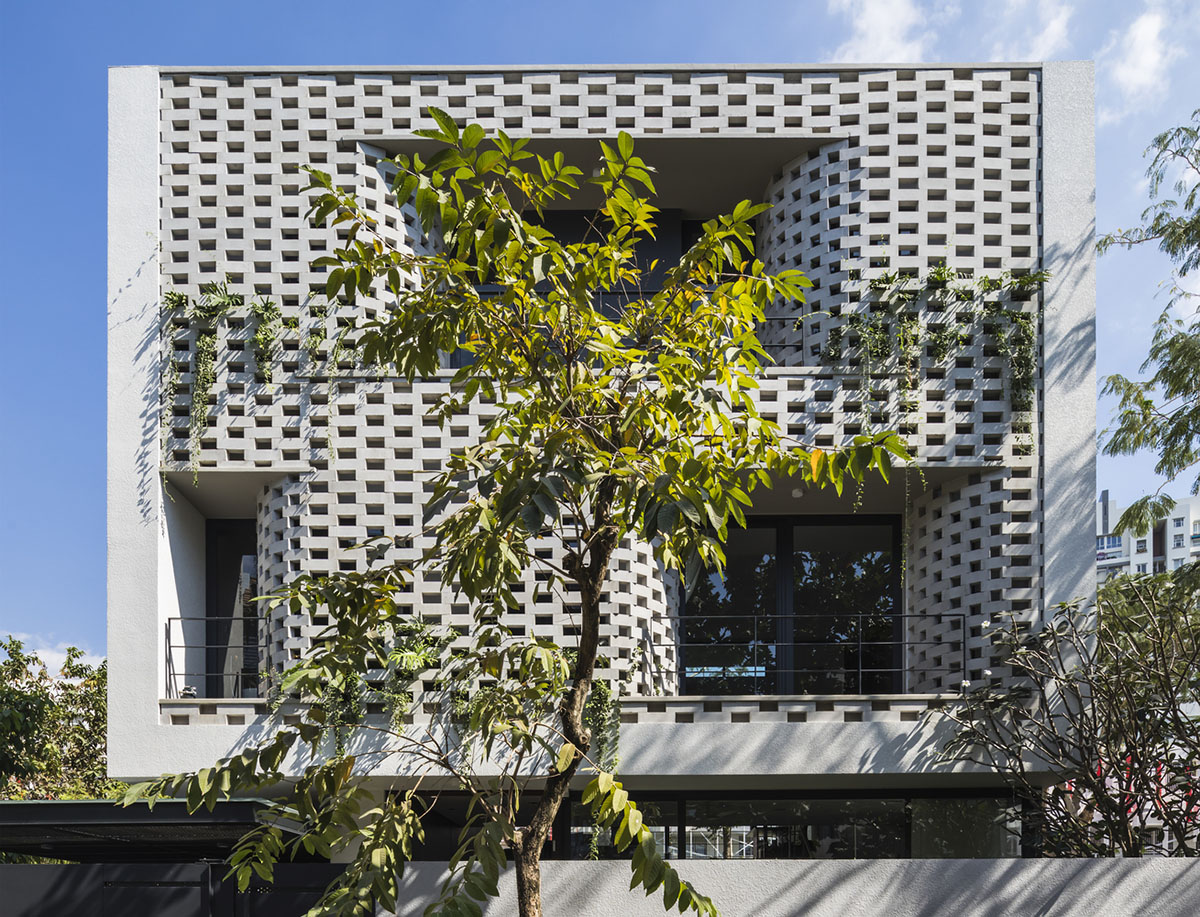

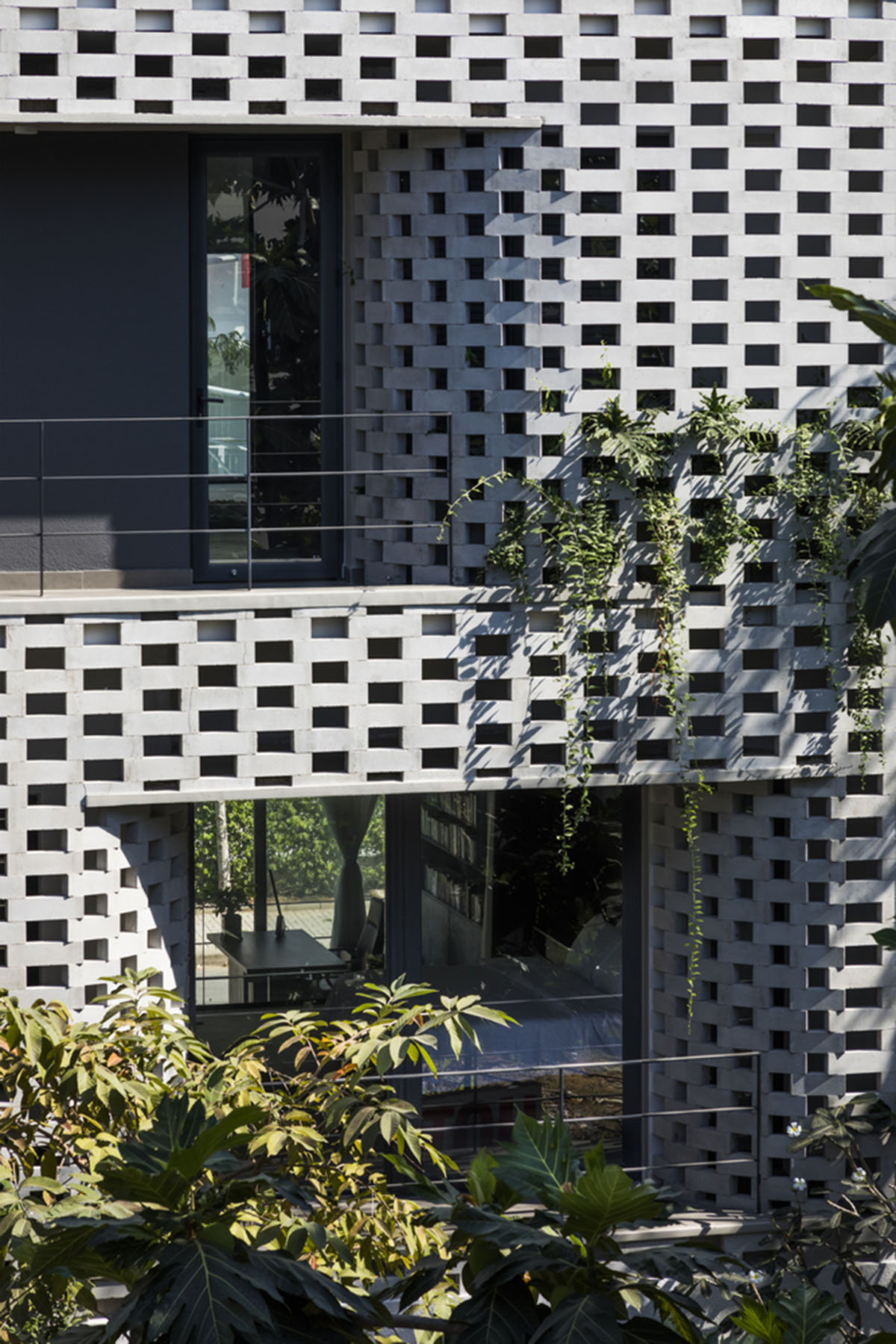

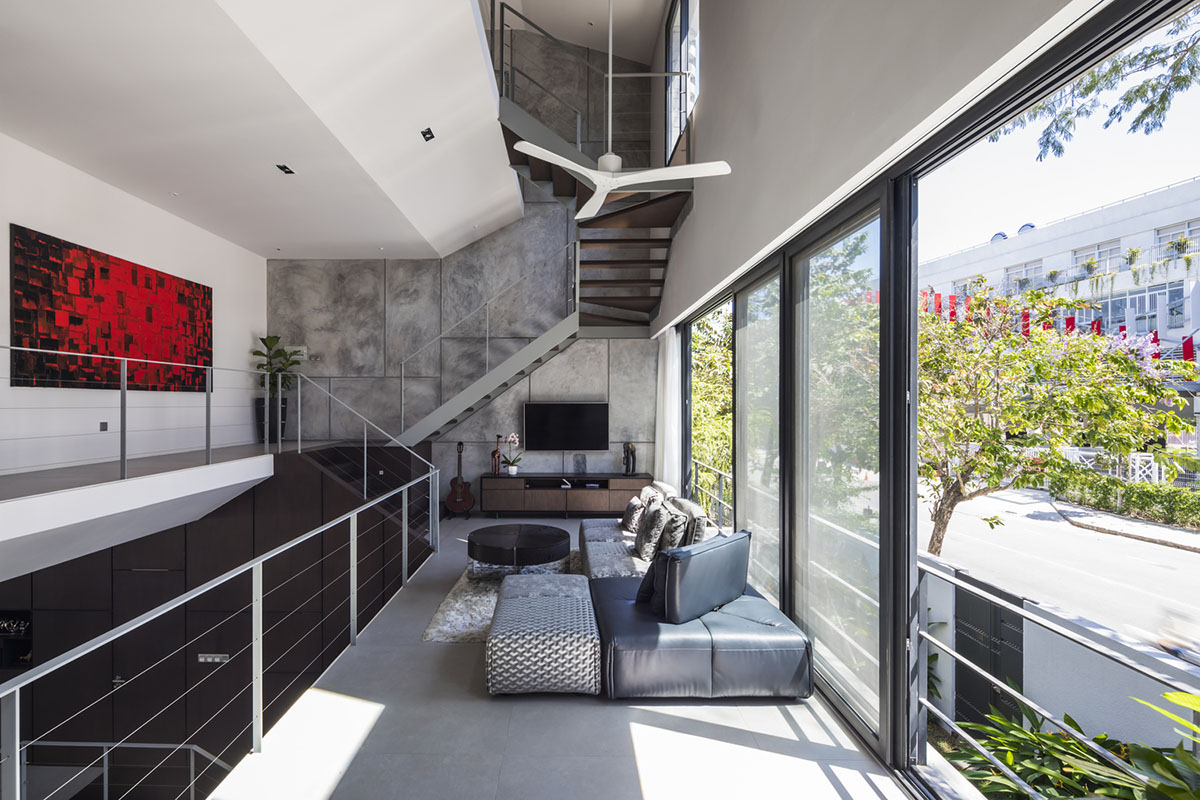

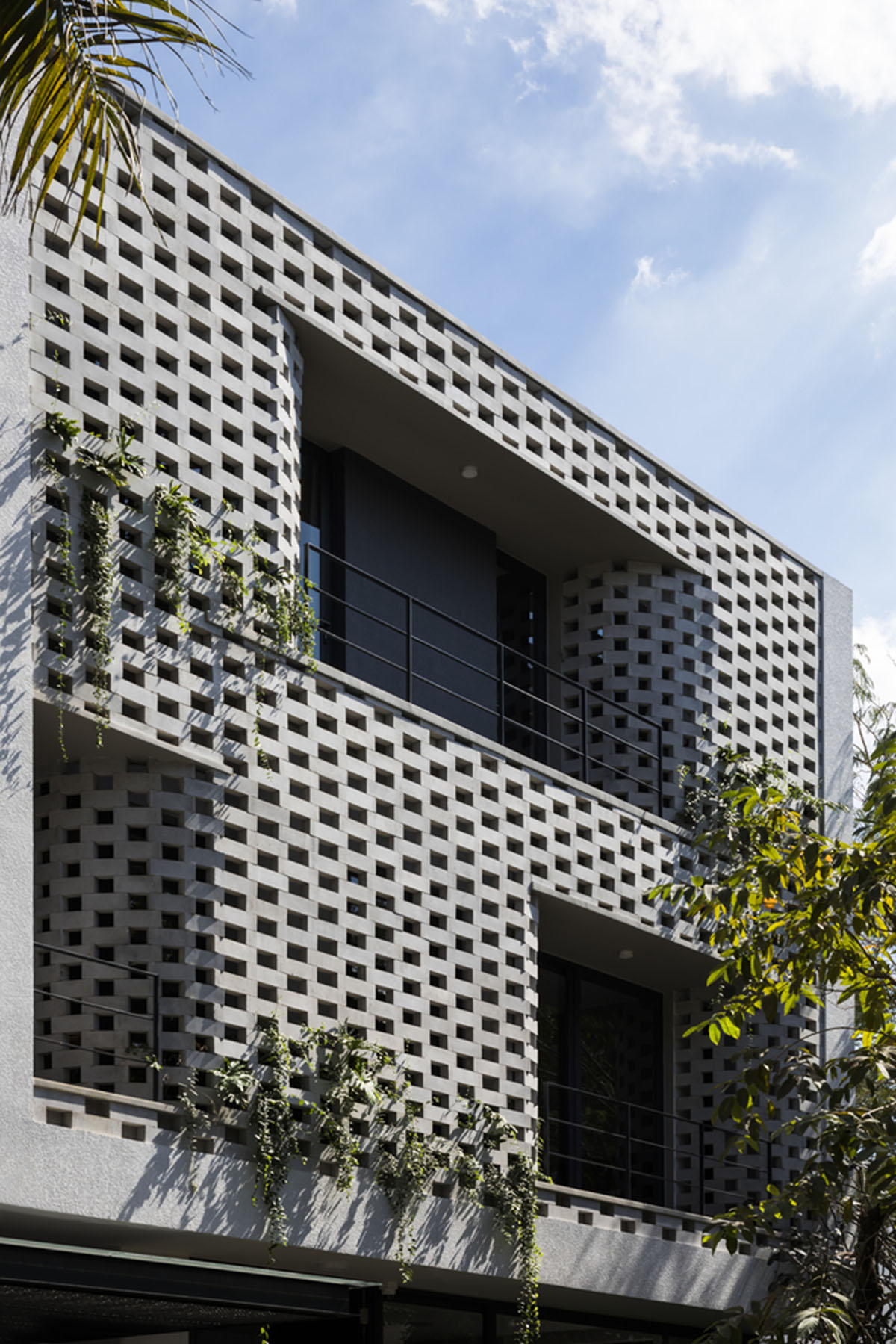

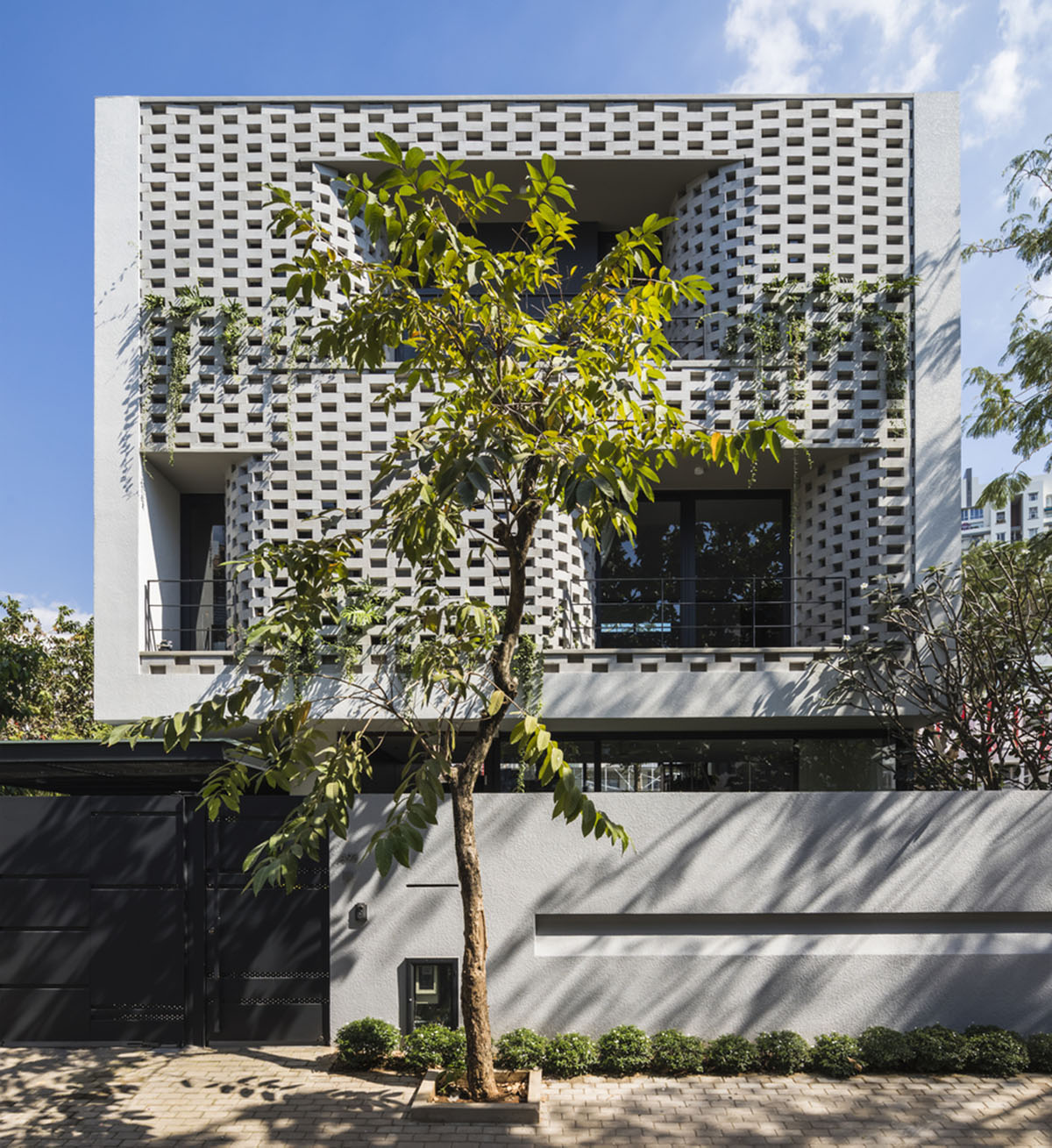

The breathtaking interior layout of the house present different sizes of volumes that can be arranged for different functions. A porous facade on the front is punctuated with large openings that allow terraces towards the street.

Nha Dan Architects built this house with porous facade to provide maximum thermal comfort in Vietnam

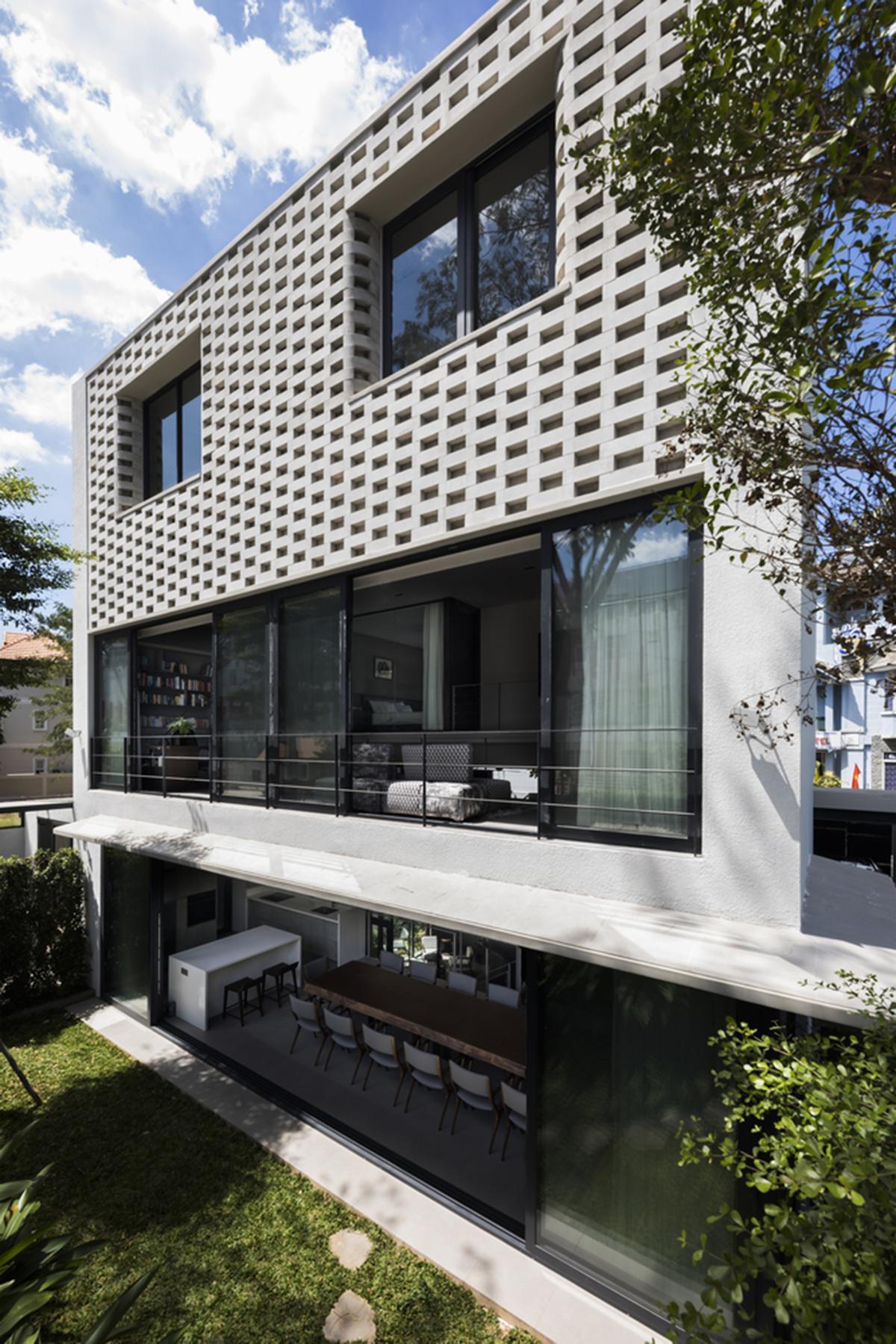

"These concrete walls provide privacy to the clients and their families and open up the east and west facade for views and outdoor-indoor connection," said Nha Dan Architects.

"Because the column system extends continuously from the basement to the roof, the concrete beams spanning in-between can be moved vertically without any structural concerns."

Nha Dan Architects built this house with porous facade to provide maximum thermal comfort in Vietnam

"This flexibility also meant total discretion to determine the elevations of the upper floors-which we intended to take advantage of," they added.

Nha Dan Architects built this house with porous facade to provide maximum thermal comfort in Vietnam

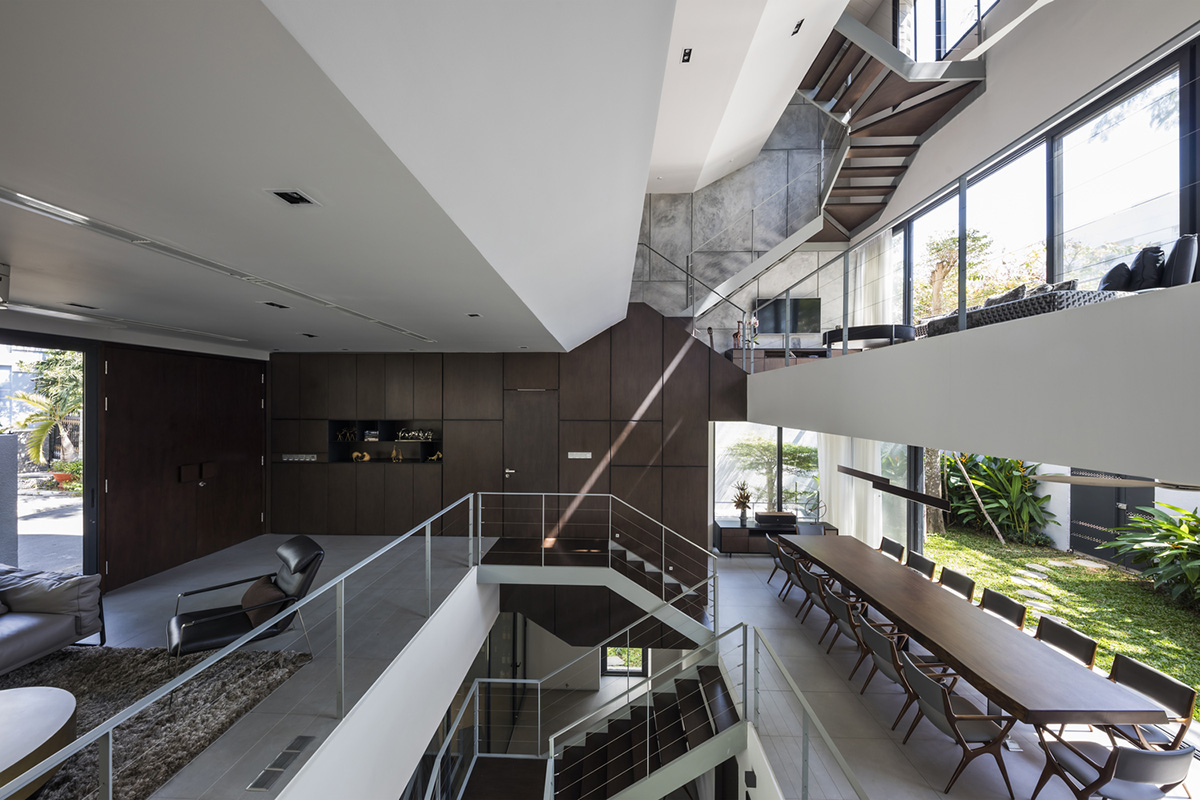

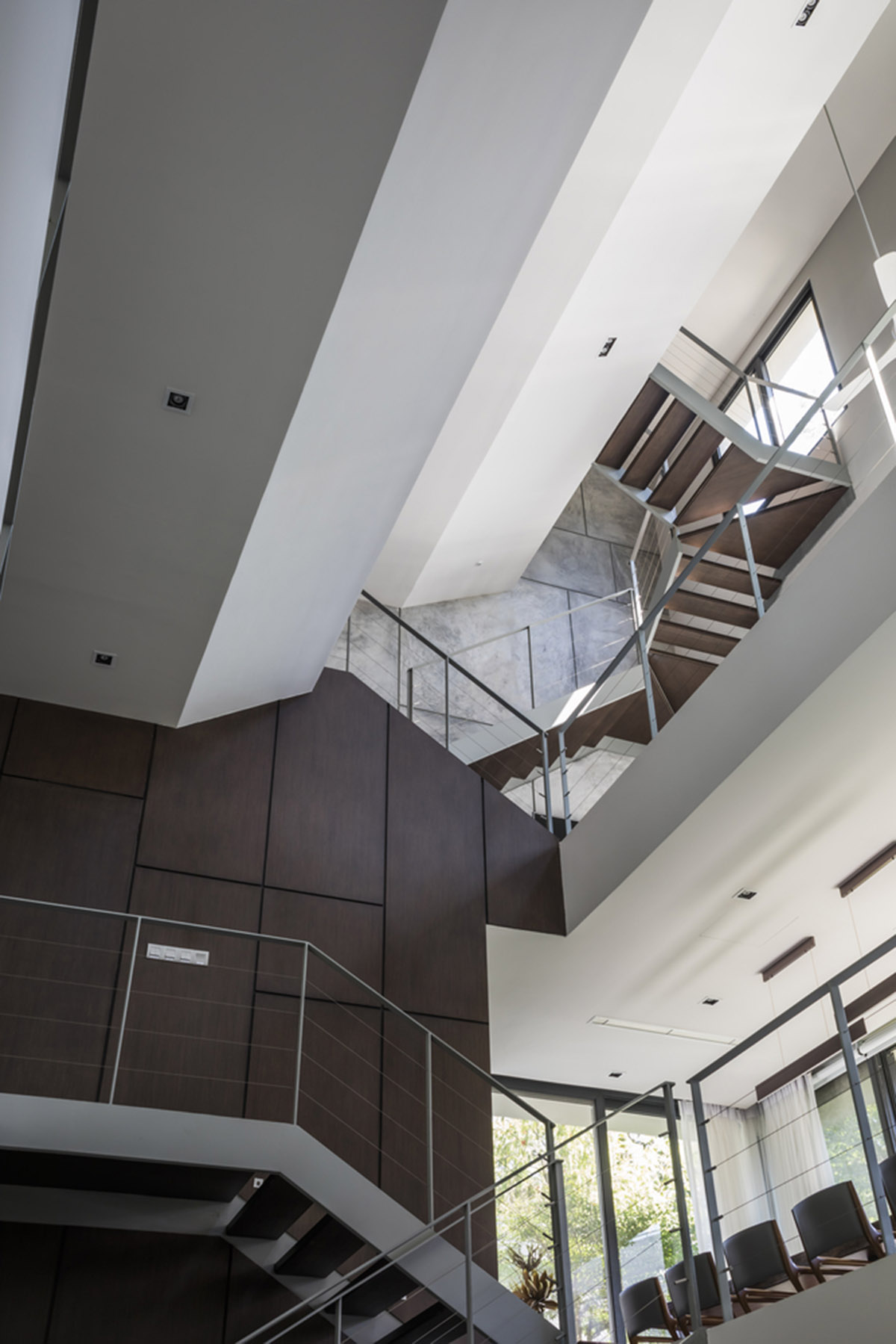

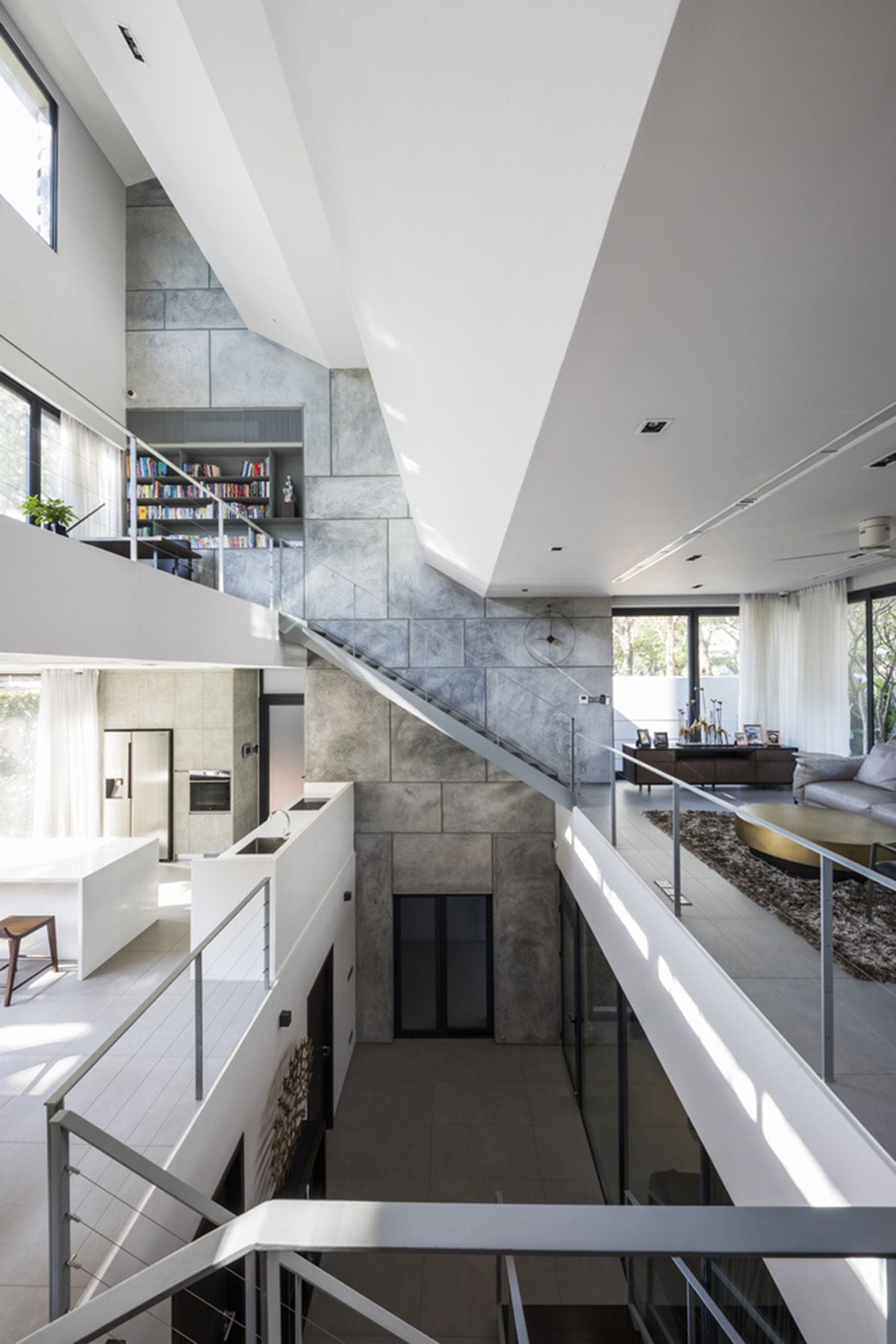

By convention, the program is stacked floor-by-floor to maximize the usable area of a small lot which could result in monotonous and isolated spaces. The studio wanted to do just the opposite: visually and spatially connecting the different parts of the house together by splitting the floor plates, and then cascading them to create a multi-story atrium.

Nha Dan Architects built this house with porous facade to provide maximum thermal comfort in Vietnam

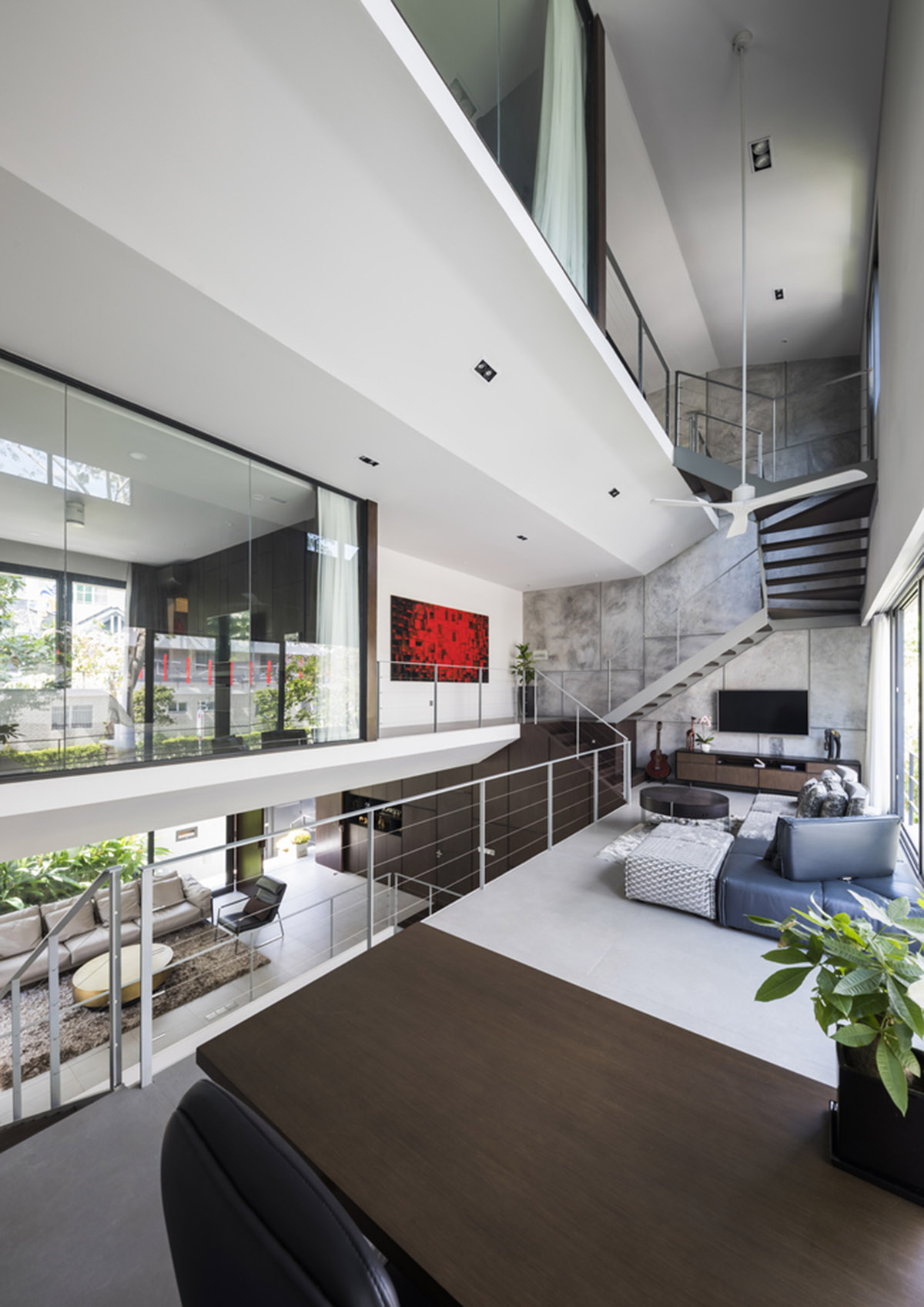

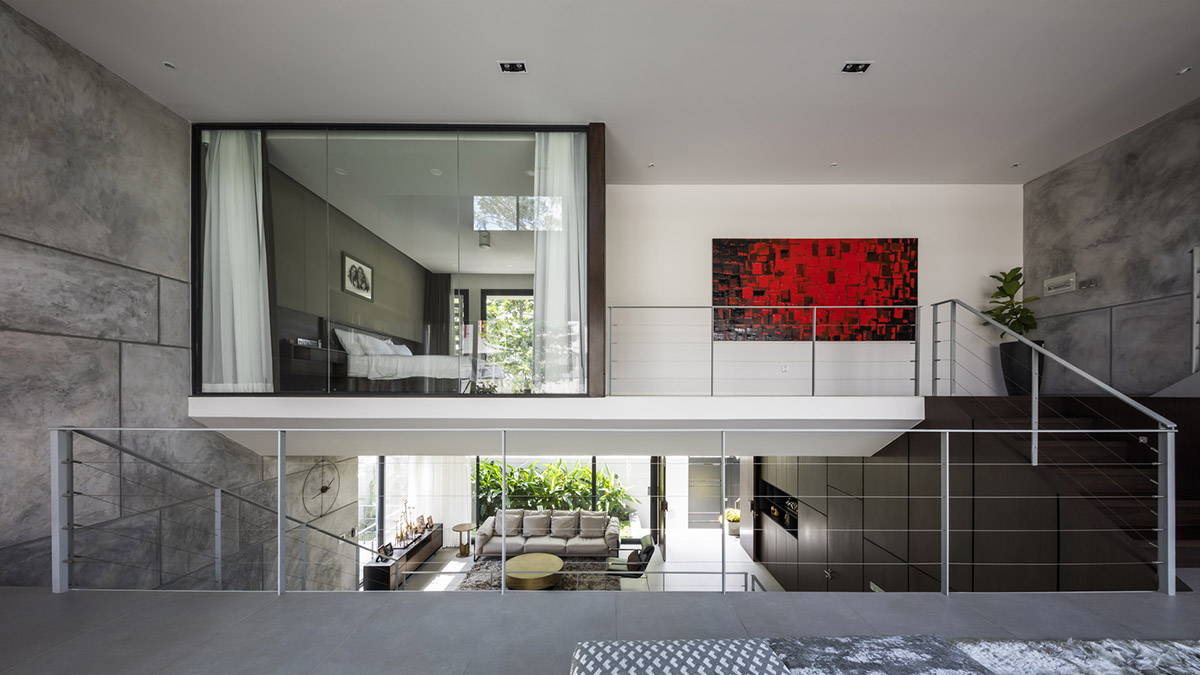

In this space, life unfolds naturally; once a family member steps out of the bedroom, he/she will be in an all-connected "room", and in the company of another member, whether that person is on the other side of the atrium or 2 levels above.

Nha Dan Architects built this house with porous facade to provide maximum thermal comfort in Vietnam

In addition to spatial articulation, this atrium brings daylighting down to the basement, and—working with the 2 sunken gardens which are naturally filled with cool air—aids the stack effect by letting the hot air rises to the top. The temperature of the lower floors, as a result, becomes more comfortable.

Nha Dan Architects built this house with porous facade to provide maximum thermal comfort in Vietnam

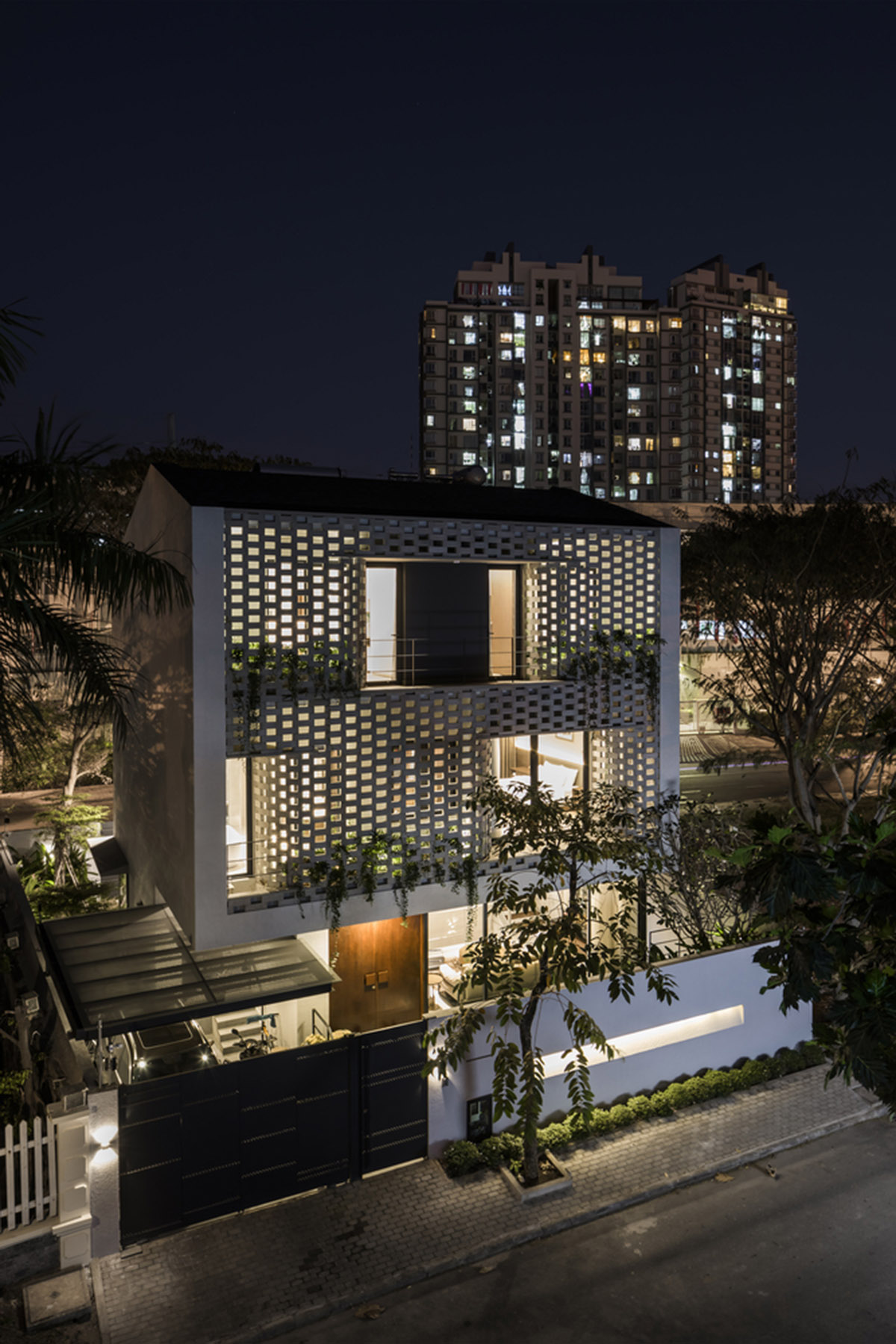

From the outside, Cascading House looks solid as a rock that provides sturdy shelter. The interior, however, feels as porous as a sponge soaking up natural light and air, and brings family members closer together-the qualities that make this house a home.

Nha Dan Architects built this house with porous facade to provide maximum thermal comfort in Vietnam

Nha Dan Architects built this house with porous facade to provide maximum thermal comfort in Vietnam

Nha Dan Architects built this house with porous facade to provide maximum thermal comfort in Vietnam

Nha Dan Architects built this house with porous facade to provide maximum thermal comfort in Vietnam

Nha Dan Architects built this house with porous facade to provide maximum thermal comfort in Vietnam

Nha Dan Architects built this house with porous facade to provide maximum thermal comfort in Vietnam

Nha Dan Architects built this house with porous facade to provide maximum thermal comfort in Vietnam

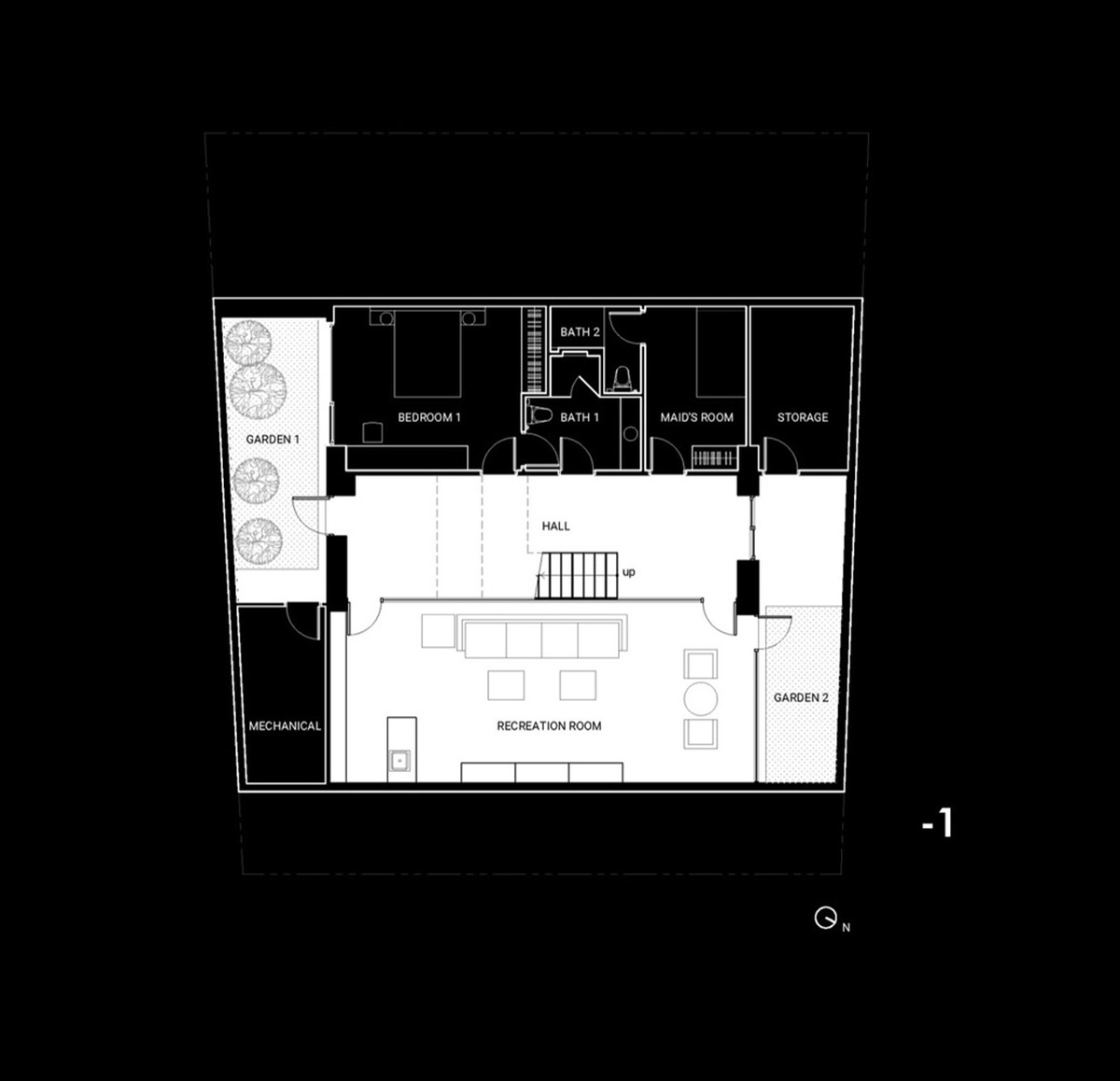

Basement floor plan

Nha Dan Architects built this house with porous facade to provide maximum thermal comfort in Vietnam

First floor plan

Nha Dan Architects built this house with porous facade to provide maximum thermal comfort in Vietnam

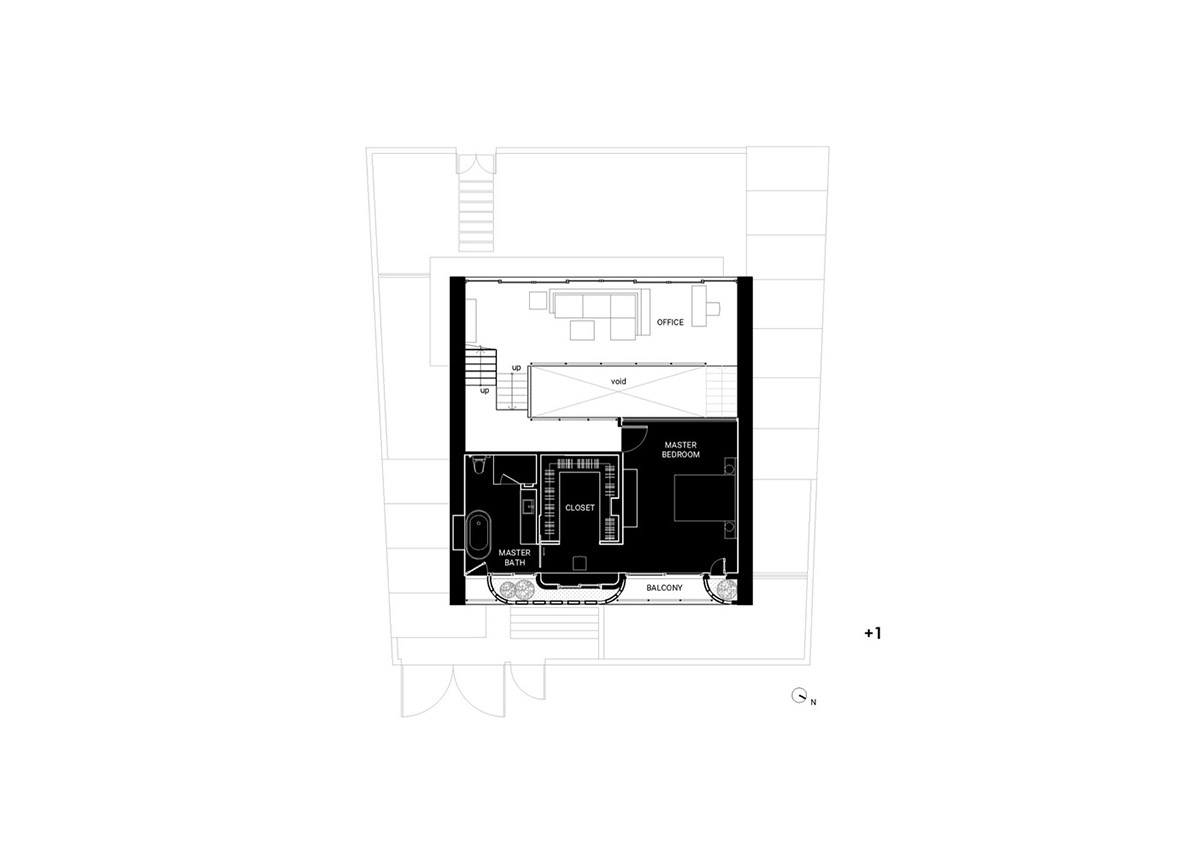

Second floor plan

Nha Dan Architects built this house with porous facade to provide maximum thermal comfort in Vietnam

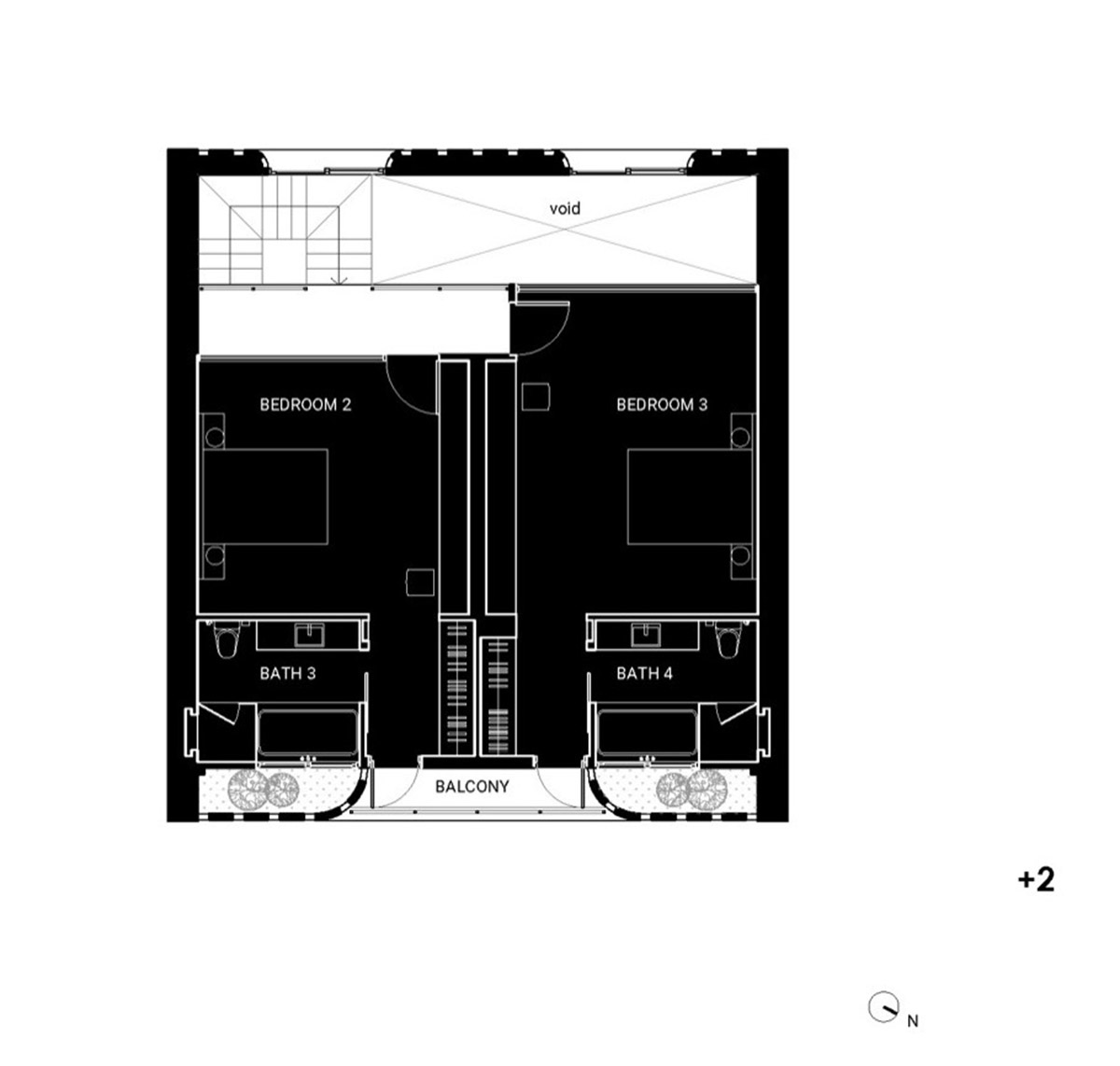

Third floor plan

Nha Dan Architects built this house with porous facade to provide maximum thermal comfort in Vietnam

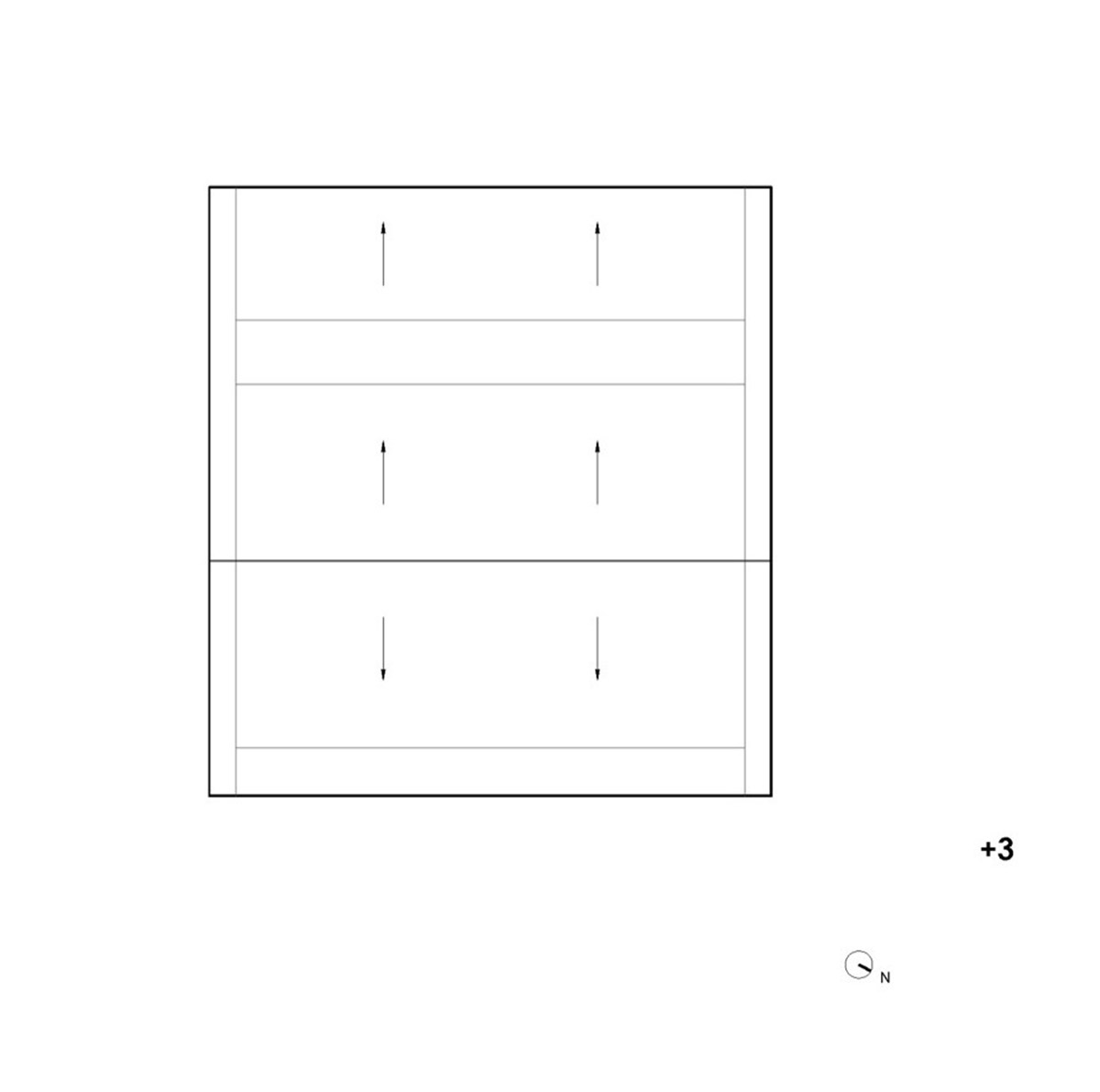

Roof plan


Section

Project facts

Status: completed
Design: 2017
Construction: 2018
Build area: 540m2

Architects in charge:
Nguyen Dinh Gioi
Nguyen Thi Hong Lien
Contractor: NhaDan Co., Ltd

All images © Hiroyuki Oki

All drawings © Nha Dan Architects

> via Nha Dan Architects
