Protruding volumes form for this courtyard villa with beige shale brick in China

China Architecture News - Aug 1, 2019 - 03:52   1582 views

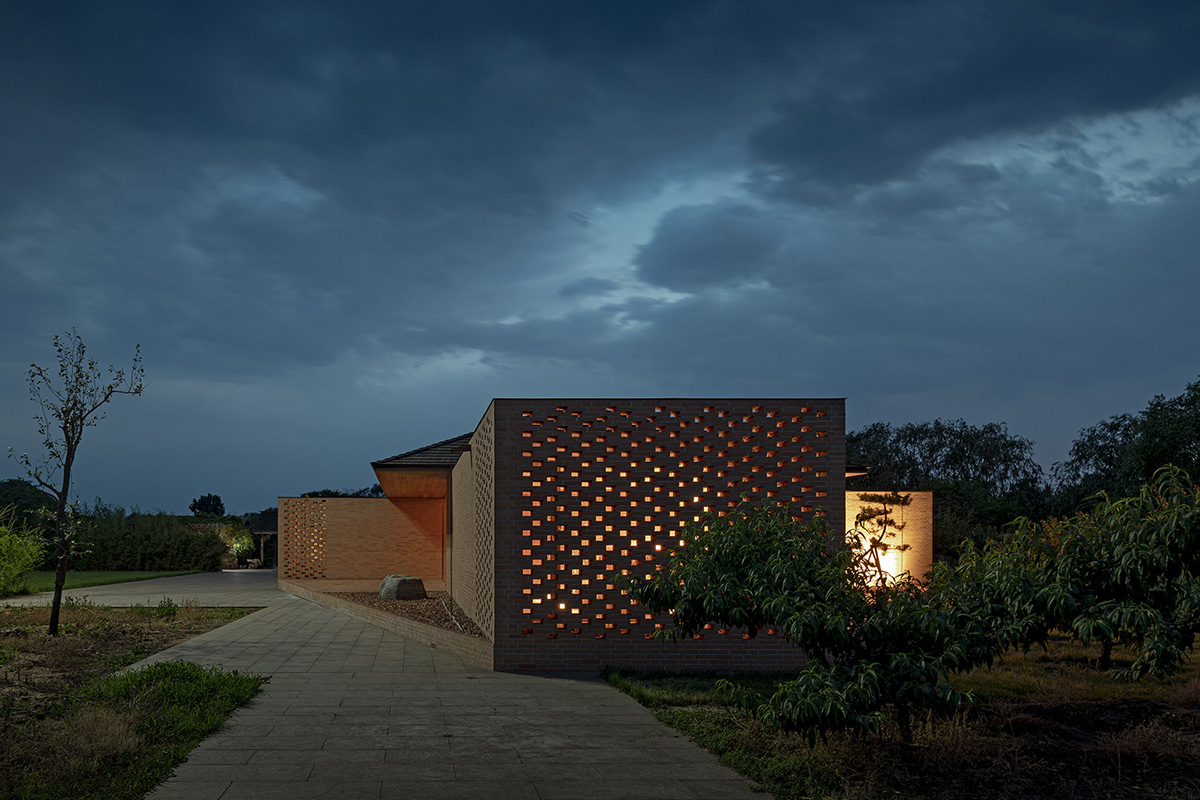

Protruding volumes form for this courtyard villa with beige shale brick in China

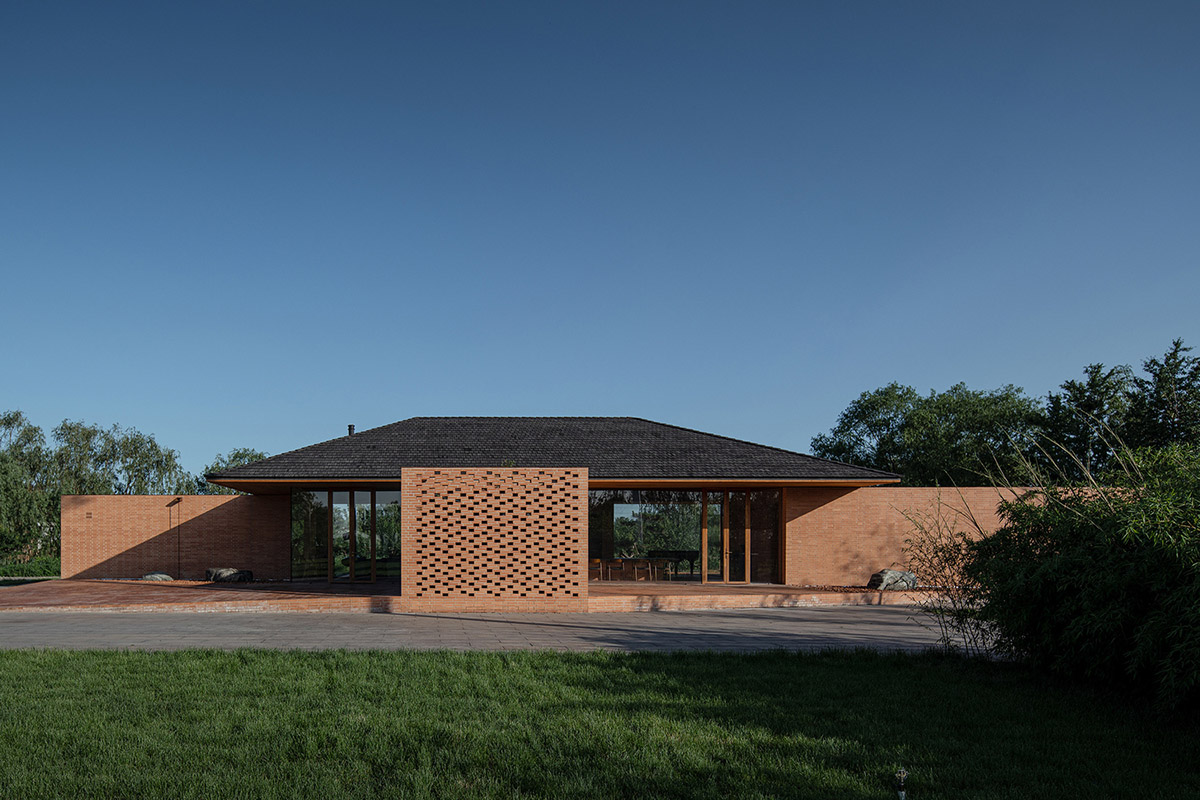

Archstudio has completed a private residence in Tangshan, Hebei, China. The house, called Courtyard Villa, is comprised of four protruding volumes supported by a pitched roof.

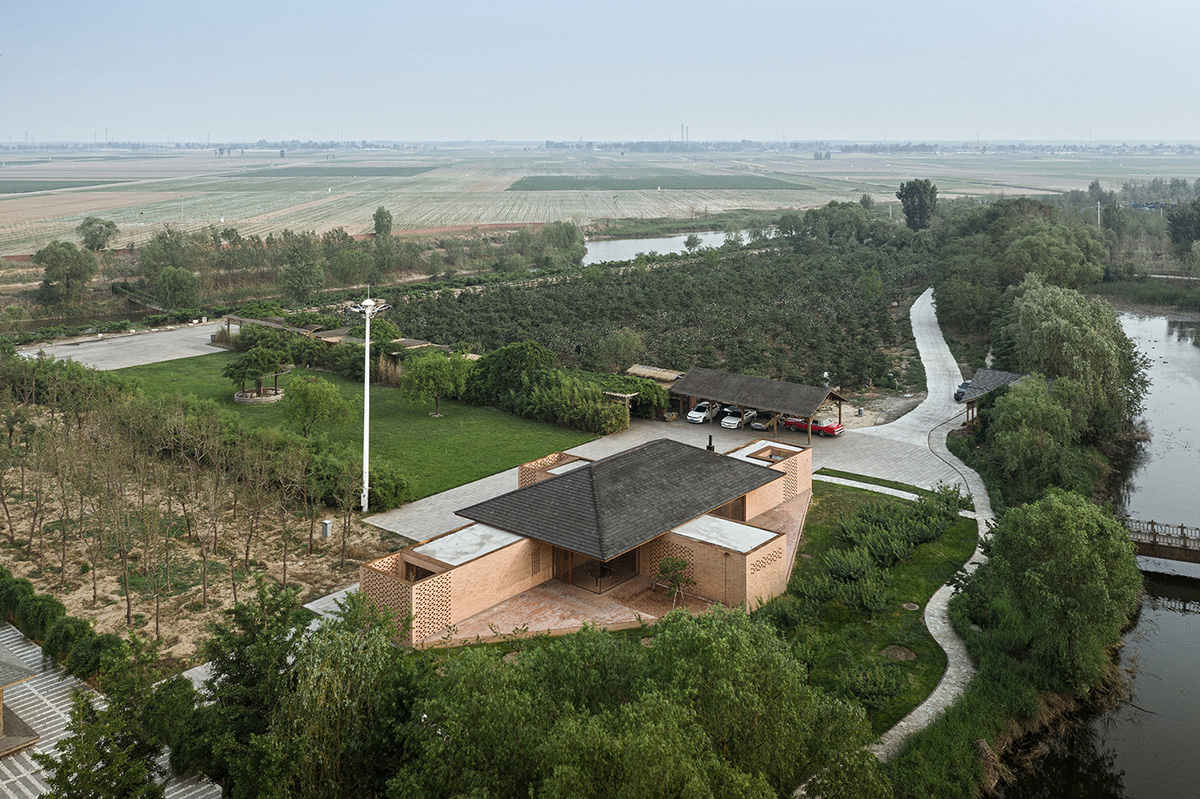

Situated on a flat site in the suburbs, the hosue is surrounded by orchards, farmland and rivers, boasting beautiful landscape. On the west side is a grain processing factory, which is an enclosed architecture with pitched roofs designed by Archstudio in previous years.

The 265,000-square-metre villa was previously a wooden house on the site, with a typical structure commonly seen a decade ago. To improve the quality of space, the house owner decided to demolish it and build a new architecture on the site. The newly built house mainly functions as a leisure and vacation space, serving for not only living but also receiving guests.

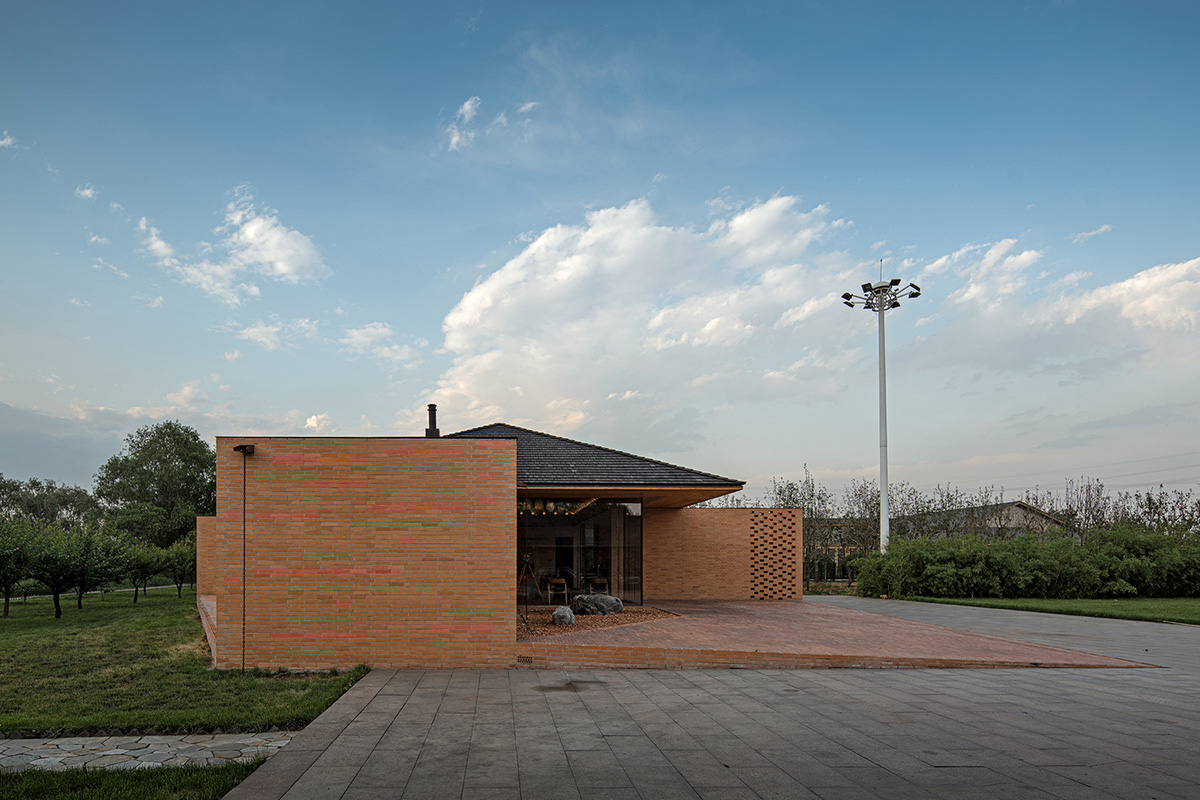

Protruding volumes form for this courtyard villa with beige shale brick in China

The architects take inspiration from traditional Chinese courtyard dwellings in Siheyuan, a kind of traditional Chinese residence.

"Siheyuan has an inward-facing architectural structure, with buildings arranged around a central courtyard," said Archstudio. "The exterior of Siheyuan is closed, while the interior courtyard is completely open, which offers little privacy for the occupants."

Protruding volumes form for this courtyard villa with beige shale brick in China

Based on site conditions and the main functions of the project, the architects decided to construct the house by borrowing and transforming the architectural pattern of traditional Siheyuan.

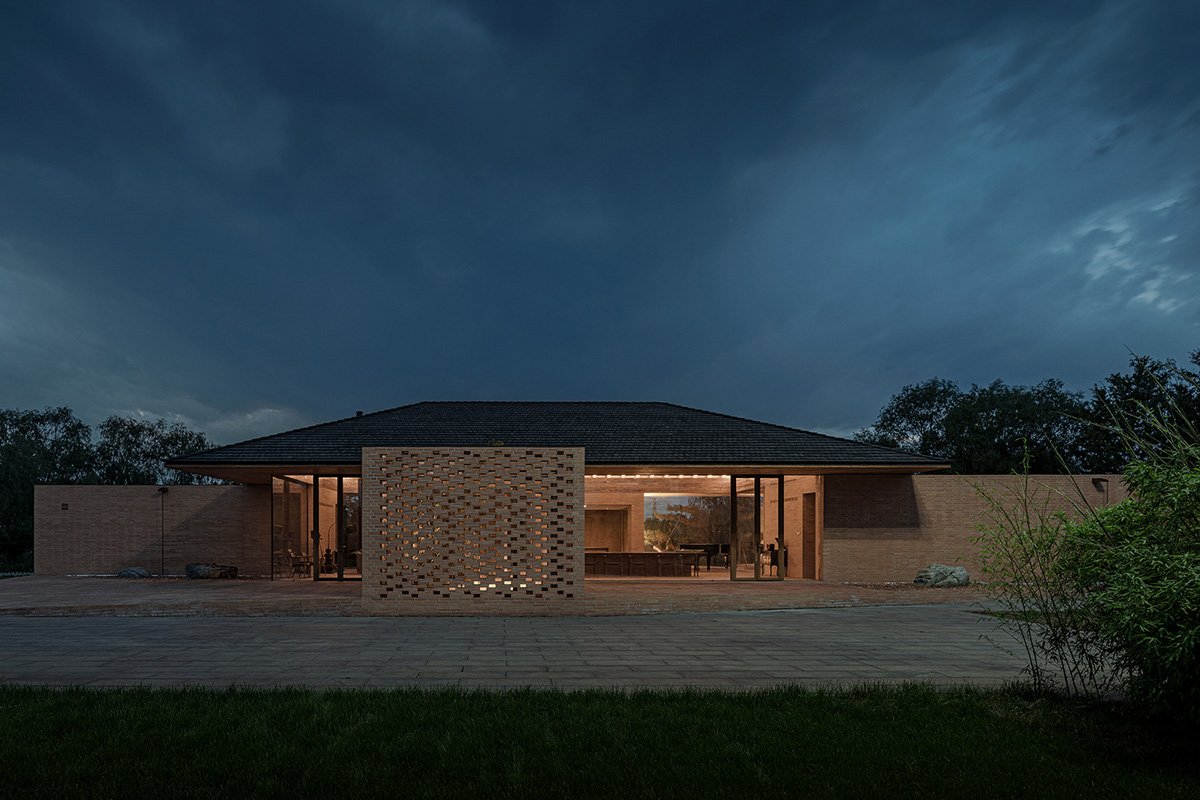

The design team arranged four rooms on different sides in a scattered way, added a roof to the "courtyard" and turned it into a hall, and made the exteriors of the hall transparent and open, thereby letting the hall blend with the pleasant outdoor scenery, and ensuring the privacy of individual living spaces and openness for reception activities.

Protruding volumes form for this courtyard villa with beige shale brick in China

Architects designed yards inside, terraces outside

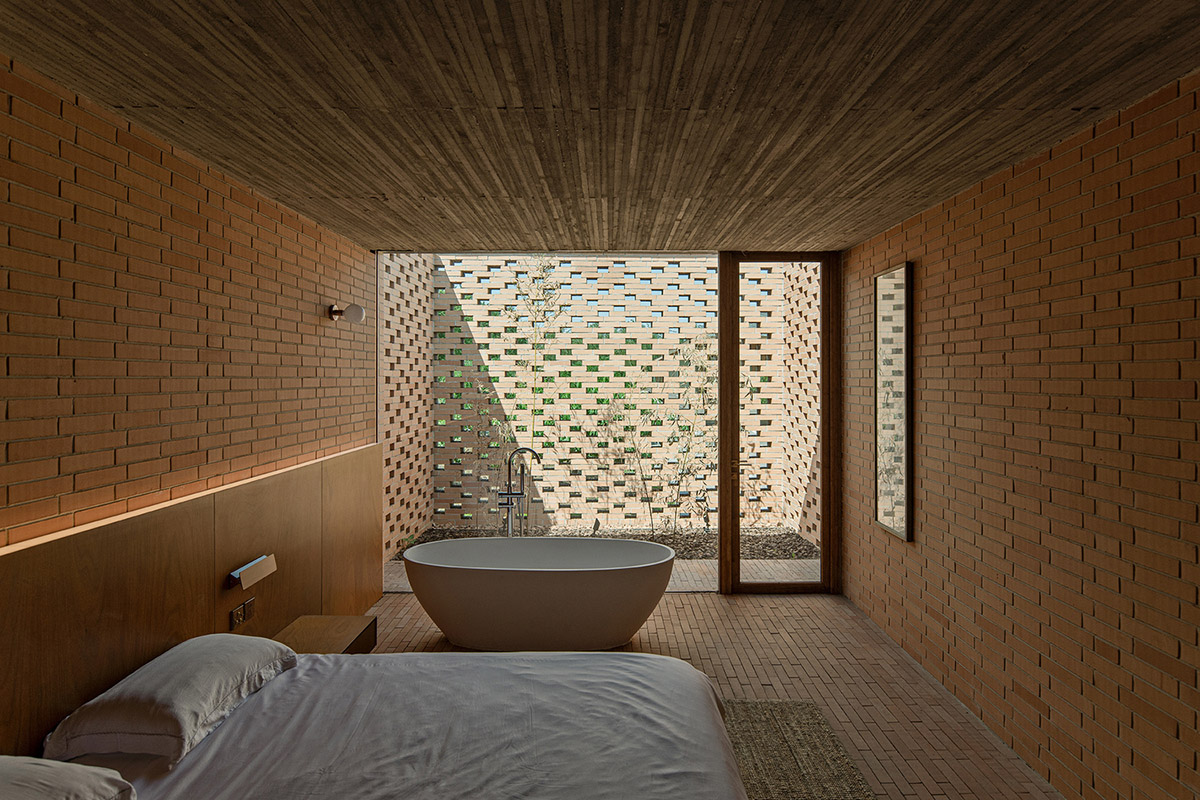

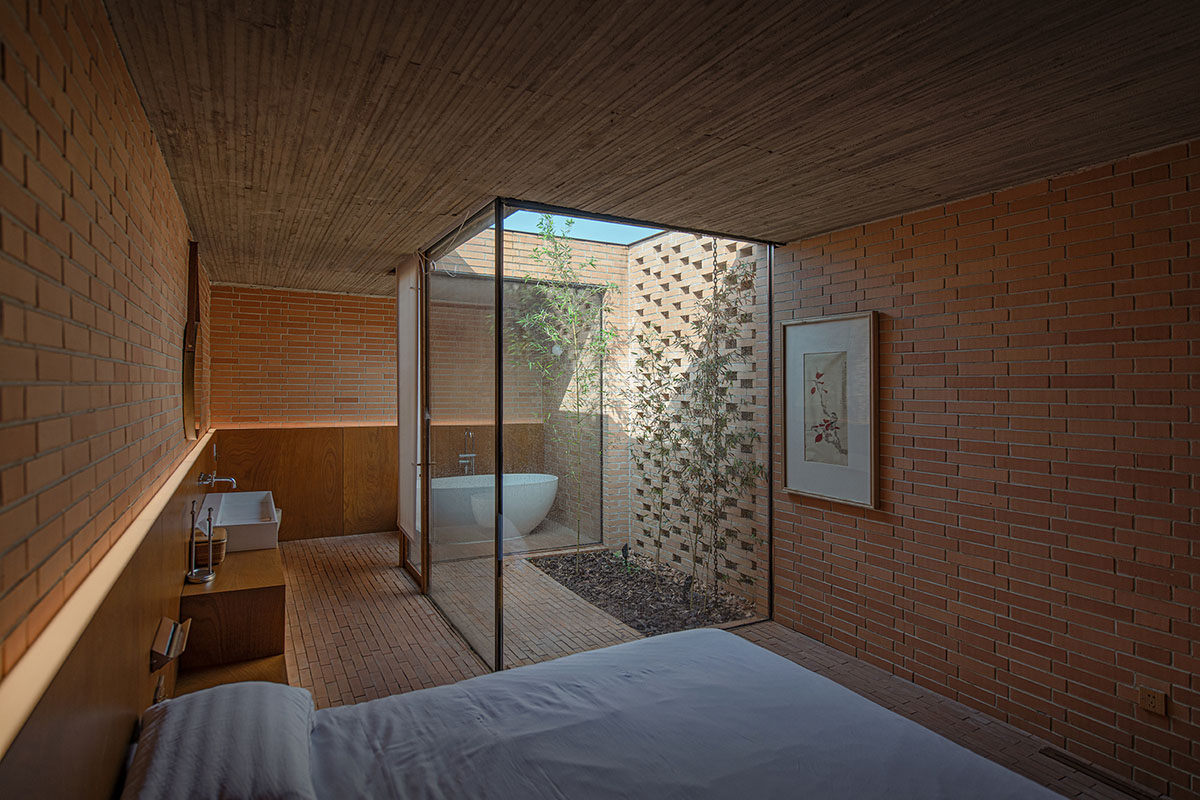

The entire architecture is based on the pedestal, with the four rooms independently set on four corners, together outlining the boundary of the house. The four rooms are all inward-facing, and each of them contains a yard inside. With different scales, those yards bring landscape and natural light into the interior. The house consists of private living areas and service spaces, including bedrooms, study, kitchen, and equipment room, all of which are separate from one another to avoid interference.

Protruding volumes form for this courtyard villa with beige shale brick in China

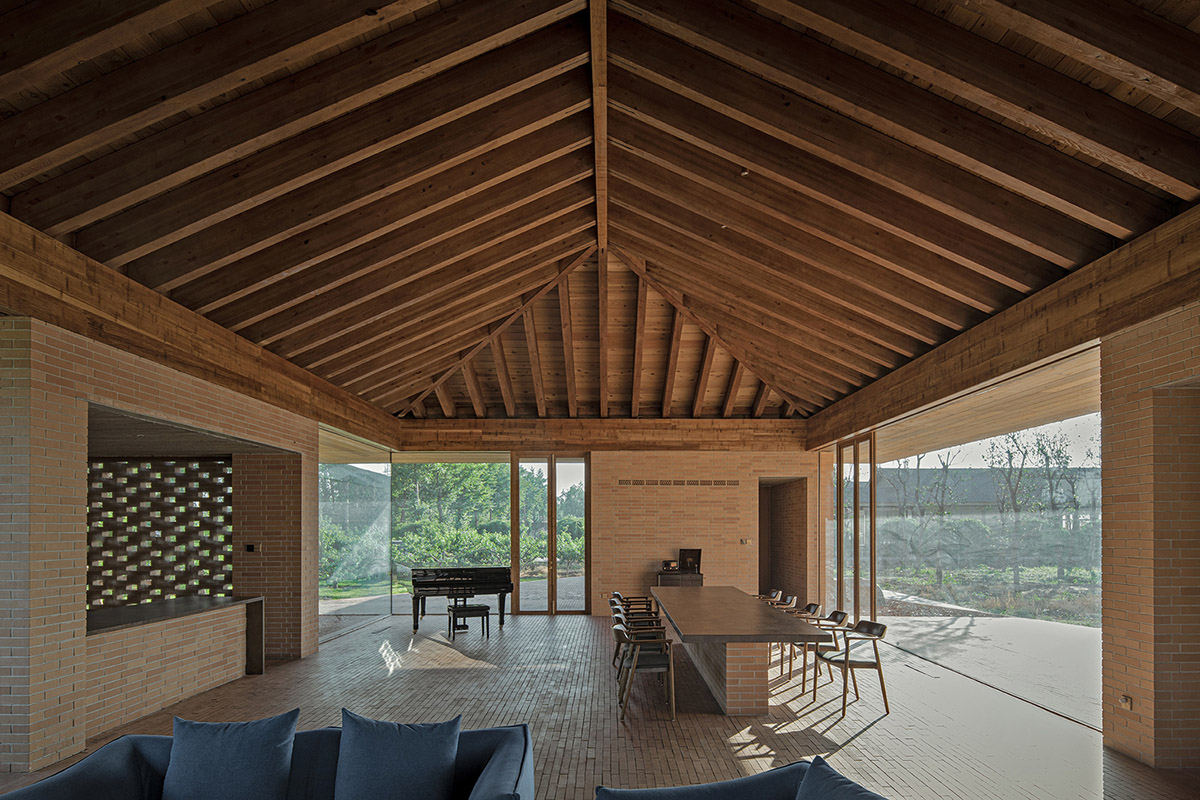

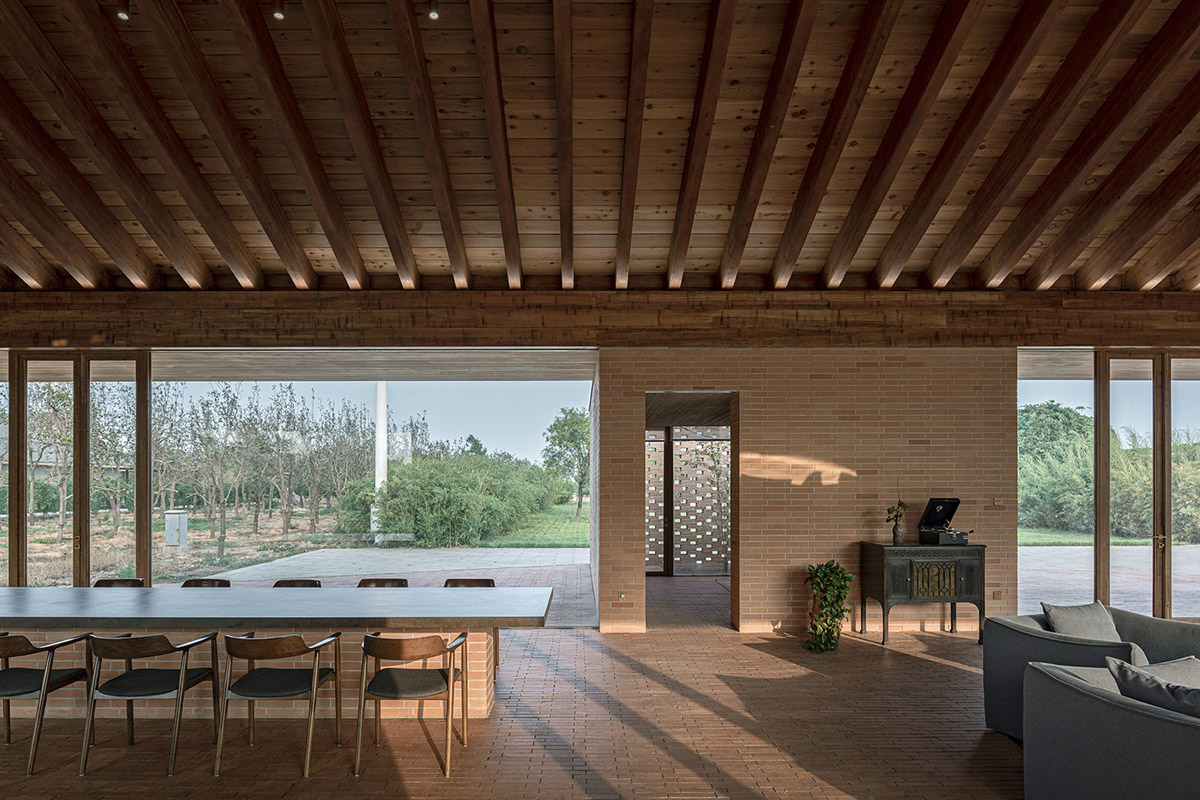

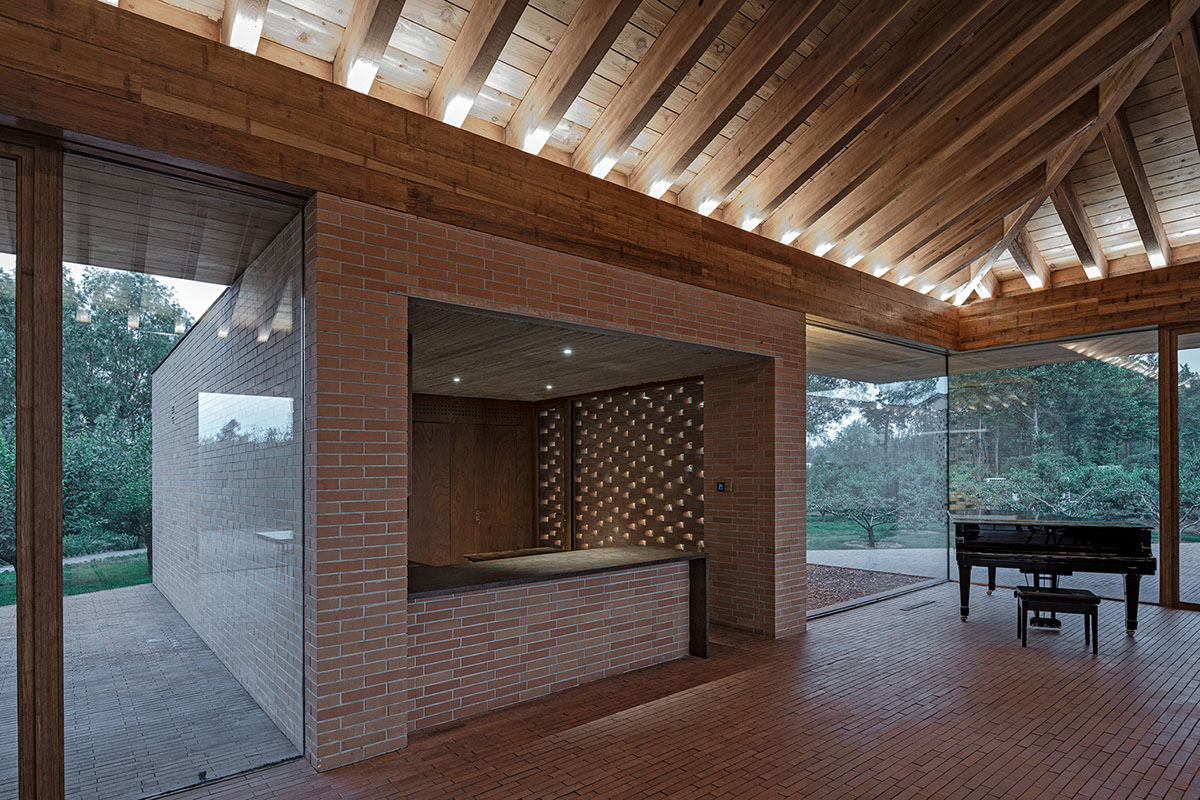

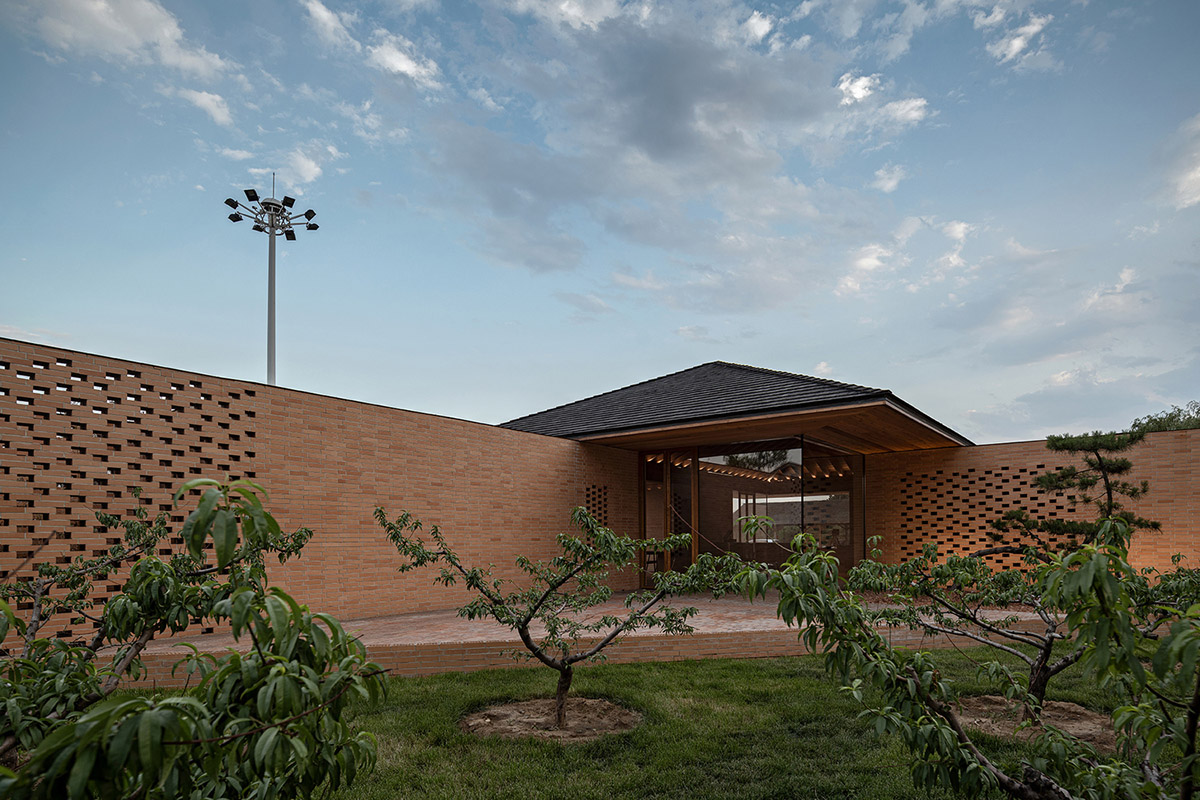

The four rooms jointly support a pitch roof, under which is a flexible public area for accommodating various activities such as reception, dining and piano playing. Thanks to transparent glass windows and doors, public activities can be extended to the outdoor terraces on four sides, where people can enjoy the refreshing greenery.

Protruding volumes form for this courtyard villa with beige shale brick in China

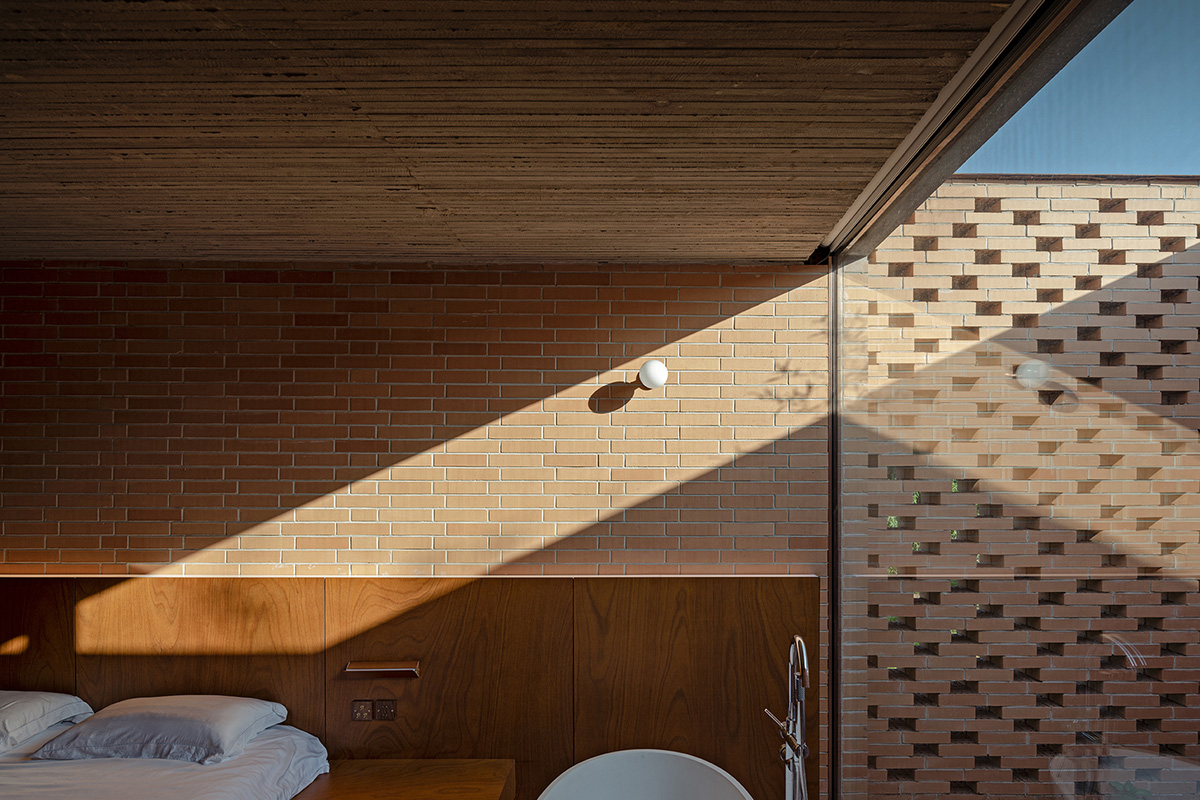

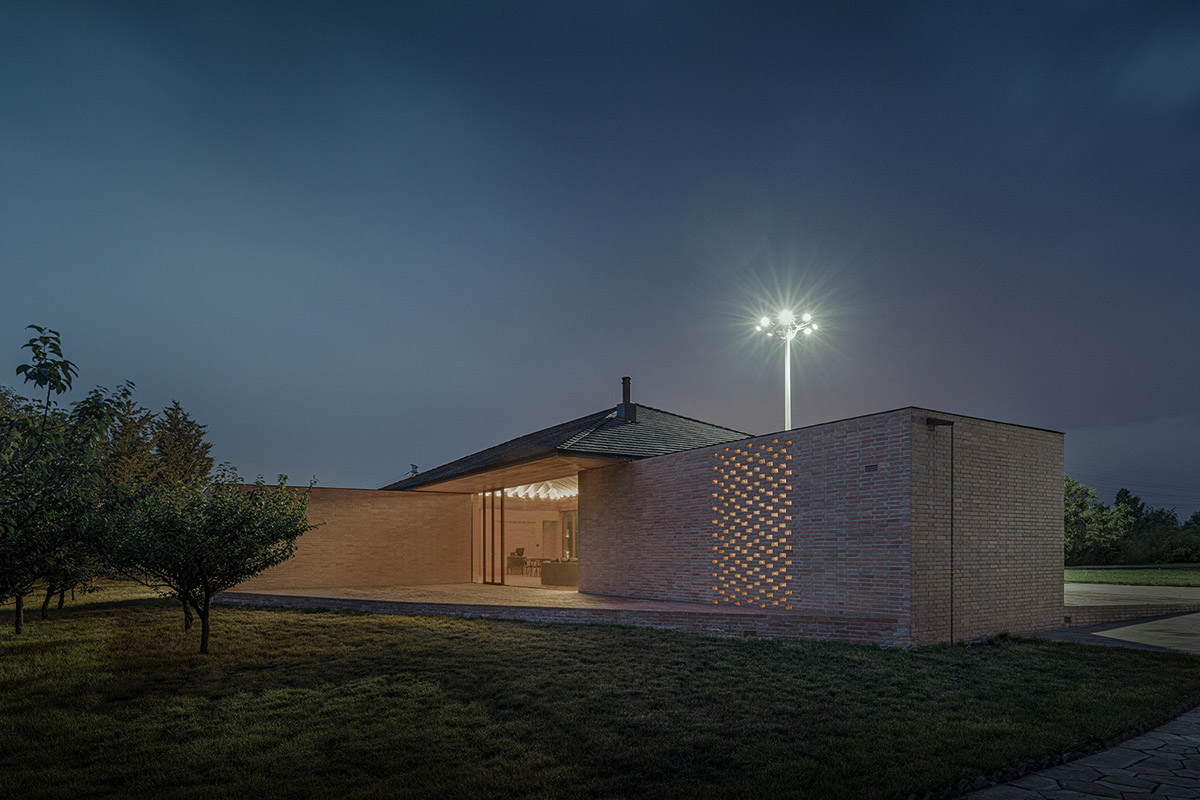

Archstudio tried to reflect the natural beauty of materials based on the characteristics of rural leisure space, by connecting the space, structure and materials. The four rooms use steel framework and concrete slabs, with the wooden formwork of the in-situ concrete slabs exposed in the interior spaces. Beige shale bricks were utilized to construct the walls.

Protruding volumes form for this courtyard villa with beige shale brick in China

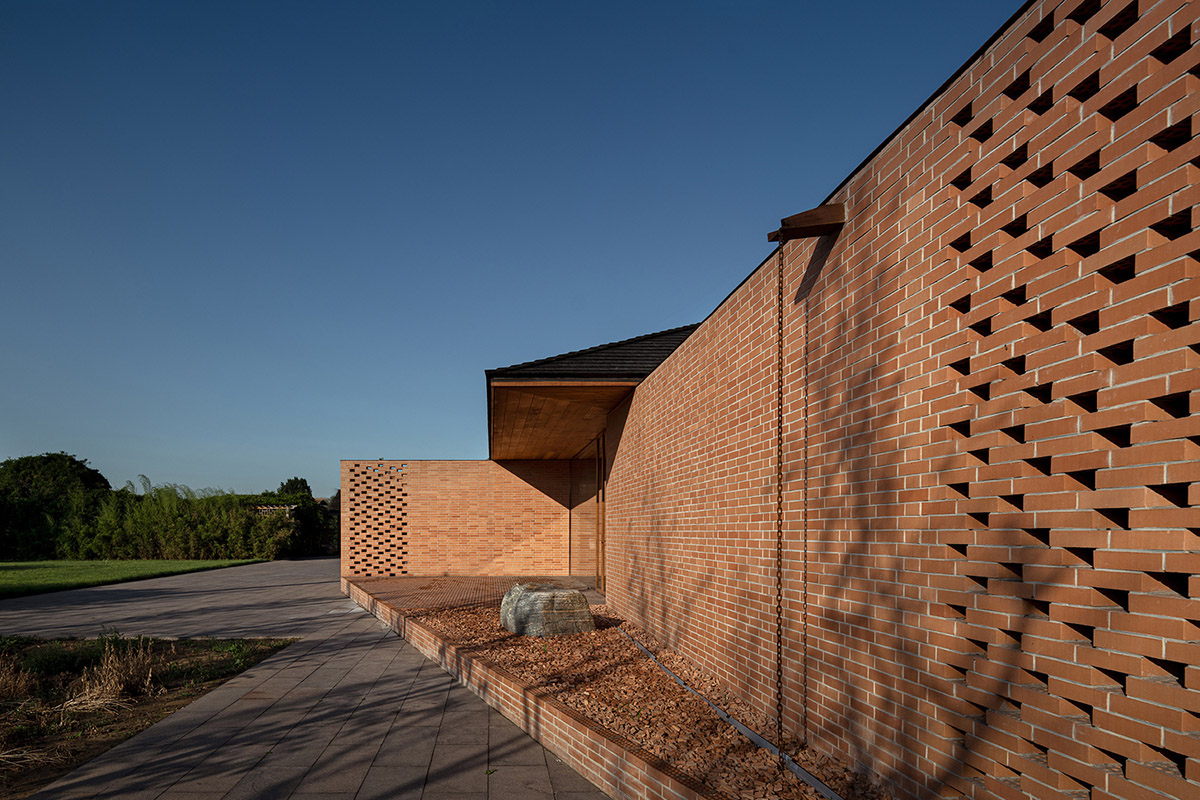

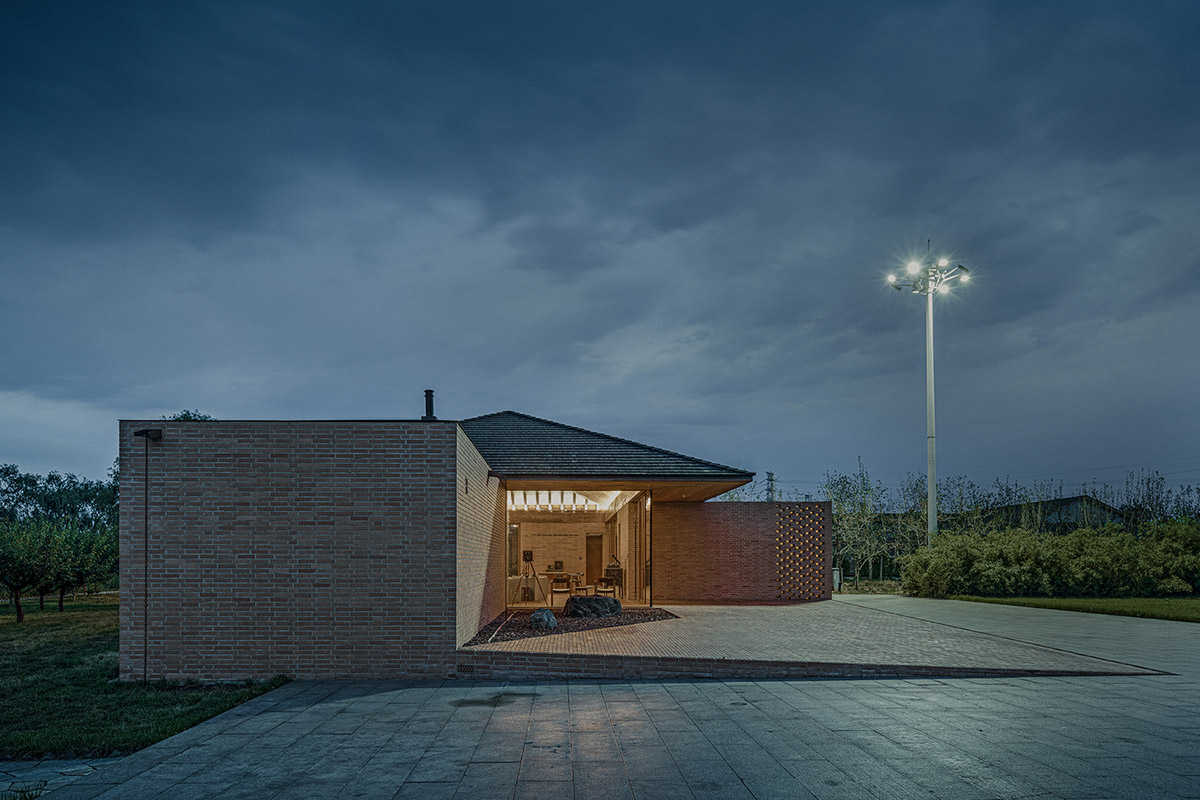

The walls are composed of two vertical layers of bricks, with a thermal insulation layer in between, which improves the thermal performance, ensures identical material texture of the interior and exterior brick walls, and hides framework as well as pipes and wires of equipment.

Protruding volumes form for this courtyard villa with beige shale brick in China

Protruding volumes form for this courtyard villa with beige shale brick in China

Protruding volumes form for this courtyard villa with beige shale brick in China

Protruding volumes form for this courtyard villa with beige shale brick in China

Protruding volumes form for this courtyard villa with beige shale brick in China

Protruding volumes form for this courtyard villa with beige shale brick in China

Protruding volumes form for this courtyard villa with beige shale brick in China

Protruding volumes form for this courtyard villa with beige shale brick in China

Protruding volumes form for this courtyard villa with beige shale brick in China

Protruding volumes form for this courtyard villa with beige shale brick in China

Protruding volumes form for this courtyard villa with beige shale brick in China

Protruding volumes form for this courtyard villa with beige shale brick in China

Protruding volumes form for this courtyard villa with beige shale brick in China

Protruding volumes form for this courtyard villa with beige shale brick in China

Protruding volumes form for this courtyard villa with beige shale brick in China

Protruding volumes form for this courtyard villa with beige shale brick in China

Protruding volumes form for this courtyard villa with beige shale brick in China

Protruding volumes form for this courtyard villa with beige shale brick in China

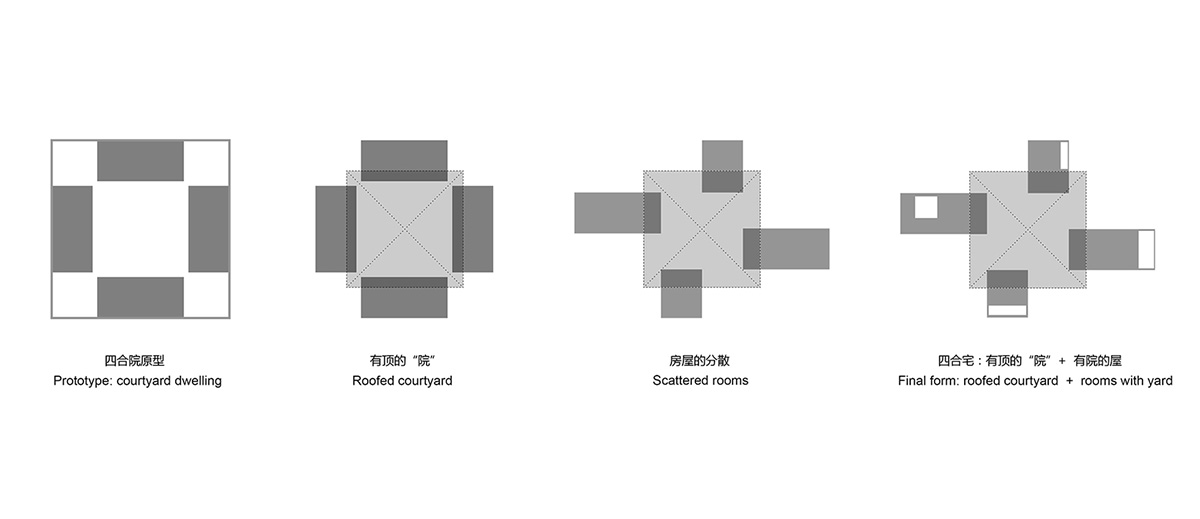

Concept diagram

Protruding volumes form for this courtyard villa with beige shale brick in China

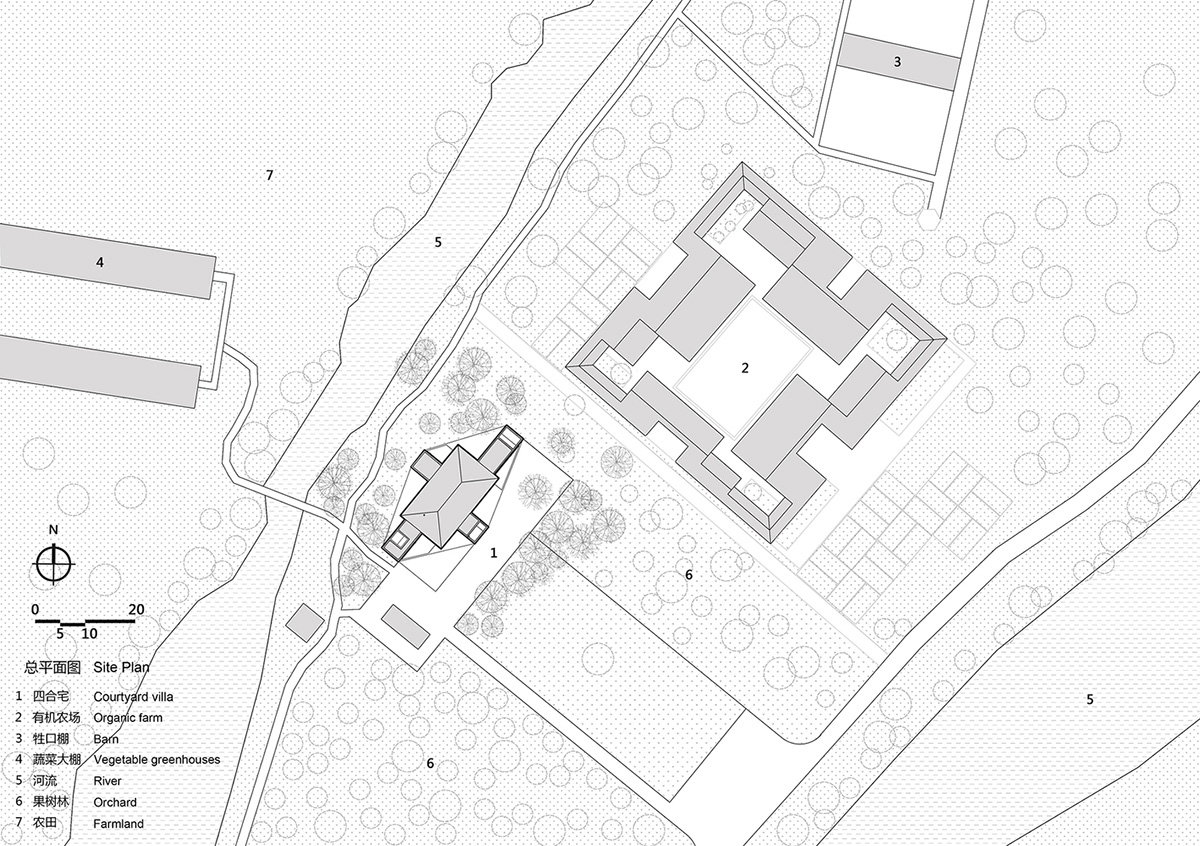

Site plan

Protruding volumes form for this courtyard villa with beige shale brick in China

Architecture model

Protruding volumes form for this courtyard villa with beige shale brick in China

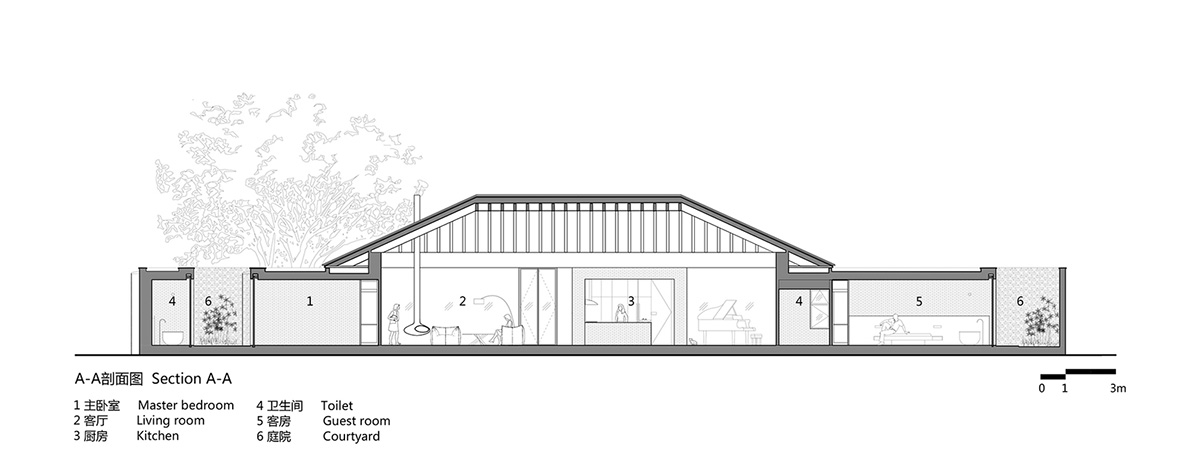

Section A

Protruding volumes form for this courtyard villa with beige shale brick in China

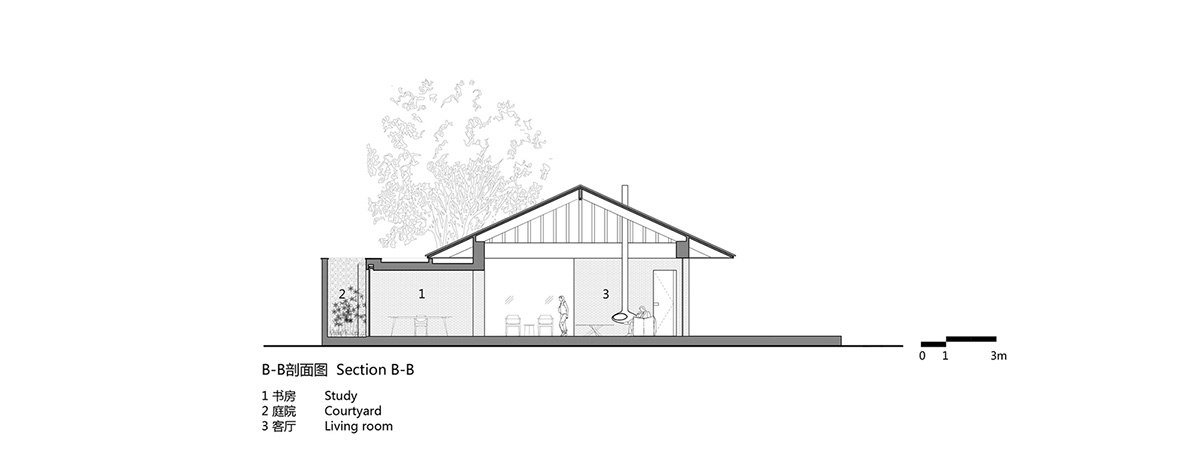

Section B

Protruding volumes form for this courtyard villa with beige shale brick in China

South elevation

Protruding volumes form for this courtyard villa with beige shale brick in China

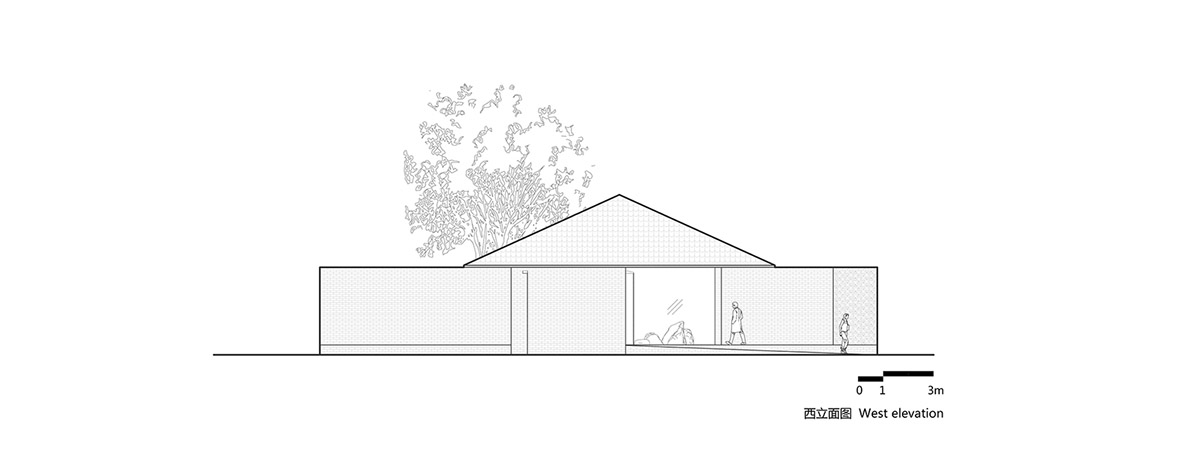

West elevation

Protruding volumes form for this courtyard villa with beige shale brick in China

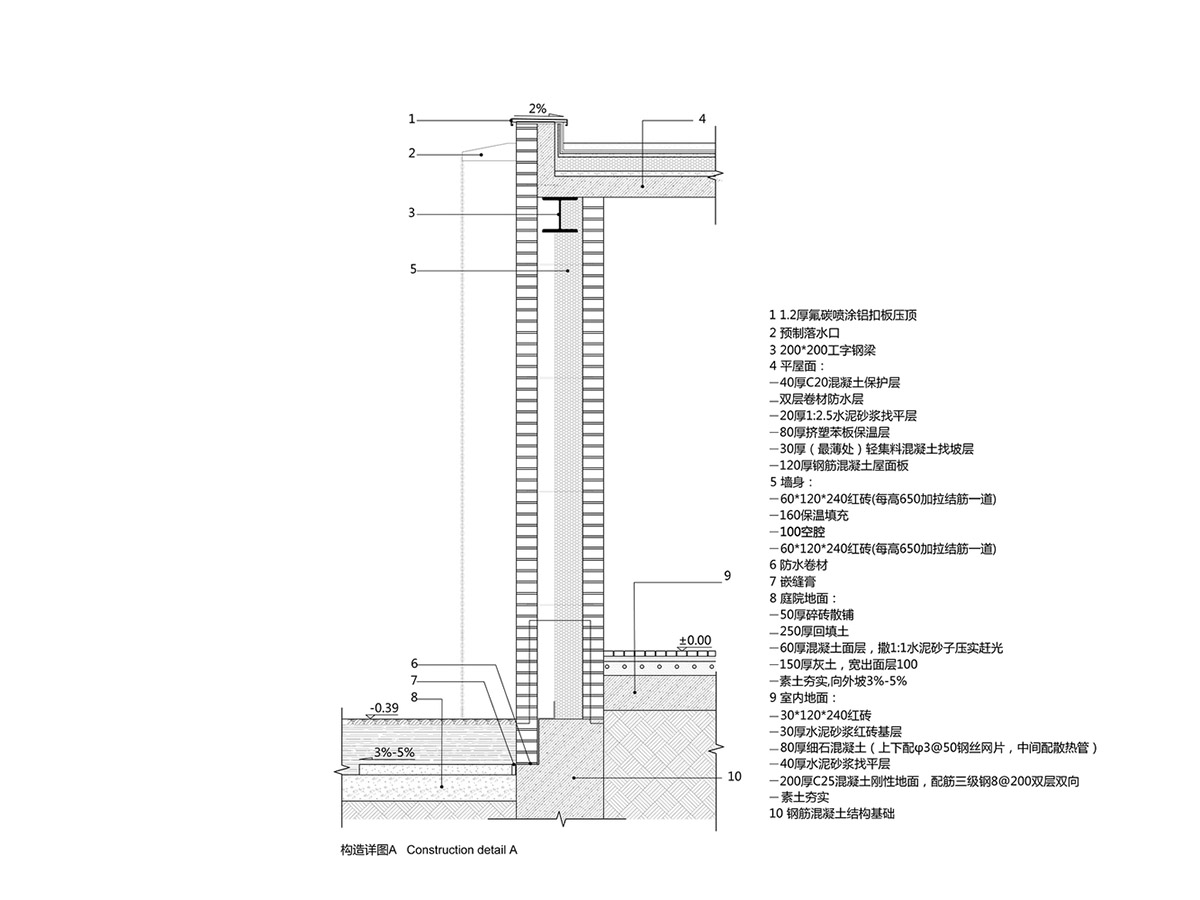

Construction detail-A

Protruding volumes form for this courtyard villa with beige shale brick in China

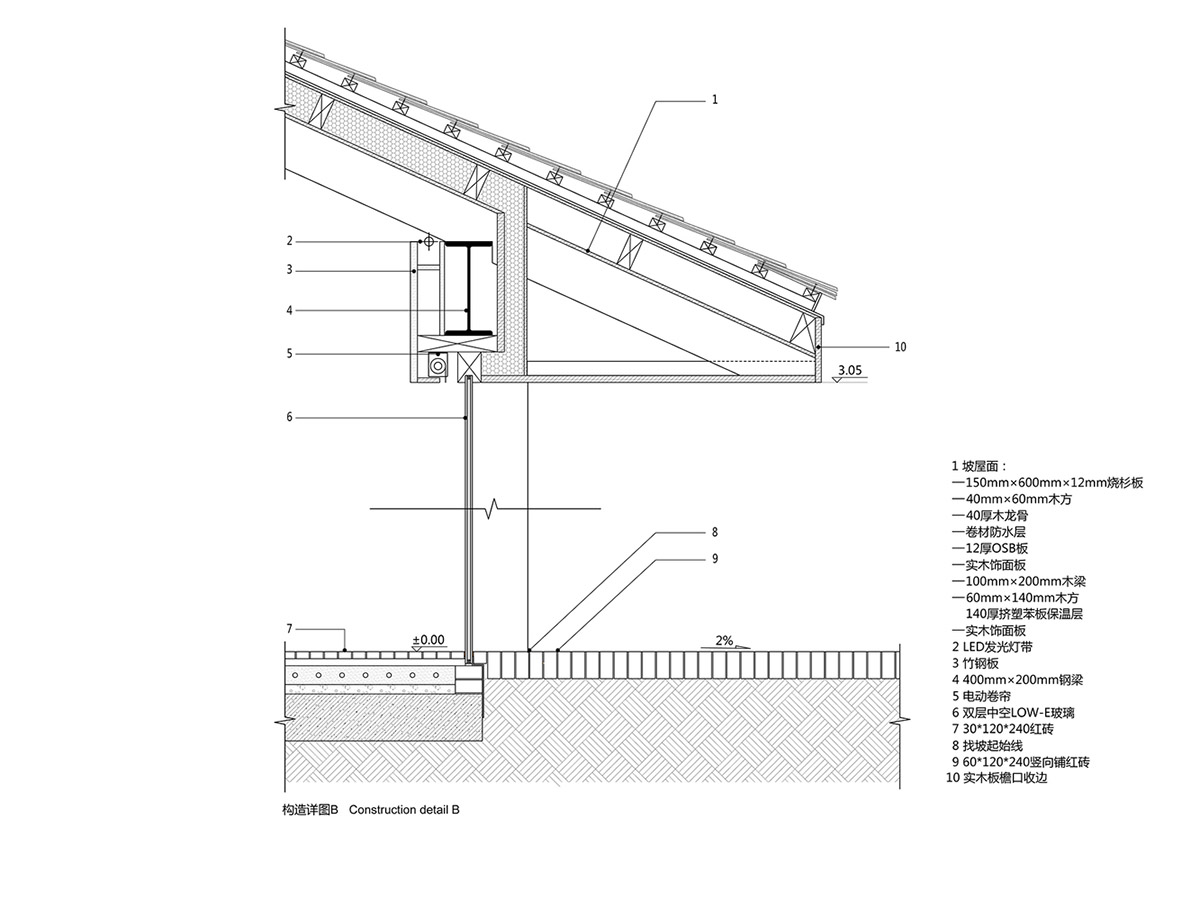

Construction detail-B
