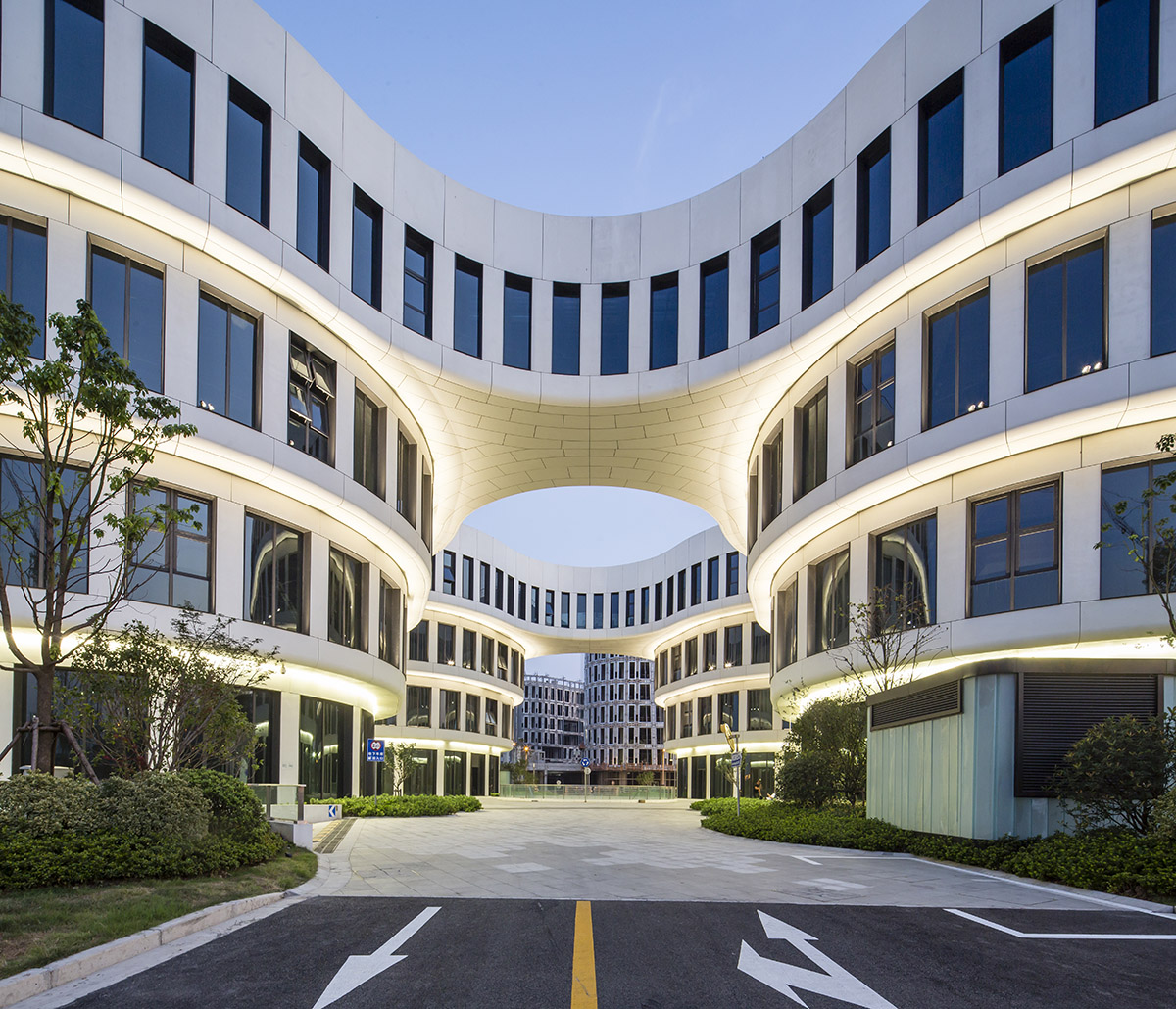

Access allows VIPs to be driven up to the building. image © Shen Photo

The first building in MVRDV’s masterplan, a flower shaped landmark offering 15,000 m2 of Grade A offices, combines a strong identity with rental flexibility. The 45,000 m2 plot on the edge of Shanghai’s Hongqiao airport will include a total of 9 further MVRDV-designed office buildings atop an Aedas-designed underground shopping centre, and will be completed in early 2016. The Flower Building will receive a 3-star Green Building Label, the best energy performance rating available in China, and was designed by MVRDV for Sincere Property Group. The masterplan’s mixed-use program includes a total of 110,000 m2 of offices, 47,000 m2 of retail space, and 55,000 m2 of parking.

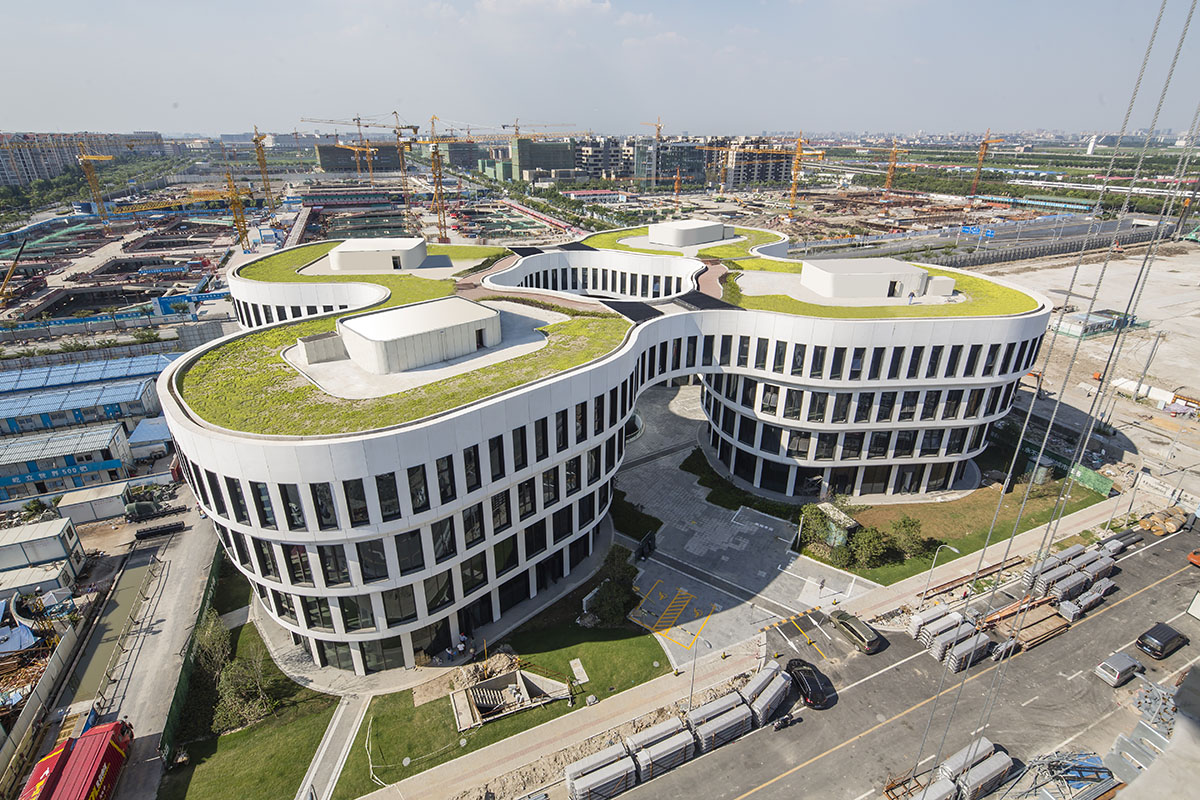

Green roofs offer a new habitat for local species. image © Shen Photo

MVRDV won a competition for the area’s architectural design and masterplanning in 2013 against two other teams. The urban masterplan sits adjacent to the hi-speed train station and fourth busiest airport in mainland China, Shanghai Hongqiao, and will create a more intimate form of urban life with pedestrian streets and plazas in an area dominated by large boulevards and high-speed expressways. The first energy-efficient office building in the masterplan is now complete, with a further nine office buildings to follow in early 2016, providing a total of 110,000 m2 of offices.

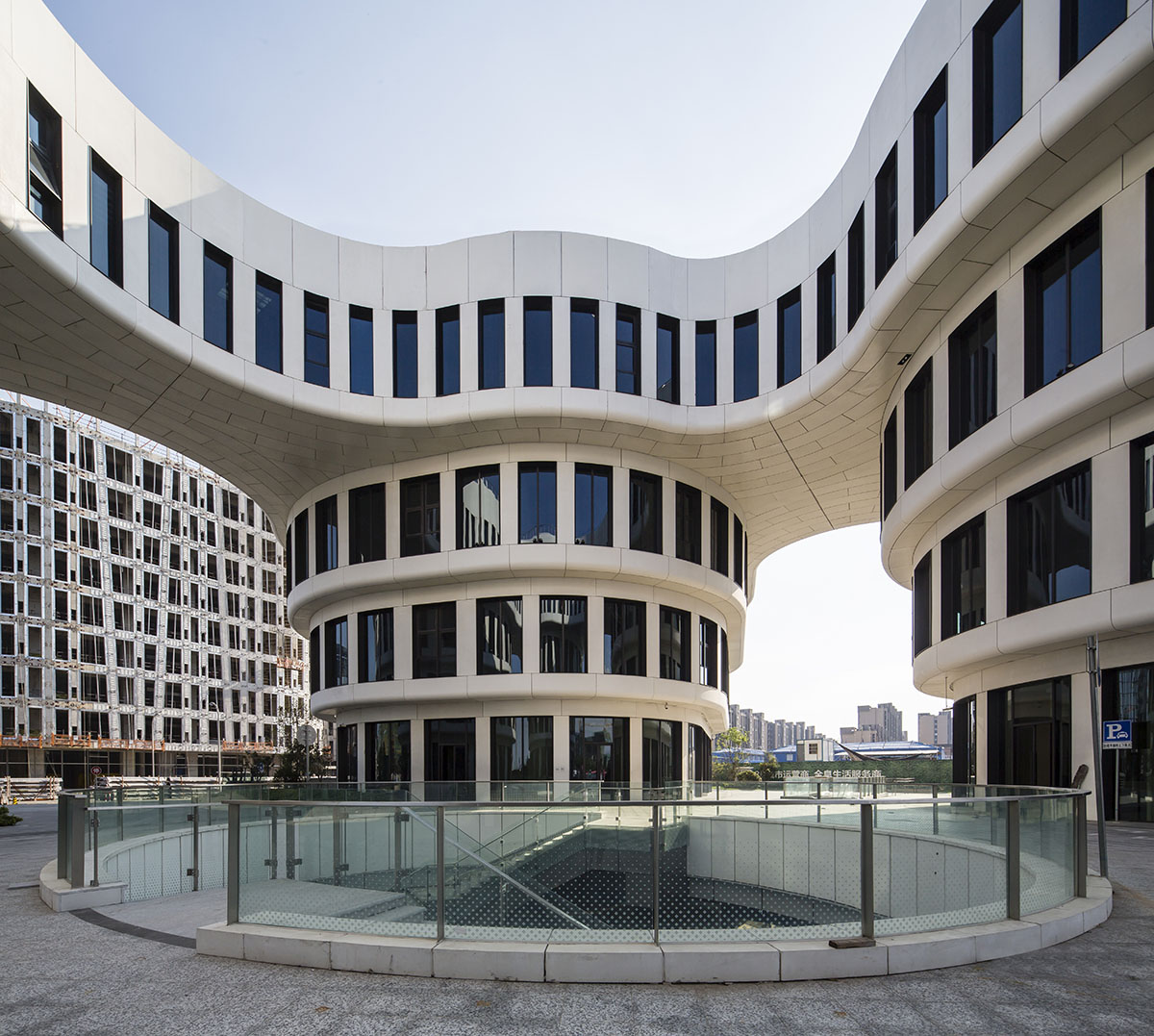

Stairs give access to the retail areas below. image © Shen Photo

‘The Flower Building is the landmark in our overall plan’ explains MVRDV co-founder and principal architect Jacob van Rijs, ‘the building is located near the entrance to a new metro station and acts as a beacon for pedestrians. The second phase of the masterplan is under construction, there we combine flexible, more generic office spaces with a village-like urban plan that offers intimacy and friendly outdoor spaces.'

The building merges the tops of four towers to create a shaded and intimate plaza in between. The building’s ground floor, with the largest windows, will feature retail space, while its top floor features connections between the four towers so that the building can be used flexibly by one or more different tenants. The building’s rounded forms minimise the amount of façade necessary, and also optimise views and floorplates.

Escalators take visitors to the retail below. image © Shen Photo

The cantilevered, self-shading form of the Flower Building is complimented by a façade with smaller openings on the upper floors to reduce energy consumption, leading to the building's 3-star energy rating. The white façade, made up of extremely light but highly-insulated GRC panels, offers a subtle, shifting grid which expands as it reaches the ground to become more public and open to passers-by, and contracts as it reaches up to reduce the need for air conditioning.

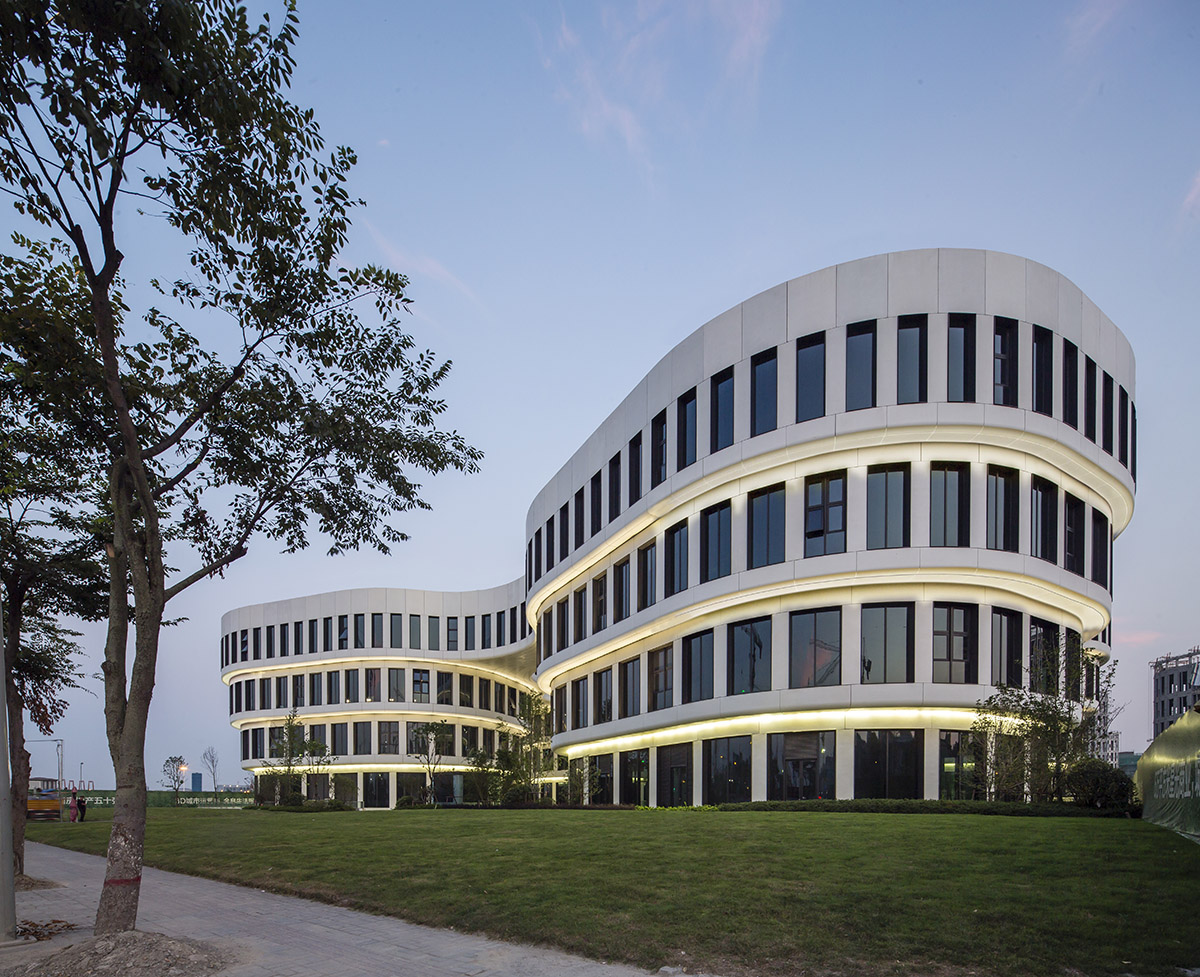

The building acts as a beacon for pedestrians. image © Shen Photo

The Hongqiao Central Business District will achieve three stars, the highest ranking of the Chinese ‘Green Building Label’. Sustainable building features include high performance insulation, optimised building forms, shaded spaces, natural ventilation, rainwater collection, permeable road surfaces, links to public transport and a reduction in the urban heat island effect. All 10 buildings will also offer green roofs as a habitat for local species. MVRDV currently has three other projects under construction throughout China and in Hong Kong, all scheduled for completion in late 2015 or early 2016.

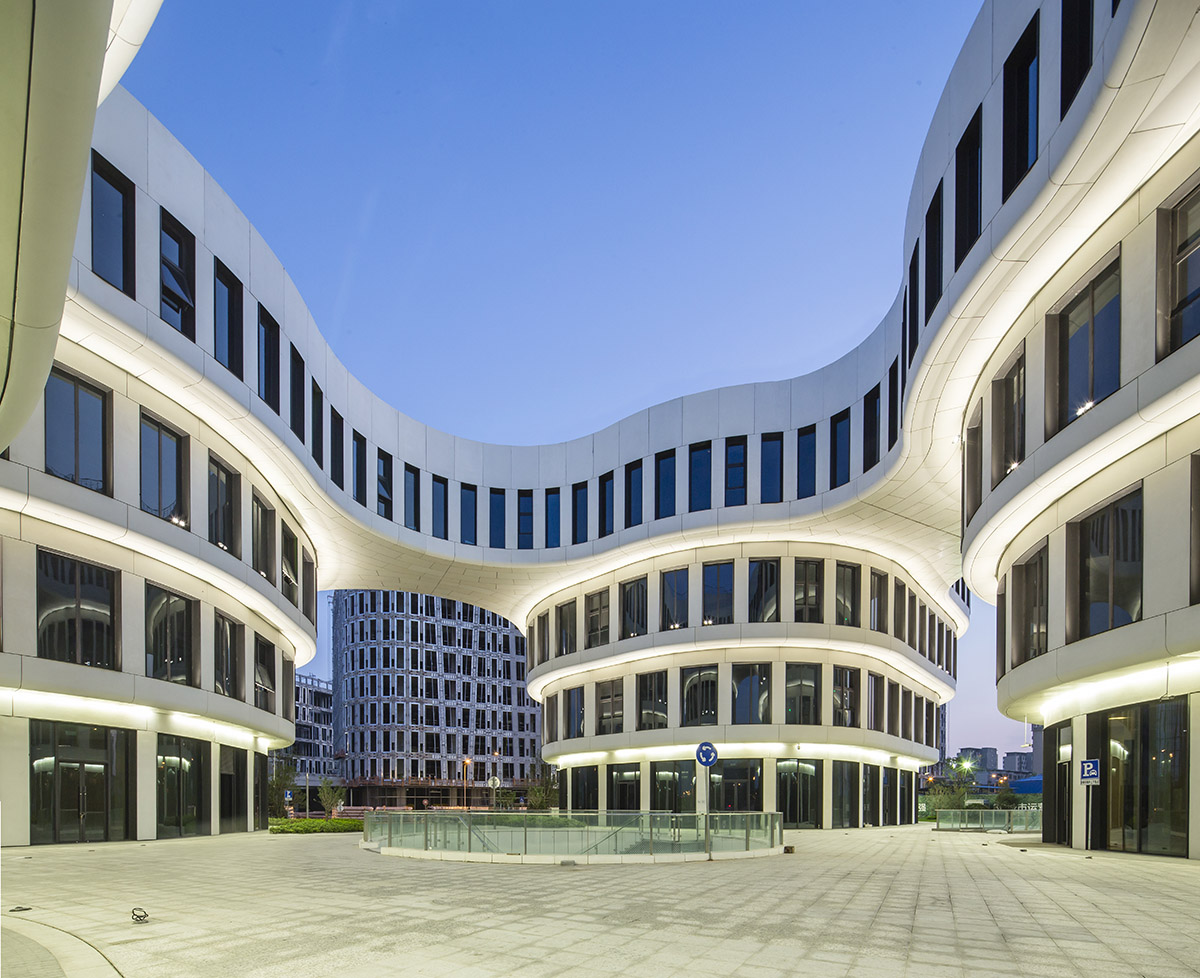

The building merges the tops of four towers to create a shaded and intimate plaza. image © Shen Photo

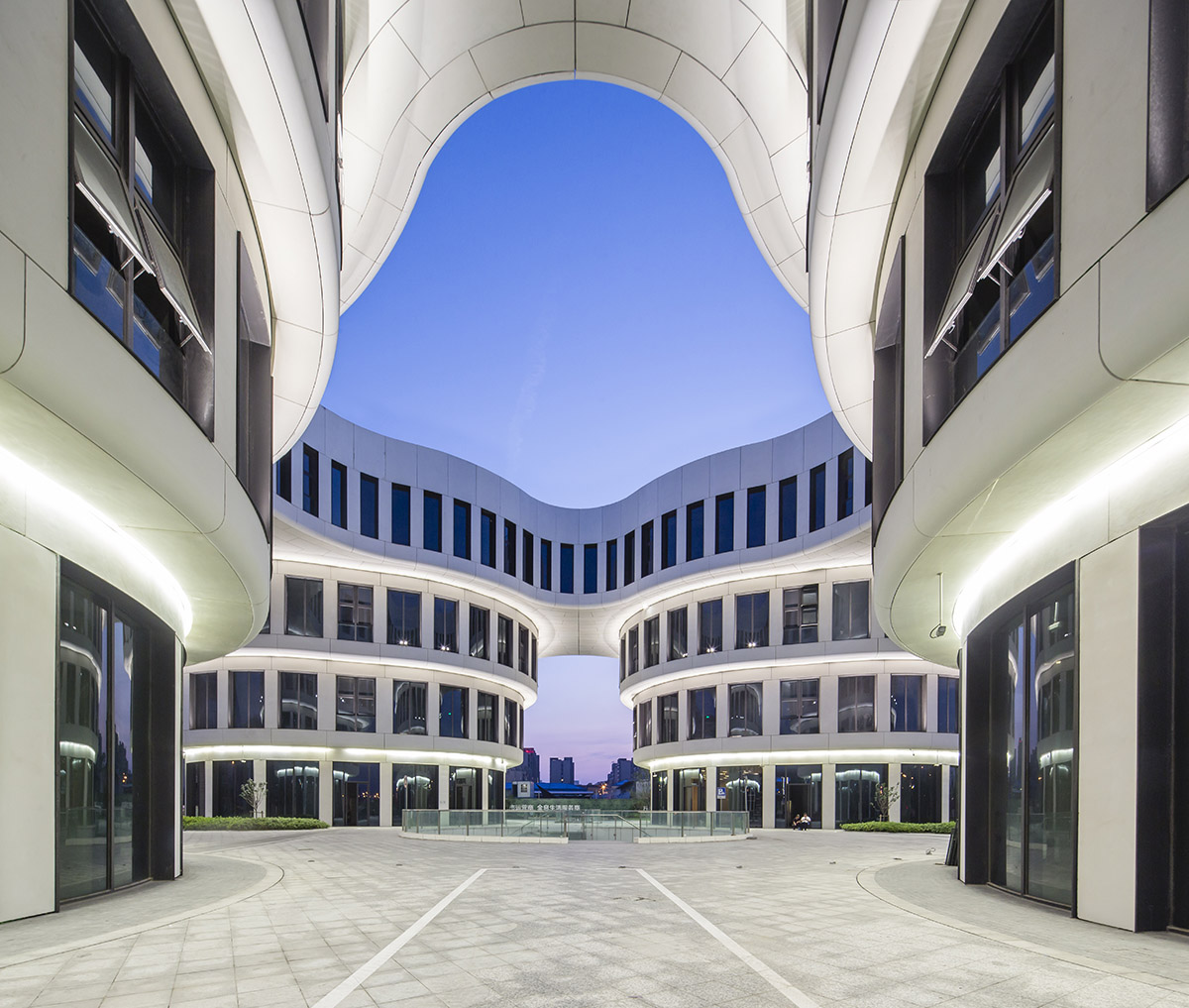

The top floor features connections between all four towers. image © Shen Photo

The ground floor, with the largest windows, will feature retail space. image © Shen Photo

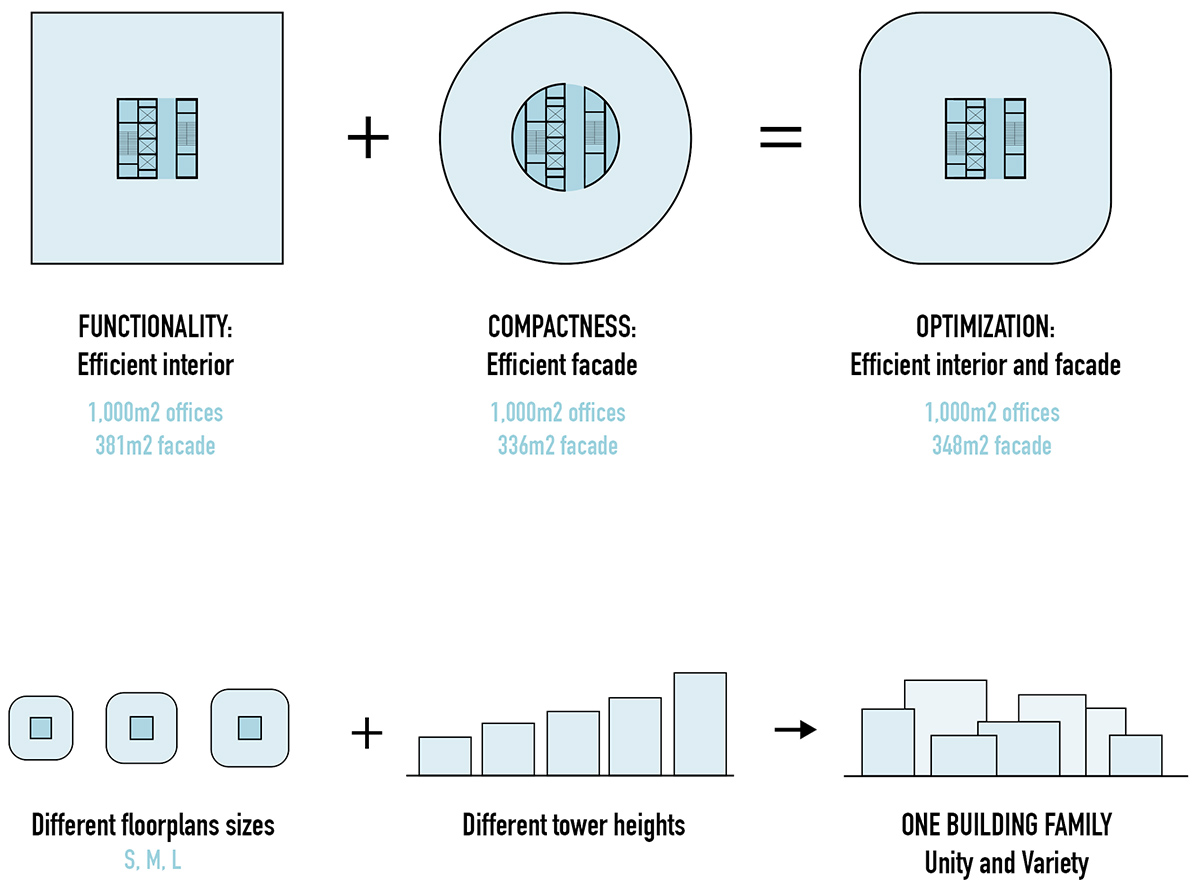

concept line diagrams. image © MVRDV

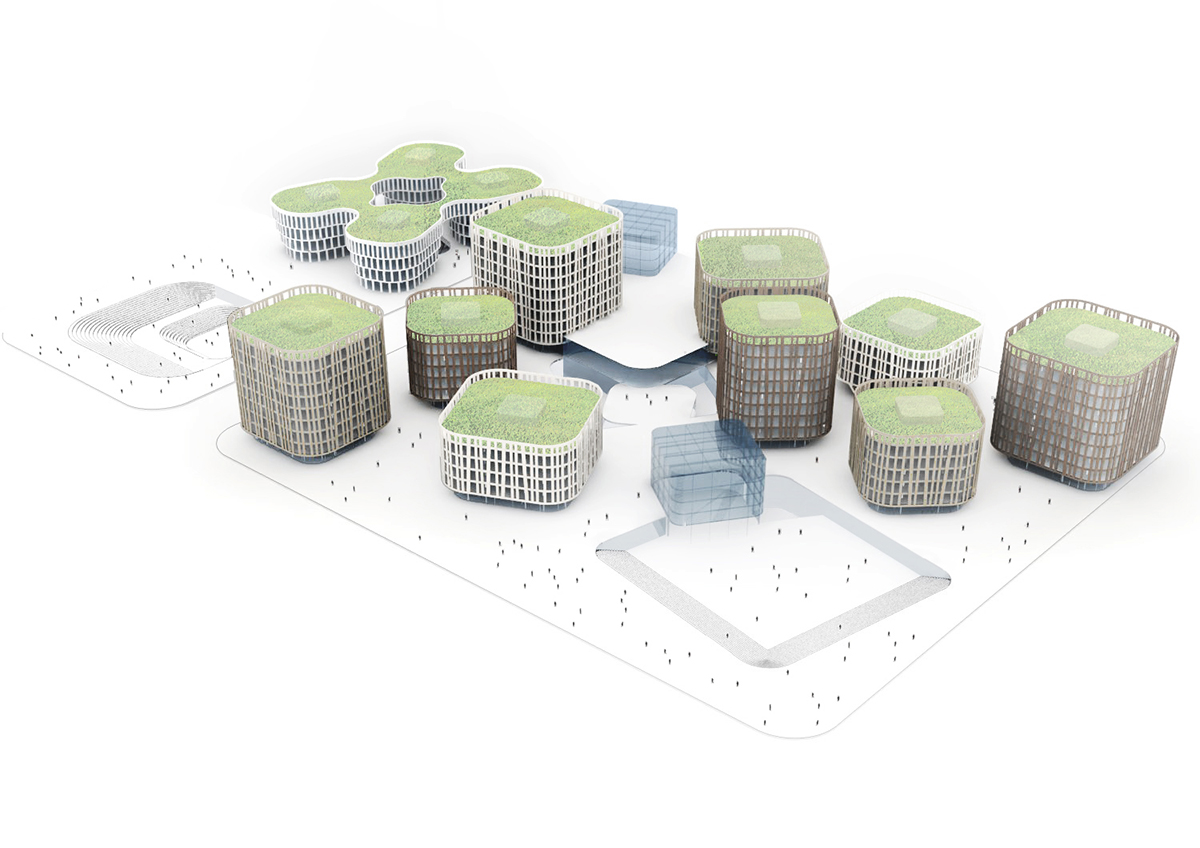

areal view abstract. image © MVRDV

HQ flower building diagrams. image © MVRDV

Project Facts

Location: Hongqiao, Shanghai, China

Year: 2013-2015

Size & Program: 15.000 m2 Grade A offices with retail at ground floor level

Client: Sincere Property, Shanghai, China

Budget: Undisclosed

Design Team:

Competition design phase: Winy Maas, Jacob van Rijs, Nathalie de Vries with Wenchian Shi, Aser Giménez Ortega, Daehee Suk, John Tsang, Antonio Luca, Qing Chen, Nacho Velasco, Wing Yun, Zeying Song, Karl Nyqvist, Ke Zhang

Design development phase: Winy Maas, Jacob van Rijs, Nathalie de Vries with Wenchian Shi, Aser Giménez Ortega, Daehee Suk, Wei Zhu, Michael Zhang, Nacho Velasco, Wing Yun, Zeying Song, Jaap Baselmans, Jing Zhang, Sharon Sin, Johan Bergstrom

Partners:

Shopping Center Design: Aedas. Hong Kong, CN
Co-Architect: Shanghai Construction Design & Research Institute (SCDRI), Shanghai, CN

Façade Engineering: EFC Façade Design. Shanghai, CN
MEP Engineering (Mechanical, Electrical and Plumbing): China Team. Shanghai, CN
Structure Engineering: Shanghai Construction Design & Research Institute (SCDRI). Shanghai, CN
Sustainability Consultant: China Academy of Building Research Shanghai Institute. Shanghai, CN
Landscape: SWA Landscape Architecture. Dallas, USA
Lighting consultant: ZDP. Beijing, CN
