Castaway Island Resort is located in a tiny beautiful island in Cat Ba Archipelago, a well-known tourist destination in Vietnam. It can accommodate up to 160 guests. The site is only accessible by boat, which takes about two hours from Hai Phong port. The resort aims to provide a memorable stay at the island which is surrounded by tropical nature.
In a private beach of 3,000 sqm, engulfed on one side by a beautiful mountain range and the other by an expansive shore of white sand, the resort consists of five huts, a restaurant and a pavilion, which are designed to immerse the guests in nature. For the project, we use bamboo, an environmental-friendly material that can integrate in and be easily removed afterwards without affecting the natural beautiful gulf at the site where the project is built. The resort sits gently on the white-sand shore, caressing the nature and being a natural part of it. The bamboo structure is covered with thatched roof, offering authentic Vietnamese cultural experience as well as reducing environmental impact. The thin bamboo (Tam Vong), measured only 40-50 mm in diameter, are assembled by bamboo dowel nail and then tightened by rope. The bamboo is treated with a natural traditional method developed at a Vietnamese craft village, which involves soaking the bamboo in mud and smoking afterwards.
Next, the restaurant features a hyperbolic-parabolic shell structure, which forms a semi-outdoor space for social gathering and interaction. Each of the 13 bamboo shell unit is composed of 80 straight bamboo, creating a wavy ceiling and rhythmical roof landscape.
For accommodation, five huts are built by bamboo frame modules which offer cozy bed space for each guest. These frames are assembled on the ground to shorten construction period and improve workmanship. Recycled timber shutters which are typically used in traditional Vietnamese colonial villas, form the huts façade.
These bamboo structures not only enhance guests experience on the island but also become a landmark of this popular tourist destination, where many boats cruise through the Cat Ba Archipelago. Despite the construction of the project, the site is left intact, the nature preserved thanks to using such an environmental-friendly bamboo structure. This is this environmentally-conscious aspect that we want to approach for this project.

2019

2019

Area: 3000 m2
GFA: 1100 m2

Principal Architects: Vo Trong Nghia, Takashi Niwa
Design Team: Nguyen Duc Trung, Nguyen Minh Khuong, Koji Yamamoto

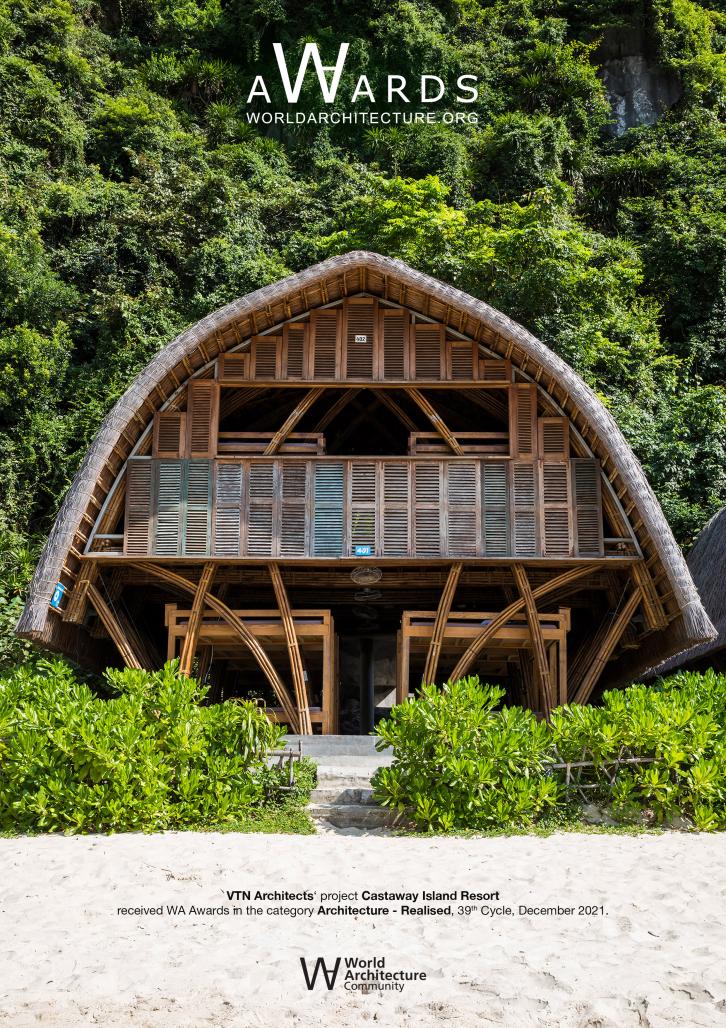

Castaway Island Resort by VTN Architects (Vo Trong Nghia Architects) in Vietnam won the WA Award Cycle 39. Please find below the WA Award poster for this project.
