Description

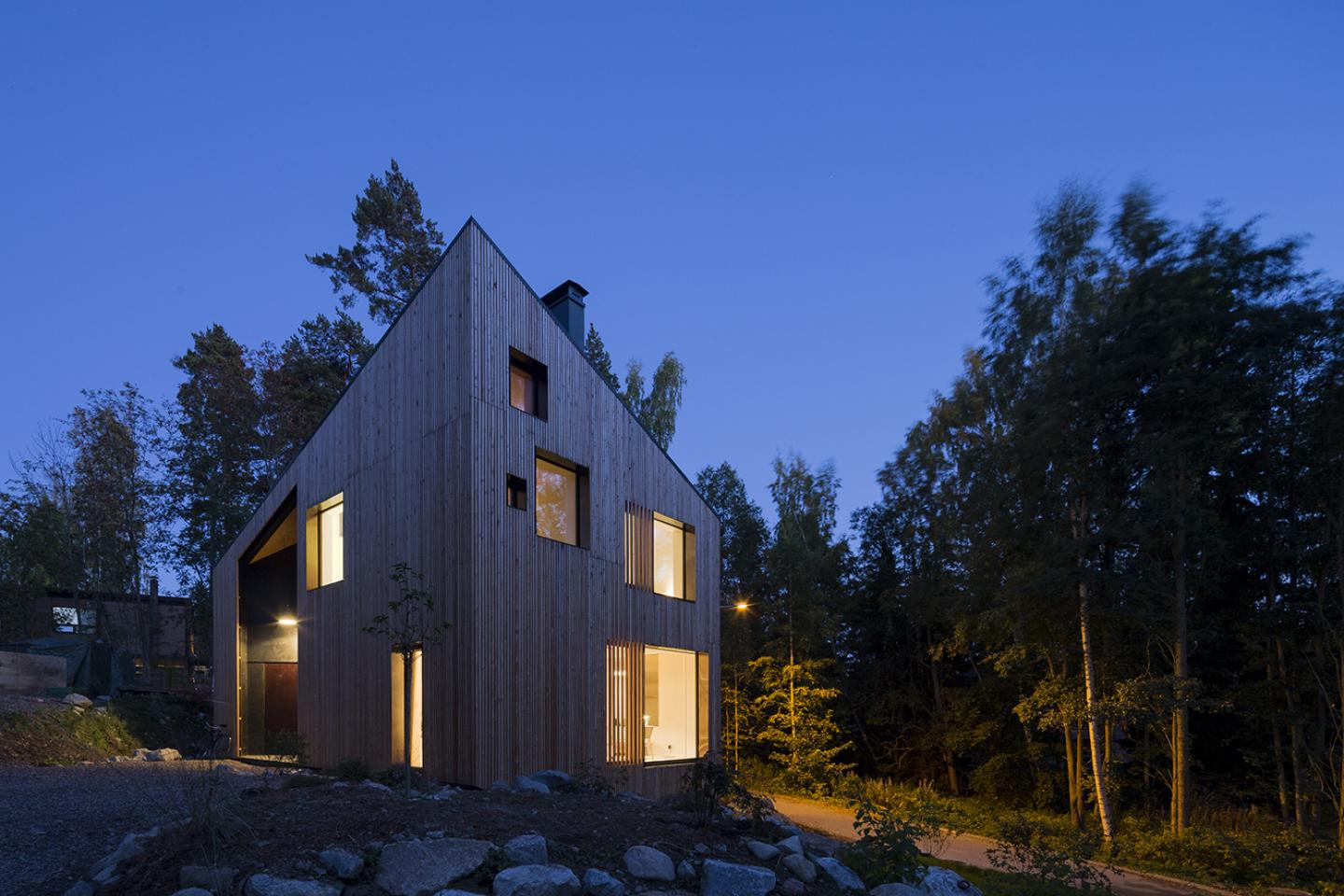

MK5 is the latest project of ORTRAUM Architects, built for one of the partners of the office and his family of five. The house is placed on a south-west sloping 500m2 site, located on the Jollas Peninsula east of the Helsinki city centre. The architecture features a central kink in plan, which (according to the Finnish tradition) avoids a direct view towards the neighbours, and leads the main spaces to face the ocean towards the west. The buildings relationship to the natural surroundings inspired the diverse placement of the windows, framing the changing views and daylight qualities in each direction. The open-plan living room is accessed from the north and located on the ground floor, sauna functions and building services are placed in the basement. The four bedrooms are located upstairs. The geometric layout of the plan accumulates on the mezzanine level, where the three children’s rooms and the master bedroom connect in the centre point of the building, allowing for multiple consultation options before bedtime.
The structure of MK5 consist of highly customized CLT elements. In addition to the building’s electrical system, the ventilation system and lighting fixtures are fully integrated into the CLT elements. Siberian Larch timber is used for the façade, the flooring, and the furniture. Custom fabricated copper parts frame the windows. The façade materials are chosen to allow the building to patinate naturally and age gracefully with time. On the south side of the building vertical wires are stretched from the building eaves to the terrace deck below, designed for hops climbers to grow to create a “green screen”, providing an extra curtain of privacy from the road.

Designed

2015

Completed

2017

Technical data

Project data:
Address: Mesaanikuja 5a, 00850 Helsinki, Finland
Building size: 230m2 (gross)
Completion: October 2017

Project team

Architecture: Martin Lukasczyk, ORTRAUM Architects
Structure design: Asko Keronen
HVAC design: Harri Ripatti, Leino Kuuluvainen
CLT structures: KLH Massivholz Gmbh, SPAX Gmbh
Element research partner and insulation material partner: Paroc Oy/ Jukka Sevon
Roofing material partner: Rheinzink Gmbh, Kruunukatto Oy, Sara-Steel Oy
Carpentry: Heikki Aska, Emmahus Oy, Ilmar Koppel
Lighting design: Esa Pietilä/ Prototype Oy, Oliver Walter
Building automation: Houmio Oy, Kalle Tuominiemi
Larch timber: CSW-Design Oy
Windows: Klas1-yhtiöt Oy, Tiivituote Oy, Velux Suomi Oy
Copper: Aurubis Finland Oy, Tapwell Oy
Flooring: Timberwise Oy, Romanoff Oy, Hunton Oy
Heating: Roth Werke Gmbh, Oilon Oy
Furniture: Oy Skanno Ab, Nikari Oy, A.S. Helsingö Oy, Louhi Kivitasot Oy
Color: OSMO Holz und Color Gmbh
