Circle - Walk BRIDGE MODULE
the concept of modular bridge system.
the module of walk bridge is designed for street cross as the urban element.
the bridge is providing the possibility of panoramic views over the area through classed cover sides.
main construction is designed with still and concrete structure with steel structure and class cover system.
the bridge is supported with double side escalator and Ramp system for persons with disabilities.
A safe, cozy and beautiful escalator let you enjoy pleasnt & comfortable moment every day. Superior drive chain and precise installation technology ensure product running cozily. Fine coziness. With smooth running.
Beautiful appearance
The super-consciousness aesthetical design, technological design which conform with the ergonomics principle. It keeps close to the latest global tide and forms a perfect harmony with the buildings and the surrounding environments.

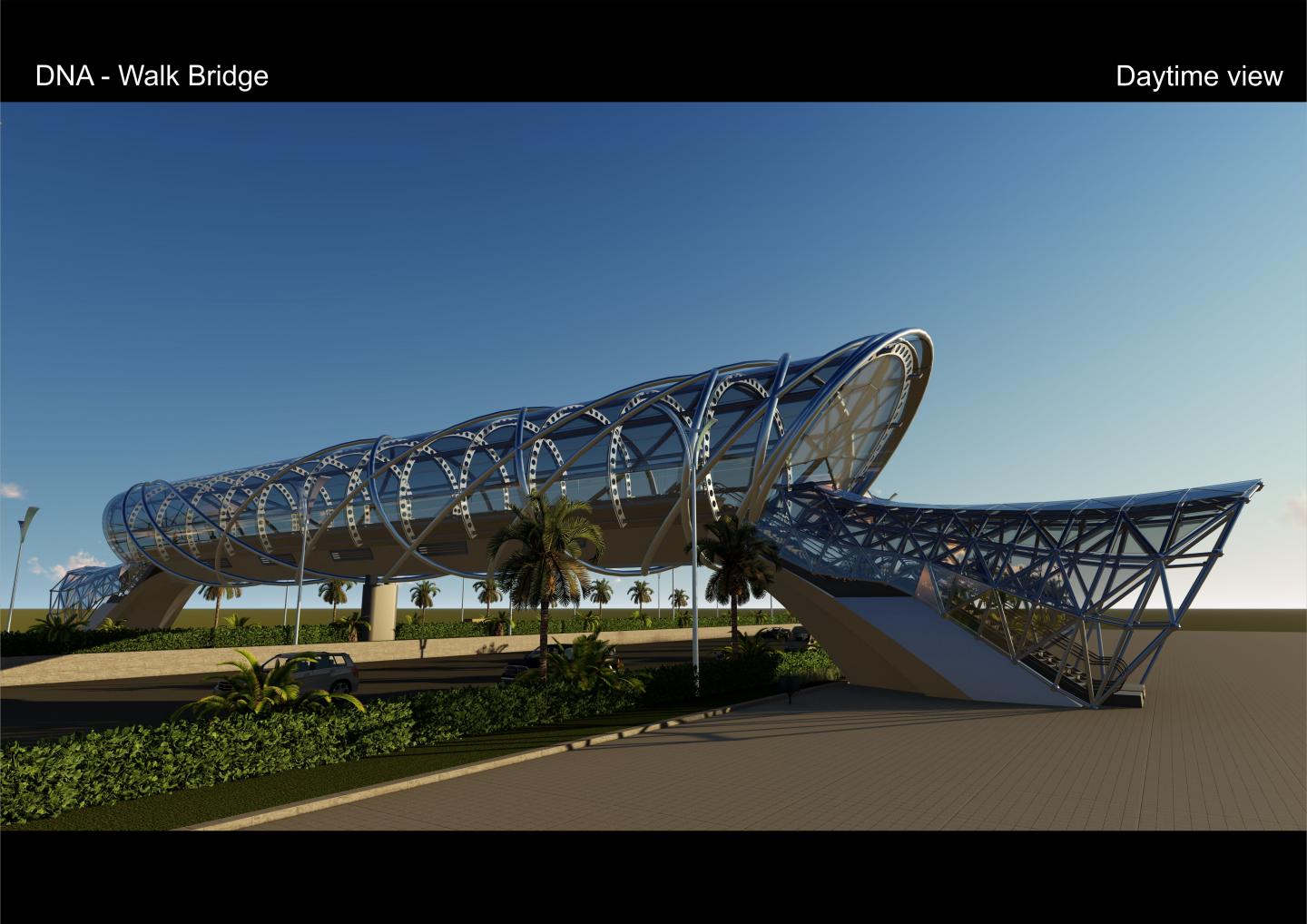

the steel decorative cover with tube-shaped form is giving to the bridge visual effect of the human DNA collecting circles, which makes the bridge's design unique.
Because of glass structural cover for ability of panoramic views, the risk of climate effect (hit in sunny weather) is high and solution of this is an AC system, that makes bridge more comfortable and gives to it temperature stability.
recommended locations for the bridge are the cities in countries with high temperature climate.
materials: main structure:
* concrete & steel
* cover: steel an glass additional supports:
* AC system
* Escalator system
total dimensions:
L.W.H. 99.17 X 10.67 X 15.90 m
area of use:
Width - 6.97 m
2019
2020
materials: main structure:
* concrete & steel
* cover: steel an glass additional supports:
* AC system
* Escalator system
total dimensions:
L.W.H. 99.17 X 10.67 X 15.90 m
area of use:
Width - 6.97 m
DAVID KOIAVA architecture & design
