Rhizome House, New Delhi
“Branching into Light”

The design for this residential project in New Delhi evolved from negotiating diverse forces of nature and existing trees on site, and of a complex client brief. The adventitious form of the building developed over time into an organic concept, a rhizome that adapted itself easily to further changes during the construction process.
Four main branches stem from a central node, reaching out to respond to solar orientation and grand vantages into the landscape.

The tenacious extremities of cantilever over courtyards, and culminate in large brise-soleil that shade enormous openings on the upper floor and define transitional interior-exterior space on the ground floor.

While a maximum width of 7.5 meters ensures easy penetration of natural light, smaller appendages strategically grow out of the main branches creating moments lit in daylight, framing closer views and responding to internal spatial planning.

Skylights are cut into the building envelope as cracks develop between the large branches, altering their direction of growth, and filtering the sunlight to enhance internal volumes.

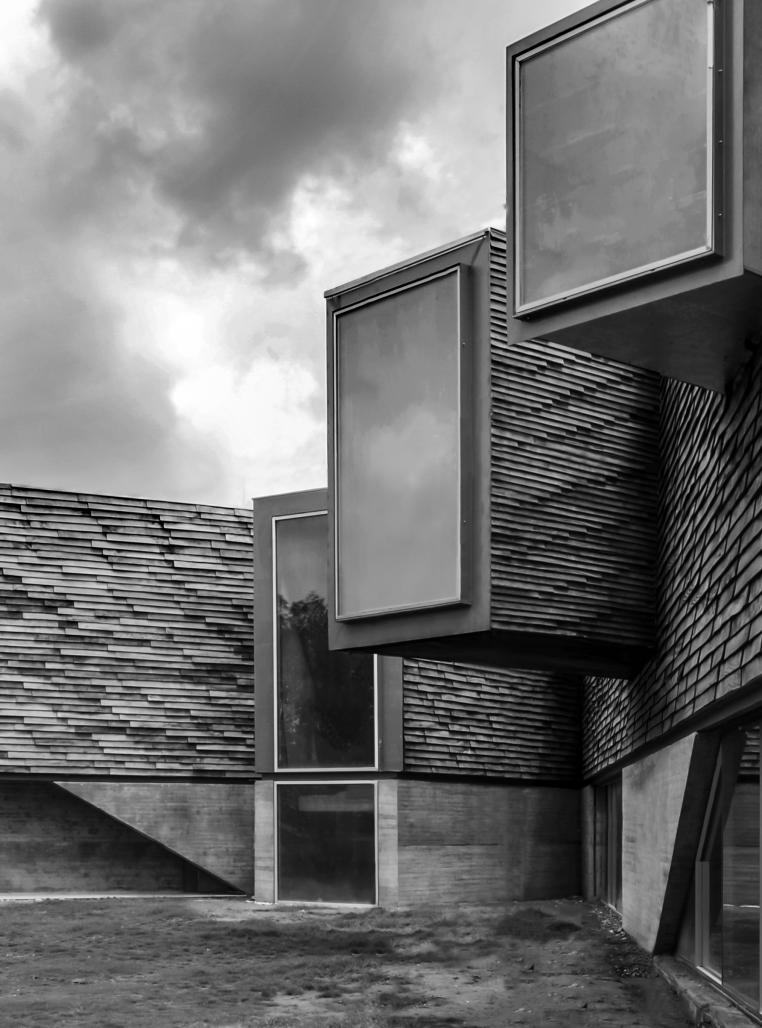

Crafting the ground floor with exposed concrete cast using wooden plank shuttering, the upper floor is rendered in 8mm shingles of local “thun” wood.

The tactility of the building envelope is emphasized as it responds to the dynamics of daylight.
The alchemy of nature will weather the building surfaces to reveal an equivocal patina over the years.

2014

2016

Consultants : Structure - Mithran, Prof.L.S.Jayagopal
Earth Cooling - Atam Kumar, Kanak Raj
HVAC - KD Singh
Plumbing - Deepak Associates
Electrical & Lighting - Lirio Lopez


Structural system : RCC Wall & Tubular Steel Construction

Major materials : Lightweight steel frames
Robertson decking system
Insulated drywall and glazing systems
Insulated alloy roof
RCC wall & “thun” wood shingle cladding

Site area : 2.5 acres
Total floor area : 12,500 sq. ft.
Image Courtesy : matra architects

Wakhloo
Priyank Jain
Vinay Saxena
Suchet Gurwasheesh
Amrita Matharu
Sanjay Devrani
Mukesh Kumar, Model

Rhizome House by Verendra Wakhloo in India won the WA Award Cycle 30. Please find below the WA Award poster for this project.
