Tiny area of site - 107?
This site that is located in the heart of downtown is a small, irregular, polygonal shaped land and it is ragged old space, only area of 100?.
At the same time, the maximum building area is no more than 60?.

The development of vertical space - Skipped floor space - Rich sequence of vertical space
While adapting the skipfloor system, it was possible to maximize the visual range and to produce the interesting space of variety, as possible as this small site can do.

The spread of horizontal space - Narrow bamboo garden - Fence space
Because of the boundary of small courtyard and living room and the window between the concrete fence and interior space are transparent, the extended outdoor garden space and interior space maximize the horizontal visual range.

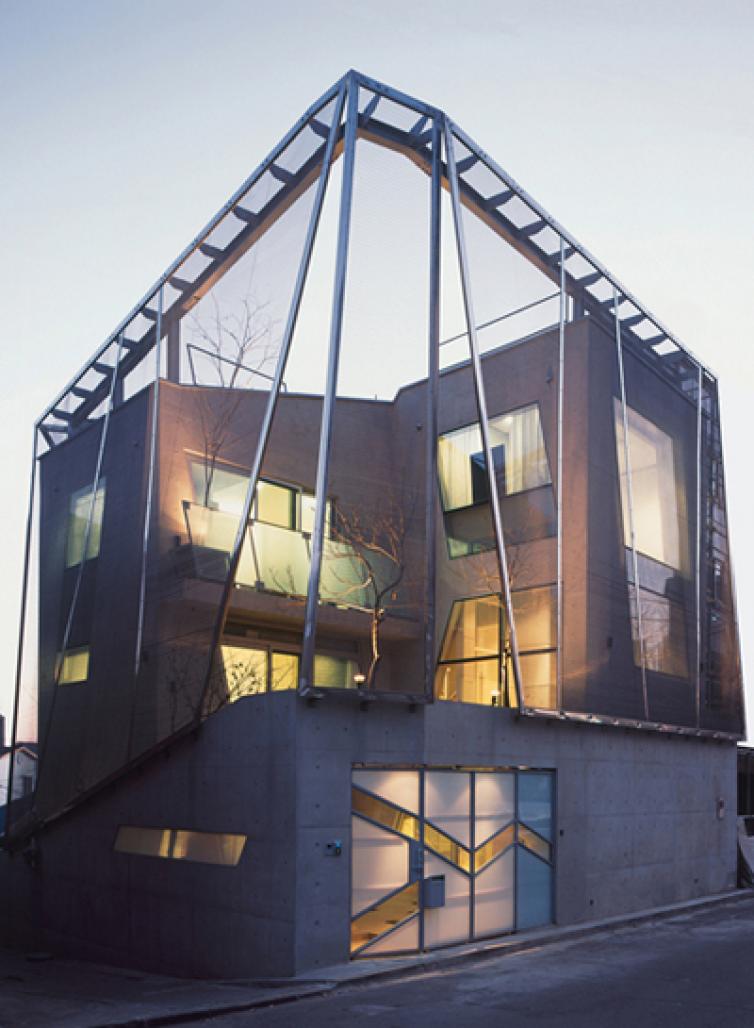

Stainless mesh - Filtration of landscape and sunlight, translucent mass
The translucent images which are consisted with stainless mesh that filtrate the sight from opposite church and side stores and direct sunlight, are the major impression of this house.

Vertical garden
Small courtyard was covered with wood panel, for the maximum efficiency of use of the place.
This spacs of inner courtyard where is surrounded with stainless mesh and exposed concrete walls of this house, is semi interior space.
From ground courtyard level to roof garden level, several trees and flowers were planted vertically, on the canopy of main gate and on the balcony of upper floor and on the roof garden floor.

Small but rich - Small area but rich space
The name of this house So Da Hun means small house but the house of rich space.
This project was a research about what is the rich spatial system in the minimum area of site.

2008

2009

So Da Hun by hyo man kim in Korea, South won the WA Award Cycle 8. Please find below the WA Award poster for this project.

poster
Downloaded 149 times.

/

Favorited 1 times
