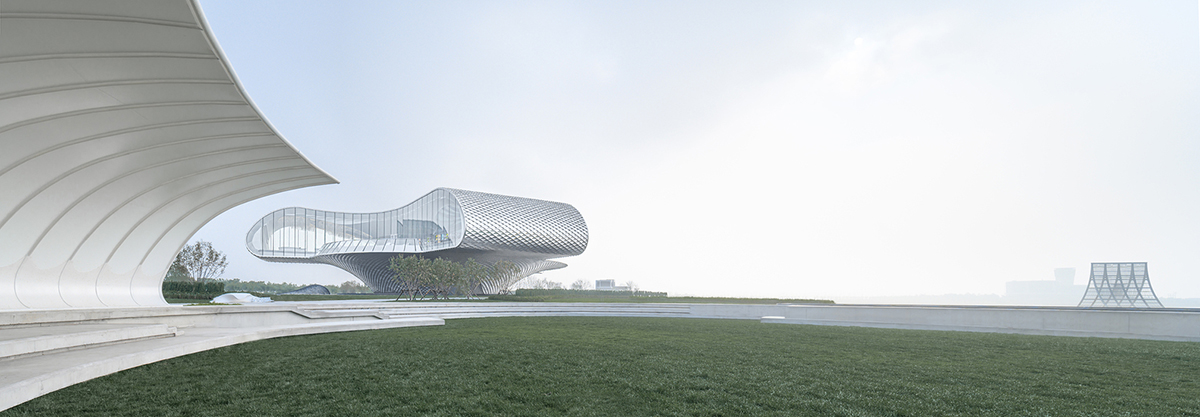

Lacime Architects creates wavy and floating Shimao-The Wave Showroom in Tianjin, China
China Architecture News - Aug 17, 2020 - 13:09 8829 views

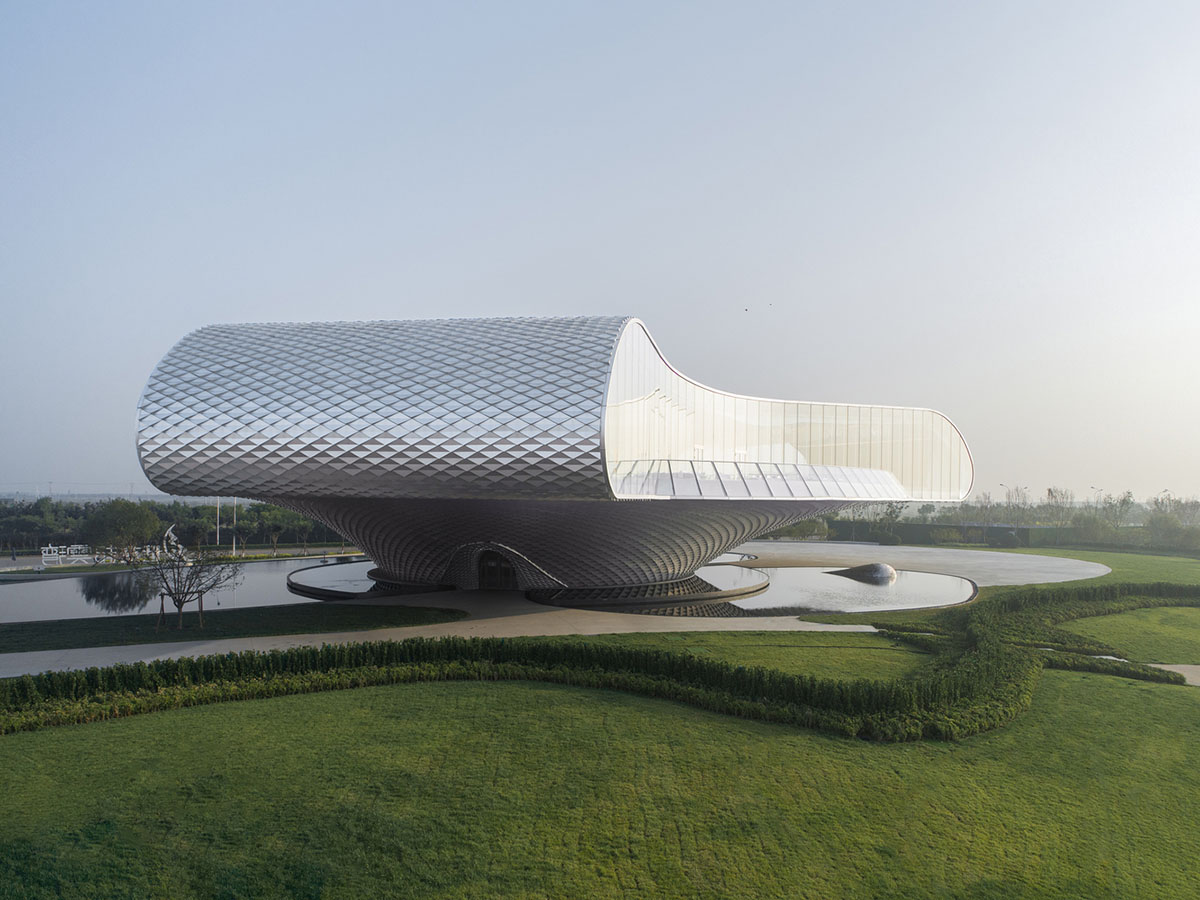

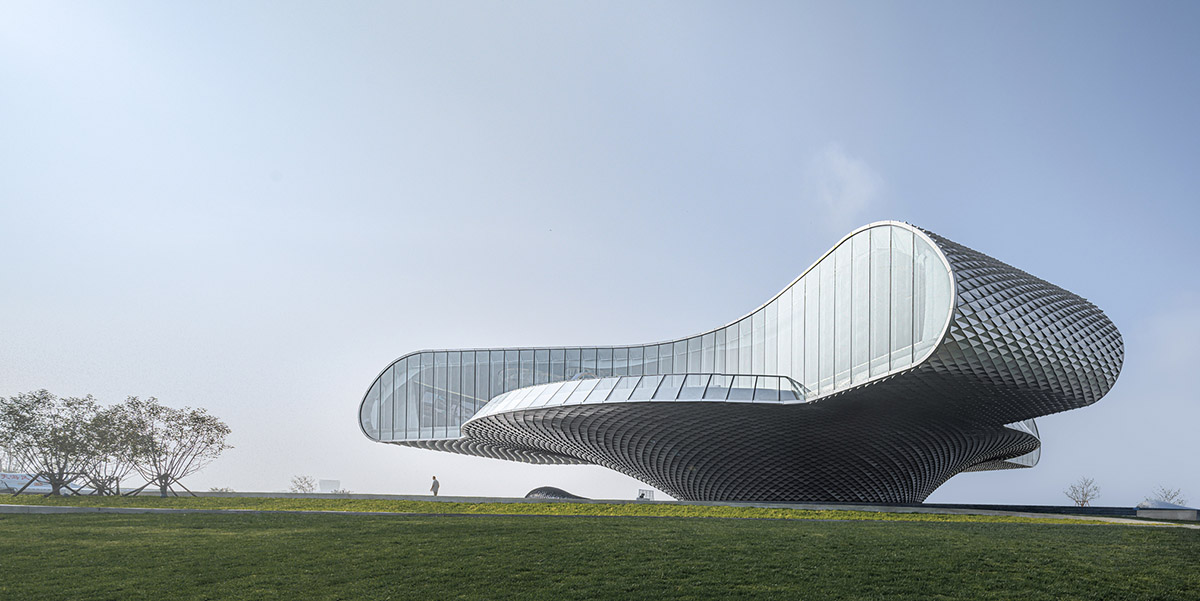

Shanghai-based architecture studio Lacime Architects has designed a wavy and floating showroom that is raised on a large plinth on the main body of the structure.

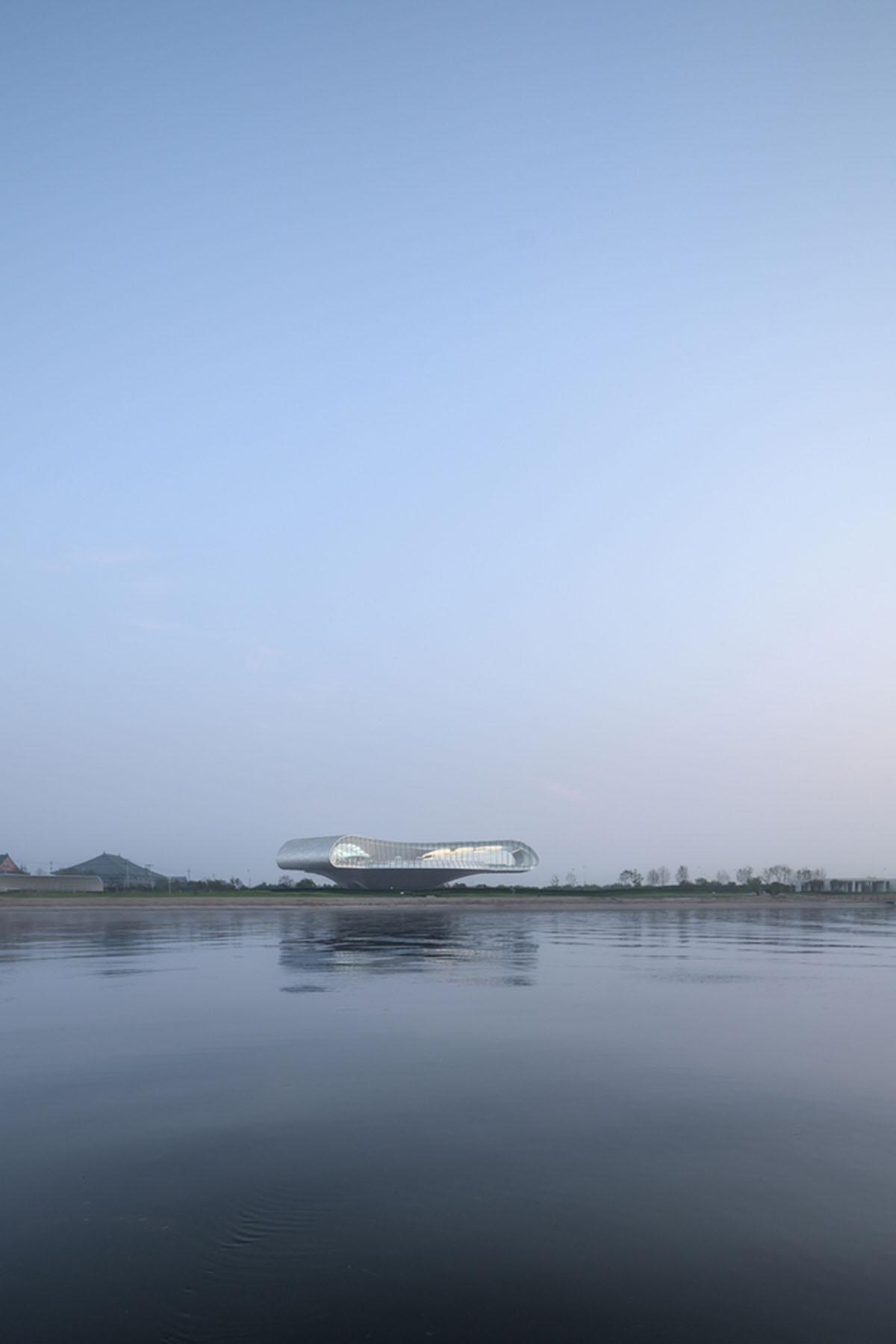

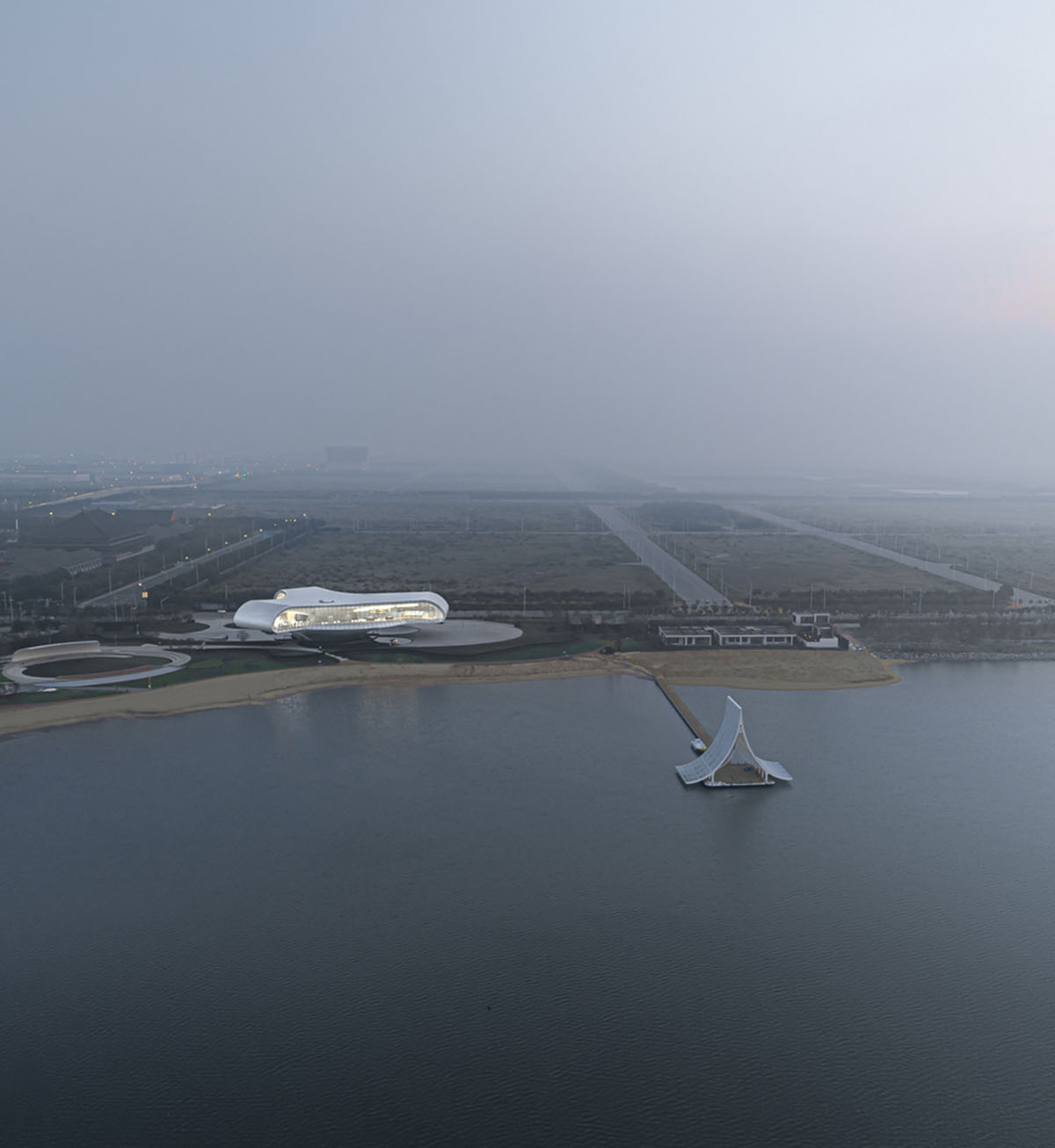

Named Shimao-The Wave Showroom, the showroom is located at Binhai New Area on the eastern coast of Tianjin, the project is in the heart of the Bohai Economic Rim and close to Tianjin Binhai Aircraft Carrier Theme Park and Binhai Matsu Cultural Park.
It is a diversified land that integrates entertainment, edutainment and culture. Its excellent geographical conditions make it a unique area for exhibition and experience.
As the studio explains, the entire bay area planning follows the basic logic of "point, line and plane to create contemporary urban spatial sequence of man, sea and sky."
The architects are inspired by the idea of wave, the building focuses on the theme of "water", extracts the concept of "water drop and wave" from waves and creates an image on the sea.
The whole building resembles the wave to create a dialogue between the building and nature, and the building has become a symbolic existence where the sea and the earth converge.

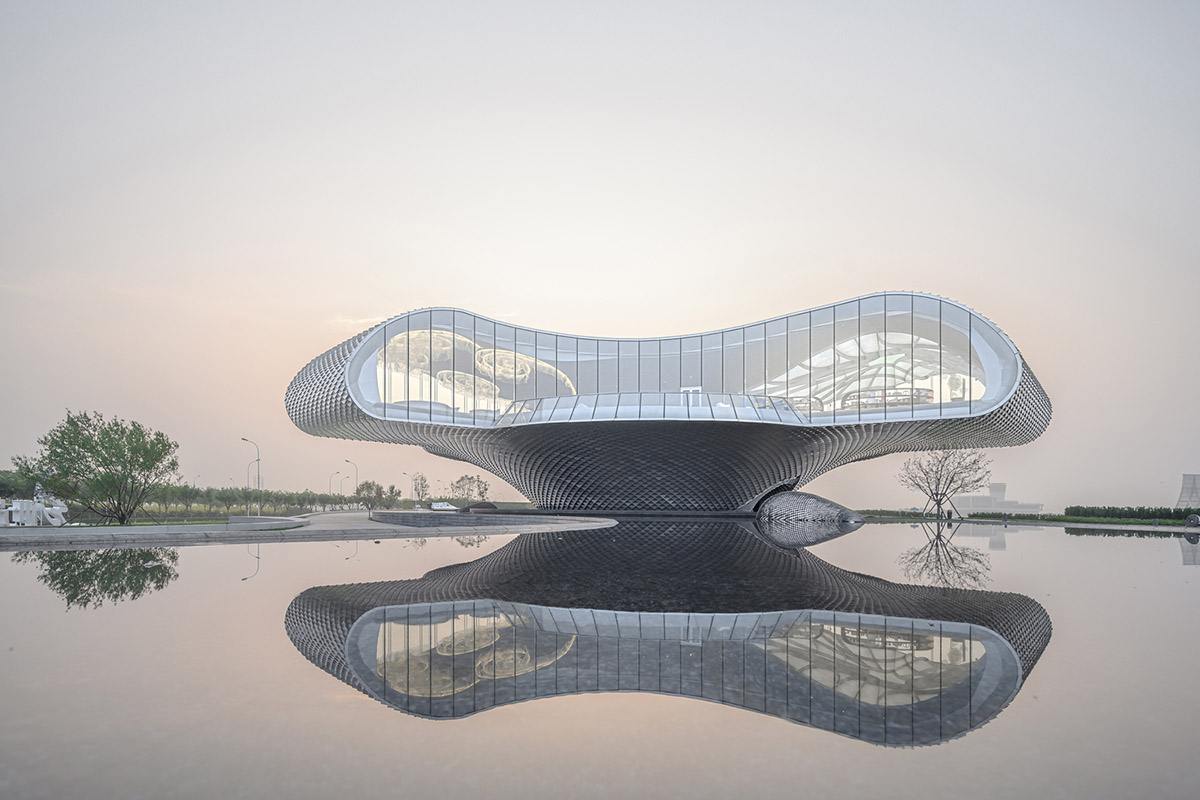

The entire exhibition area is designed with three major functional areas: the Wave (art museum), outdoor theater and public space. Each area is connected with surrounding beach. The building is separated from the sand dune and reef, looking like a floating space structure above the sea.
The junction of the building also comes with three outdoor terraces overlooking the sea. This area is an extra space of the building. People may feel completely relaxed when only the sounds of nature are heard. In this space, people, sea, air and the sunshine establish a closer connection.
Architects applied parametric design in construction

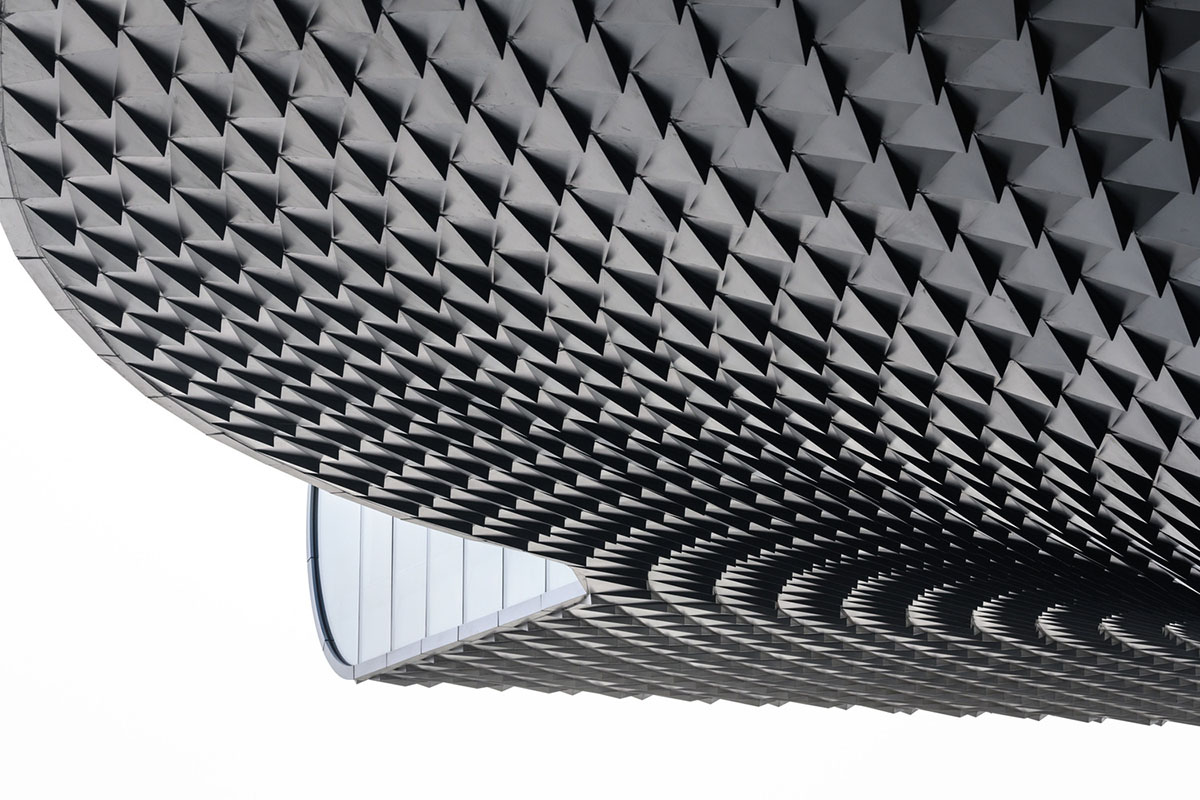

To create a dynamic skin, the architects integrated parametric design applications. The subtle arrangement of the scale-shaped aluminum plate allows the façade to reflect the sunlight from different angles in different periods of time.
The pool around the building casts diffuse light onto the scale-shaped façade to produce a gorgeous look. The column-free space of the 30-plus-meter tall building is achieved by the thin shell structure, as it goes upwards to split into three sections that balance the stress in each direction.
BIM technology allowed the proper application of plates on its facade

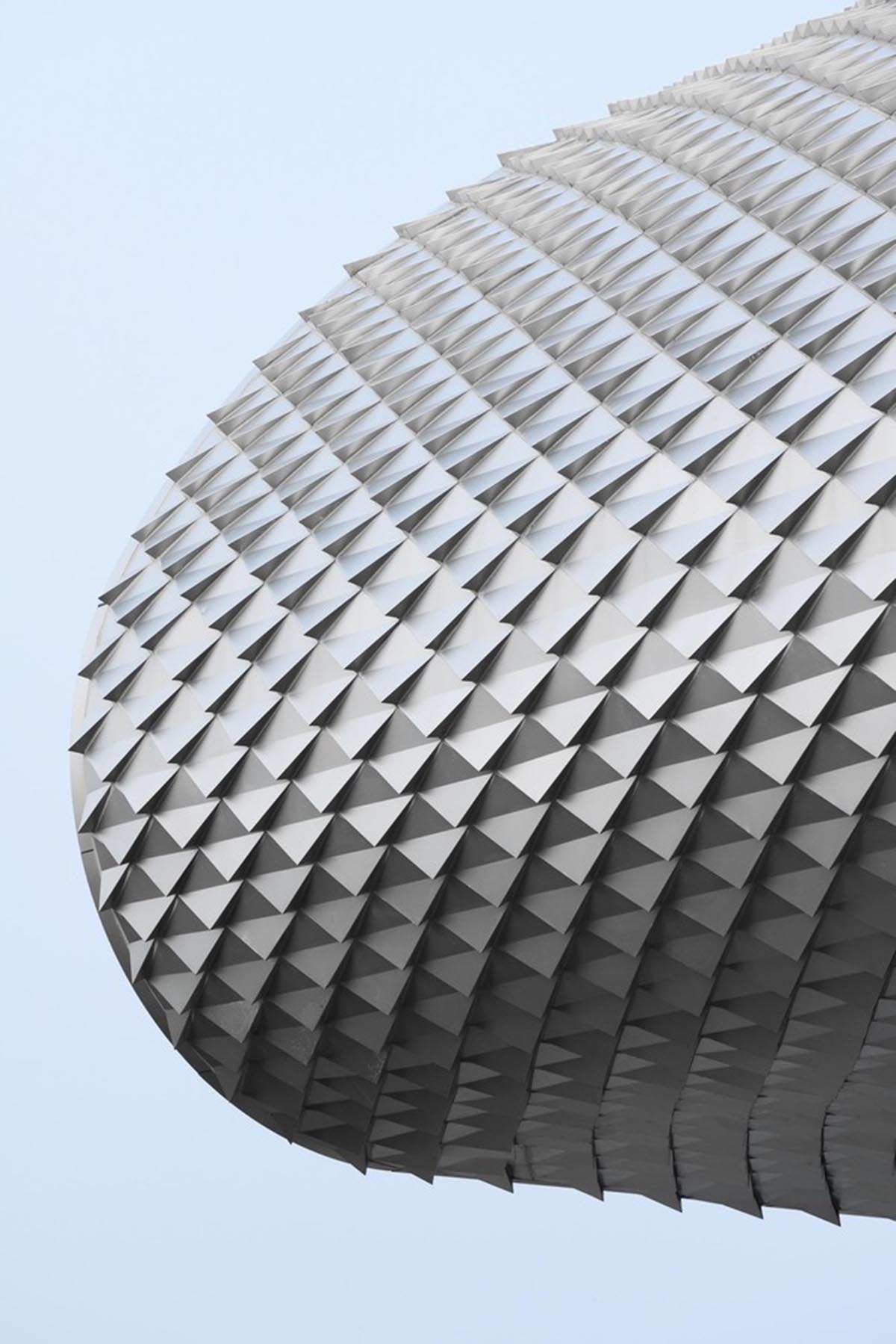

BIM technology is applied to the scale-shaped aluminum plate, which enables more than 13 thousand pieces of aluminum plate to fit properly on the façade and delivers a rhythmical upward spiral texture.
The real-virtual façade has achieved perfect balance in efficient heat insulation and appropriate daylighting. All electromechanical devices are concealed underground, and the roof and building skin make up an integrated design. The pure form is realized with the help of technology.

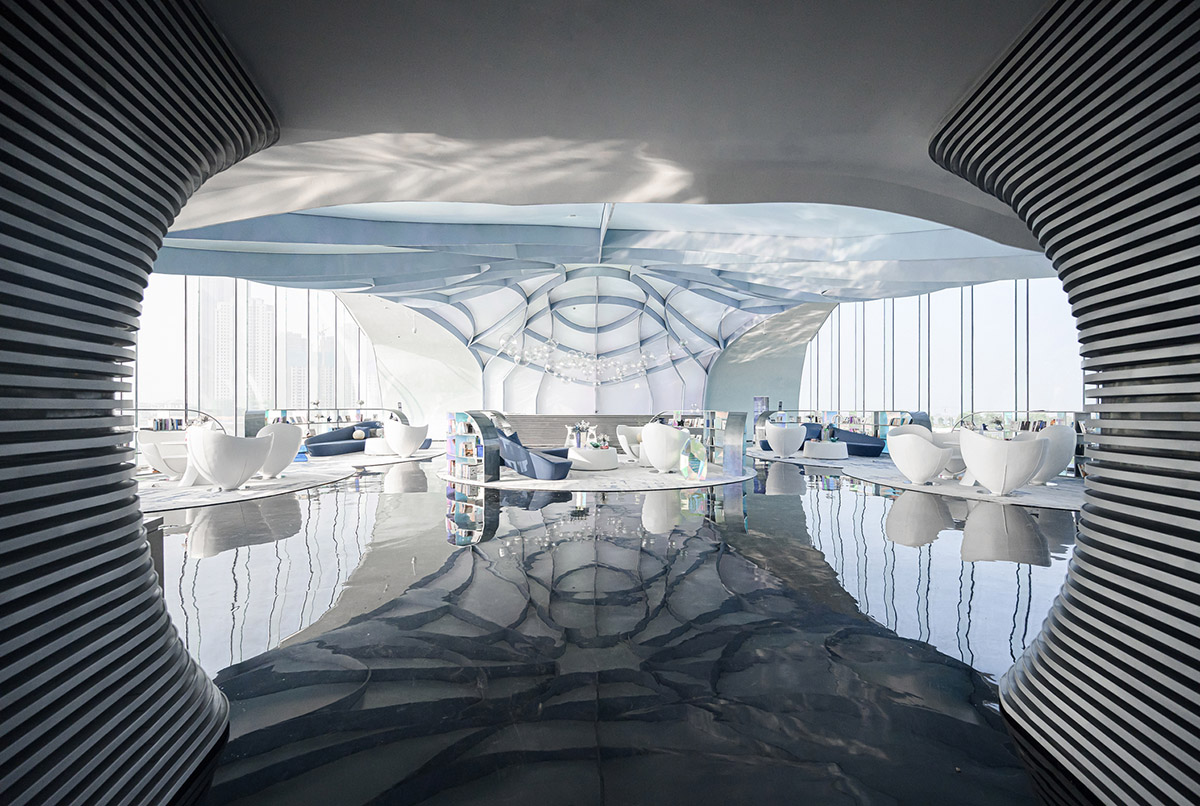

Inside the building, from the ceiling fabric, patterned glass screen to transparent floor-to-ceiling window, they all work to interpret “water” in different states that is the most common element in nature and create a balanced and soft cultural ambience.

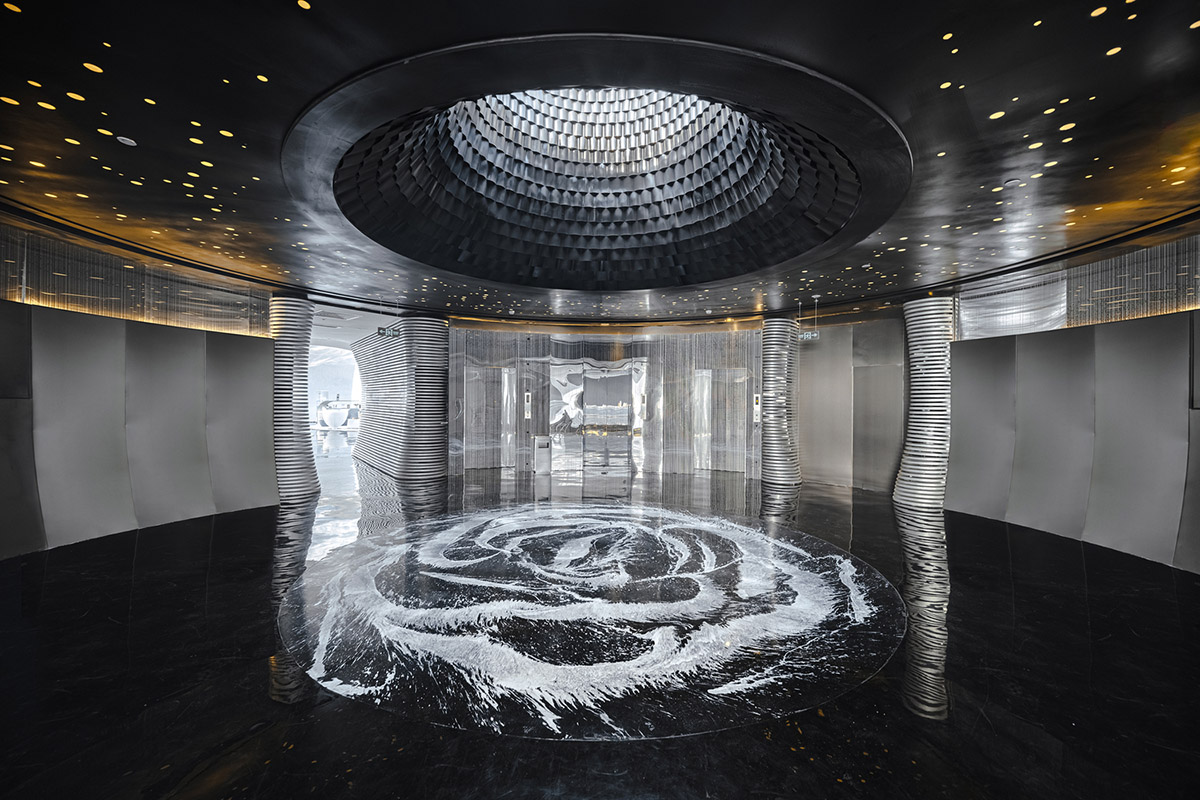

The first-floor hall is a round space, and light beams begin to stream down from the dark space. The lobby is designed with a mixture of water curtain and stainless steel, which offers a quiet visual-tactile experience.
The second-floor illuminating surface is installed with light large glass curtain wall, and the highest glass is up to 8 meters, which helps bring in natural light and sea view and weaken the construction separating indoor and outdoor spaces.

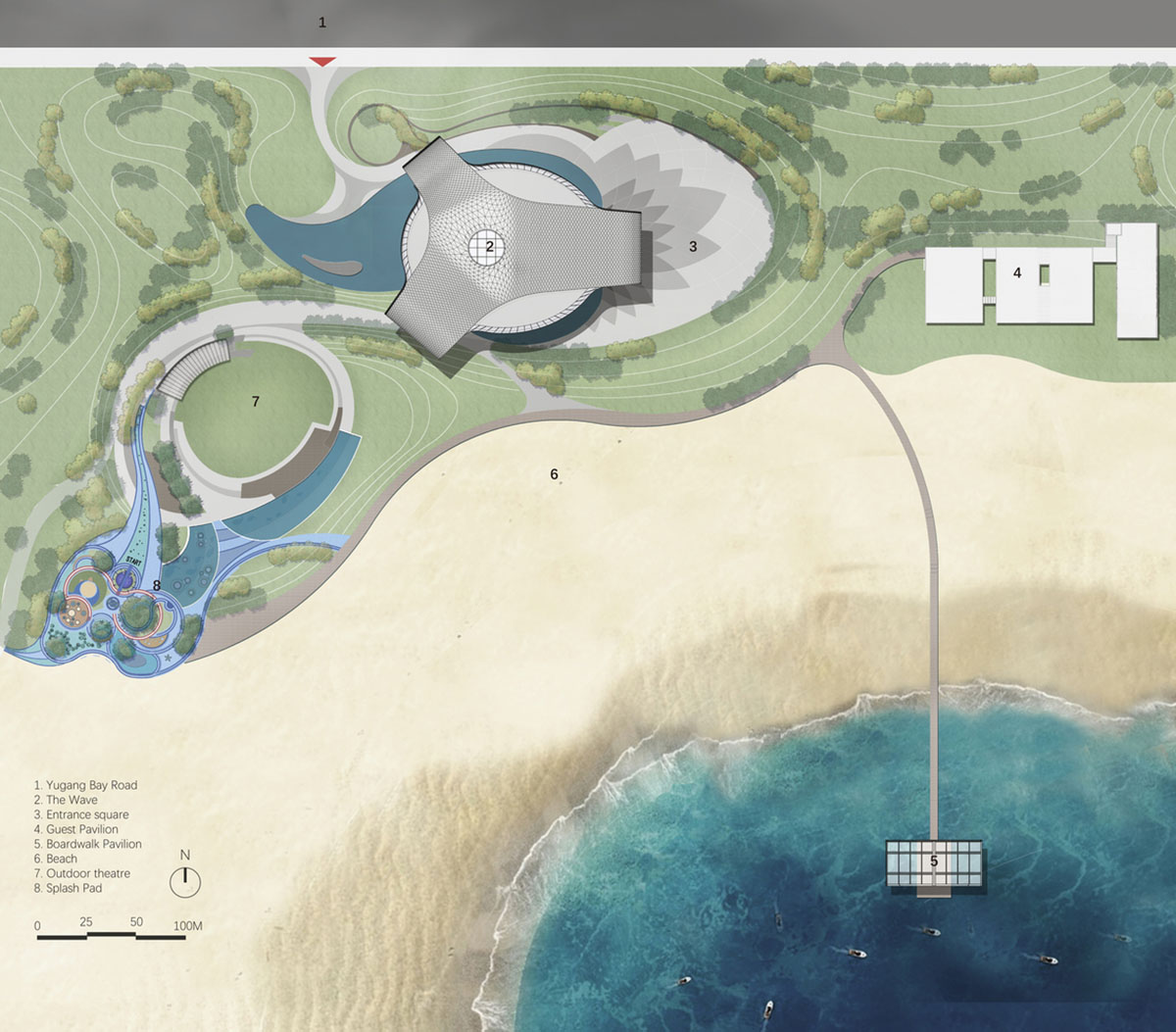

Site plan

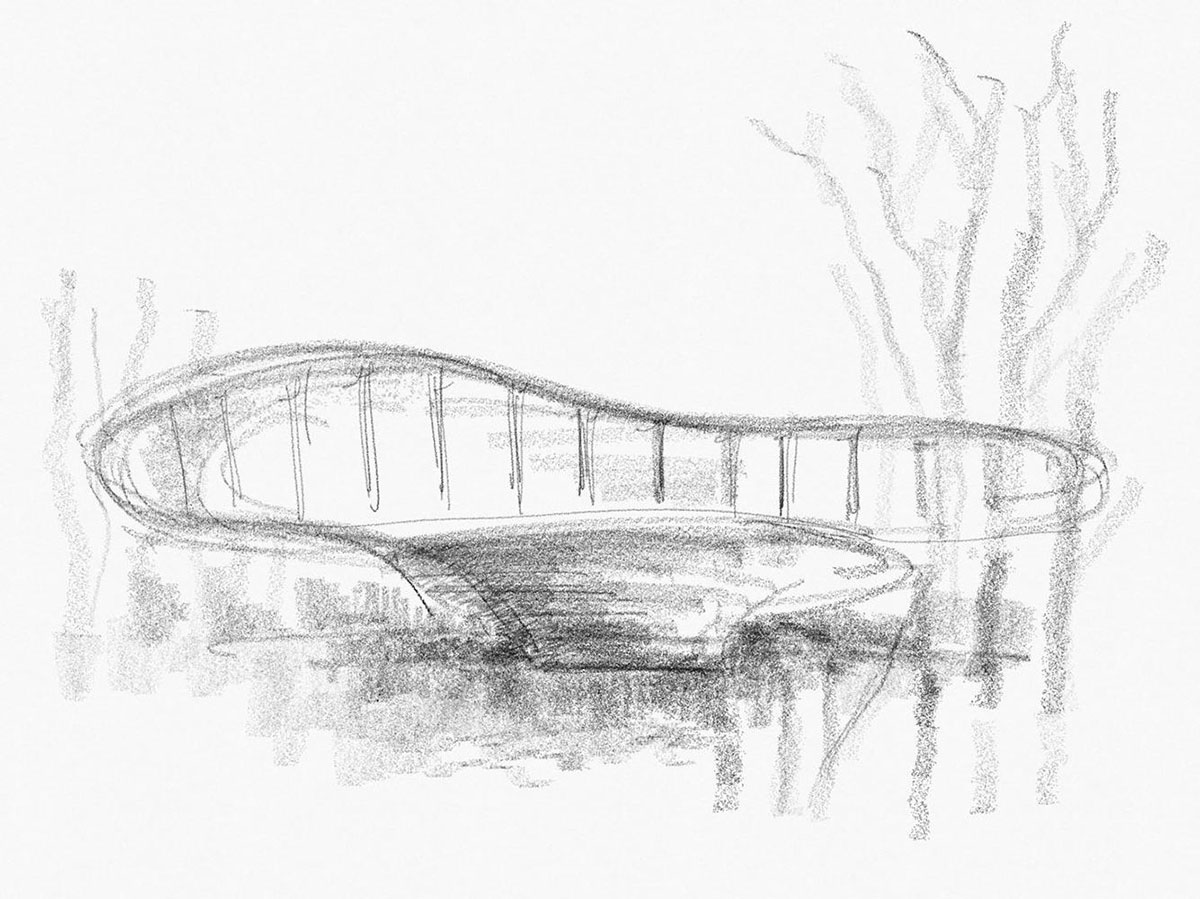

Sketch
Sketch

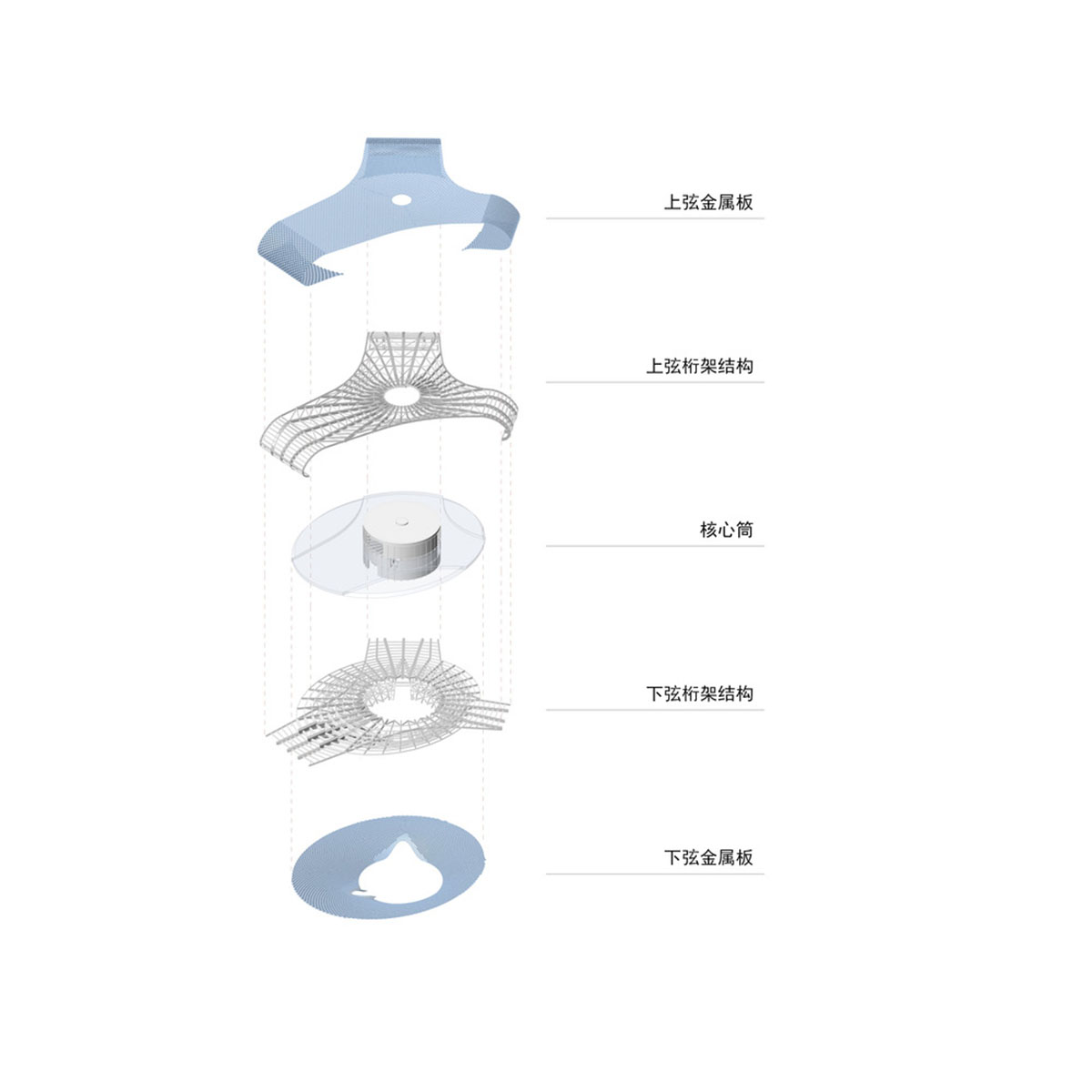

Axonometric

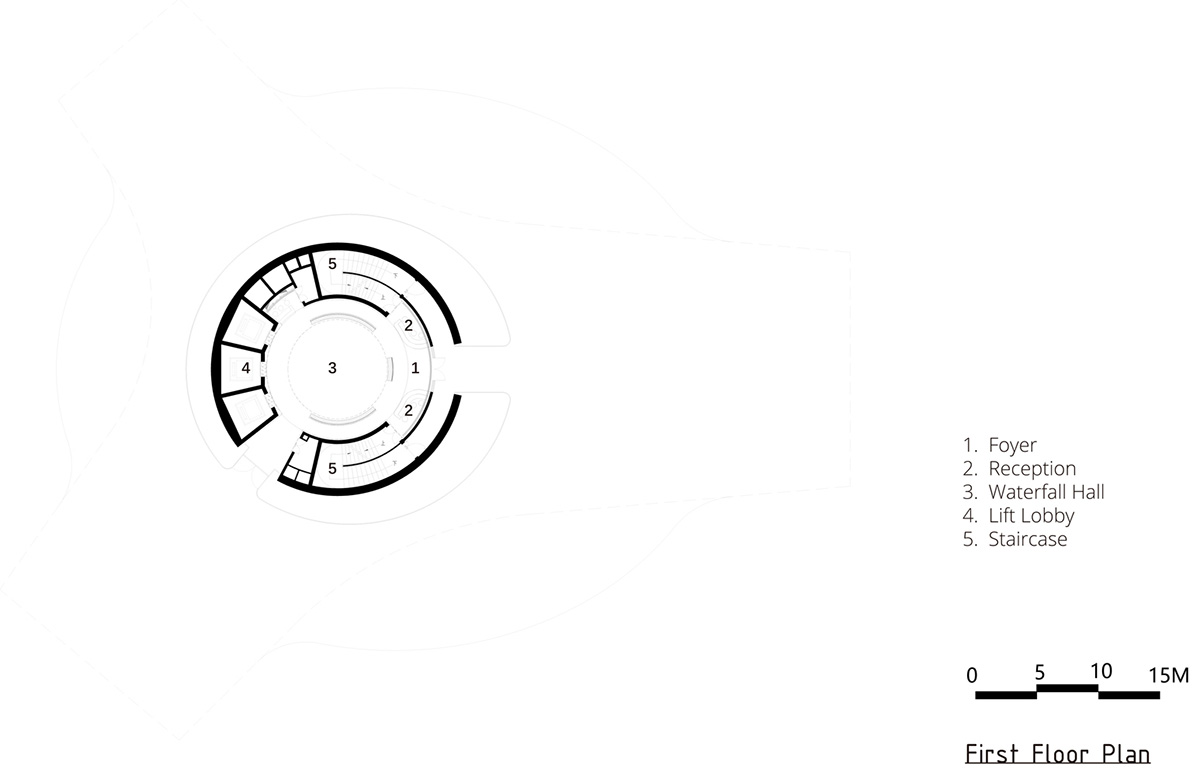

First floor plan

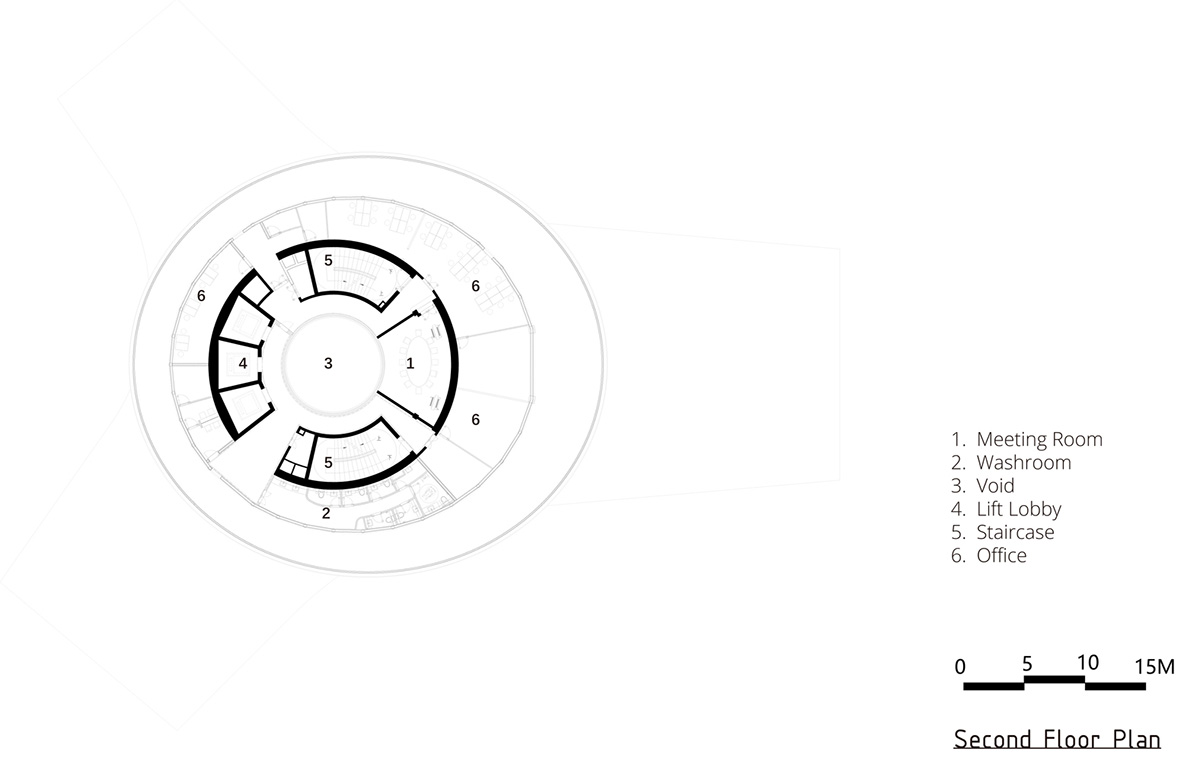

Second floor plan

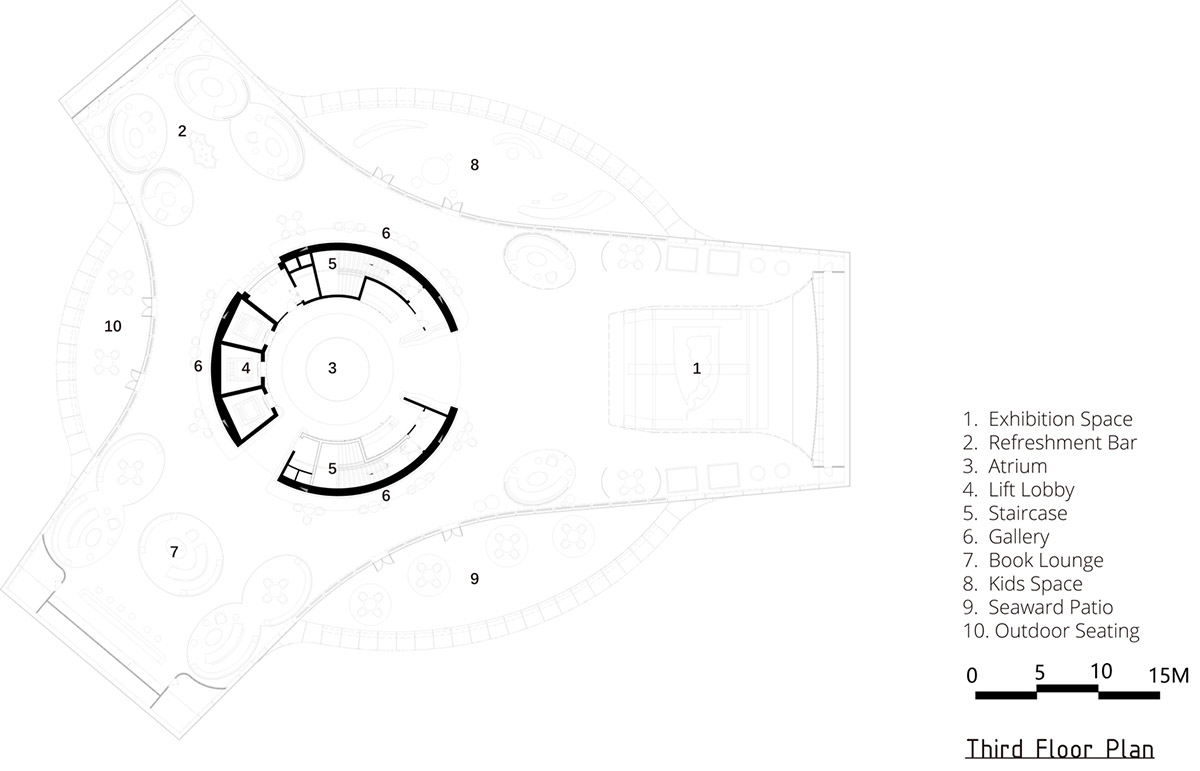

Third floor plan

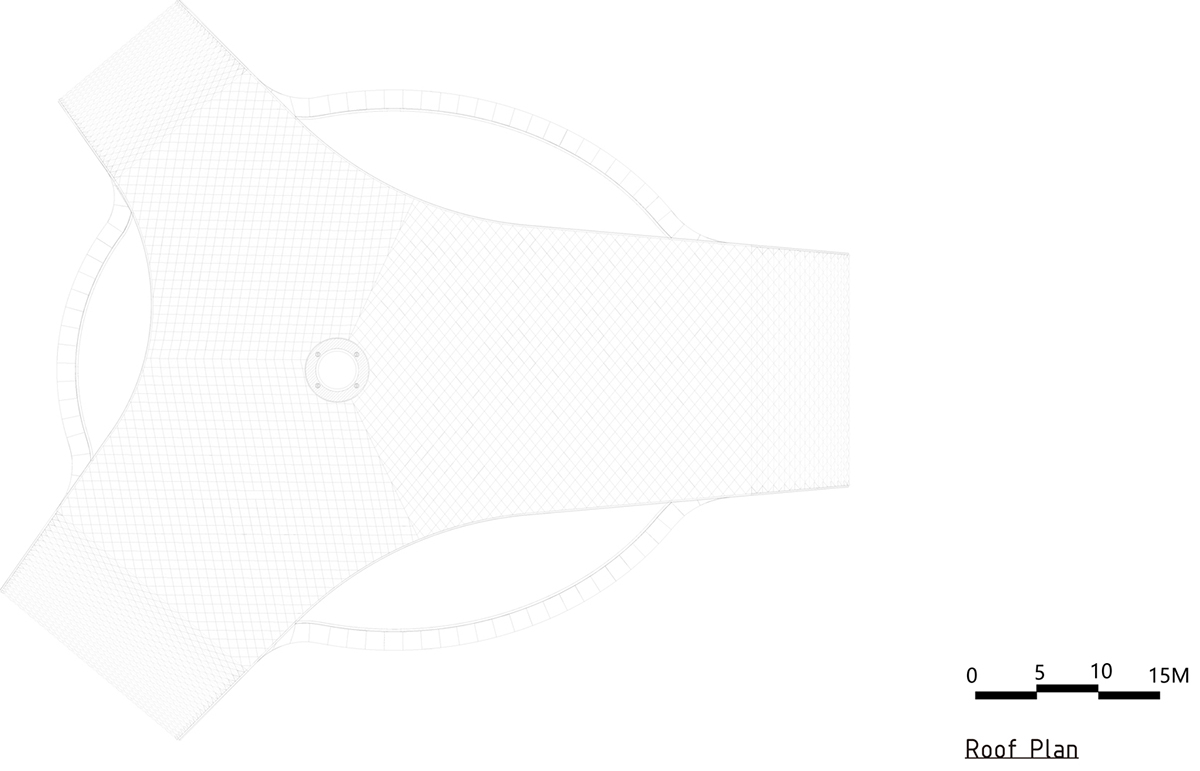

Roof plan

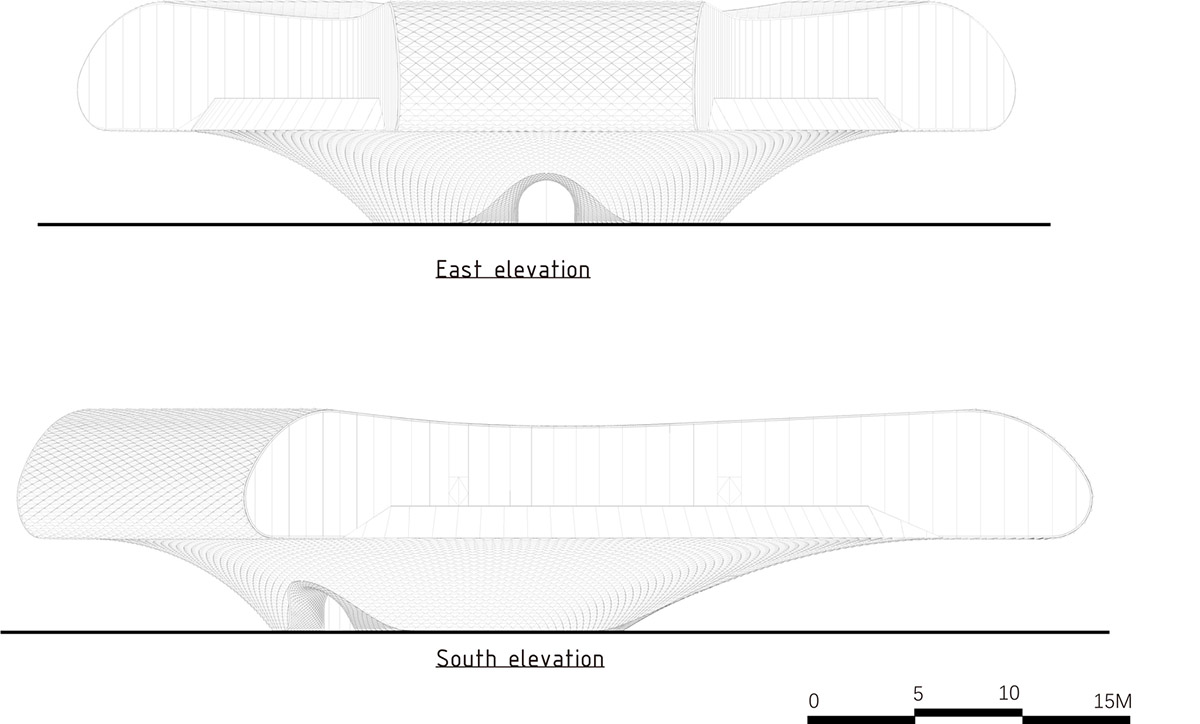

East & South elevations

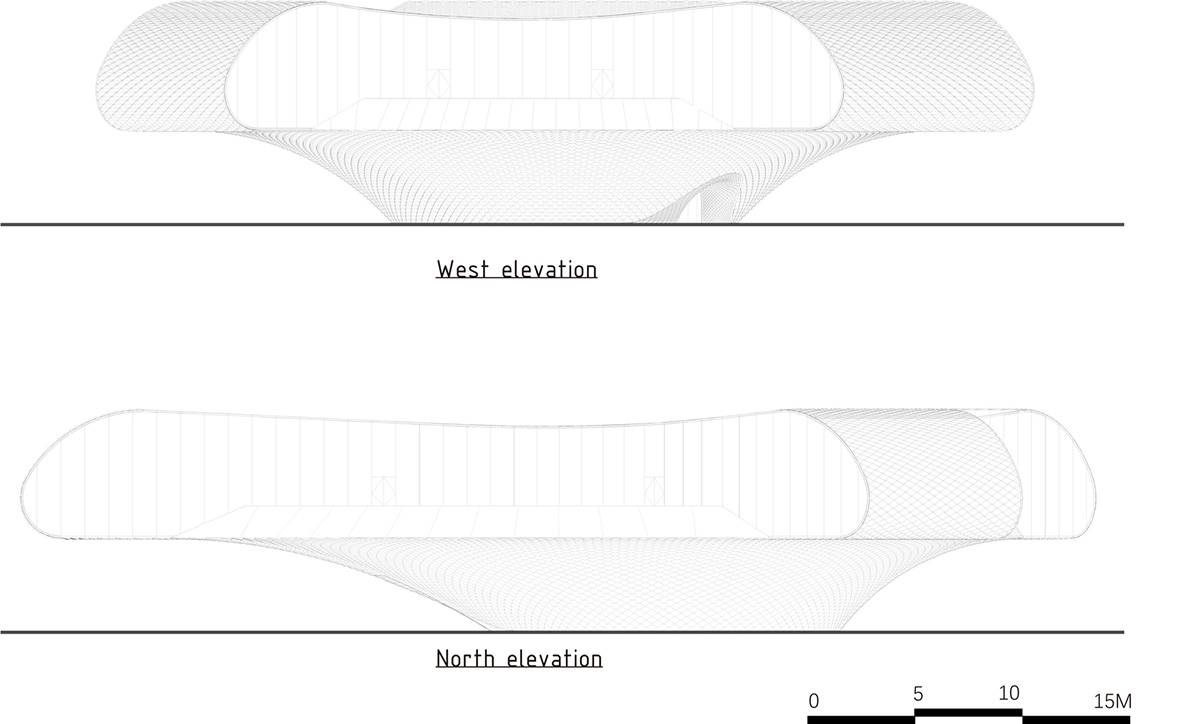

West & North elevations

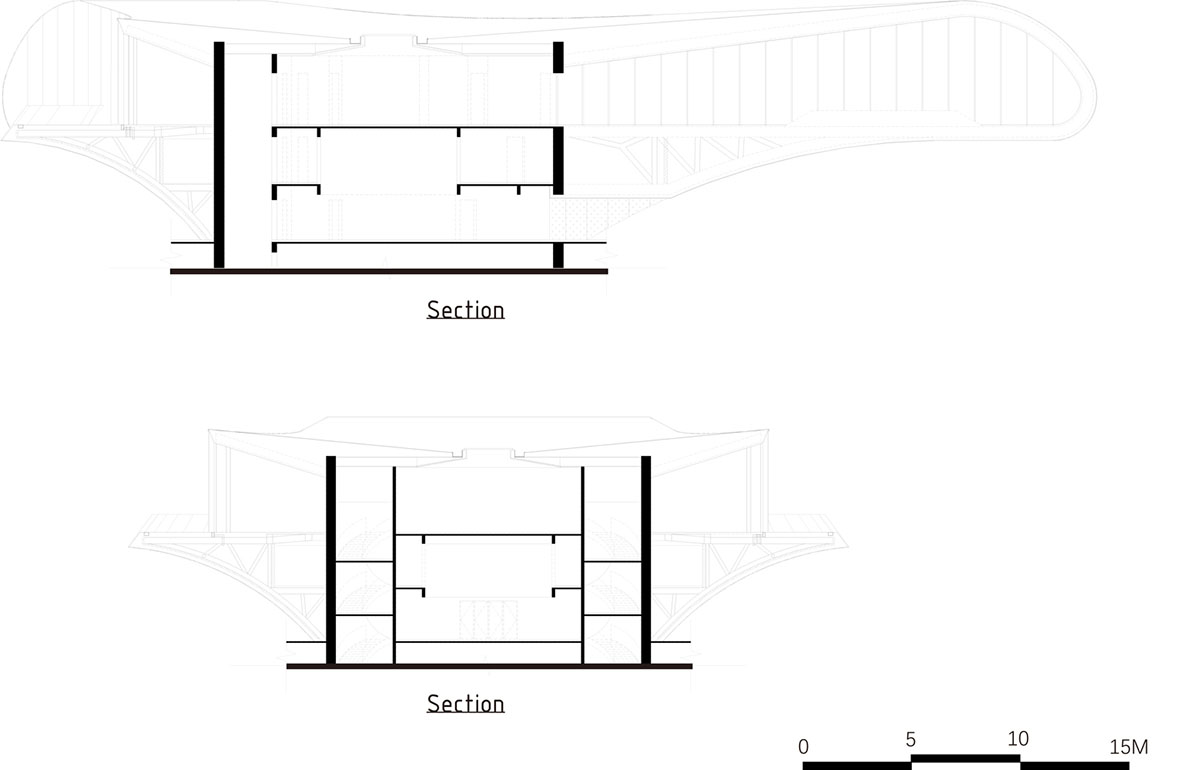

Sections

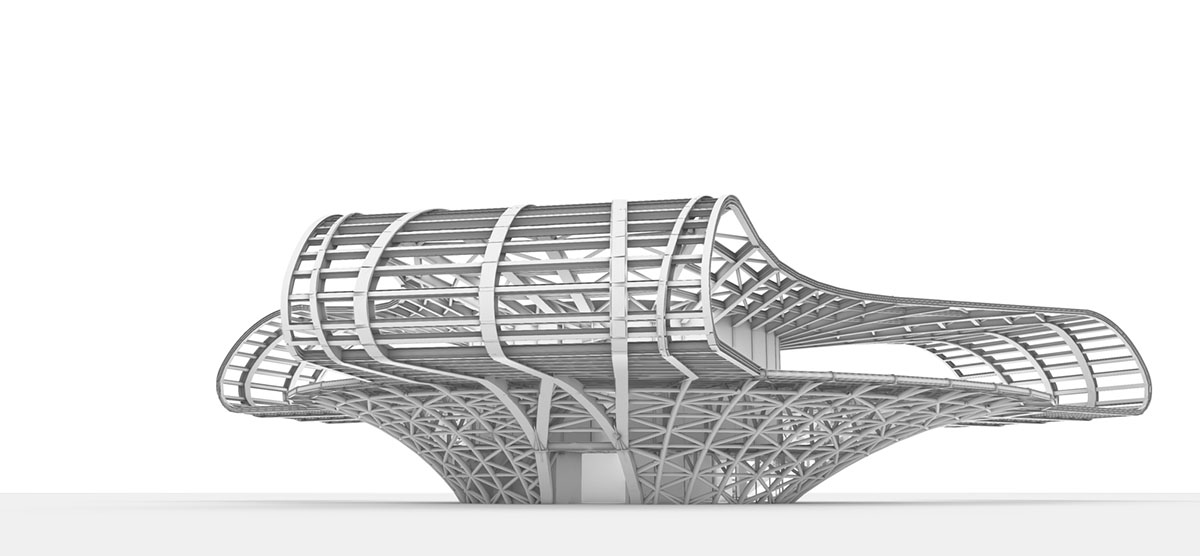

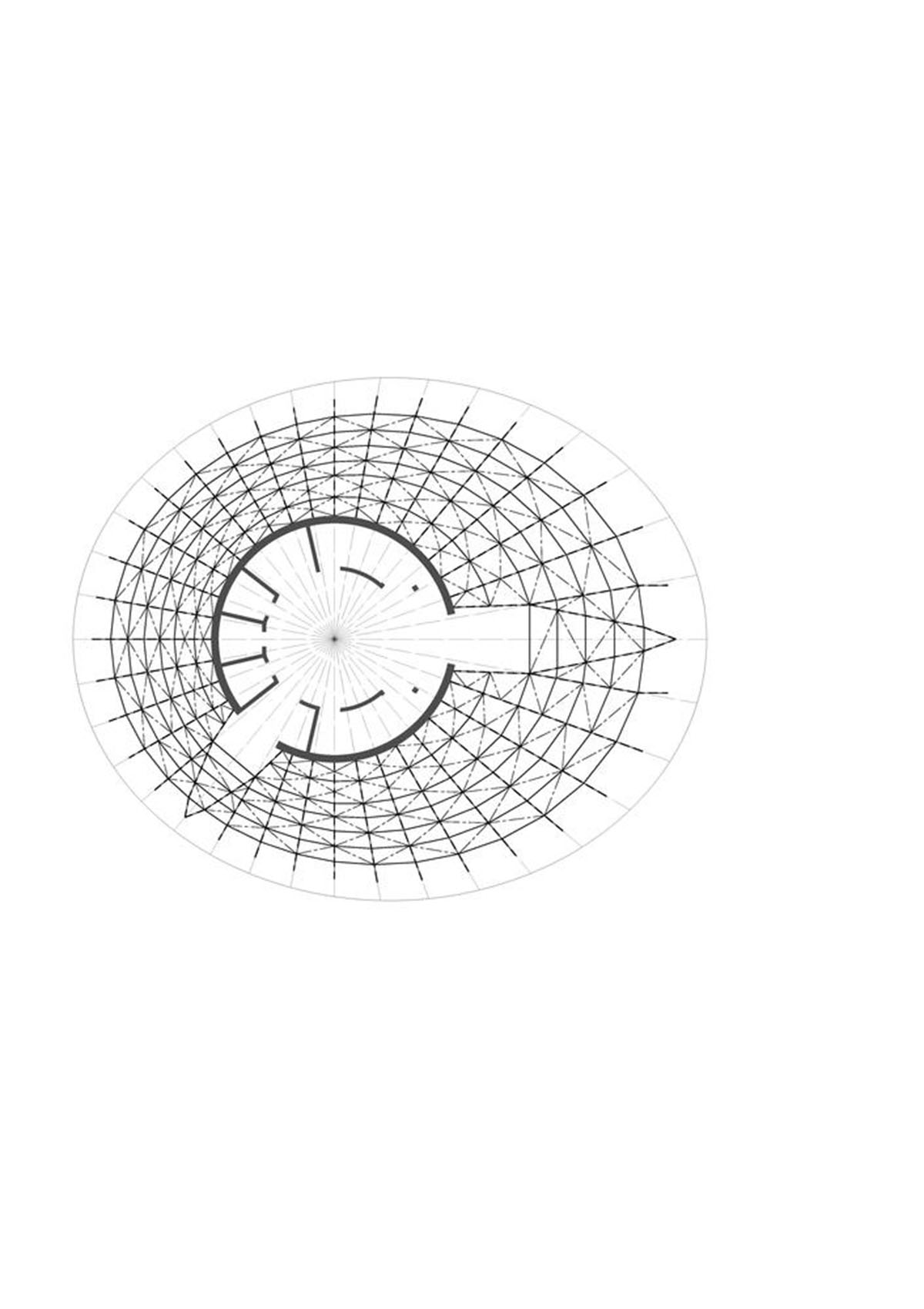

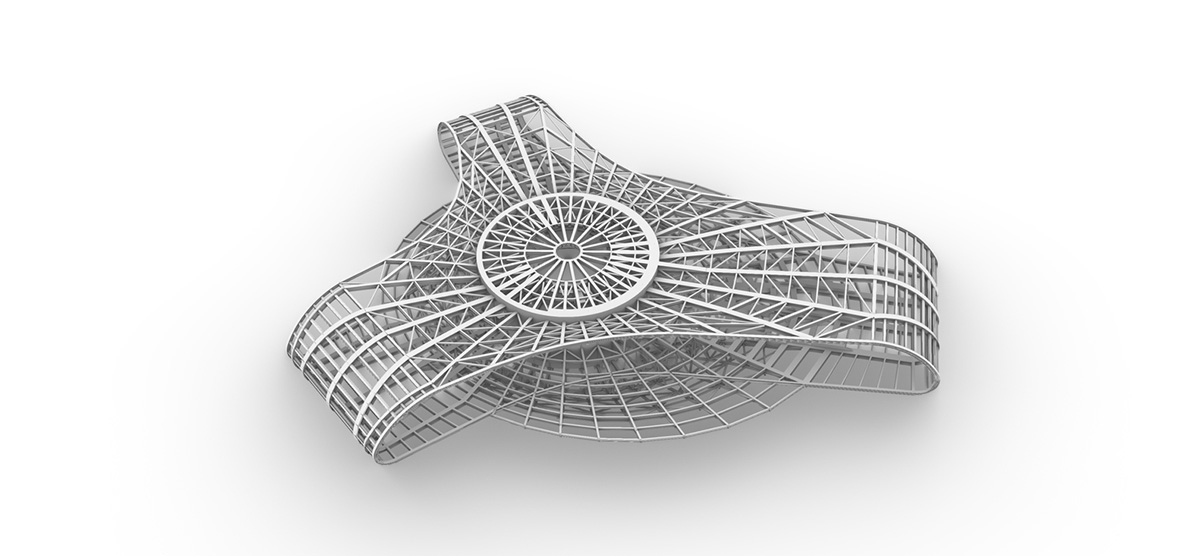

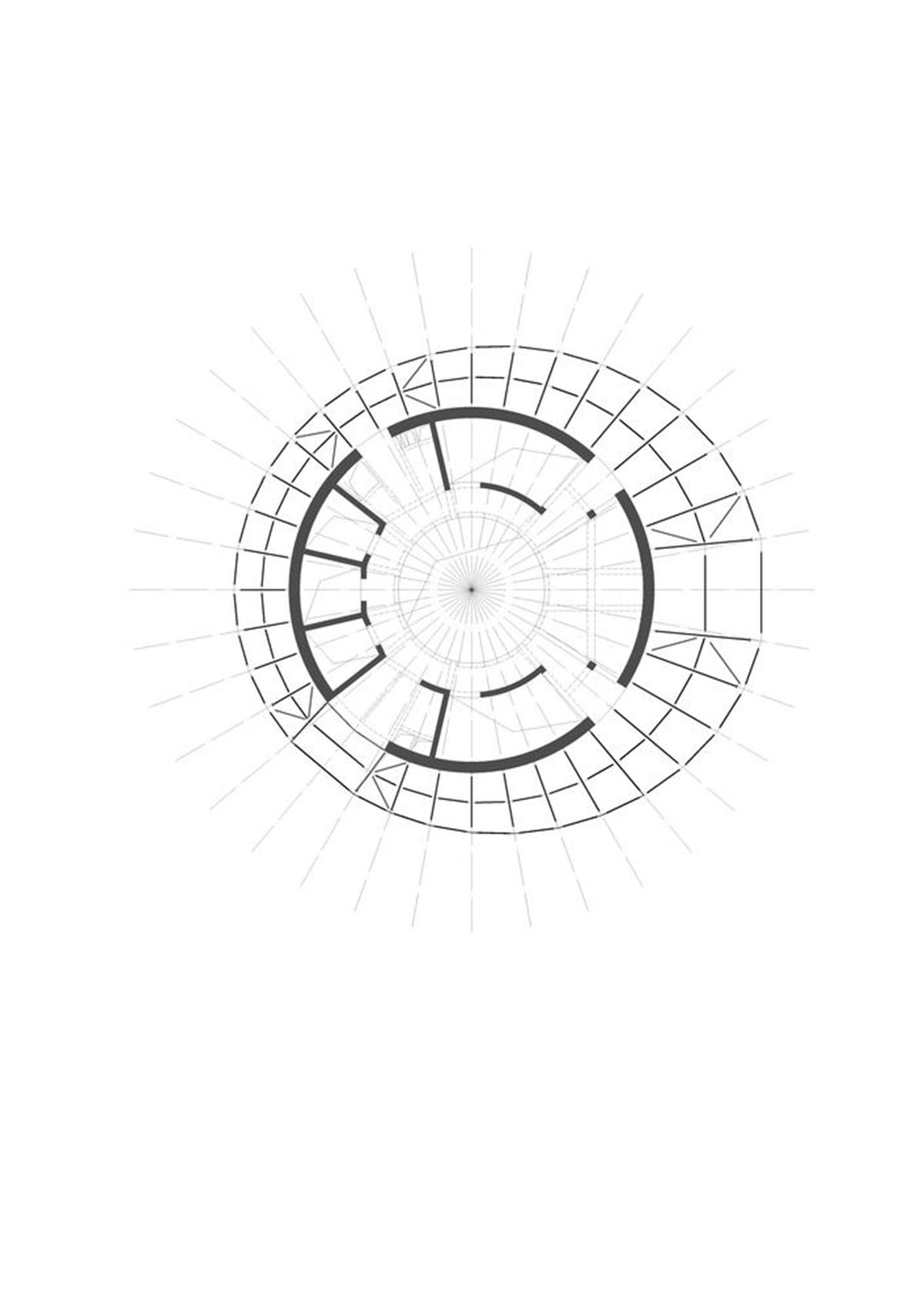

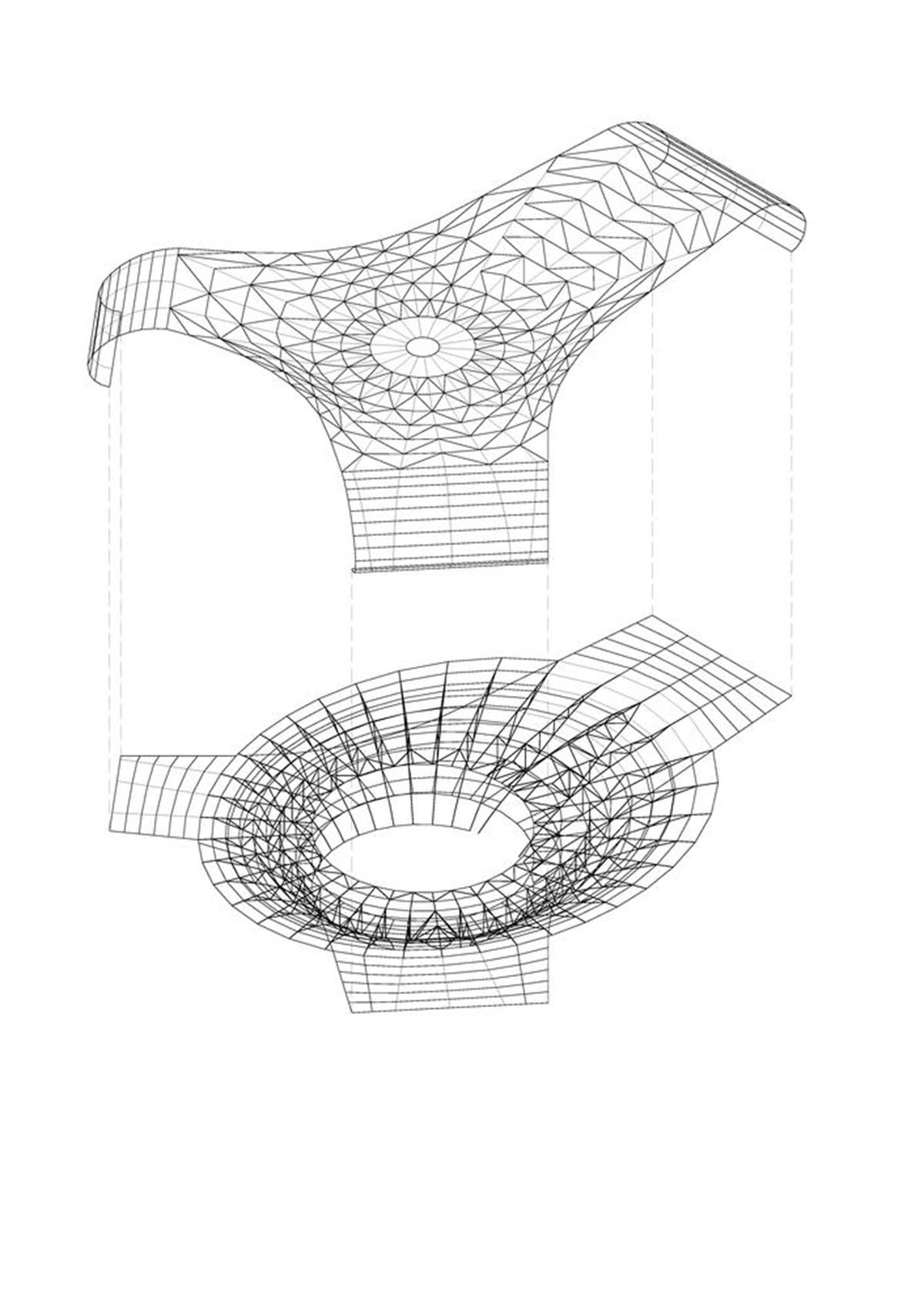

Steel structure
Steel structure
Steel structure
Steel structure
Steel structure
Steel structure
Project facts
Project Name: Shimao ·The Wave
Location: Tianjin Binhai New Area Central Fishing Port economic Zone
Category: exhibition
Owner: Shimao
Architectural design: Lacime Architects Beijing
Lead Architects: Song zhaofang
Design team:
Lacime Architects(shanghai): Pan Xiaobo, Wu Shuguang, Ren Yue, Luo Jia, Liu Wenfeng, Feng Bo, Zhu Tianpeng, Wei Mengrou, Yang Dehe, Shen Chenyun
Gallery Design: Wu Shuguang, PAN Peicheng, Xu Tao, ZHANG Chende, Dong Liangchen, Tu Yuxuan
Construction design: Tianjin Tianyou Architectural Design Co. LTD
Structure design: Yuan Xin Engineering Consultant (Shanghai) Office
Landspace design: Tianjin Donglin Zhujing Landscape Planning and Design Co. LTD
Interior design: Shanghai Biyu Environmental Art Design Office
Curtain wall design: Shanghai Hengli Construction decoration Engineering Co., LTD
BIM design: Beijing Interconnection Cube Technology Service Co. LTD
Structure construction: Tianyuan Construction Group Co. LTD
Curtain wall construction: Beijing Tiancheng Yingliang Stone Co. LTD
Gross Built Area: 3563m2
Site area: 31471m2
All images © CAAI
All drawings © Lacime Architects
> via Lacime Architects
