UAD completes office building with shifted platforms in Zhejiang

China Architecture News - Jul 25, 2019 - 03:37   11177 views

UAD completes office building with shifted platforms in Zhejiang

The Architectural Design & Research Institute of Zhejiang University (UAD) has completed a new office building in Zhejiang Province, China. Called Kaihua County 1101 Project and Urban Archives, the office building features three functions: the Urban Archives and the Civil Defense Command Center and the Housing and Construction Bureau at the entrance of the scenic spot.

The project, encompassing a total of 12,206 square meters, has a superior geographical position and gives a strong response to the context with its dynamic volume arrangement. The south side is a multi-storey terrace house. The north side is a low-lying mountain with abundant vegetation.

UAD completes office building with shifted platforms in Zhejiang

Image © Zhou Yifan

The valley on the east side is quiet and far-reaching. The west side is just a few steps away from the bank of Qinjiang River. The mountain can be seen from afar. Like description of Tao Yuanming's "Peach Blossom Spring", a large-scale multi-functional building with open access functions and private concealed works is constructed between the general green mountains and green waters that fully respected the original buildings which is the challenge of this project.

UAD completes office building with shifted platforms in Zhejiang

"The design firstly places the densely populated urban archives in the ground floor and semi-basement; then places the canteen on the second floor near the west side road, and places the civil air defense command center on the second floor near the hinterland of the valley, using the folding plate to lower the two layers," said UAD in its project description.

"The amount is hidden in the mountain; finally, the office of the Bureau of Housing and Construction is placed on the folding board, and the building has a visual effect on the mountain by means of cantilevering and other methods, so the landscape resources are utilized to the greatest extent."

UAD completes office building with shifted platforms in Zhejiang

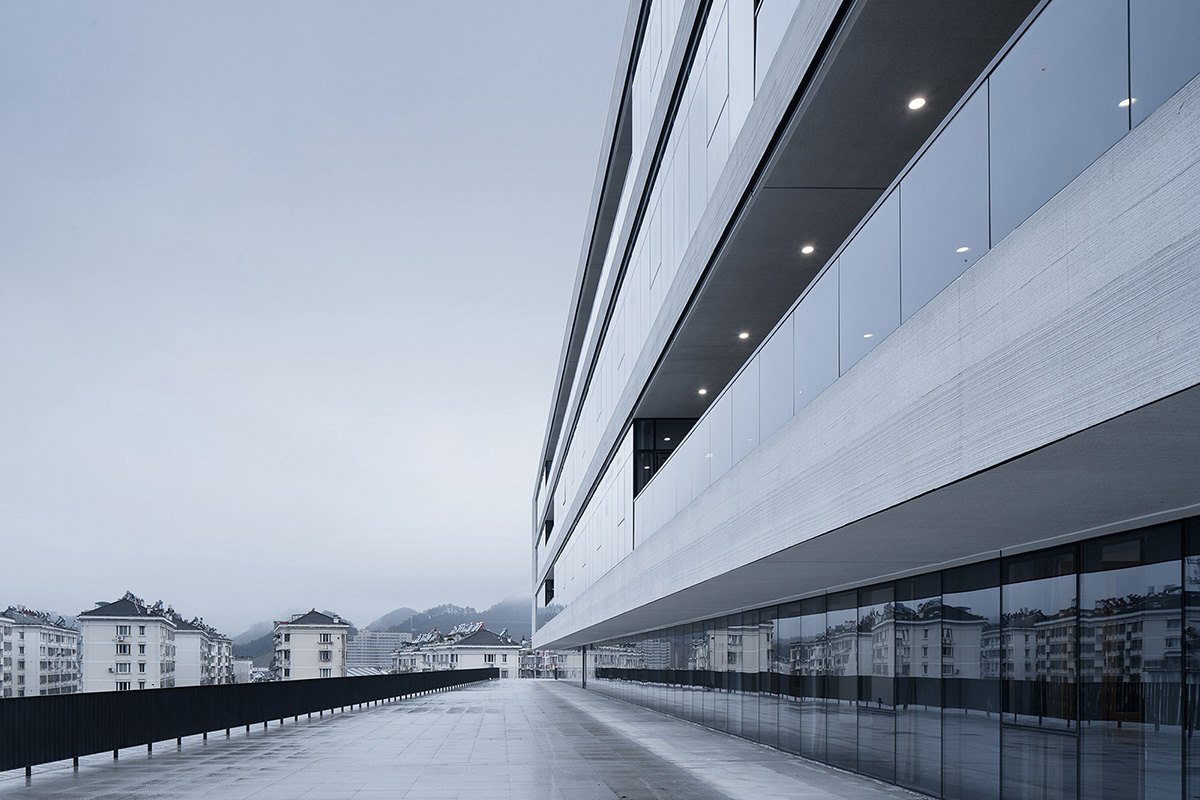

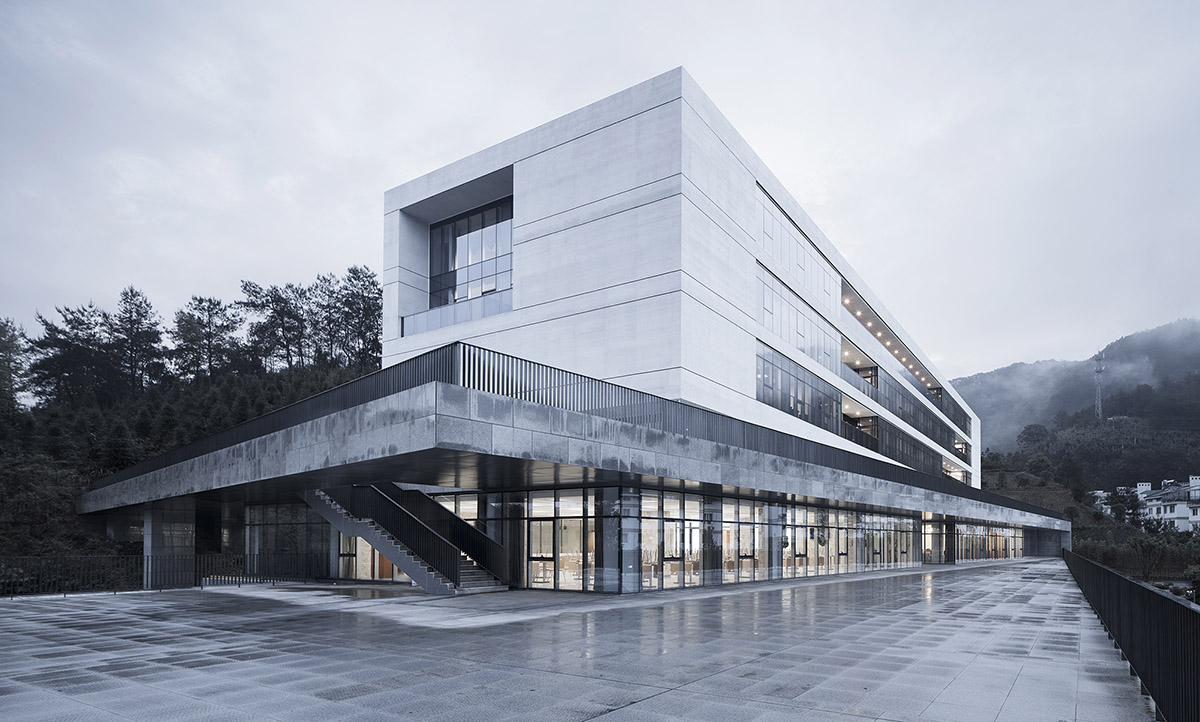

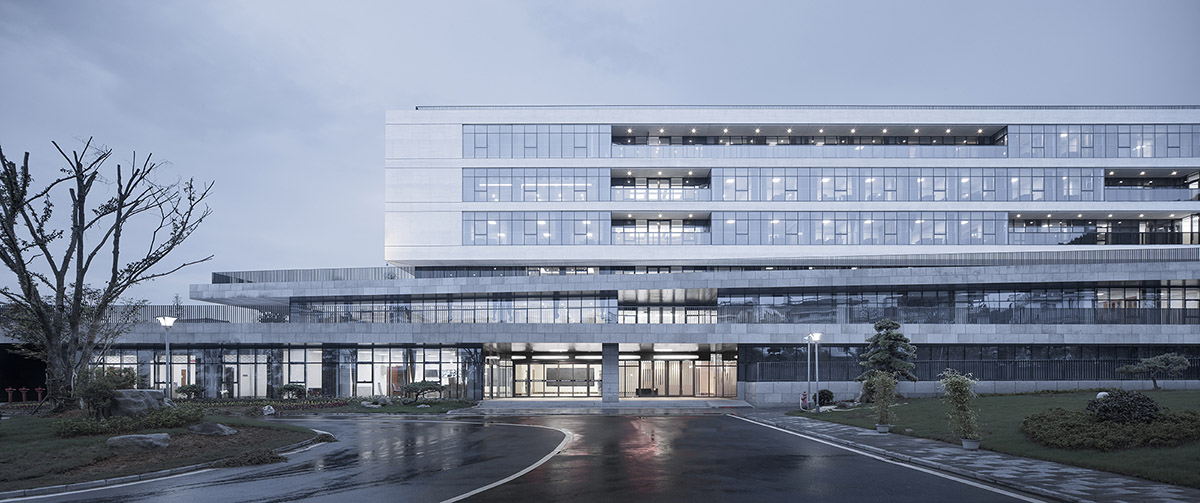

The main office part of the building are placed in a three-story rectangular box floating on a folding platform. The pure and simple shape conforms to the trend of the south side folding platform and is arranged parallel to the north side mountain contour.

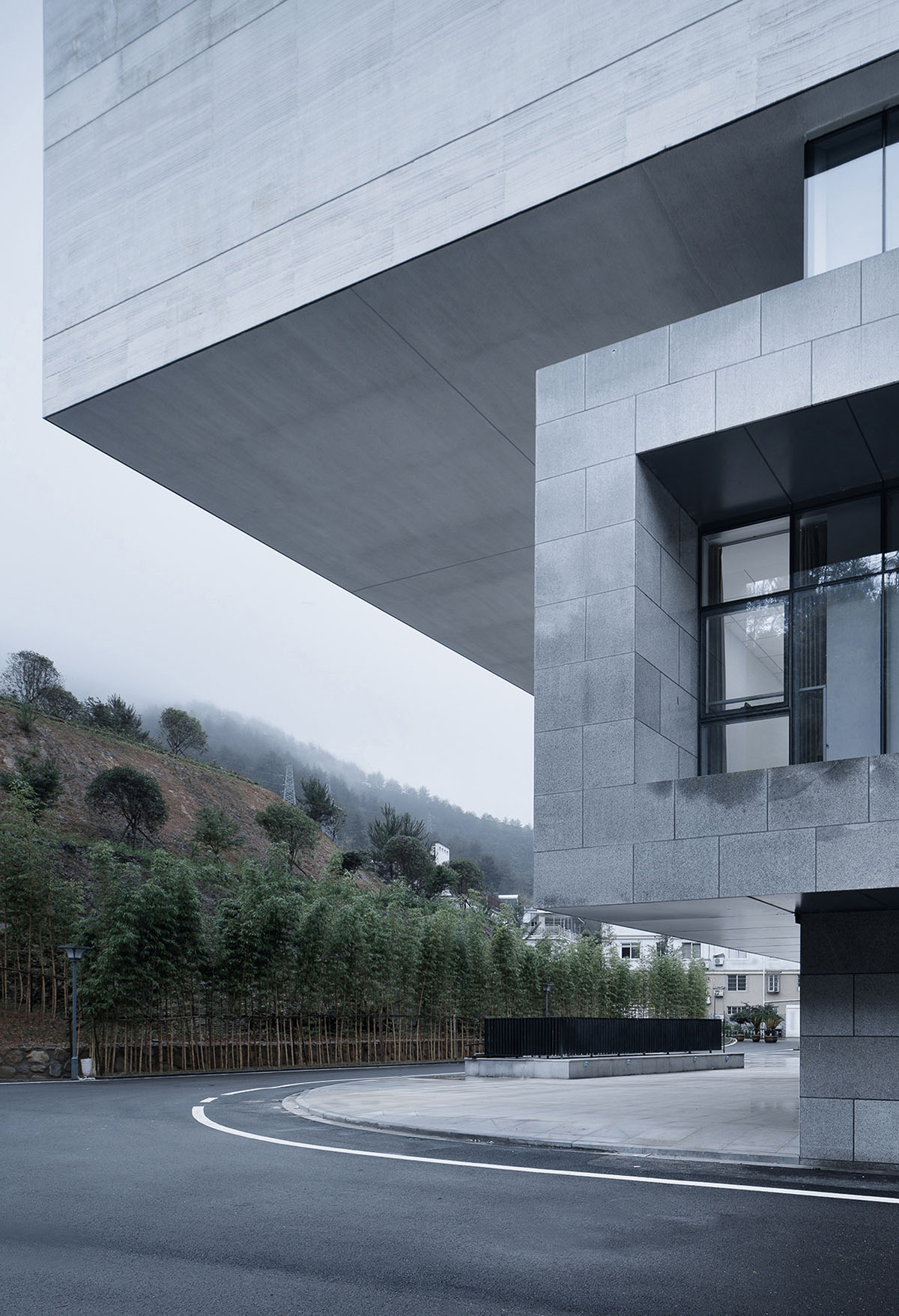

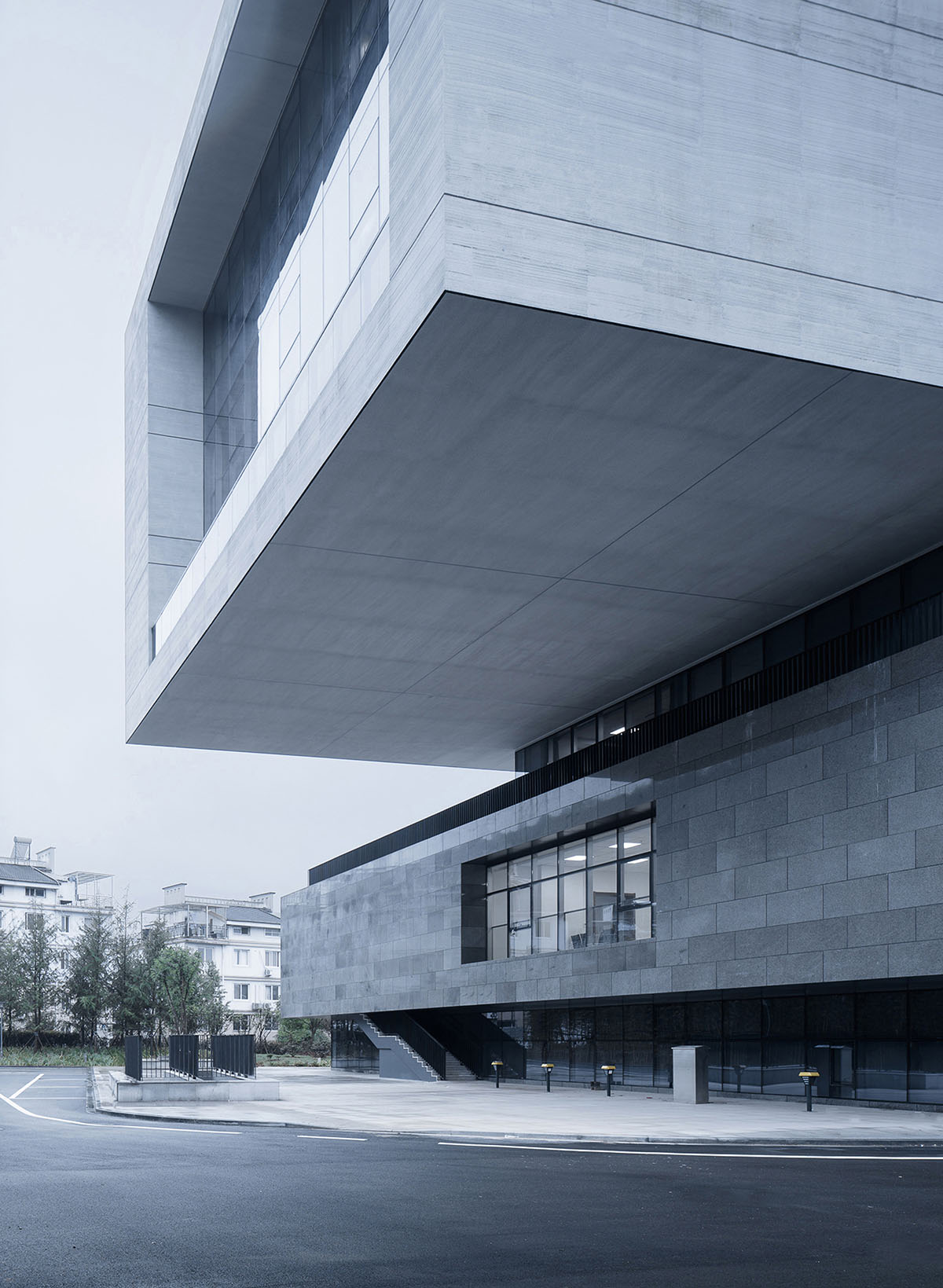

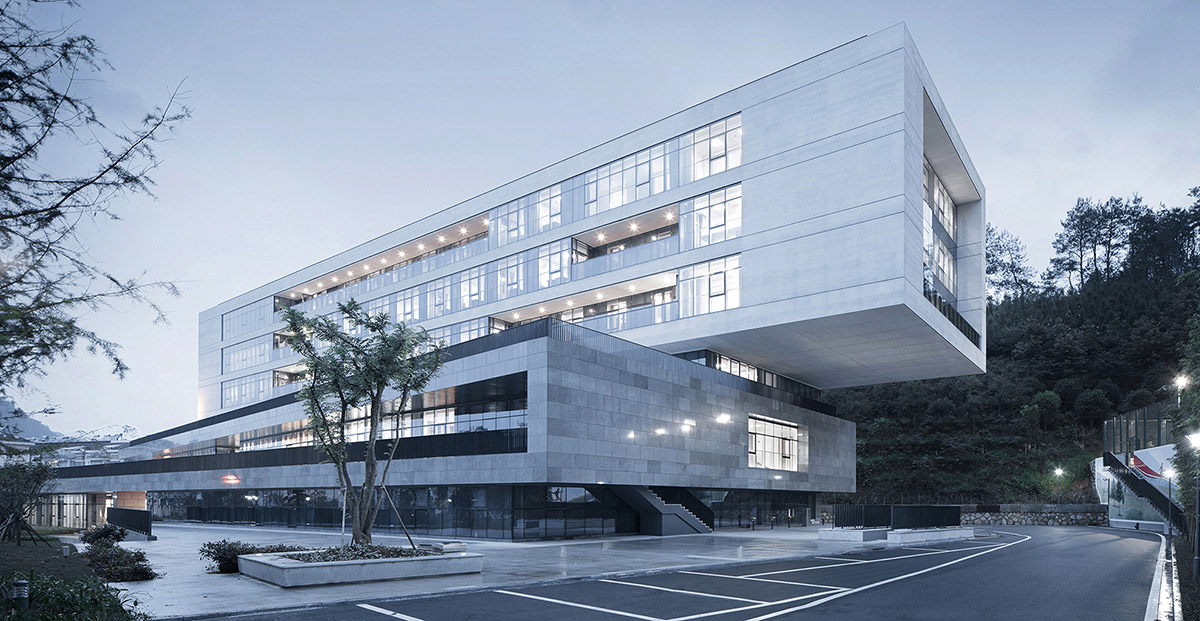

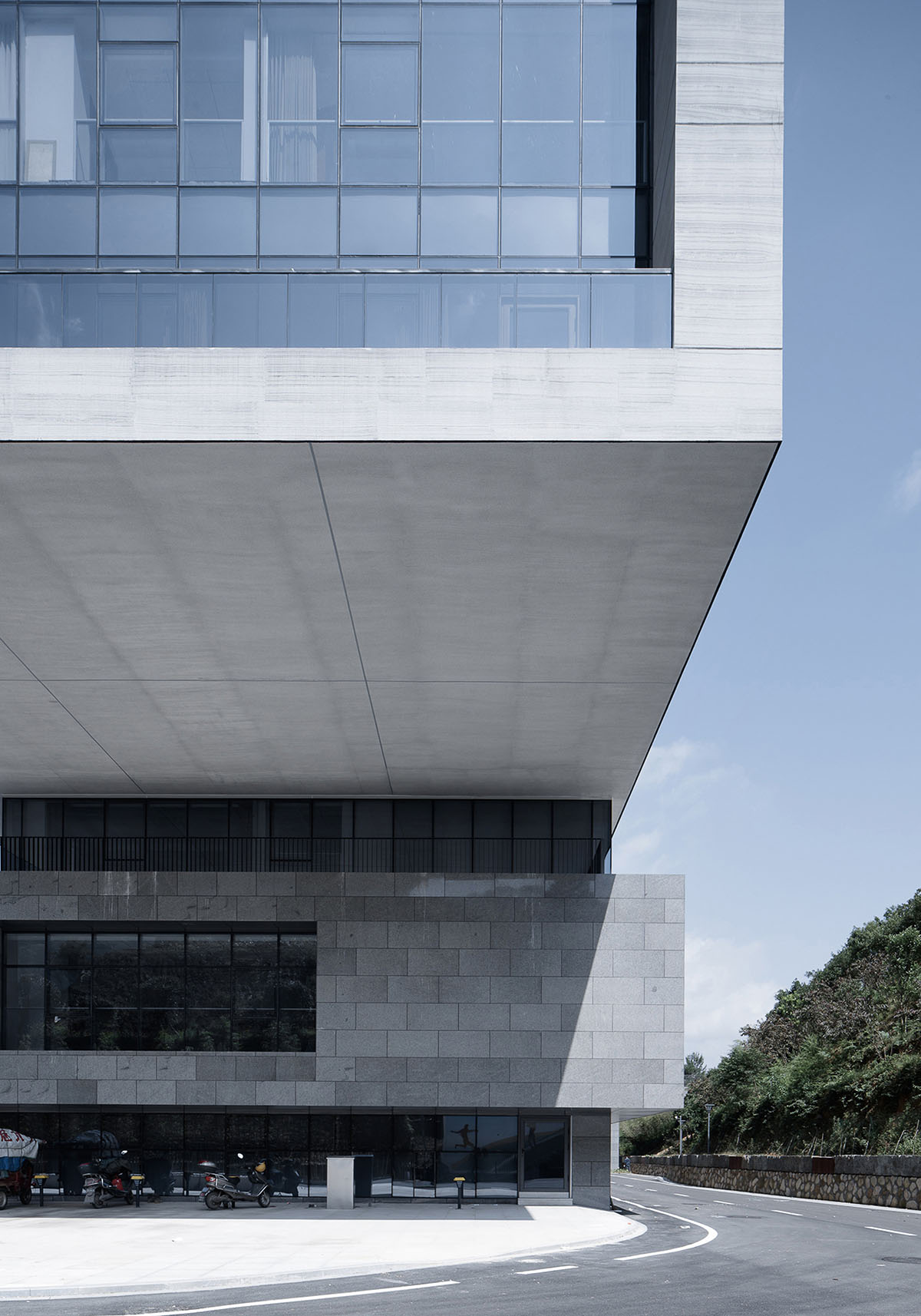

Meanwhile, the box is overhanging about 12 meters in the east, so that the box and the lower folding platform form a combination of shapes that balance in the displacement.

UAD completes office building with shifted platforms in Zhejiang

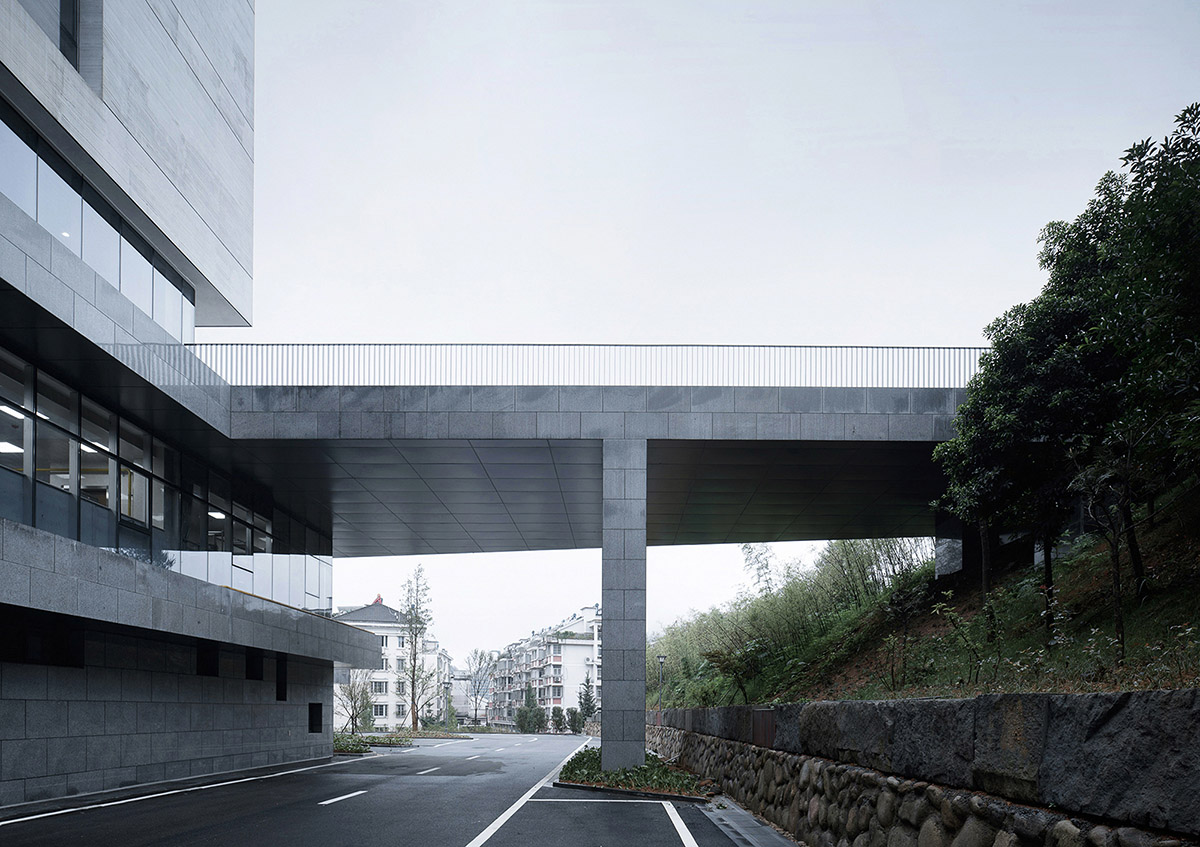

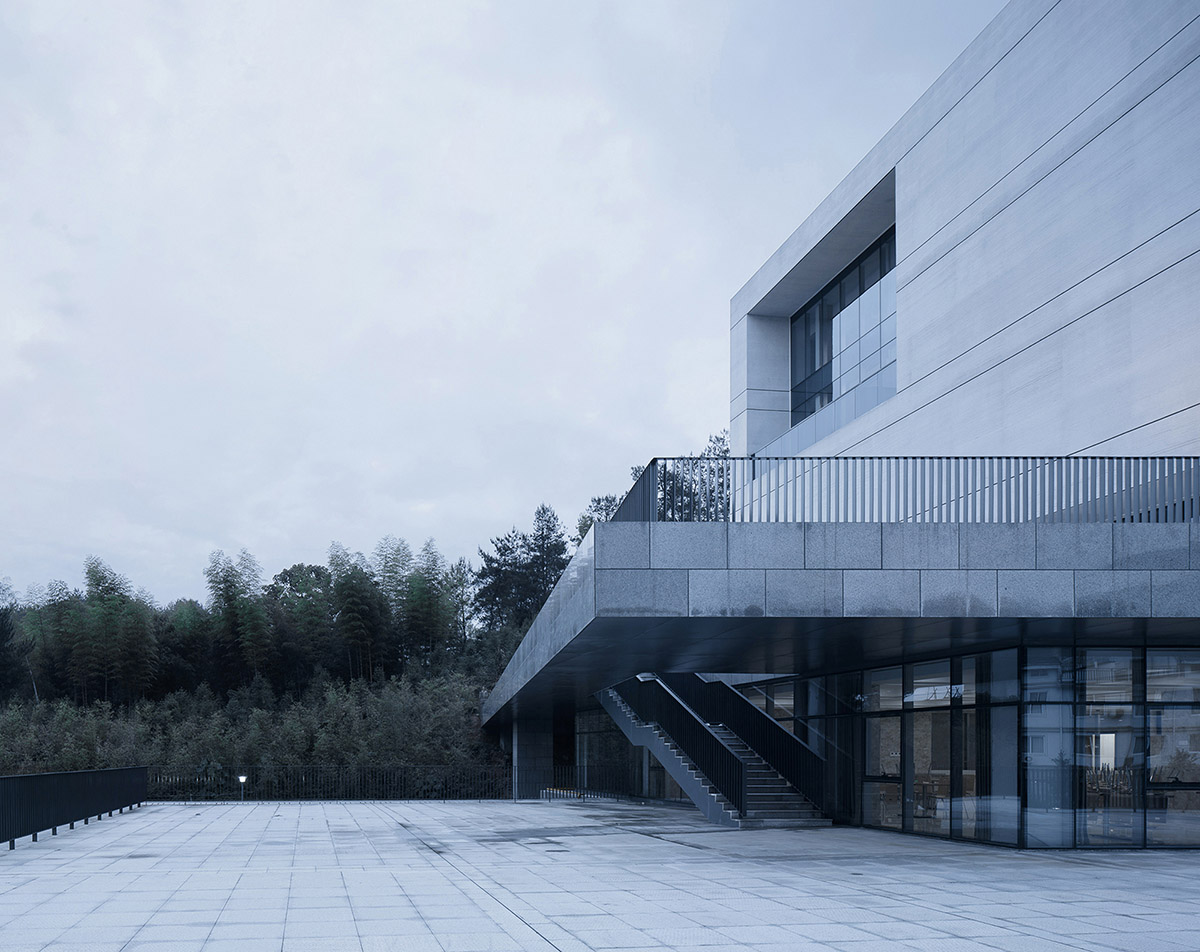

There is a small road connecting the north side of the mountain as a passage for people to go up and down the mountain. To fully respect the status and surrounding landscape resources, the solutions for different elevation platforms is proposed. Urban archives with relatively dense traffic are distributed on the bottom one floors.

UAD completes office building with shifted platforms in Zhejiang

Platforms with different elevations are connected by ramps and stairs, just like the continuation of the north side mountain contours, so that the lower buildings and the mountains are naturally integrated. This not only restores the original access to the mountain, but also the multi-elevation platform has become an ideal place for local citizens and users to stop and watch the surrounding scenery.

UAD completes office building with shifted platforms in Zhejiang

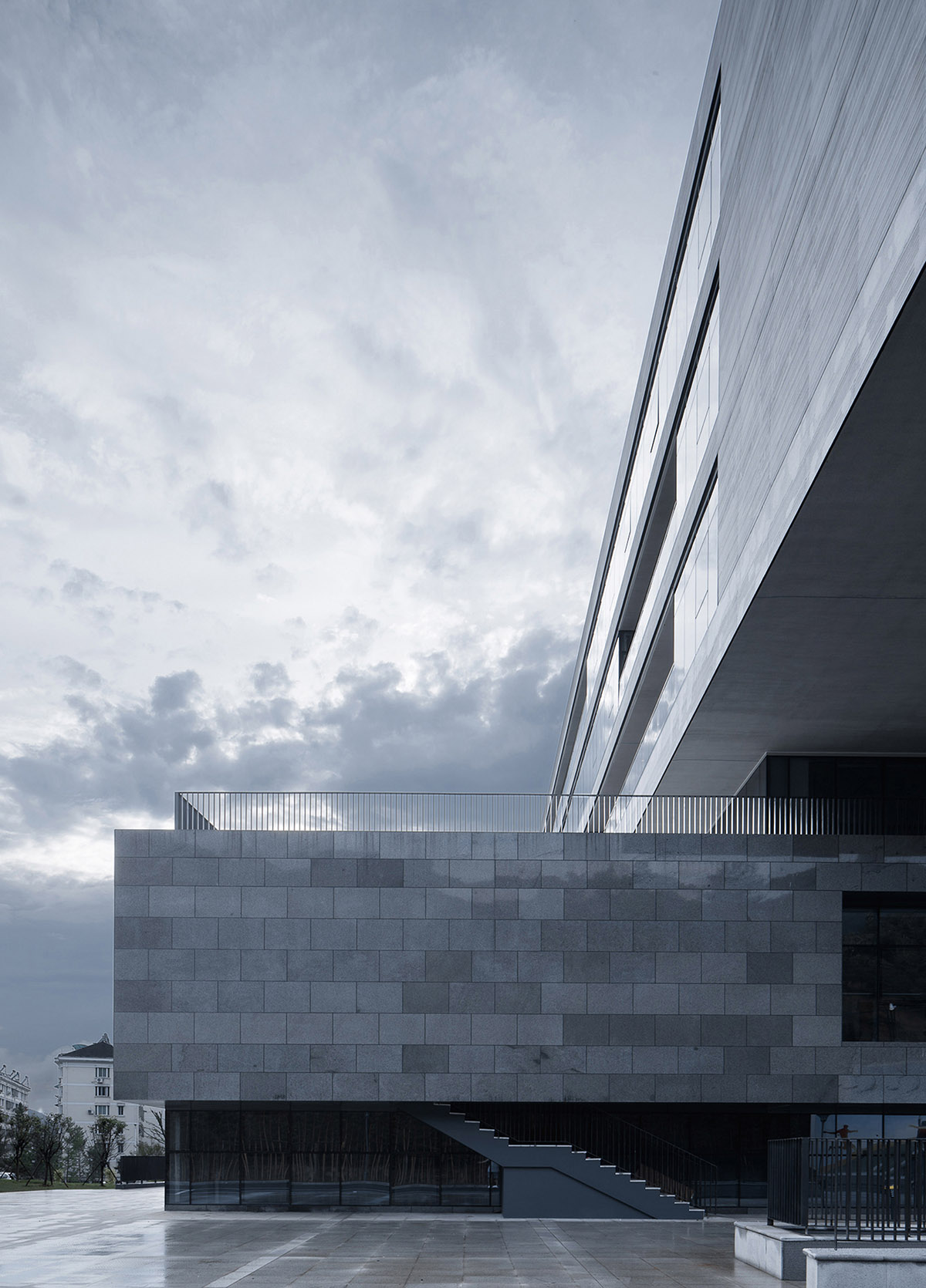

The framed window hole at the east and the west is a typical and very effective means of enframing scenery. The wall of upper three-layer box of gray and white is of imitation stone colored with real stone paint embedded with a very fine dark gray window frame.

The glass window with excellent transparency is like a frame so that the most beautiful part of the valley entrance is embedded in the building as a never-fading picture.

UAD completes office building with shifted platforms in Zhejiang

After that, the winter is coming to spring, the clouds are rolling, the trees are fading away and flourishing. People are in a stable and comfortable building, enjoying the natural beauty of the outside without a sense of distance, forming a spatial continuity inside and outside the building.

UAD completes office building with shifted platforms in Zhejiang

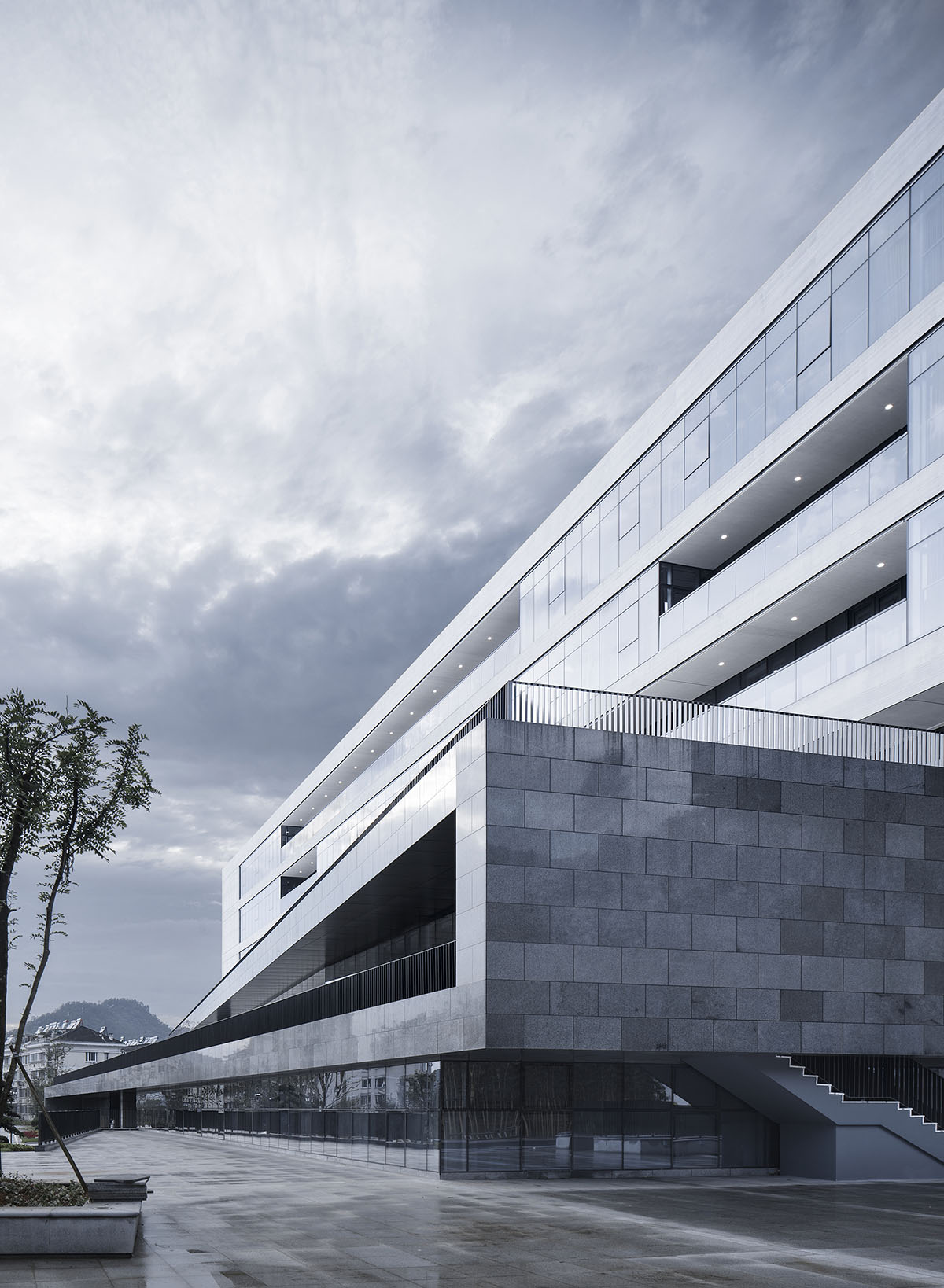

The building adopts black and white gray to reflect the artistic color of the Kaihua landscape city and the Chinese landscape painting. When the clouds in the mountains linger, the pedestal of the building disappears in the mountains, and the upper gray-white box floats on the mountains. Viewing distant mountains and rivers on different platforms creates a feeling of integration of the surrounding mountains and the sky.

UAD completes office building with shifted platforms in Zhejiang

The extremely simple shape of the building lines combine the virtual and the real, the transformation of light and shadow. The design has successfully solved many functional spaces including urban archives, civil defense command center, office, etc., and harmoniously echoes the surrounding mountains, reflecting the architectural design ideas of harmonious coexsistence between man and nature.

UAD completes office building with shifted platforms in Zhejiang

The project has been in use for more than two years now. Every time you return to the base site, you can feel that the building and the environment have gradually merged into each platform and the surrounding mountain roads. People are more and more fond of working here which may be the most meaningful value of our original design concept.

UAD completes office building with shifted platforms in Zhejiang

UAD completes office building with shifted platforms in Zhejiang

UAD completes office building with shifted platforms in Zhejiang

UAD completes office building with shifted platforms in Zhejiang

UAD completes office building with shifted platforms in Zhejiang

UAD completes office building with shifted platforms in Zhejiang

UAD completes office building with shifted platforms in Zhejiang

Concept sketch

UAD completes office building with shifted platforms in Zhejiang

UAD completes office building with shifted platforms in Zhejiang

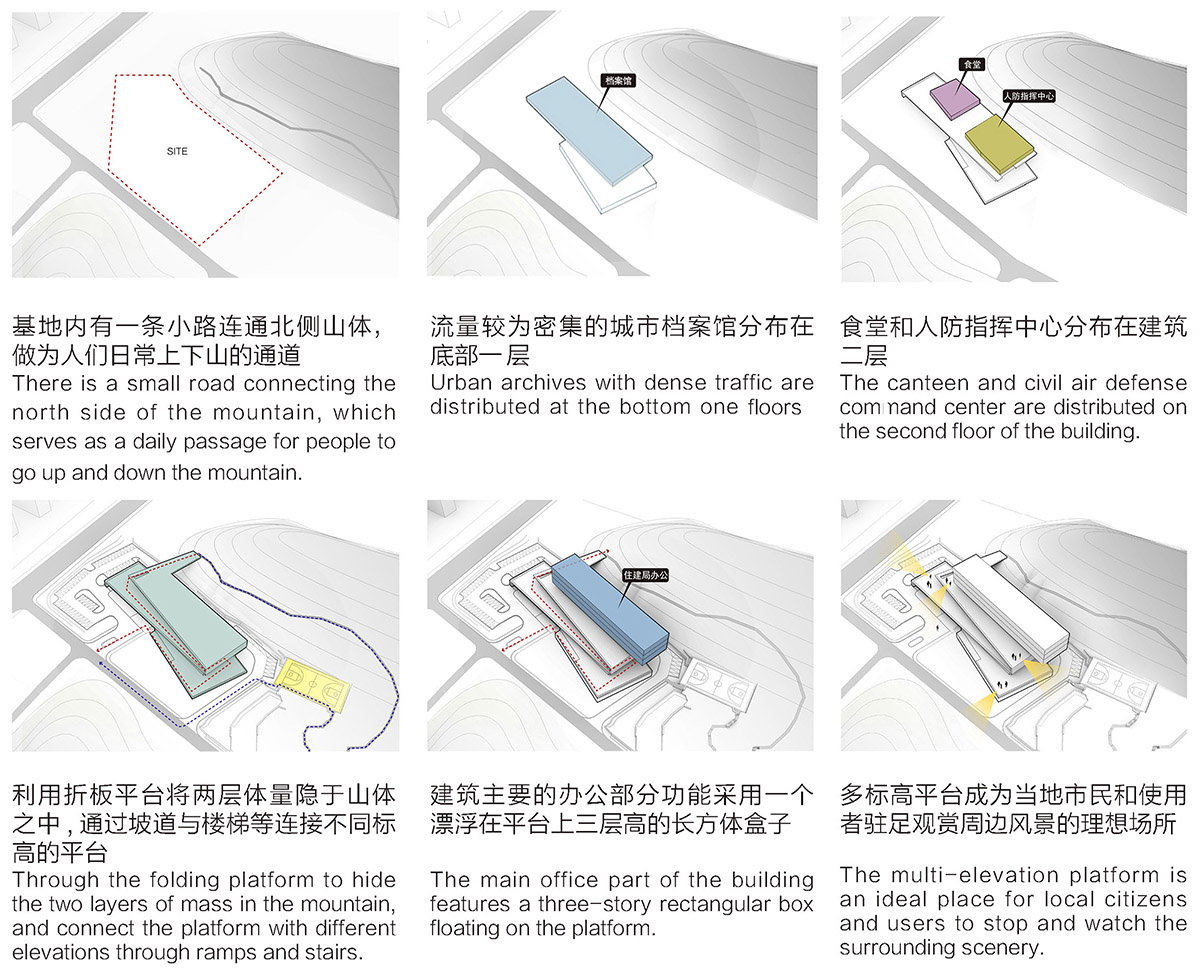

Shape generation diagram

UAD completes office building with shifted platforms in Zhejiang

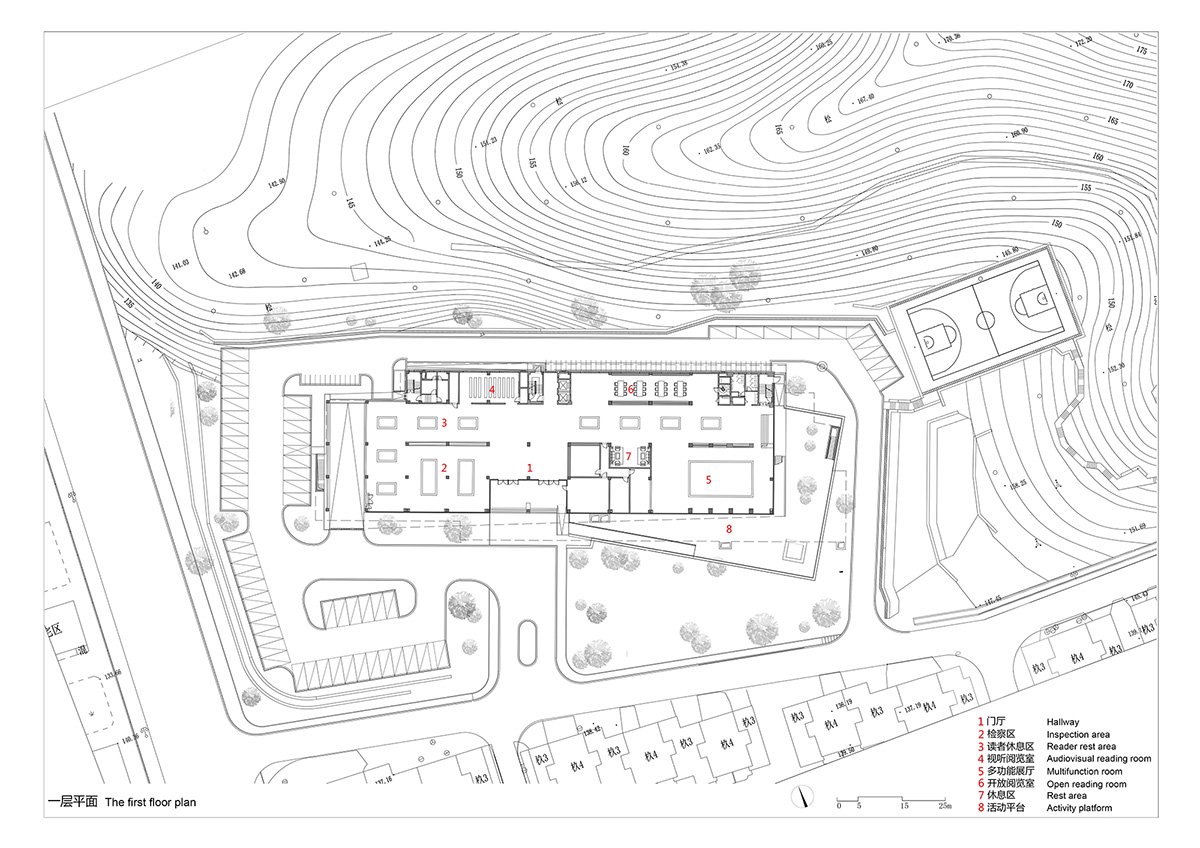

First floor plan

UAD completes office building with shifted platforms in Zhejiang

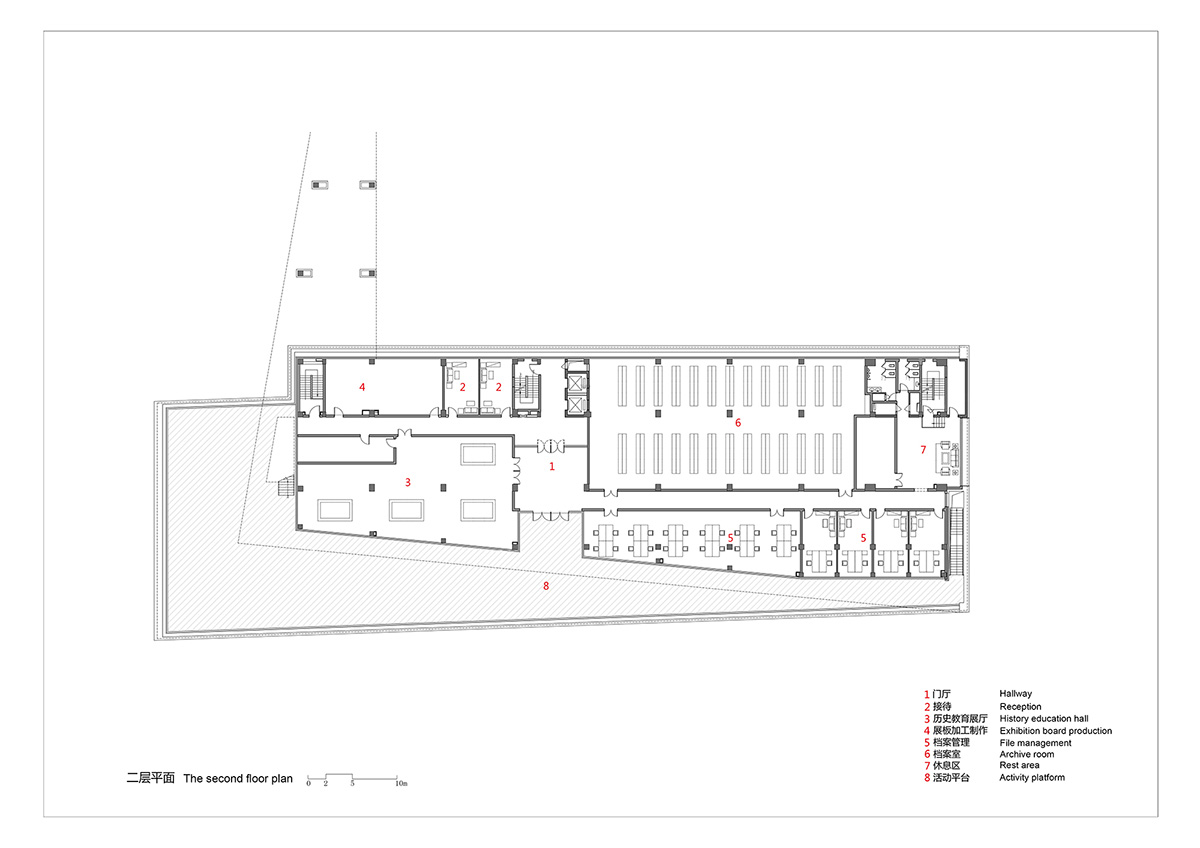

Second floor plan

UAD completes office building with shifted platforms in Zhejiang

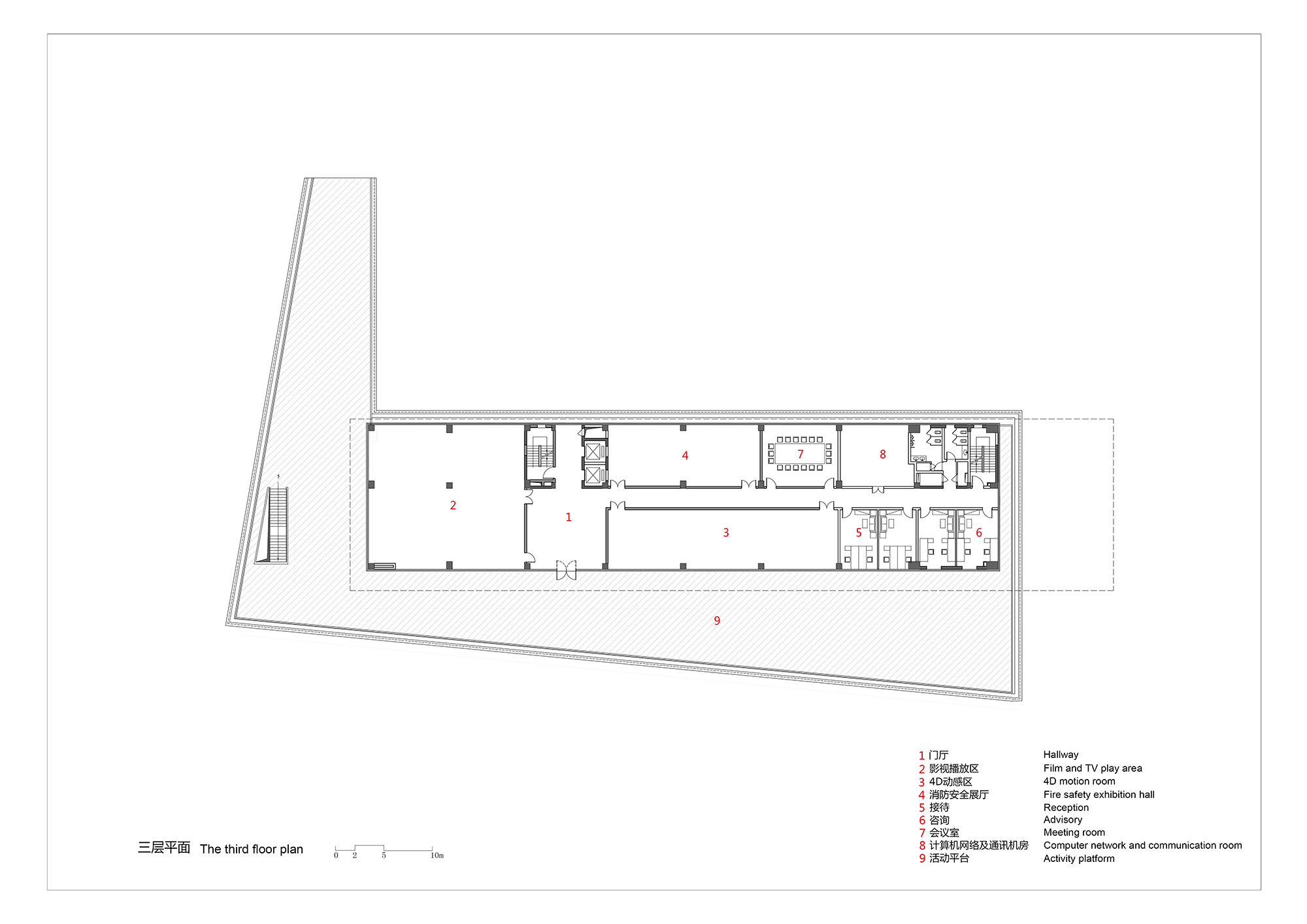

Third floor plan

UAD completes office building with shifted platforms in Zhejiang

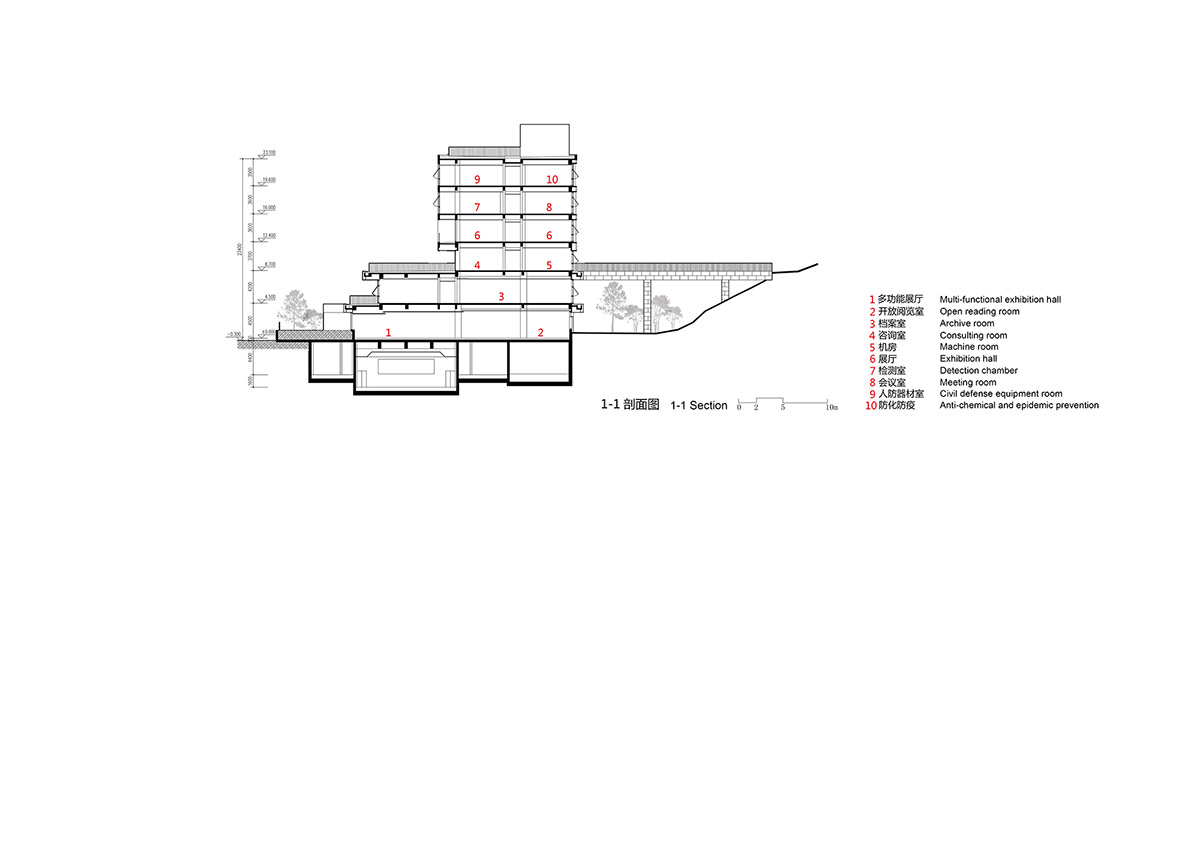

Section

UAD completes office building with shifted platforms in Zhejiang

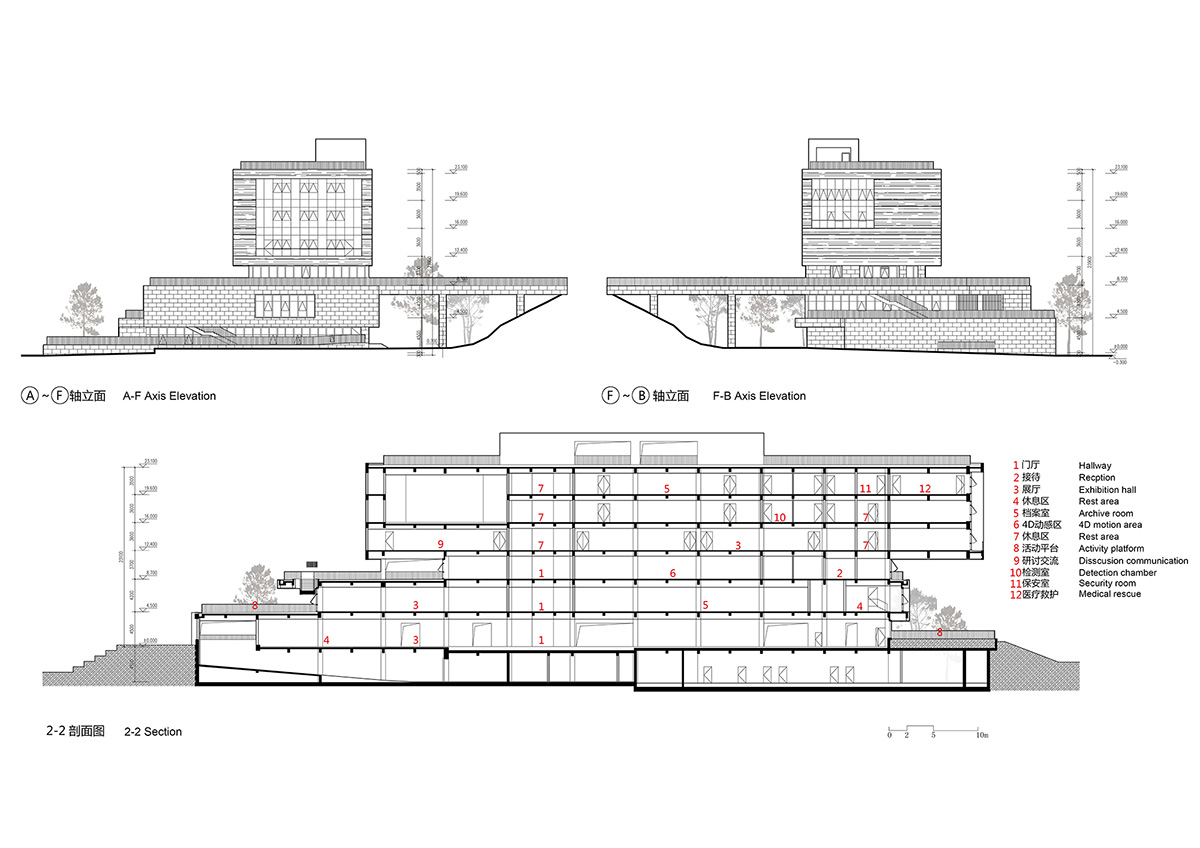

Elevations and sections

Project facts

Project Name: Kaihua County 1101 Project and Urban Archives

Design unit: The Architectural Design & Research Institute of Zhejiang University Co., Ltd

Designer: Fan Xuzhuang, Zhu Kai, Shi Minghua

Structural design: Shen Jing, Jin Zhenfen, Ding Lei

Electromechanical design: Chen Zhoujie, Yang Wenzheng, Shao Chunting, Jiang Bing

Curtain wall design: Bai Qi'an

Project Owner: Kaihua County Civil Air Defense Office

Project Location: Fenghuang Middle Road, Kaihua County, Zhangzhou City, Zhejiang Province

Project type: Archives, office

Land area: 7118 square meters

Project area: 12,206 square meters

Main materials: granite, colorful real stone paint, glass, aluminum

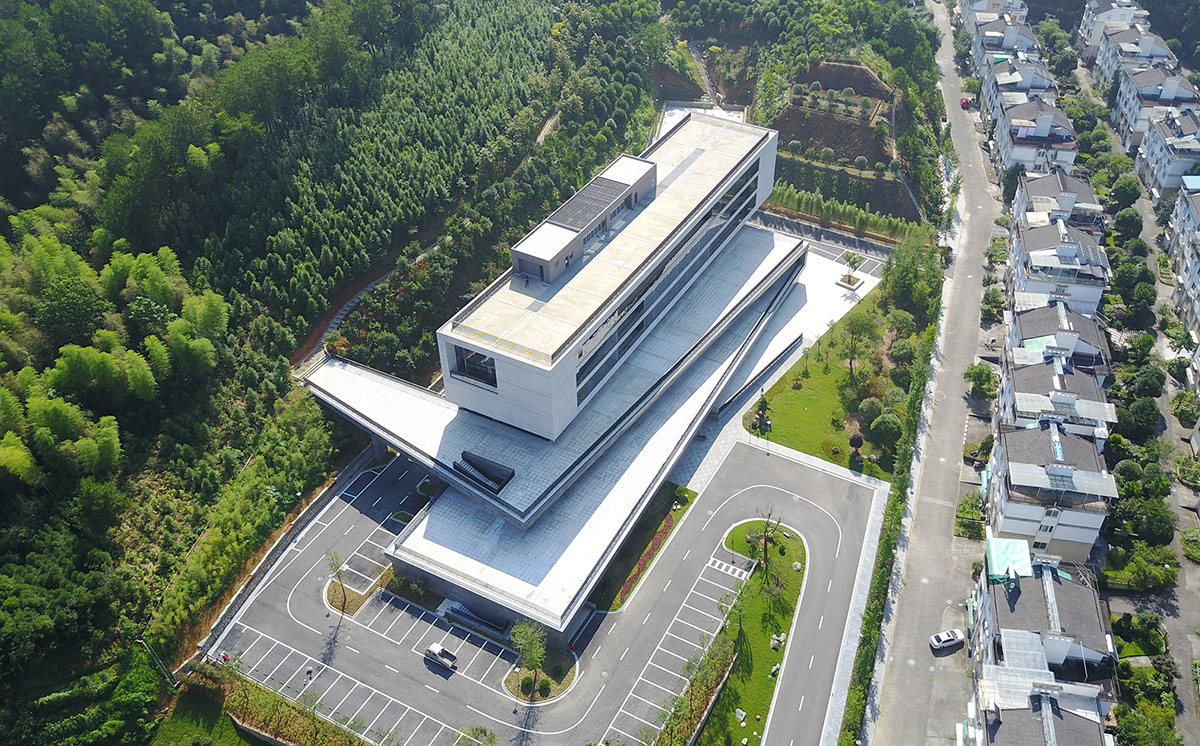

Top image: Southwestern aerial photography © Zhou Yifan

All images © Zhao Qiang unless otherwise stated

All drawings © UAD
