Arch Studio wraps this Organic Farm with translucent pc boards to easy food processing

China Architecture News - Jan 21, 2017 - 17:45   18059 views

Arch Studio wraps this Organic Farm with translucent pc boards to easy food processing

Arch  Studio wraps a series of modest buildings with translucent pc boards which are light and easy to be installed. A set of conservative buildings serves as an Organic Farm located in the Hebei Province of China and built by only being used glued timber structure as the major structure due to its light weighted, easy processed and installed and natural properties.

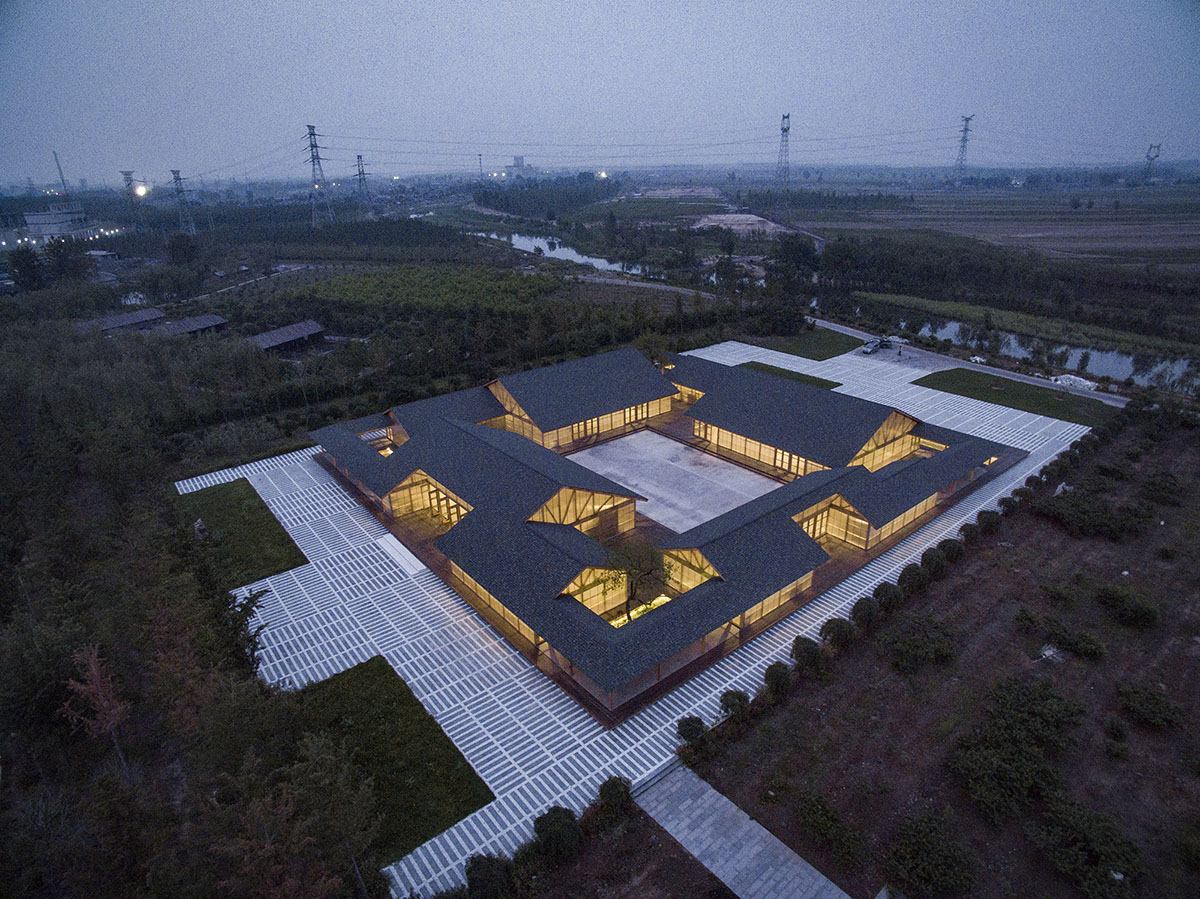

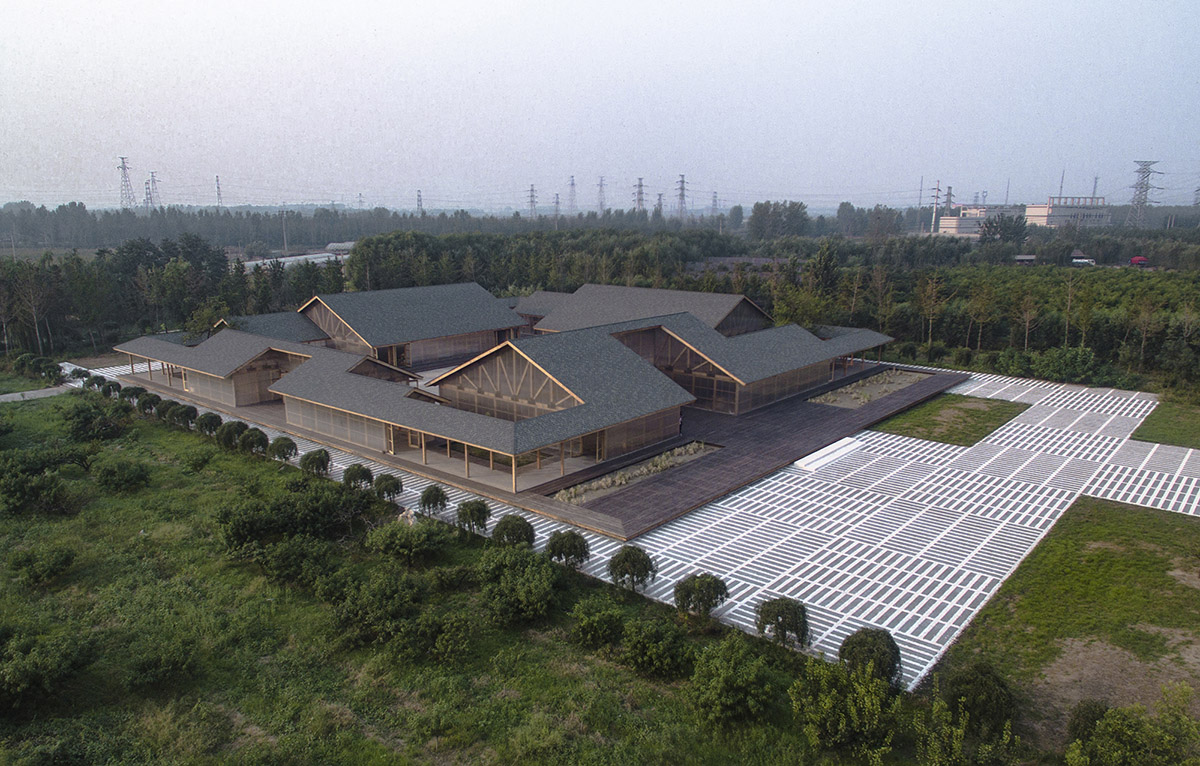

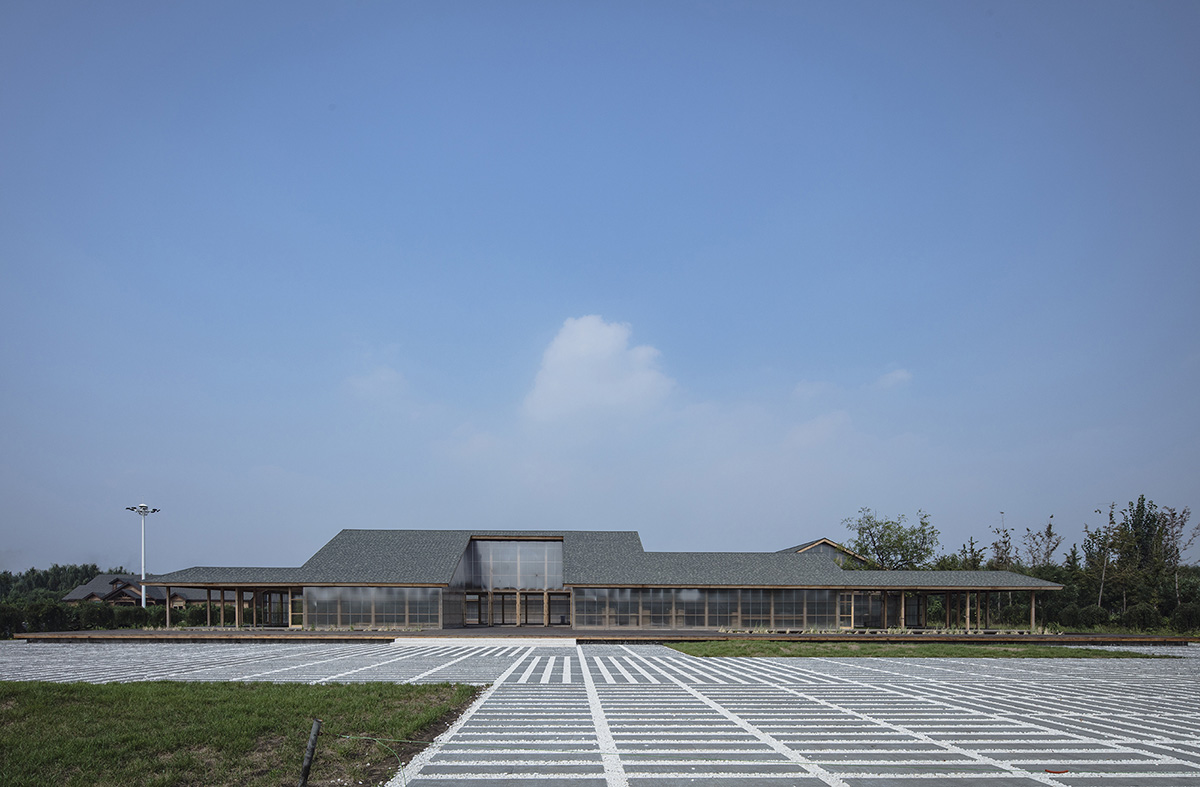

The project is located in the farmland on the fringe area of Guye district, Tangshan. Villages and houses are scattered around. The site is a rectangular flat land covers an area of 6000 square-meters. The basic function of the building is acting as a processing workshop of organic food - raw materials come from organic producing areas across the country, being collected, processed and packed here, and then being delivered to other places as finished products.

Arch Studio wraps this Organic Farm with translucent pc boards to easy food processing

The design is inspired by traditional courtyard building, the initial idea is to build a magnified courtyard house, a workplace full of natural atmosphere and flexibility, a workplace which is self-contained and forms a corresponding relation with the surrounding broad and flat field.

Arch Studio wraps this Organic Farm with translucent pc boards to easy food processing

The entire building is made up of four enclosed relatively independent houses, including Material Storage, the Mill, Oil Pressing Workshop and Packing Area. The inner courtyard is the Grain-Sunning Ground, and a convenient work cycle line is formed around the inner courtyard.

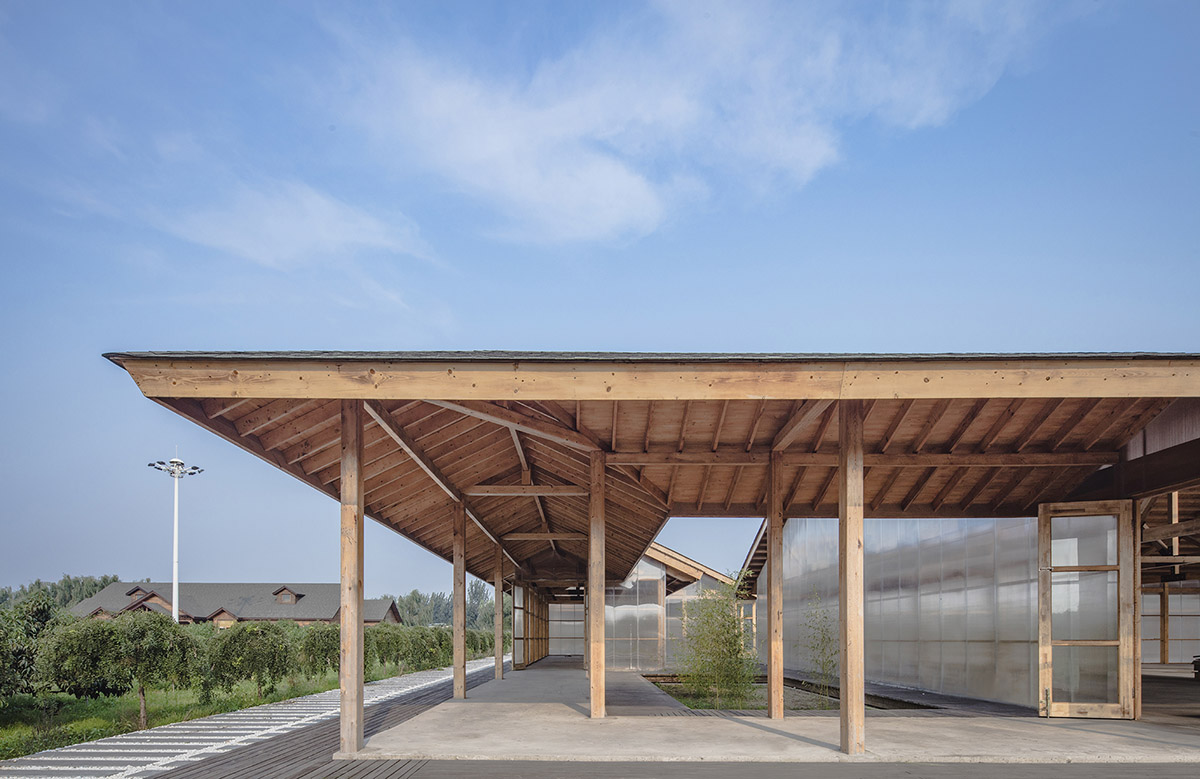

The boundary of the building is the external corridor that connects the four areas, and it is the route to visit the food processing workshop. The central courtyard spans out around the building randomly, topologically form a courtyard space of multiple layers, which meets the demand for natural ventilation, natural lighting and views of a workshop while maintaining nice interior and exterior space quality.

Arch Studio wraps this Organic Farm with translucent pc boards to easy food processing

The organic connection of courtyard and house creates functional areas of different sizes under one big roof: small sized corridor, medium sized rooms and large sized workshop, which flexibly meet the requirements of compound use of the workshop.

Arch Studio wraps this Organic Farm with translucent pc boards to easy food processing

The design chooses glued timber structure as the major structure due to its light weighted, easy processed and installed and natural properties. The building is 'floating' above the ground. It sits in a 60cm cement base, which allows the wood structure being moisture proofed against the ground and allows it to hide pipelines of some fixed equipments.

Arch Studio wraps this Organic Farm with translucent pc boards to easy food processing

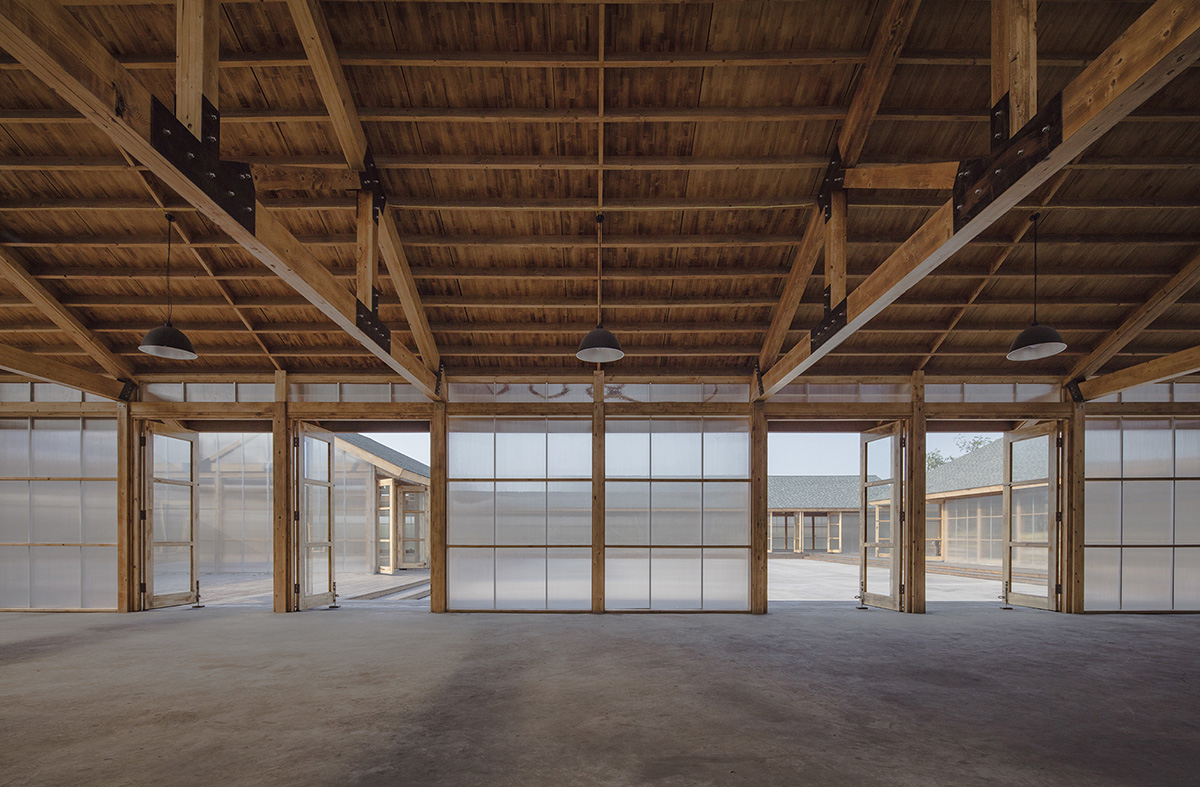

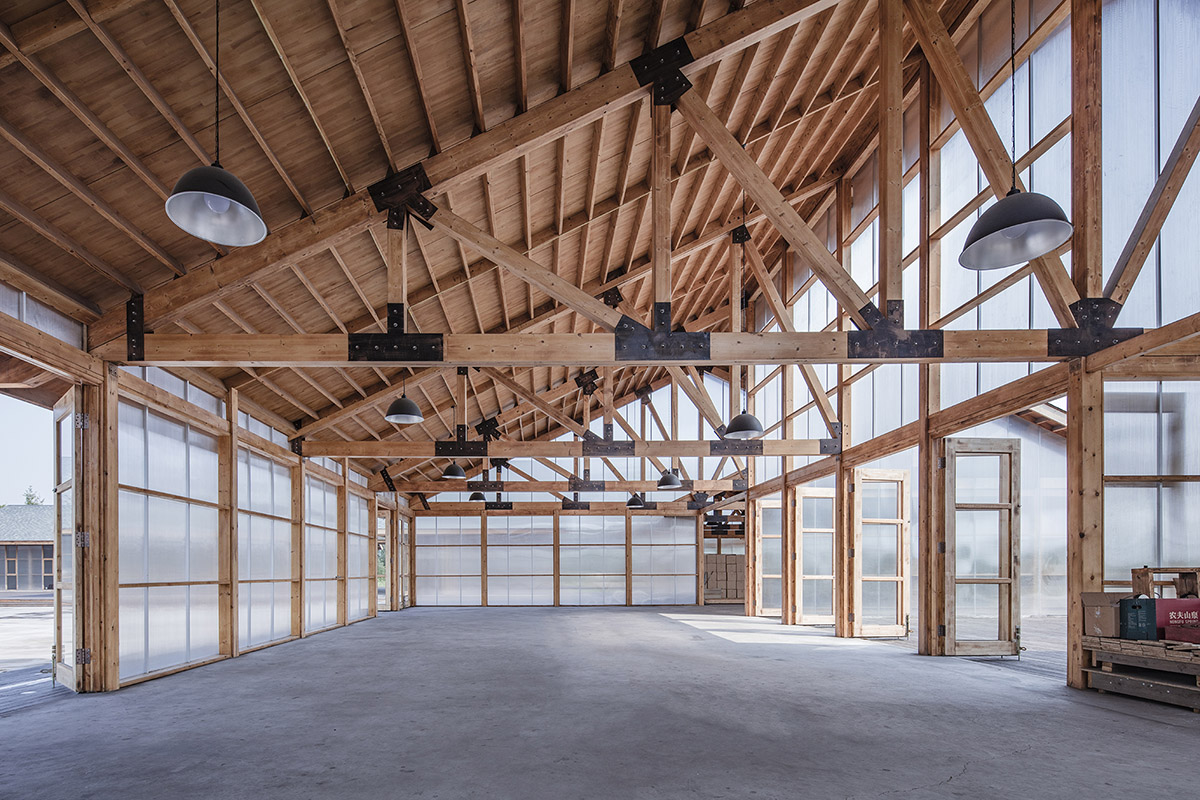

In order to control the construction budget reasonably, the building adopts light wood structure- wood frame wall with a length of 2.1m, the upper part is glued timber truss beam, and the top is wooden and felt roofing.

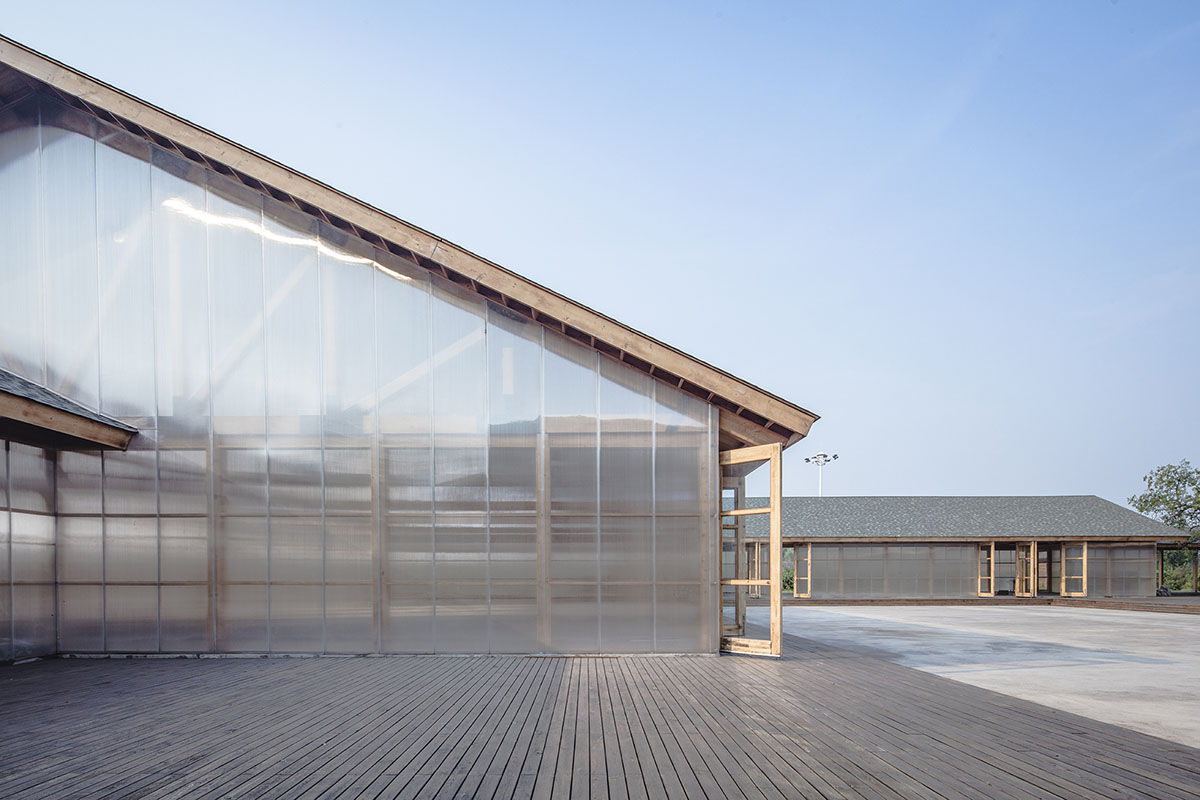

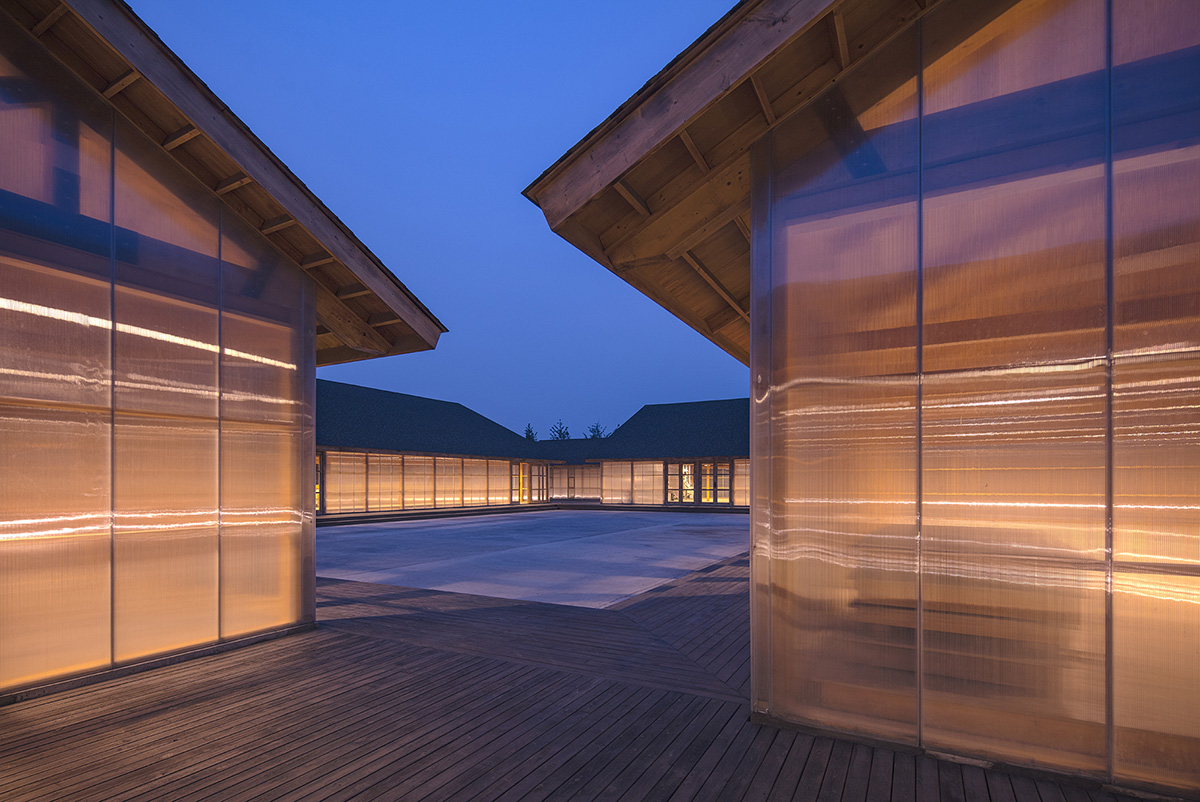

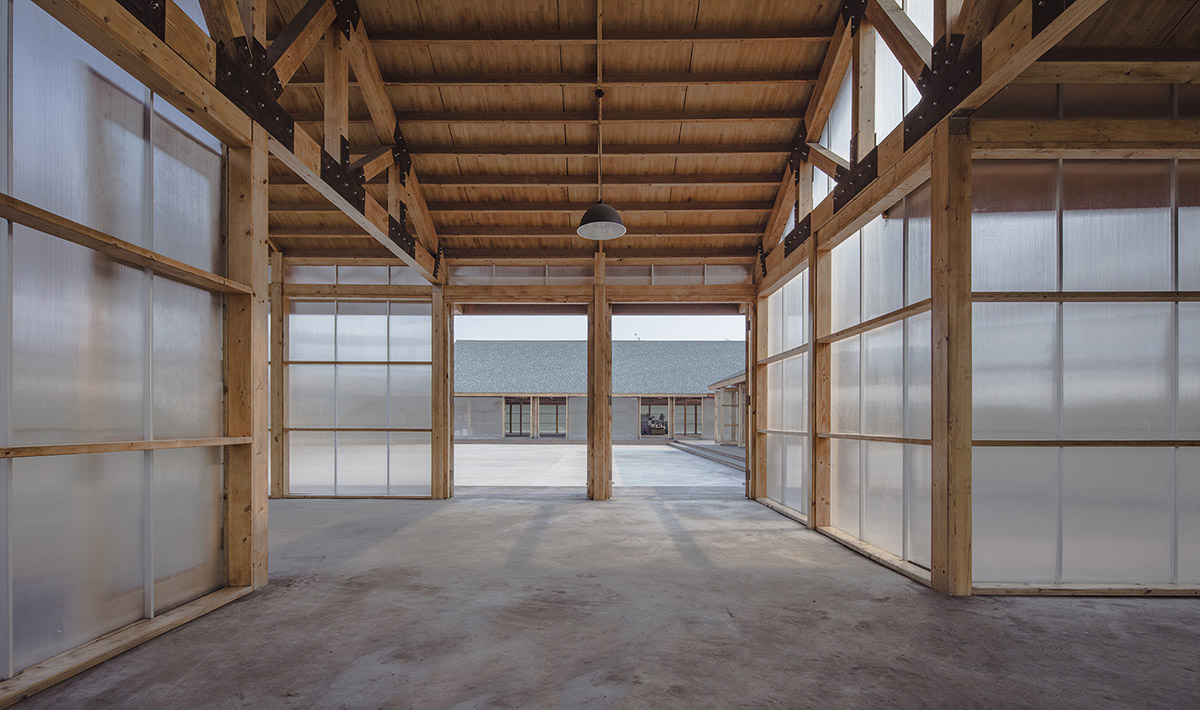

The facade is covered with translucent pc board which is light and easy to be installed as well. The space, structure, materials and the multiple layered exterior courtyards together creates a warm, natural and continuous working atmosphere for this farm.

Arch Studio wraps this Organic Farm with translucent pc boards to easy food processing

Arch Studio wraps this Organic Farm with translucent pc boards to easy food processing

Arch Studio wraps this Organic Farm with translucent pc boards to easy food processing

Arch Studio wraps this Organic Farm with translucent pc boards to easy food processing

Arch Studio wraps this Organic Farm with translucent pc boards to easy food processing

Arch Studio wraps this Organic Farm with translucent pc boards to easy food processing

Arch Studio wraps this Organic Farm with translucent pc boards to easy food processing

Arch Studio wraps this Organic Farm with translucent pc boards to easy food processing

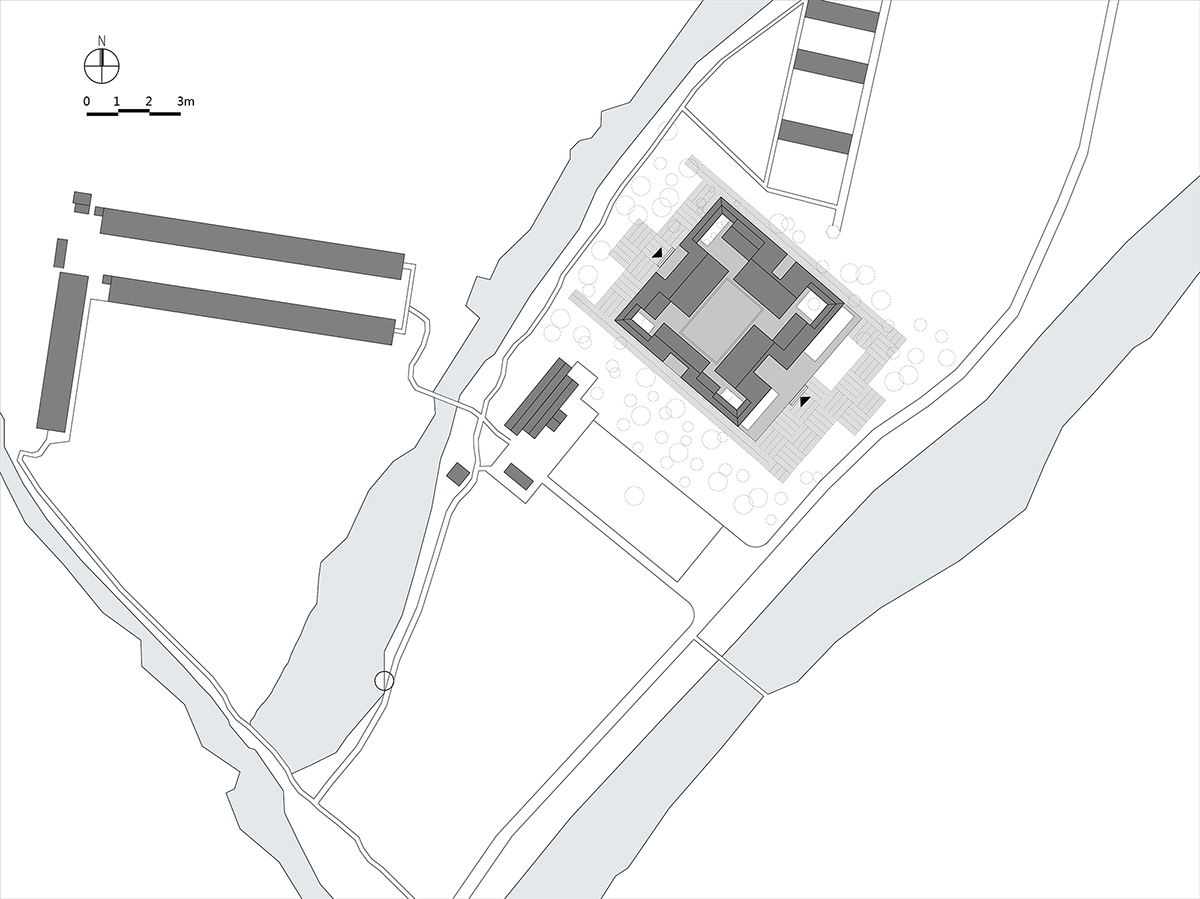

Site plan

Arch Studio wraps this Organic Farm with translucent pc boards to easy food processing

Floor plan

Arch Studio wraps this Organic Farm with translucent pc boards to easy food processing

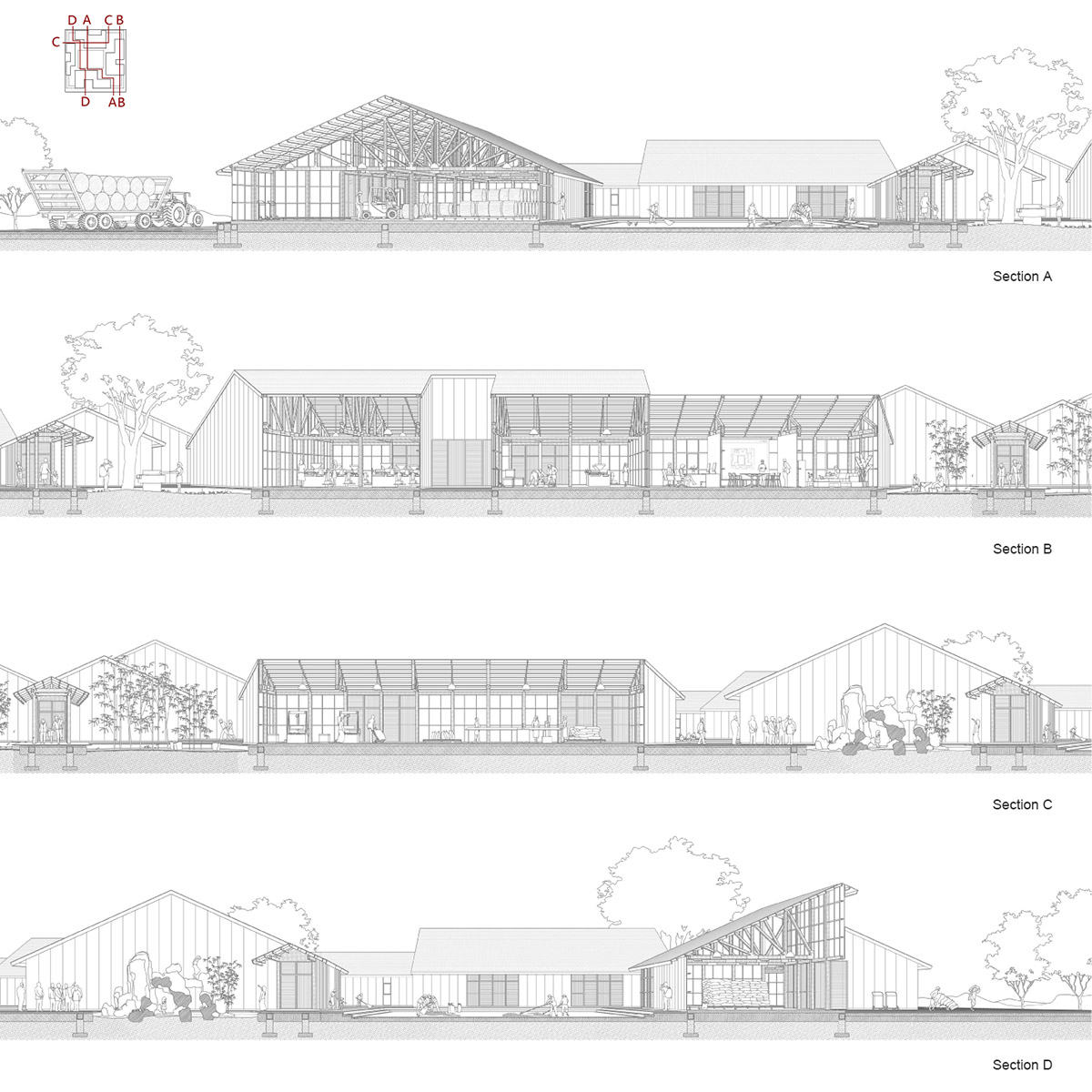

Sections

Arch Studio wraps this Organic Farm with translucent pc boards to easy food processing

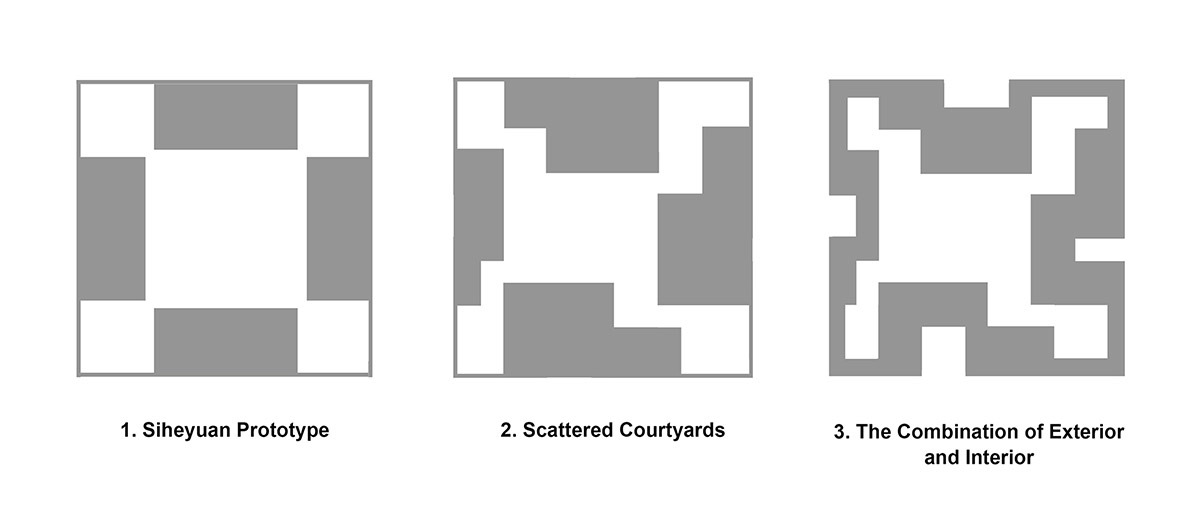

Concept analysis

Arch Studio wraps this Organic Farm with translucent pc boards to easy food processing

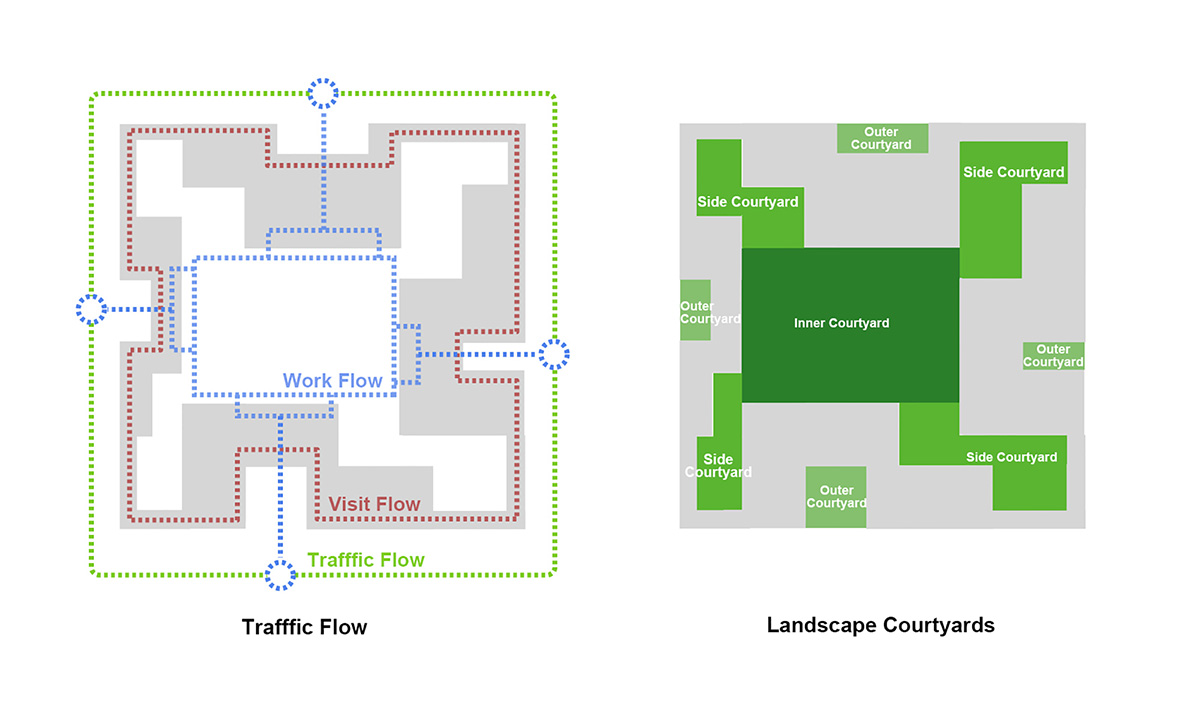

Flow and Landscape Analysis

Arch Studio wraps this Organic Farm with translucent pc boards to easy food processing

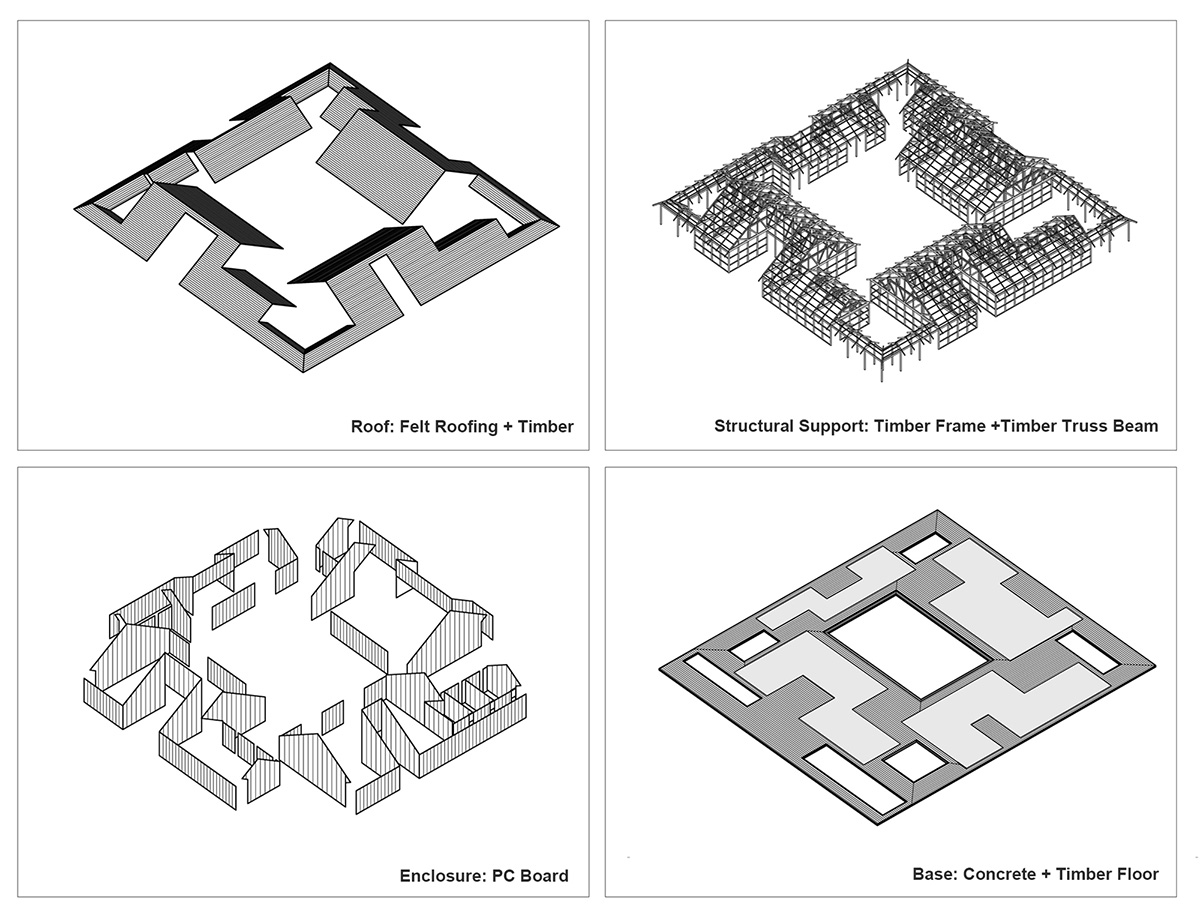

Structure diagram

Arch Studio wraps this Organic Farm with translucent pc boards to easy food processing

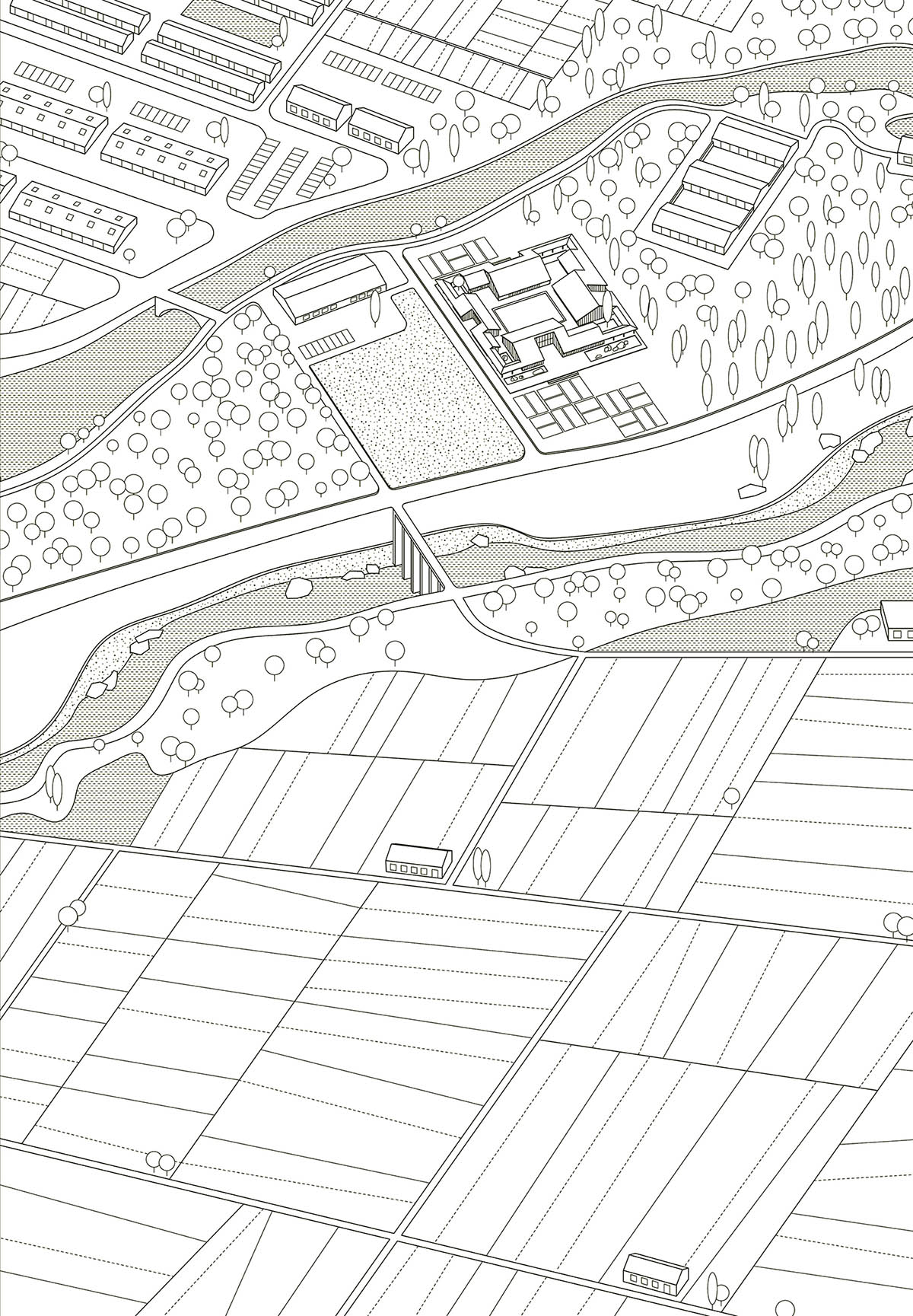

Axonometric drawing

Arch Studio wraps this Organic Farm with translucent pc boards to easy food processing

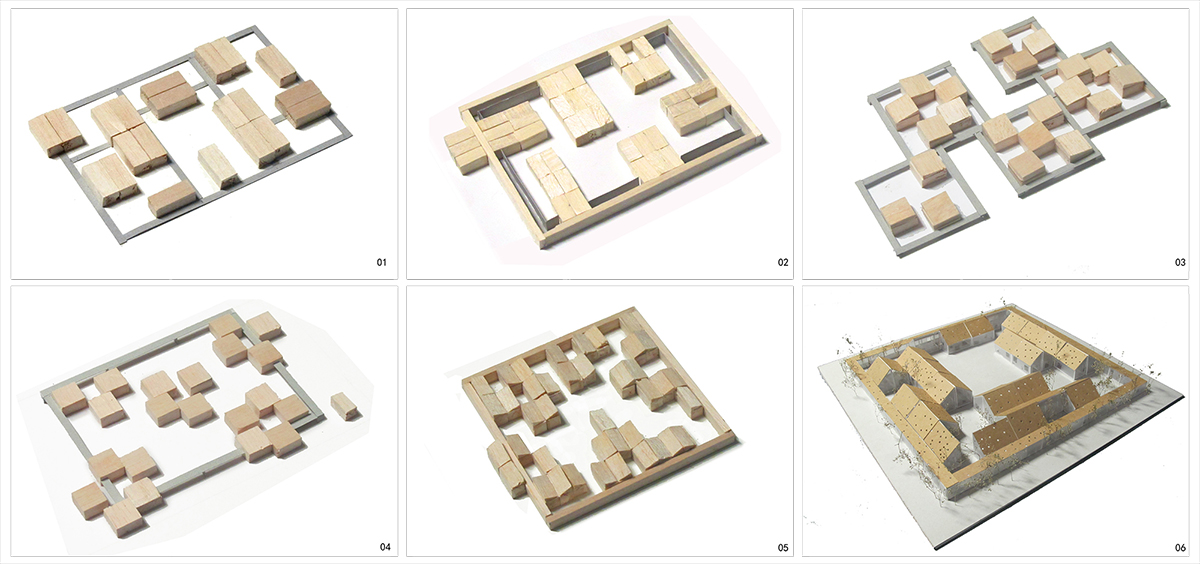

Process model

Arch Studio wraps this Organic Farm with translucent pc boards to easy food processing

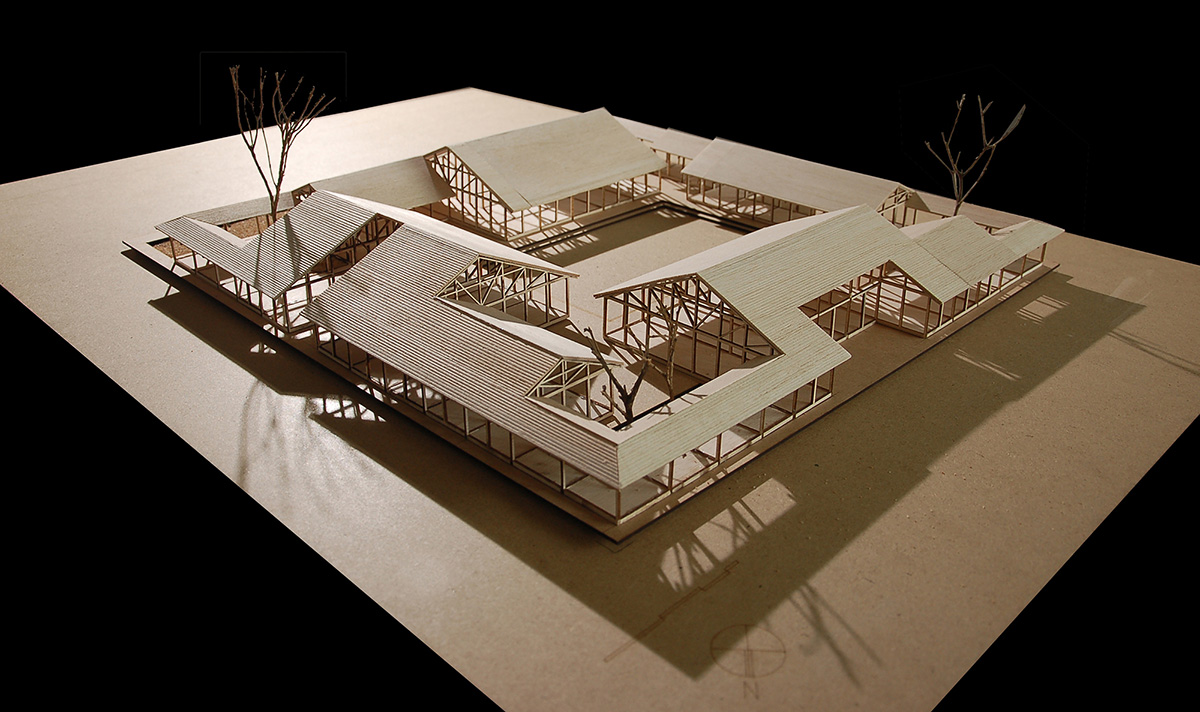

Organic farm model view

Arch Studio recently completed the interior of Lily Nails Salon in Chaoyang District, Beijing and the Normal College Library of Imperial University of Peking, which is a reconstruction project respecting to the old history of the building.

Project Name: Organic Farm

Design Team: HAN Wen-Qiang, LI Xiao-Ming, WANG Han, JIANG Zhao, HUANG Tao

Design Company: Arch Studio

Location: Guzhi District, Tangshan City, Hebei Province, China

Project Type: Agricultural Architecture

Site Area: 6000 sqm

Architectural Area: 1720 sqm

Design Time: 2015.06 - 2015.09

Construction Time: 2015.09 - 2016.04

Author: Han Wen-Qiang

All images © JIN Wei-Qi
