Mei Architects and planners redesigns The Fenix I Warehouses in Rotterdam

Netherlands Architecture News - Aug 26, 2015 - 14:50   6712 views

Mei Architects and planners redesigns The Fenix I Warehouses in Rotterdam

all images © Mei Architects and Planners

Mei Architects and Planners proposed The Fenix warehouses, located opposite Hotel New York and the Rijnhaven Bridge, were built in 1922 in Katendrecht, Rotterdam. Previously called the San Francisco warehouse, the structure has two levels with floor heights of six metres, and was originally 360 metres in length. Construction of the San Francisco warehouse was necessitated by the considerable expansion of the fleet and number of routes of the Holland Amerika Lijn. What was remarkable about the complex, designed by architect C.N. van Goor, was that two railway lines cut through the building. It also featured a number of goods lifts that allowed trucks to load and unload their freight on the first floor.

Mei Architects and planners redesigns The Fenix I Warehouses in Rotterdam

Parts of the quay were destroyed towards the end of the Second World War. Fire also badly damaged the central section, the area now occupied by Fenix Square. In 1954 the quay was rebuilt and the warehouses rose from the ashes and were renamed Fenix I and Fenix II. However, port activity relocated westwards in the 1980s and the warehouses were abandoned.

Mei Architects and planners redesigns The Fenix I Warehouses in Rotterdam

In 2007 the city of Rotterdam started to promote the restructuring and transformation of the Katendrecht district. A particularly important element of these efforts was Deliplein, which in recent years has blossomed from a disadvantaged area into a trendy and sought-after neighbourhood. In 2009 Heijmans/Proper Stok initiated the design and development of the Fenix I warehouse. After studying the surrounding buildings on Rijnhaven, the Rotterdam Department of City Development decided to project a new volume on top of the warehouse.

Mei Architects and planners redesigns The Fenix I Warehouses in Rotterdam

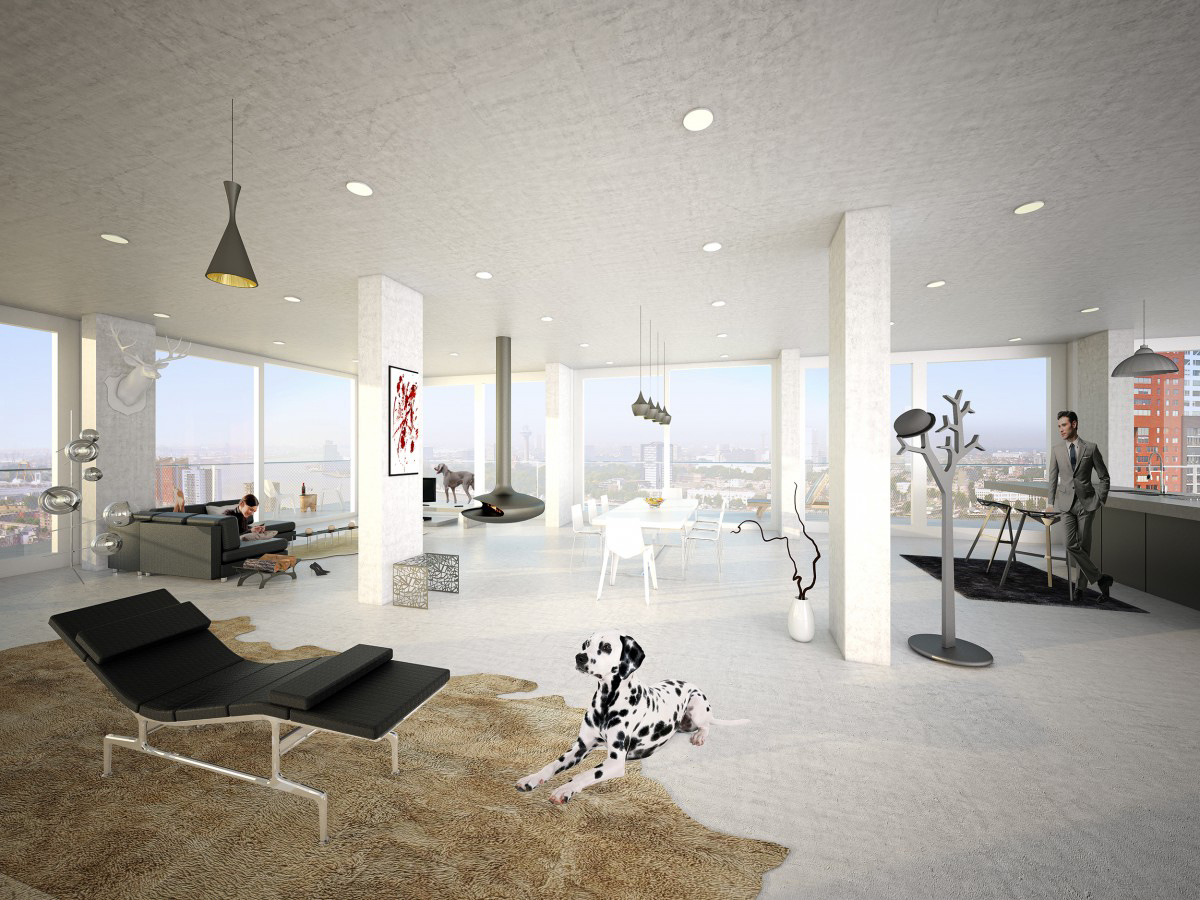

In the summer of 2013 Mei won the architect selection procedure for the design of the new volume and the redevelopment of the warehouse. A mixed programme of housing, workspaces, car park and leisure is planned for the older lower levels. On top of this Mei will design about 200 loft apartments whose occupants can arrange the interiors as they wish. The apartments can be divided both horizontally and vertically, a unique concept in the Netherlands.

Mei Architects and planners redesigns The Fenix I Warehouses in Rotterdam

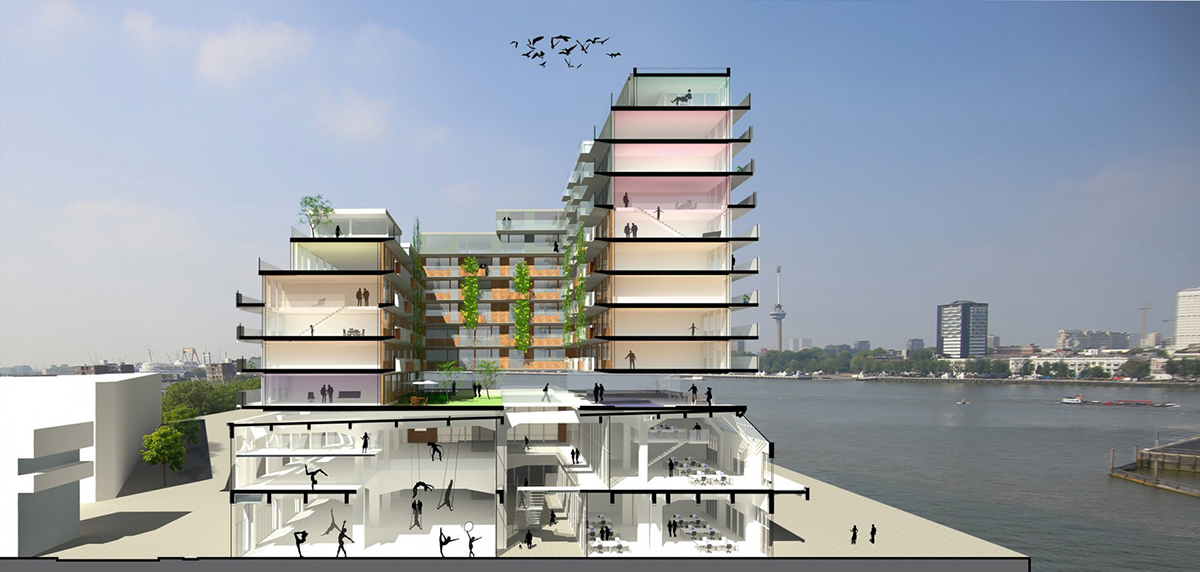

3D section shows the functional circulation in the building

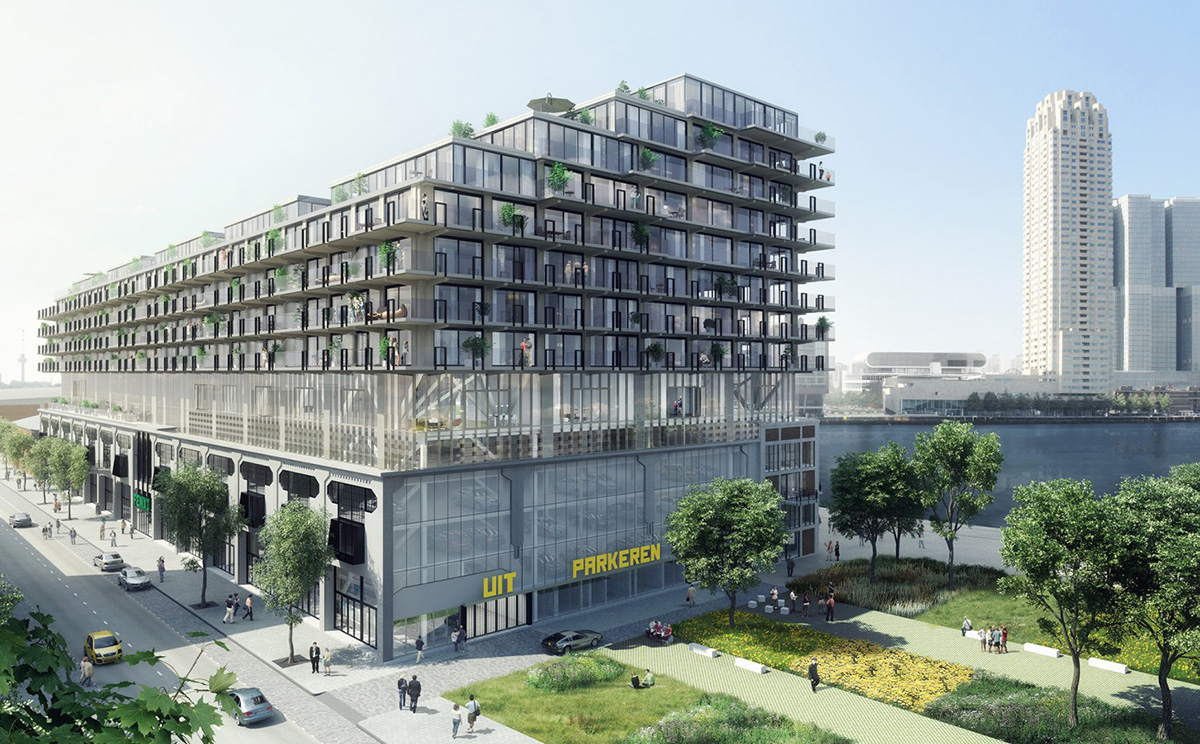

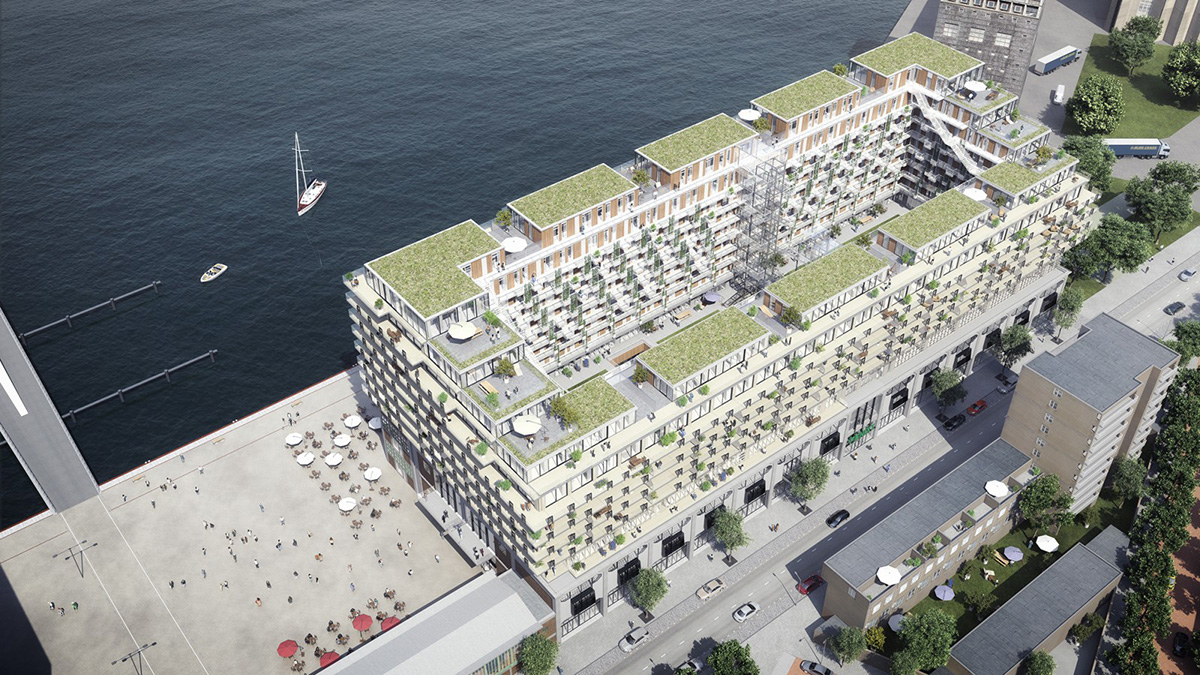

Mei’s proposal adds layers to the volume overlooking the Rijnhaven, where the scale and size of development along the water justifies the height and proportions of the addition. In contrast, a number of layers have been removed from the Veerlaan side so that it harmonises more with the lower scale of buildings in Katendrecht. At the same time, this height difference ensures that the new volume on top enjoys views in two directions, over Rijnhaven on one side and Katendrecht on the other.

Mei Architects and planners redesigns The Fenix I Warehouses in Rotterdam

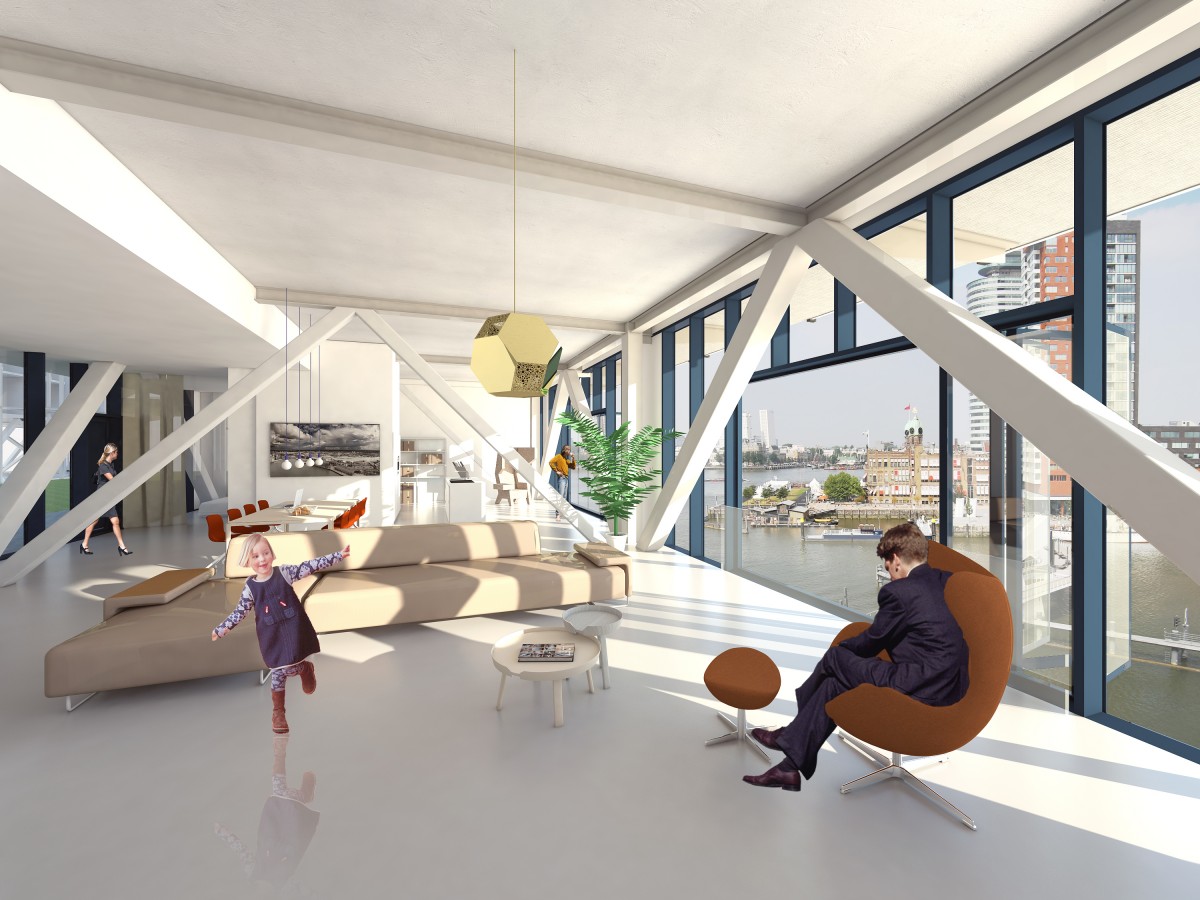

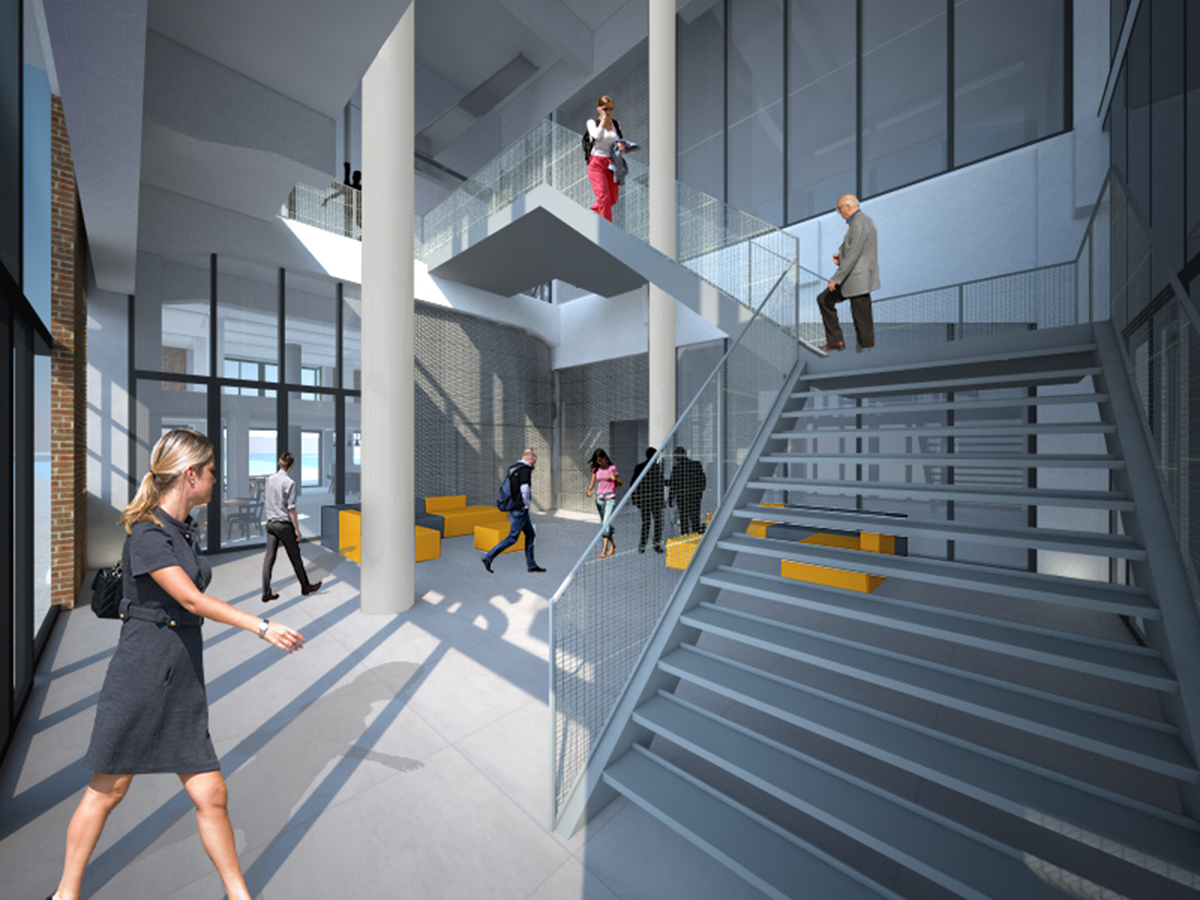

interior of warehouses presents a flexible space

An in-between layer consisting of a gigantic spaceframe structure separates the existing warehouse and new volume above. This middle layer can accommodate either residential or office space. The open portion in this layer offers a magnificent view of the Rijnhaven and the Wilhelminapier. Each loft contains a 2.5-metre-deep outdoor space that extends the full width of the apartment.

Mei Architects and planners redesigns The Fenix I Warehouses in Rotterdam

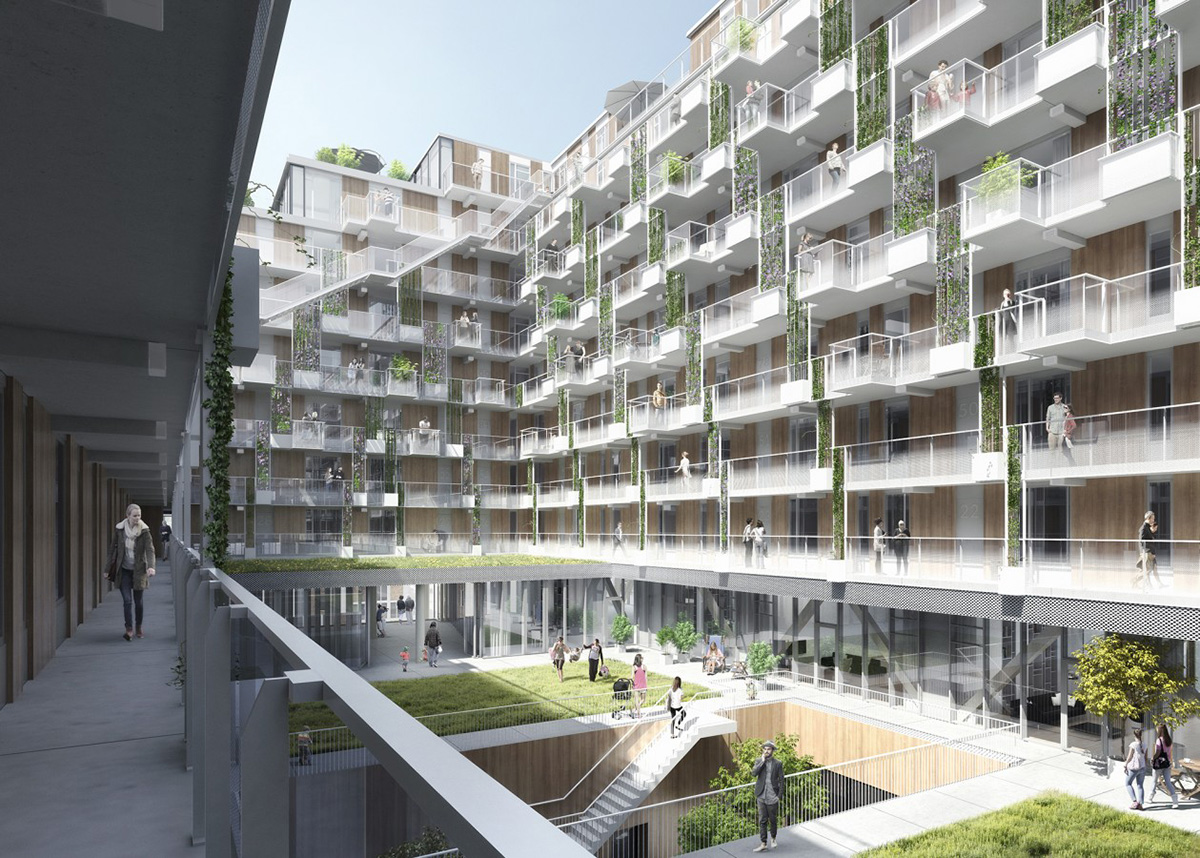

The facade of the volume consists of industrial braces with glazed panels set between them. The repetition of these elements creates an industrial look with a dockland character. The interior of the volume, by contrast, is an oasis of plants and warm materials that extends across the interior deck and connects with the loft apartments.

Mei Architects and planners redesigns The Fenix I Warehouses in Rotterdam

Mei Architects and planners redesigns The Fenix I Warehouses in Rotterdam

Mei Architects and planners redesigns The Fenix I Warehouses in Rotterdam

Mei Architects and planners redesigns The Fenix I Warehouses in Rotterdam

Mei Architects and planners redesigns The Fenix I Warehouses in Rotterdam

Mei Architects and planners redesigns The Fenix I Warehouses in Rotterdam

Mei Architects and planners redesigns The Fenix I Warehouses in Rotterdam

Mei Architects and planners redesigns The Fenix I Warehouses in Rotterdam

Mei Architects and planners redesigns The Fenix I Warehouses in Rotterdam

Mei Architects and planners redesigns The Fenix I Warehouses in Rotterdam

Project Facts

Design: Mei architects and planners

Location: Veerlaan/ Rijnhaven, 3072 ZP, Rotterdam, The Netherlands

Client(s): Heijmans | Proper Stok

Program: ca. 8.500 m2 commercial, cultural & culinary
ca. 9.000 m2 parking
ca. 23.000 m2 loft apartments (180/230)

Team: Robert Winkel , Menno van der Woude , Robert Platje , Michiel van Loon Roy Wijte , Riemer Postma , Kasia Domachowska , Rutger Kuipers , Rob Reintjes , Adriaan Smidt , Danijel Gavranovic , King Chaichana , Johan van Es

Structural engineer: ABT Delft

MEP: Techniplan

Buildings physics: LBP|Sight

Historical research: Suzanne Fischer

Artist Impressions: Mei and WAX

Building costs: €40.000.000,-

Completion: start construction september 2015

> via Mei Architects and Planners
