Dietmar Feichtinger Architects completed Headquarter Lille Métropole Habitat in Tourcoing, France

France Architecture News - Nov 14, 2015 - 15:16   6108 views

Dietmar Feichtinger Architects completed Headquarter Lille Métropole Habitat in Tourcoing, France

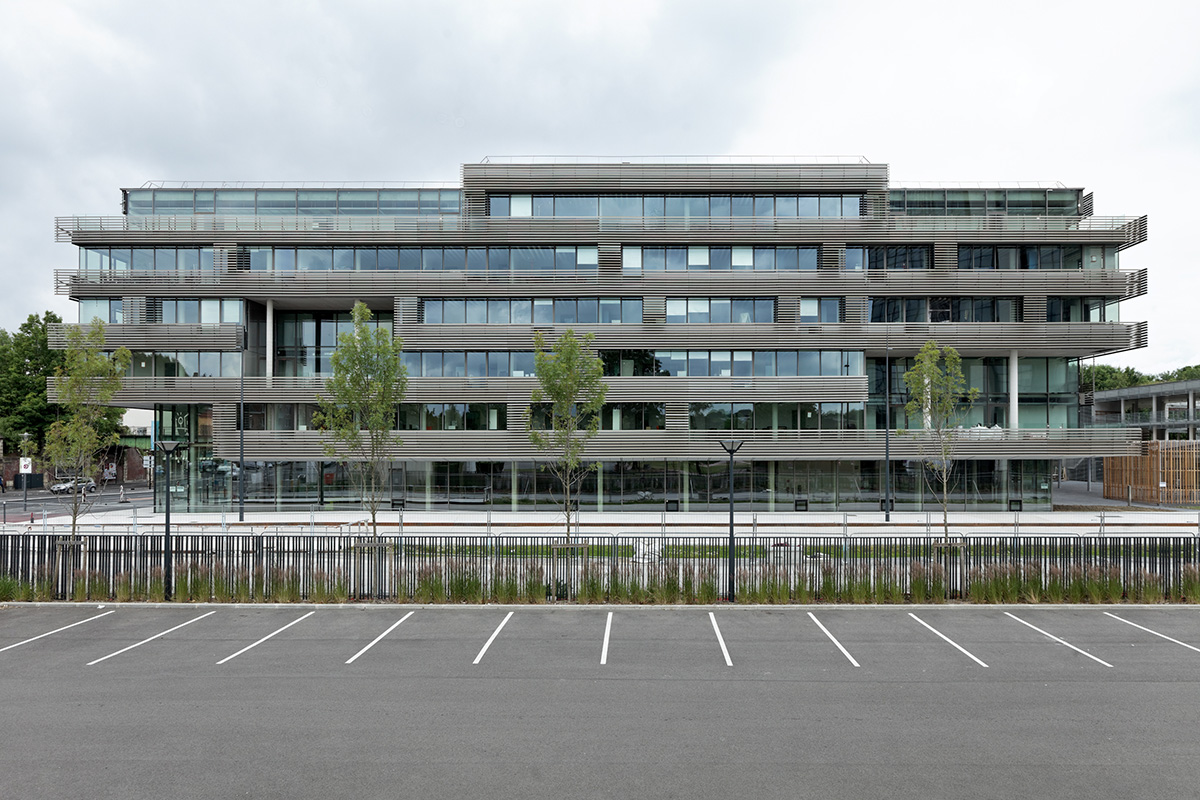

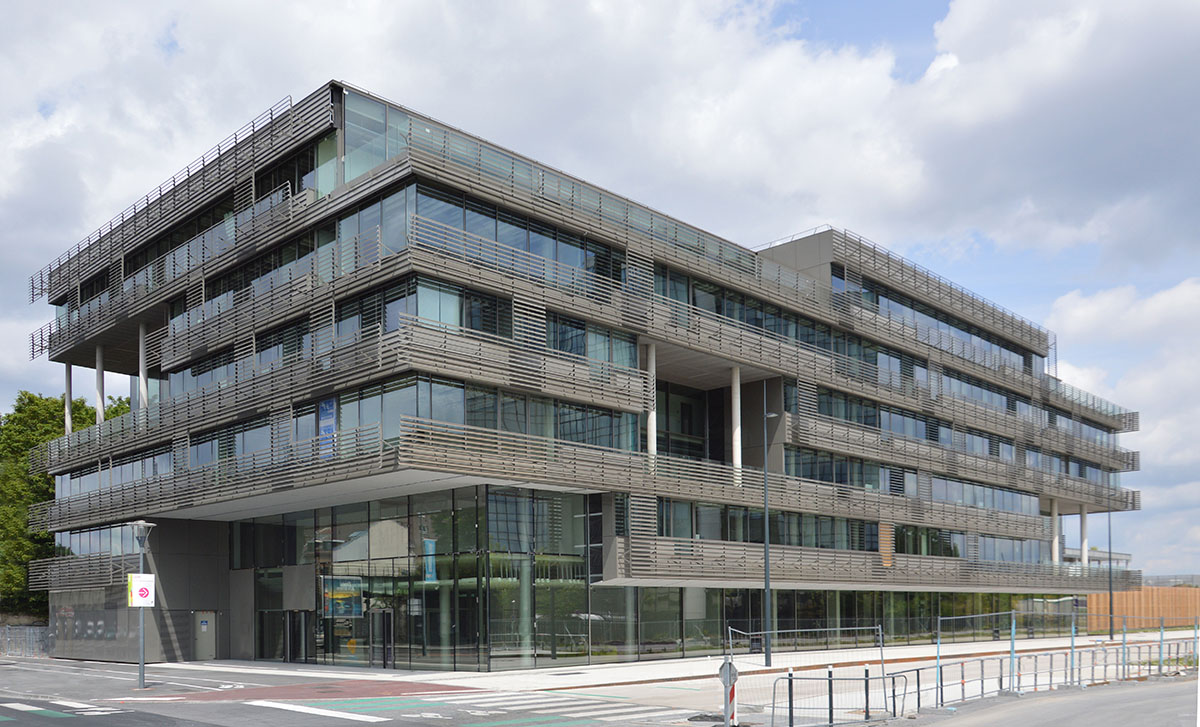

facade view from the road

all images © Dietmar Feichtinger Architekts

France and Austria- based design studio Dietmar Feichtinger Architekts completed its new building ''Headquarter Lille Métropole Habitat'' in Tourcoing, France-The new headquarters of the organization for social housing in the metropolitan area of Lille, LMH, is located on the boulevard Gambetta in Tourcoing, a major road connecting Lille and its surrounding communities. A new road perpendicular to the boulevard, the “Rue de l’Union”, is the central axes of a new urban development area situated on a former industrial site for textile industries.

The site is oriented towards the road crossing. It is the first building of the new district forming its entrance confronting the existing city. A large park integrating an existing chan- nel and a high environmental ambition are key issues for the quality of the new neighborhood. Accessibility by public transport is assured by the metro and its station nearby.

Dietmar Feichtinger Architects completed Headquarter Lille Métropole Habitat in Tourcoing, France

The existing urban context is relatively poor including a hotel complex built in the seventies without significant architectural quality.

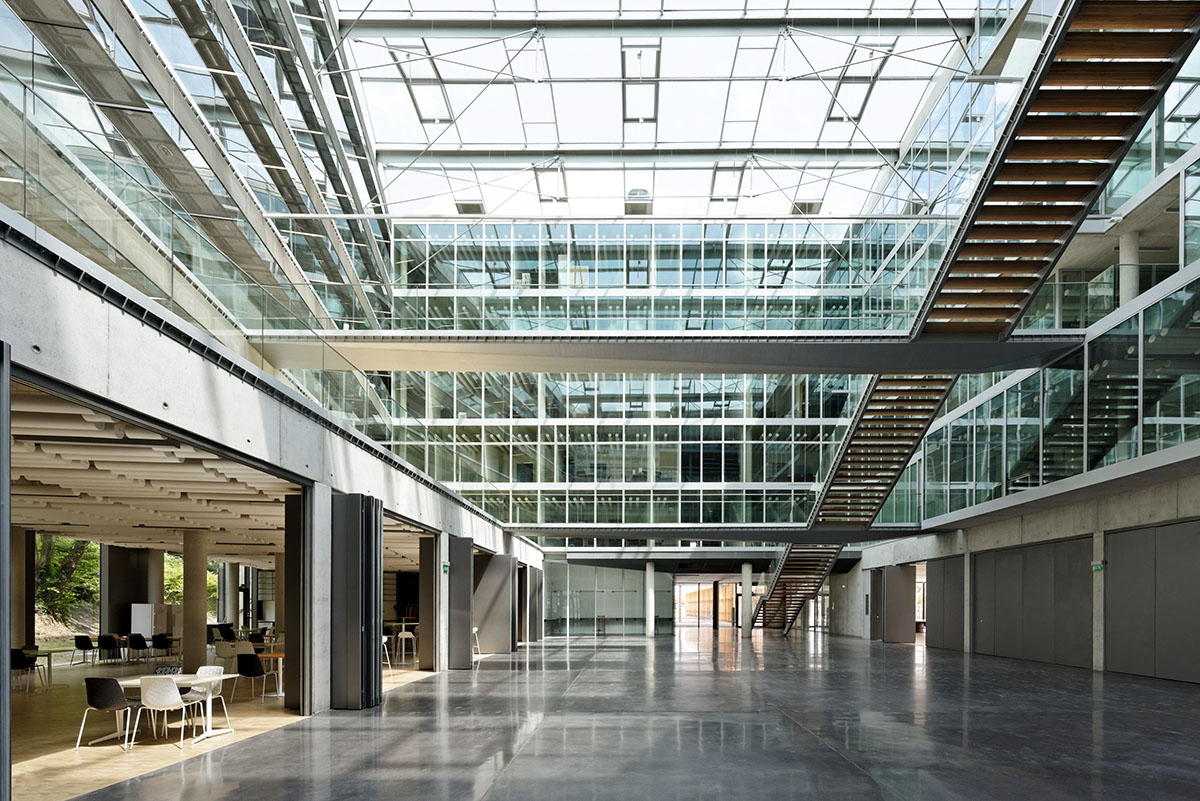

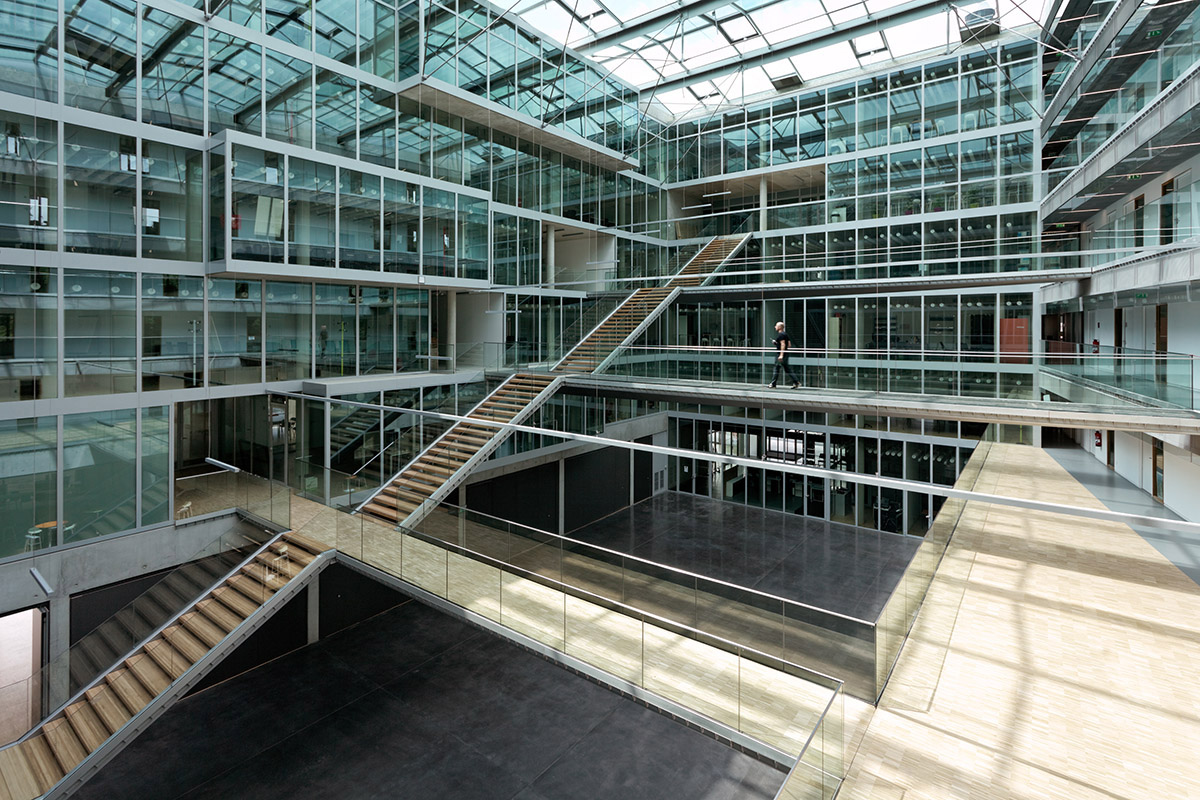

The sudio's design approach is to emphasize the new building for LMH affirms, its presence in the urban context by its dimension, the new architectural expression searching for lightness and transparency avoiding monumentality. Large outdoor terraces sculpture the volume. An open central space forms the core of the building. It is an inner court protected by a glass roof including a monumen- tal stair and steel bridges on each level as the main vertical circulation in the building.

Dietmar Feichtinger Architects completed Headquarter Lille Métropole Habitat in Tourcoing, France

Its generous dimension is unexpected. It provides the space for informal meetings, exhibitions and organized events.

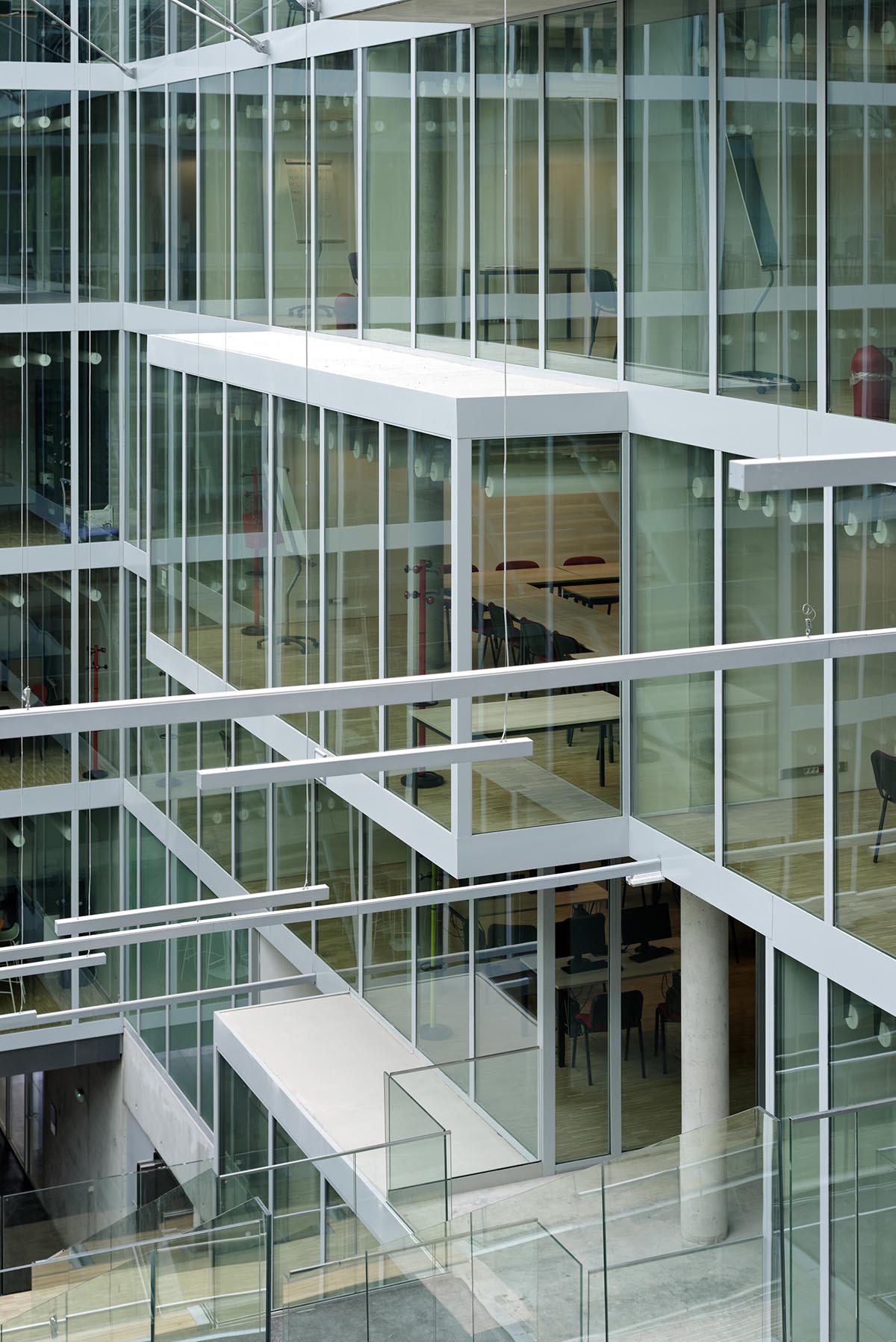

The restaurant area in the north and the meeting area for seminaries in the south complete the central space. Mobile divisions allow dividing the southern part in several working areas. The offices are arranged around the atrium on five floors. Meeting rooms and open recreation areas animate the inner façade providing bow windows into the court. Large wooden terraces are provided on each level. These outdoor areas can be used for meetings, spontaneous and informal, as well as for moments of rest and recreation.

Dietmar Feichtinger Architects completed Headquarter Lille Métropole Habitat in Tourcoing, France

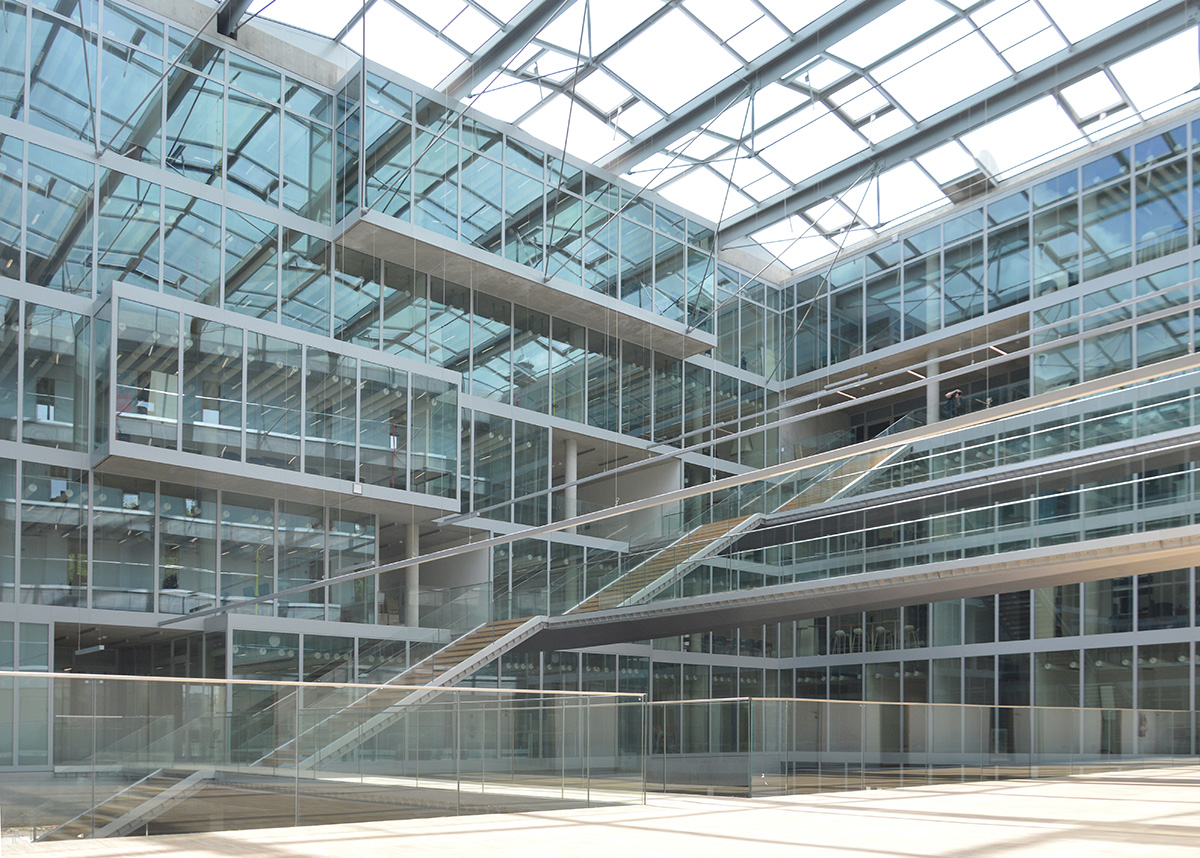

interior view is composed of glass and vertical structural system -the untreated concrete slabs are used to store energy by using its mass.

Integrated water pipes close to the surface allow active change of temperature and provoke refreshing or heating according to the season by radiation. All offices can be naturally ventilated by a horizontally opening window. This type of opening allows free cooling at night assuring protection from intrusion.

Dietmar Feichtinger Architects completed Headquarter Lille Métropole Habitat in Tourcoing, France

Natural light is privileged for all areas.

Sun protection is provided on the south façade by horizontal aluminum elements situated above the windows allowing free sight and protection simultaneously. The ventilation ducts, electrical installations are part of the design. These elements are directly accessible or covered by a metal mesh. The main materials are concrete and steel for the primary structure, wood and glass.

Dietmar Feichtinger Architects completed Headquarter Lille Métropole Habitat in Tourcoing, France

A multistory car park in the east of the building is designed as the future extension of the building.

Its floor height allows the transformation into offices. The central circular ramp is made of steel and can easily be dismounted to offer a central space, an atrium similar to the main building. A storage building for bicycles along the Rue de l’Union completes the complex. It forms a filter to the delivery area by its wooden vertical cladding.

Dietmar Feichtinger Architects completed Headquarter Lille Métropole Habitat in Tourcoing, France

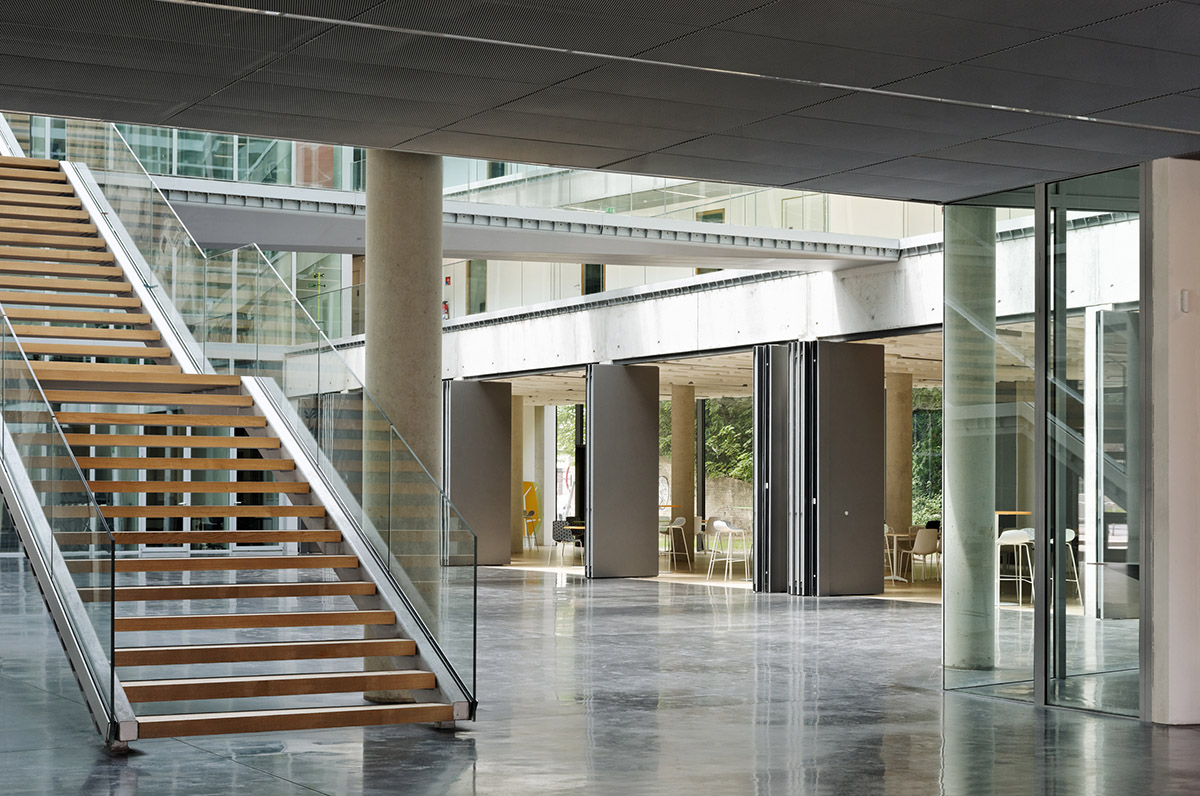

view from ground floor

Dietmar Feichtinger Architects completed Headquarter Lille Métropole Habitat in Tourcoing, France

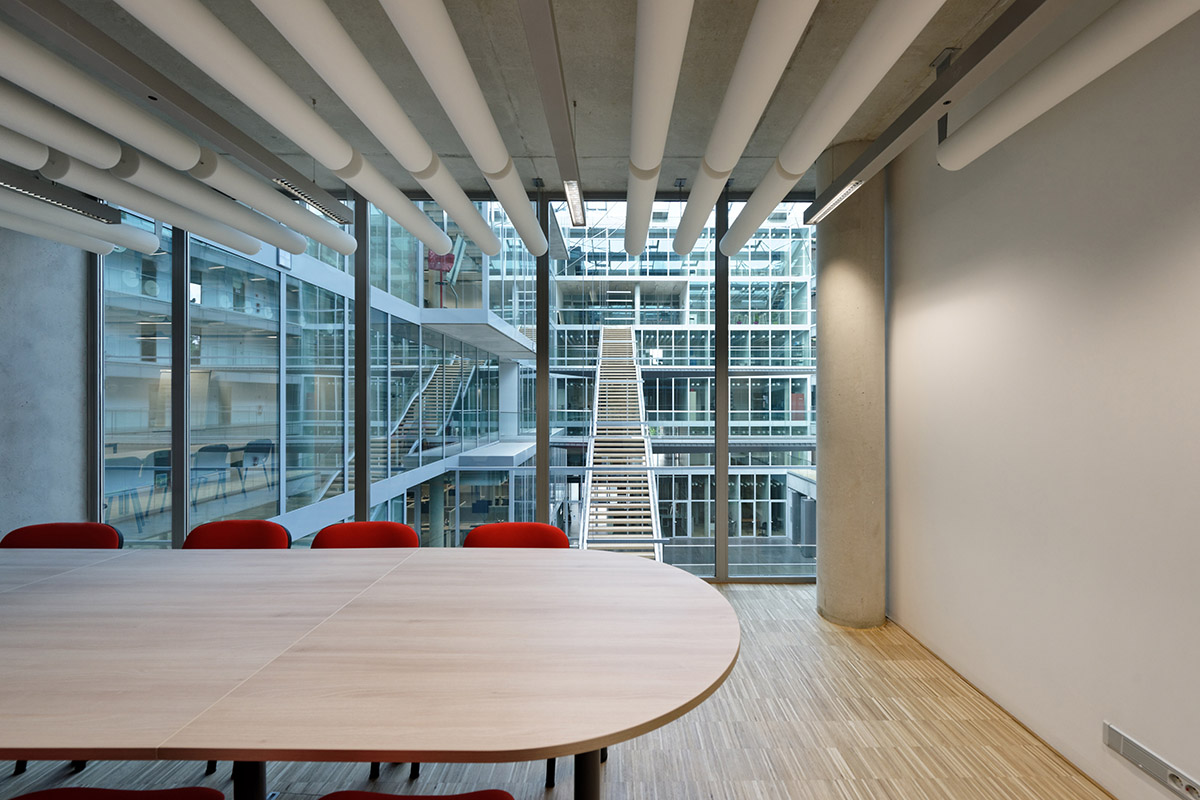

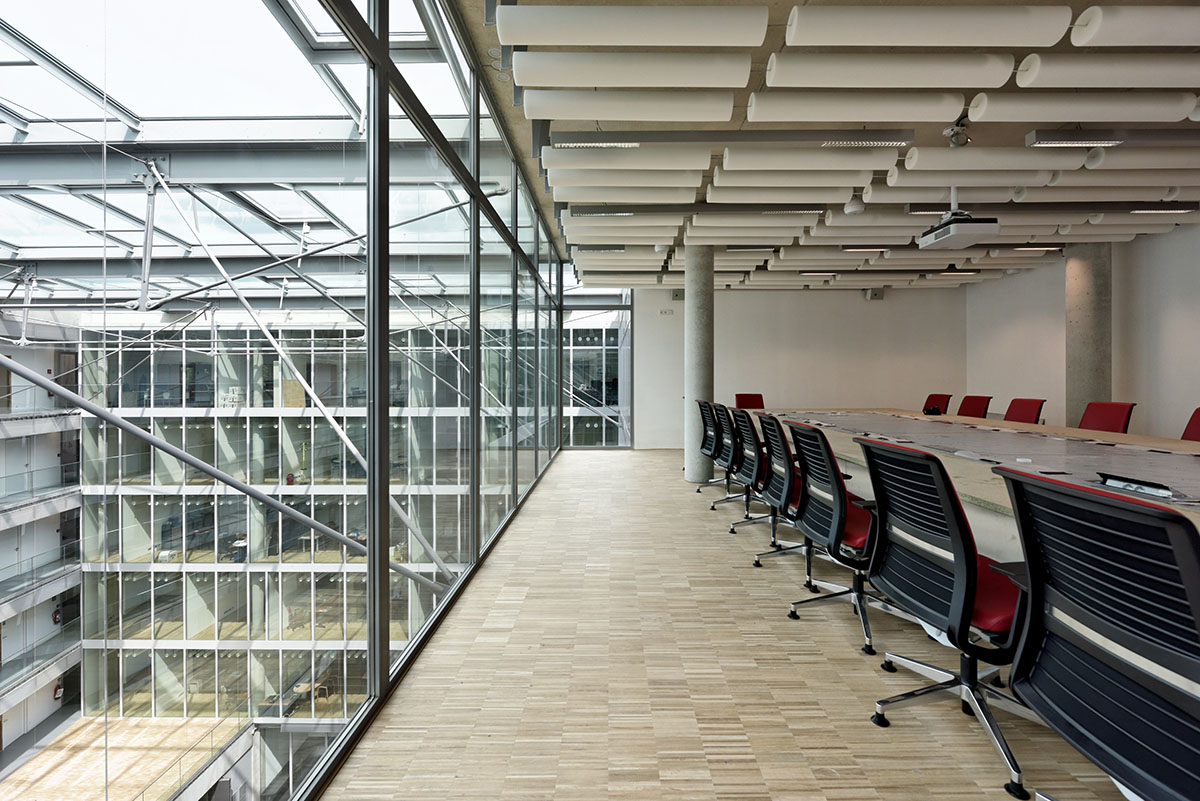

view form offices that take full light

Dietmar Feichtinger Architects completed Headquarter Lille Métropole Habitat in Tourcoing, France

Dietmar Feichtinger Architects completed Headquarter Lille Métropole Habitat in Tourcoing, France

Dietmar Feichtinger Architects completed Headquarter Lille Métropole Habitat in Tourcoing, France

site plan

Dietmar Feichtinger Architects completed Headquarter Lille Métropole Habitat in Tourcoing, France

1st floor plan

Dietmar Feichtinger Architects completed Headquarter Lille Métropole Habitat in Tourcoing, France

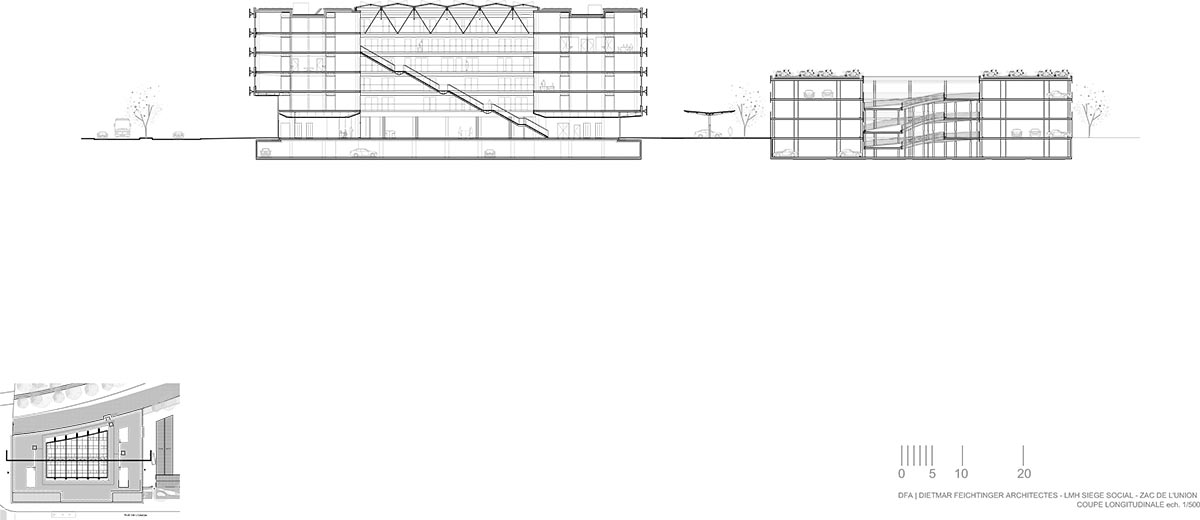

section

Project Facts

Client: OPH Lille Métropole Habitat

Location: 425, boulevard Gambetta, Tourcoing

Program: 89 working stations and 181 offices, 15 meeting rooms + 1 room for the board of administration 1 recreation and rest room on each floor, car park that can be transformed into office building.

Architect: Dietmar Feichtinger Architects

Engineering: Grontmij | Isateg Itac, Preventec Elyfec, FP Collin

Surface: Office building: 10 910 m2 -Car park: 9 500 m2

Site Area:  Surface terrain 8 260 m²

Footbridges: Width = 1,40 m, Length =15,46 m 1st floor, 17,75 m 2nd floor et 17,85 m 3rd floor

Certifications HEQ: Certivea NF Bâtiments Tertiaires

Planning: Competition: 12/2010, start plannning: 03/2011, start construction: 11/2012, mise in service: 05/2015

Cost: 24 600 000 €
