NEXT Architects’ Bat Bridge is Ready For Habitation

Netherlands Architecture News - Oct 26, 2015 - 22:05   5091 views

NEXT Architects’ Bat Bridge is Ready For Habitation

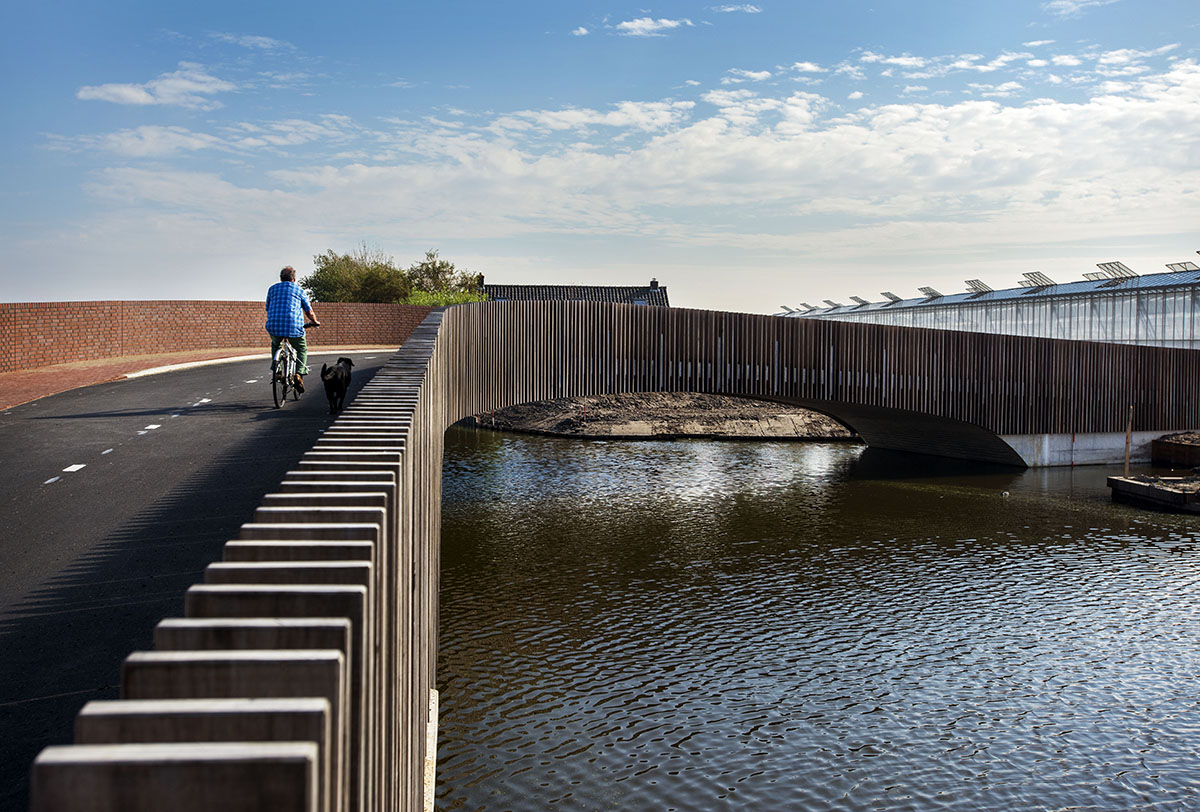

image © Raymond Rutting, courtesy of NEXT Architects

NEXT Architects' The Vlotwateringbrug or popularly ‘batbridge’ has opened for the public in the beginning of October. The bridge has three specific components that provide roost for several bat species. At the north side the abutment functions as a winter stay. The deck and the brick balustrade accommodate stays for bats during the summer. The bridge design is intended to constitute the ideal habitat for various species of bats, aiming to grow a large colony. “A textbook example of how a functional object can at the same time serve nature,” says bat-expert Marcel Schillemans from the Mammal Society.

NEXT Architects’ Bat Bridge is Ready For Habitation

The project is located along a flight route of several bat species. image © NEXT Architects

To optimize the suitability of the bridge for bats, the structure is made out of concrete. The mass of the concrete provides a stable and pleasant climate. The underside of the bridge is provided with entrance slots. The openings have a rough finish for grip. The slots are part of a pattern of grooves in the concrete arch. Clever use is made of the structural space in the cross section to implement the roosts.

NEXT Architects’ Bat Bridge is Ready For Habitation

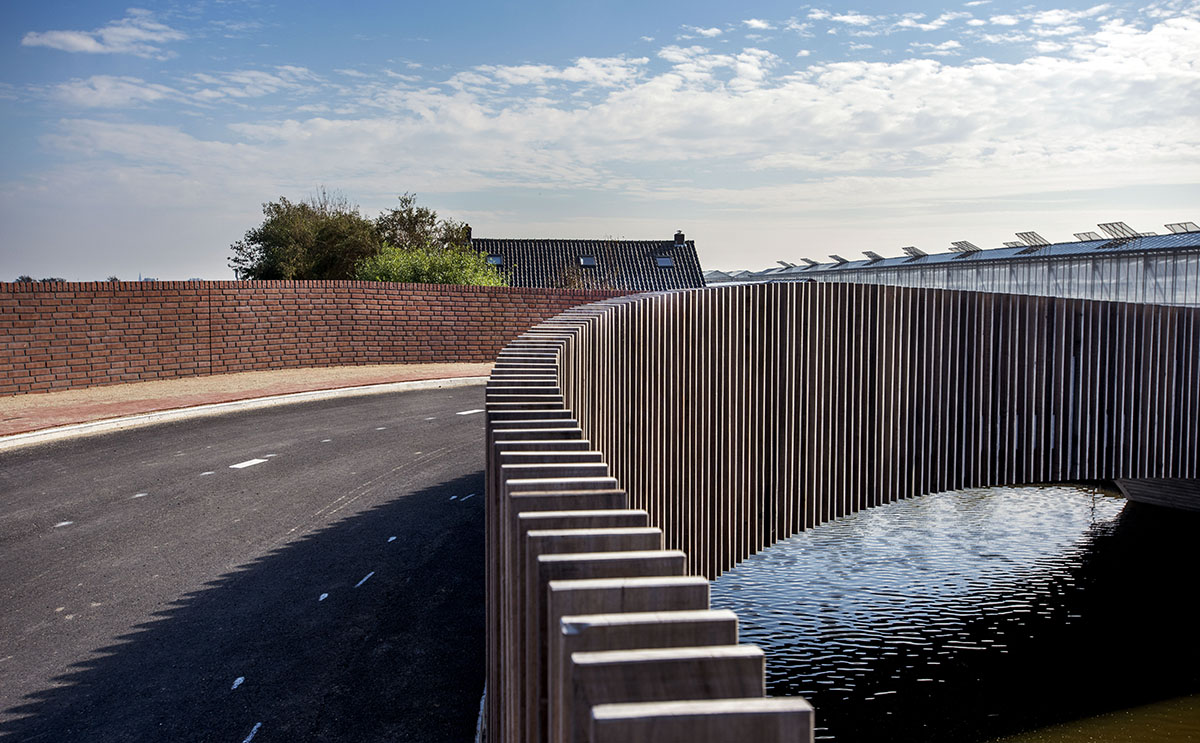

Crossing the Vlotwatering the new bridge winds between two existing parcels and marks the entrance of the Poelzone. image © Raymond Rutting, courtesy of NEXT Architects

At the highest point, the bridge makes a turn for a clear view of the area. The wooden lamellas provide openness to the natural banks along the water. With a length of 25 meters the concrete arch spans the entire Vlotwatering. The S-shaped deck is supported with a pressure arc that slants under the bridge.

NEXT Architects’ Bat Bridge is Ready For Habitation

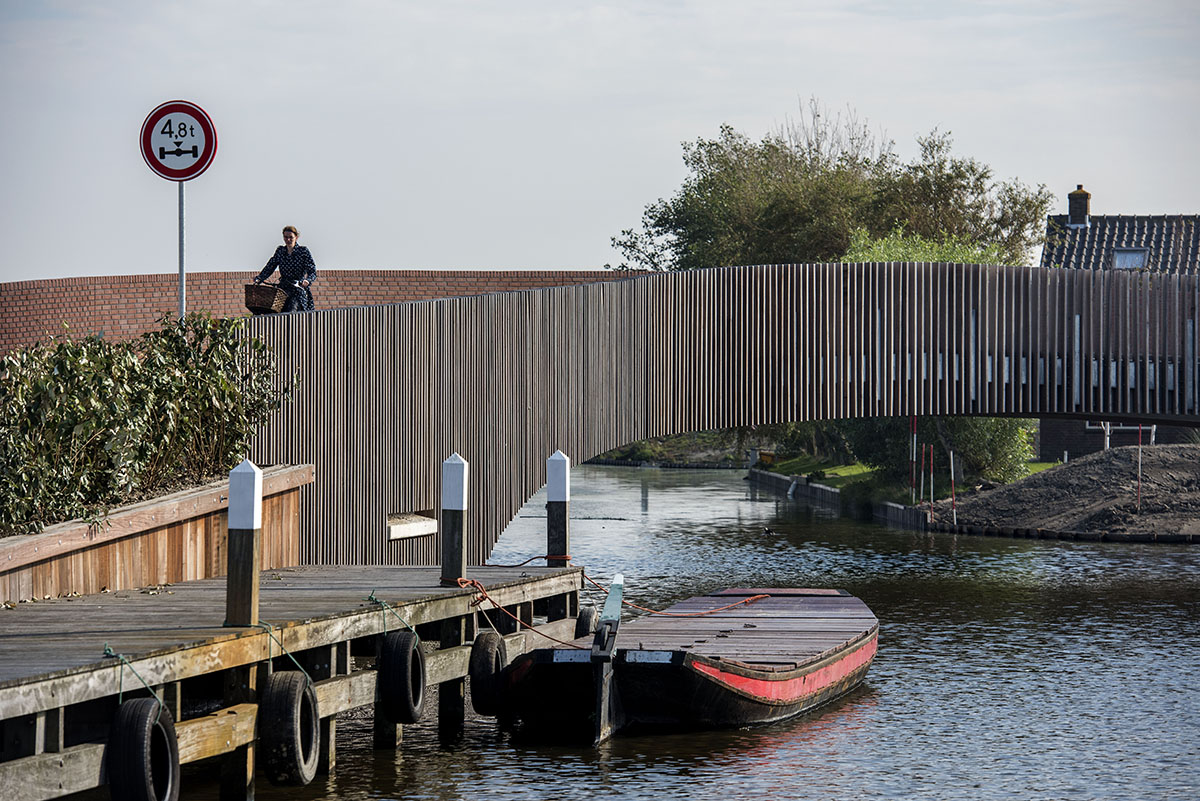

The bat bridge becomes part of the Poelzone, an elongated area in the Westland between the existing centres of ' s- Gravenzande, Naaldwijk and Monster. image © Raymond Rutting, courtesy of NEXT Architects

Along the waterway a new green recreational zone with natural banks and spawn sites for fish will be realized. The landscape design by LOLA Landscape is made to strengthen the existing green and ecological connections in which natural and recreational values complement each other.

NEXT Architects’ Bat Bridge is Ready For Habitation

image © Raymond Rutting, courtesy of NEXT Architects

NEXT Architects’ Bat Bridge is Ready For Habitation

detail from the bridge. image © NEXT Architects

NEXT Architects’ Bat Bridge is Ready For Habitation

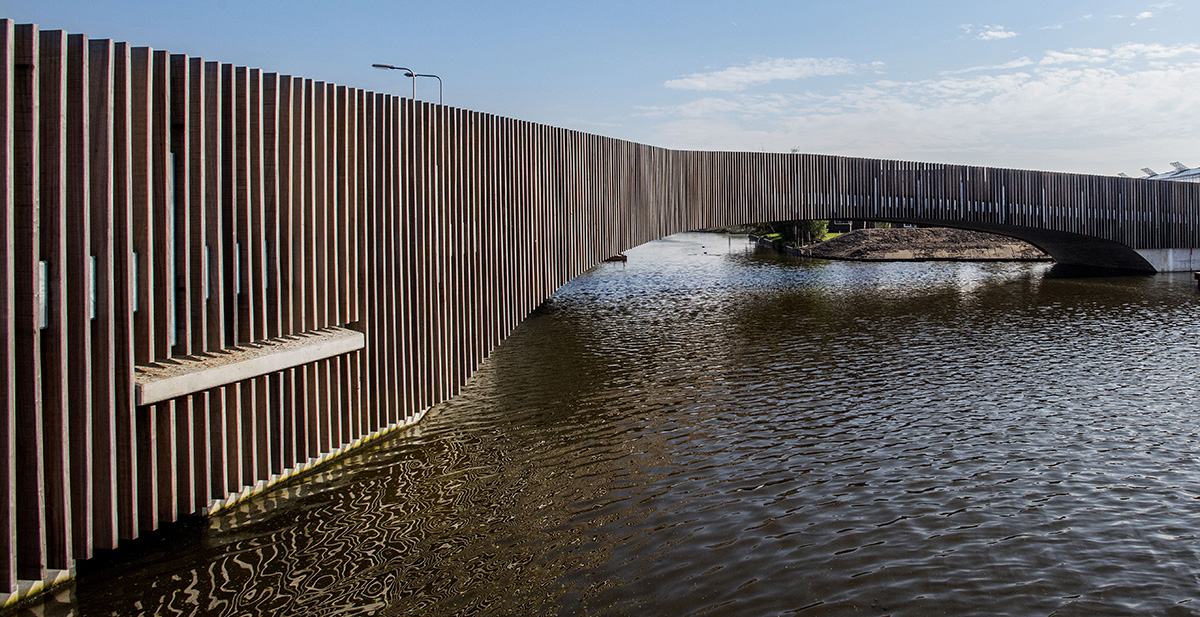

the span of the bridge is 25 meters. image © Raymond Rutting, courtesy of NEXT Architects

NEXT Architects’ Bat Bridge is Ready For Habitation

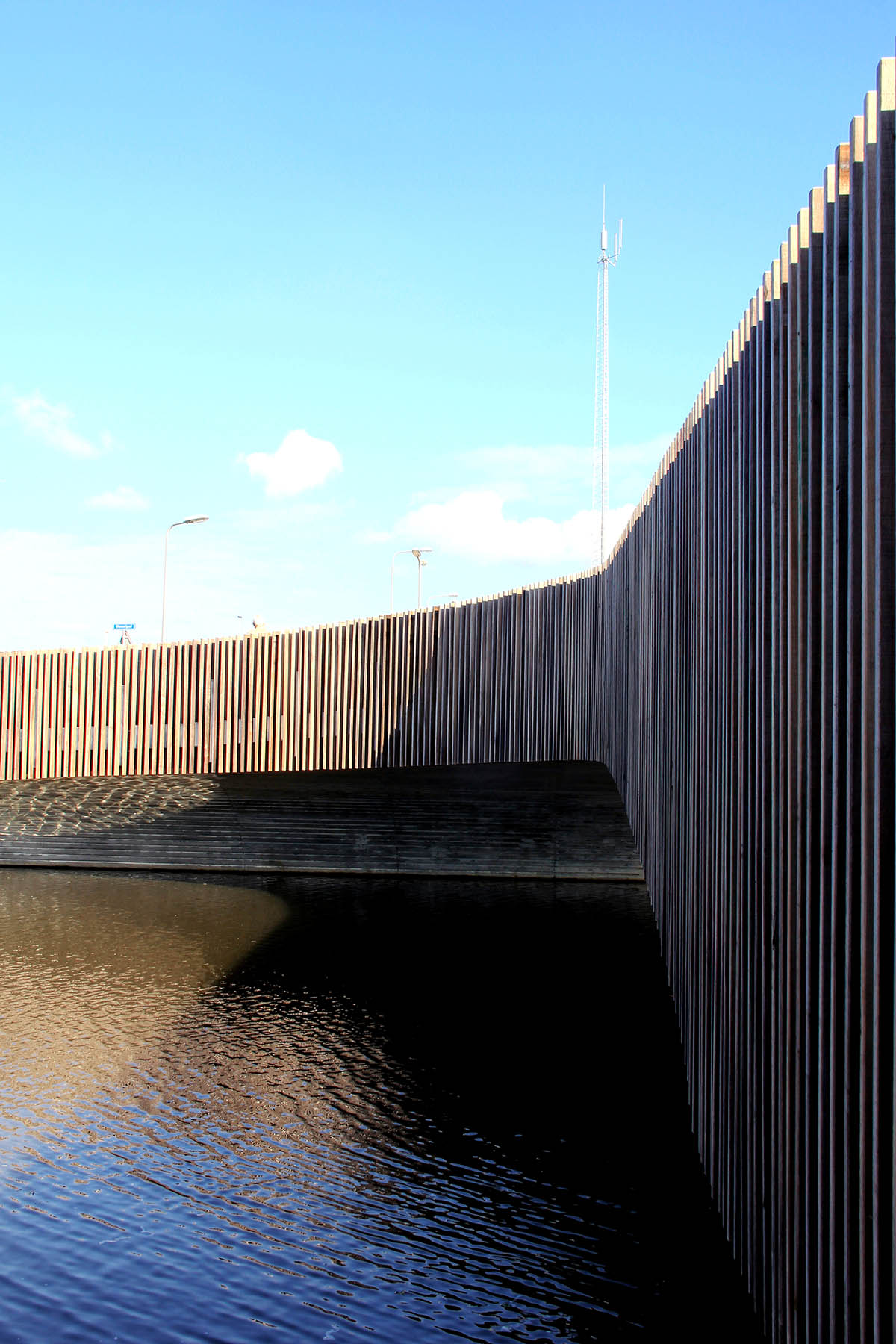

view from bottom of the bridge. image © Raymond Rutting, courtesy of NEXT Architects

NEXT Architects’ Bat Bridge is Ready For Habitation

image © NEXT Architects

NEXT Architects’ Bat Bridge is Ready For Habitation

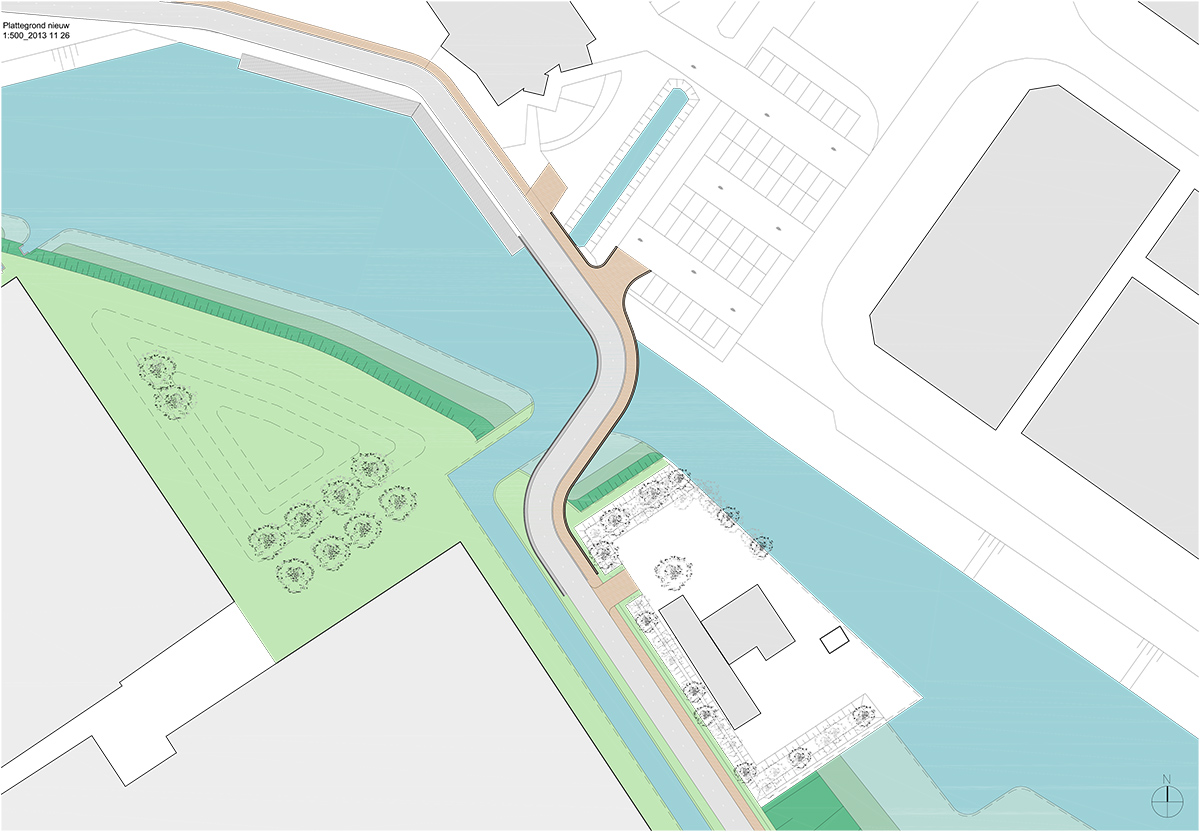

site plan of the bridge. image © NEXT Architects

NEXT Architects’ Bat Bridge is Ready For Habitation

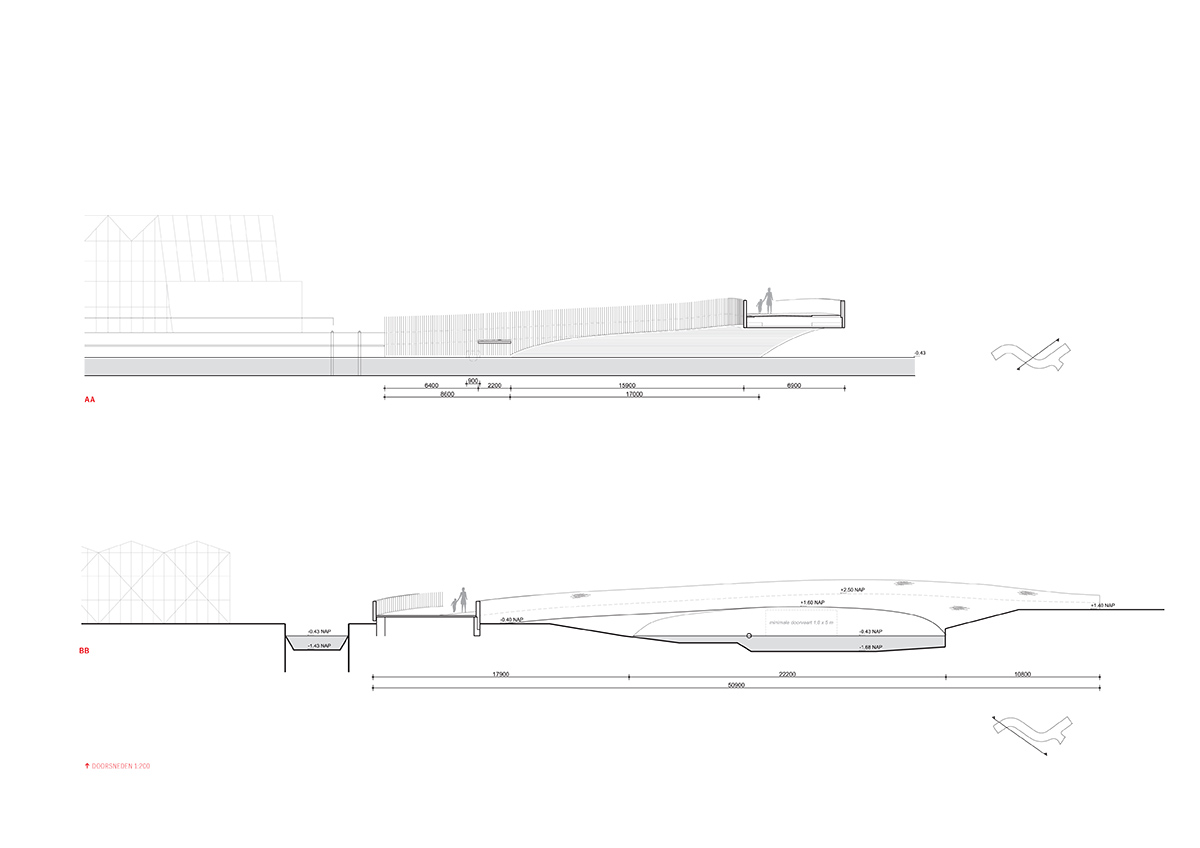

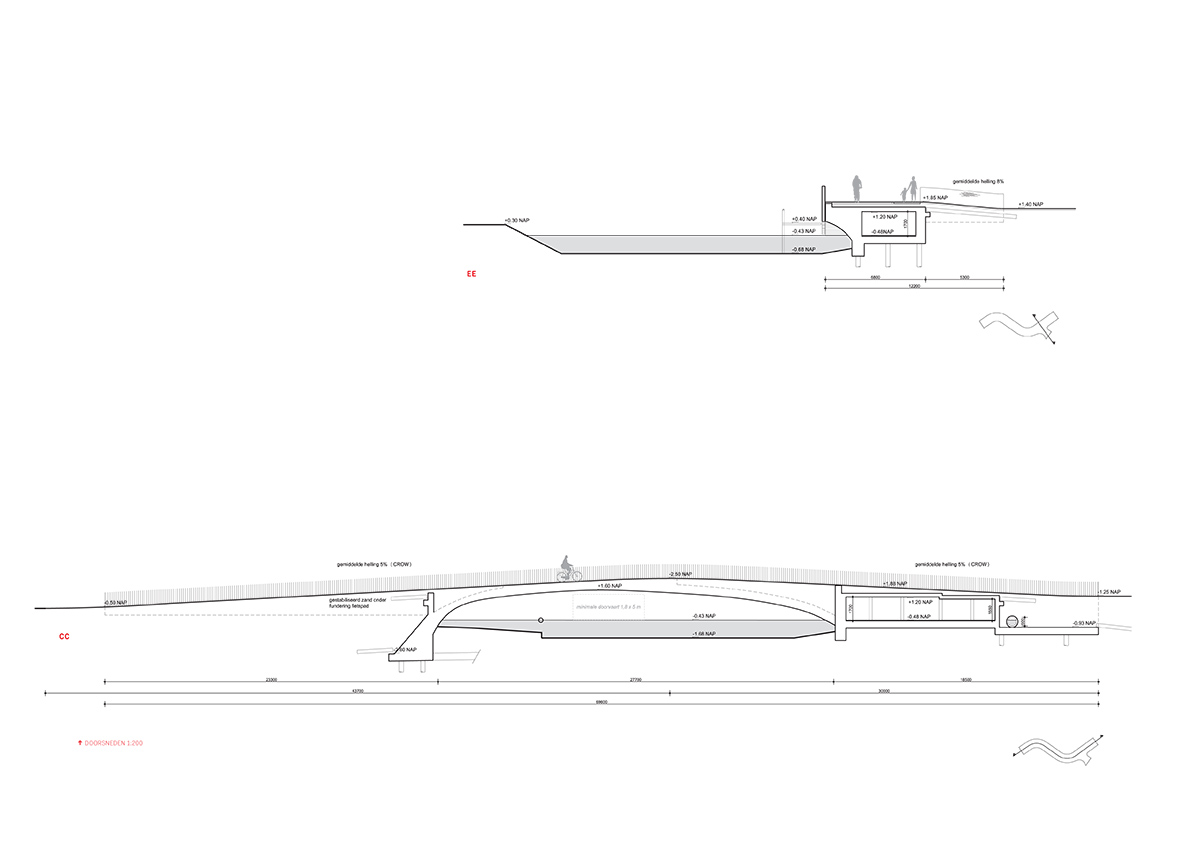

section-1. image © NEXT Architects

NEXT Architects’ Bat Bridge is Ready For Habitation

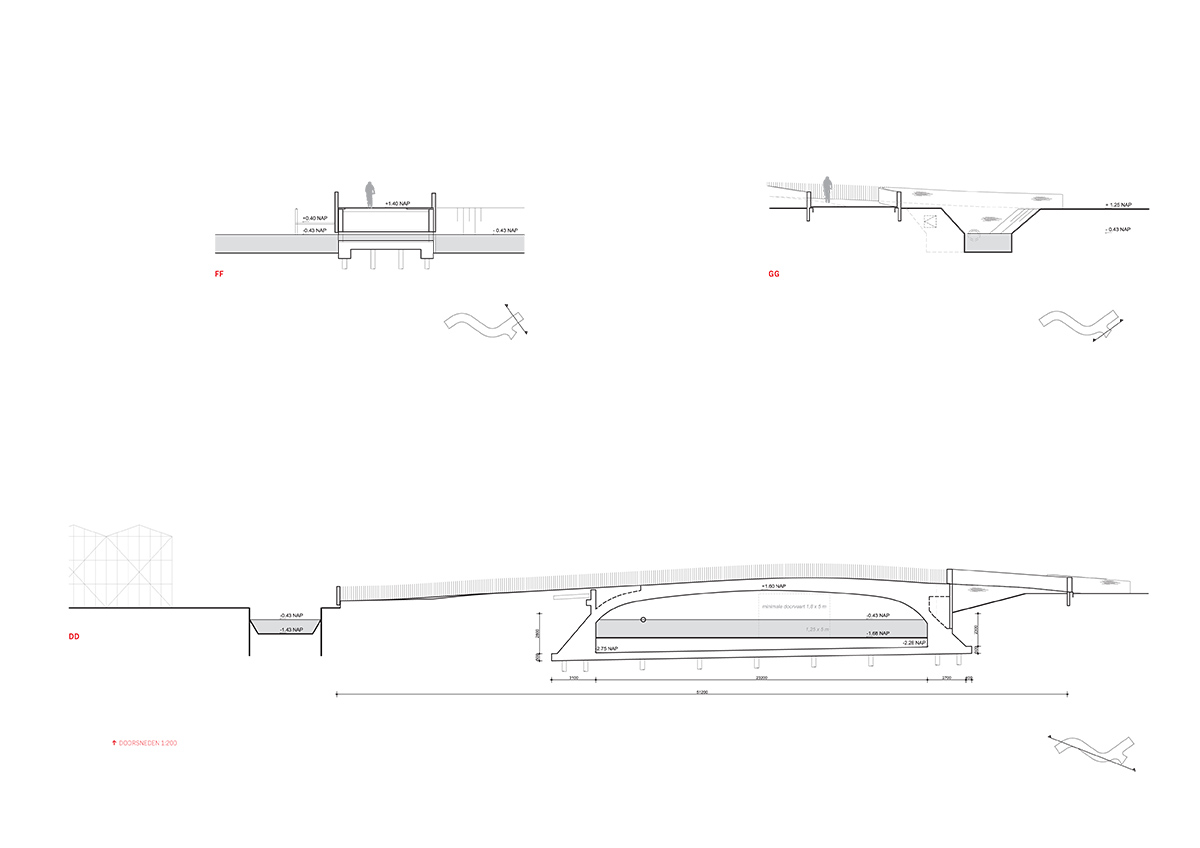

section-2. image © NEXT Architects

NEXT Architects’ Bat Bridge is Ready For Habitation

section-3. image © NEXT Architects

NEXT Architects’ Bat Bridge is Ready For Habitation

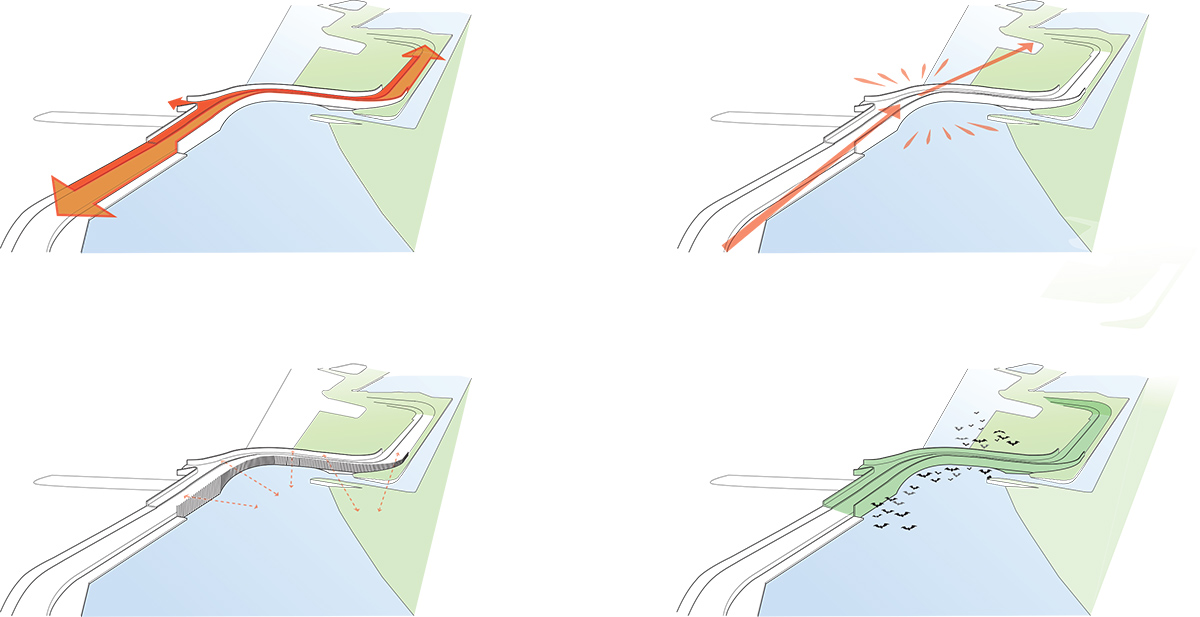

schemes. image © NEXT Architects

Project Facts

Project: Vlotwateringbrug

Type / Program / Purpose: Bridge

Location: Monster,  The Netherlands

Span: 25 mtr

Cost / Value: € 700.000

Preliminary design: Jan 2014

Final design: Mar 2014

Start building: Dec 2014

Completion: Oct 2015

Client: Municipality of Wateringen

Architect / designer: NEXT Architects

Contact person: Ir. B. Reuser

Advisor(s)

Advisor construction: Pieters Bouwtechniek Haarlem (Frank Meijer)

Advisor cost: Laan Bouwkostenadvies (Theo Laan)

Advisor ecology: Zoogdiervereniging (Herman Limpens)

Contractor(s): Kroes aannemingsbedrijf B.V.

Team: Bart Reuser, Marijn Schenk, Michel Schreinemachers, Jurriaan Hillerström, Sylvia Hendriks, Luuc Sonke, Anne Hilgers, Anna Korzeniowska
